ZOOM TKL DYNA

Meletrix

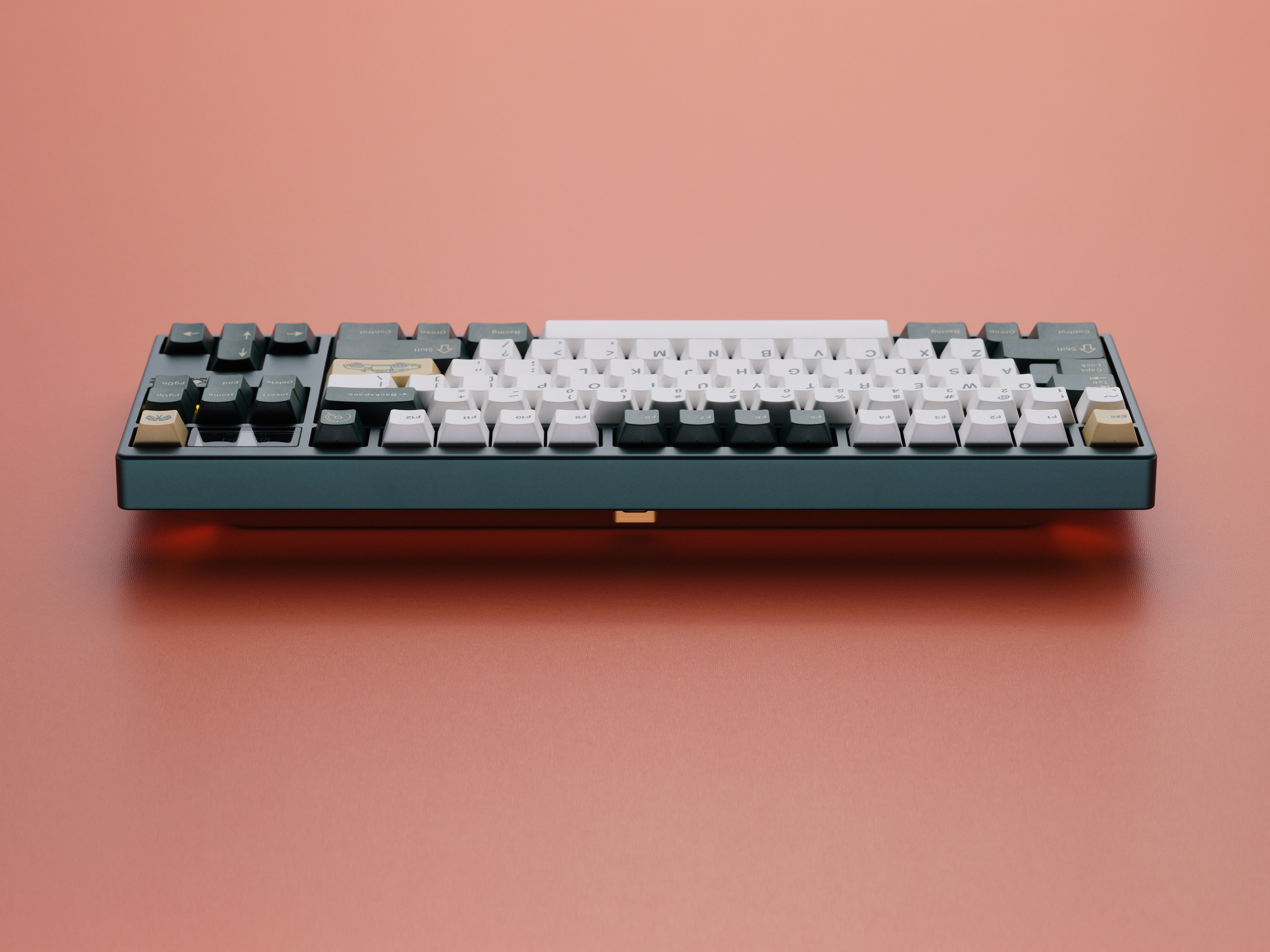

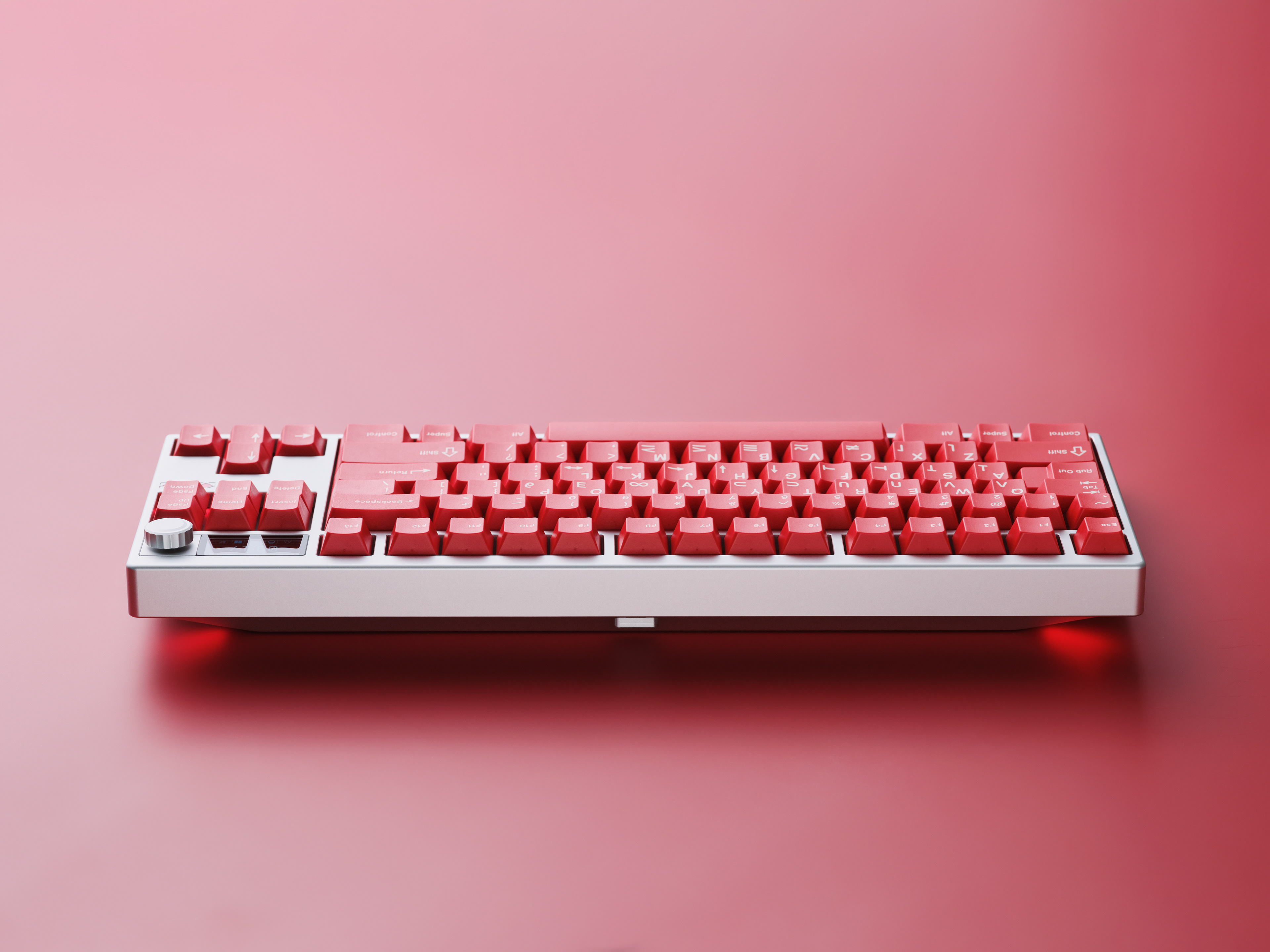

Front-Rear Design Harmony

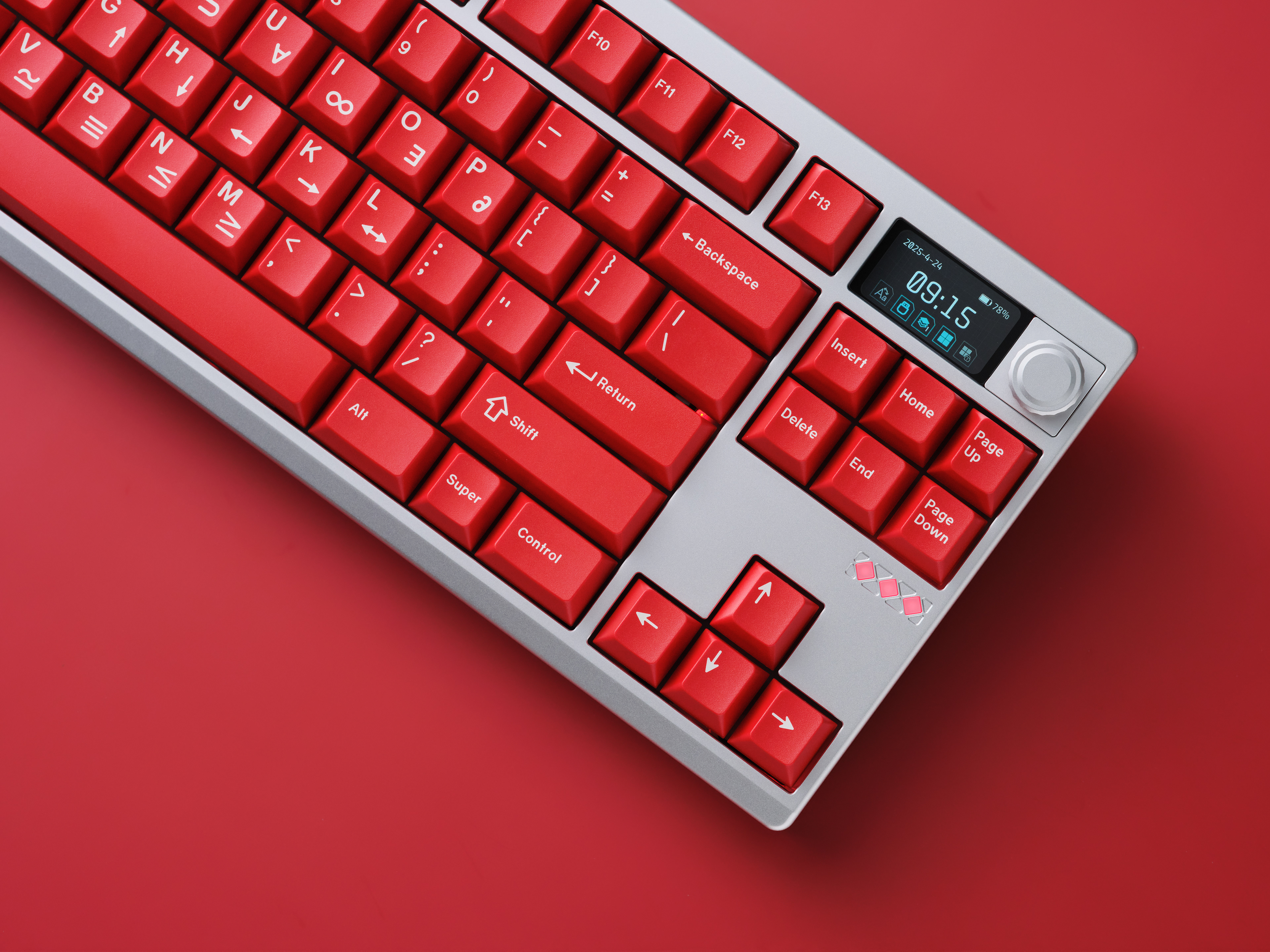

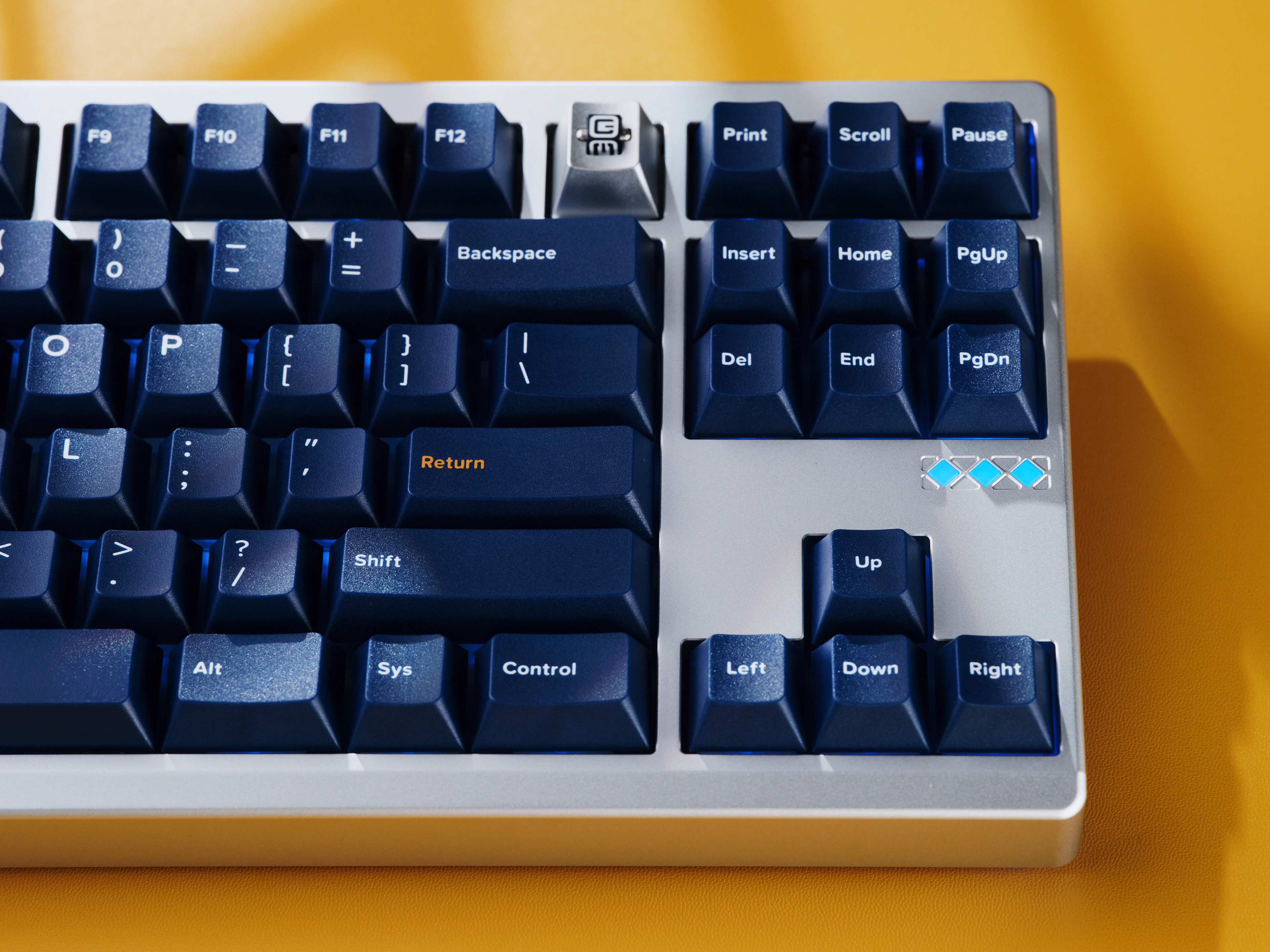

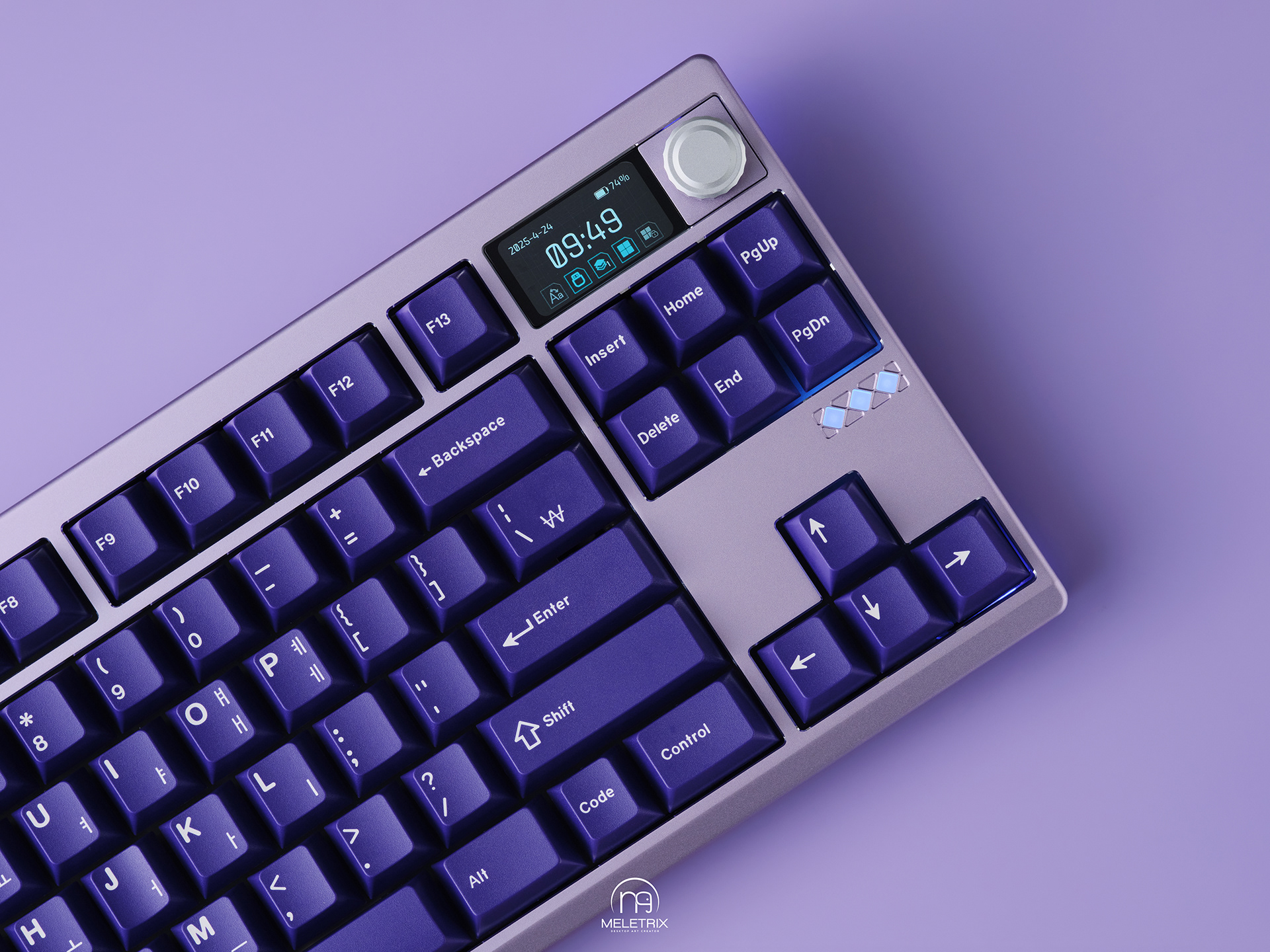

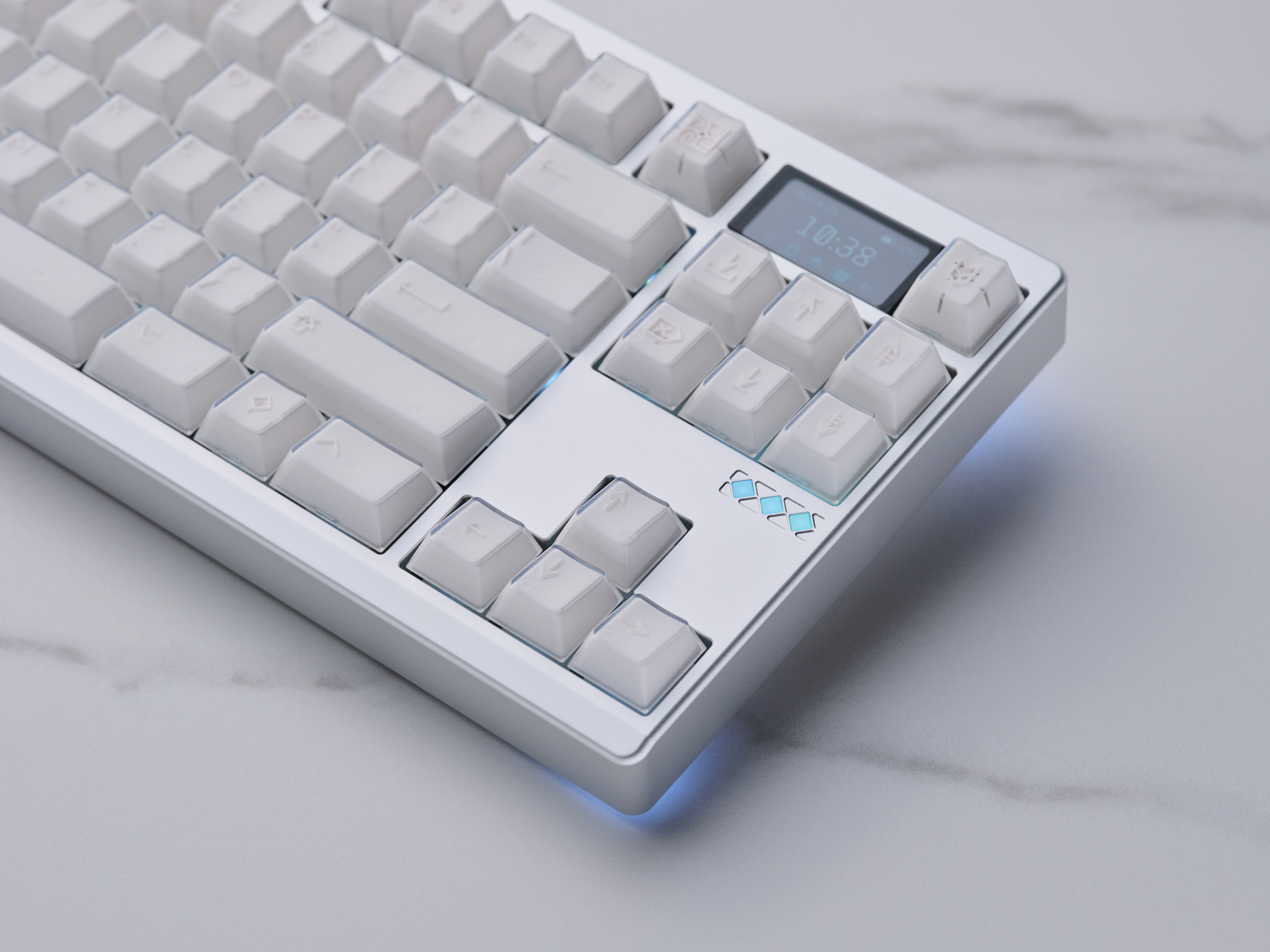

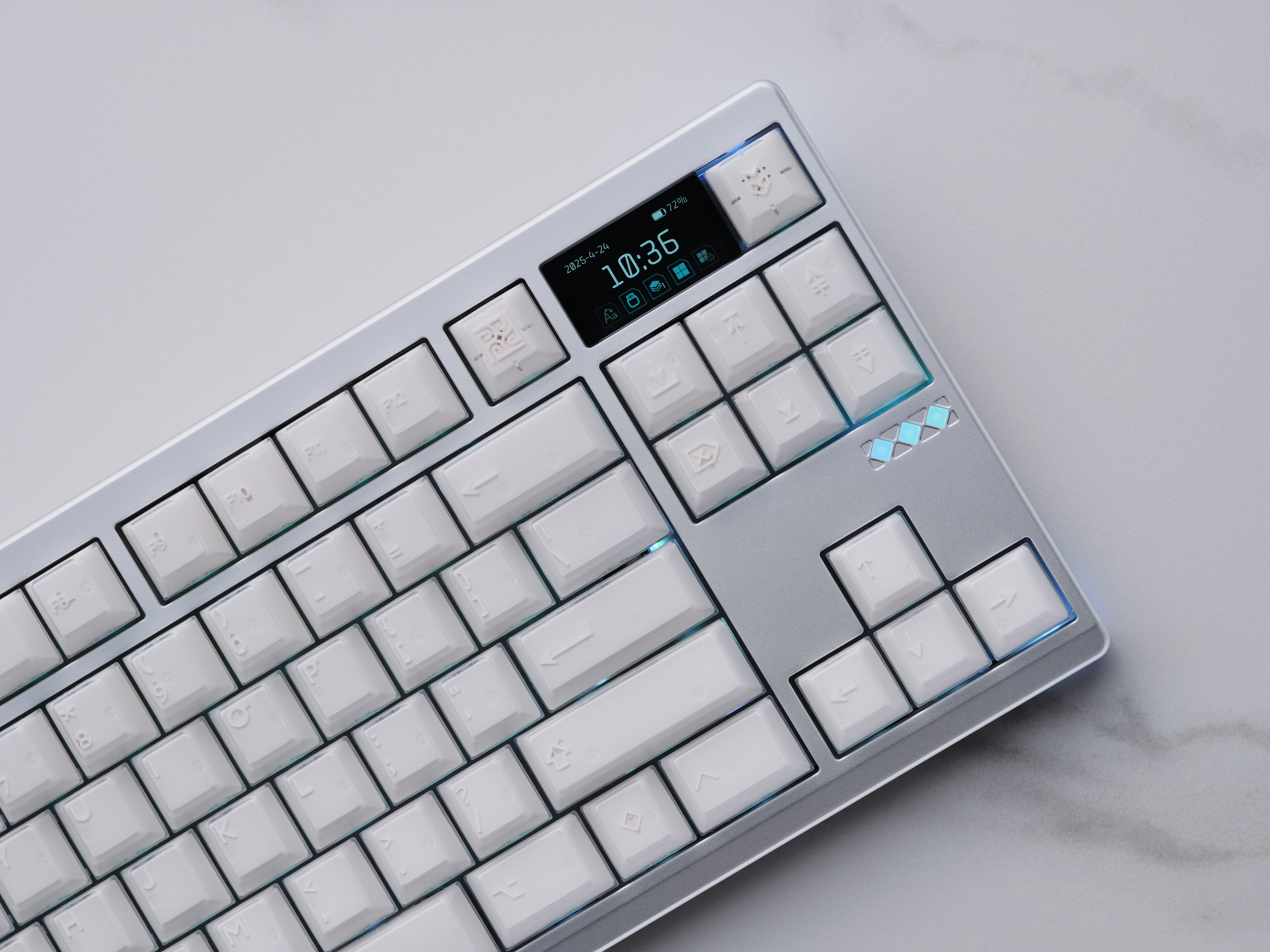

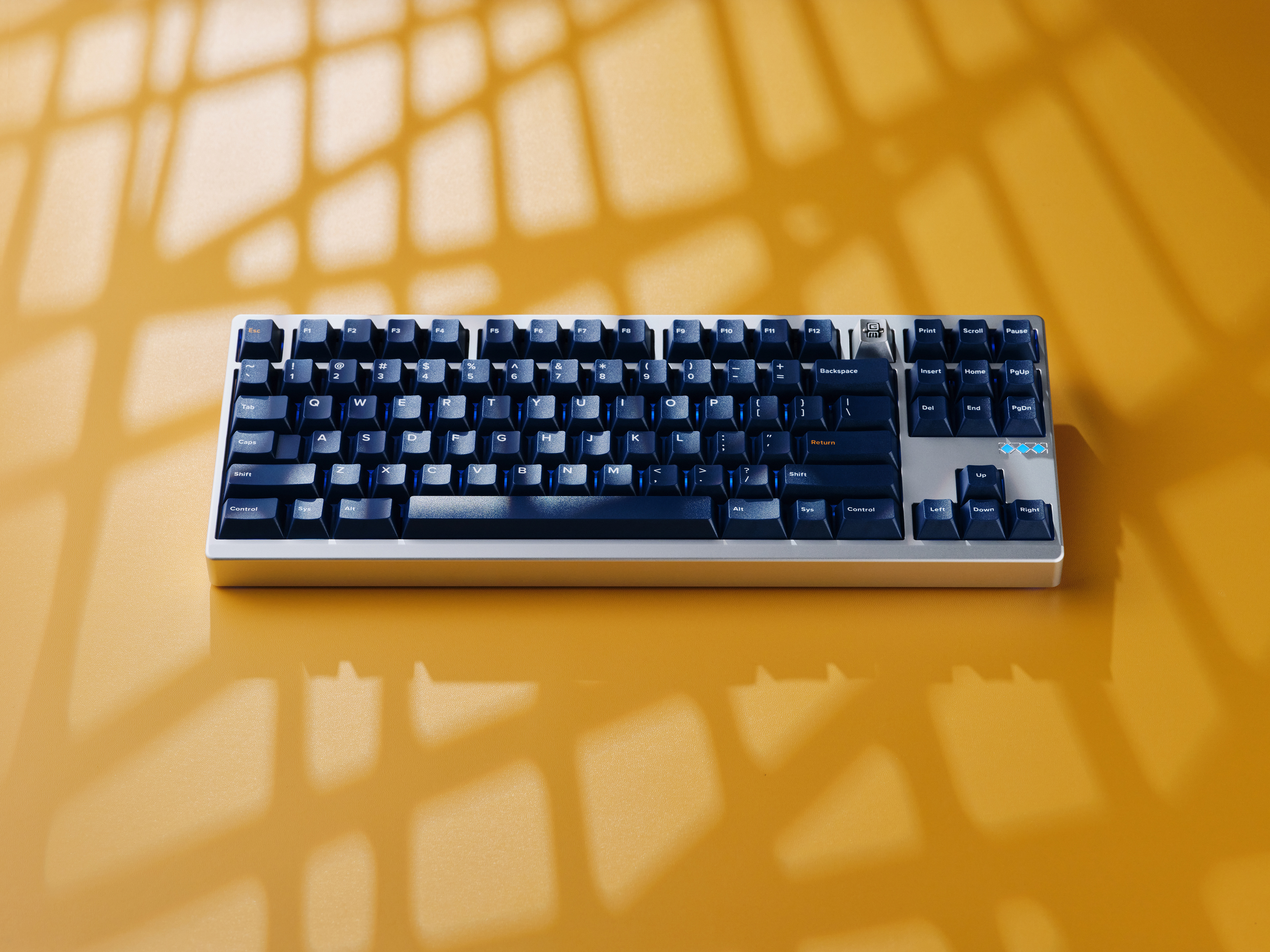

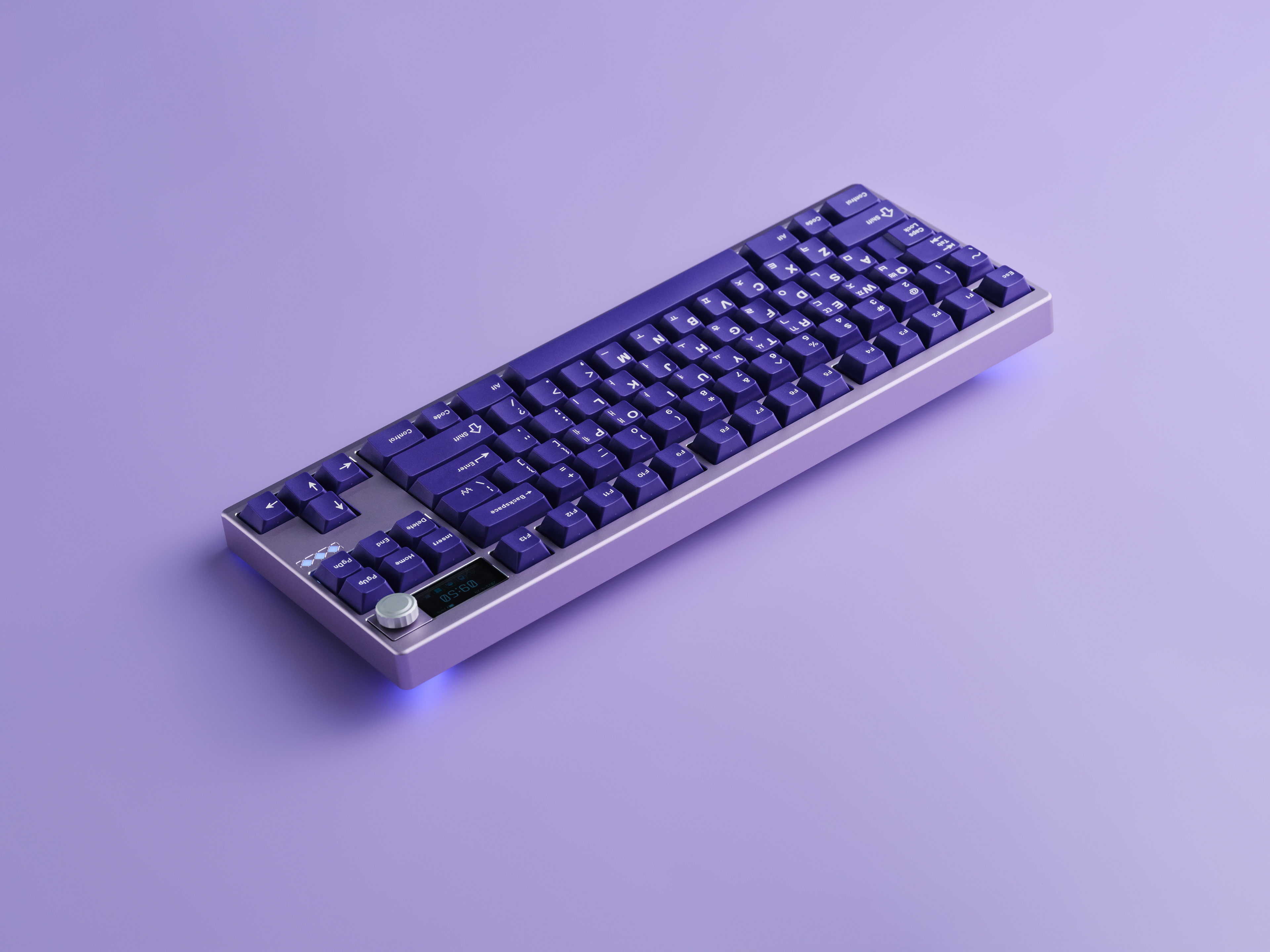

The diamond-pattern grille lighting on the front perfectly complements the rear design, delivering futuristic aesthetics.

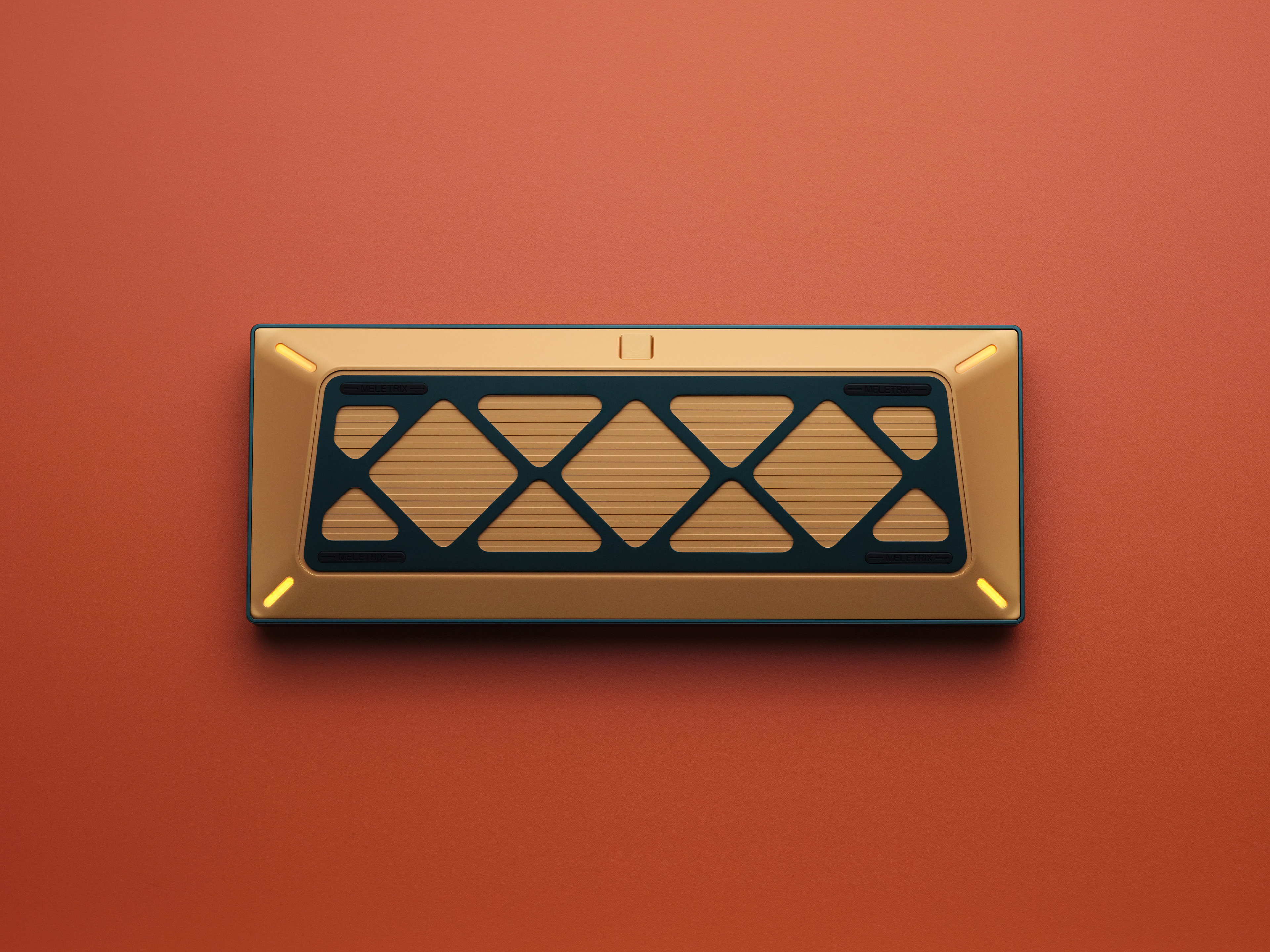

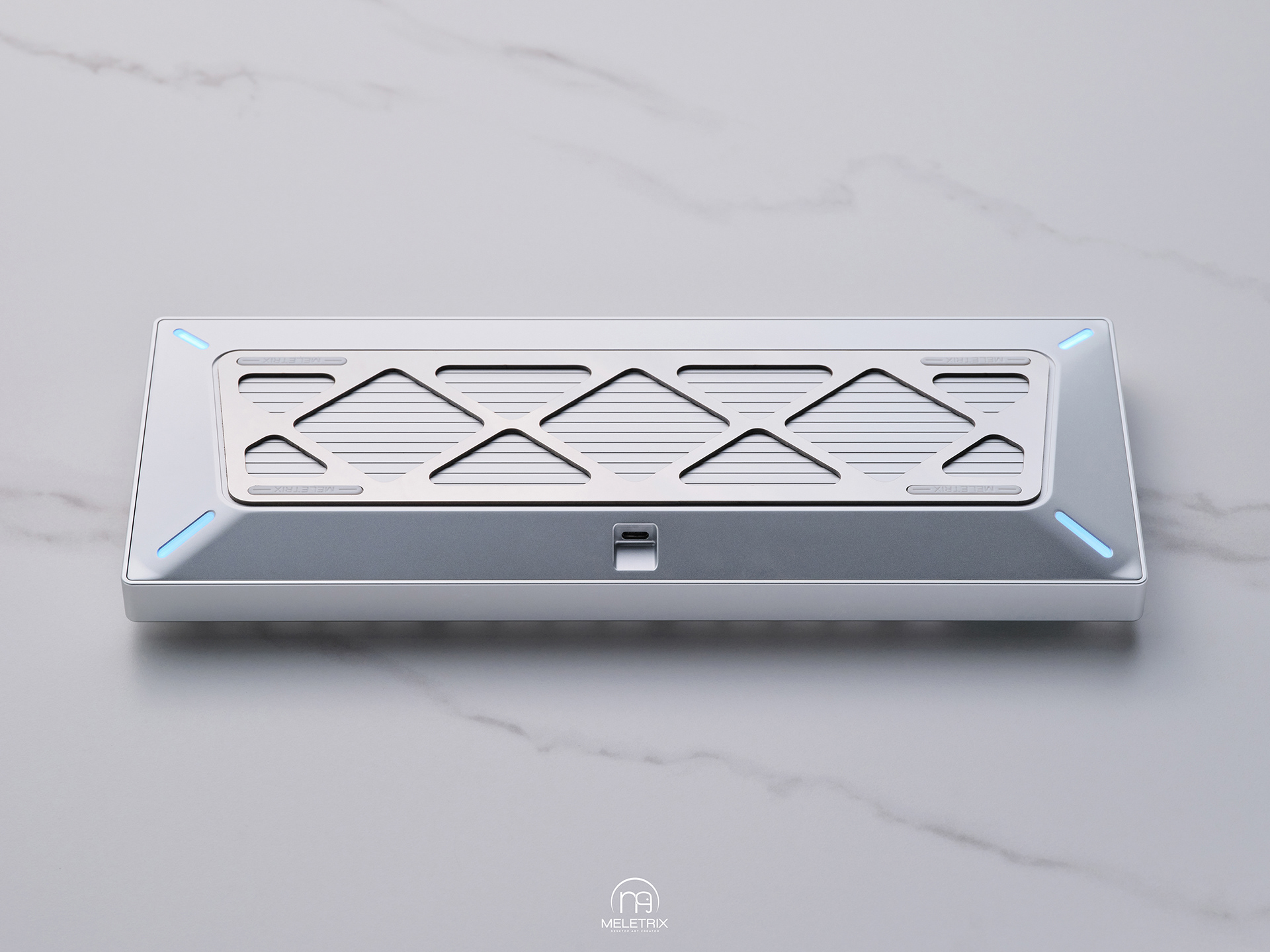

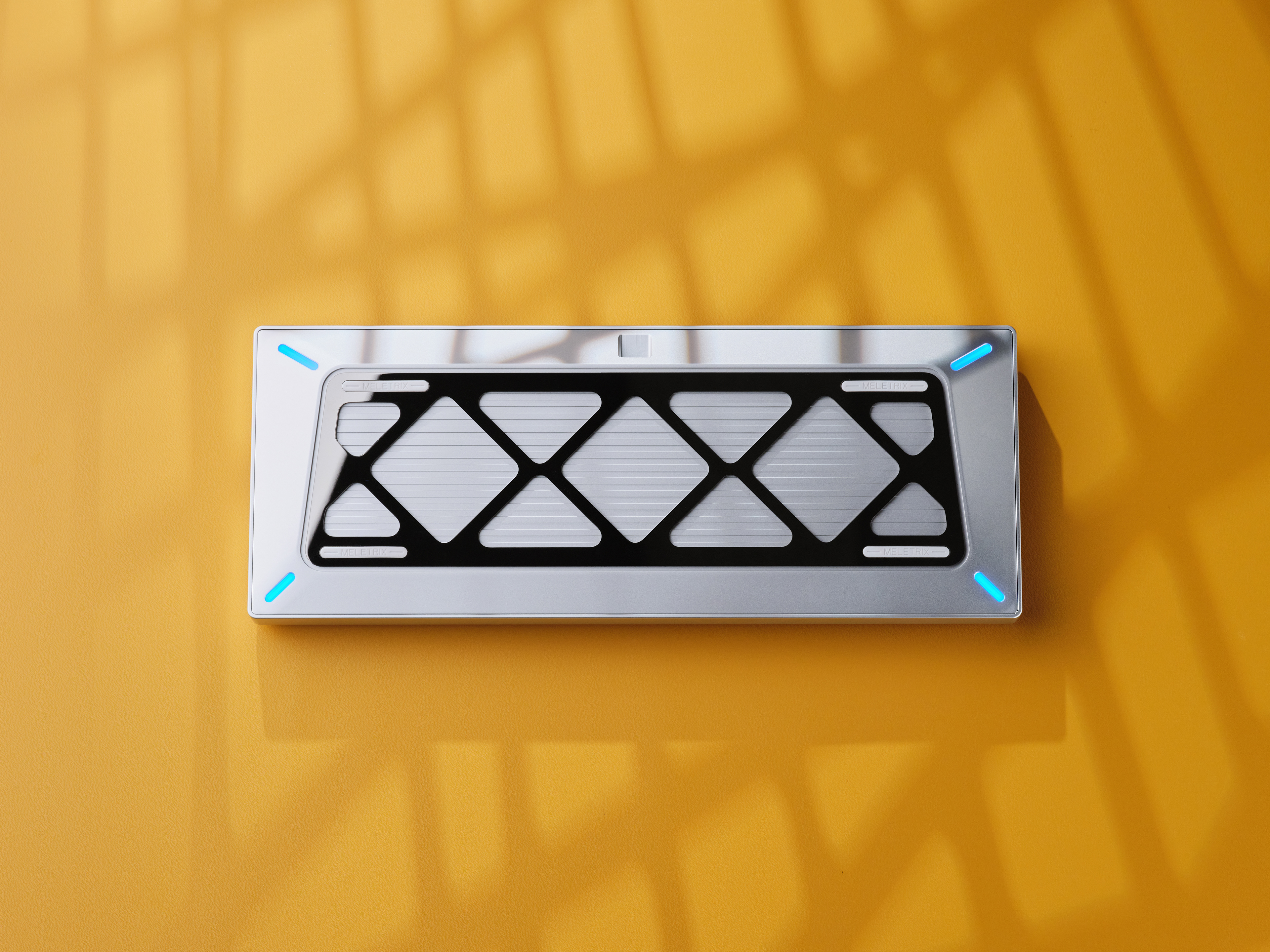

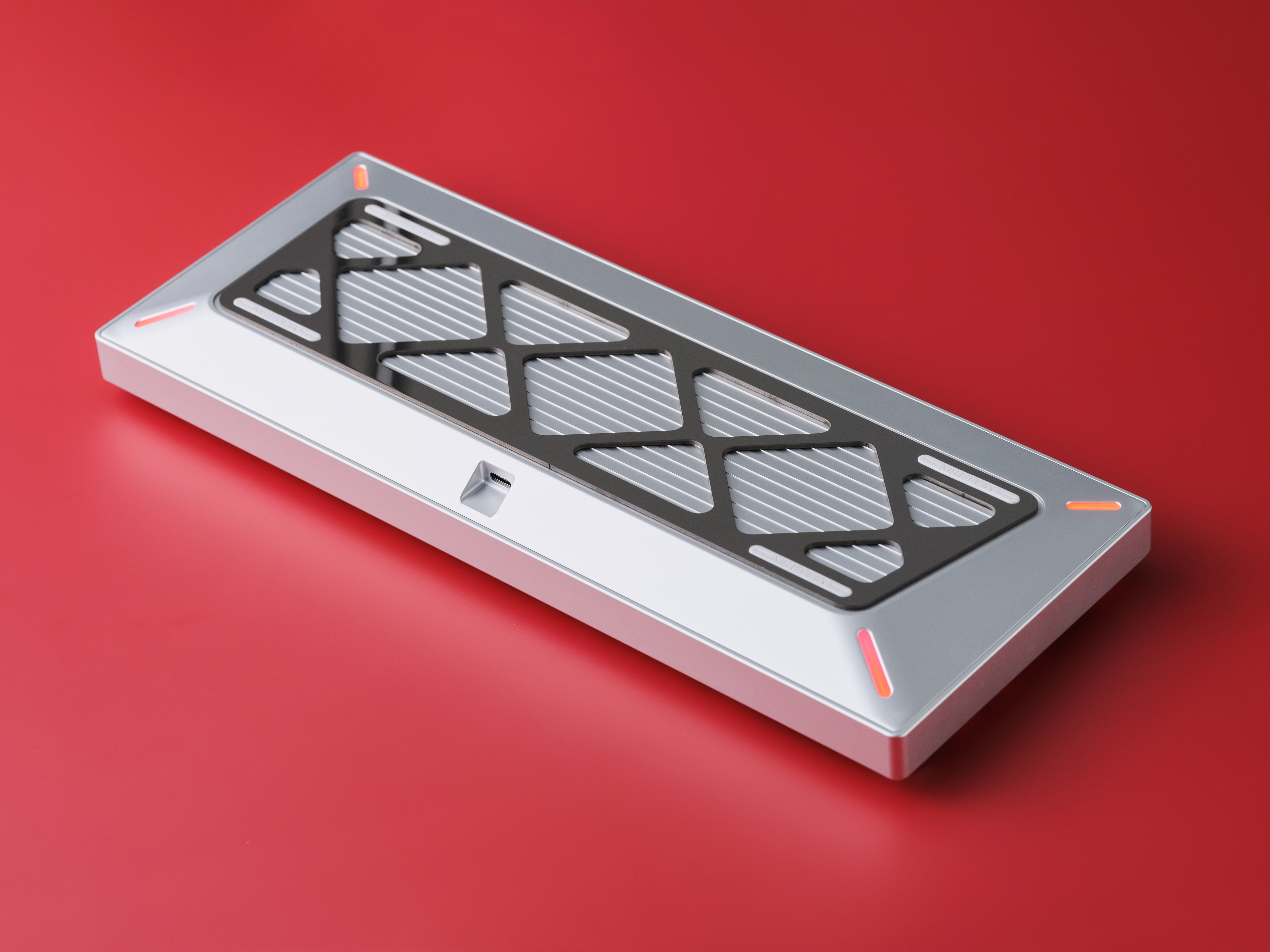

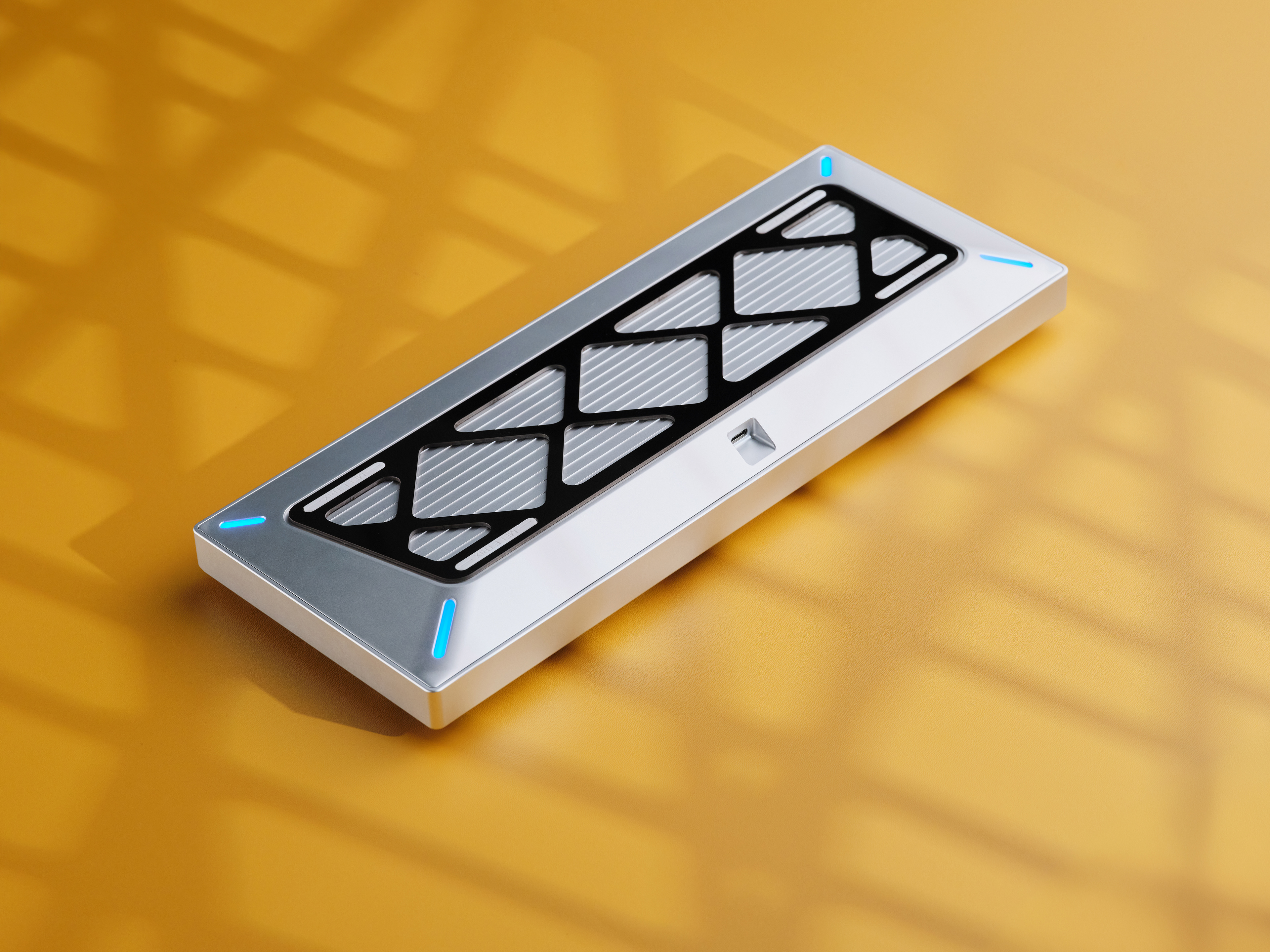

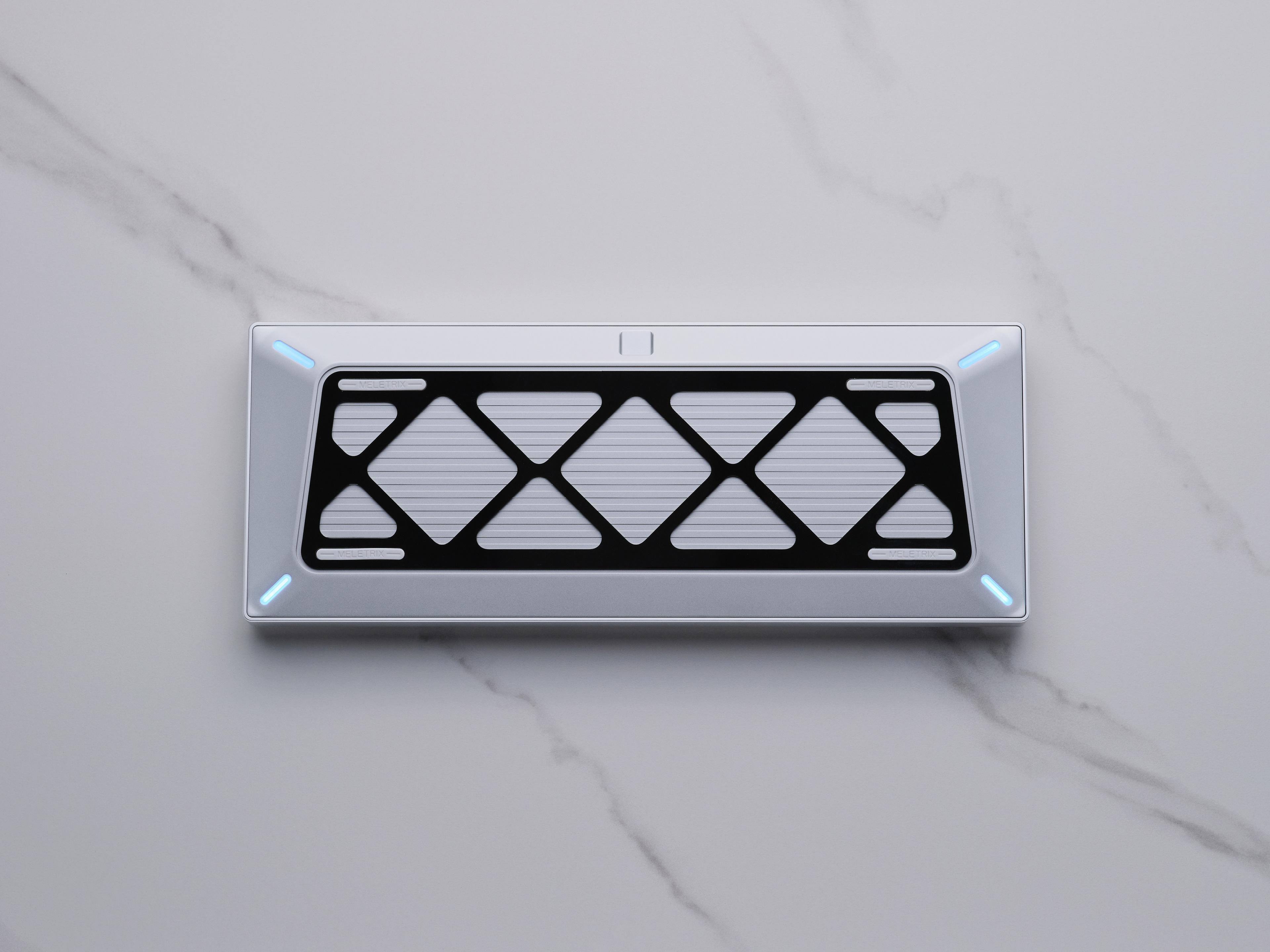

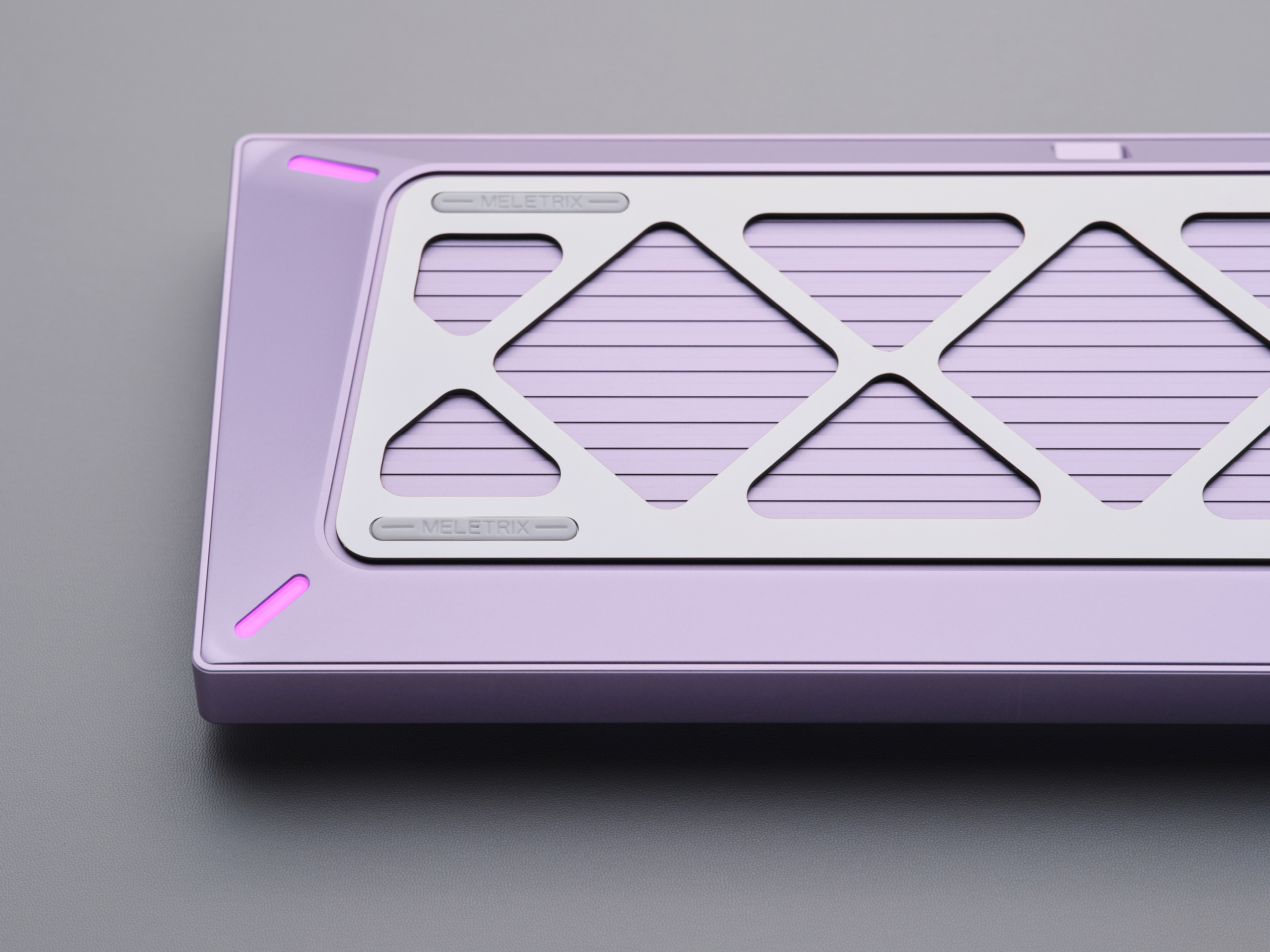

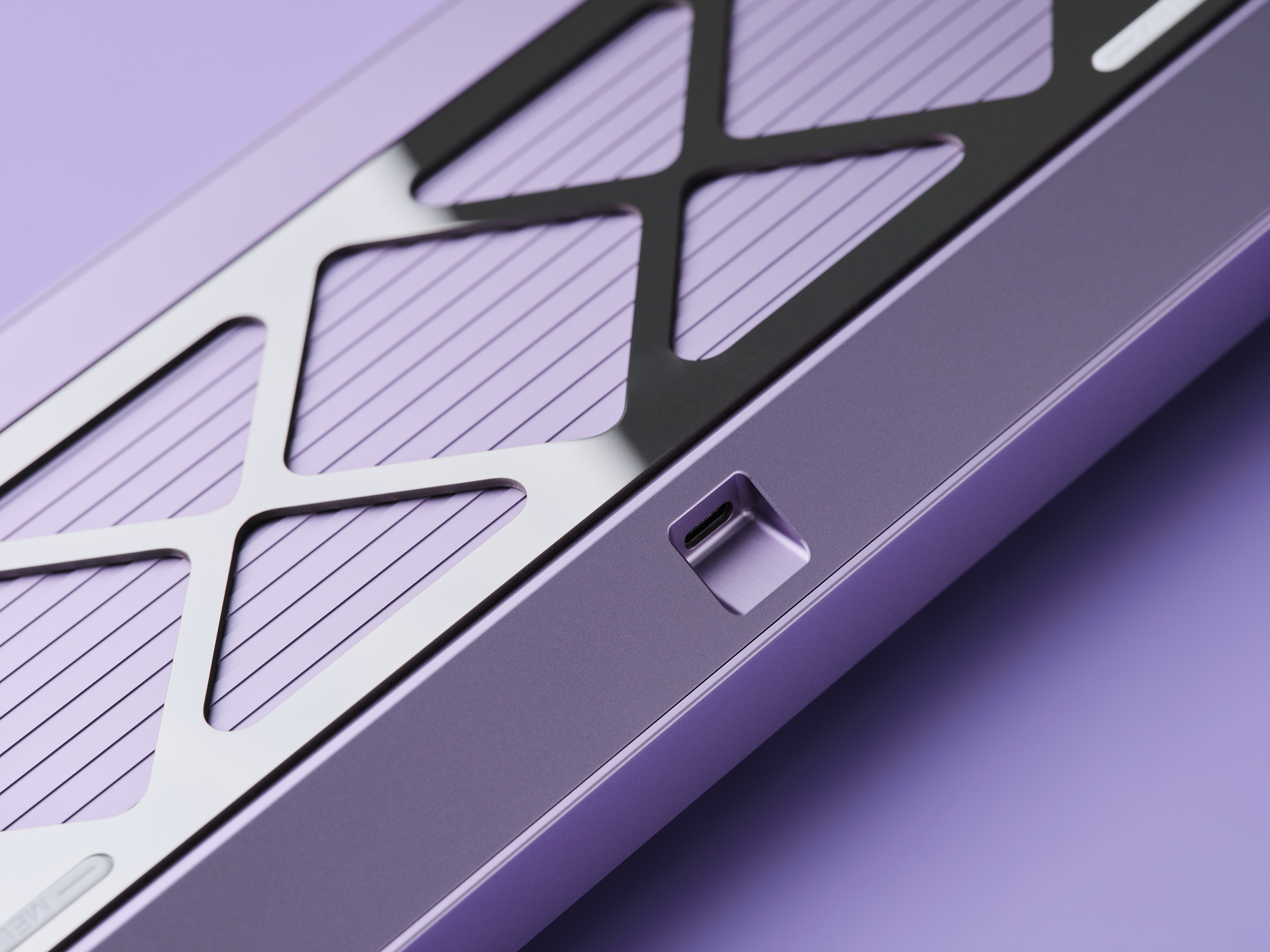

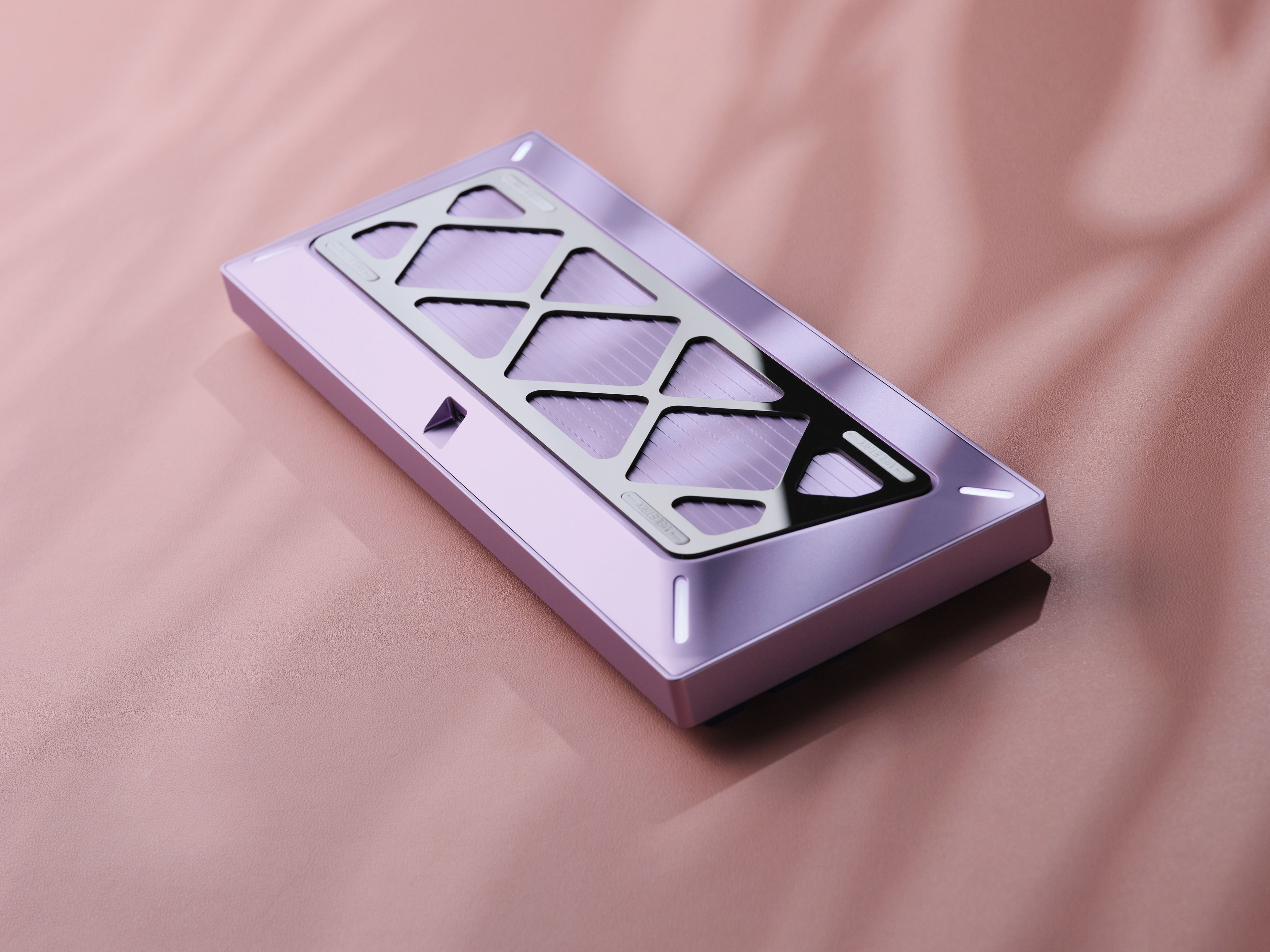

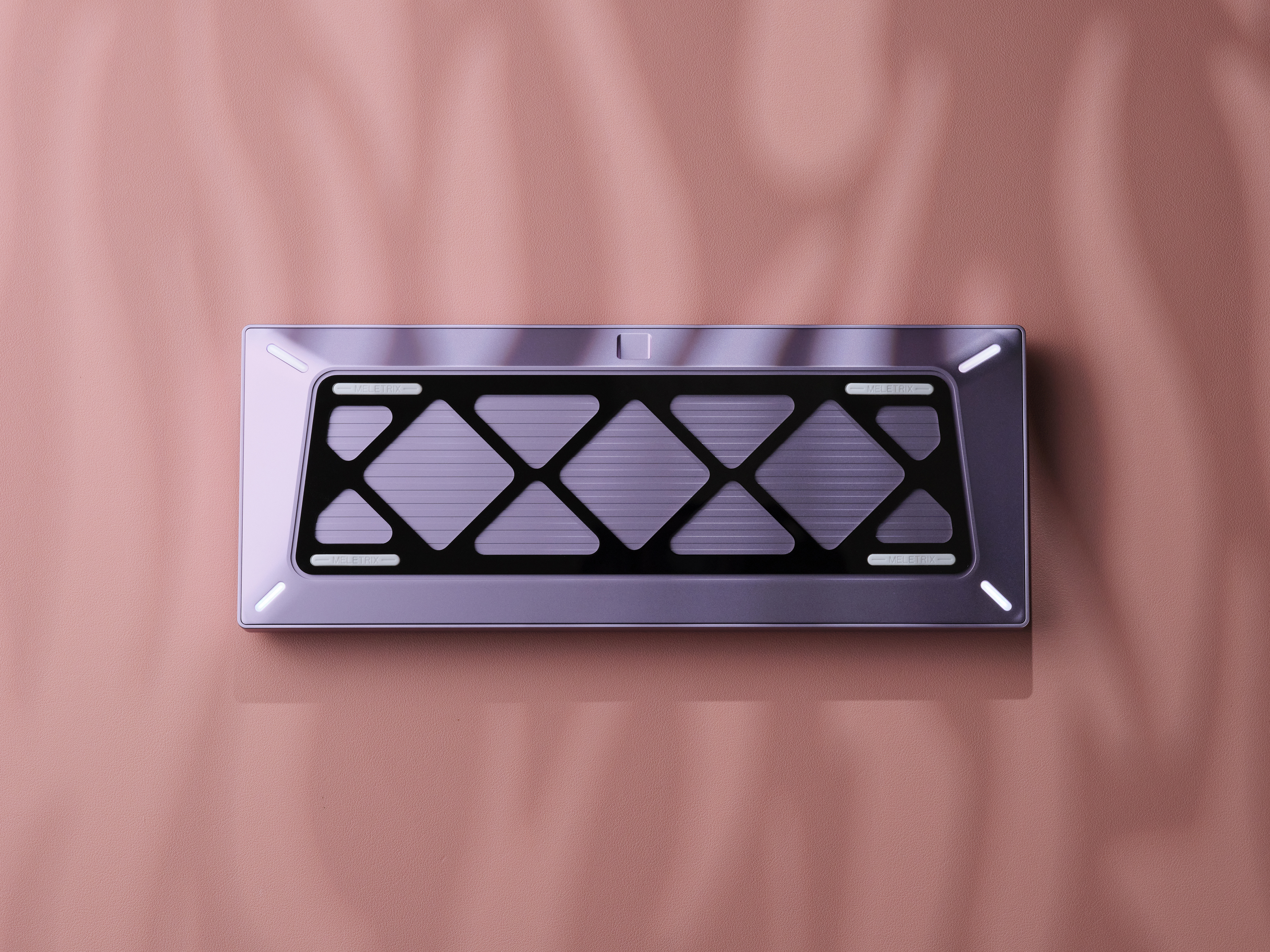

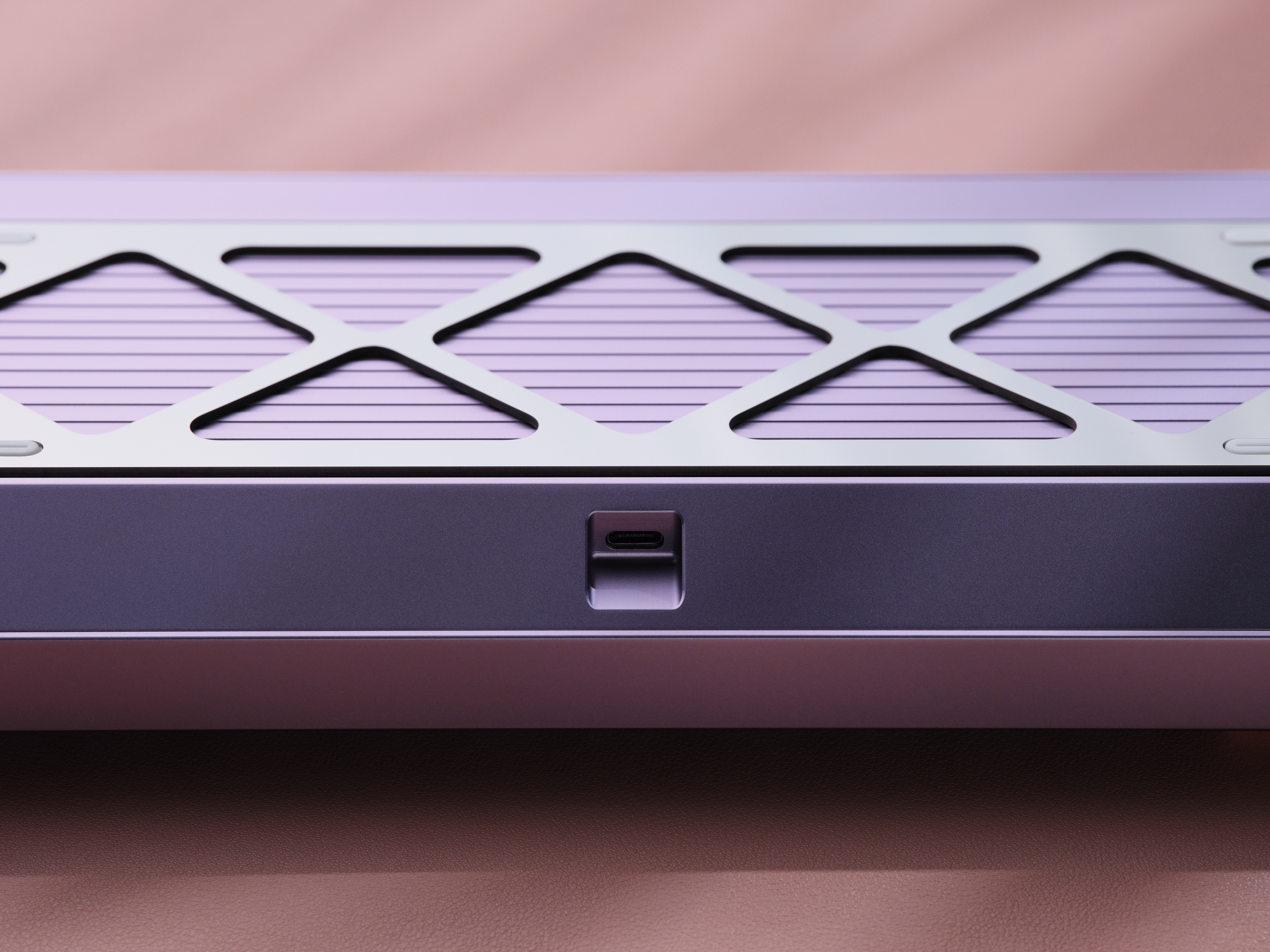

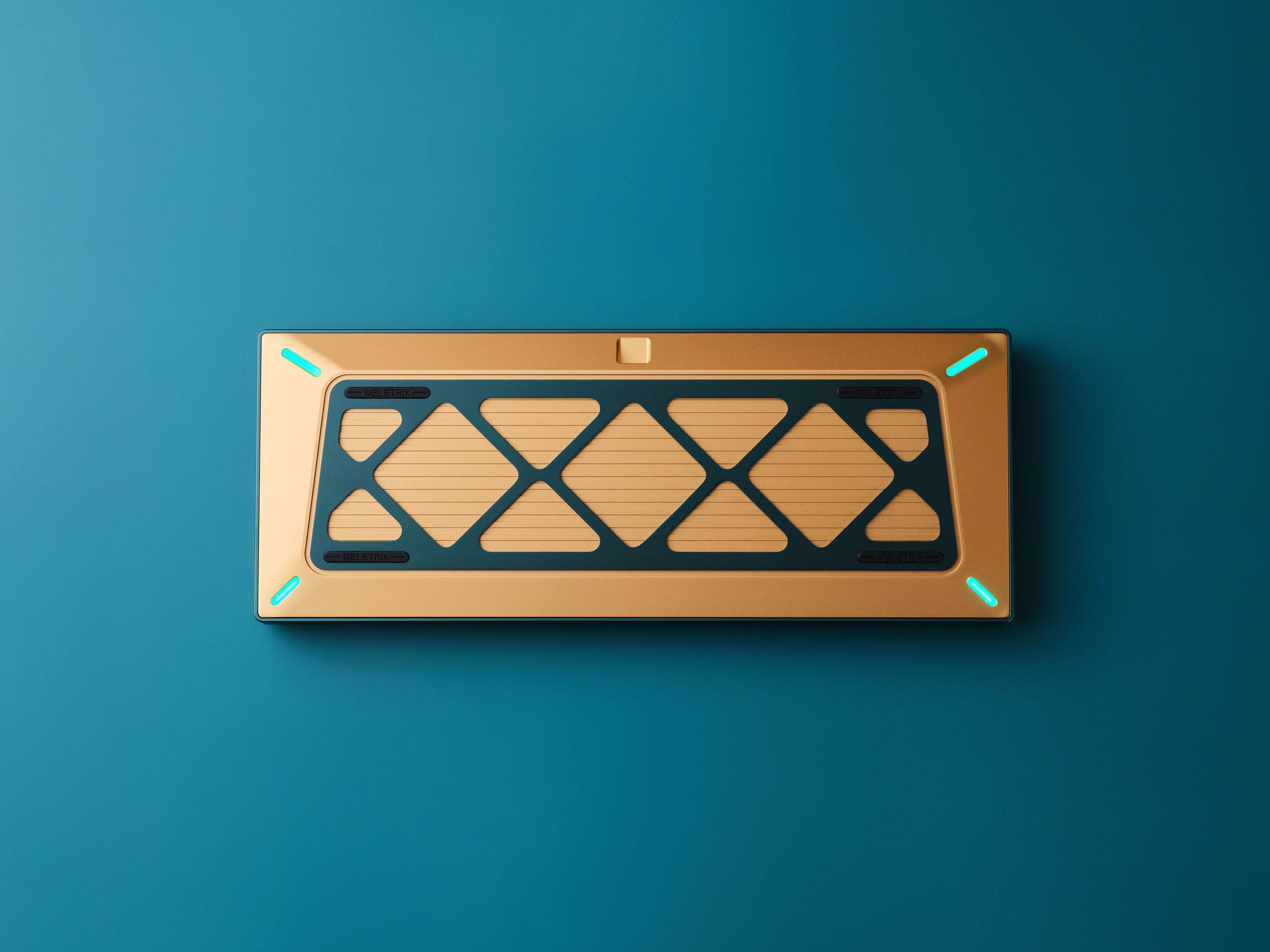

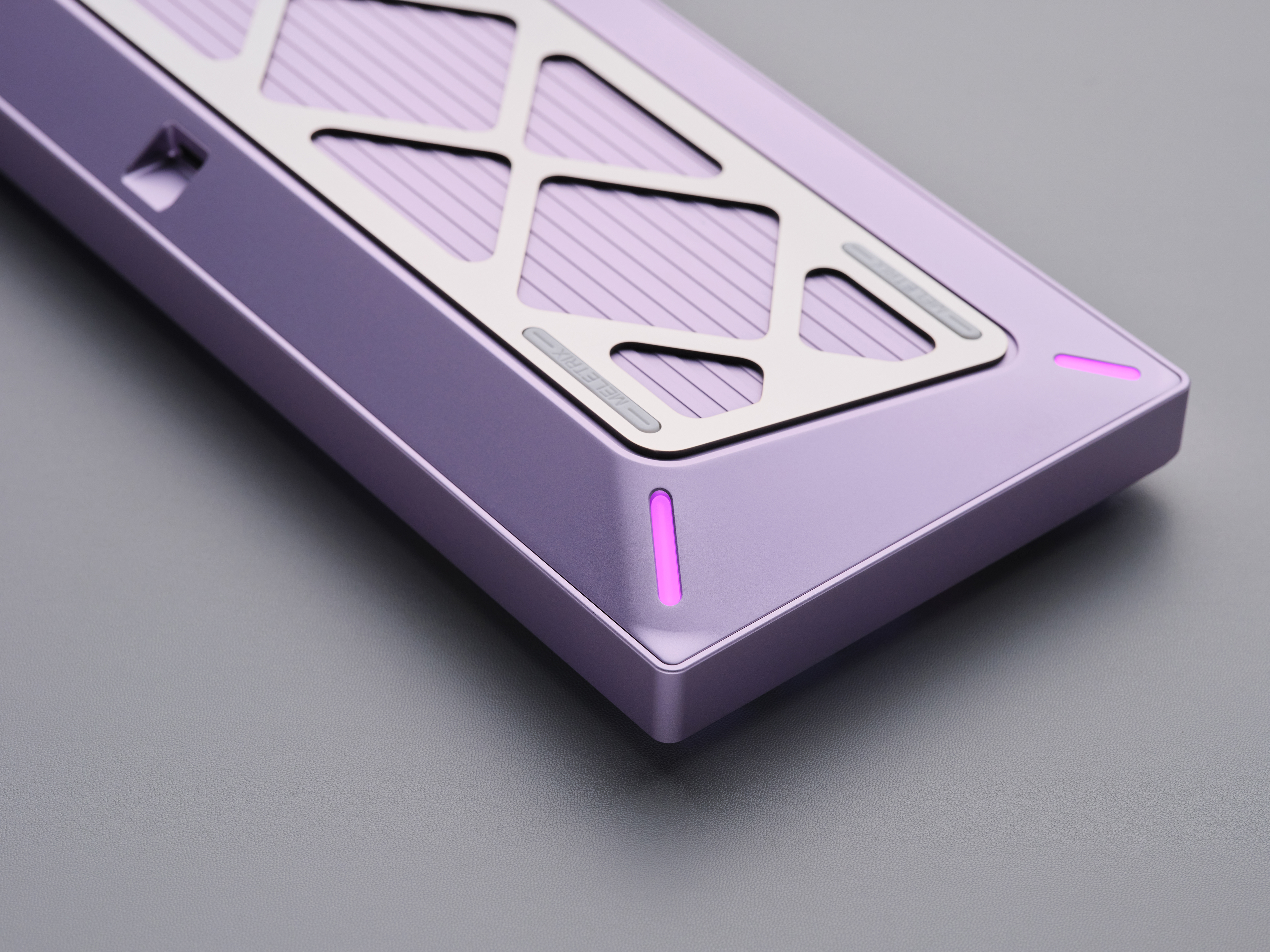

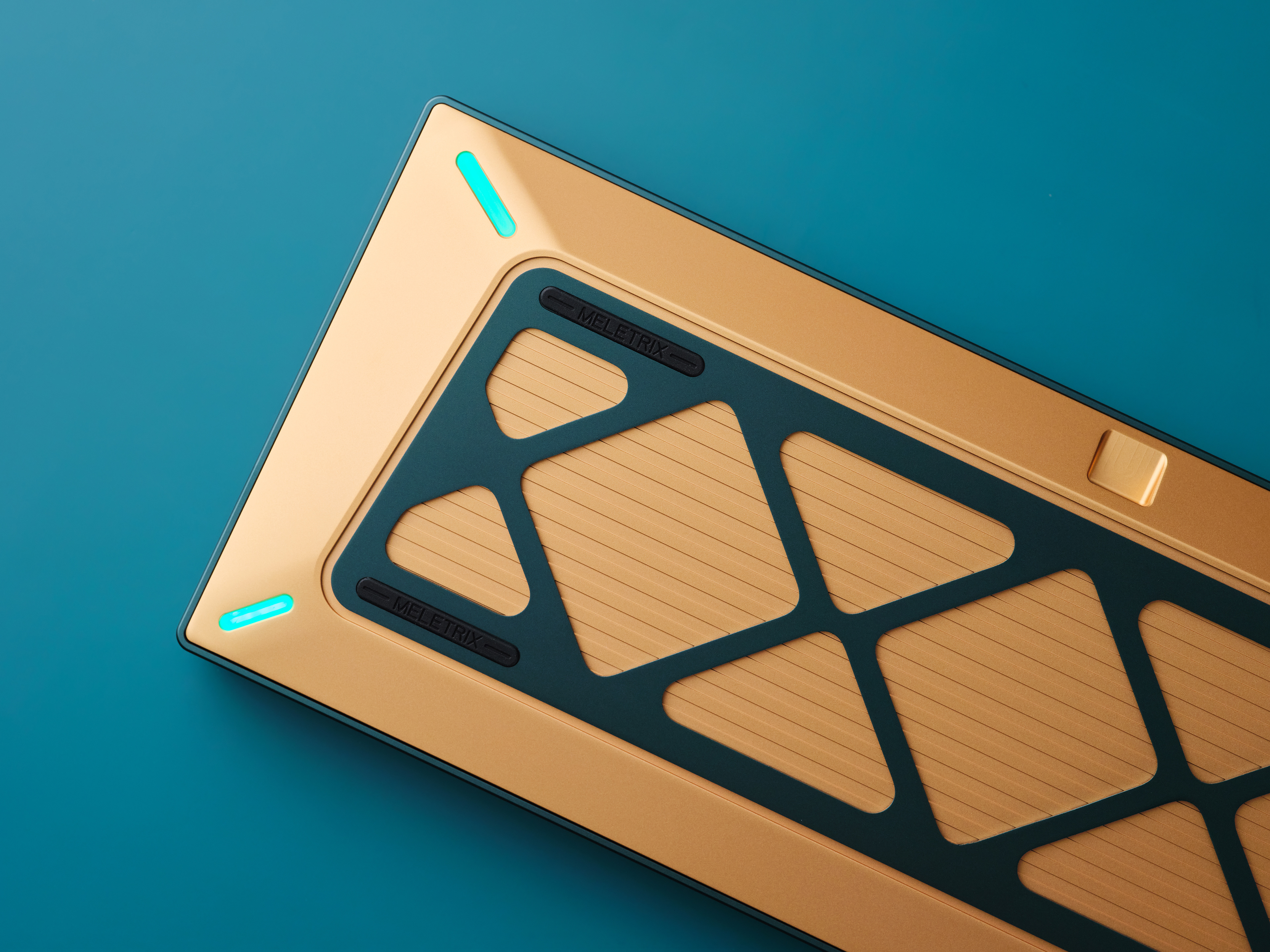

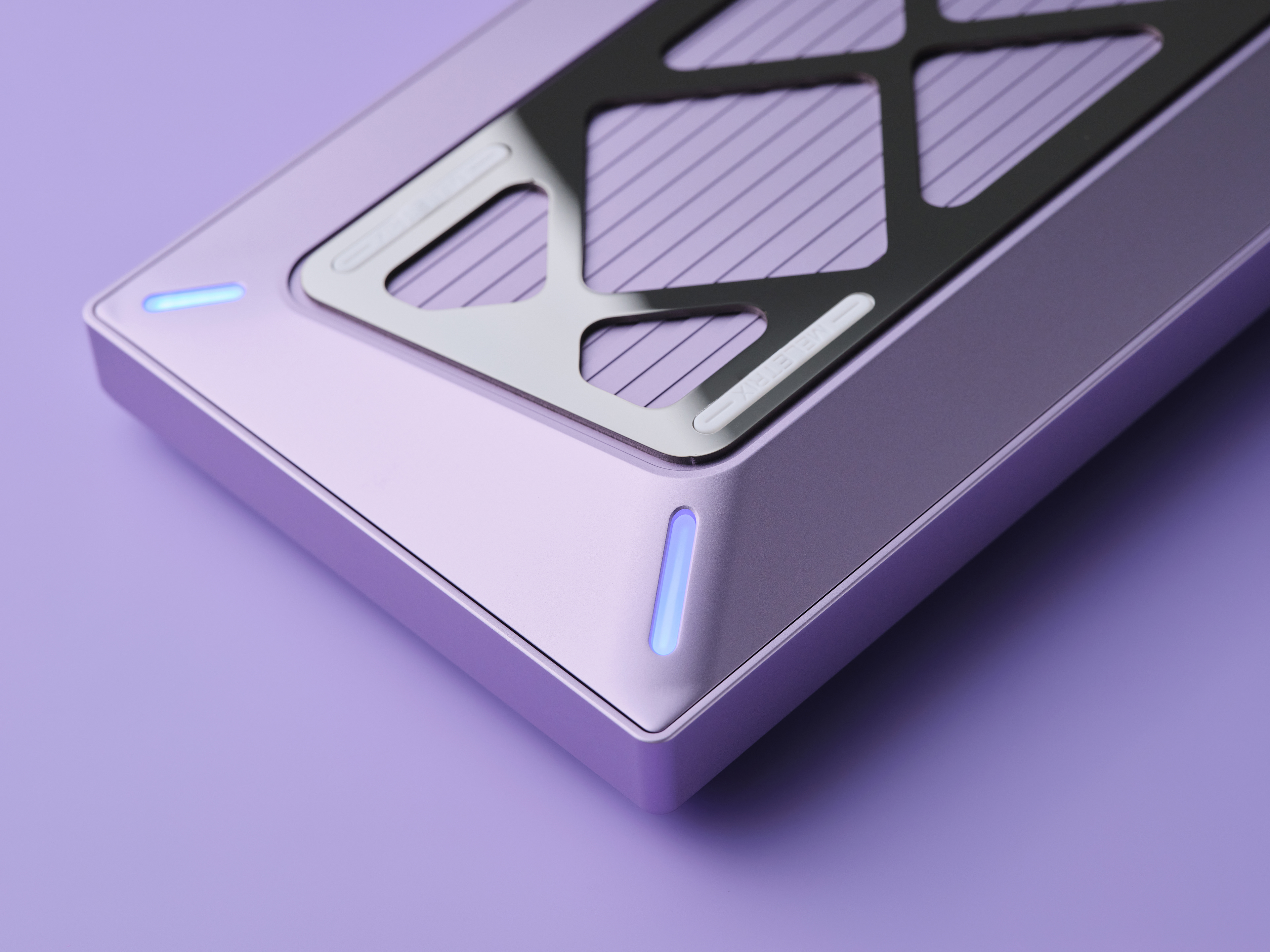

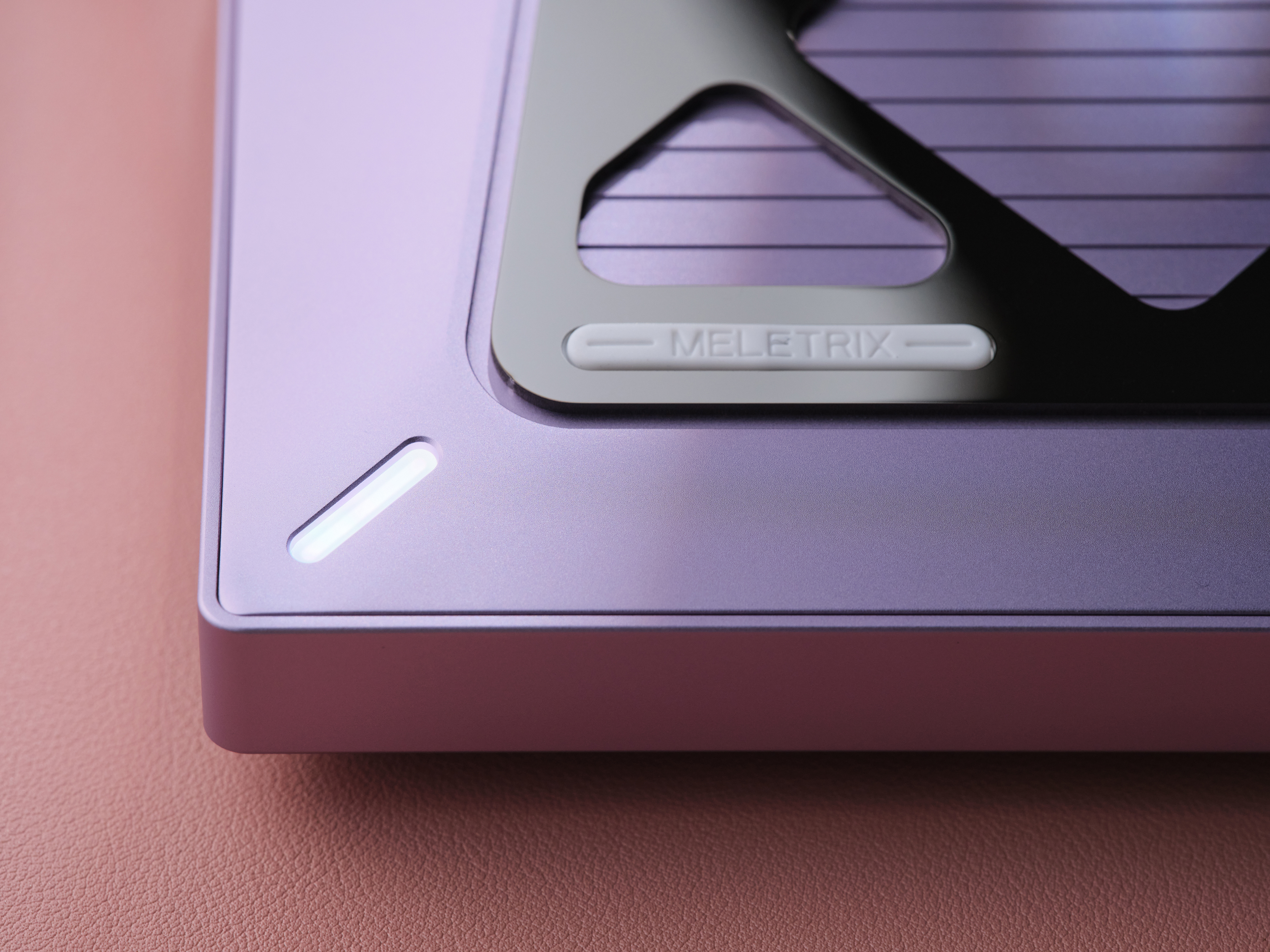

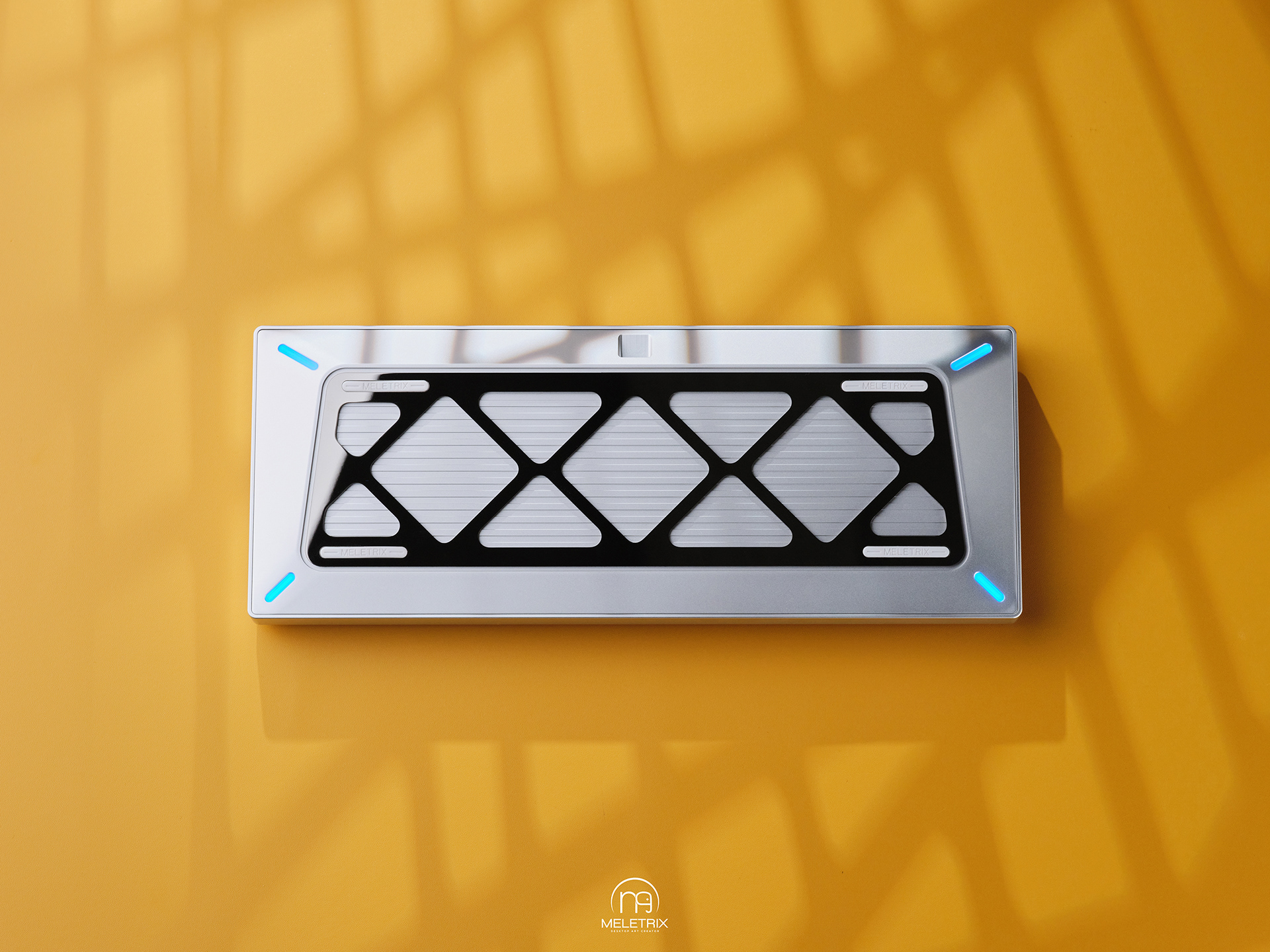

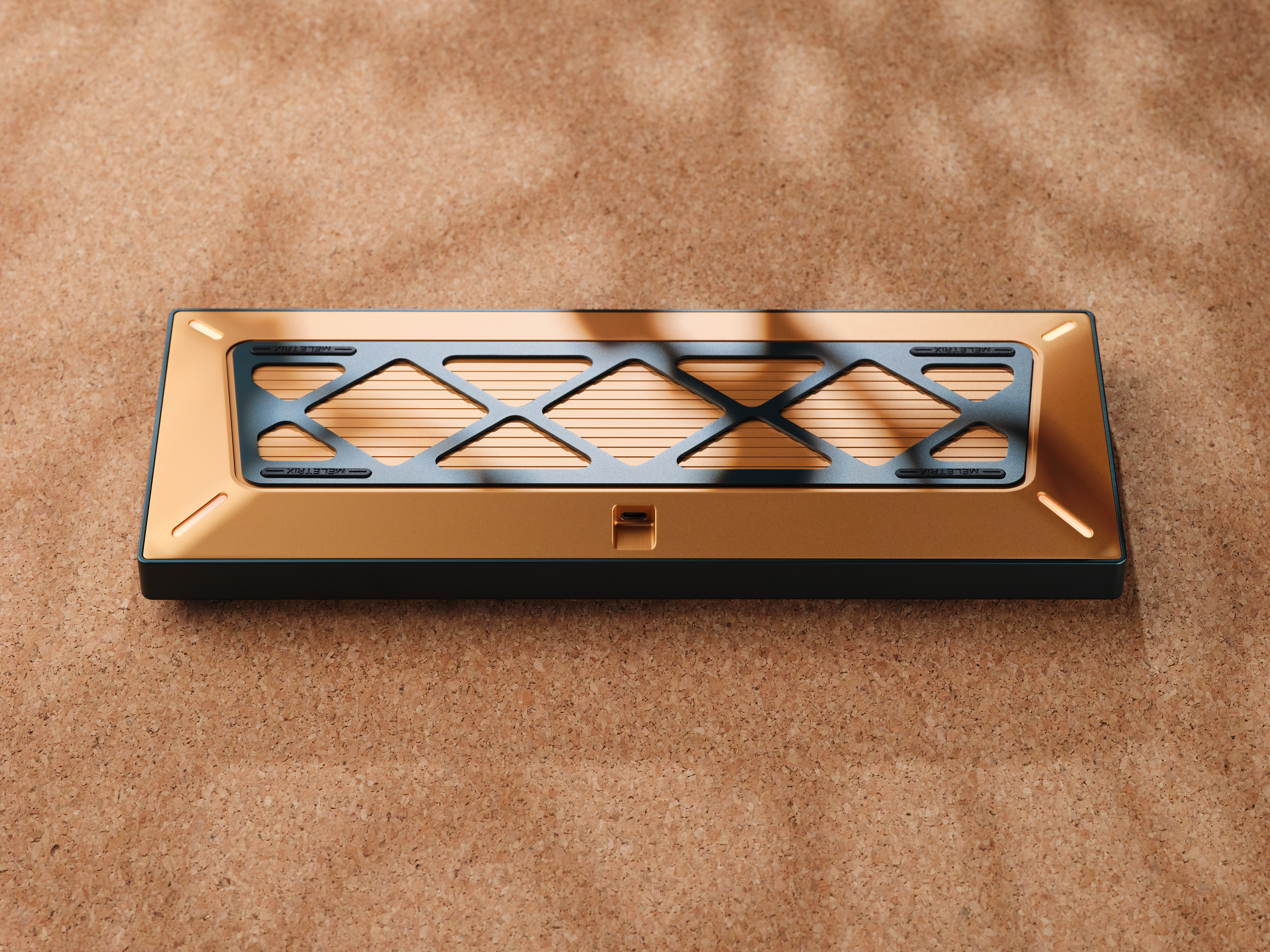

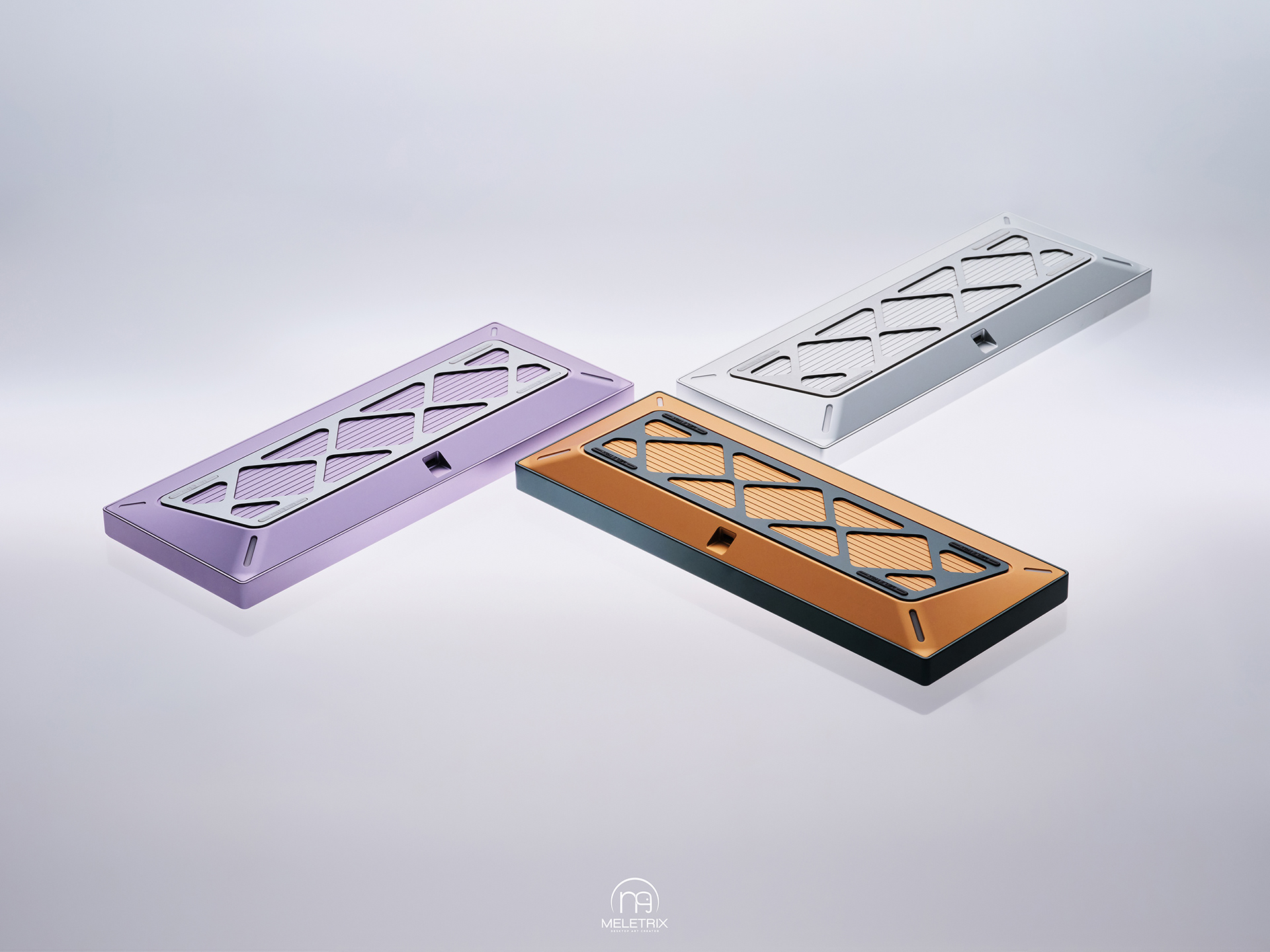

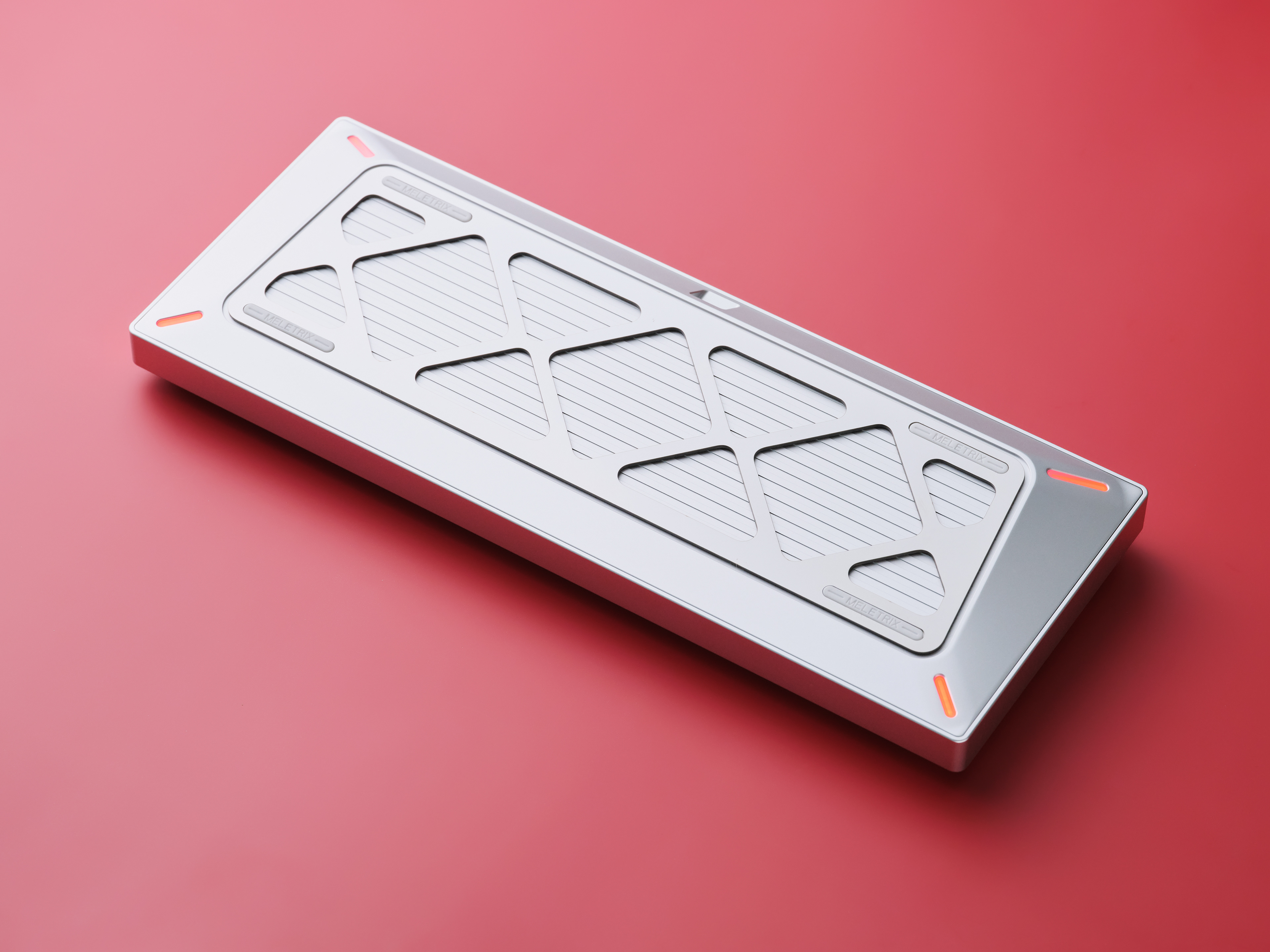

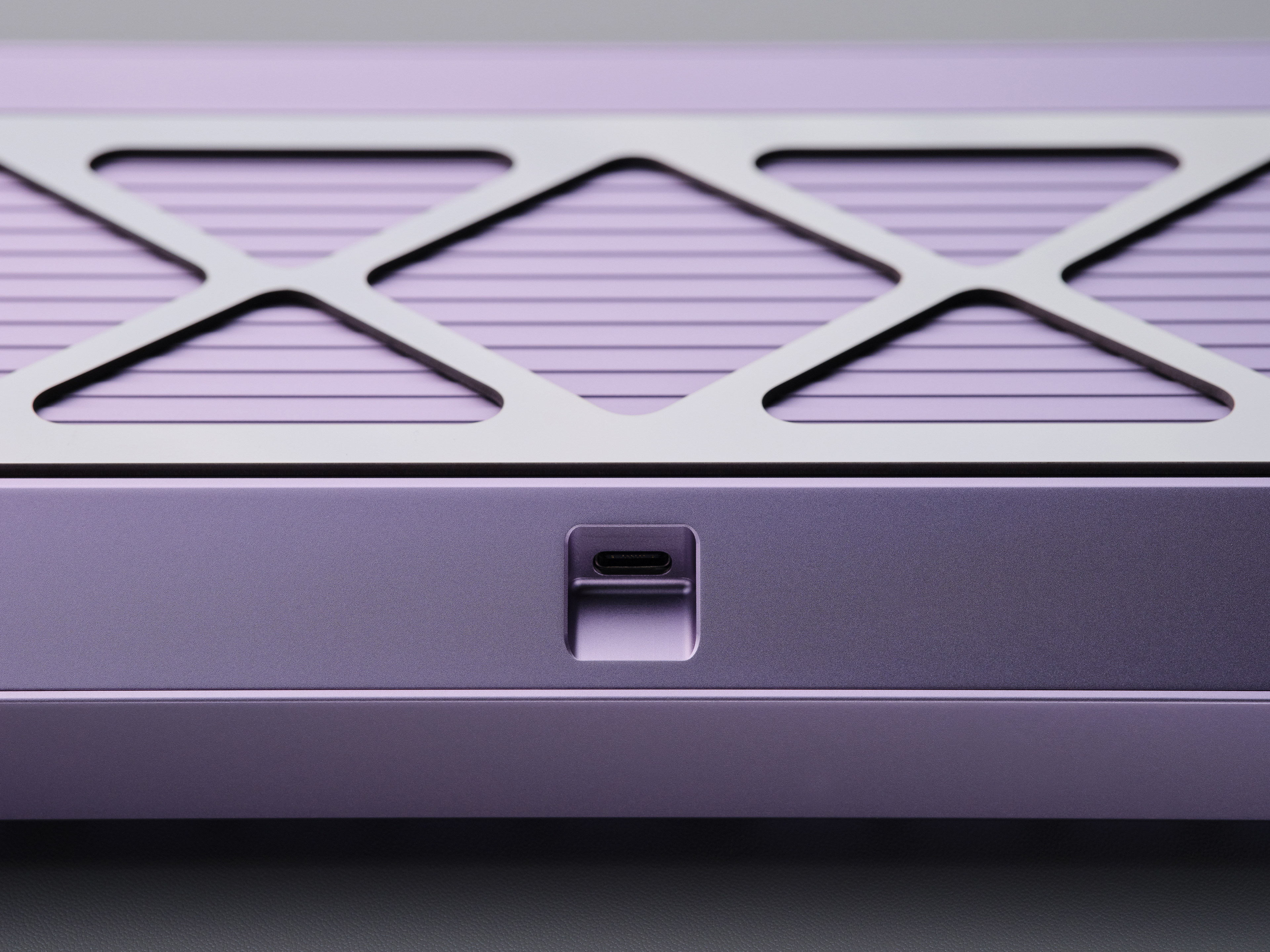

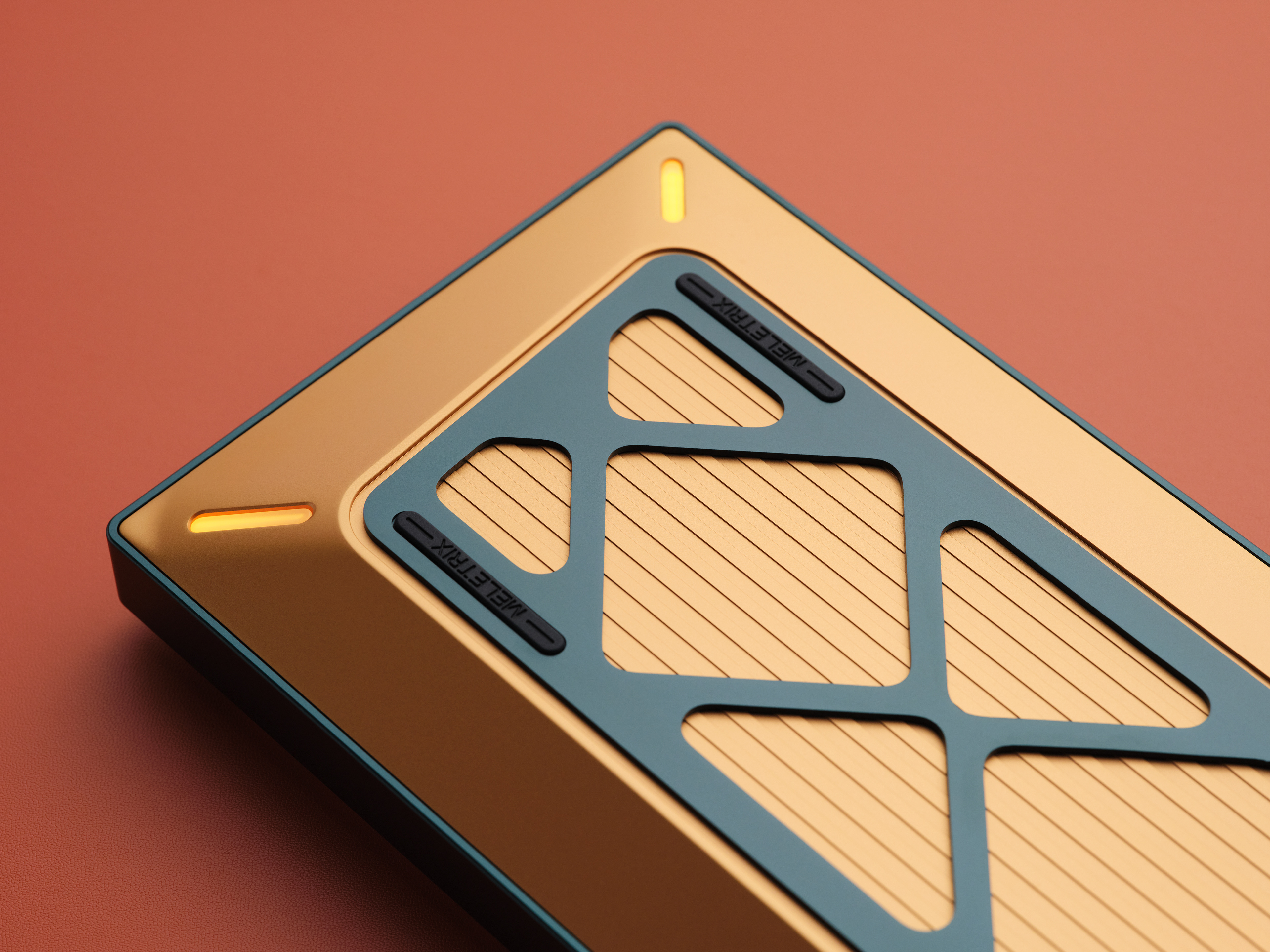

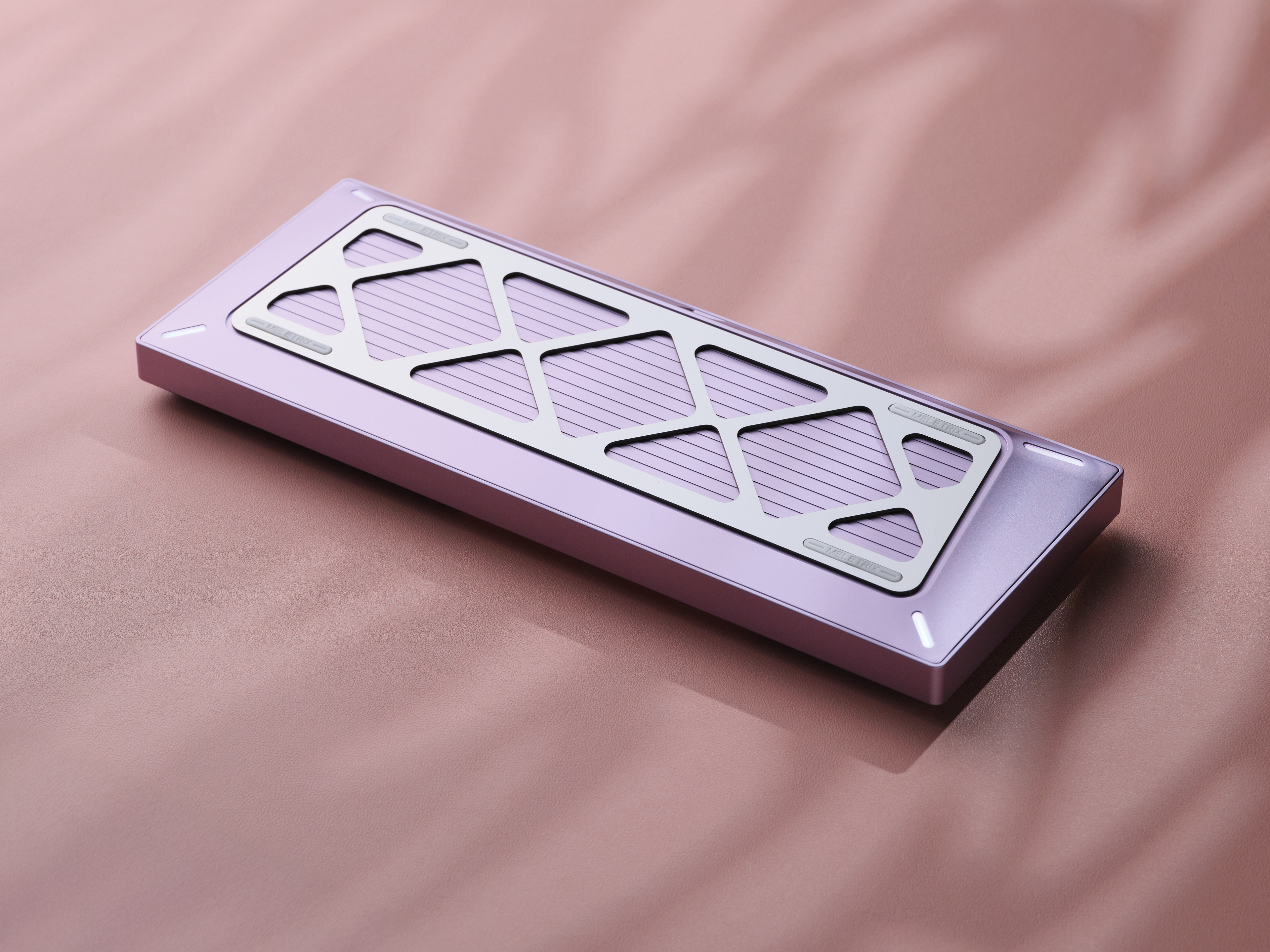

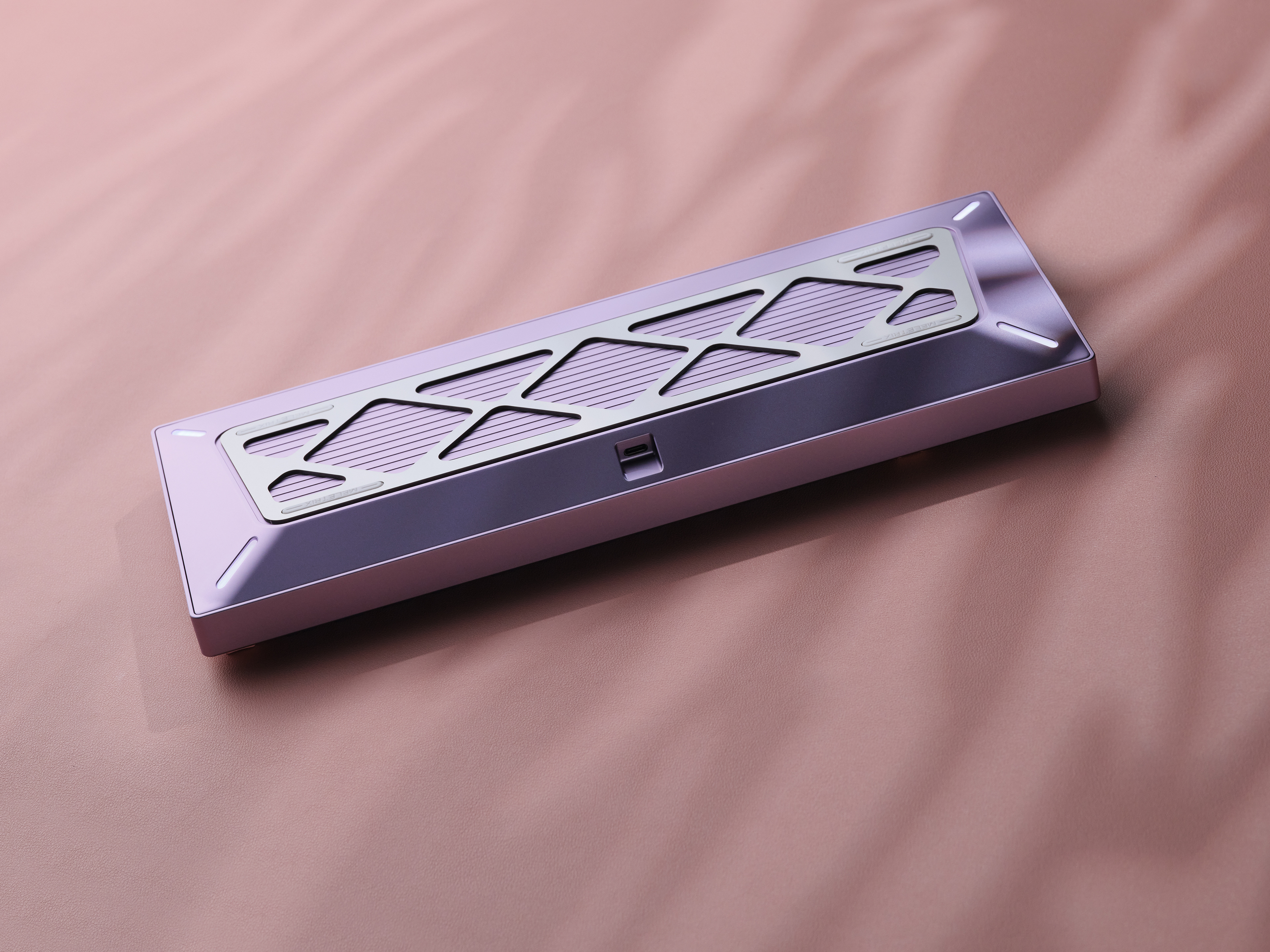

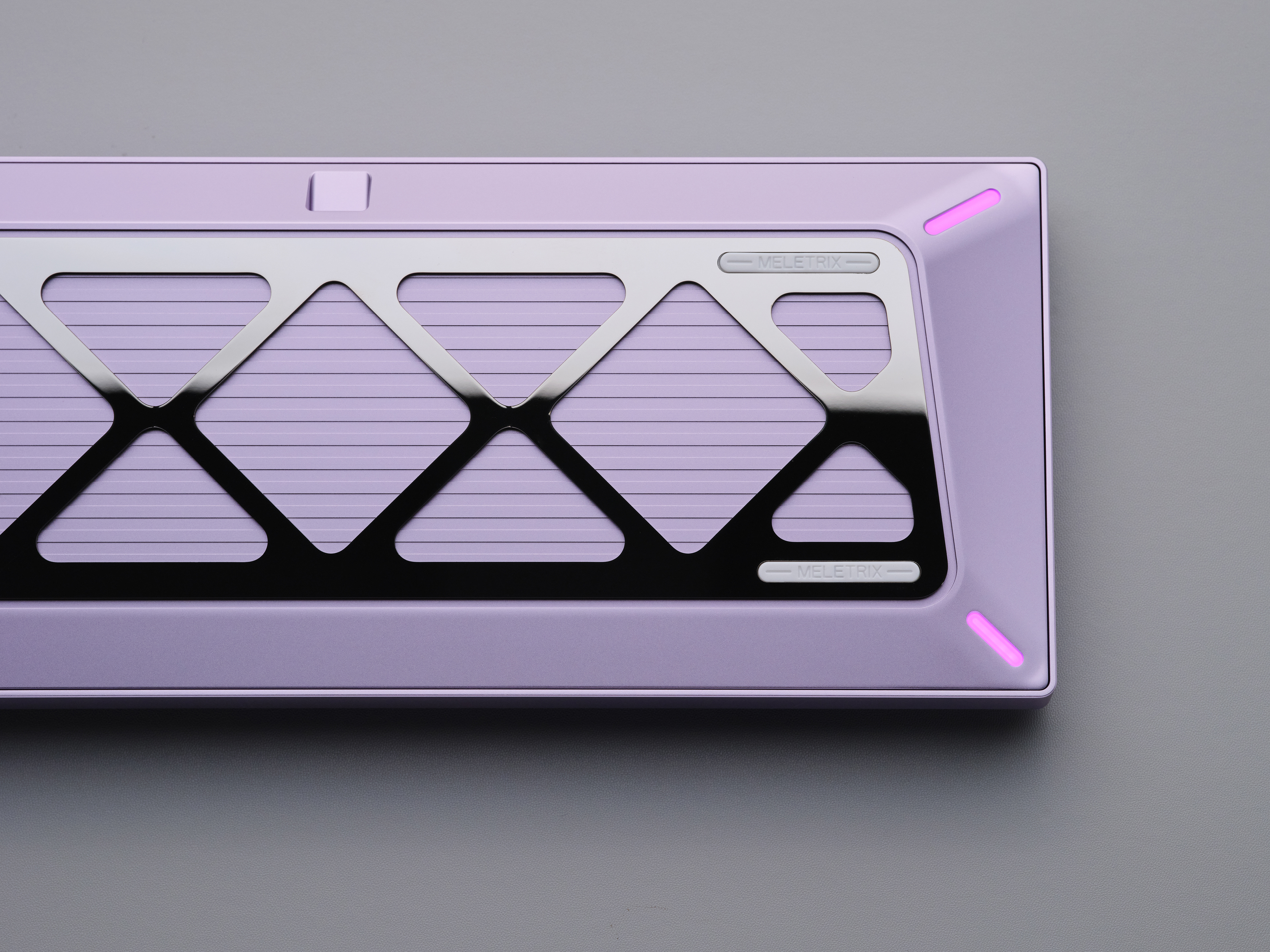

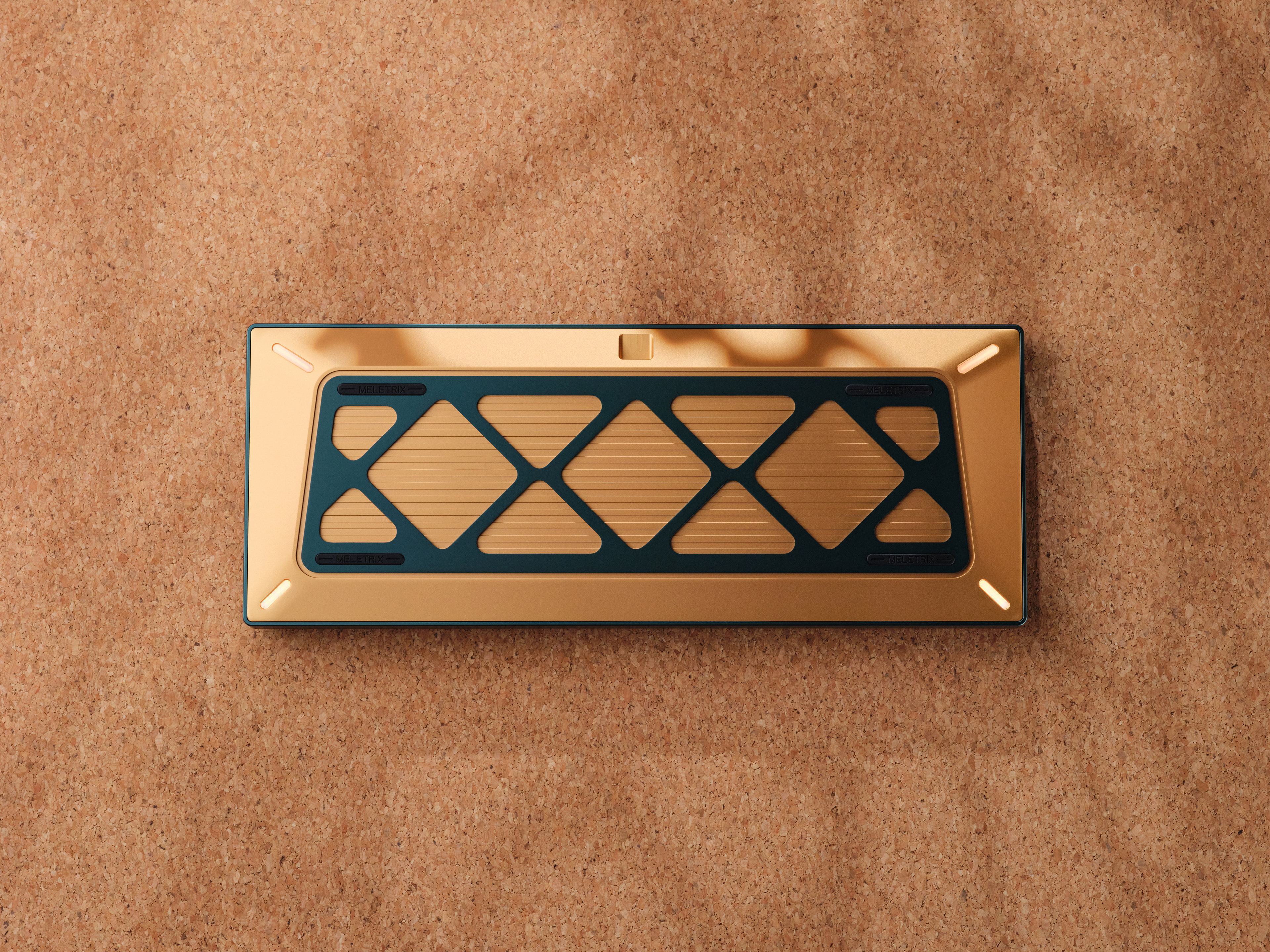

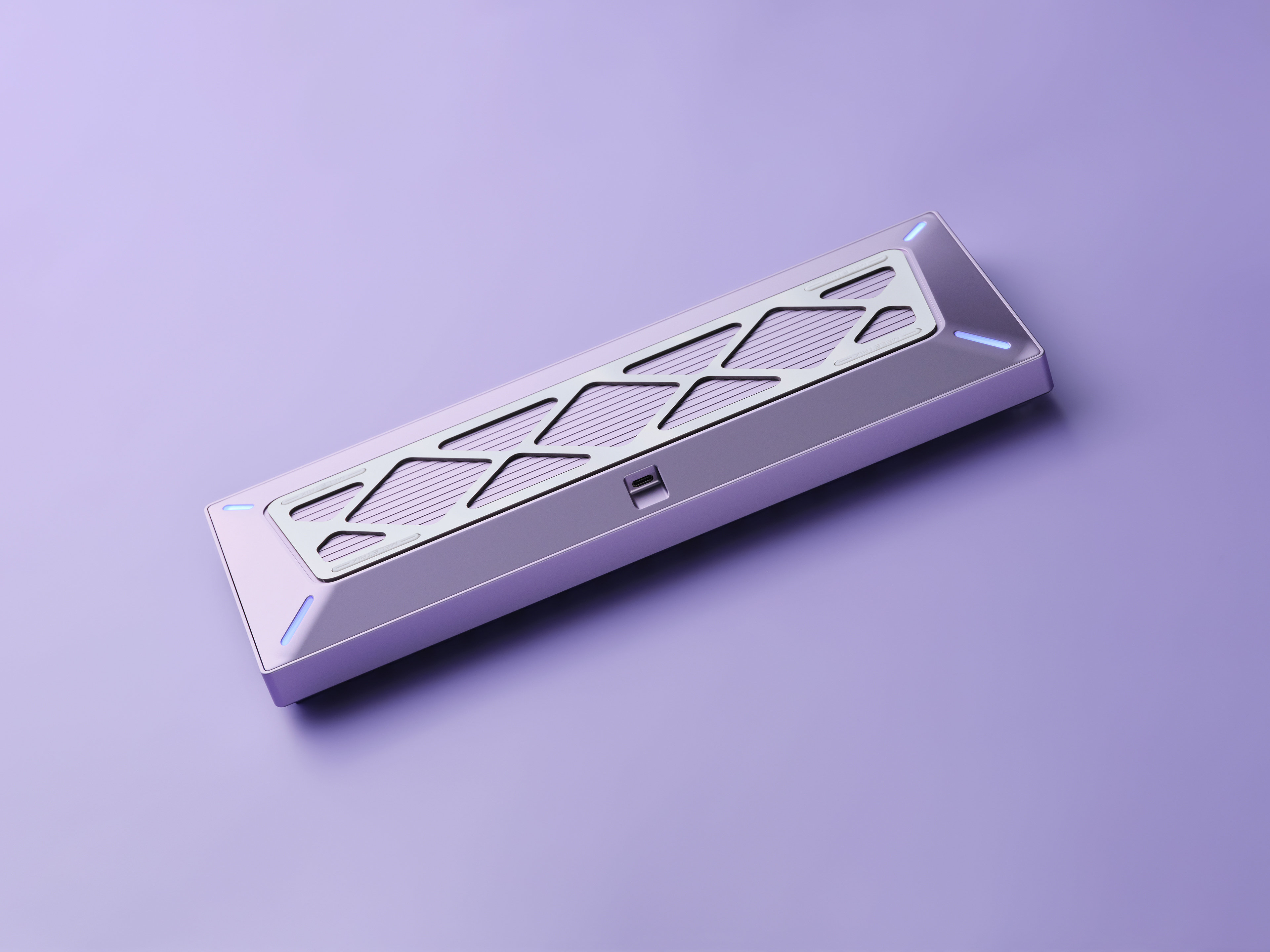

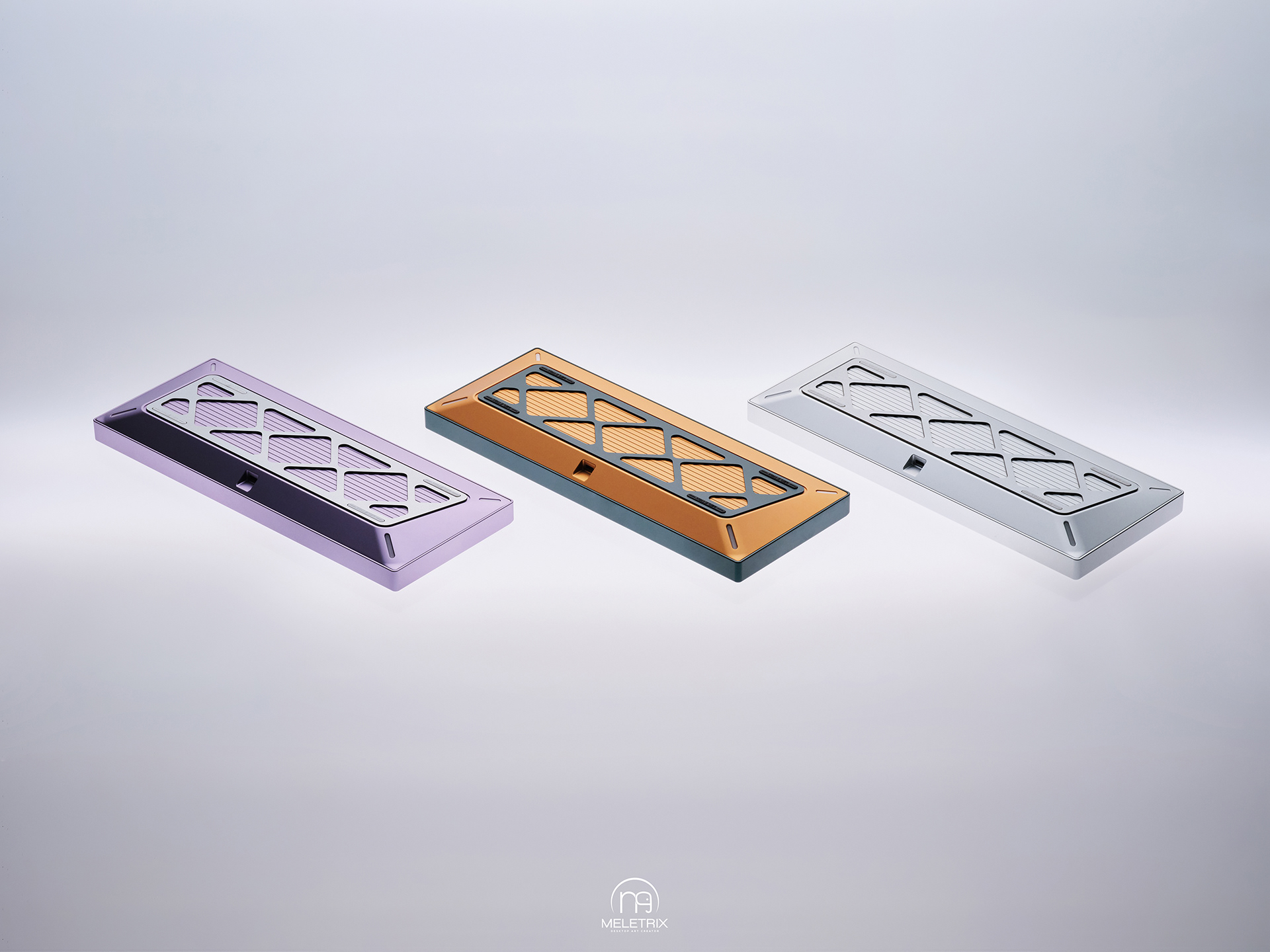

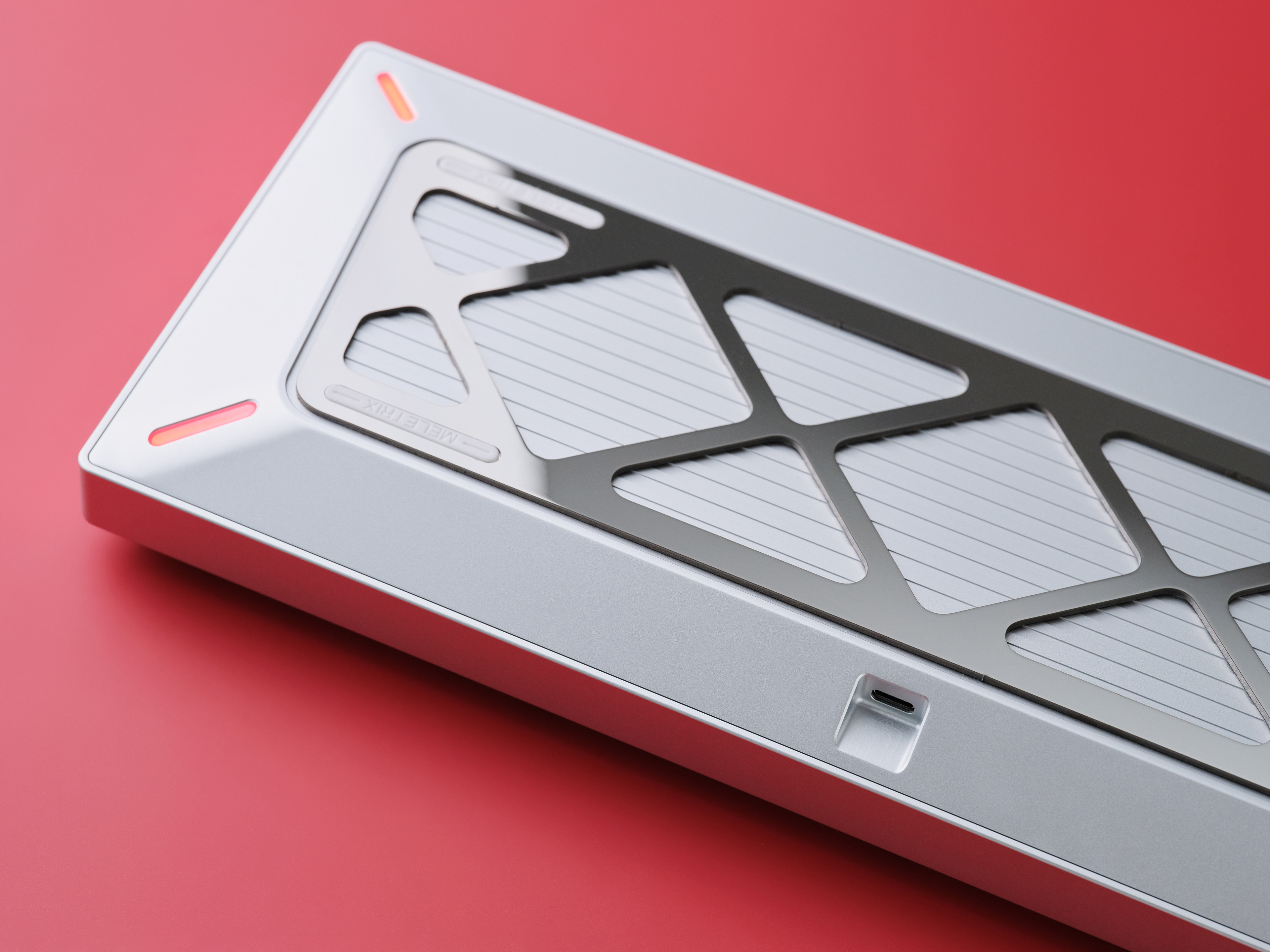

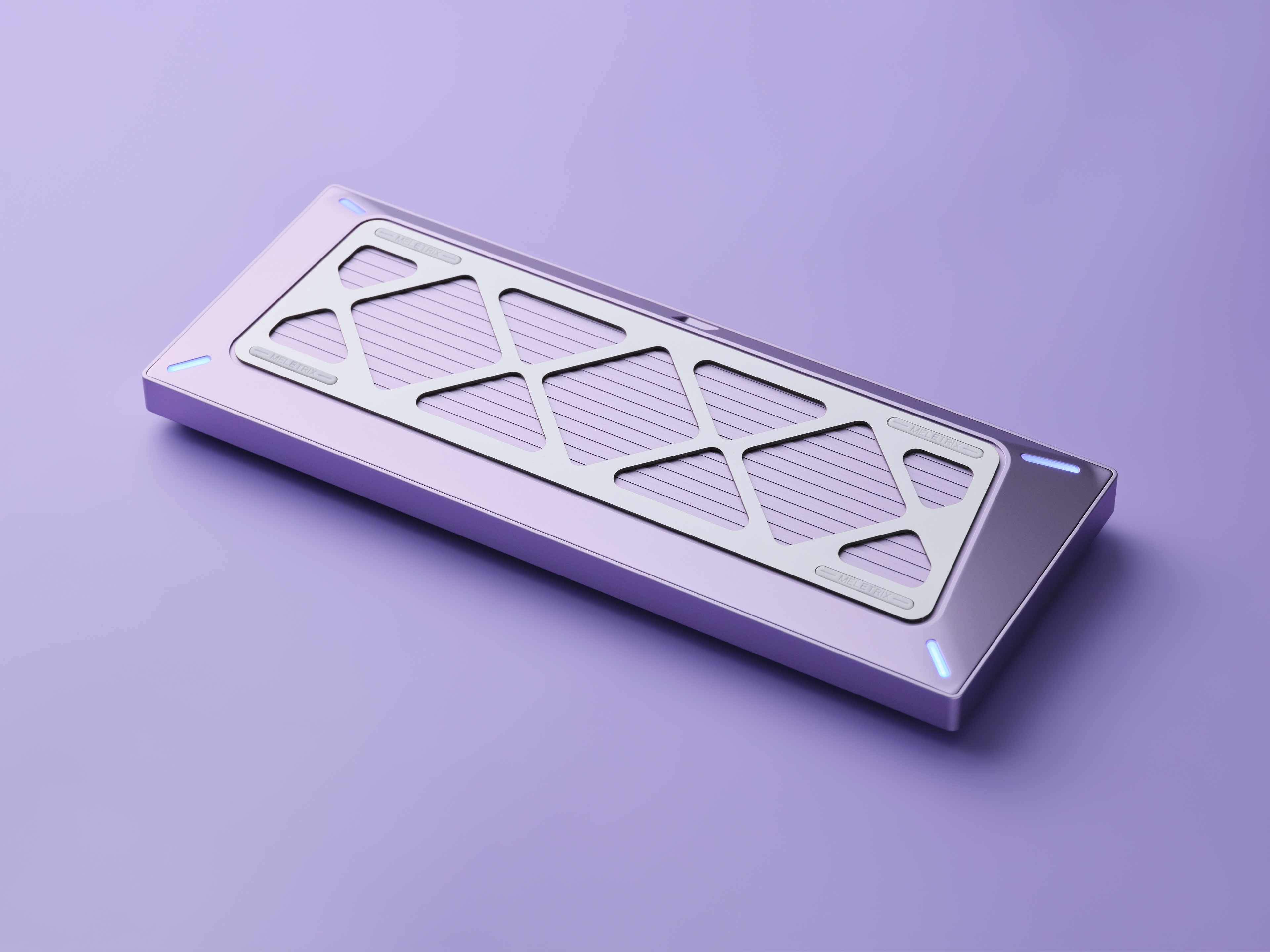

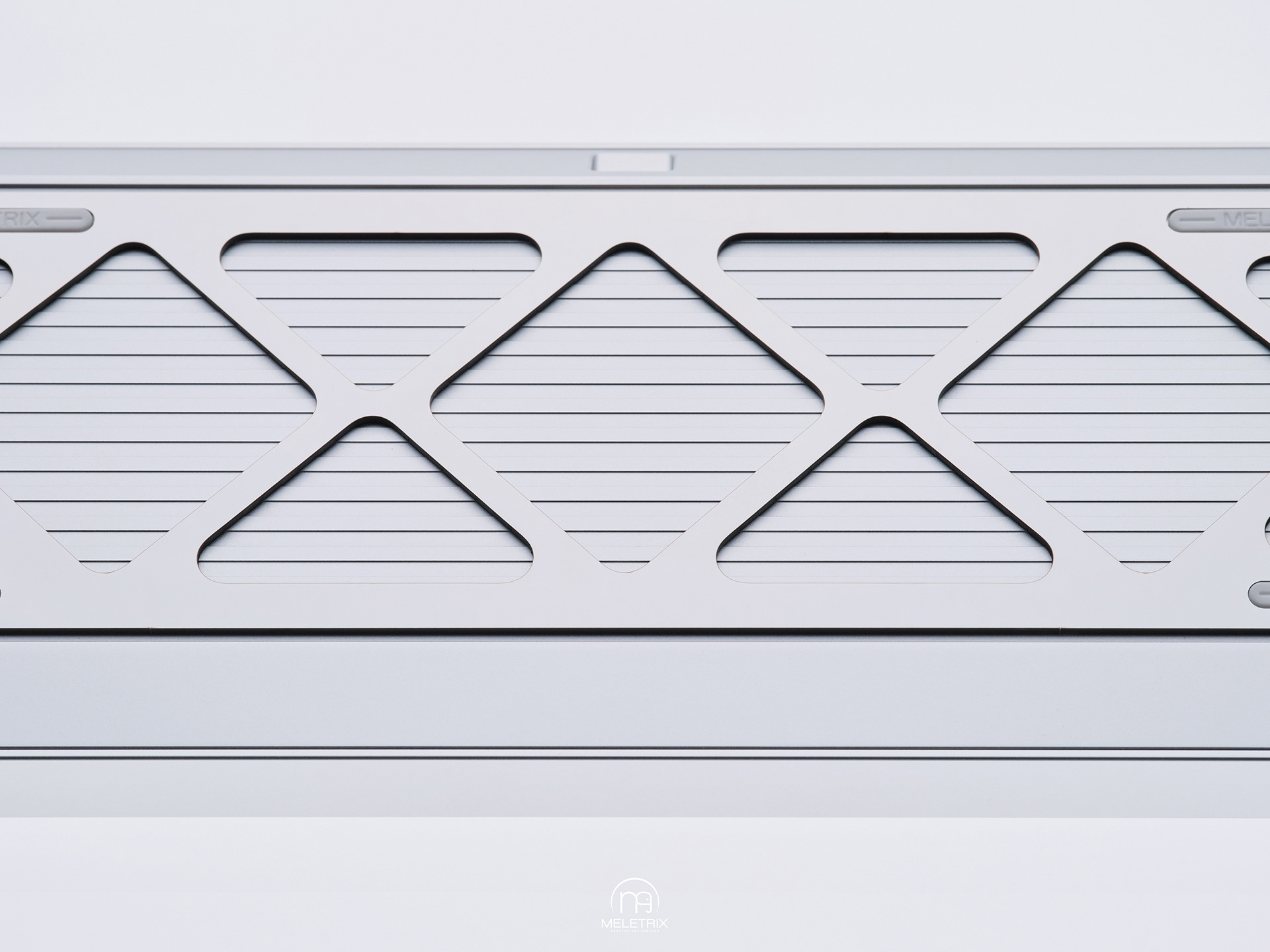

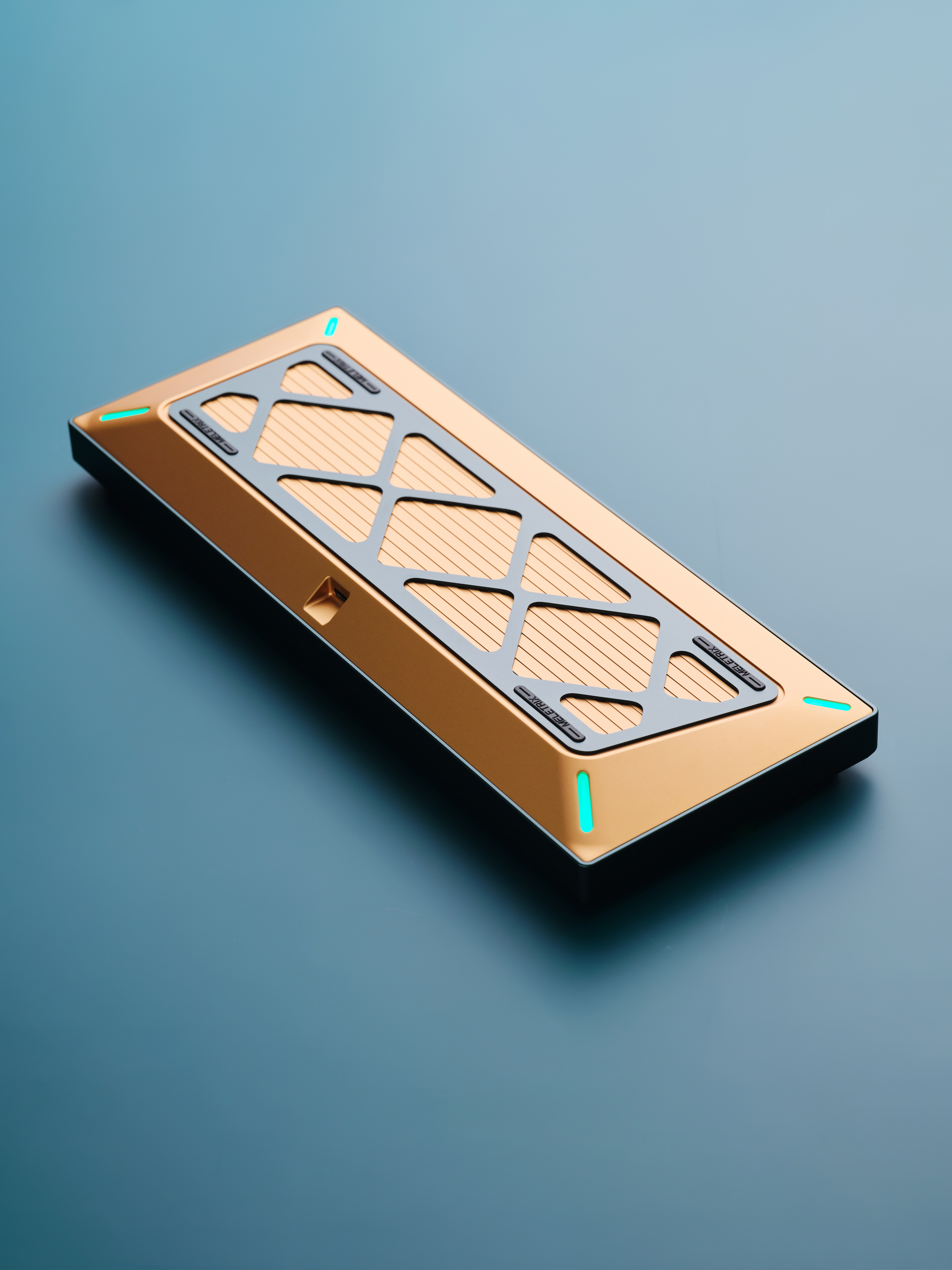

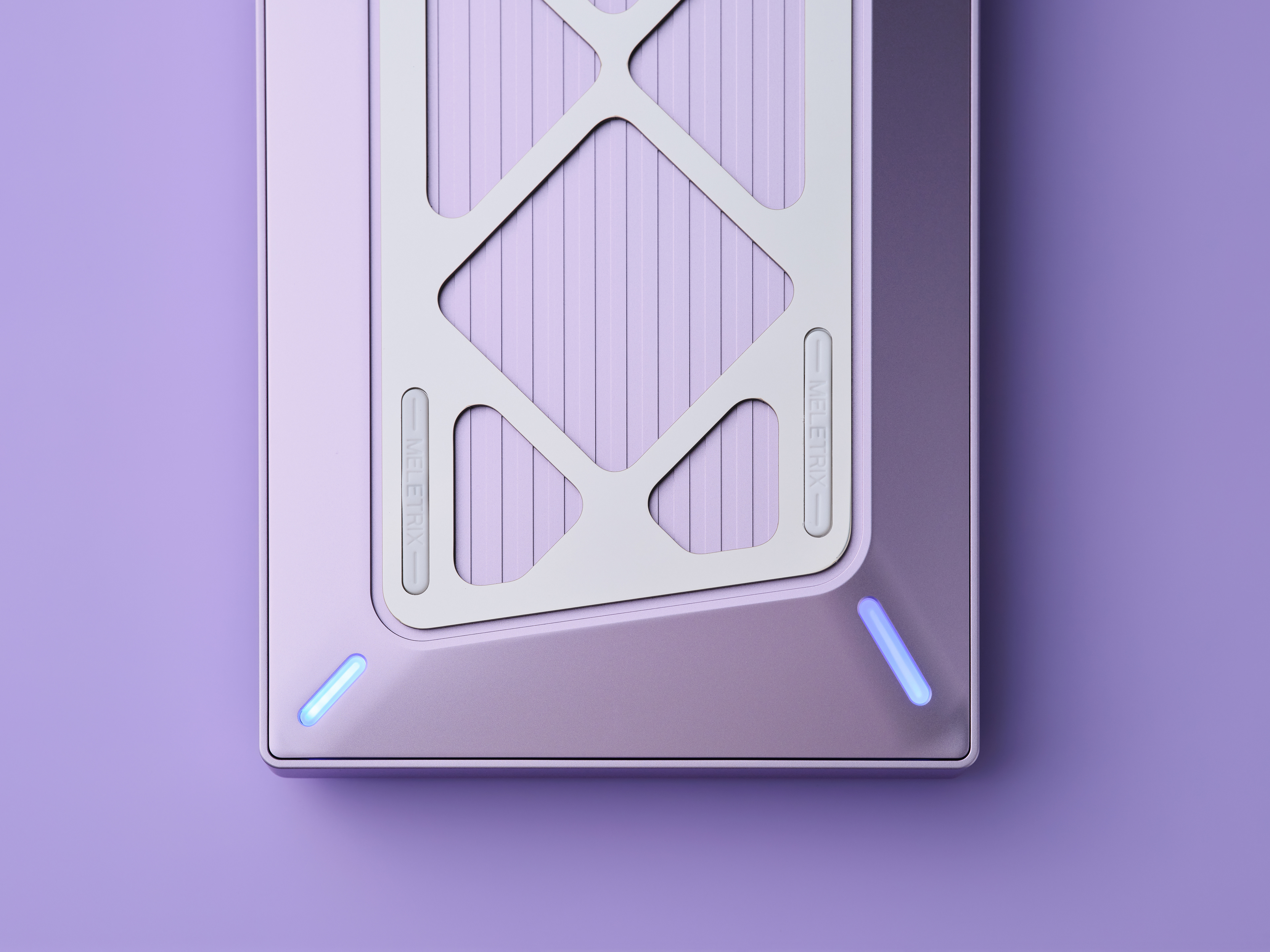

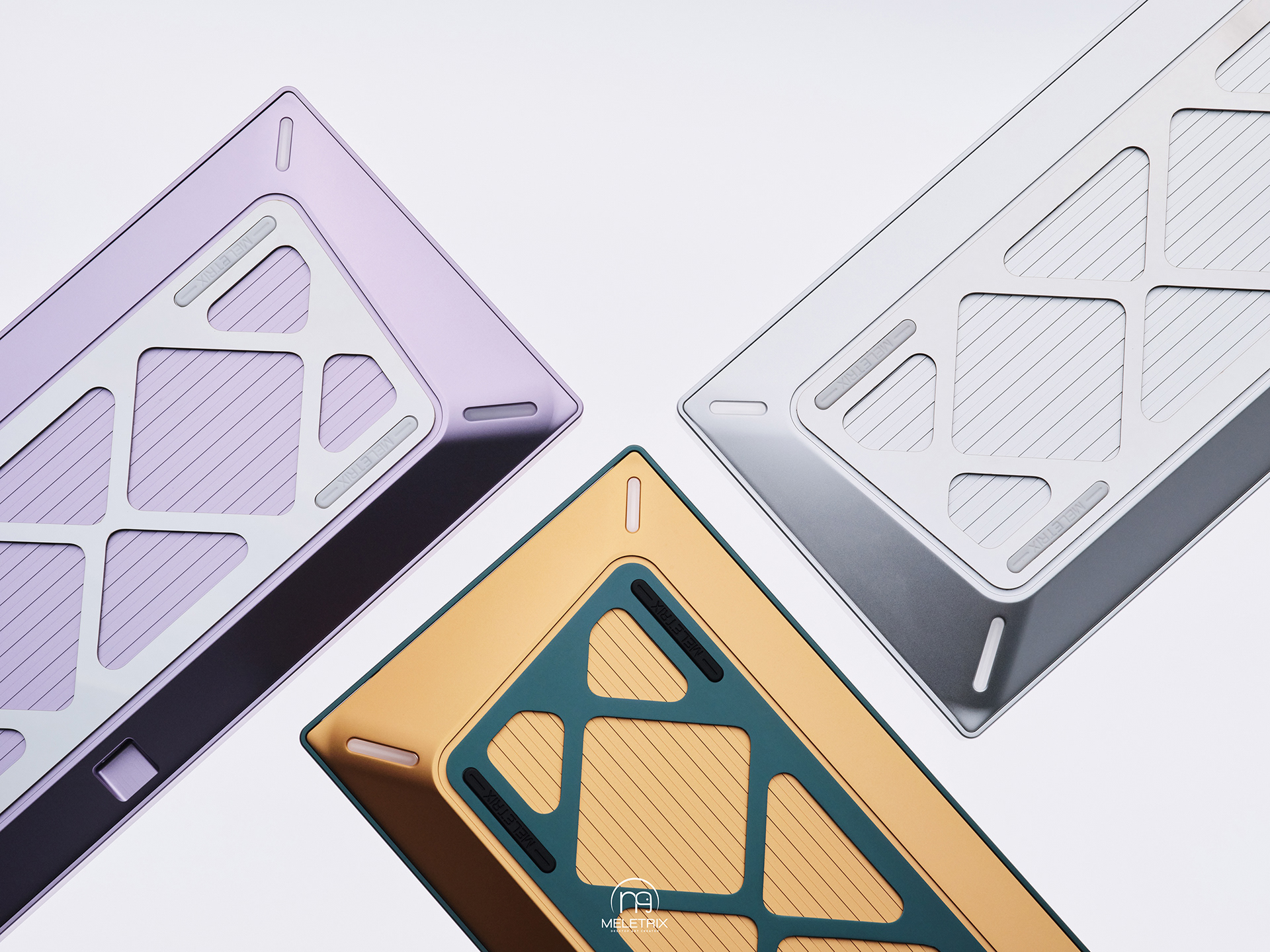

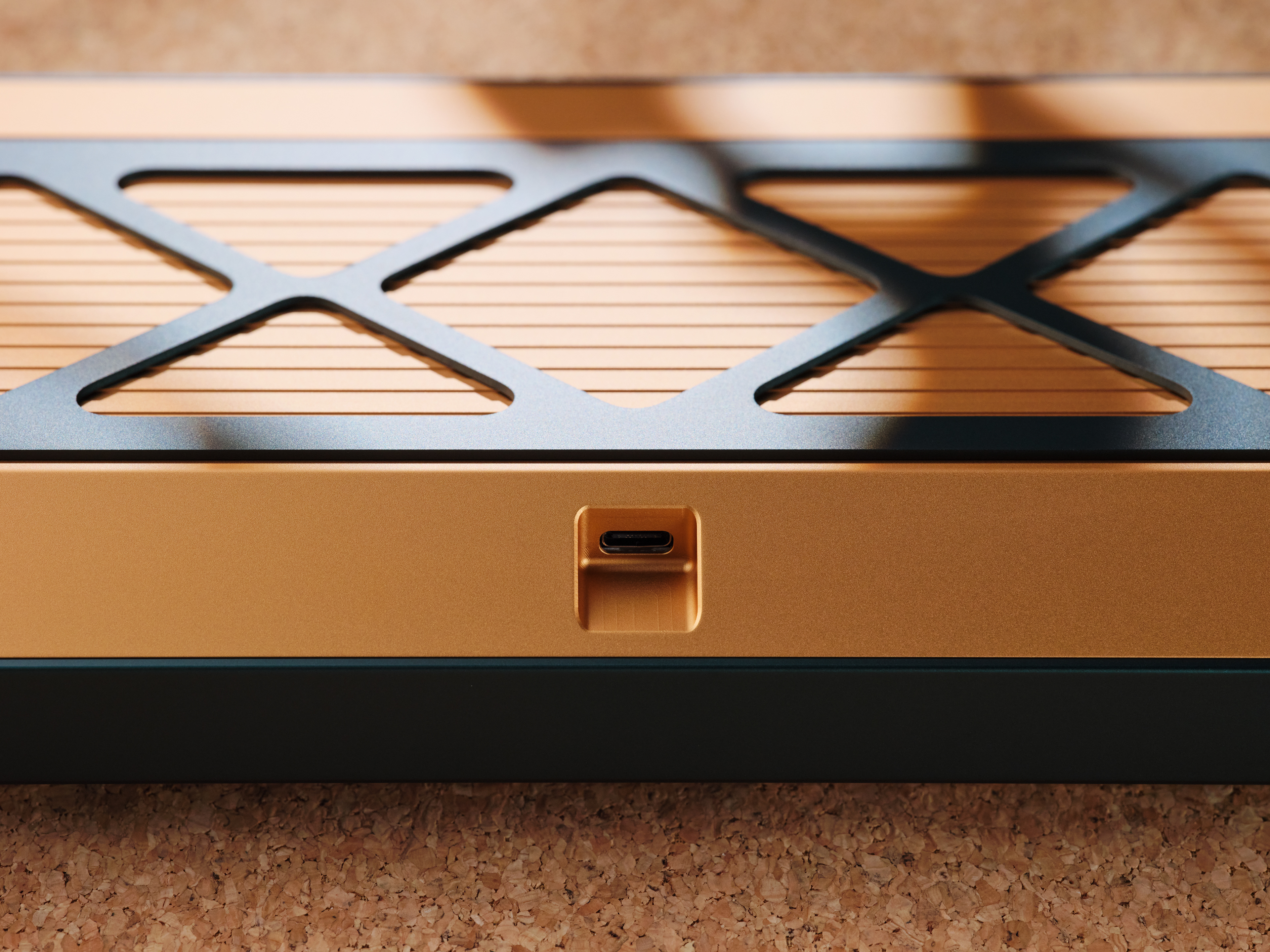

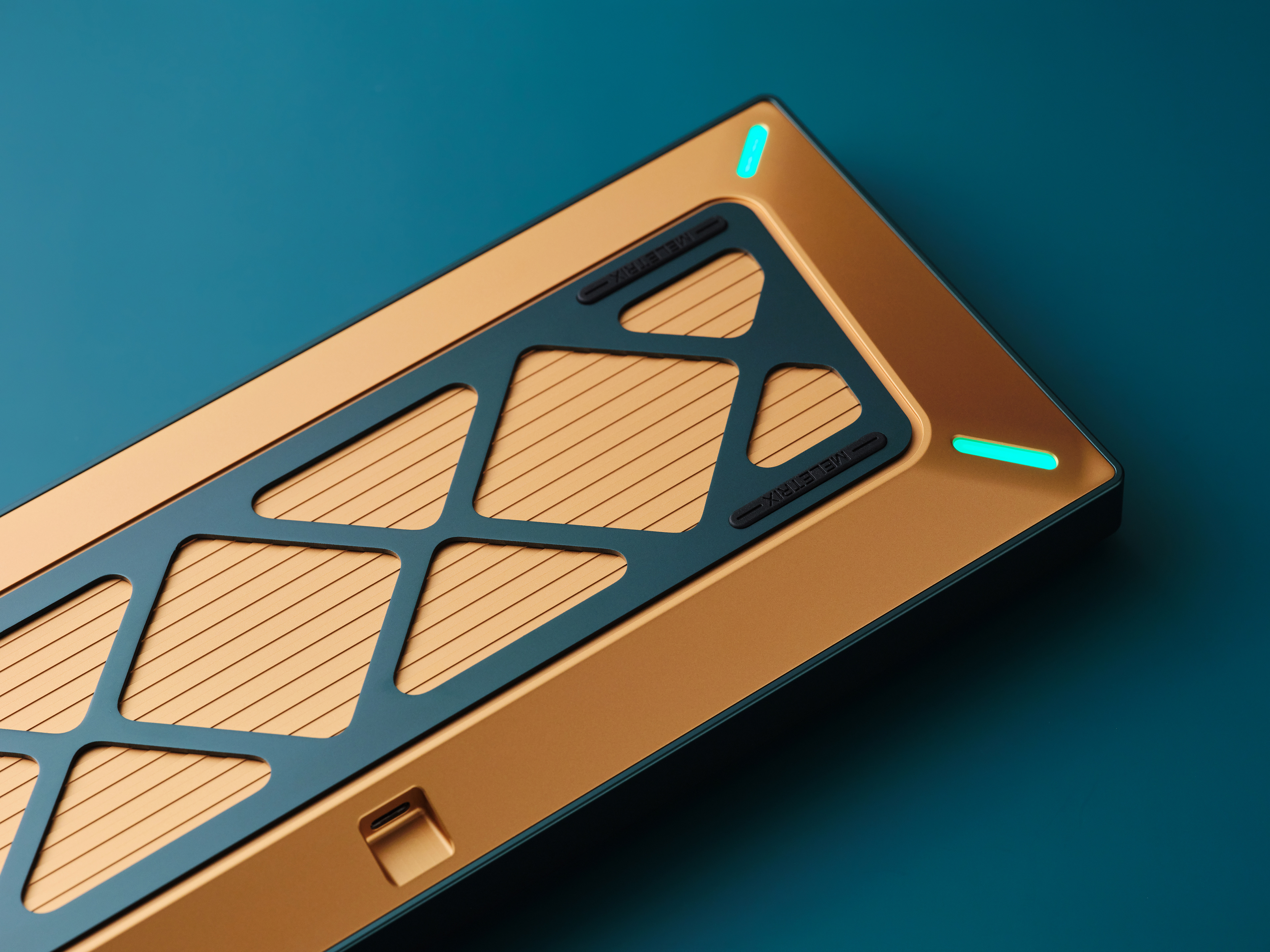

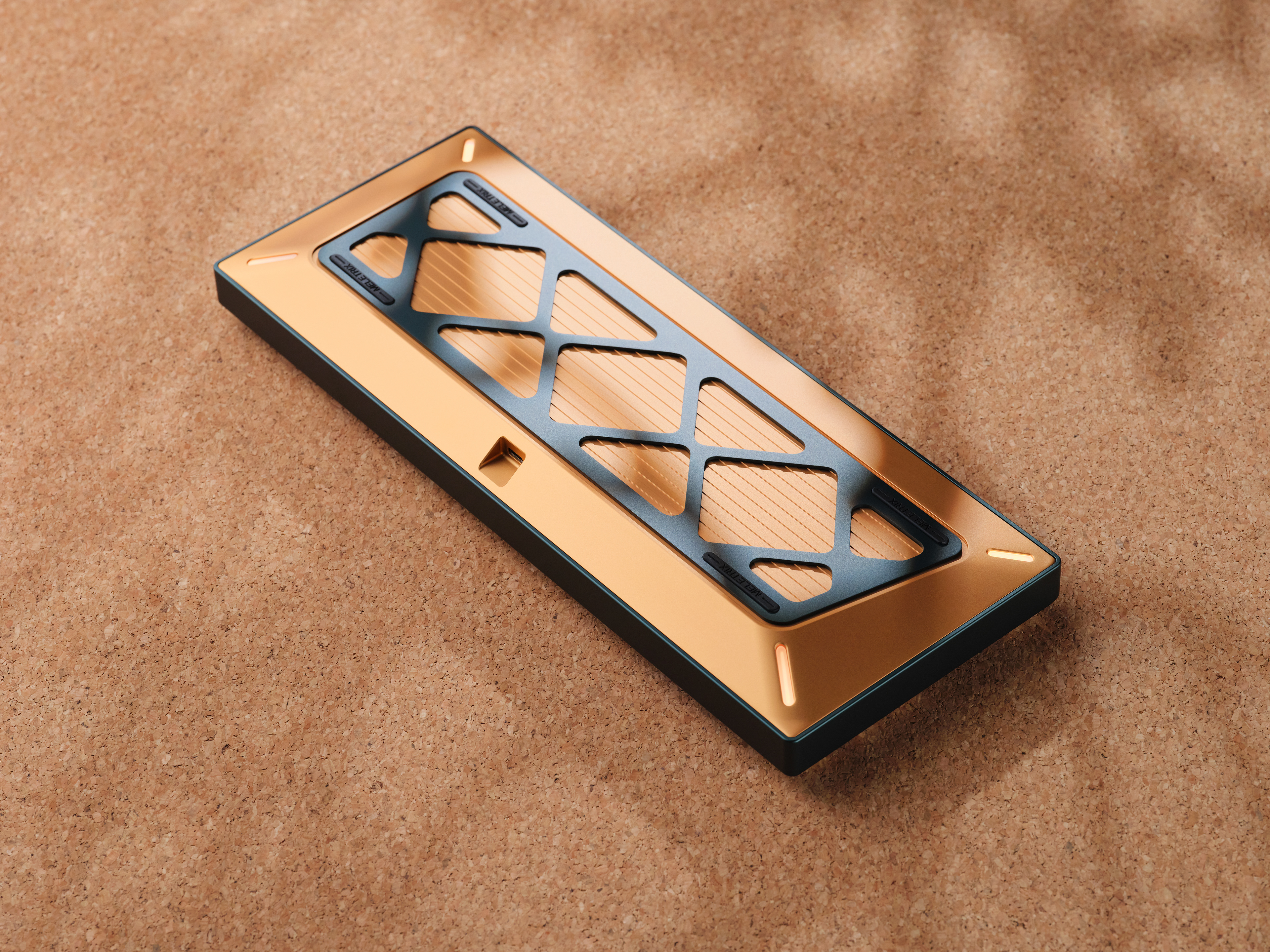

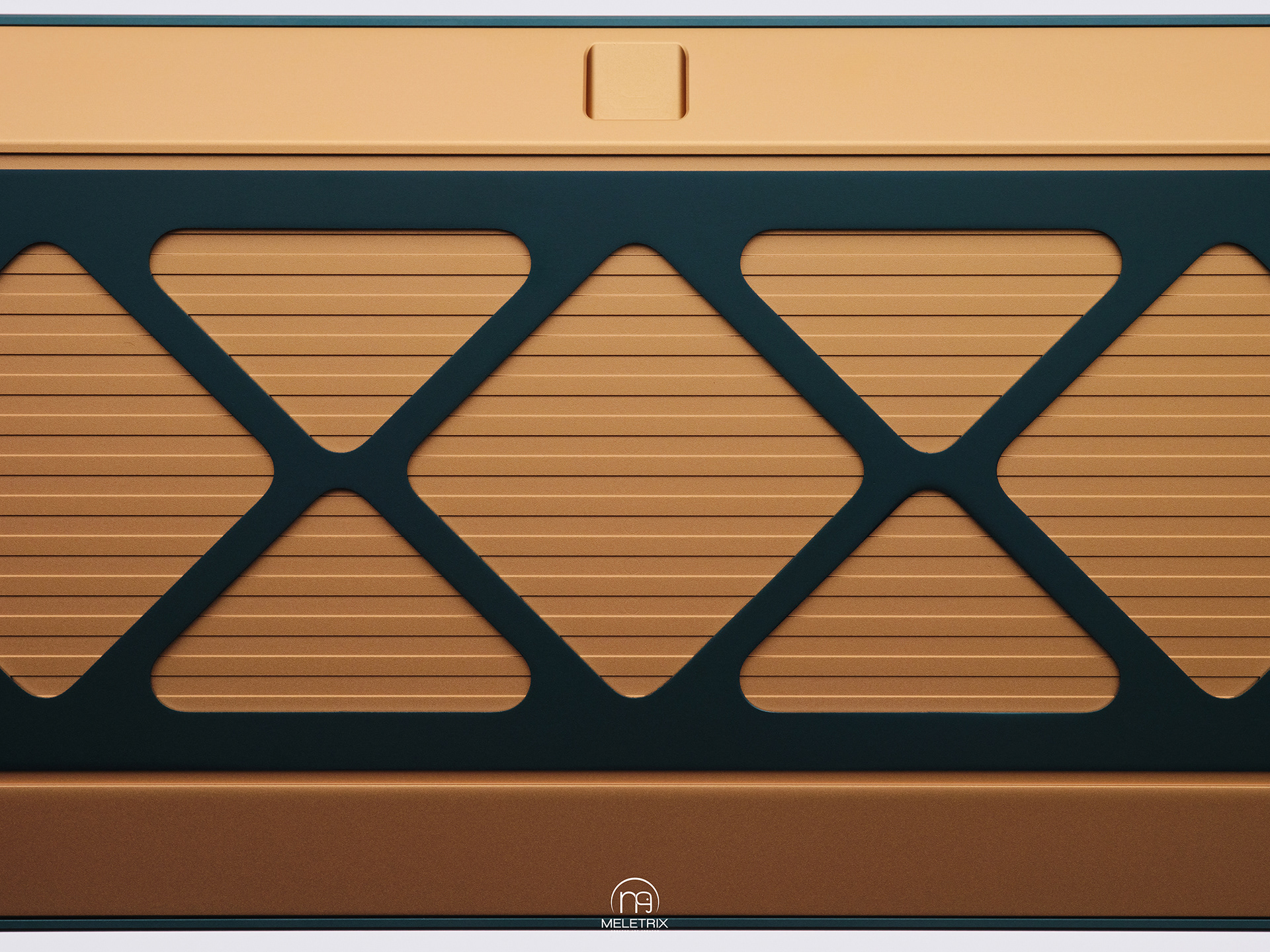

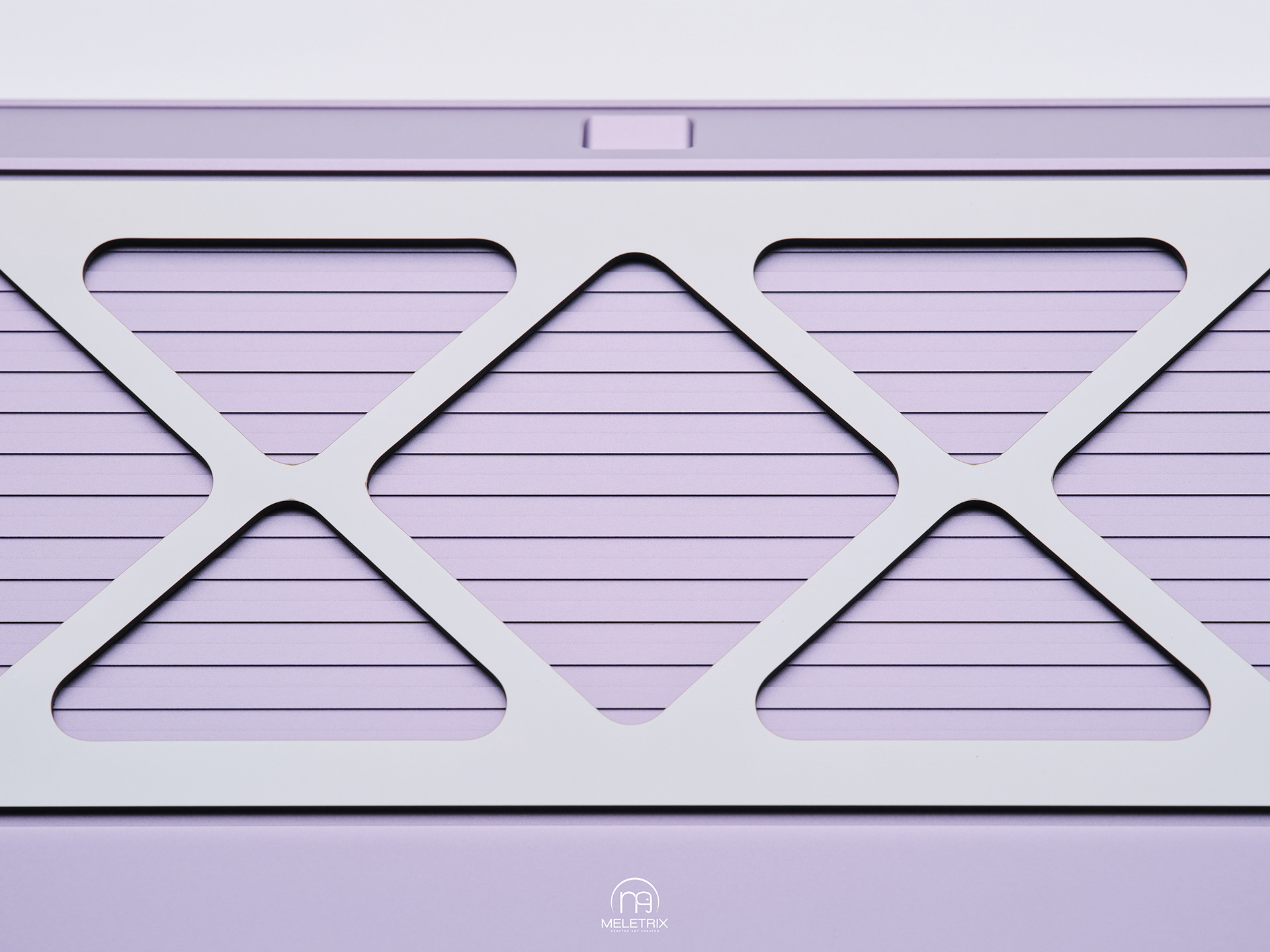

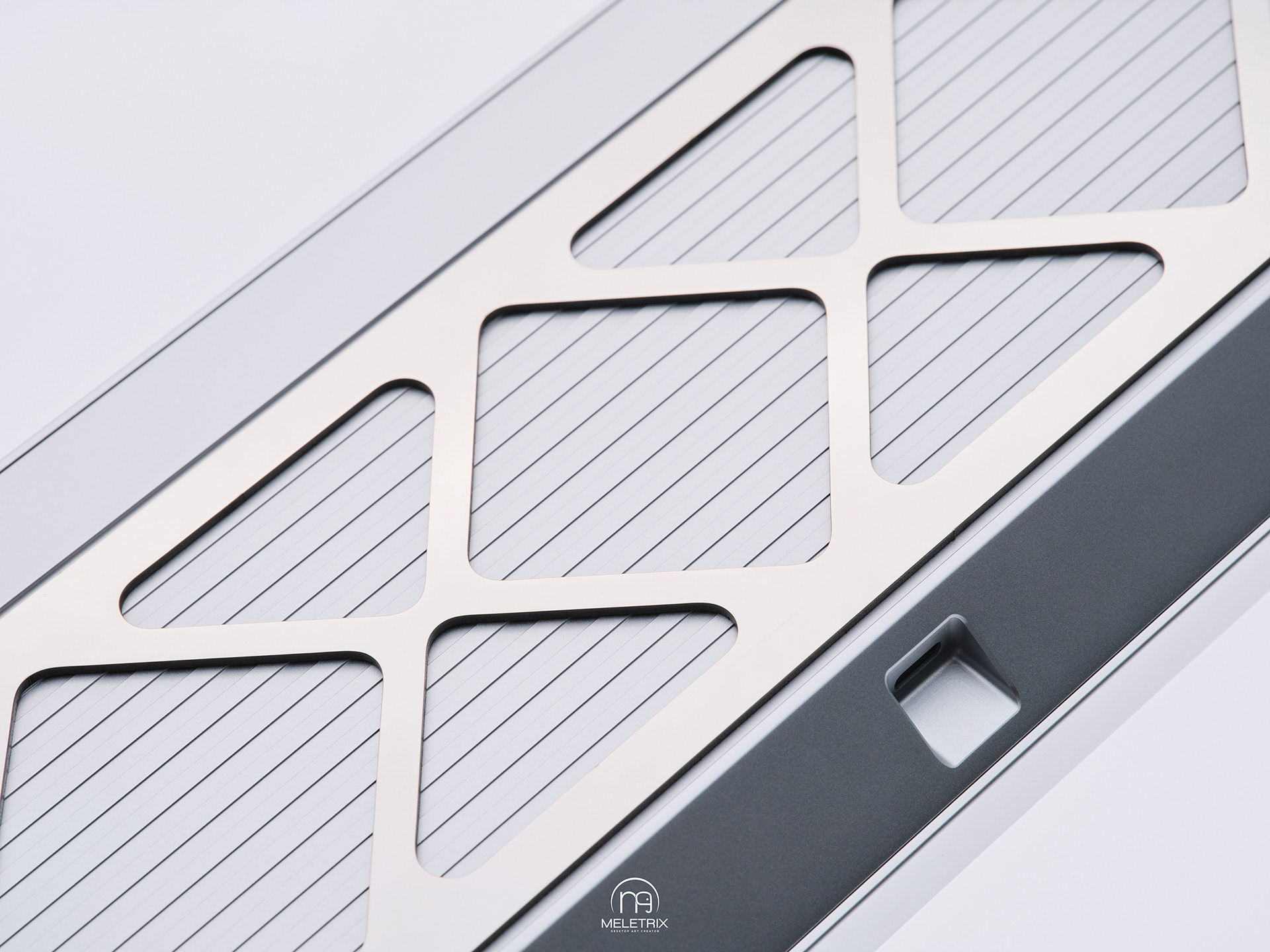

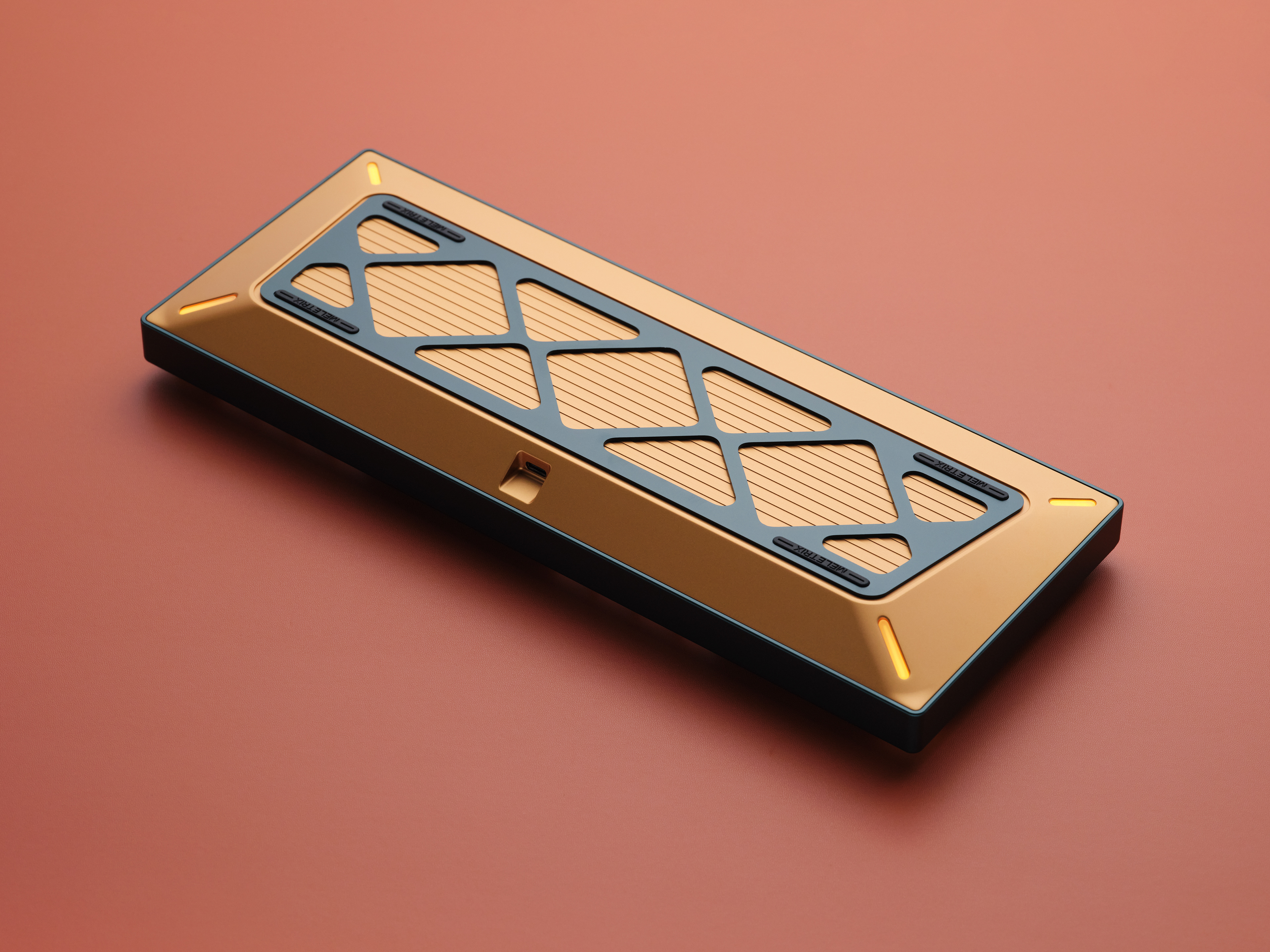

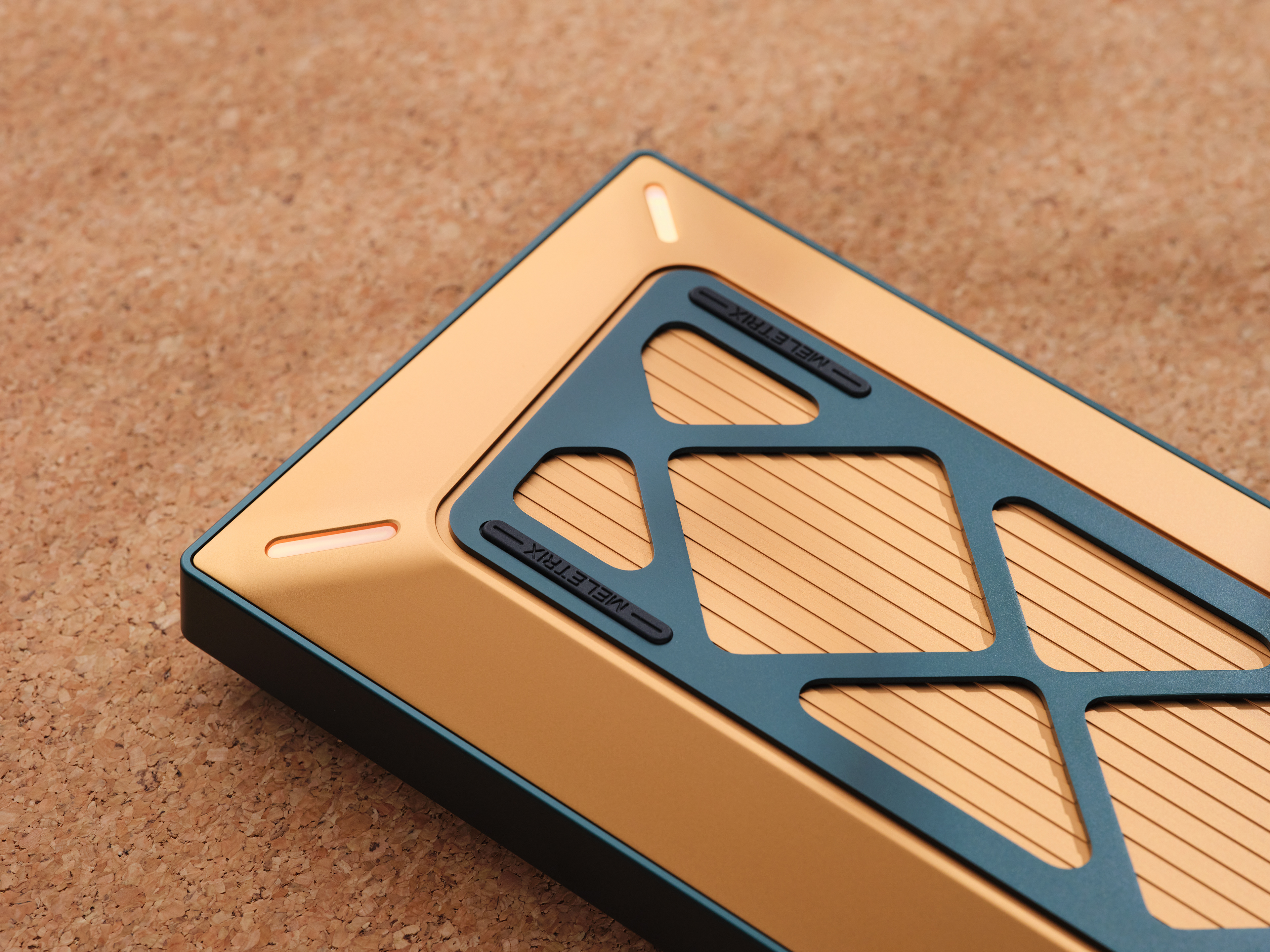

The back retains TIGA series’ signature grille design, through multiple adjustments to retain a retro style while incorporating unique personality, with clean and orderly grid lines.

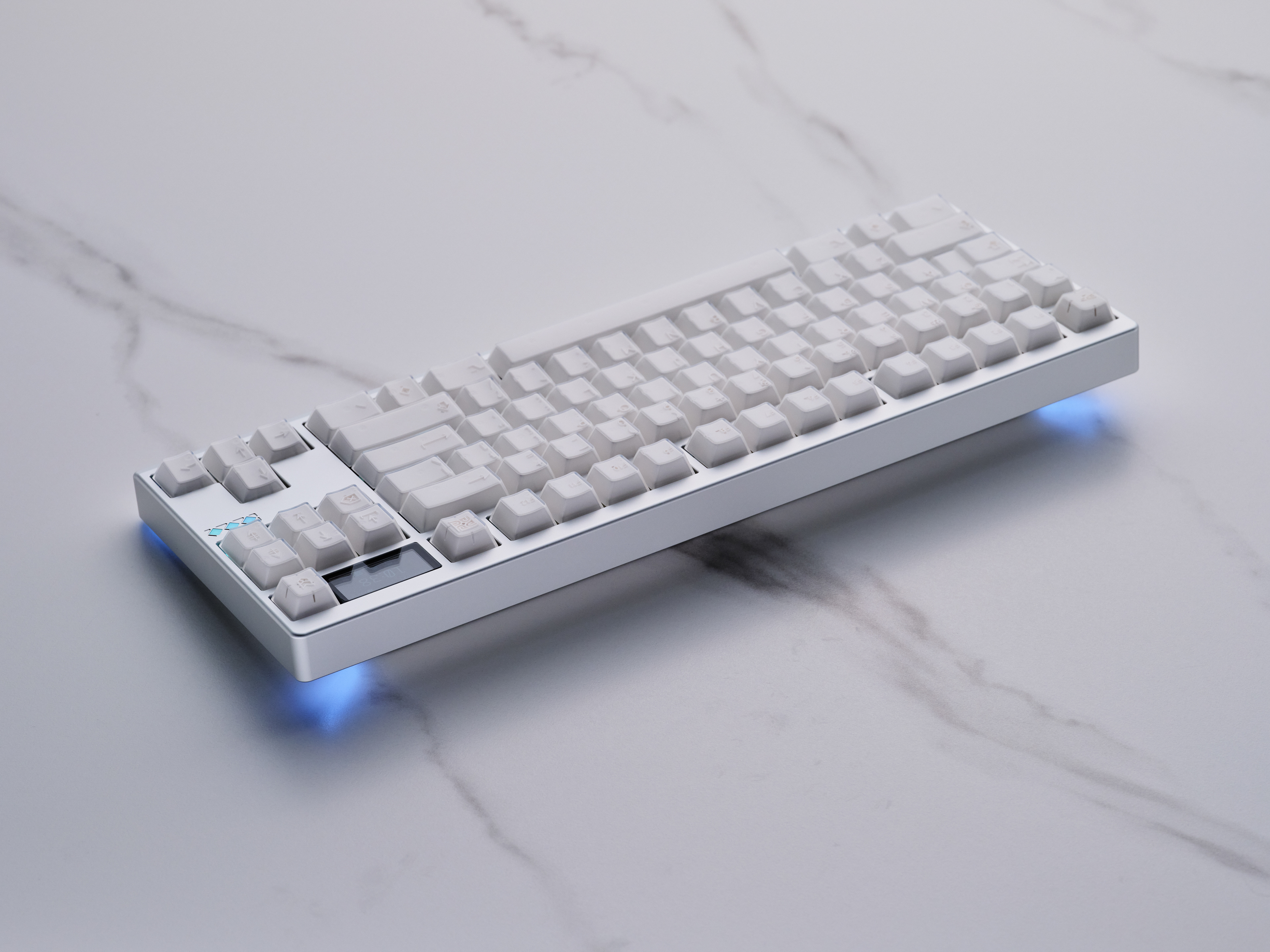

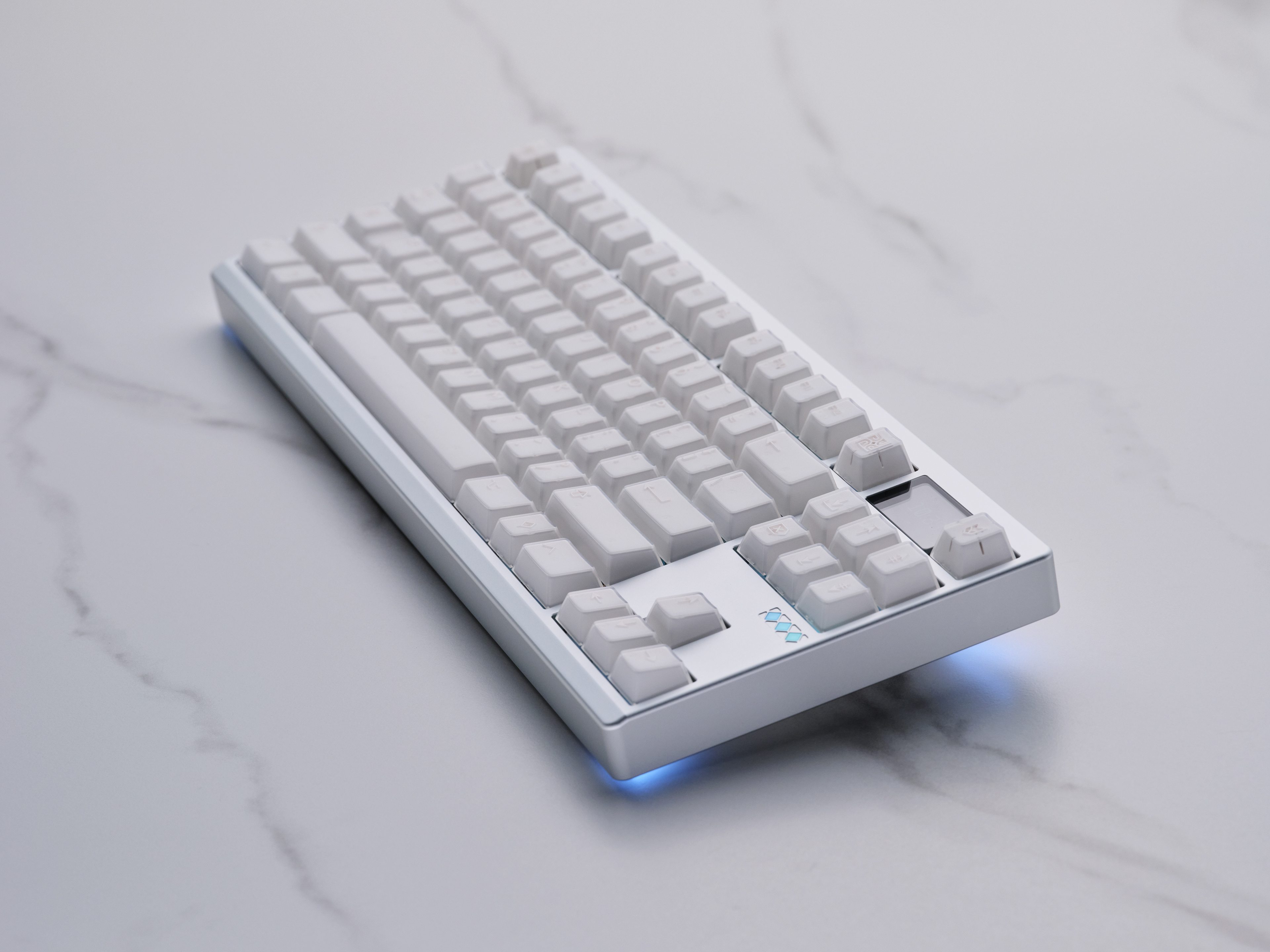

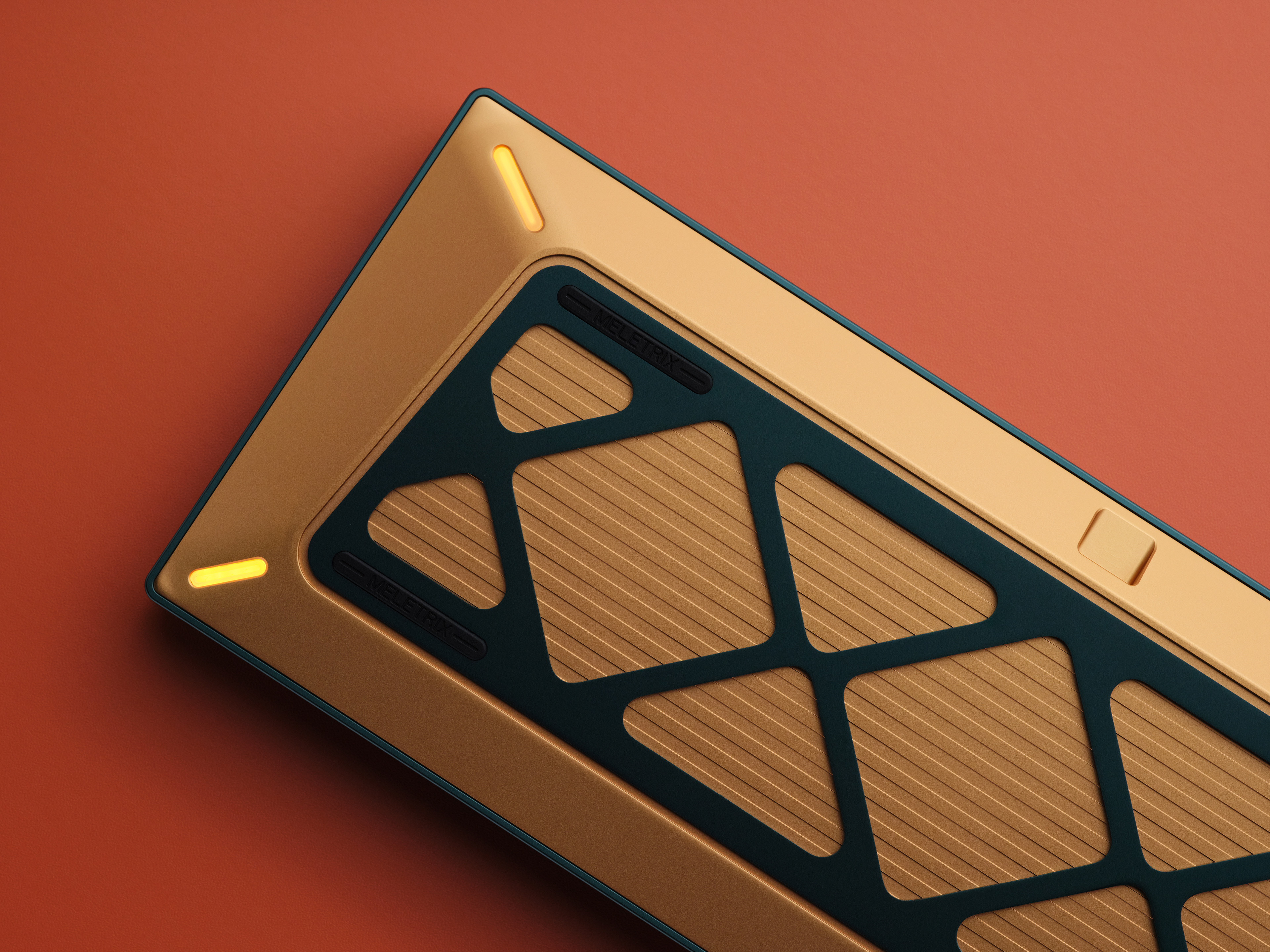

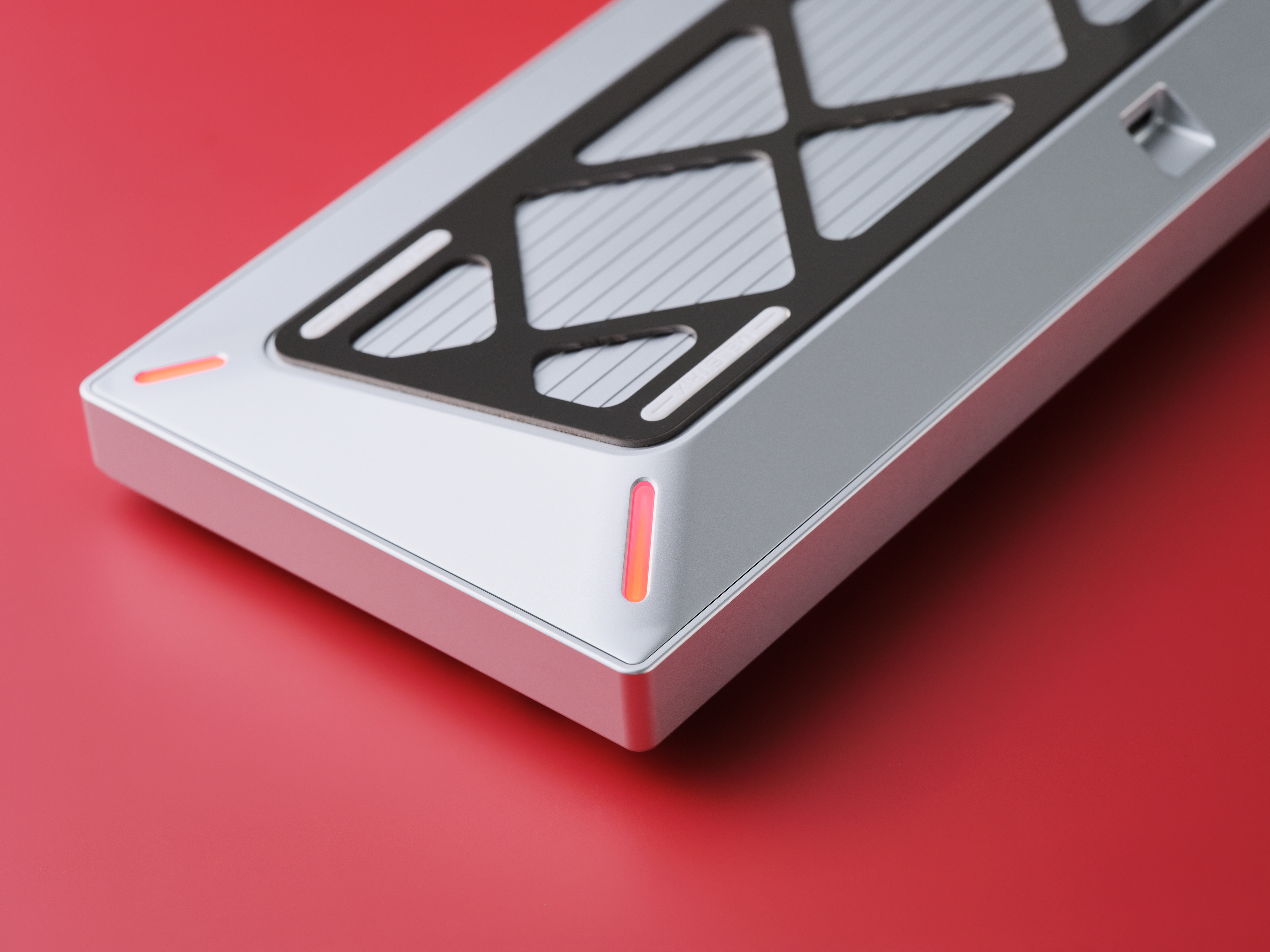

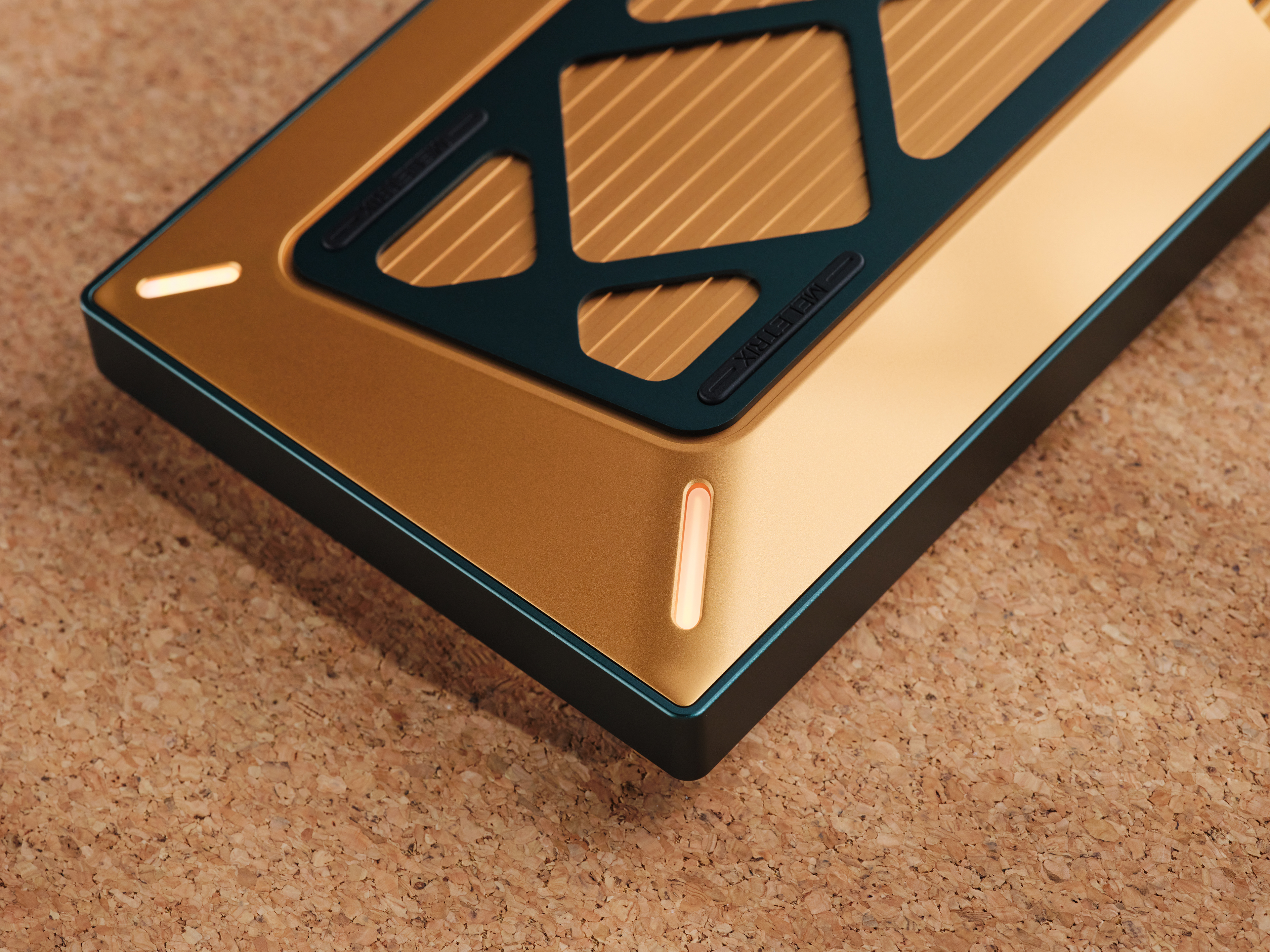

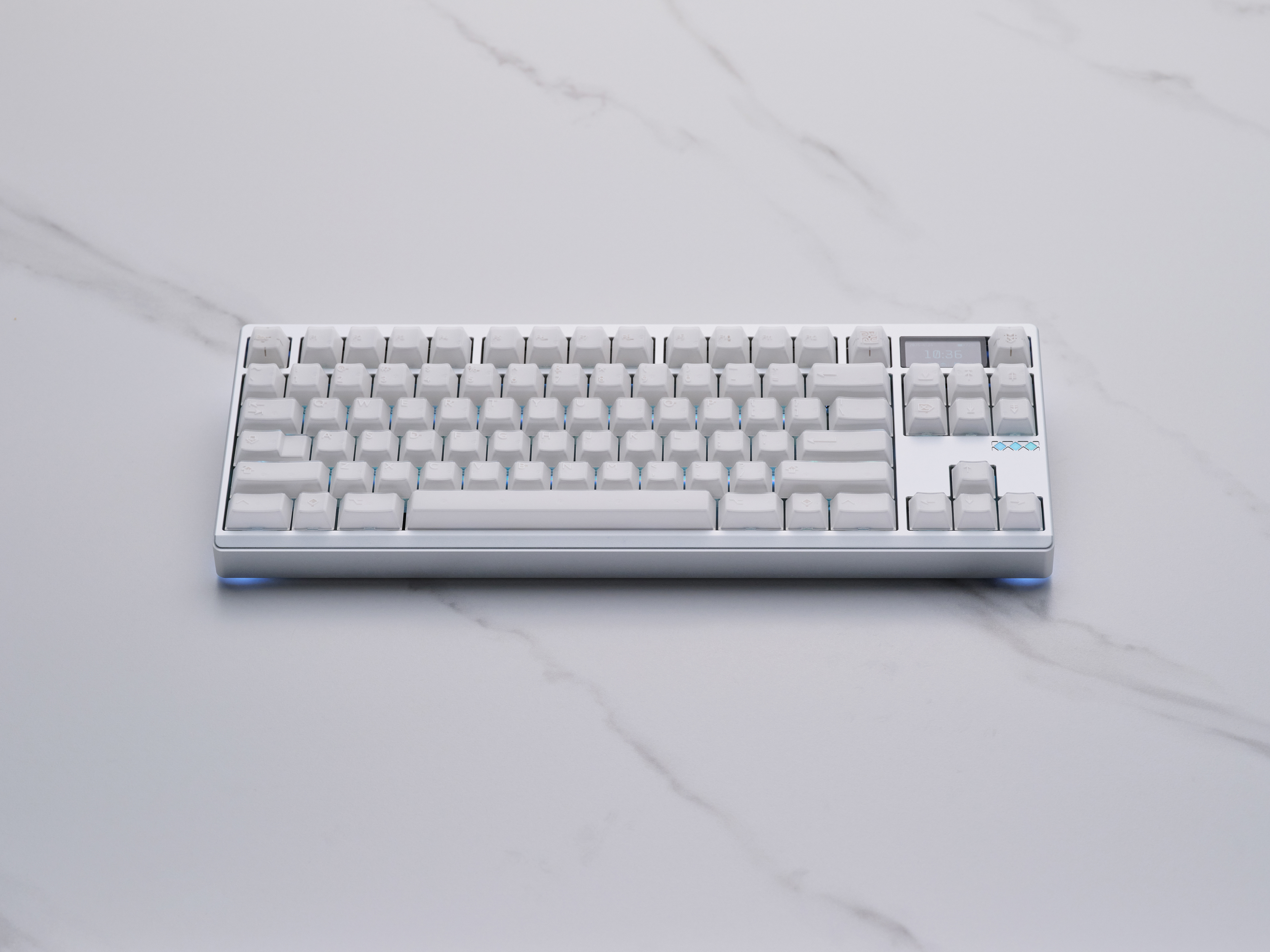

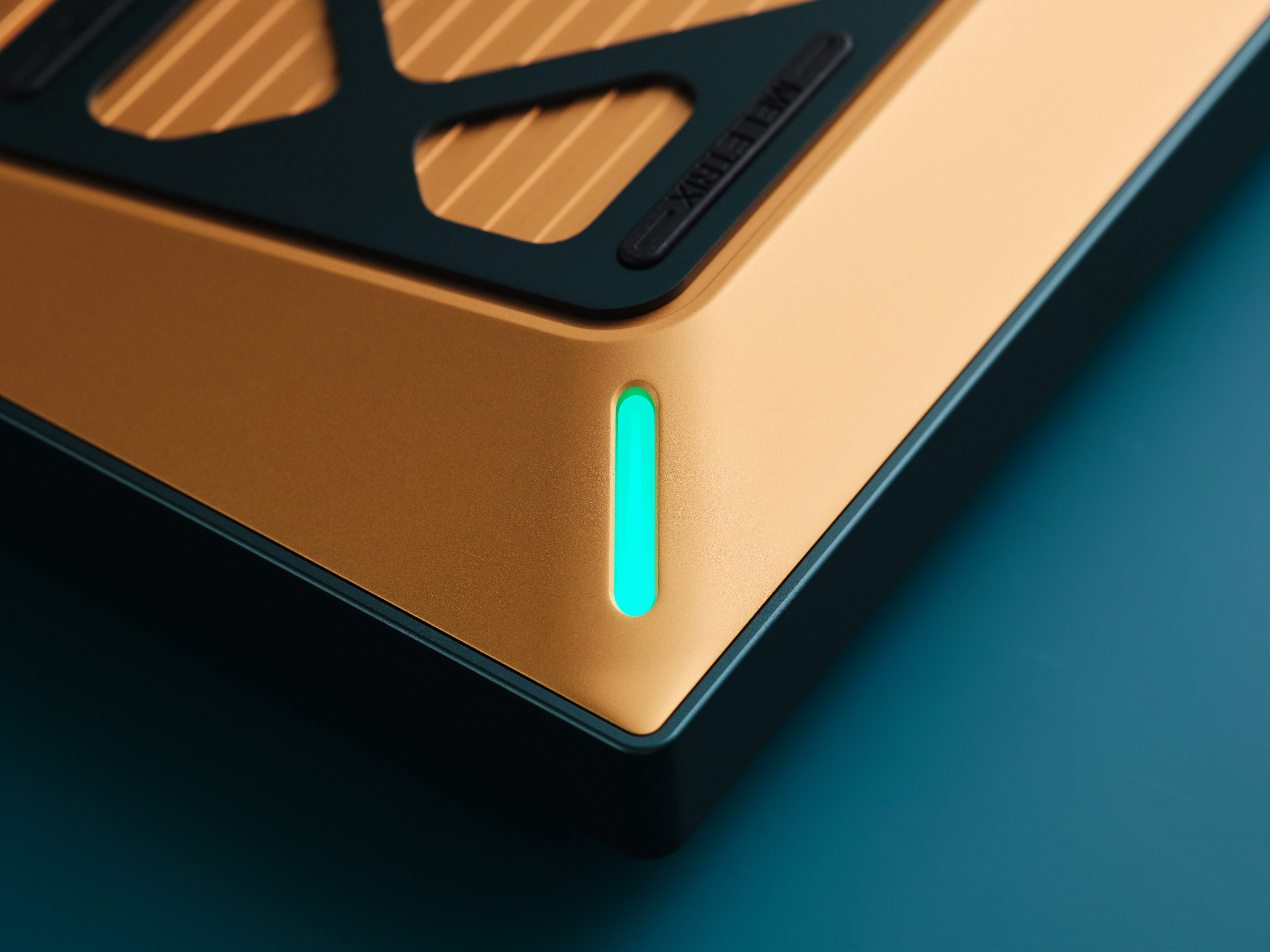

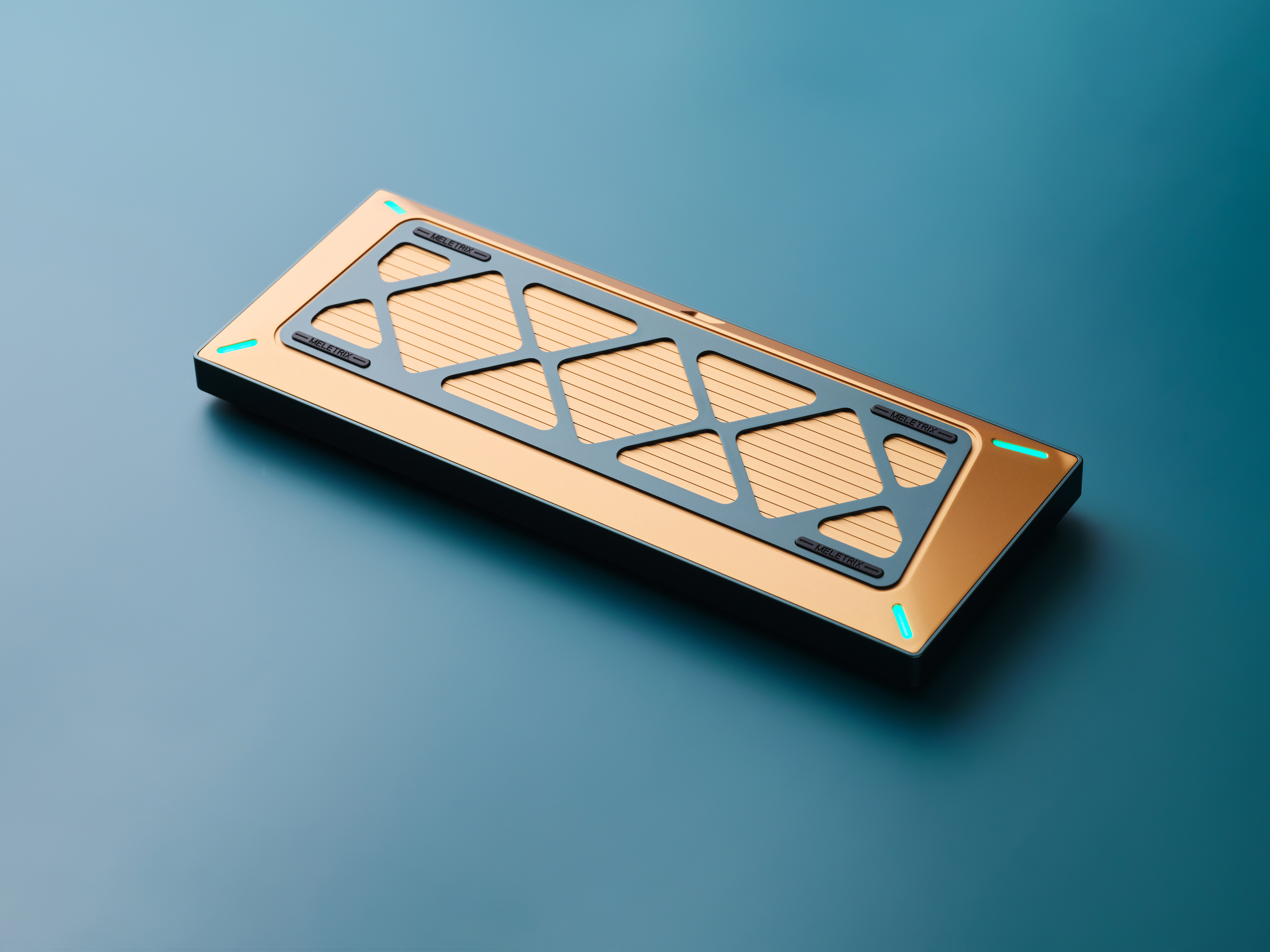

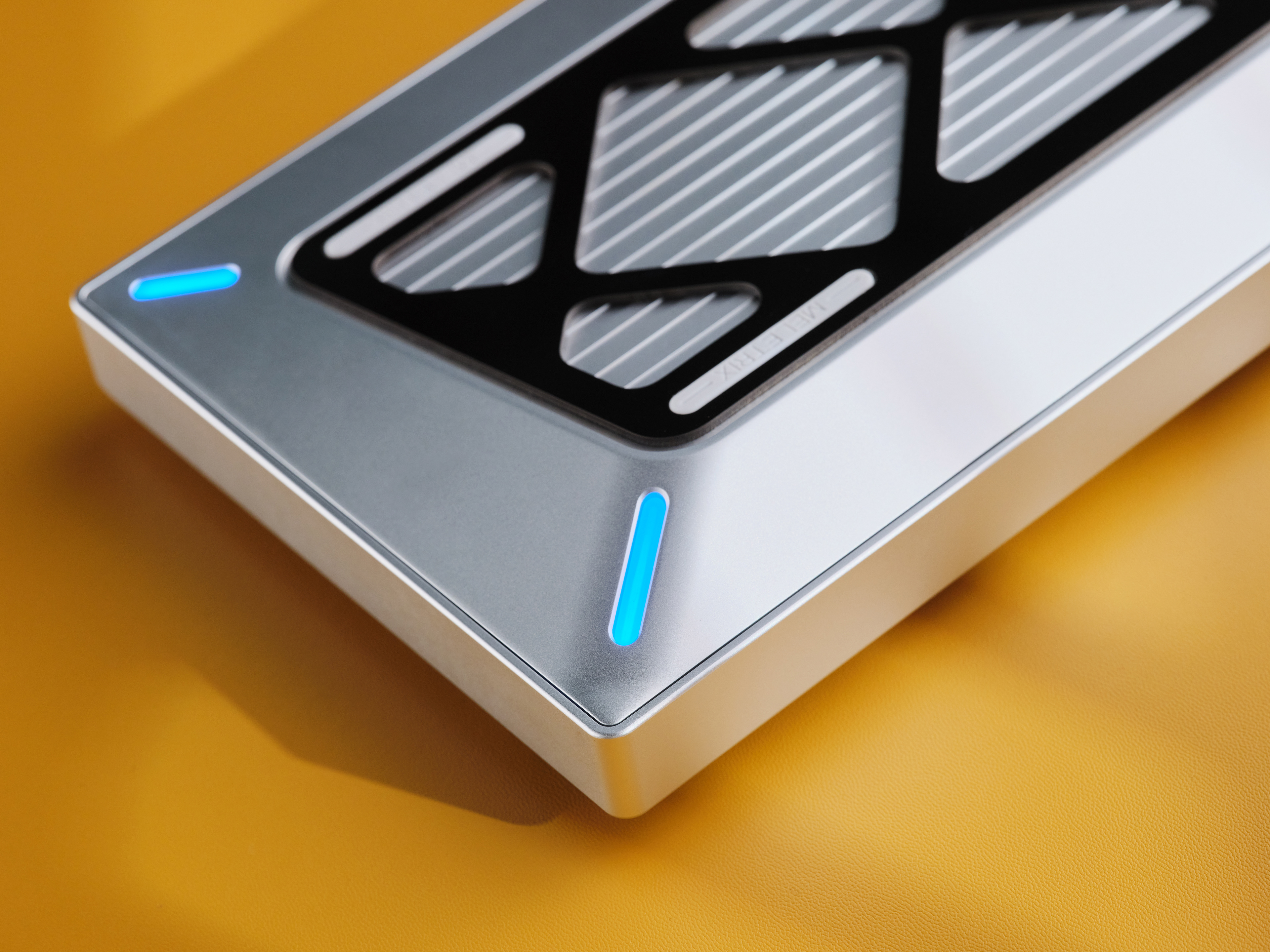

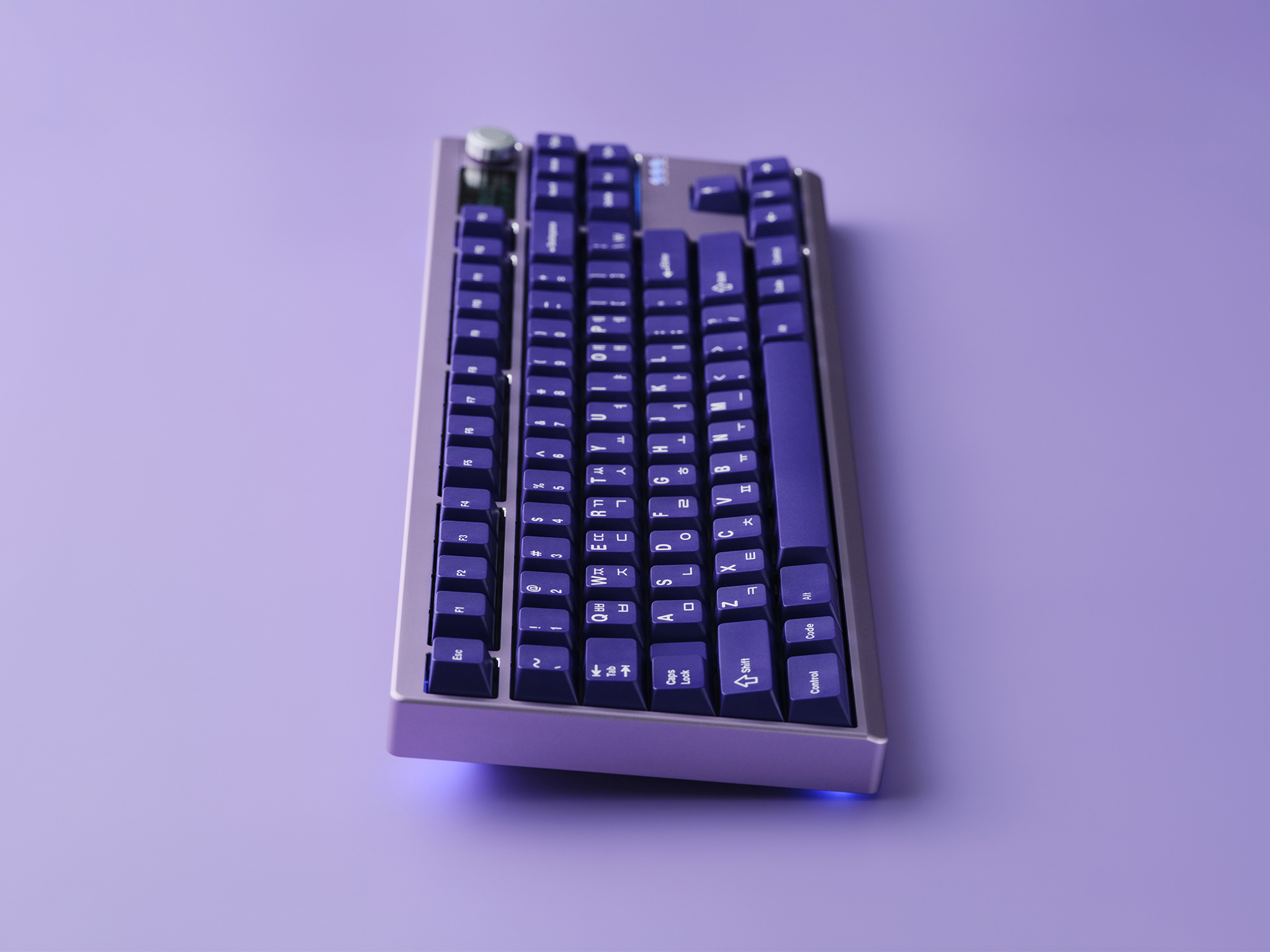

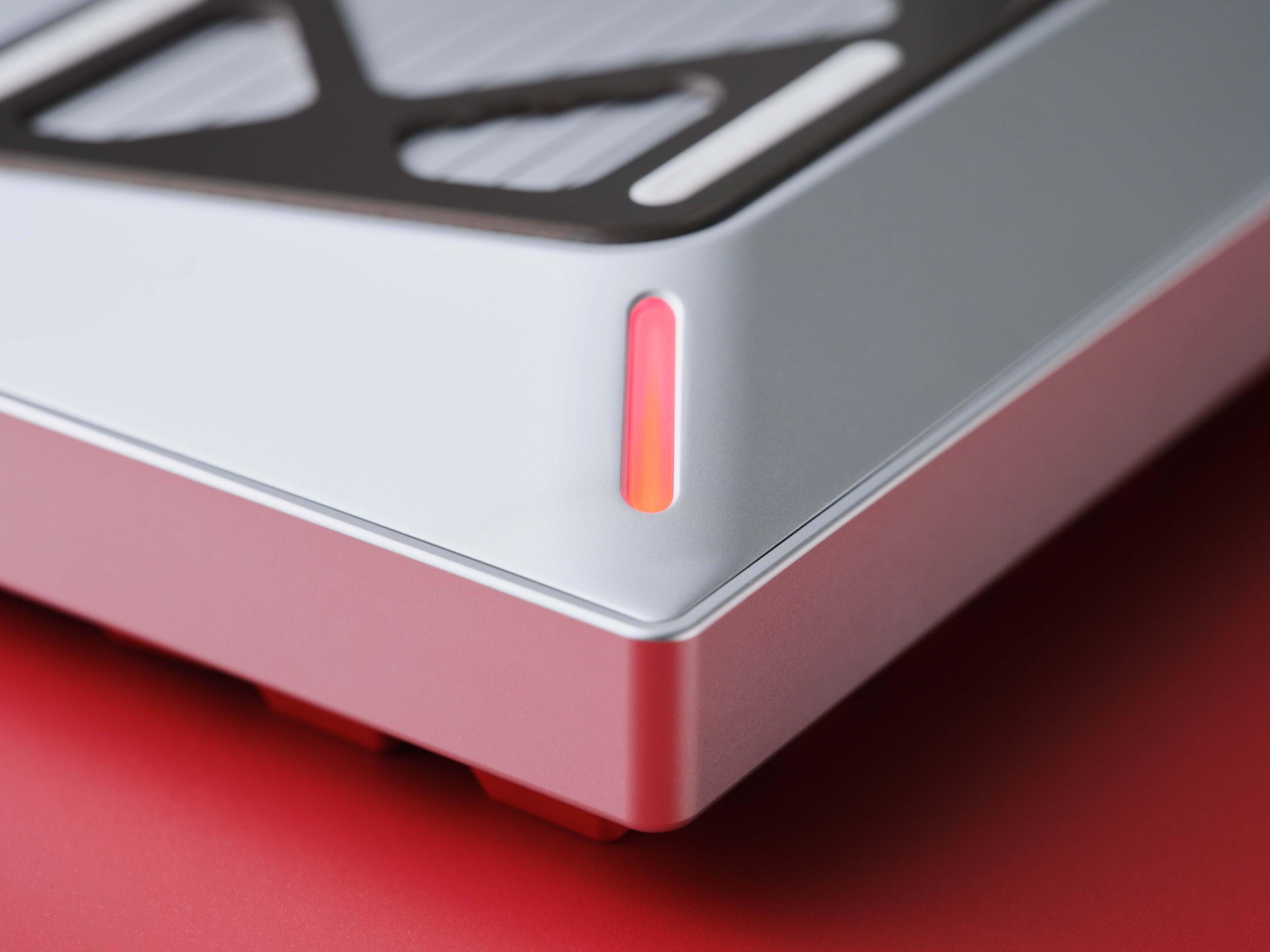

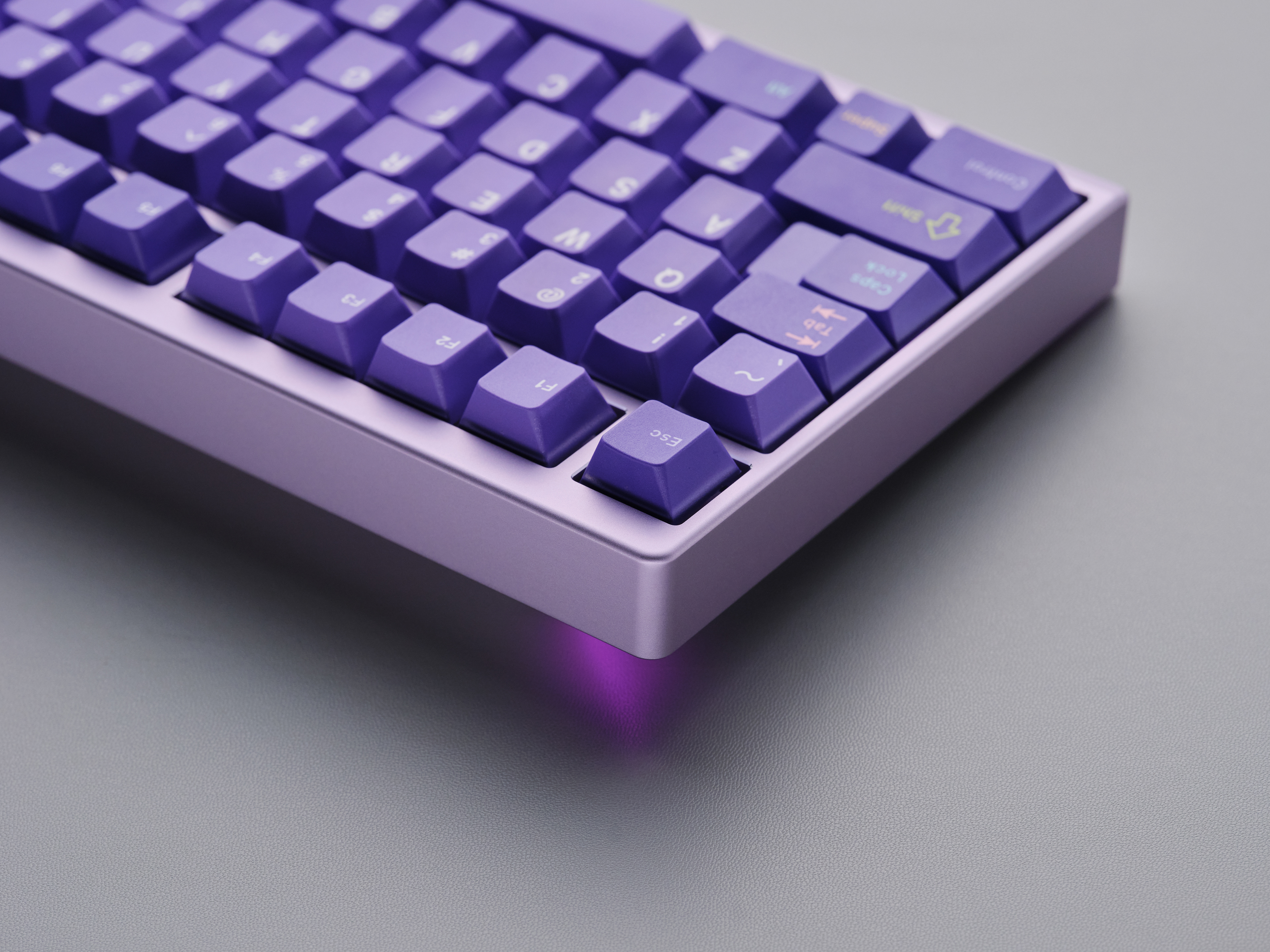

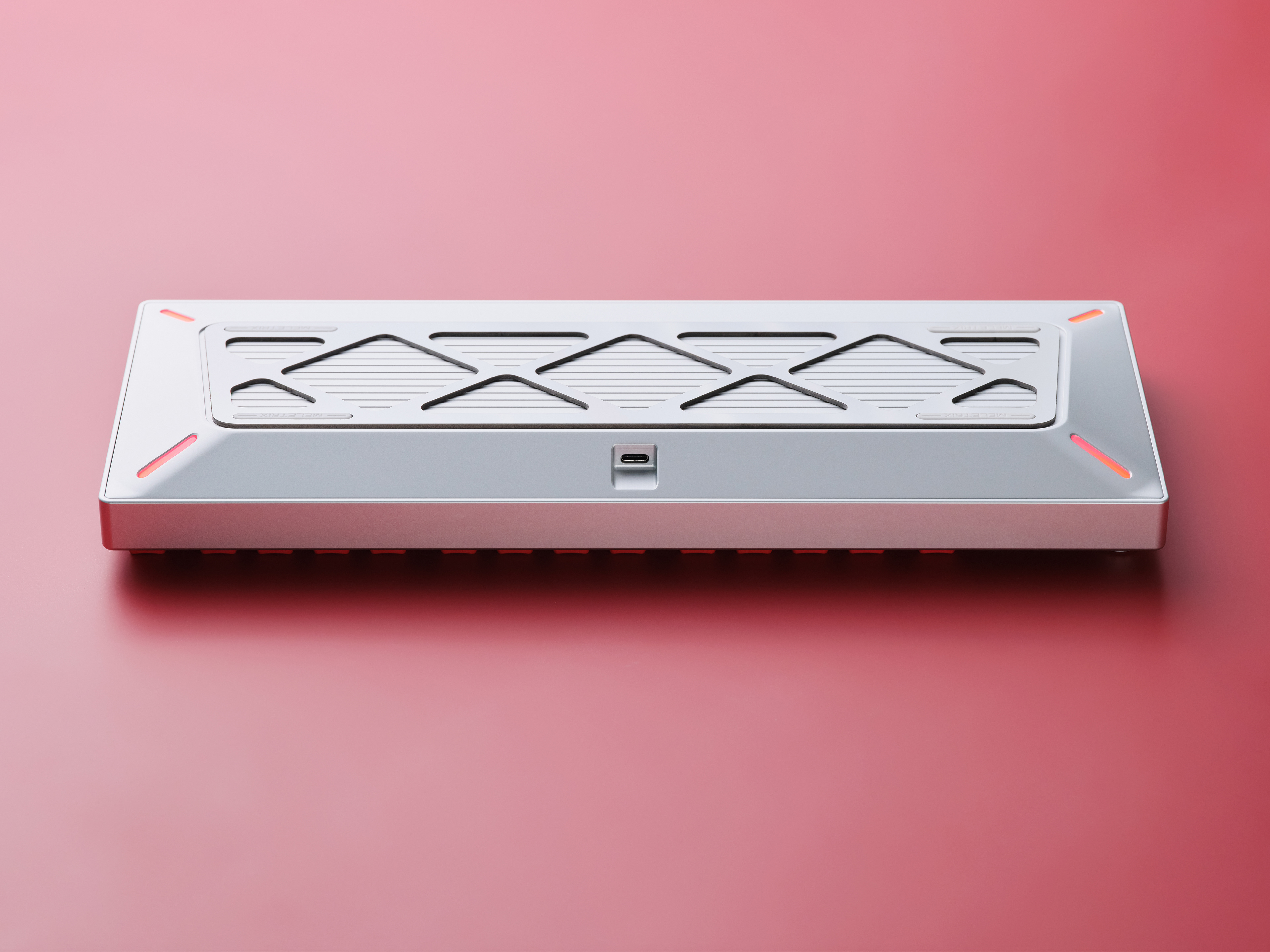

The four-dimensional light domain at the bottom echoes the diamond-patterned ambient light on the top case, enabling unified control over effects and colors. In low-light settings, the dual illumination creates a dynamic “light warrior” effect.

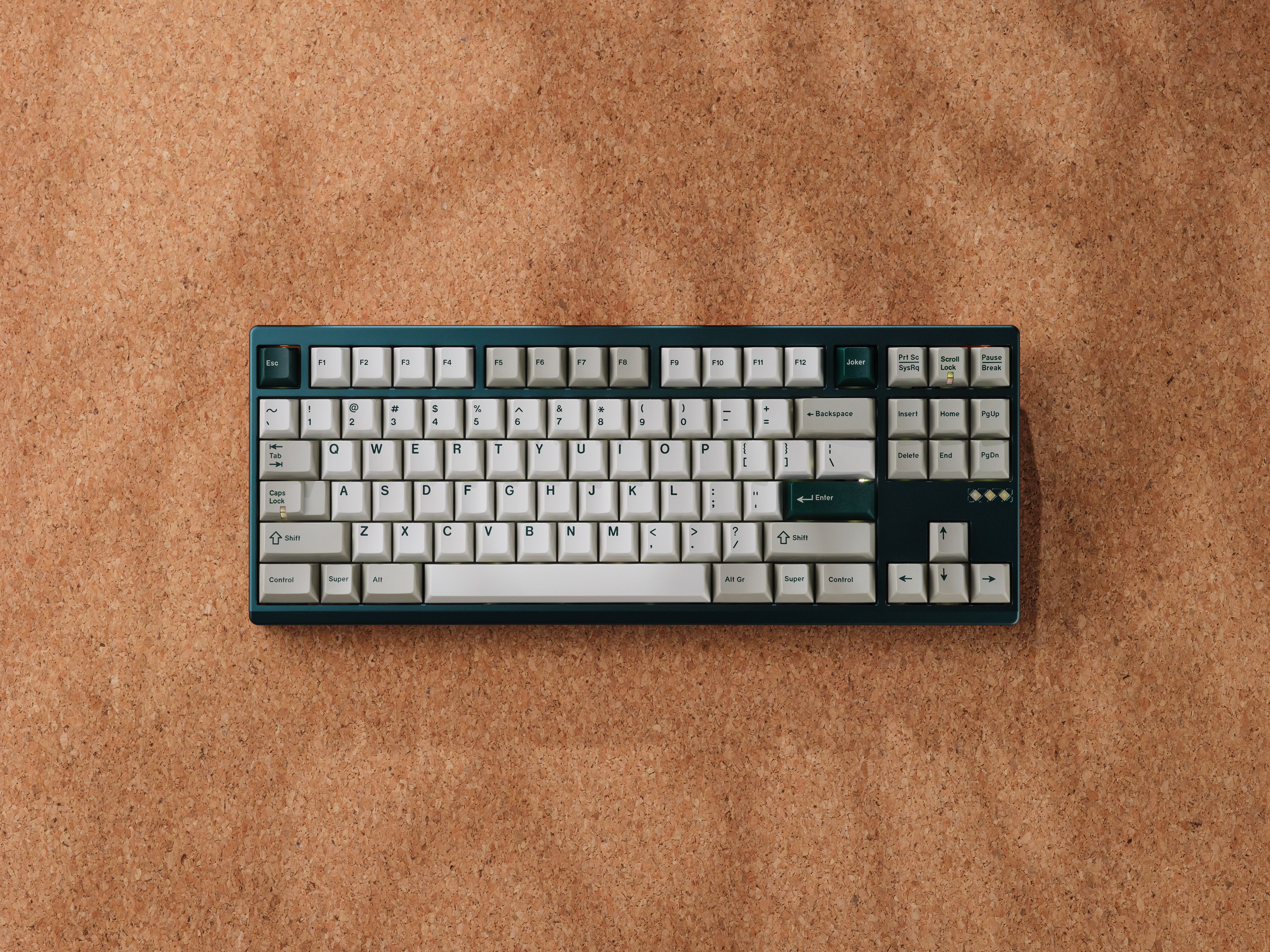

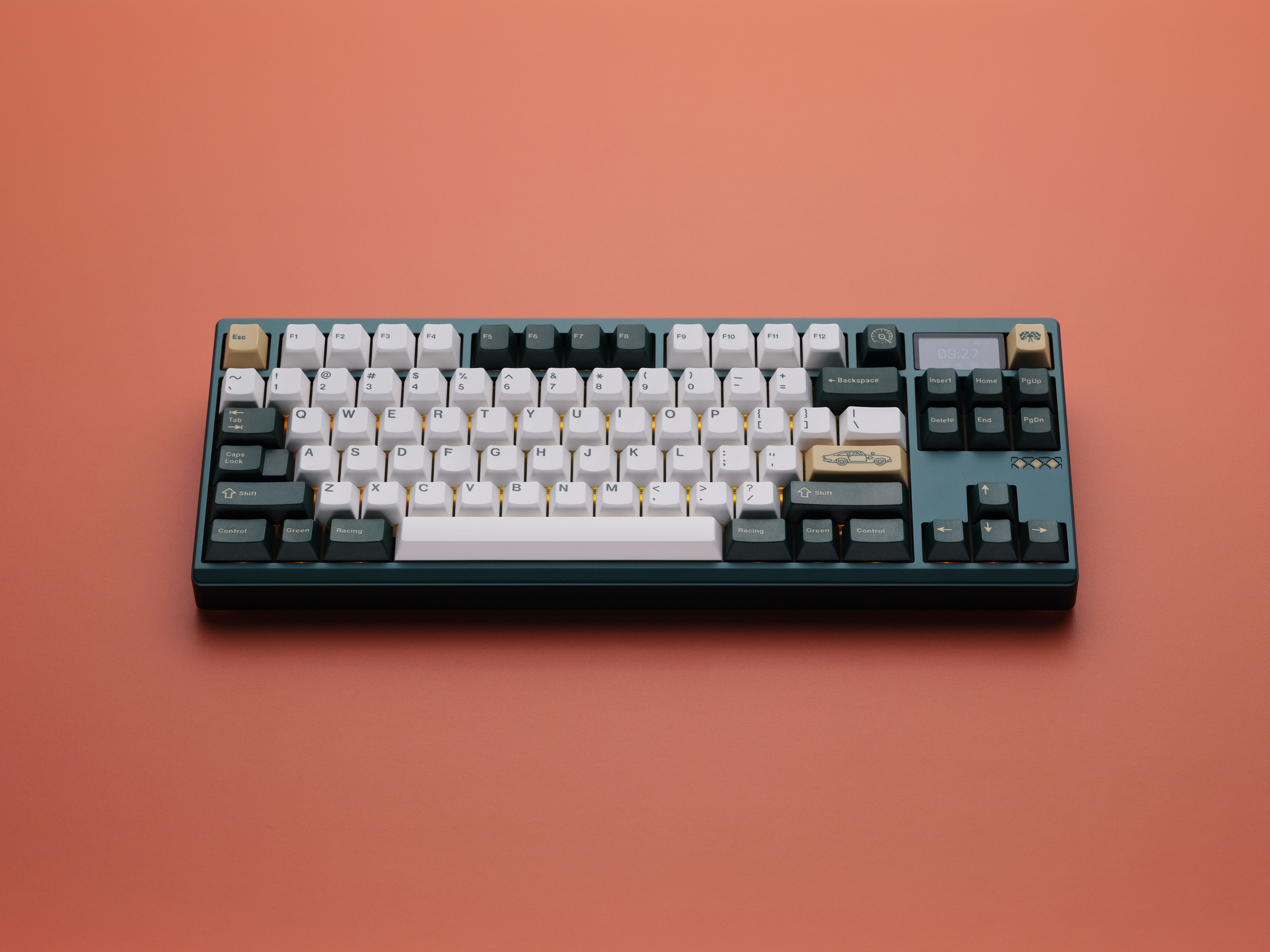

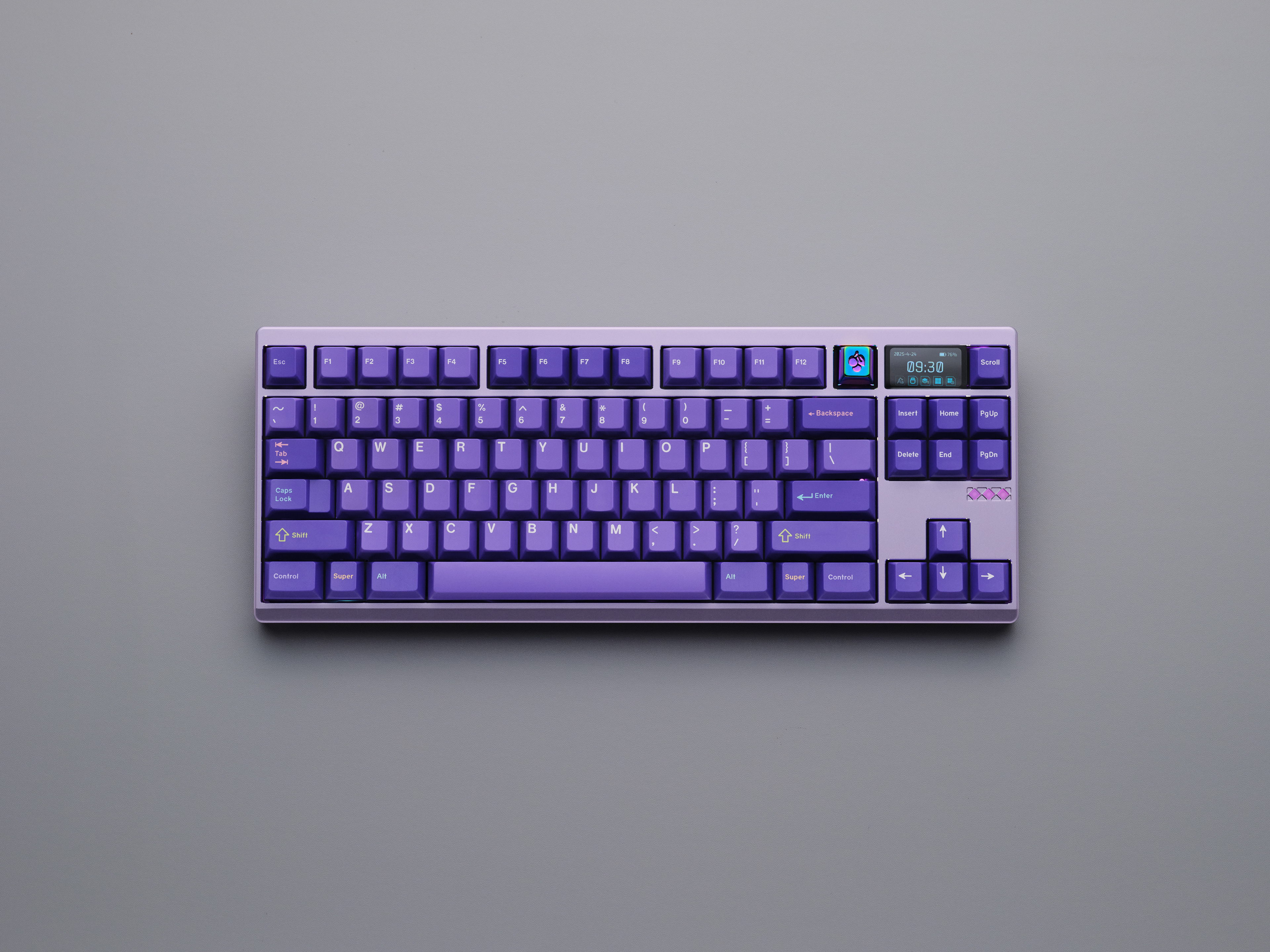

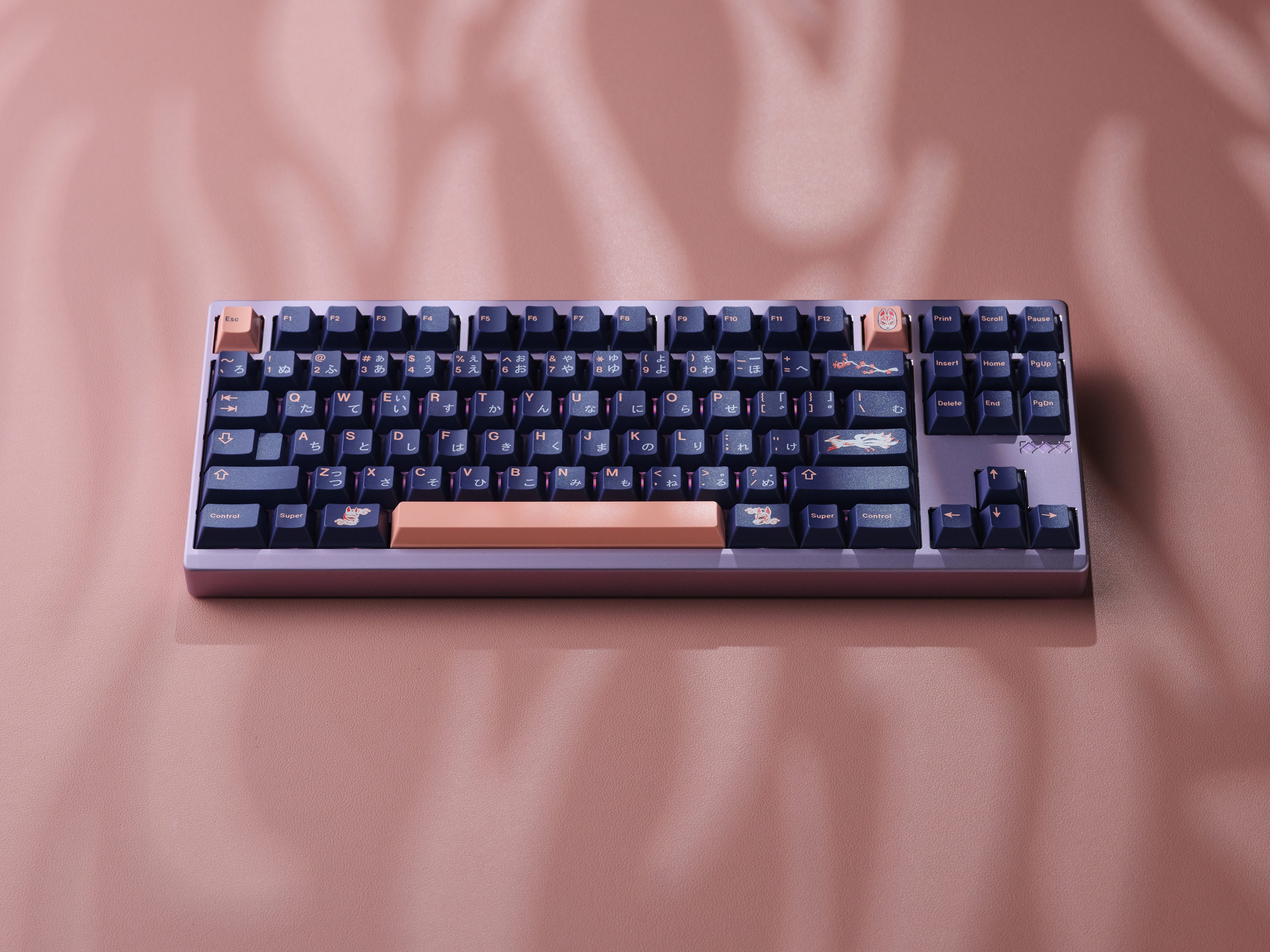

Keyboard Layout : 80%
Finish Treatment : Anodized/Acustatic/Electrophoresis

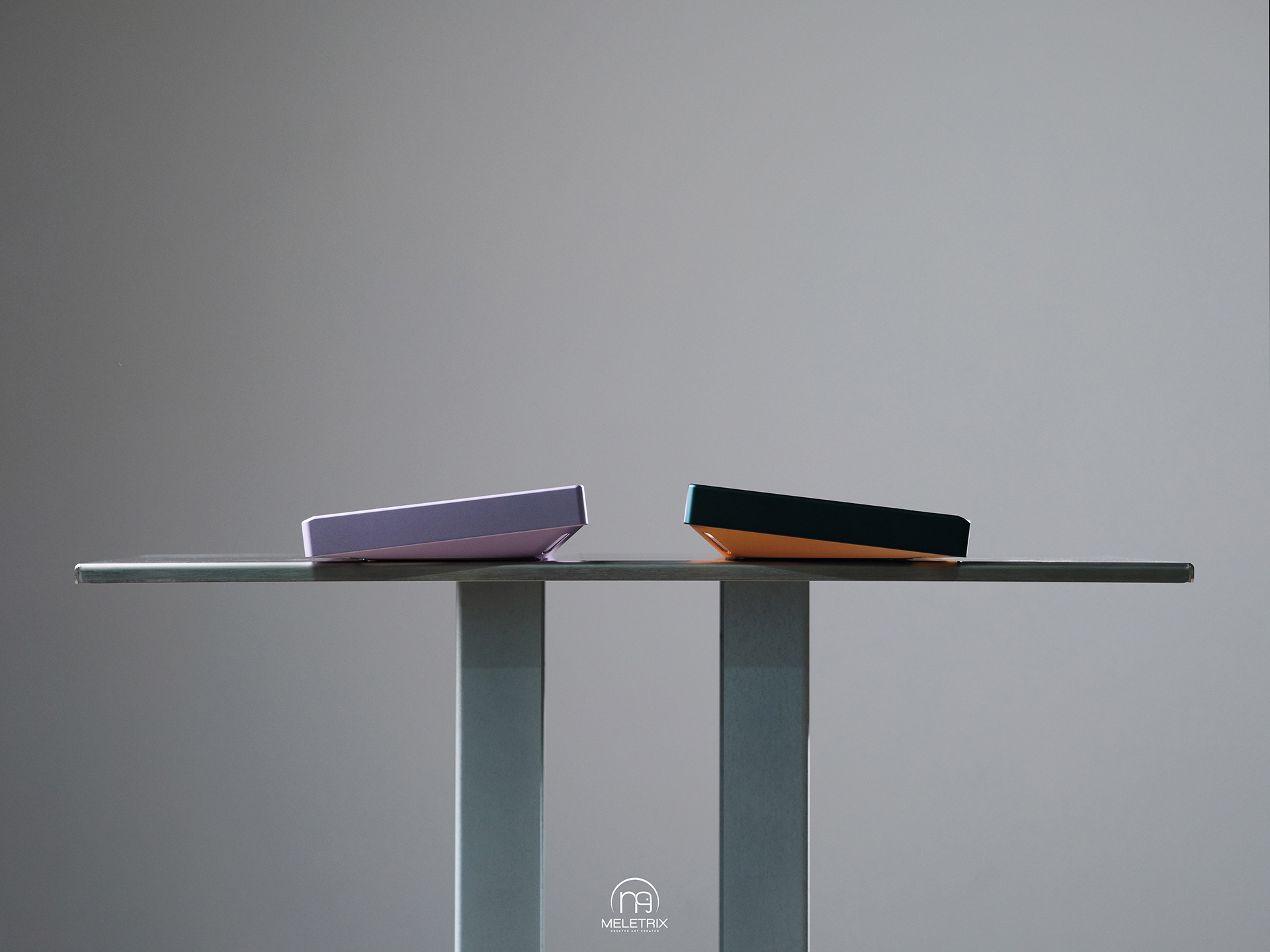

Typing Angle : 6.7°
Front Height : 18mm

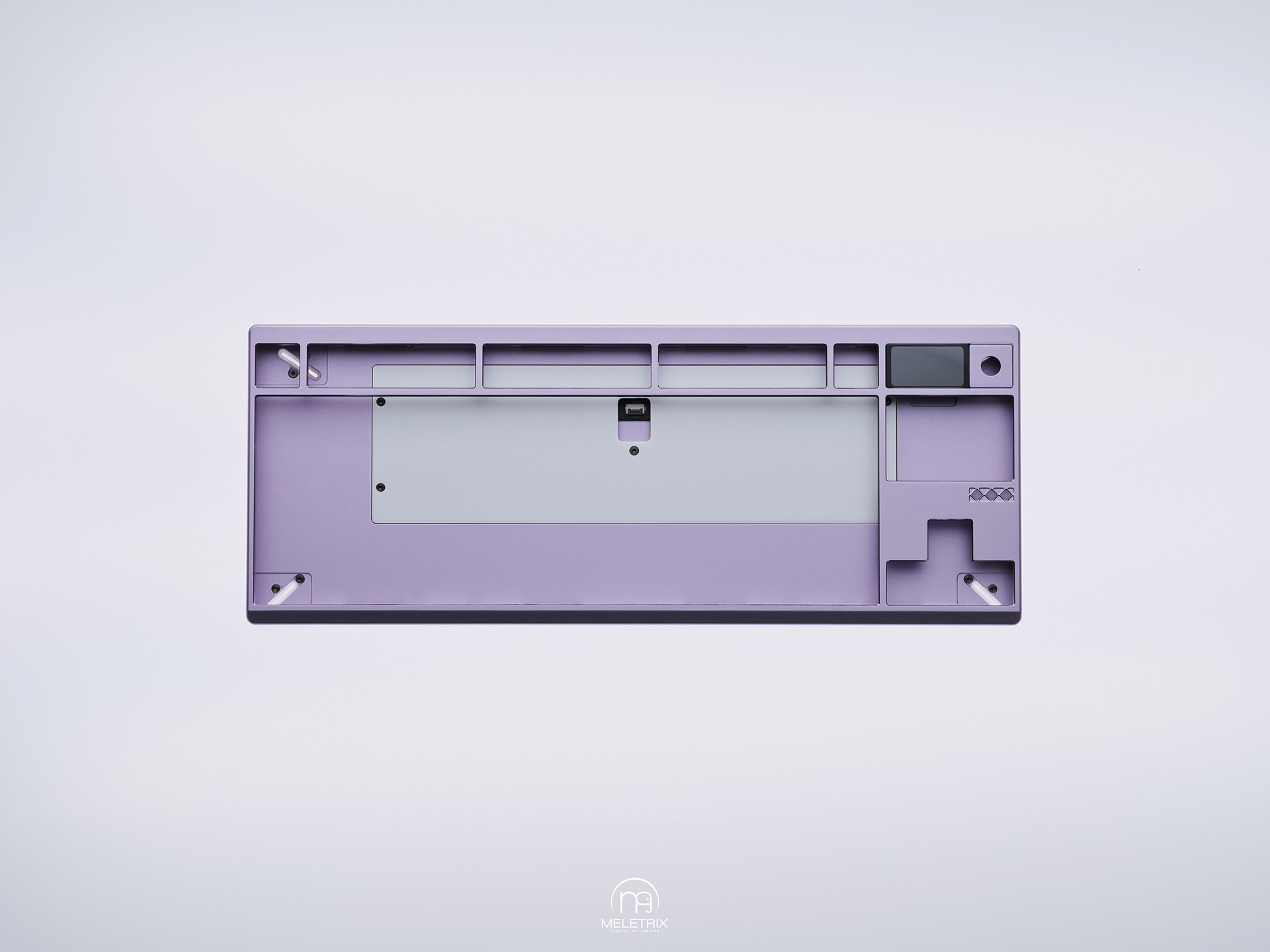

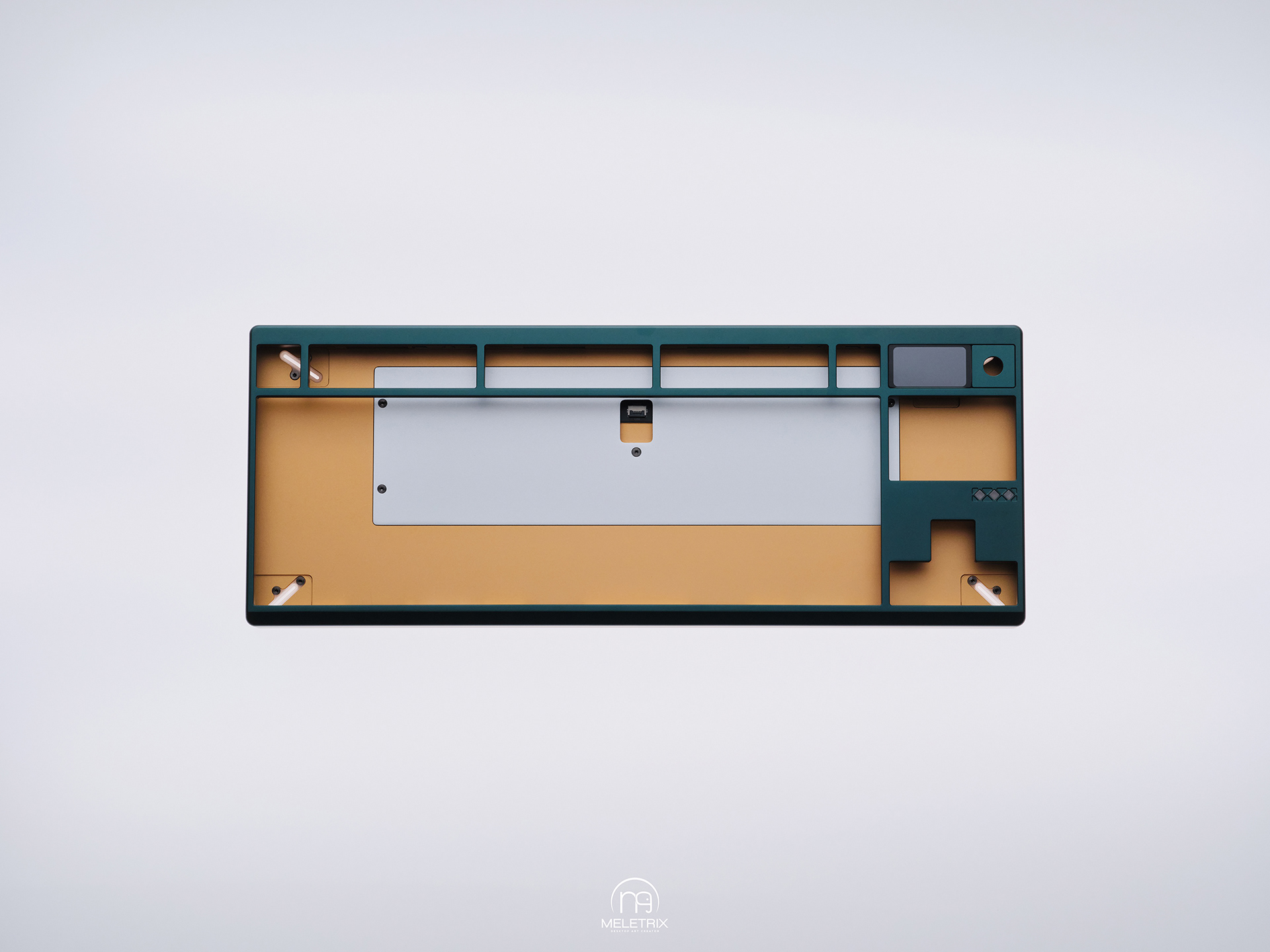

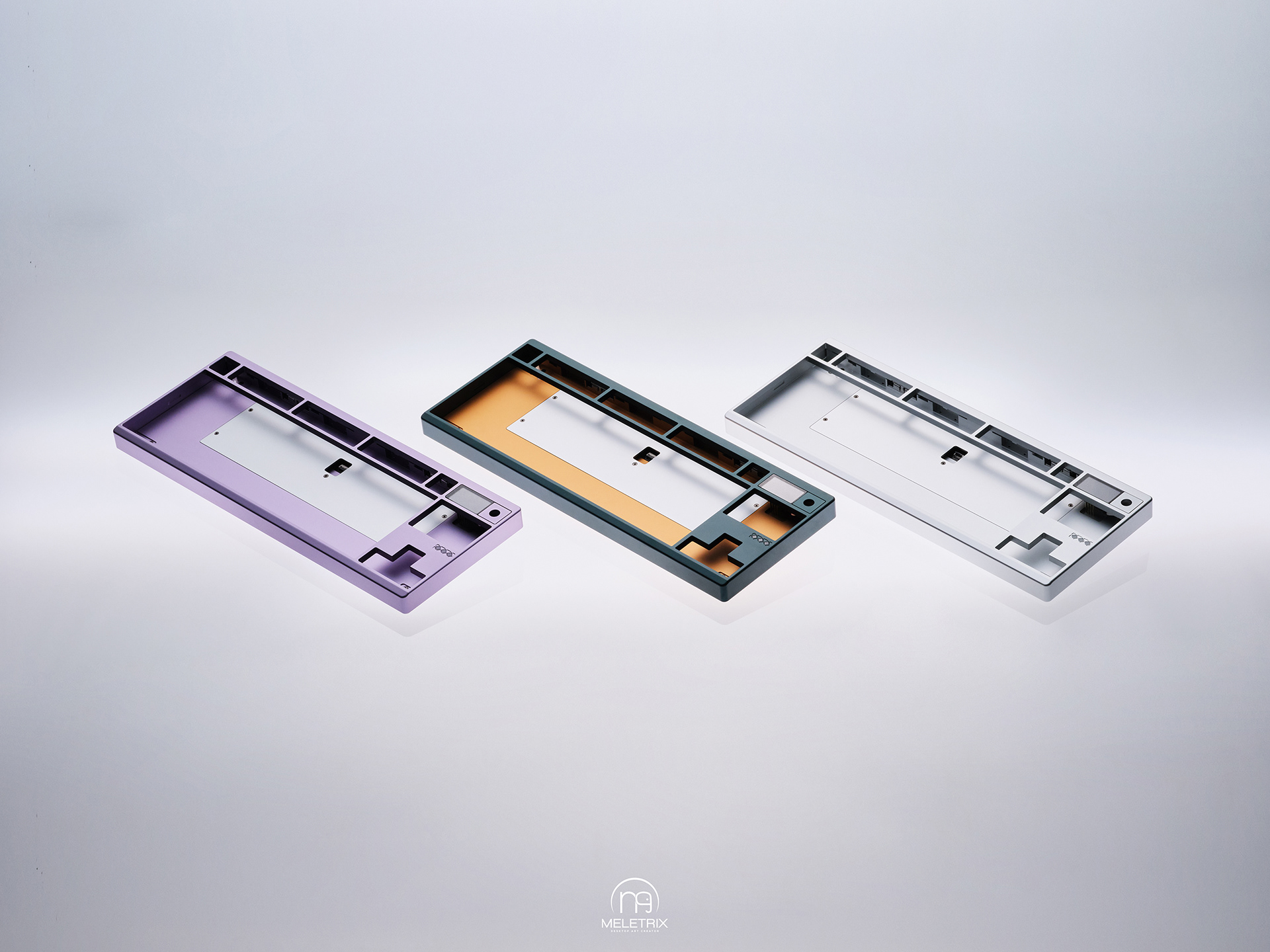

Case Material : 6063 Aluminum

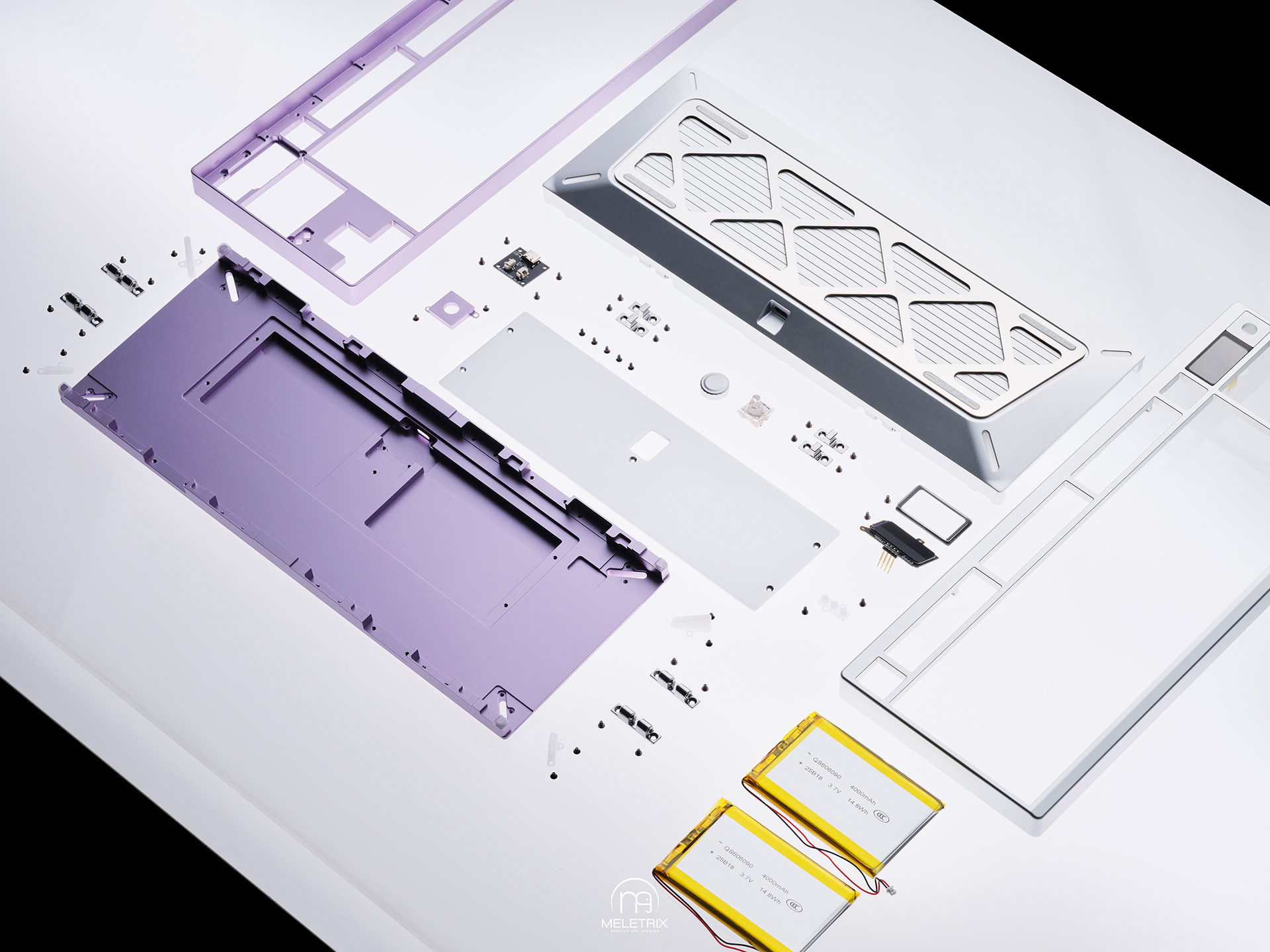

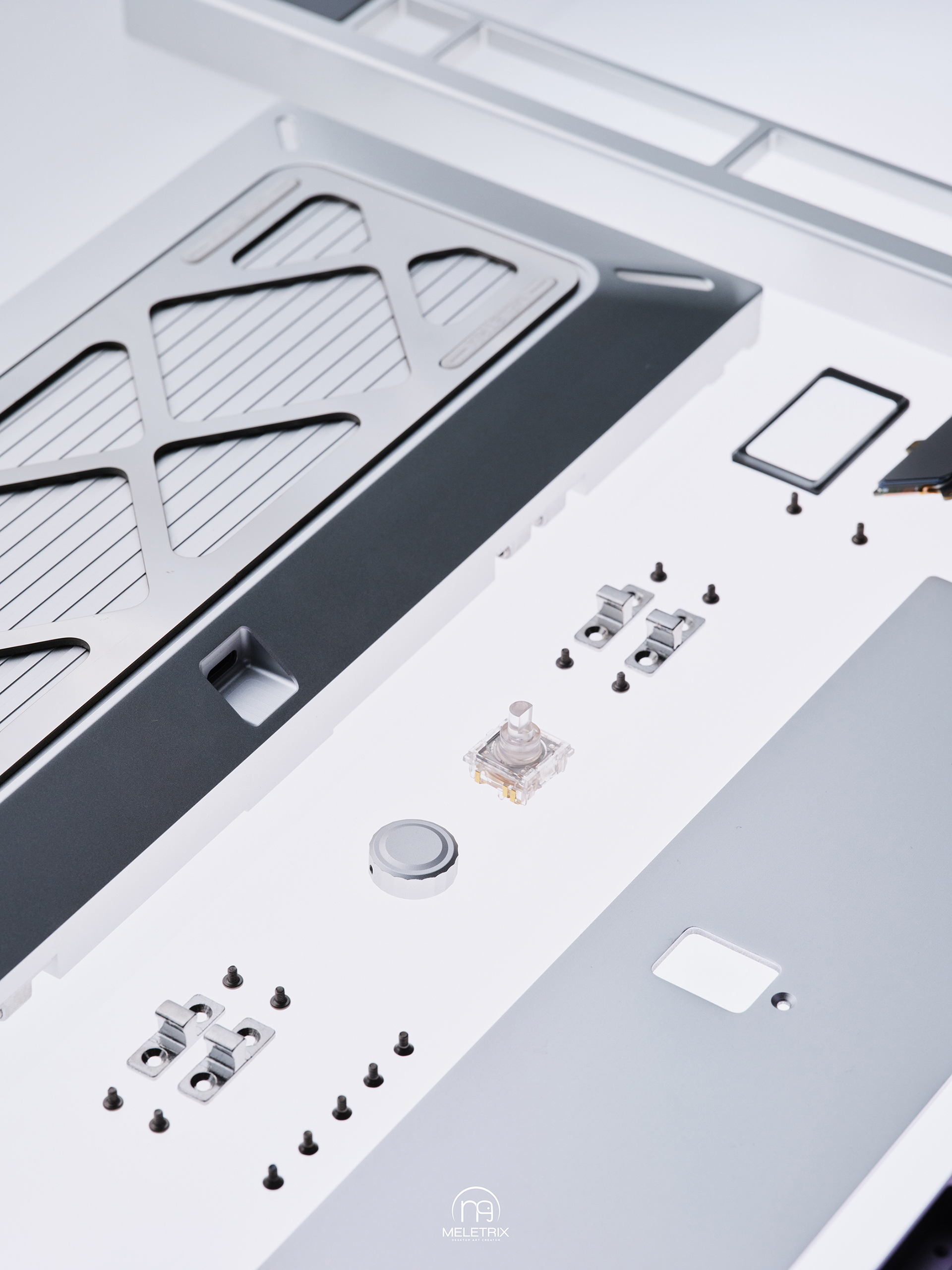

Mounting System :

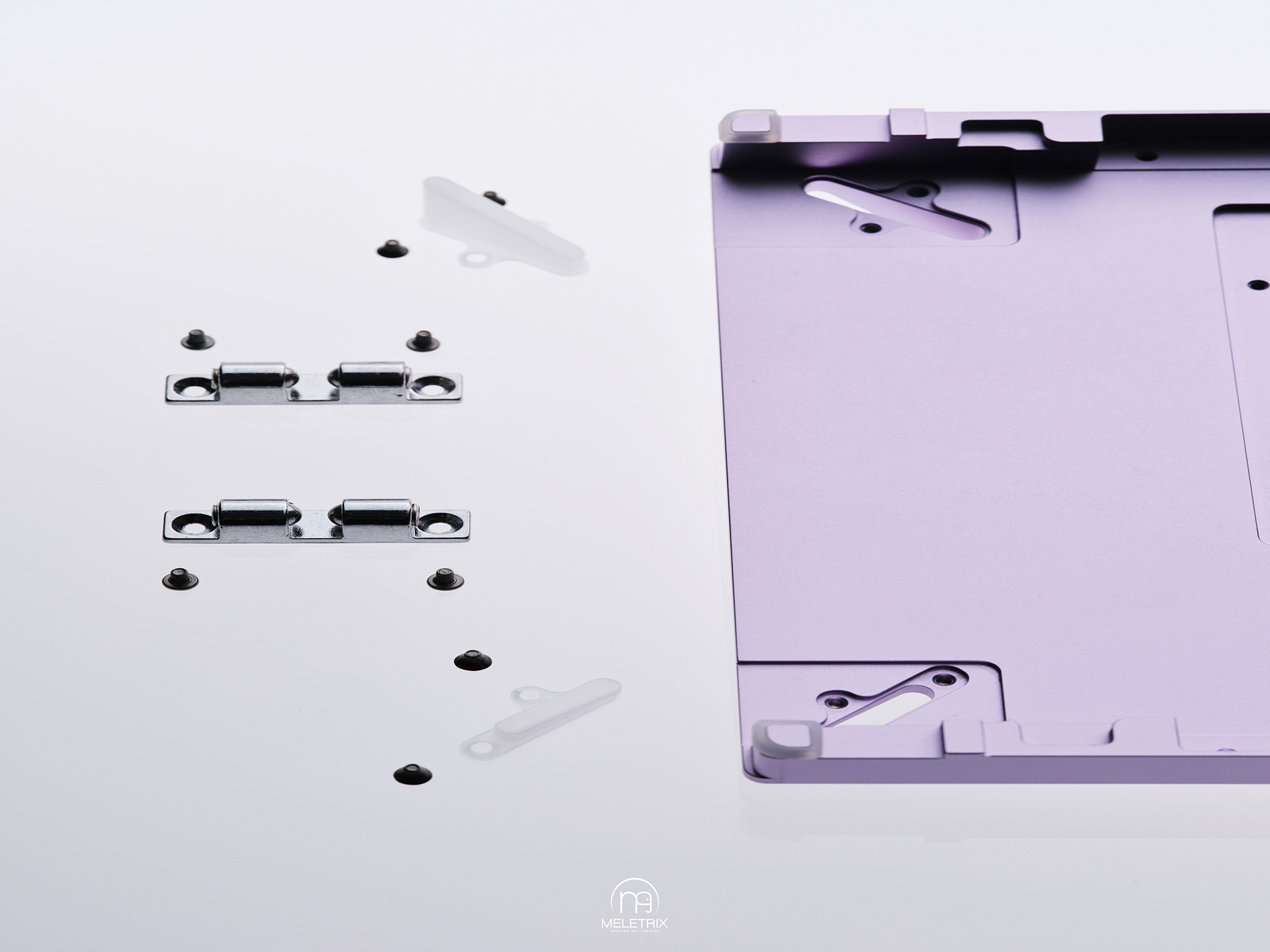

Top MountingSplit ; O-Ring MountingElastic ; Bar Silicone Mounting ; Silica Gel Particle Mounting
PCB : 1.2mm/1.6mm Tri-mode
Battery Capacity : 4000mAh*2
Default Plate : Copper/Aluminium/Carbon Fibre/Fr4/PC/POM
Connection Methods : USB/BLE/2.4G

Latency Data (wireless and wired) :
USB：0.6ms
BLE：8ms
2.4G：1.1ms
Bluetooth Version : BLE5.4
Bluetooth PCB Polling Rate : 133Hz
2.4GHz Polling Rate : 4KHz
Wired Polling Rate : 8KHz
Supported Layouts : ANSI, ISO
VIA Support : Yes
RGB Support : Yes
Hotswap Support : Yes
OS Compatibility : Win/Mac/Linux/Android
Dimensions : 356.5*139*34.2mm
