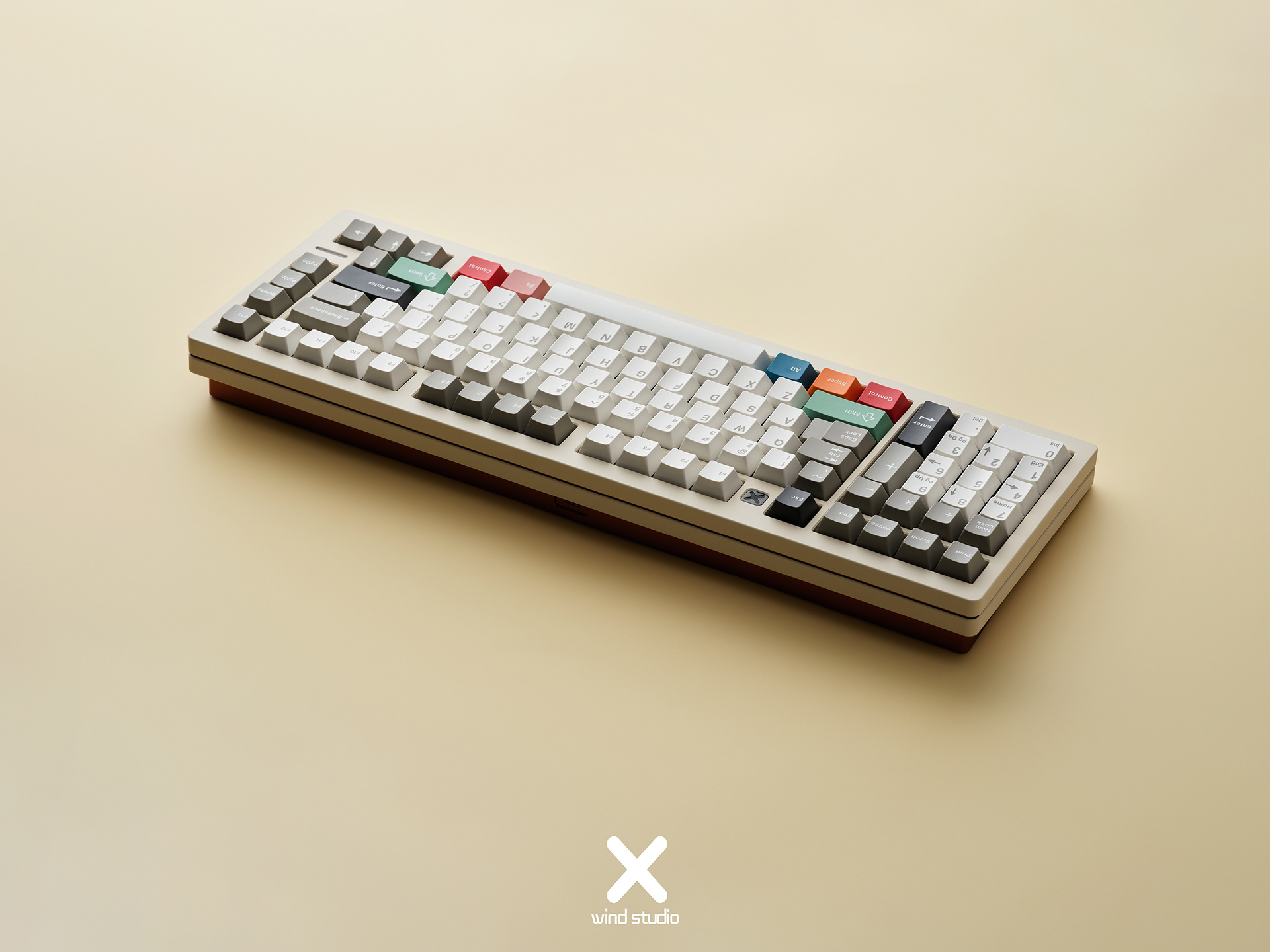

WIND X98 R2
WIND STUDIO
Price：Wired $320, Bluetooth $335
Group Buy Date: Estimate on Jan 2024

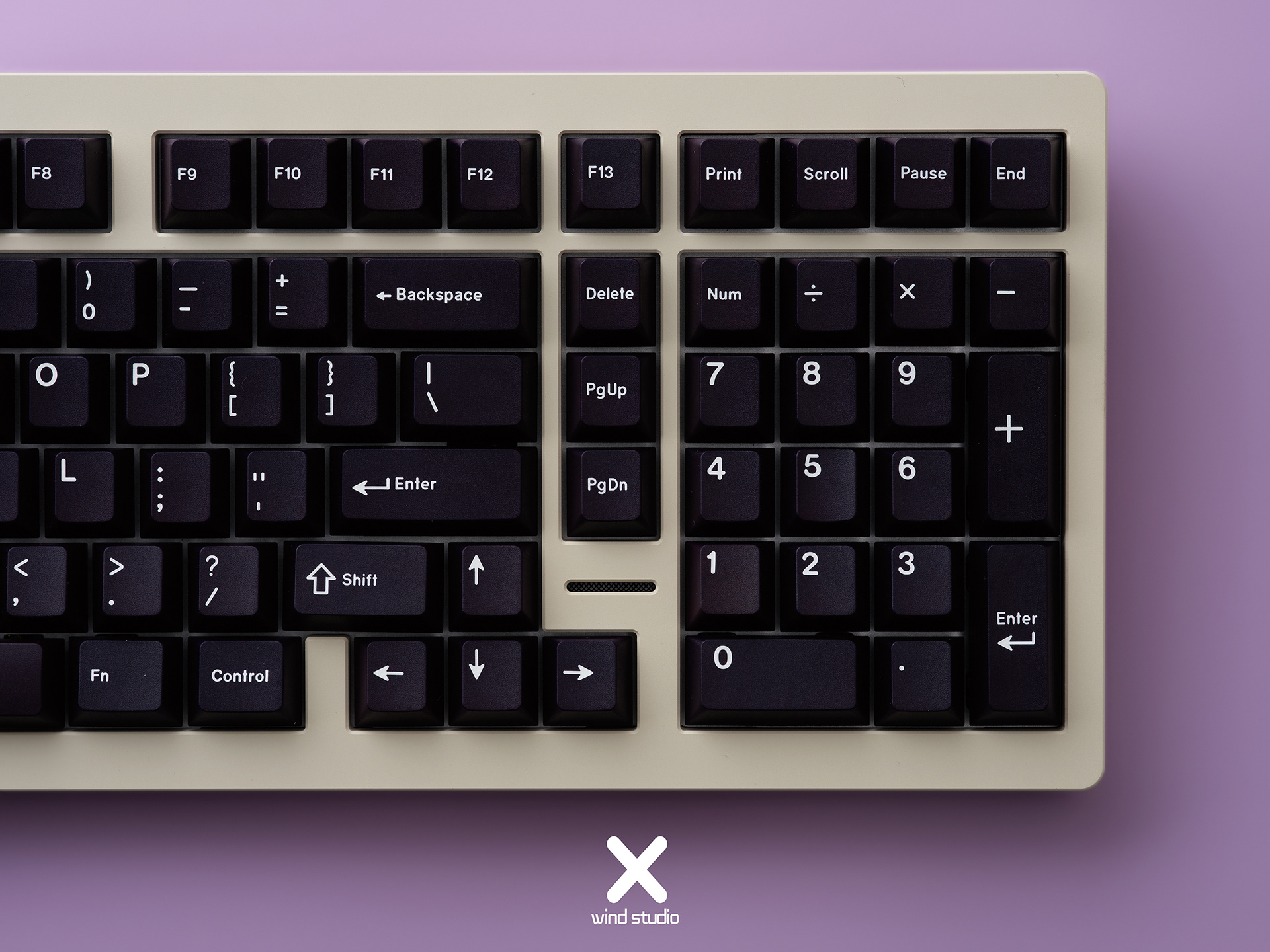

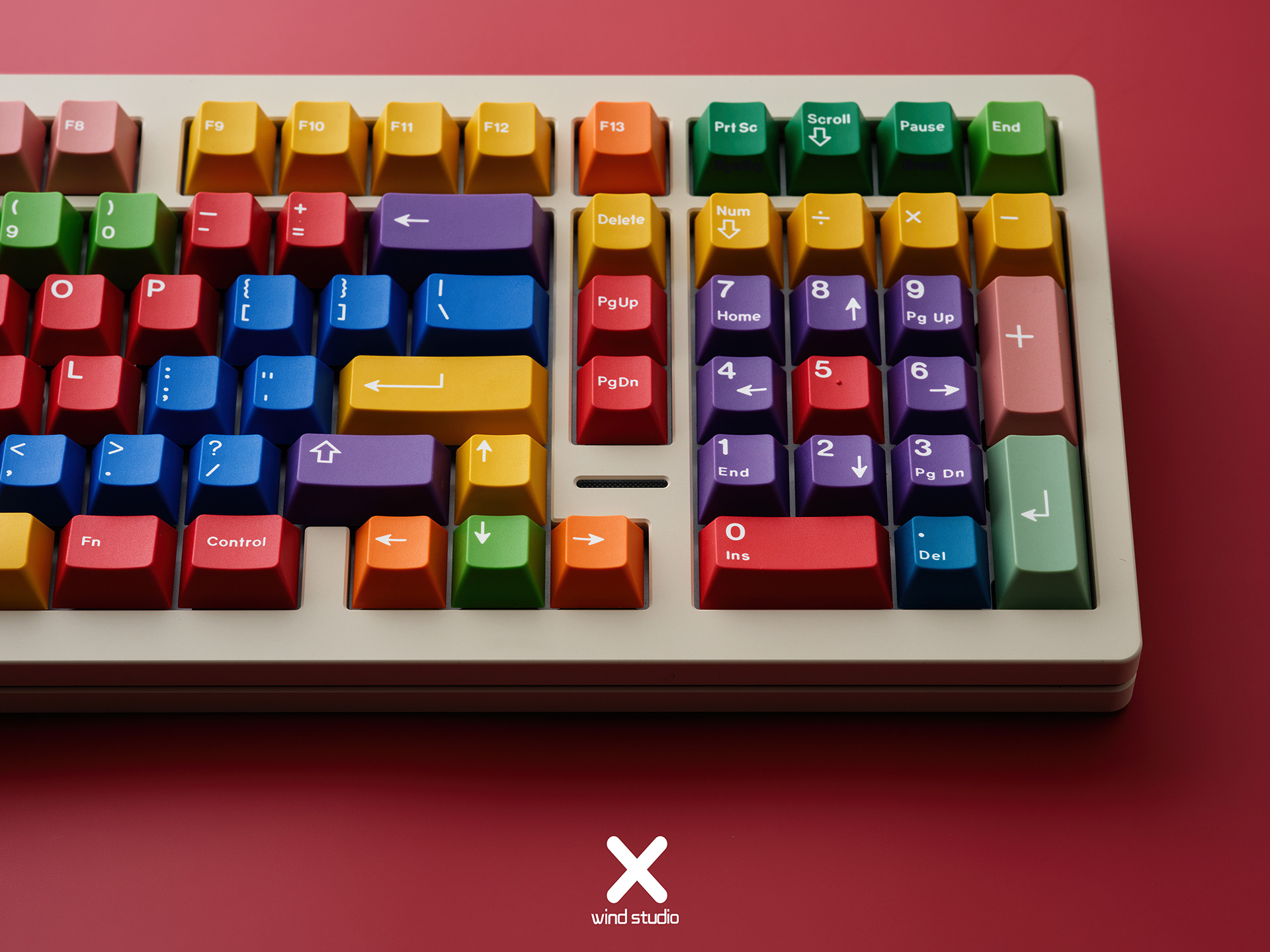

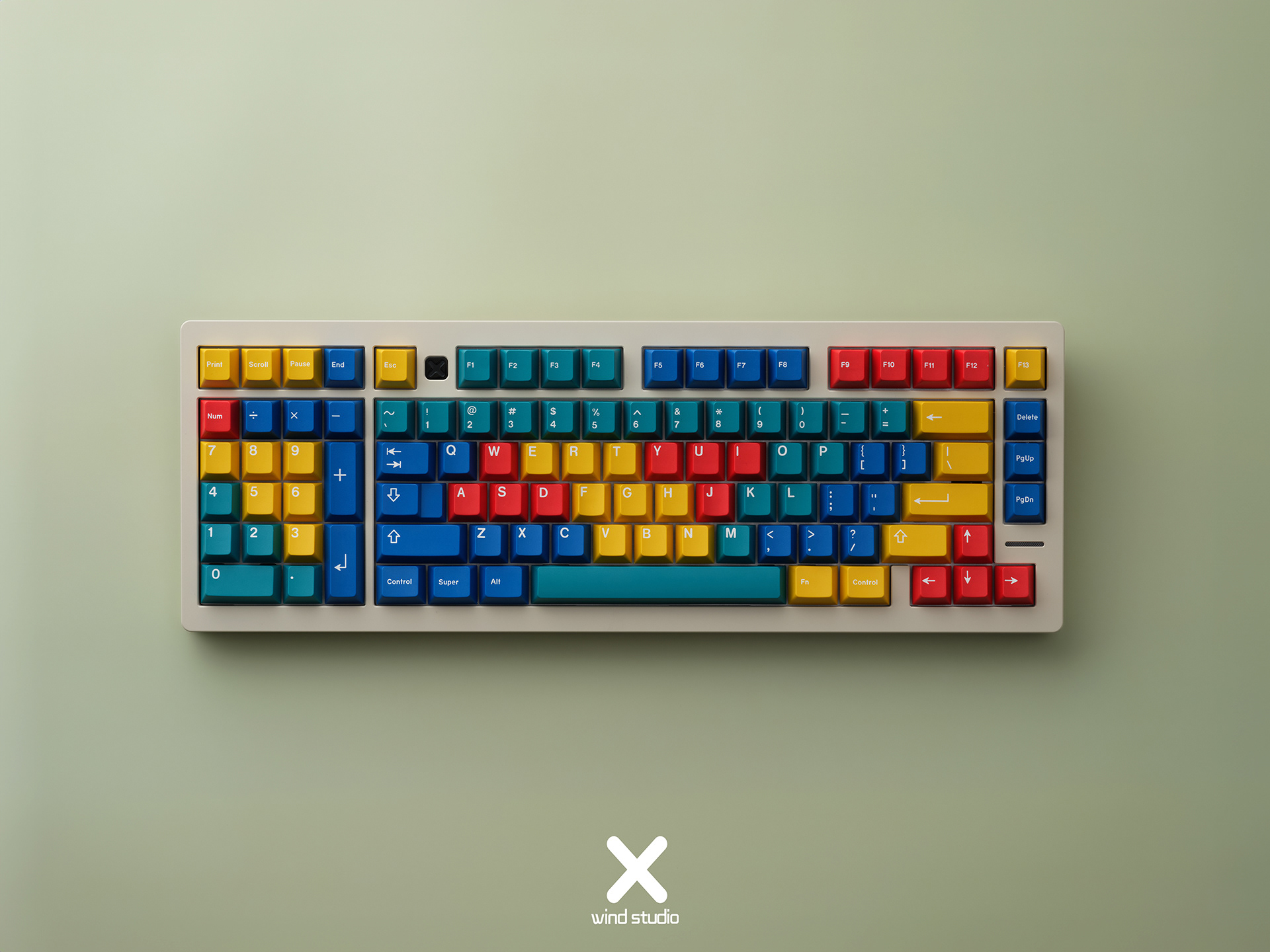

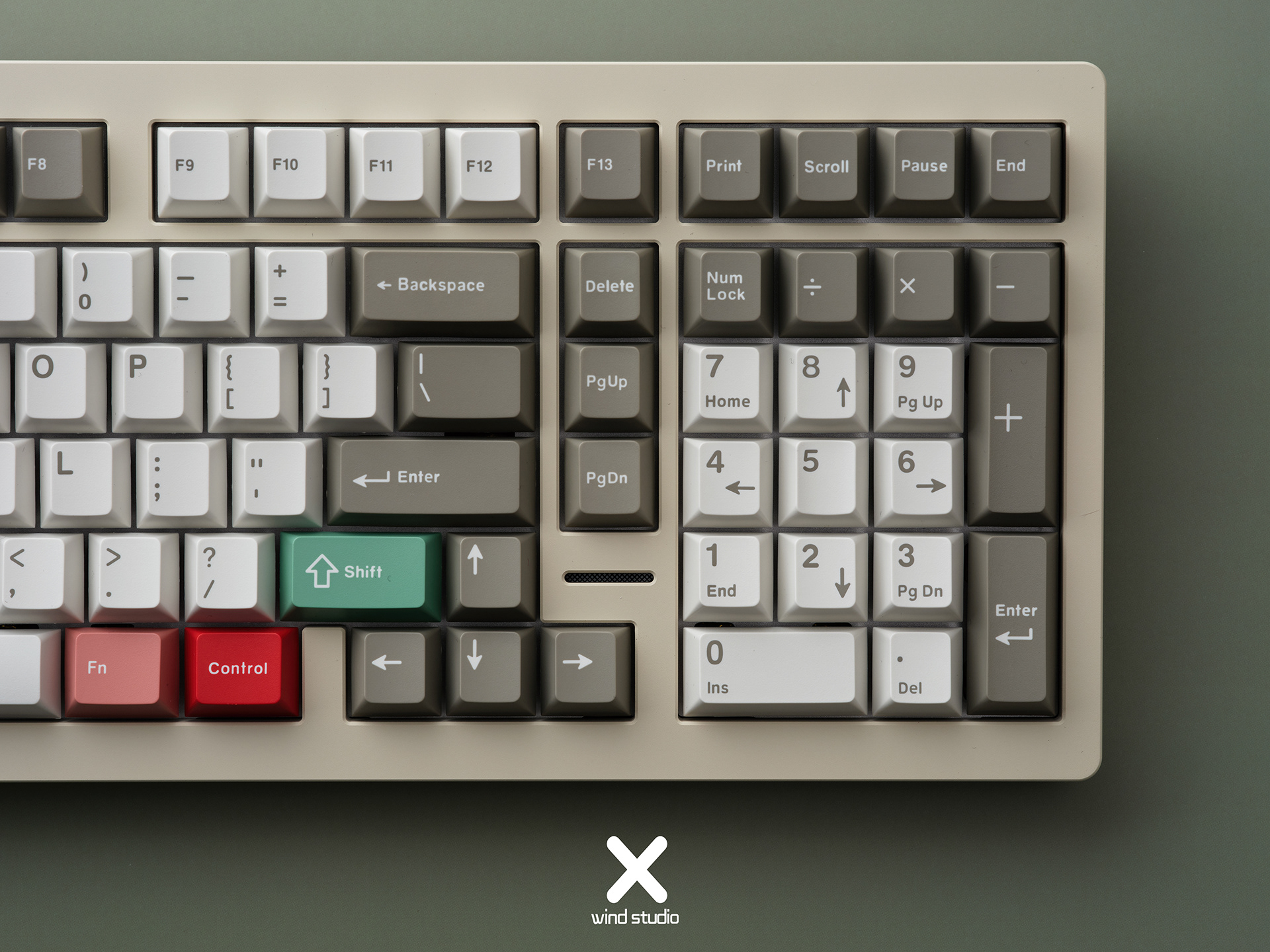

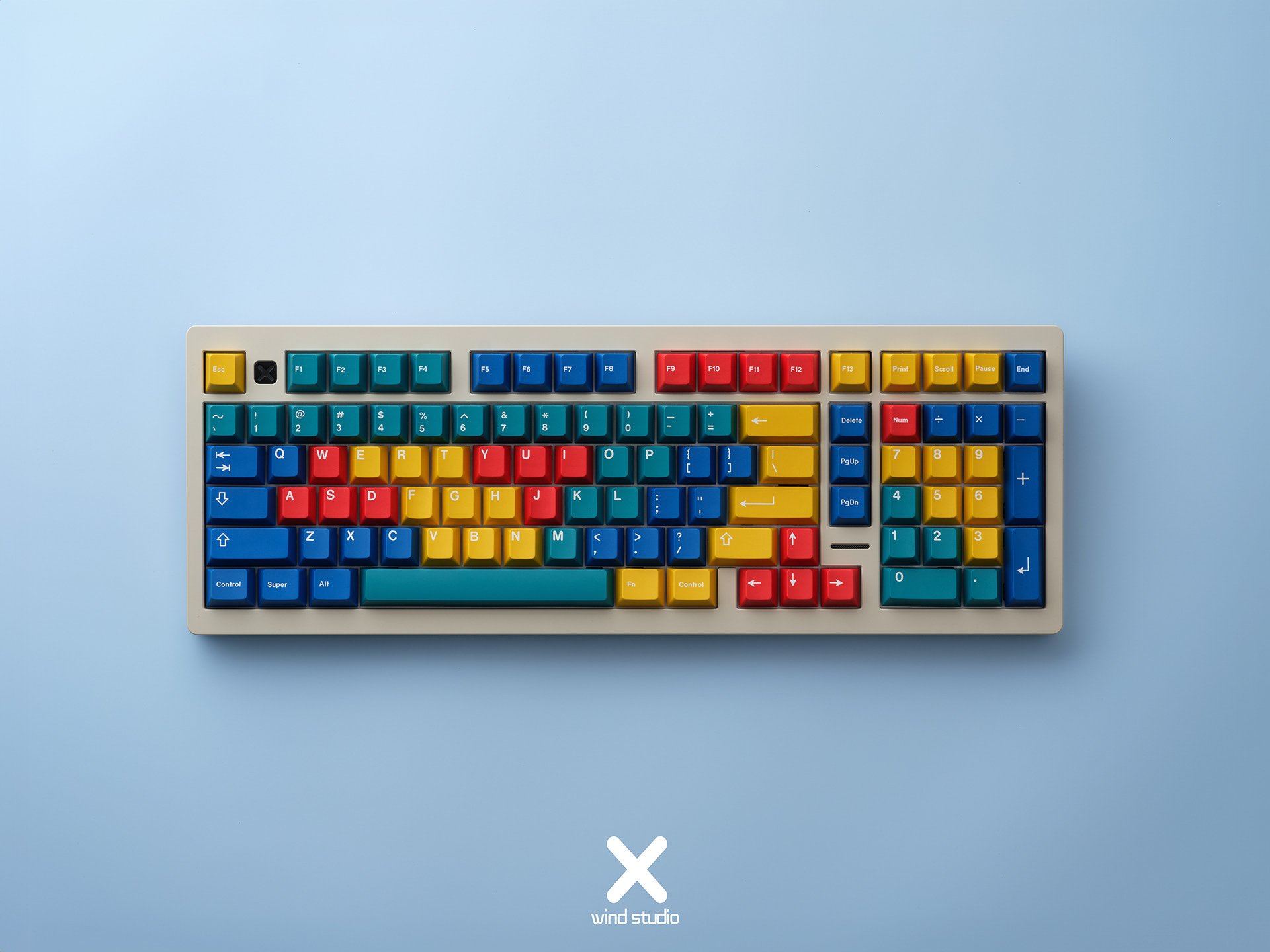

Provide streamlined and familiar typing experience with 2U 0 key.

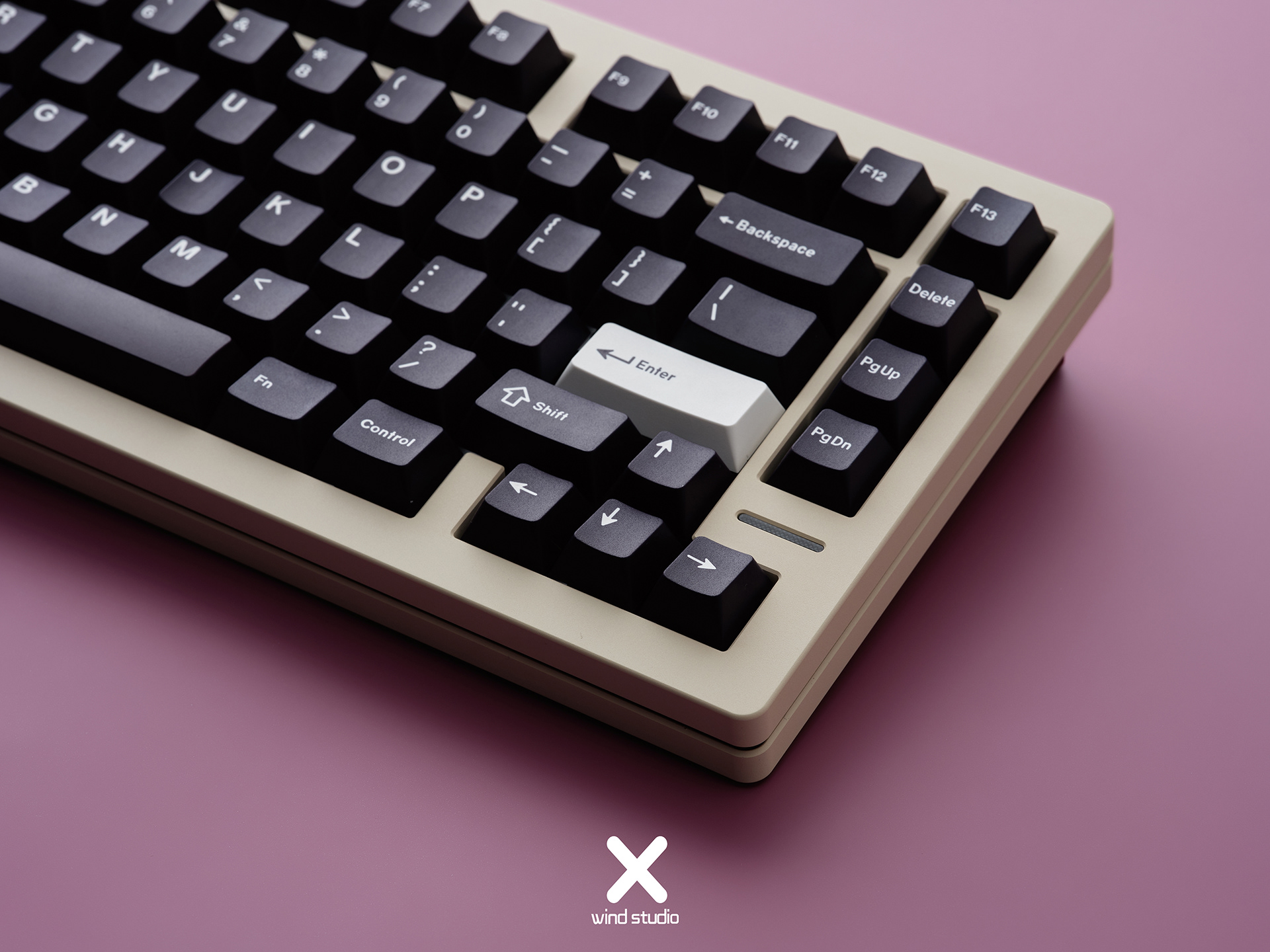

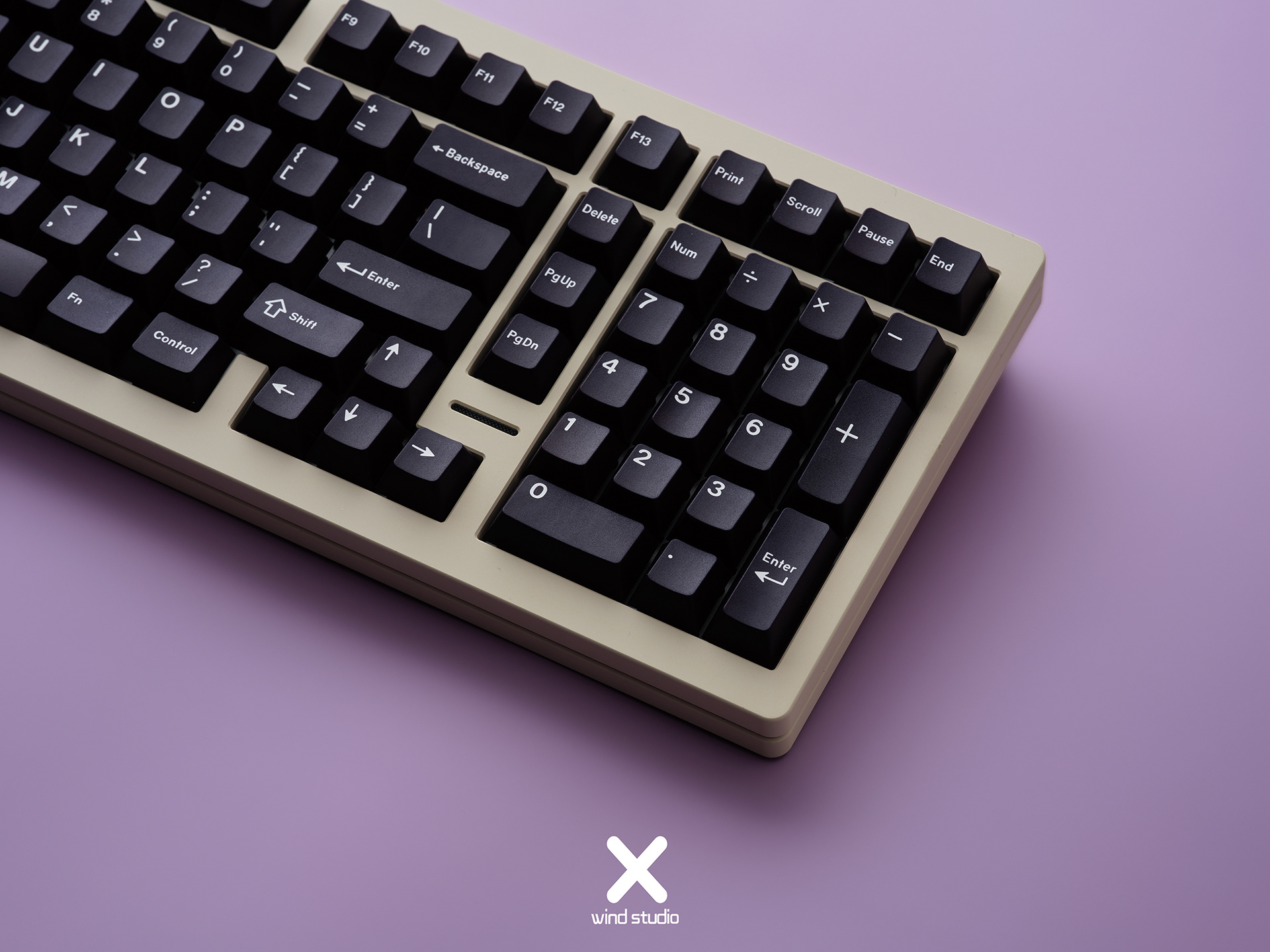

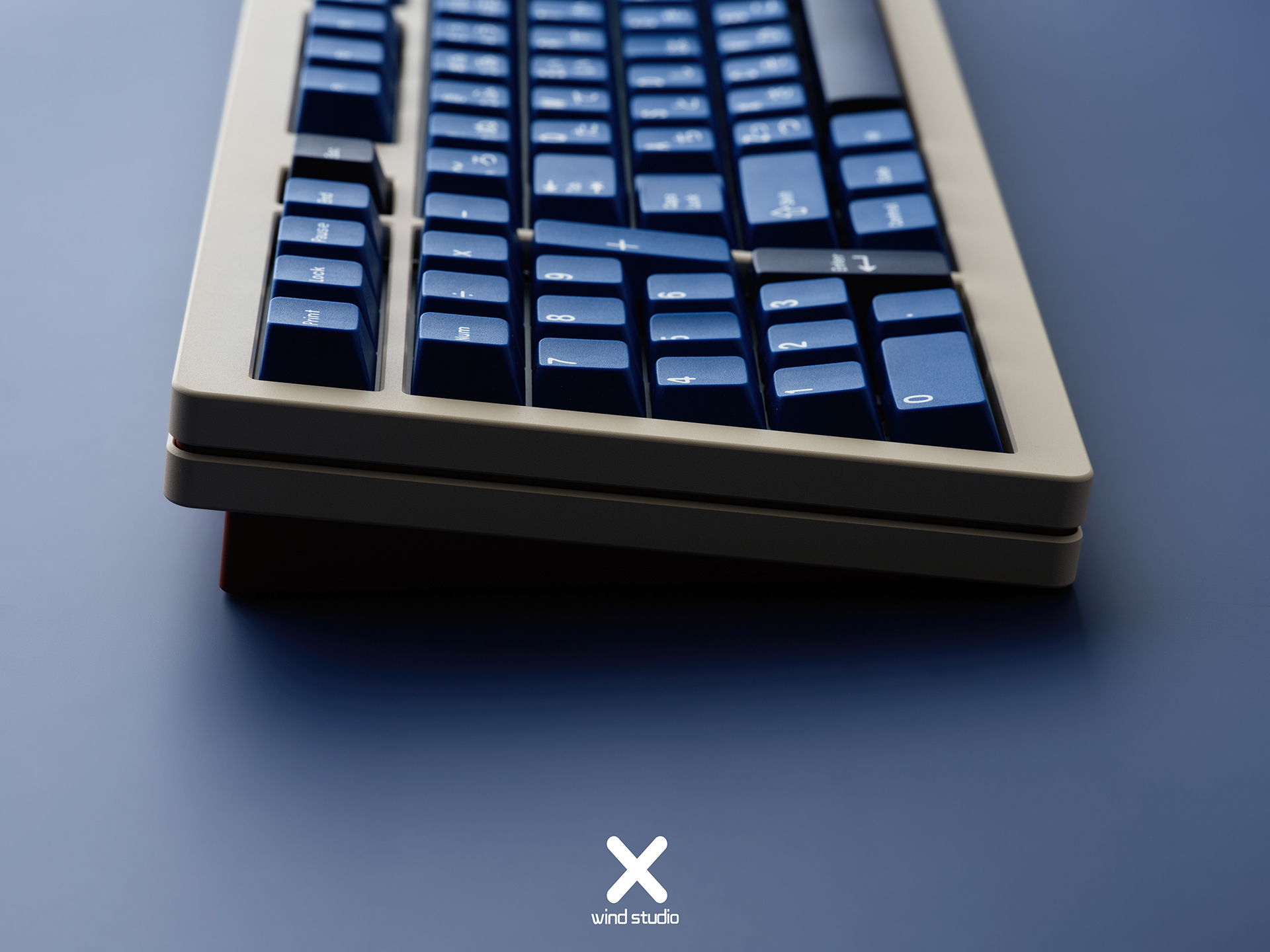

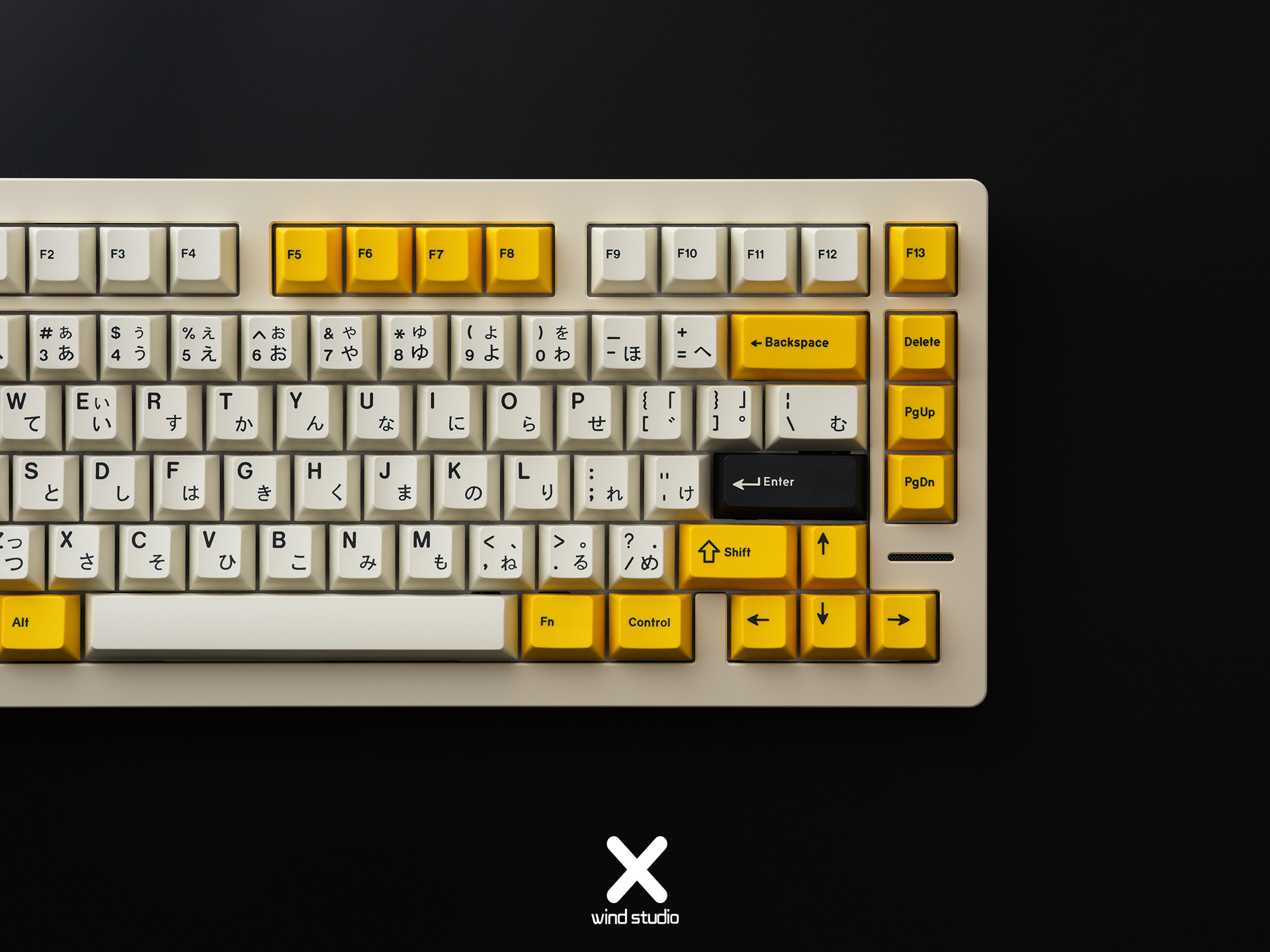

Visual symmetry by keeping the arrow keys level with the rest of the board.

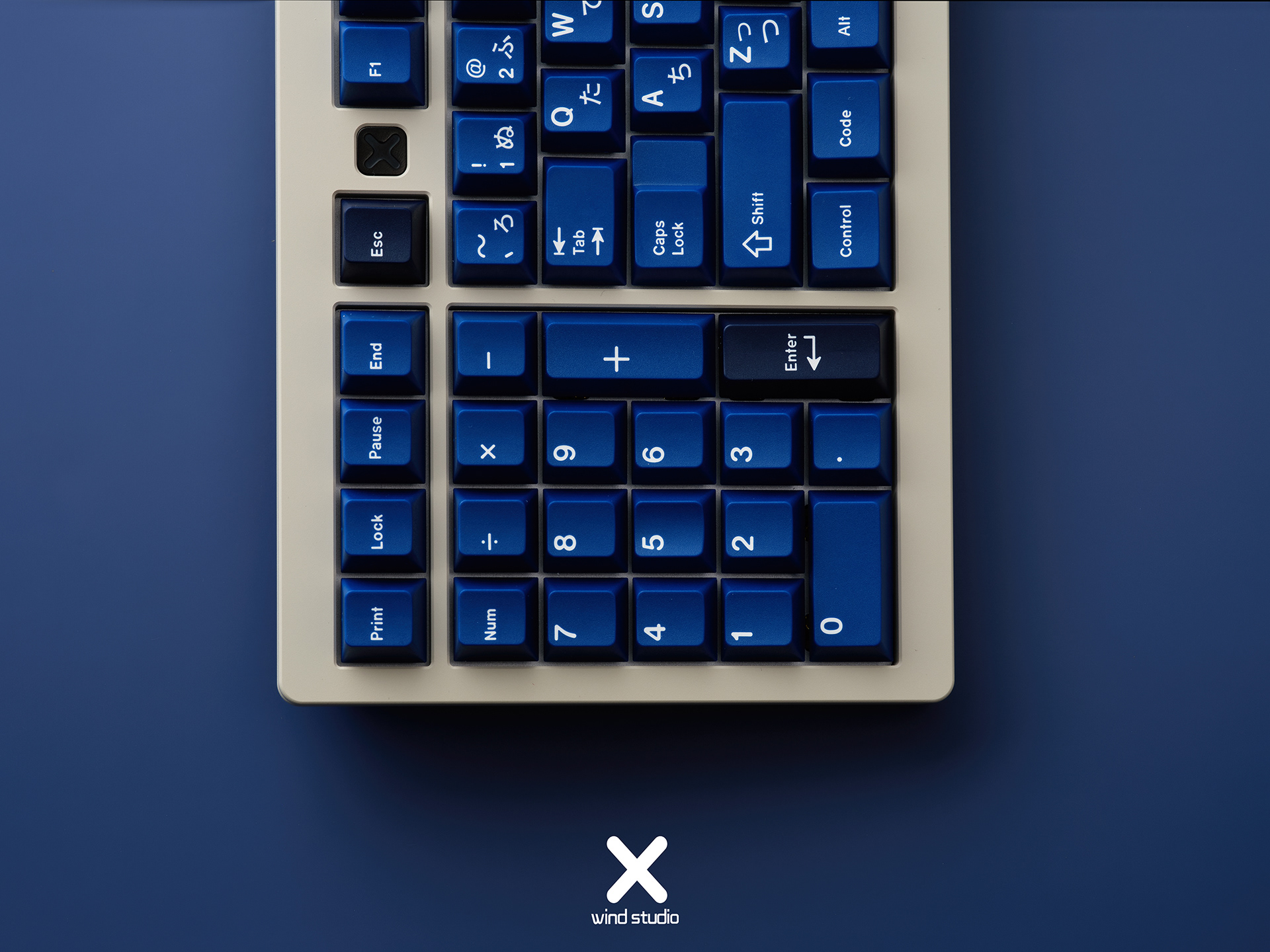

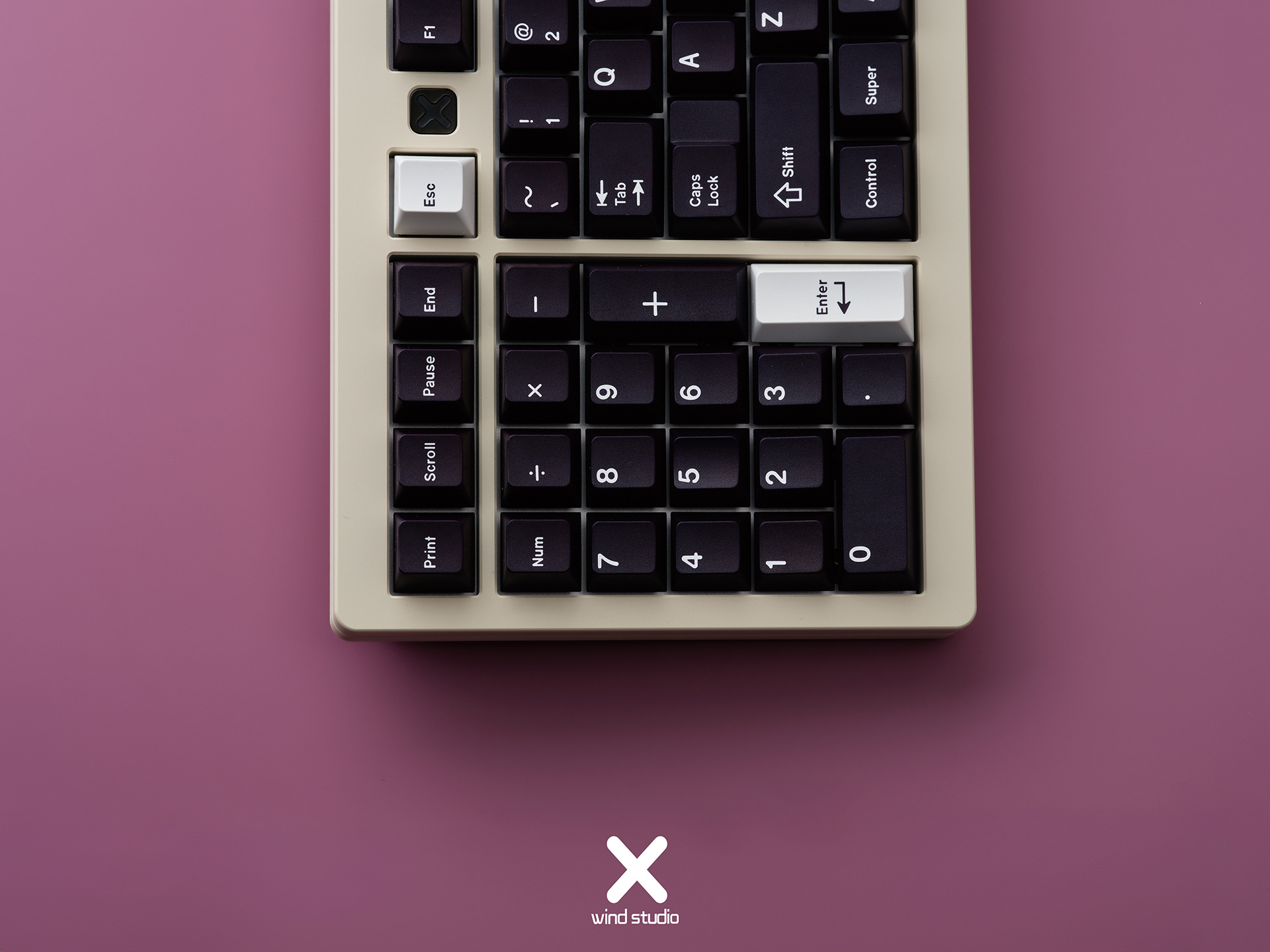

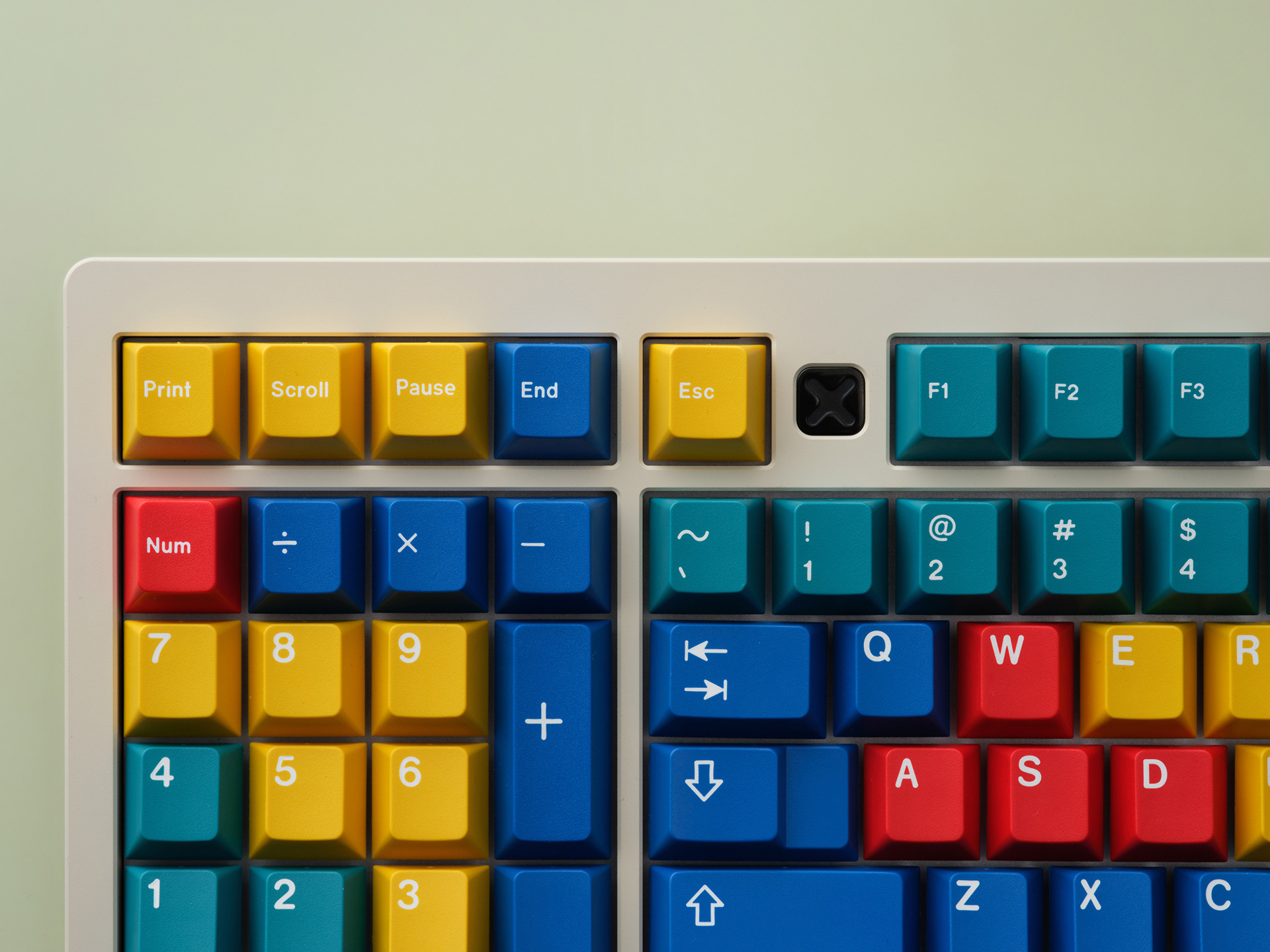

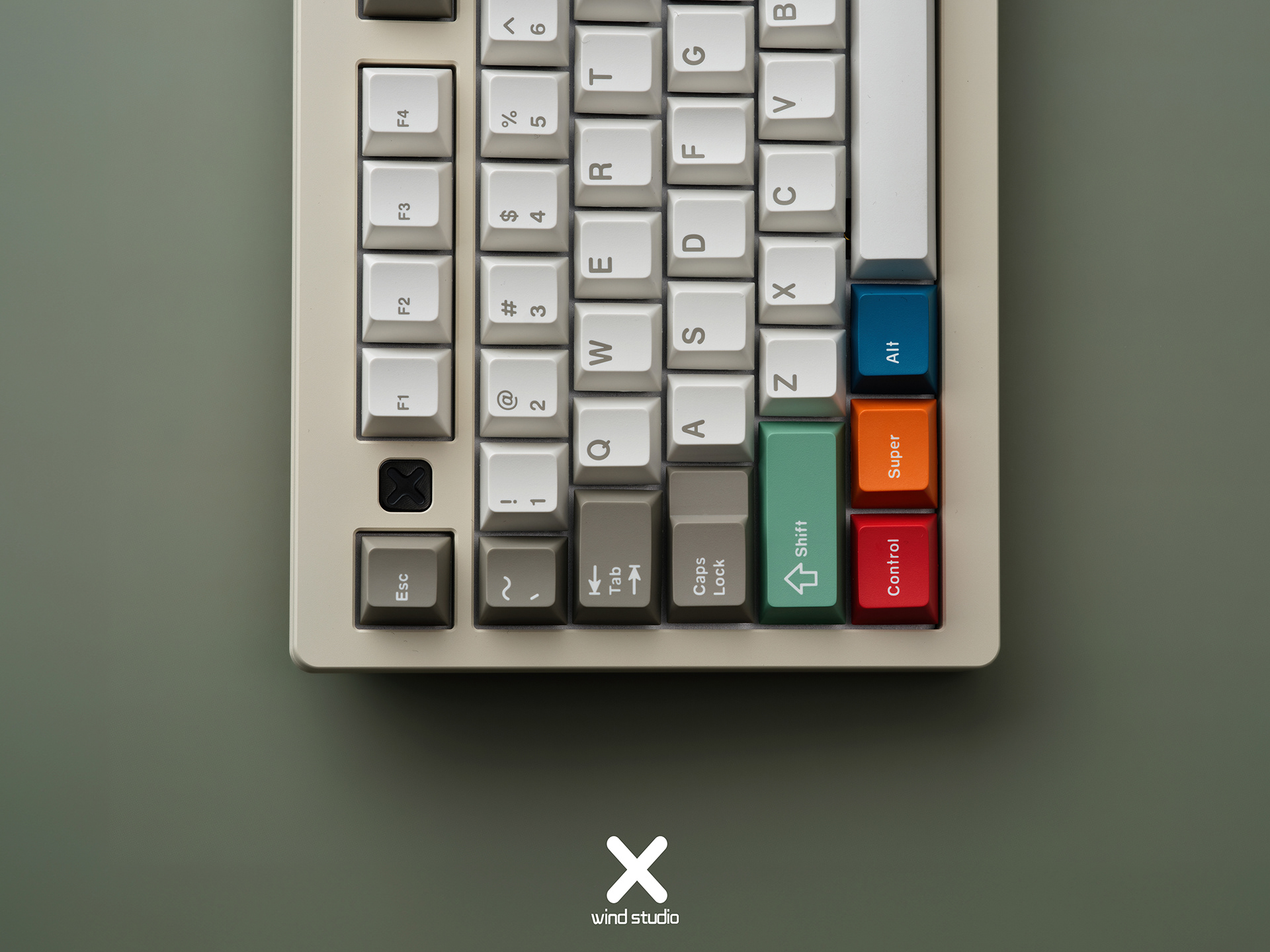

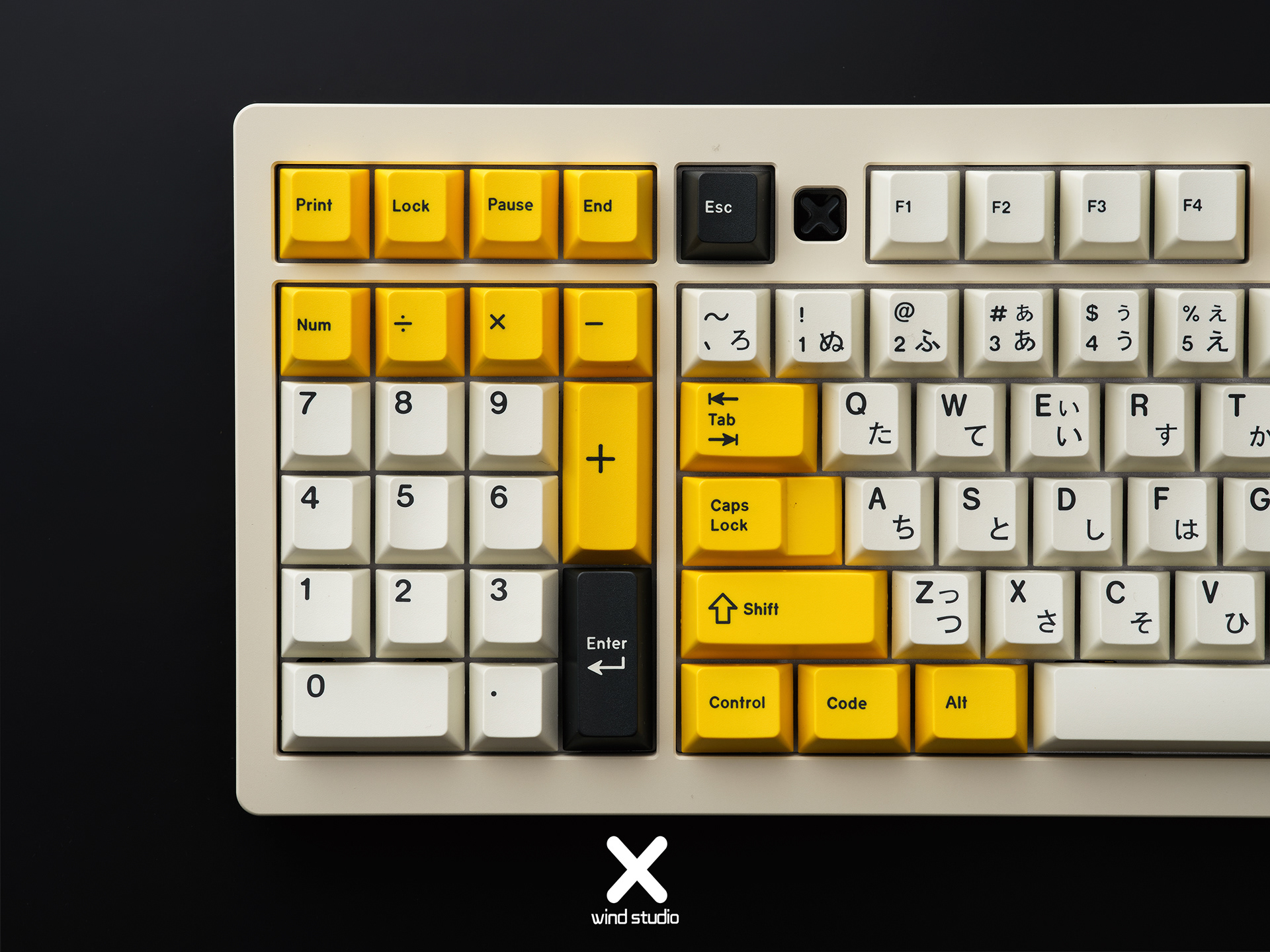

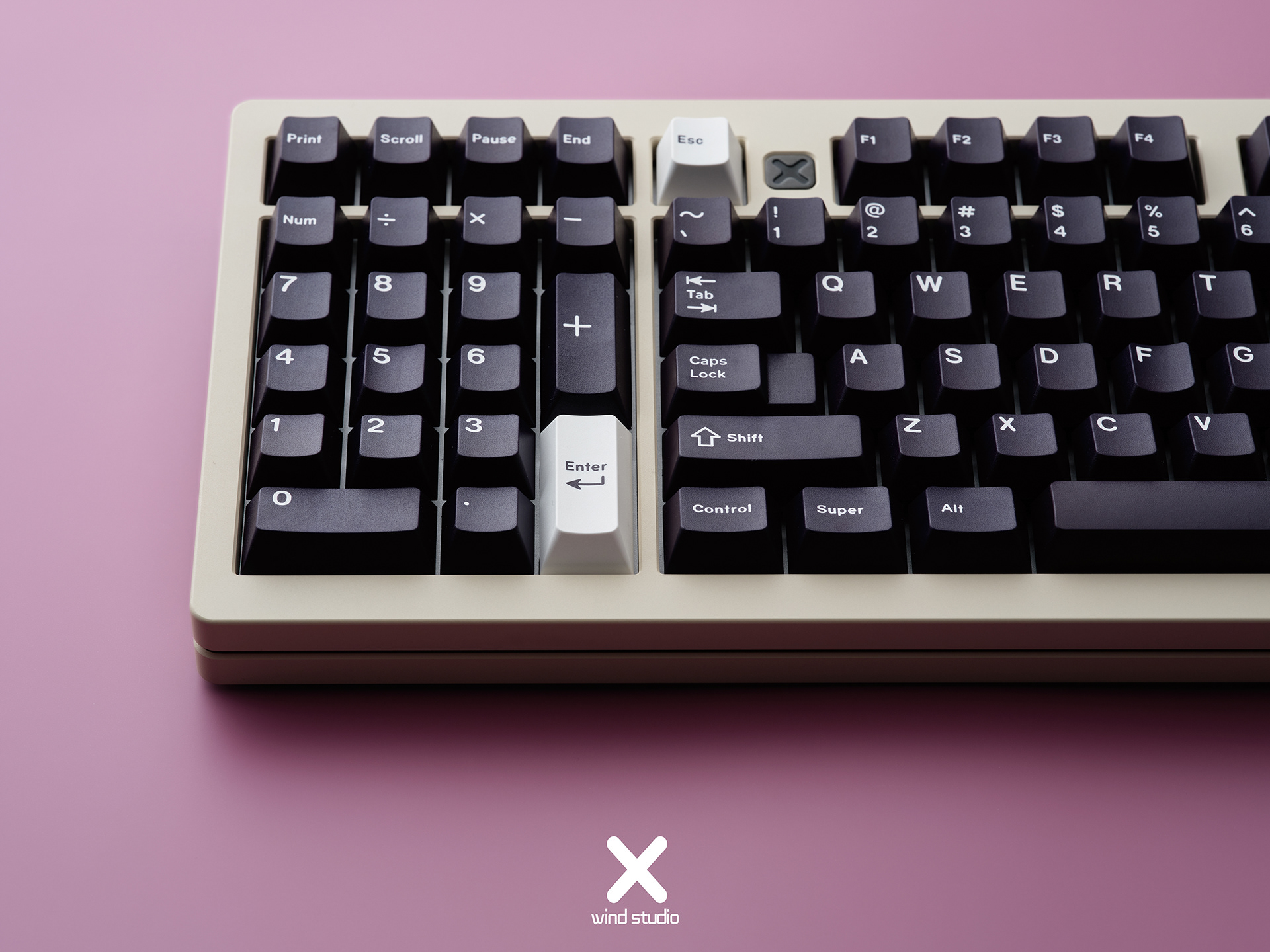

3 customizable keys on the left side of numpad

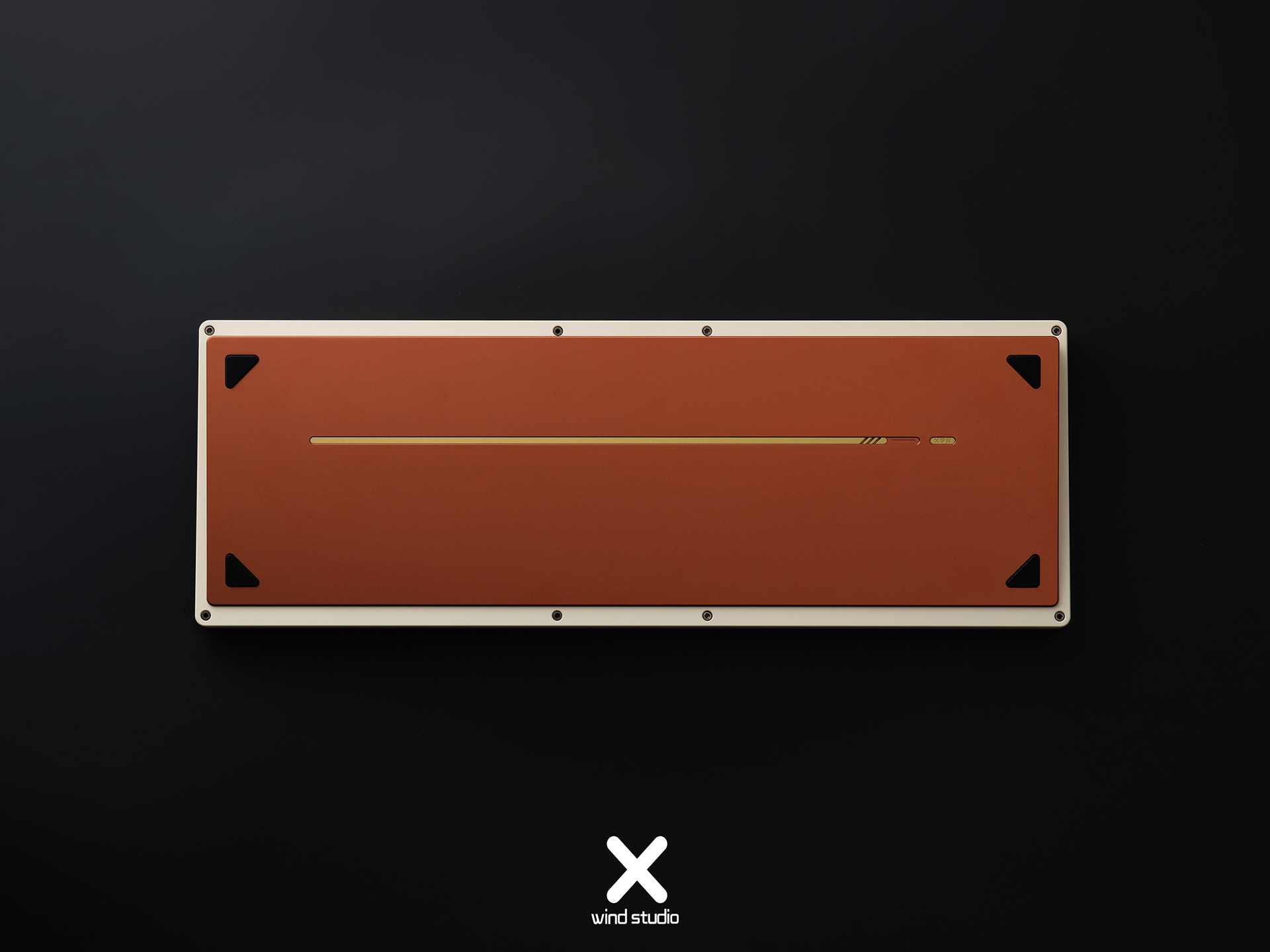

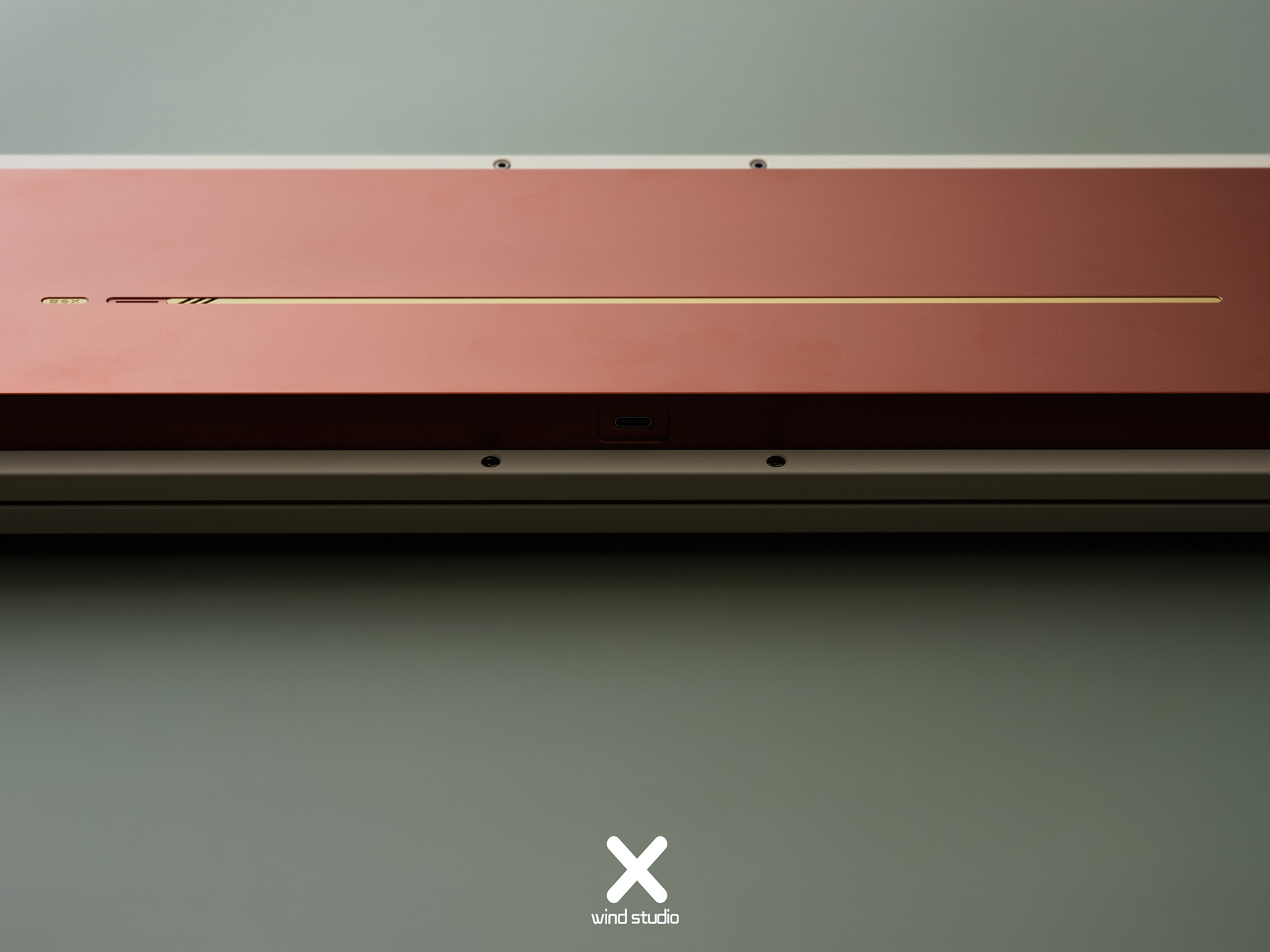

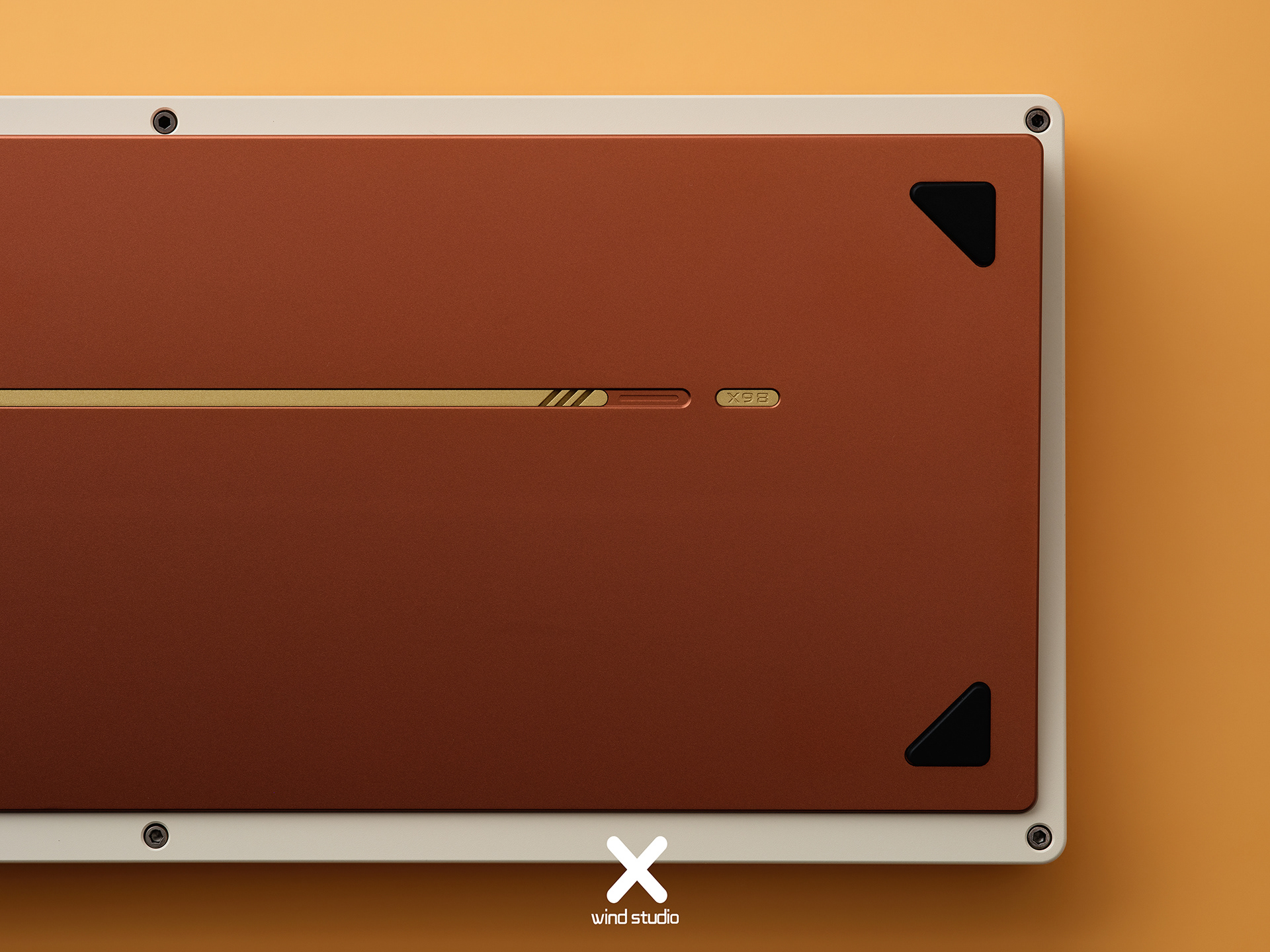

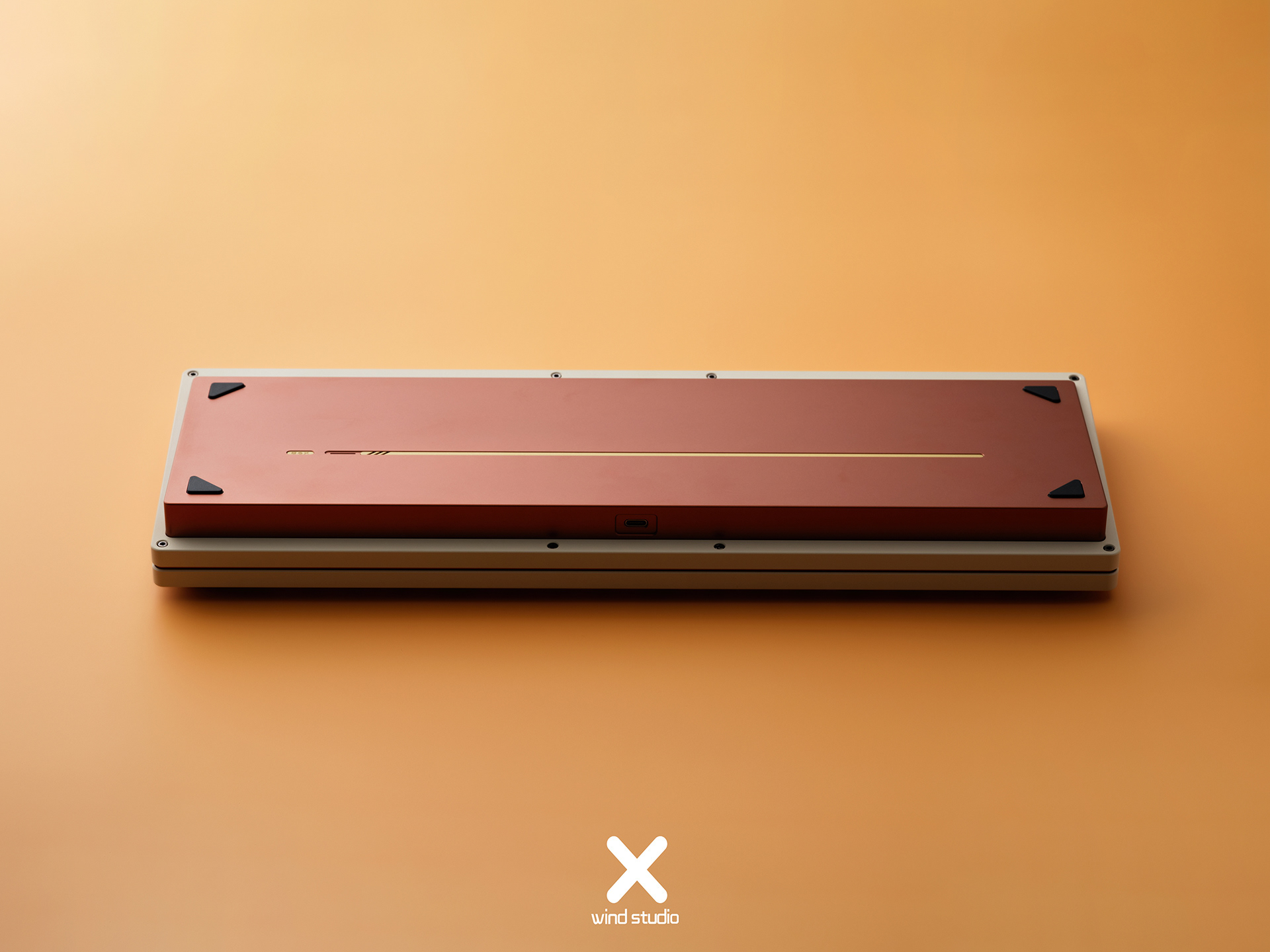

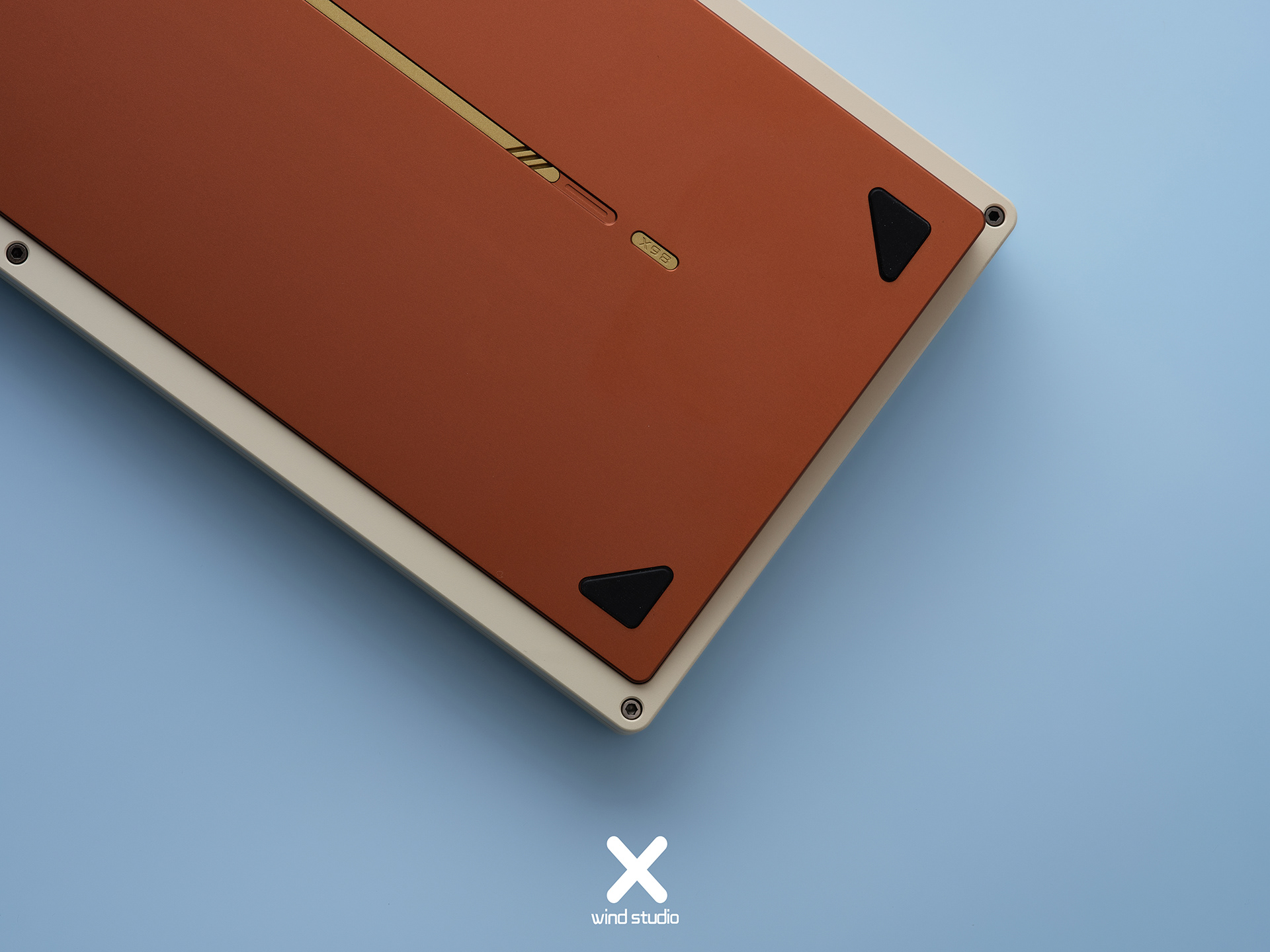

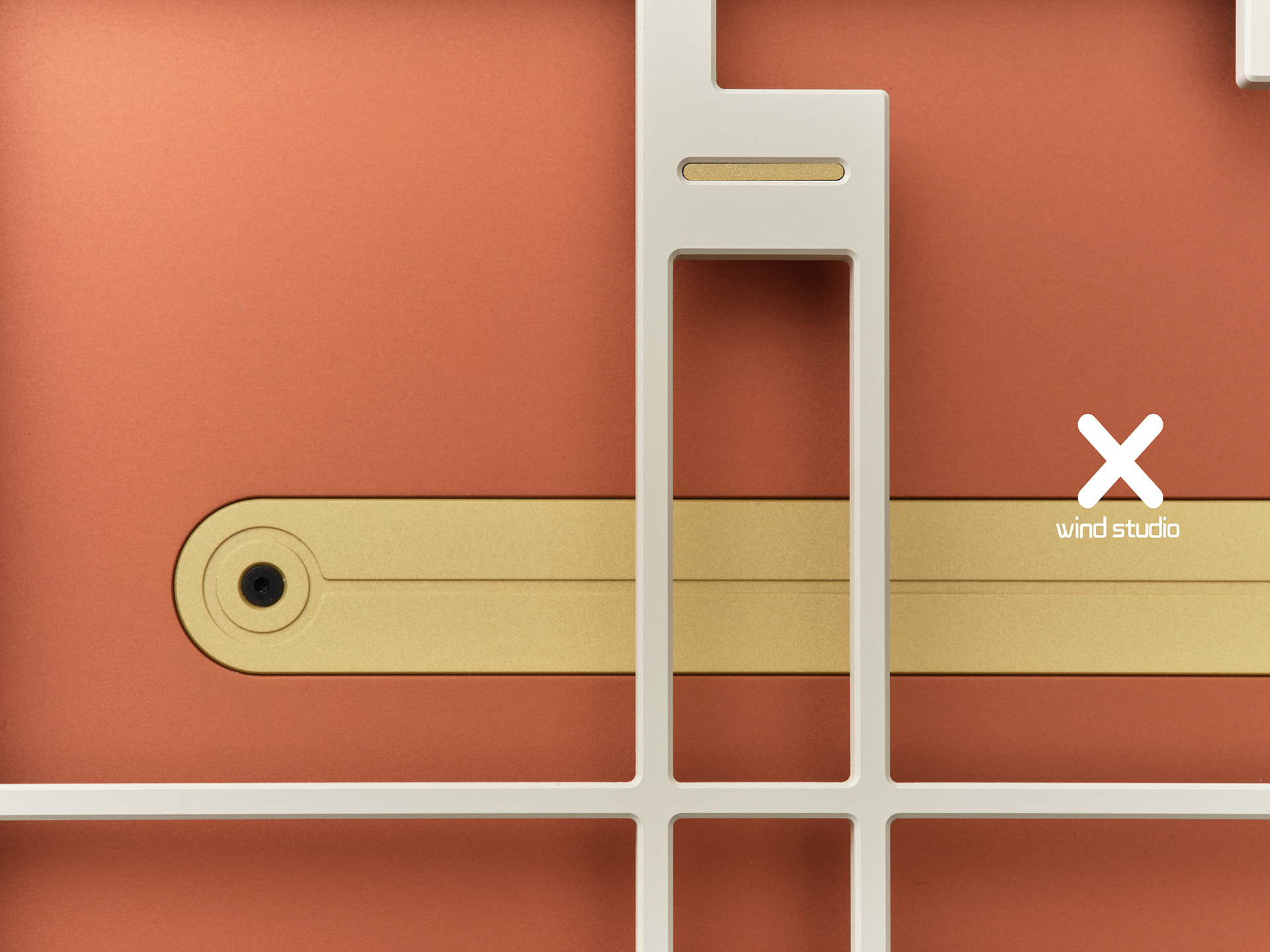

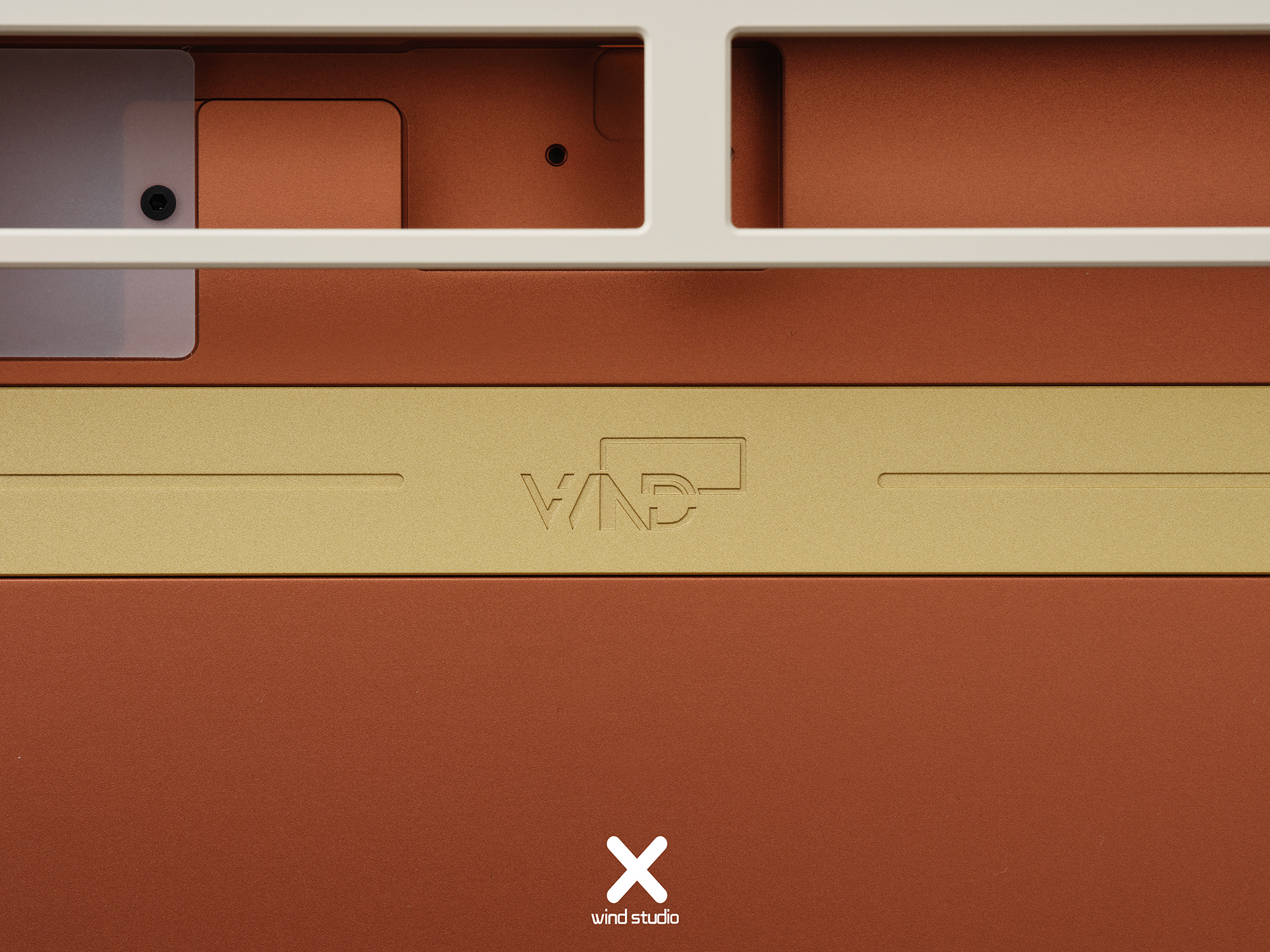

A PVD logo brings more visual enjoyment
Top mount ，PCB gasket mont

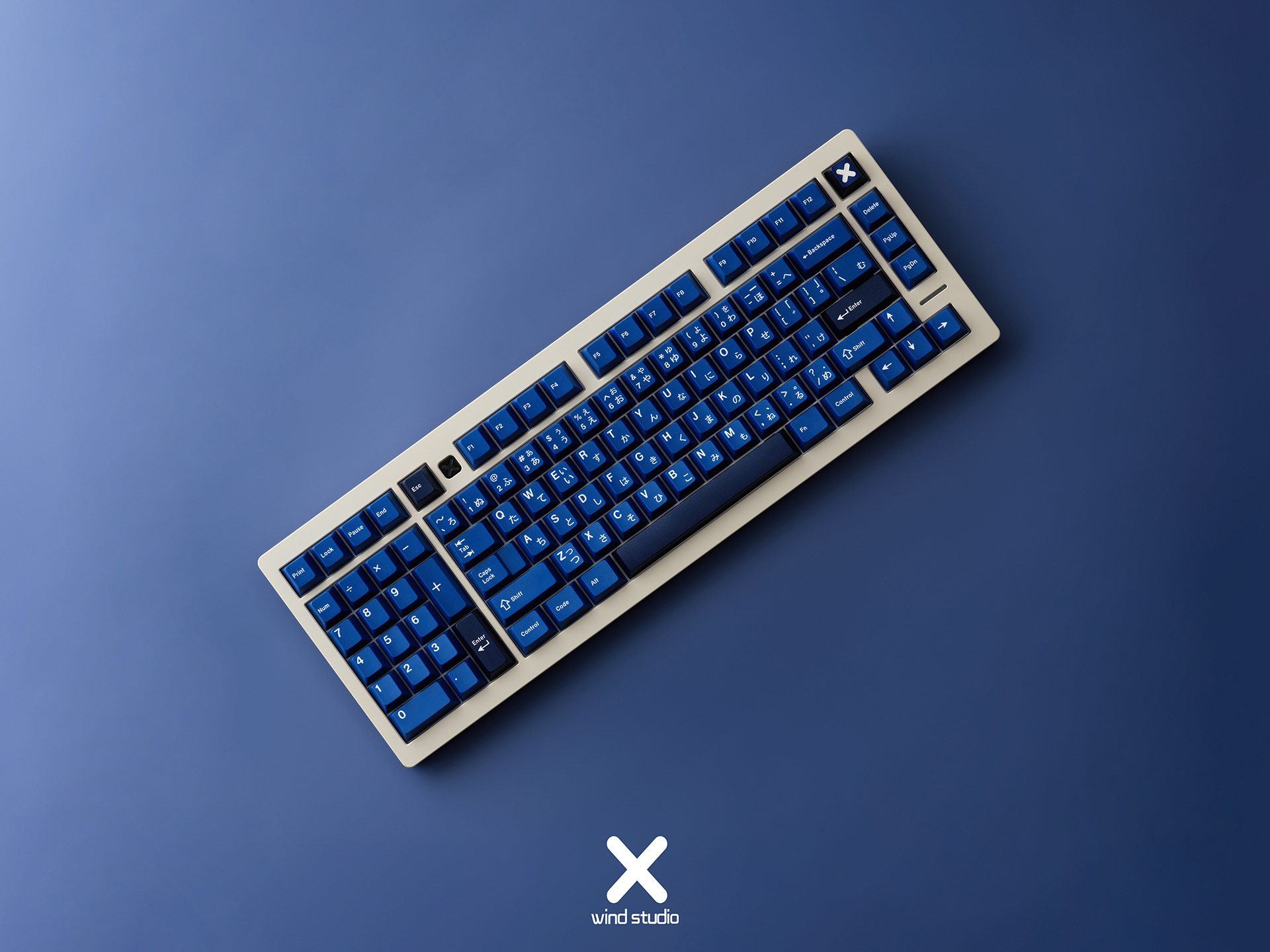

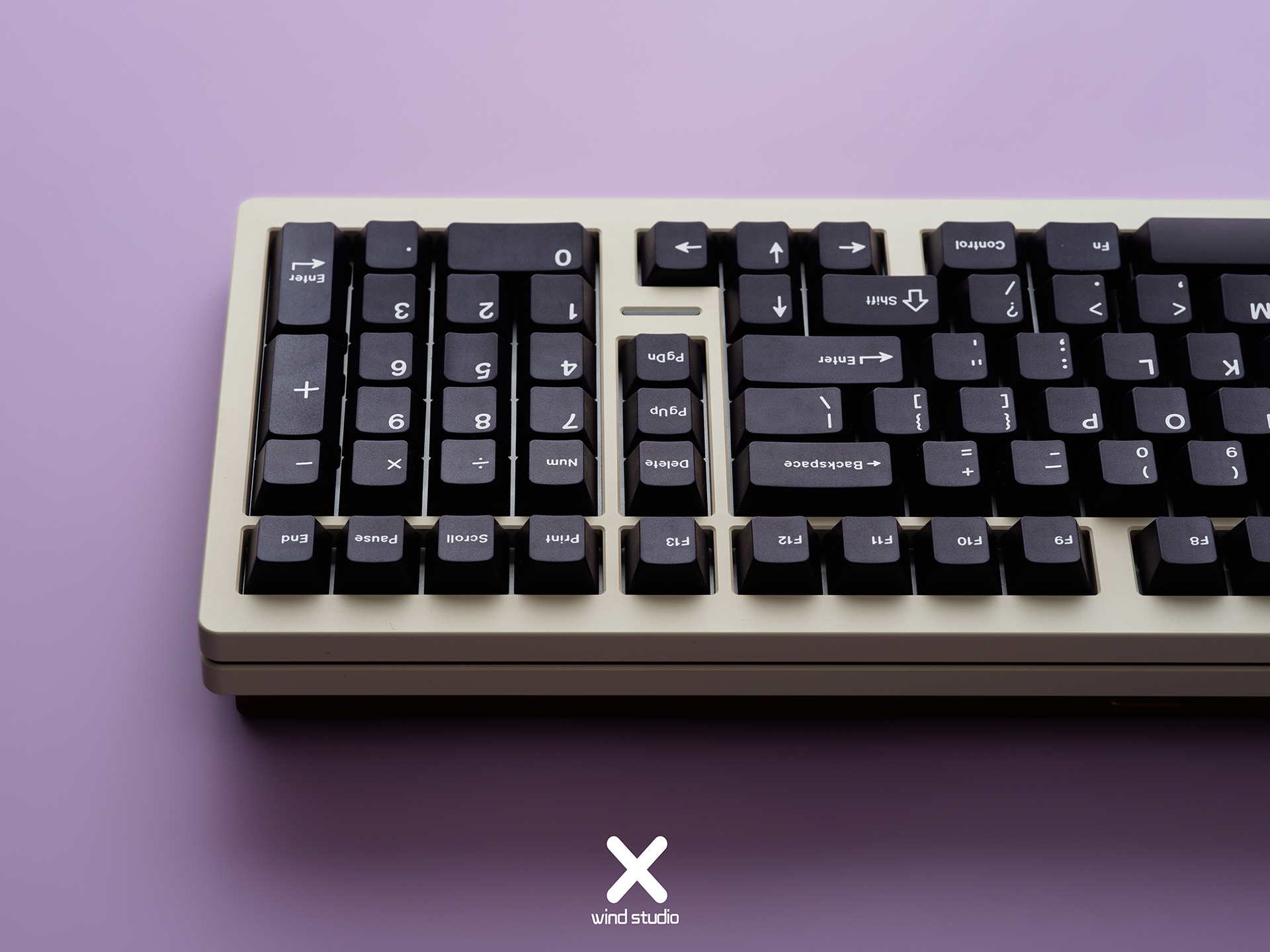

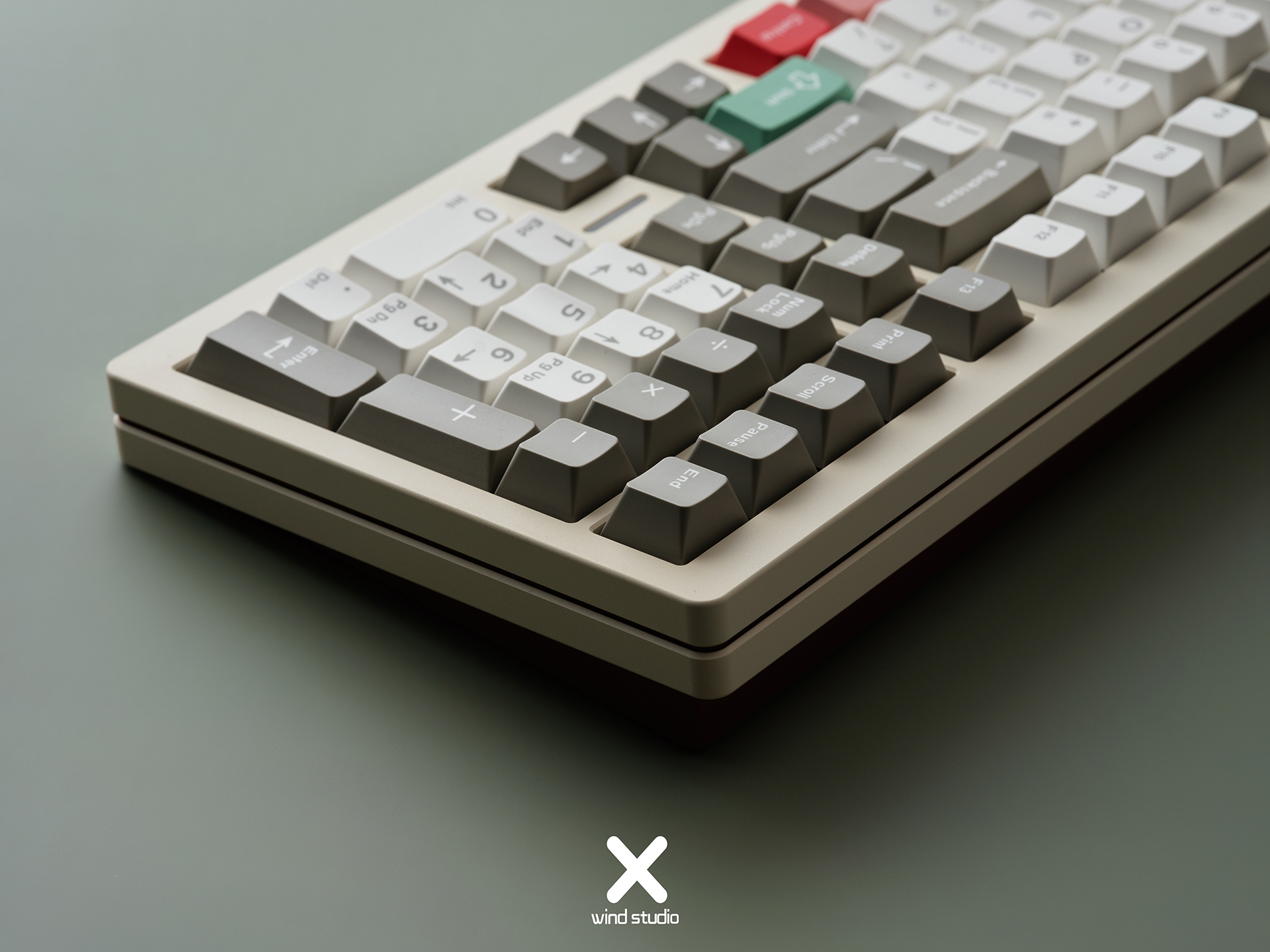

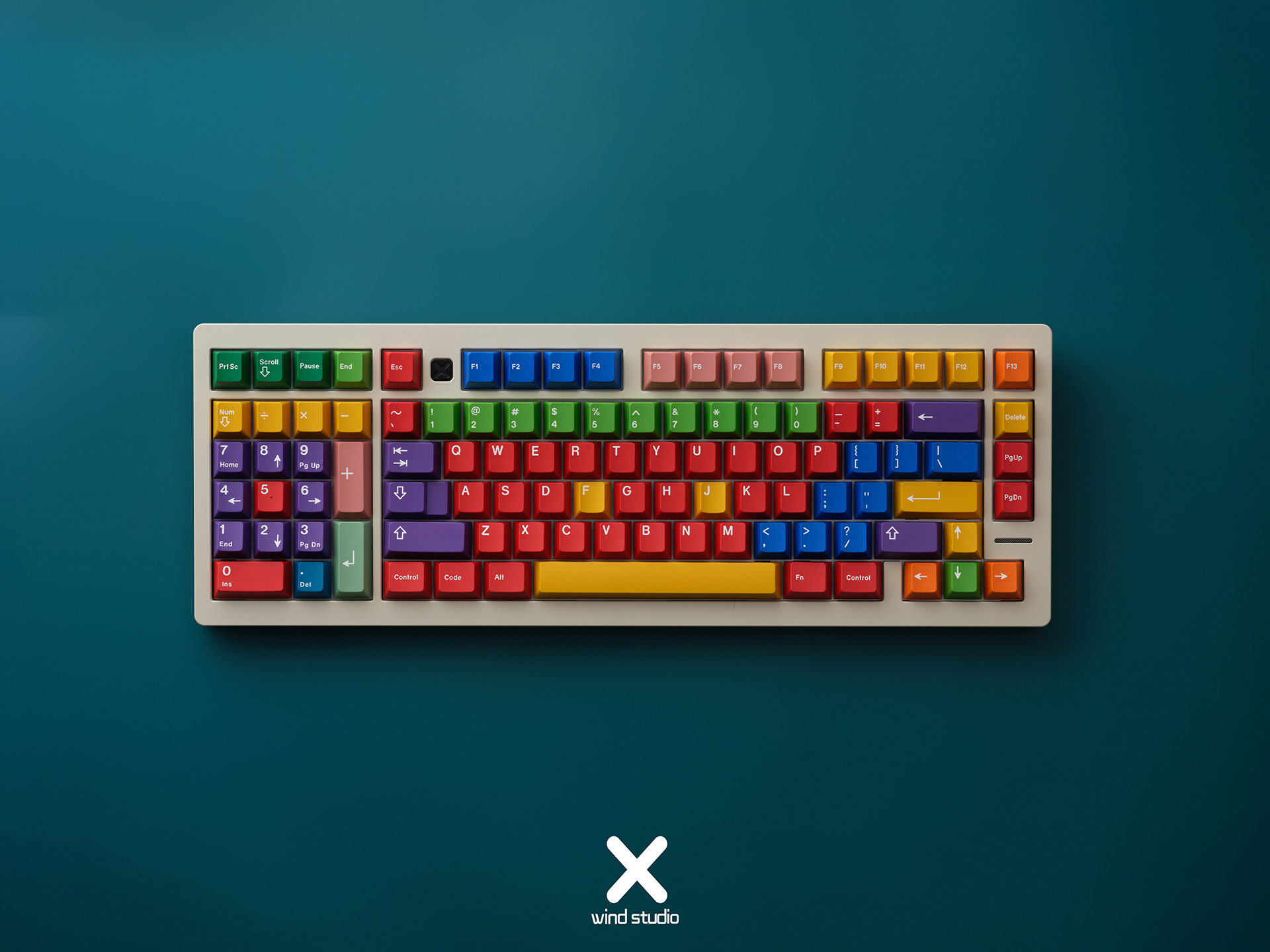

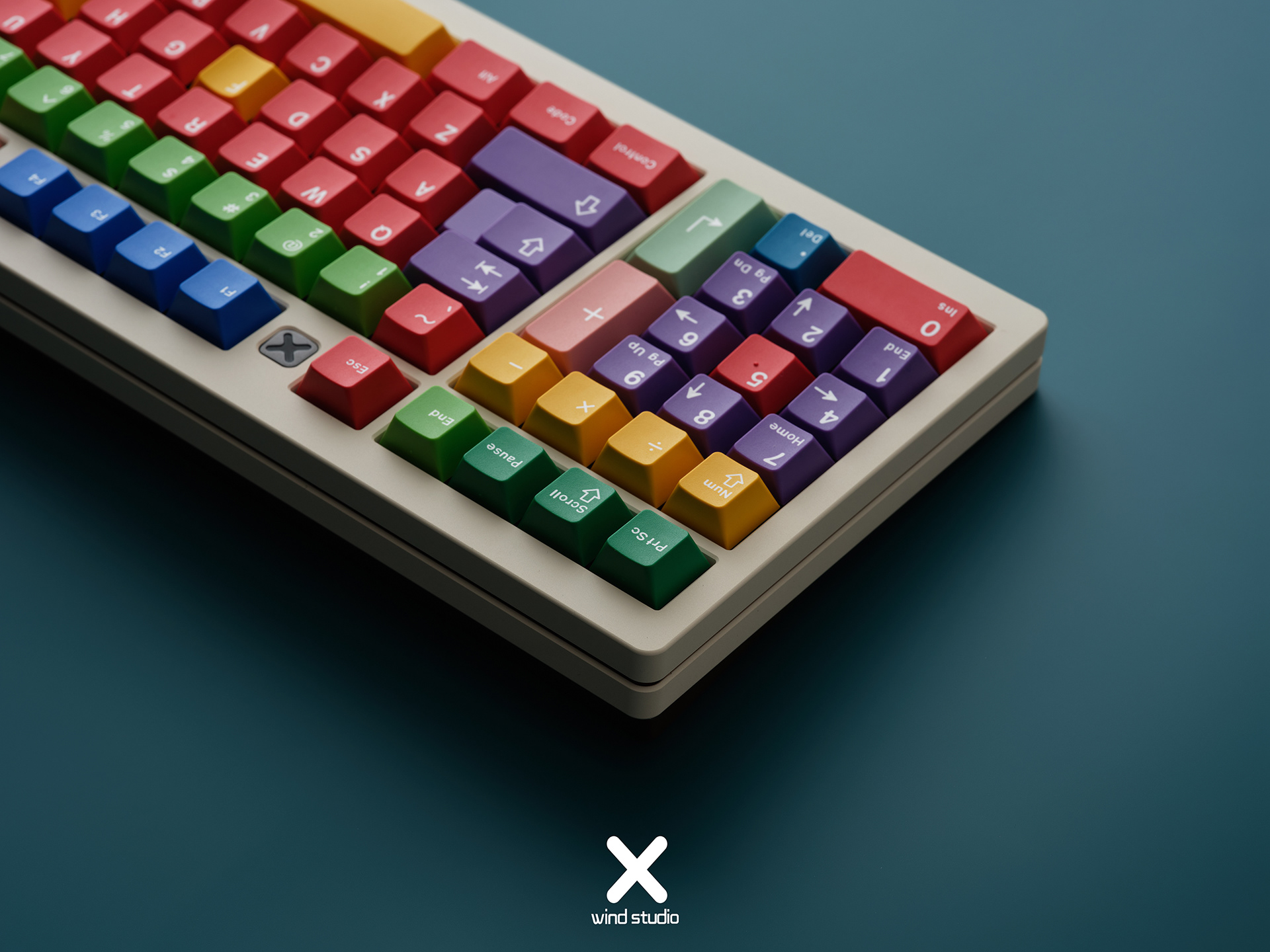

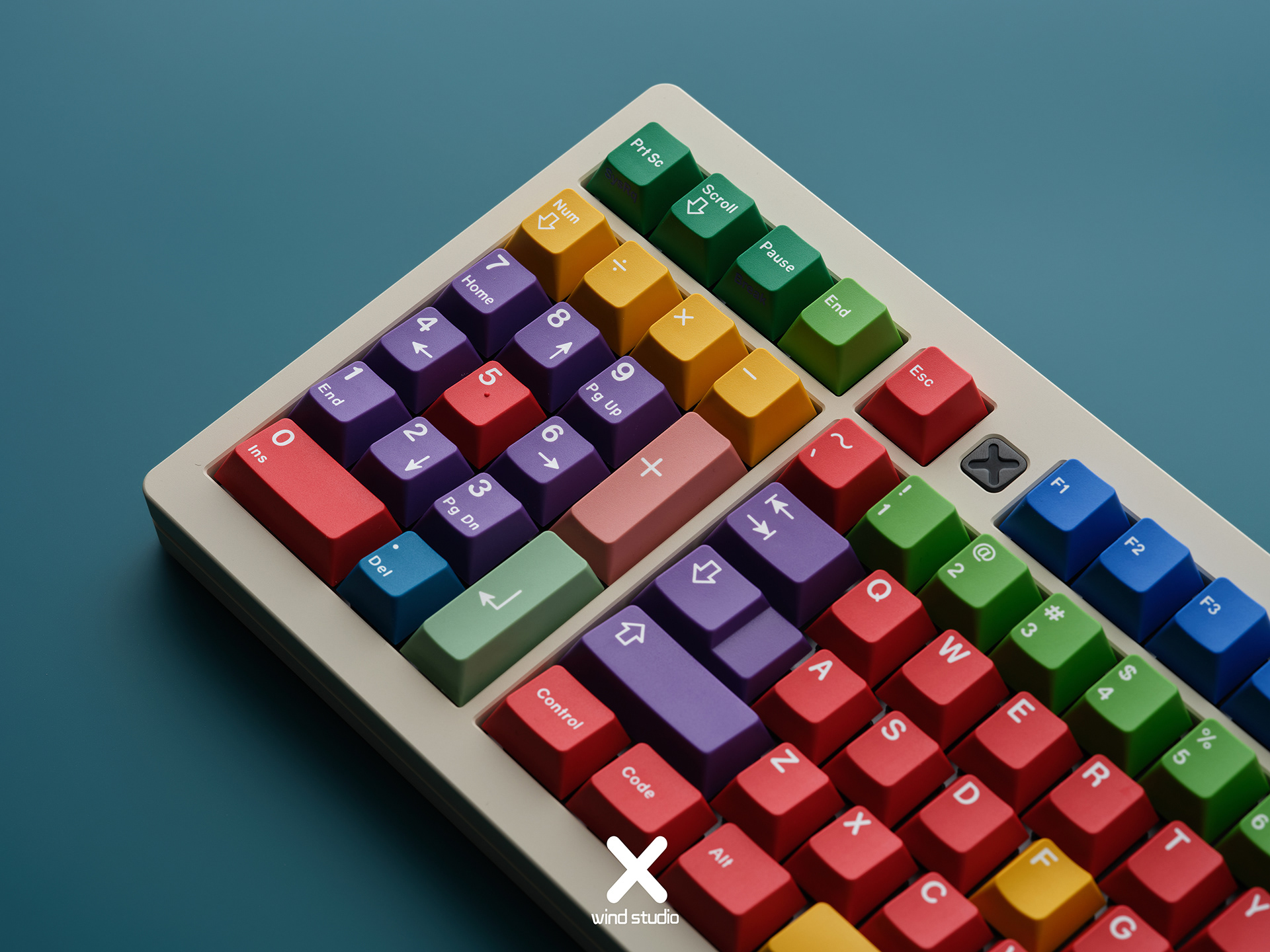

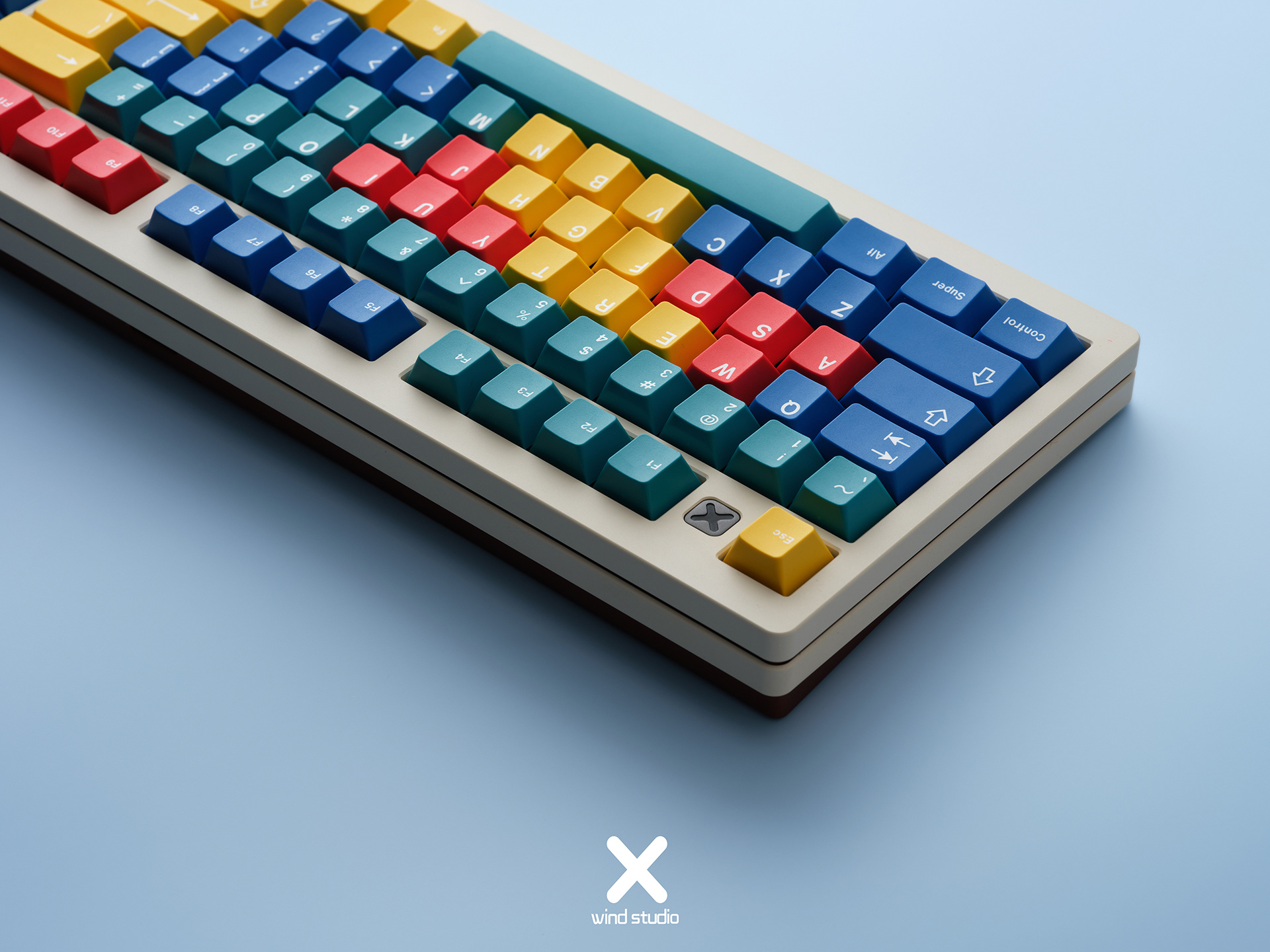

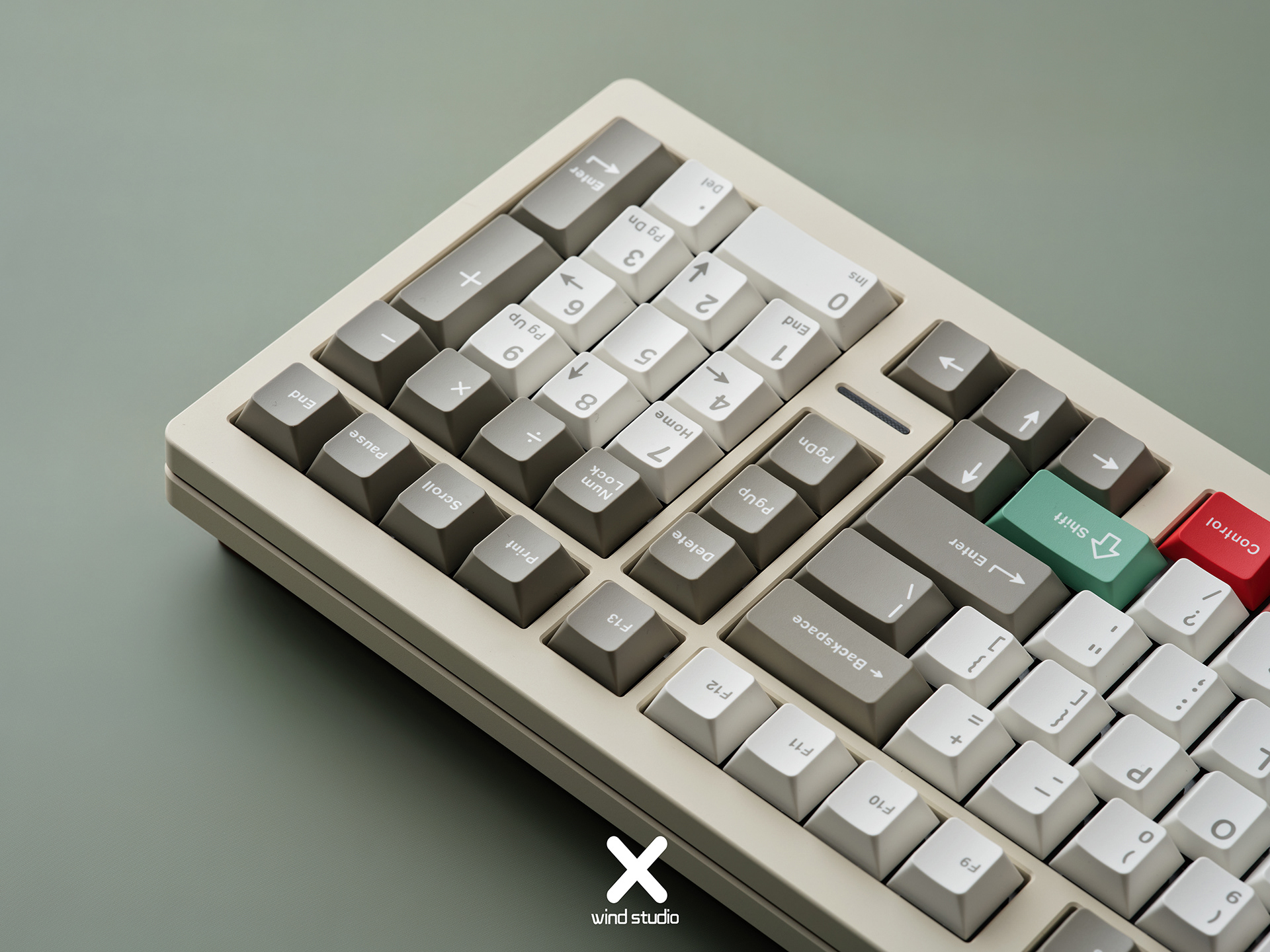

NORMAL OR SOUTHPAW

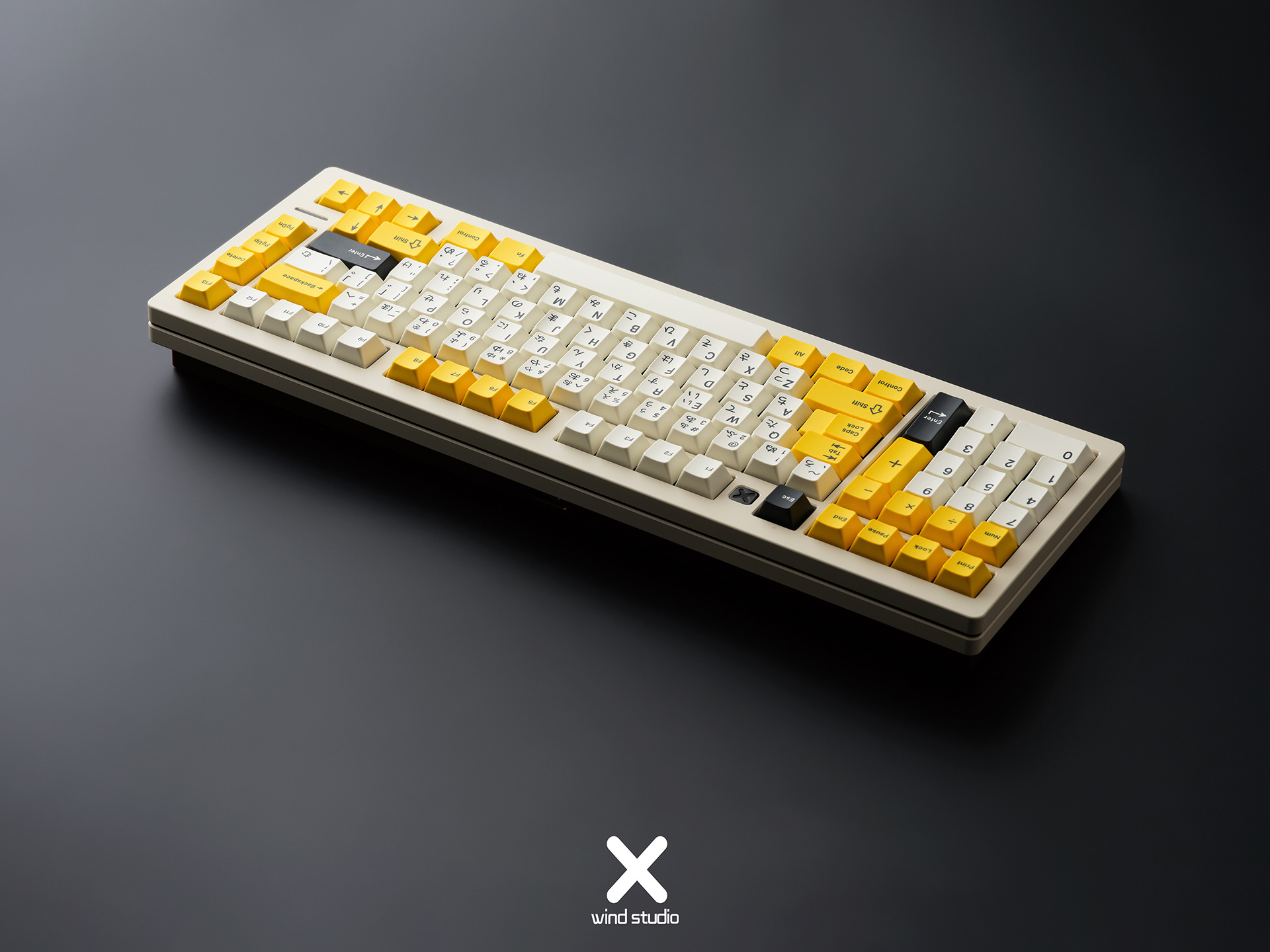

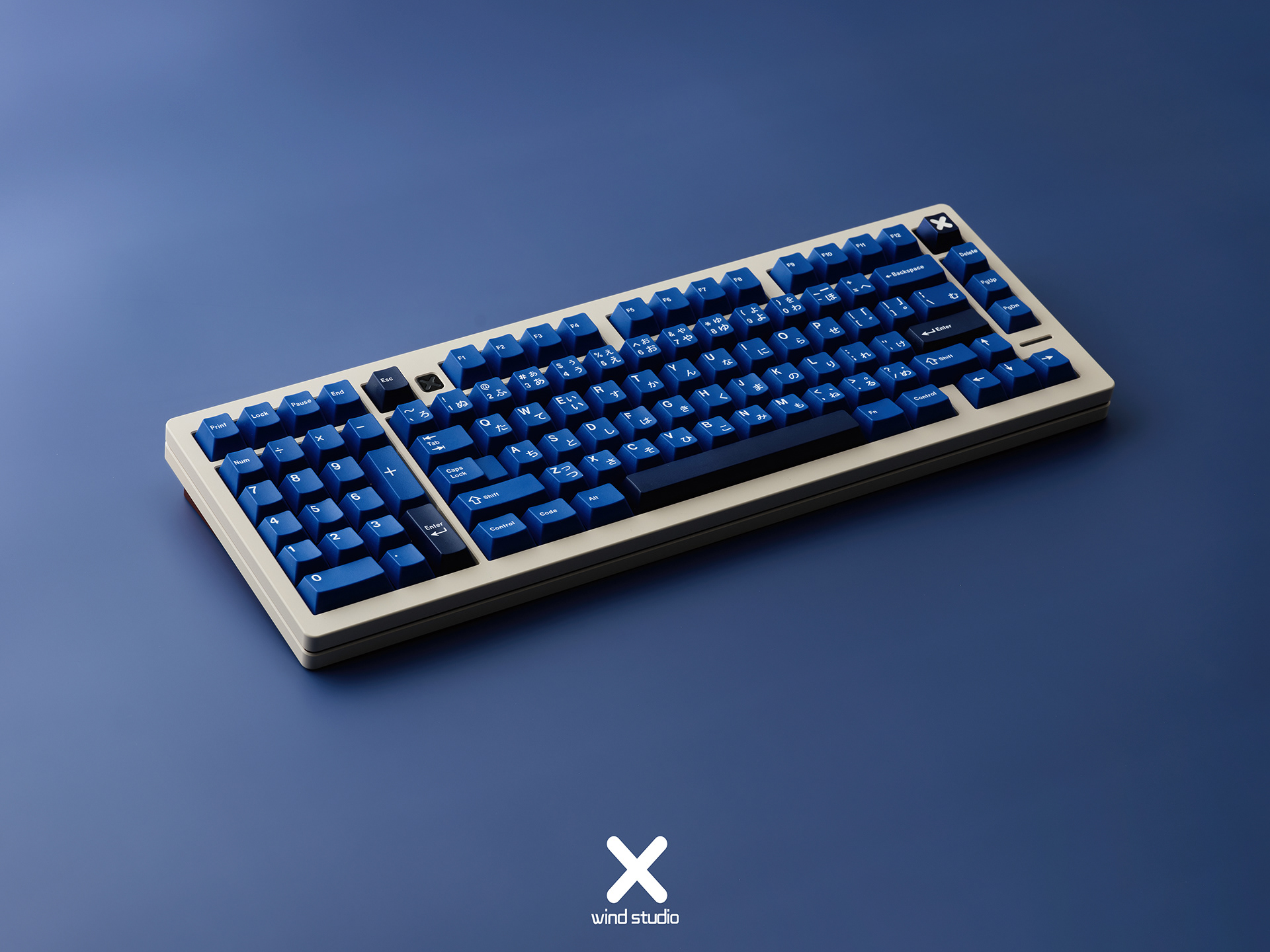

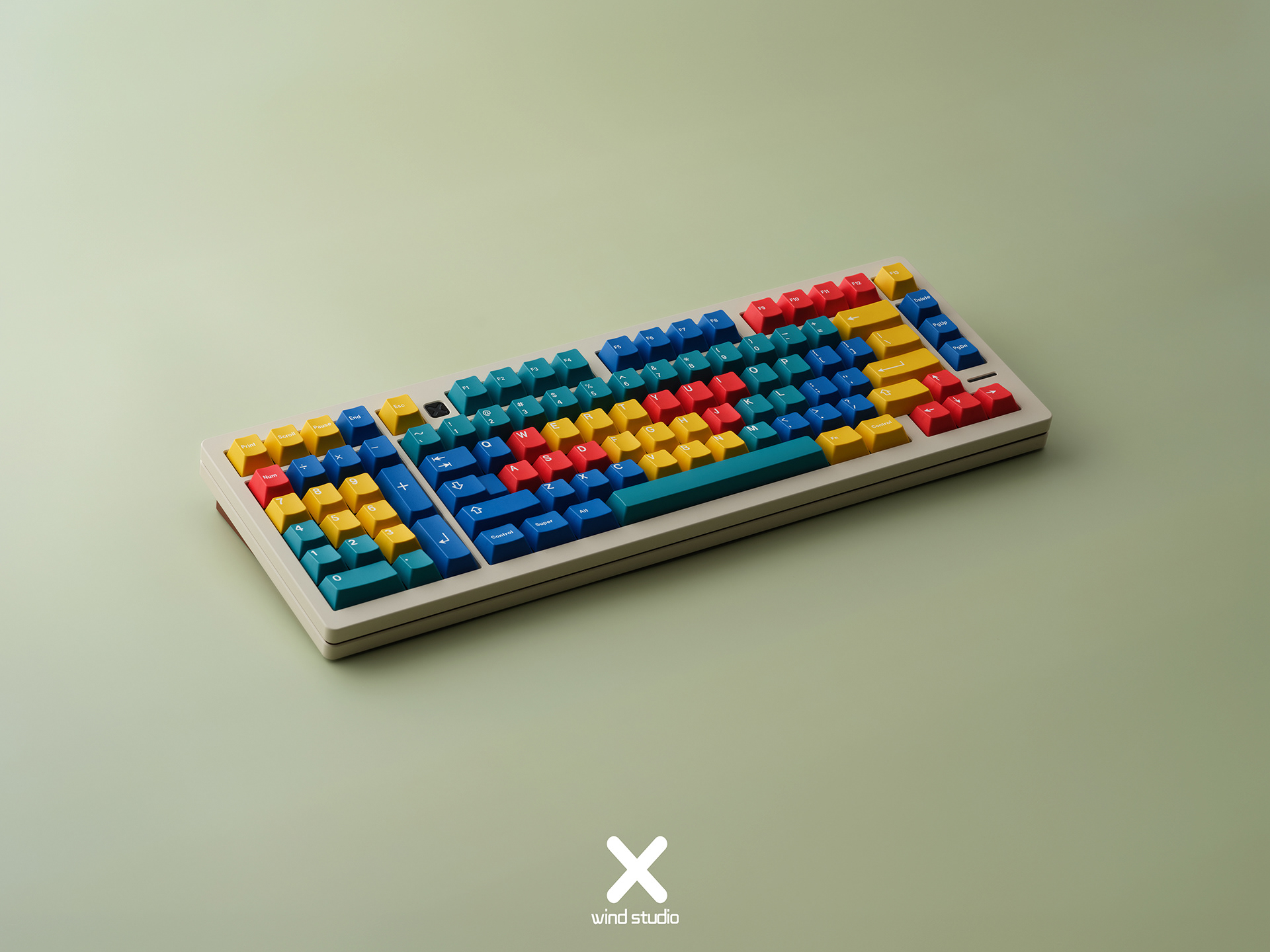

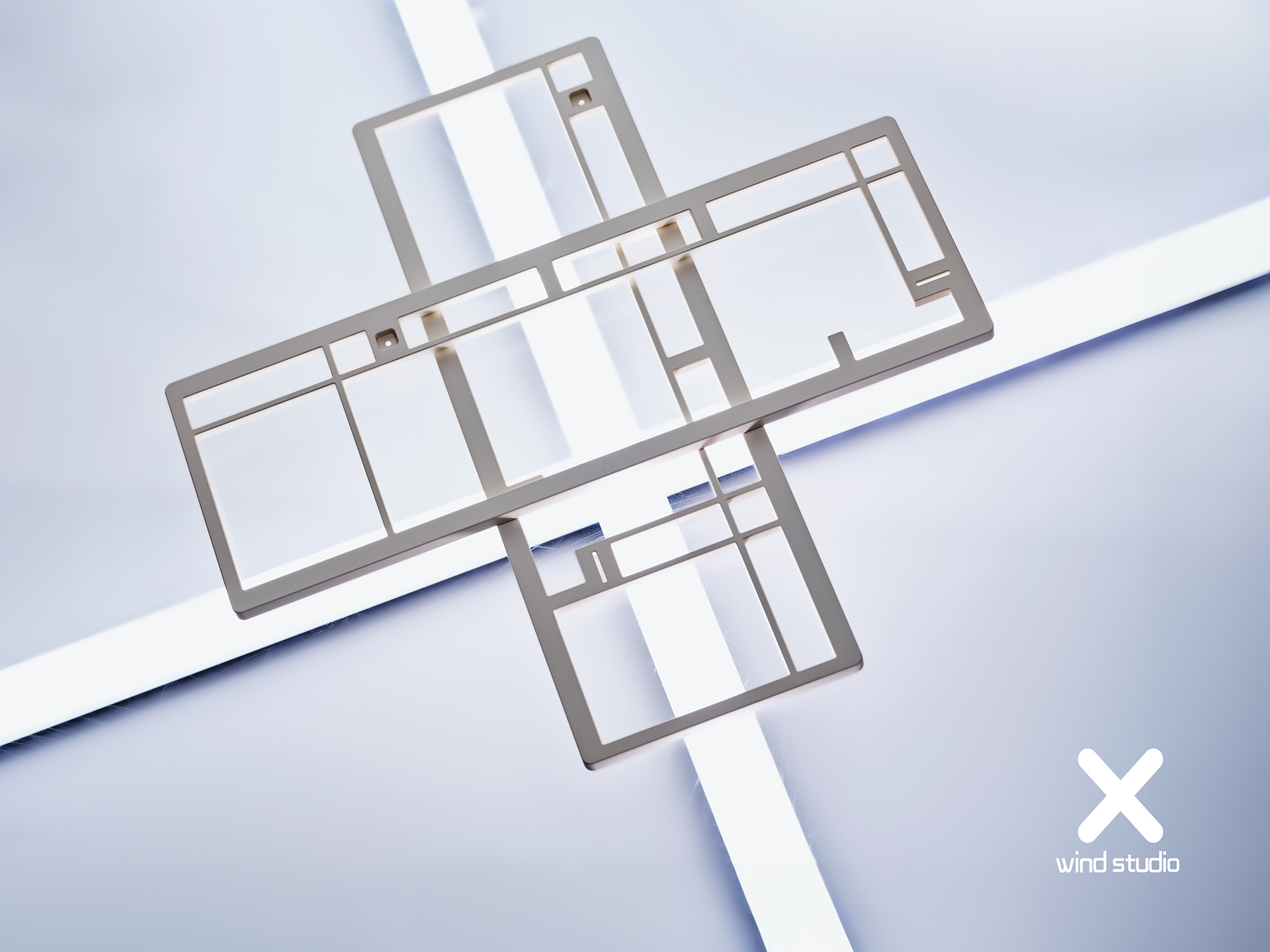

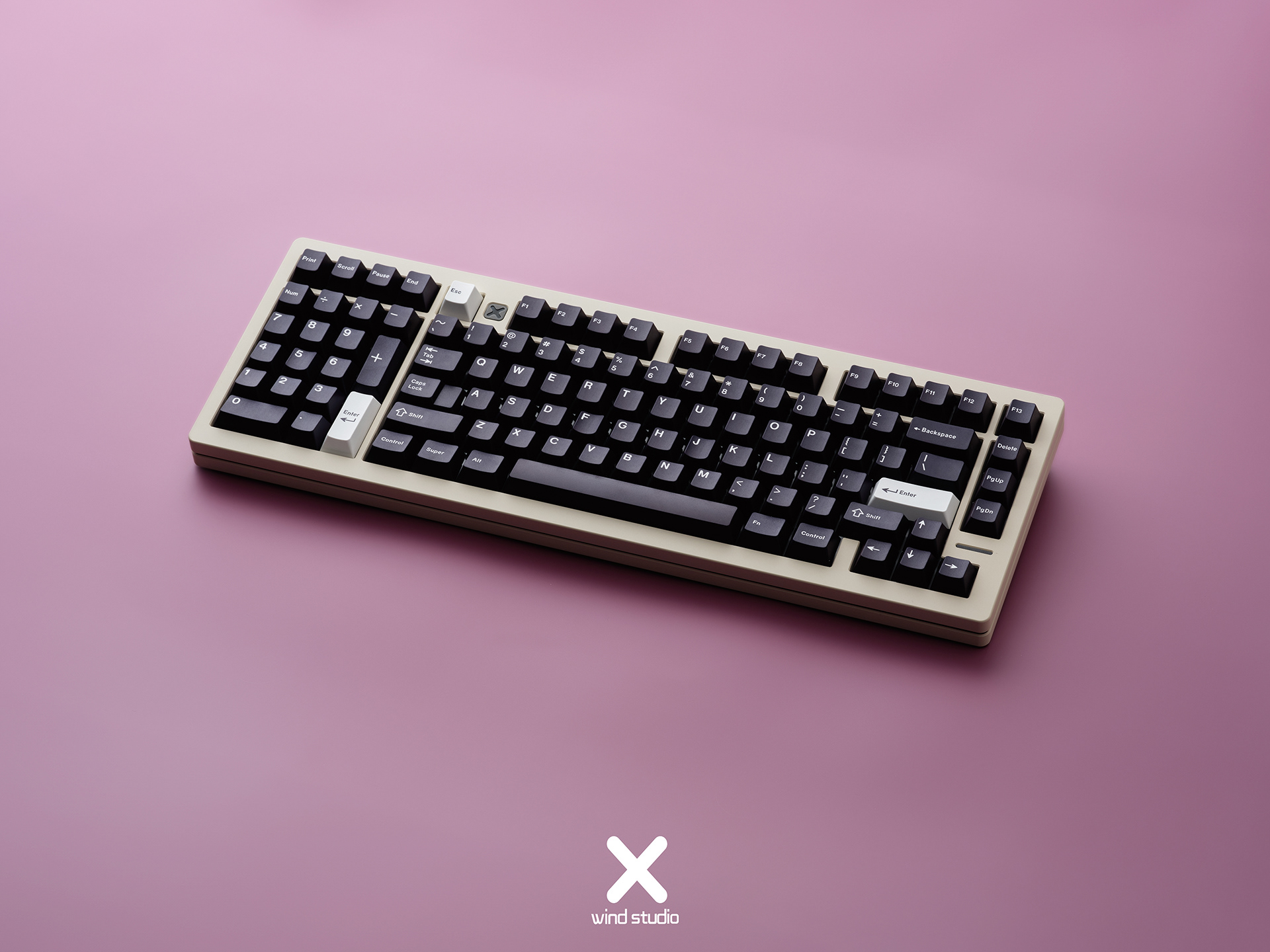

You can experience both normal and southpaw keyboard by replacing top case.
You can build ANSI or ISO hotswap layout freedom,no need to solder sockets, only need to change the direction of switches.
PC front accent pieces for those who want a CAPS indicator light. You can buy extra brass piece if you do not want caps light. The light can change or turn off on VIAL(bluetooth pcb change on LDN).

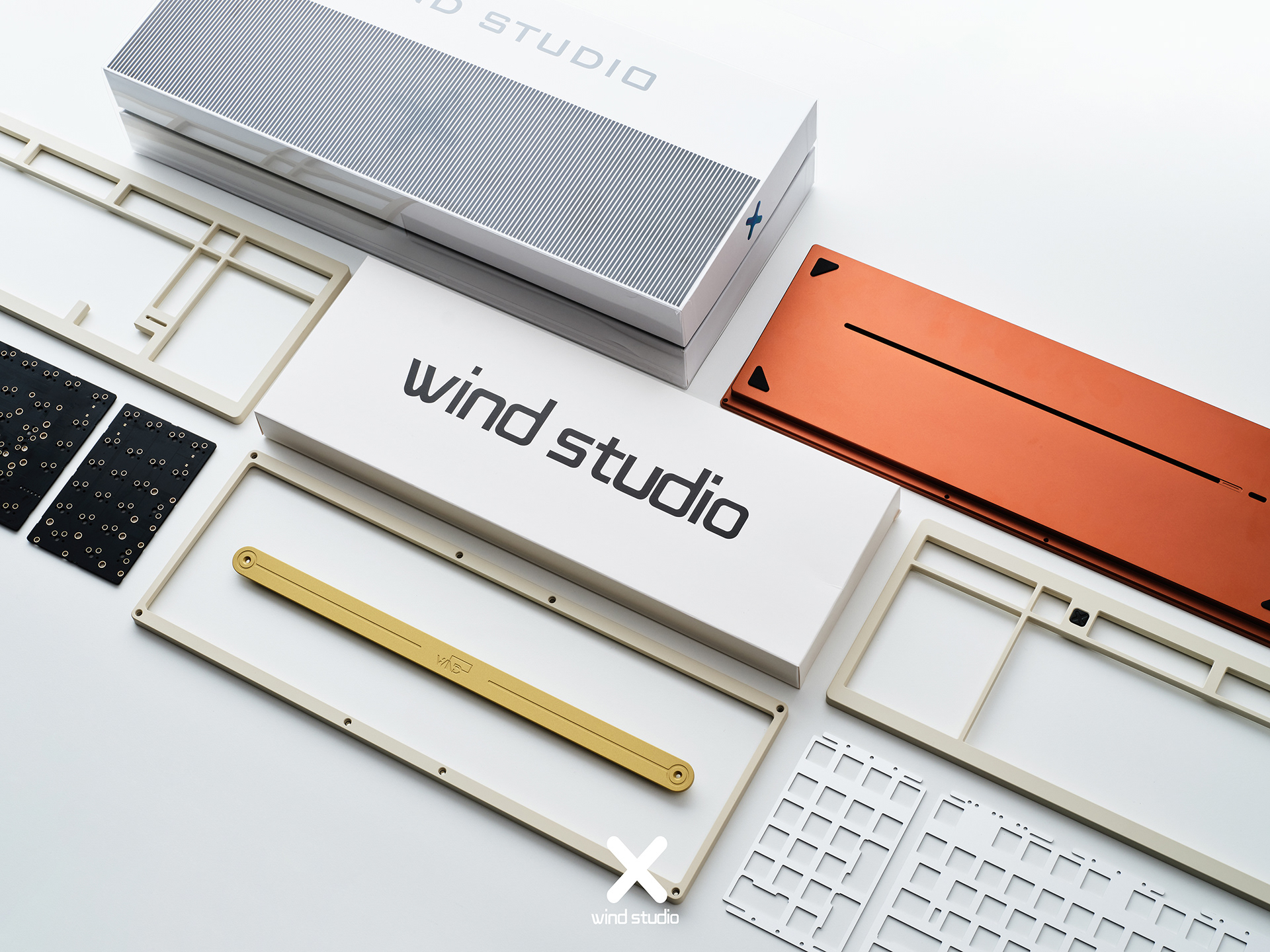

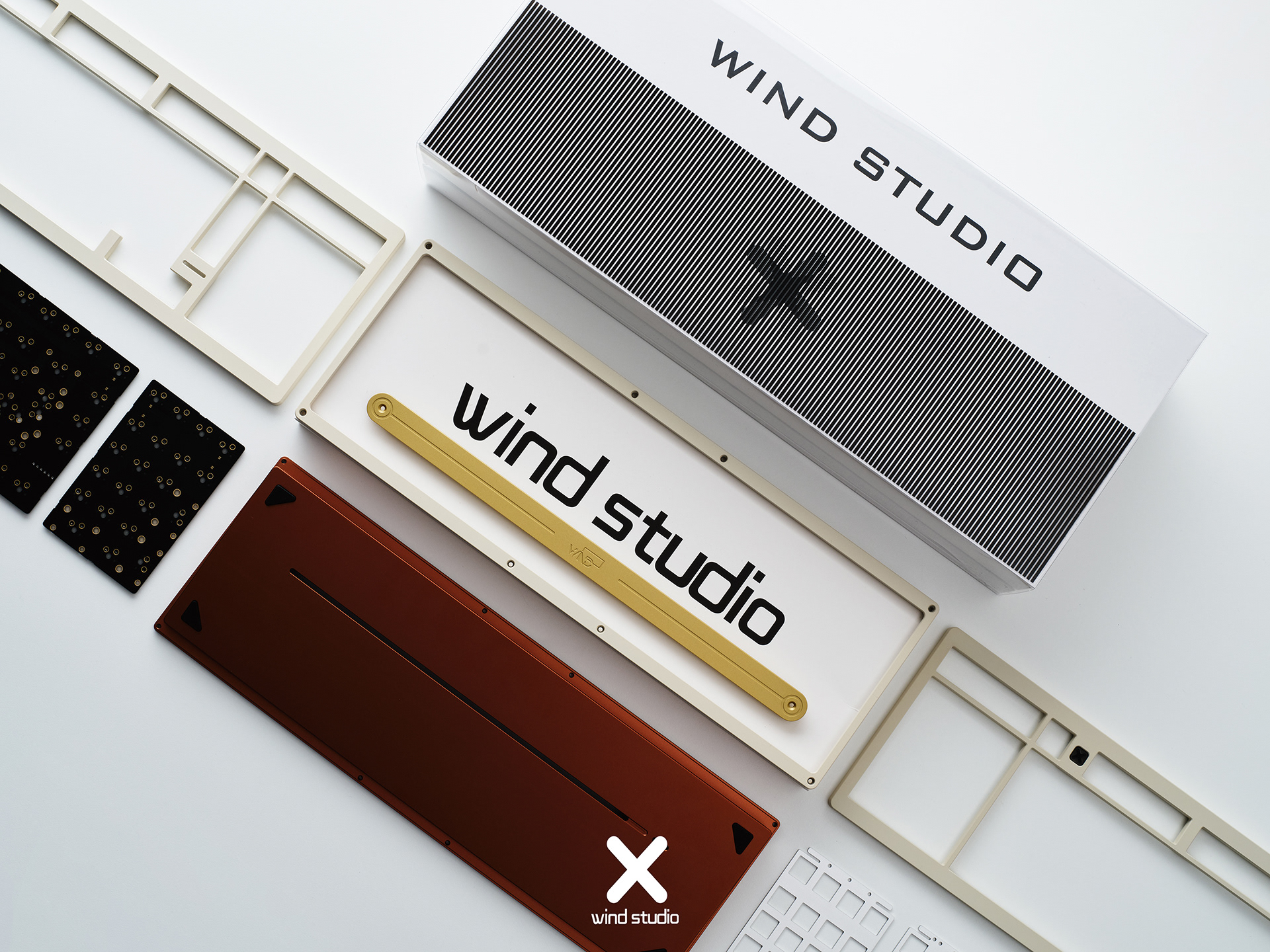

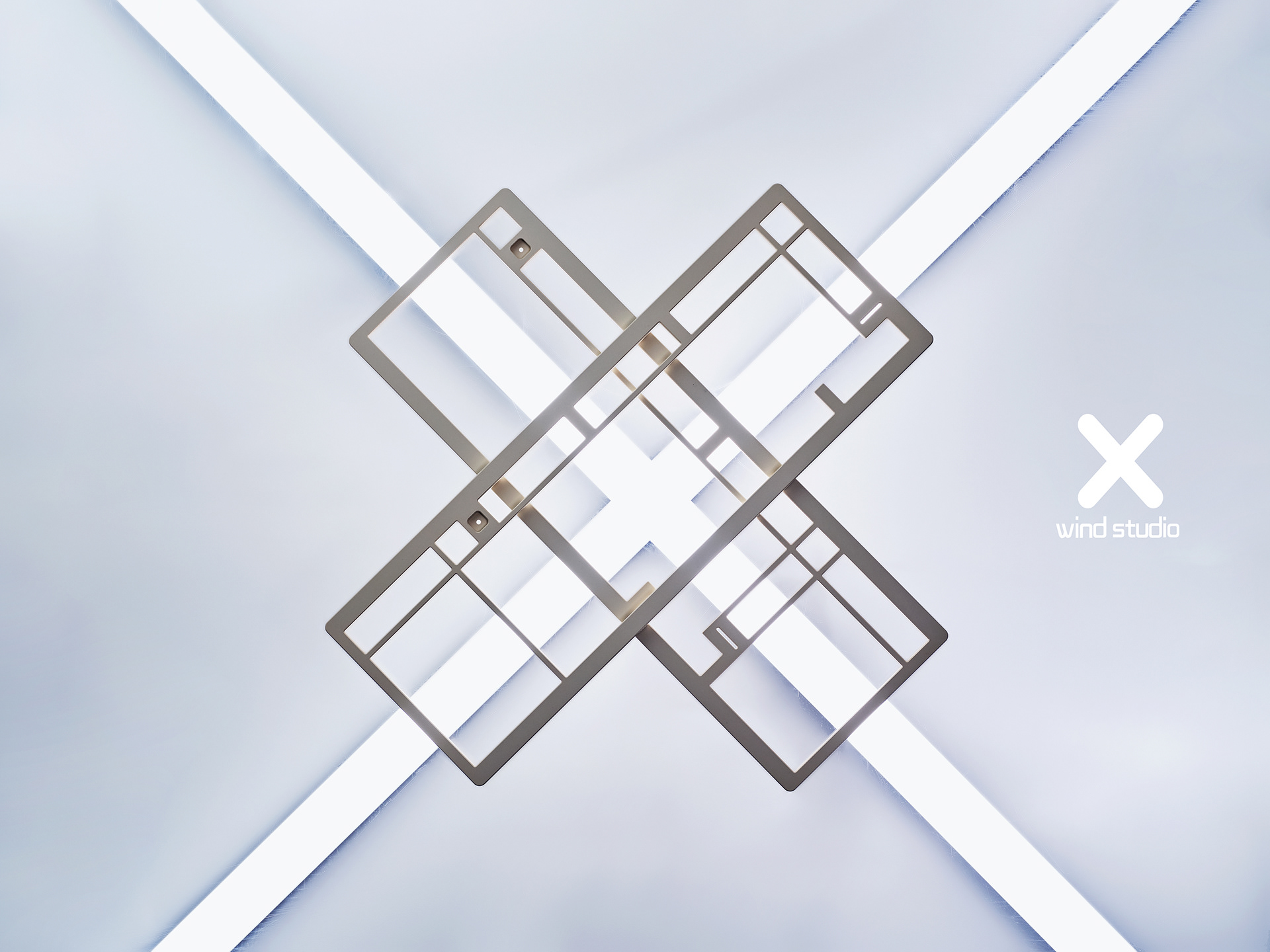

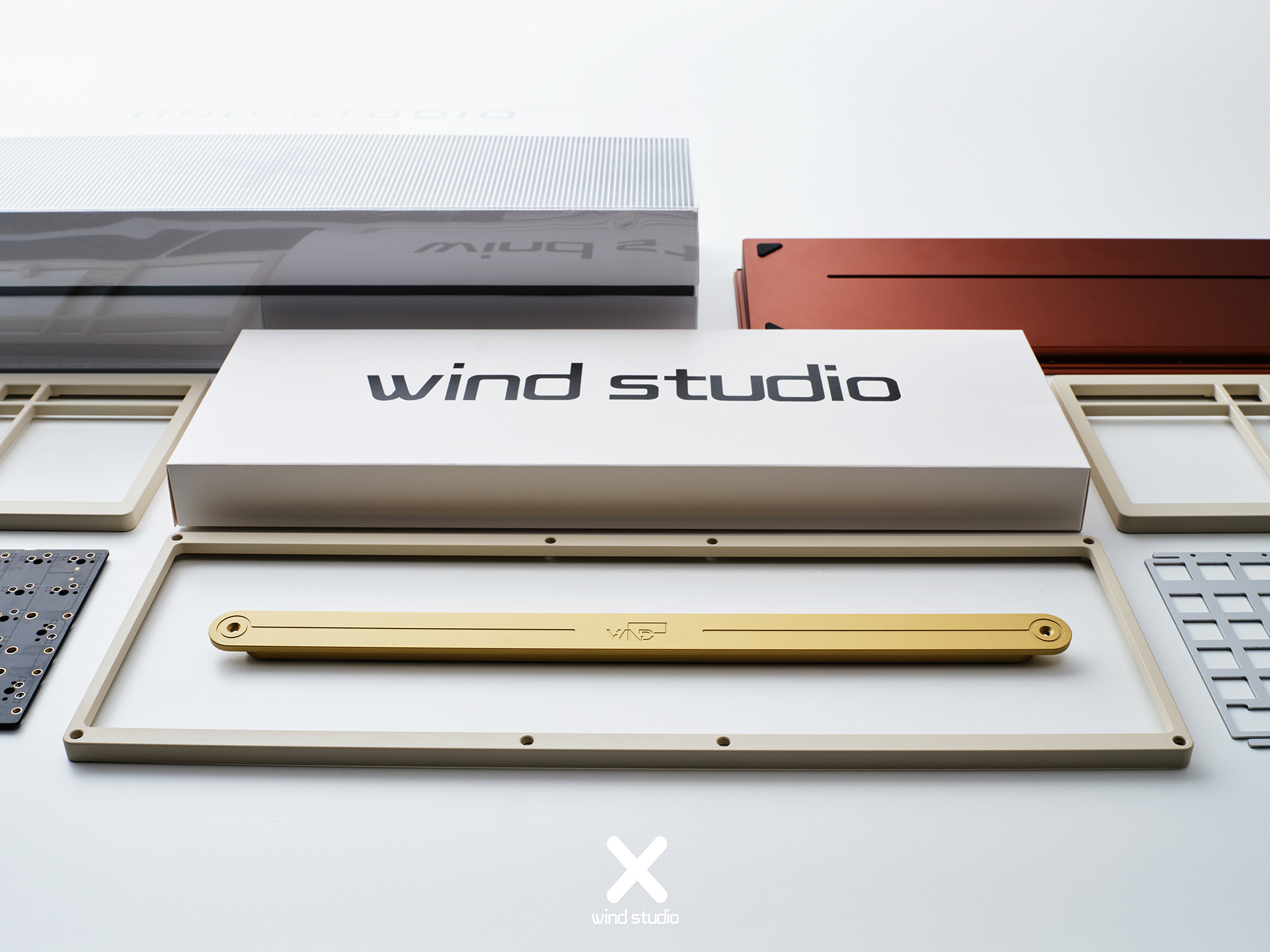

Split pcb and plate,1.6mm no flex cut pcb with 1.5mm plate, bring comfortable typing experience.
WIND X98 R2 Keyboard Specification:
Size: 40.75*14.4*3.6cm

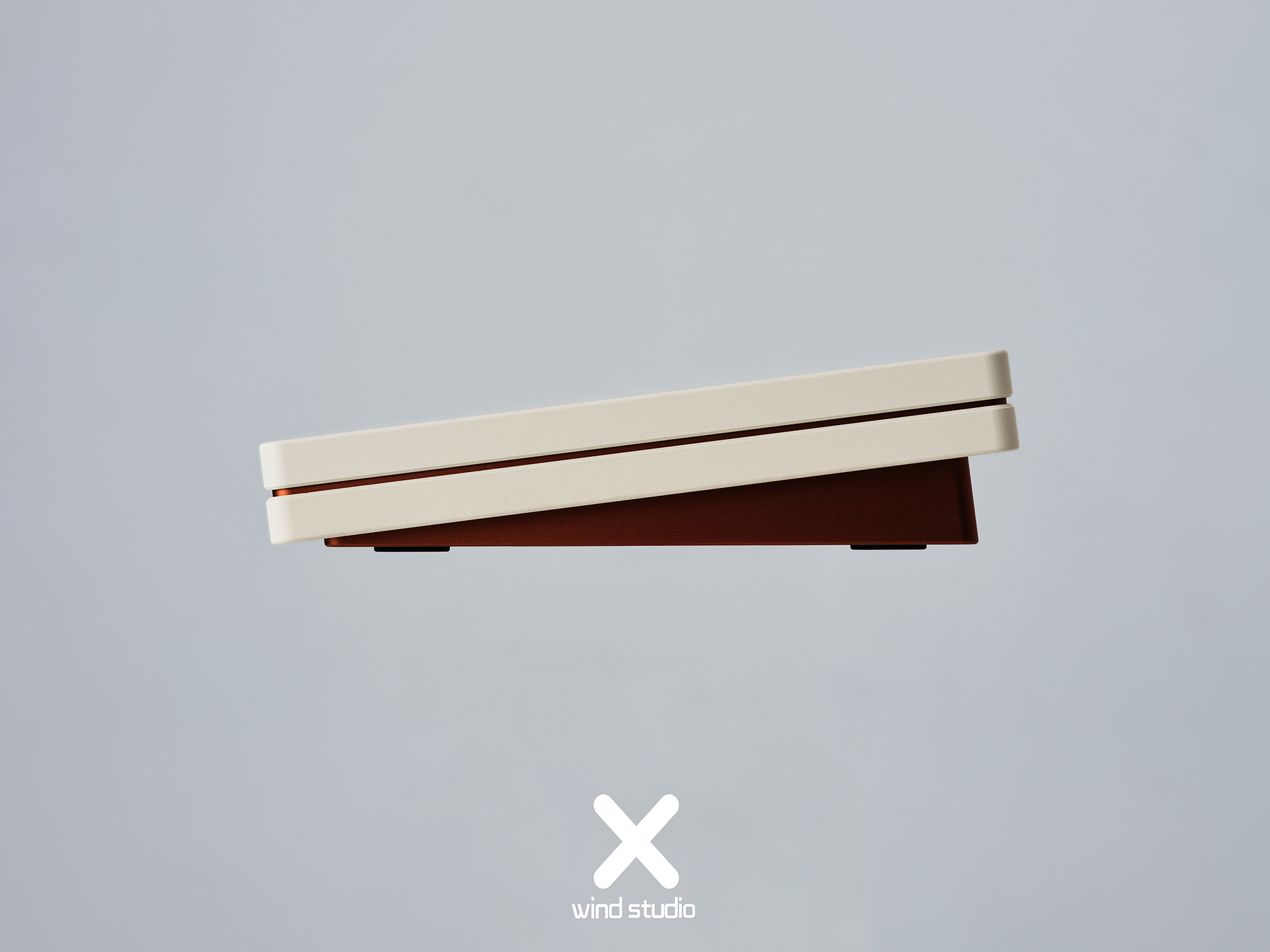

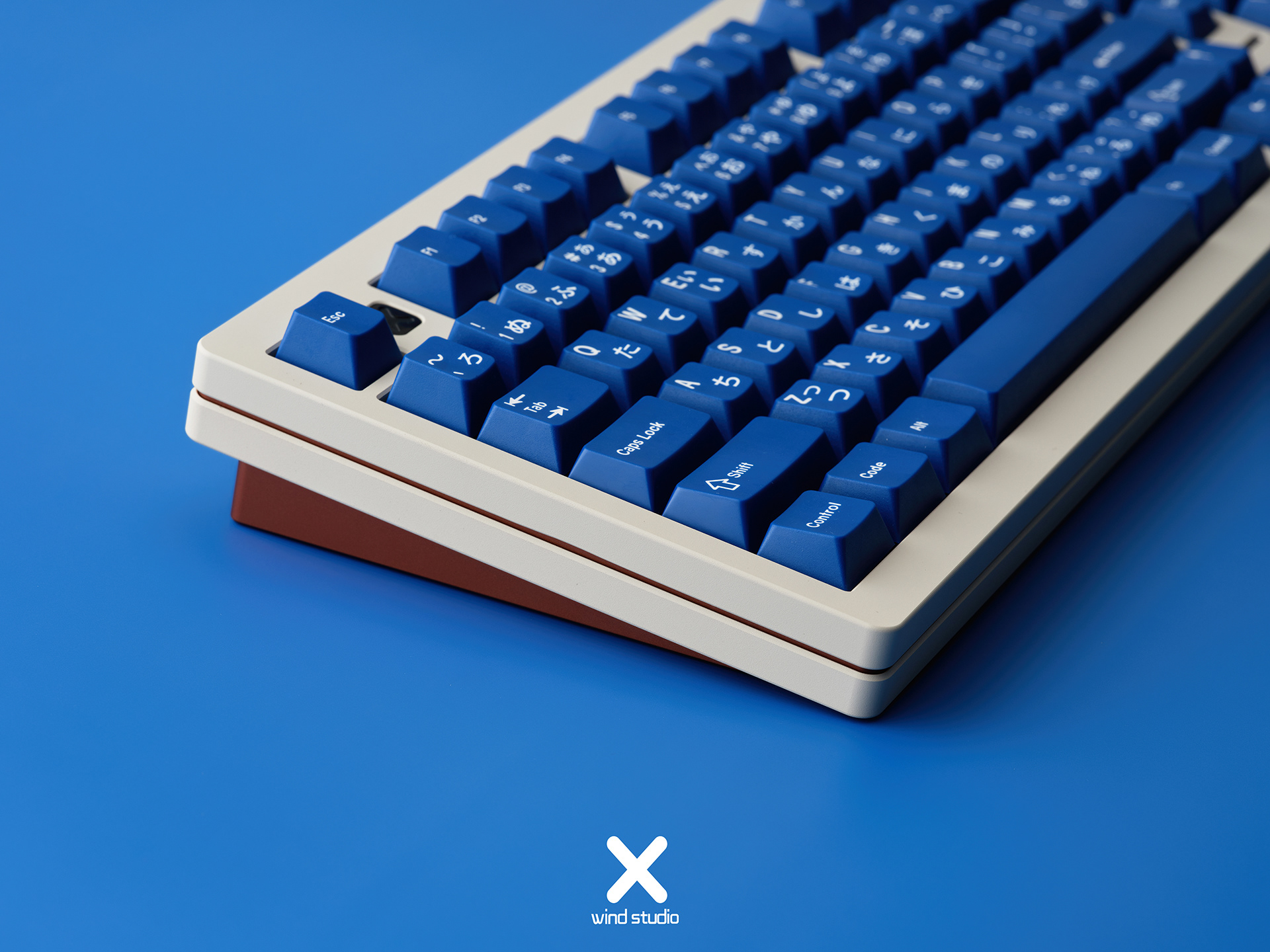

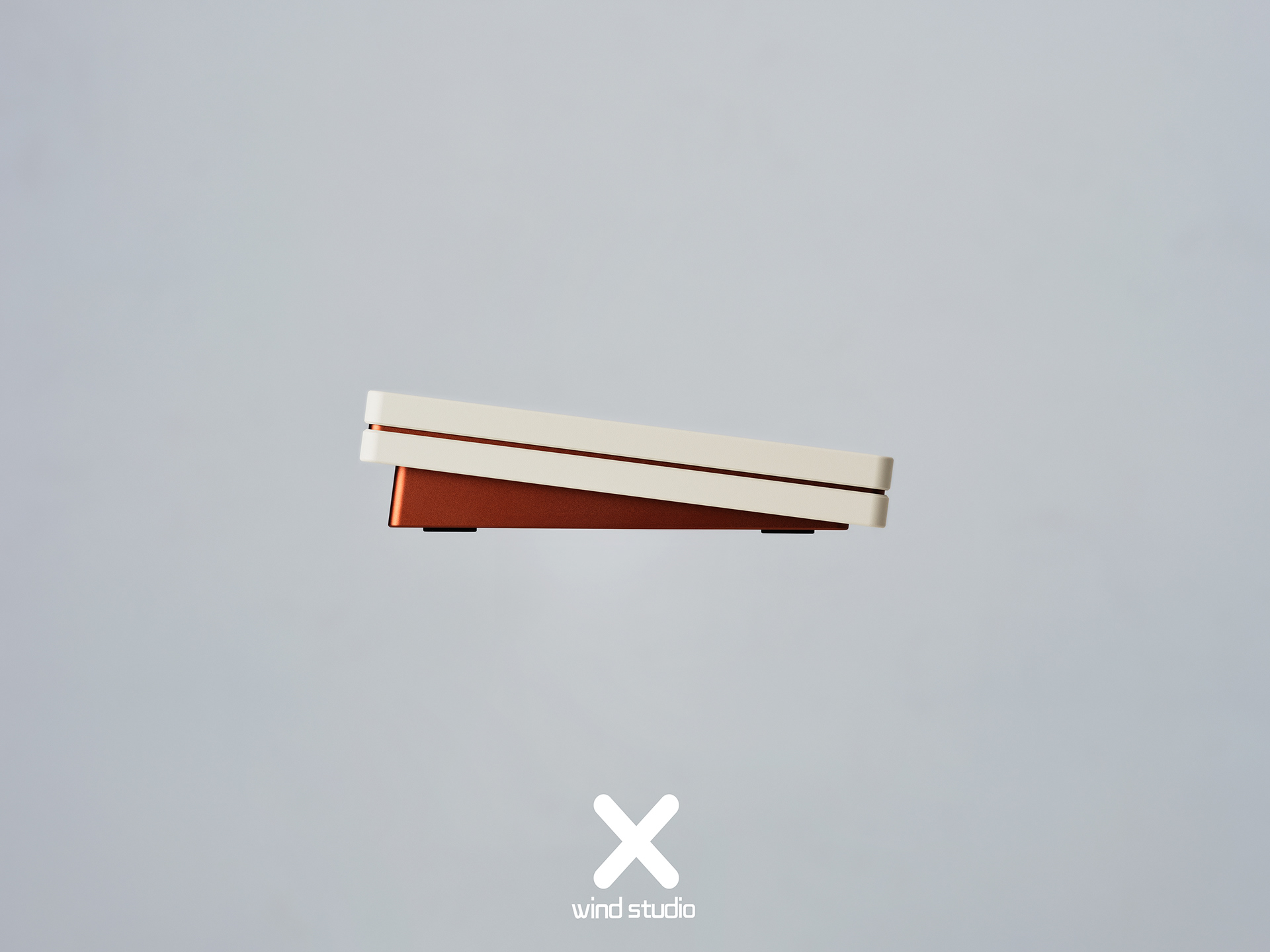

7° Typing angle
65% + Numpad + F Row
TOP mount and PCB gasket mount design
Price：Wired $320,Bluetooth $335
PCB:1.6mm no flex cut black core board fr4.

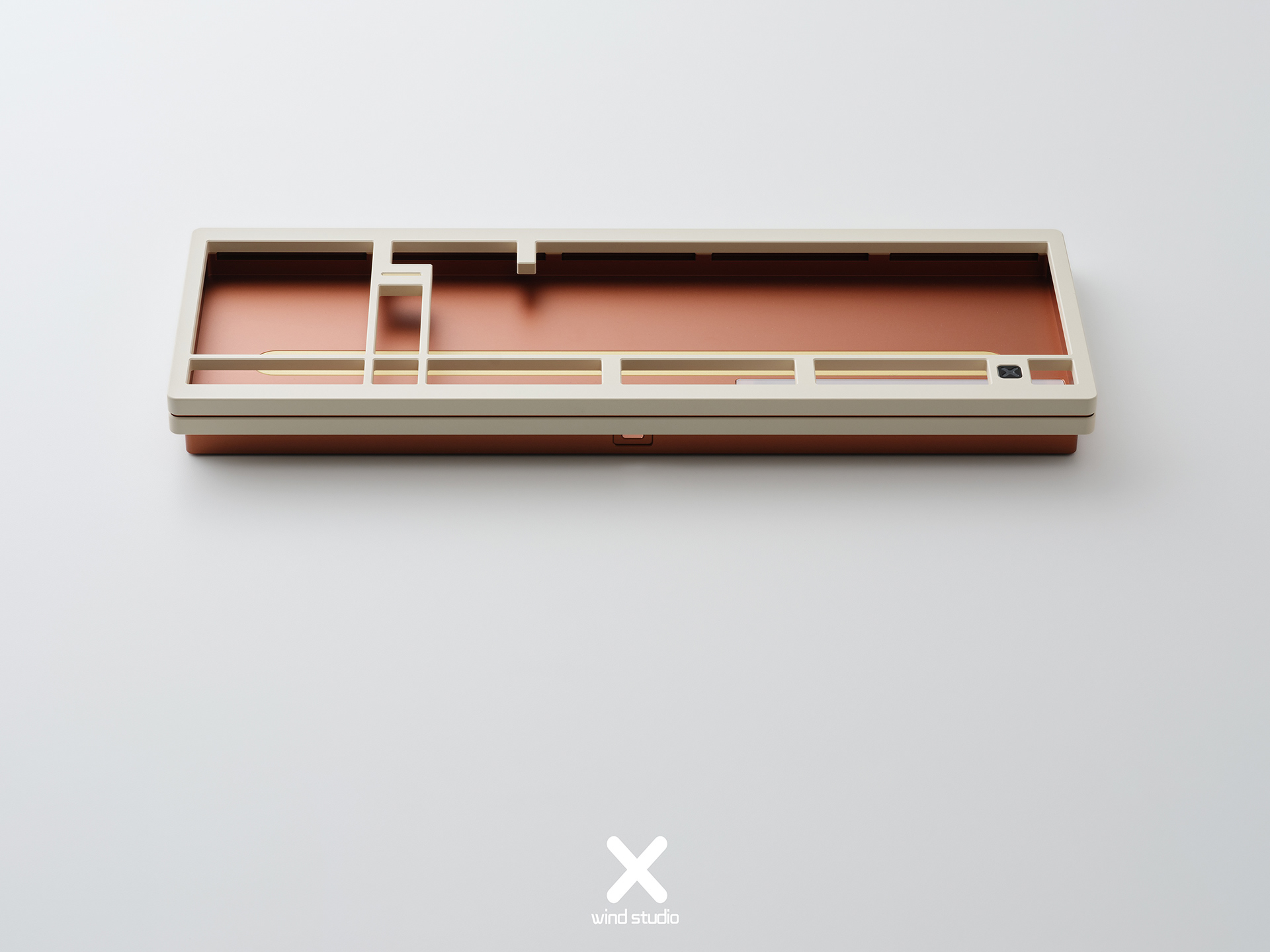

Case material:
E-White+E-Pink(6063Alu, cataphoresis)
E-White+E-White(6063Alu, cataphoresis)

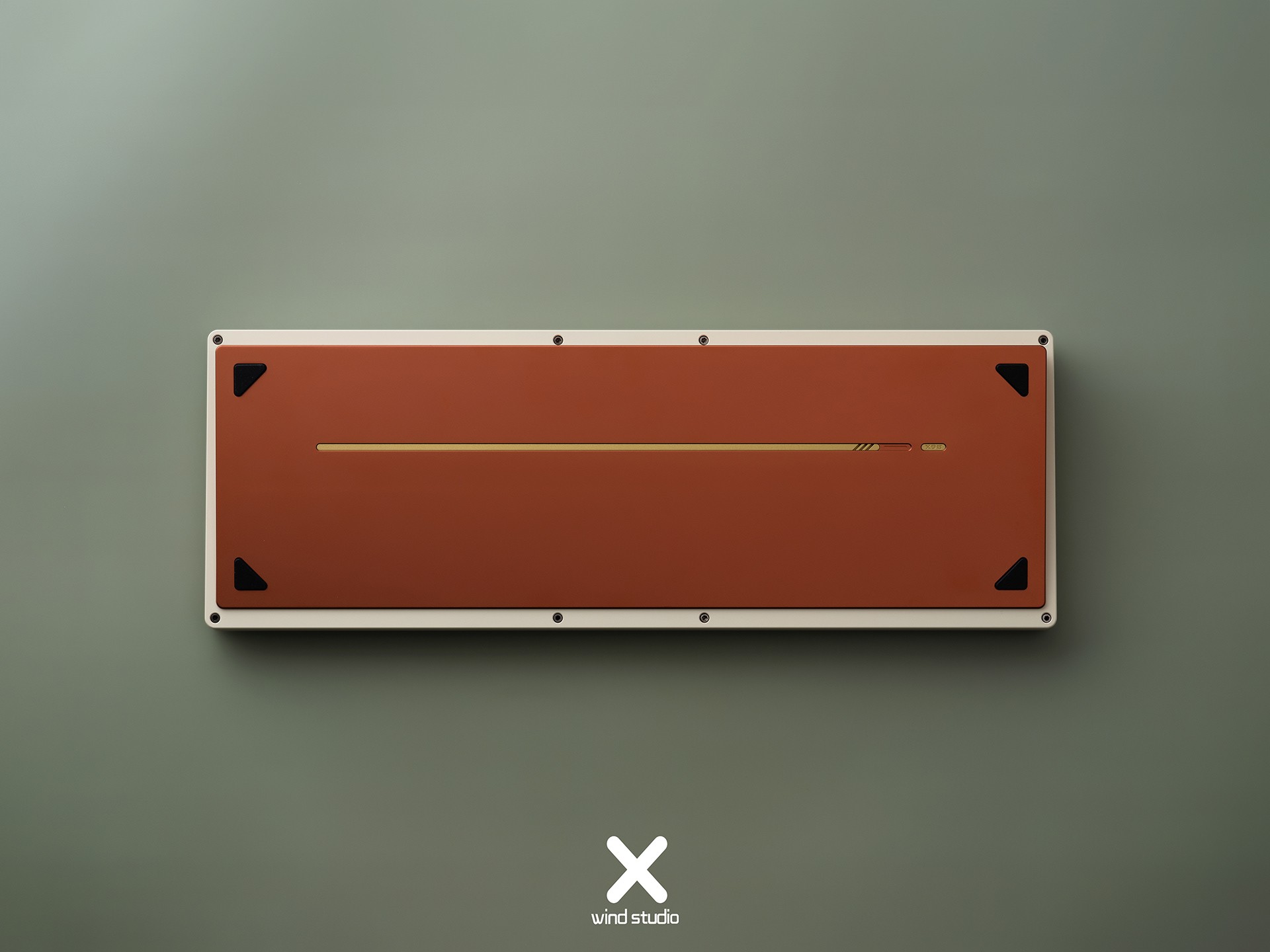

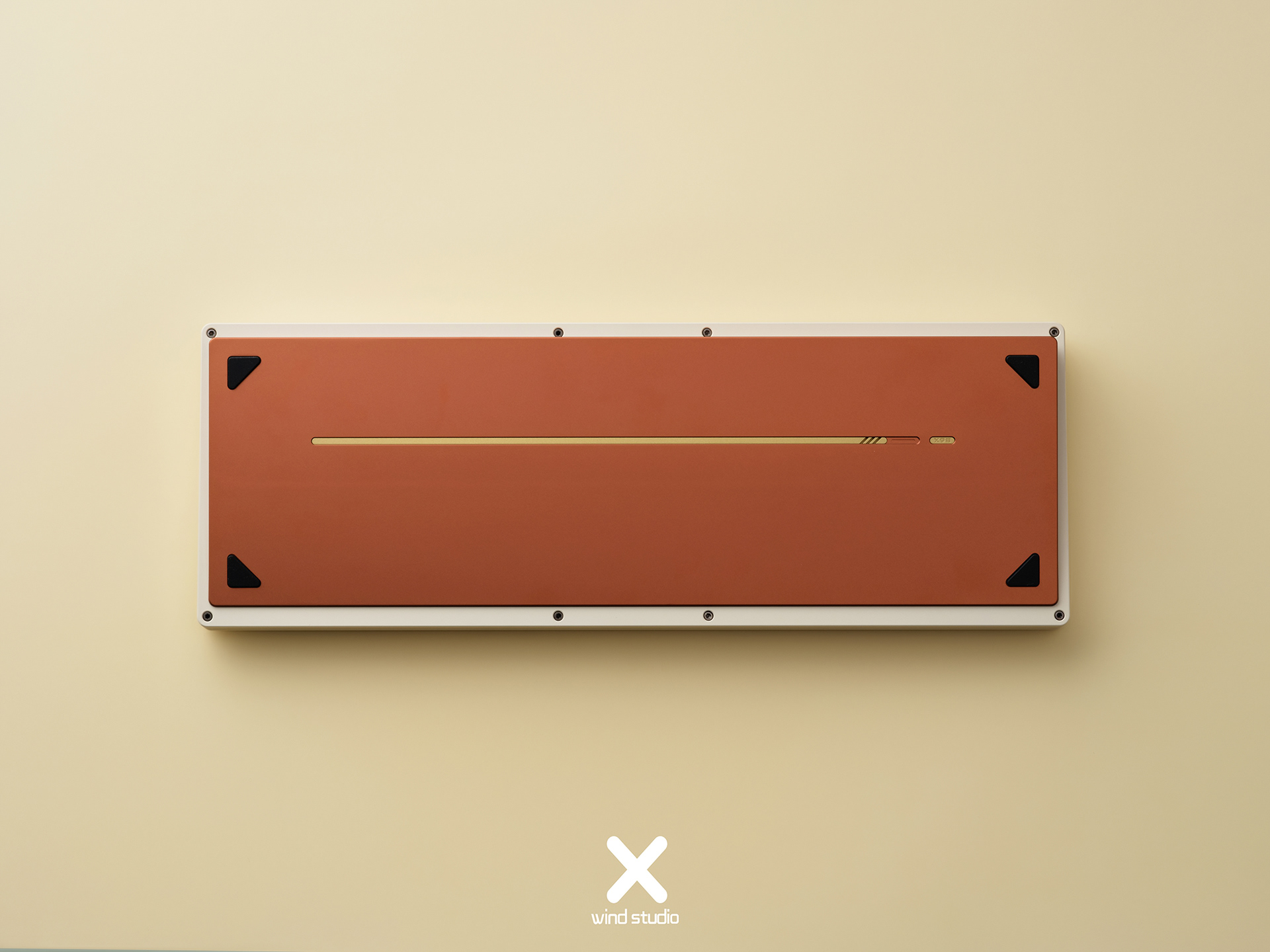

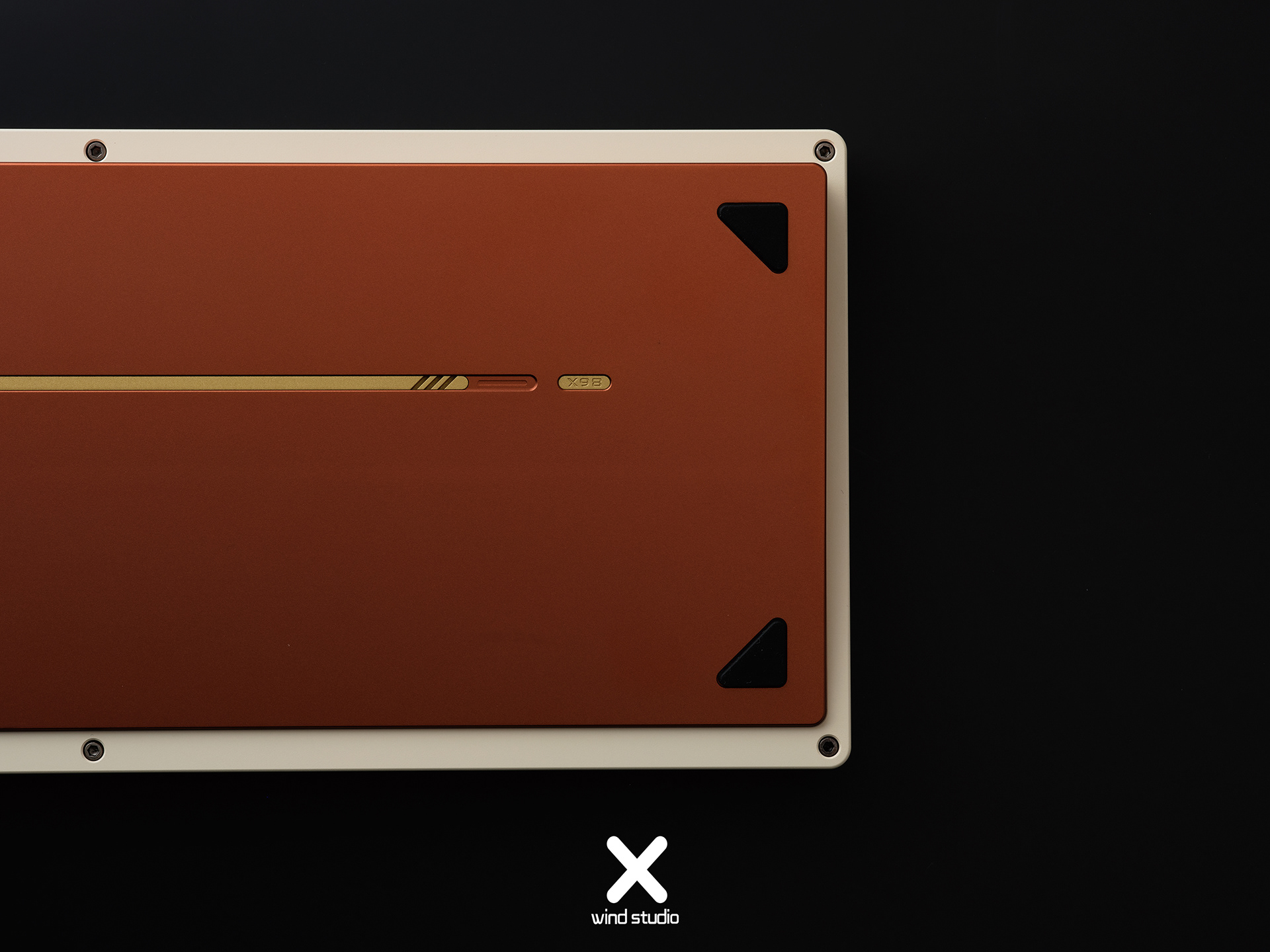

Creamy white(6063Alu, cataphoresis)+Brown 7584u(6063Alu, anodized)
Black+Black(6063Alu, anodized)
Grey 416U+Blue 288U (6063Alu, anodized)
Semitransparent(PC)
Plate: 1.5mm
WIND X98 R2 Bluetooth PCB polling rate: 1000hz in wired mode，800hz in bluetooth mode.
WIND X98 R2 Bluetooth PCB Latency Rate：1.25ms
WIND X98 R2 Wired Polling Rate: 1000hz
Wired pcb support VIAL, bluetooth pcb support LDN(with 3000mah battery)

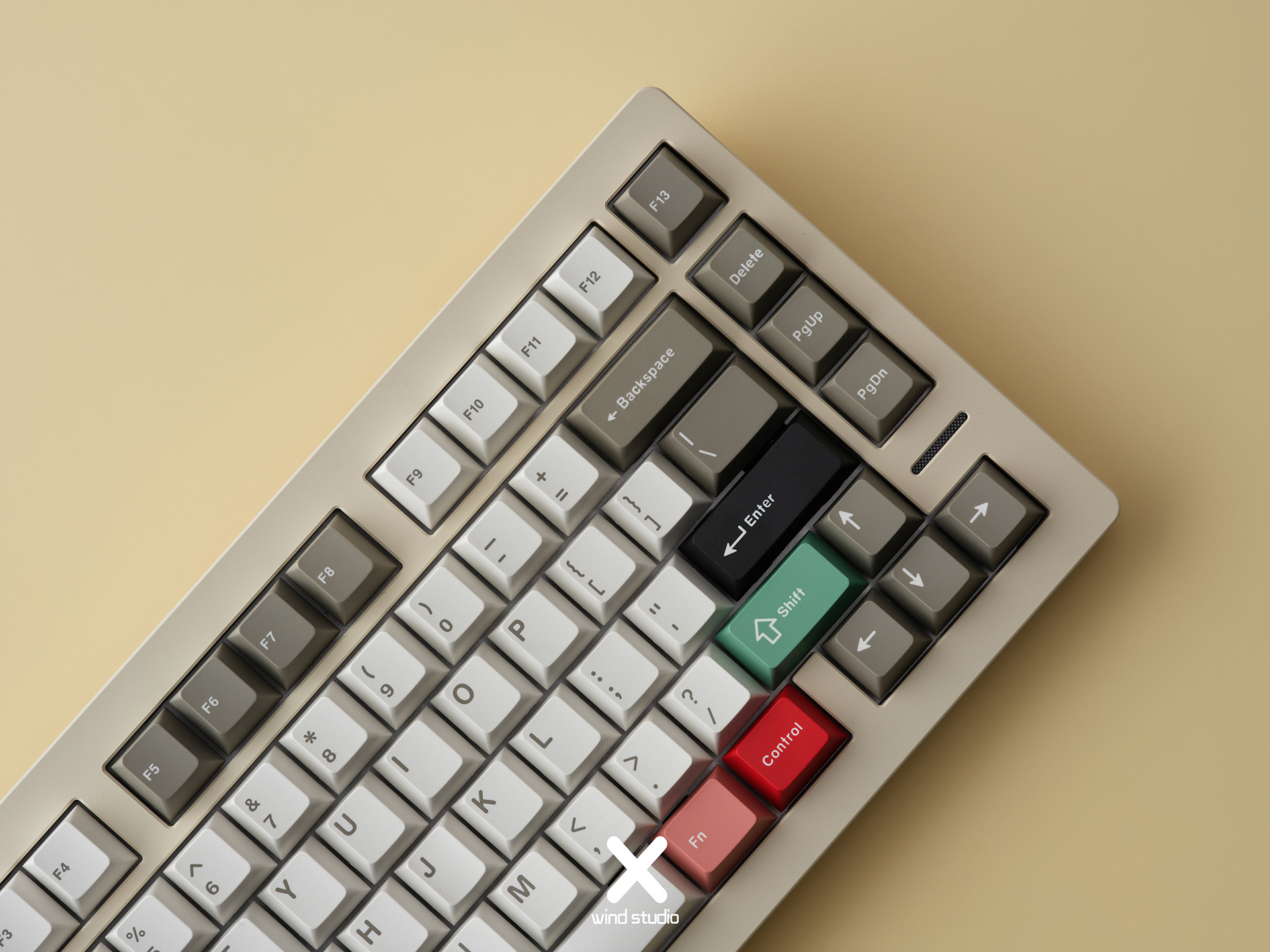

Creamy white + SW FOUNDATION
Creamy white + SW FOUNDATION

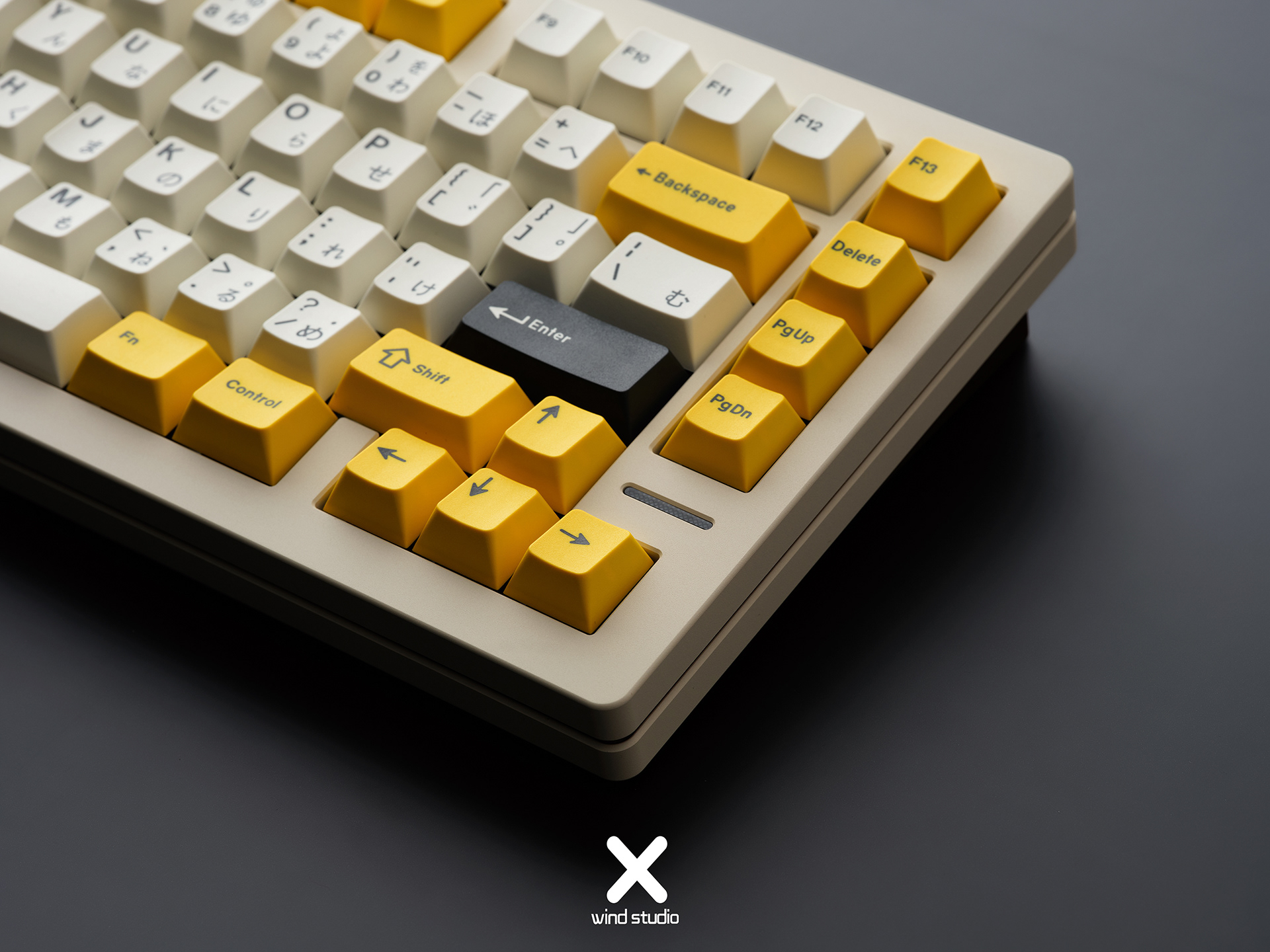

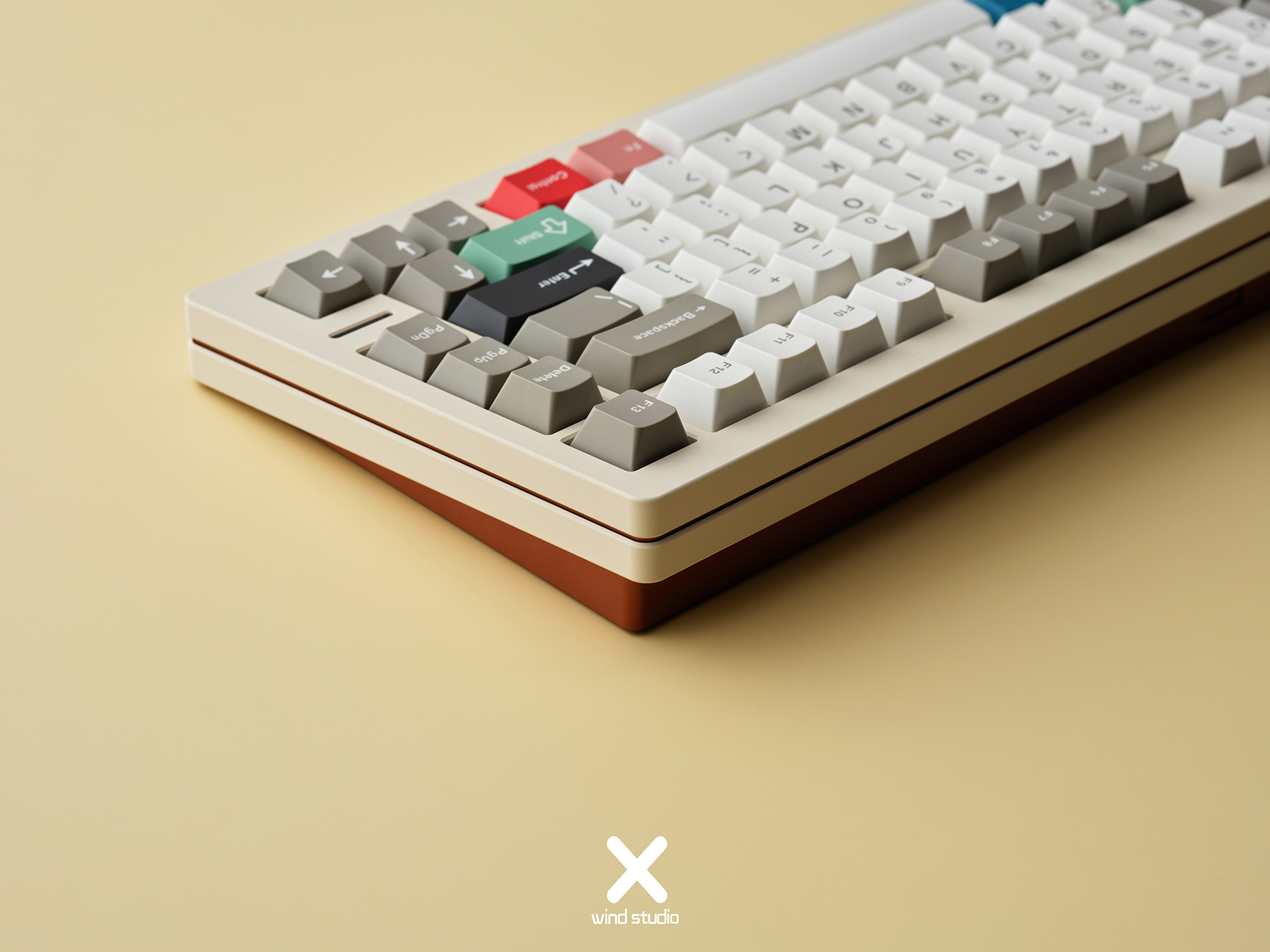

Creamy white + GMK STRIKER R2
Creamy white + GMK STRIKER R2

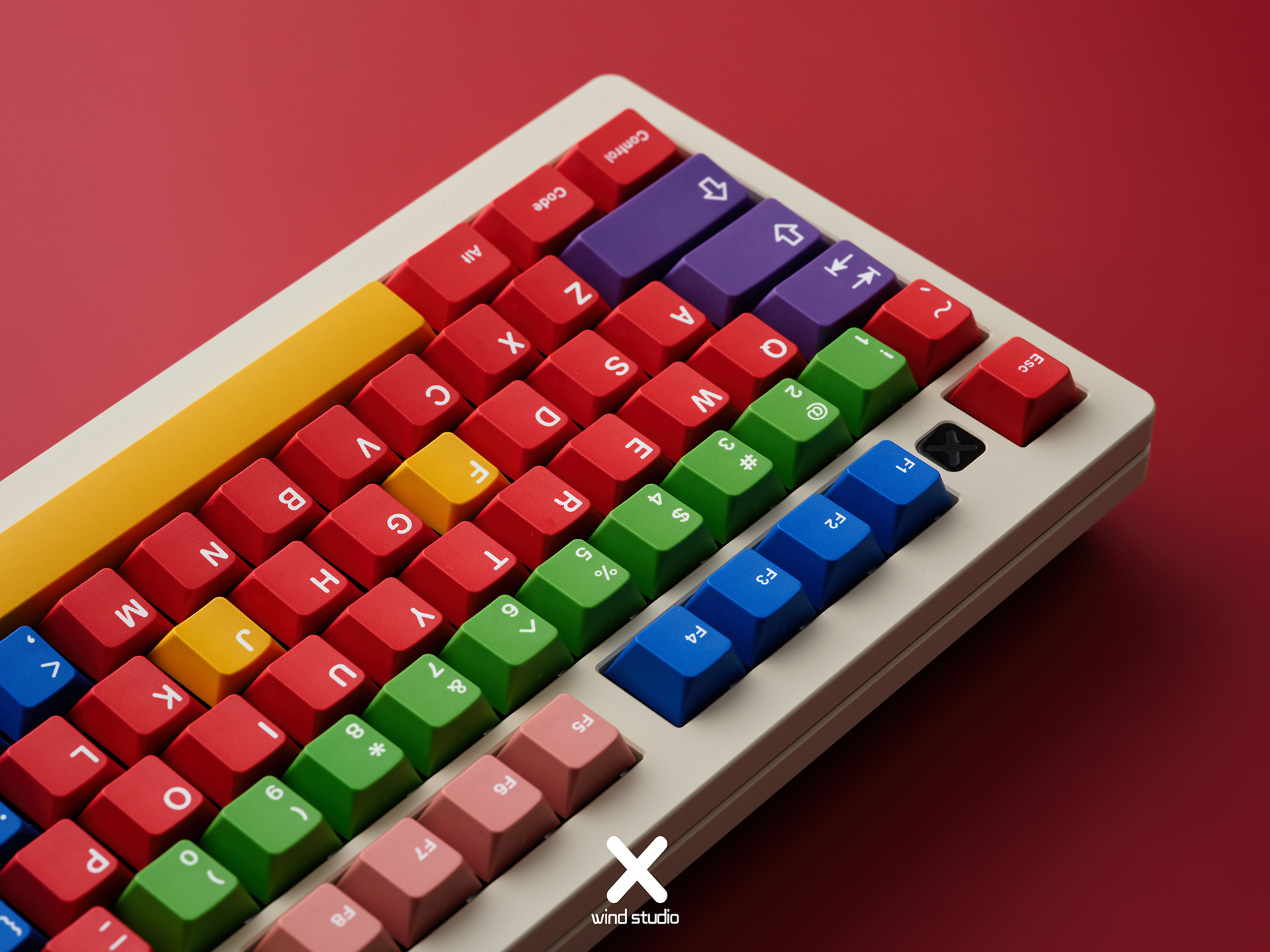

Creamy white + GMK SERIKA R2
Creamy white + GMK SERIKA R2

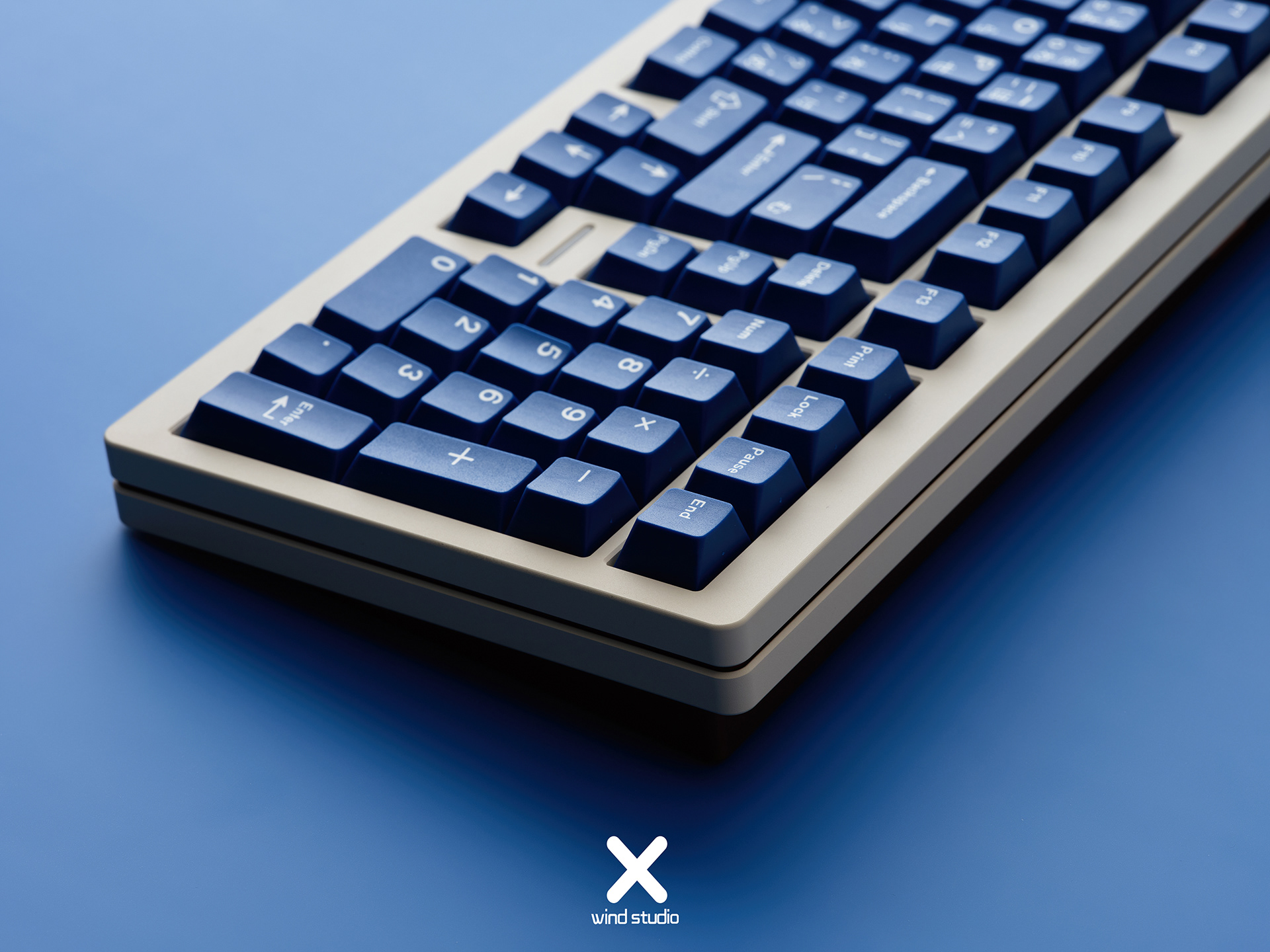

Creamy white + GMK HANDARBEIT
Creamy white + GMK HANDARBEIT

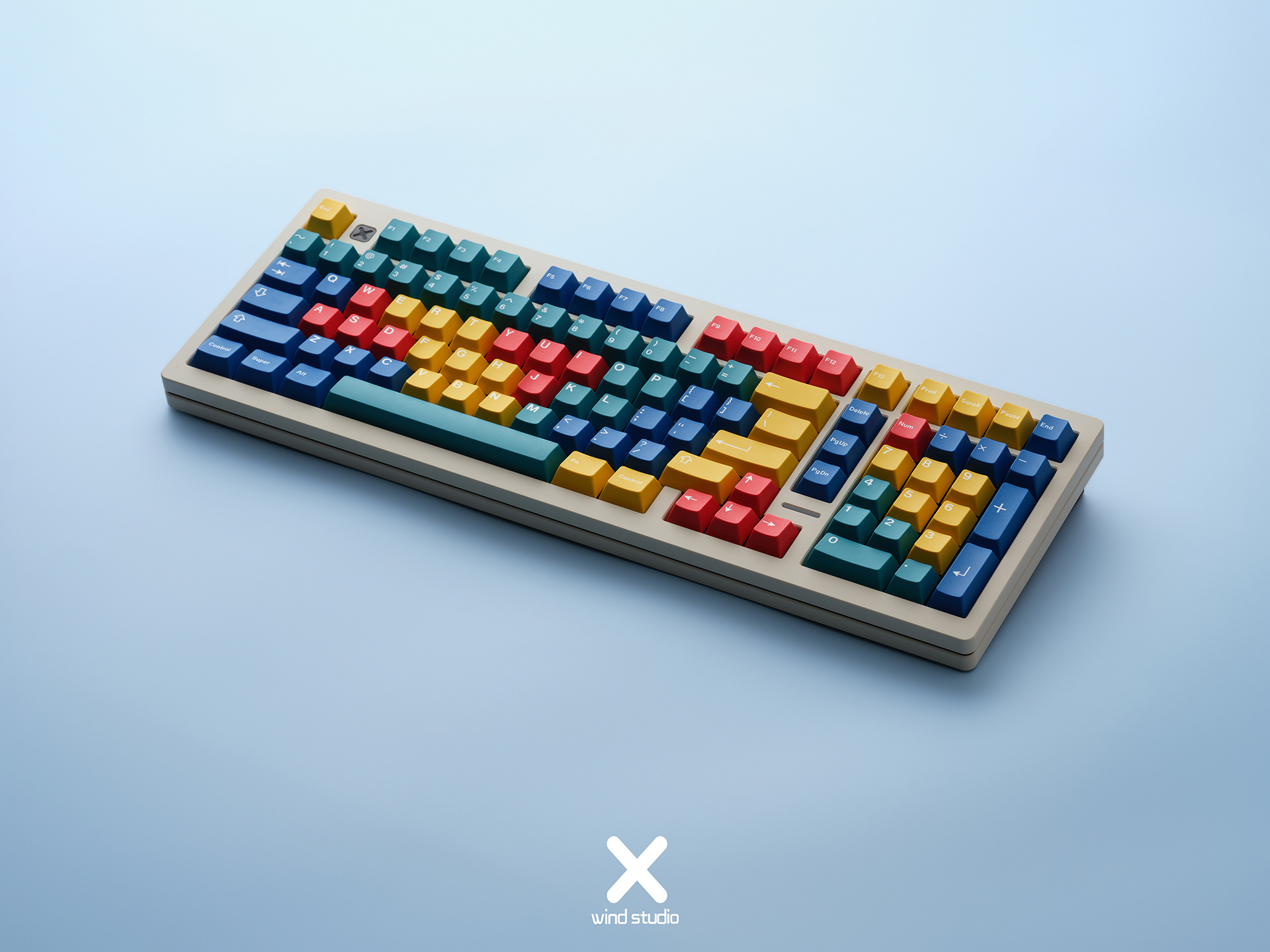

Creamy white + GMK REGAL
Creamy white + GMK REGAL

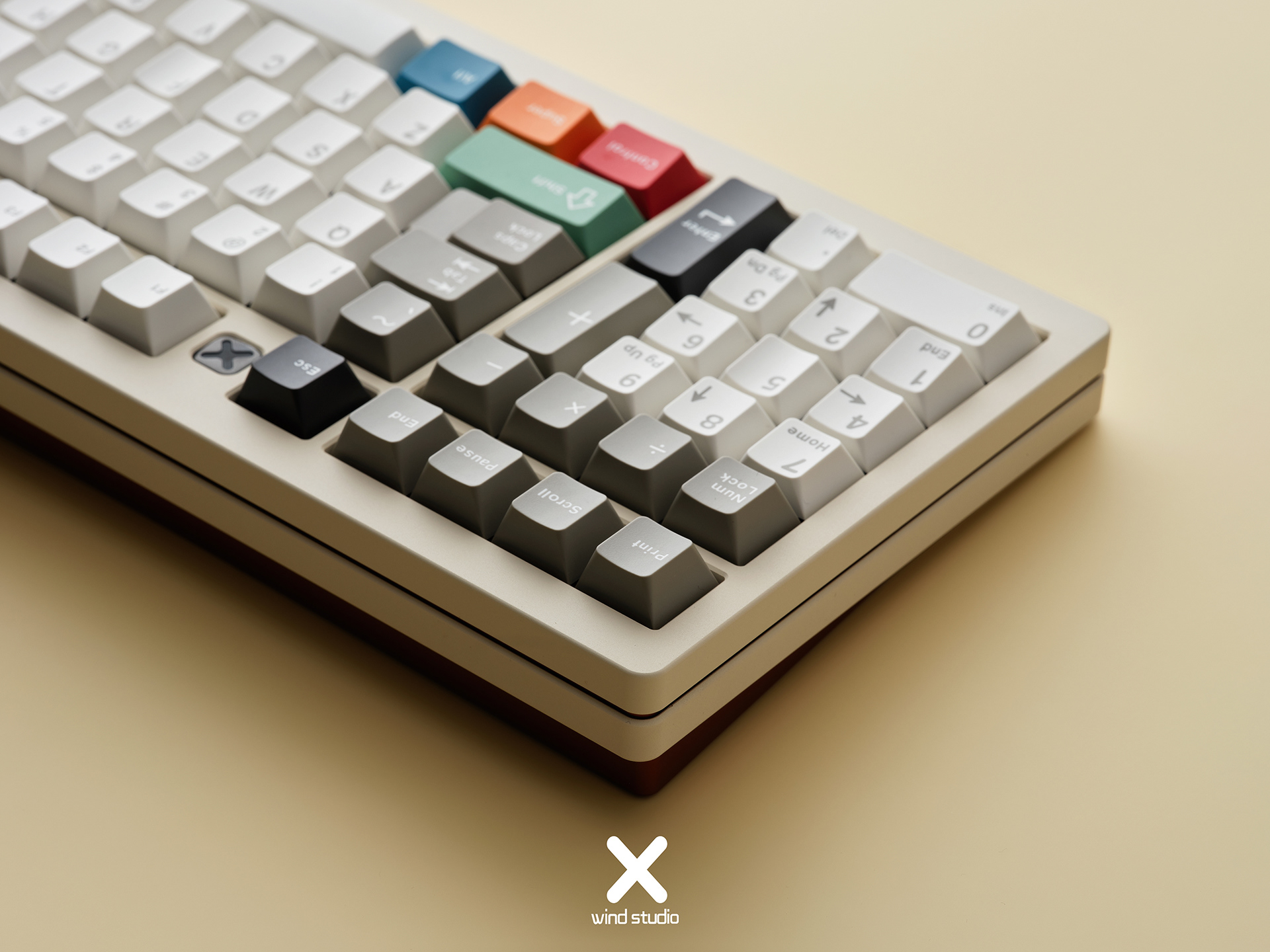

Creamy white + GMK PANELS
Creamy white + GMK PANELS
