SIN 65

wind studio

Expected to be available from 19th Sep to 19th Oct 2023（GB）

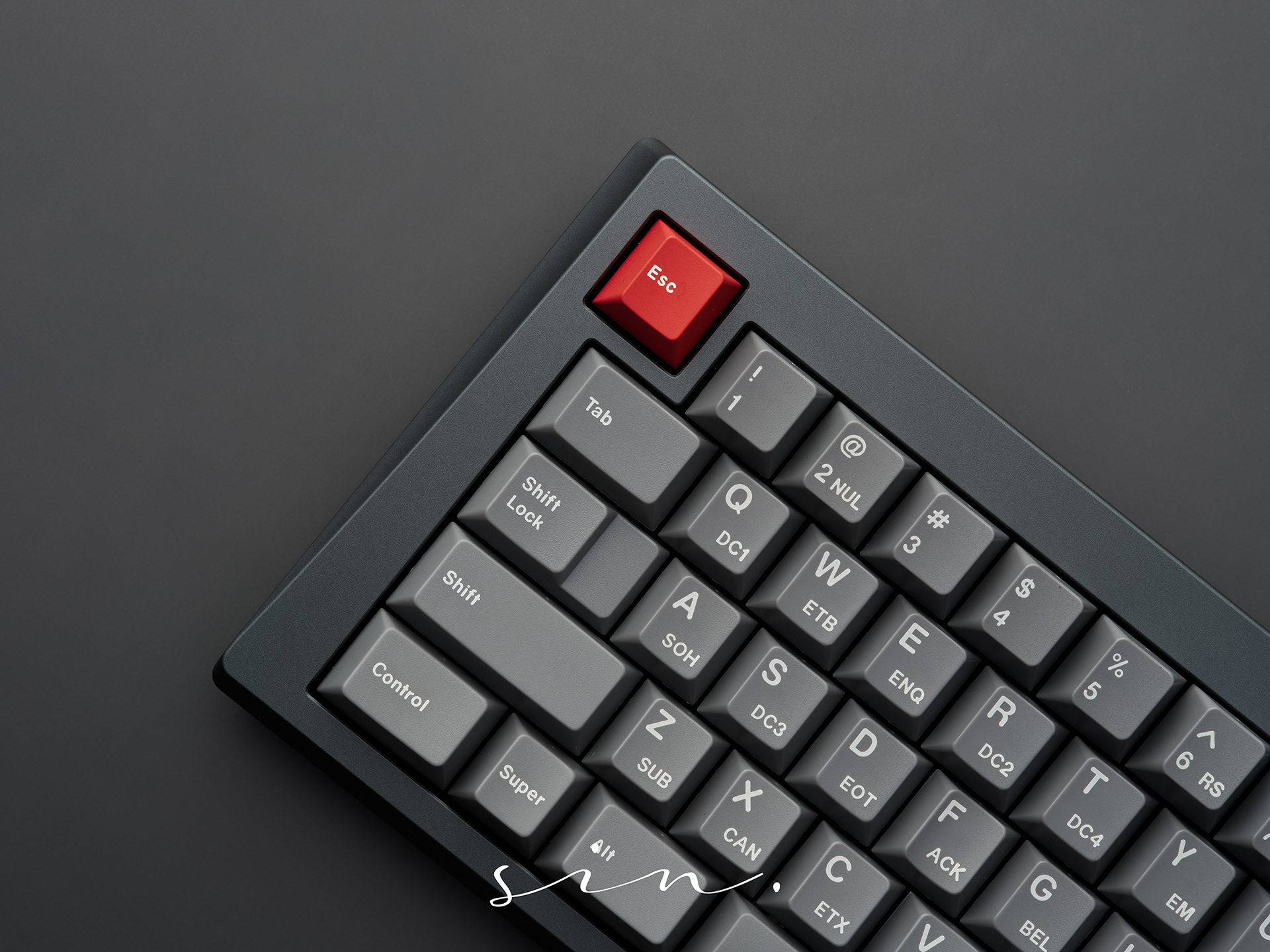

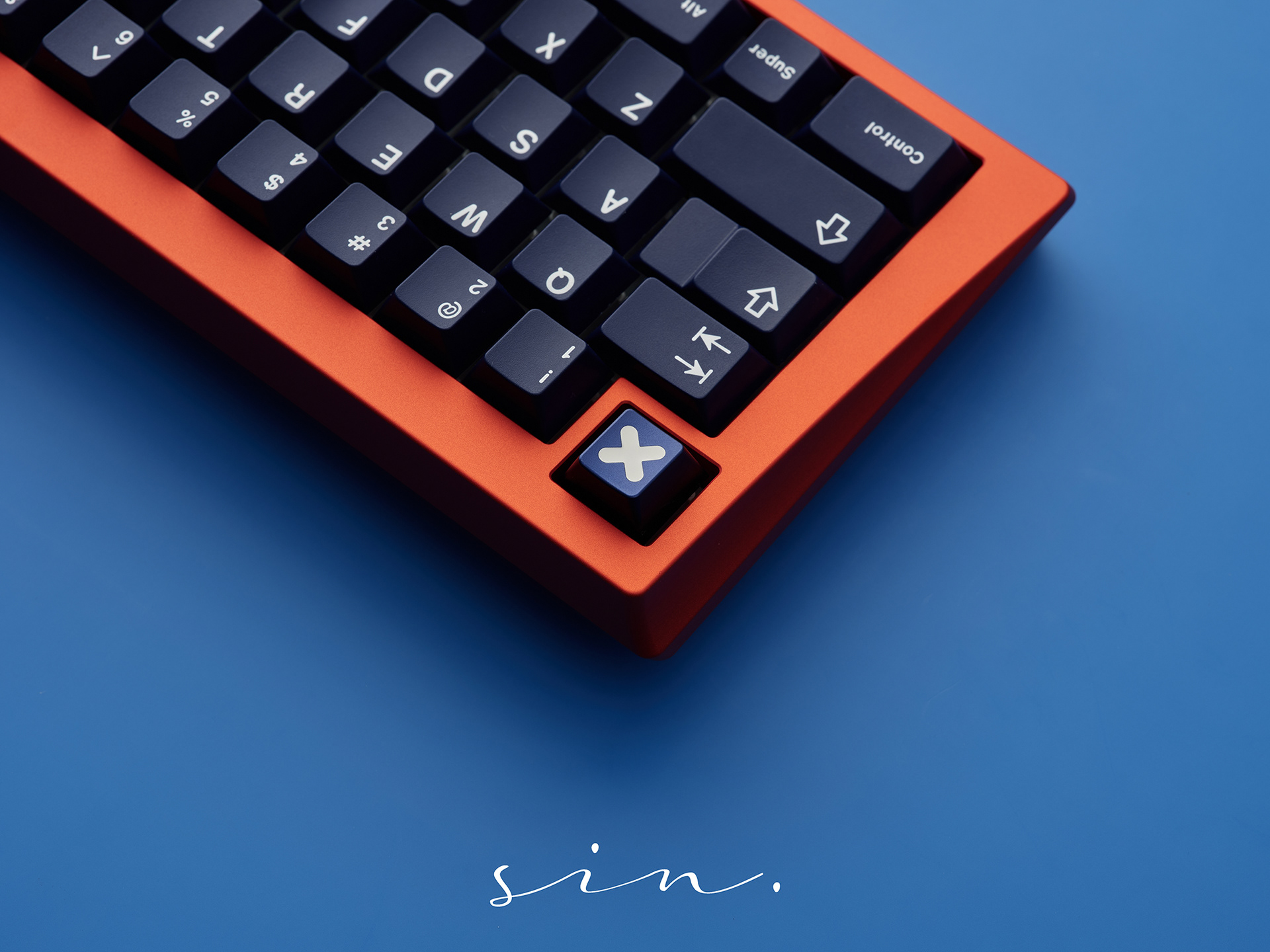

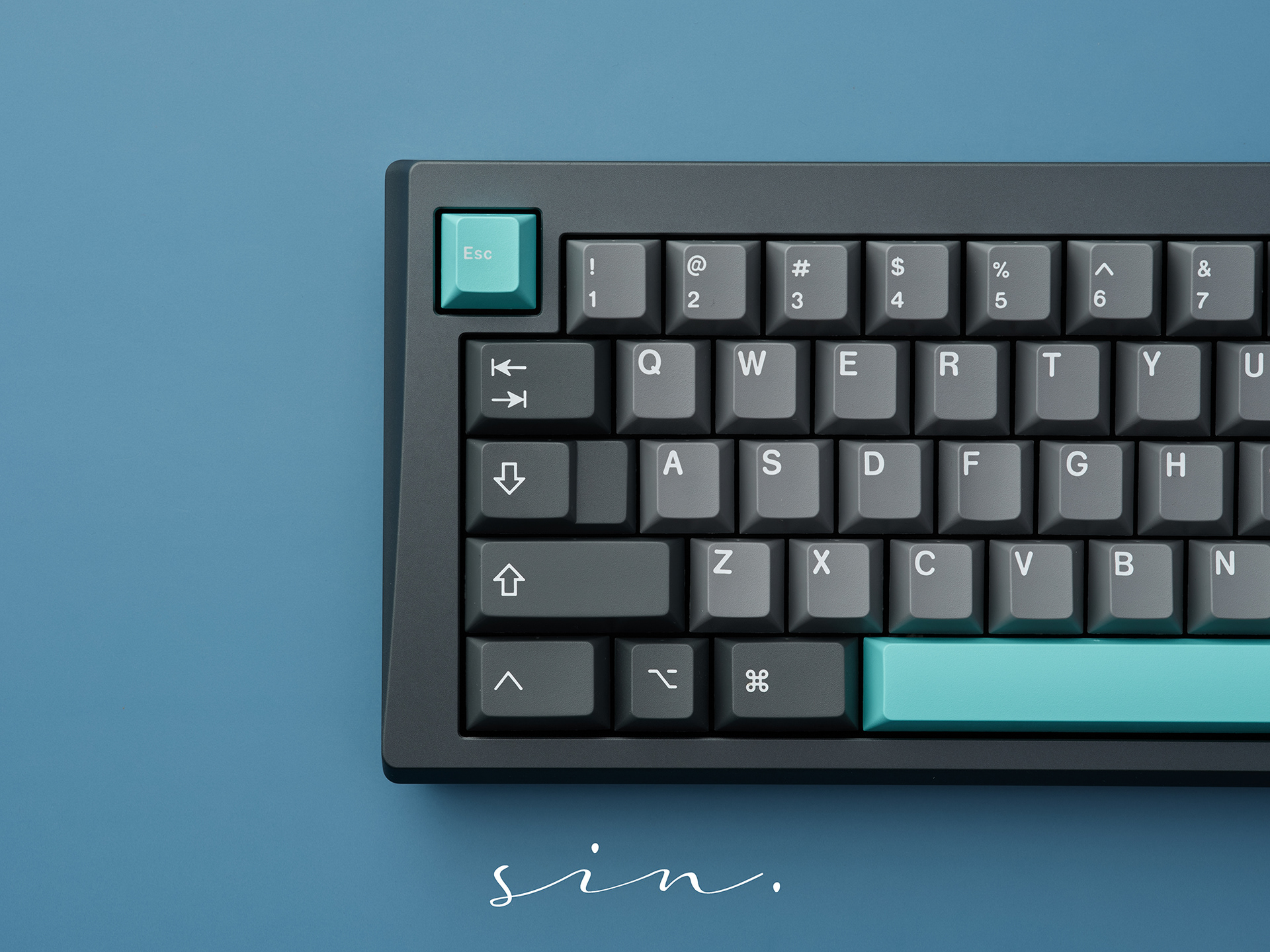

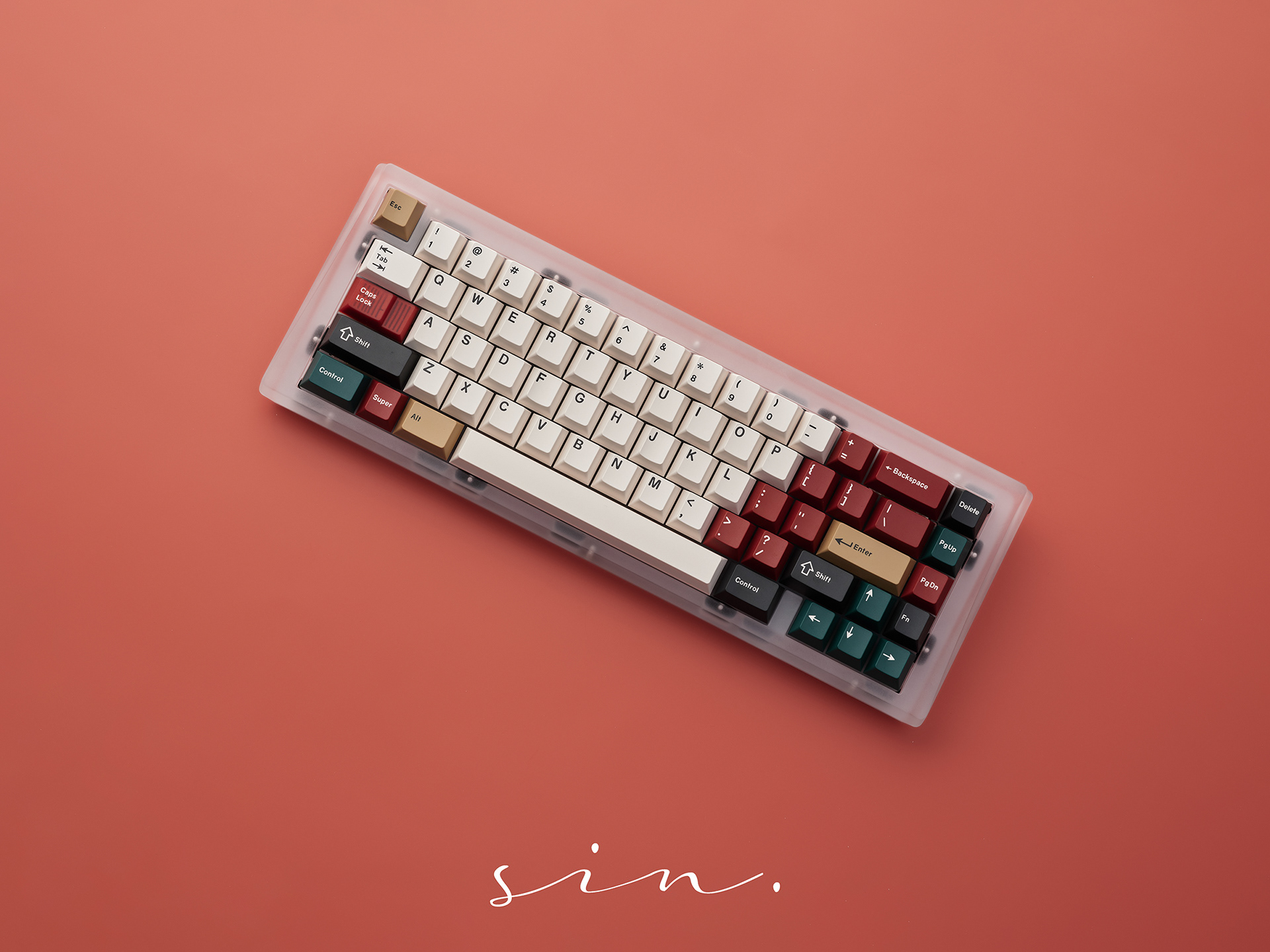

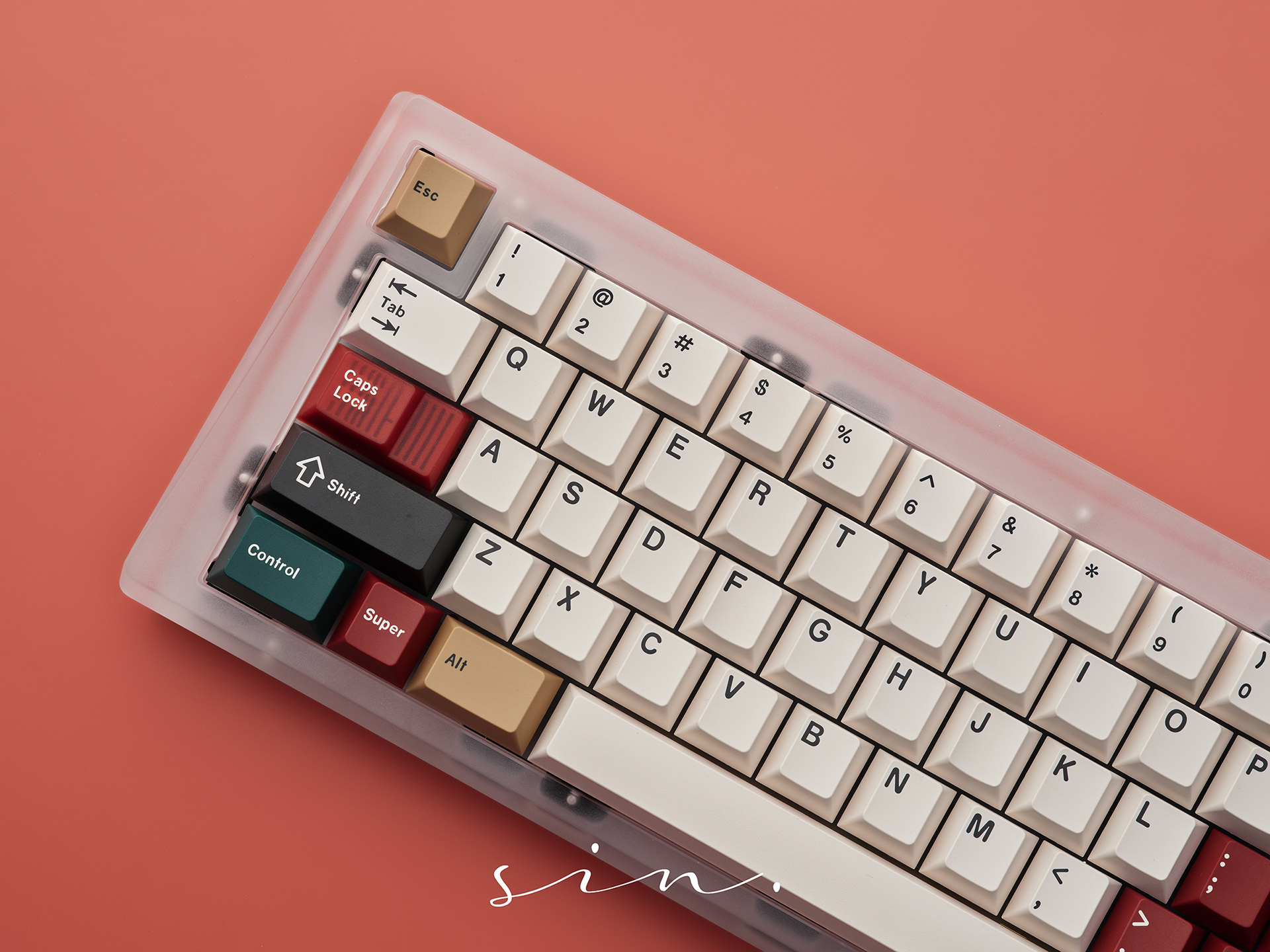

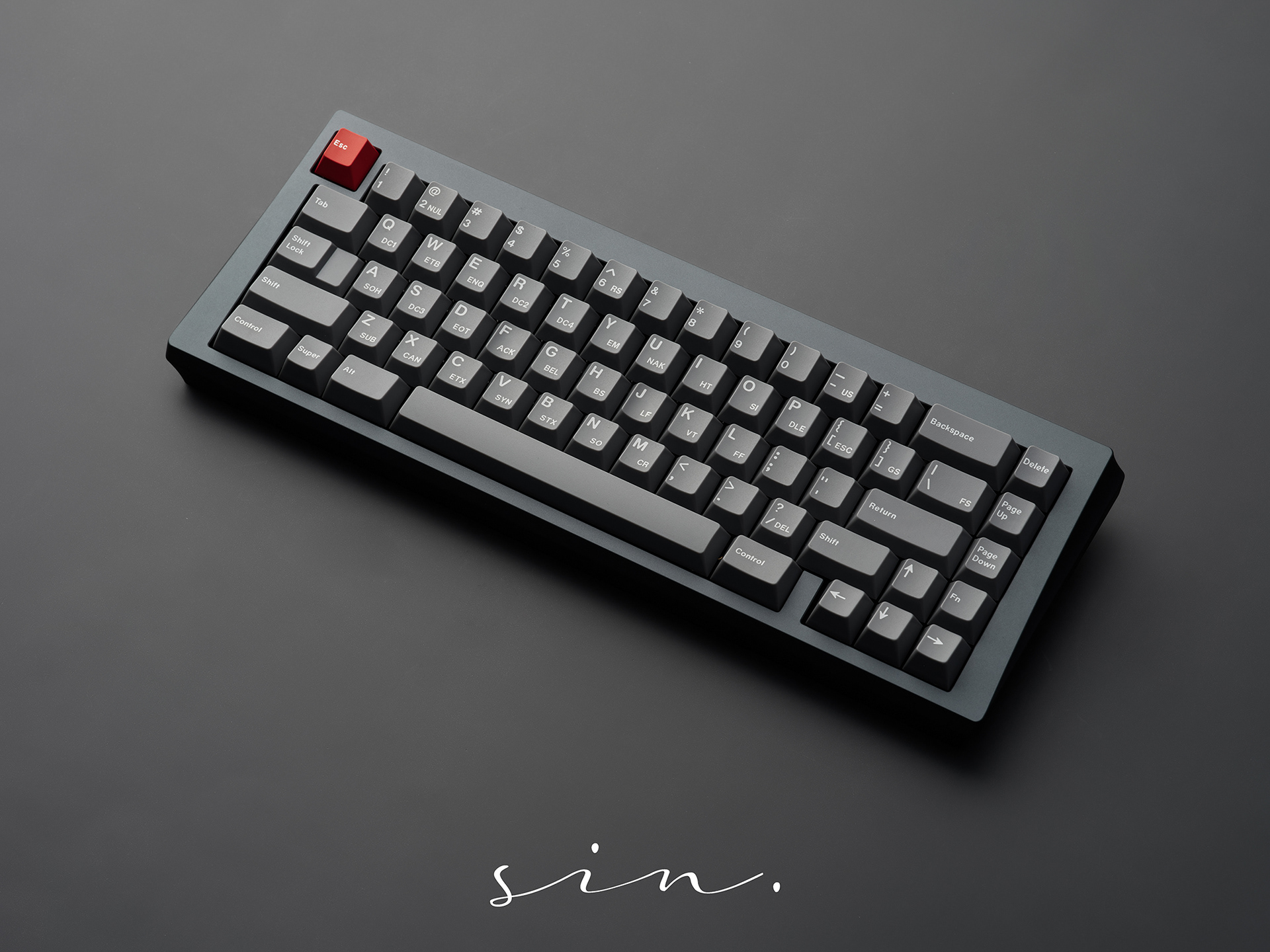

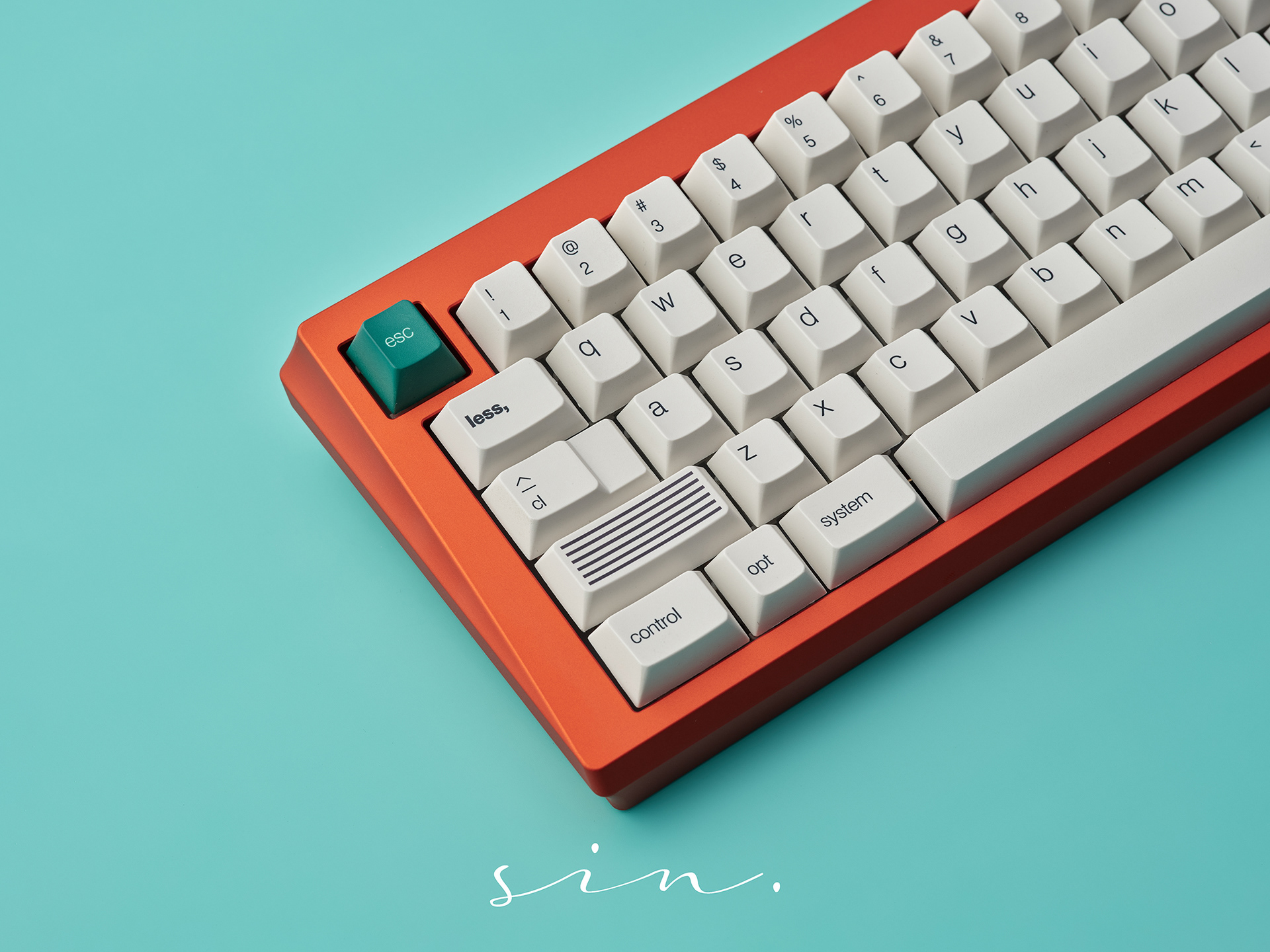

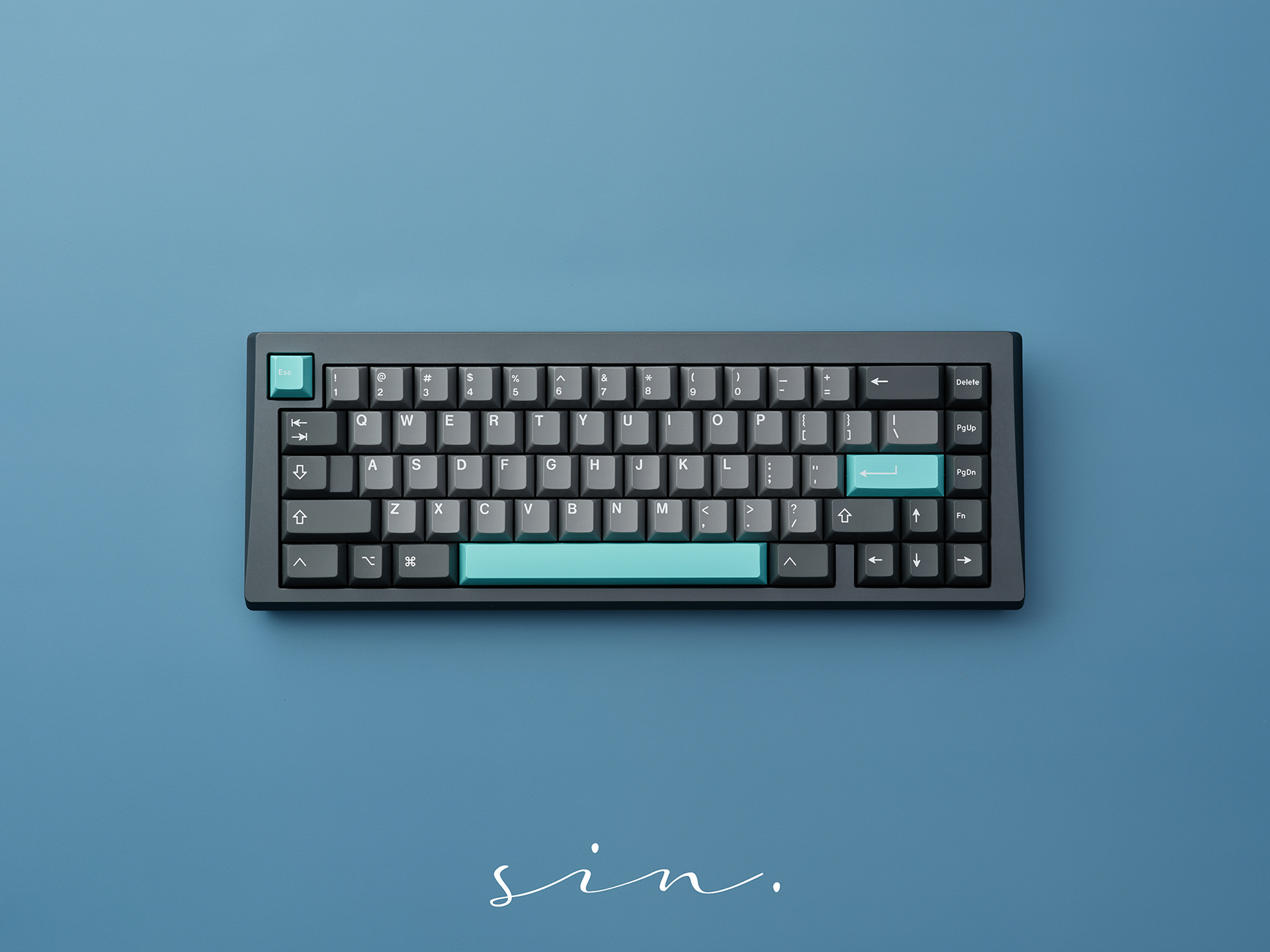

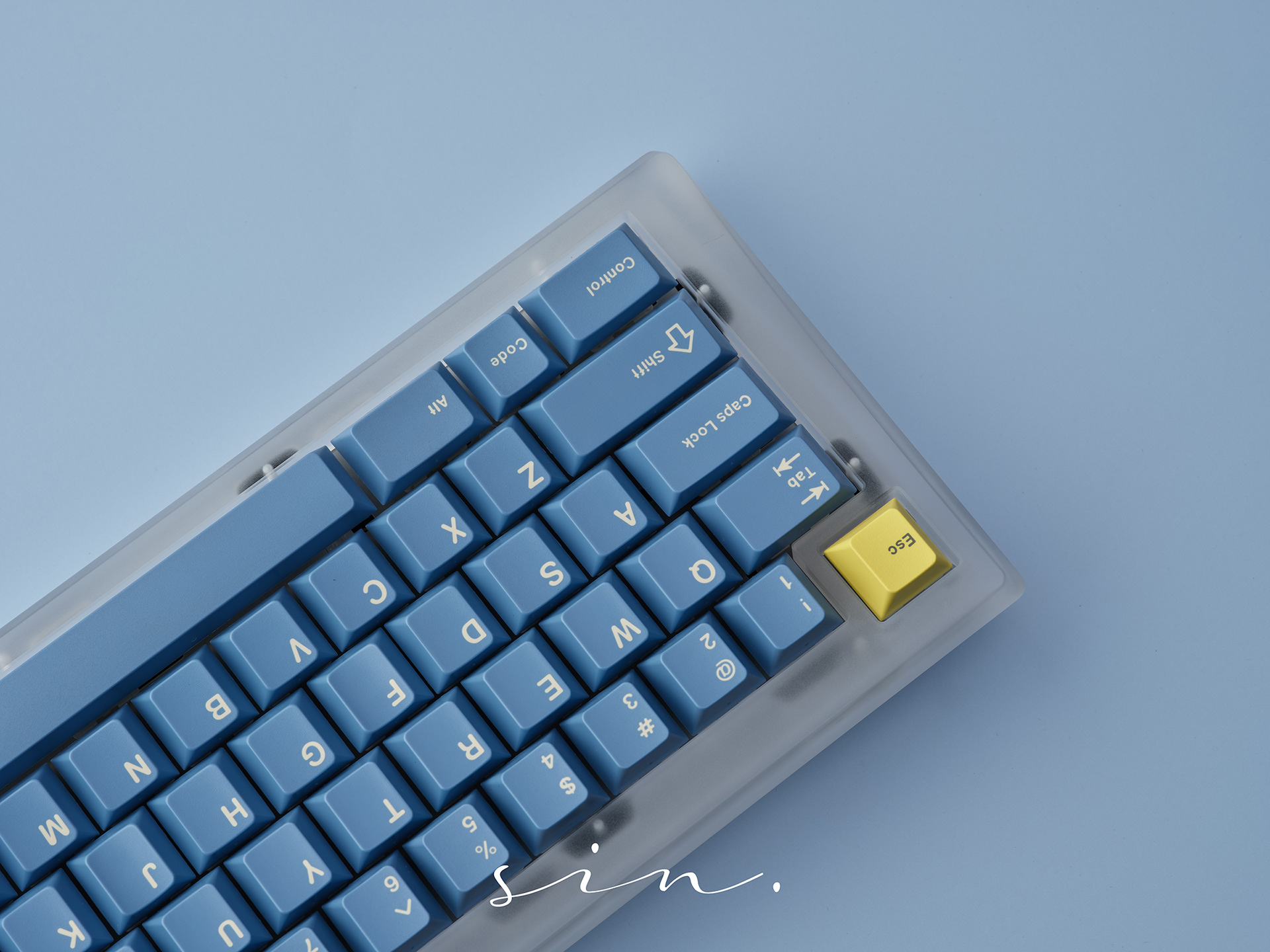

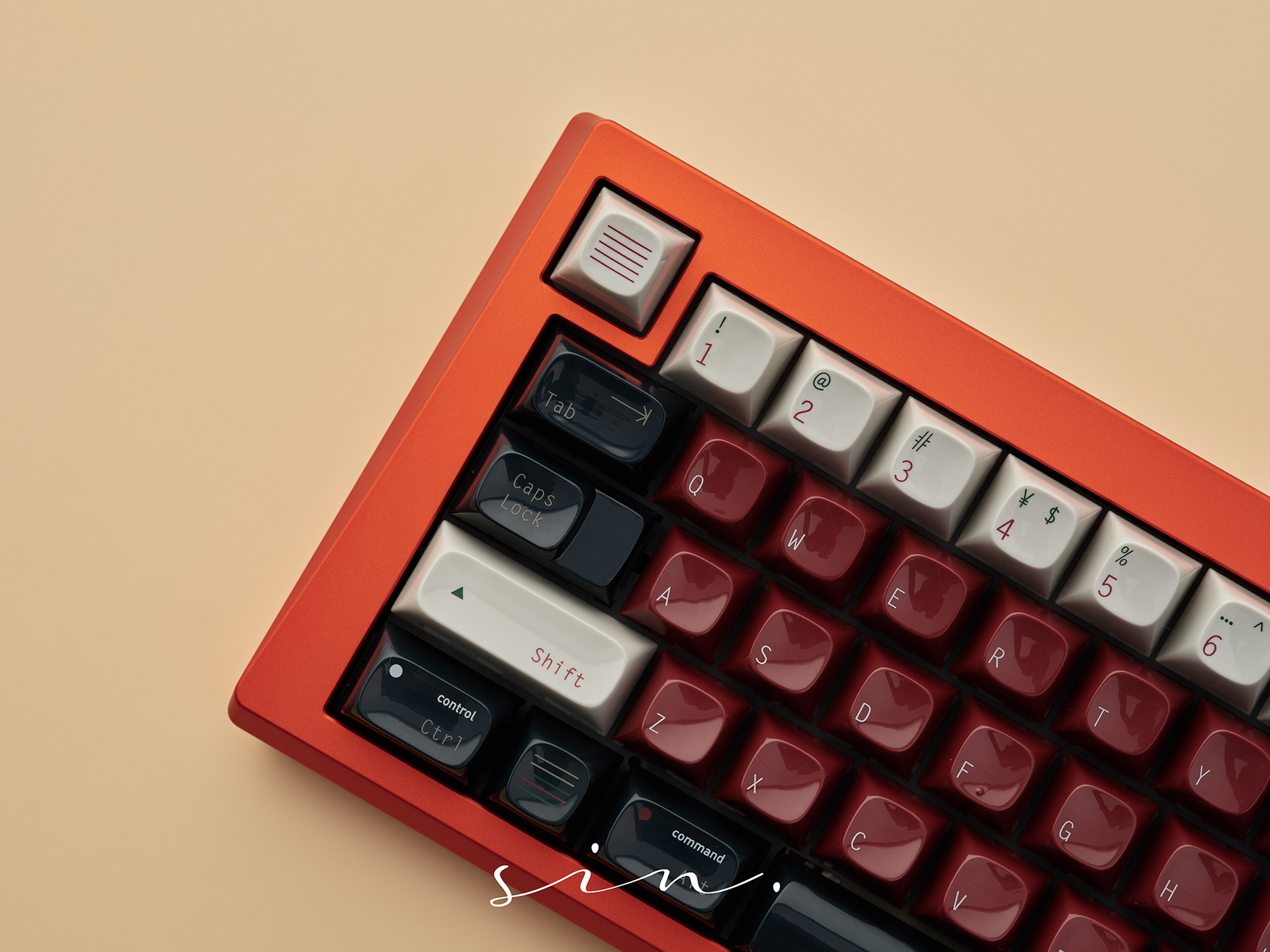

Separates the ESC key from the main key area, effectively reducing the risk of accidental touch.

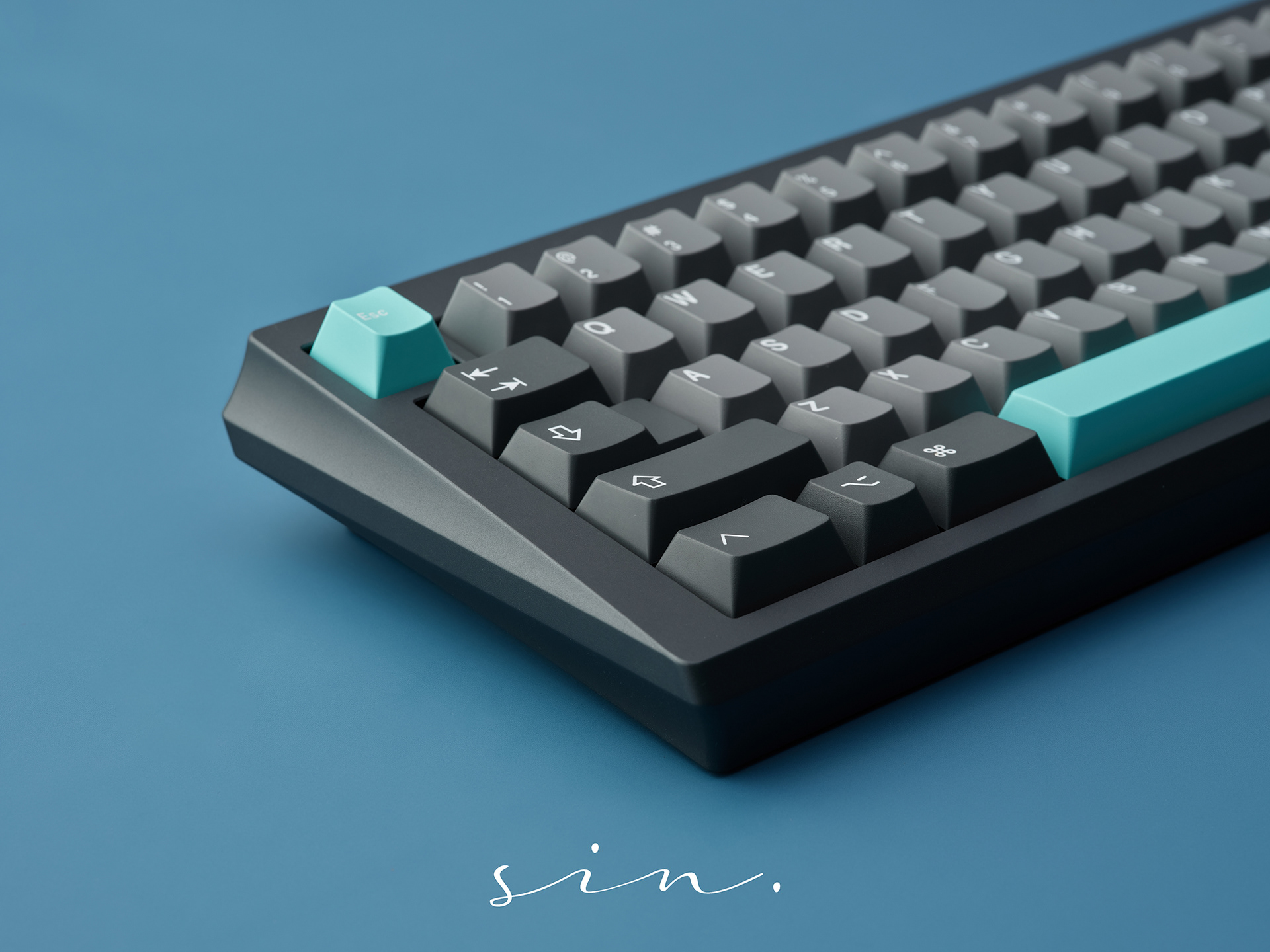

The curved surface CNC of side case is convenient to move and give finger warm place.

Cornered edges on the black pvd weight,make color more vision.

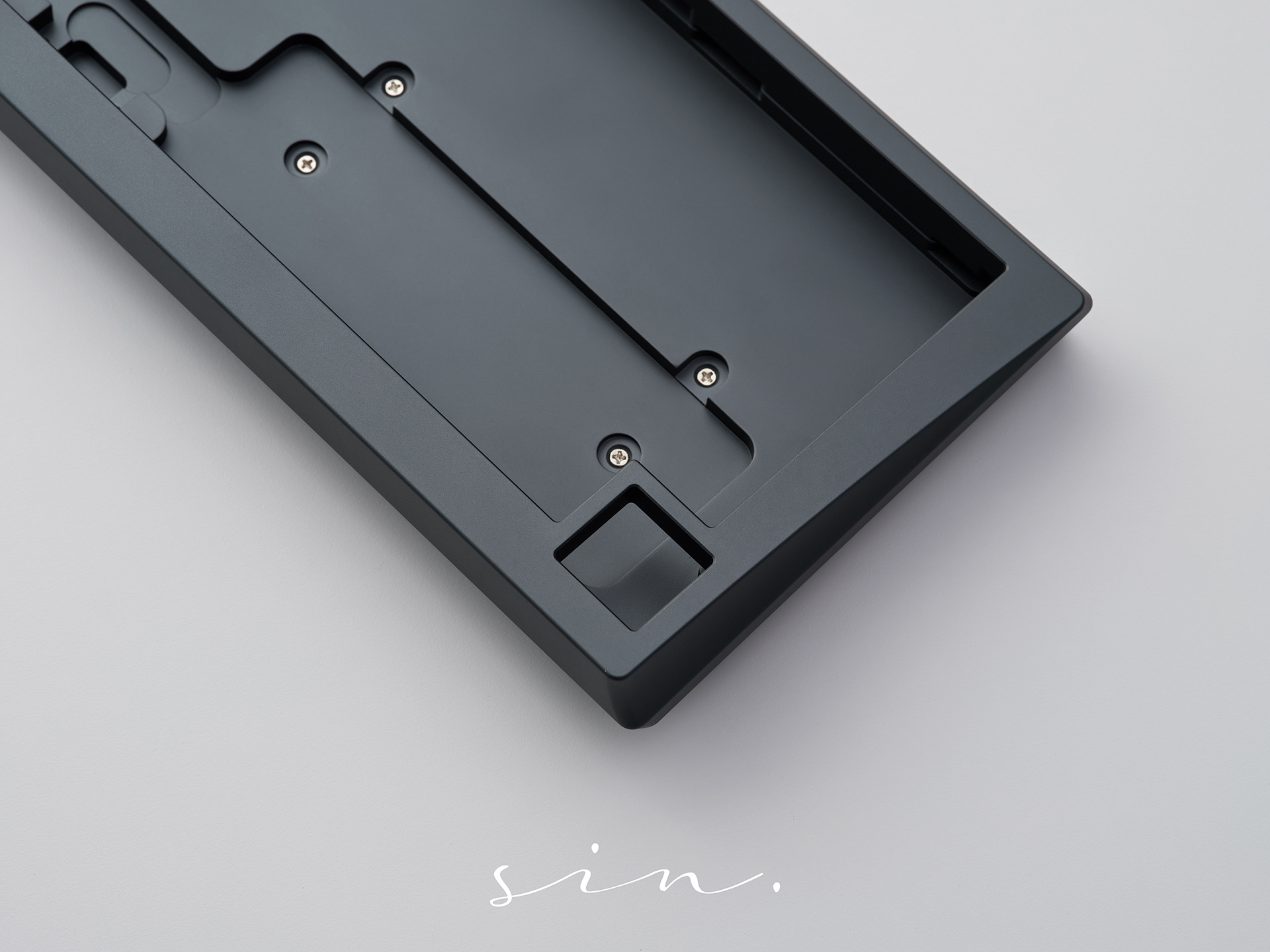

Top mount ，PCB gasket mont（soldered pcb support plateless ）

Size: 33.6*12*3.35cm

7° Typing angle

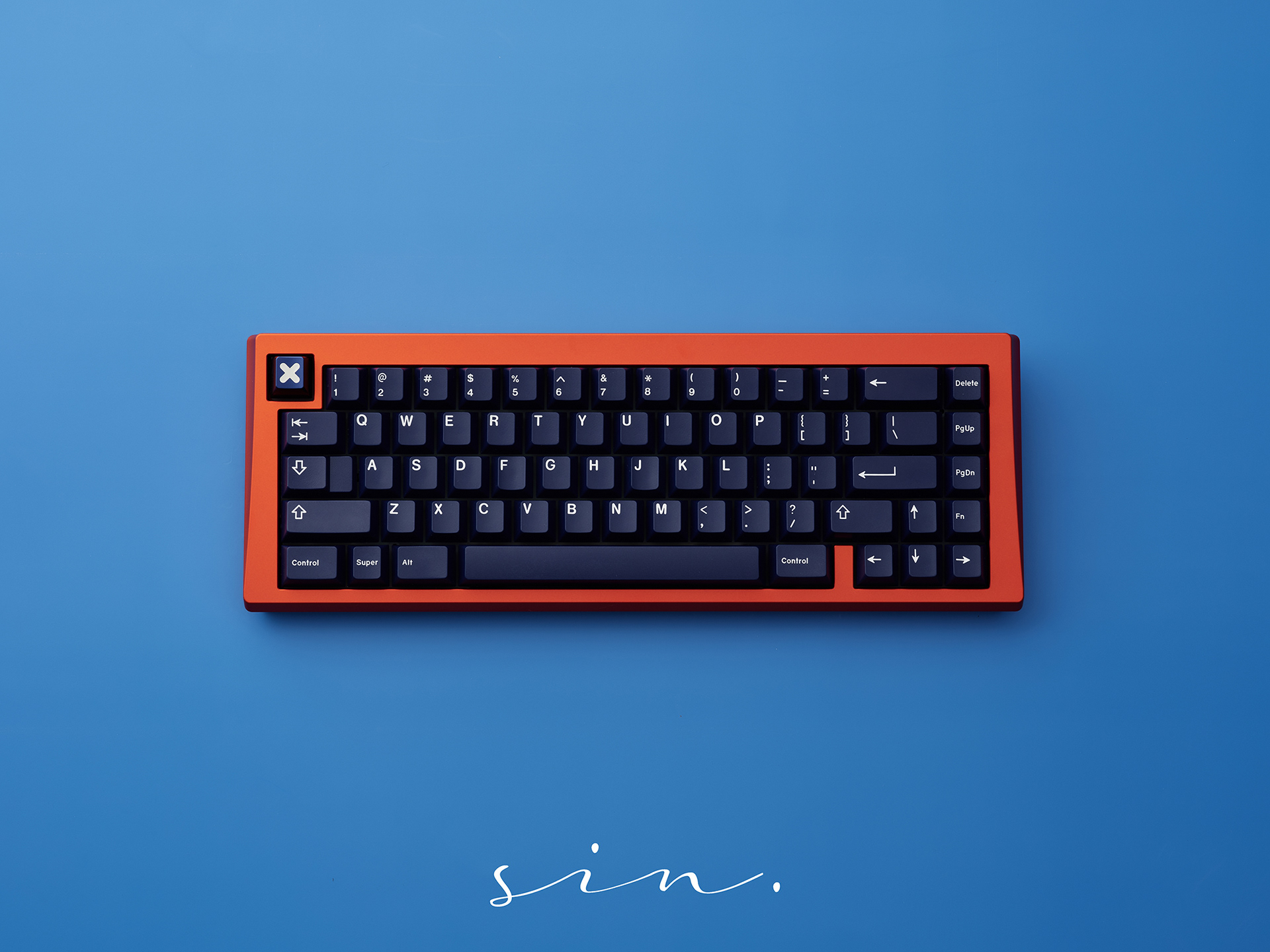

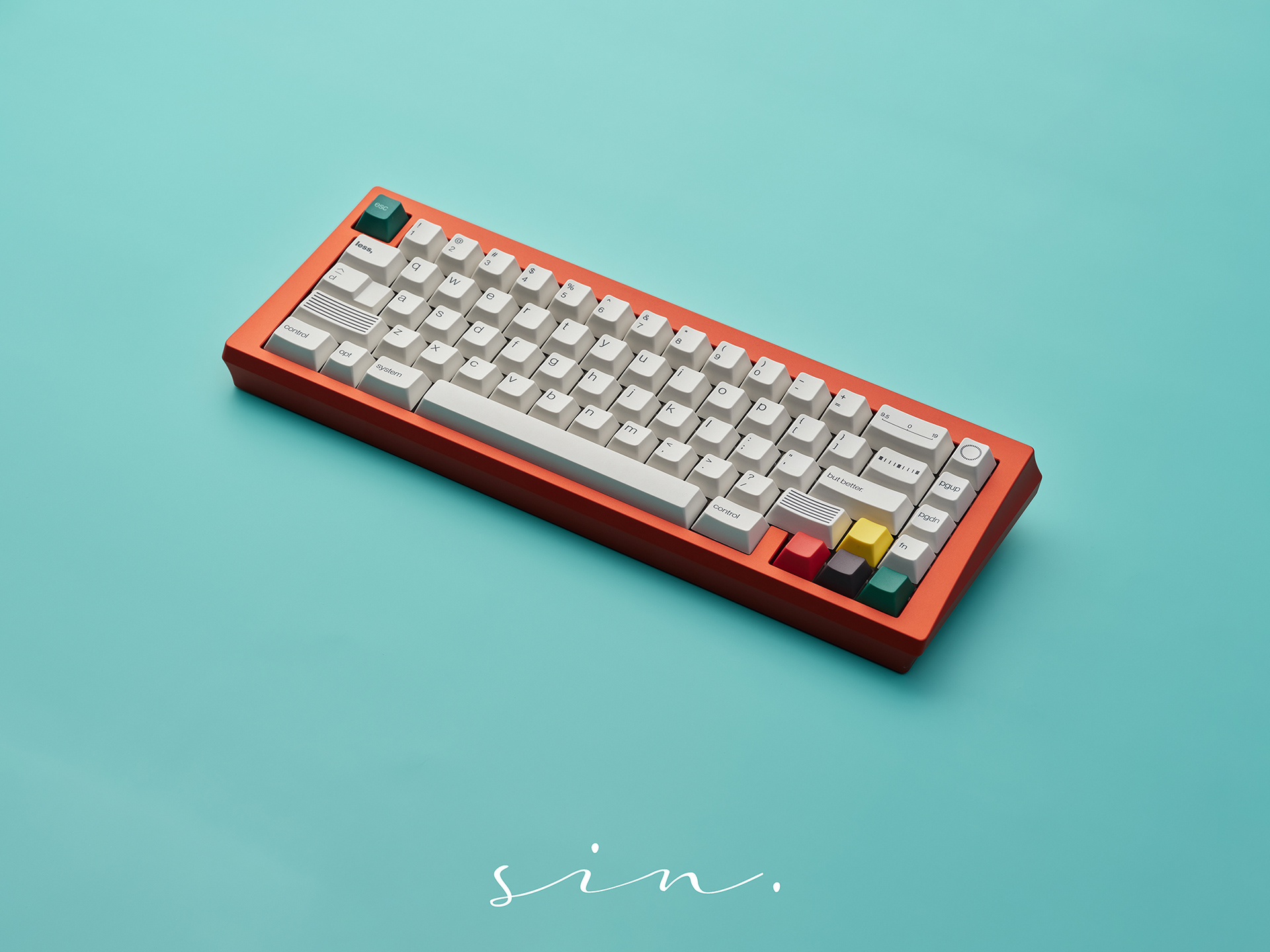

65% Layout

TOP mount and PCB gasket mount design

Price：Wired $288,Bluetooth $308

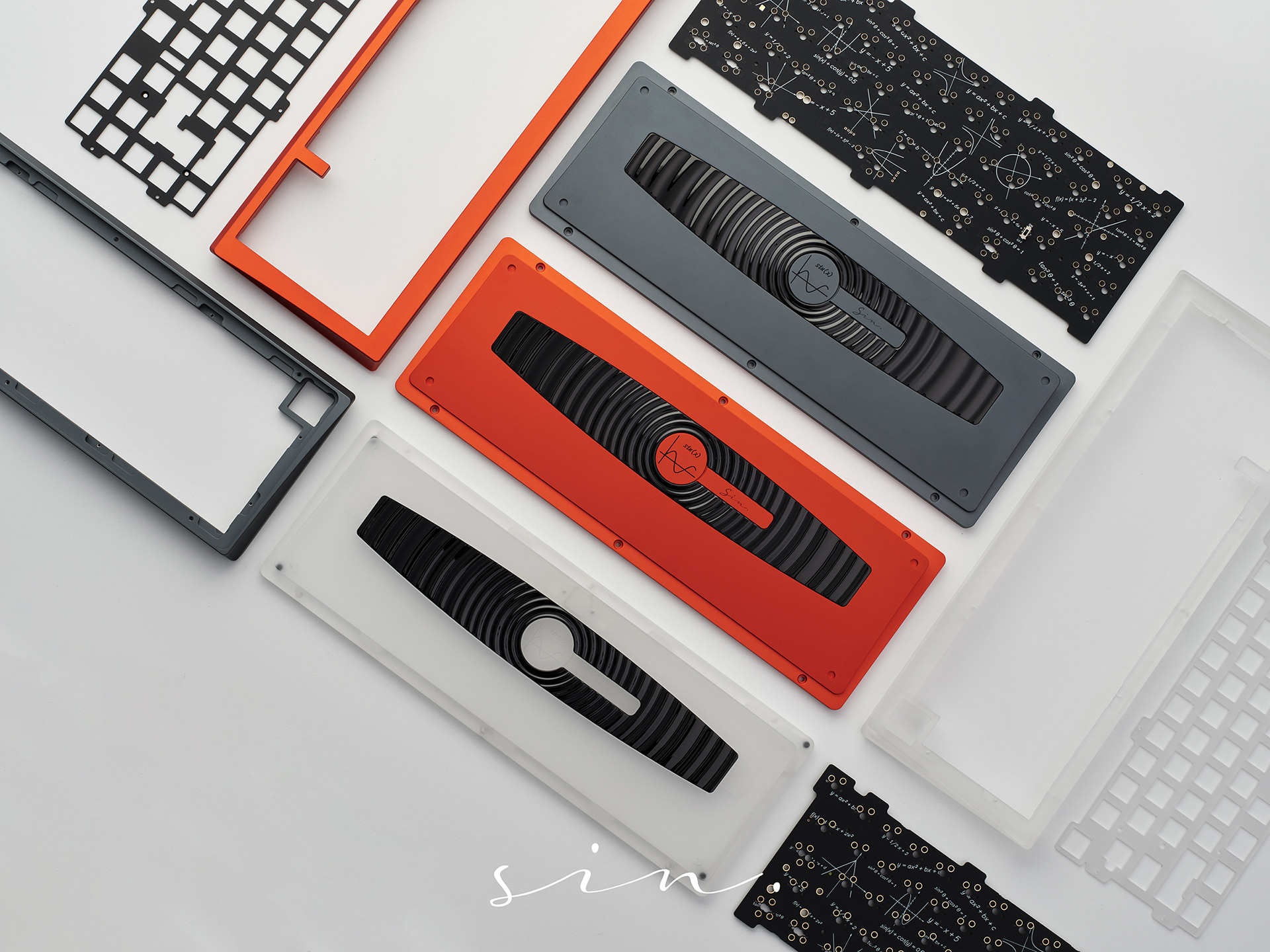

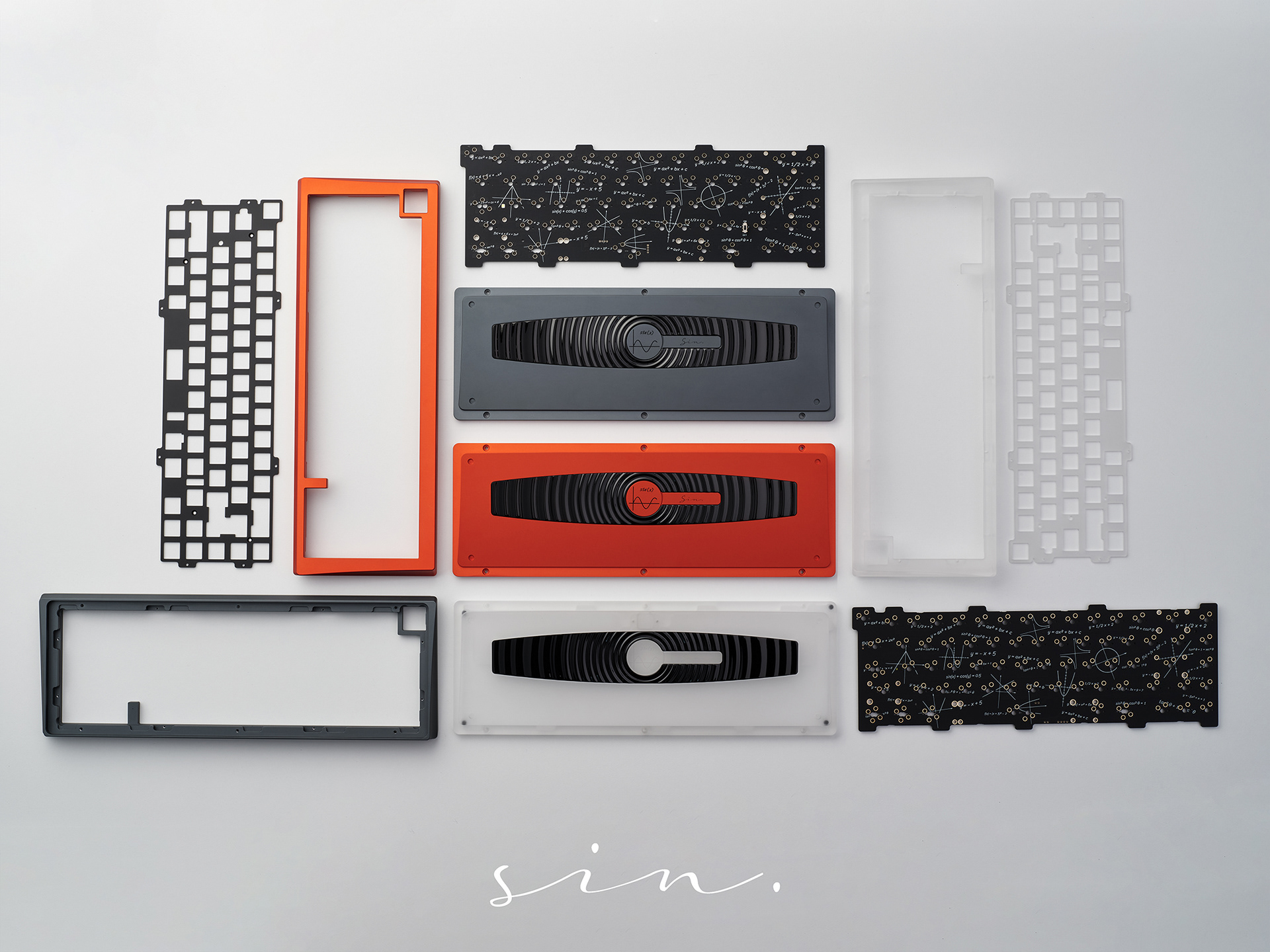

PCB:1.6mm black core board fr4. Wired hotswap, bluetooth hotswap, wired soldered available

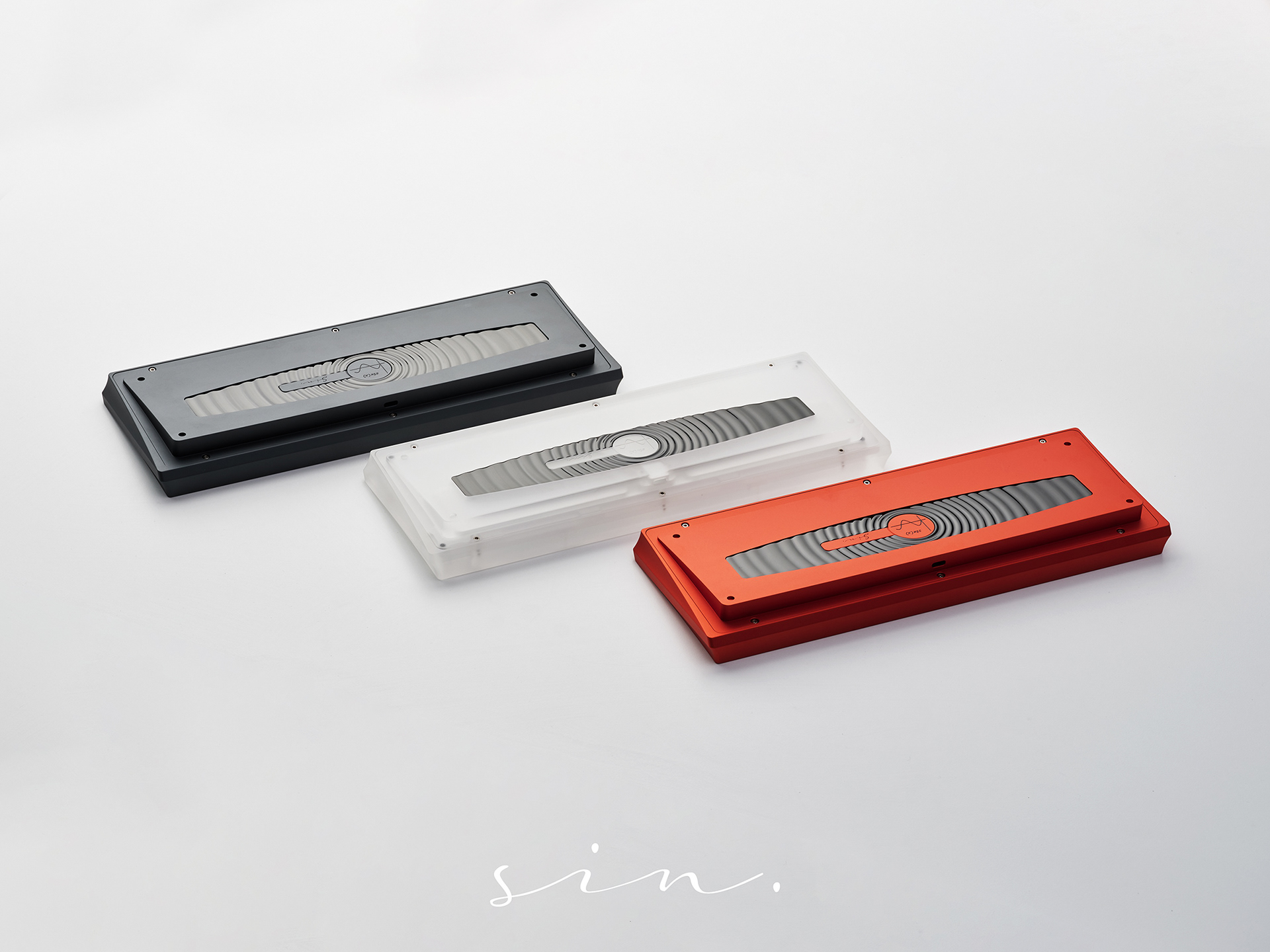

Case material:

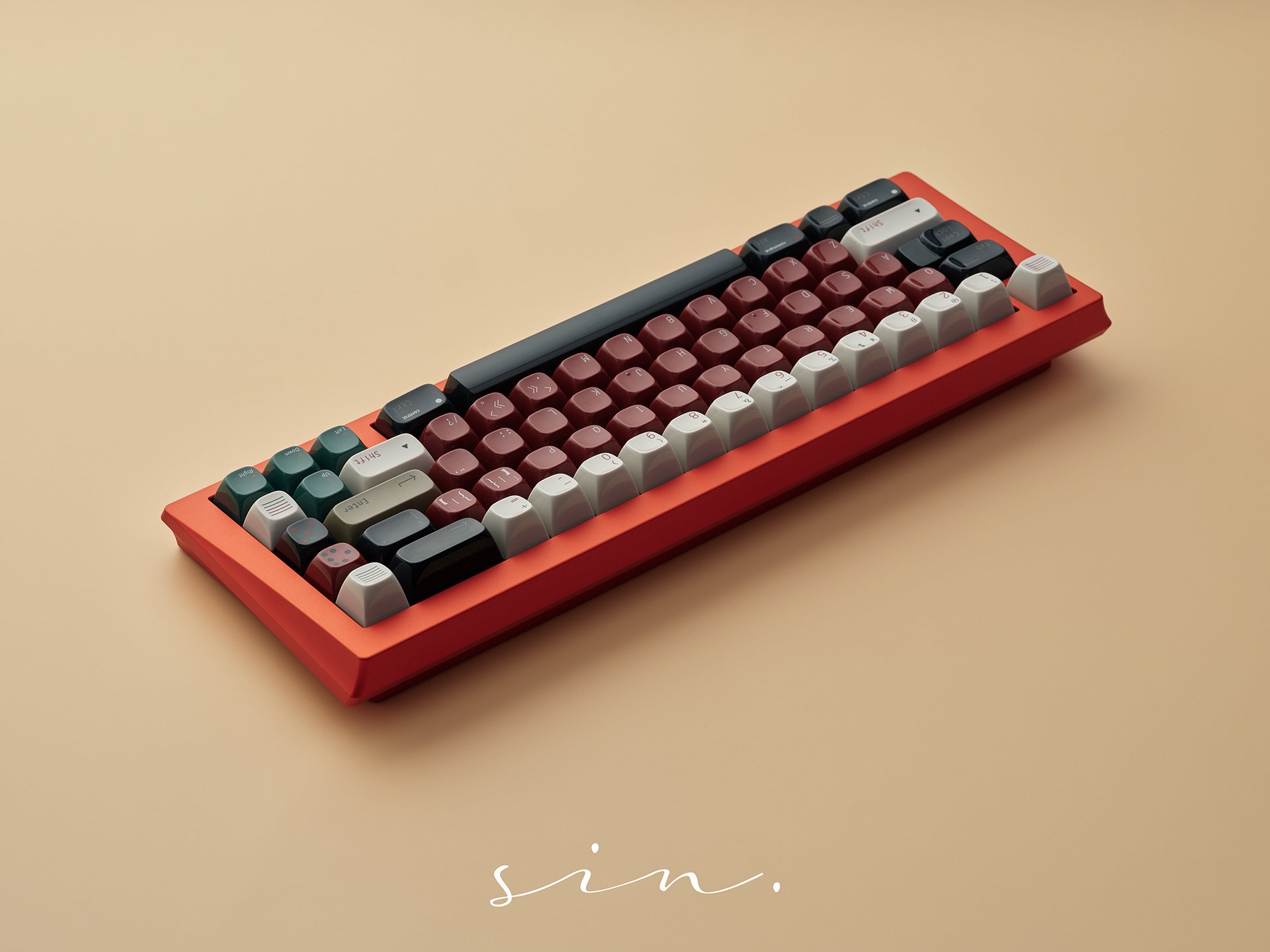

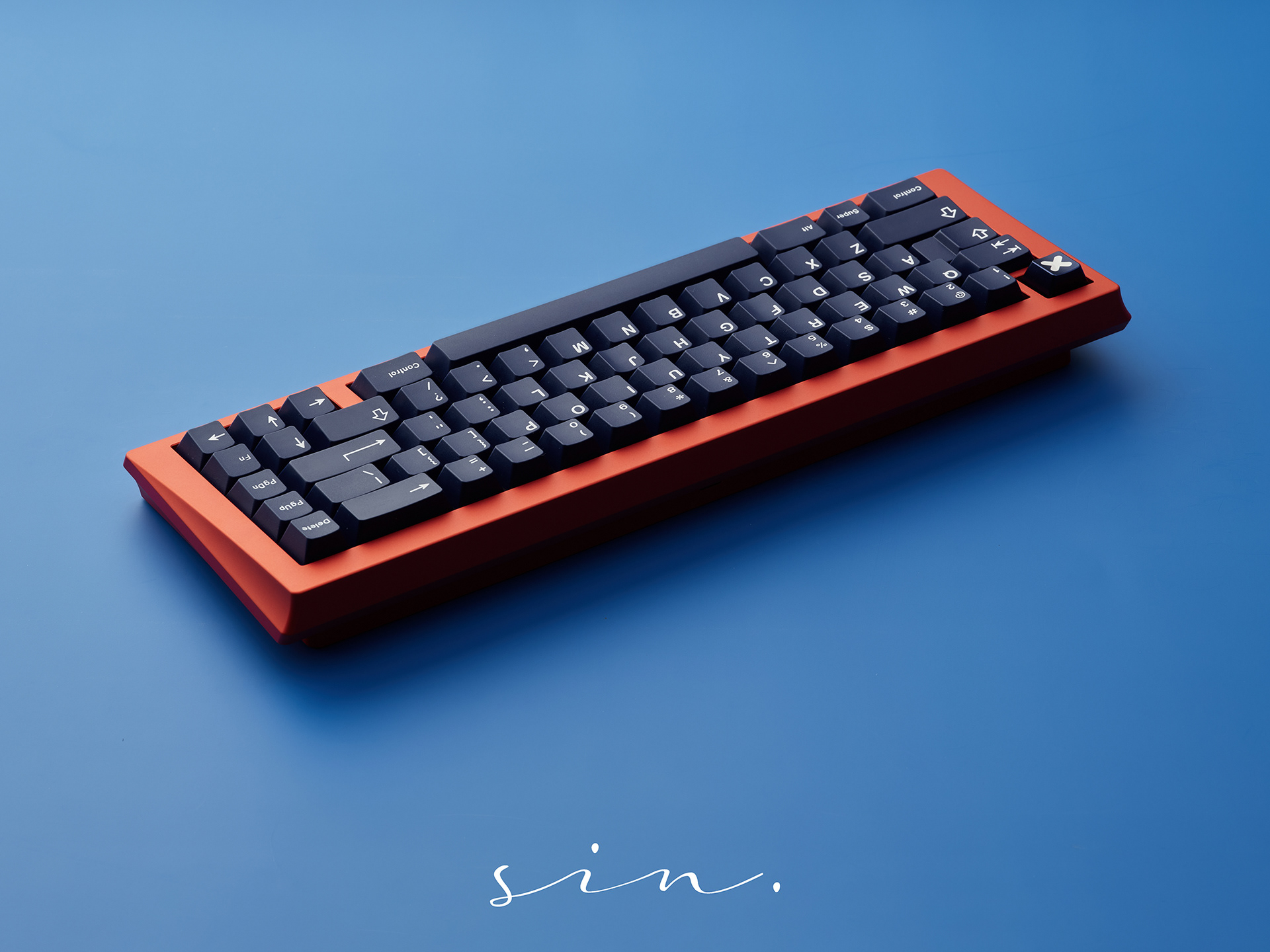

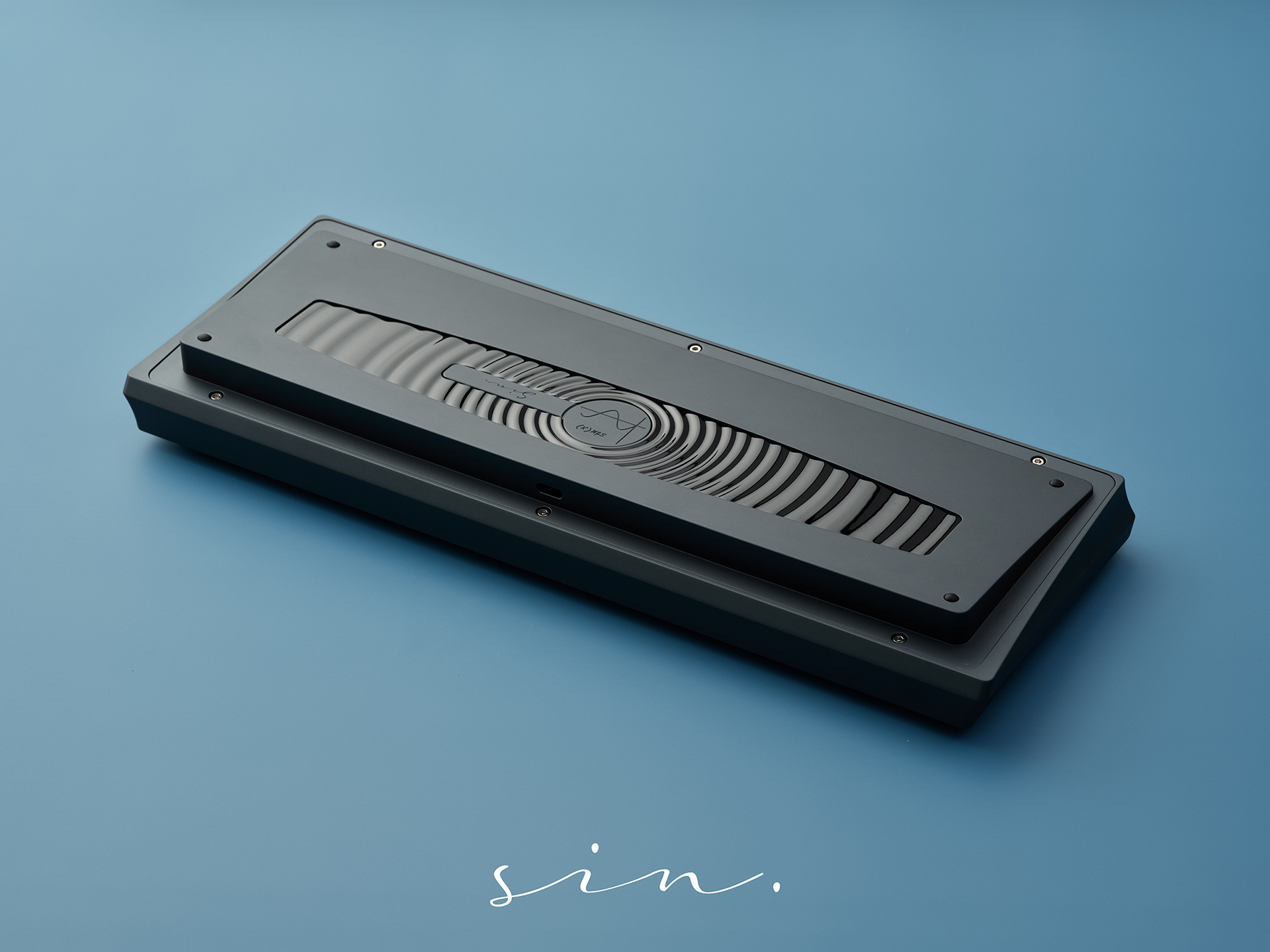

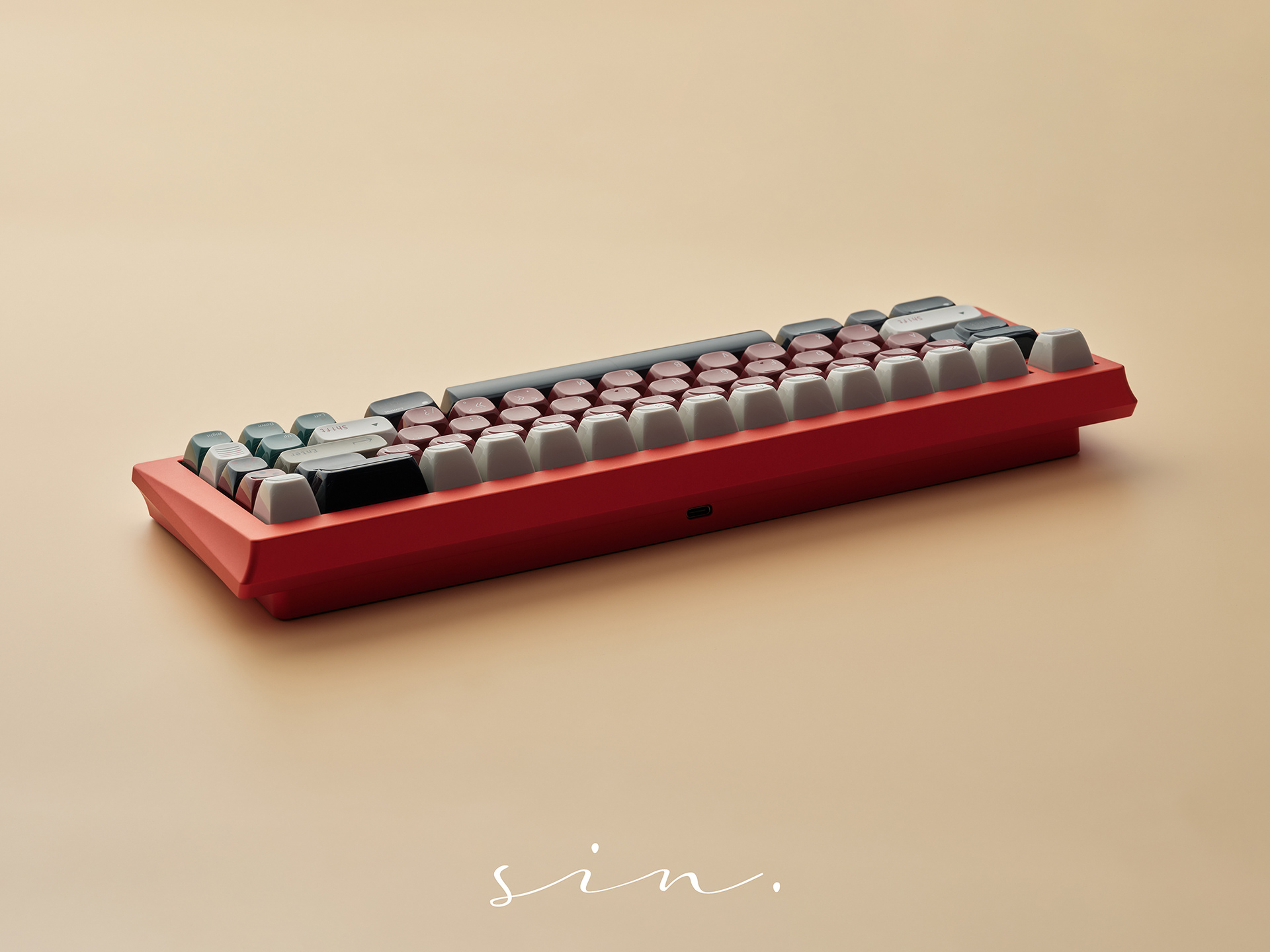

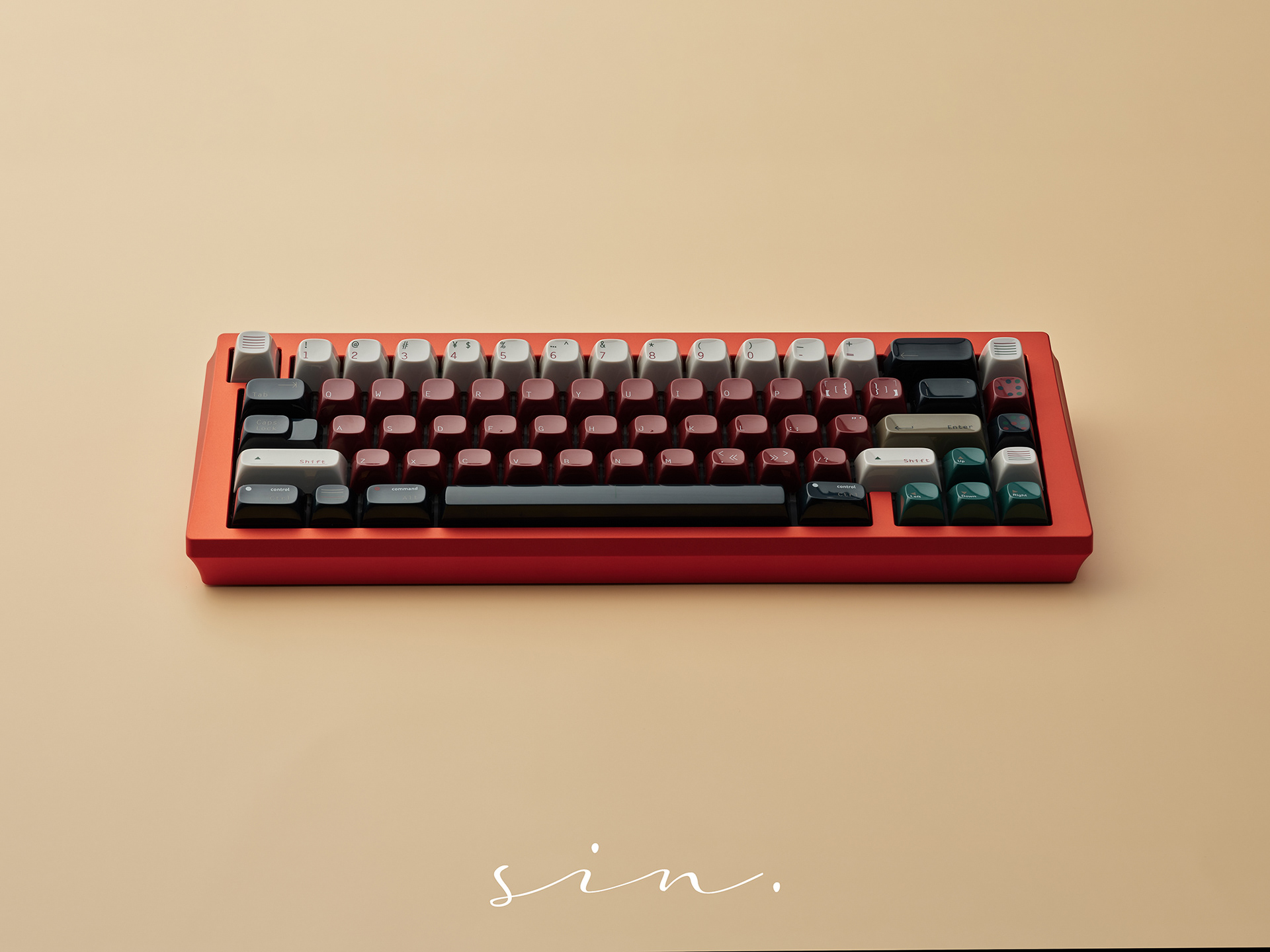

Black, grey 445C,orange 1655C (6063Alu,anodized)
Off-white,Green(6063Alu, cataphoresis)

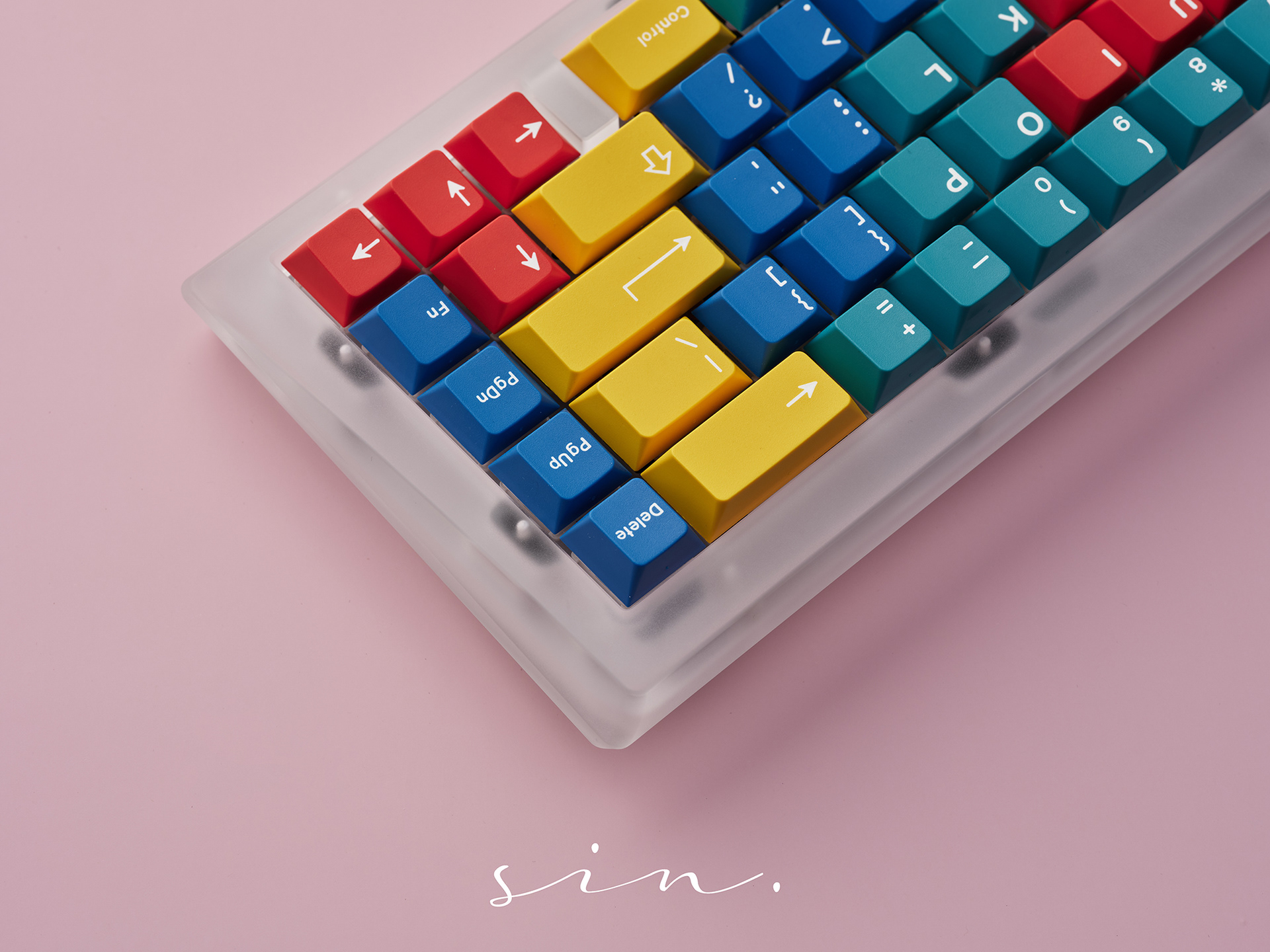

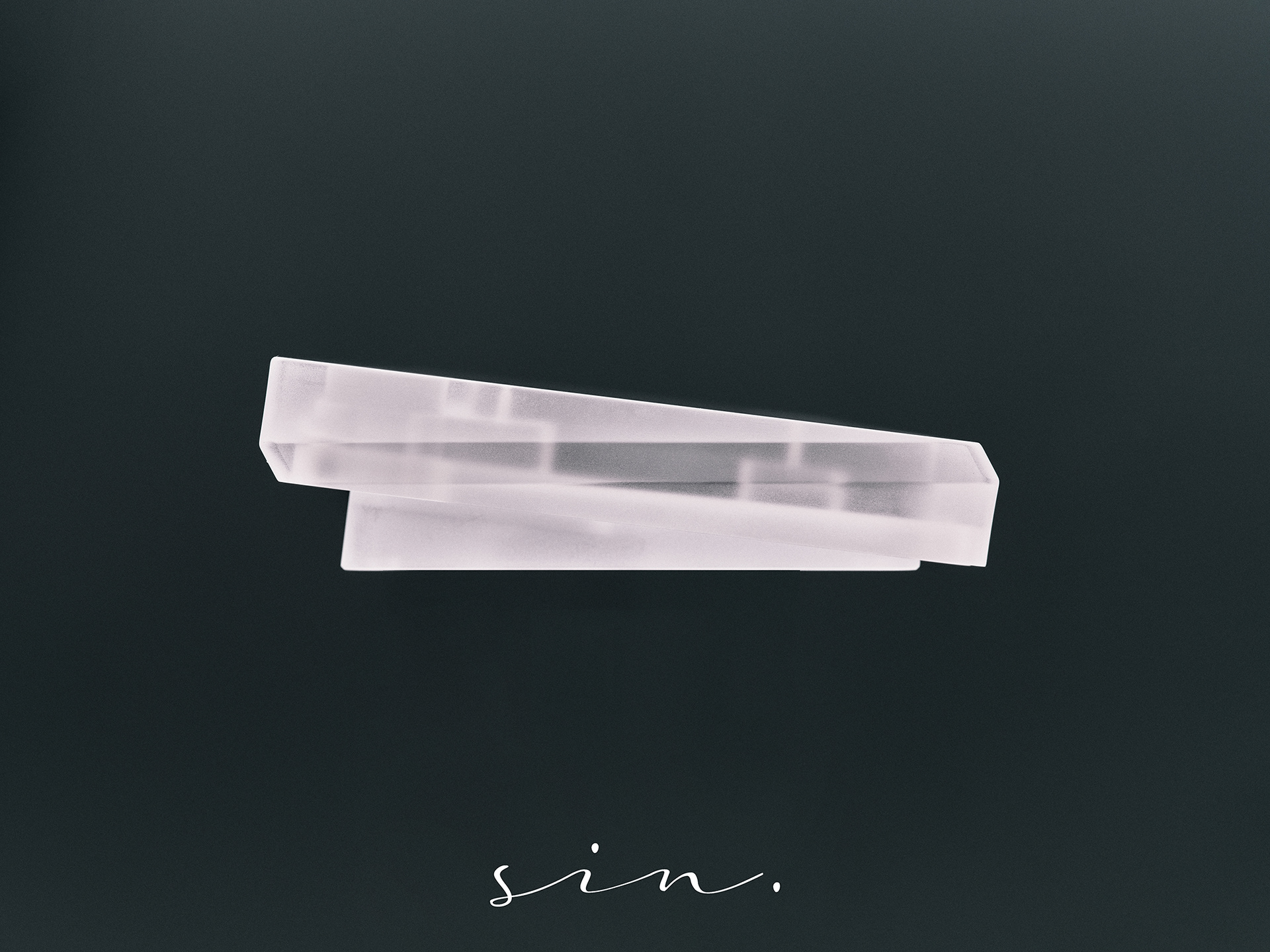

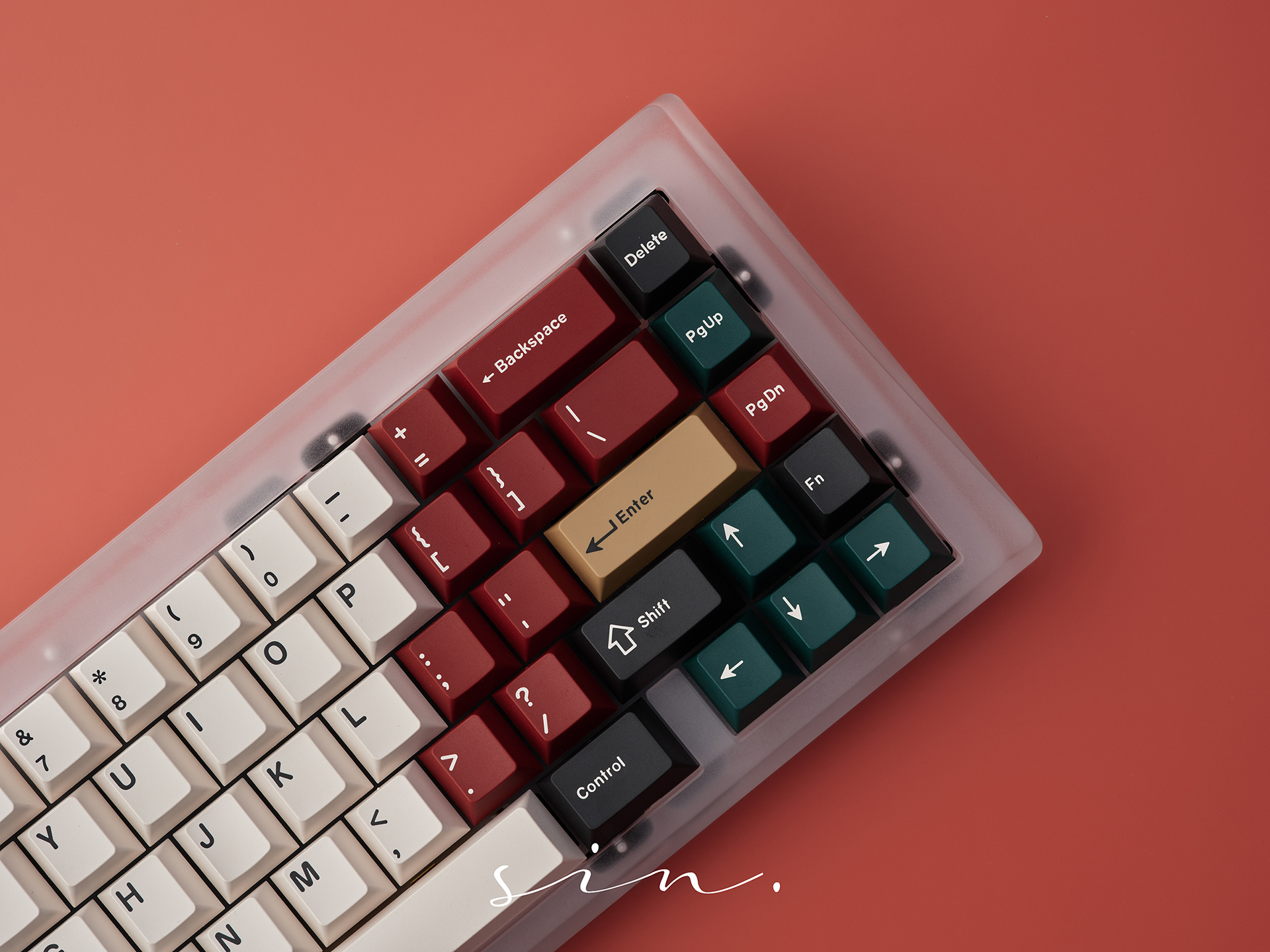

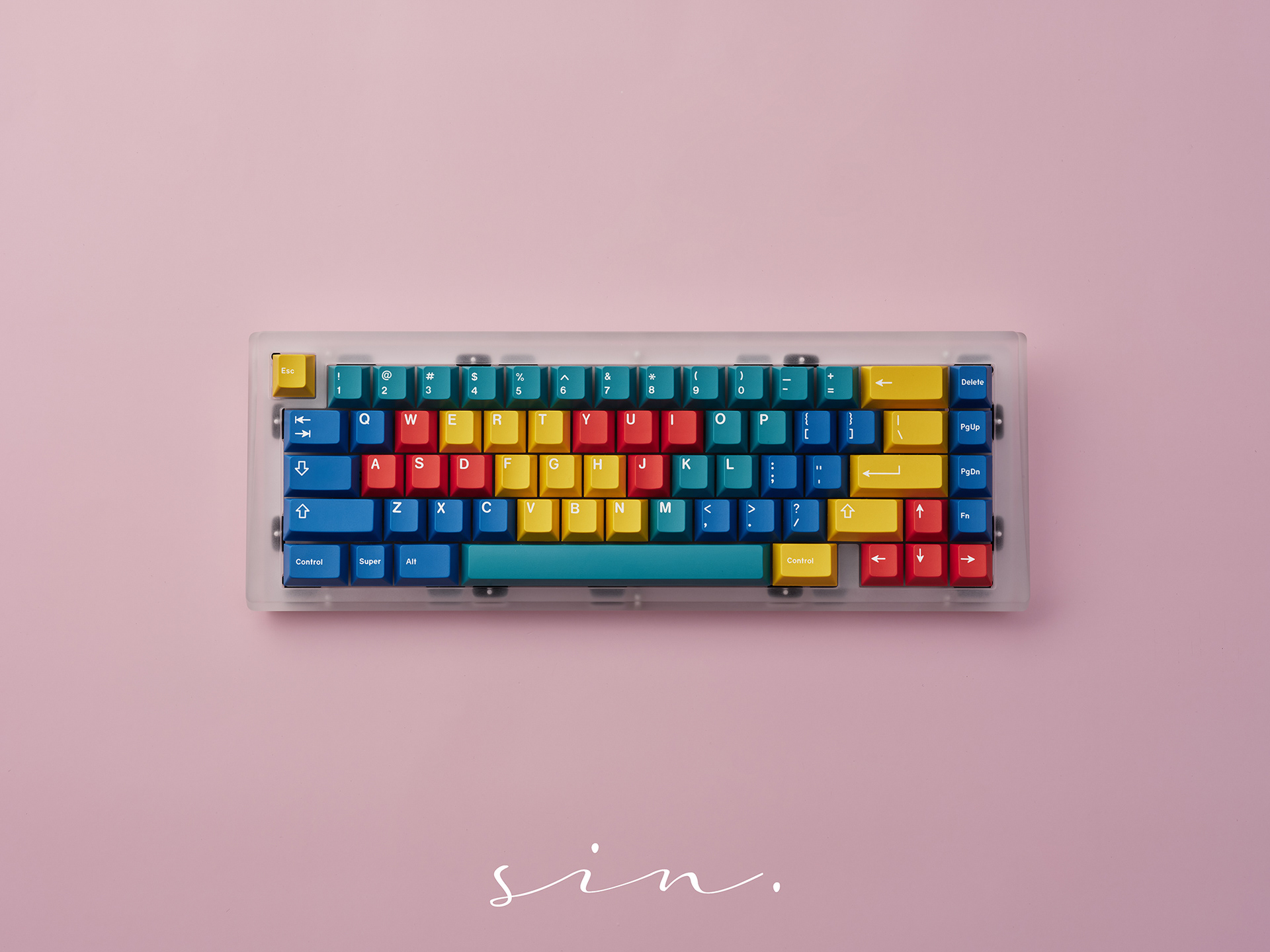

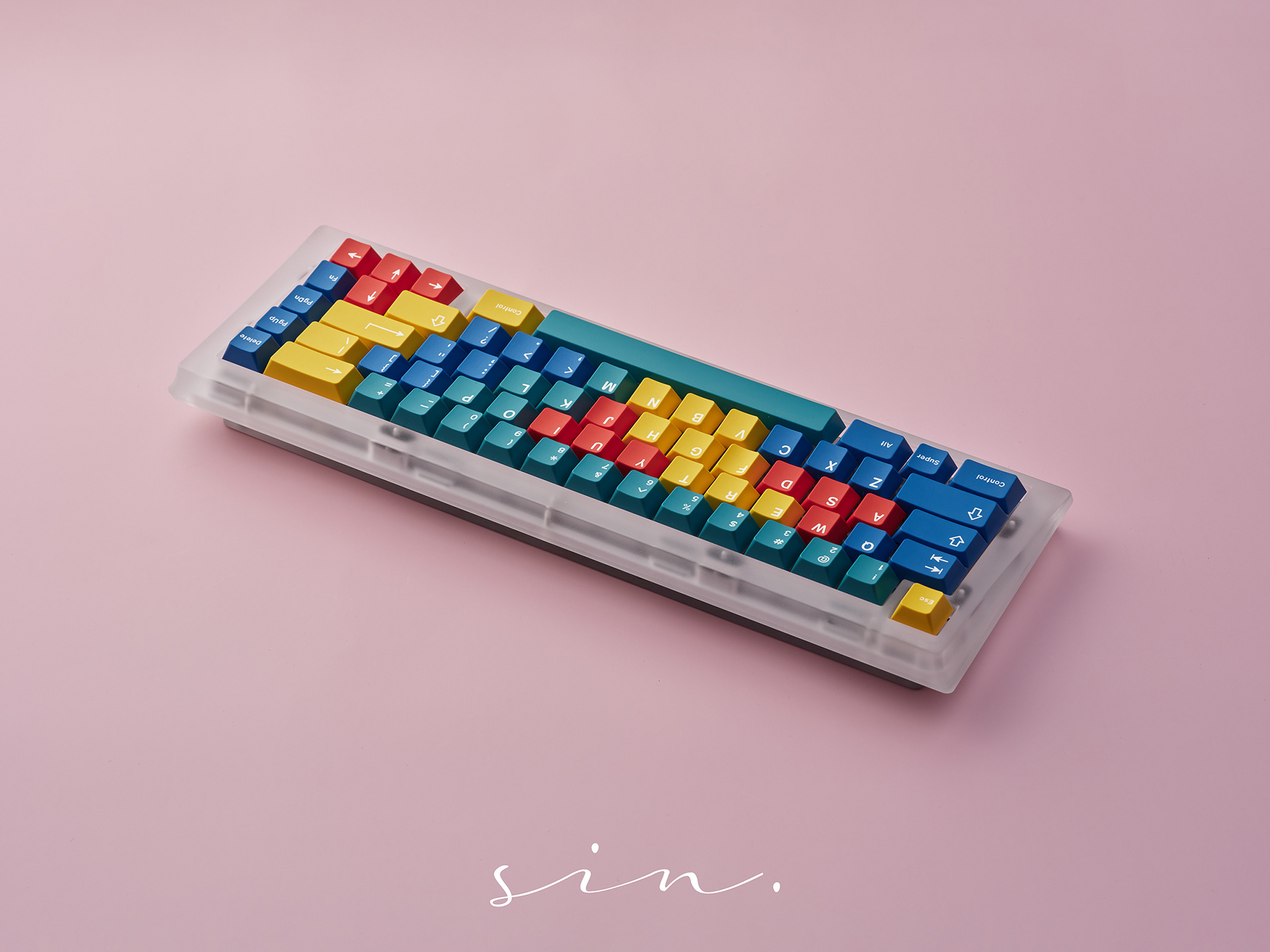

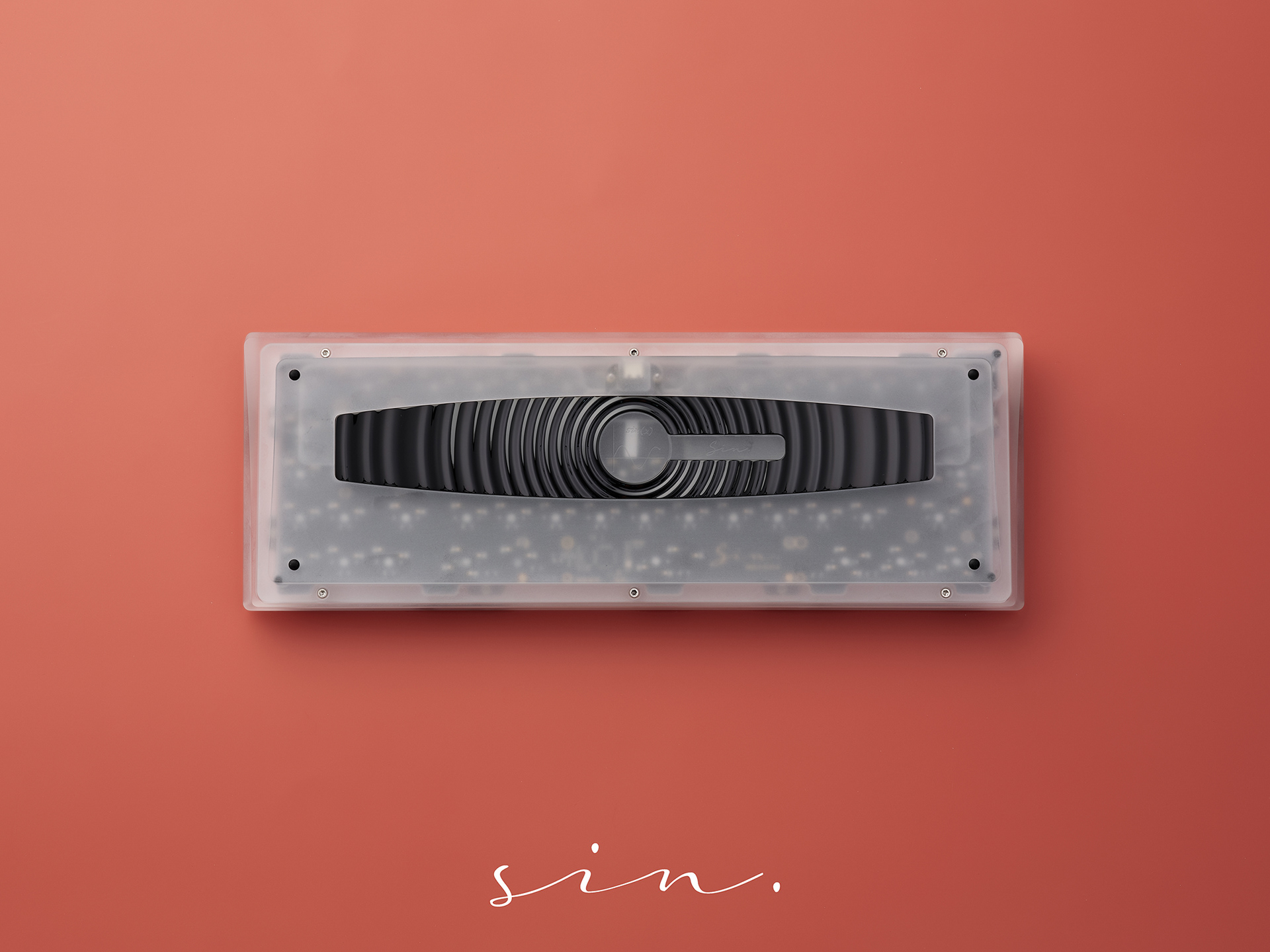

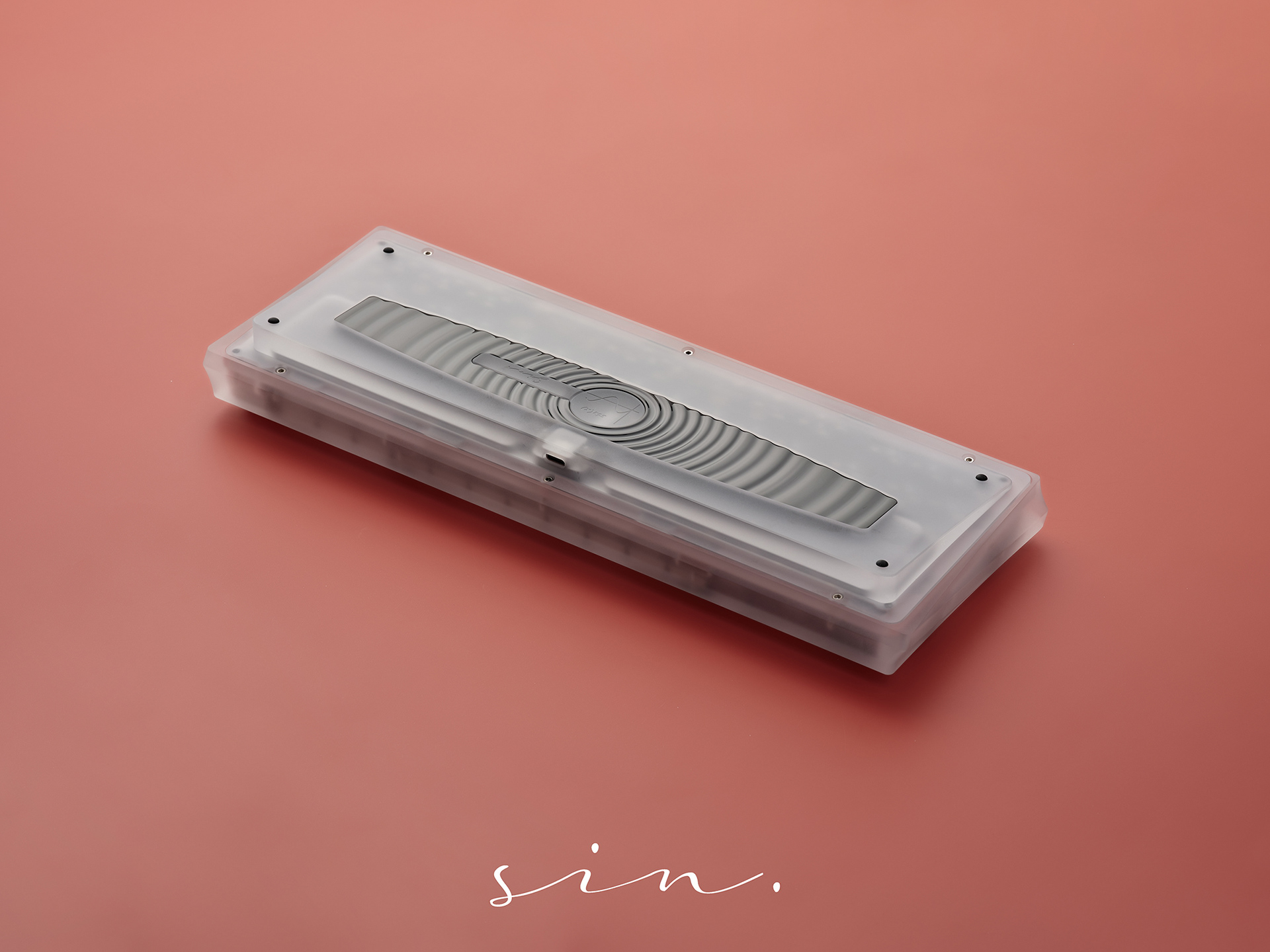

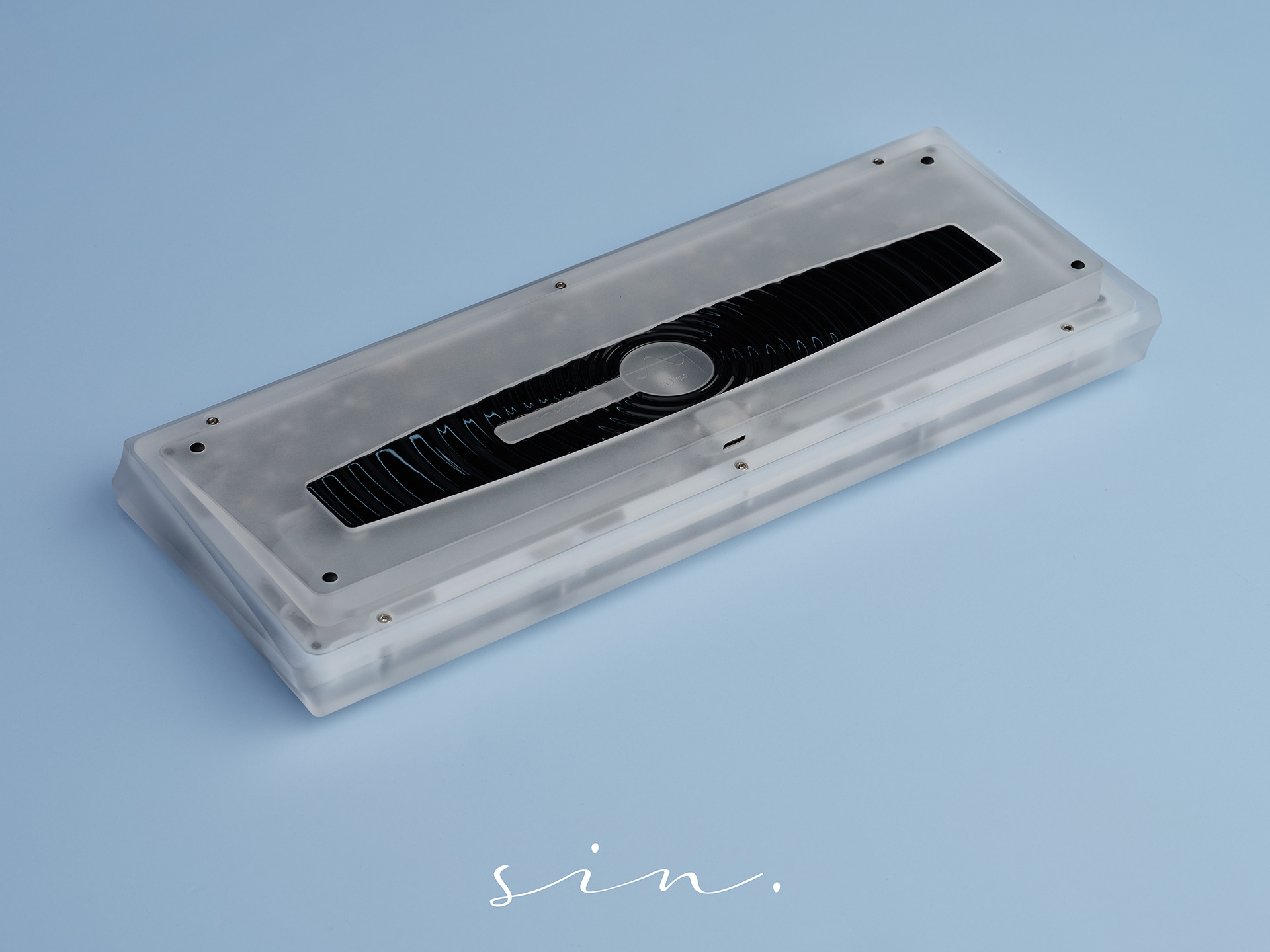

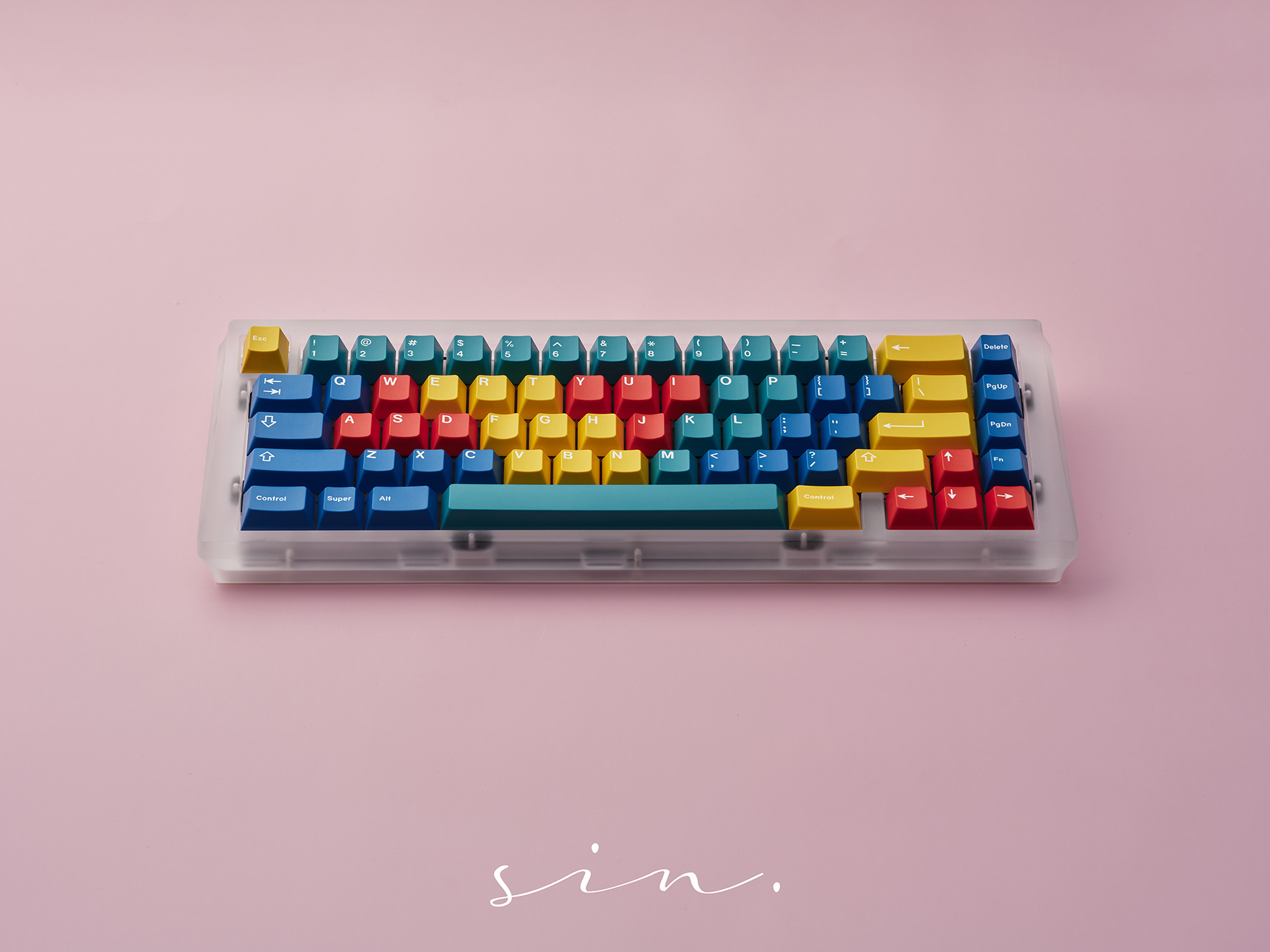

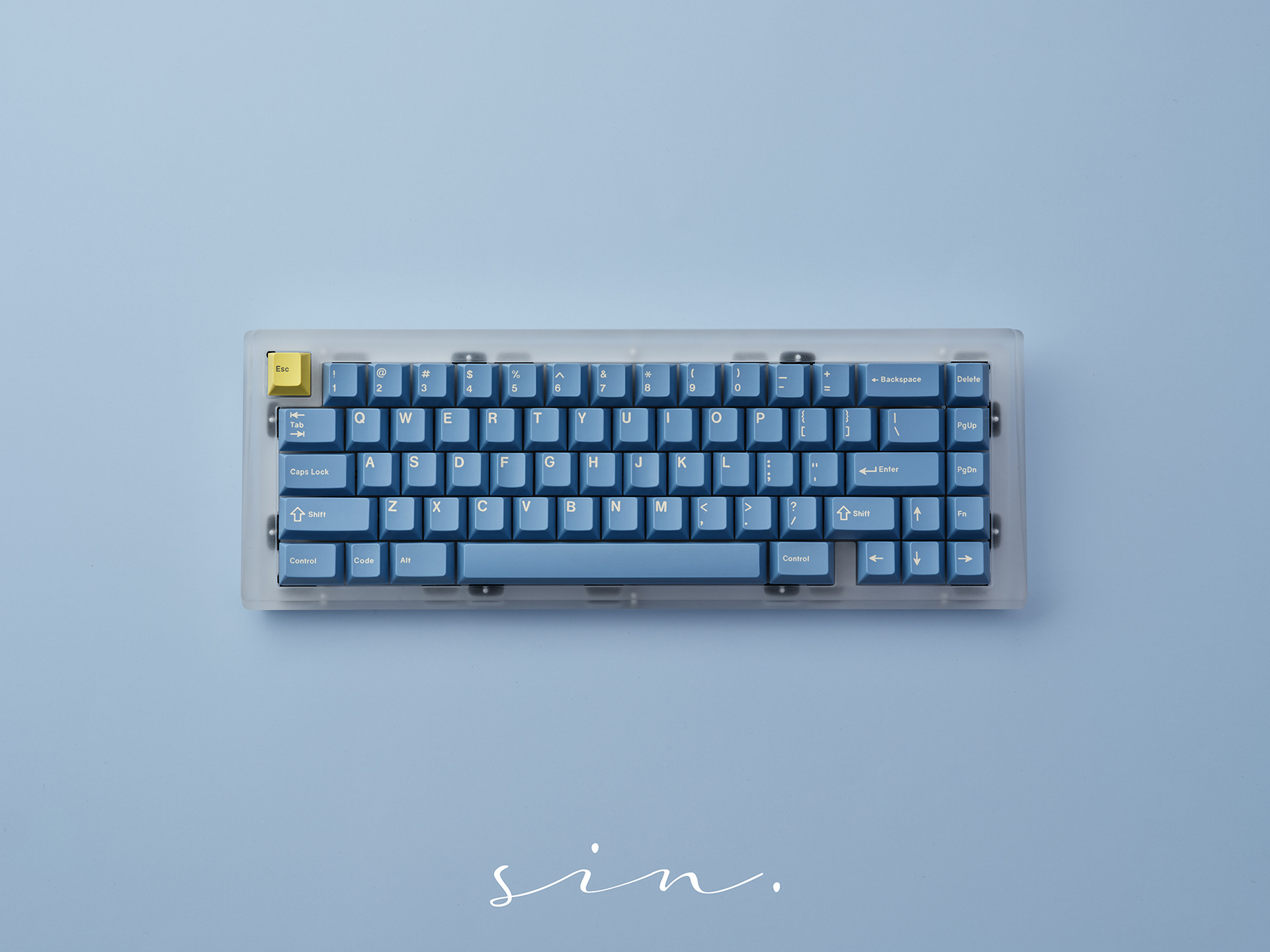

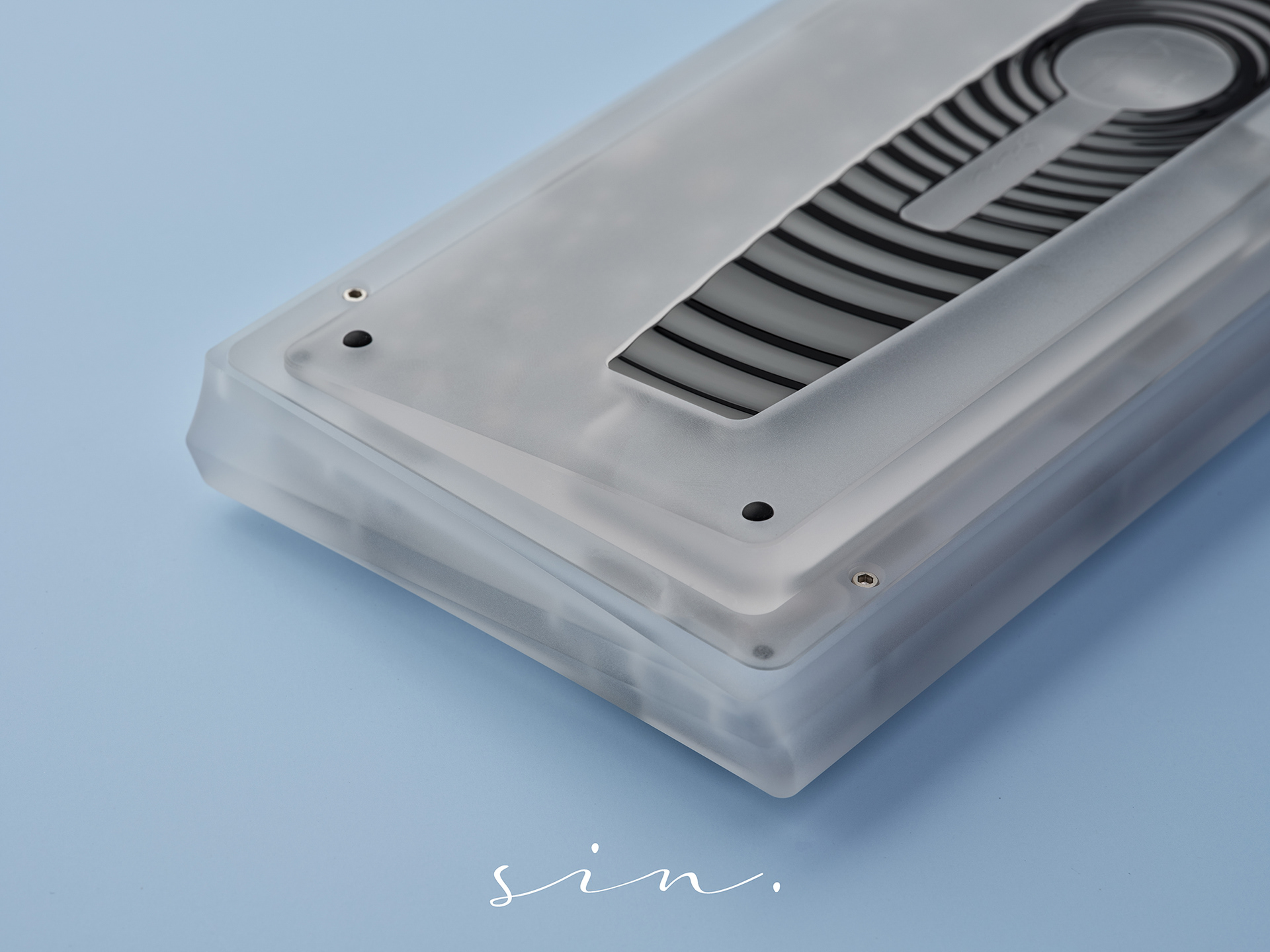

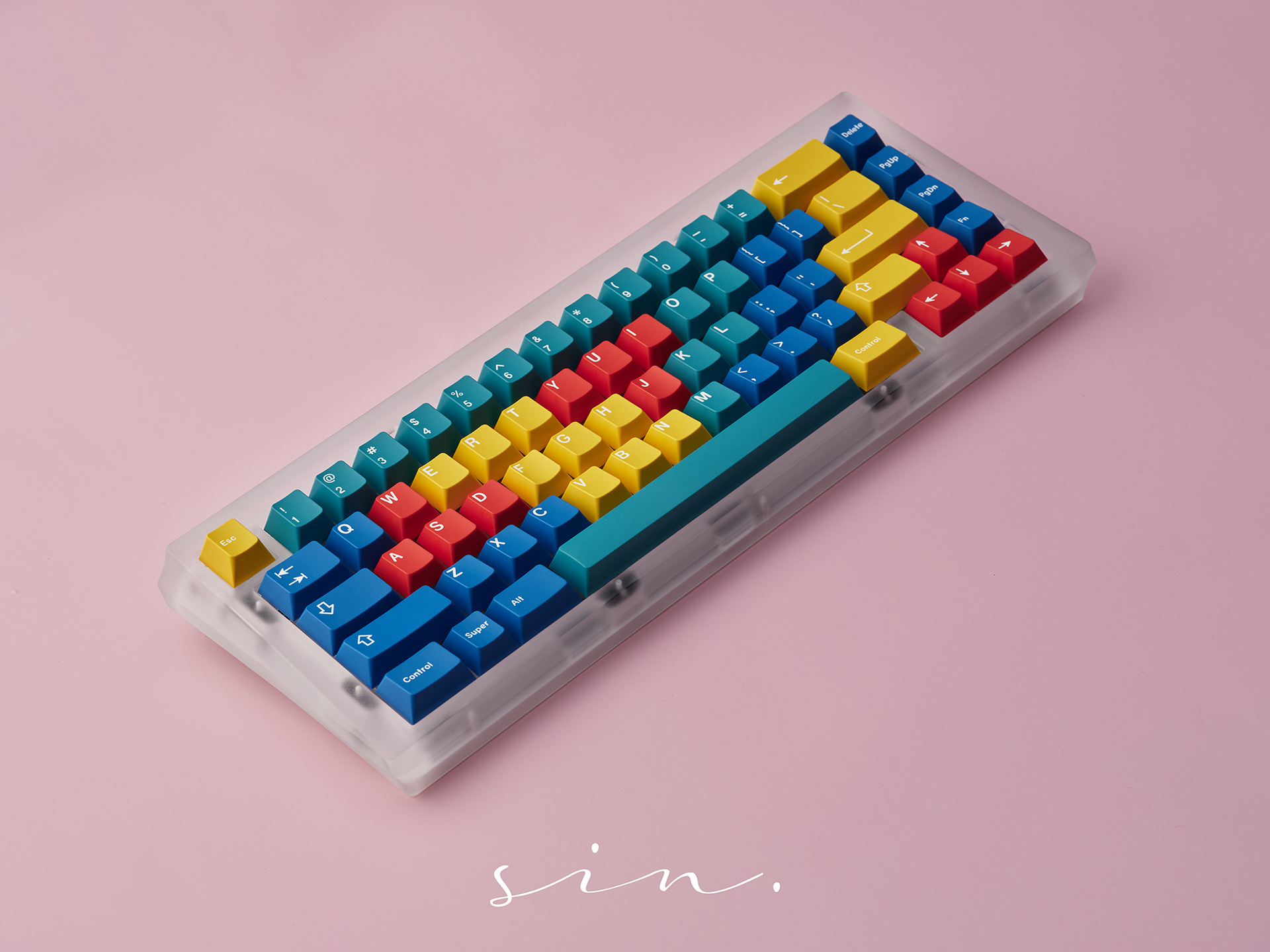

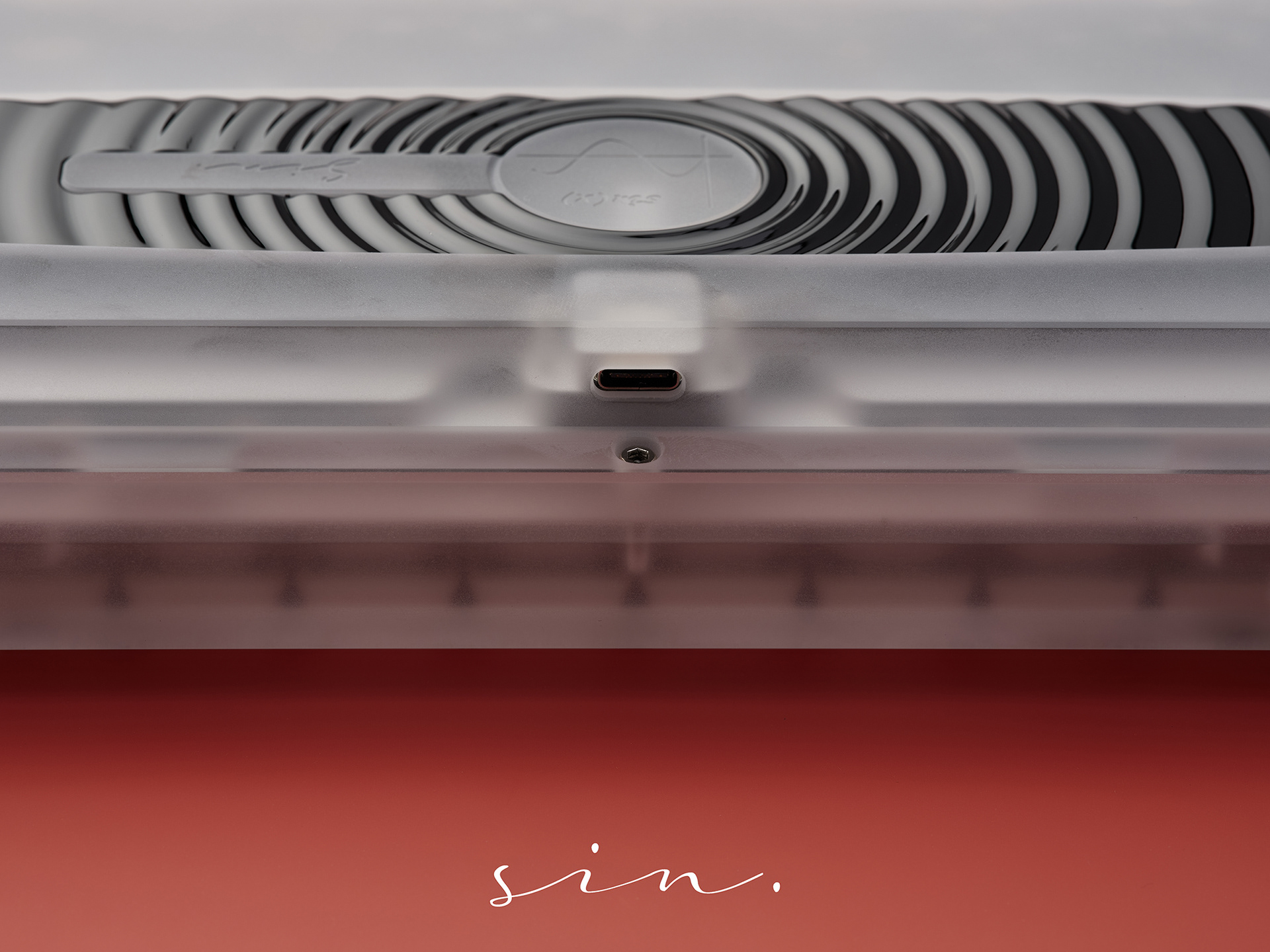

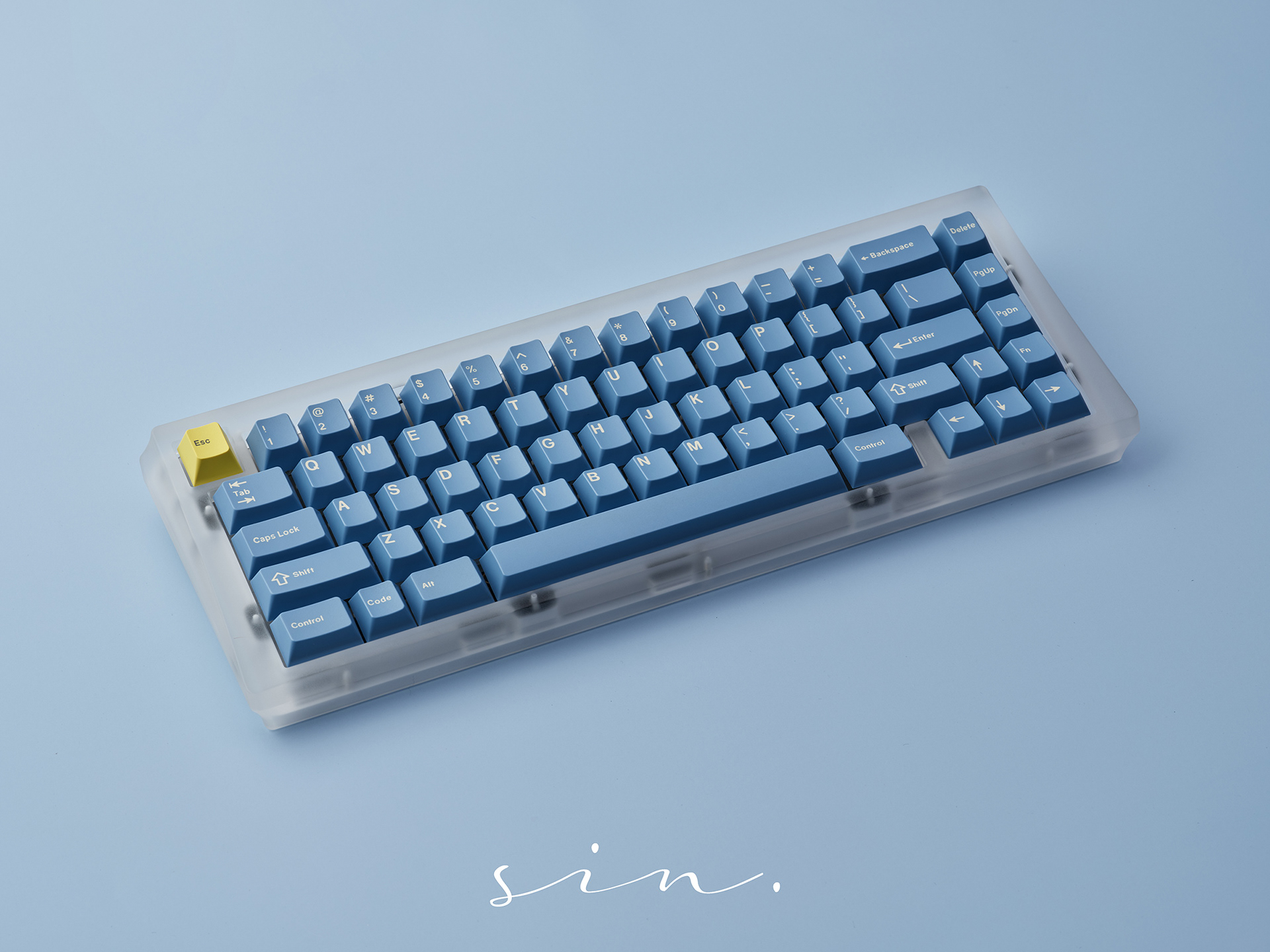

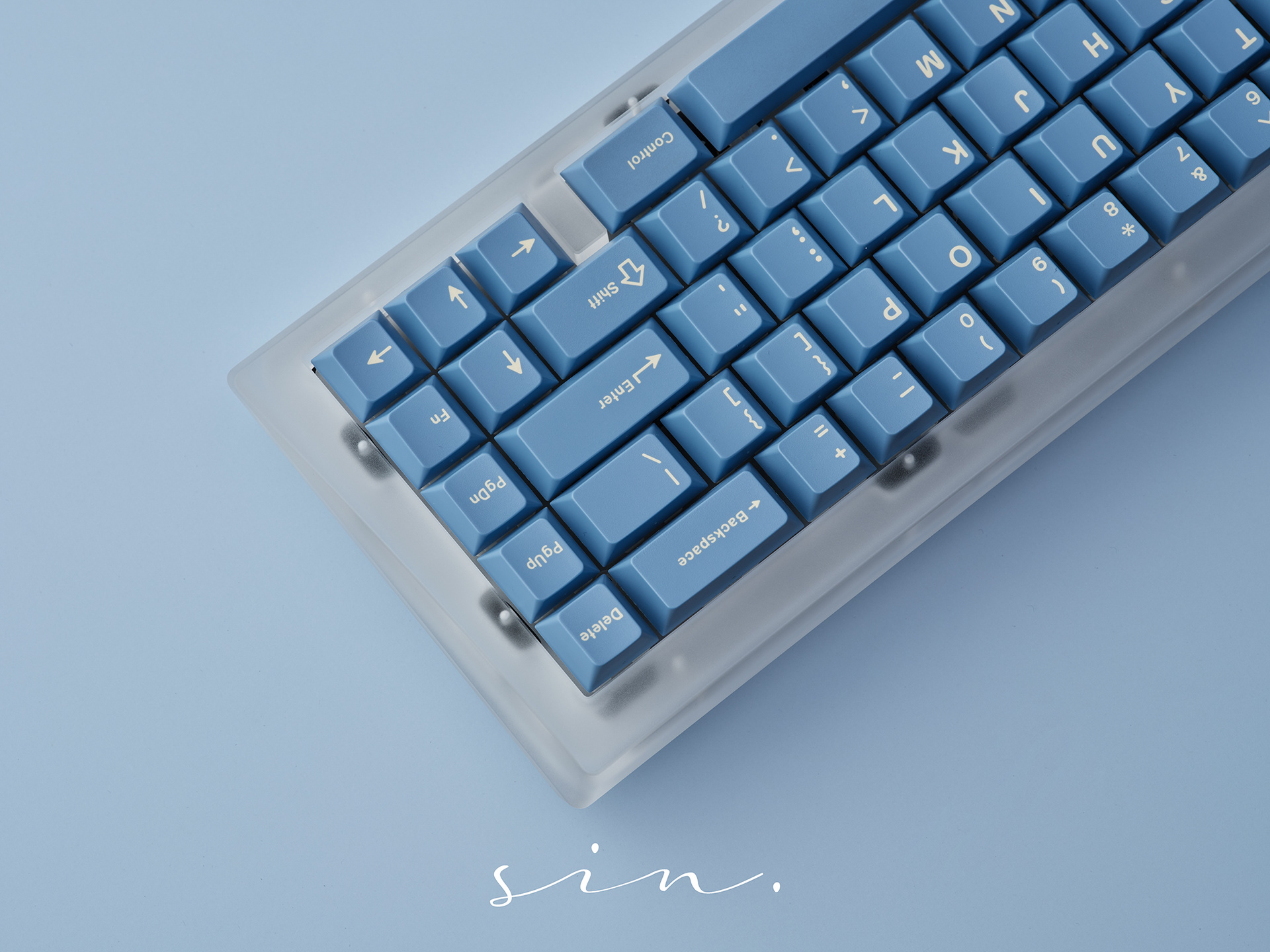

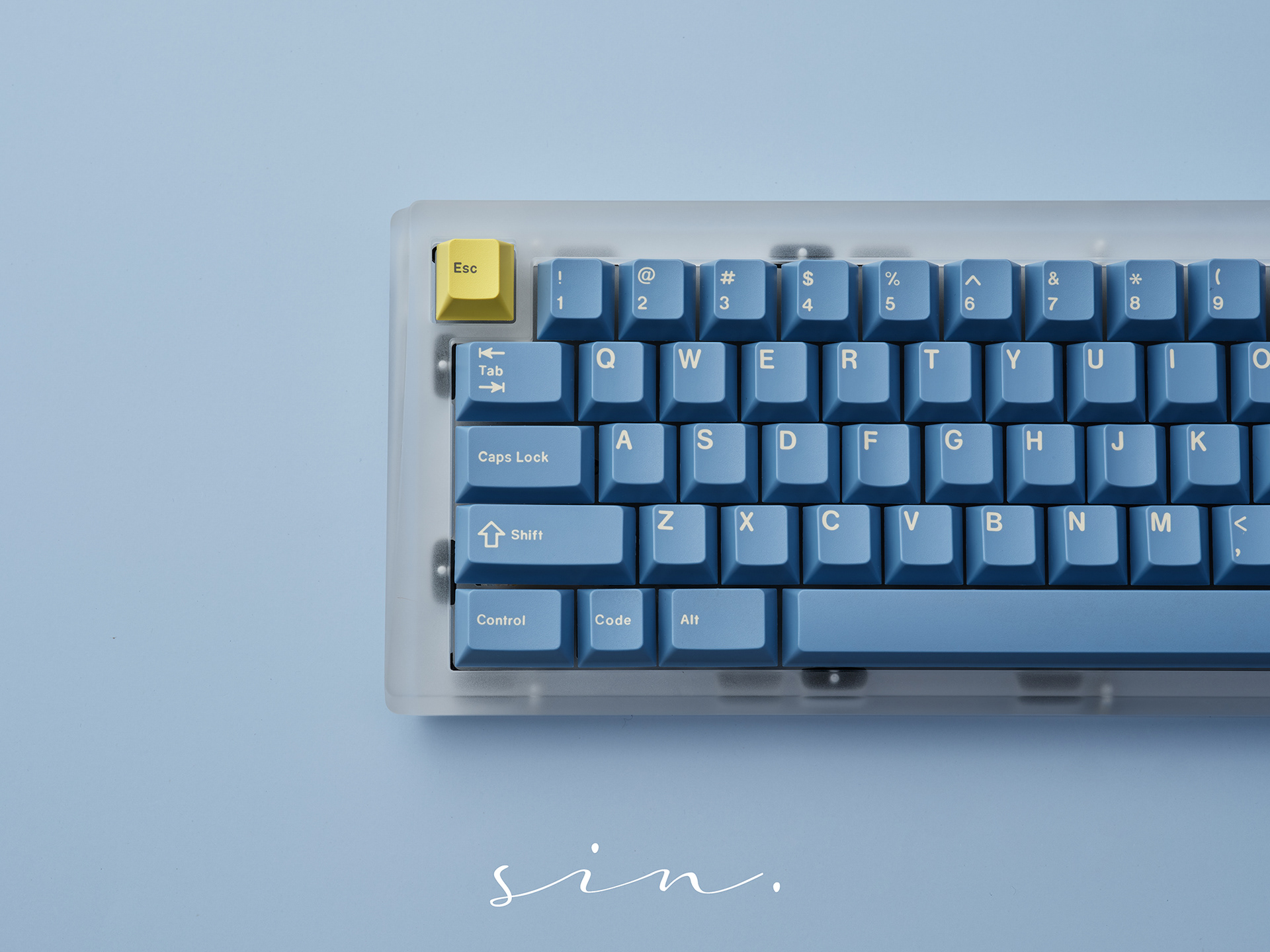

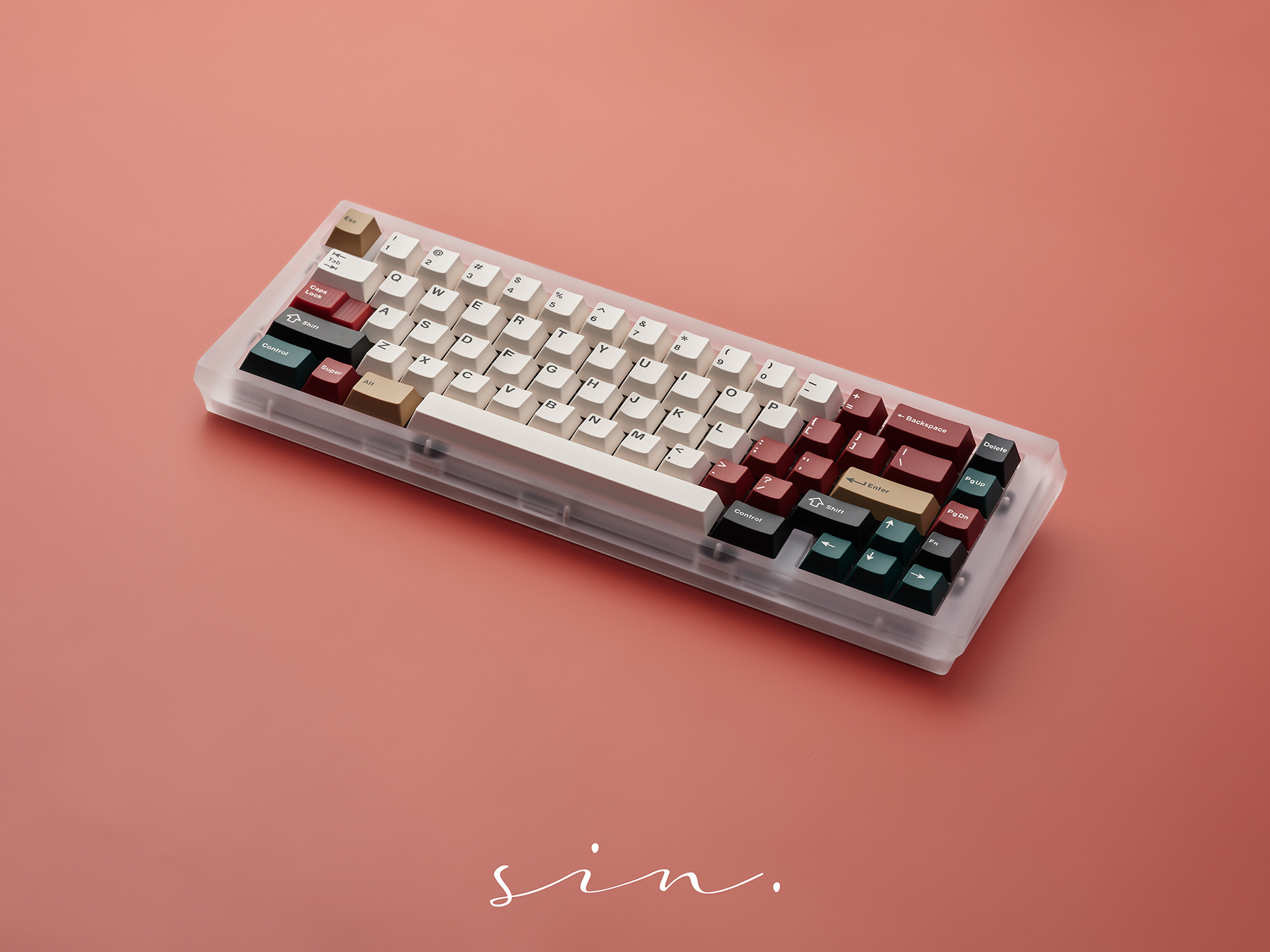

Semitransparent(composite)

Plate: 1.5mm PC and alu both provide

SIN65 Bluetooth PCB polling rate: 125hz

SIN65 Wired Polling Rate: 1000hz

Wired pcb support VIAL, bluetooth pcb support LDN(with 4400mah battery)

SIN65 APPEARANCE DETAILS

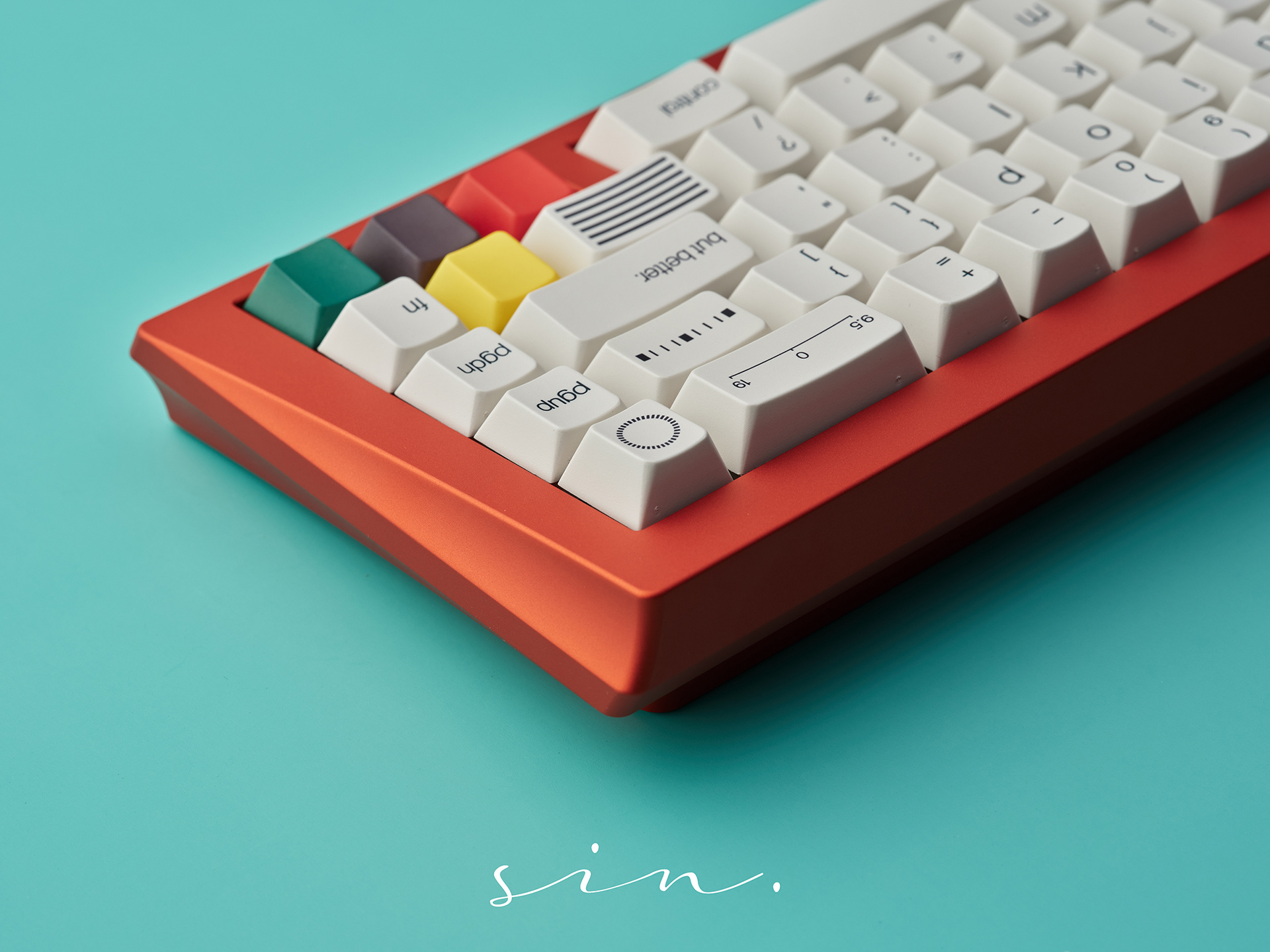

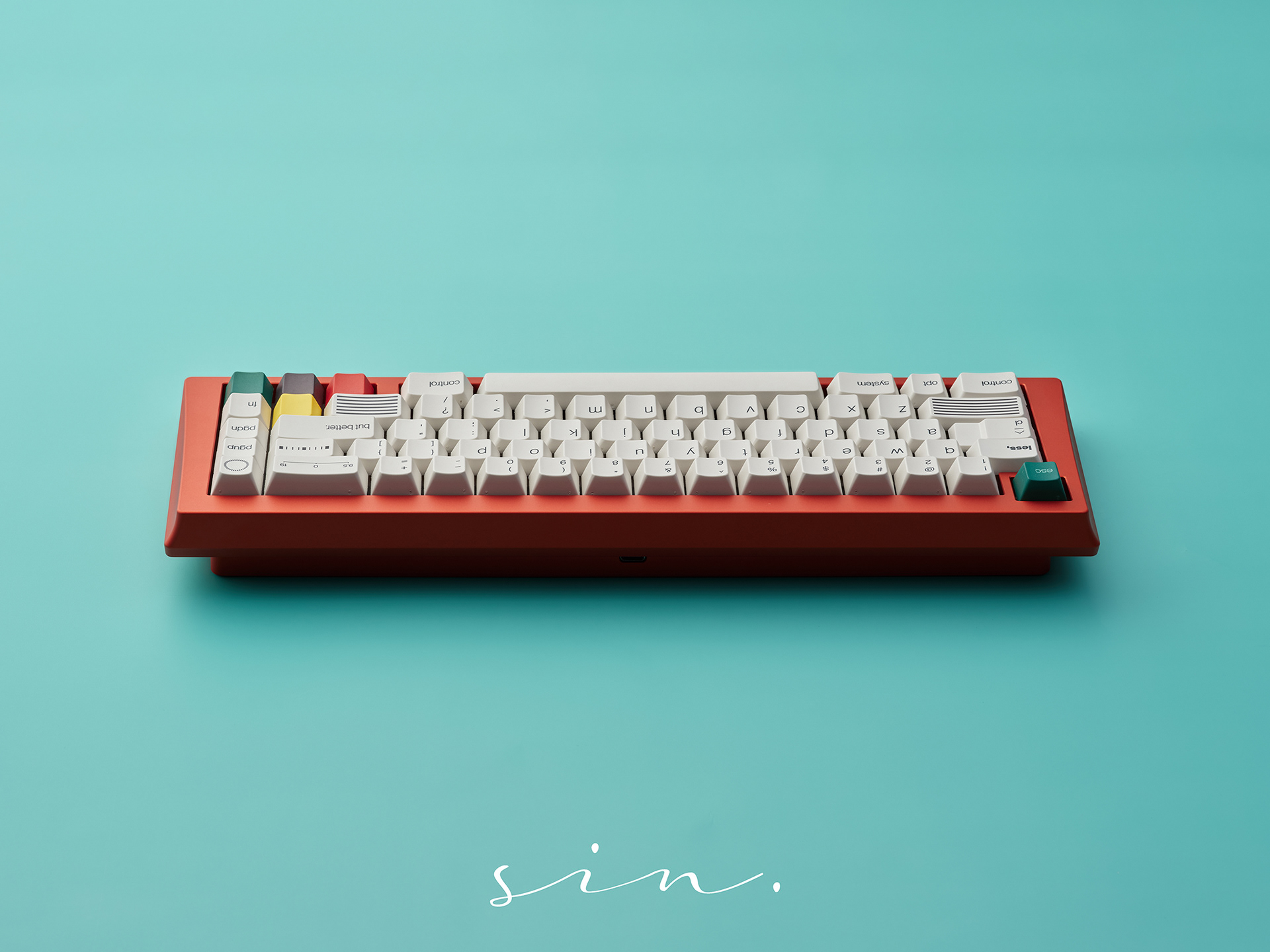

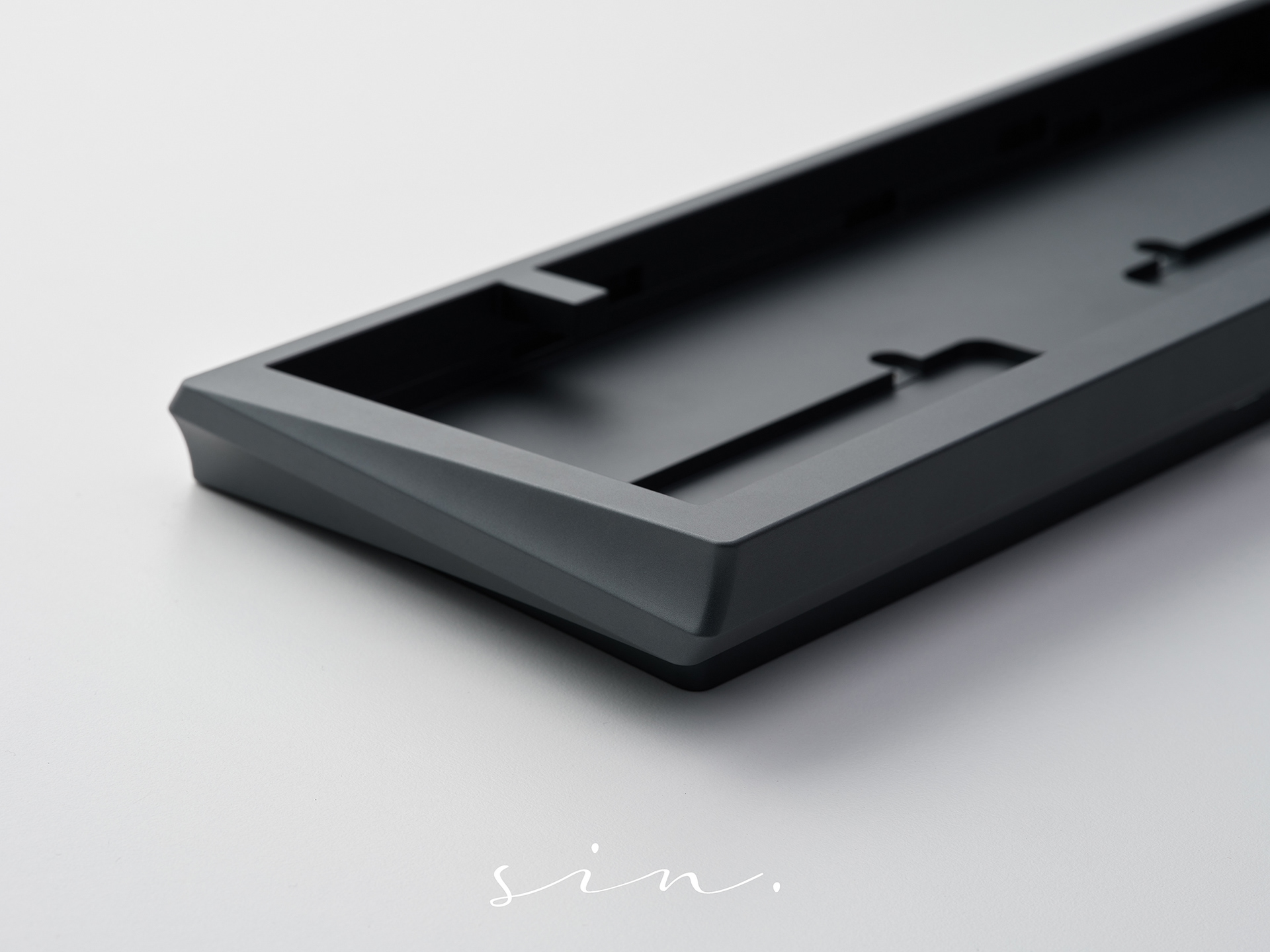

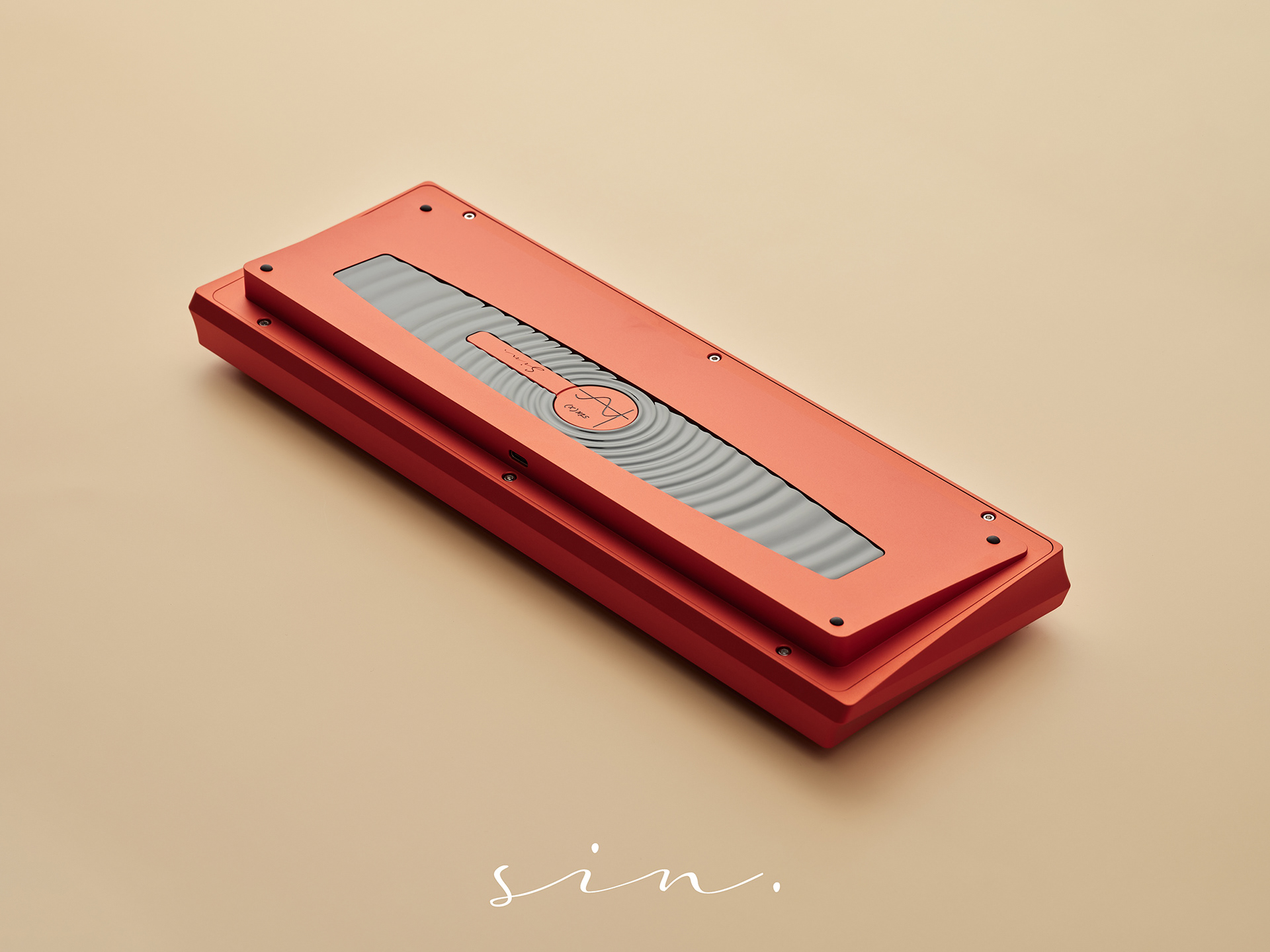

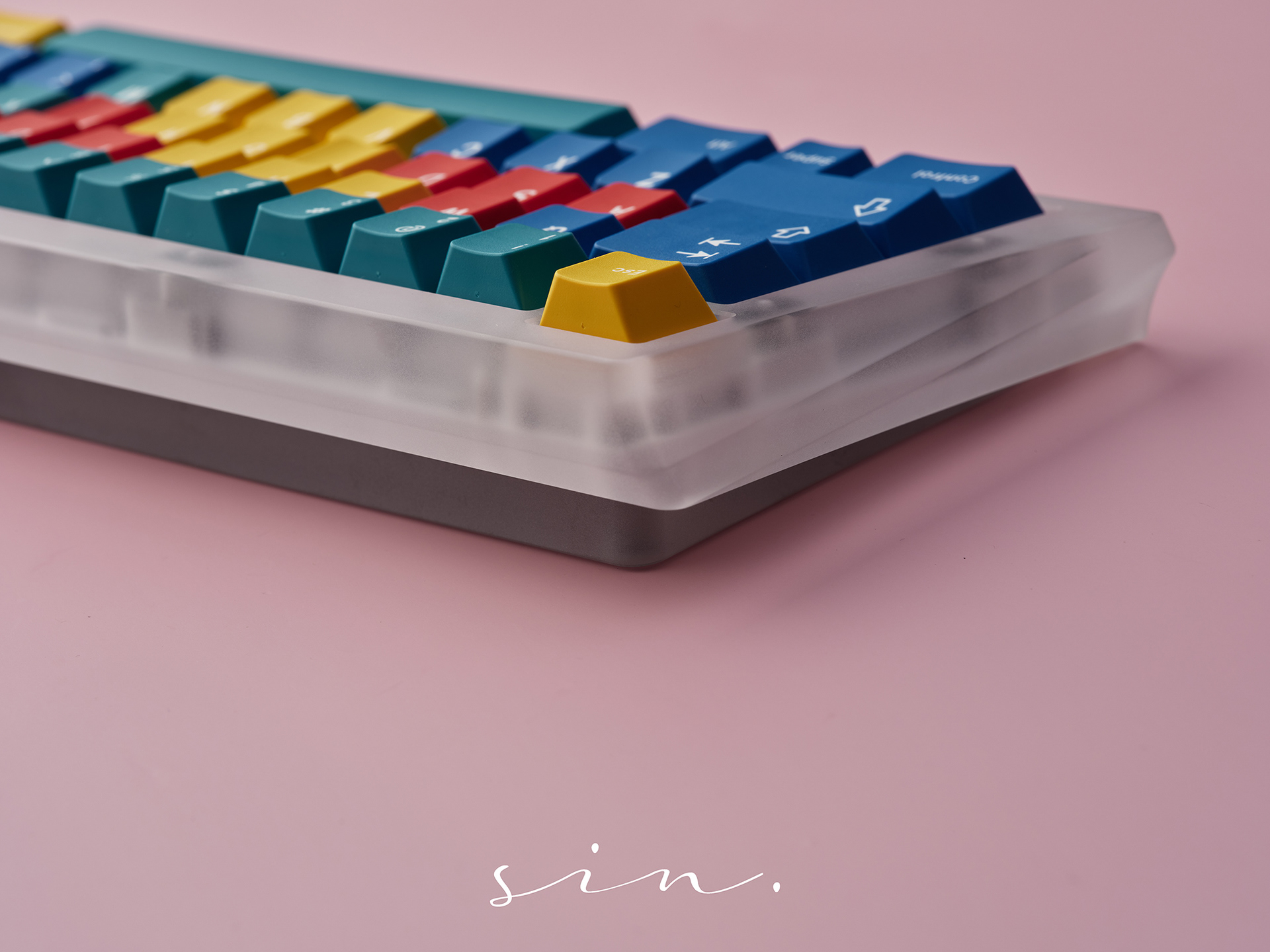

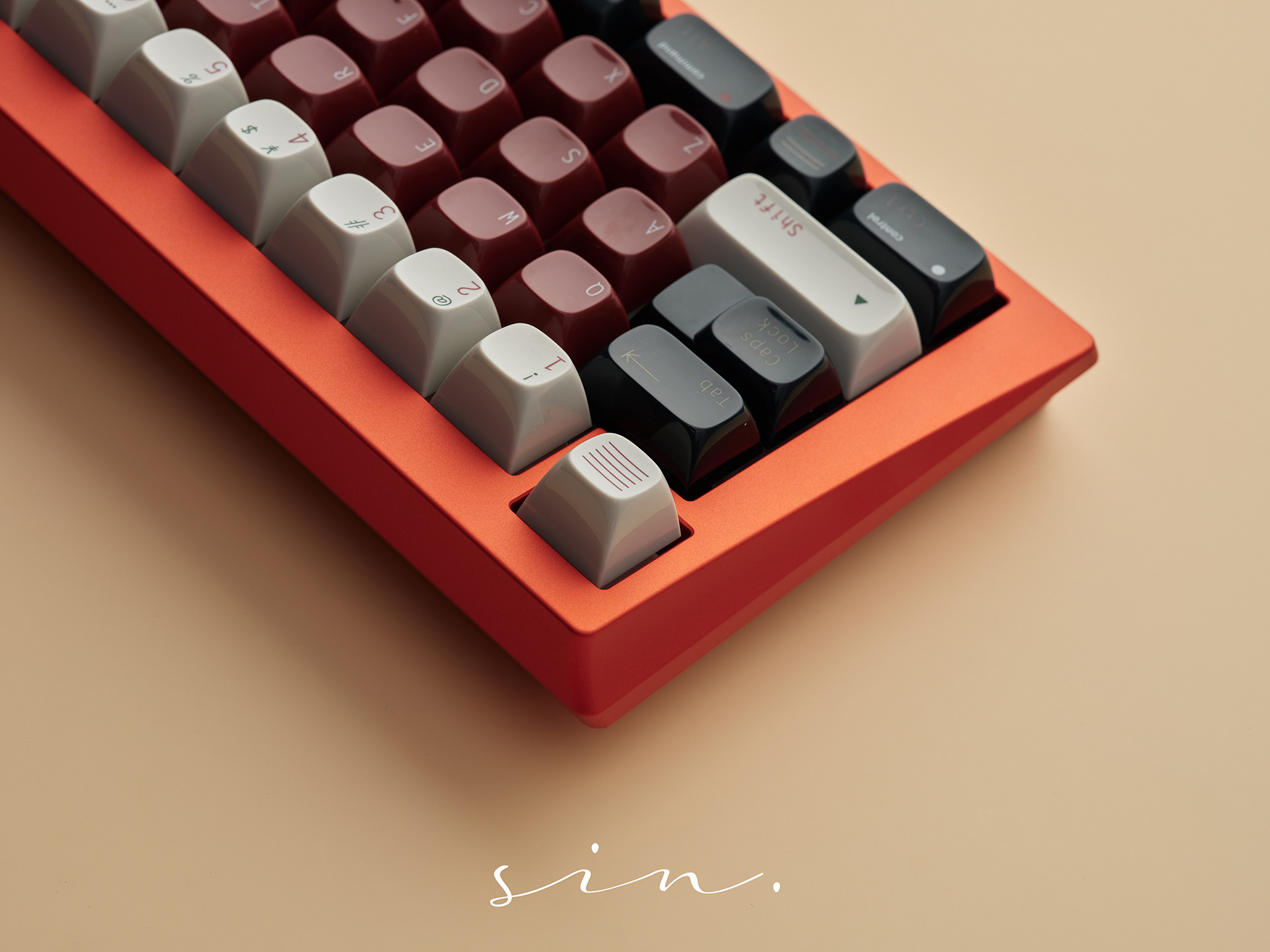

The front is also processed by curved surface CNC, and the side case are designed with grooves that gradually narrow from the top to the bottom.
It is convenient for users to move the sin65keyboard kit,at the same time, it also gives a warm home to the little finger who has nowhere to rest in his spare time. Separates the ESC key from the main key area, effectively reducing the risk of accidental touch.

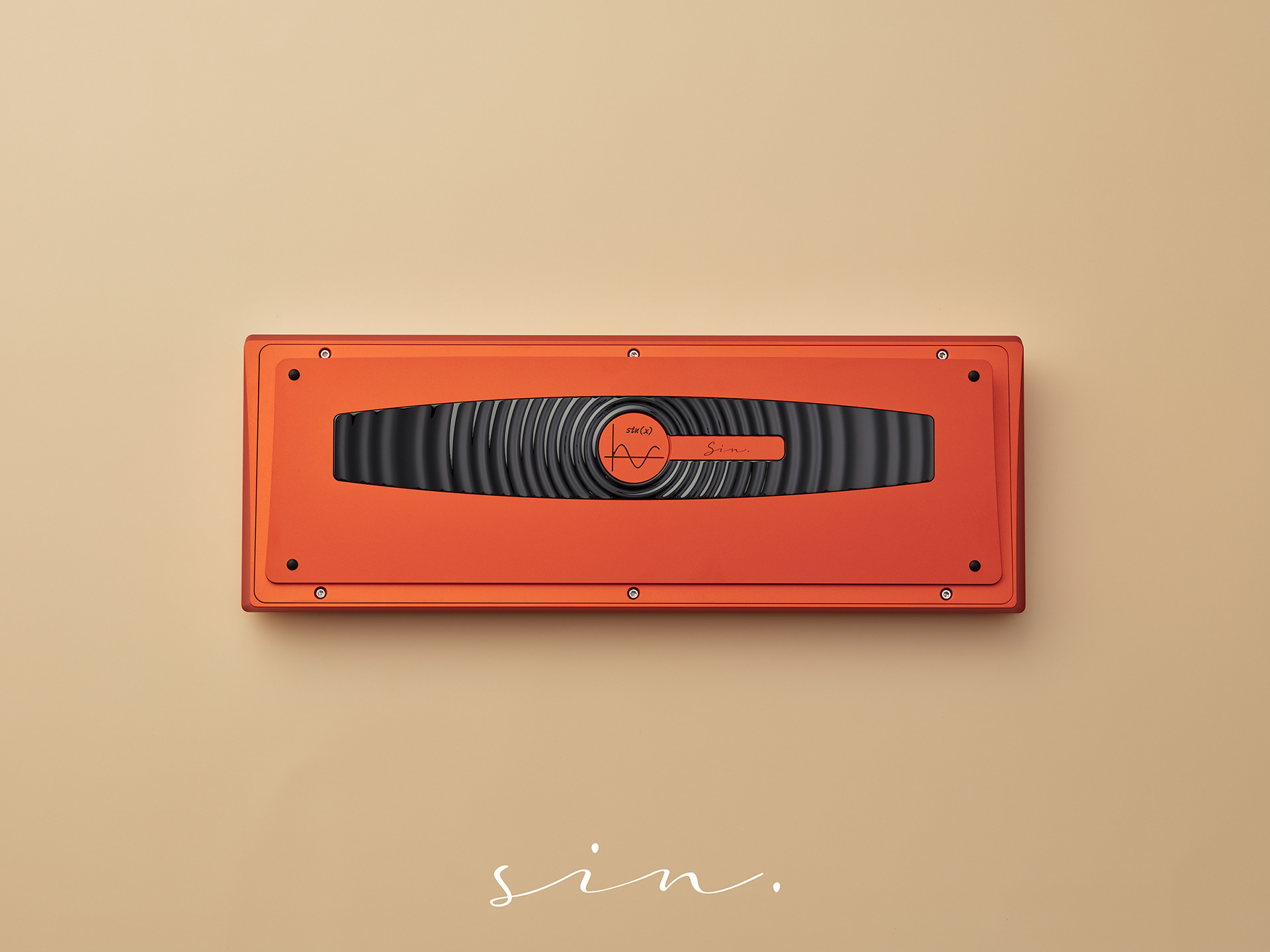

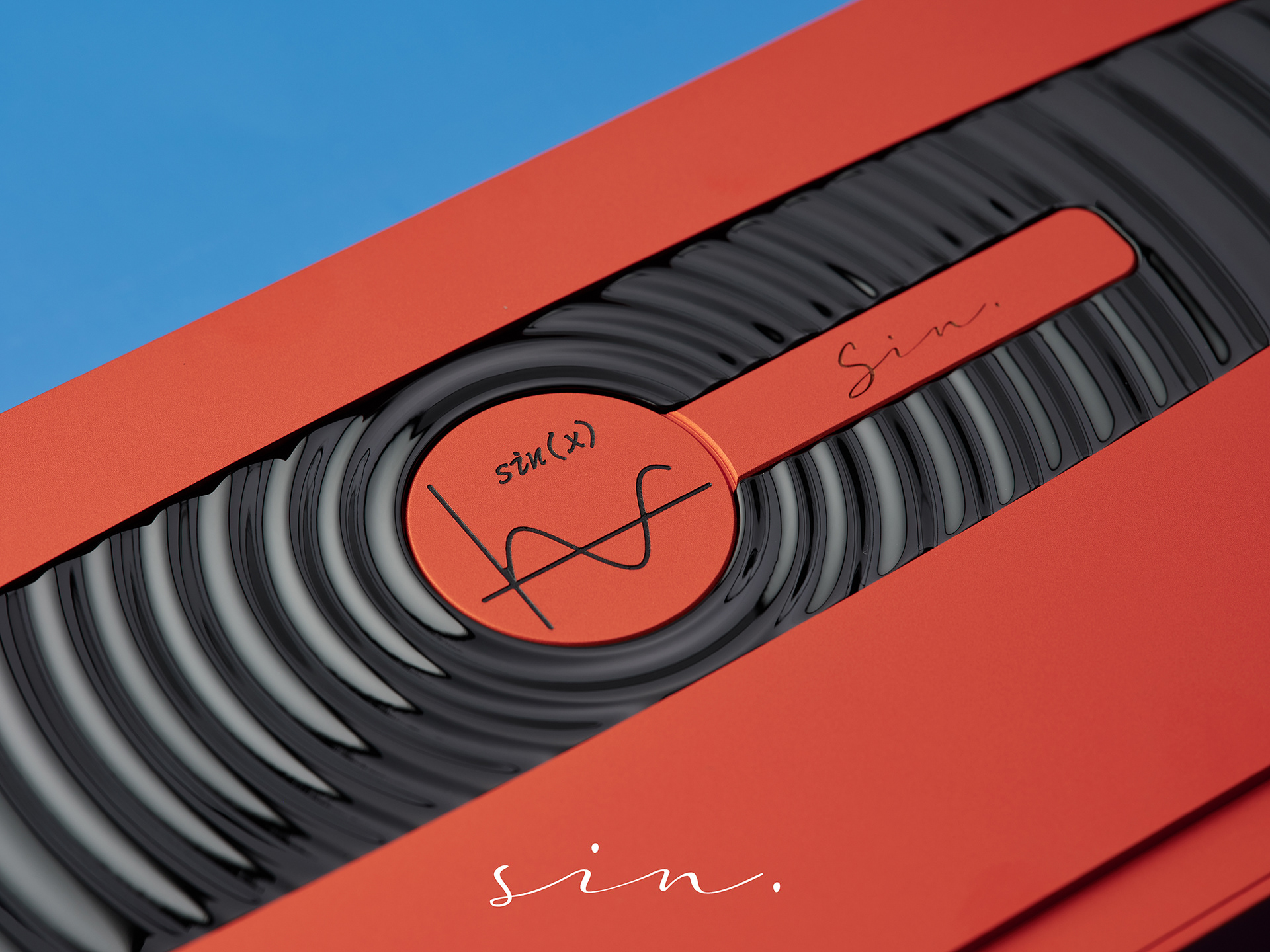

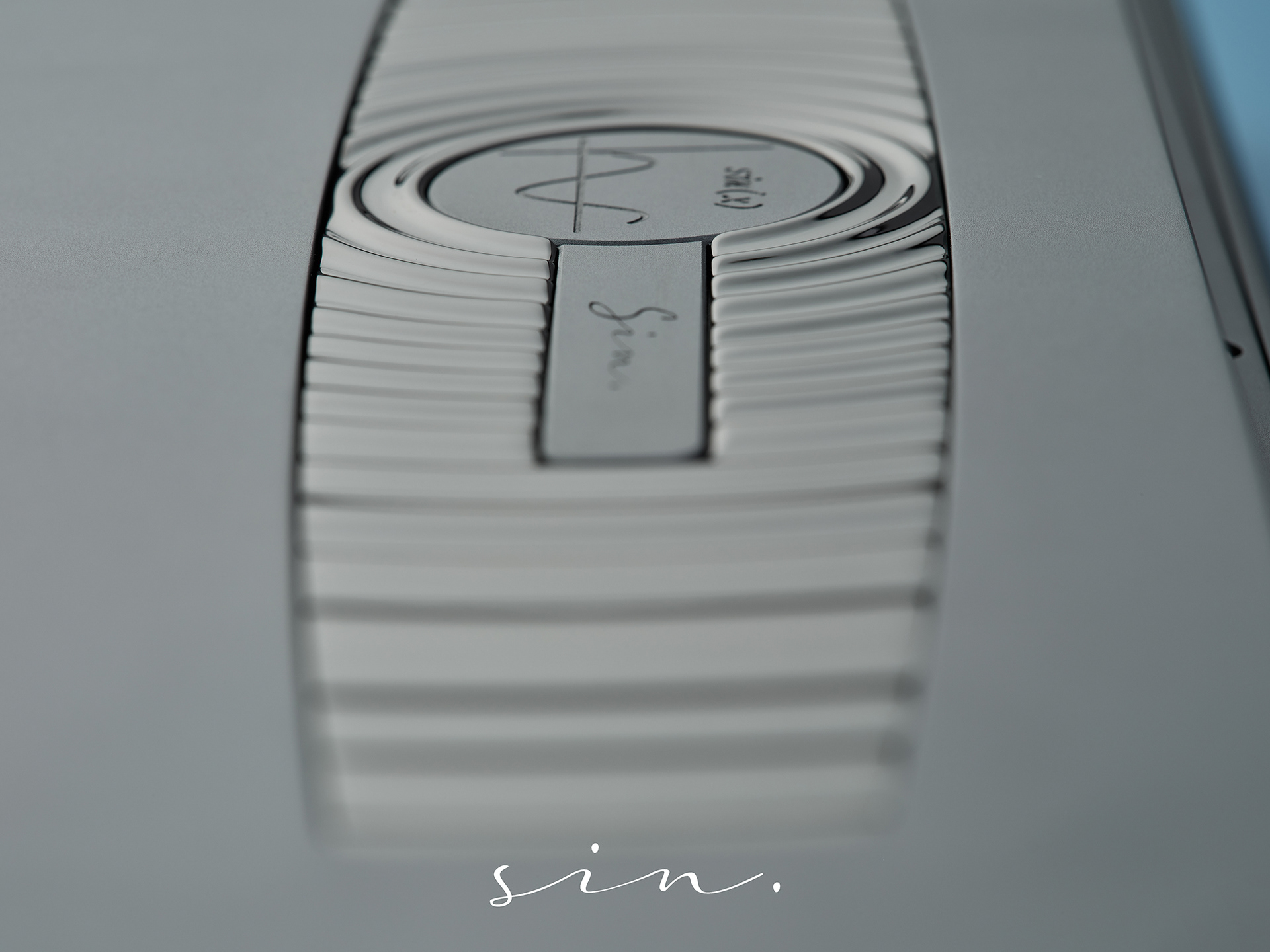

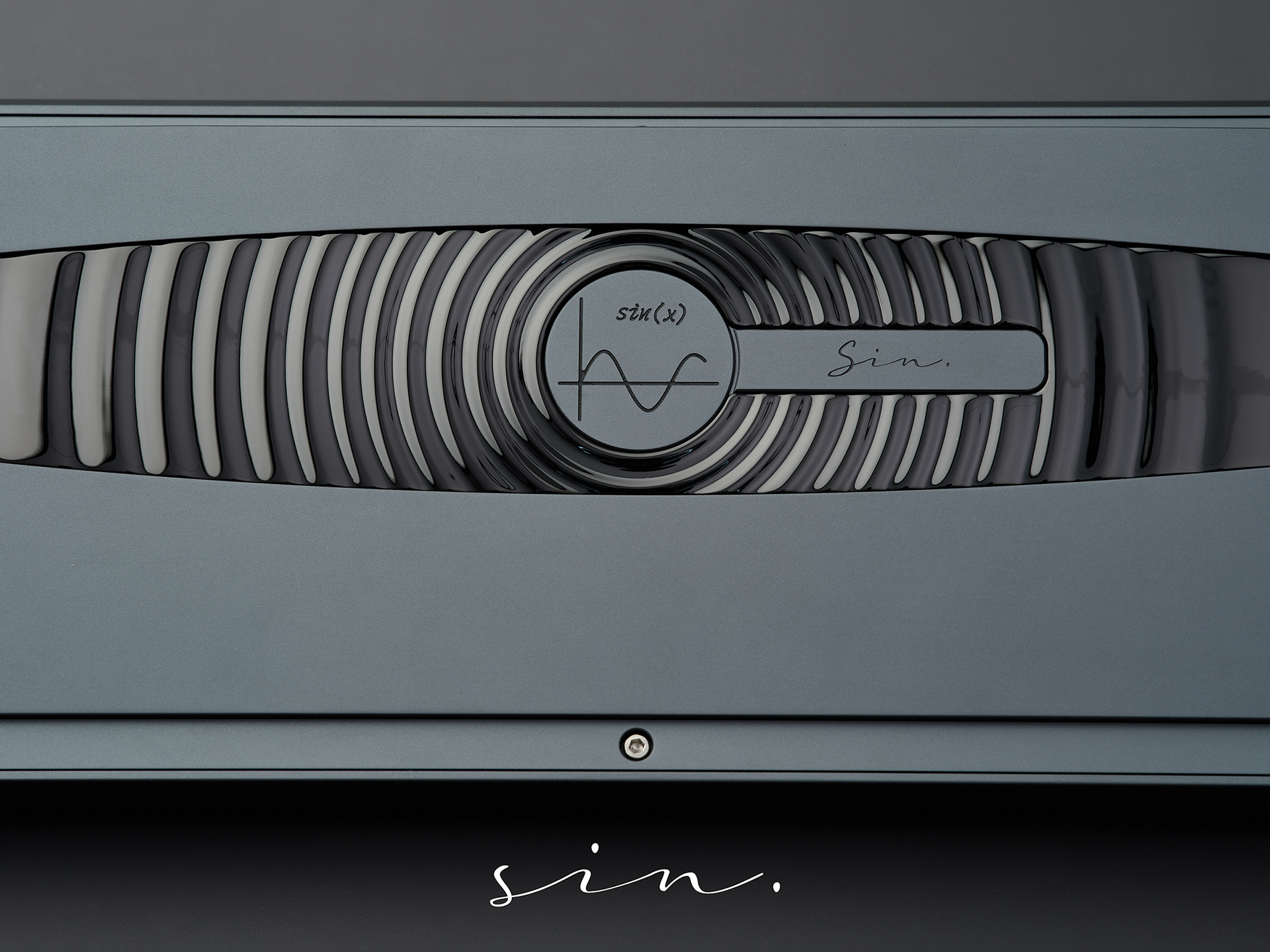

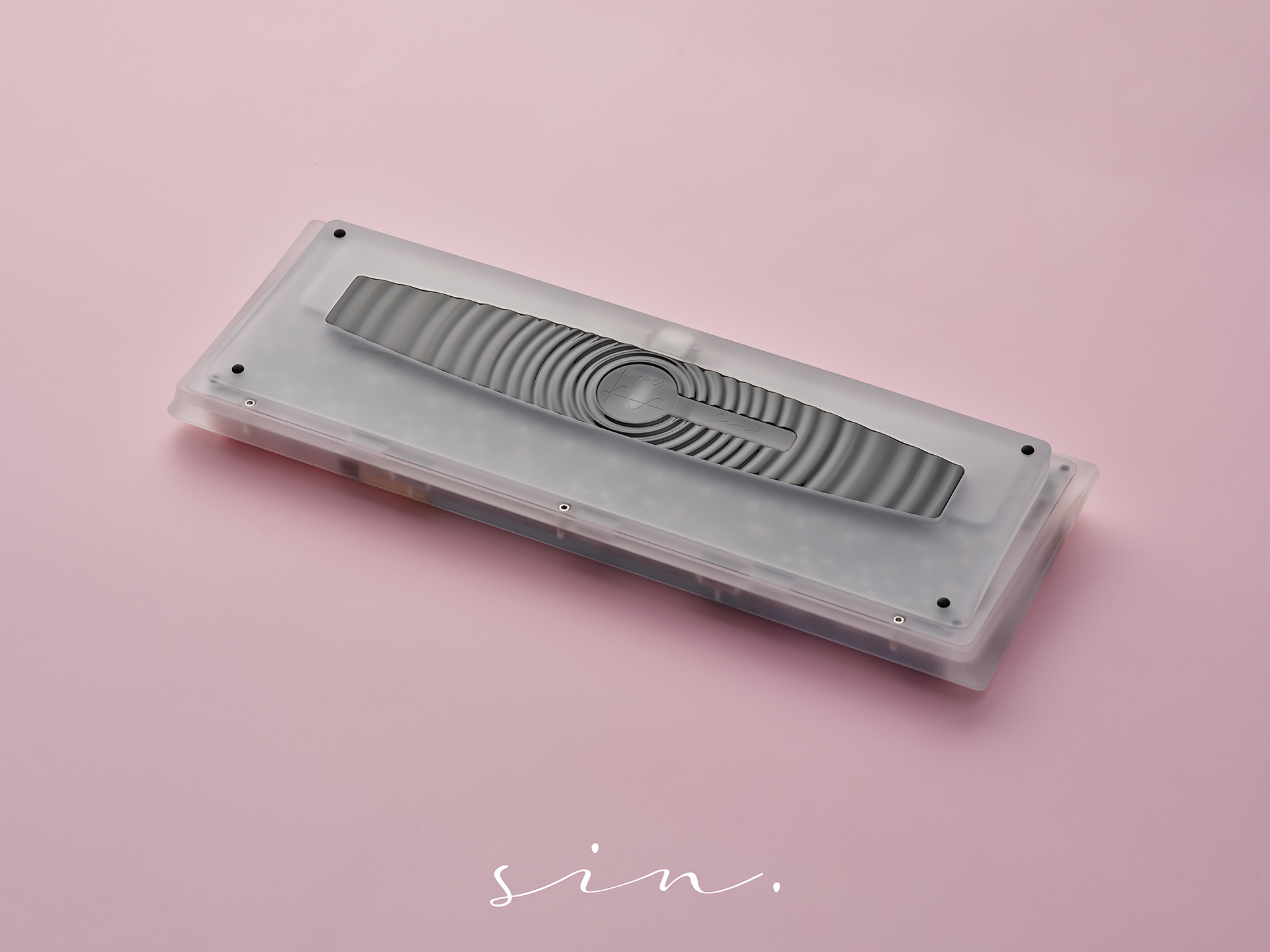

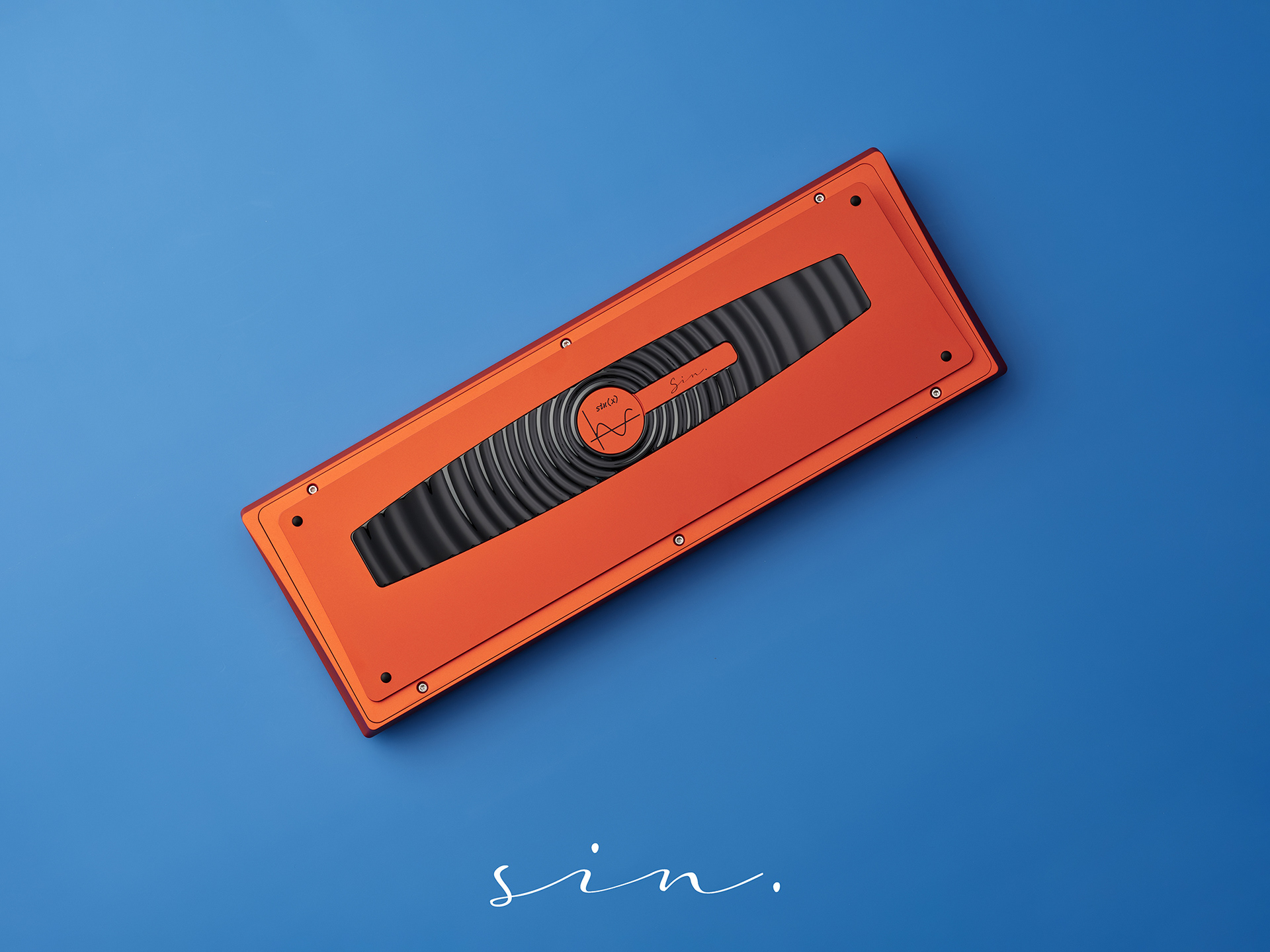

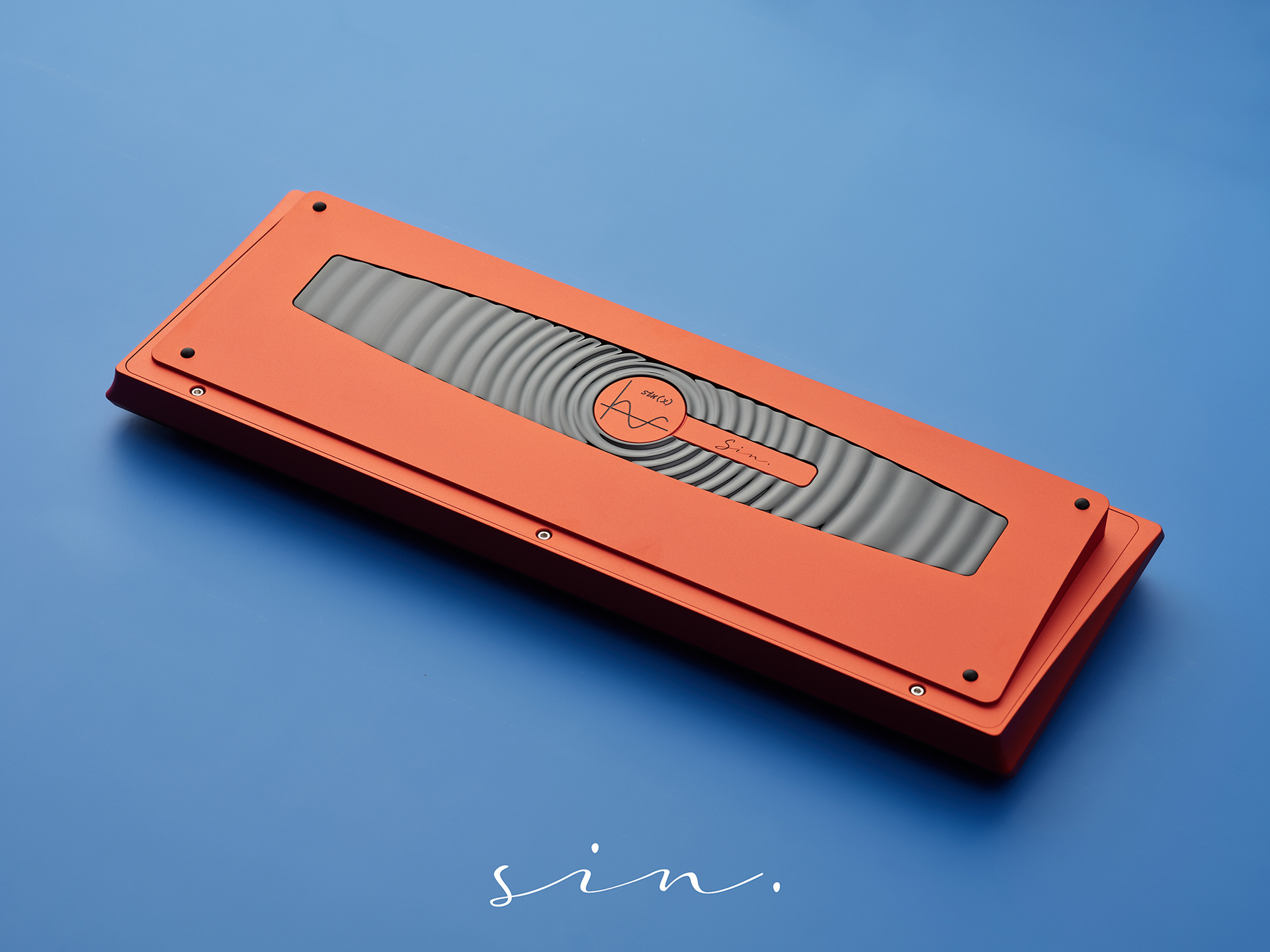

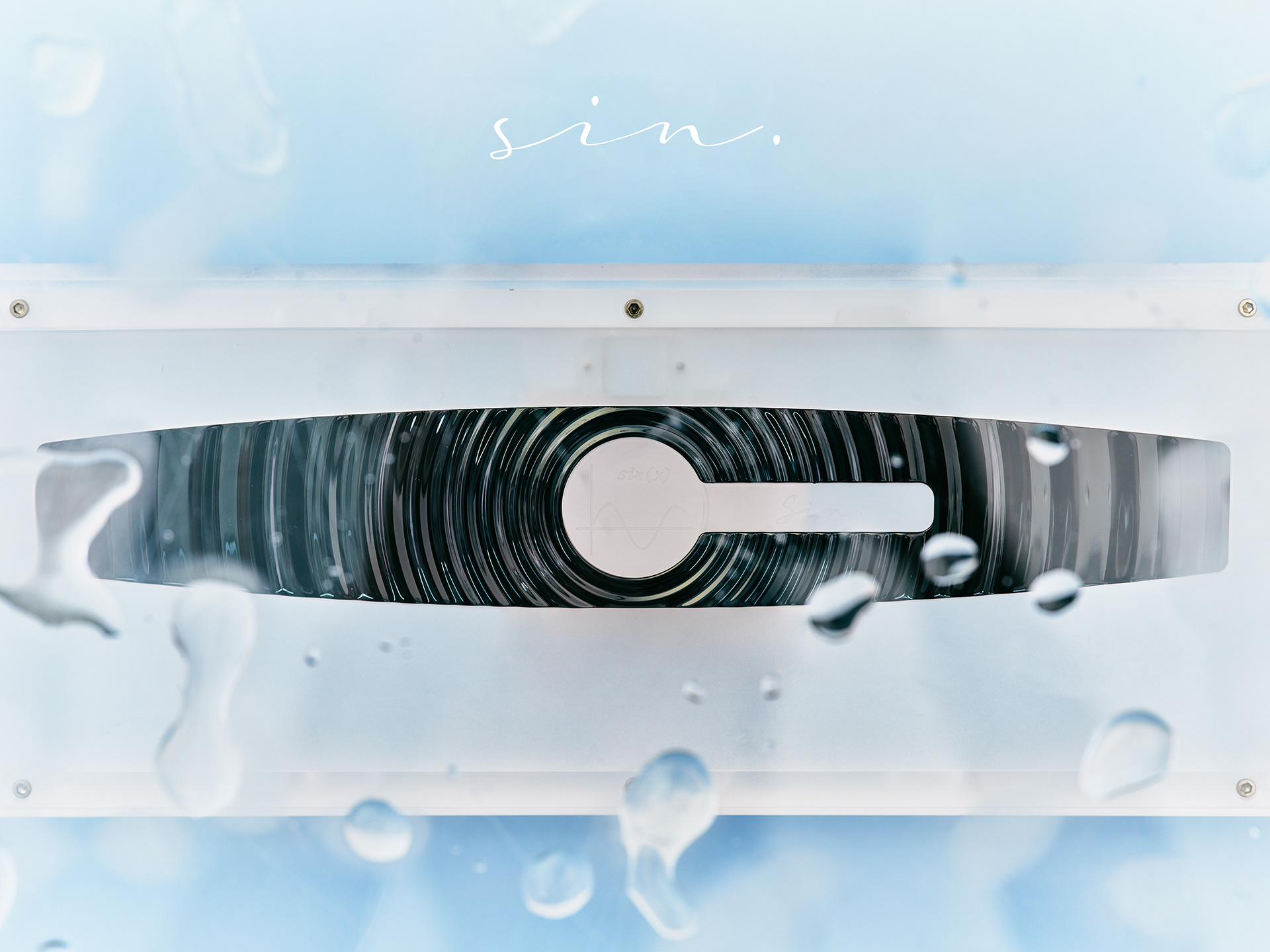

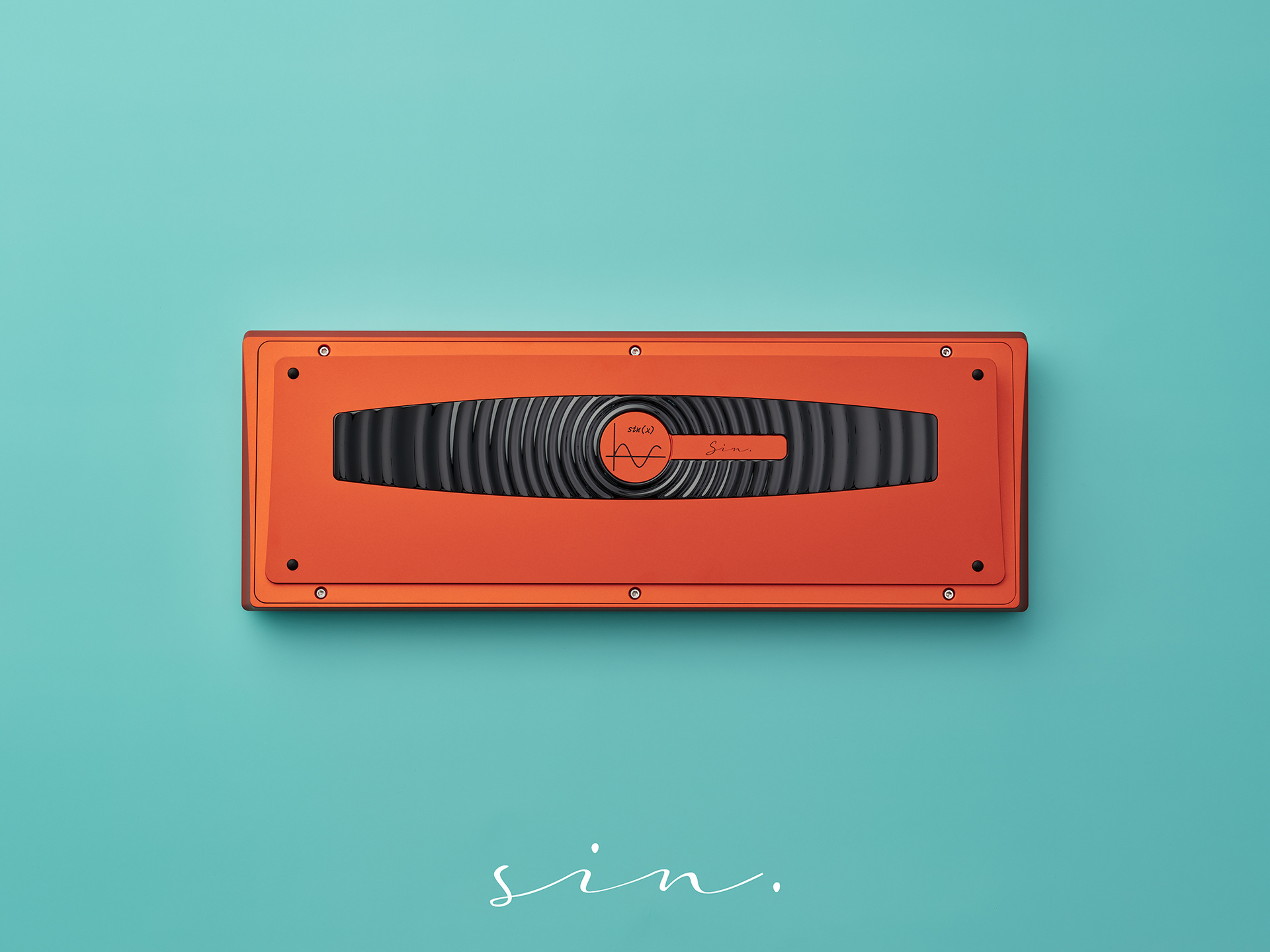

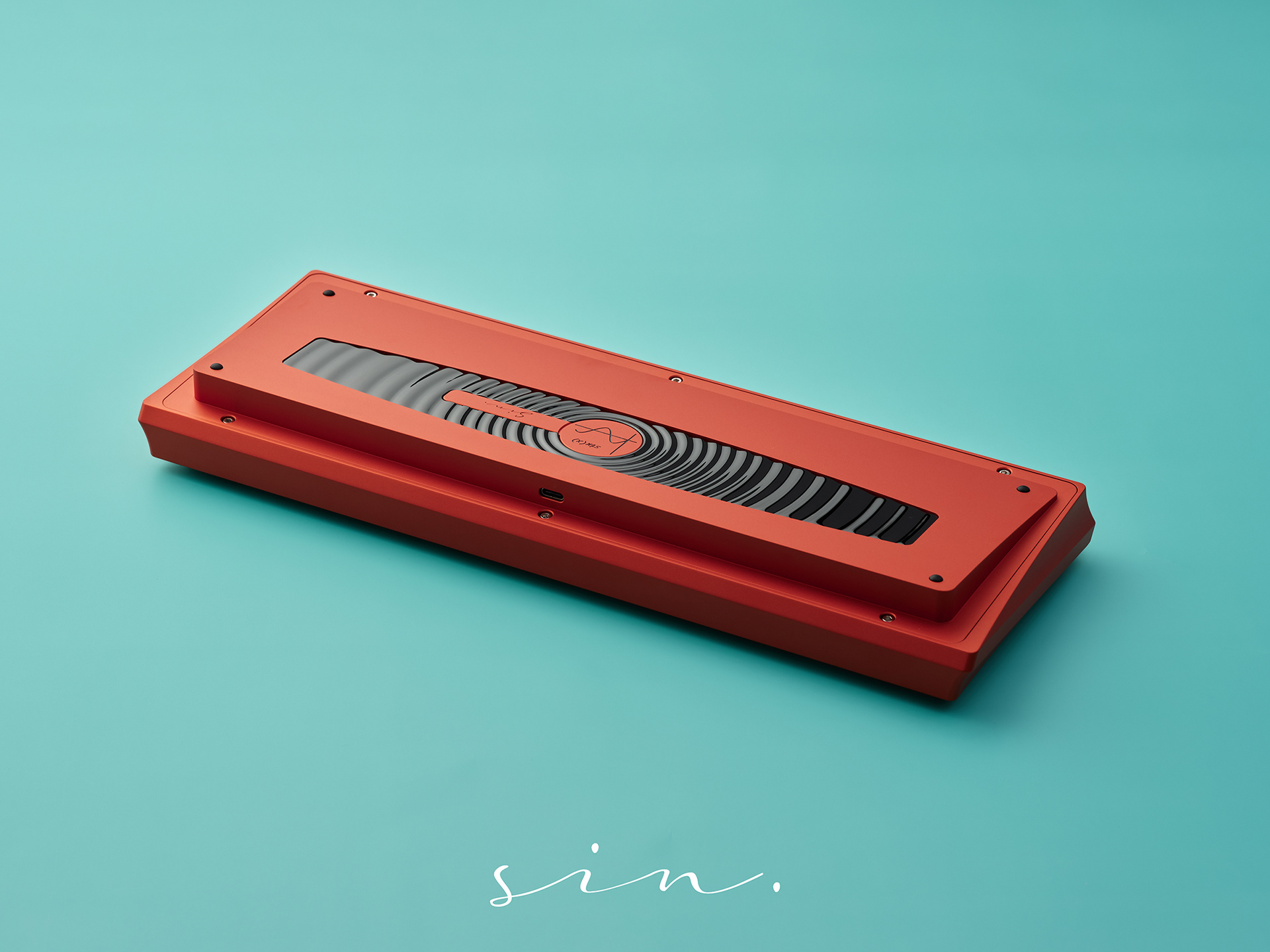

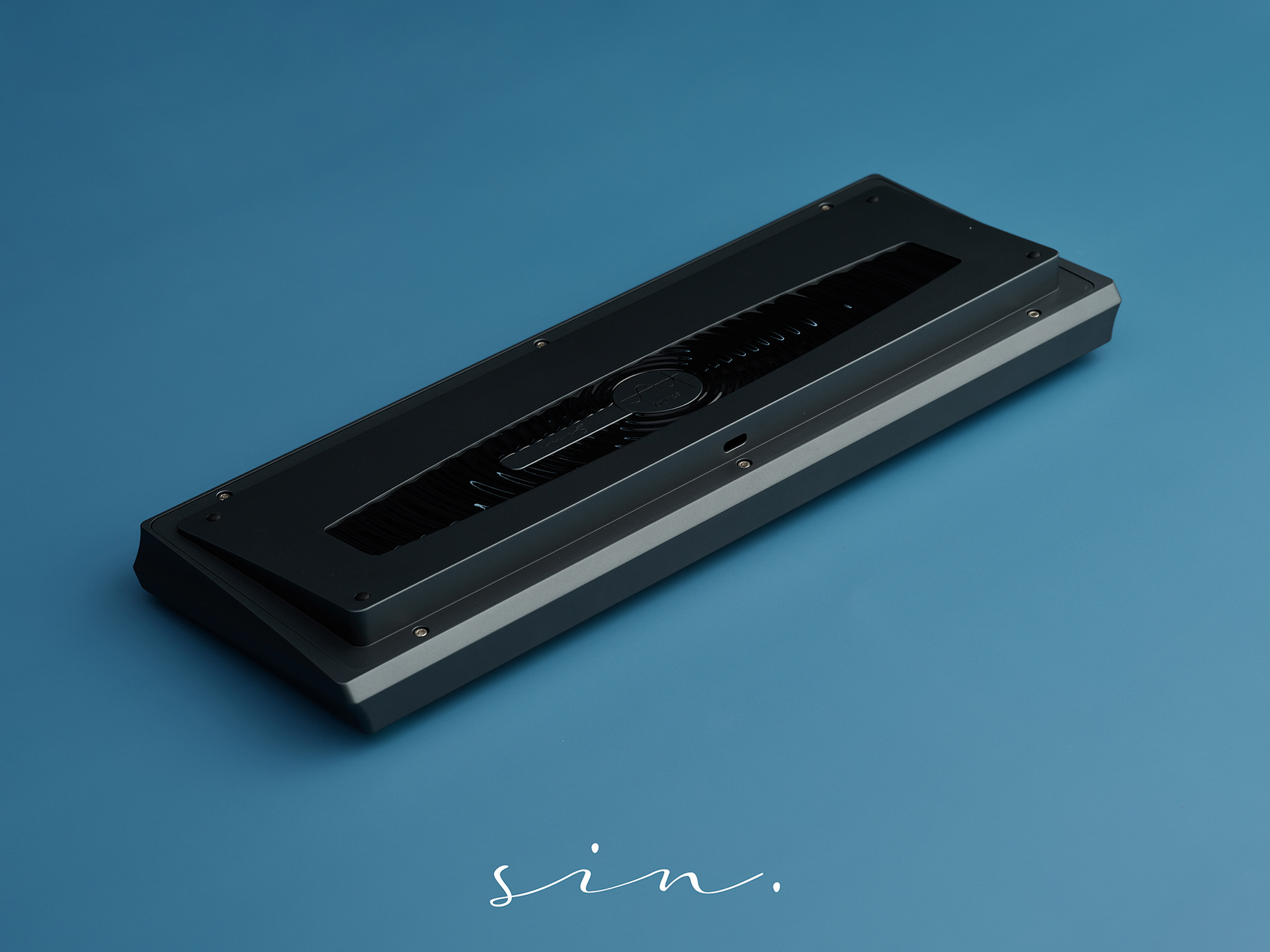

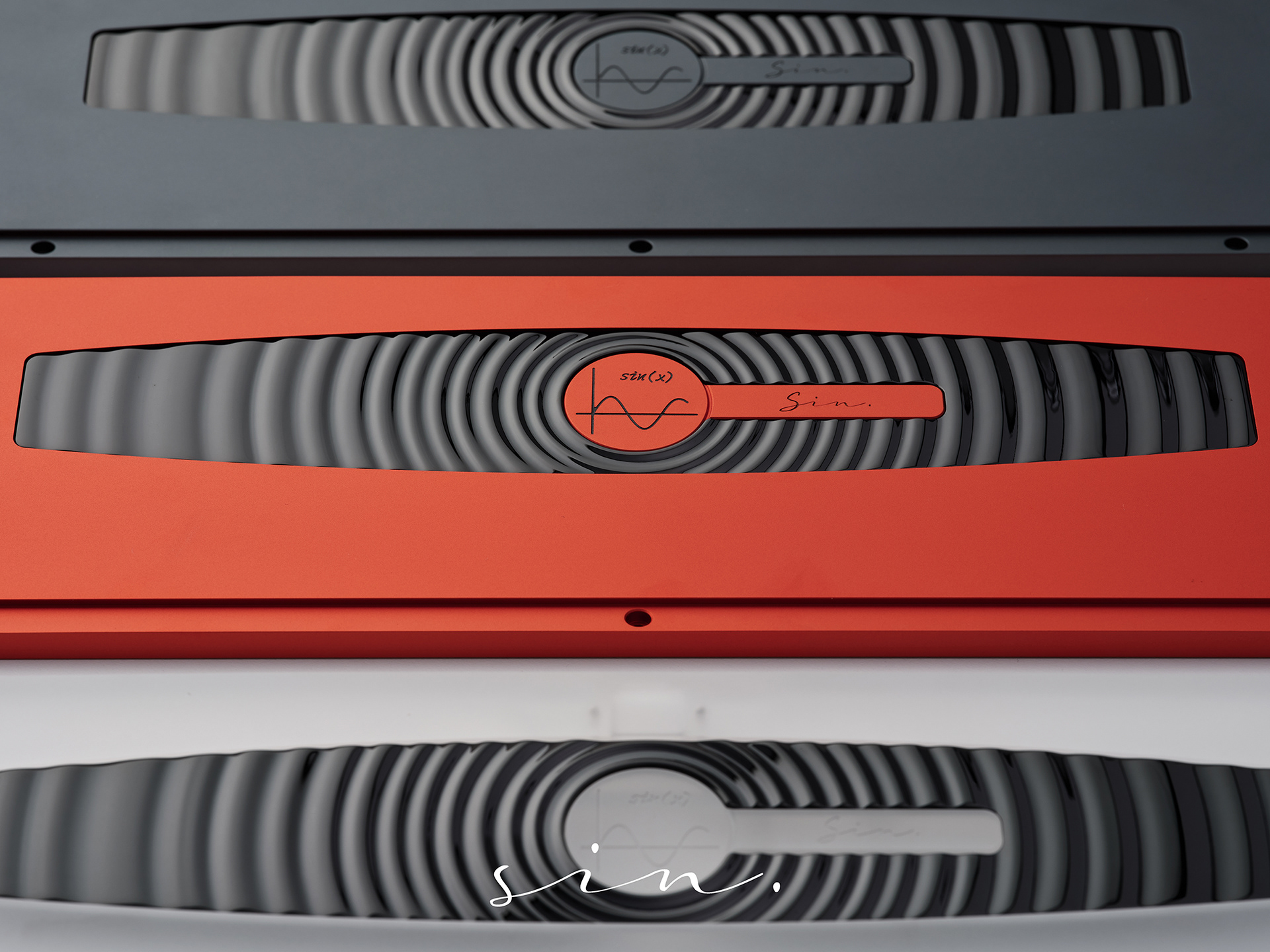

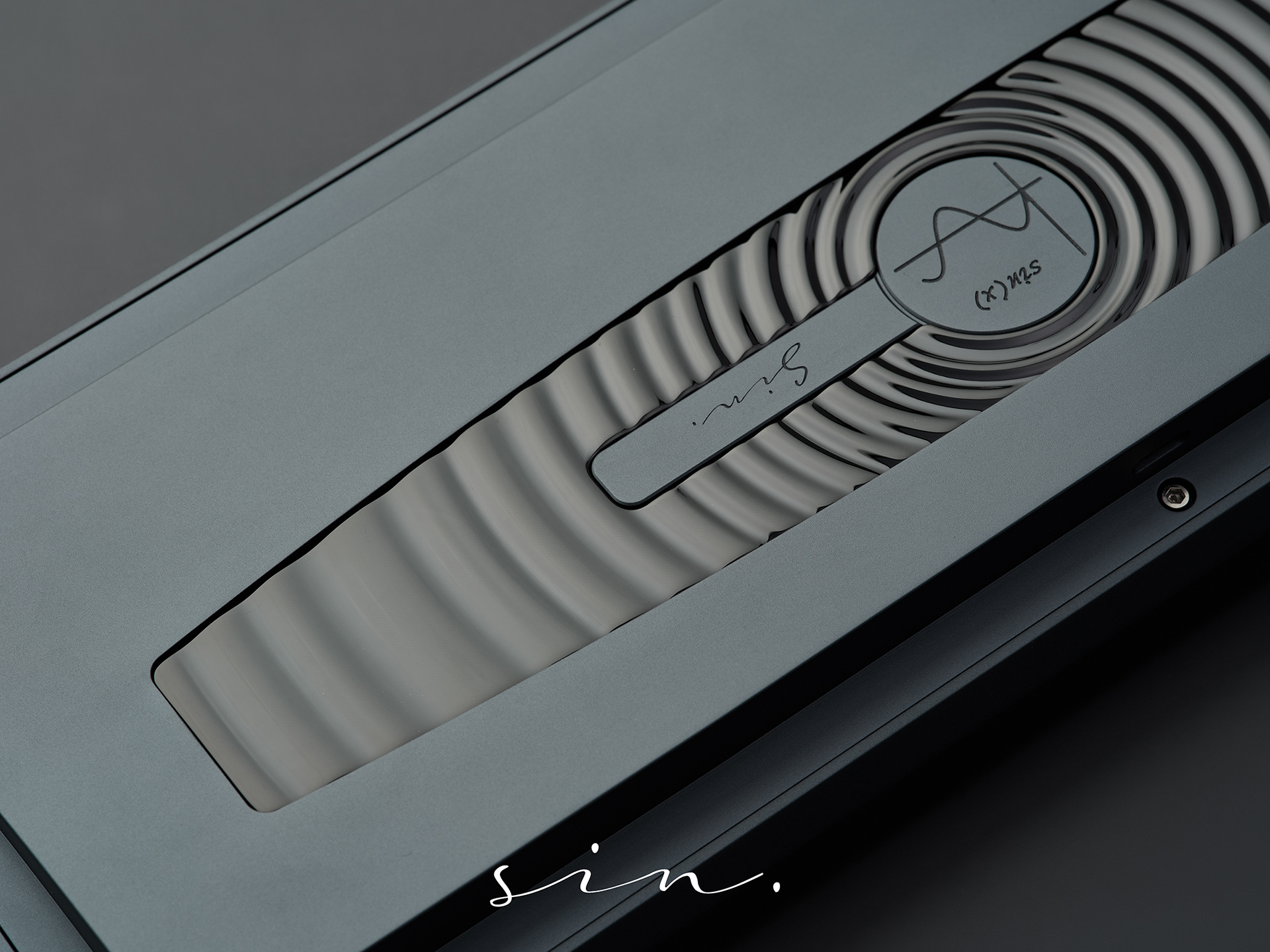

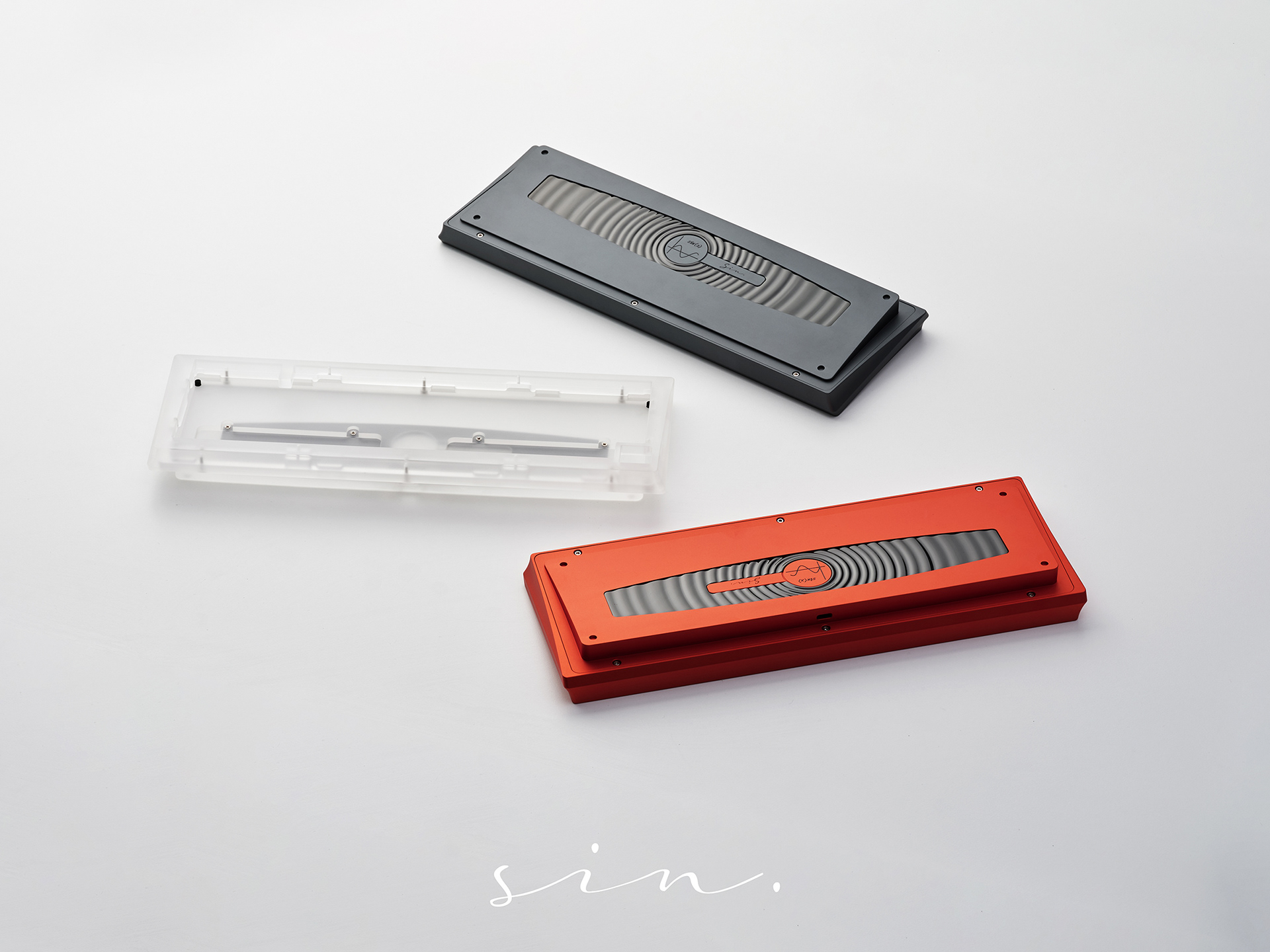

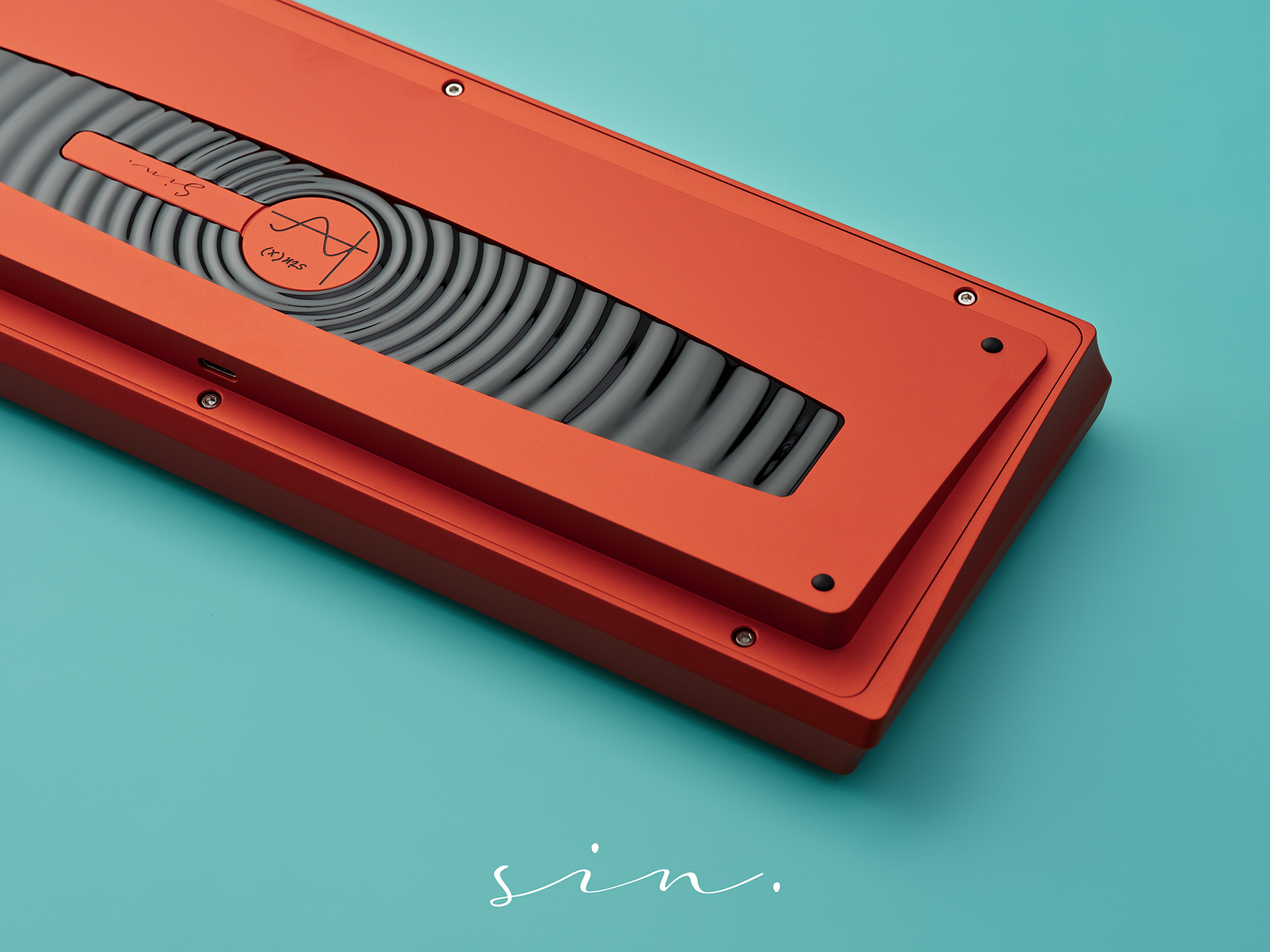

Stainless Steel PVD Weight

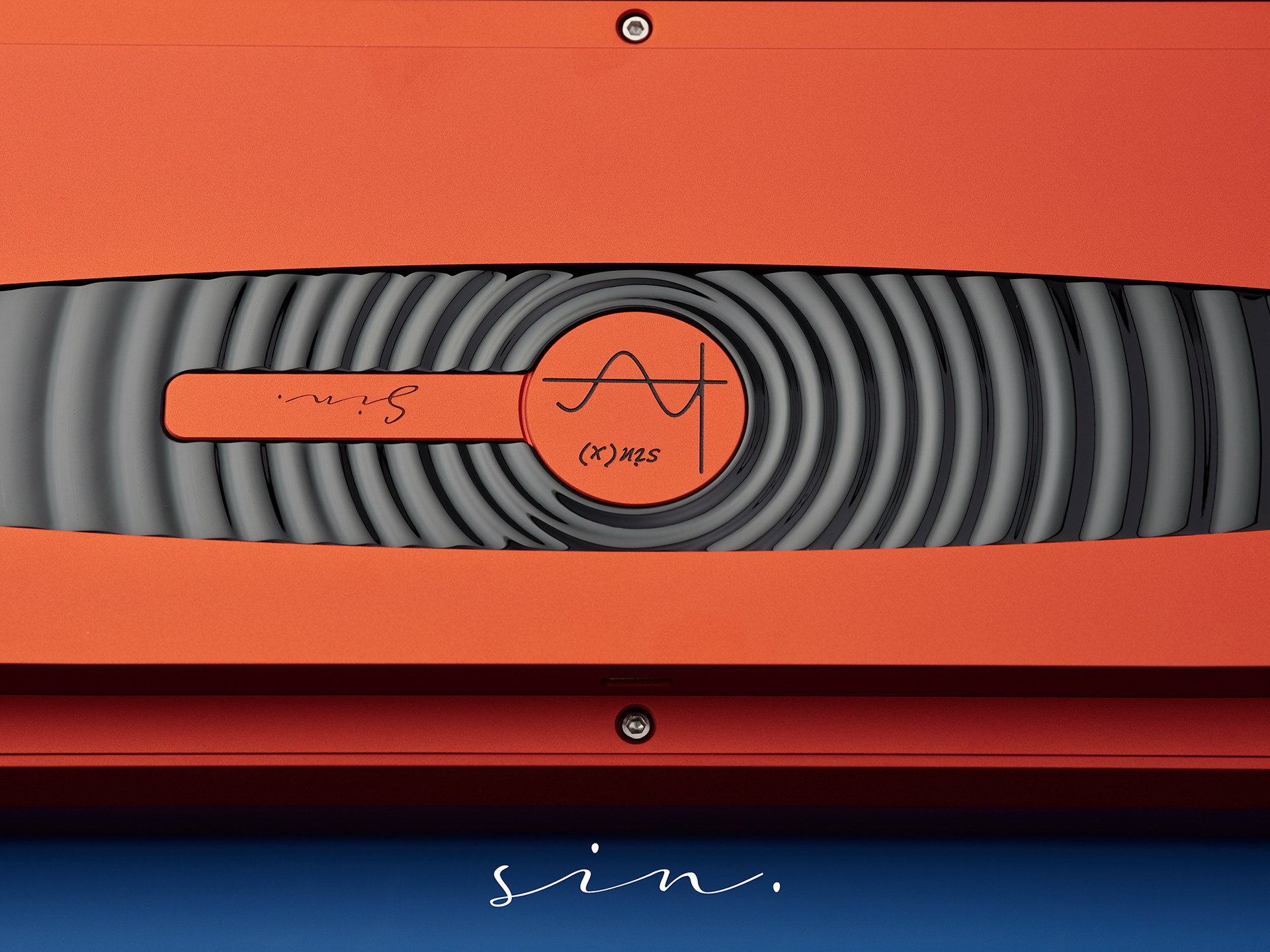

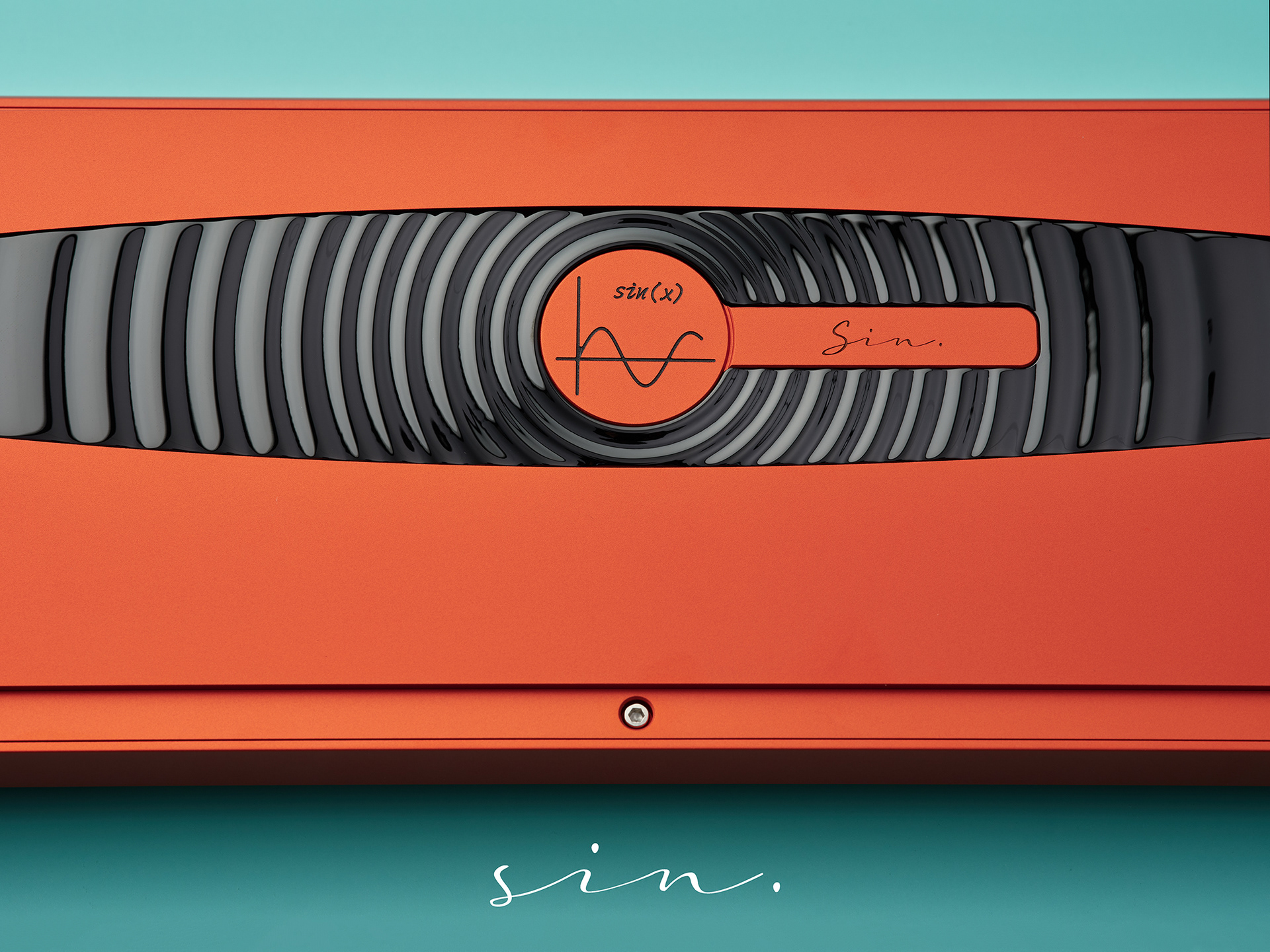

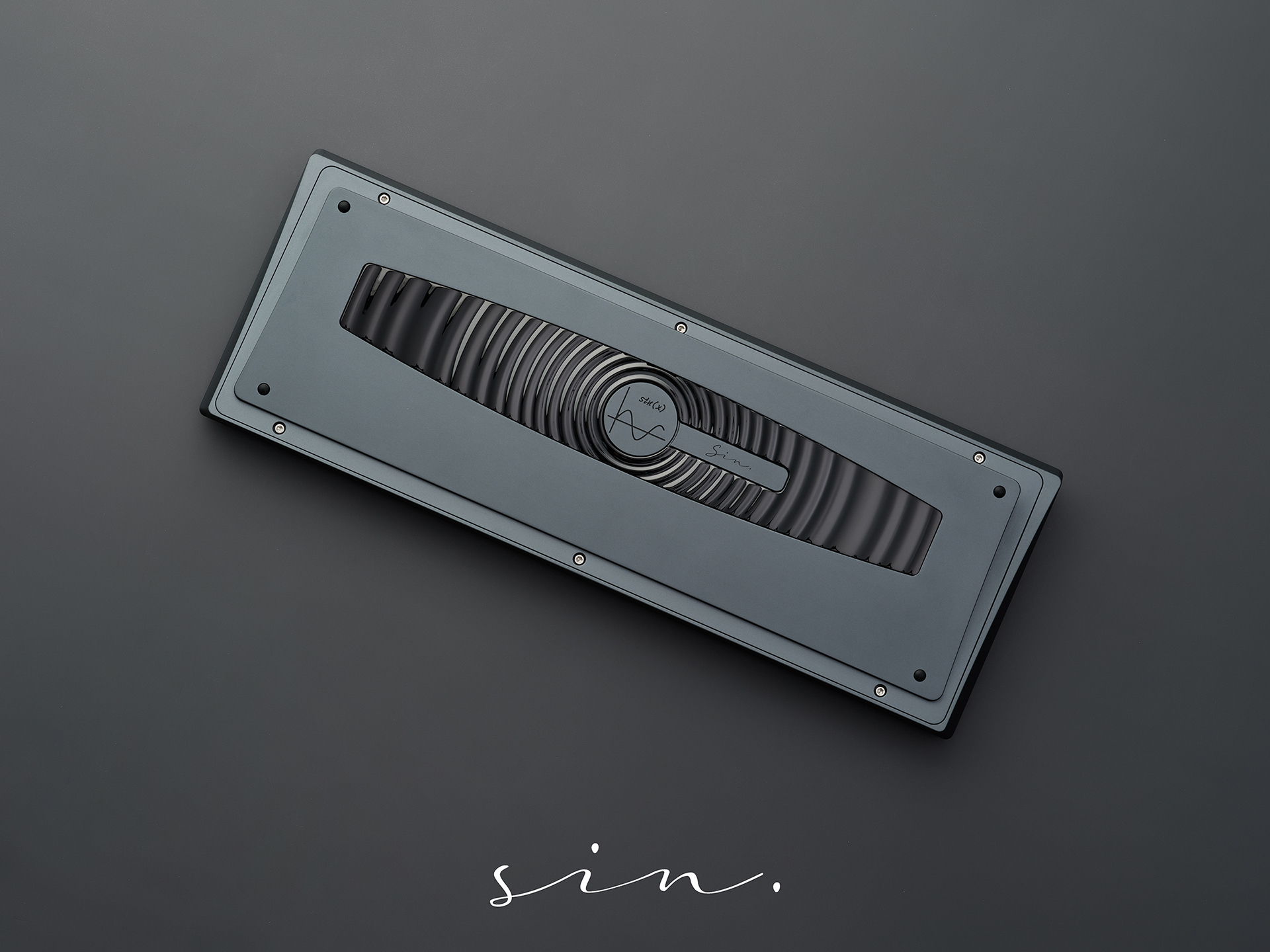

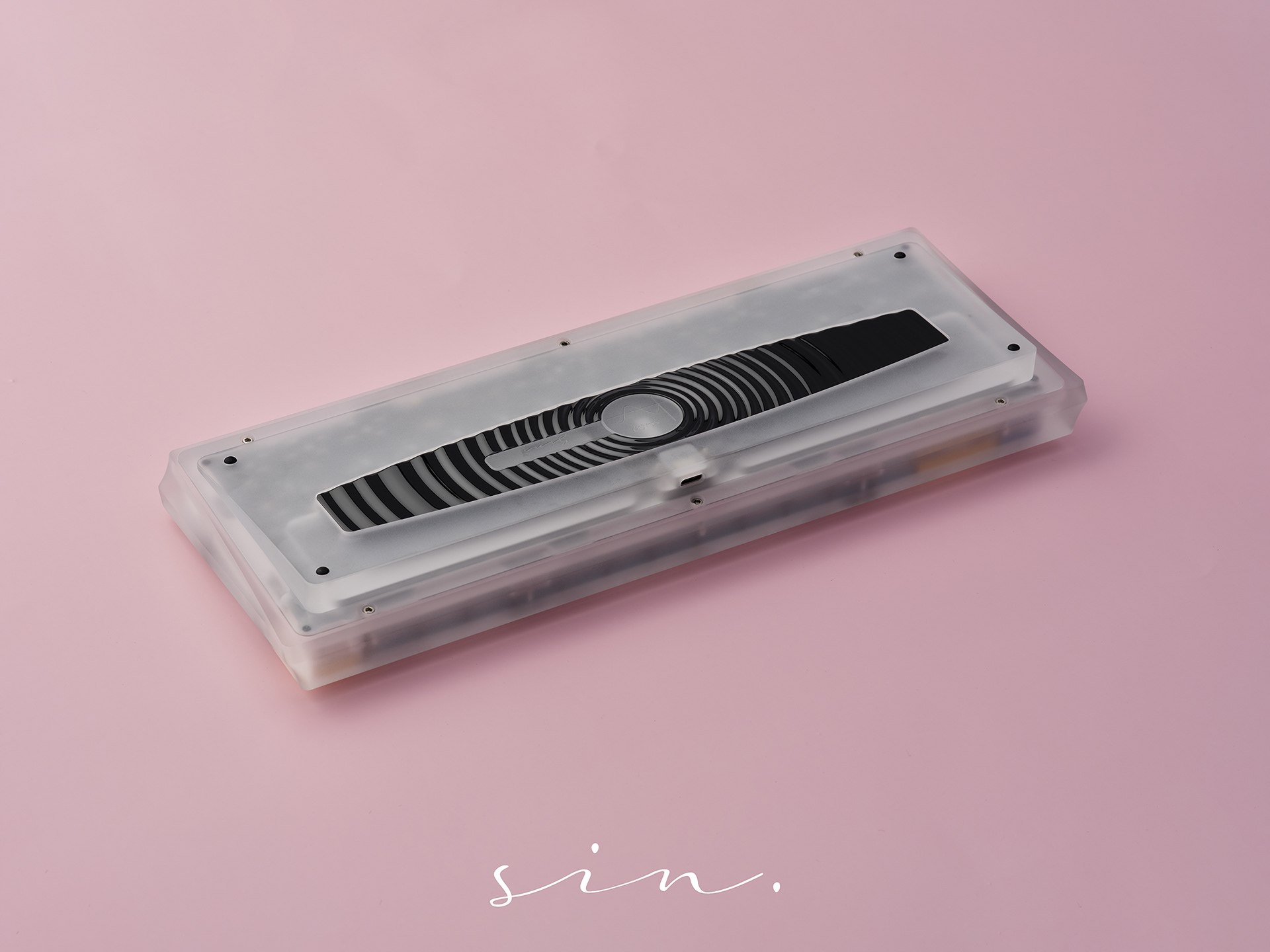

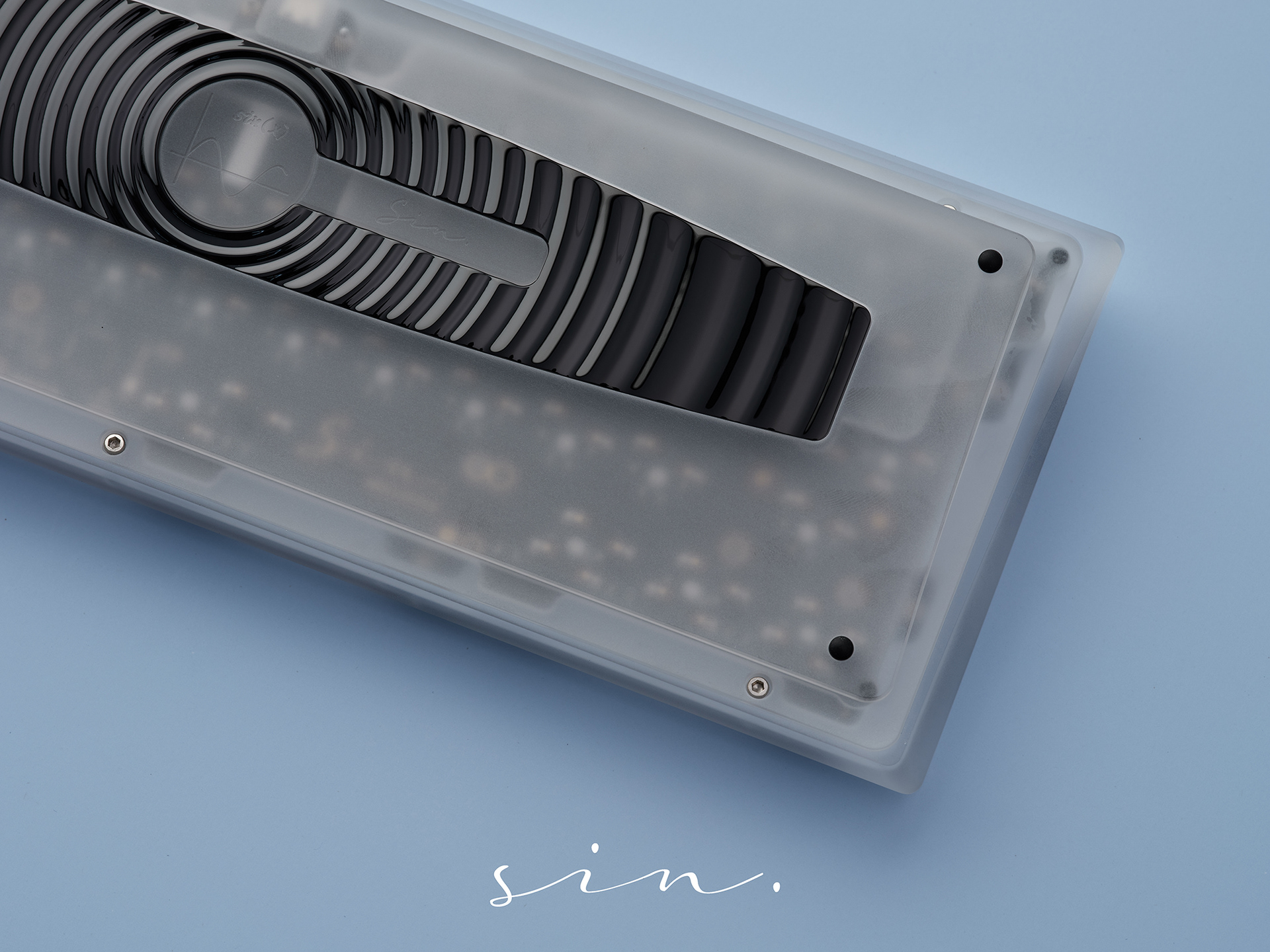

Besides, the weight design of the bottom case also incorporates the elements of the wavy curve of the sin graph into it. With the center as the origin, there are circles of ripples, which appear one after another on the outer diamond-shaped contrasting weights. The center is sharp and dynamic, and then gradually disappears at the edge.
