QK80 MK2

qwertykeys

Specification

Typing angle: 7 degrees

Front height: 19mm

Size: 137mm * 362mm

Weight: around 1.8kg before build, 2.2kg after build

Design

Highlights

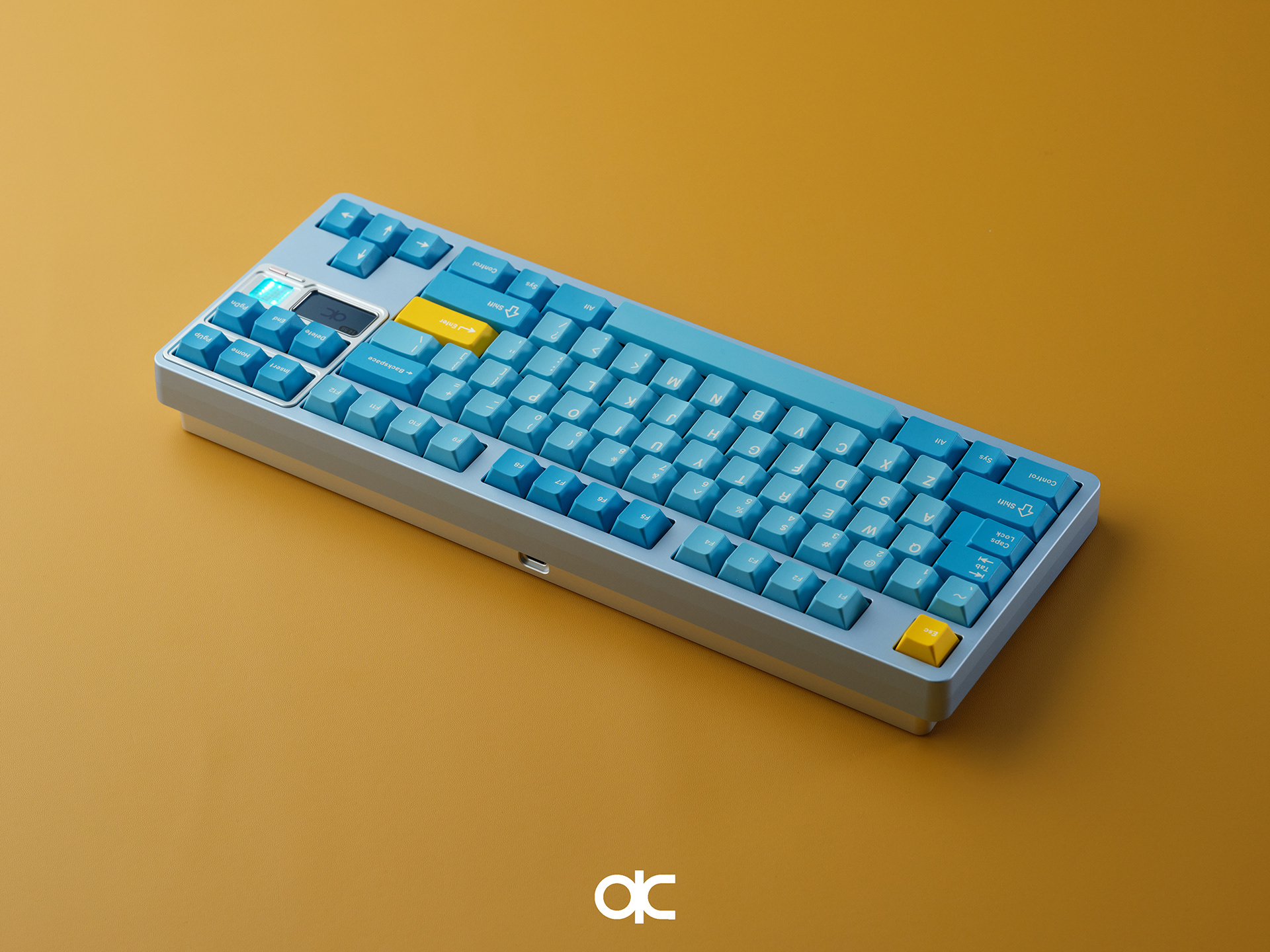

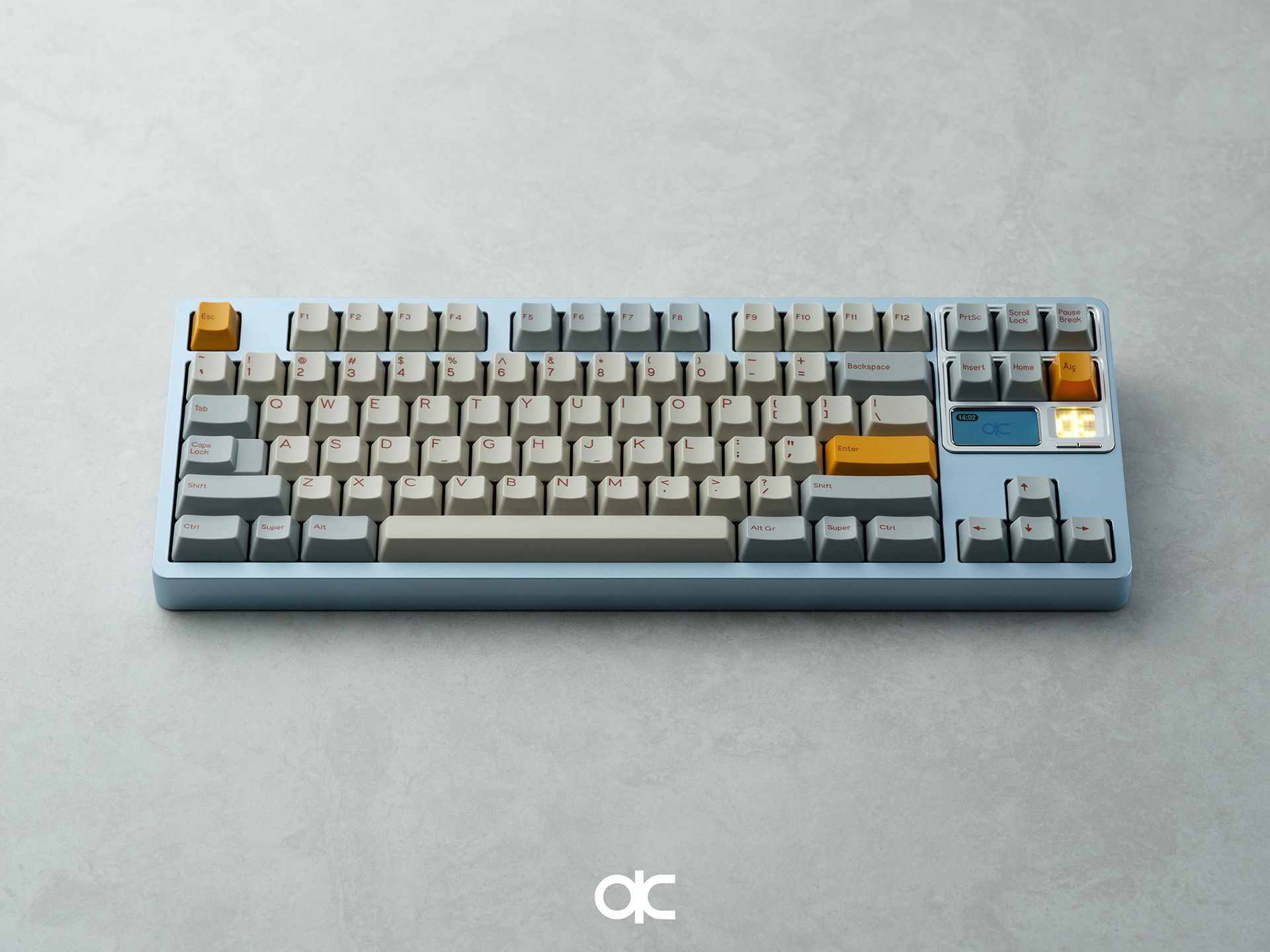

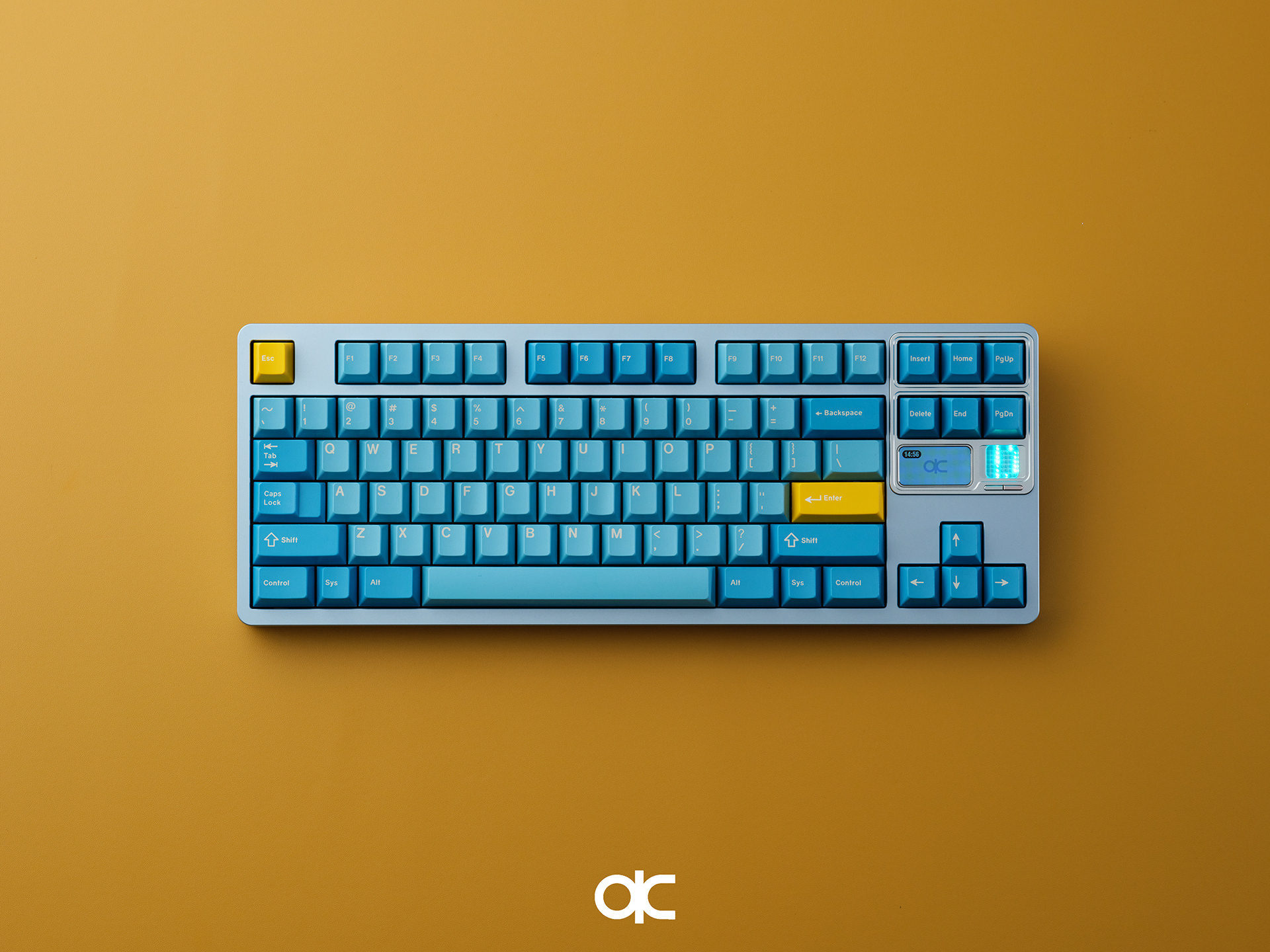

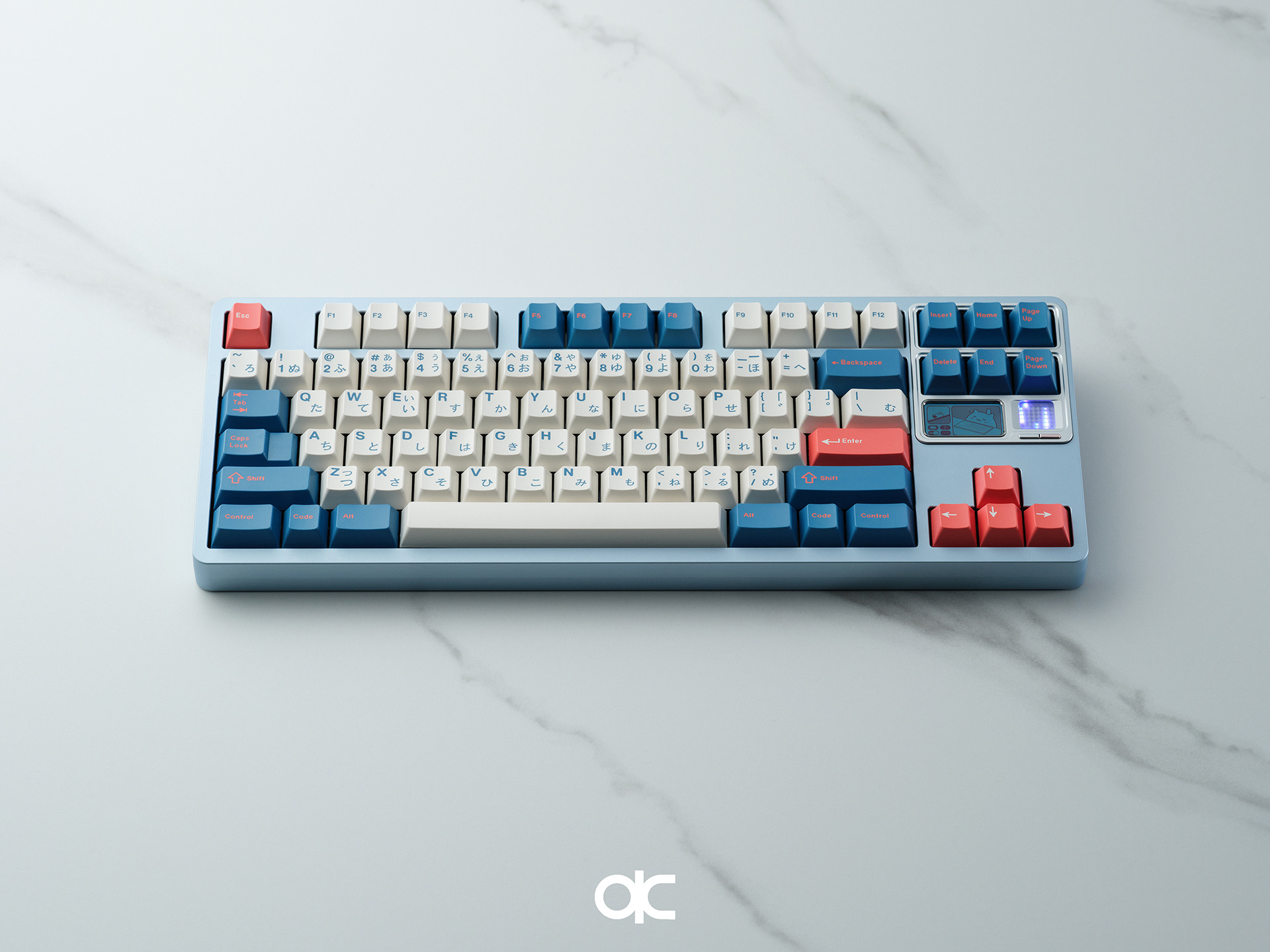

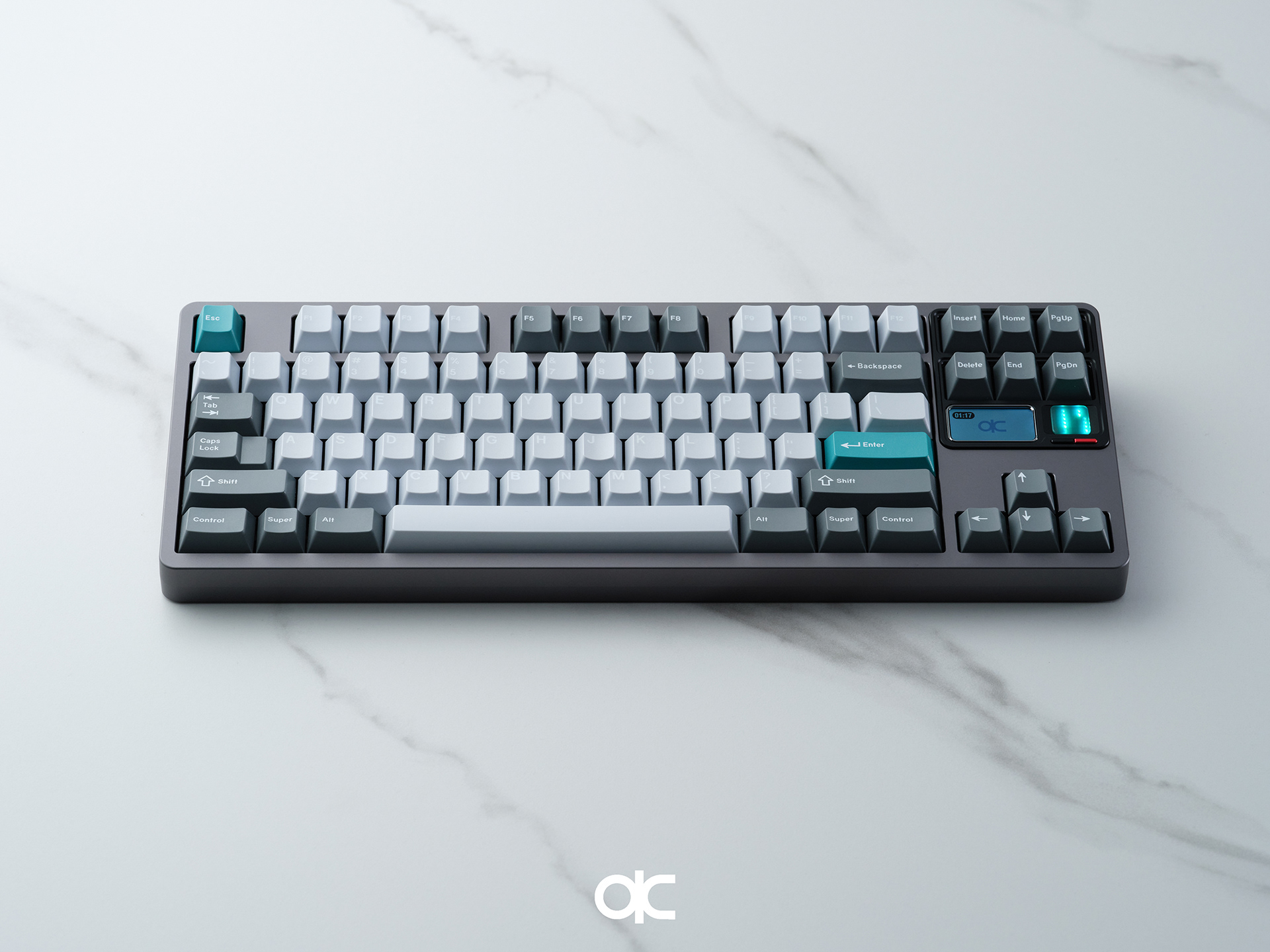

All CNC Aluminum Cases in 9 Meticulously Designed Color Combinations

Spray-coated: Bubble Tea, Retro White, Red*, White*, Pink*, Butter Yellow*

Anodized: Silver, Grey, Ice Blue

Upgraded TFT LCD Display and Dot-Matrix LED Panel with Customizable Functions

Featuring three distinctive built-in themes: Dynamic, Meow, and Code

The built-in Flappy Bird game allows you to take a break in the midst of a busy schedule

Displaying time, date, and connectivity status etc. on a unified dashboard for seamless access

Leaf Spring Mounting System + Refined Acoustic Chamber

A pioneering utilization in the QK series

Delivering a bouncier typing feedback and outstanding acoustic performance

Ball-Catch Mechanism + Magnetic Connectors

Designed for quick and tool-free disassembly, enhancing user convenience and accessibility

Enhanced Core Chip for Optimal Performance

Engineered for reduced latency and better performance

Convenient Tri-mode Connectivity

Support wired, Bluetooth, and 2.4GHz connectivity

Equipped with dual 4000mAh batteries for an extended battery life

Upgraded Acoustic Package with the Introduction of a New PET Layer

Providing more materials for you to create your desired typing sound

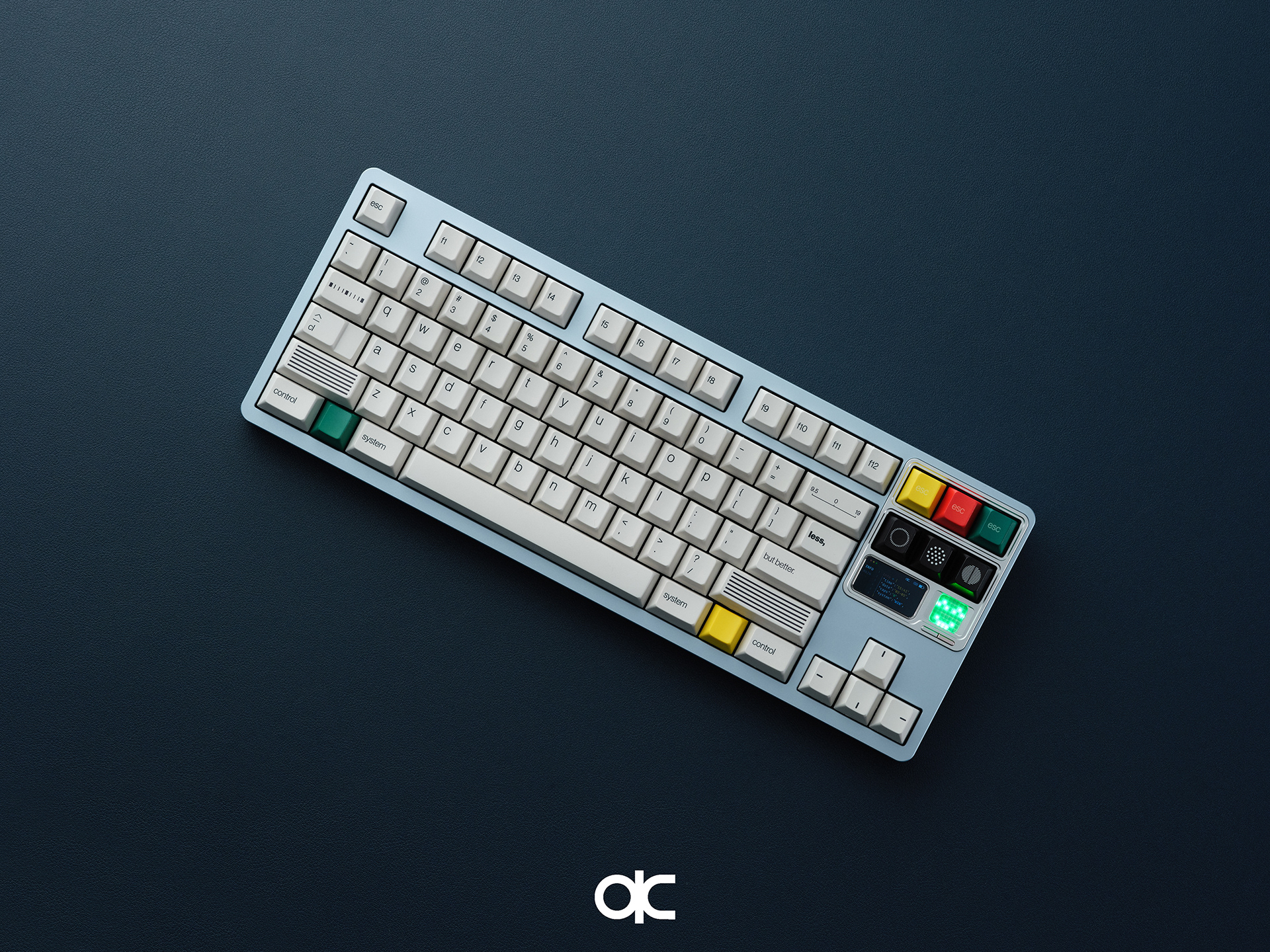

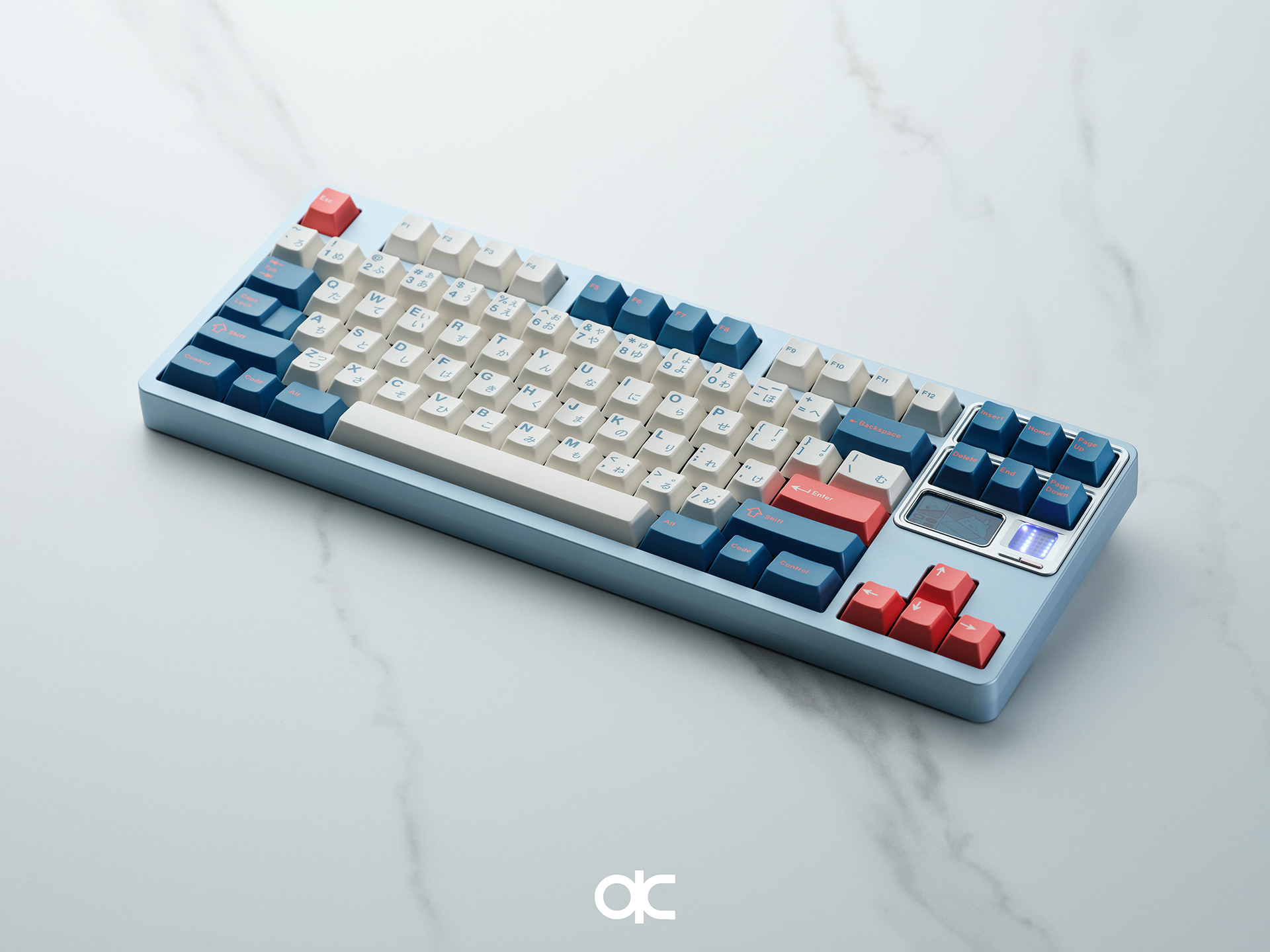

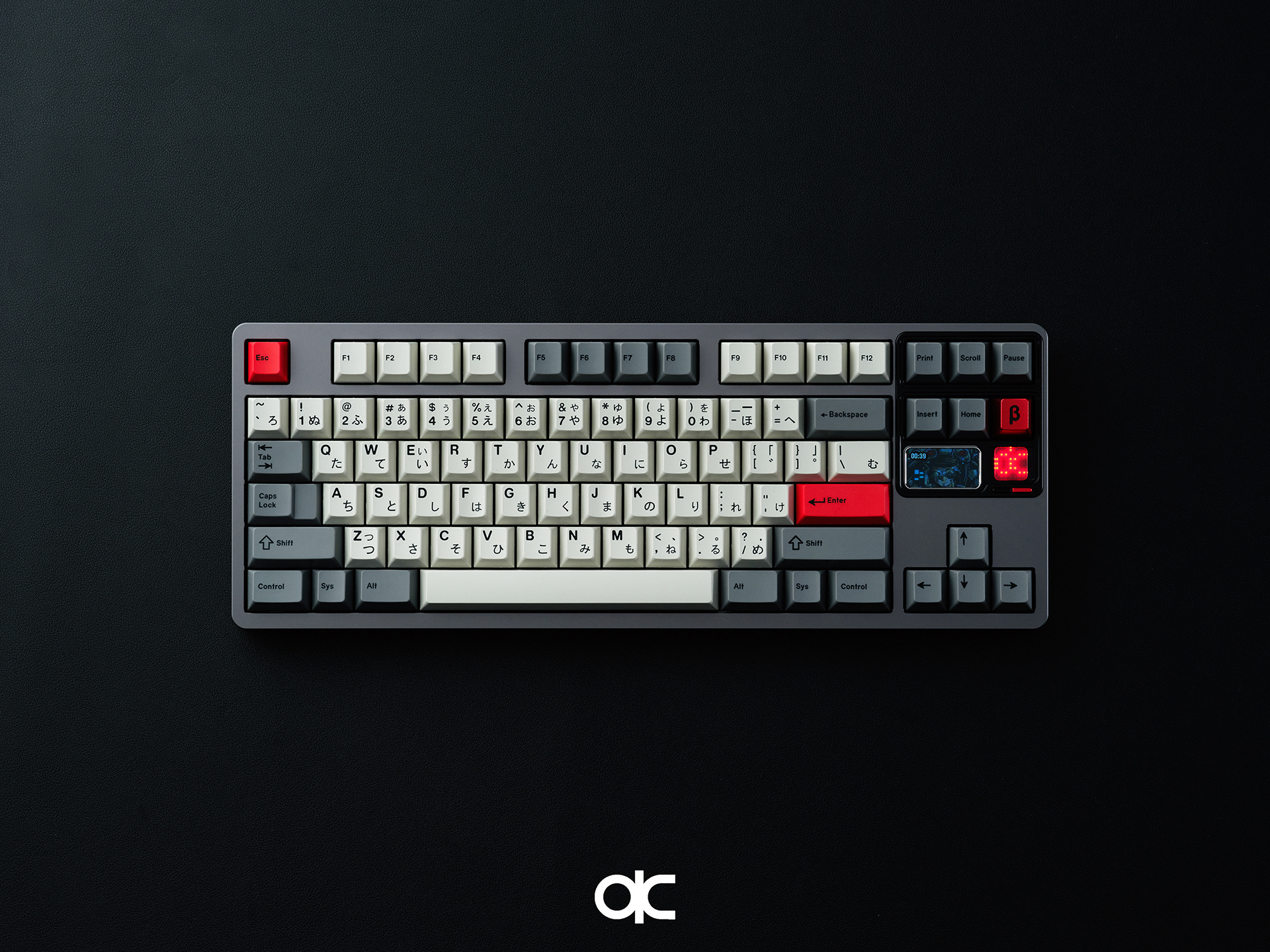

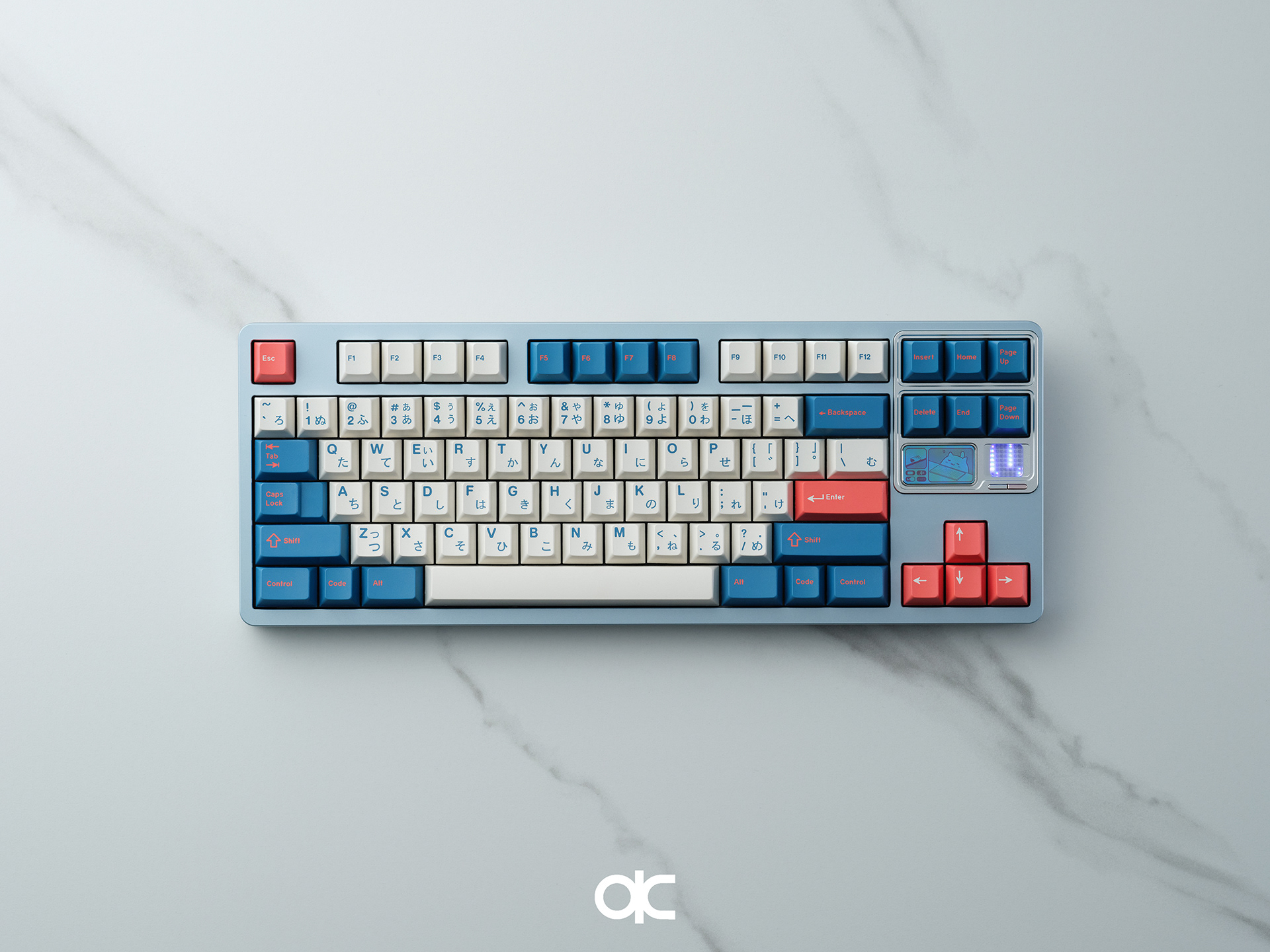

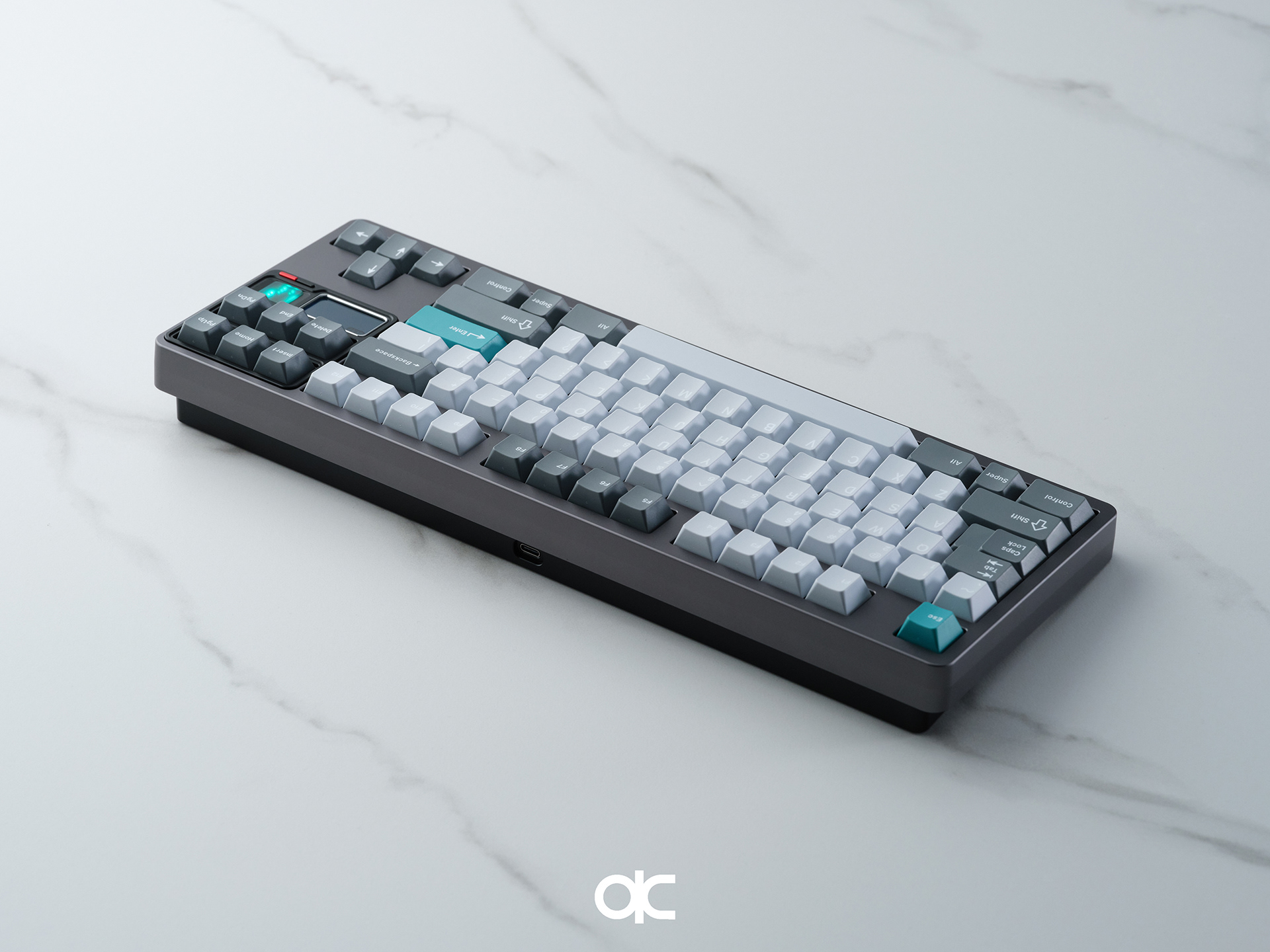

Front Design

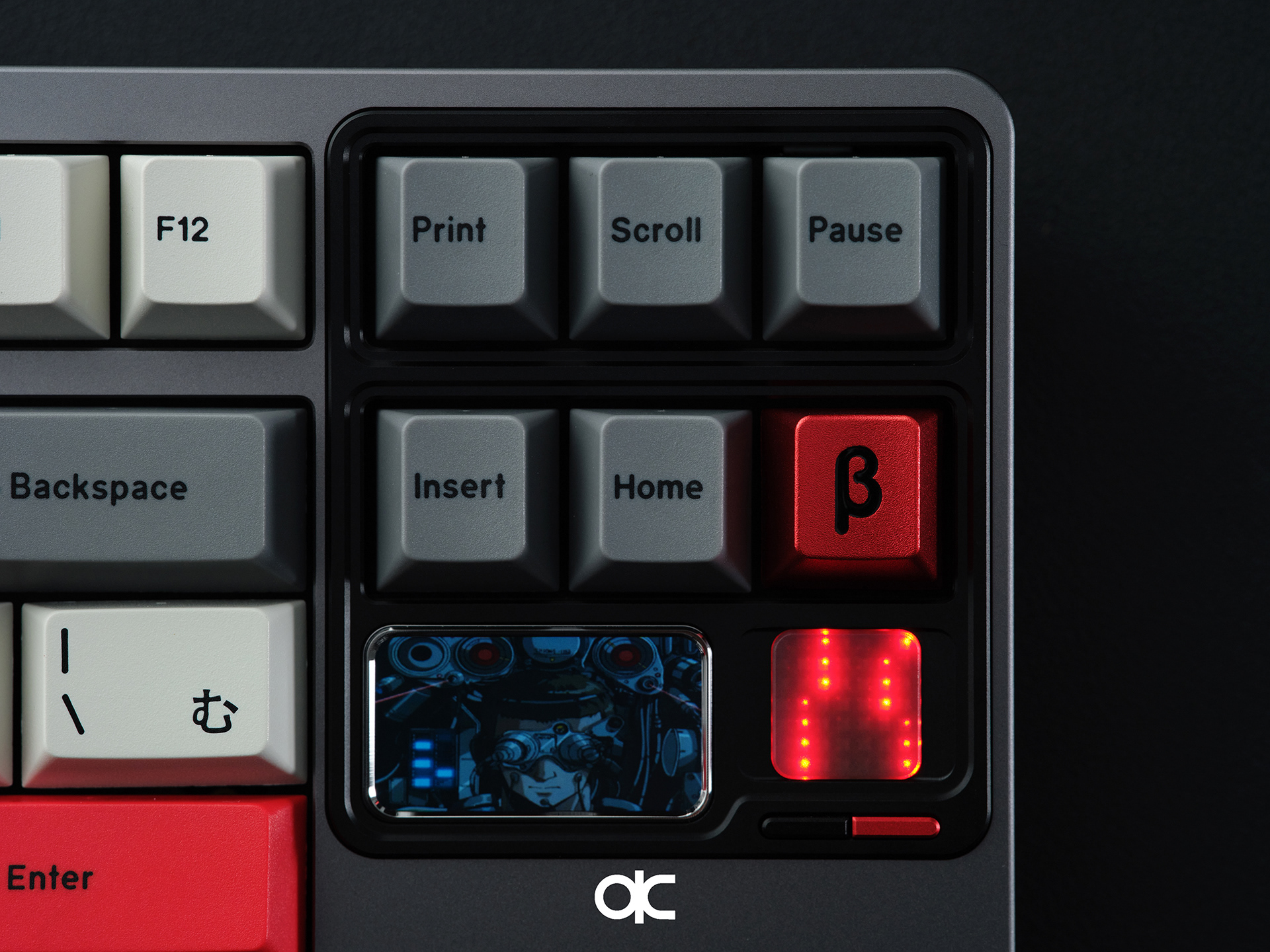

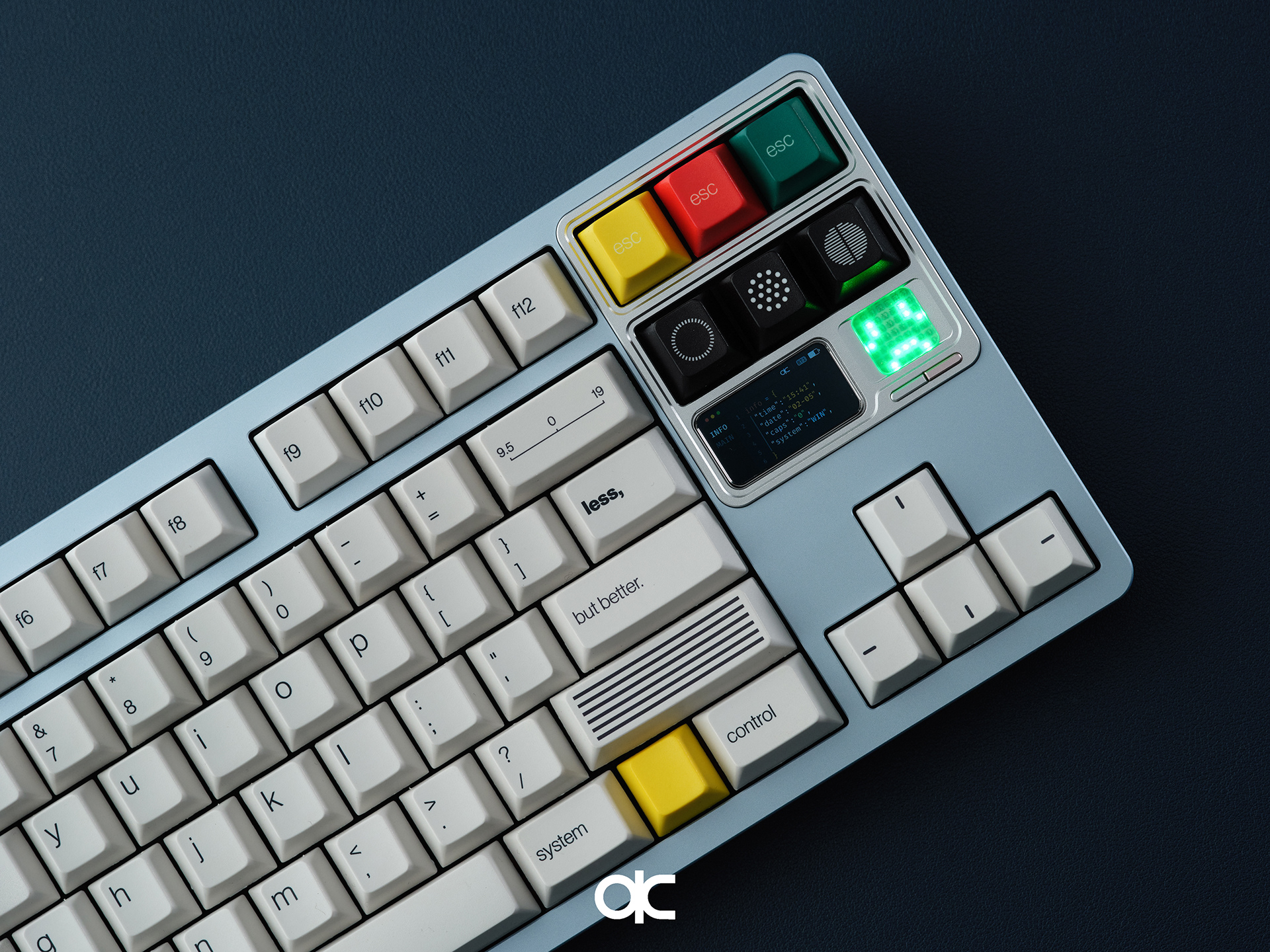

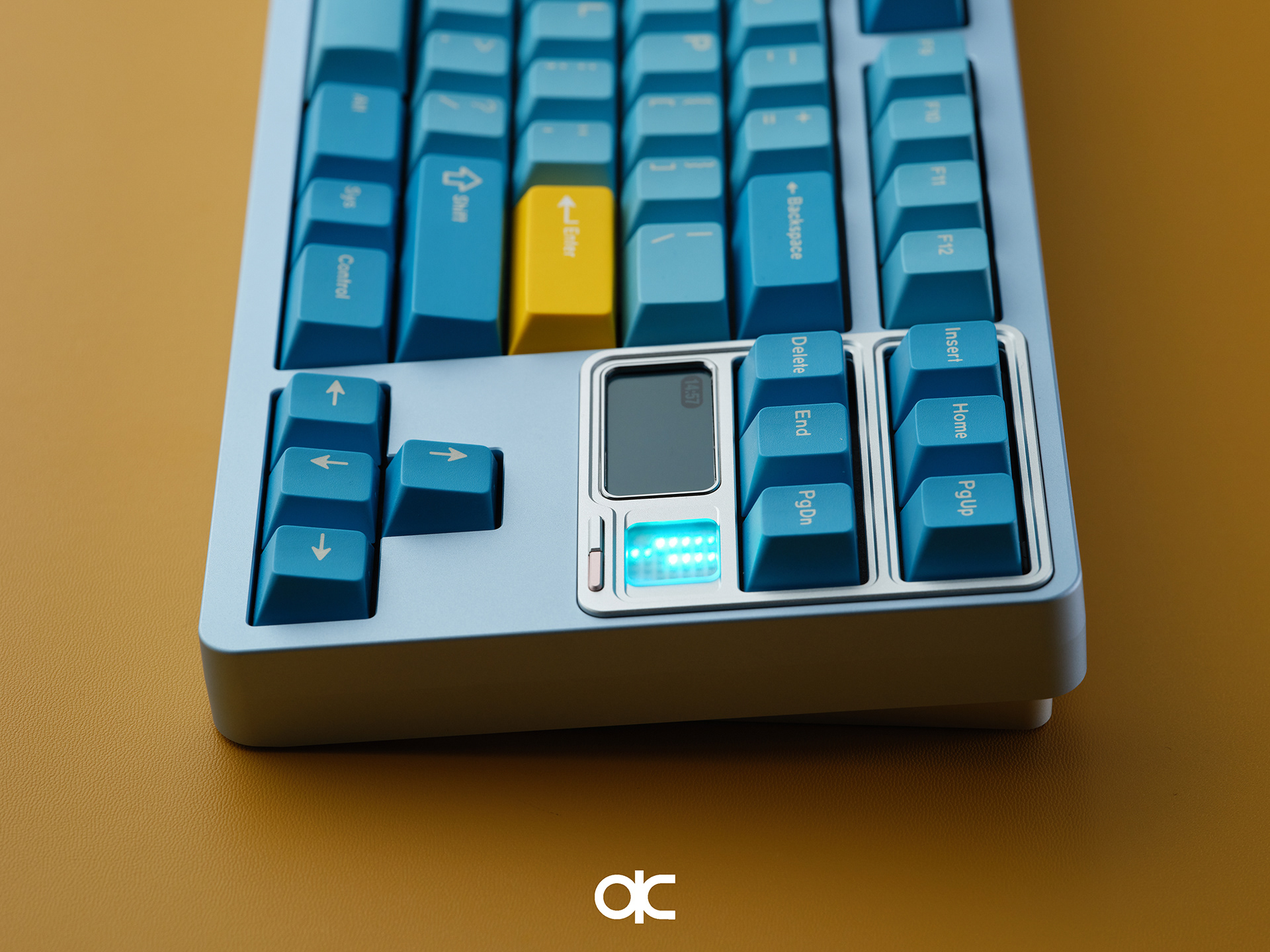

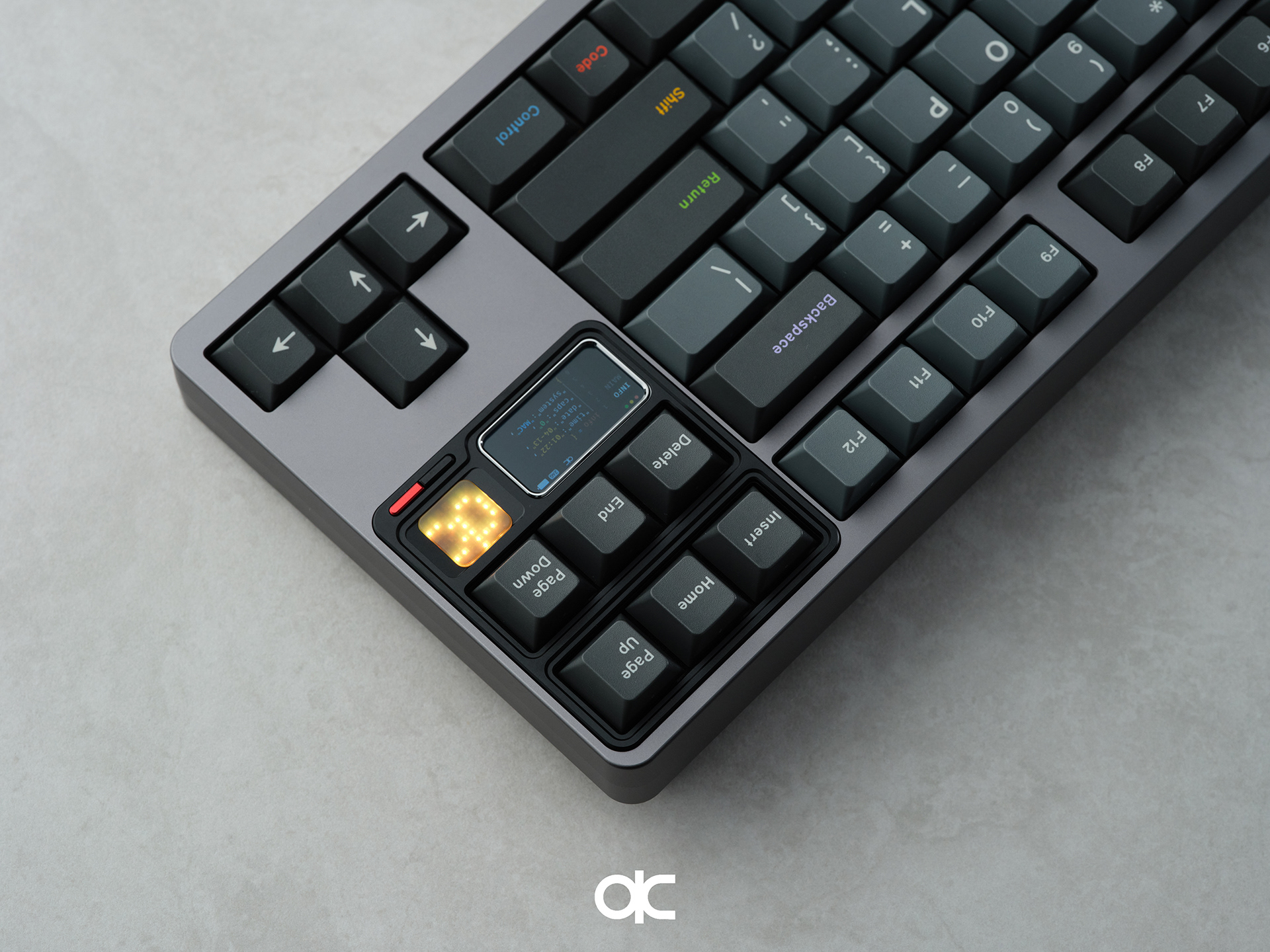

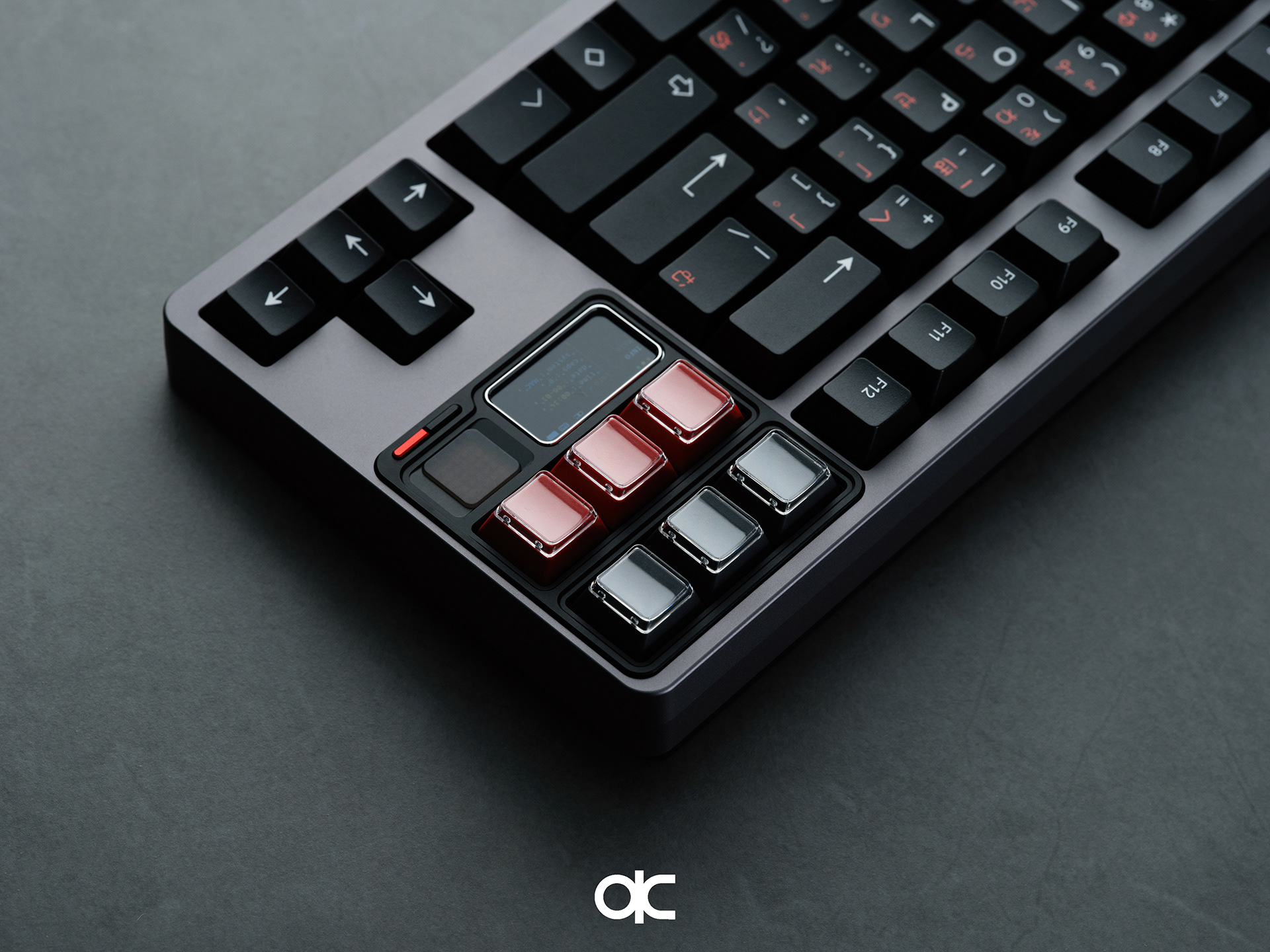

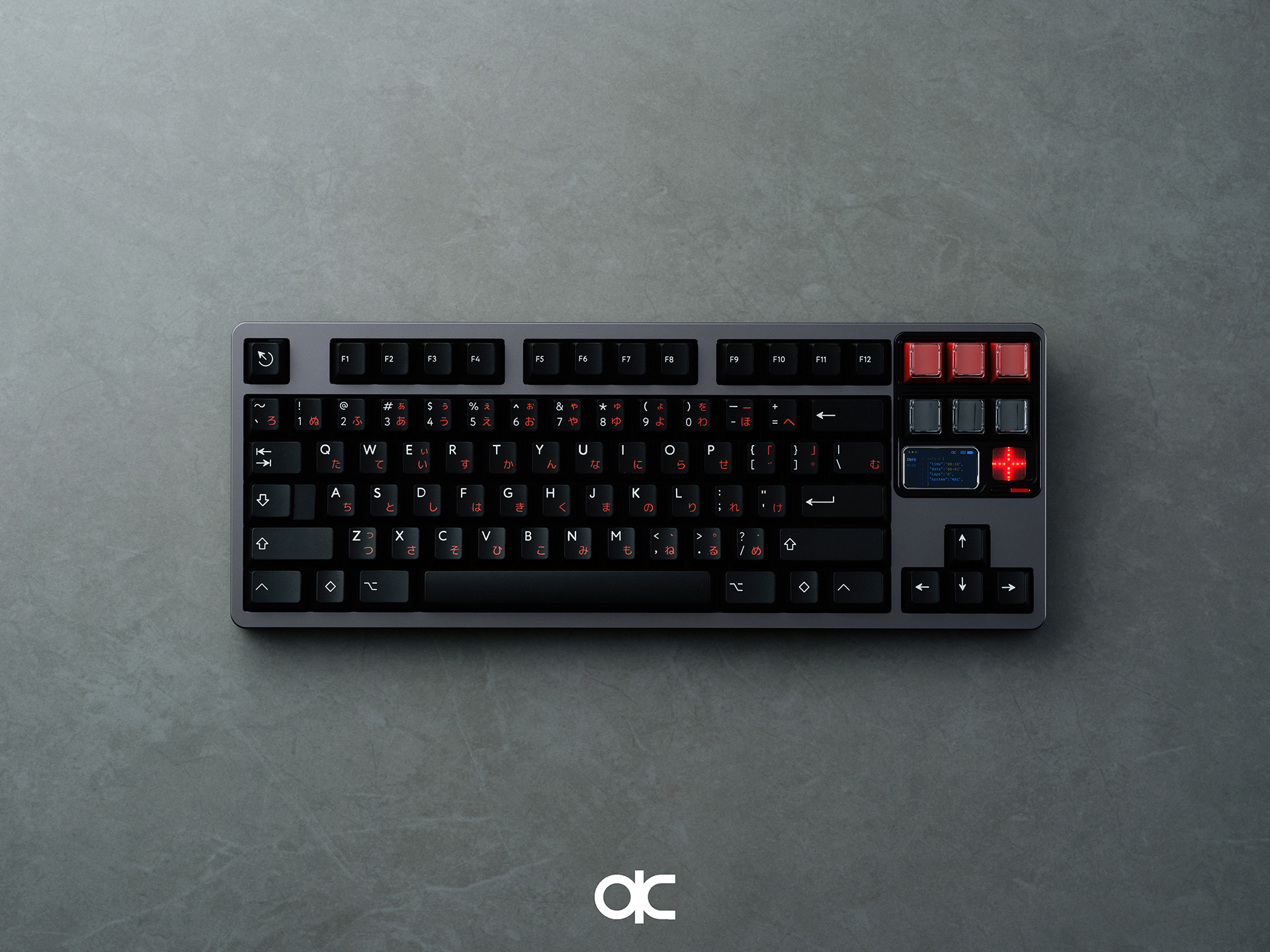

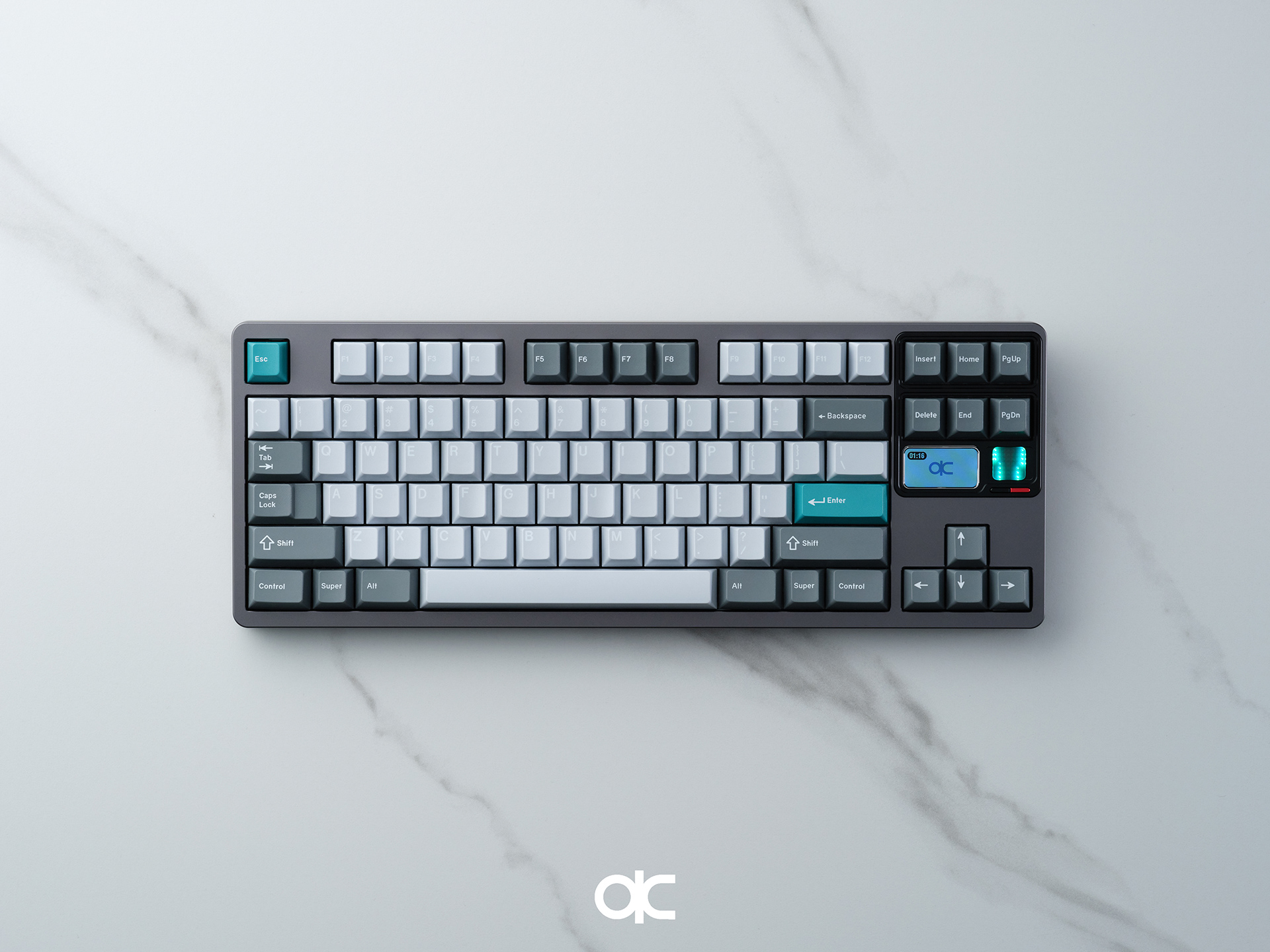

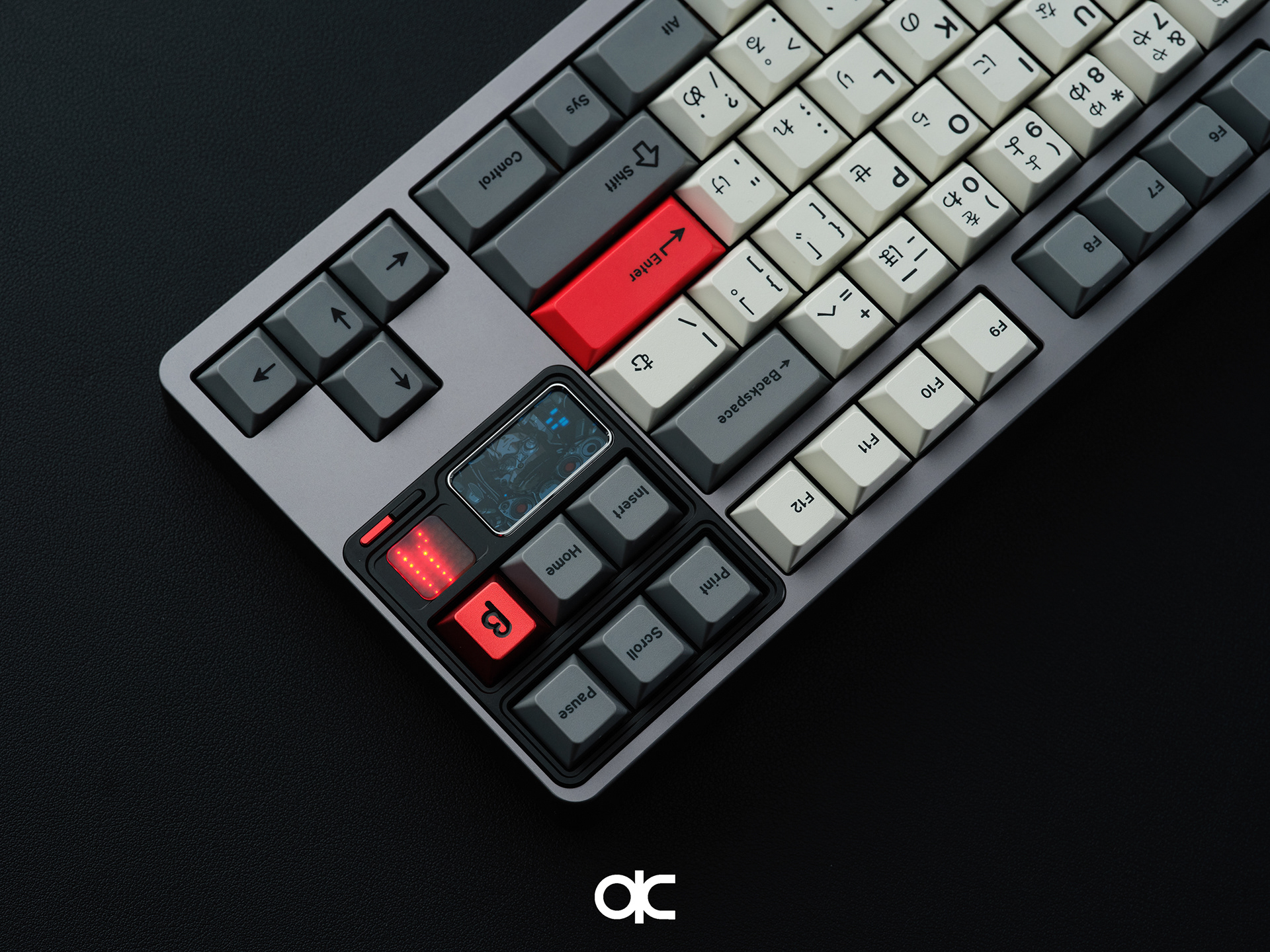

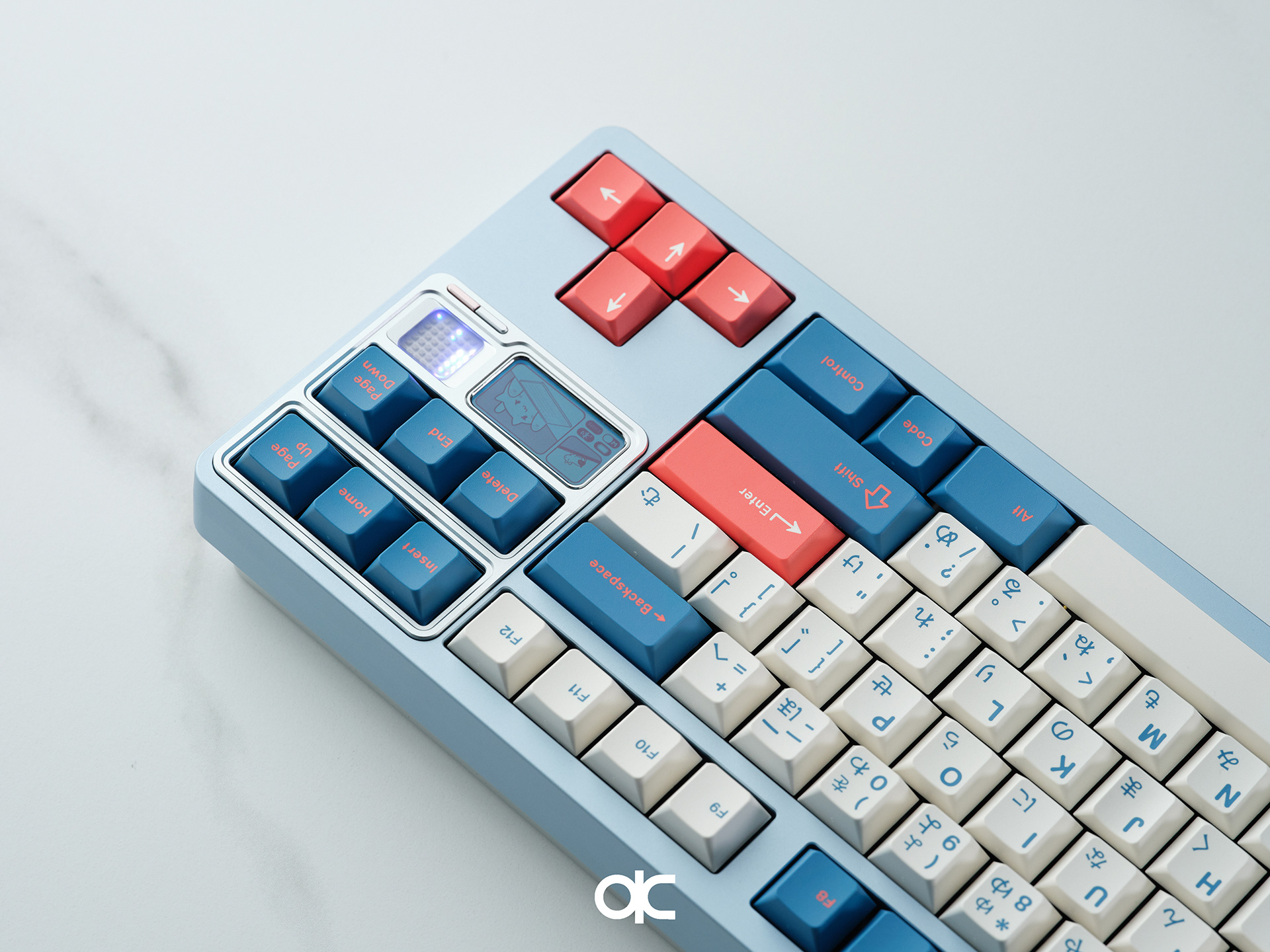

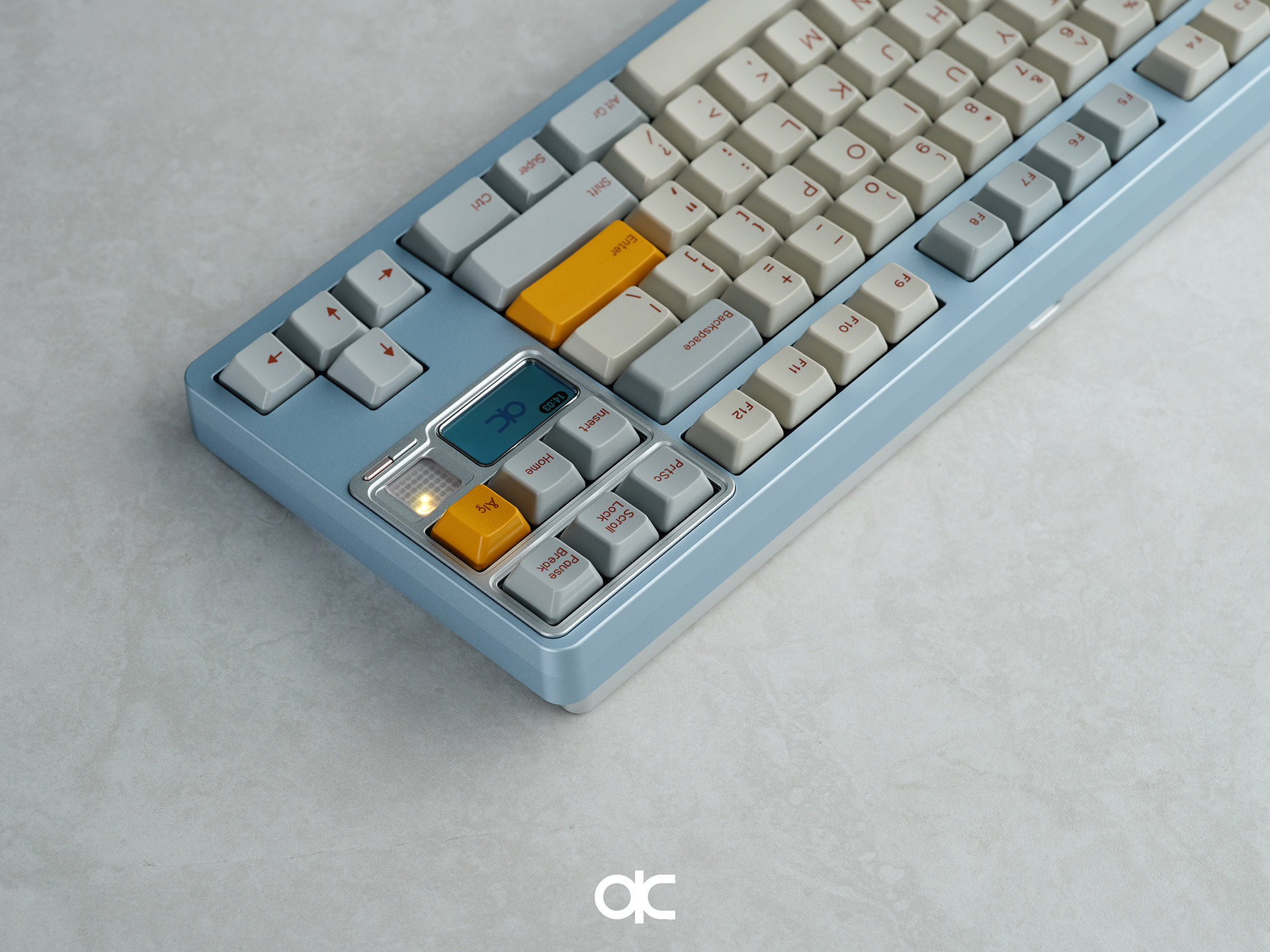

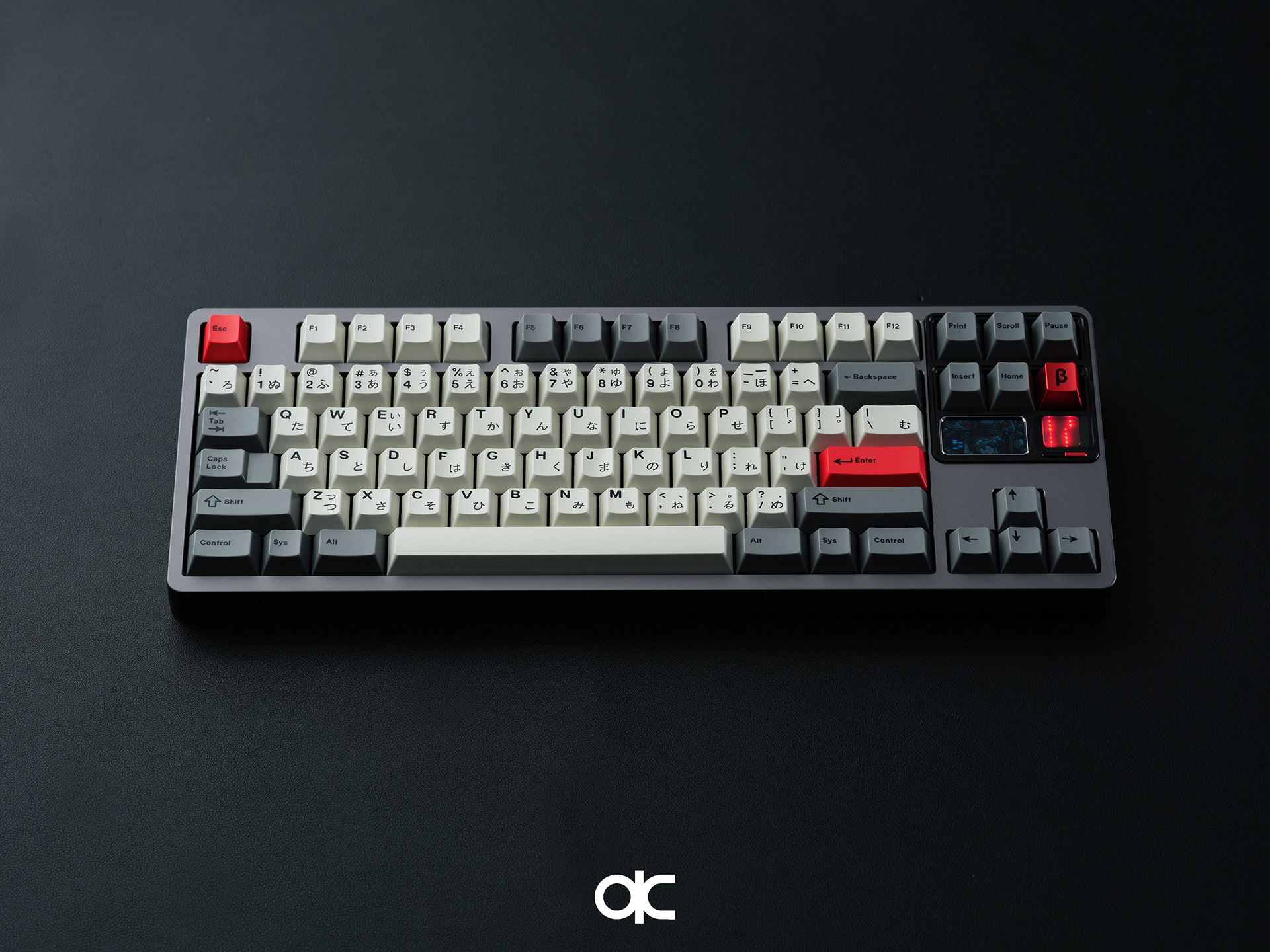

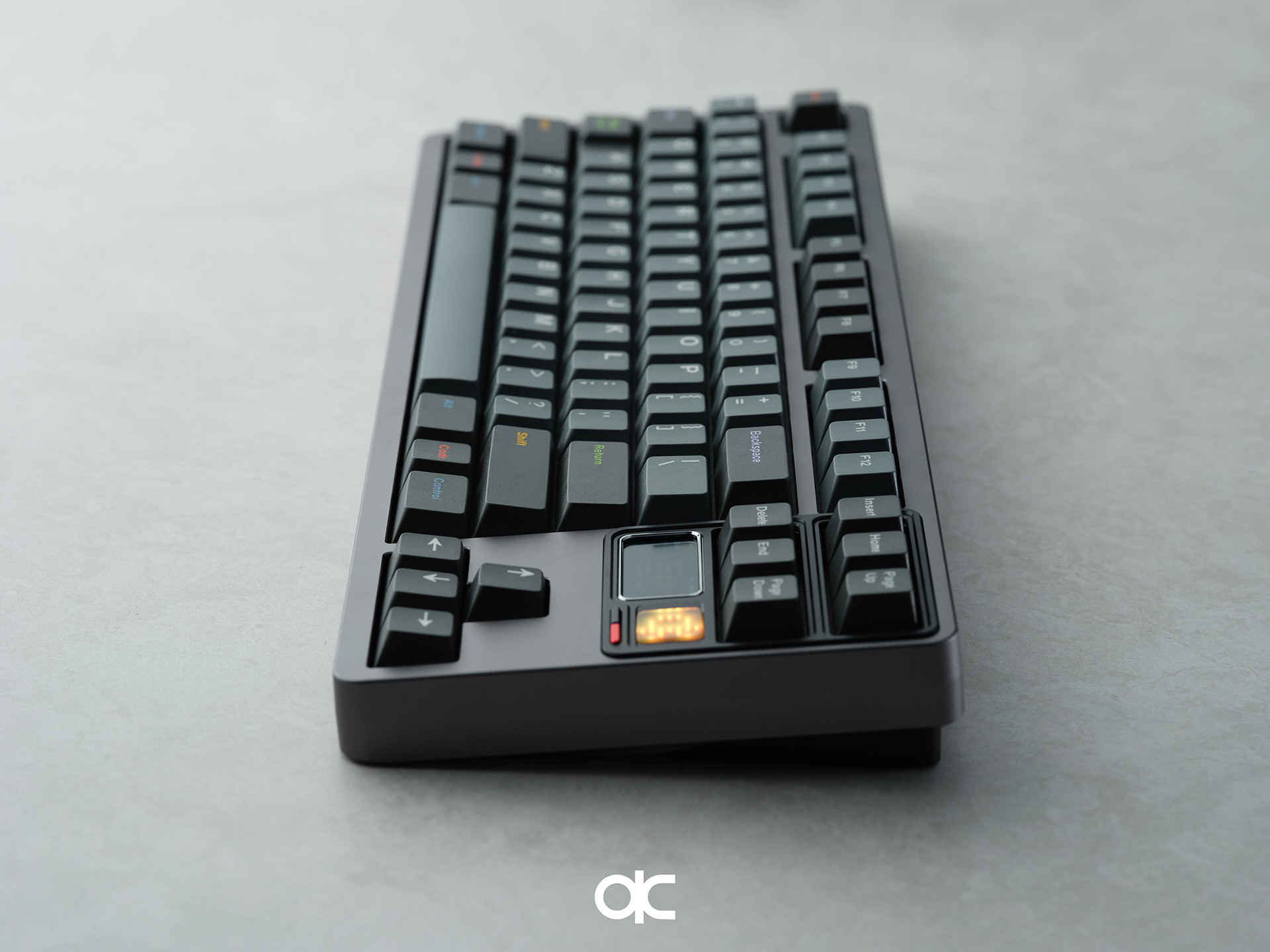

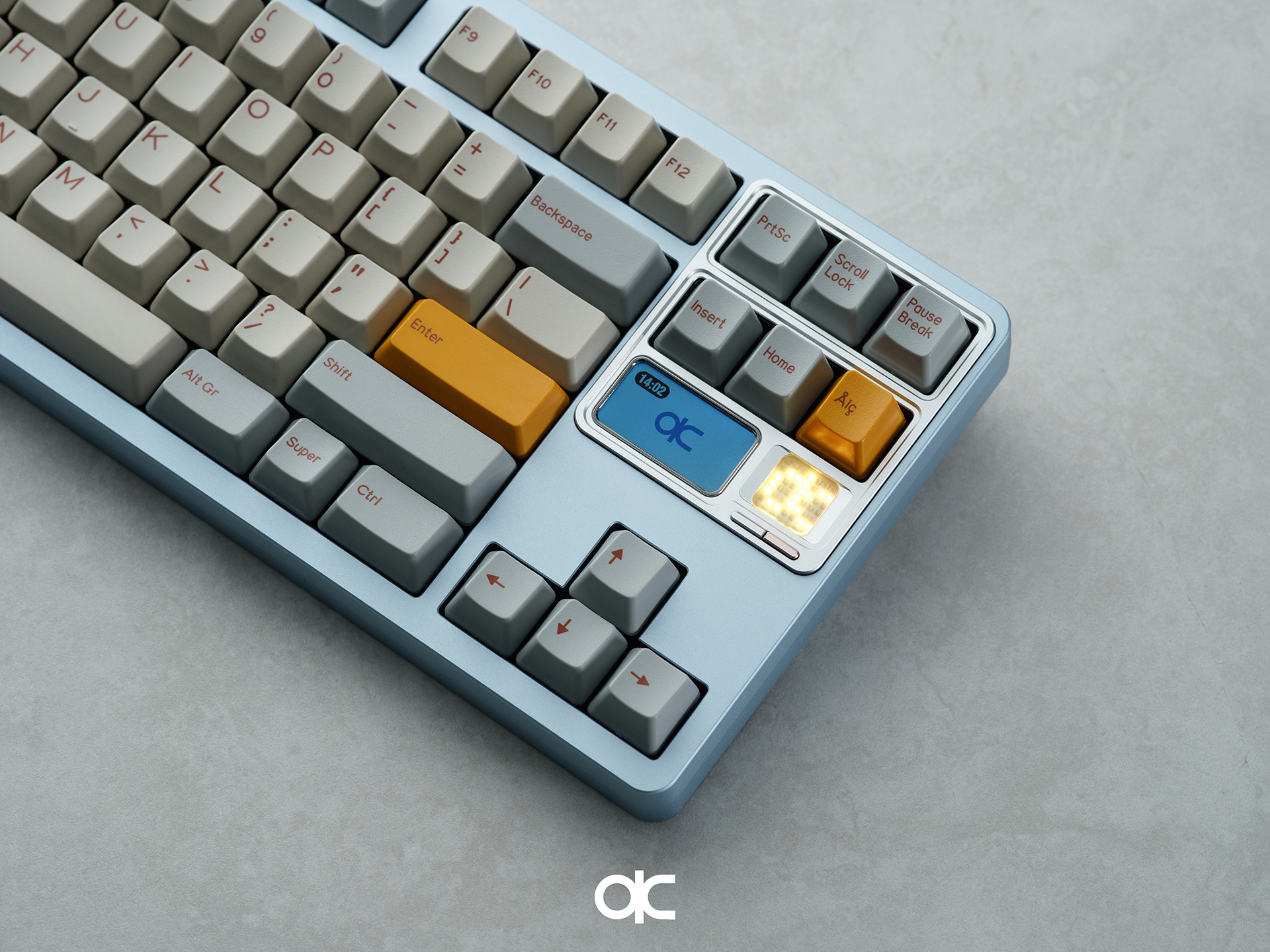

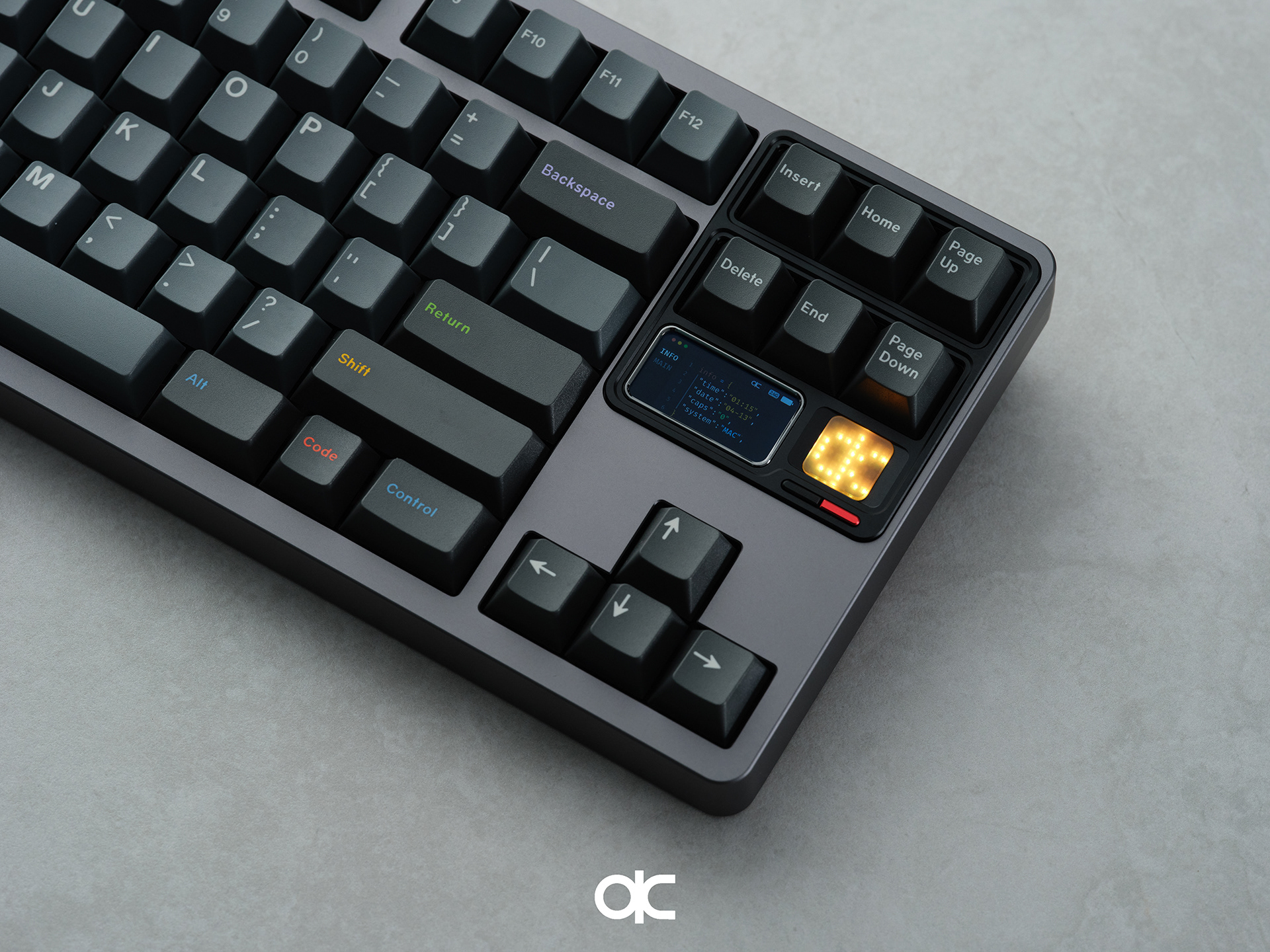

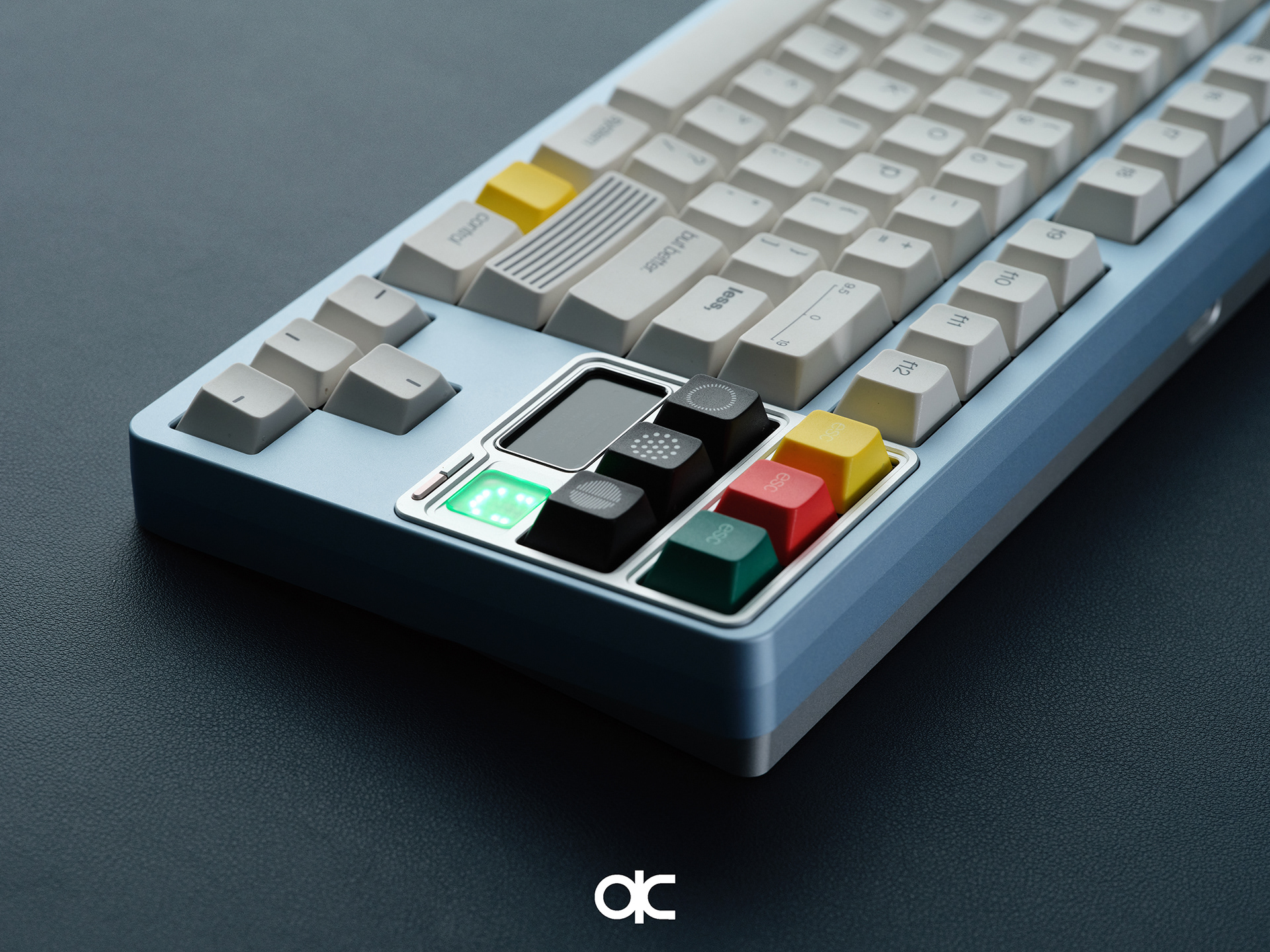

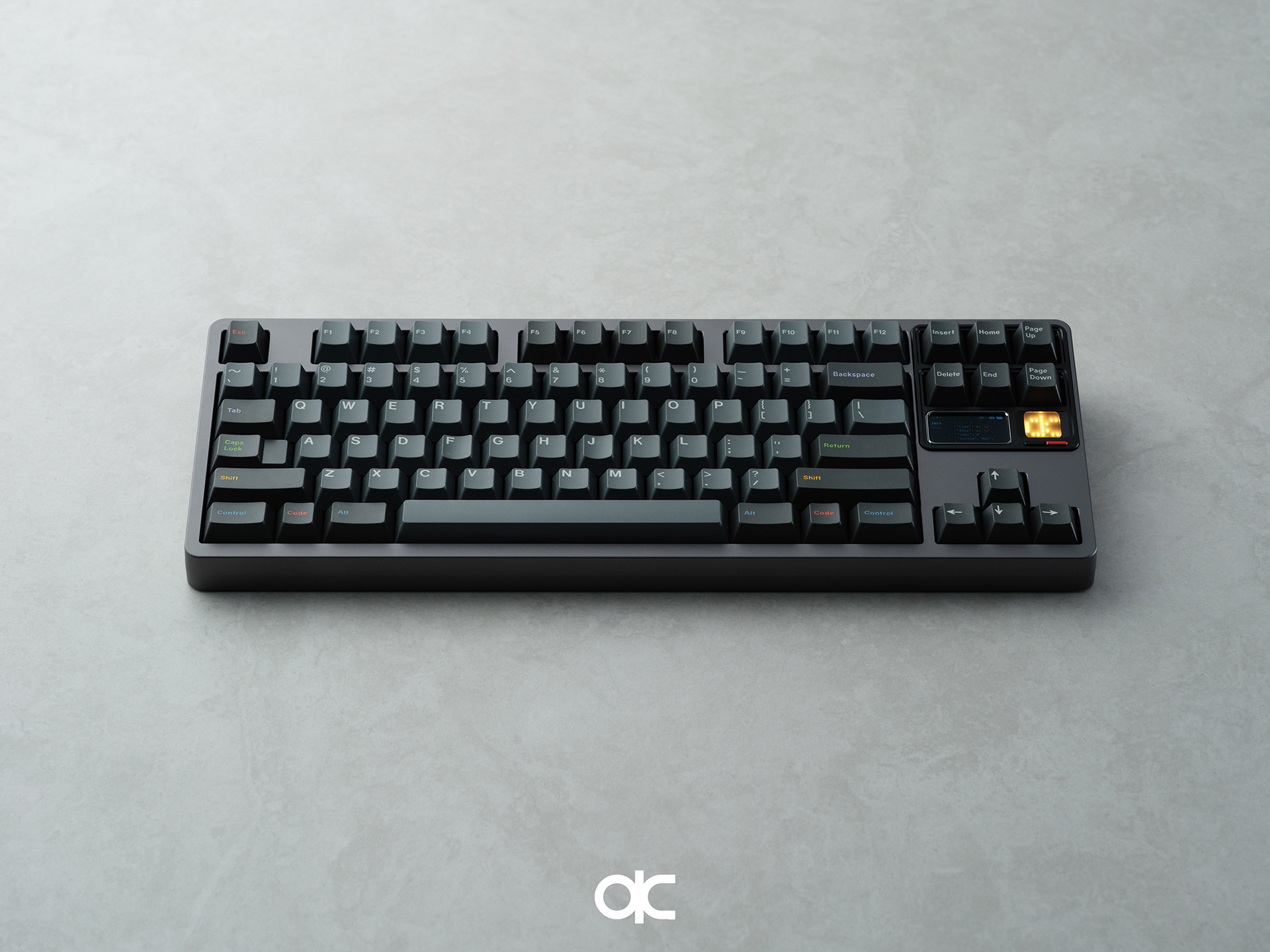

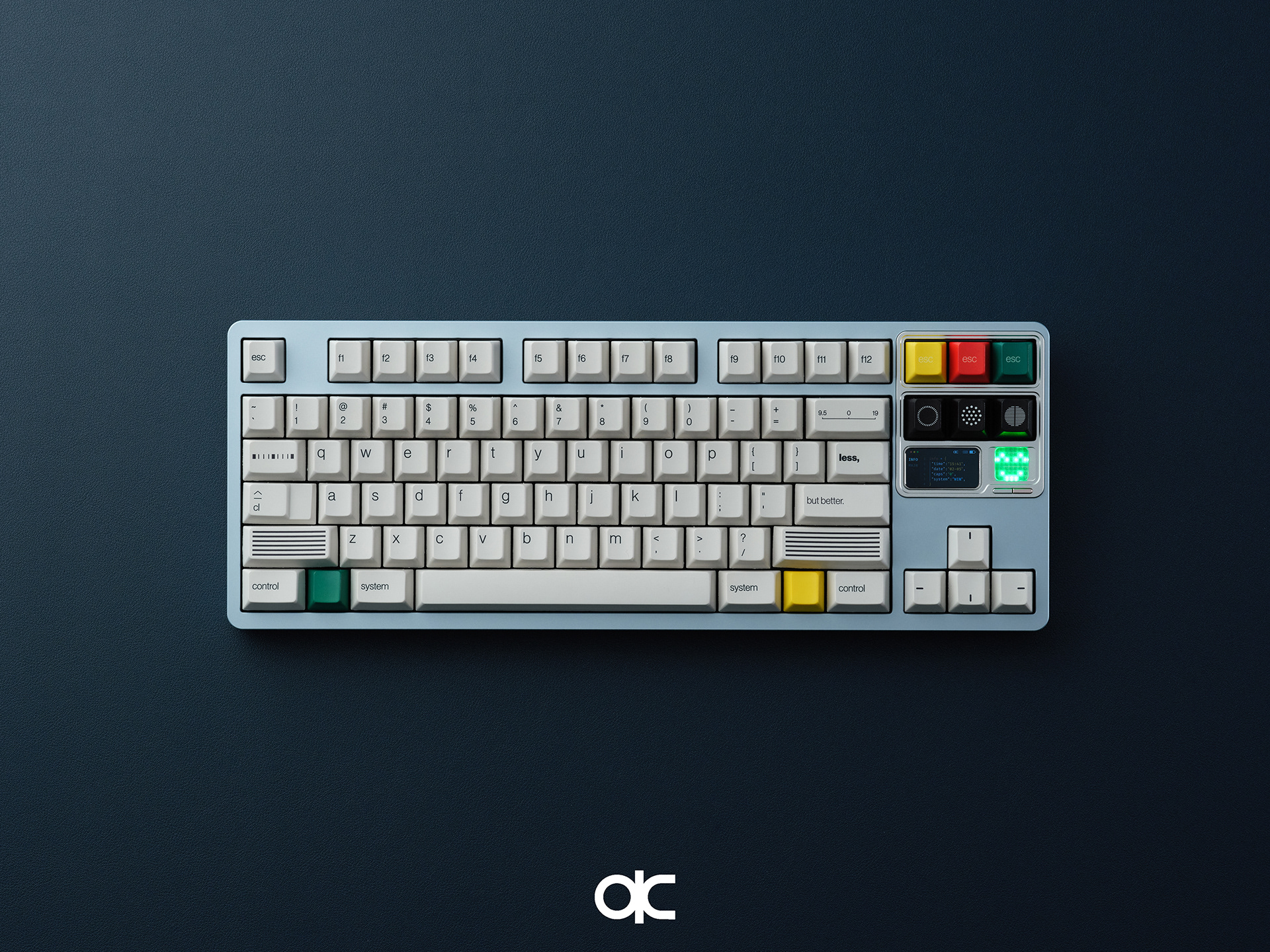

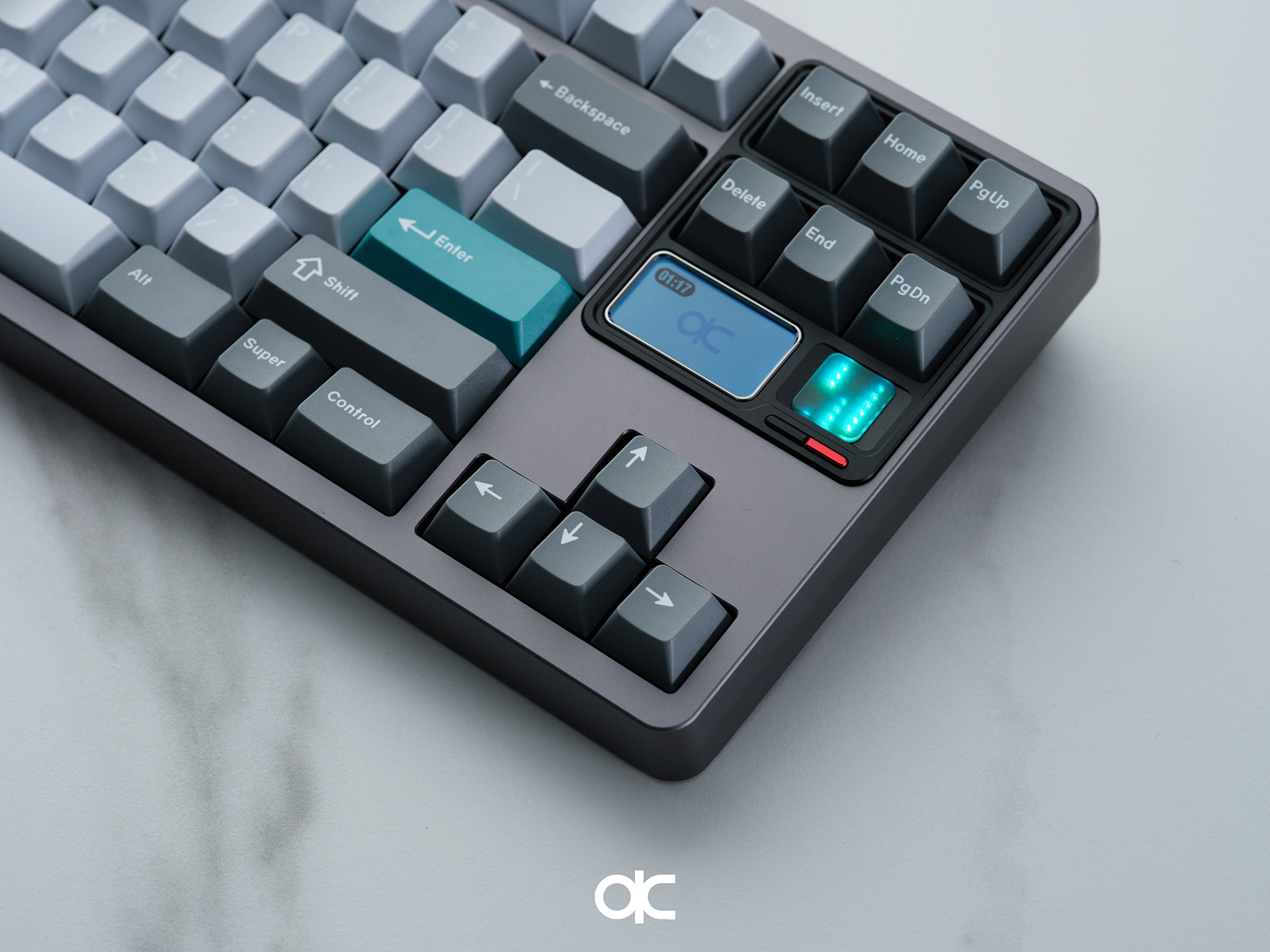

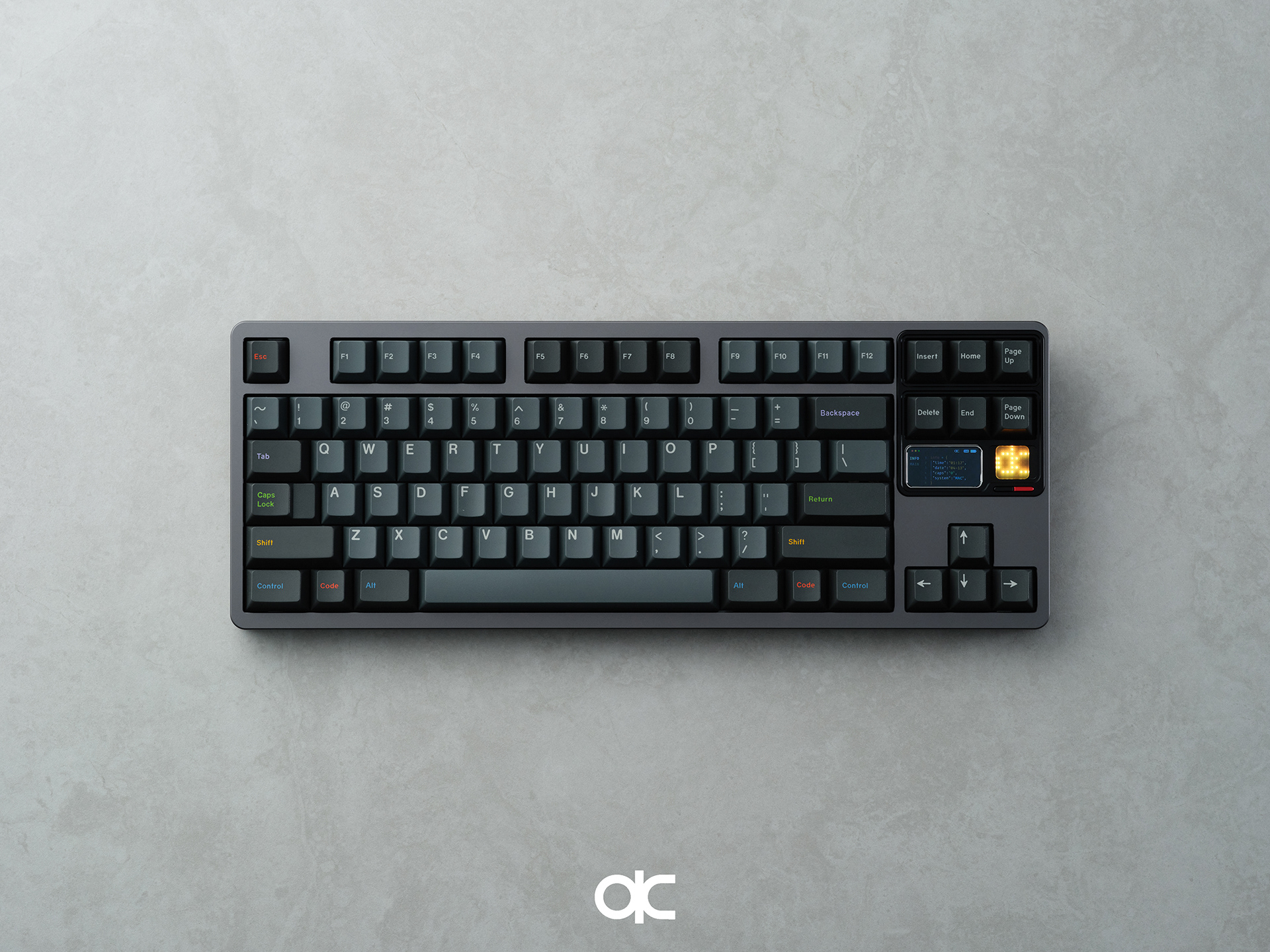

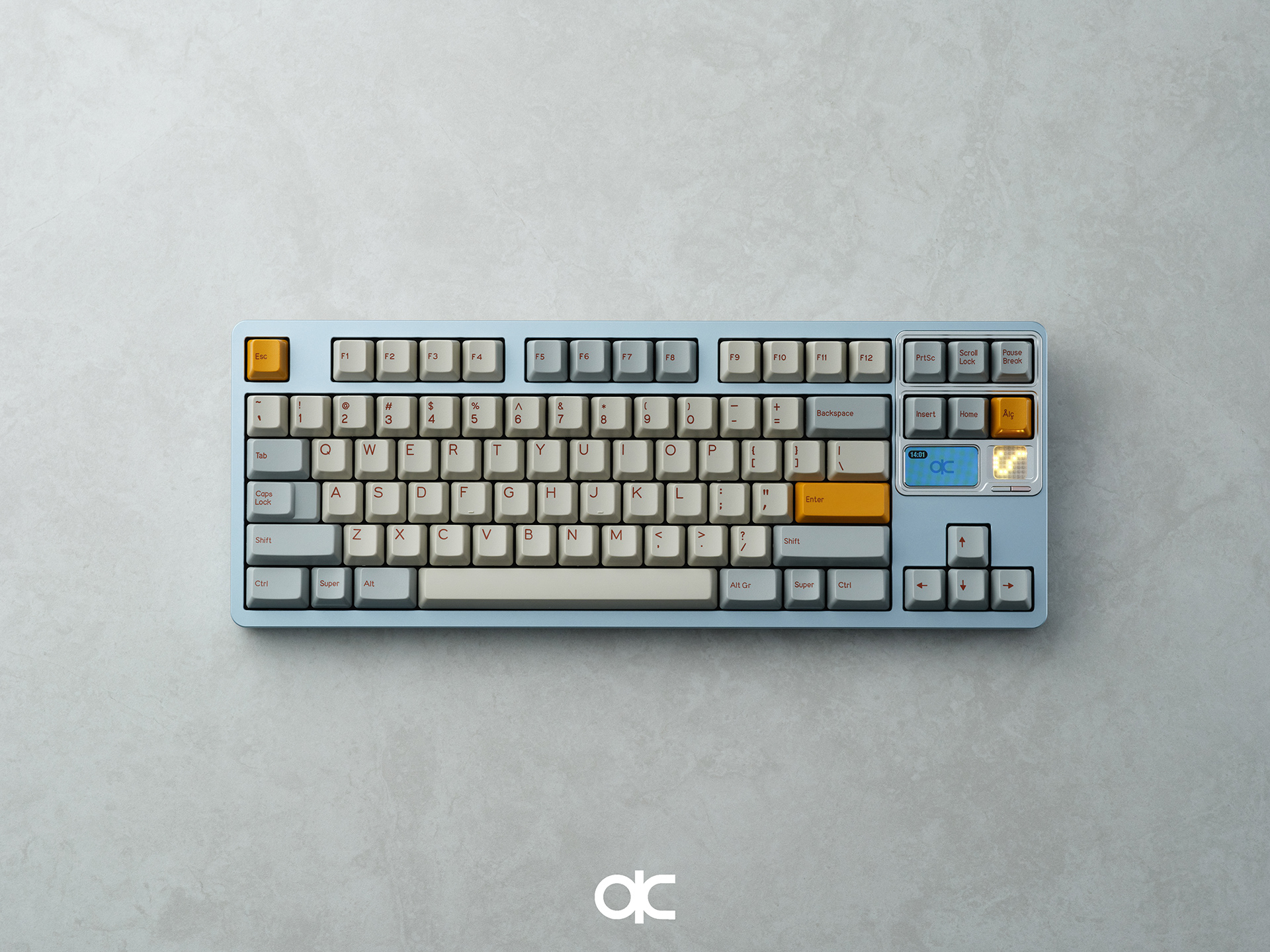

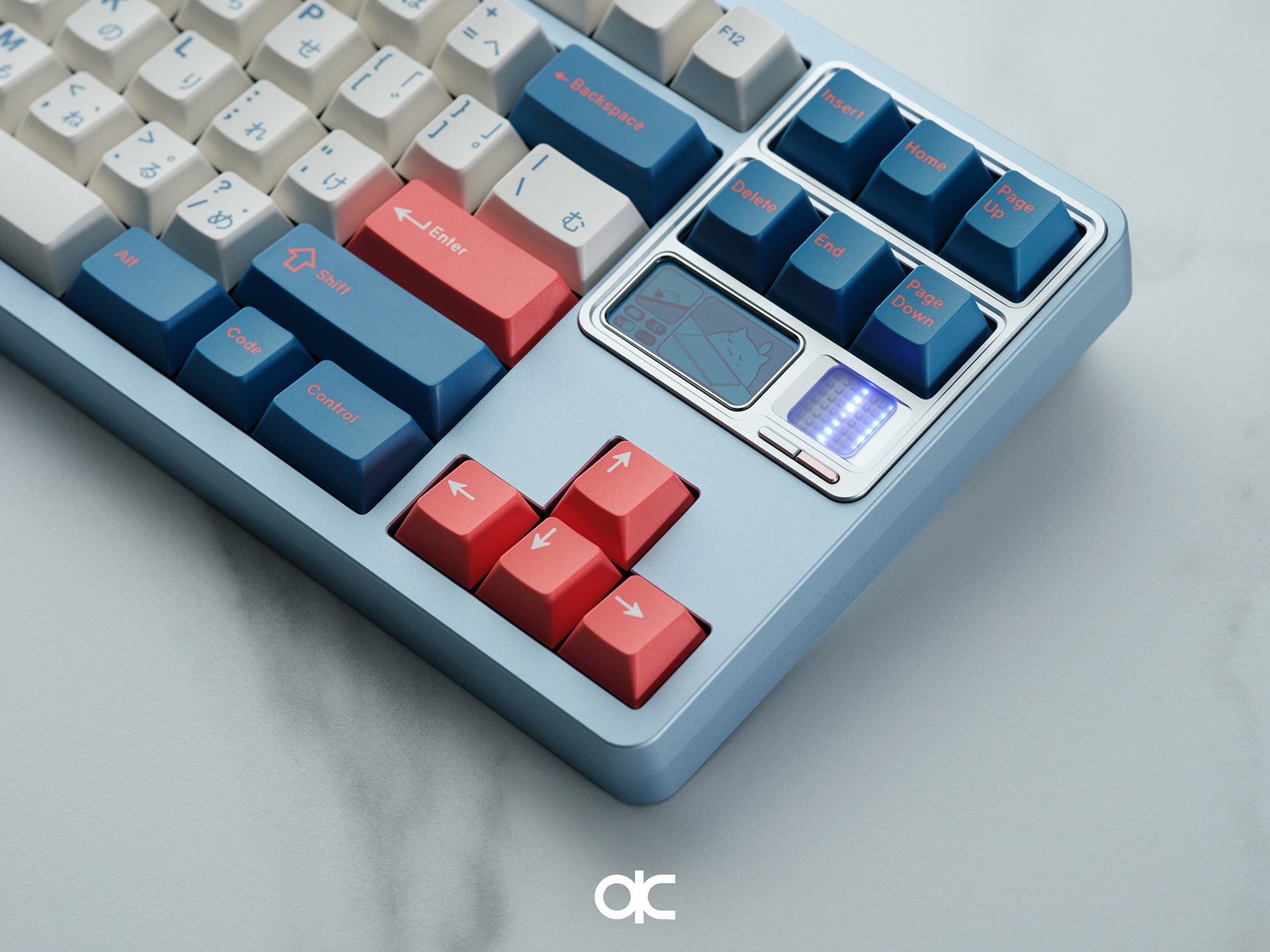

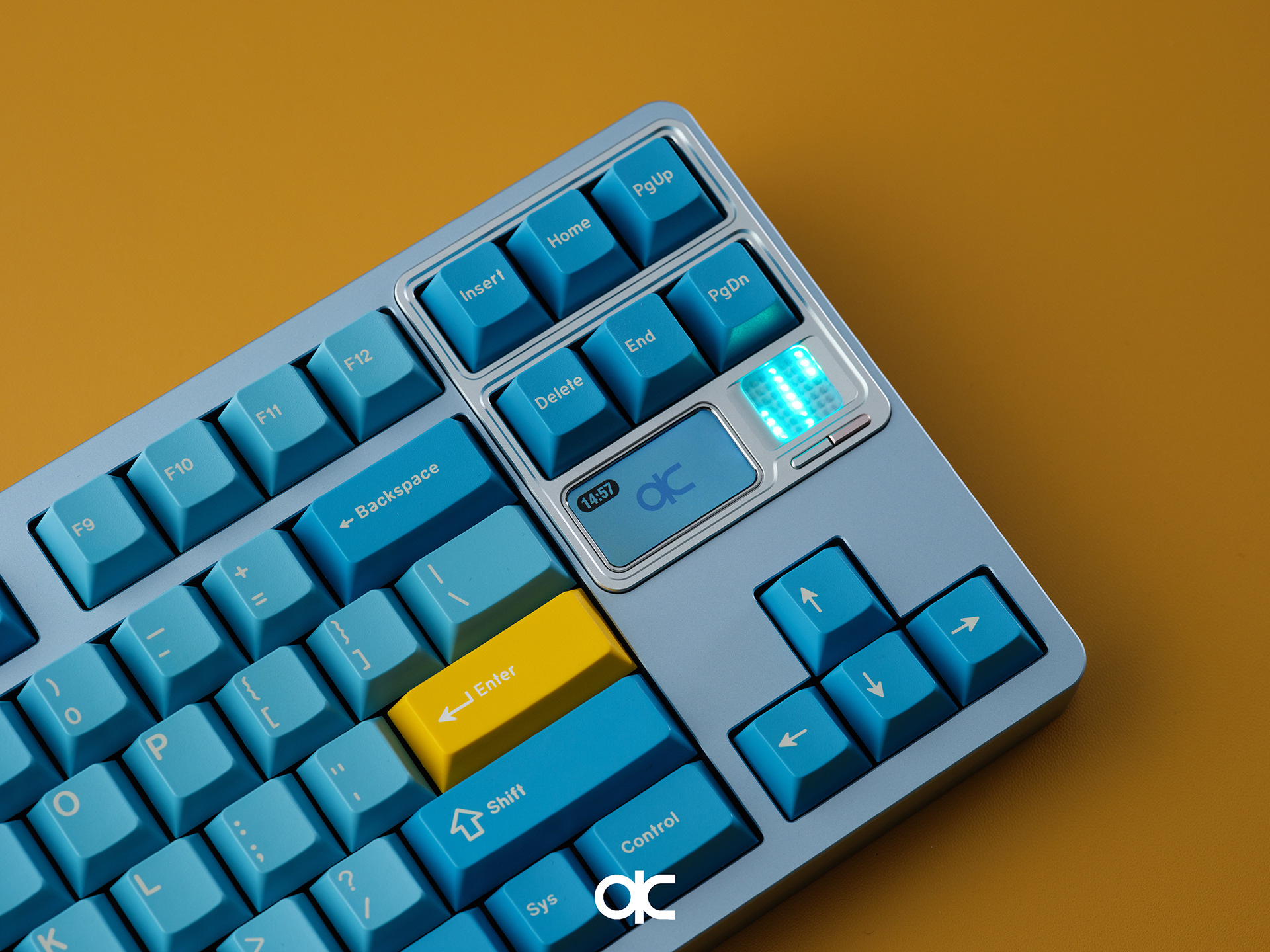

The screen module is an iconic element in QK’s design starting from the QK100, and we continusiouly working on seamlessly integrate the screen into the keyboard without compromising functionality. On the QK80 MK2, we re-organized the function area, only keeping the most frequently used functions keys to save a place for the integrated screen module, to achieve a perfect balance between the aesthetics and usability.

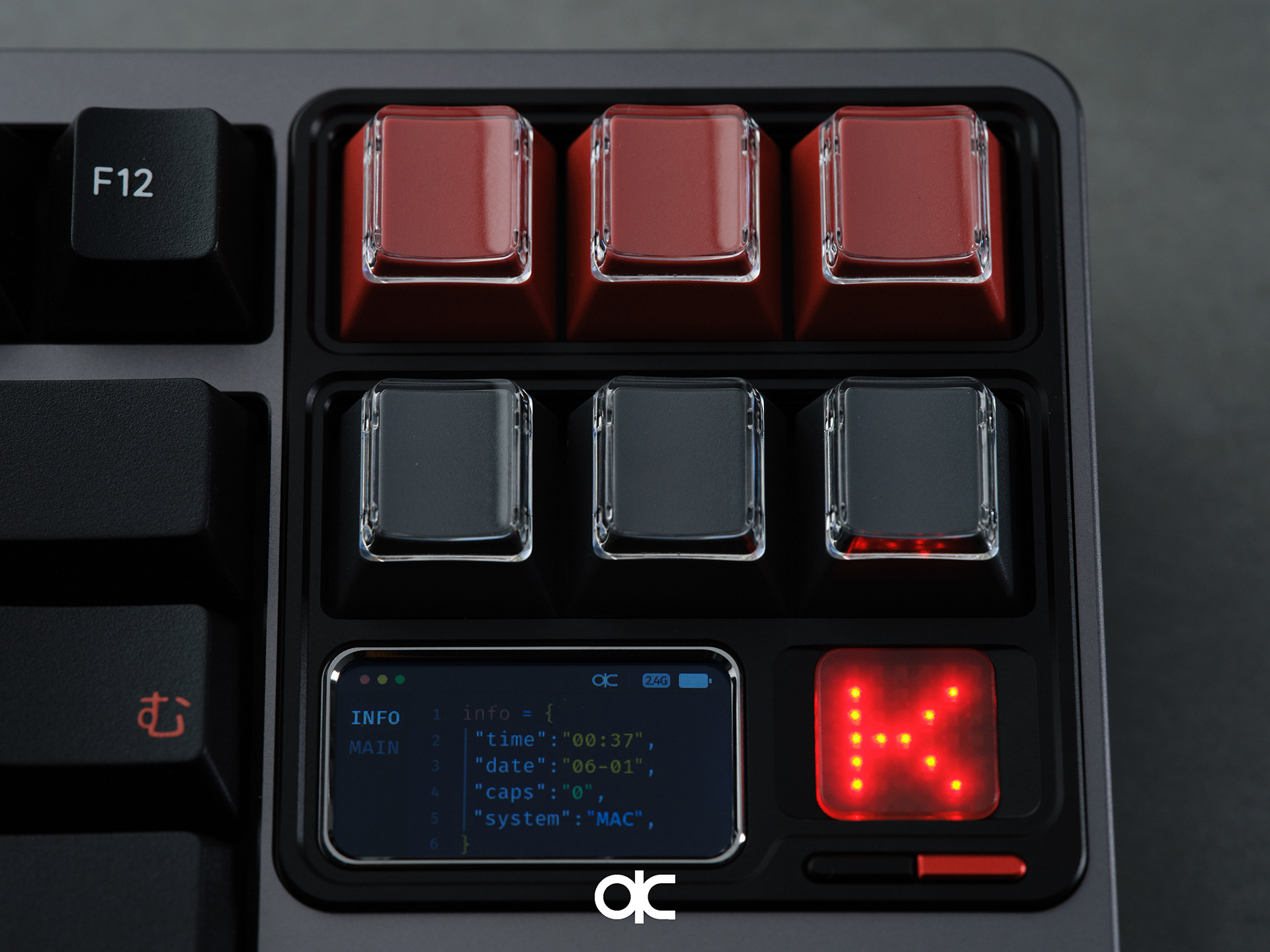

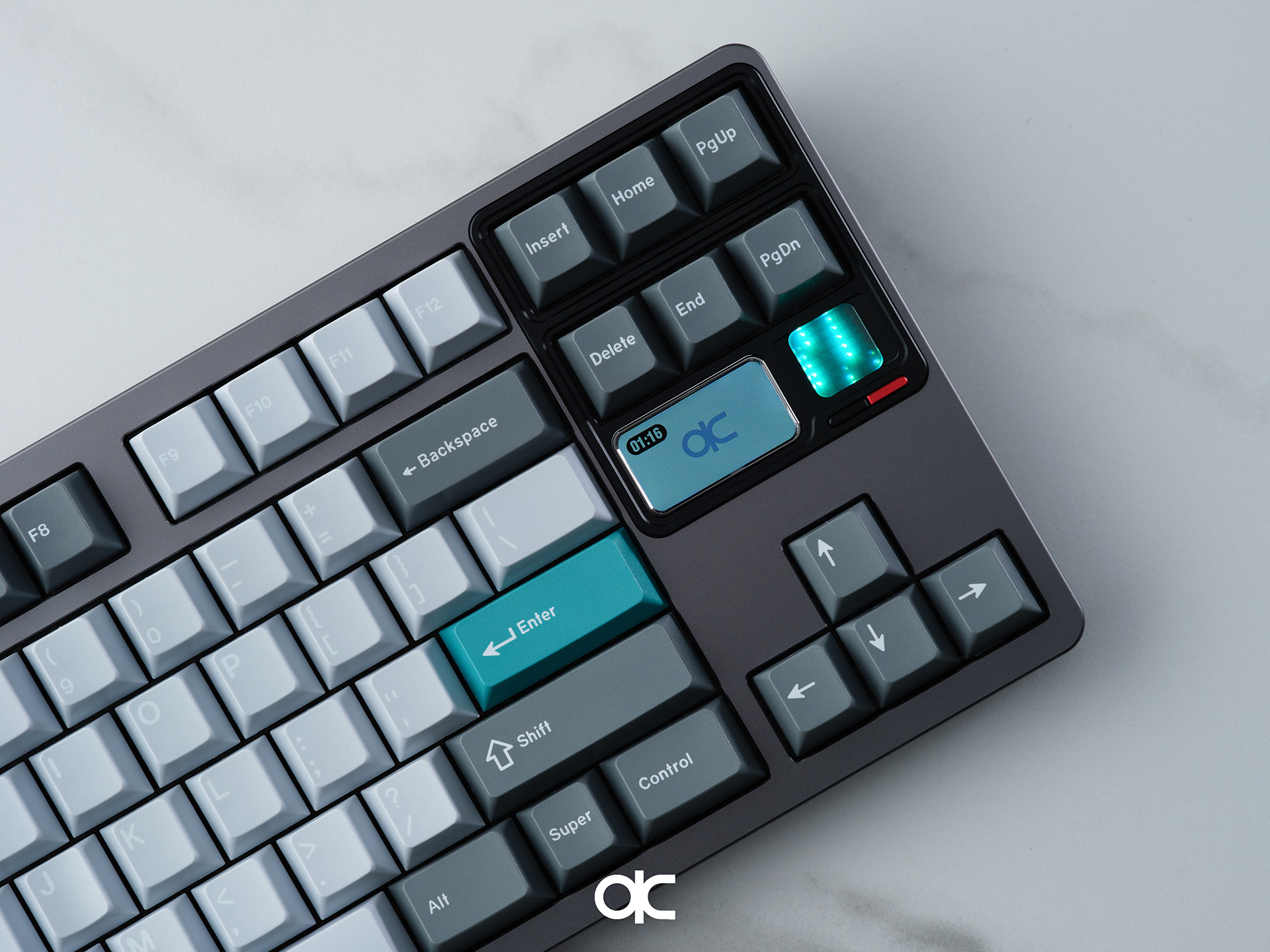

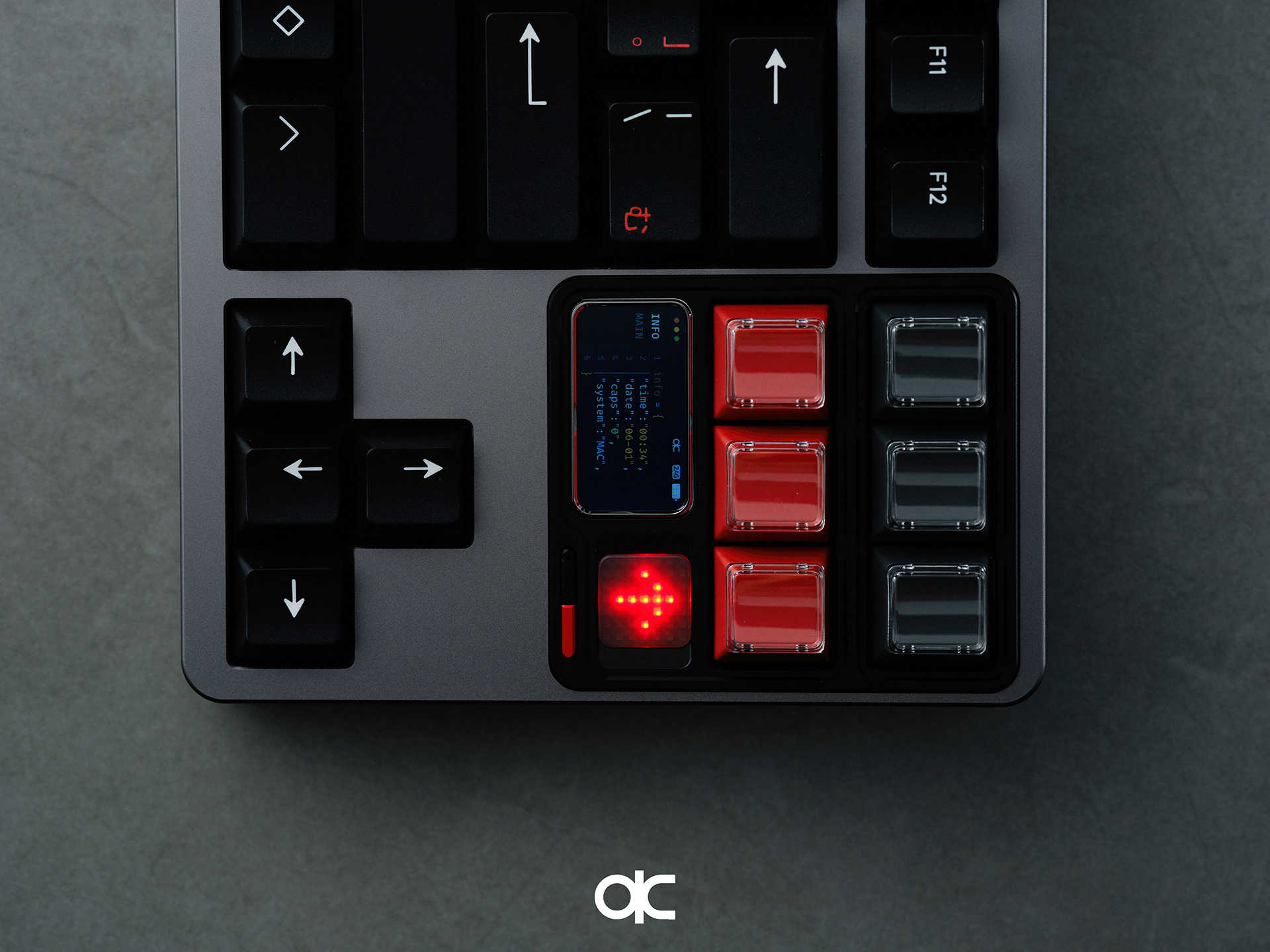

Unlike our previous products where all customization had to be done on the computer, the QK80 MK2's screen module offers more direct interaction through keyboard inputs and integrated buttons. It features three built-in themes, allowing users to match their display with different keycaps. Users can also personalize the keyboard by customizing animations on both the screen and dot-matrix display, adding a unique touch to their device.

In addition to the themes, we've included a mini-game—"Flappy Bird"—in the display module. This allows you to take a quick break during your busy schedule. Other basic functions like setting the date and time, toggling RGB lighting, and adjusting sleep settings are also accessible on the screen.

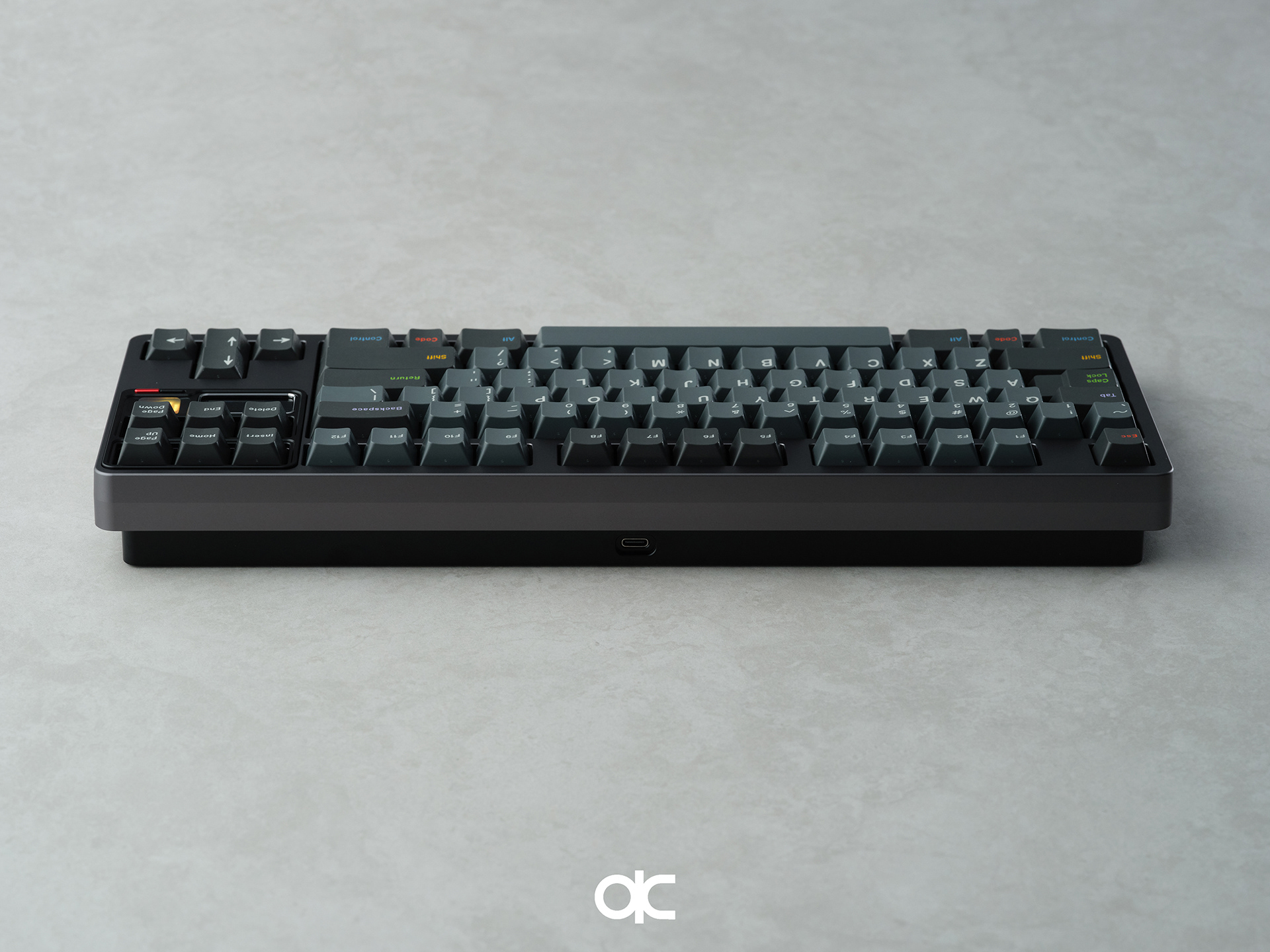

Side Design

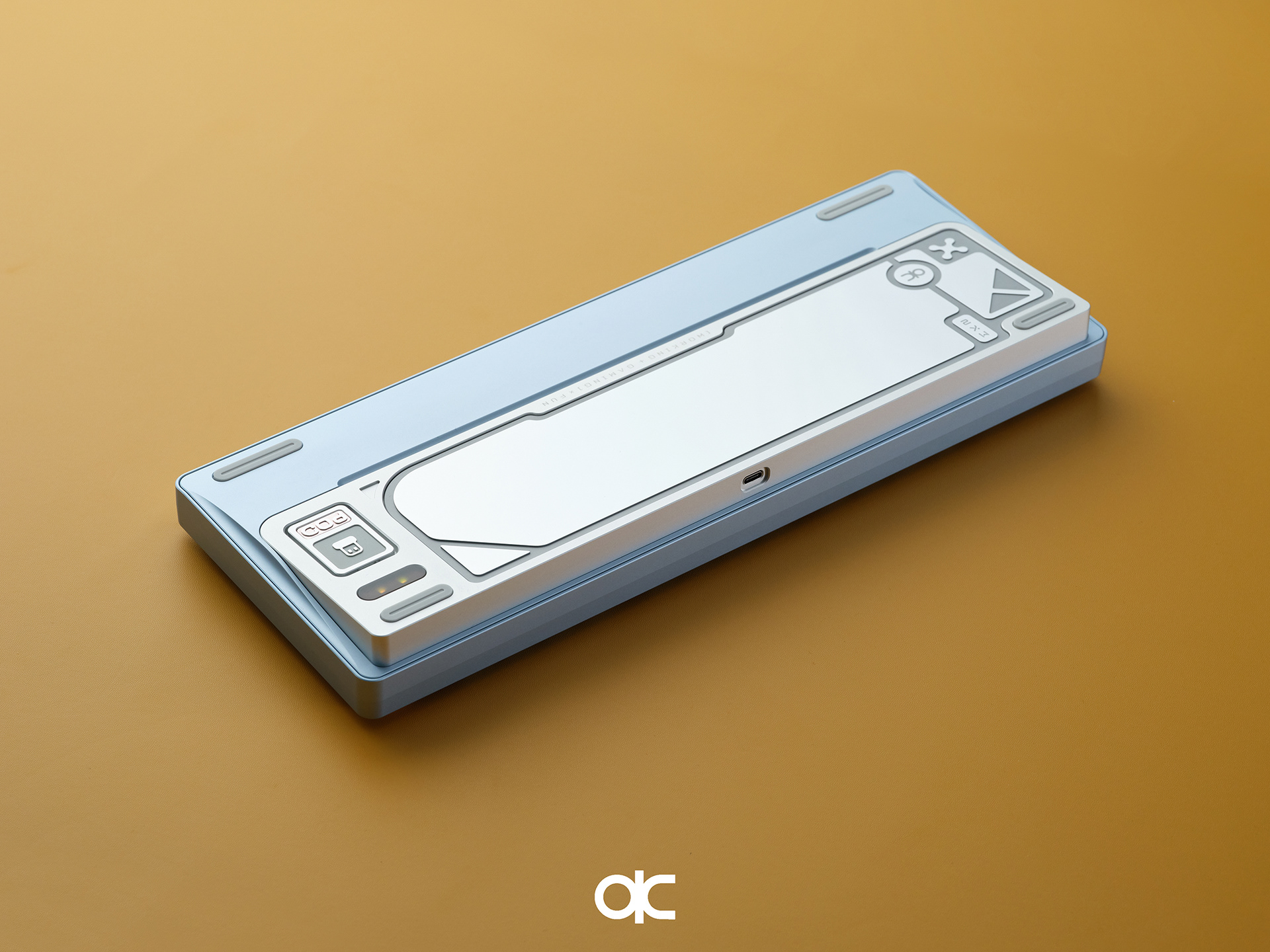

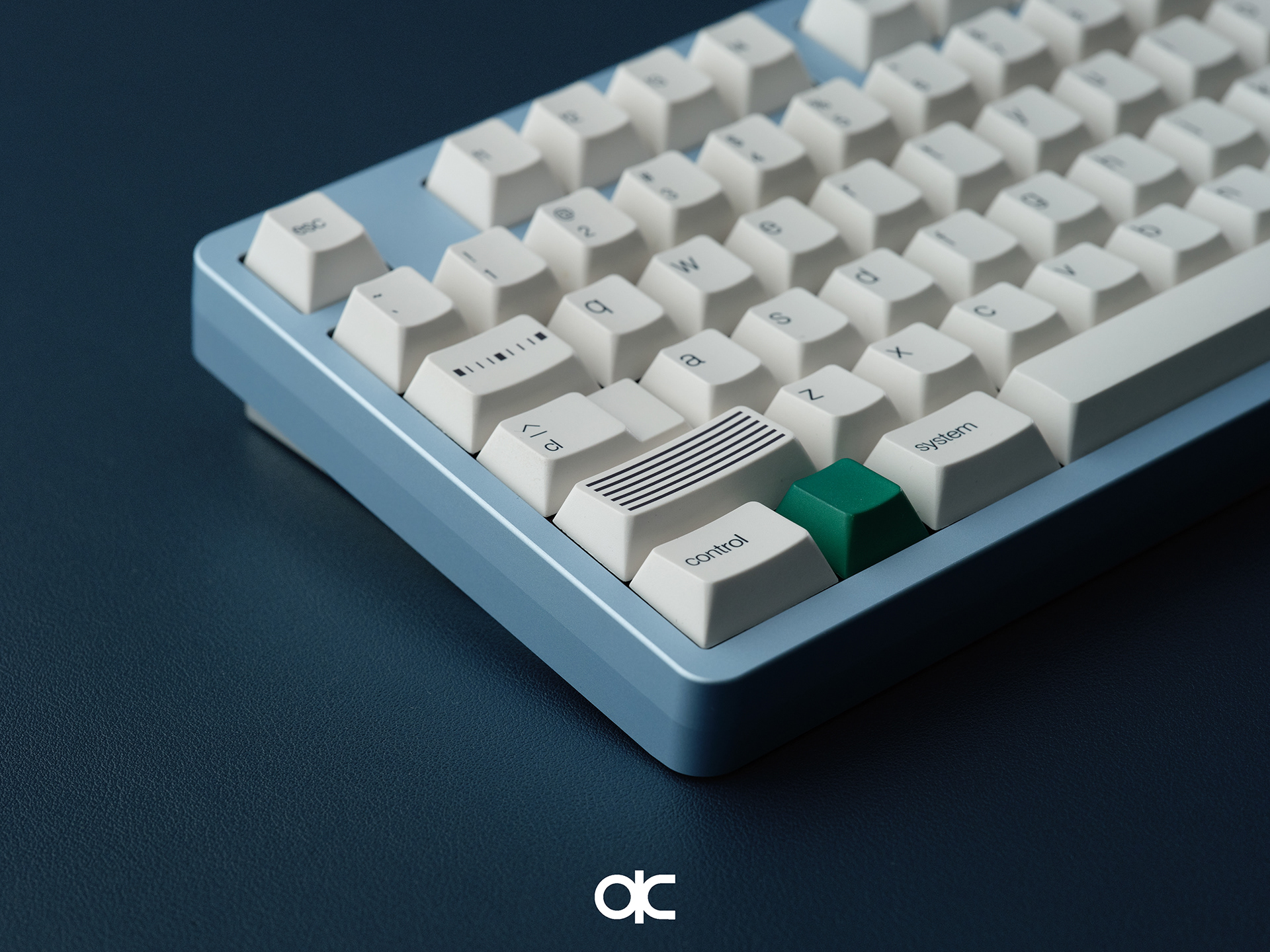

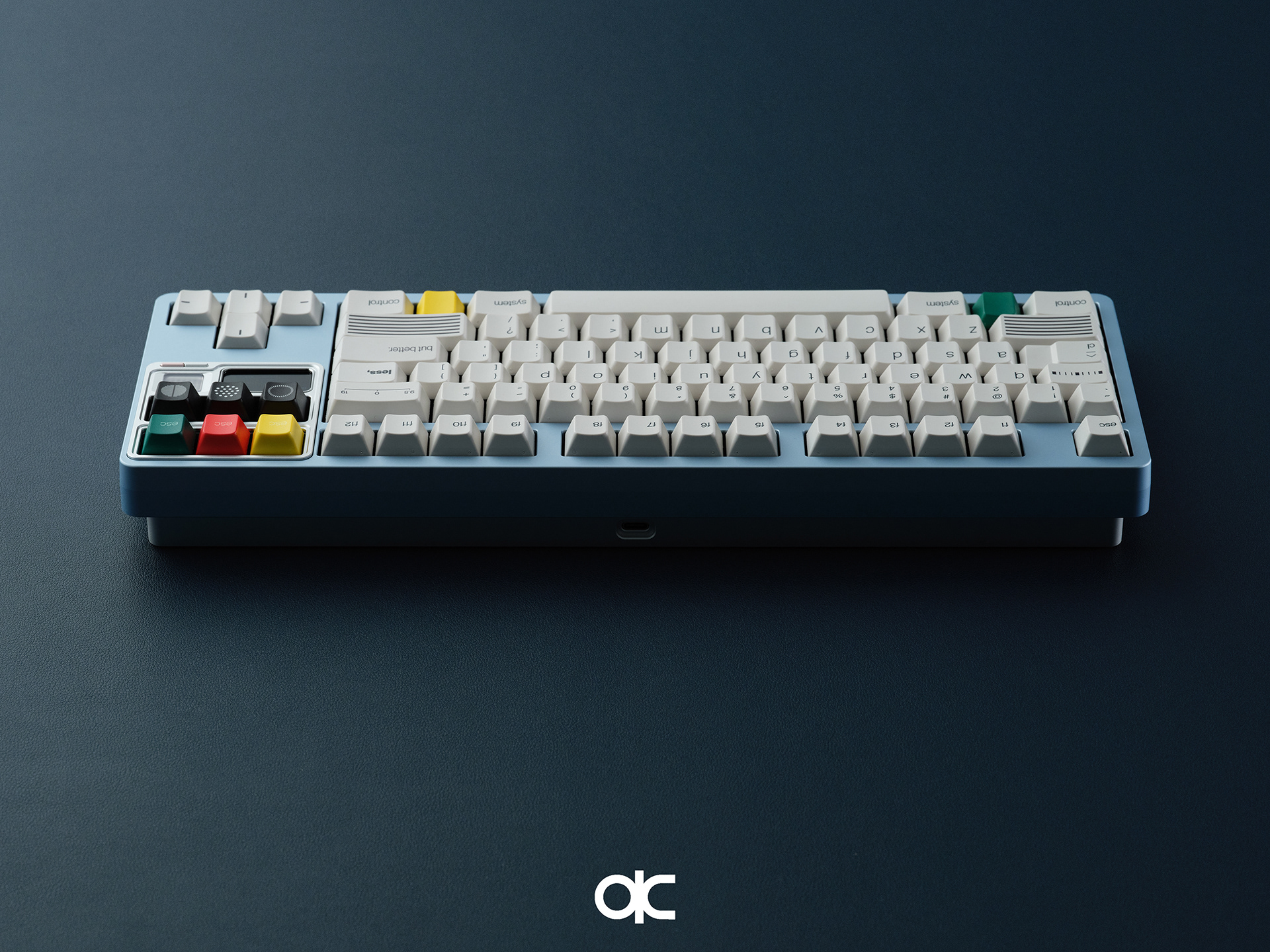

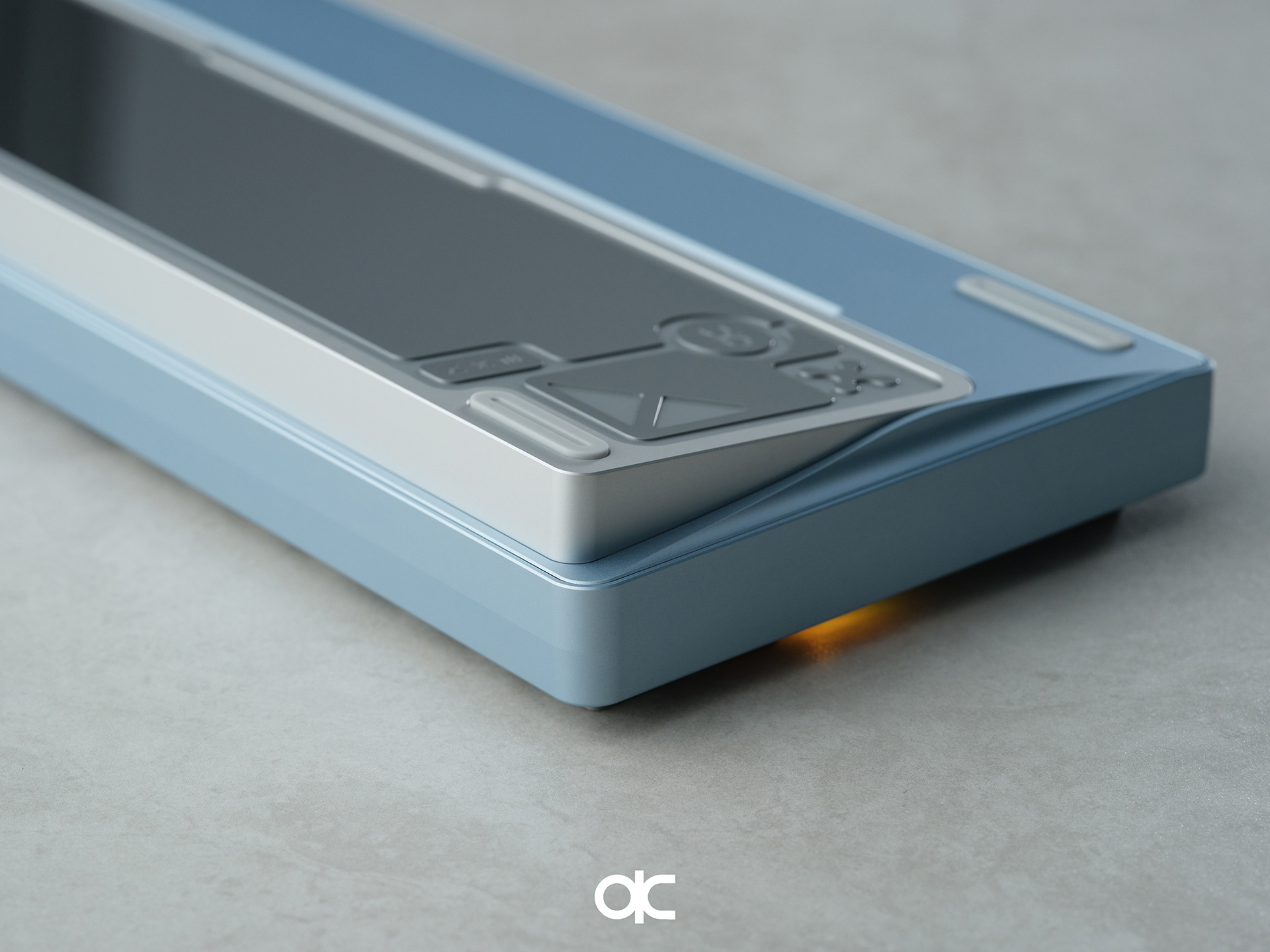

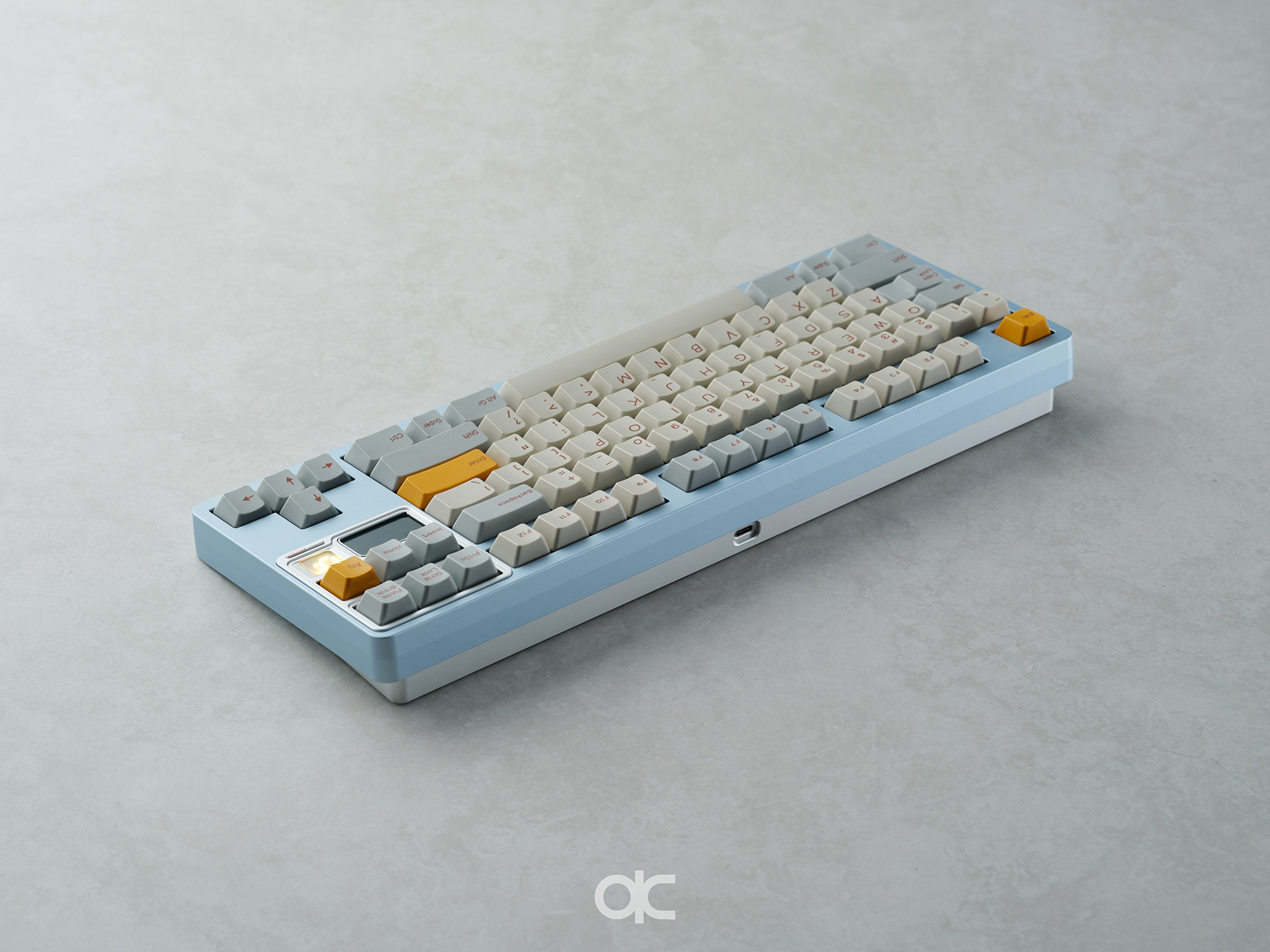

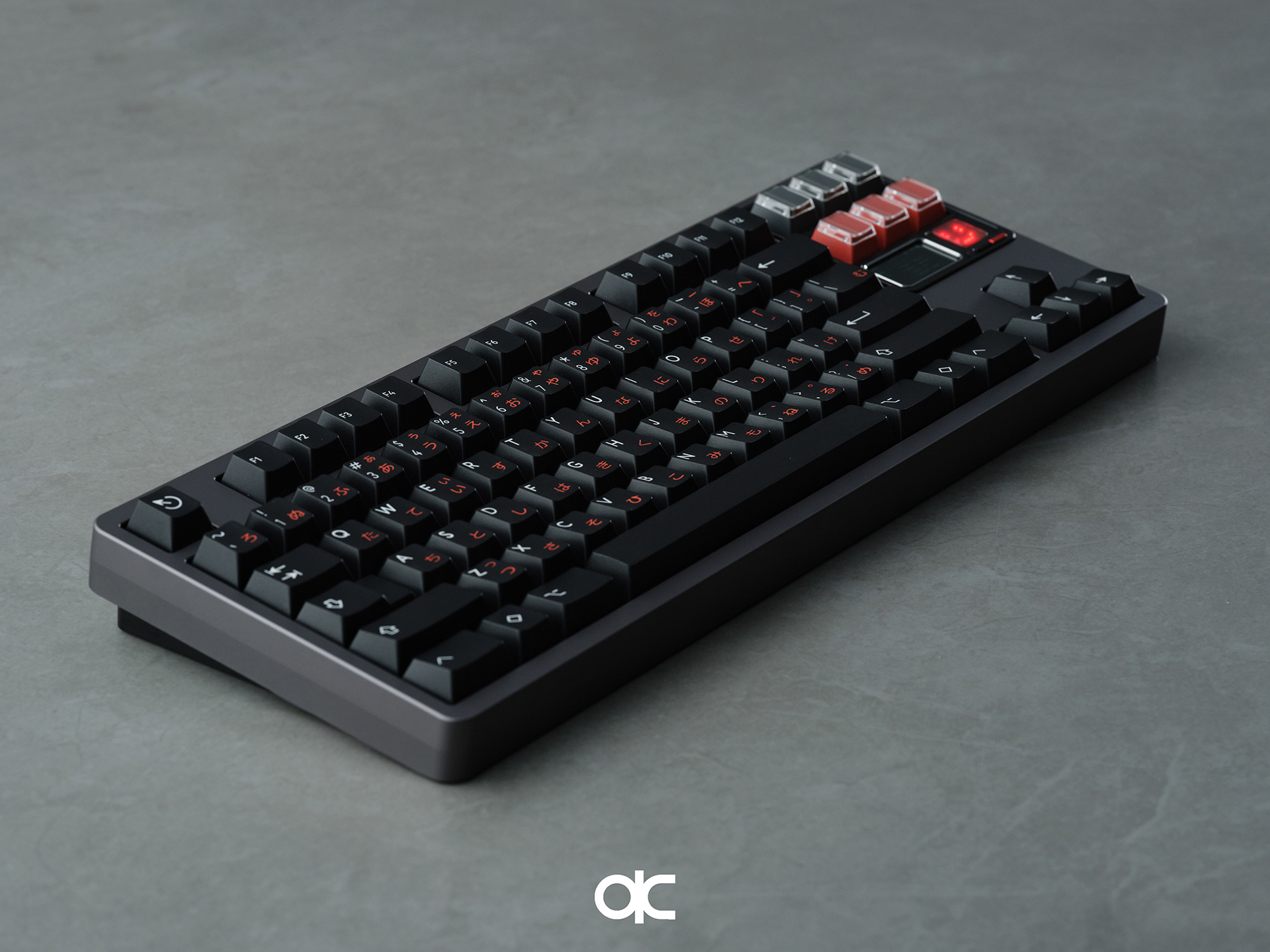

The side profile of the QK80 MK2 inherits the second-generation design language of the Qwertykeys family, featuring a 3-layer structure and a contrasting color between the top case and the battery compartment. This design not only makes the whole keyboard easier to pick up but also showcases the meticulously selected color combinations for each colorway.

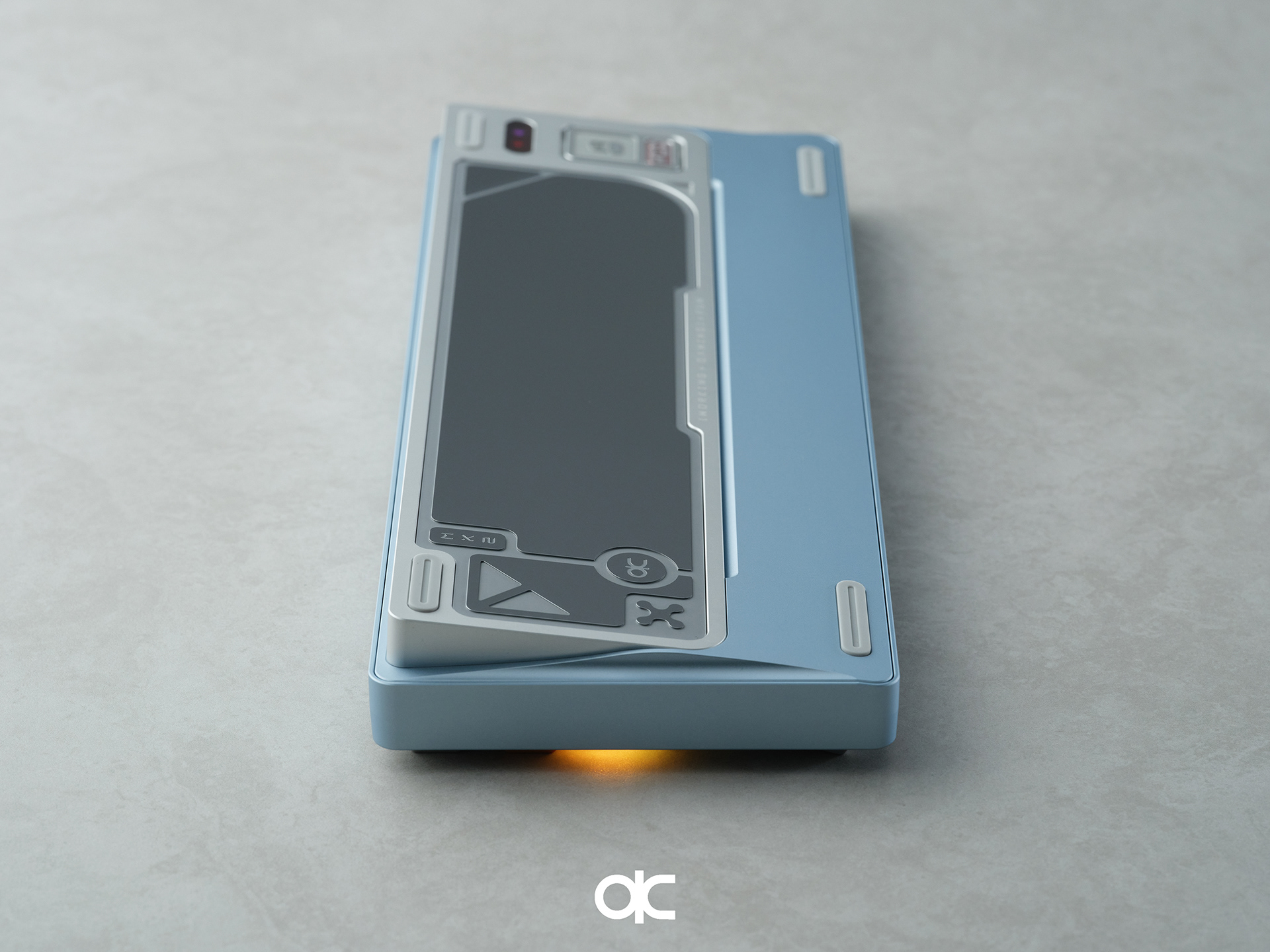

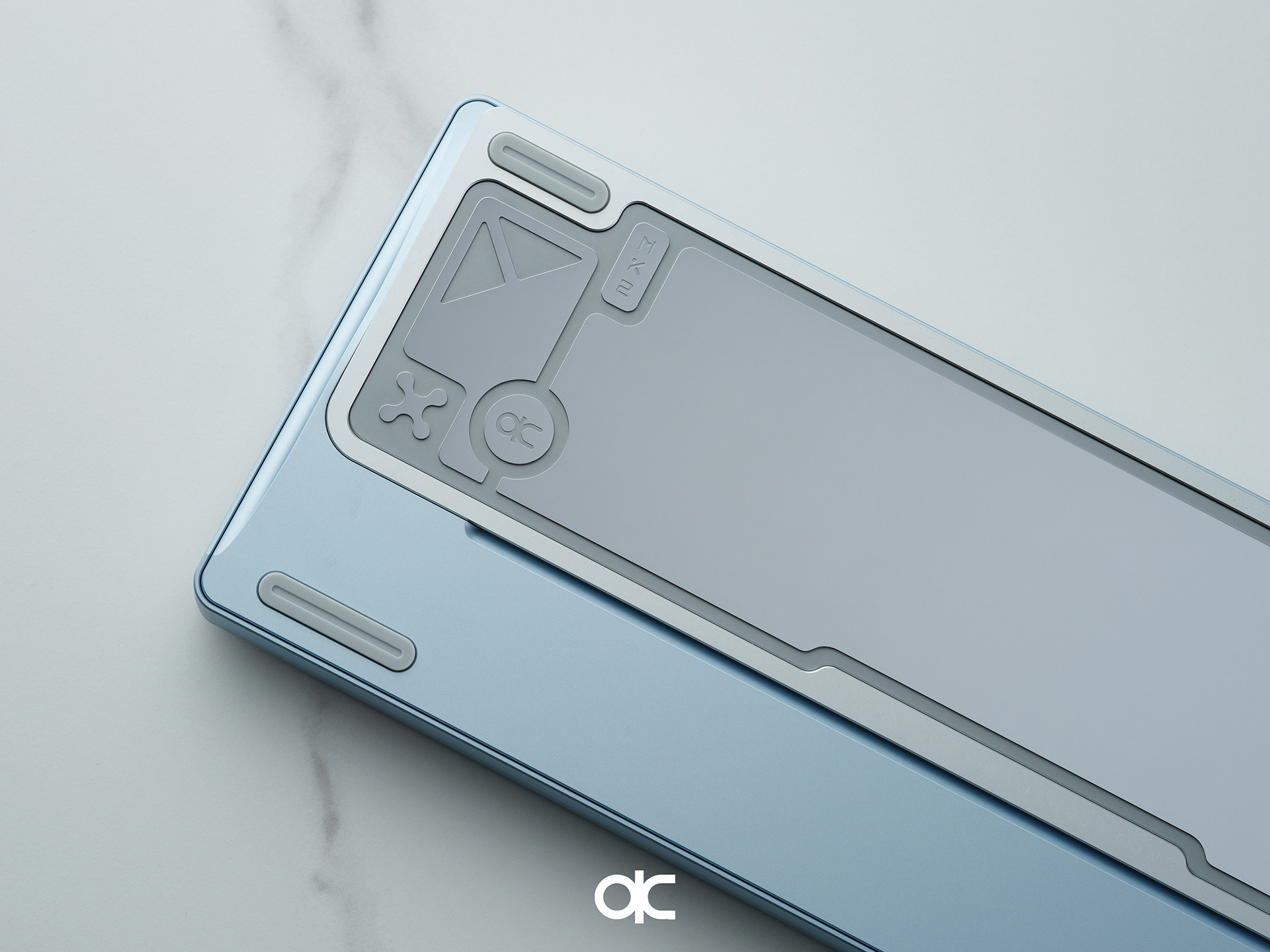

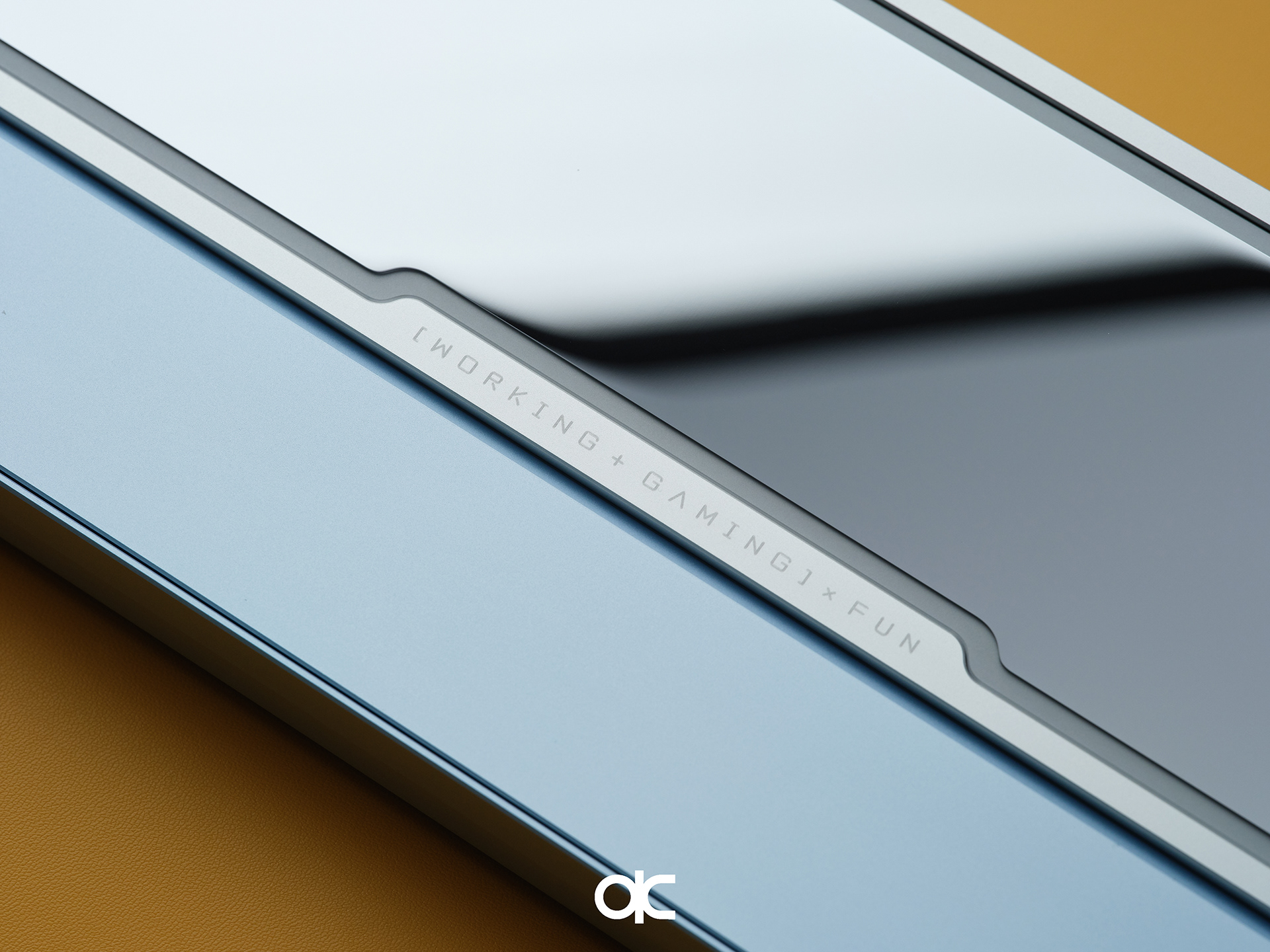

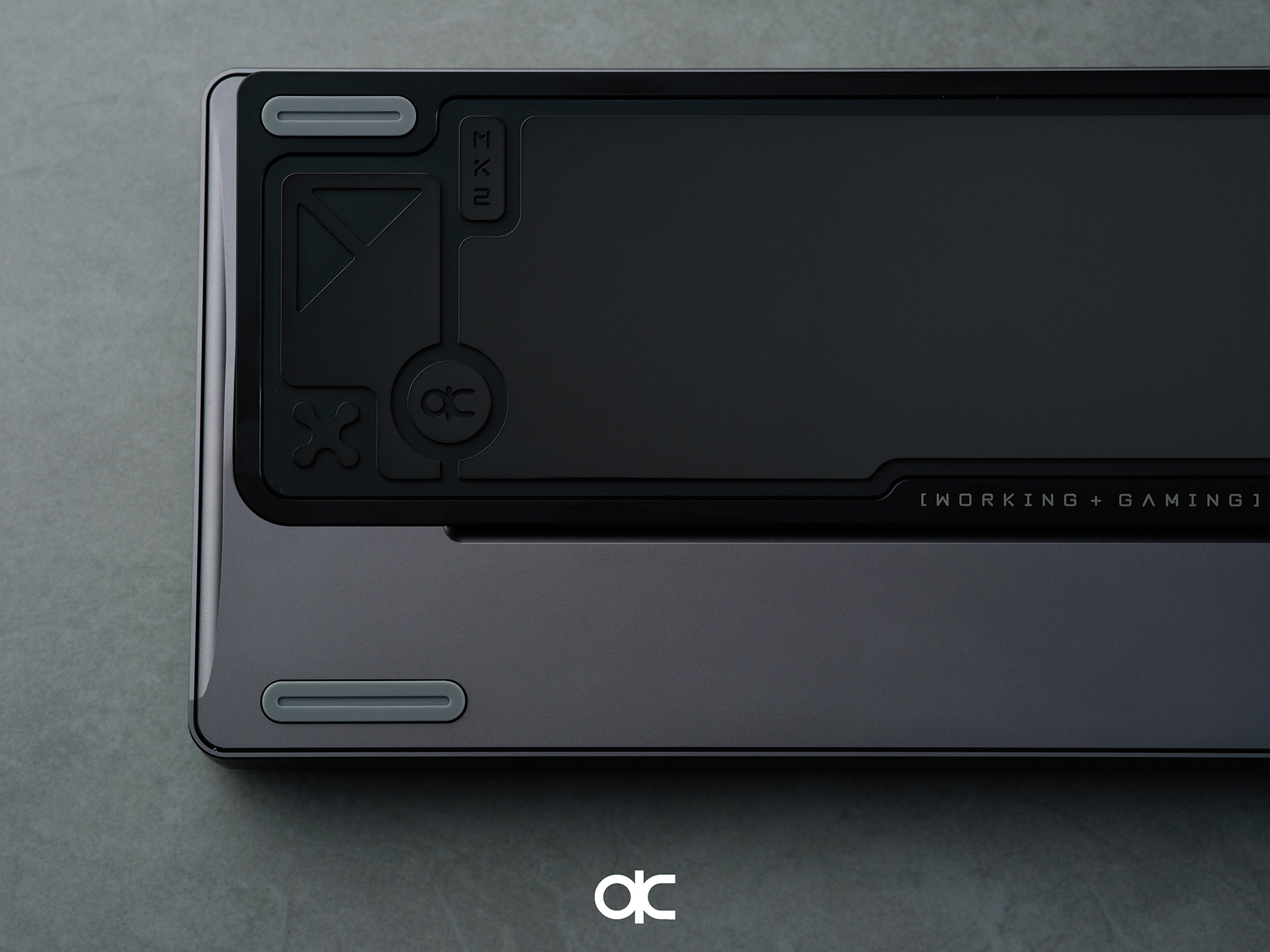

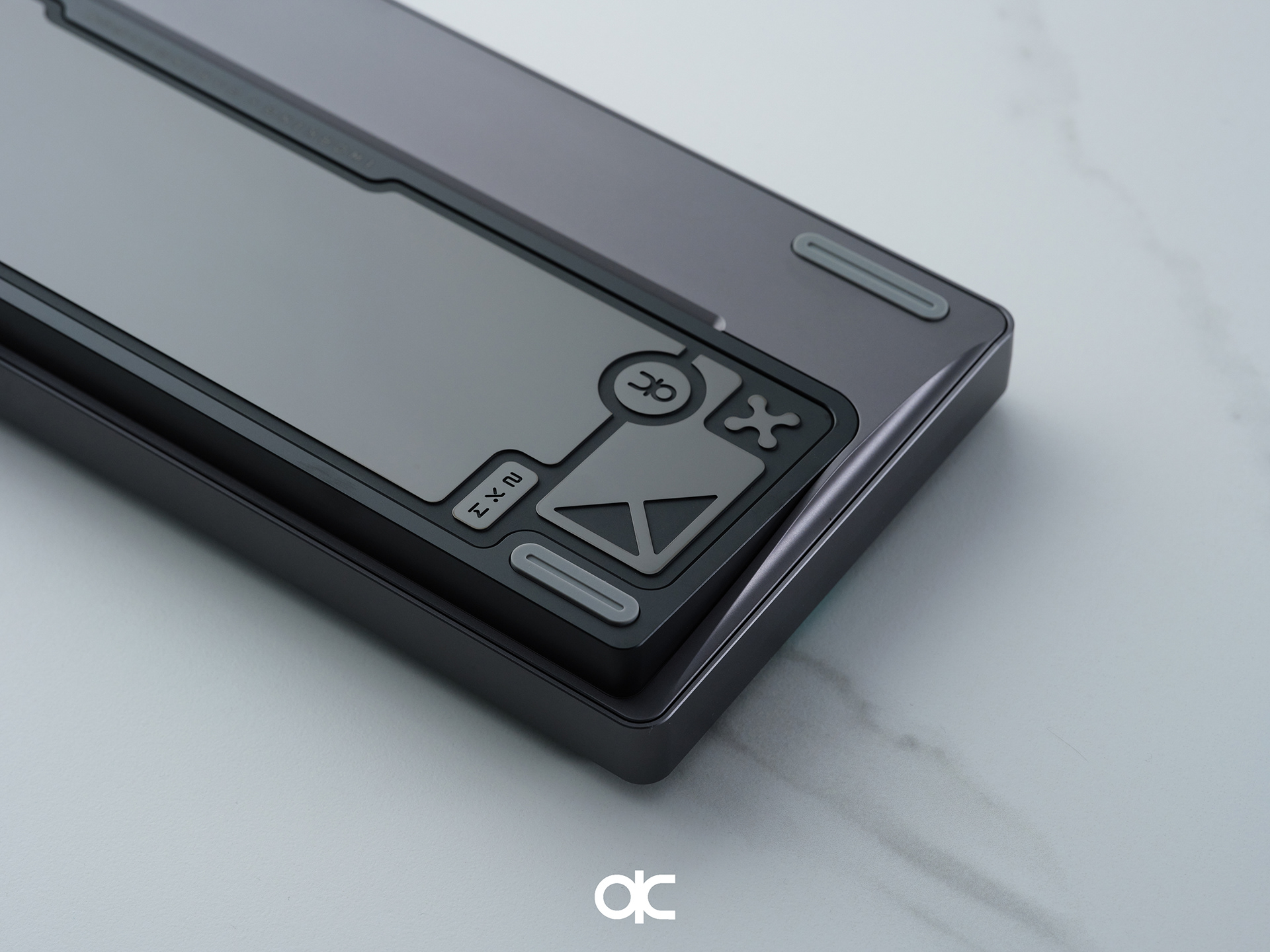

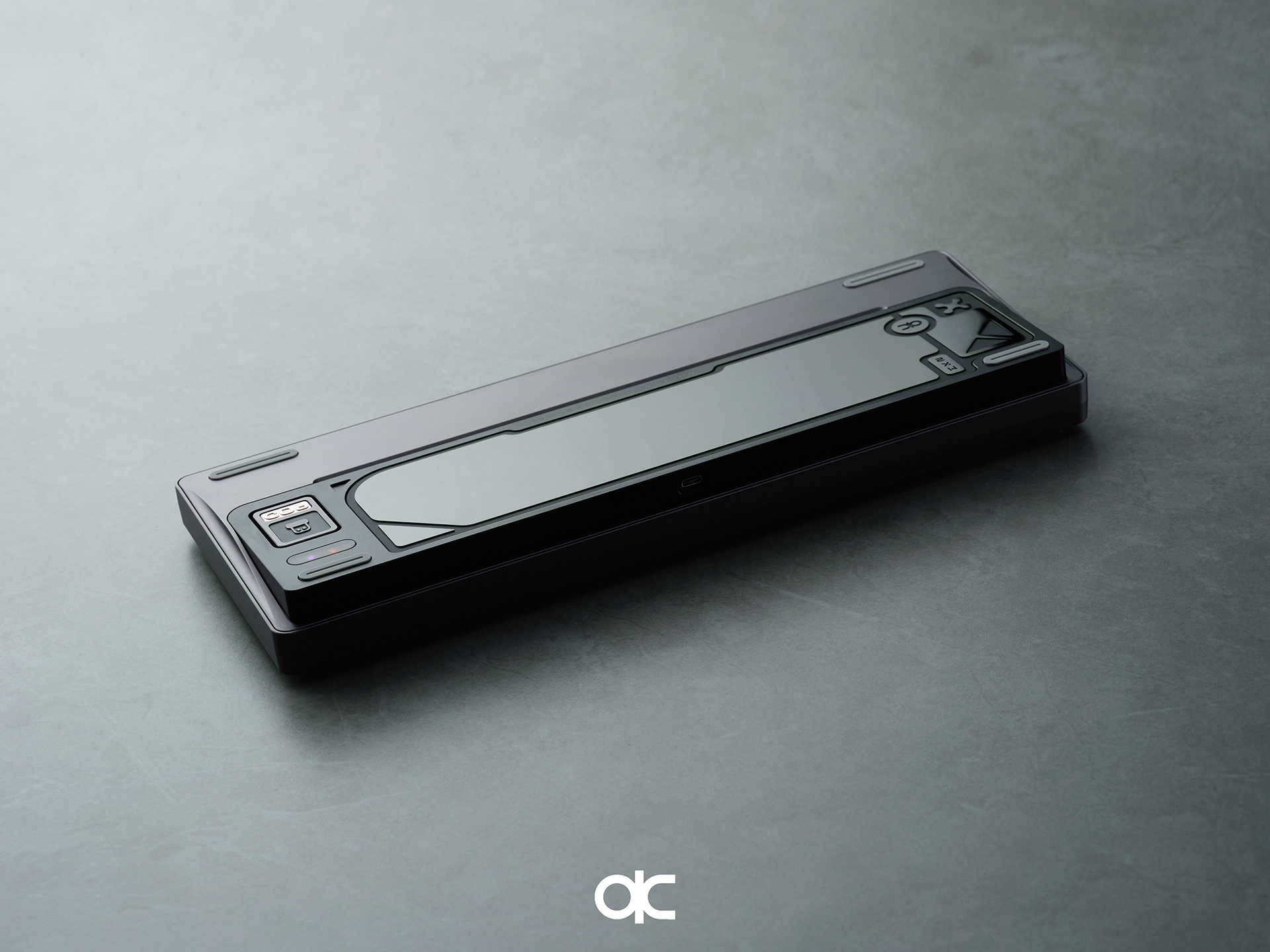

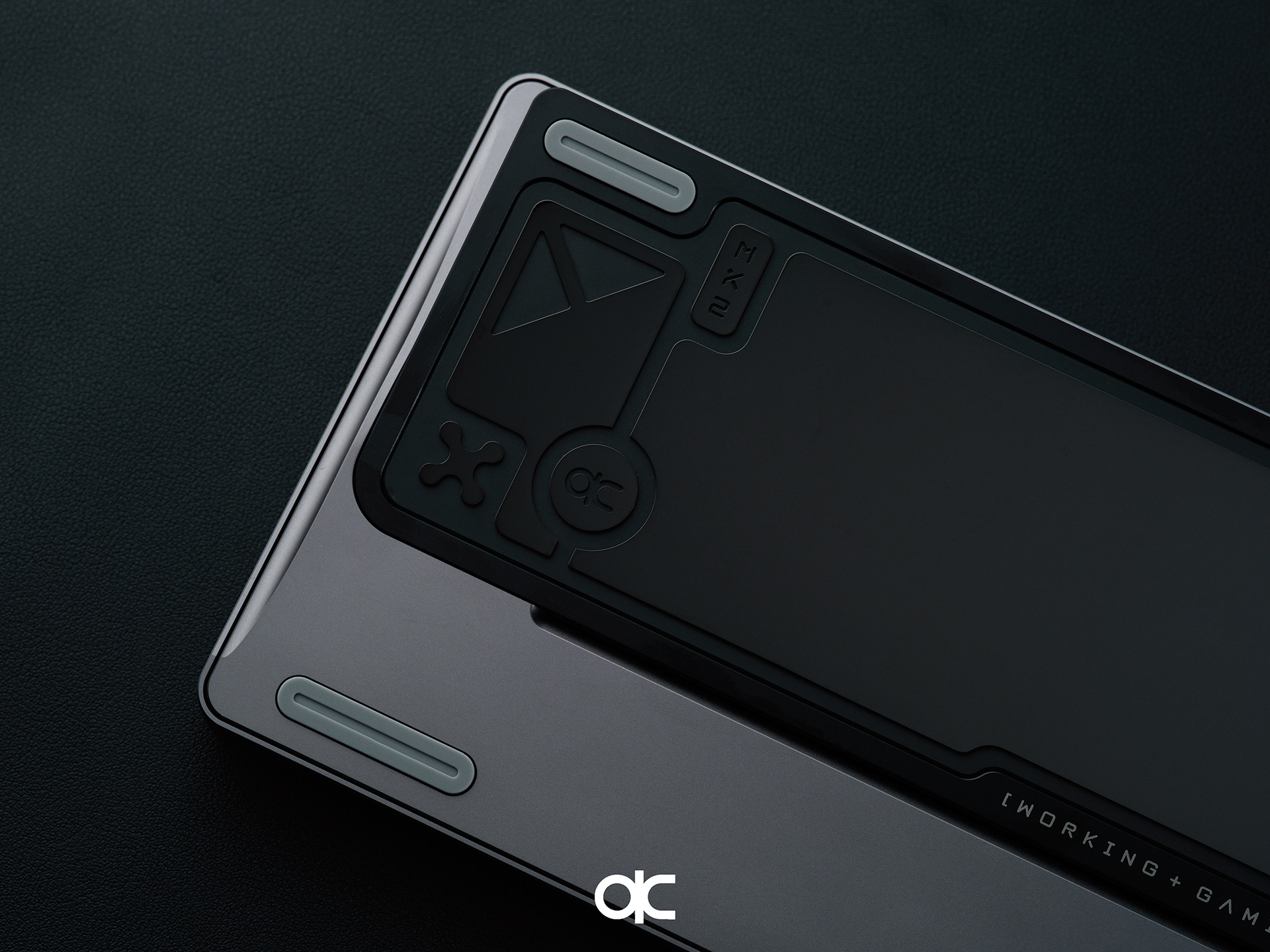

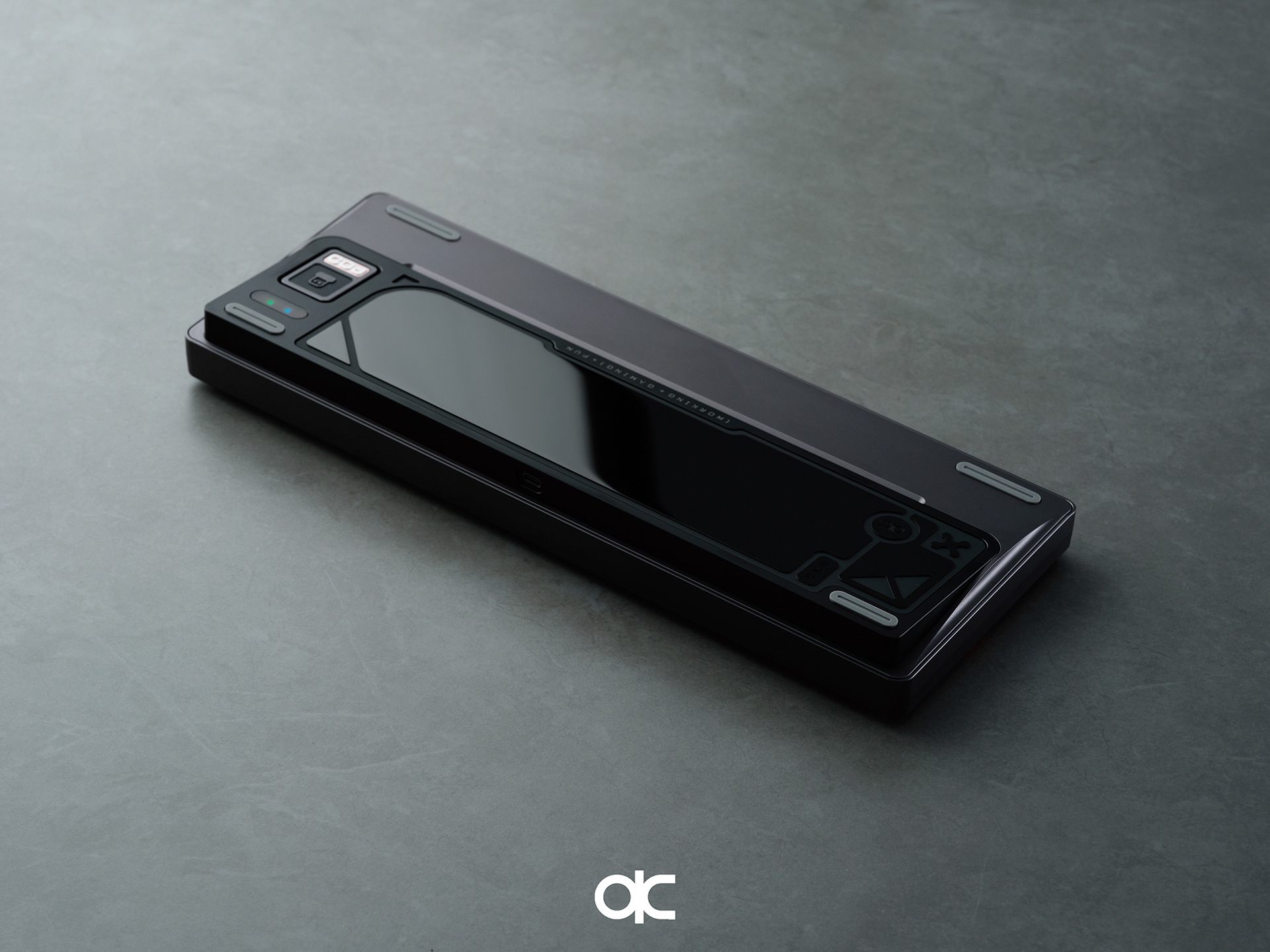

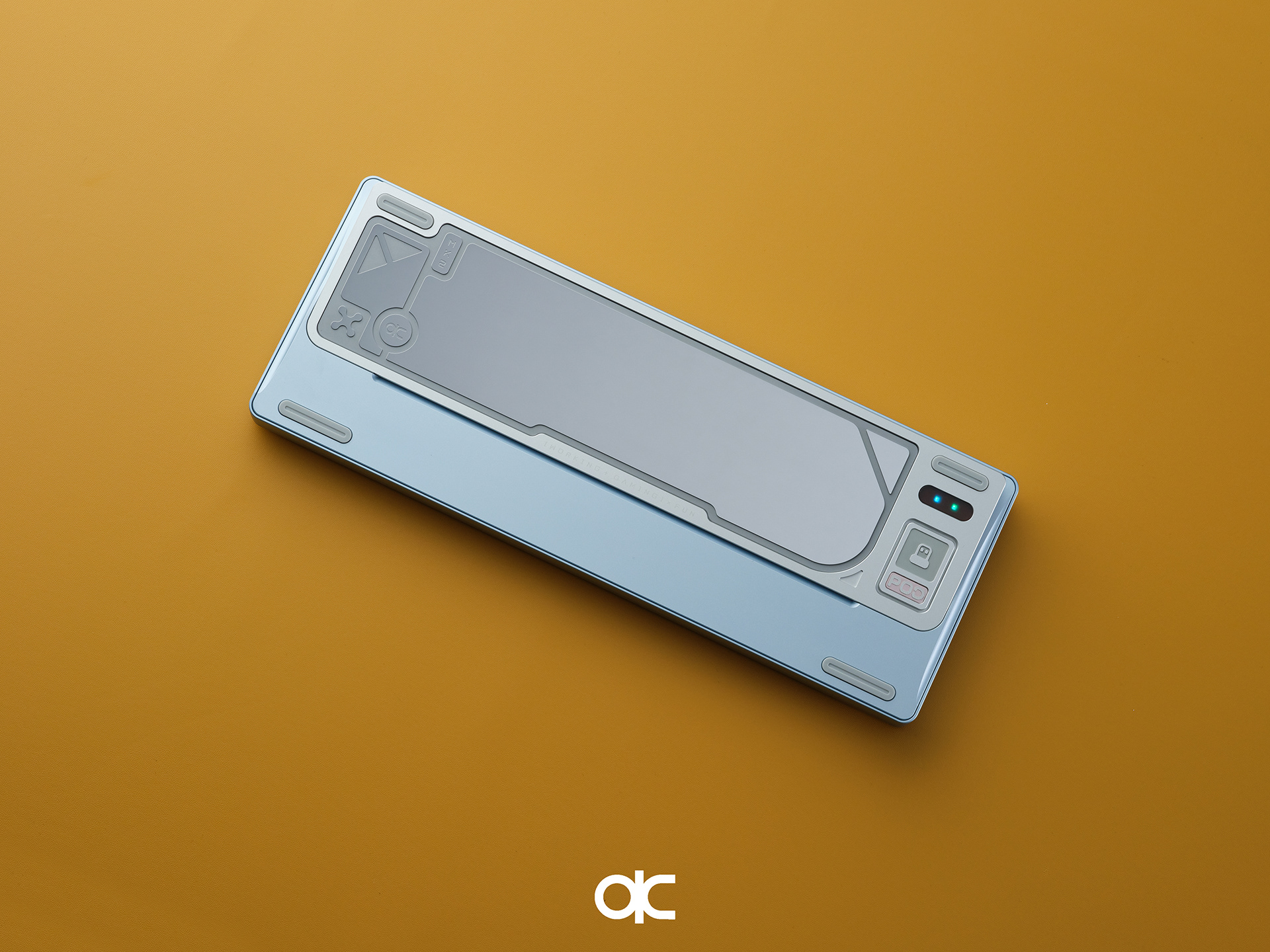

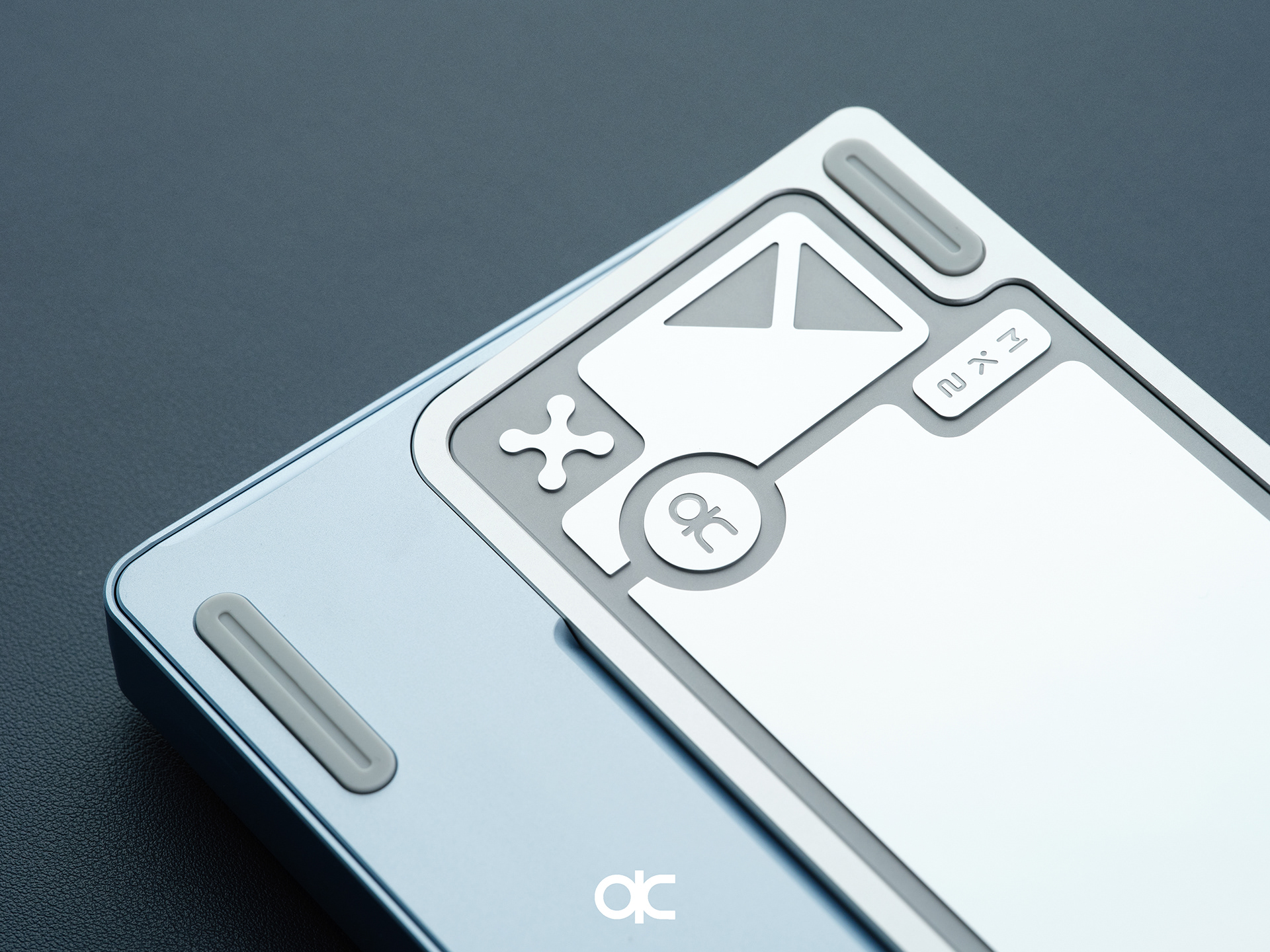

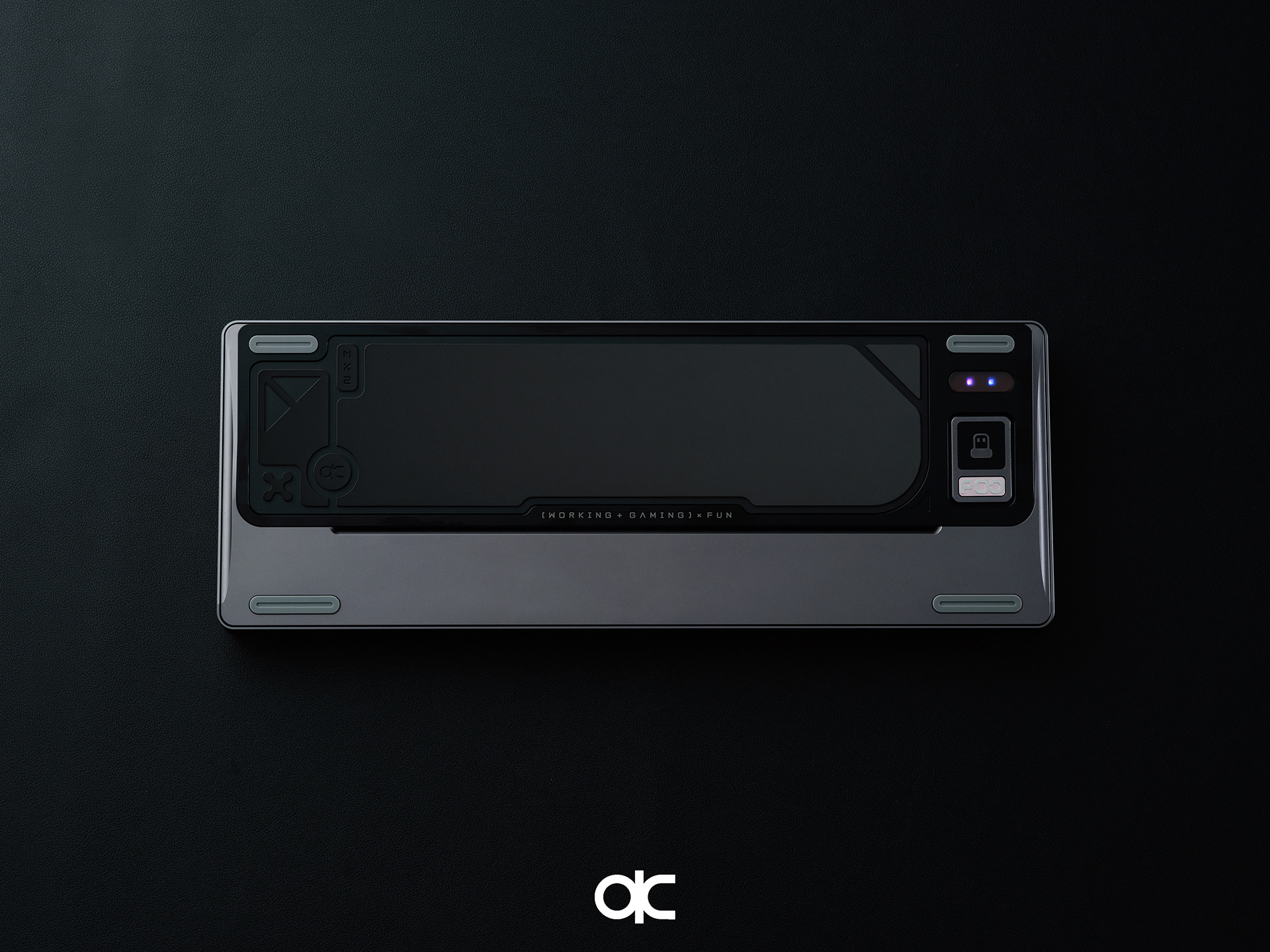

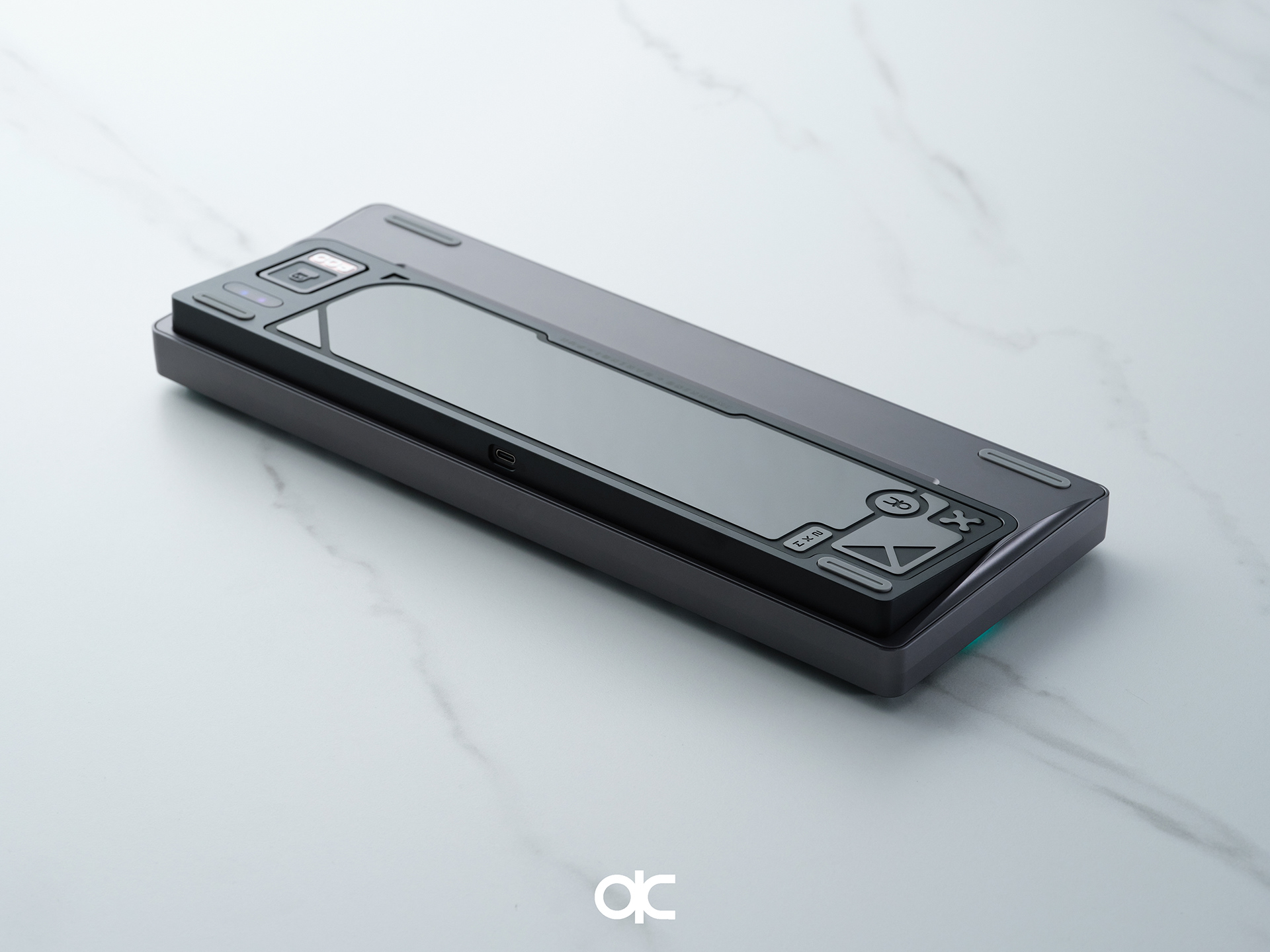

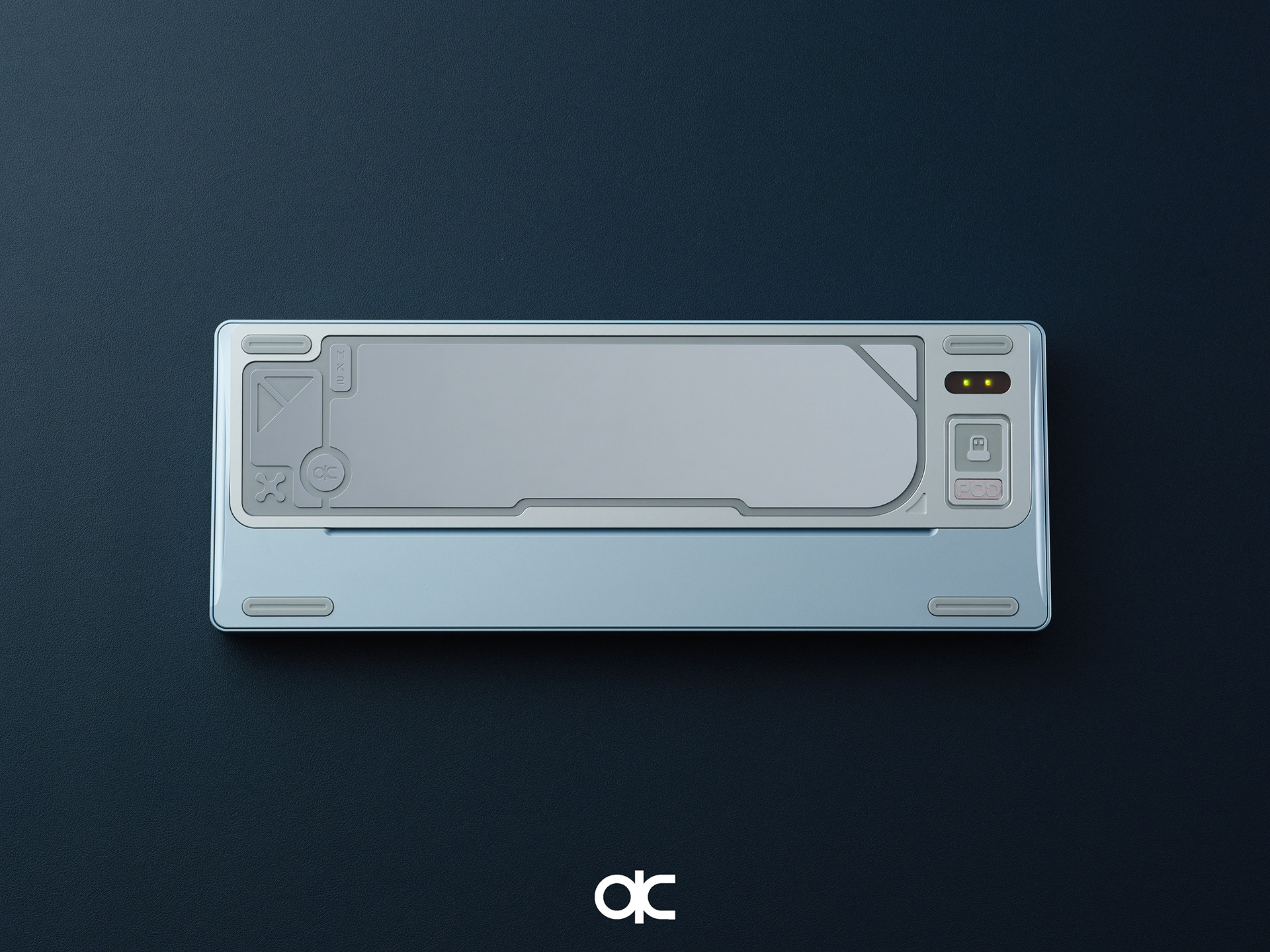

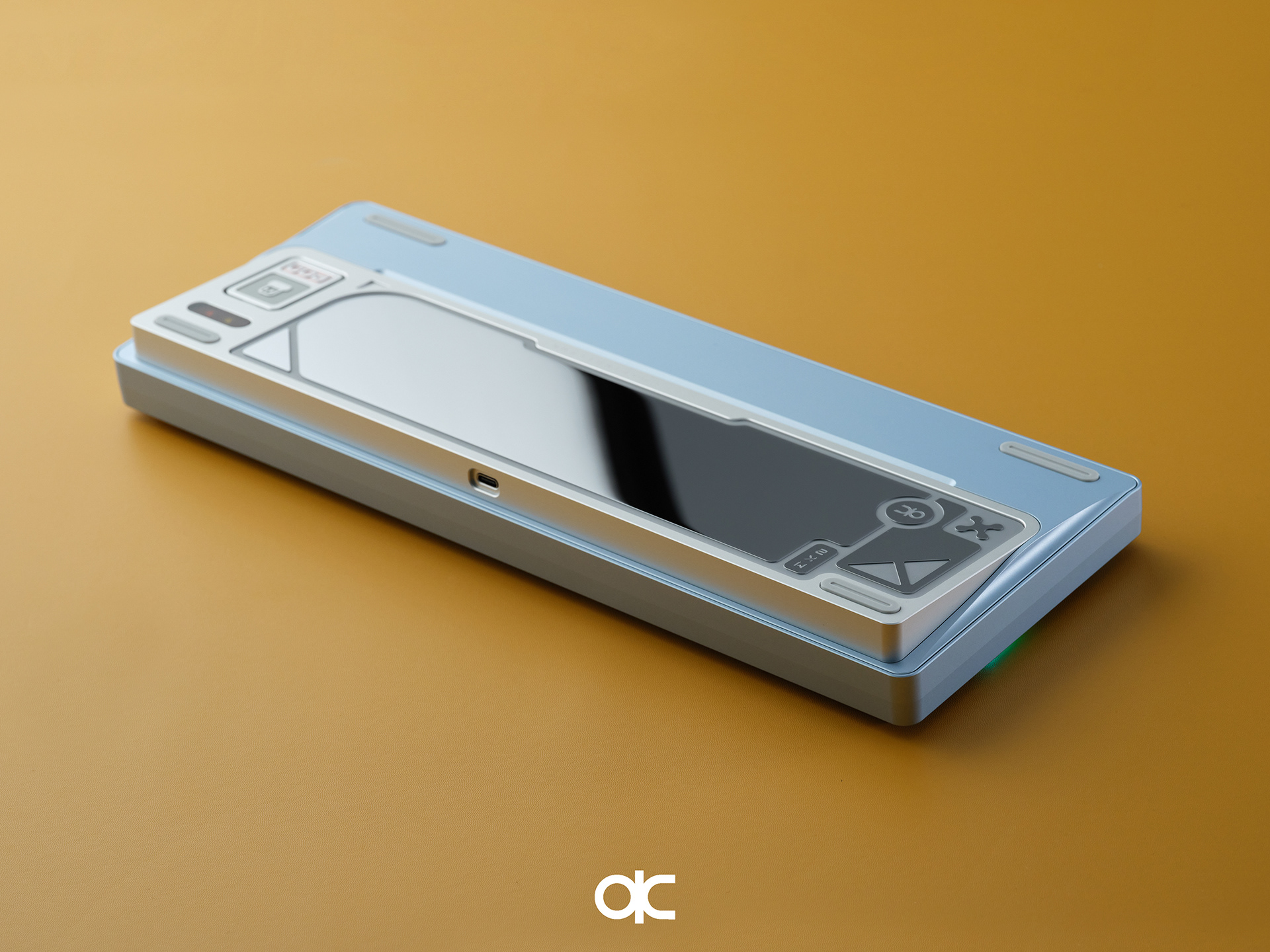

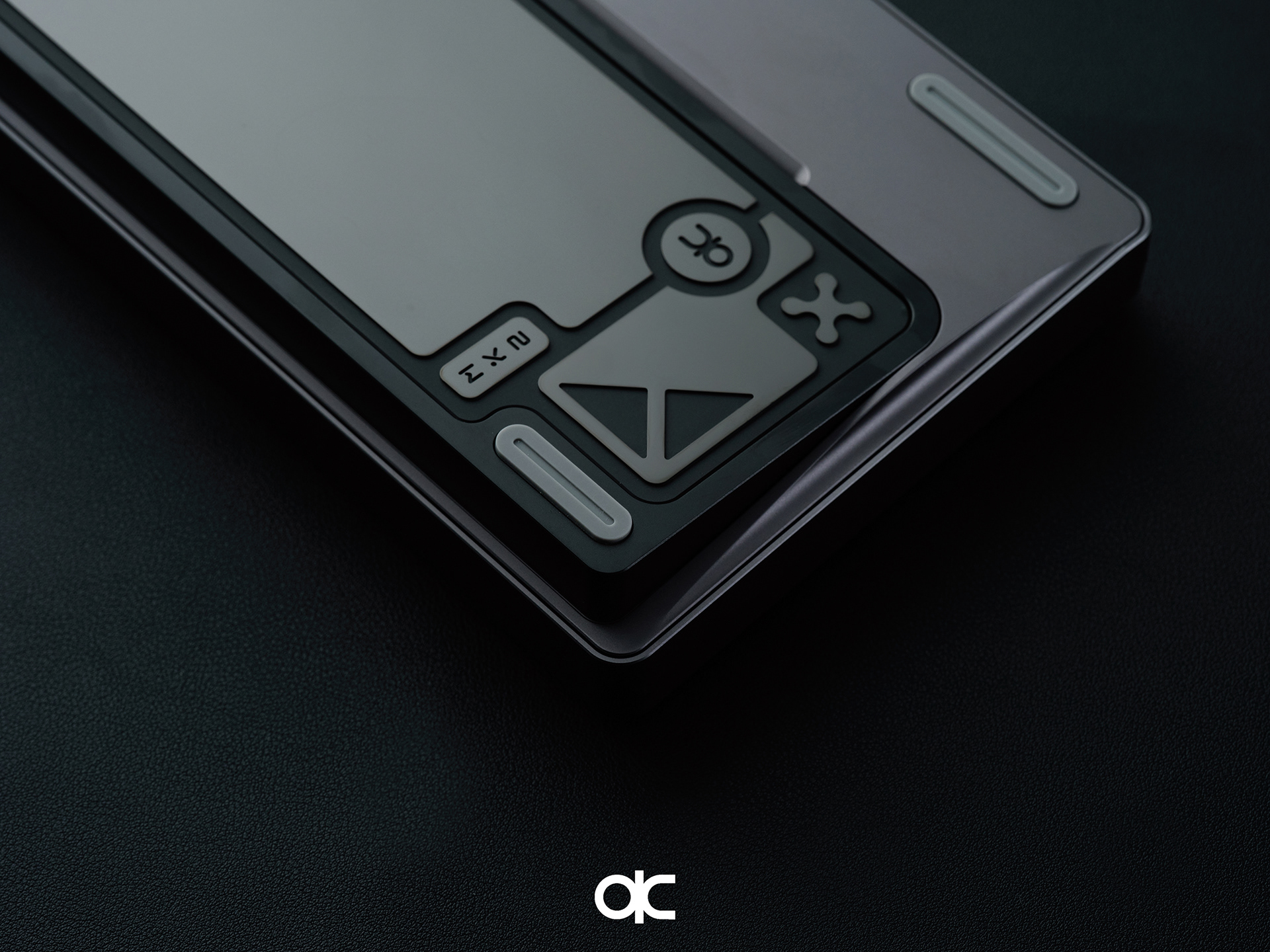

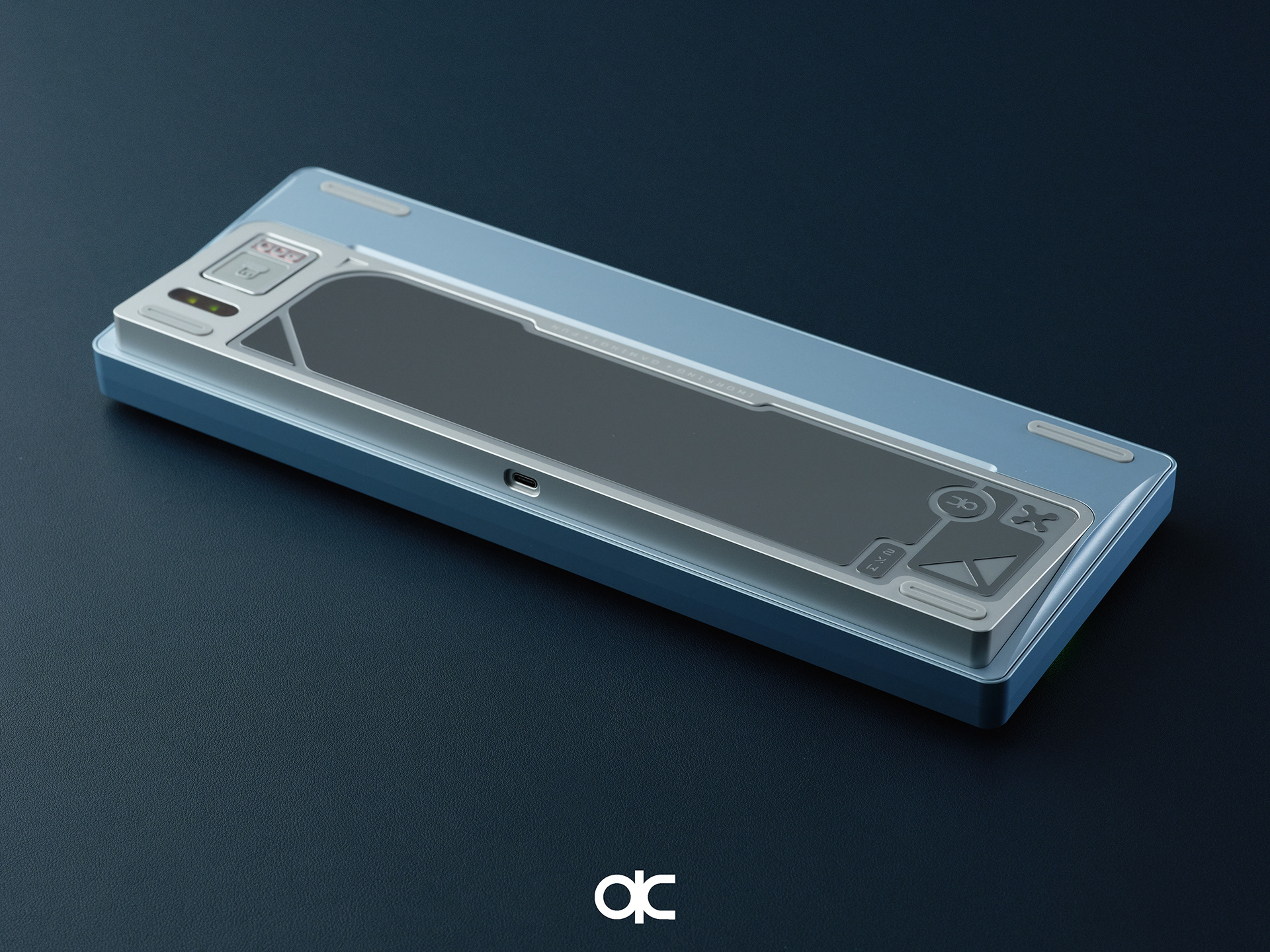

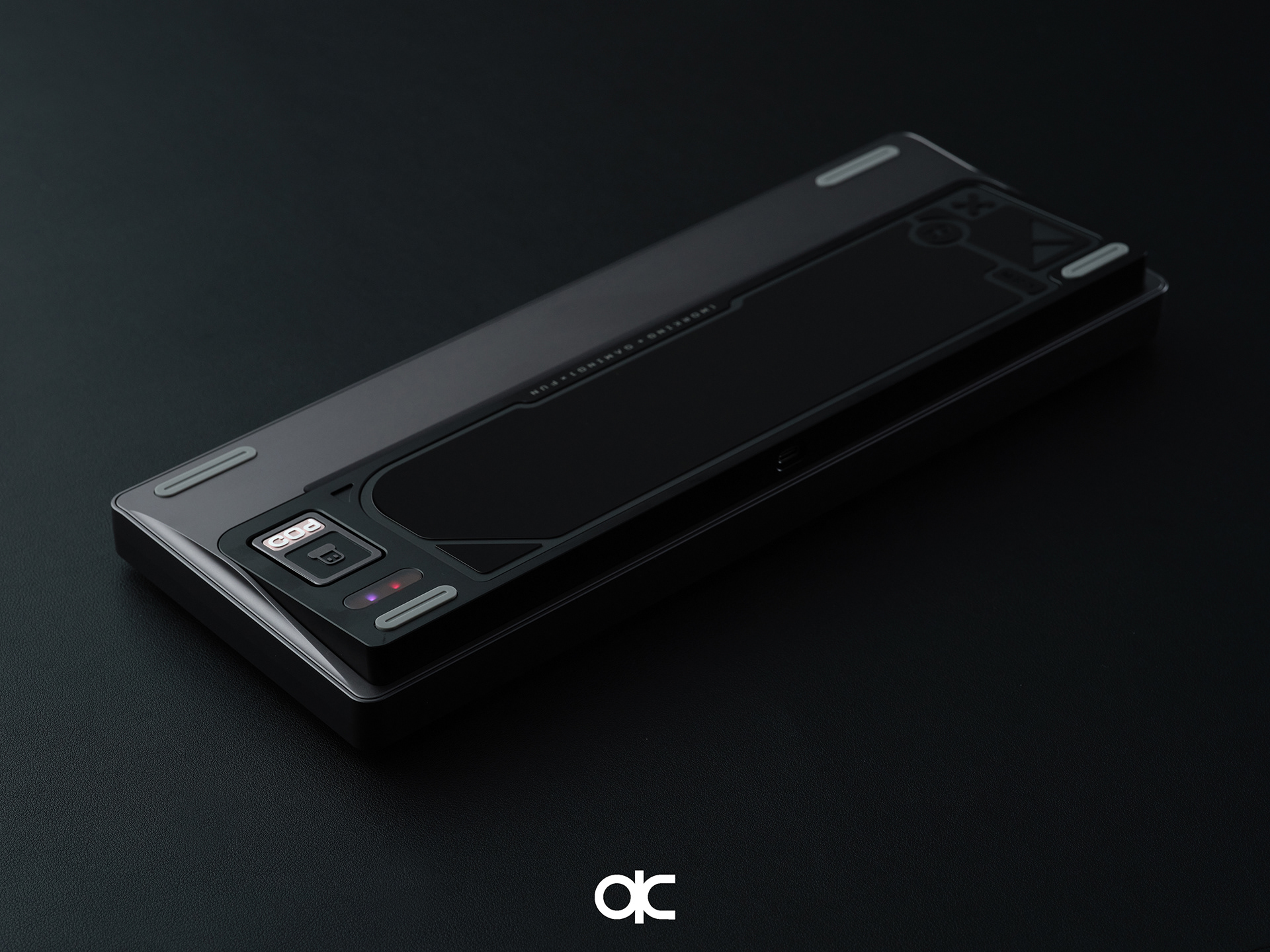

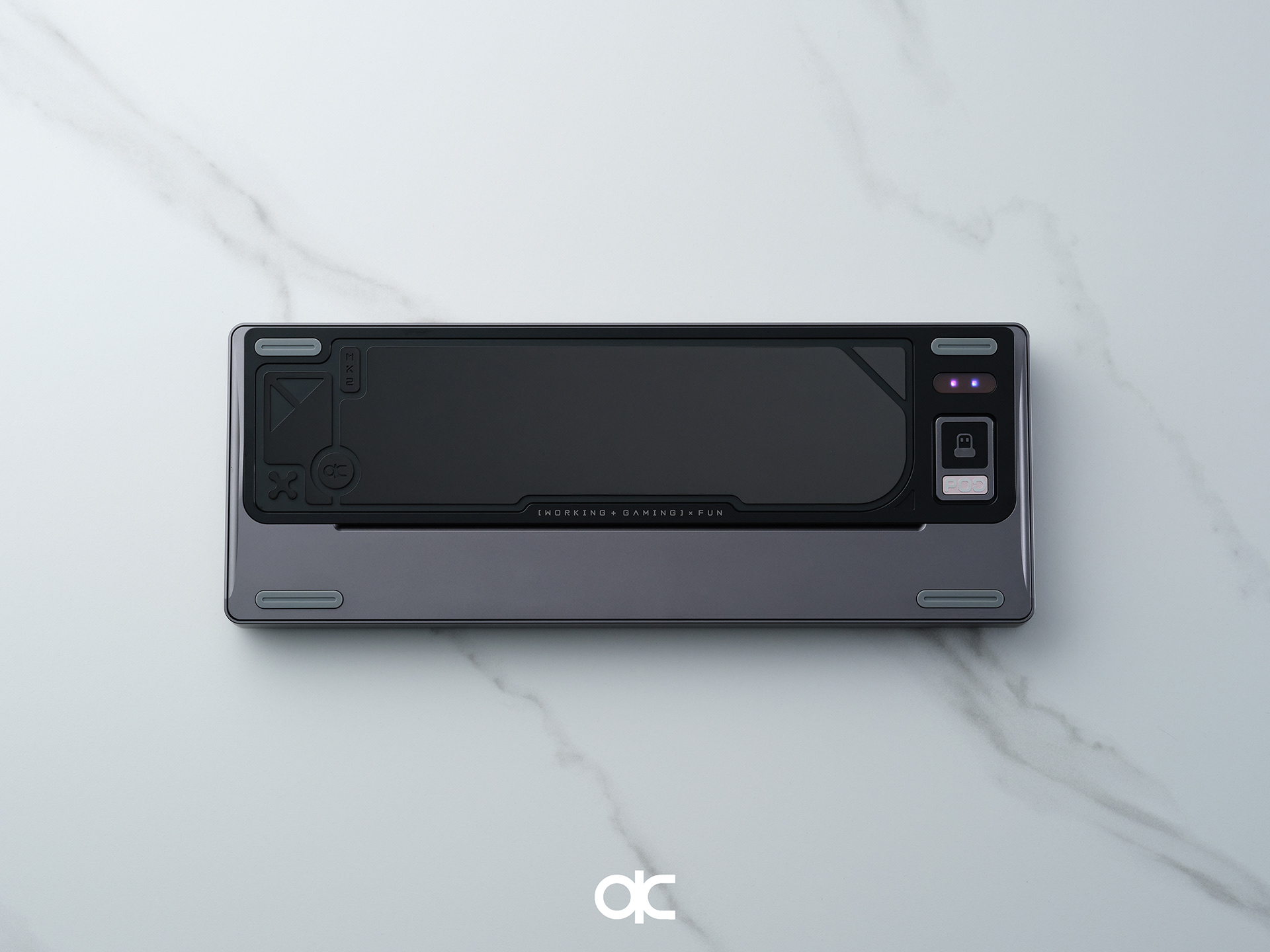

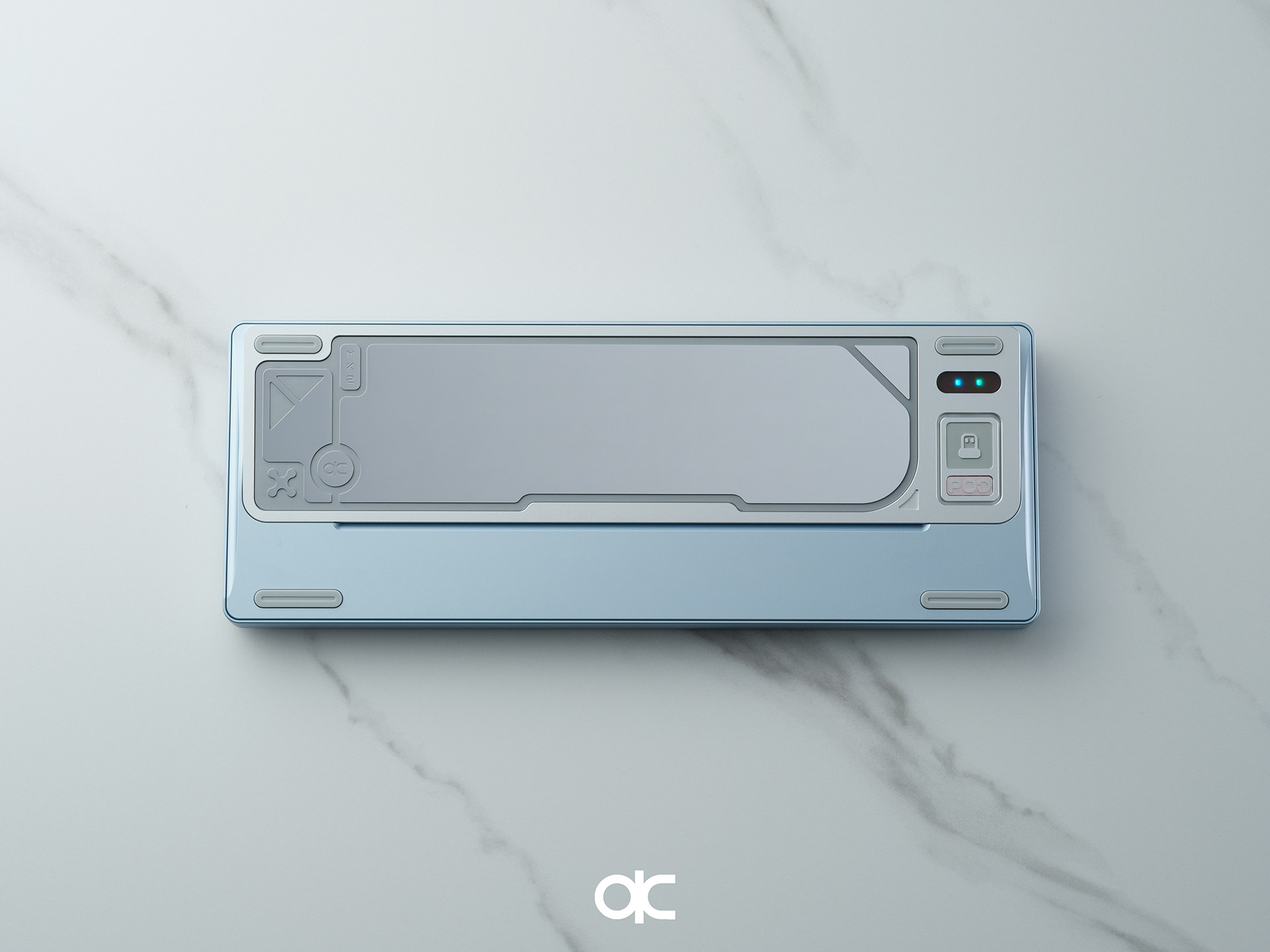

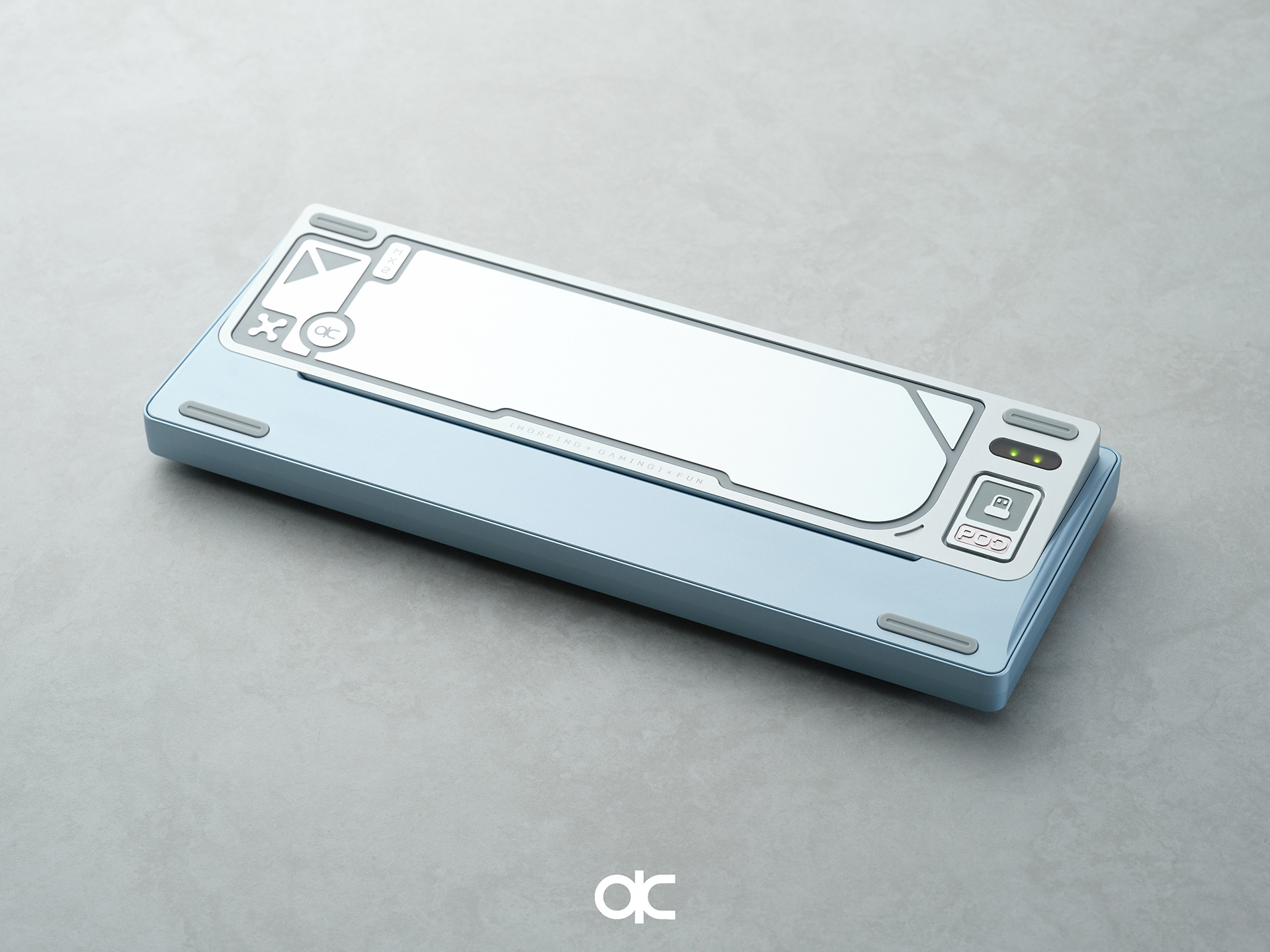

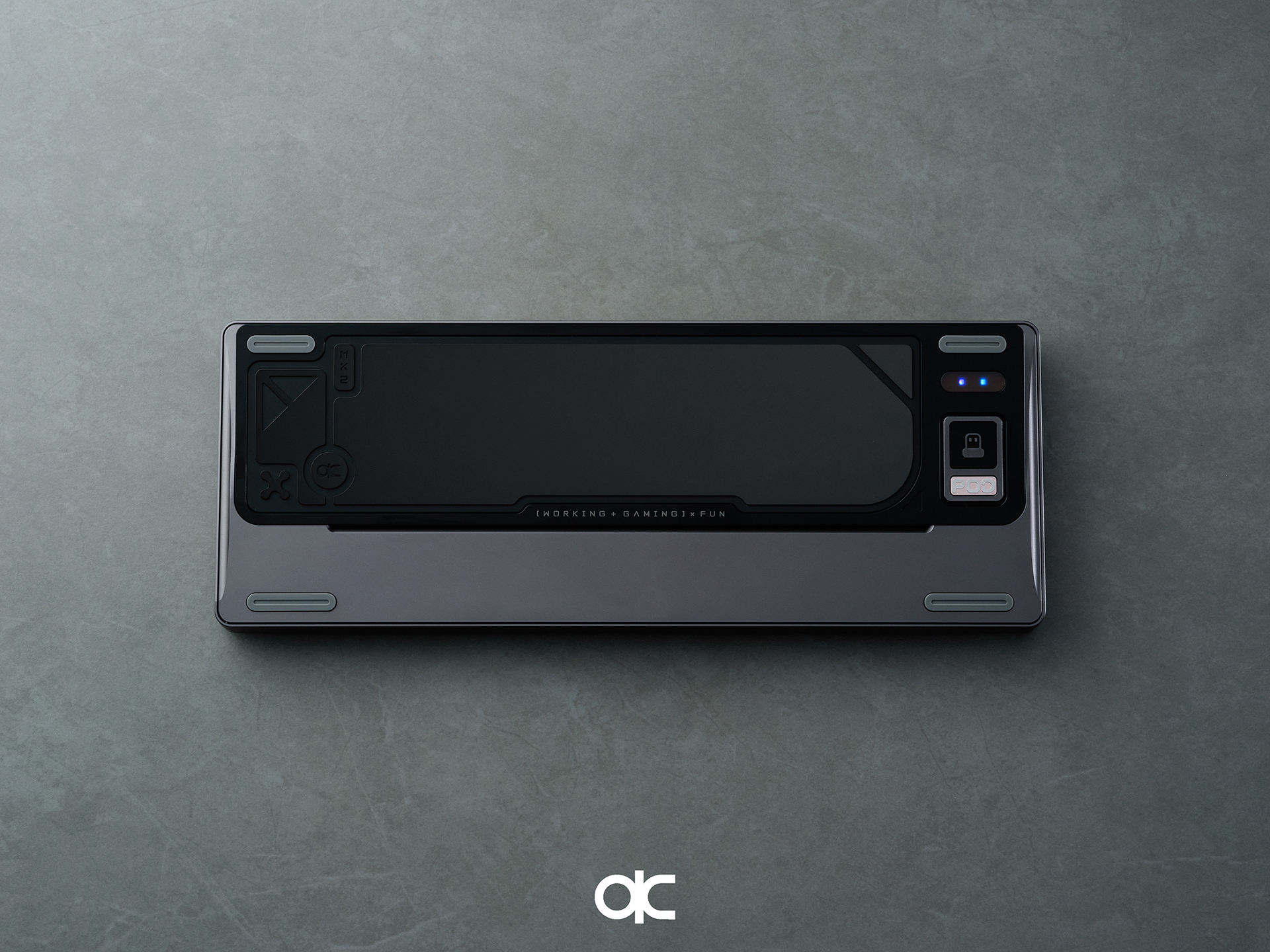

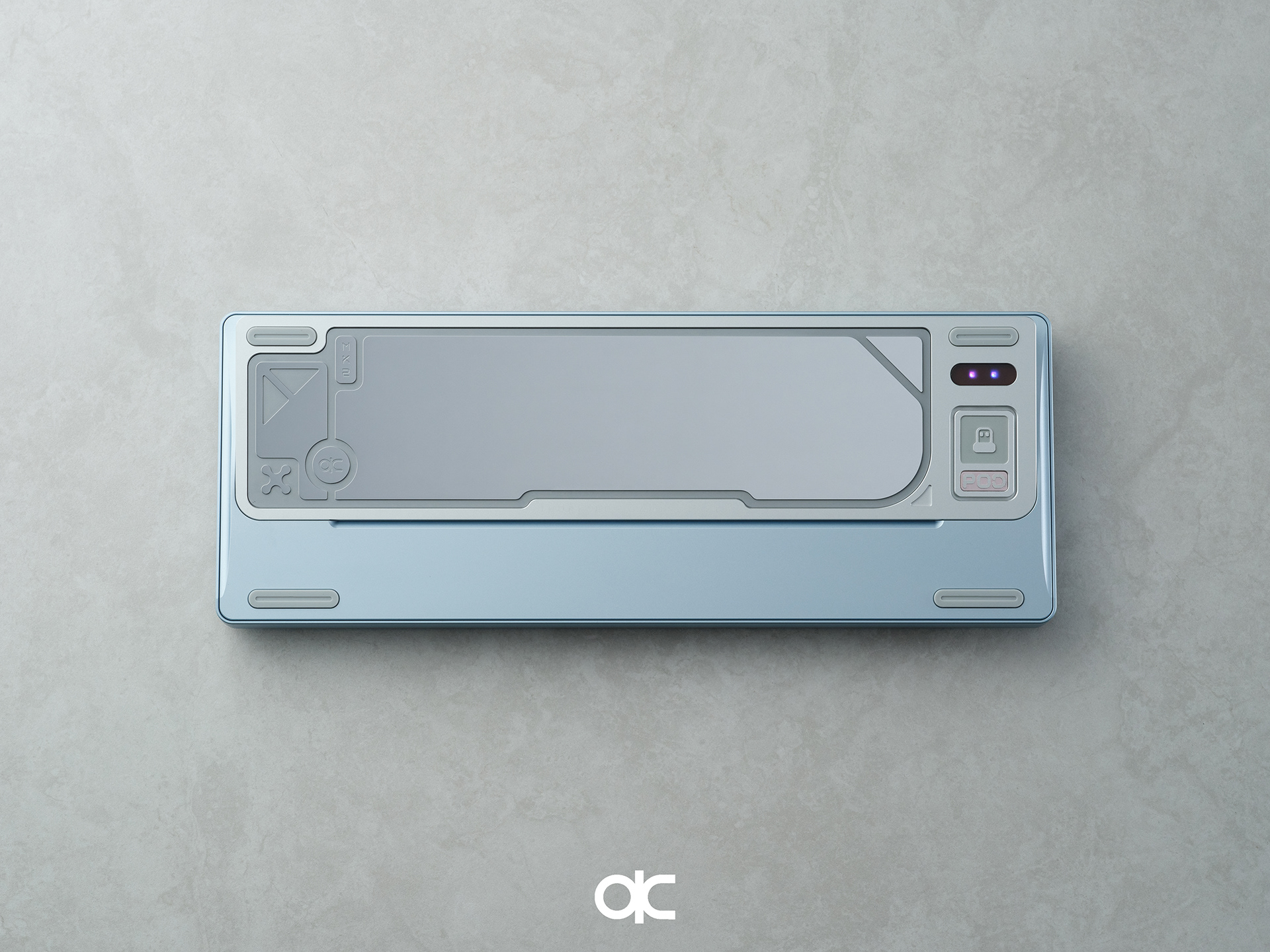

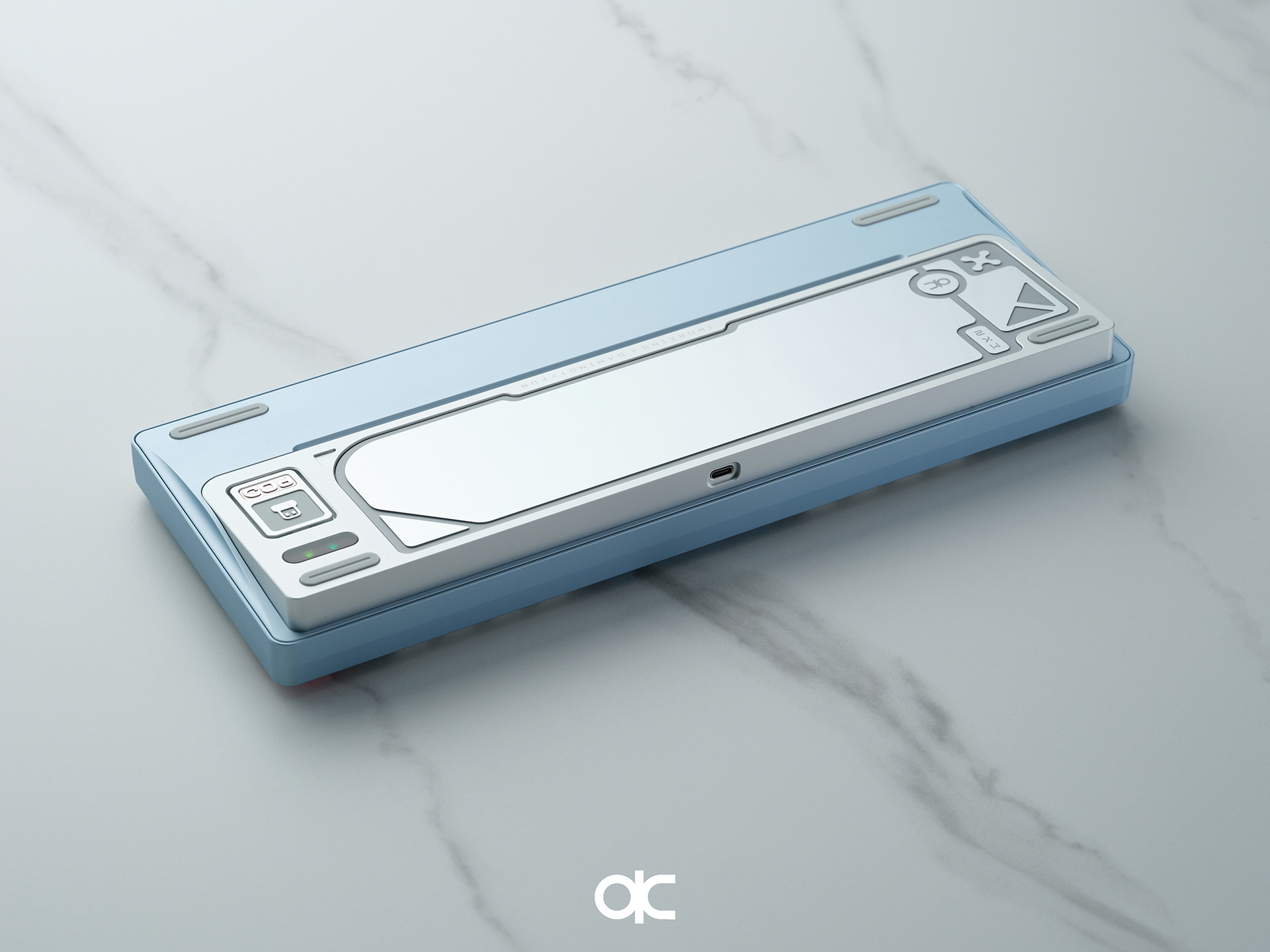

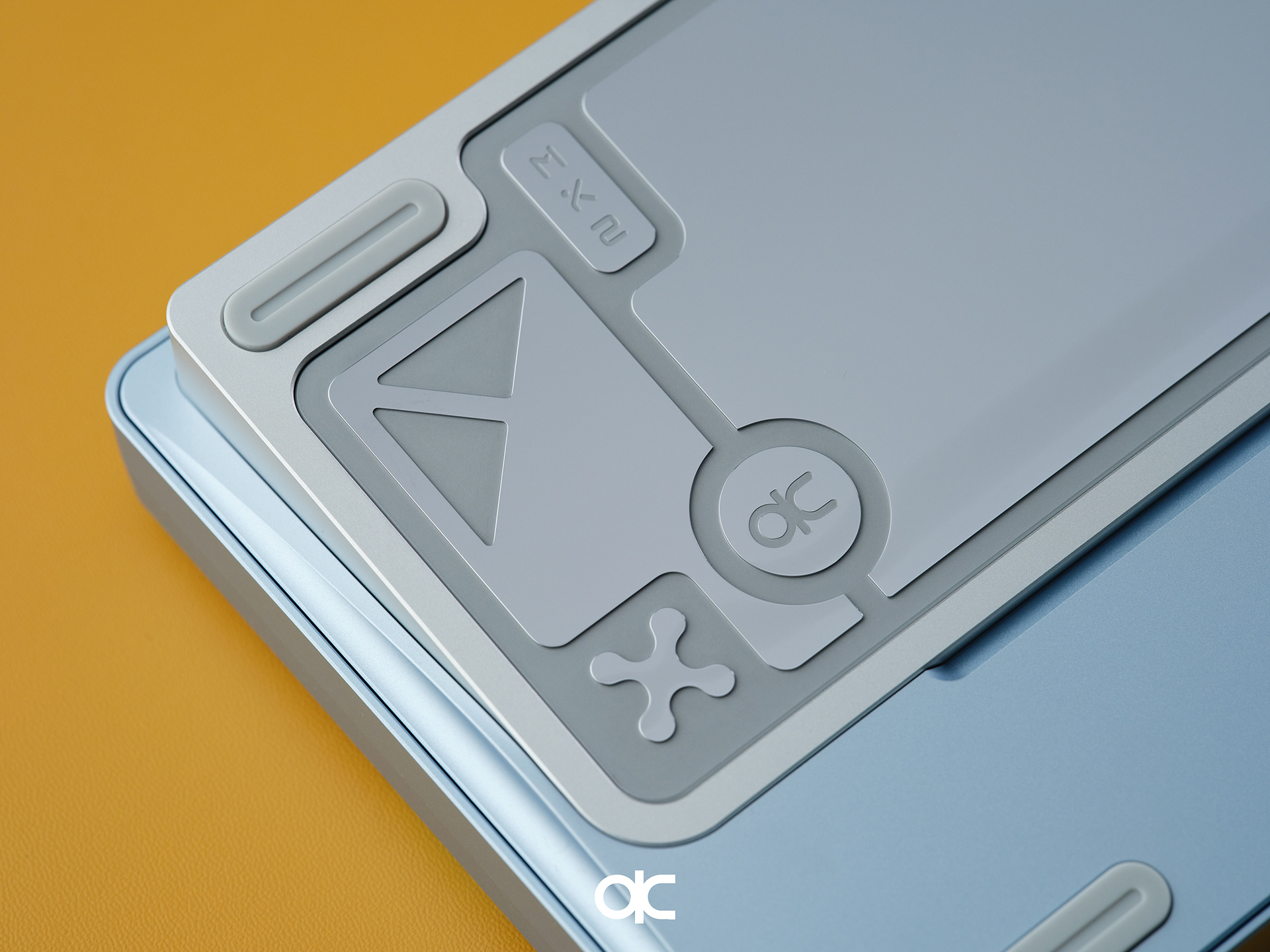

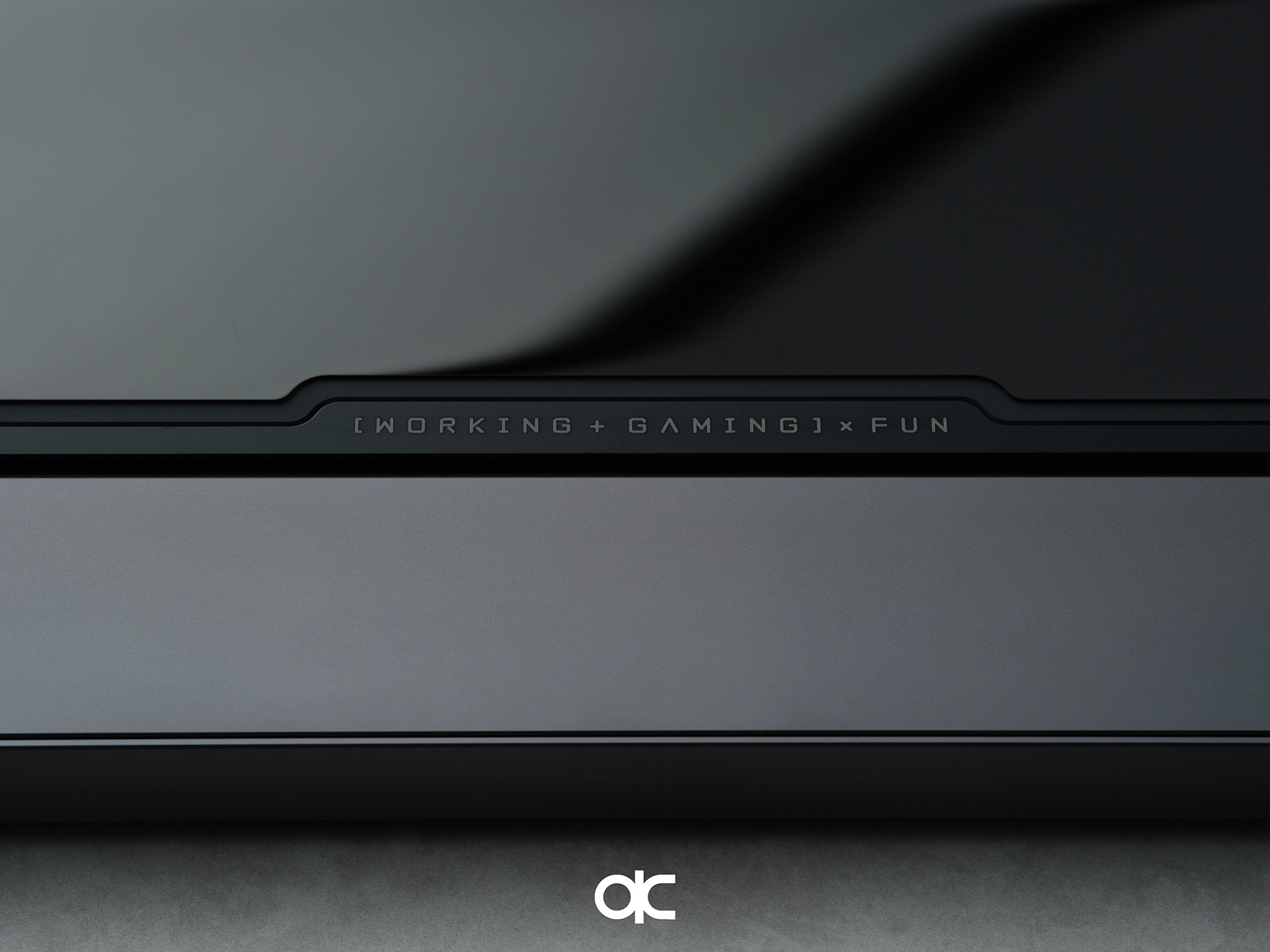

The weight design for the QK80 MK2 showcases our continued exploration on QK's second-generation design language. Building on our unique weight shape, we've added more personalized elements for the MK2. The contrast between different surface color and texture create a more sophisticated back profile. Paired with the slogan "[ Working + Gaming ] x Fun," we aim to offer a more diverse and engaging input experience for both work and play.

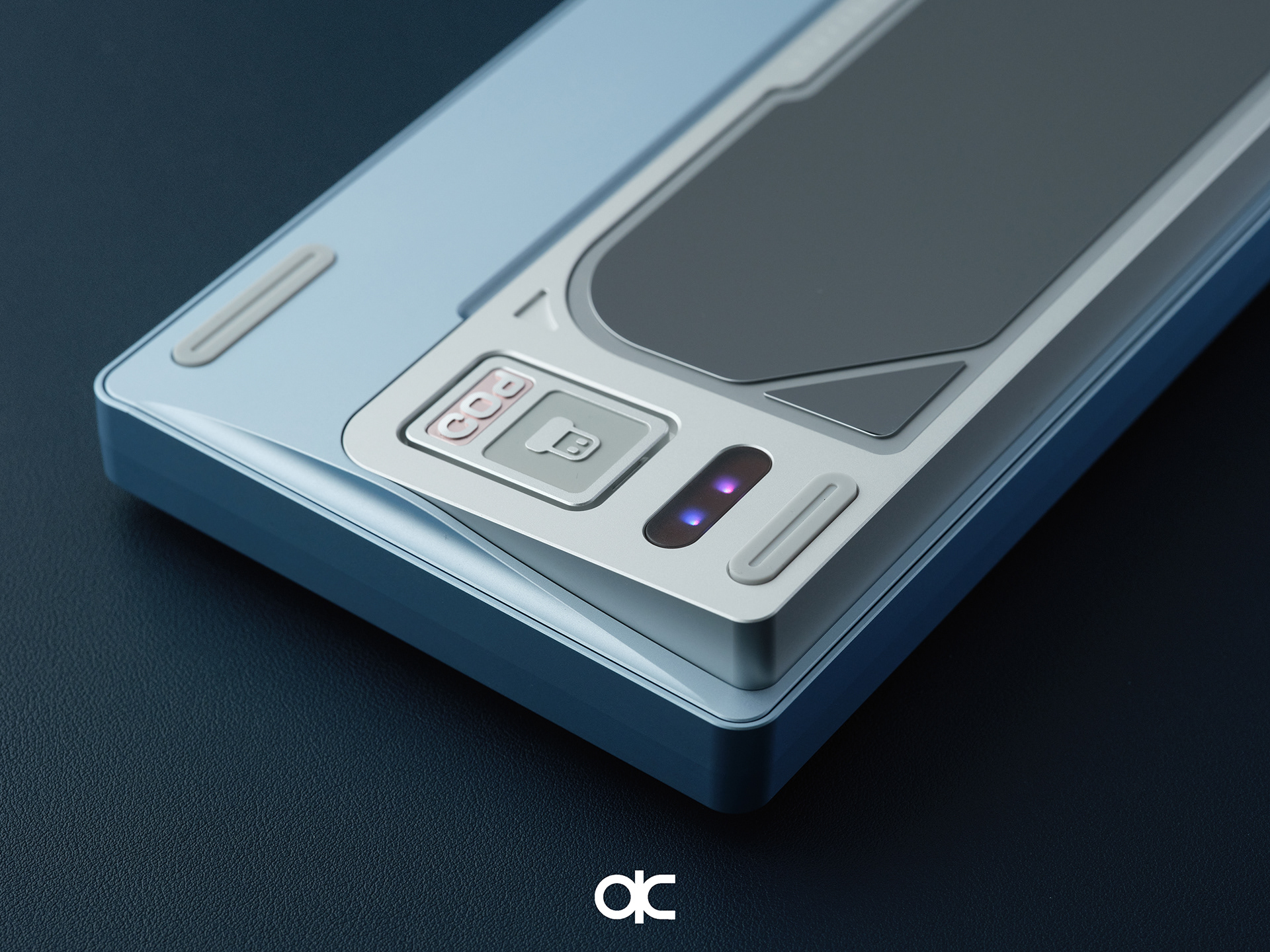

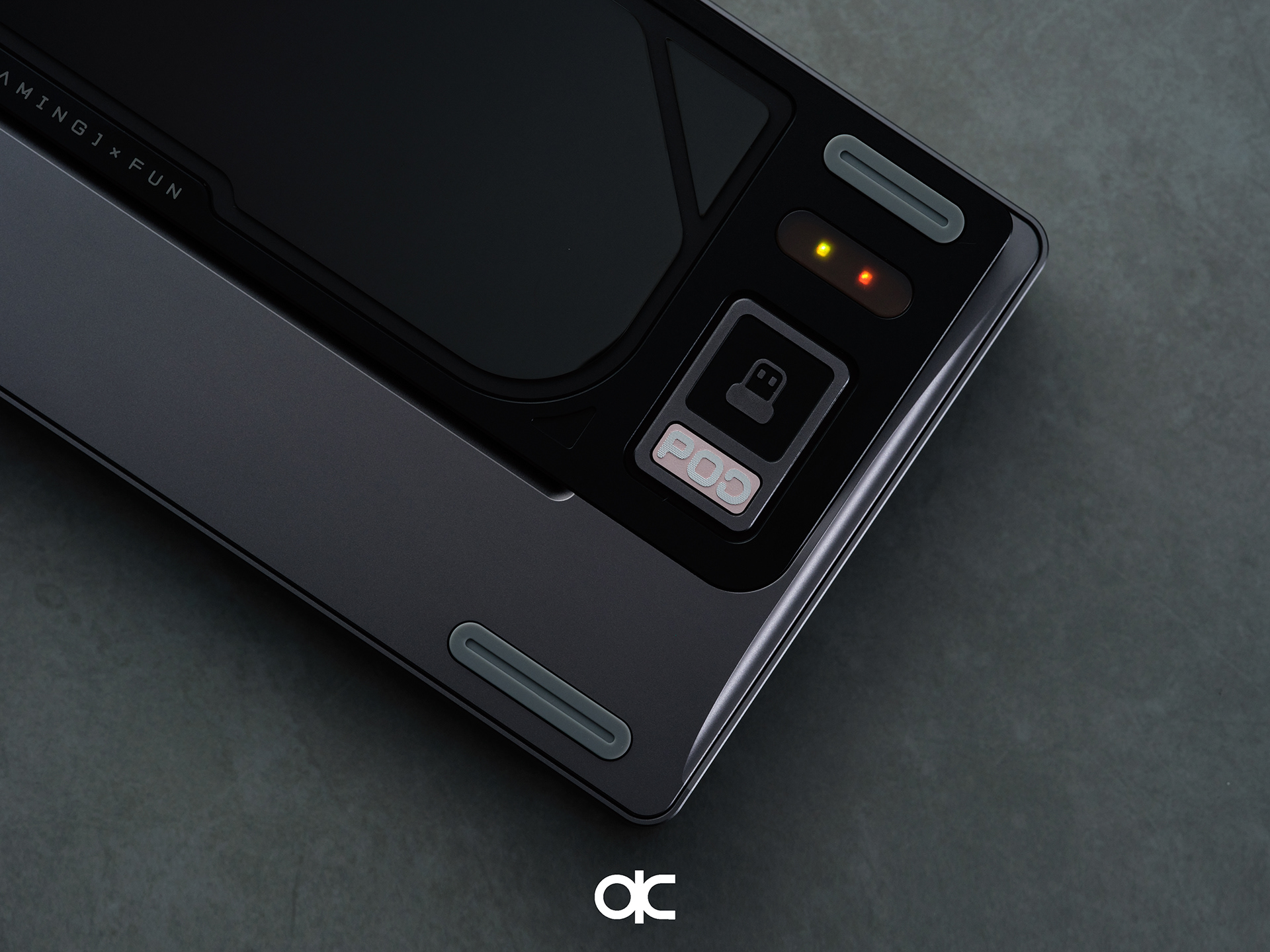

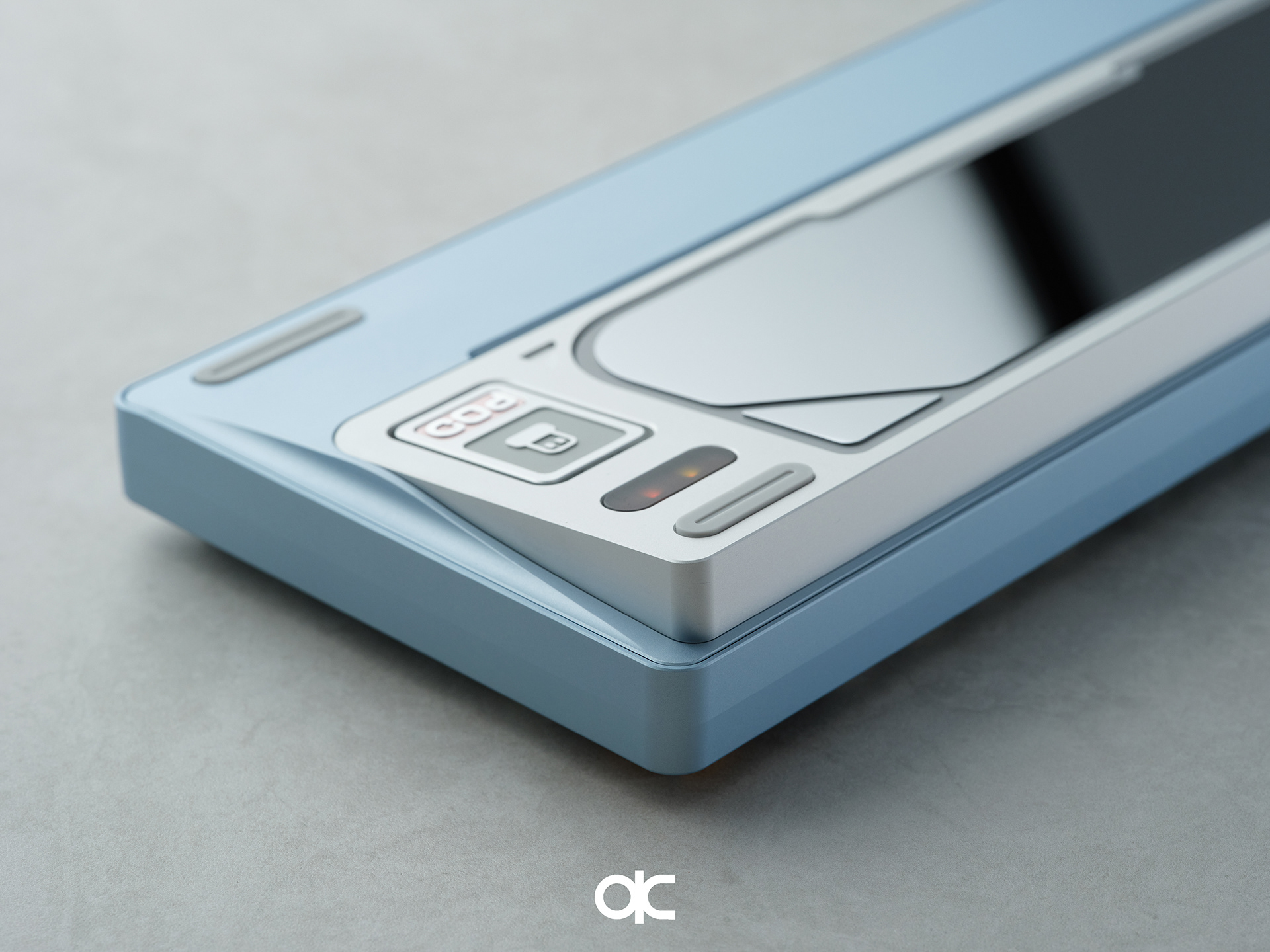

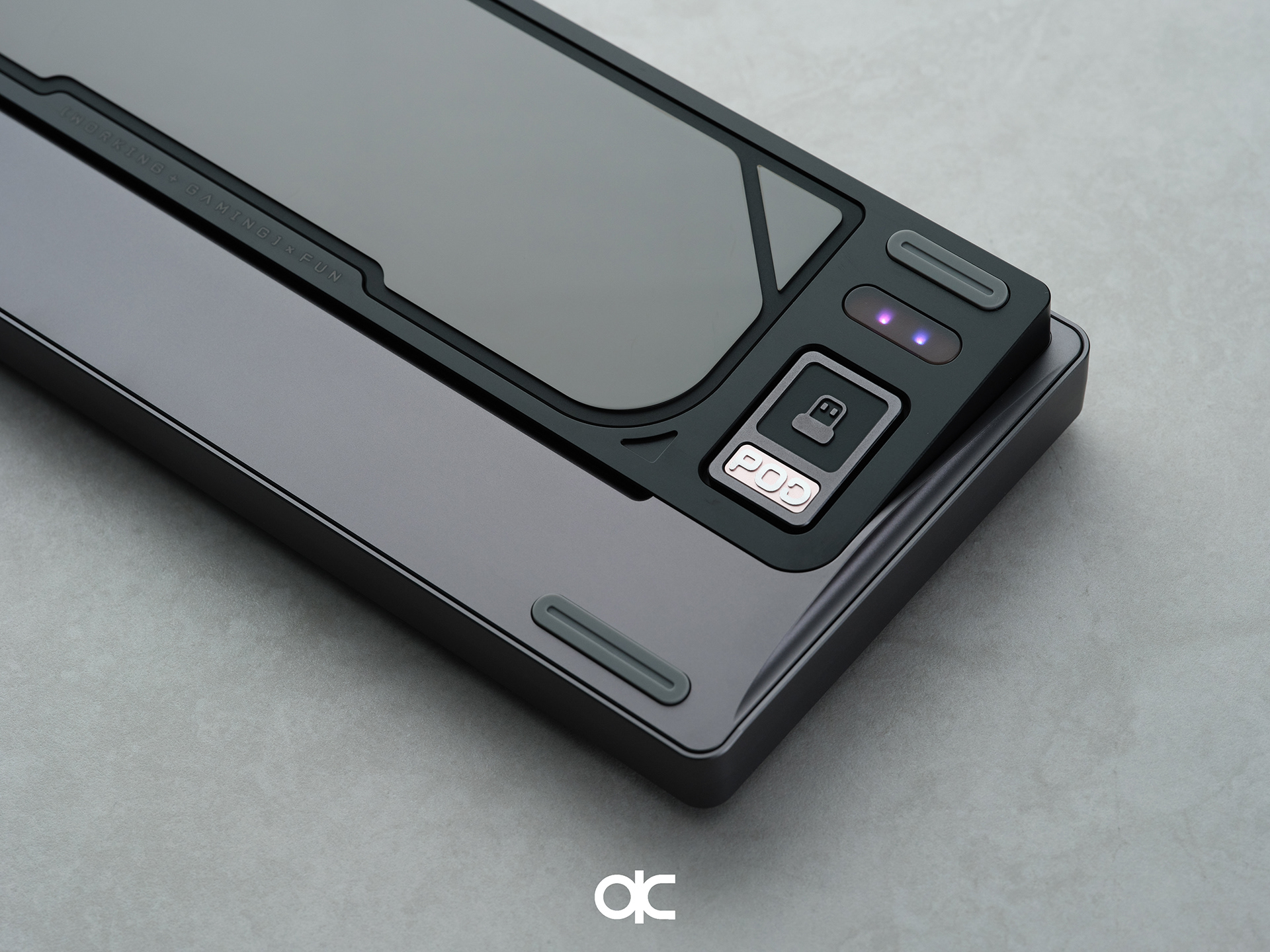

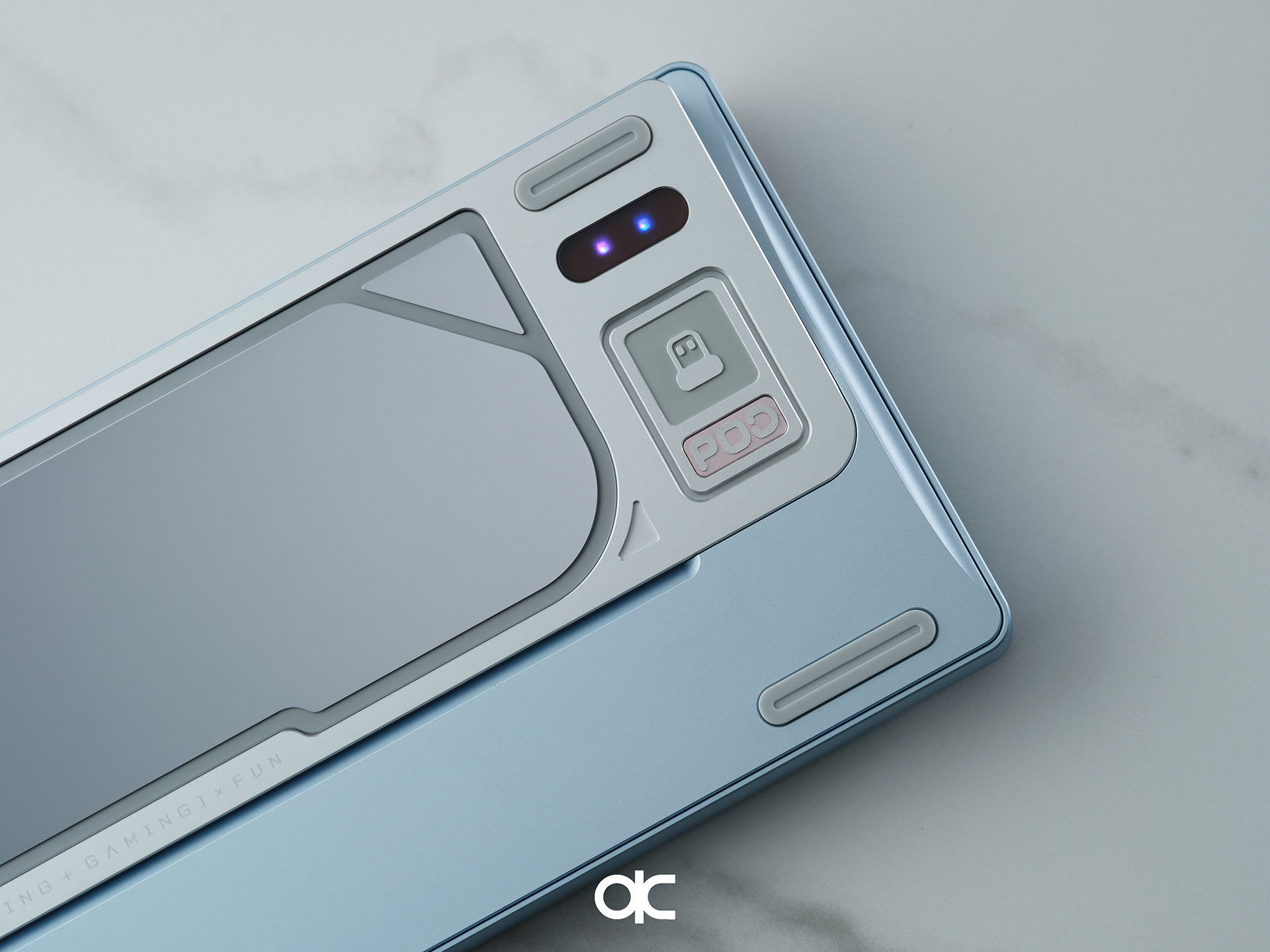

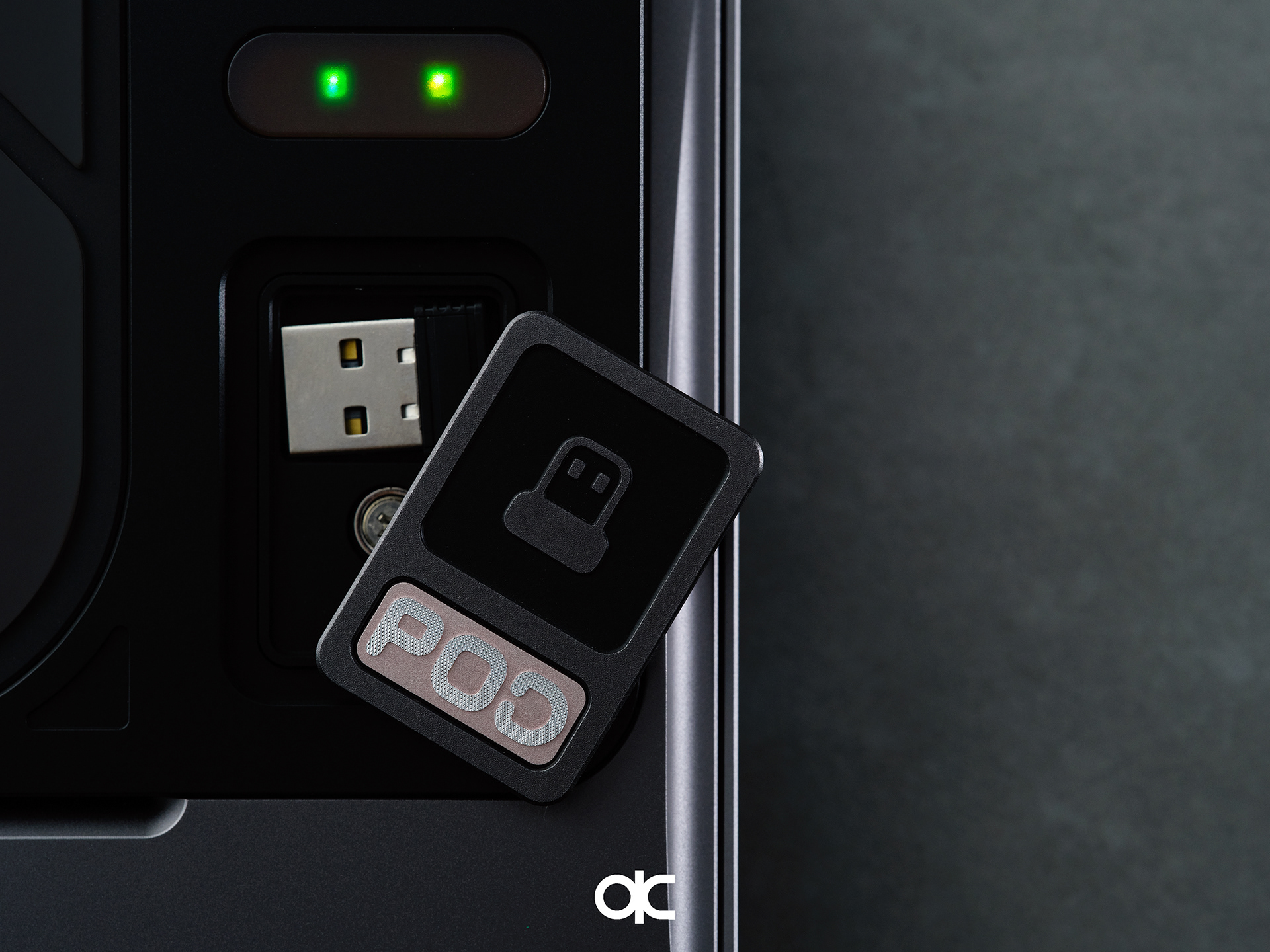

The badge on the right side doubles as a cover for the USB dongle pod and a decorative element. It's magnetically attached to the bottom case, allowing for easy removal. Badges from QK's earlier products, like the QK65v2 and QK75N, are also compatible with the QK80 MK2.

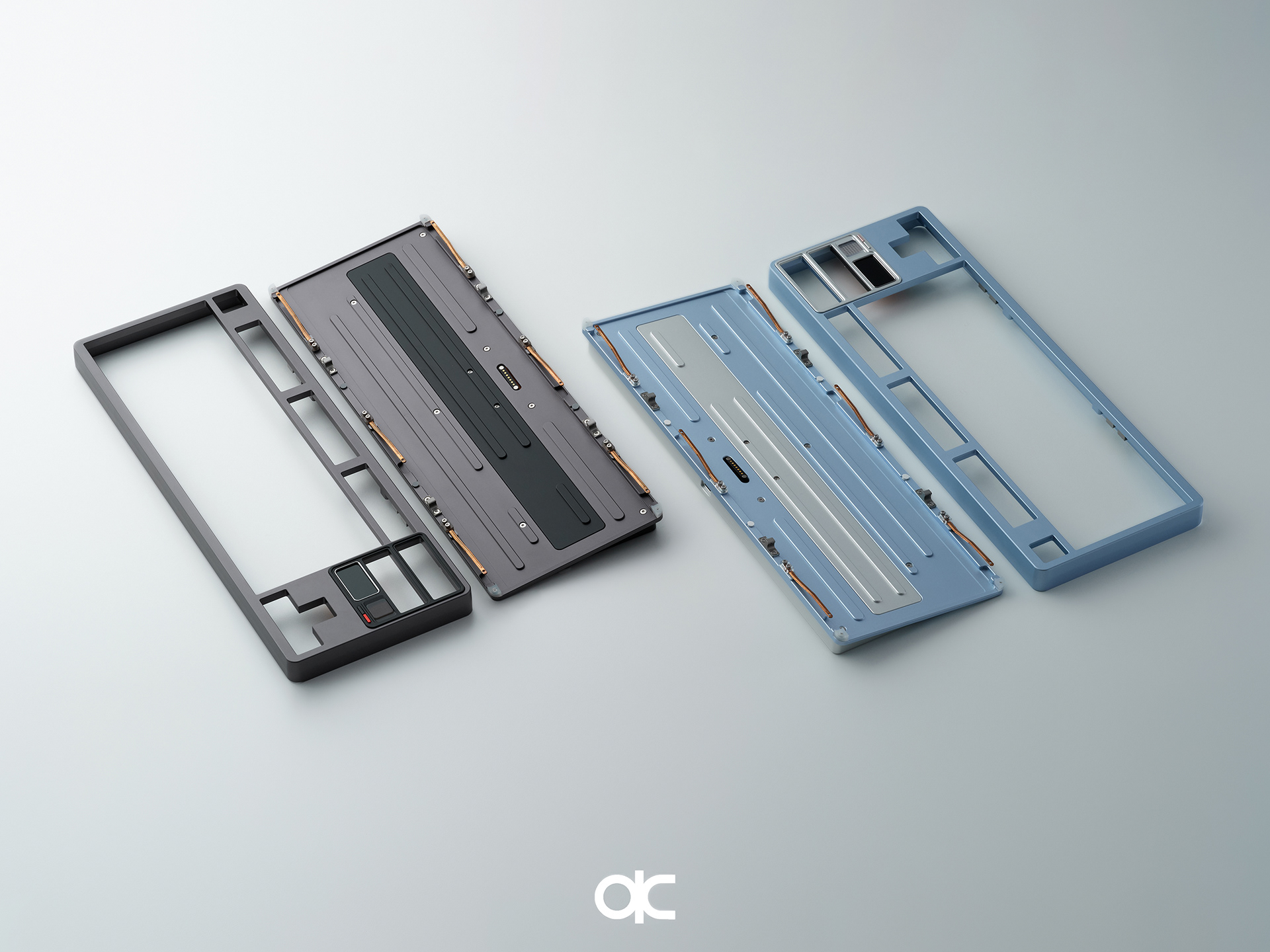

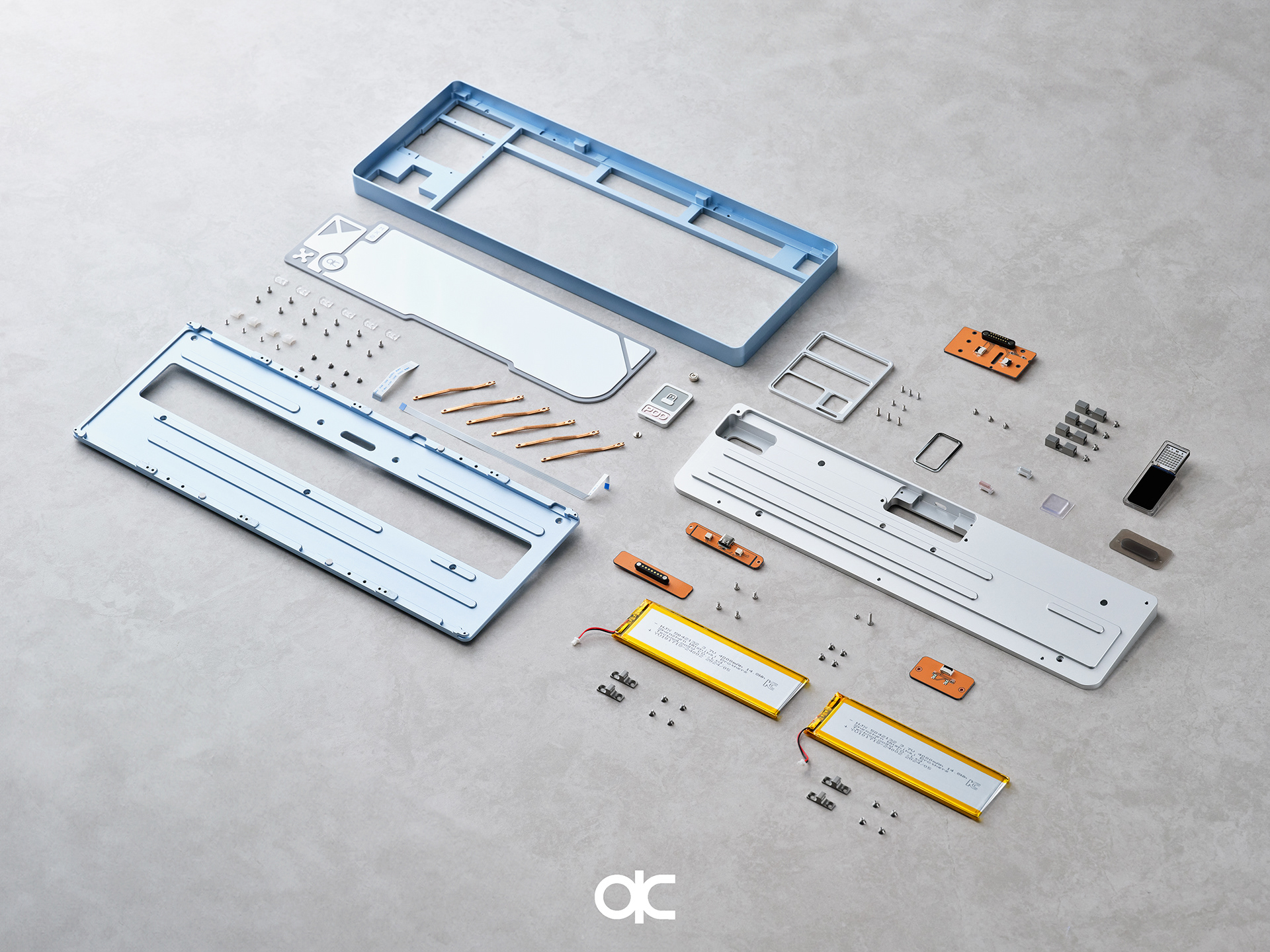

Structure

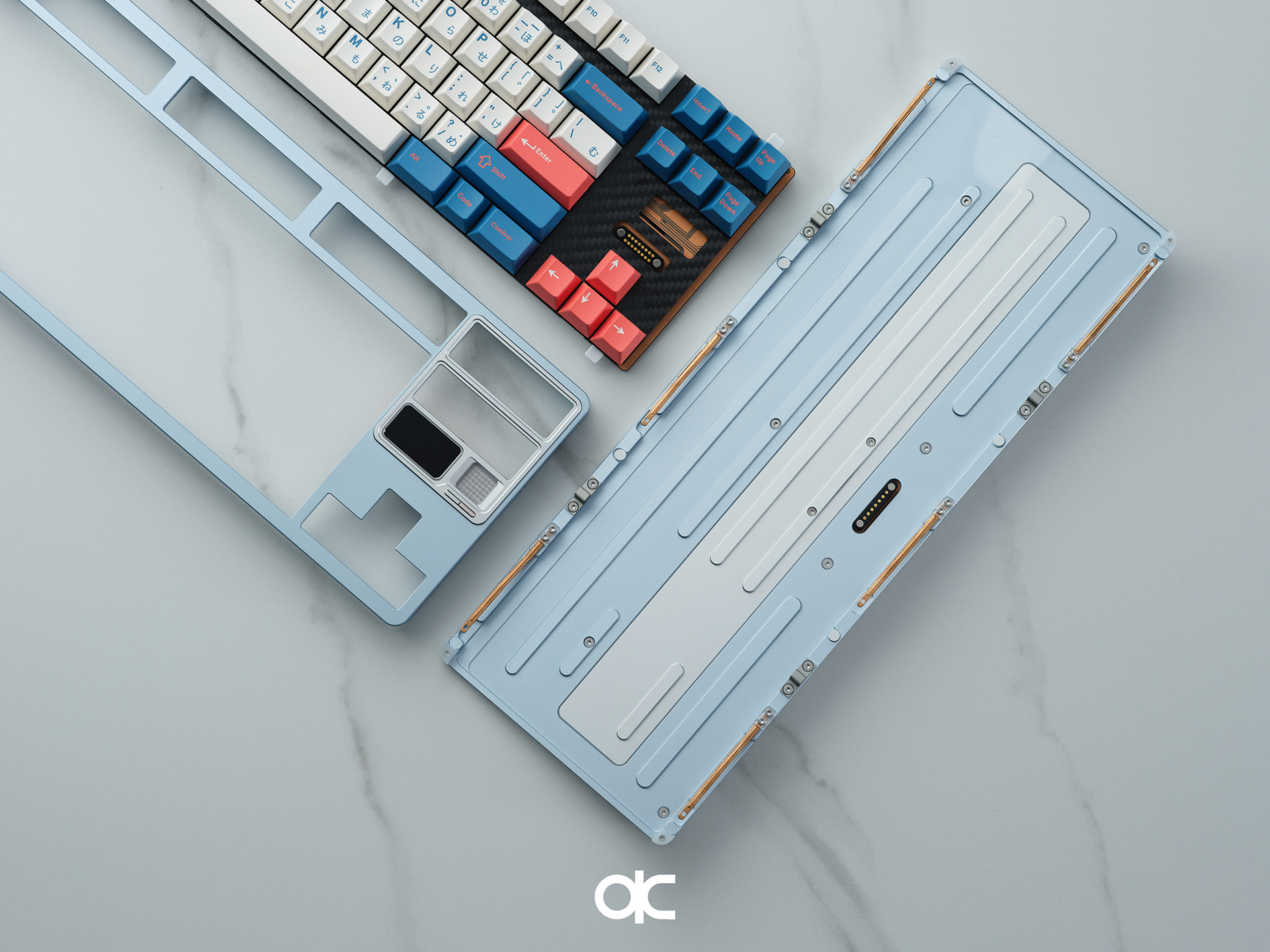

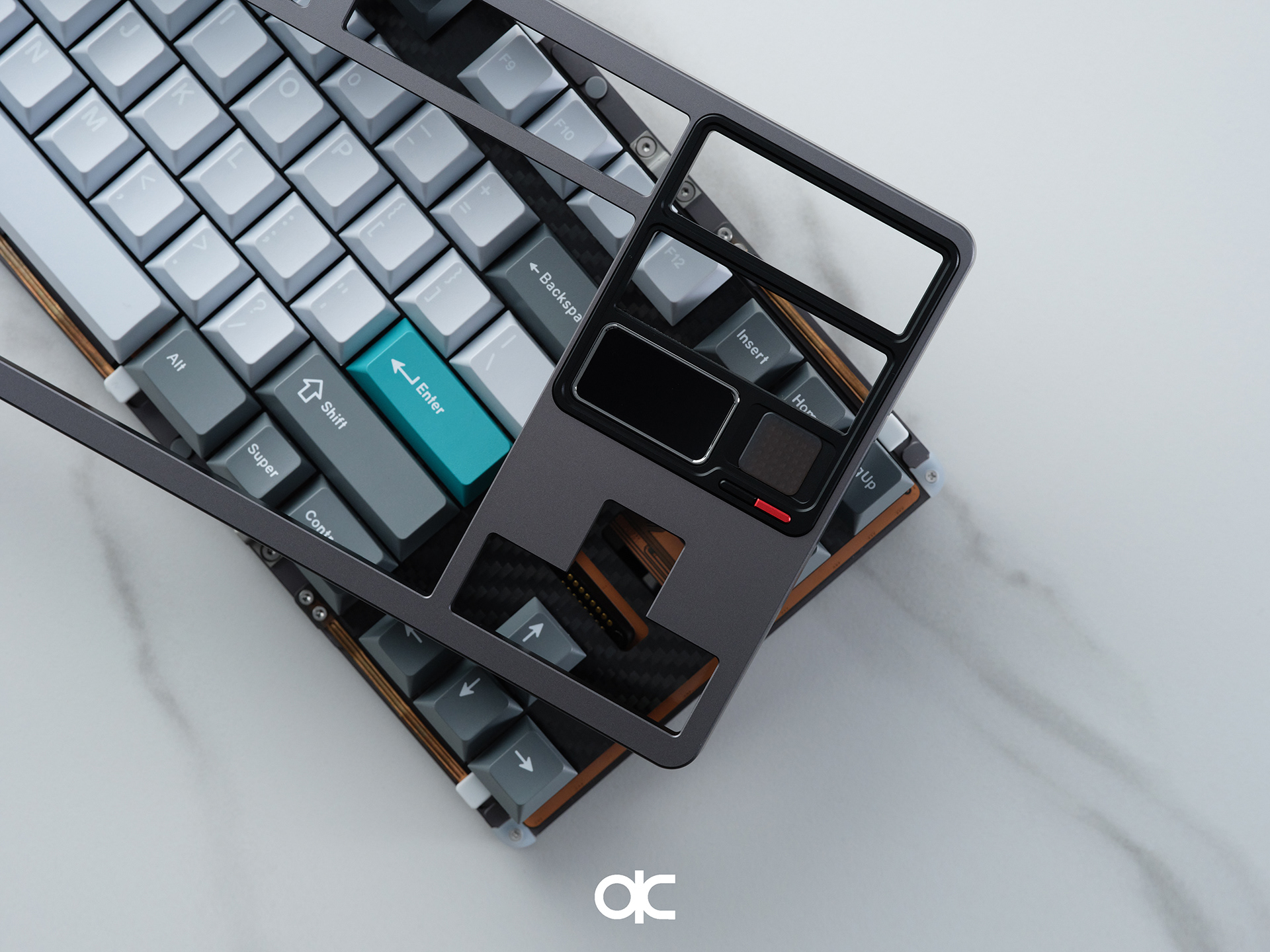

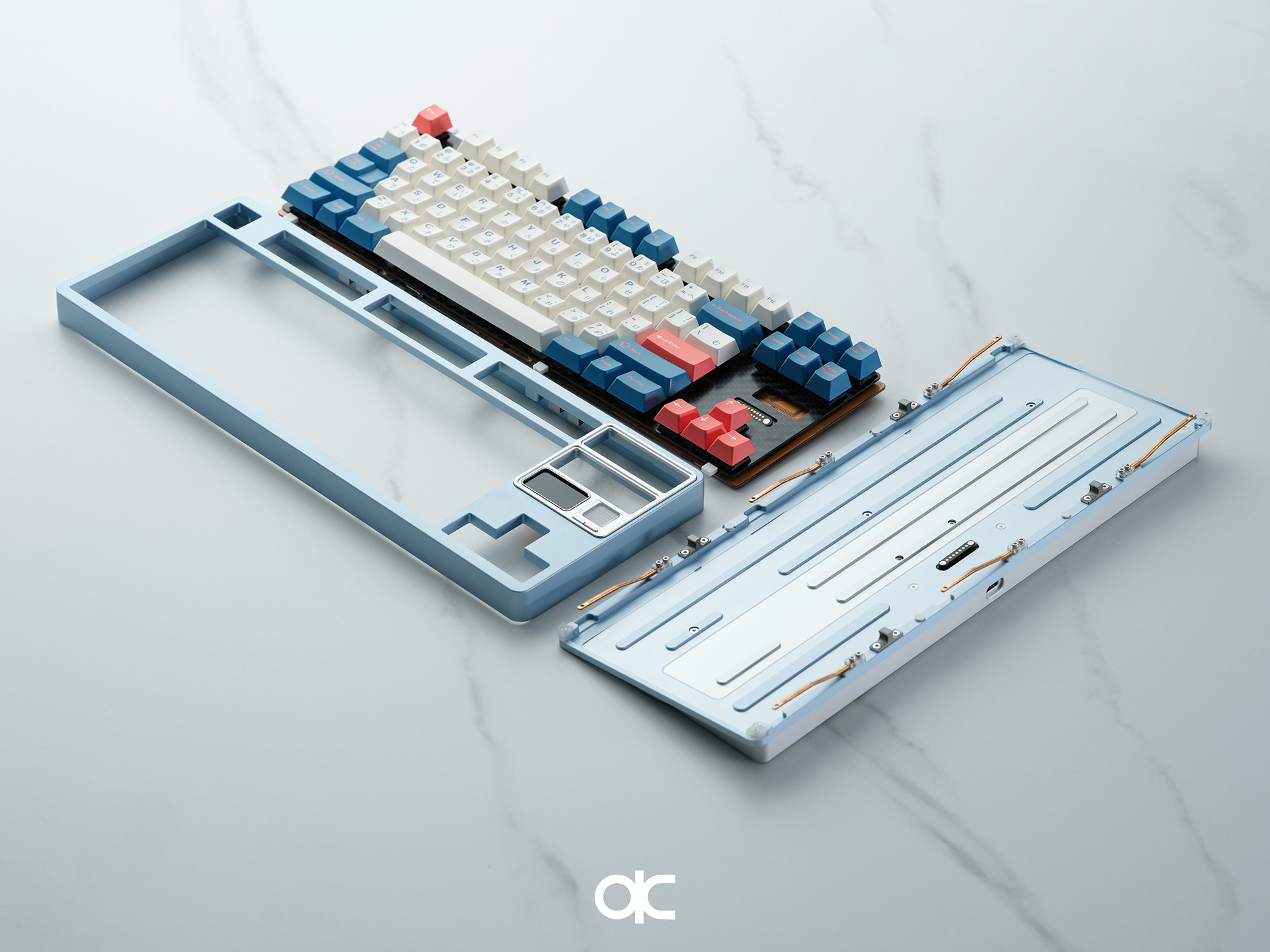

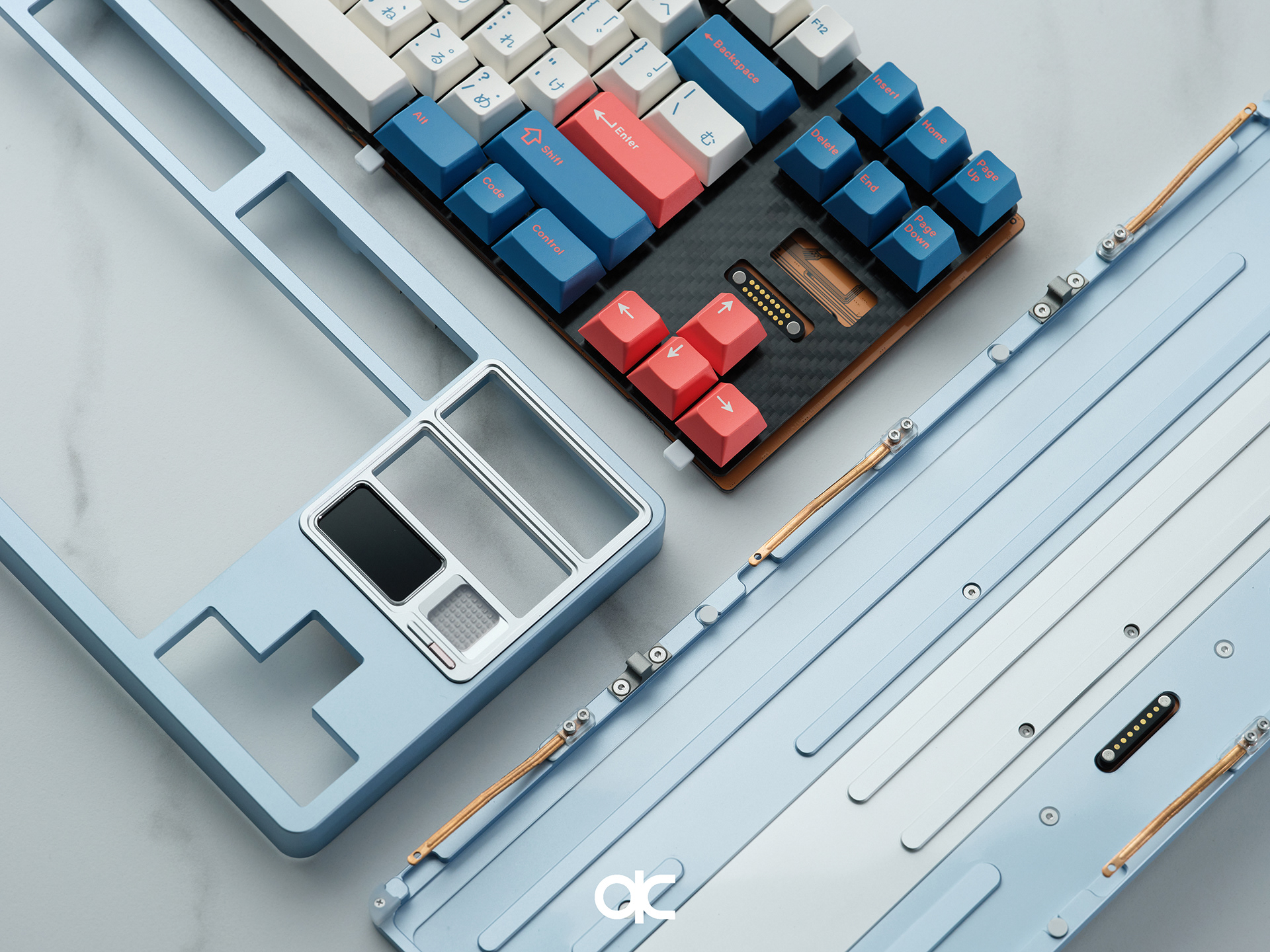

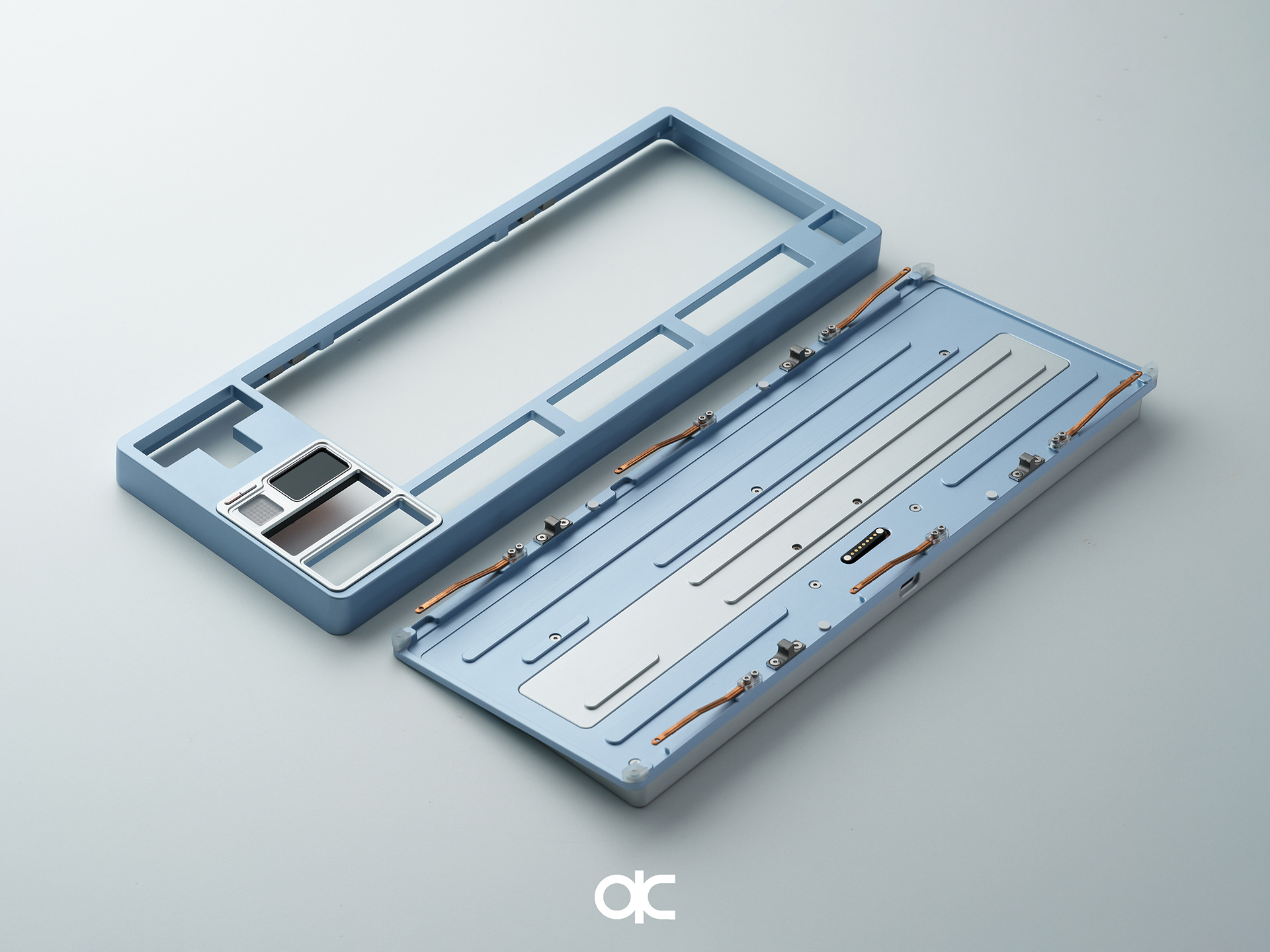

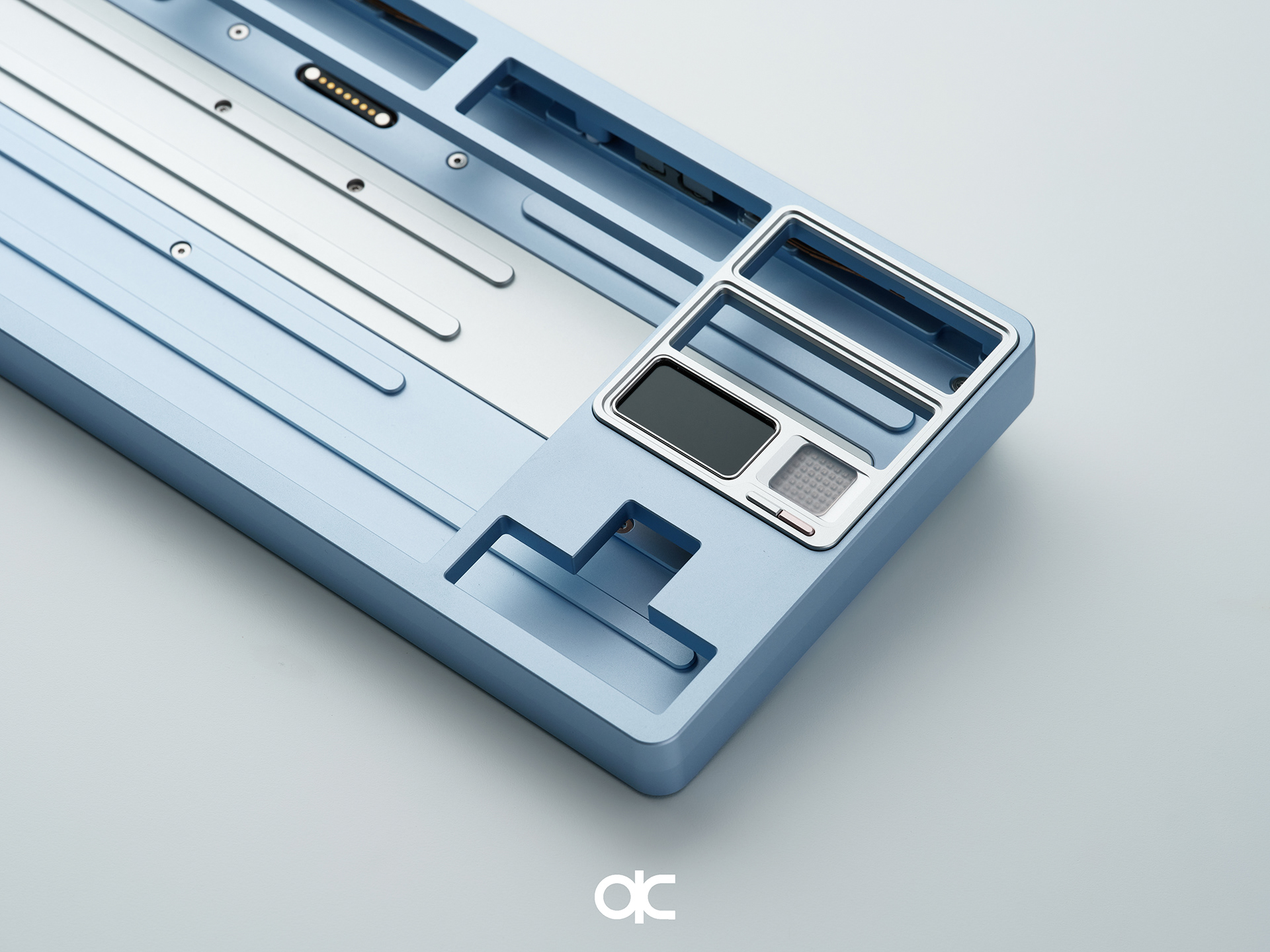

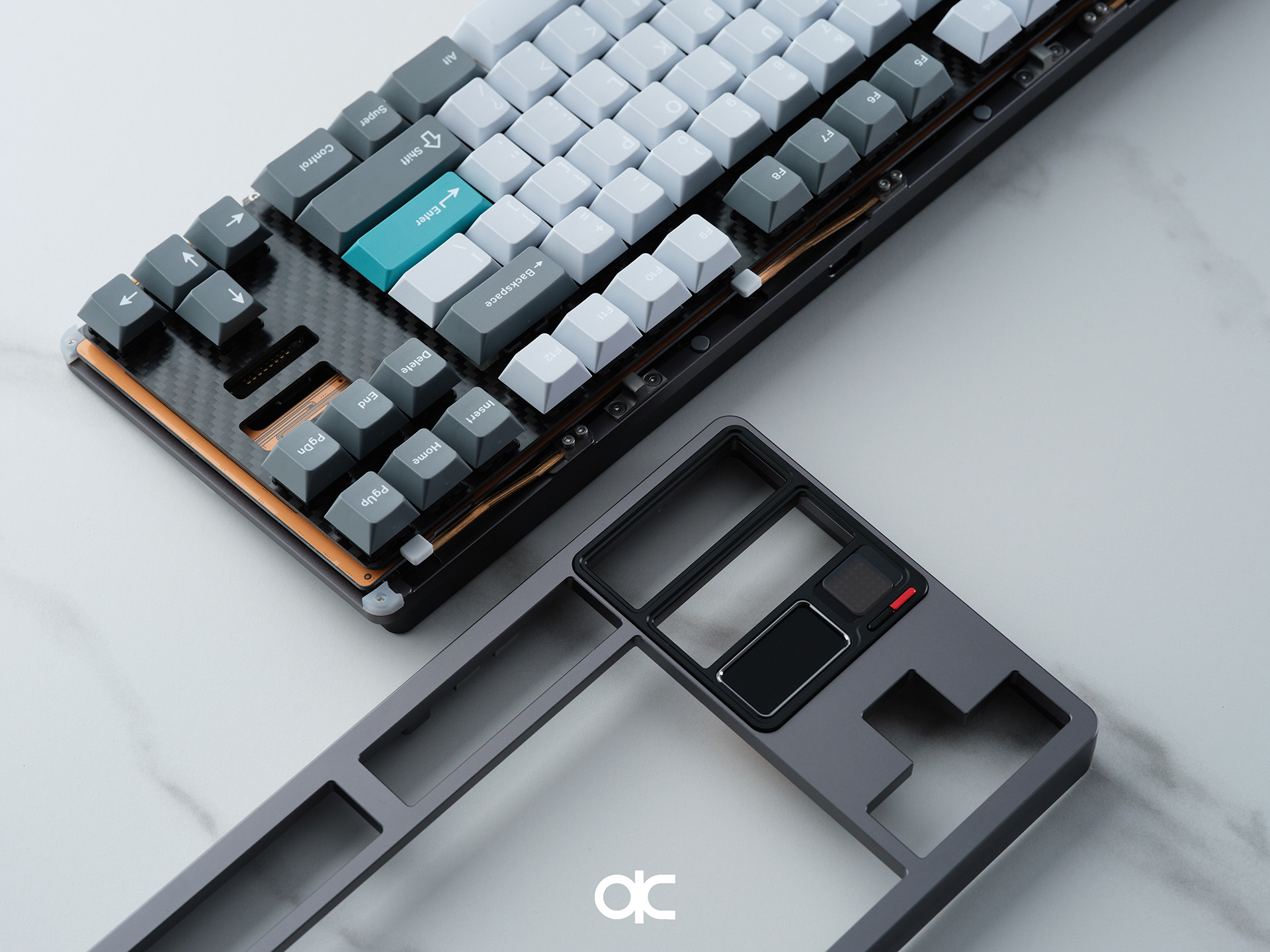

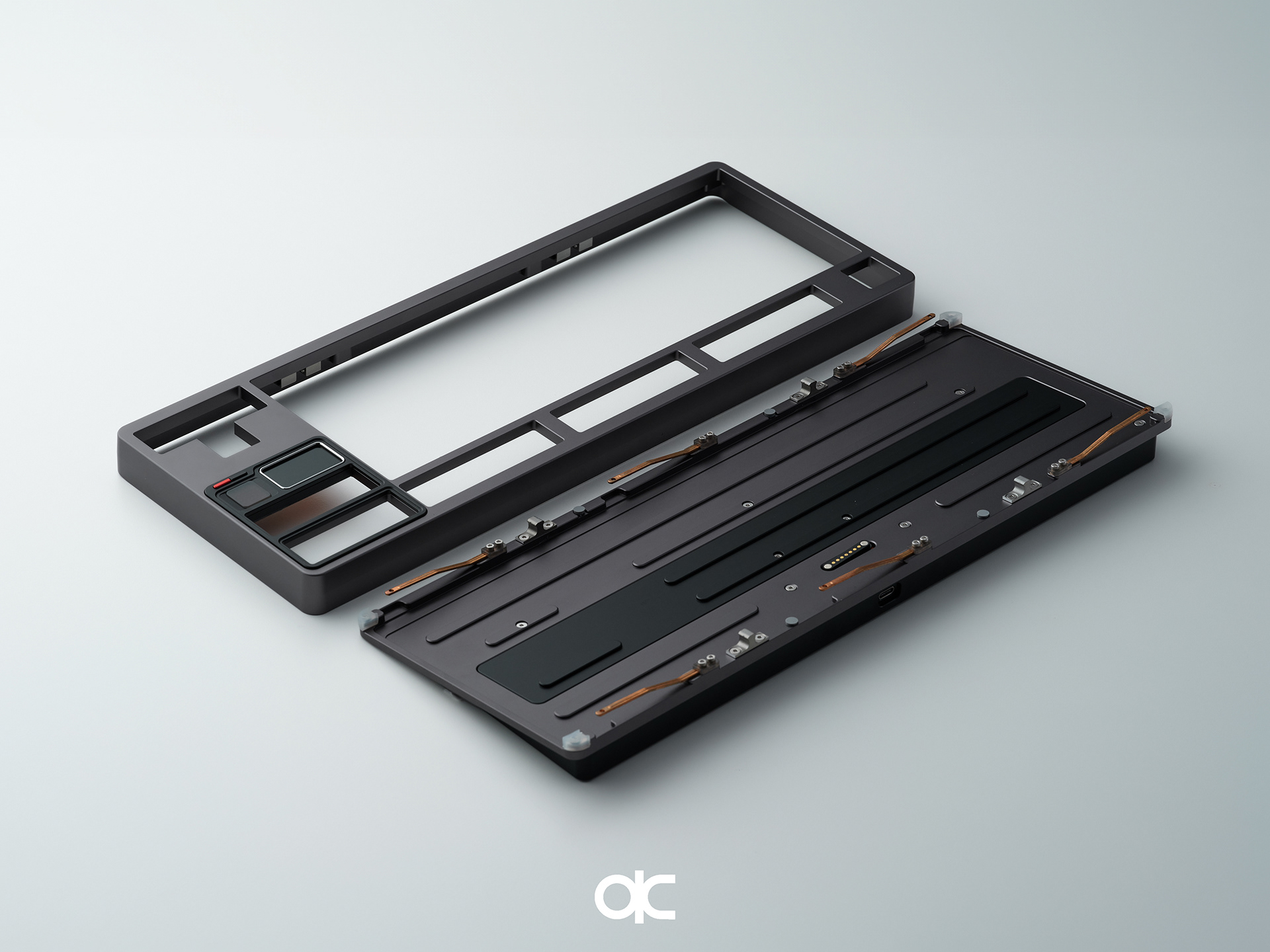

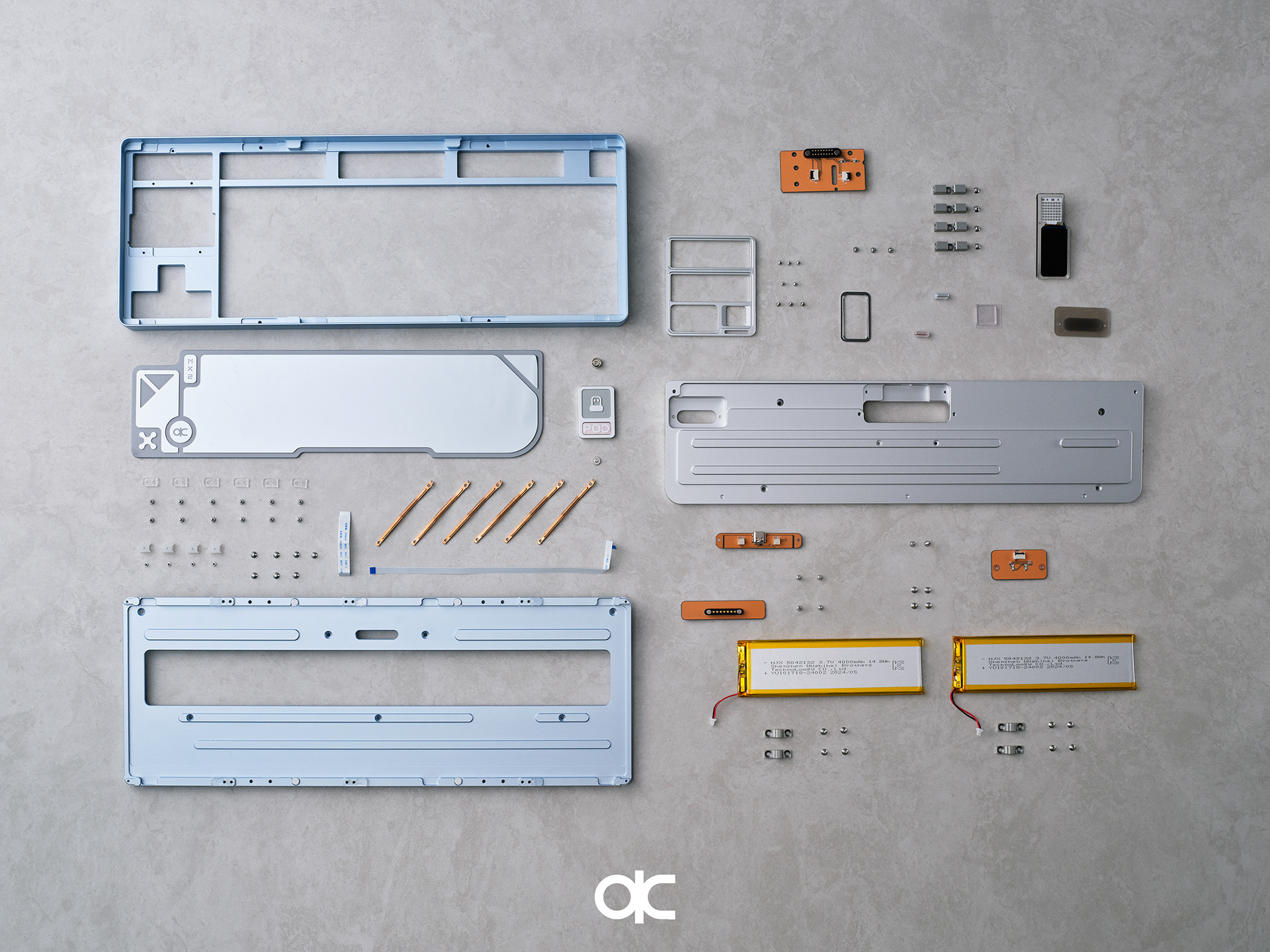

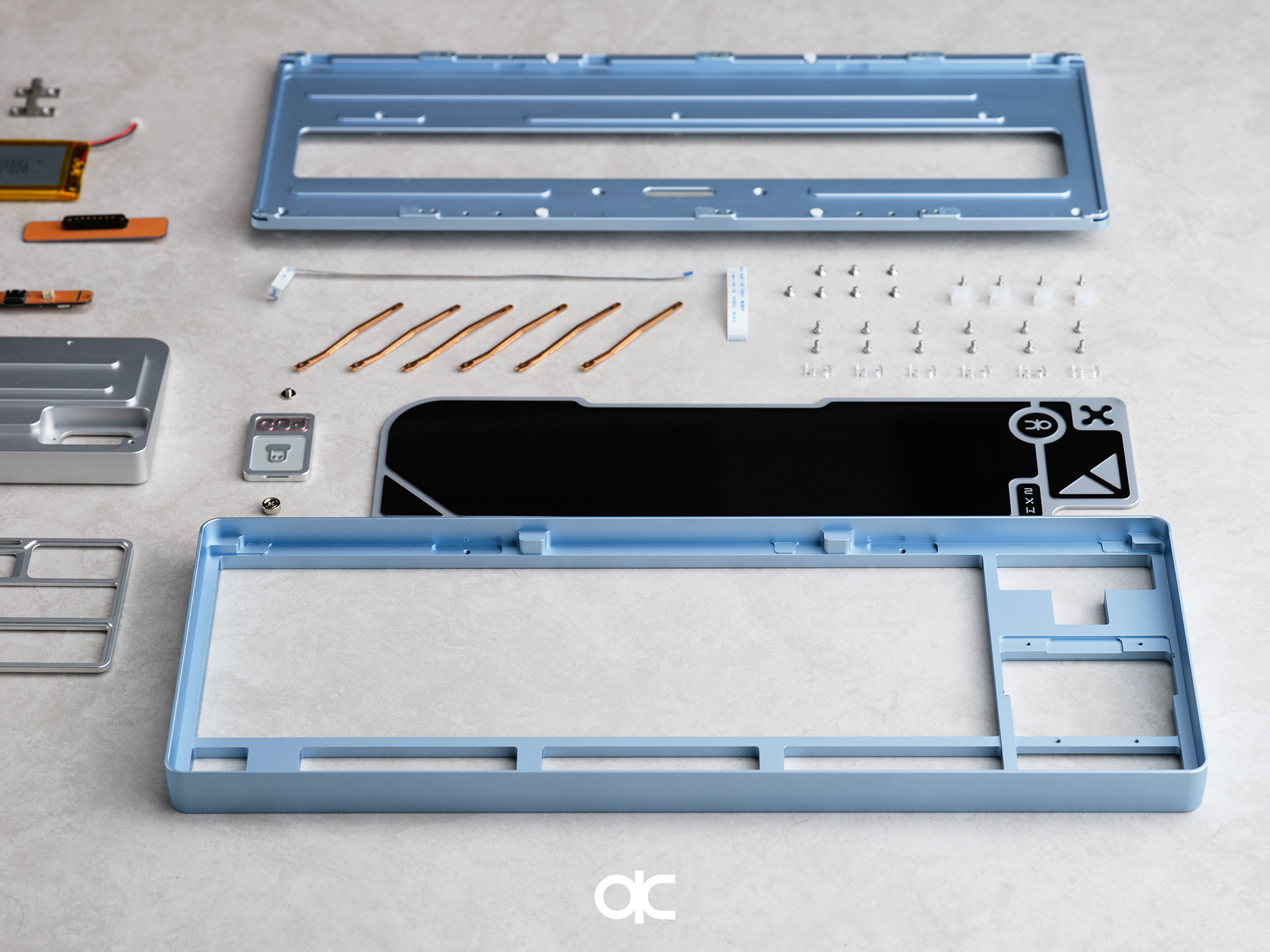

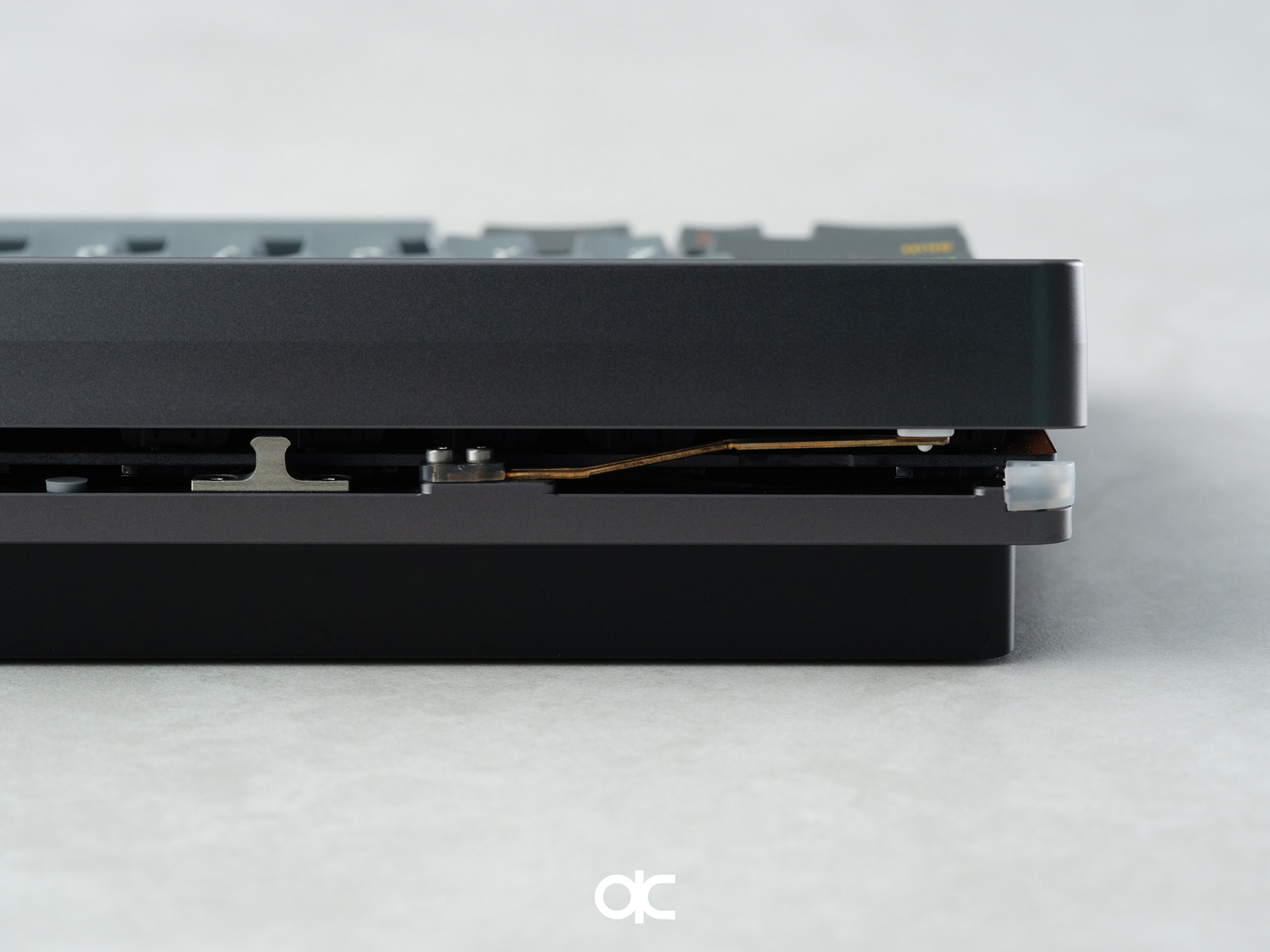

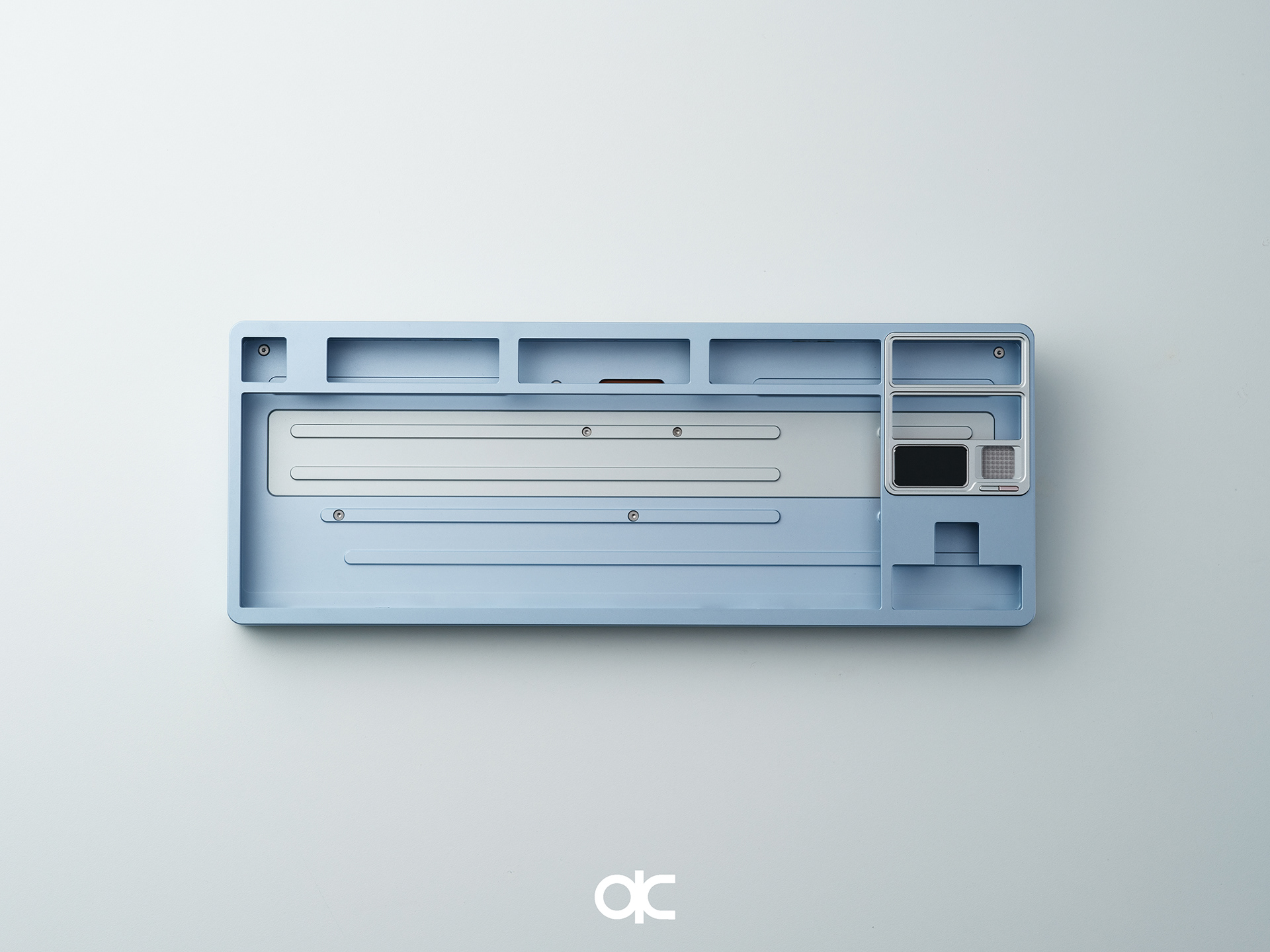

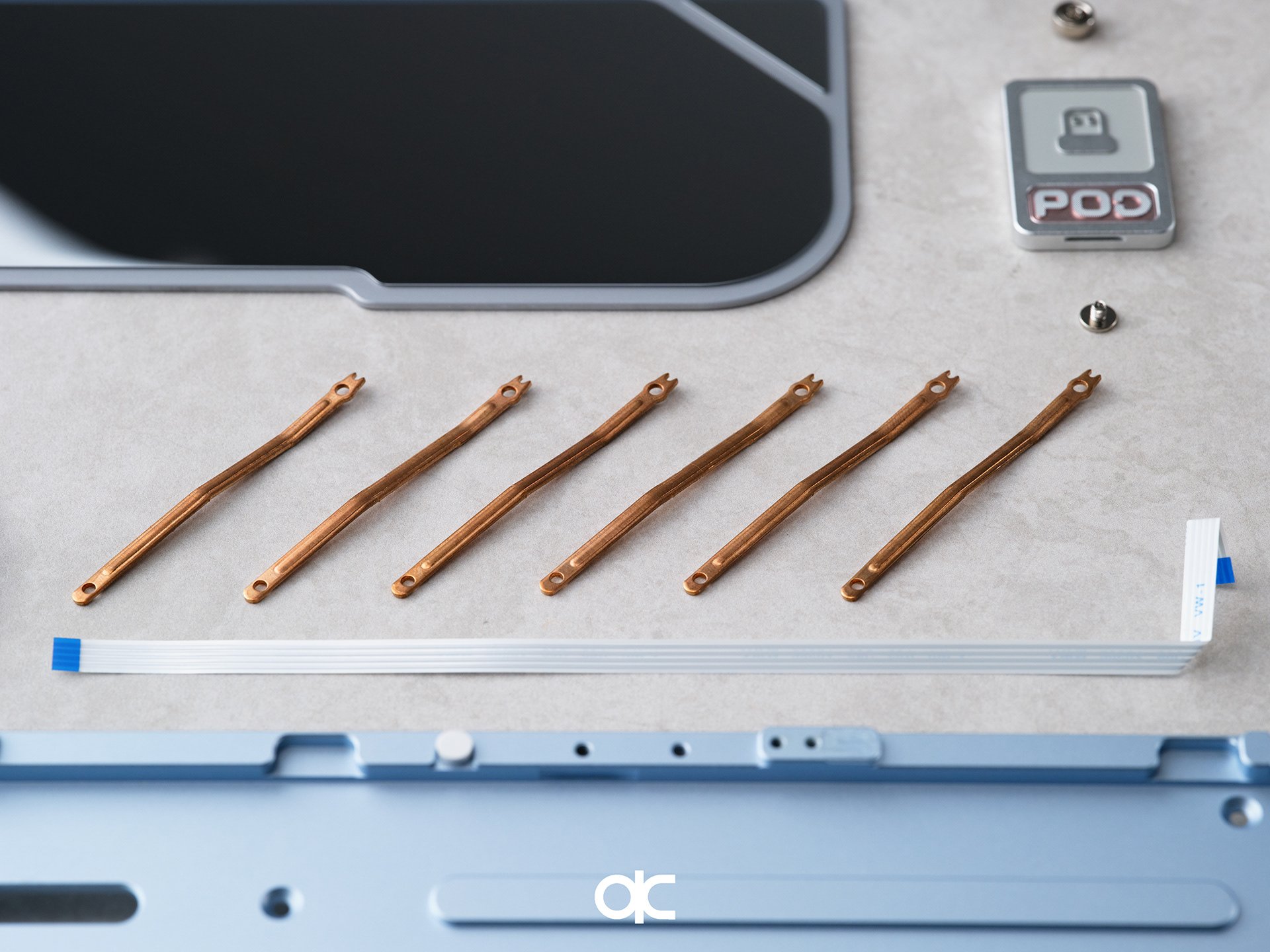

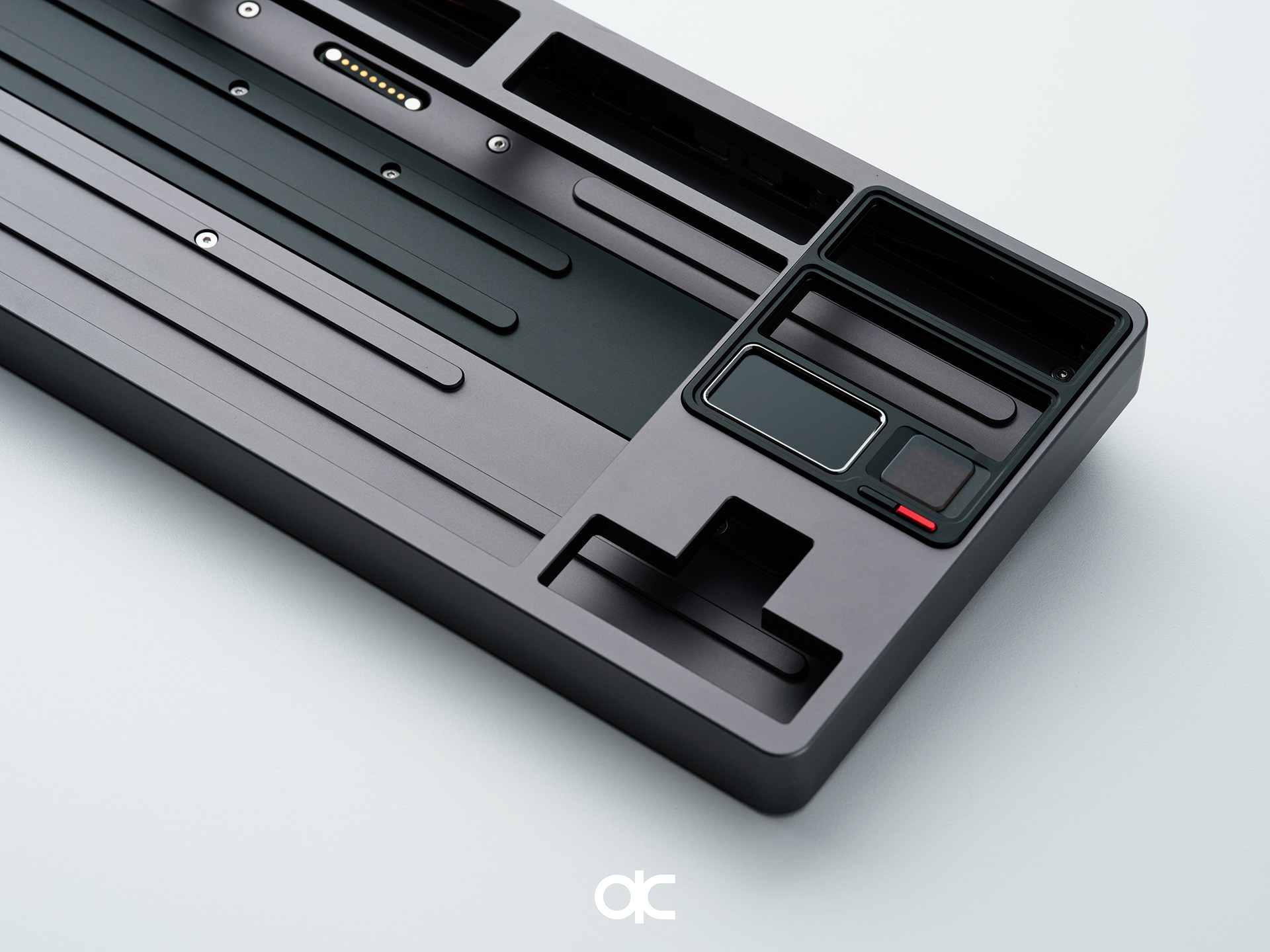

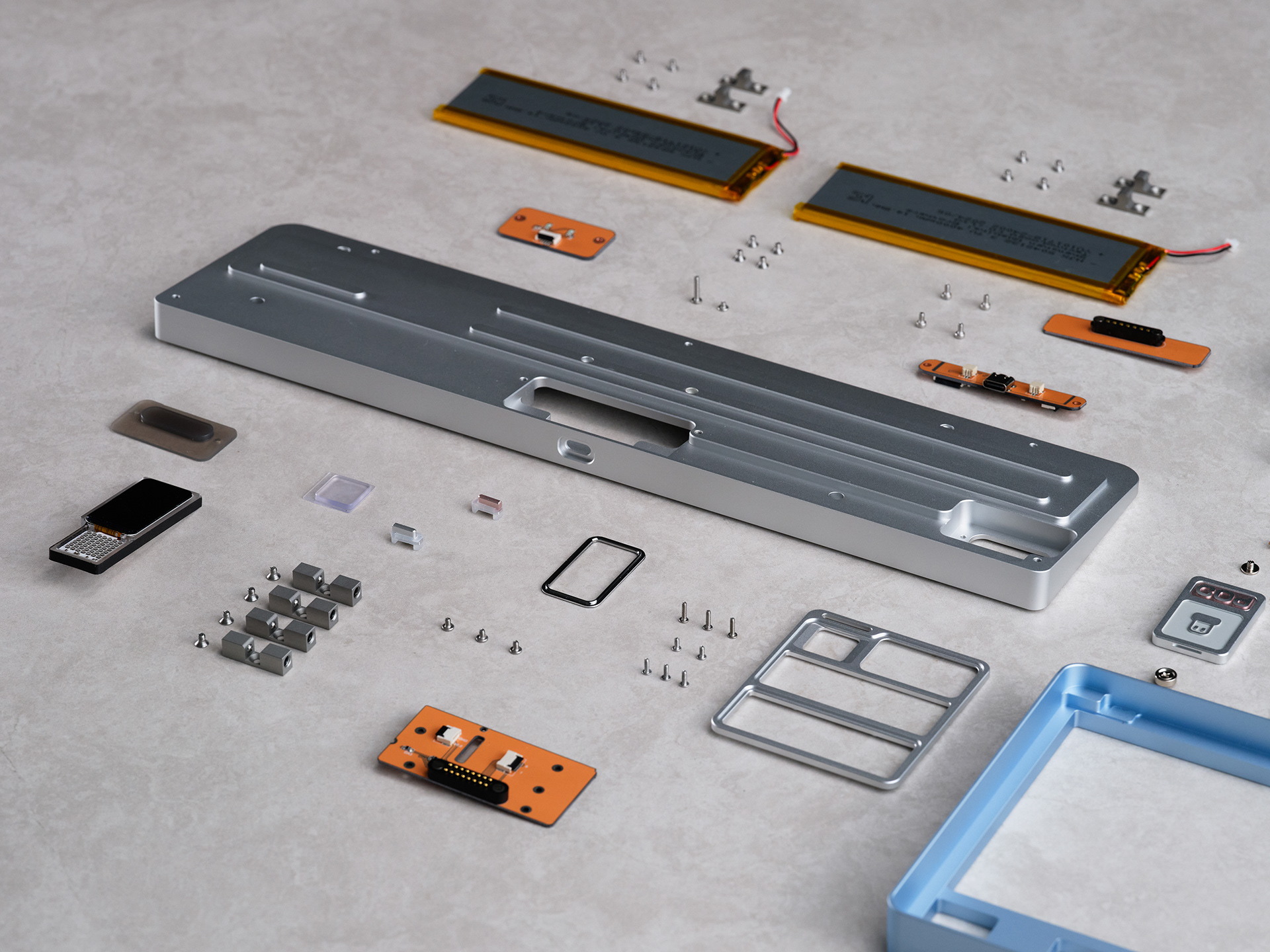

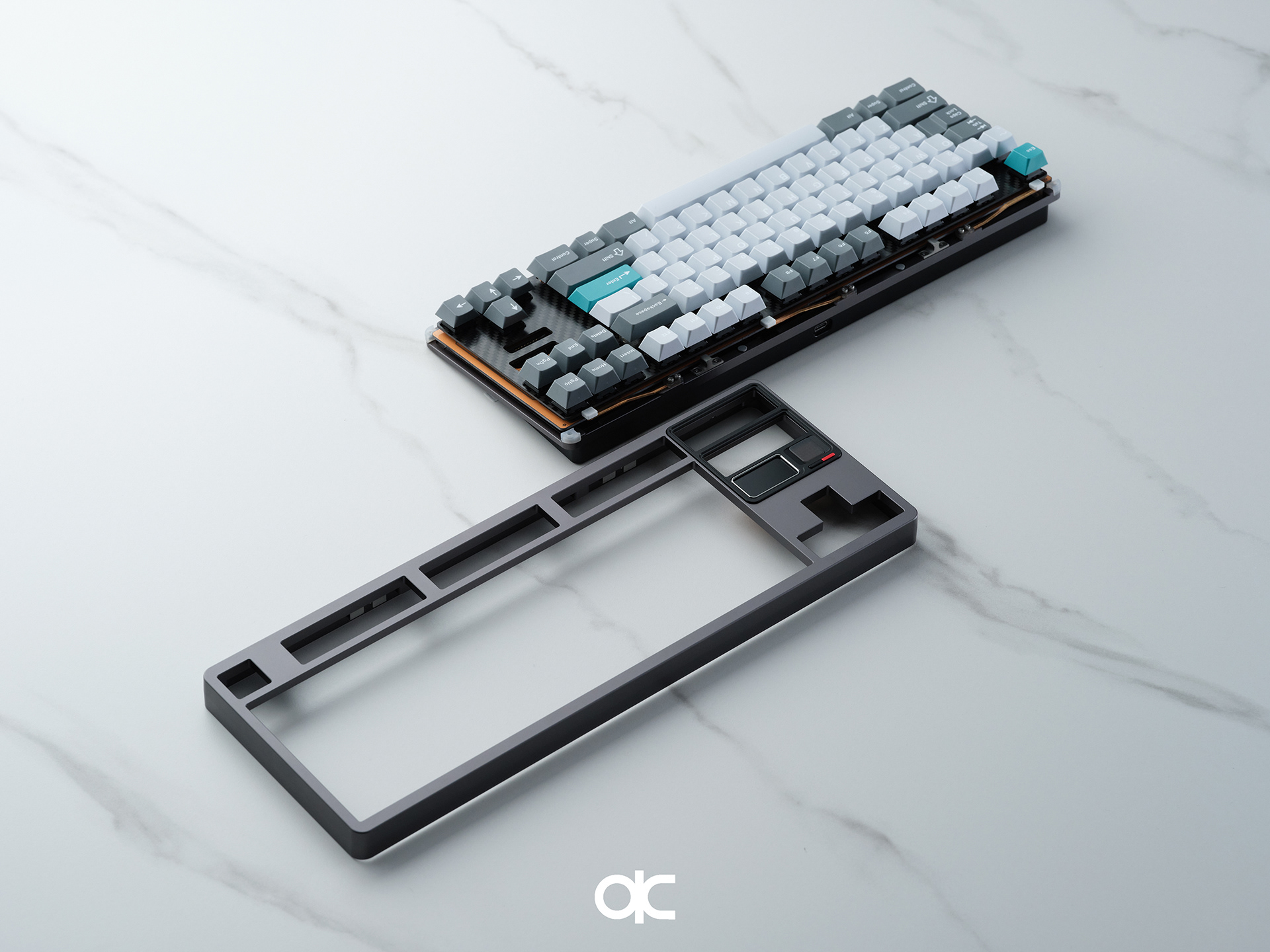

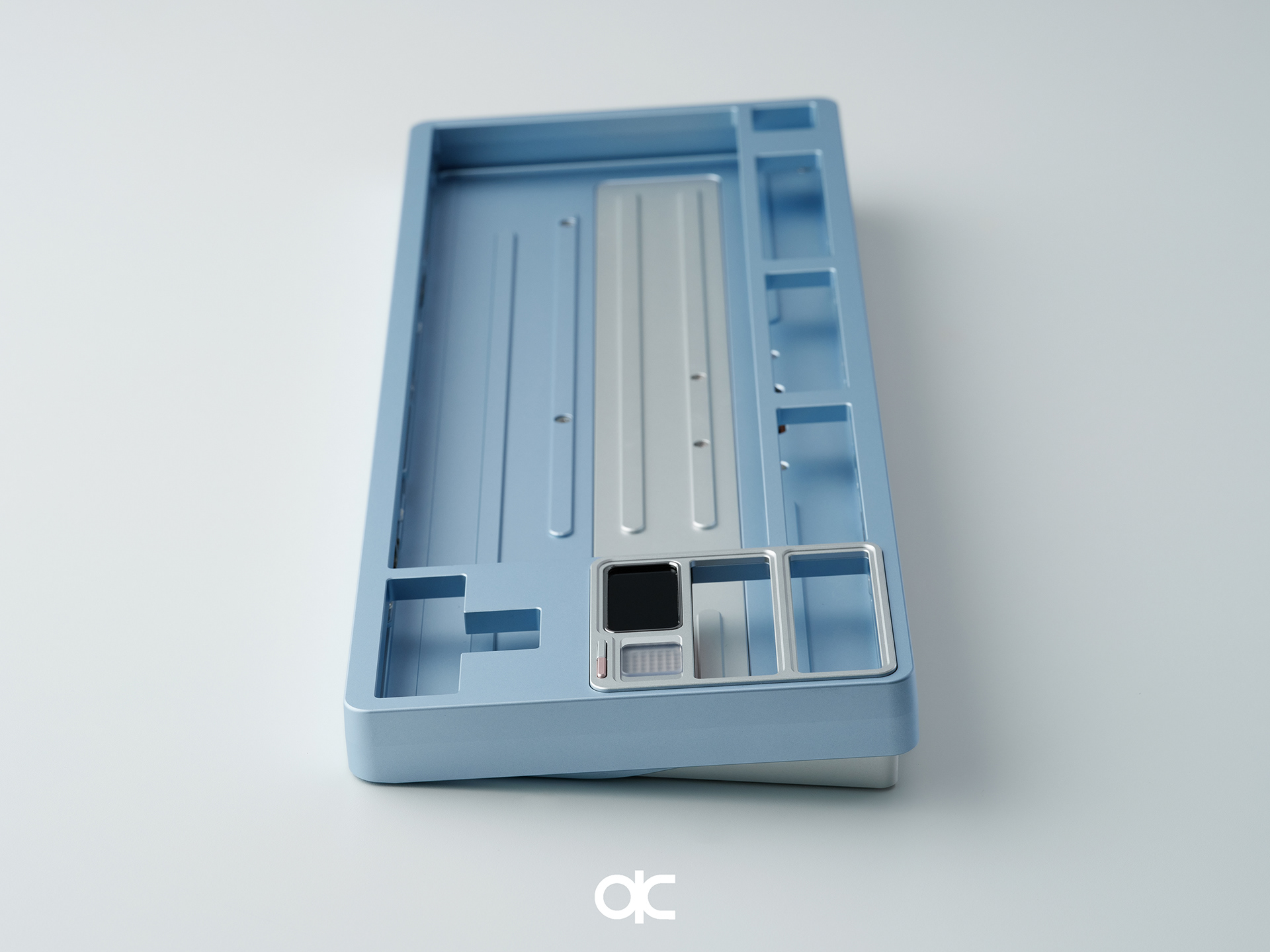

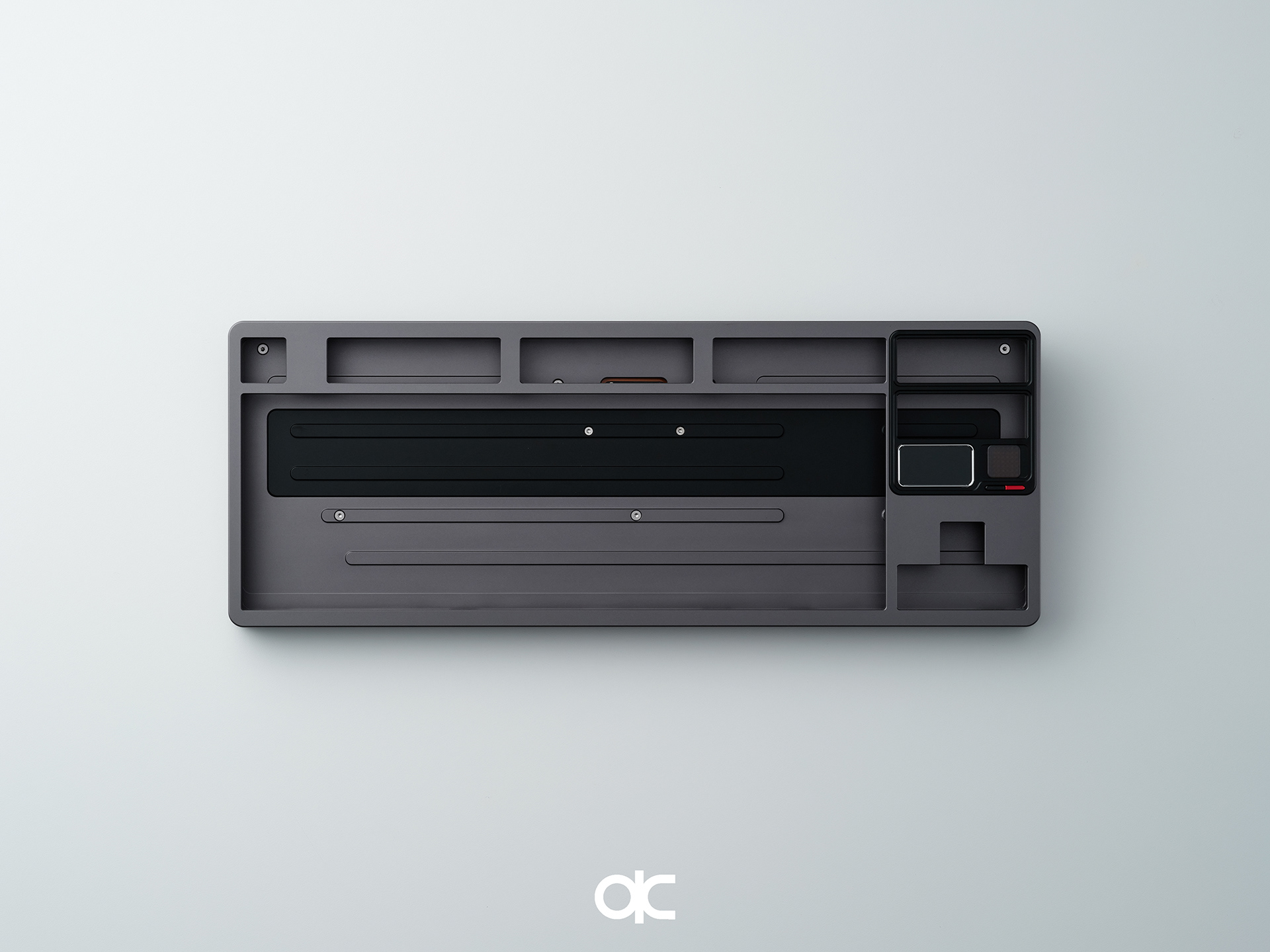

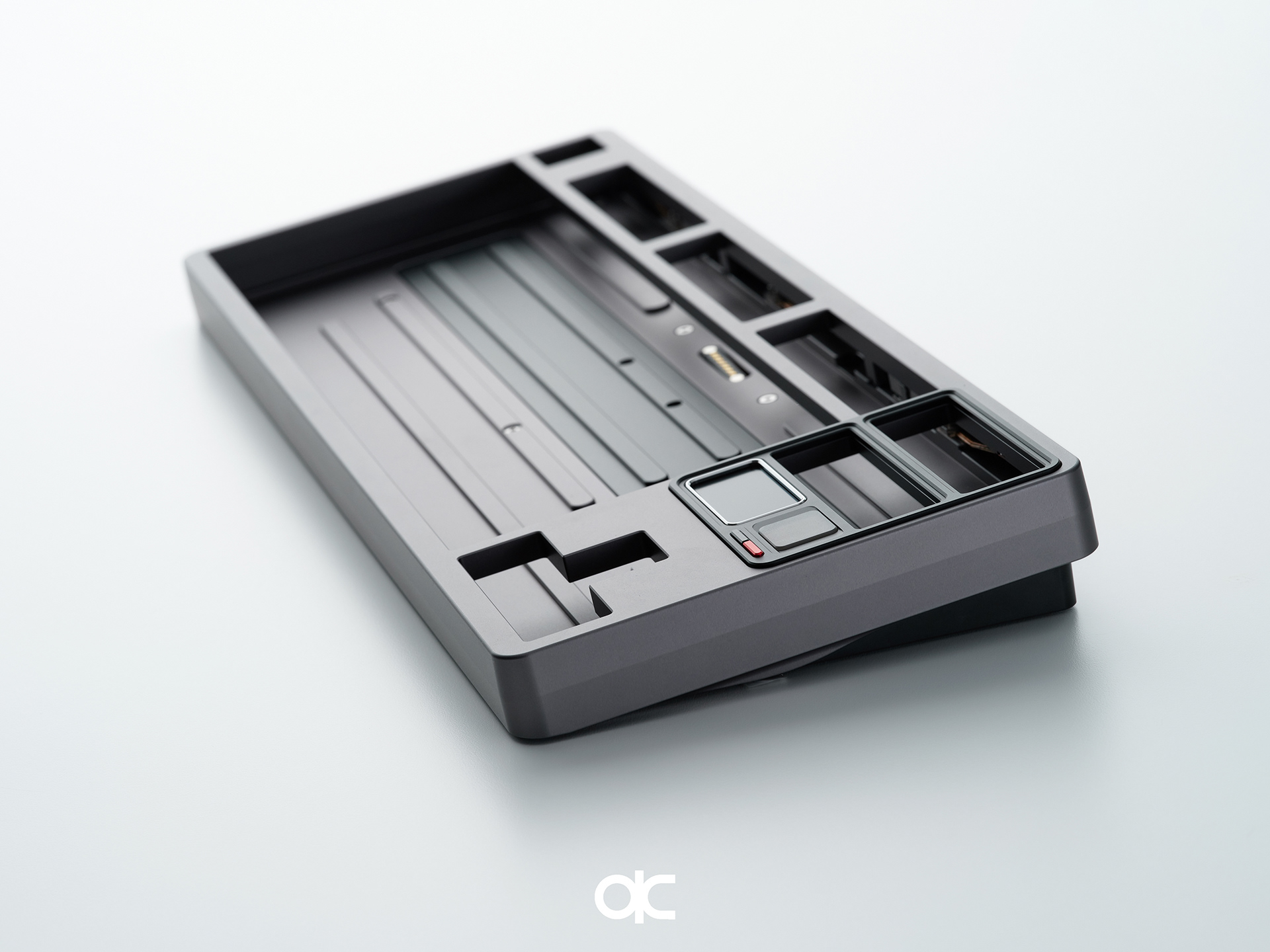

Instead of the regular gasket mount, the QK80 MK2 features the highly-praised Leaf Spring mount from Owlab and an effortless ball-catch easy disassembly system. This marks the first use of these two features in the QK series. We’ve also carefully designed the positioning of the leaf springs and the acoustic chamber in the bottom case to optimize both acoustic performance and typing feedback consistency.

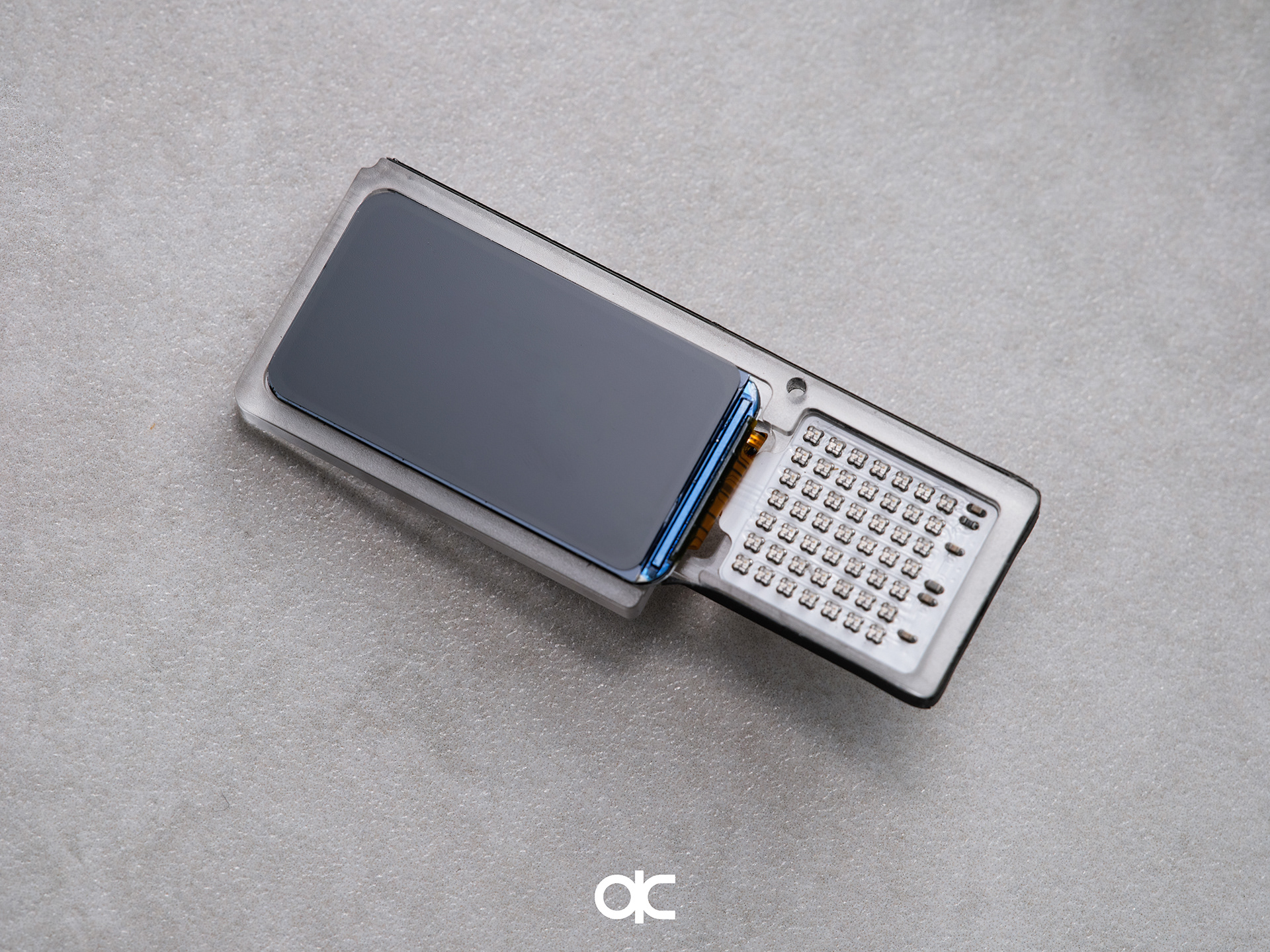

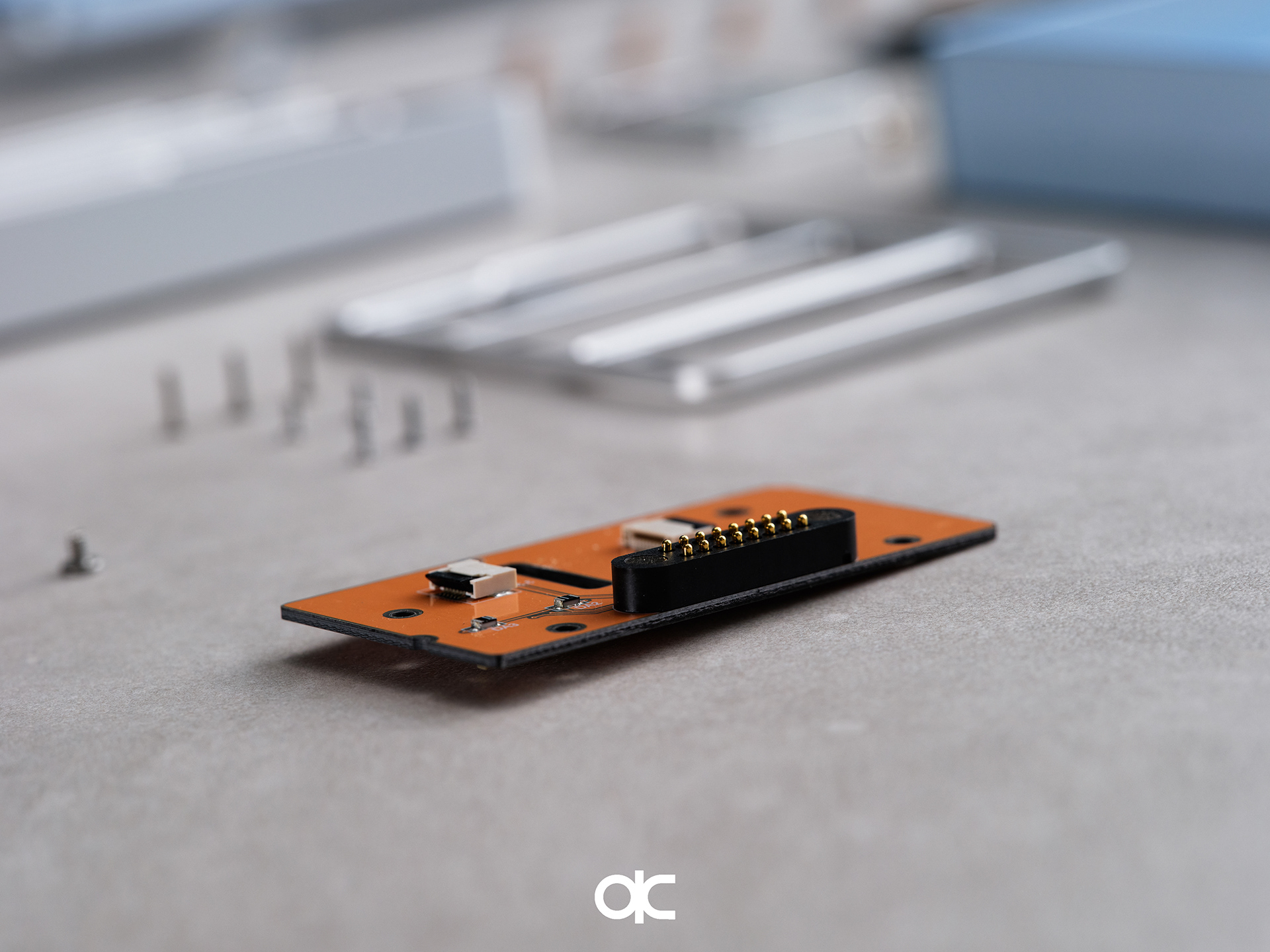

The PCB, daughterboard, and screen module are all connected via magnetic connectors, ensuring a truly effortless disassembly experience.
