markerchun - QK65v2

QK65v2

qwertykeys

Specification

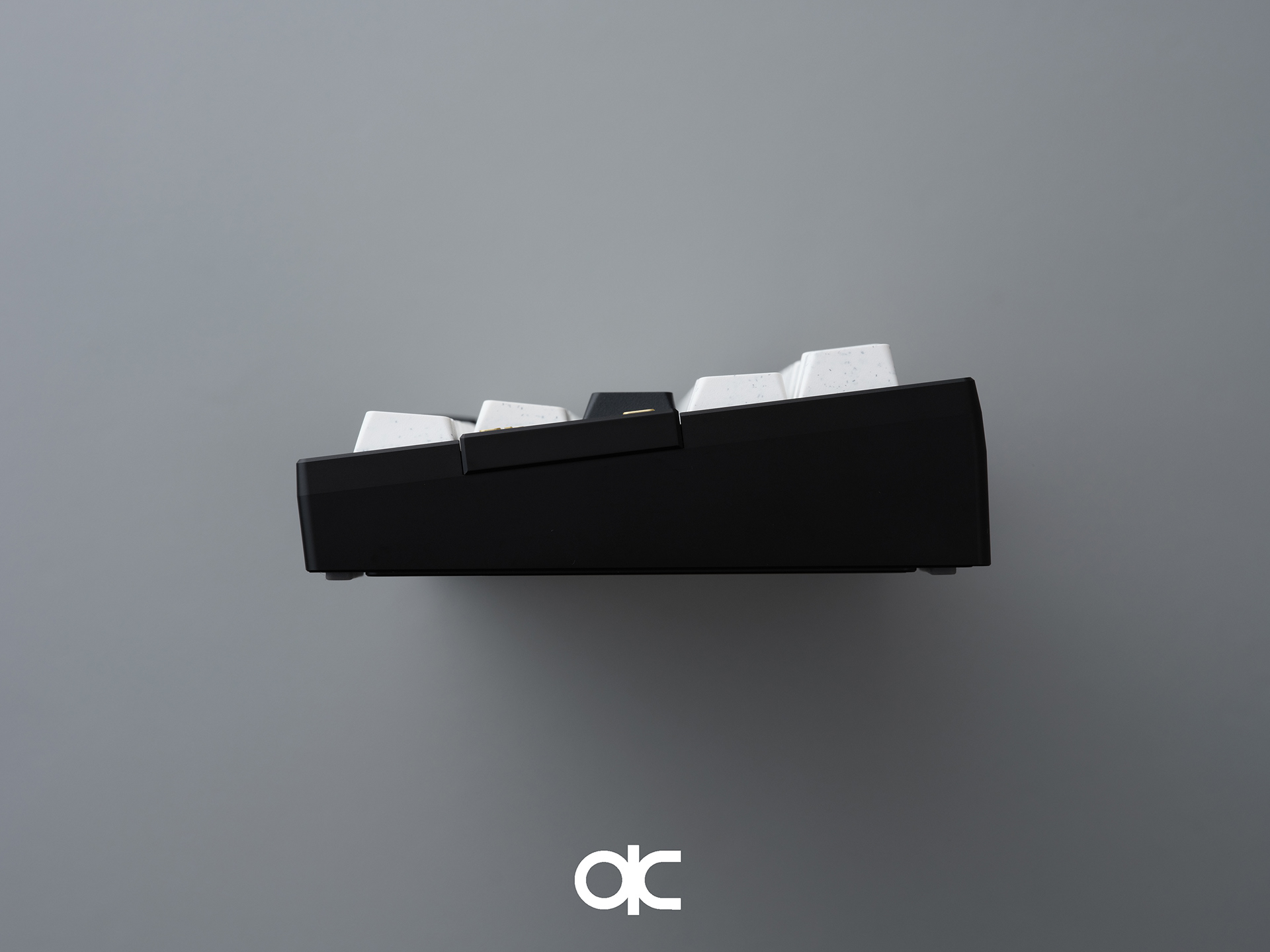

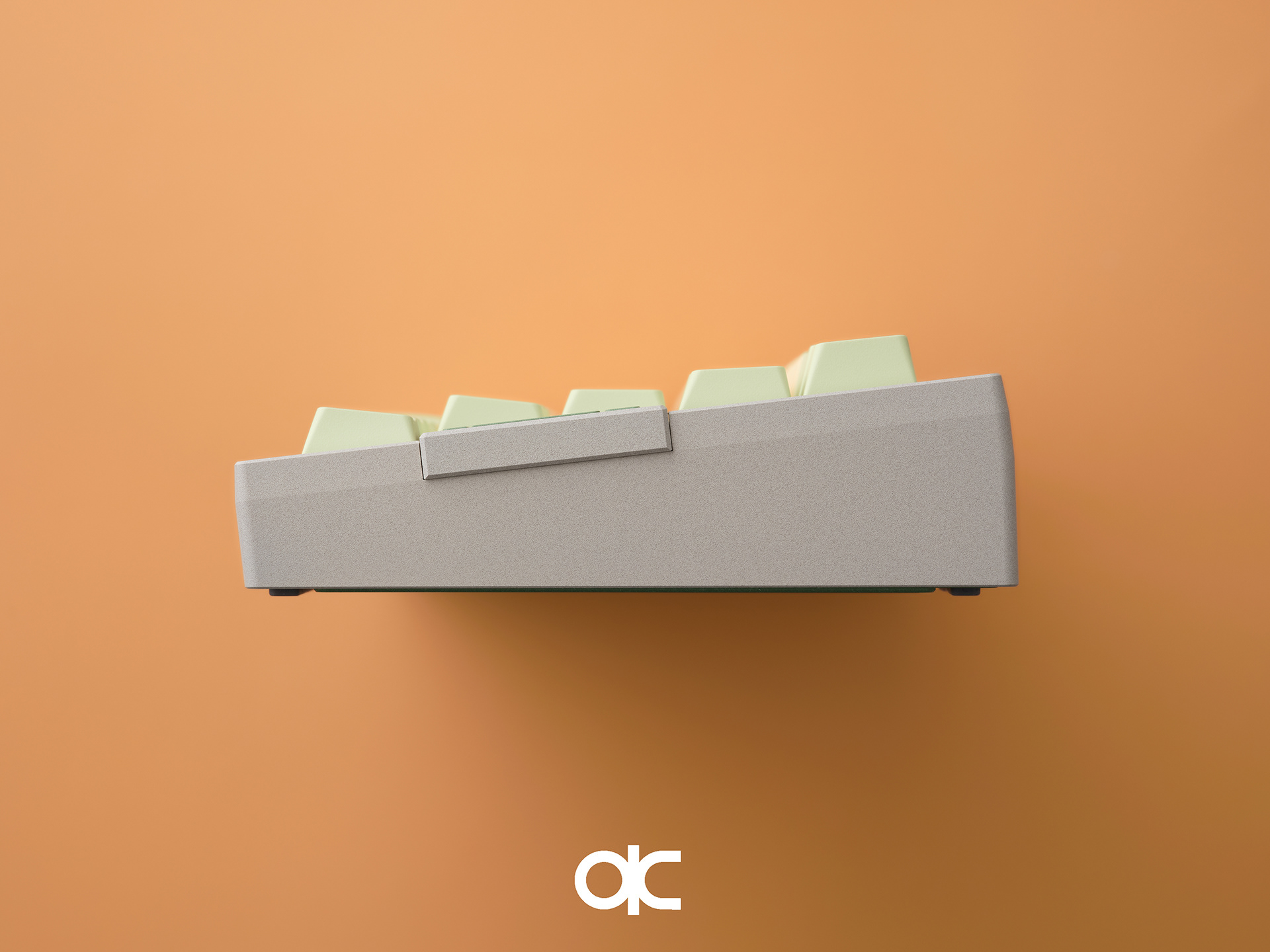

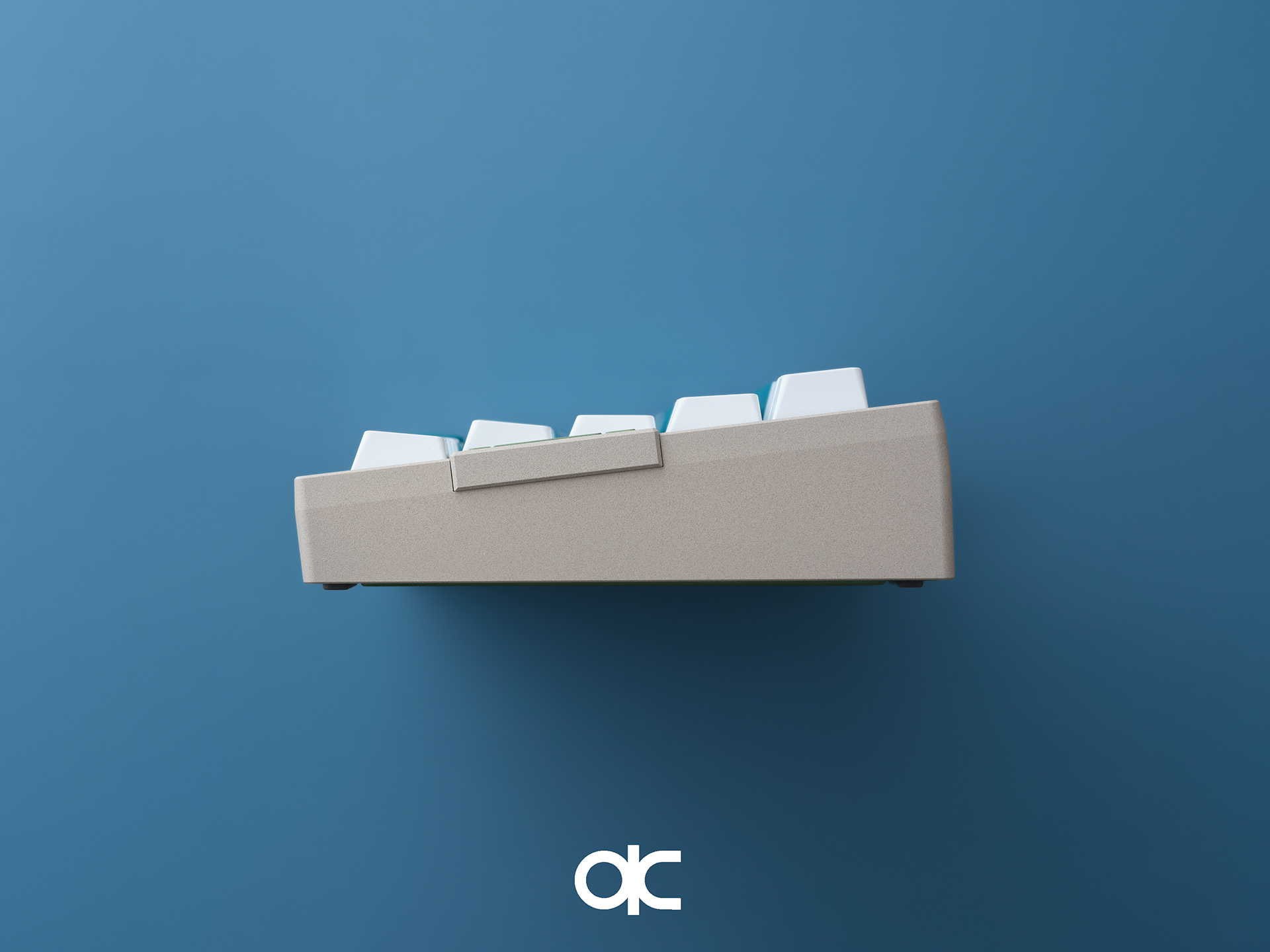

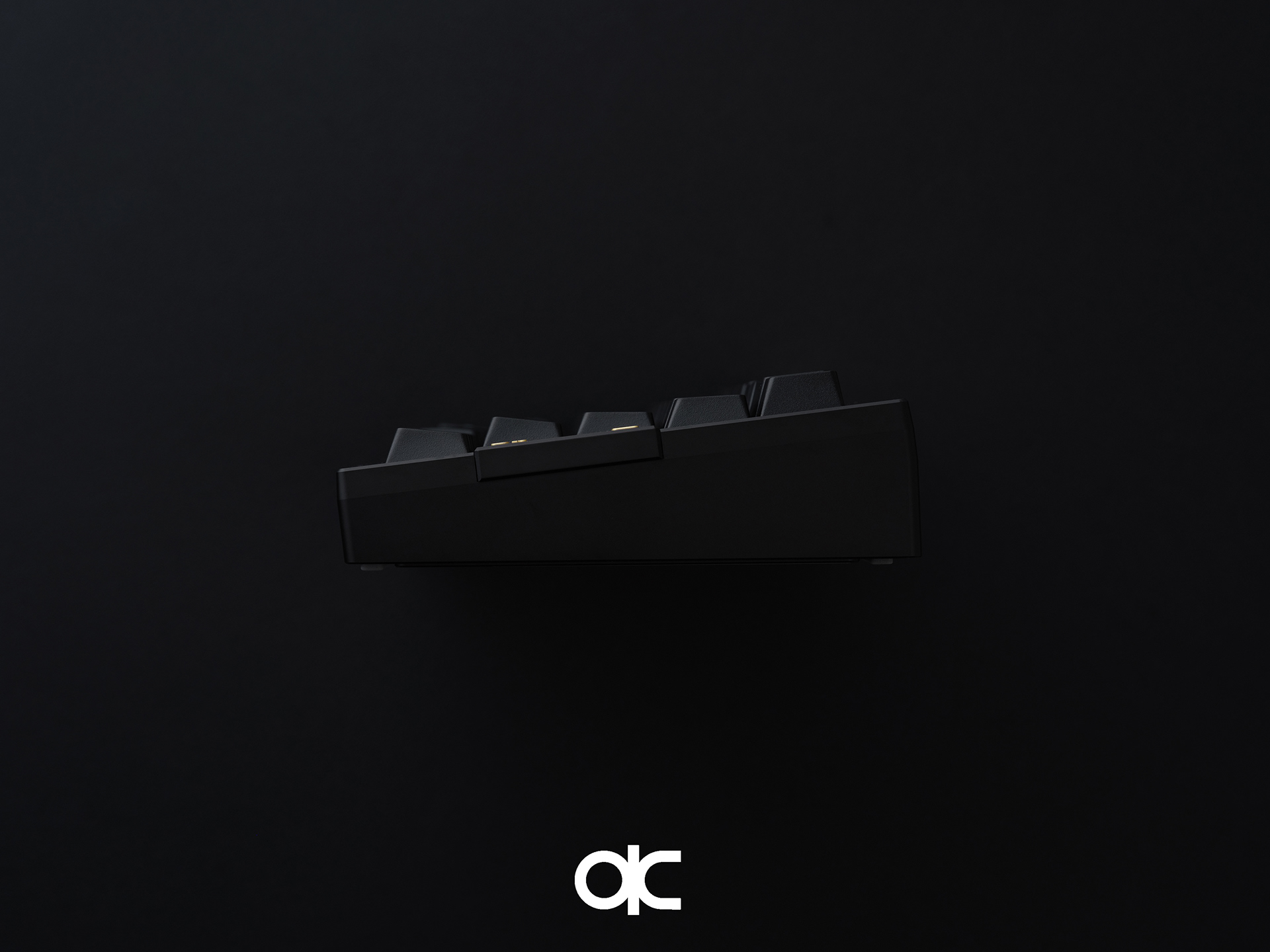

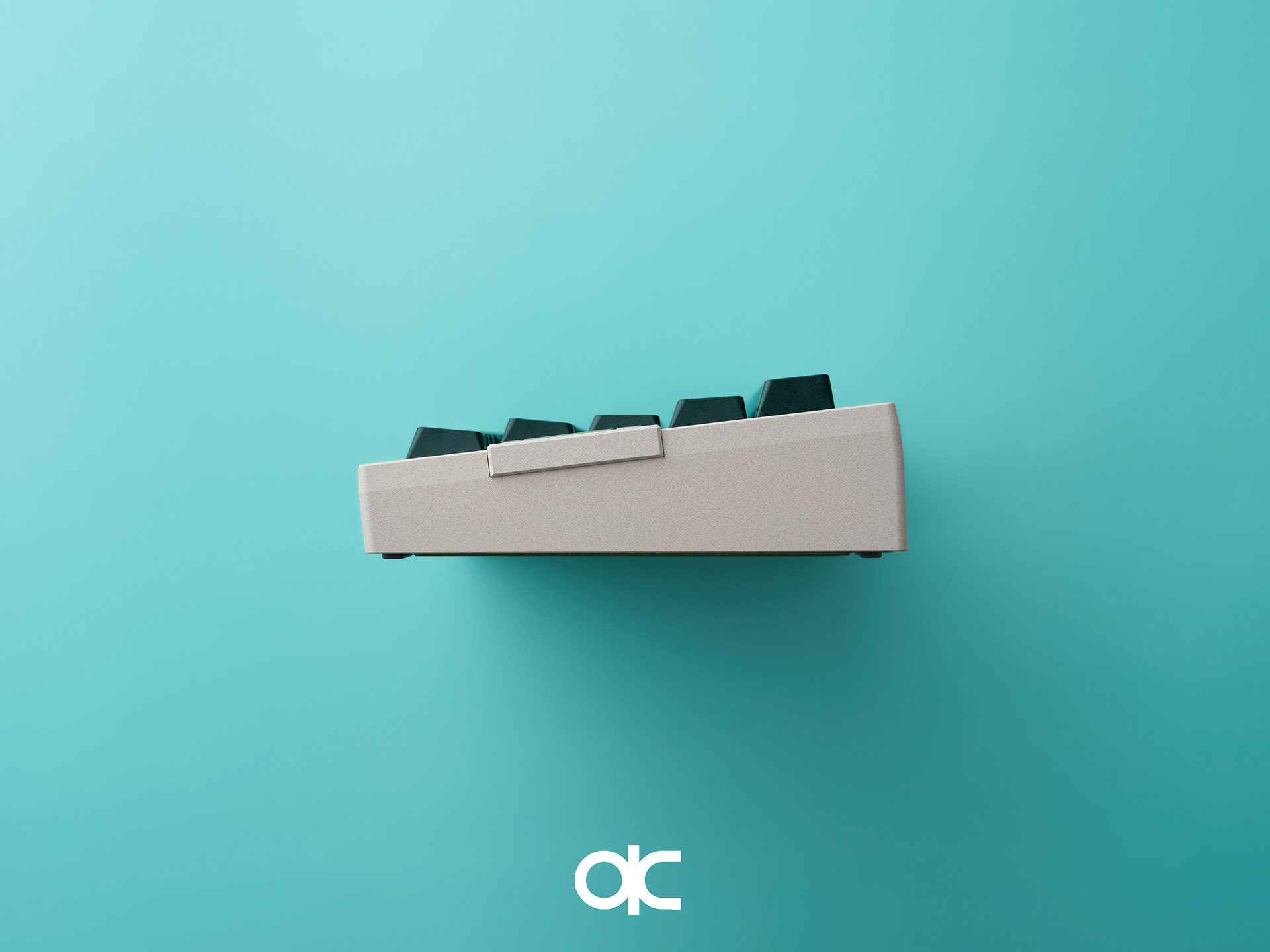

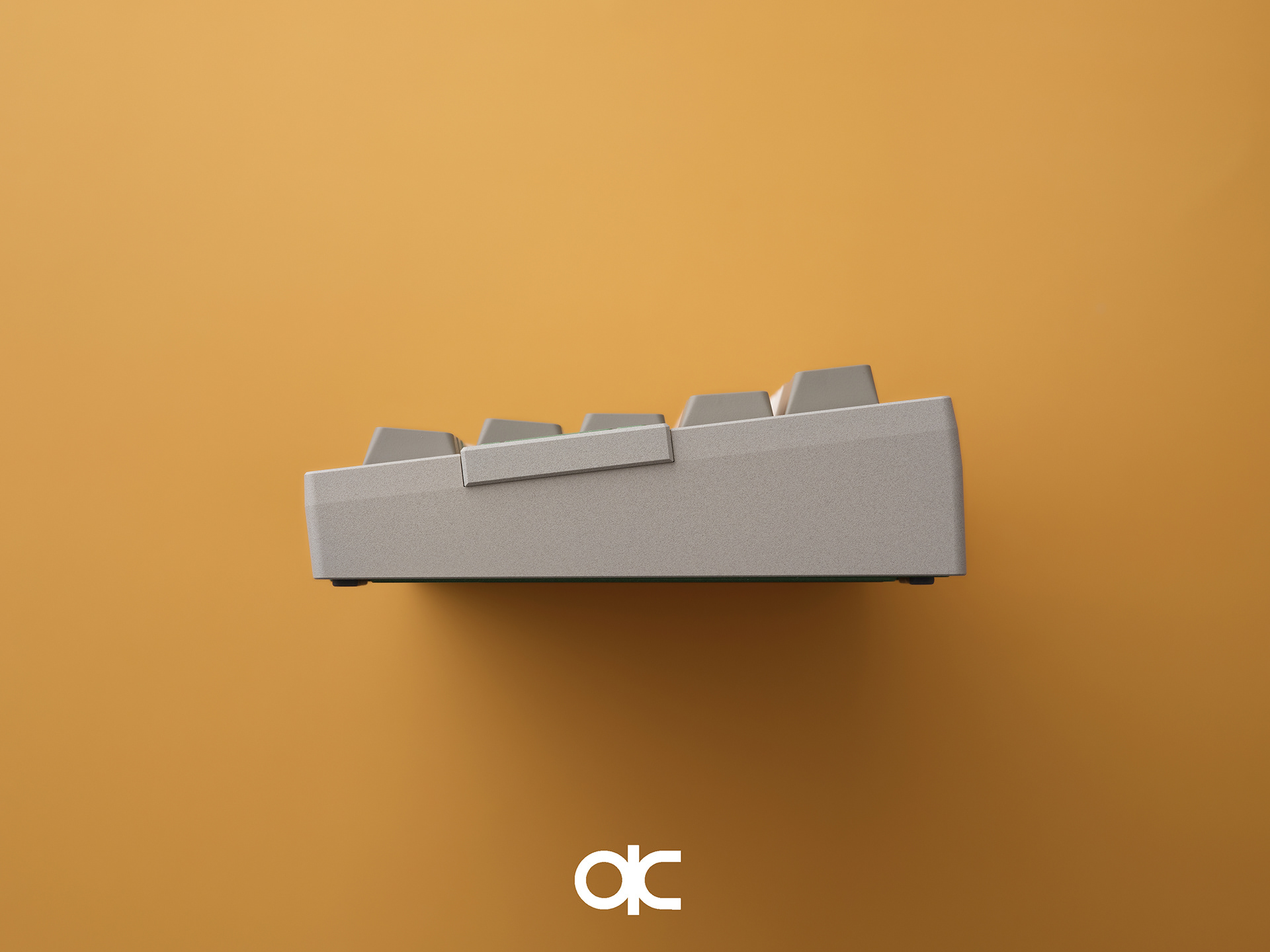

Typing angle: 6.5 degree

Front height: 19.8mm

Size: 116.5mm * 312.7mm

Weight: around 1.4kg before build, 1.75kg after build

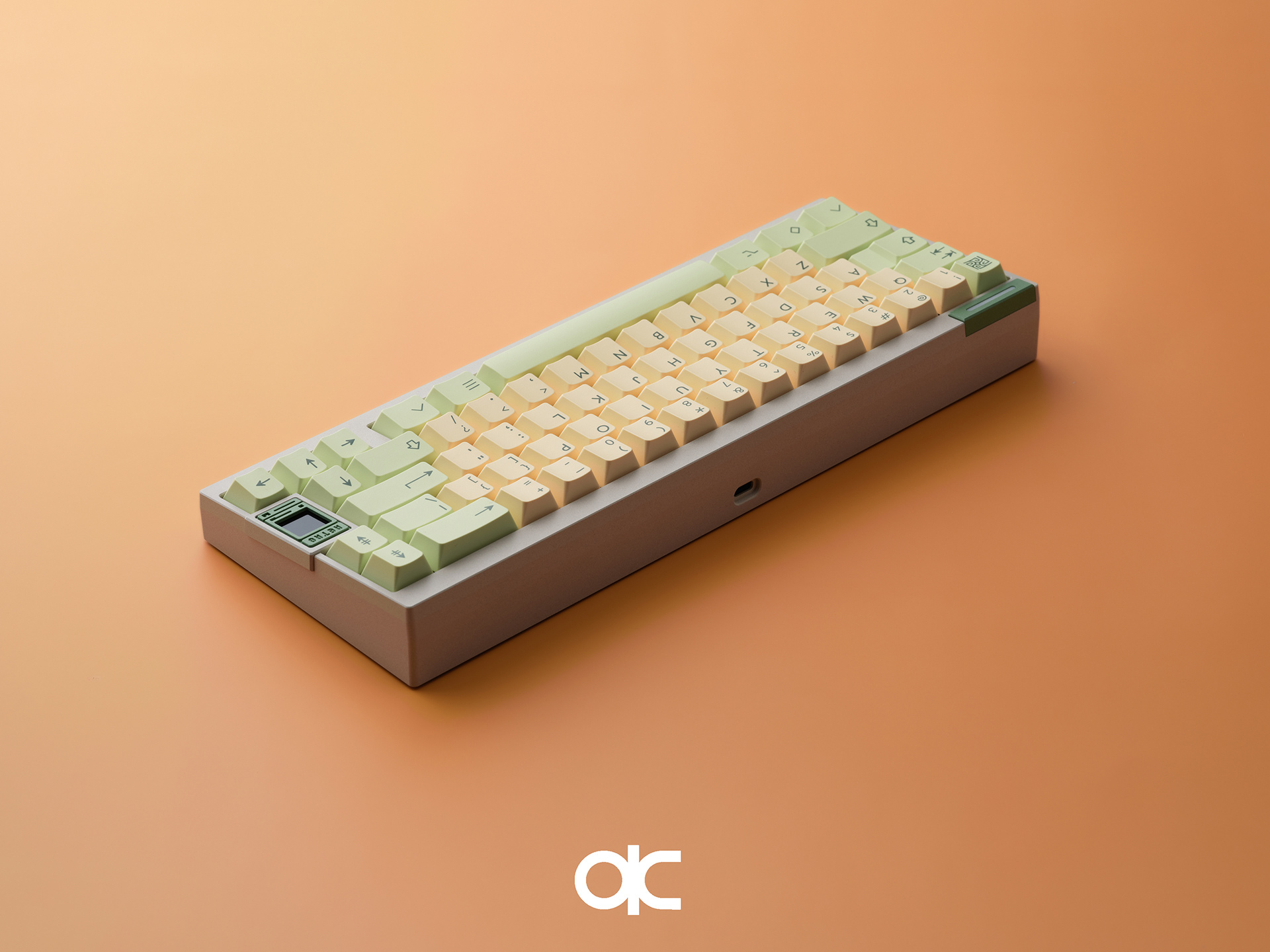

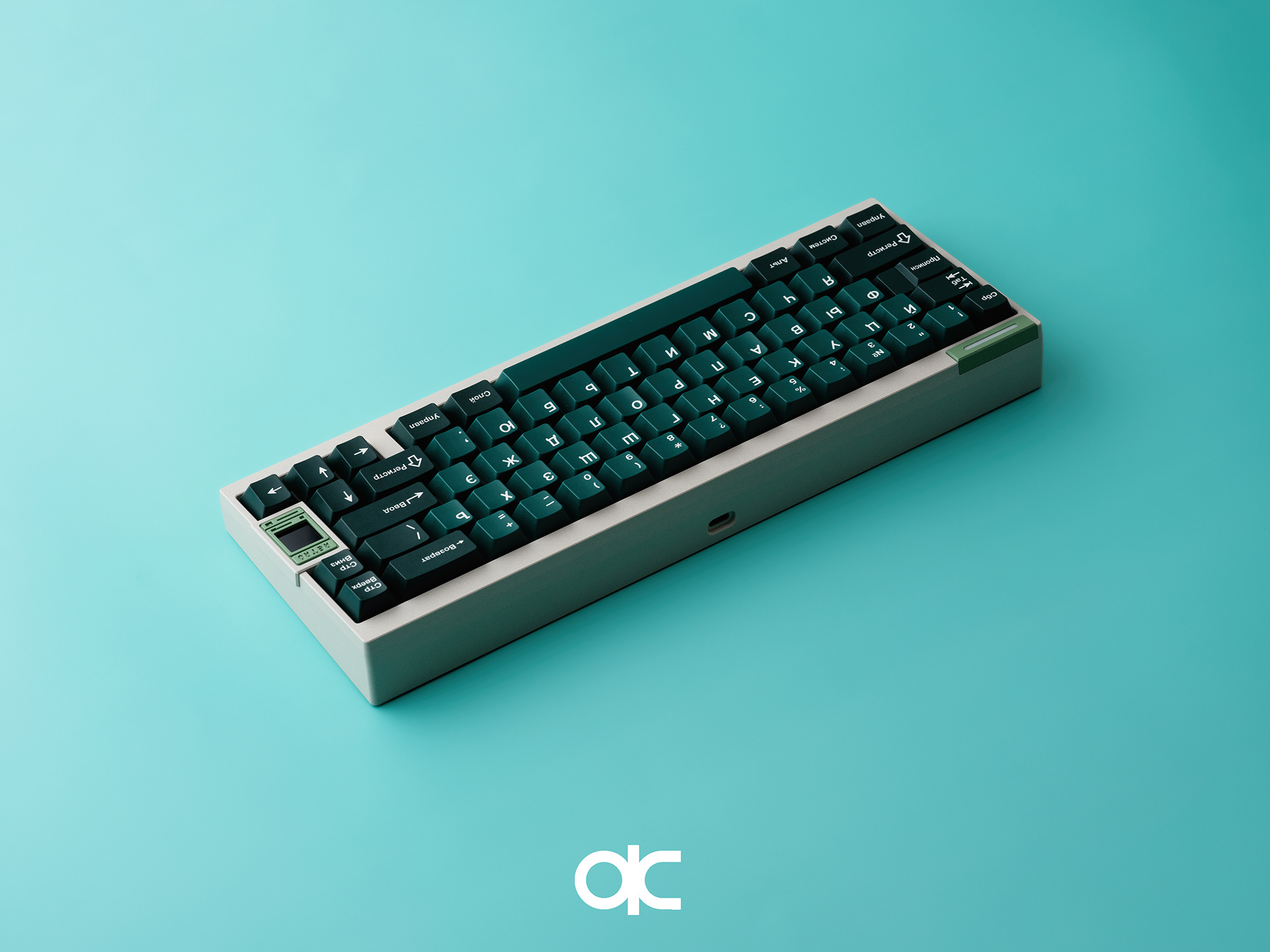

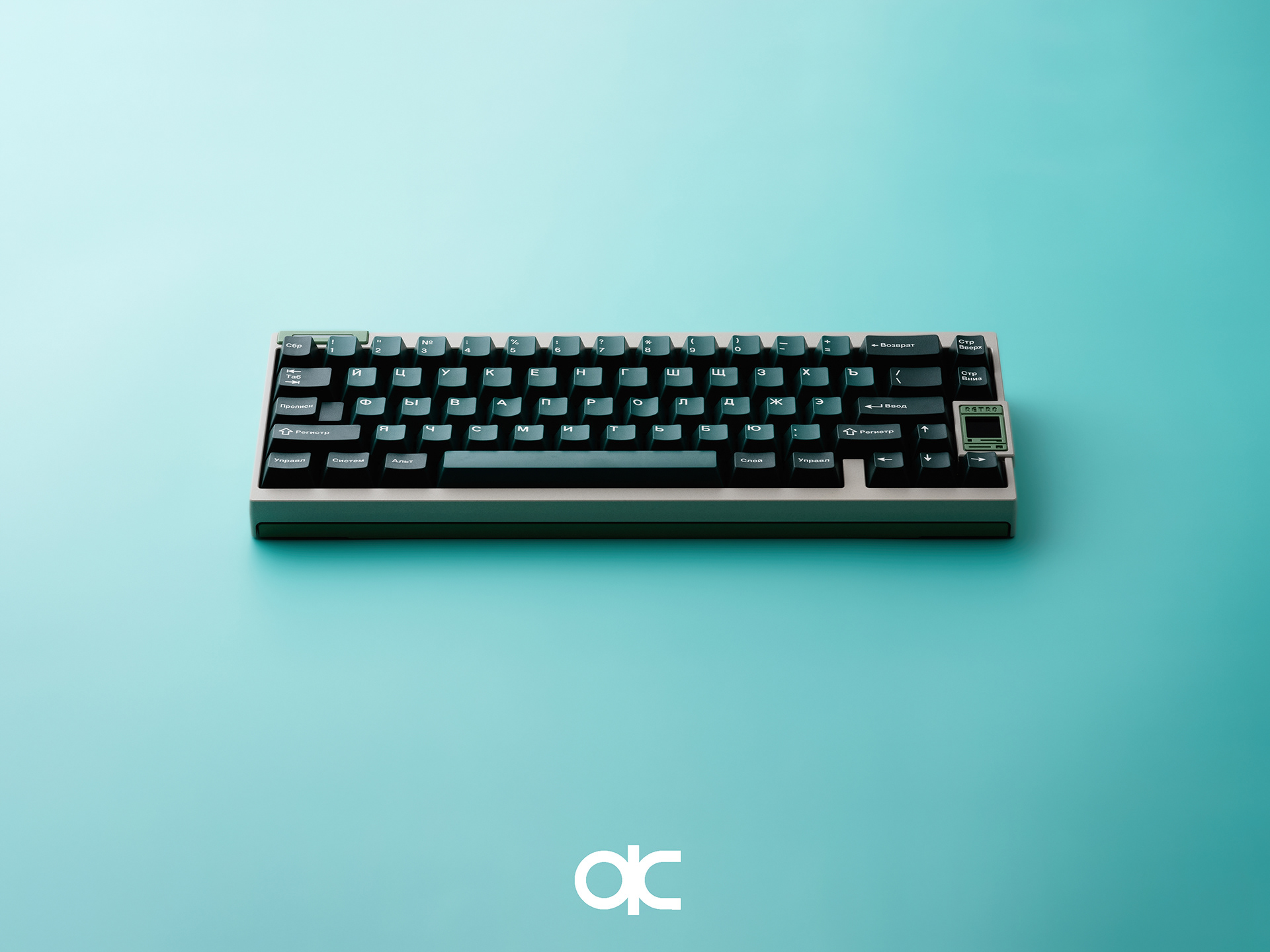

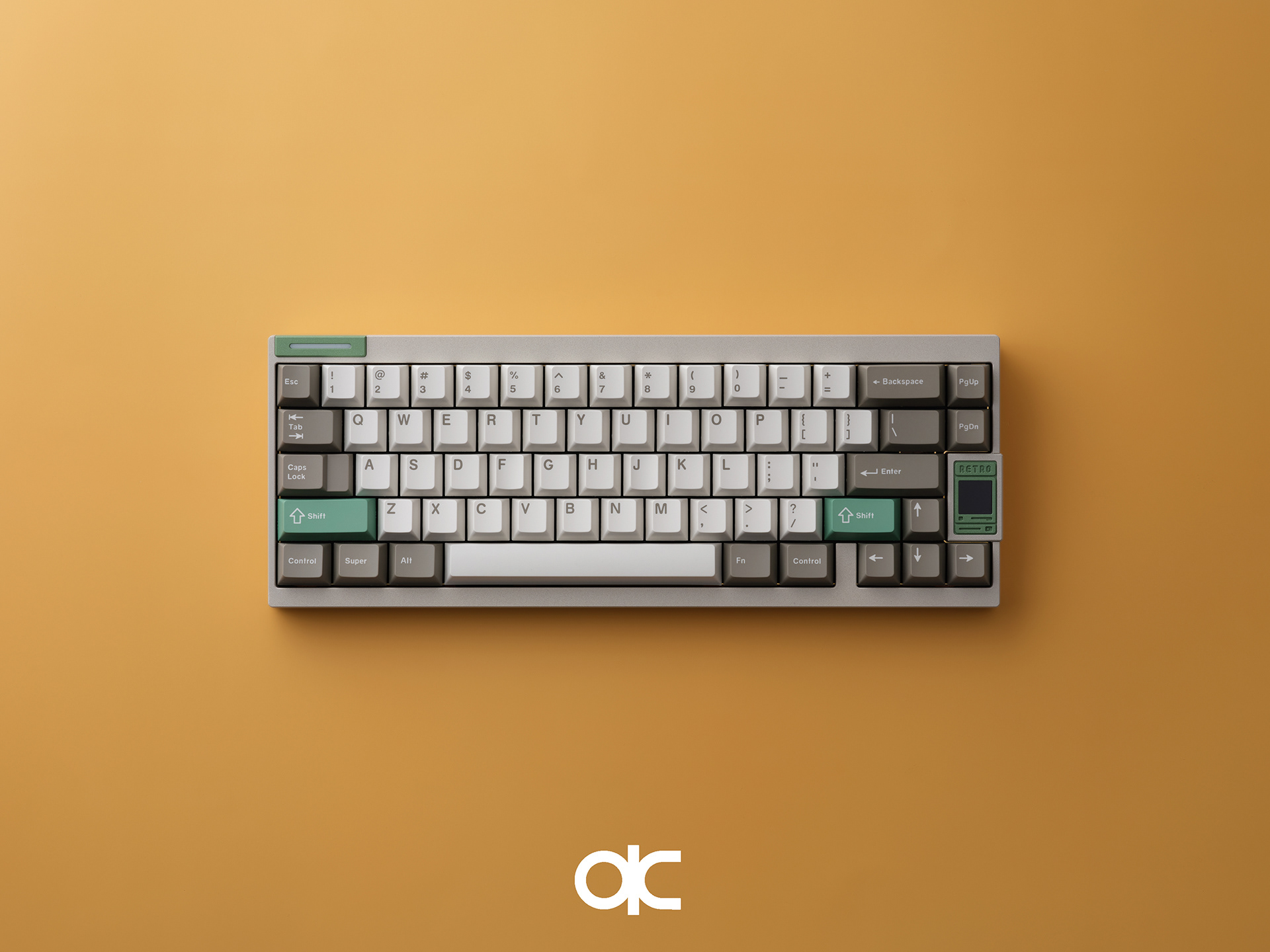

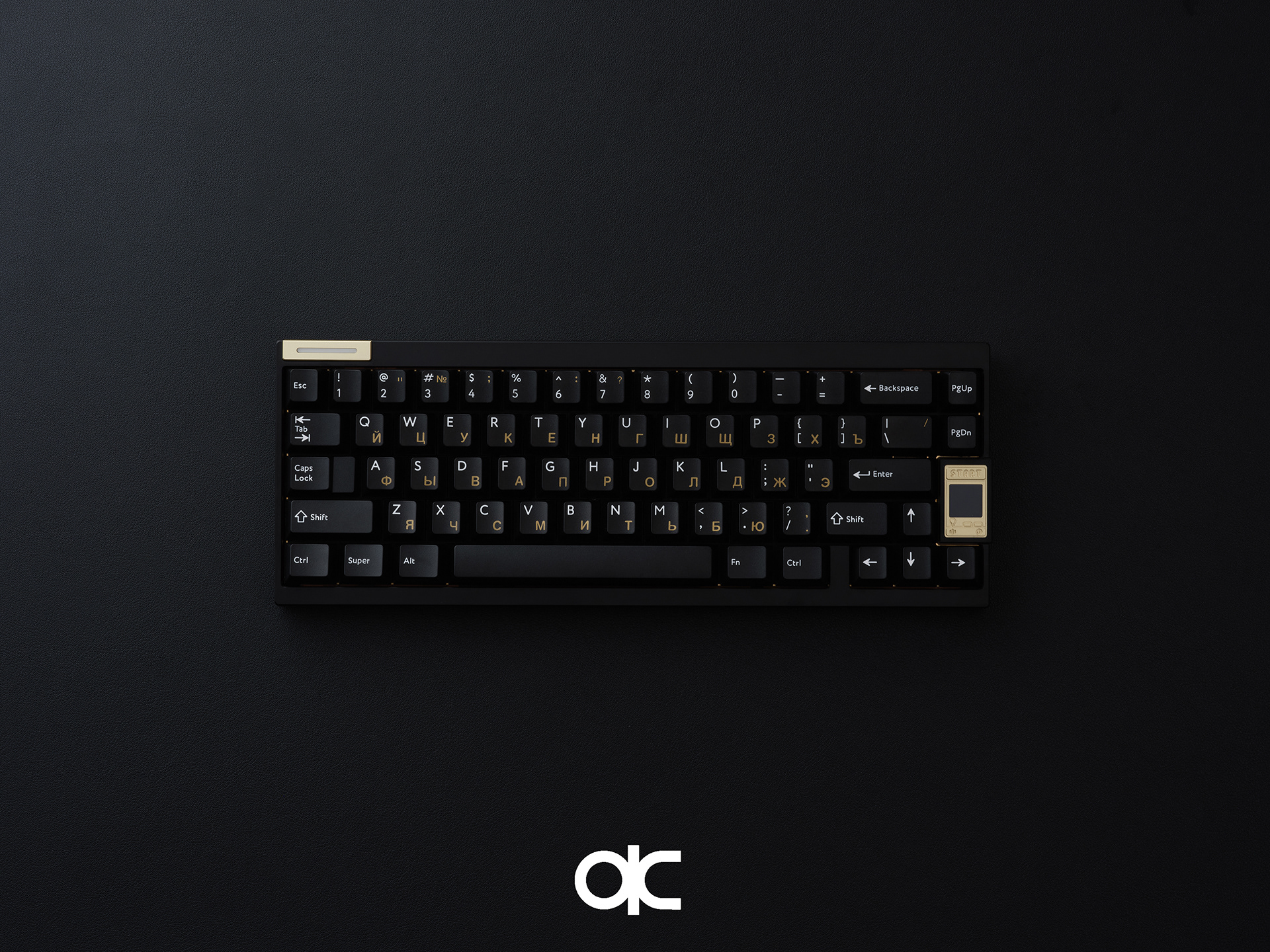

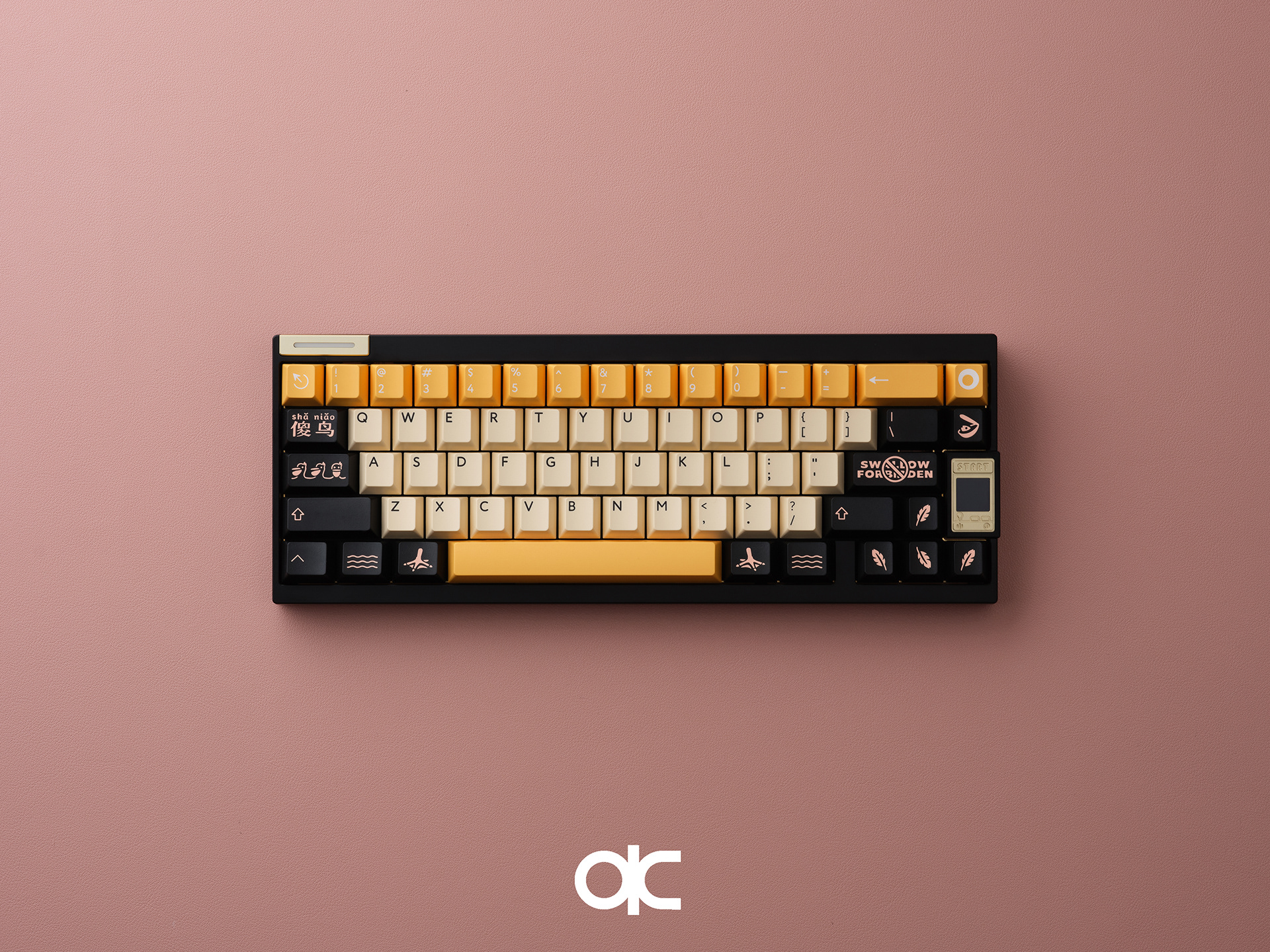

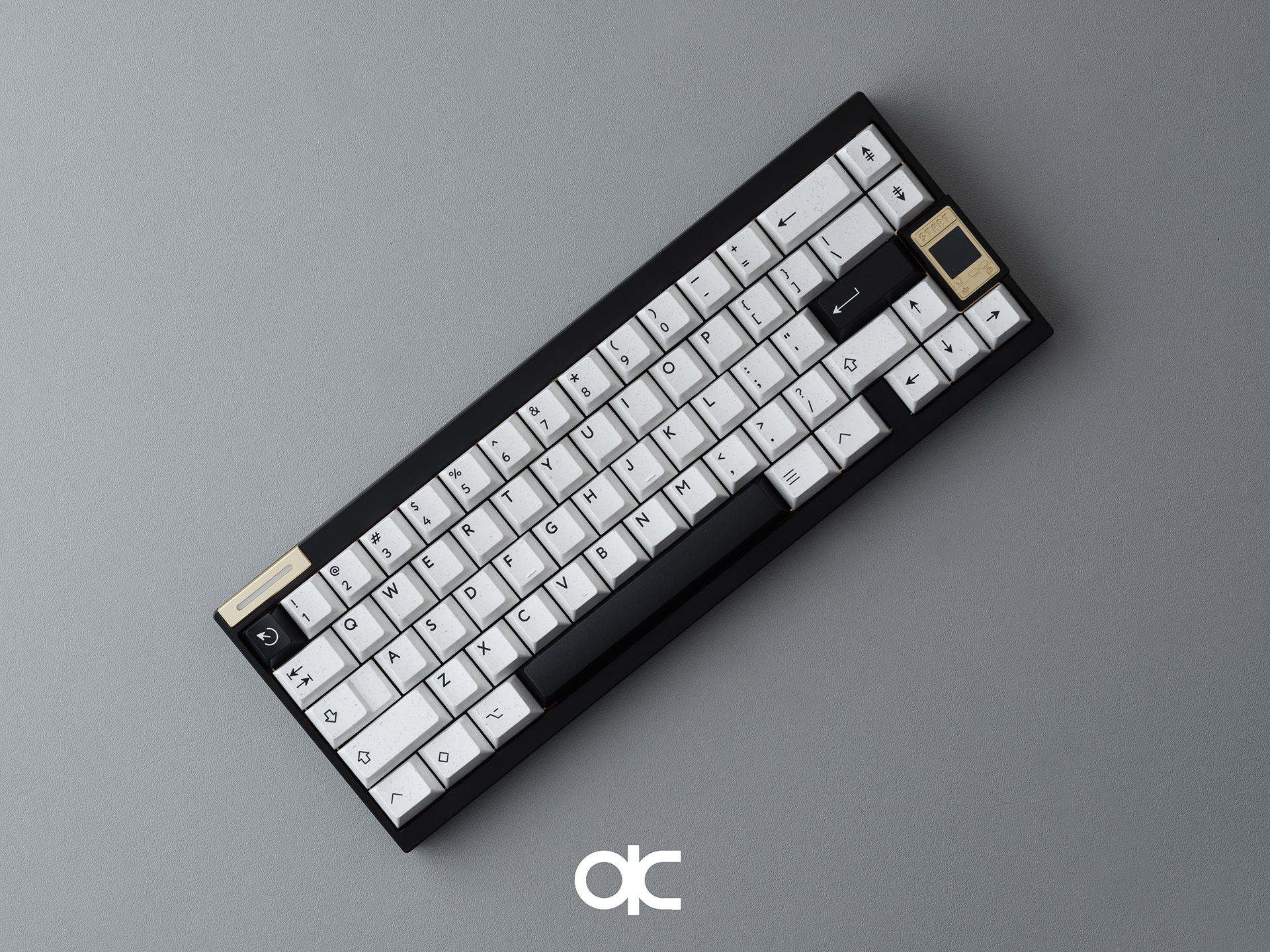

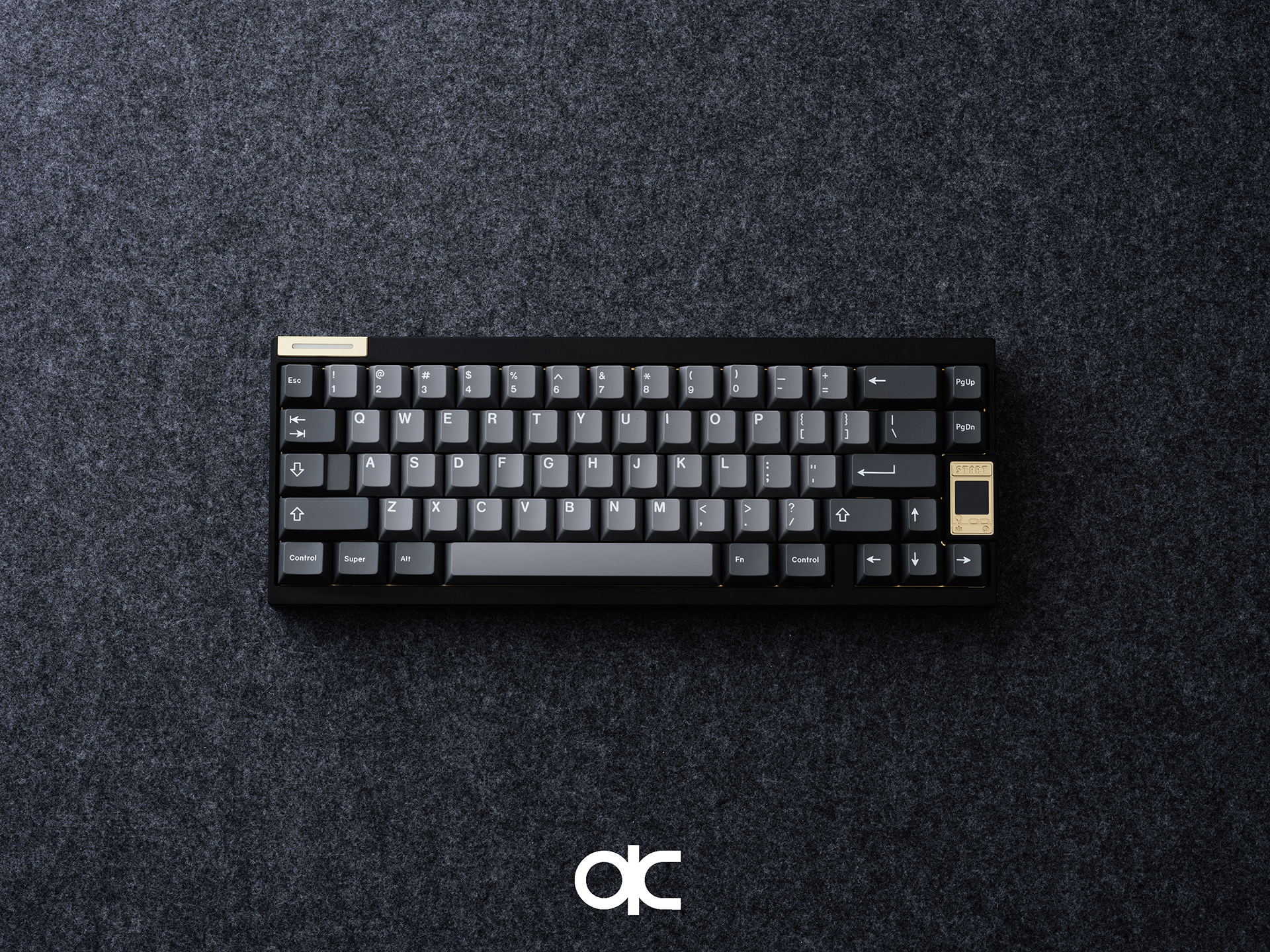

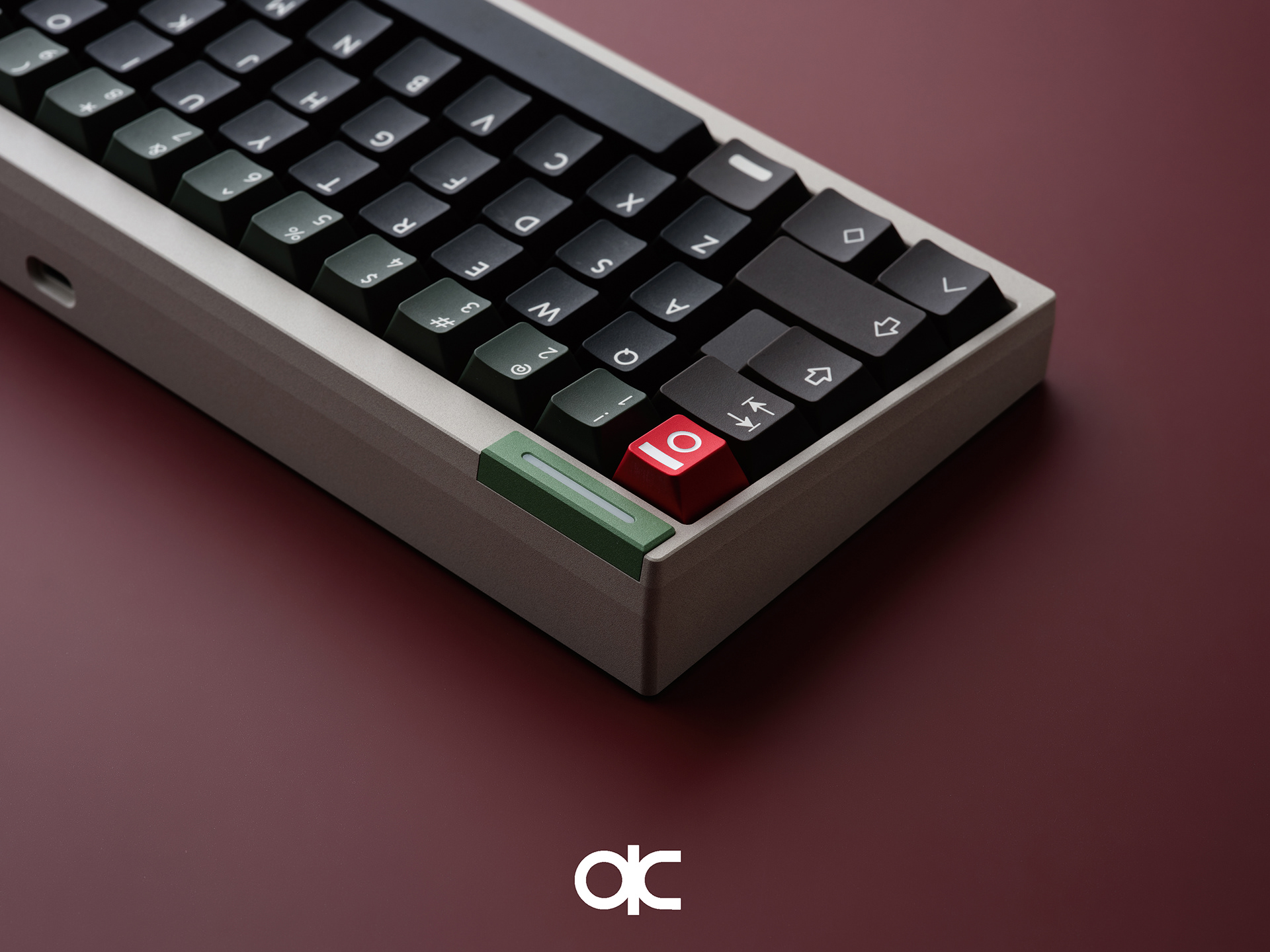

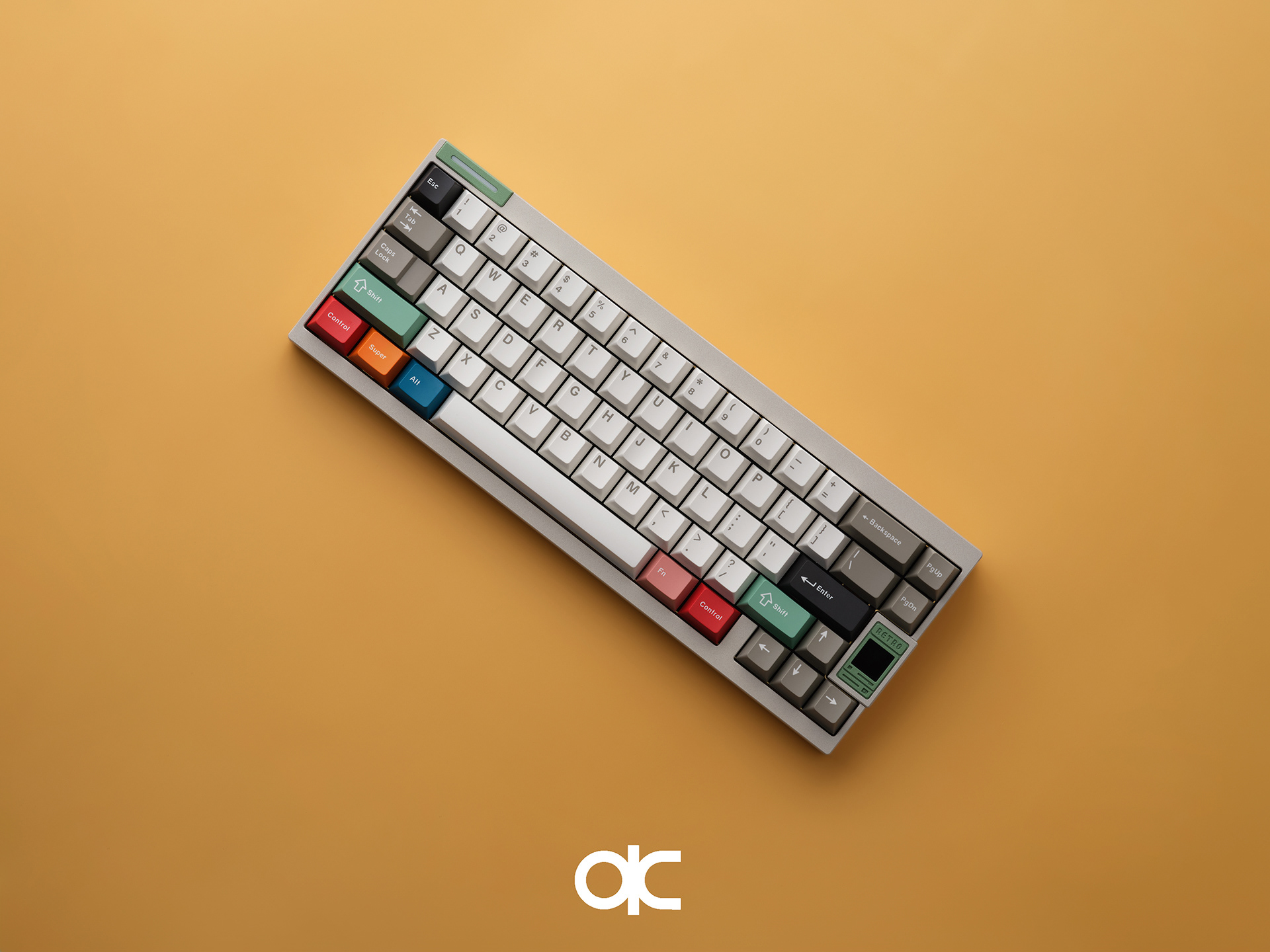

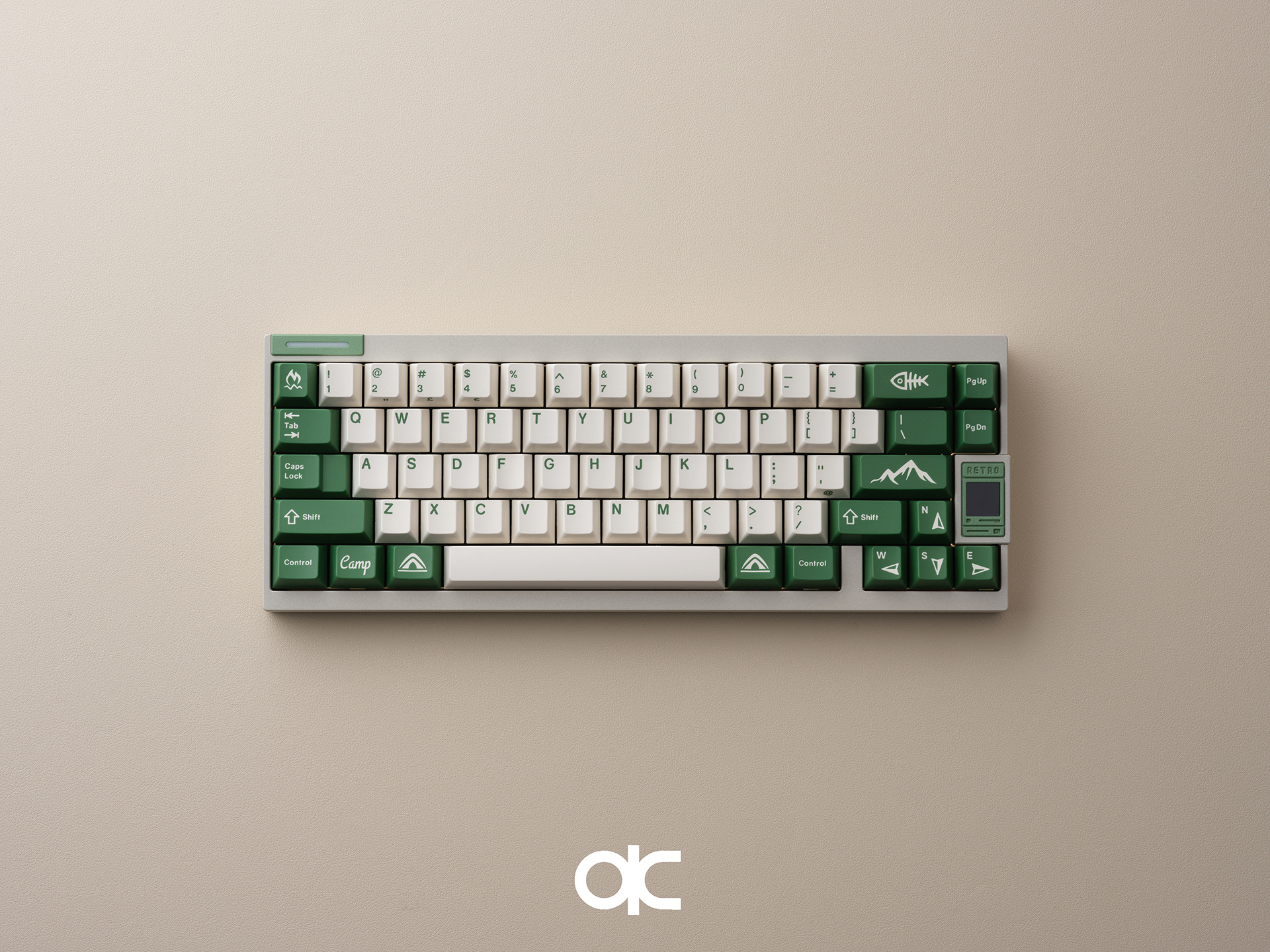

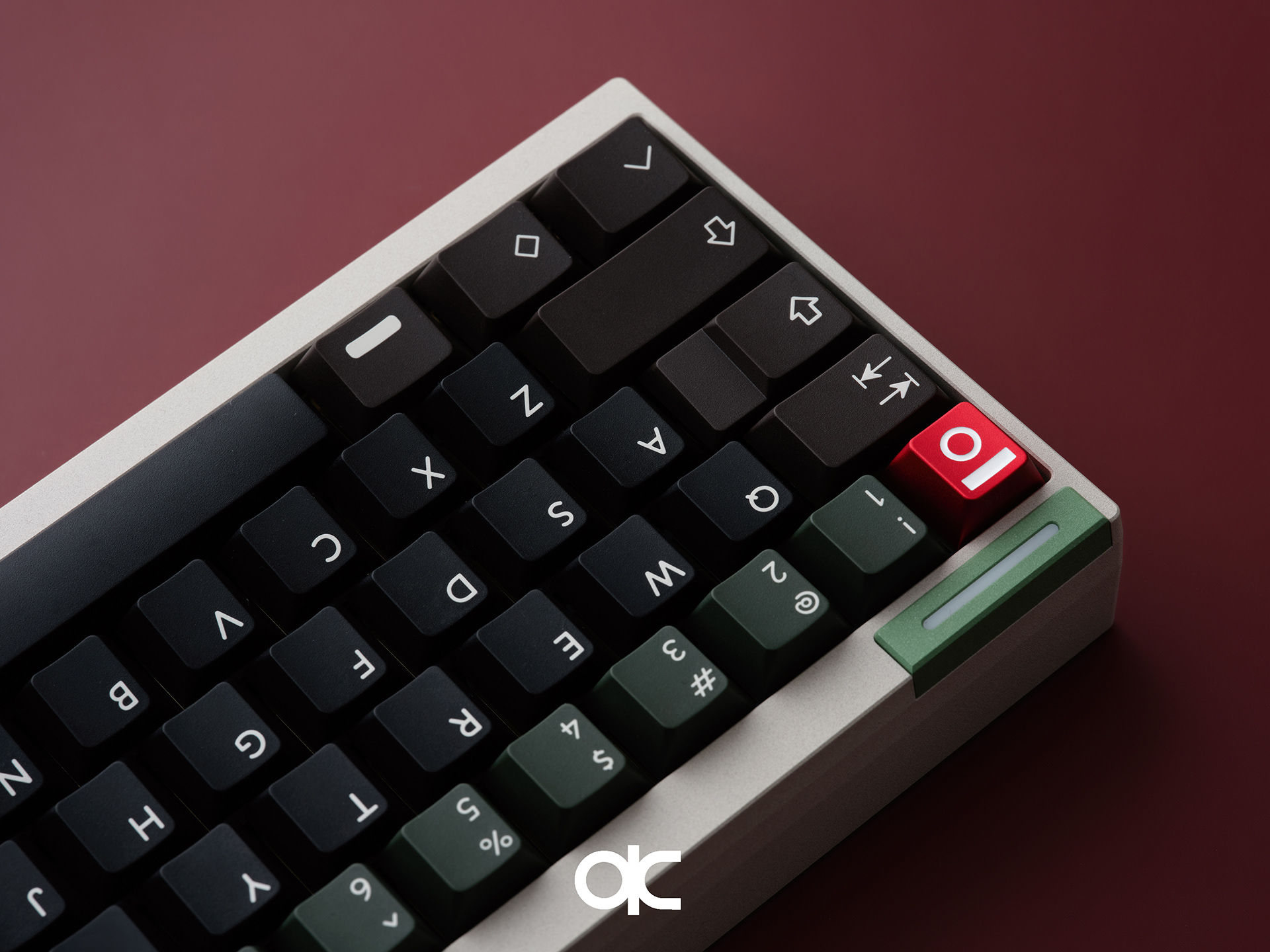

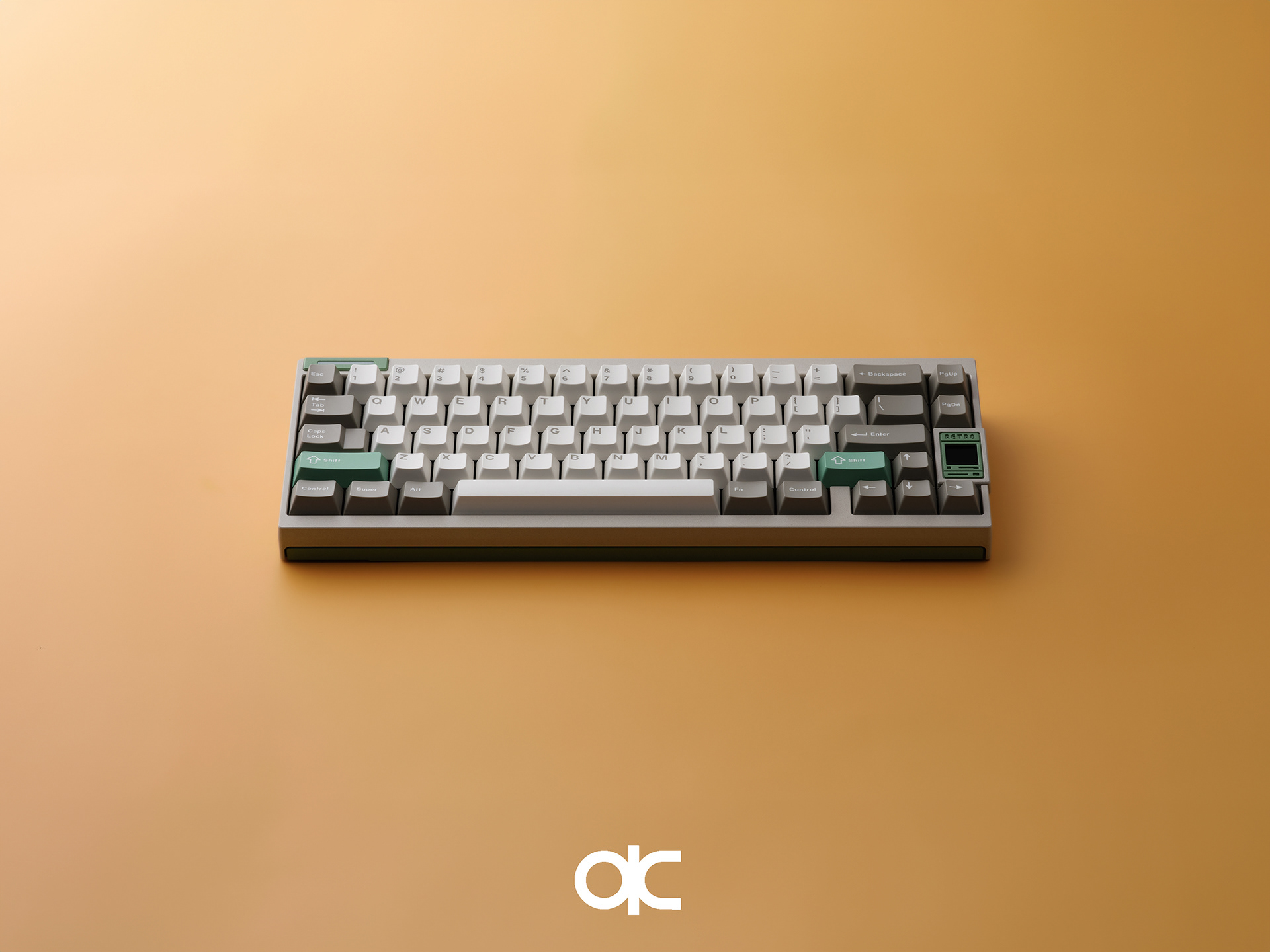

Front Design

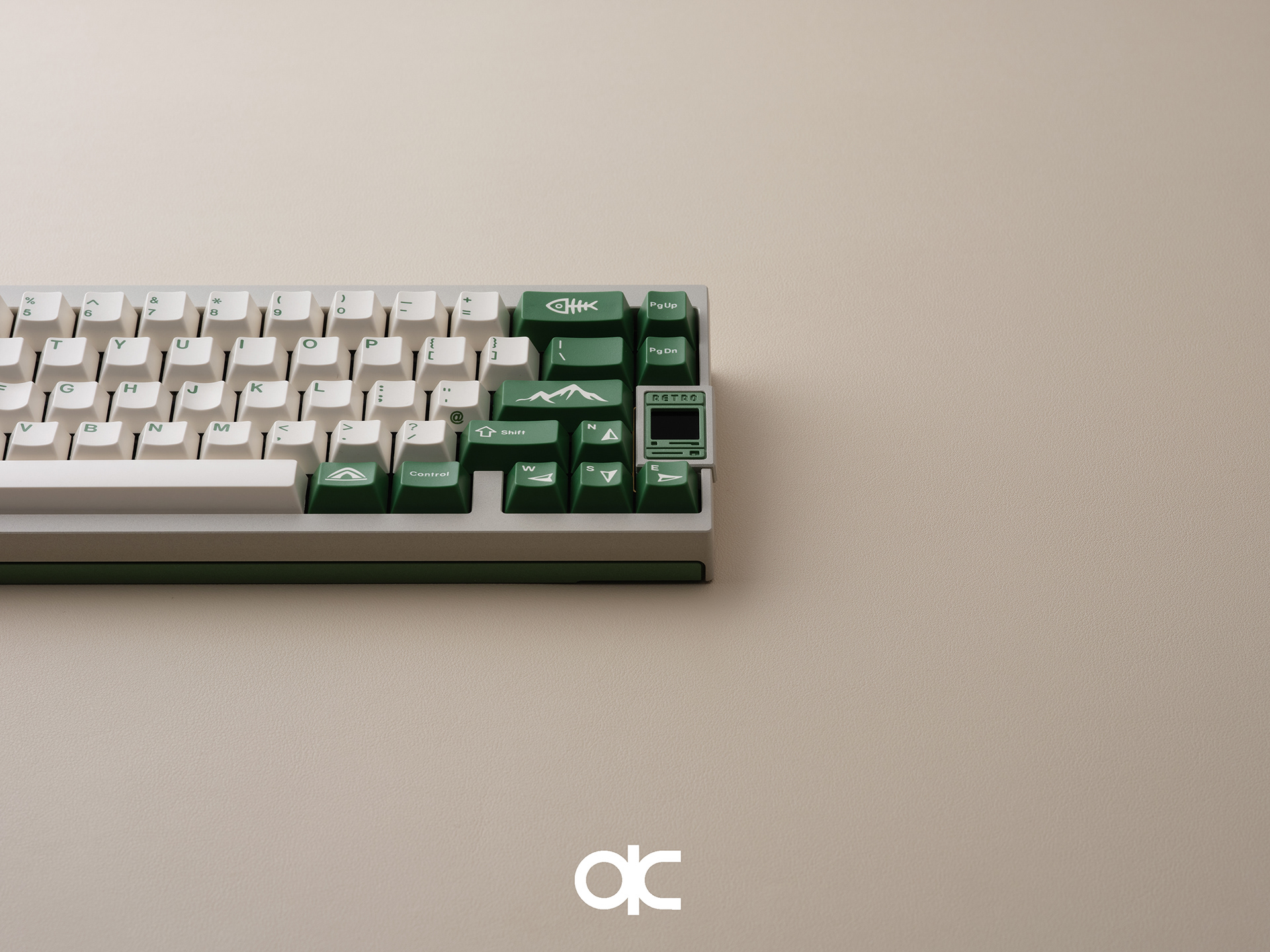

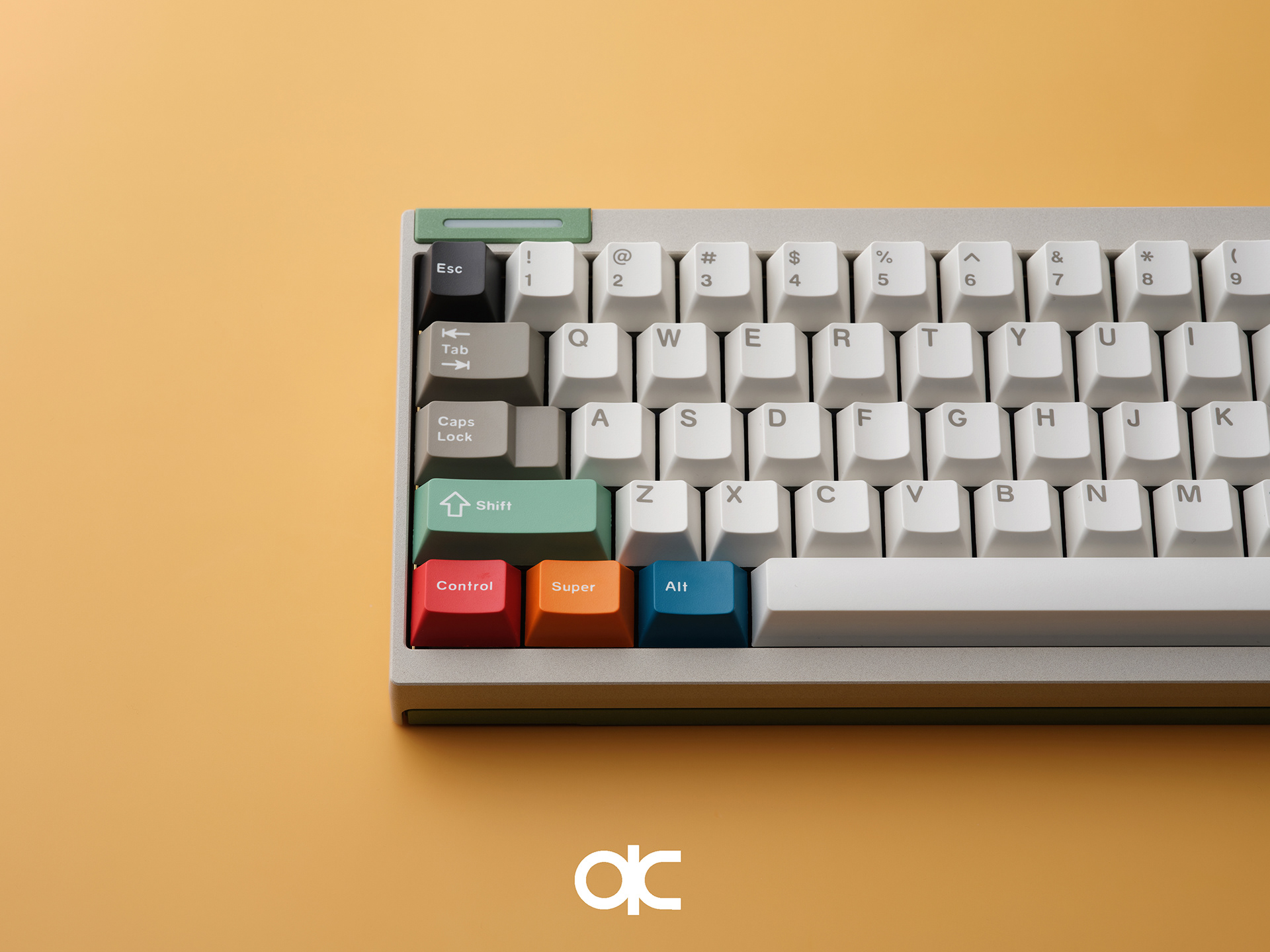

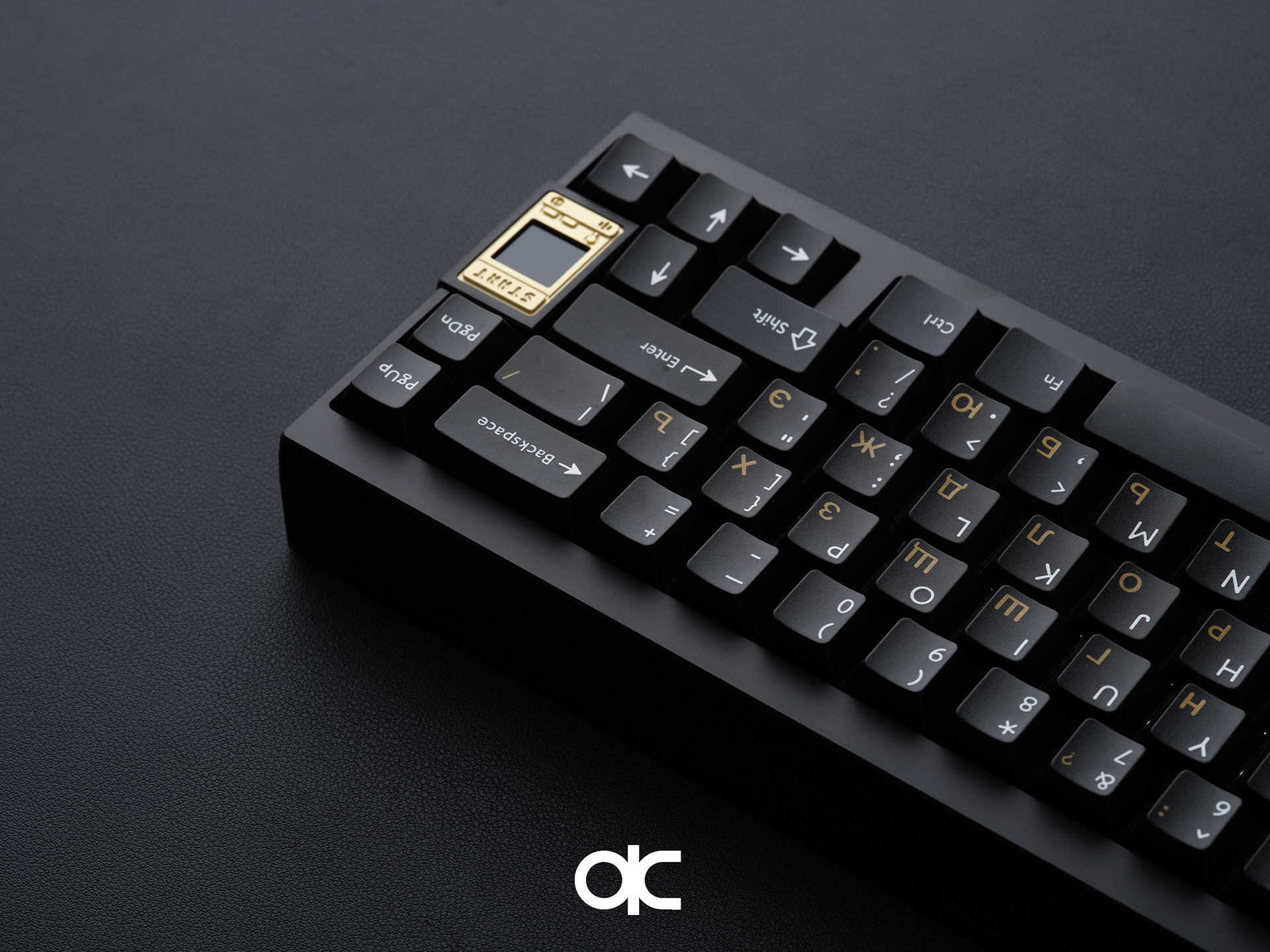

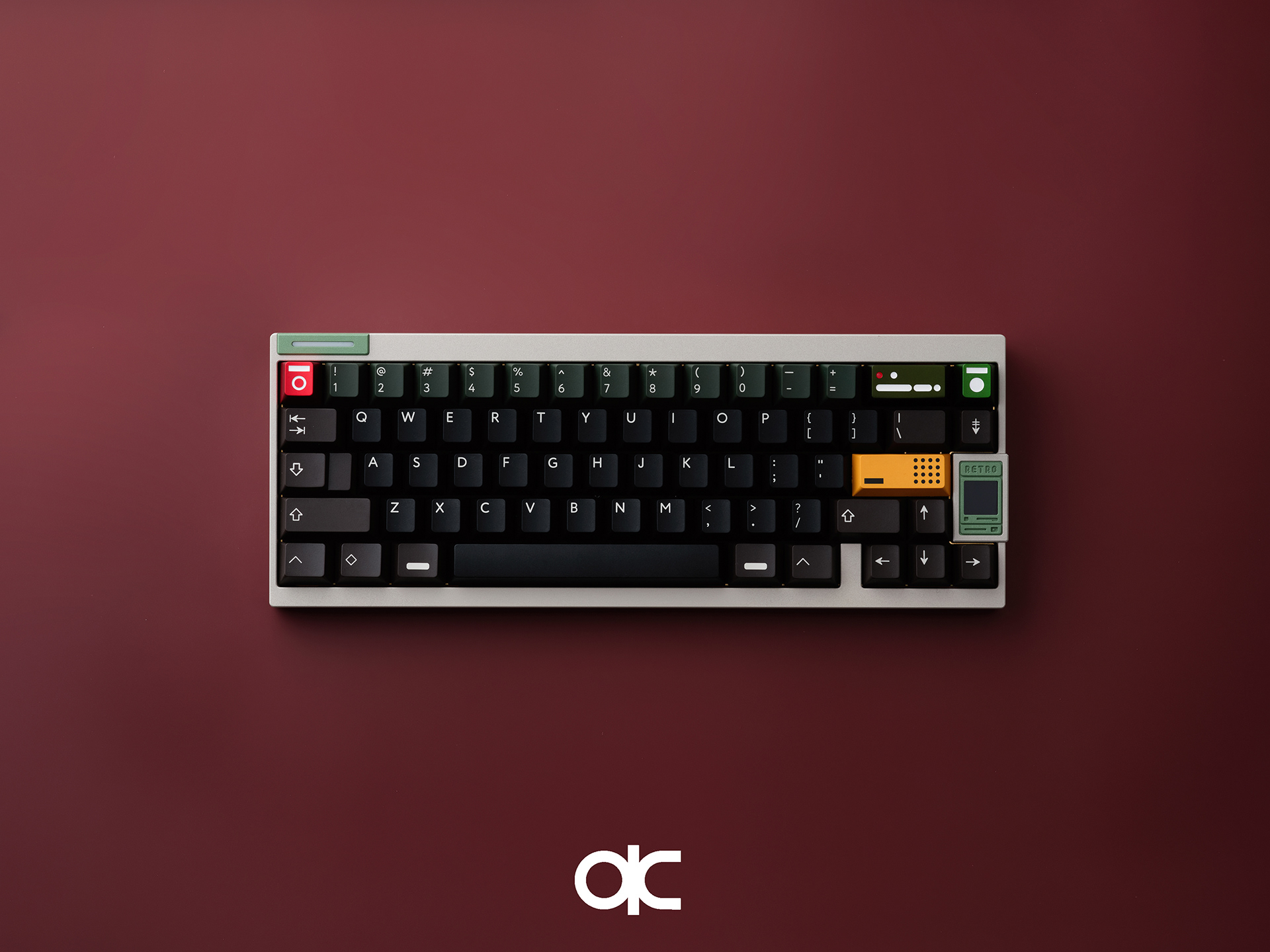

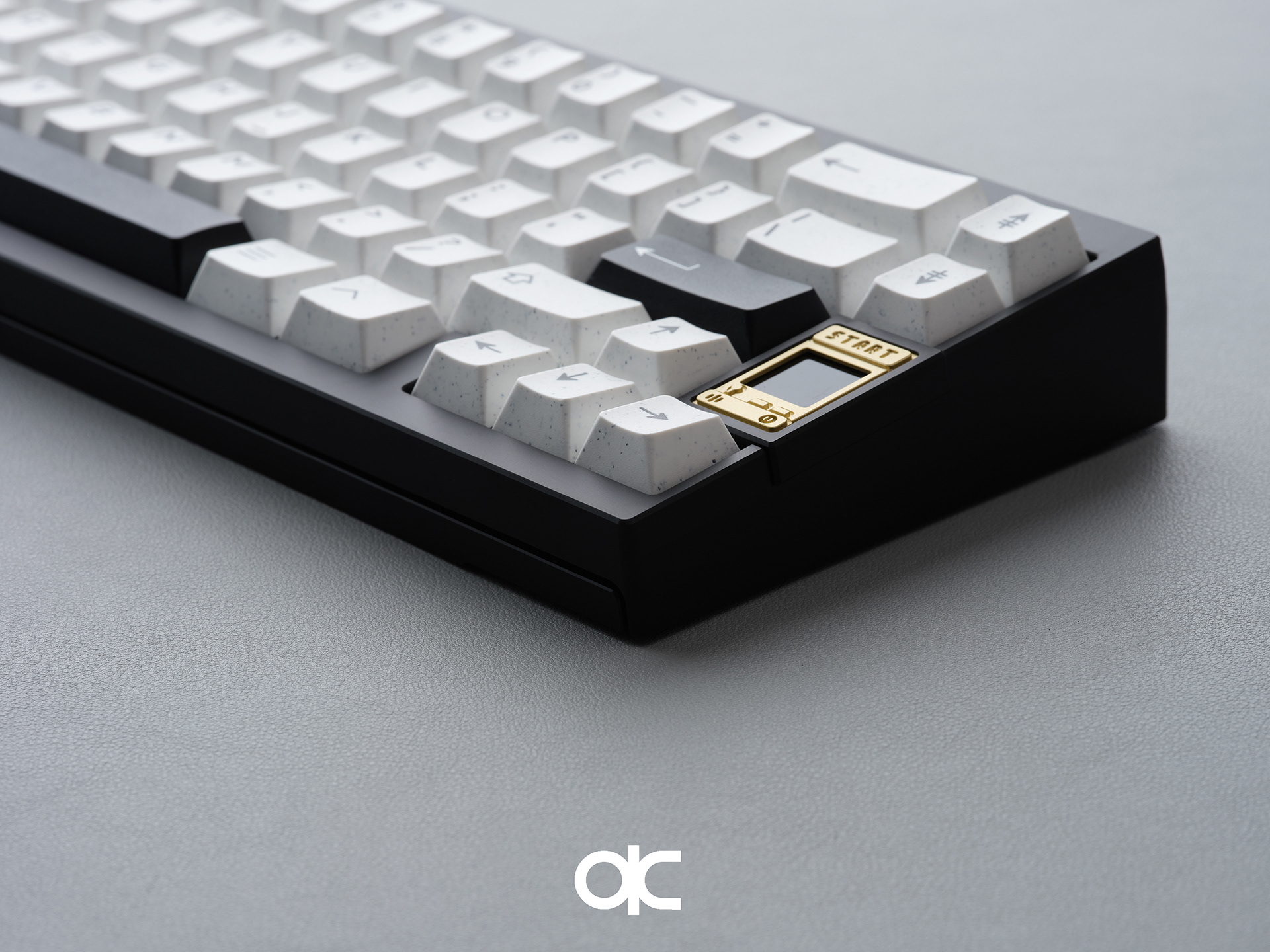

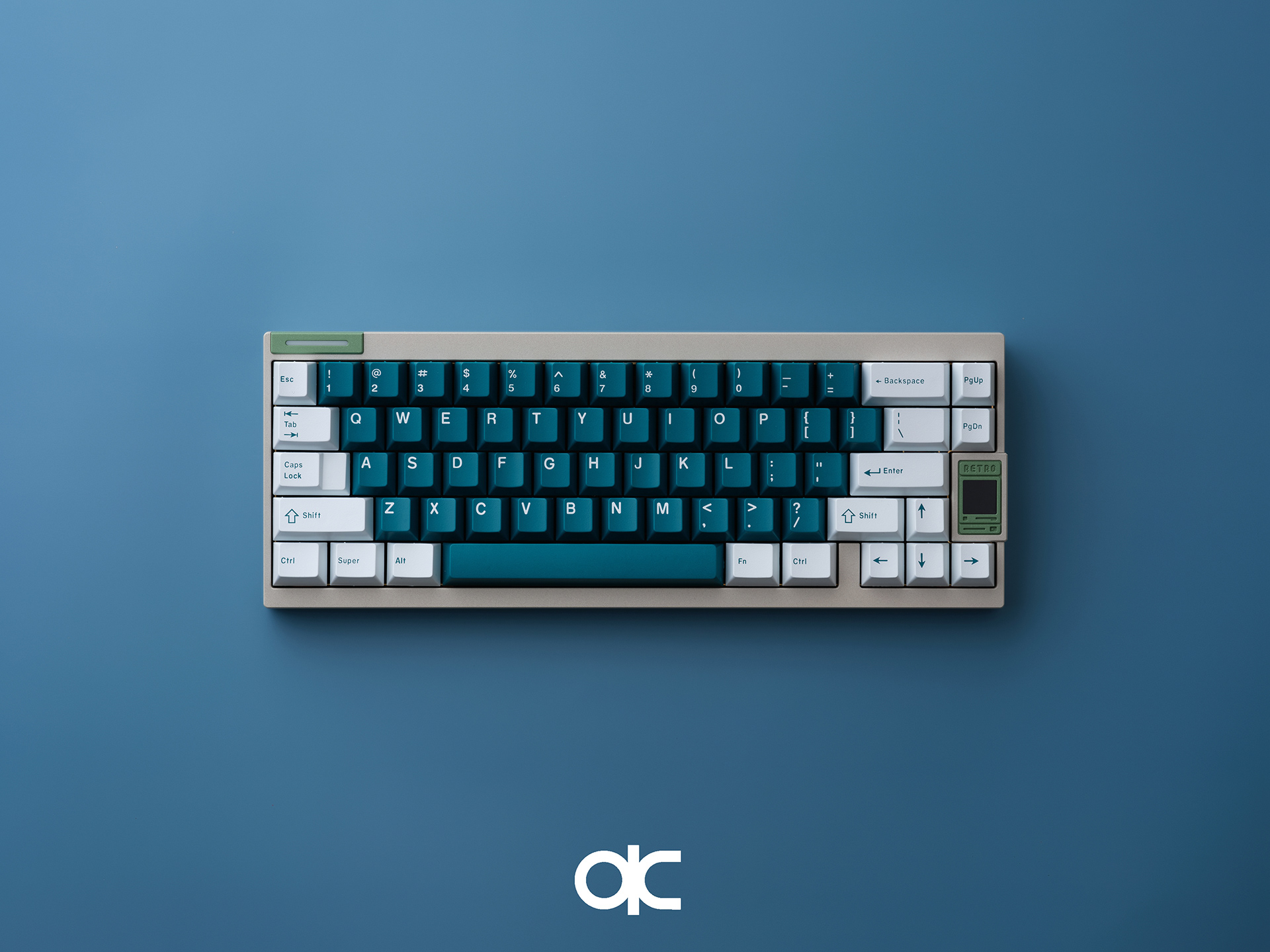

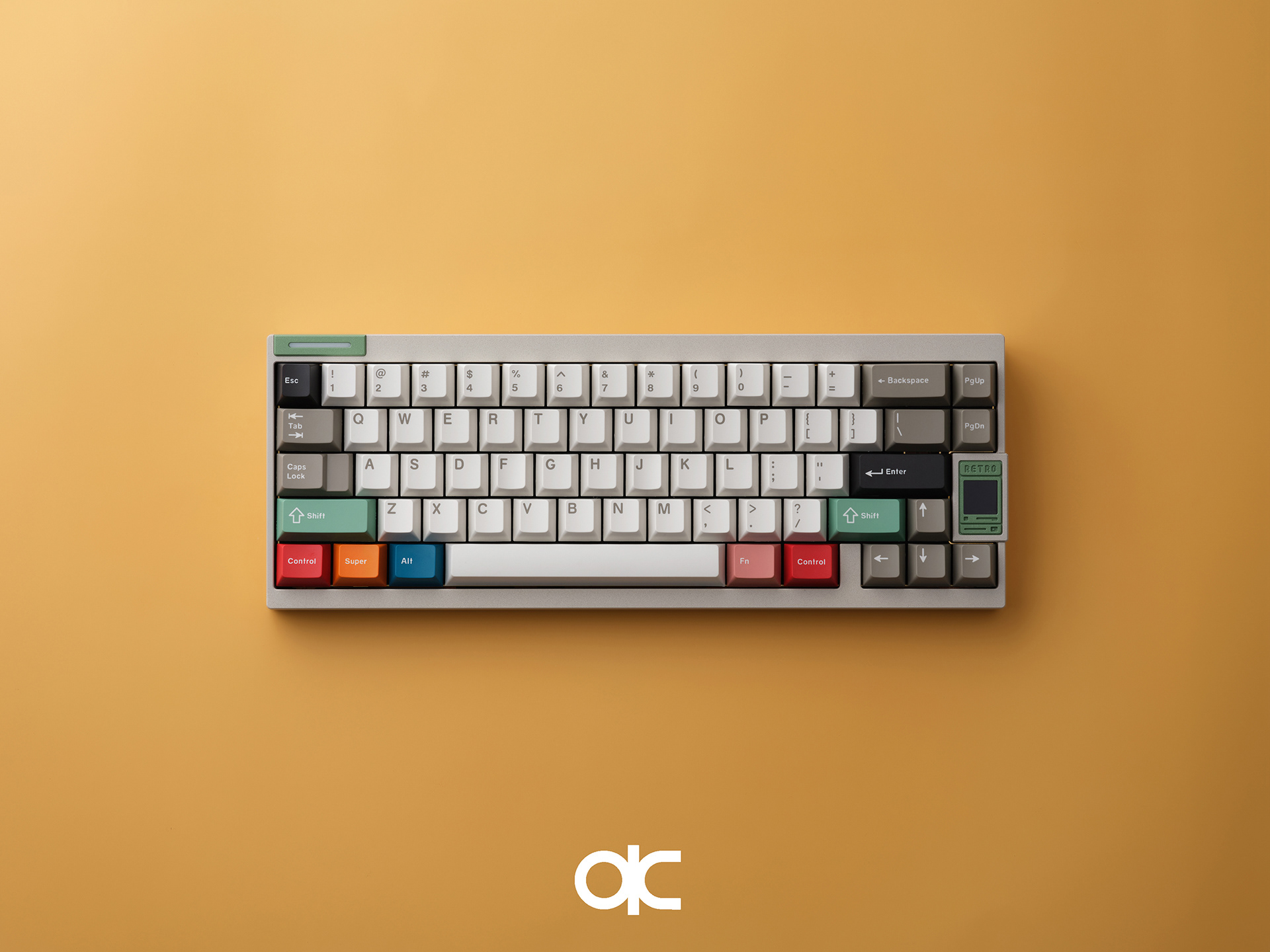

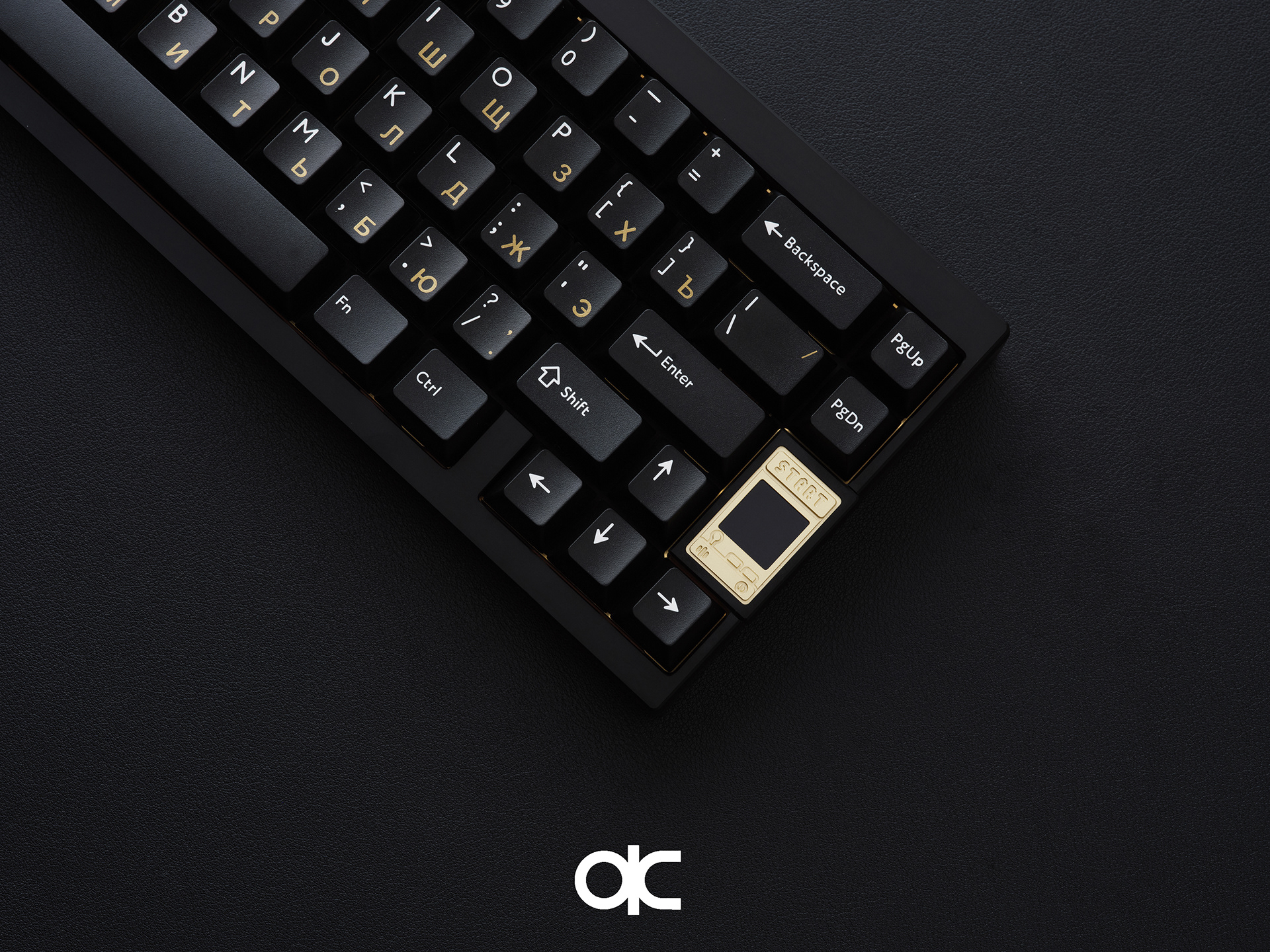

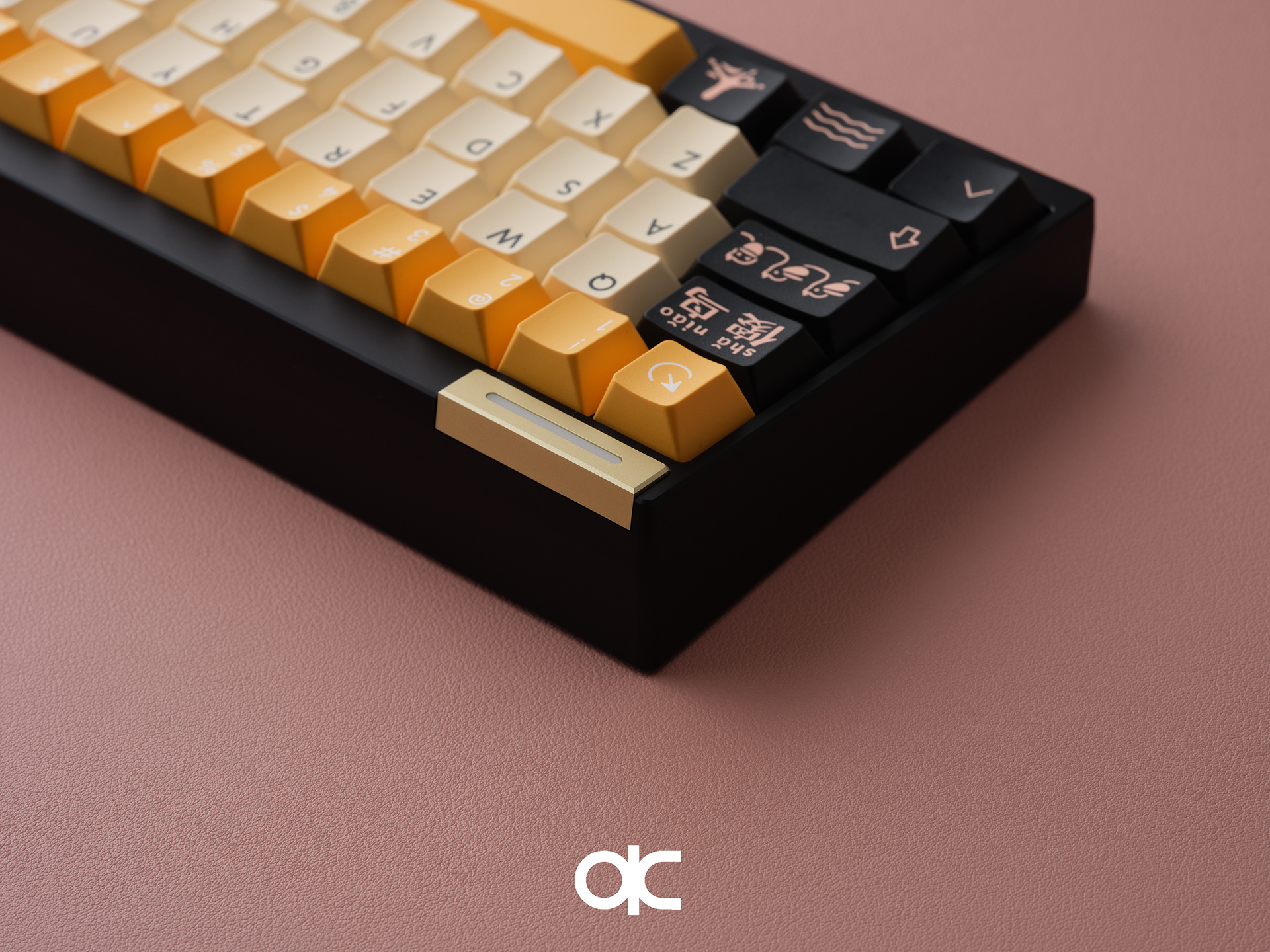

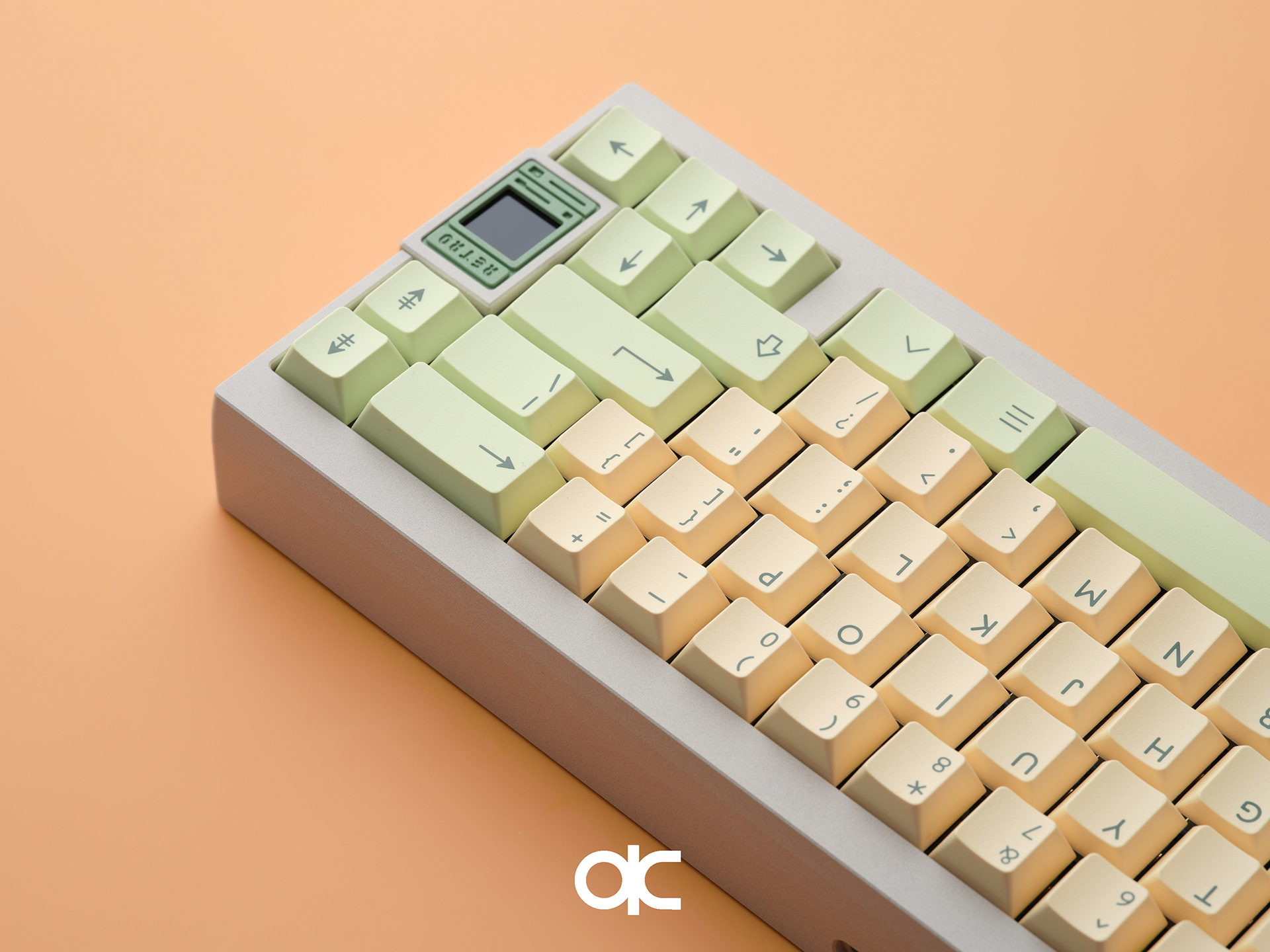

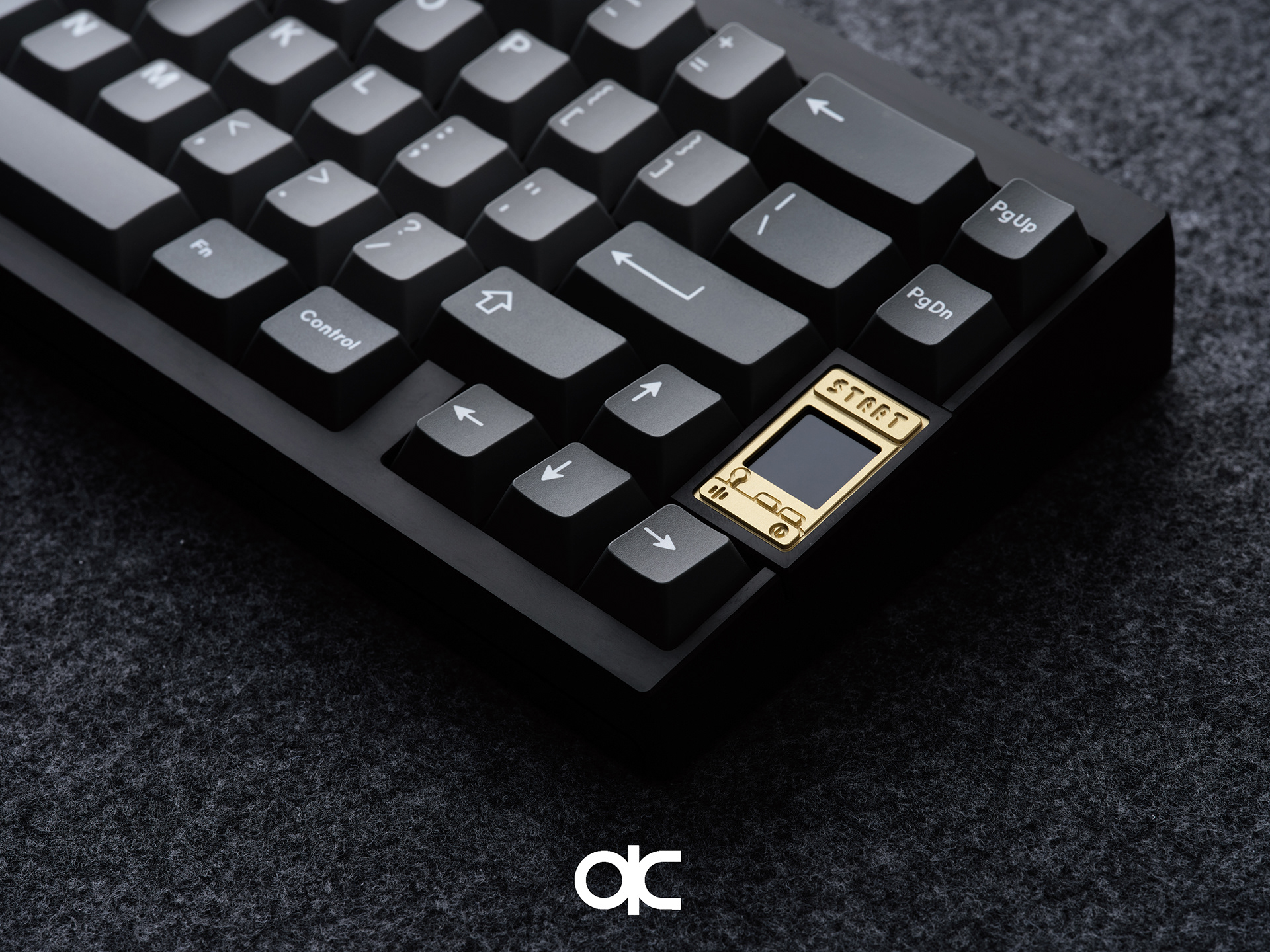

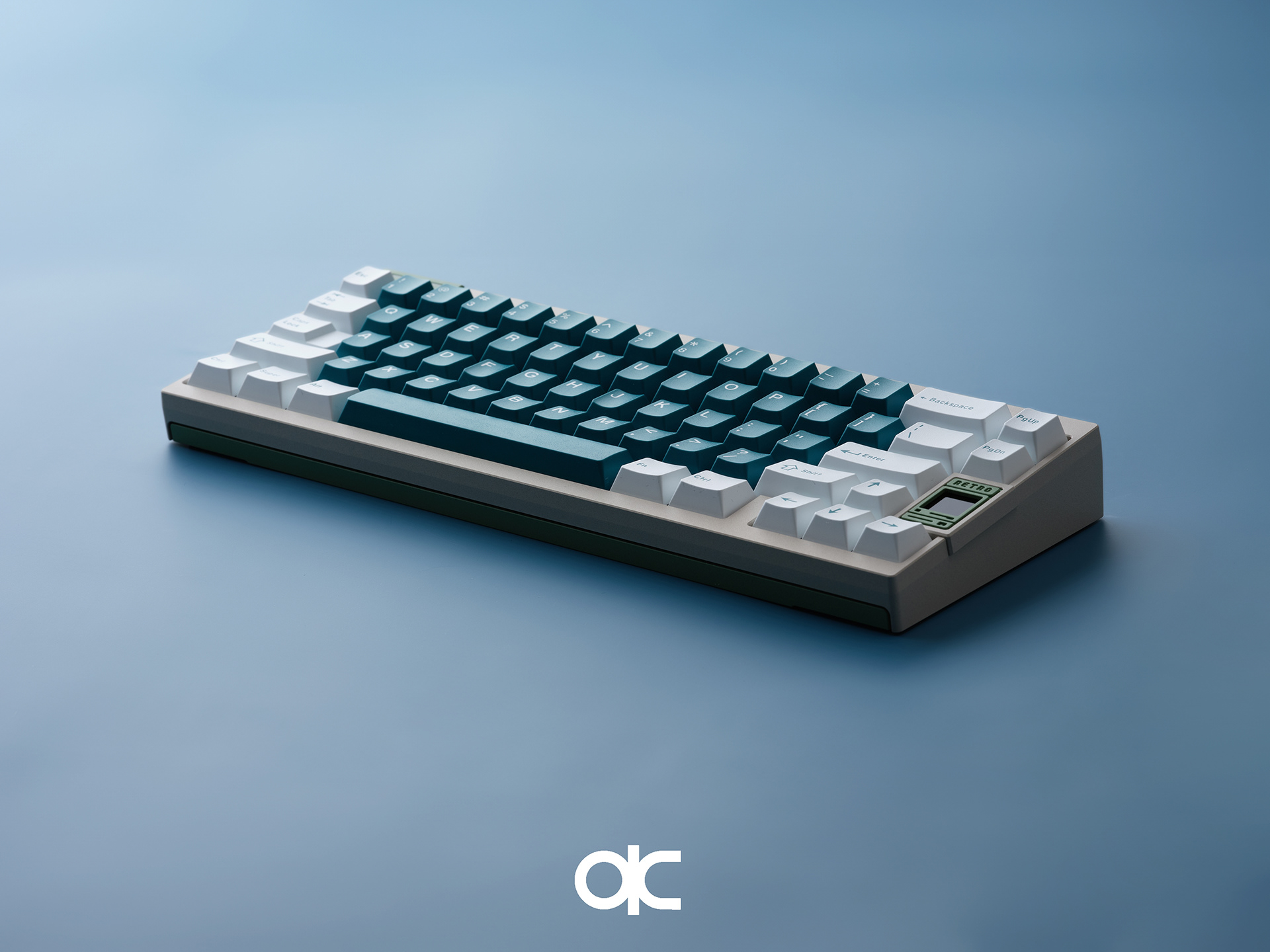

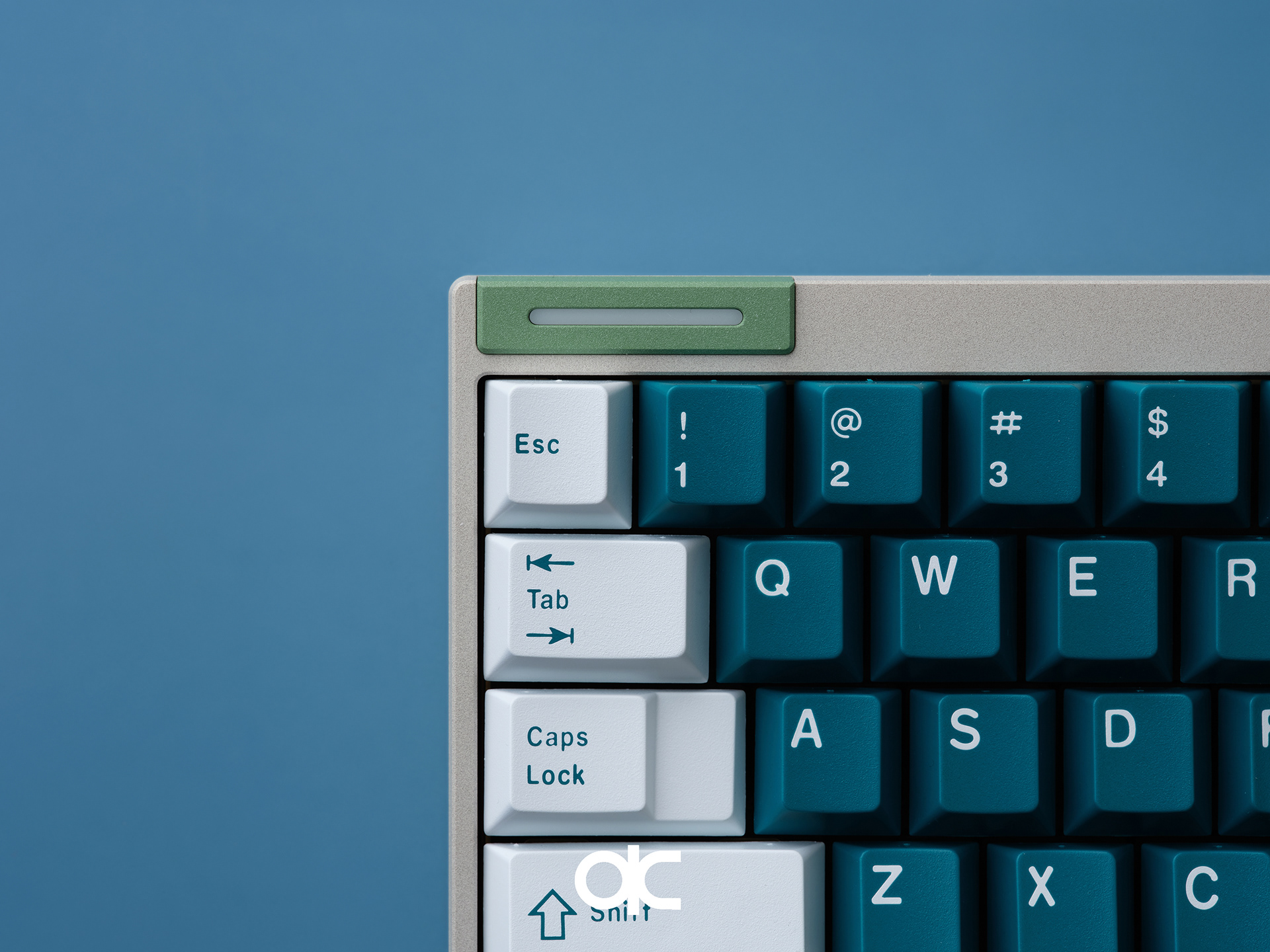

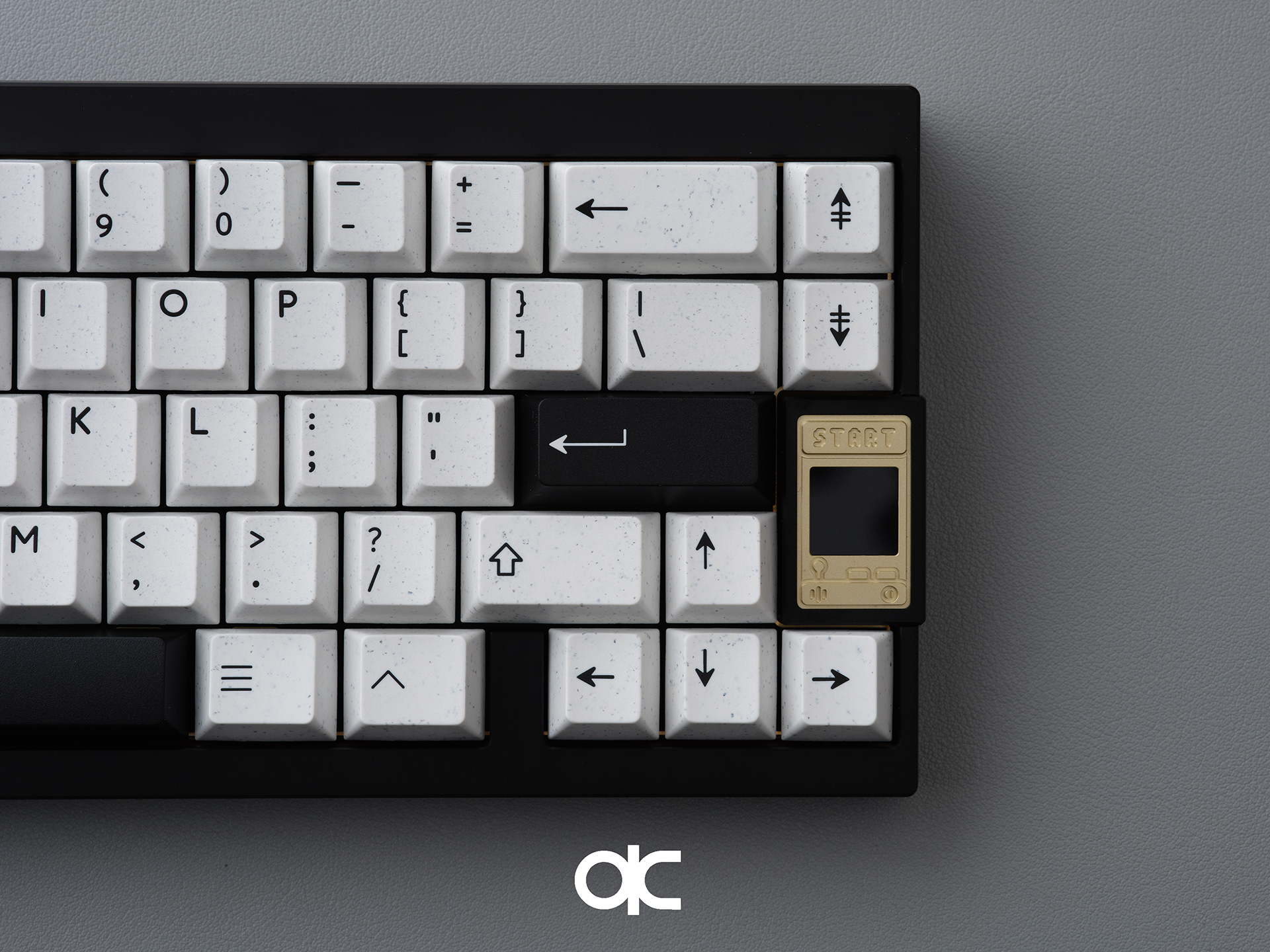

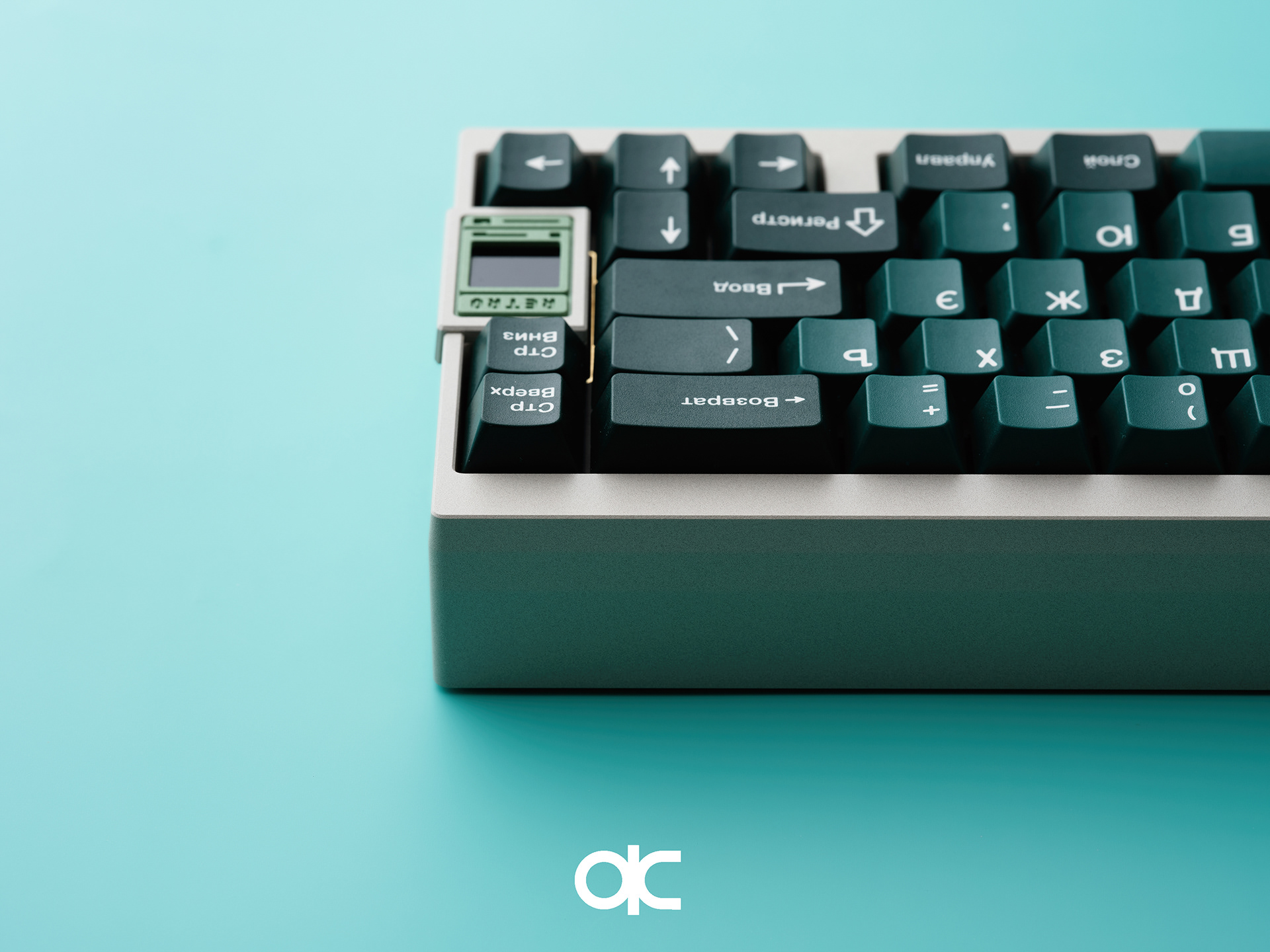

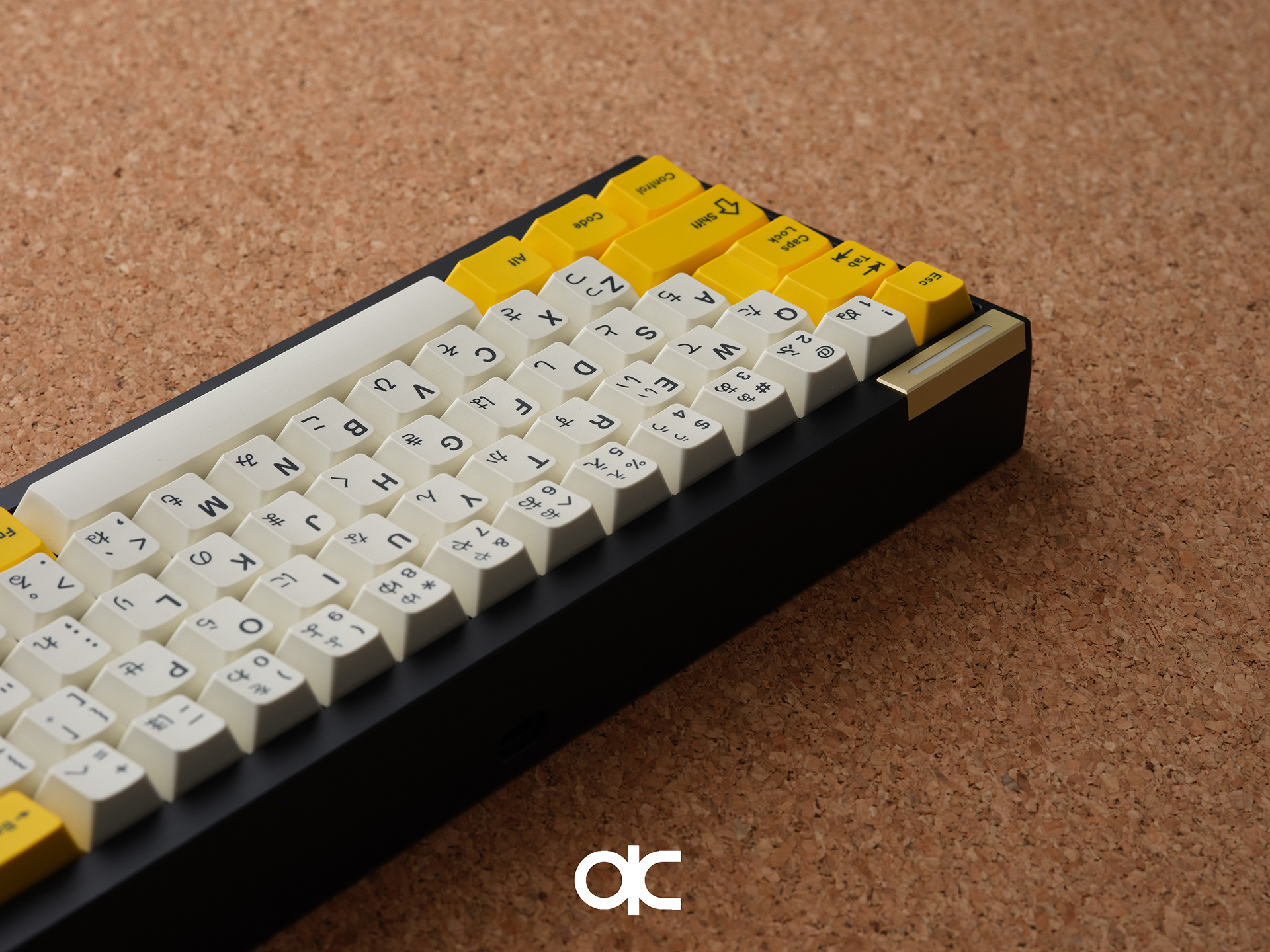

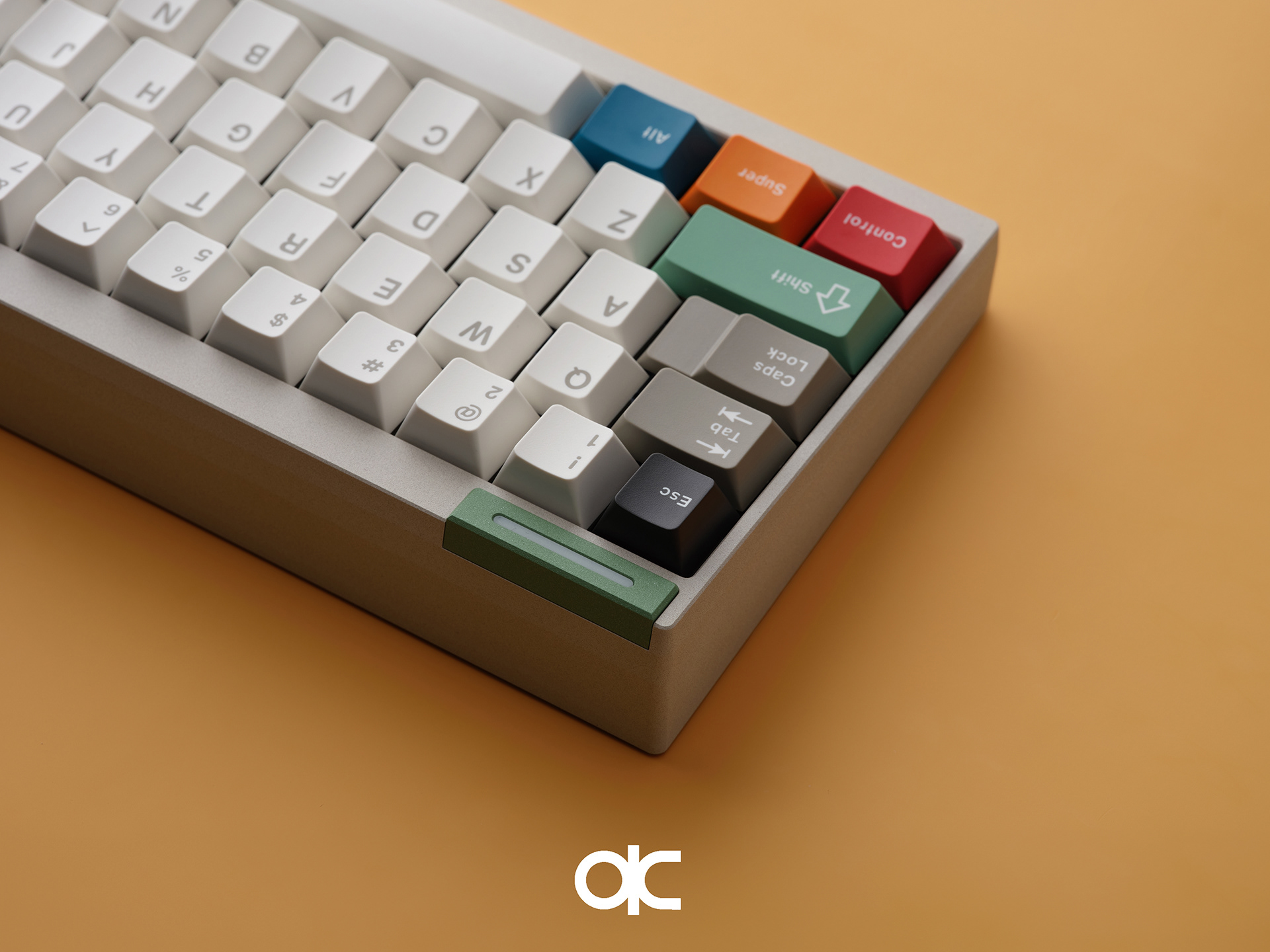

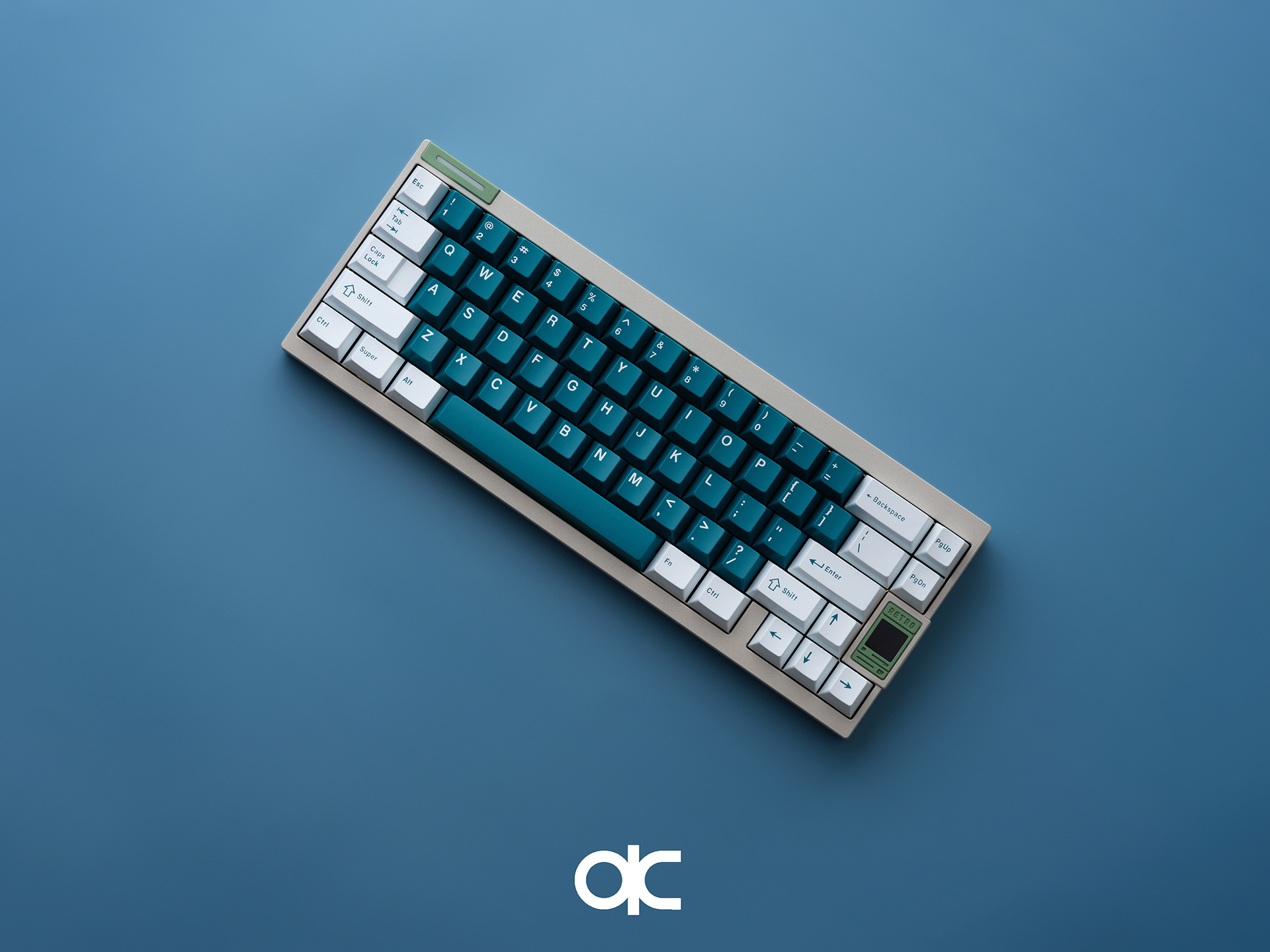

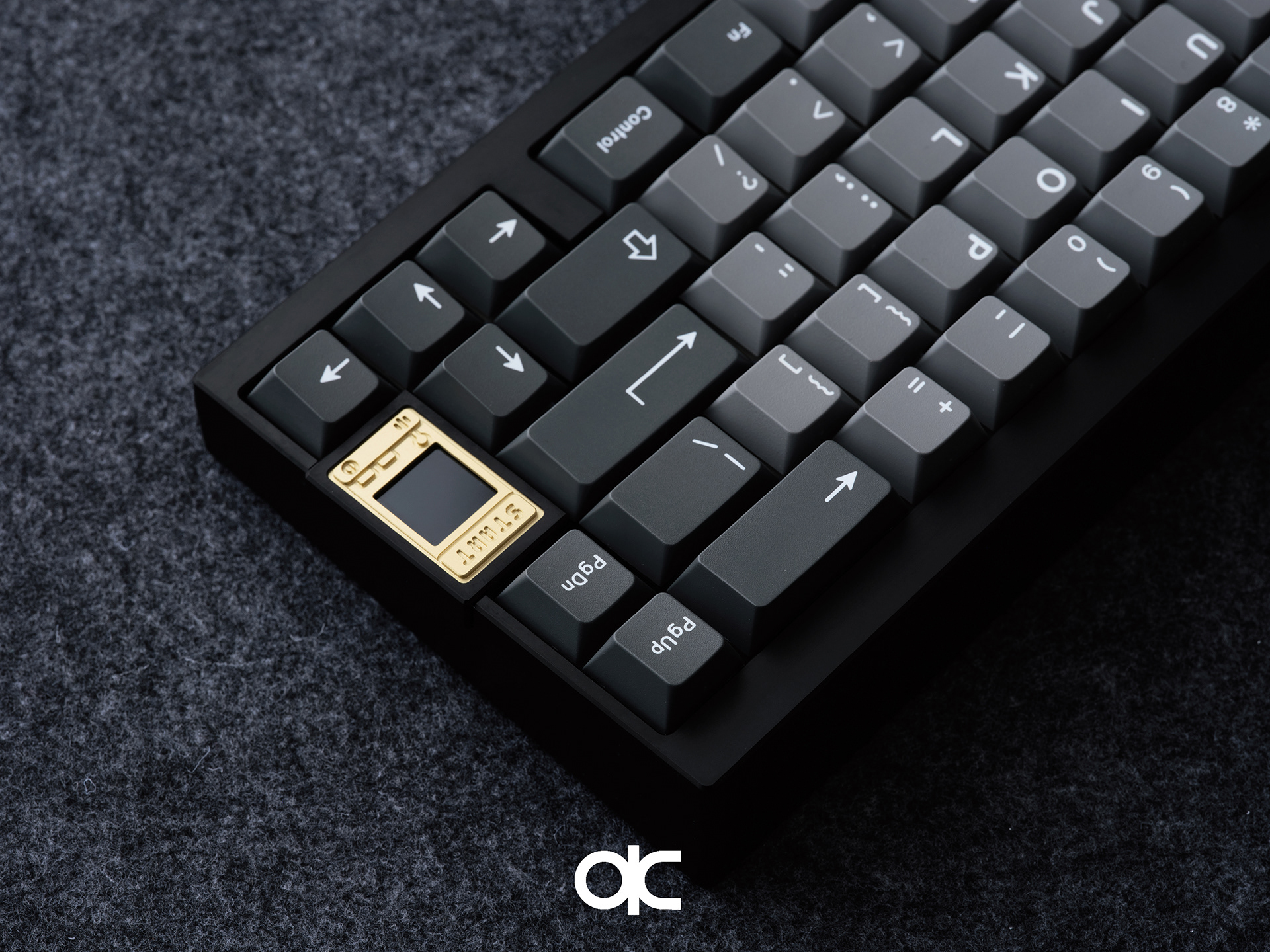

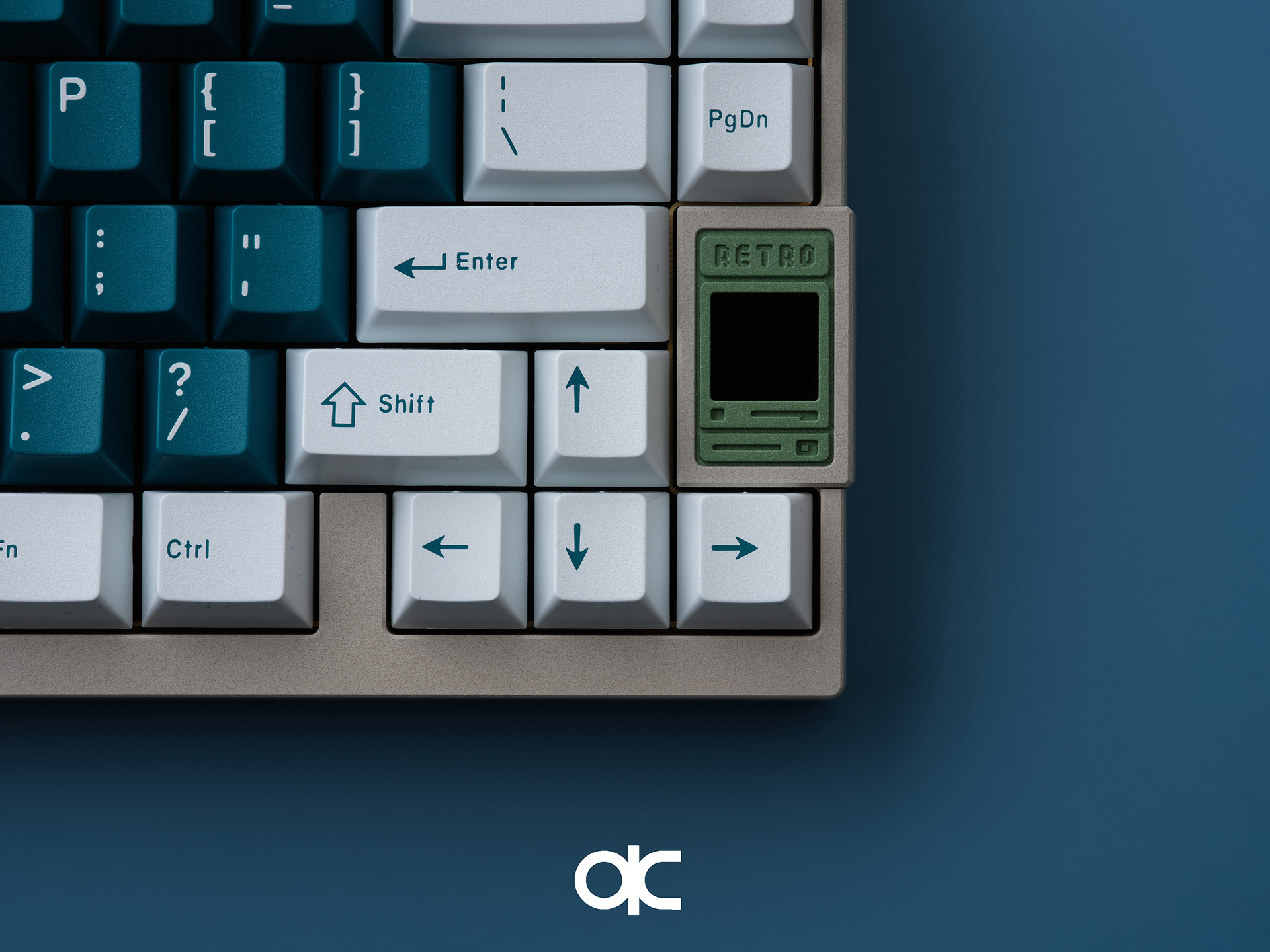

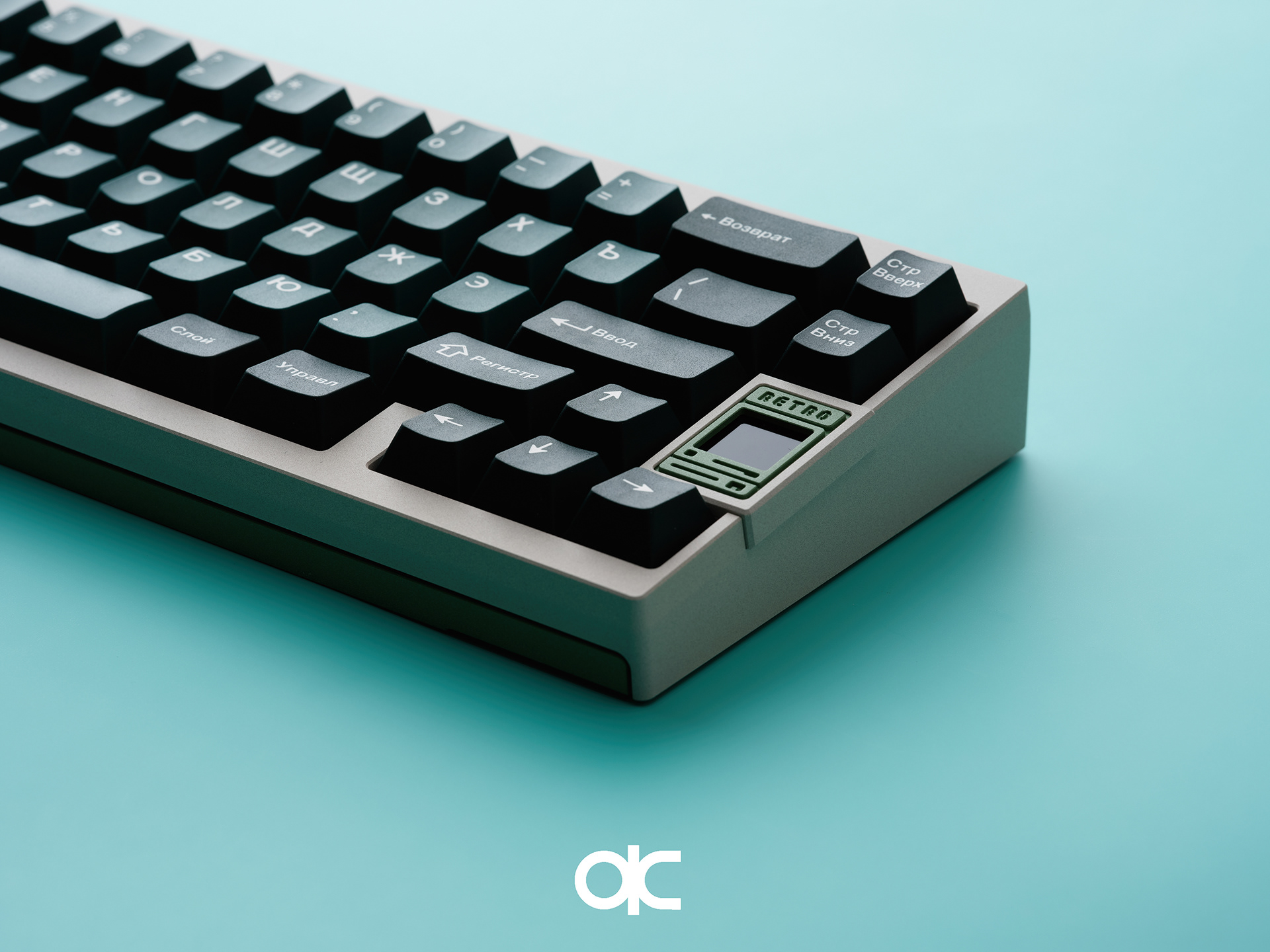

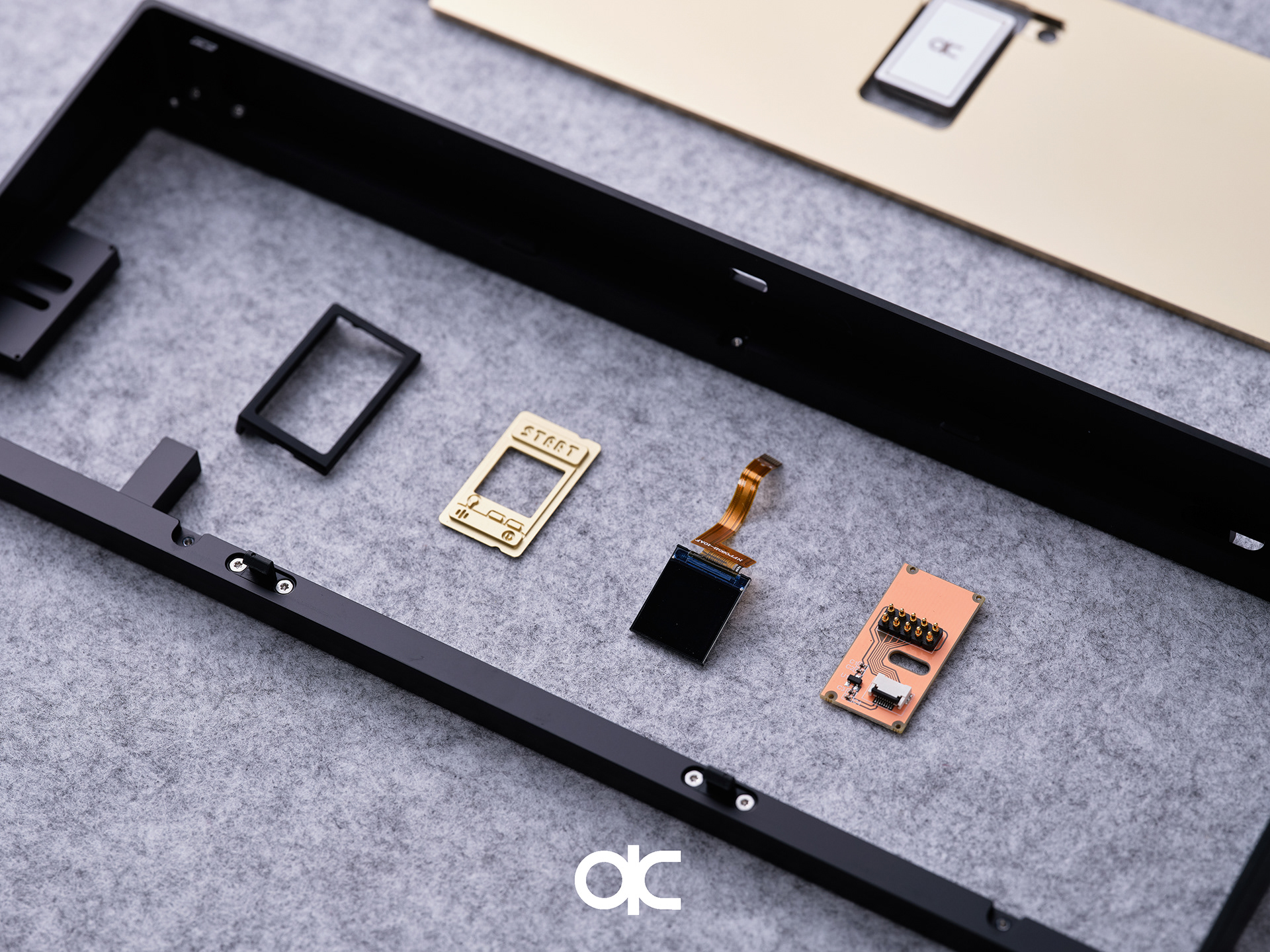

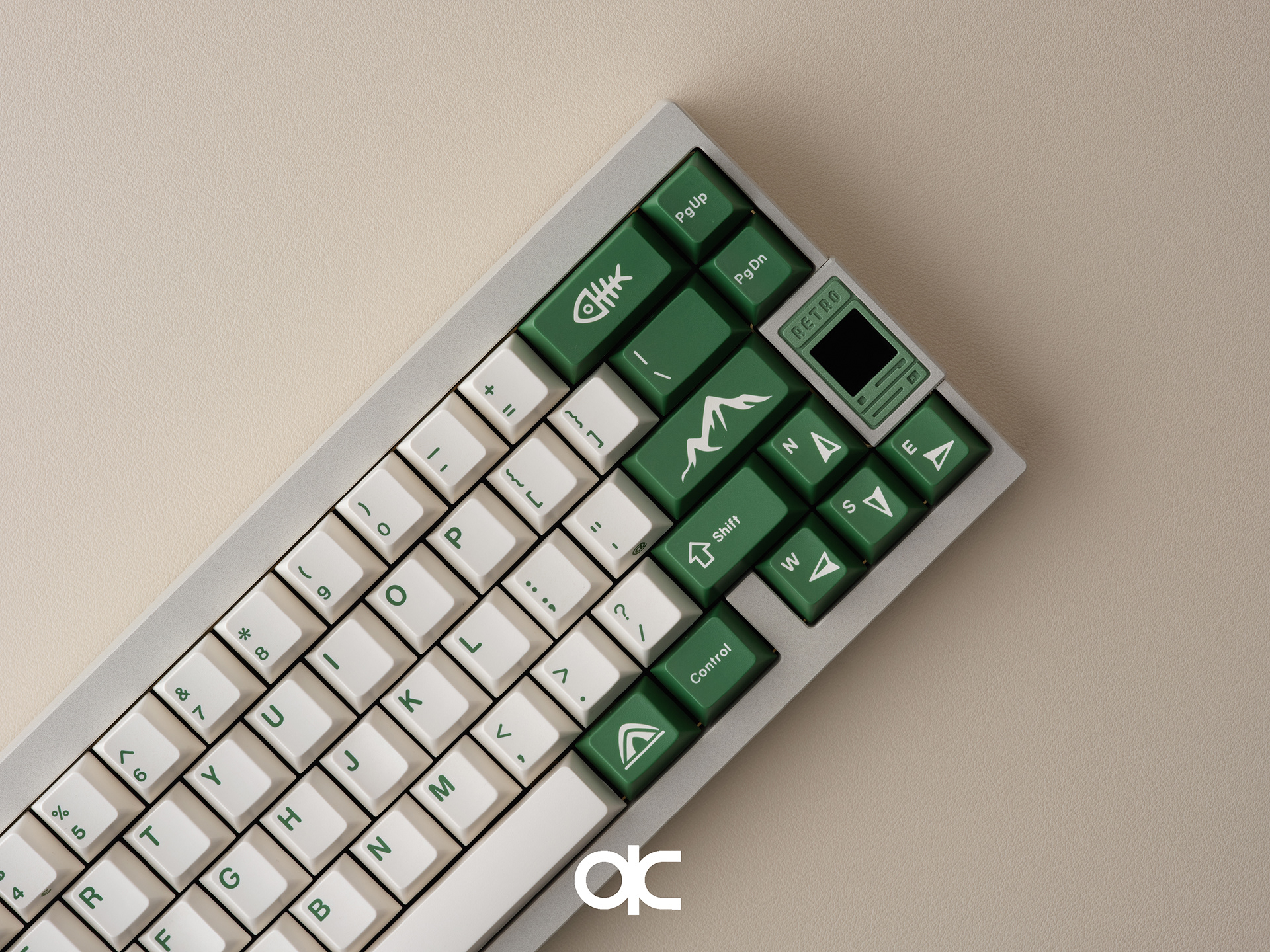

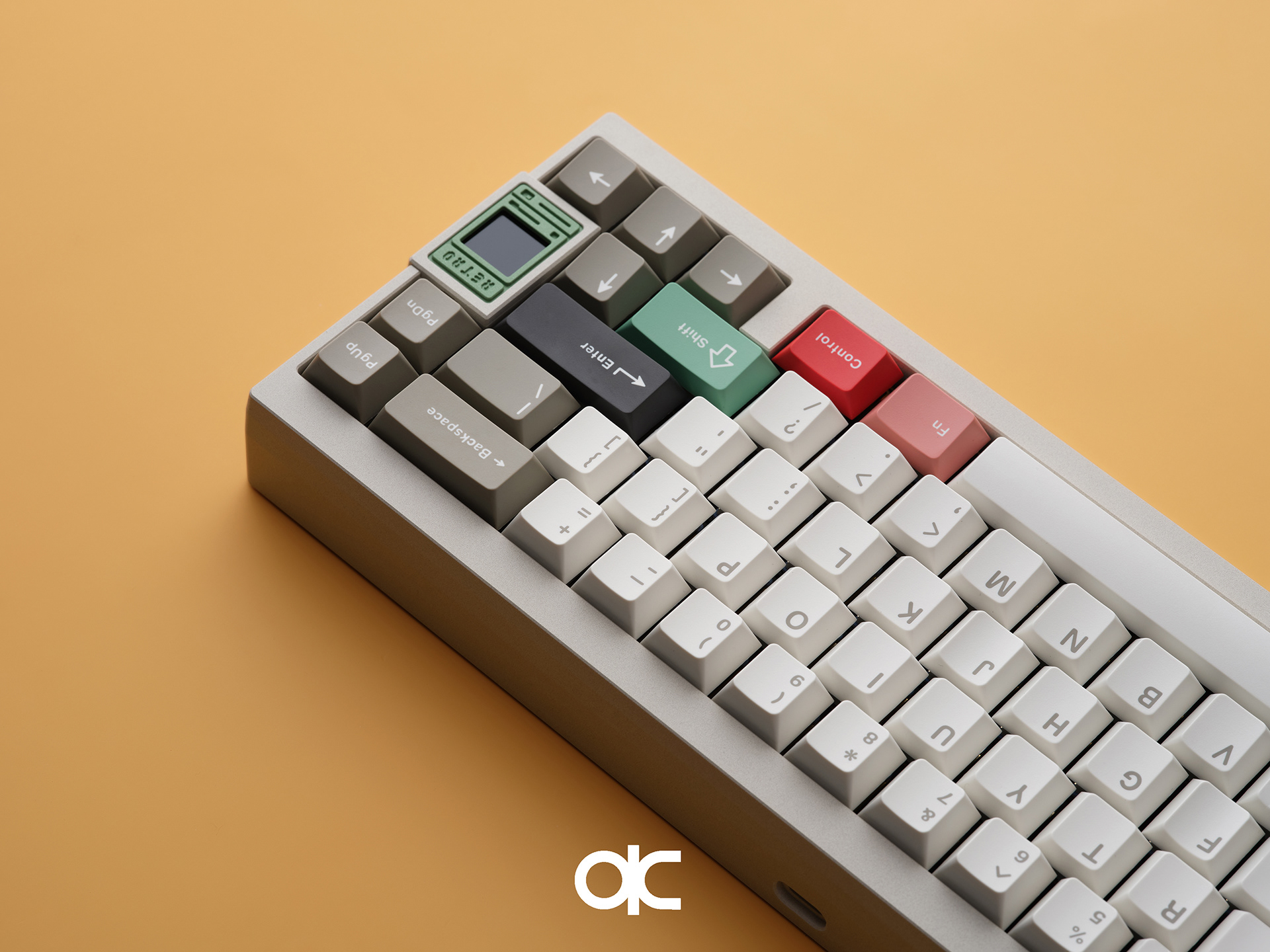

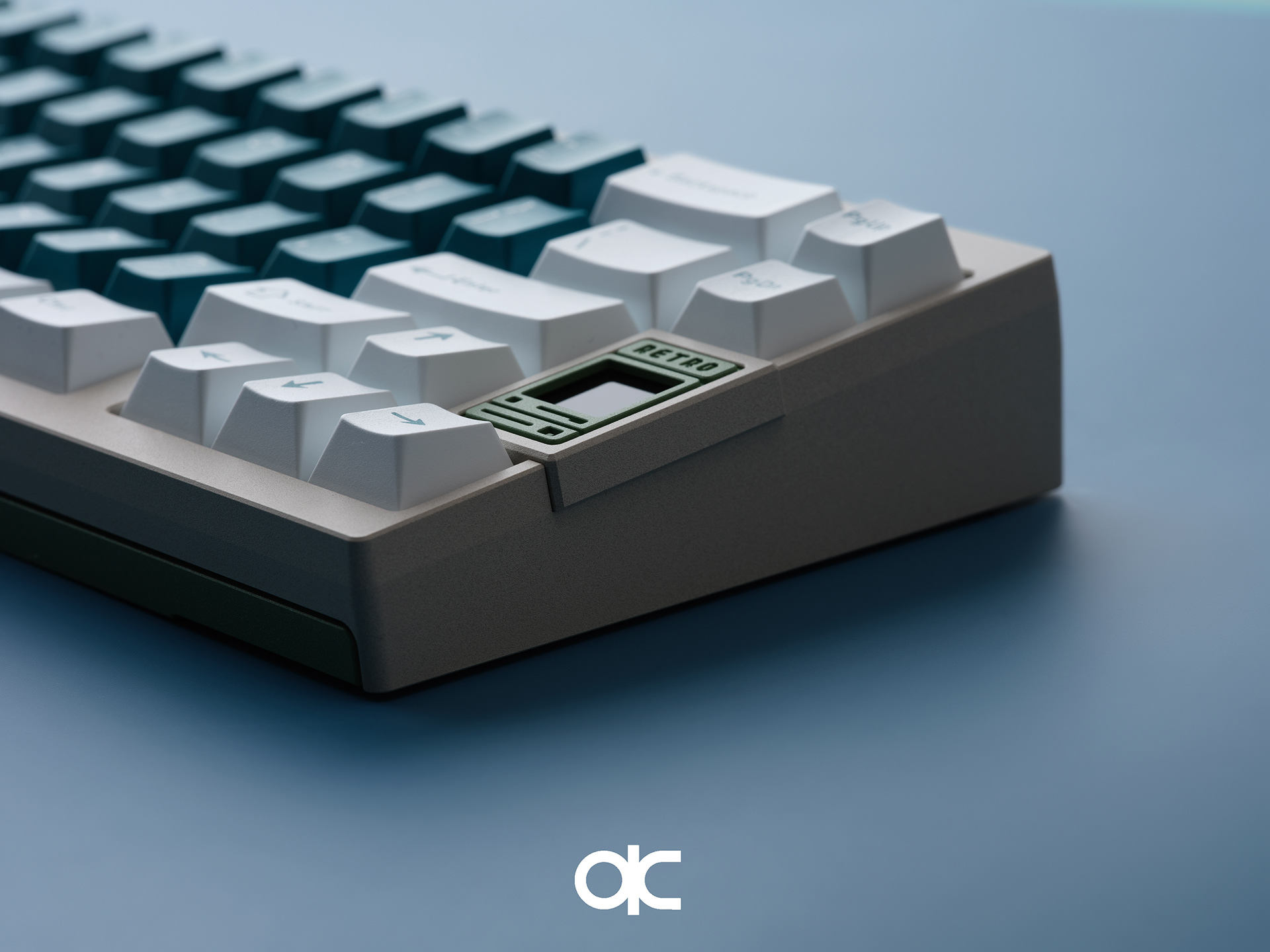

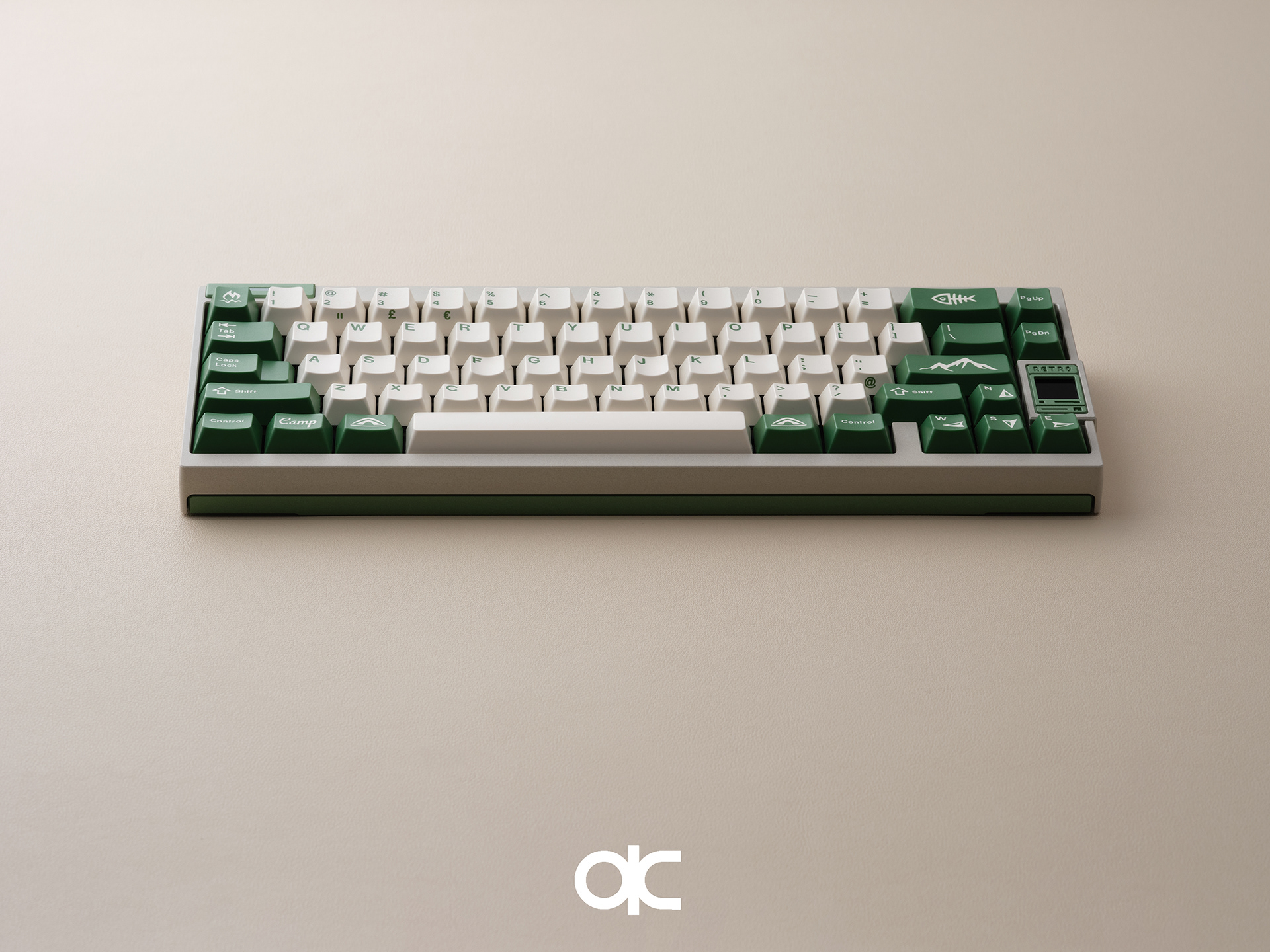

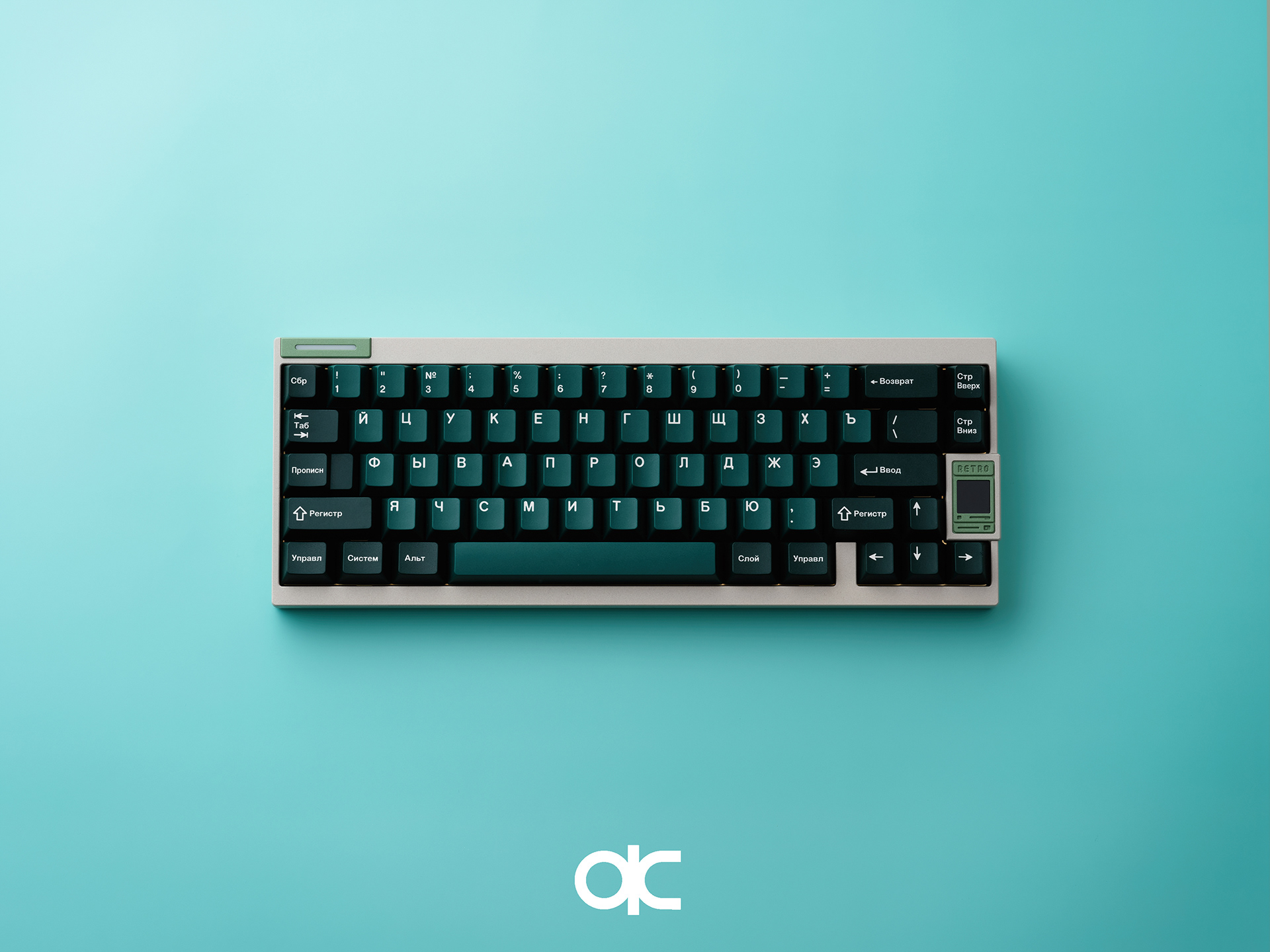

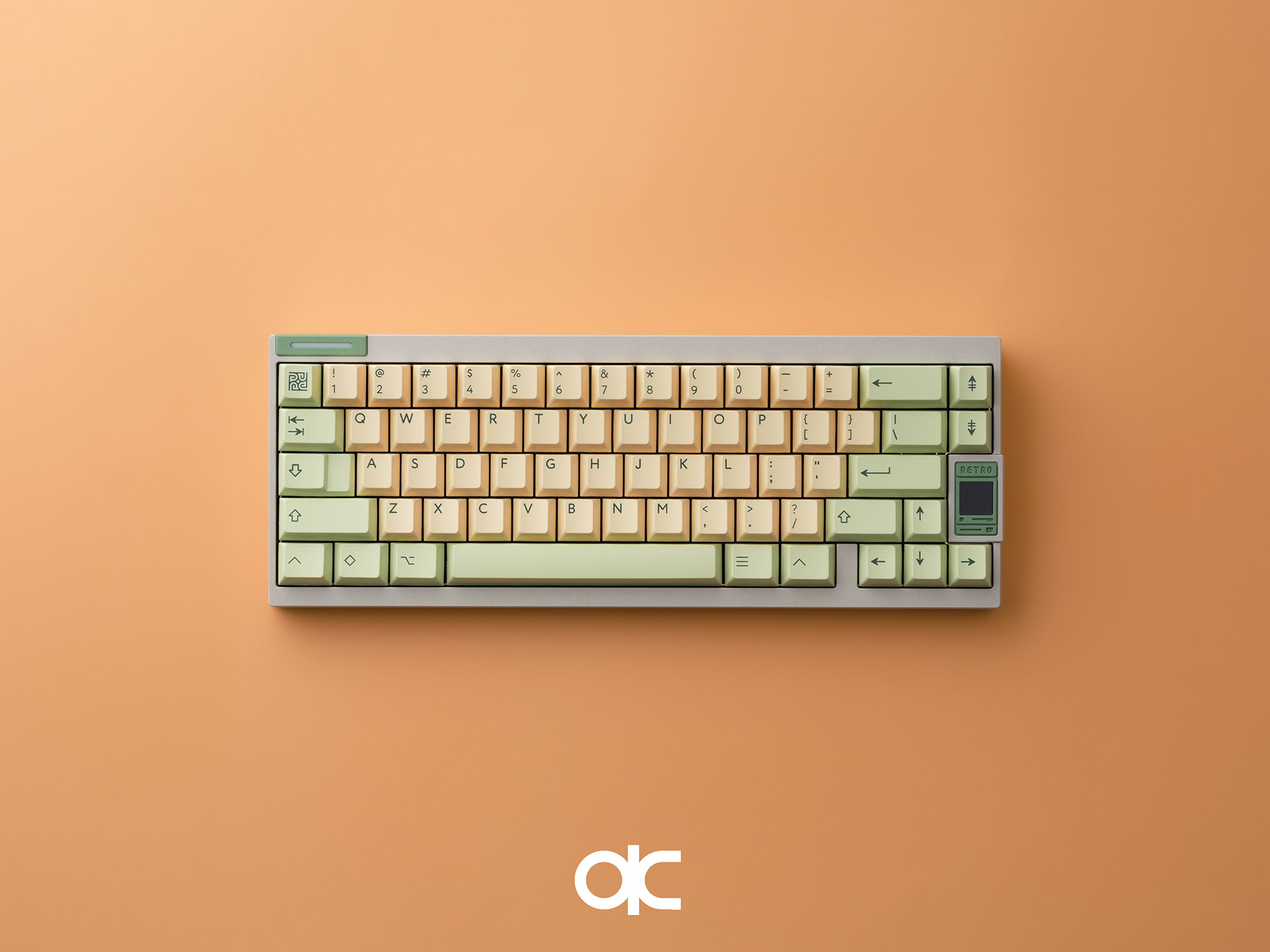

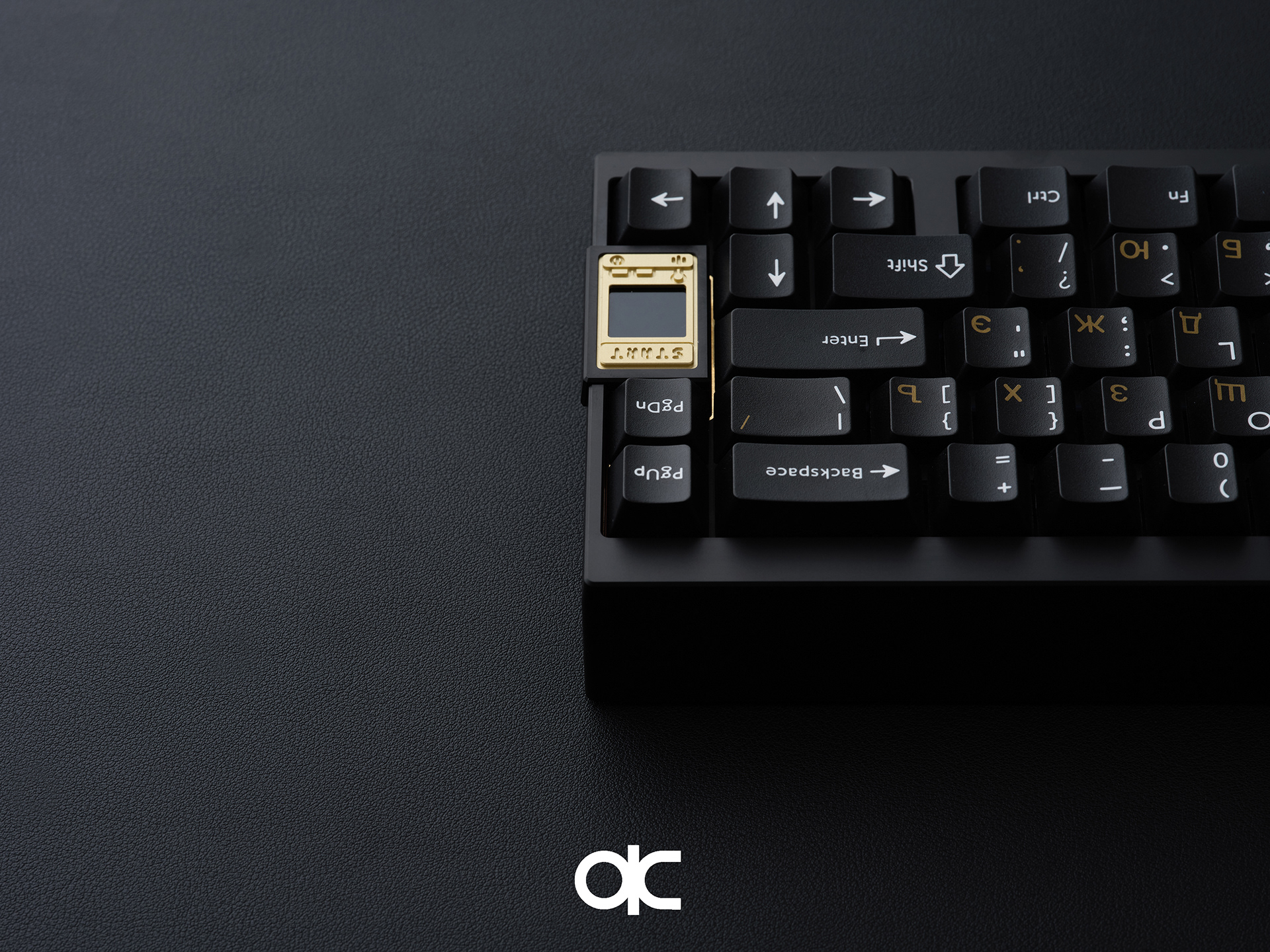

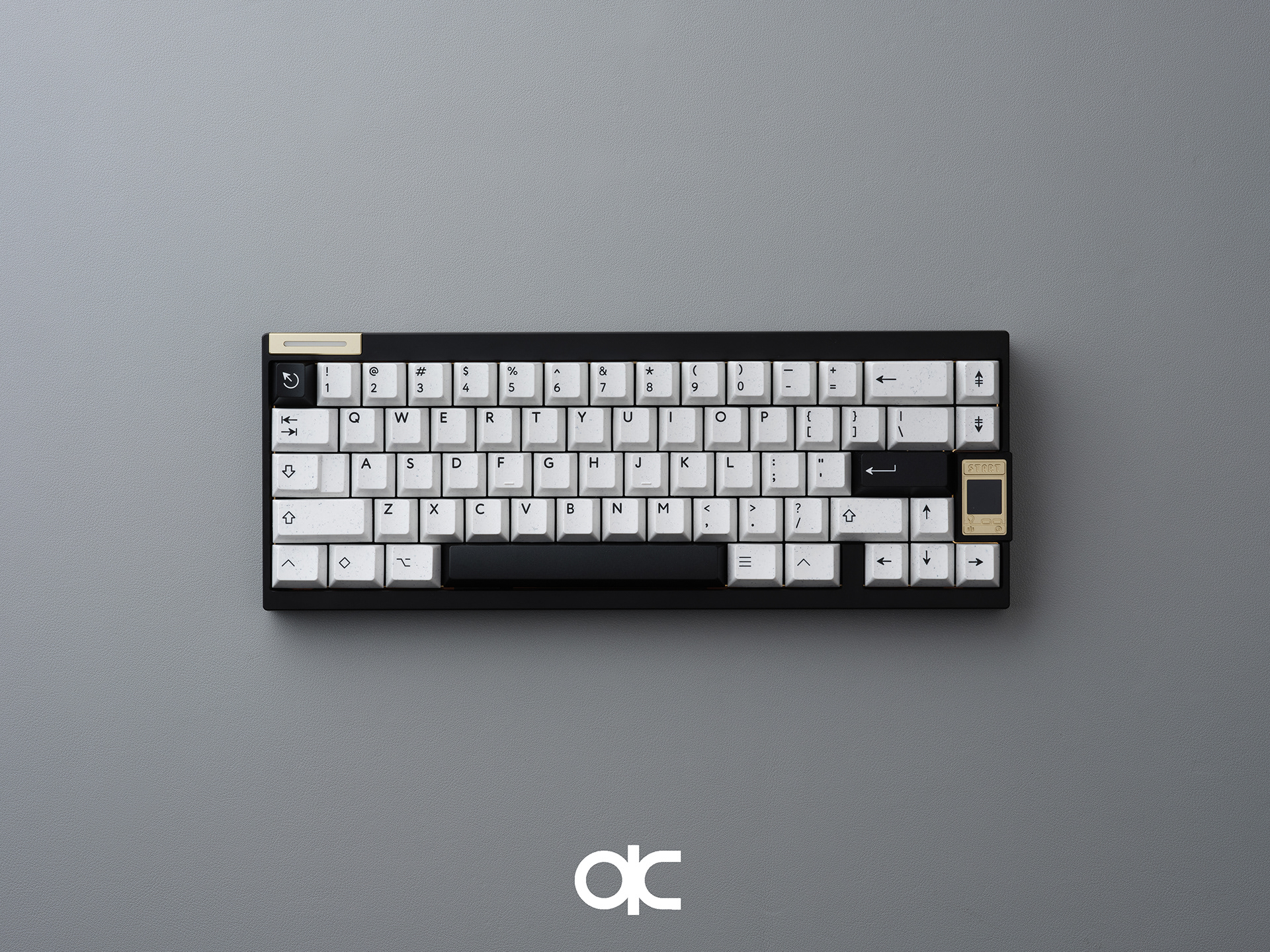

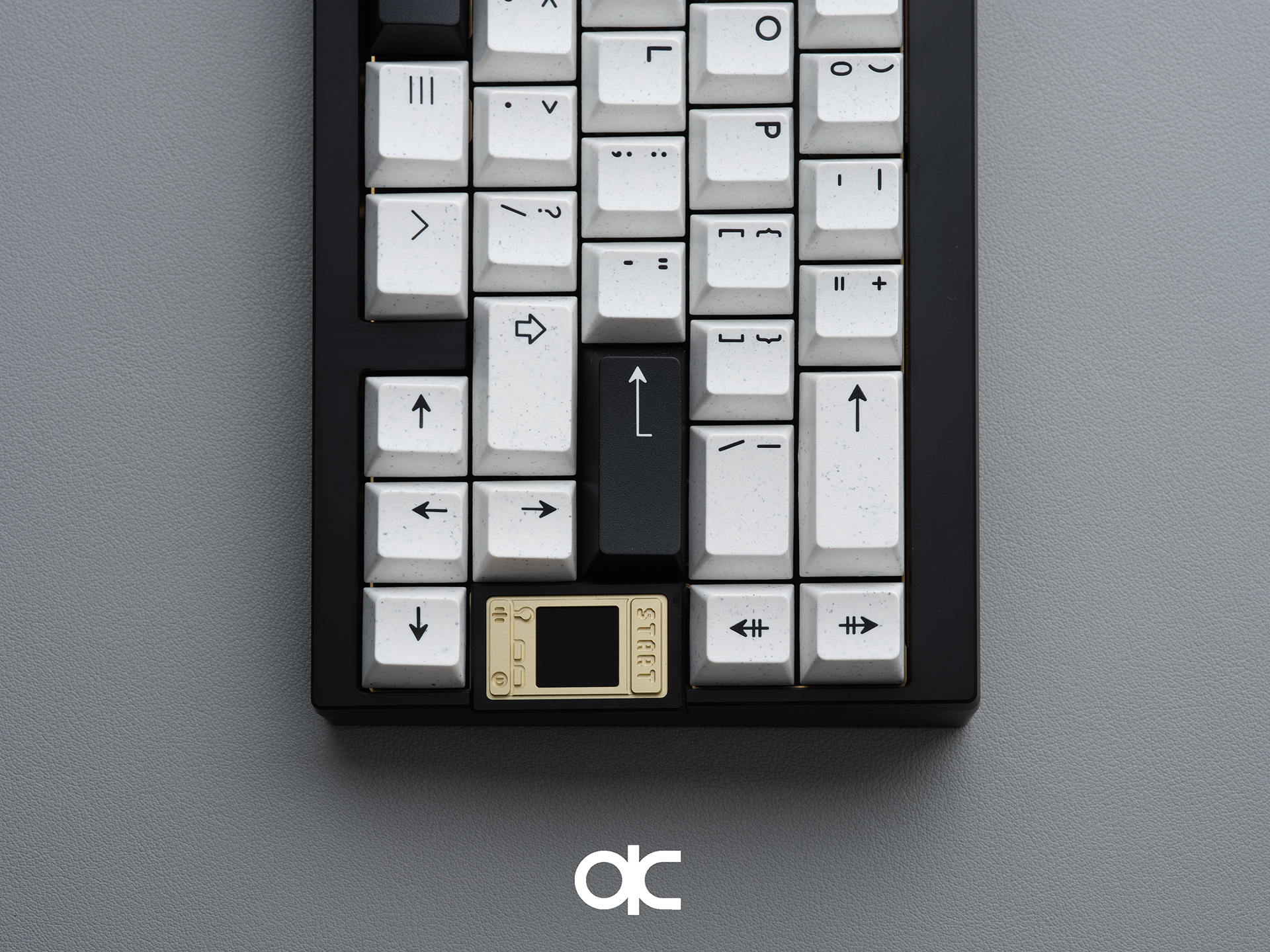

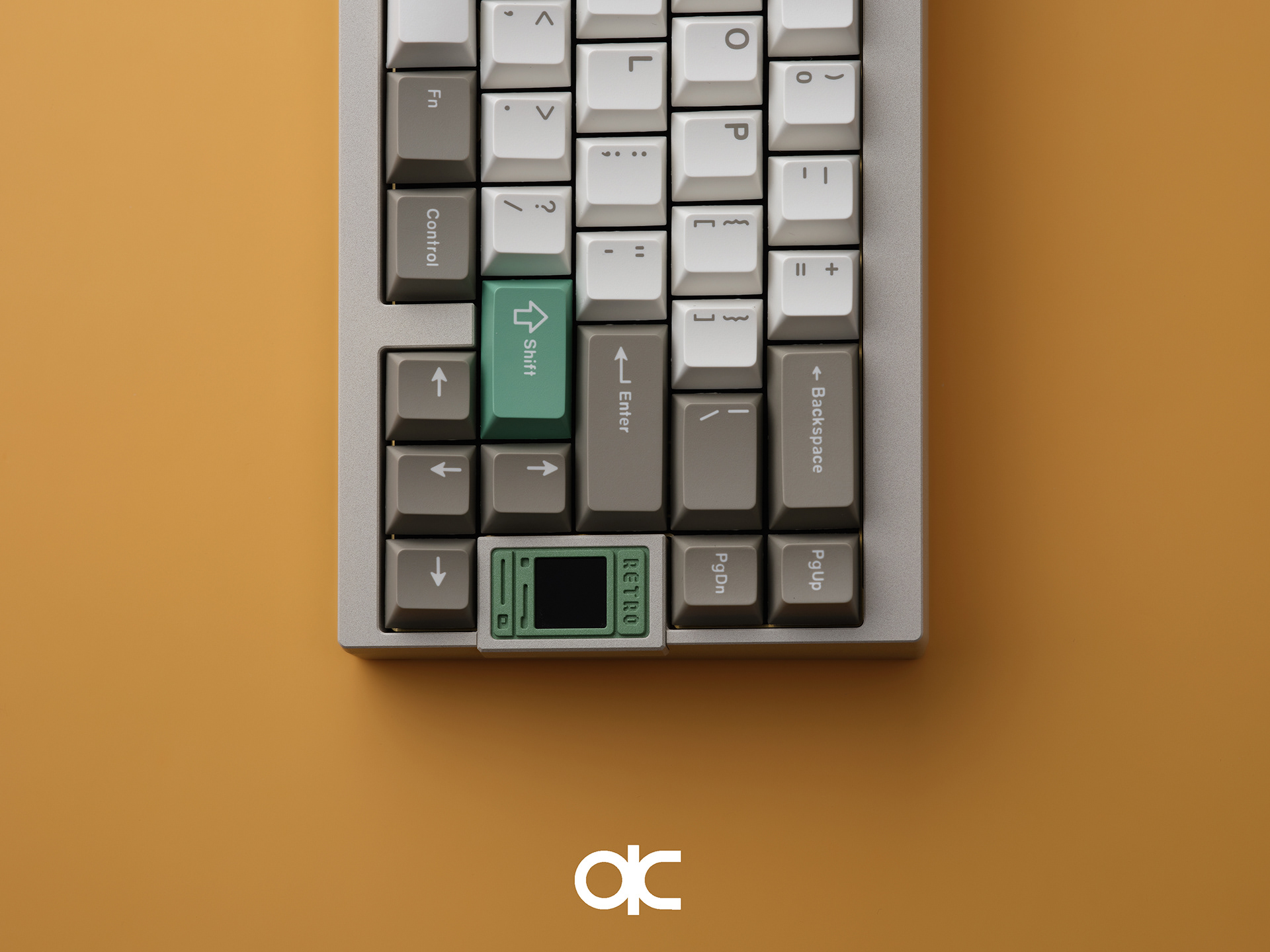

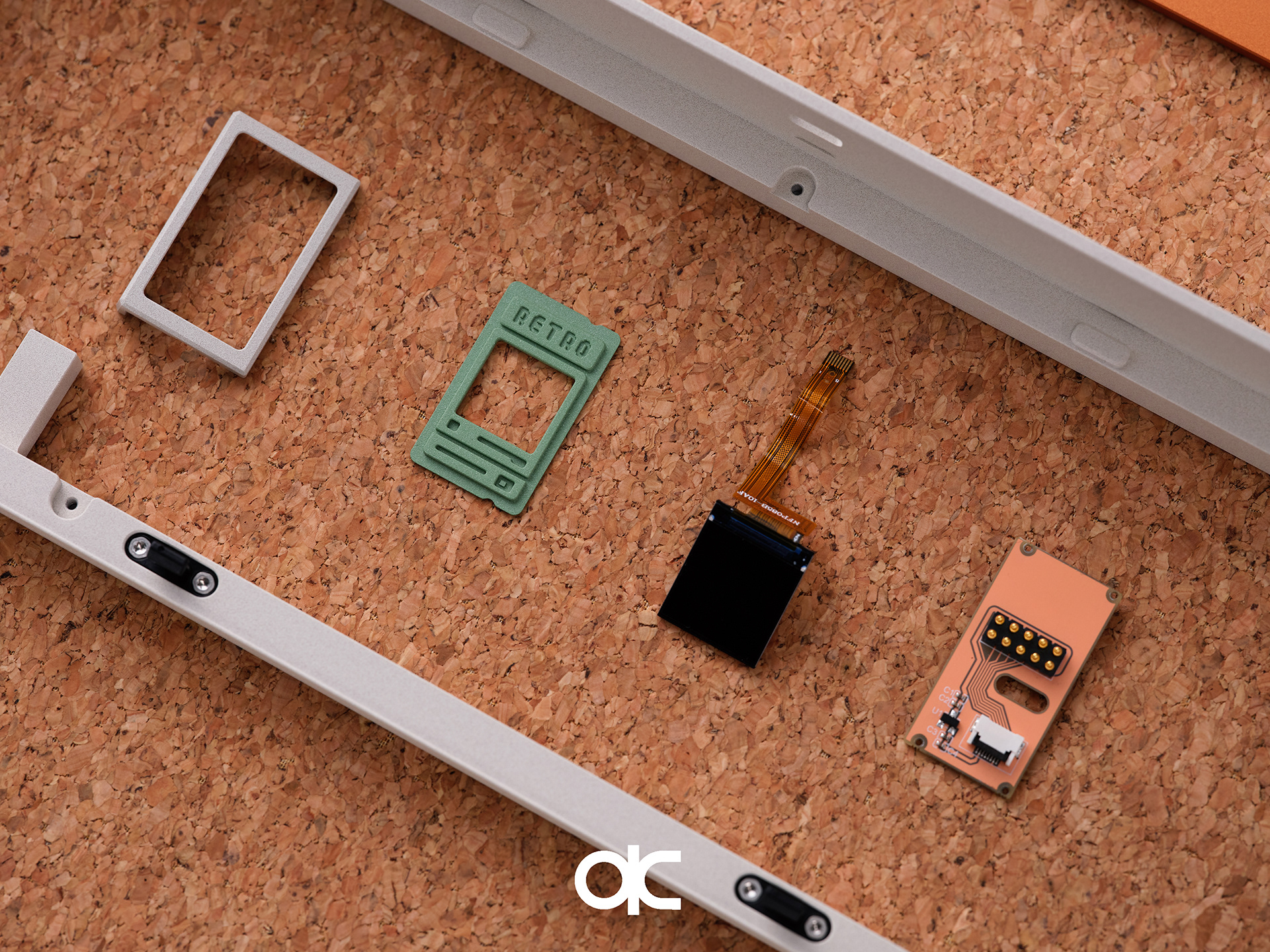

The original QK65 has a very minimal design, so for the v2, we wanted to add some flavor to make it more recognizable. We are delighted to see that the mini screen on QK's keyboard has become a popular way for users to showcase their personality. Therefore, we have retained the mini screen on the v2 and added a bezel to allow for more customization.

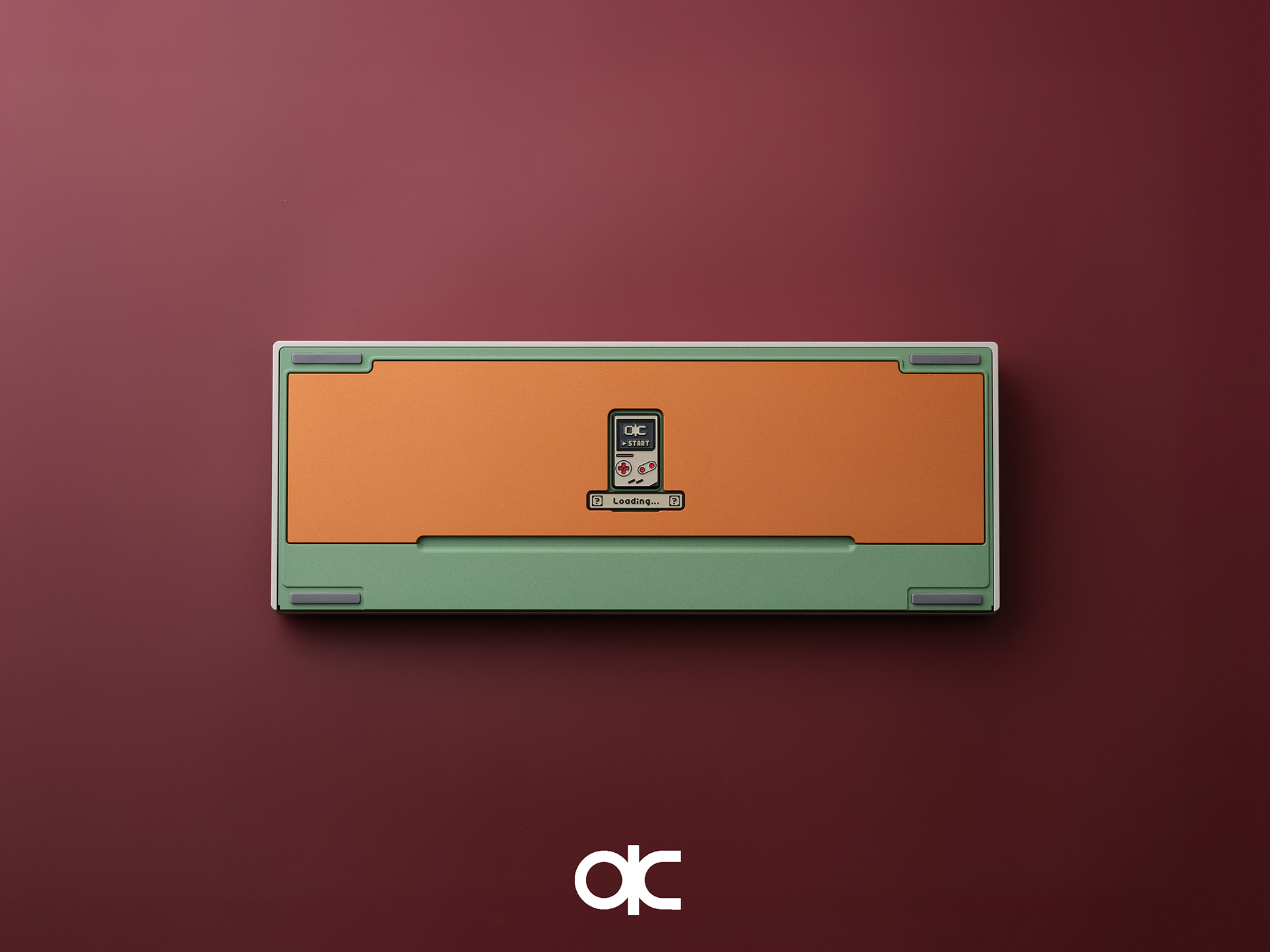

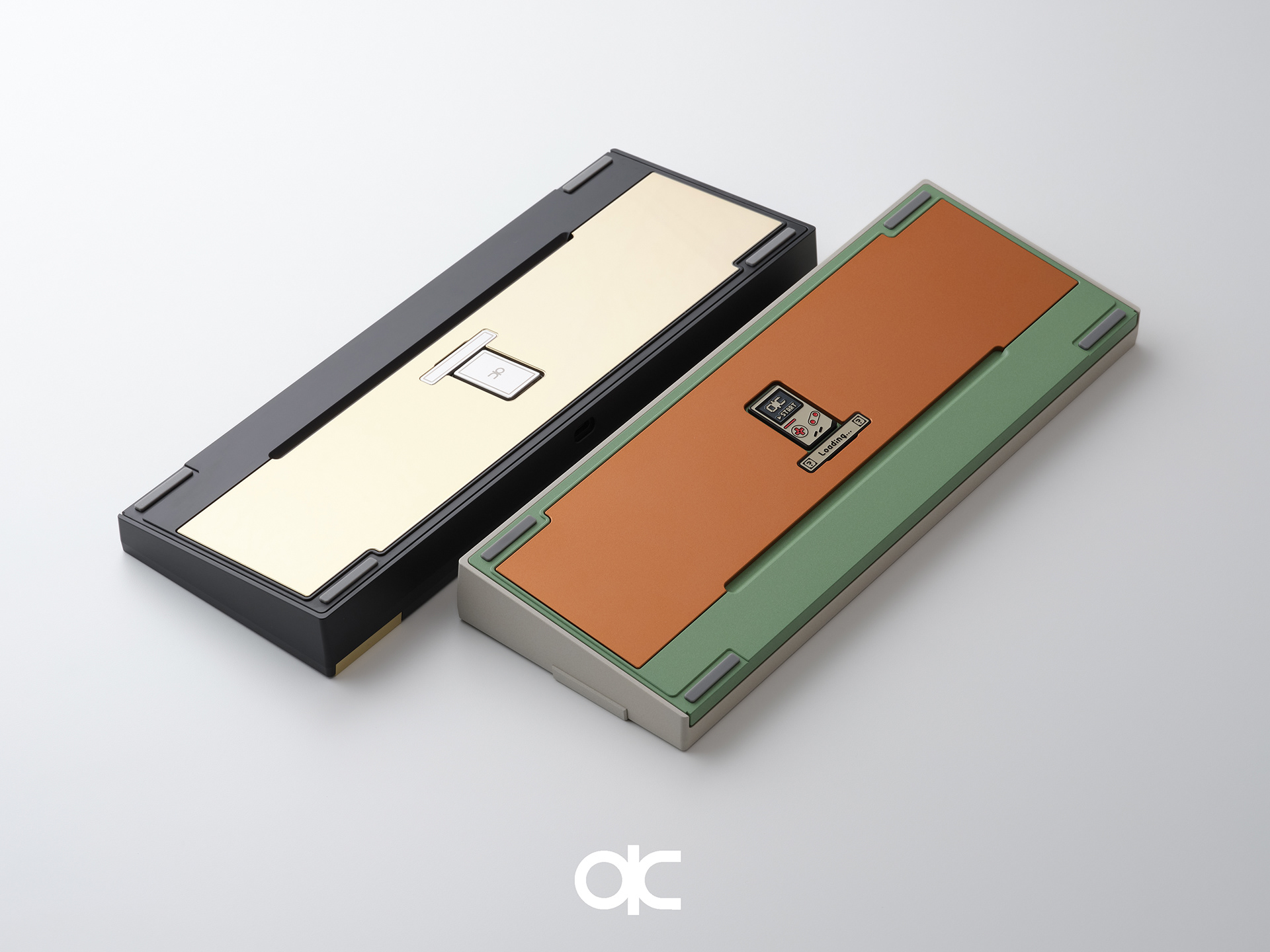

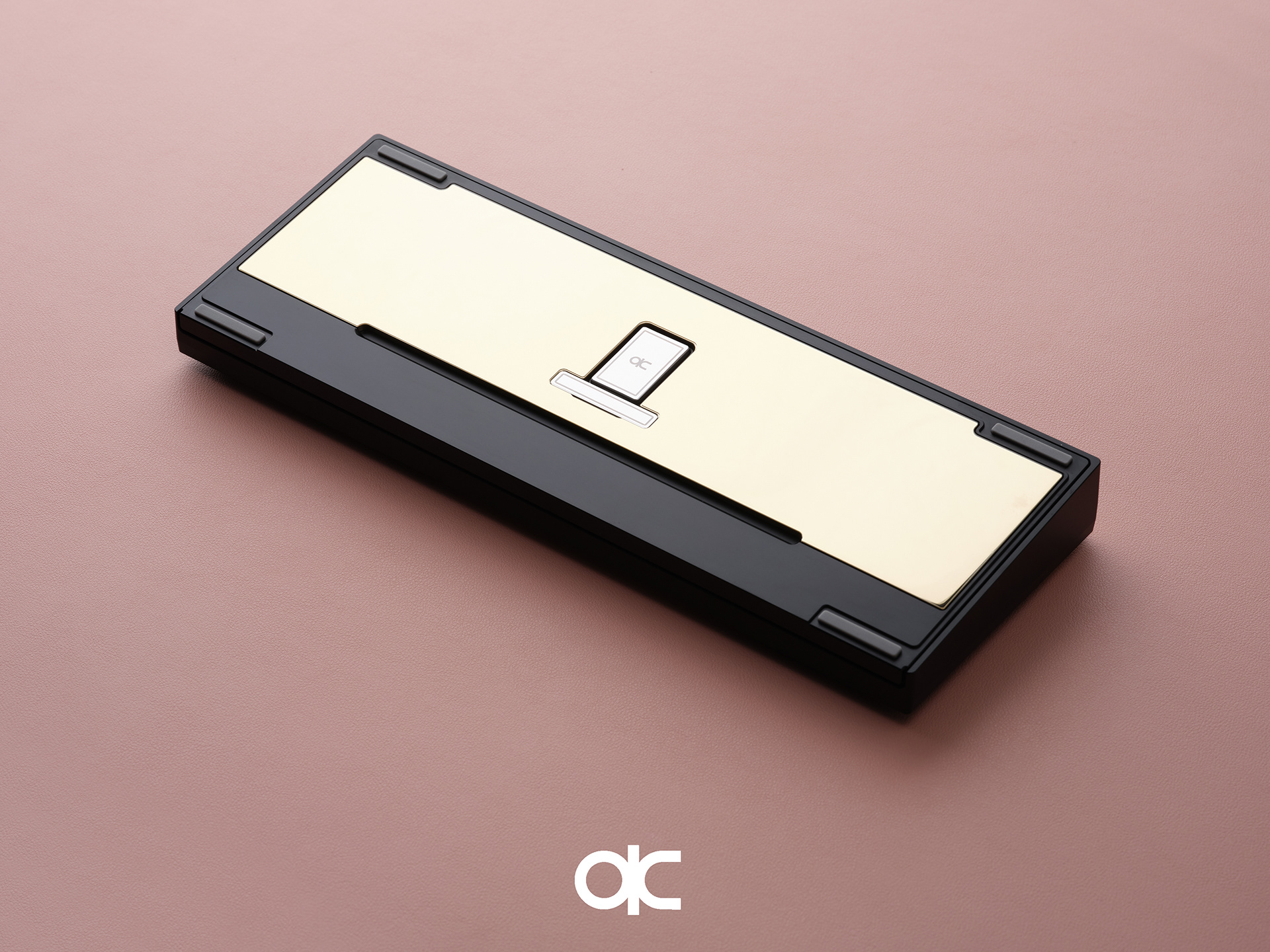

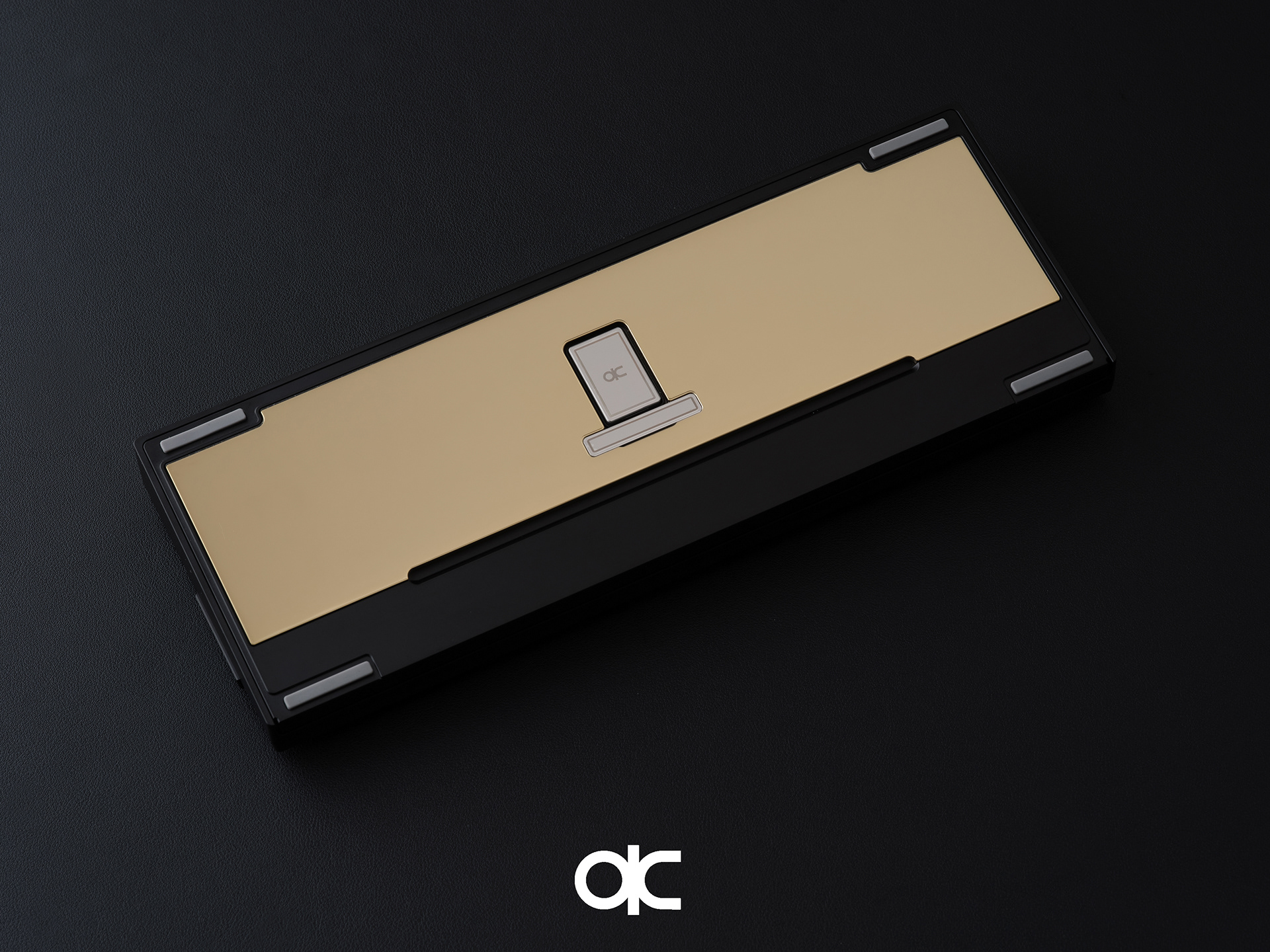

Back Design

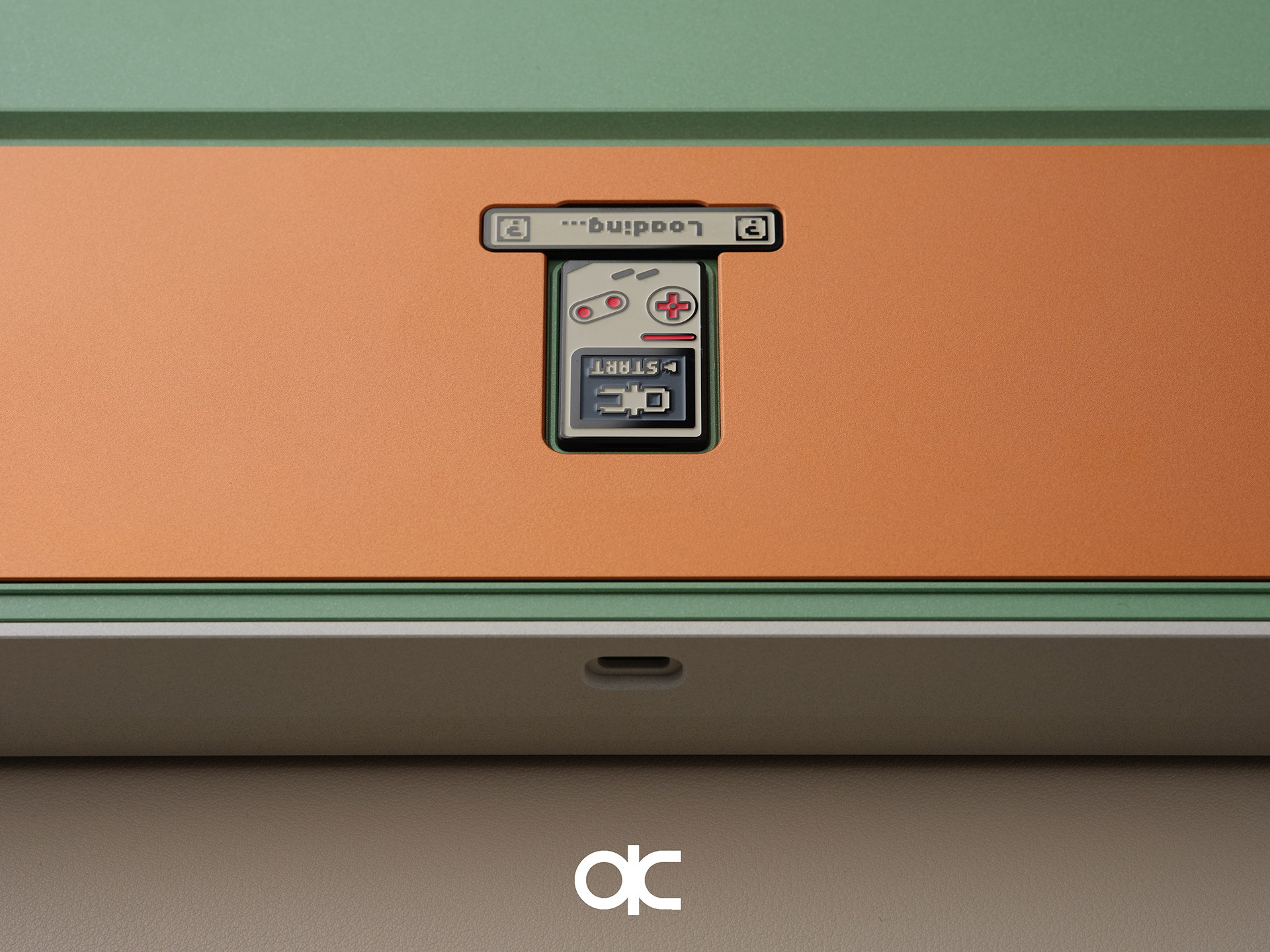

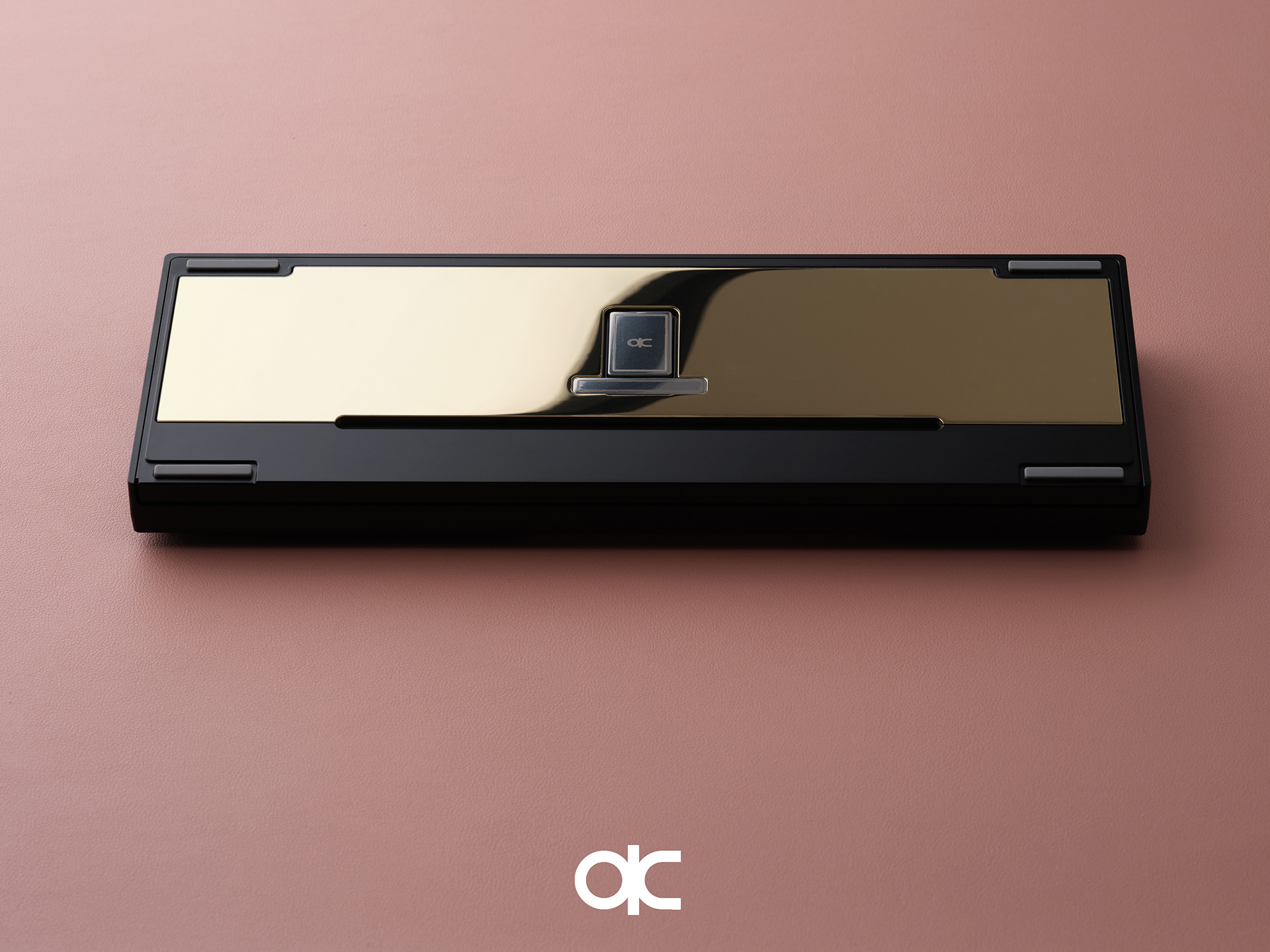

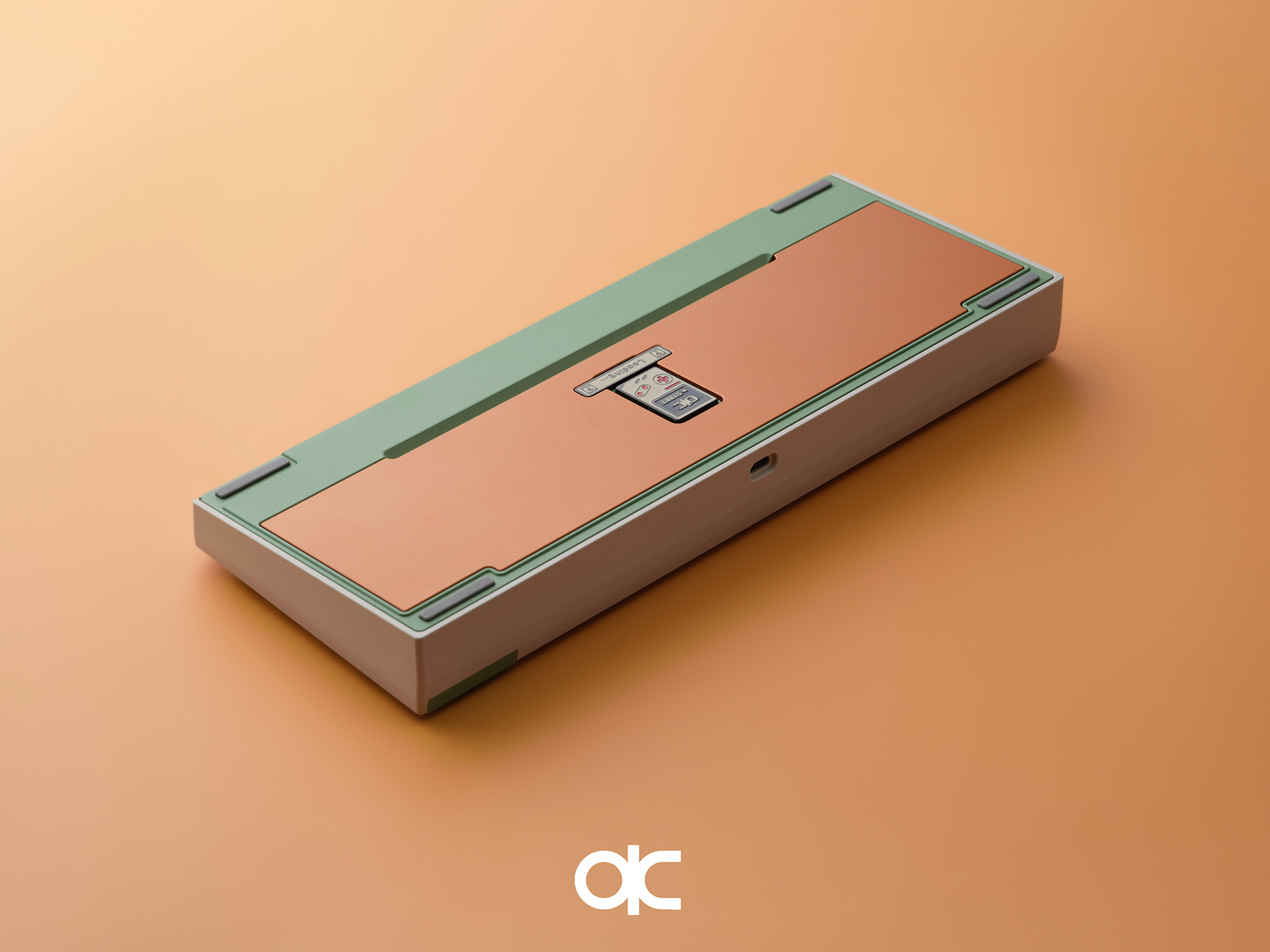

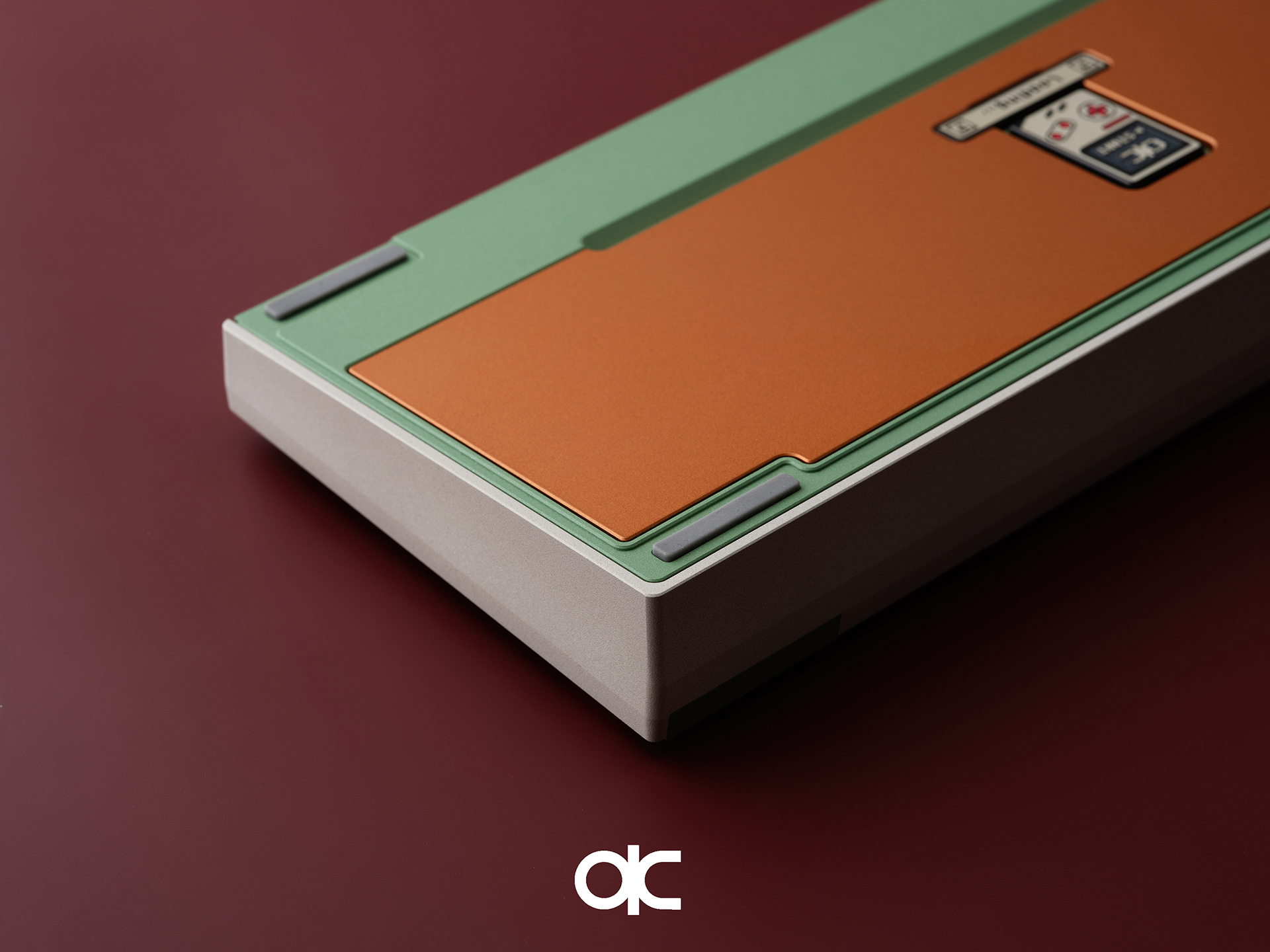

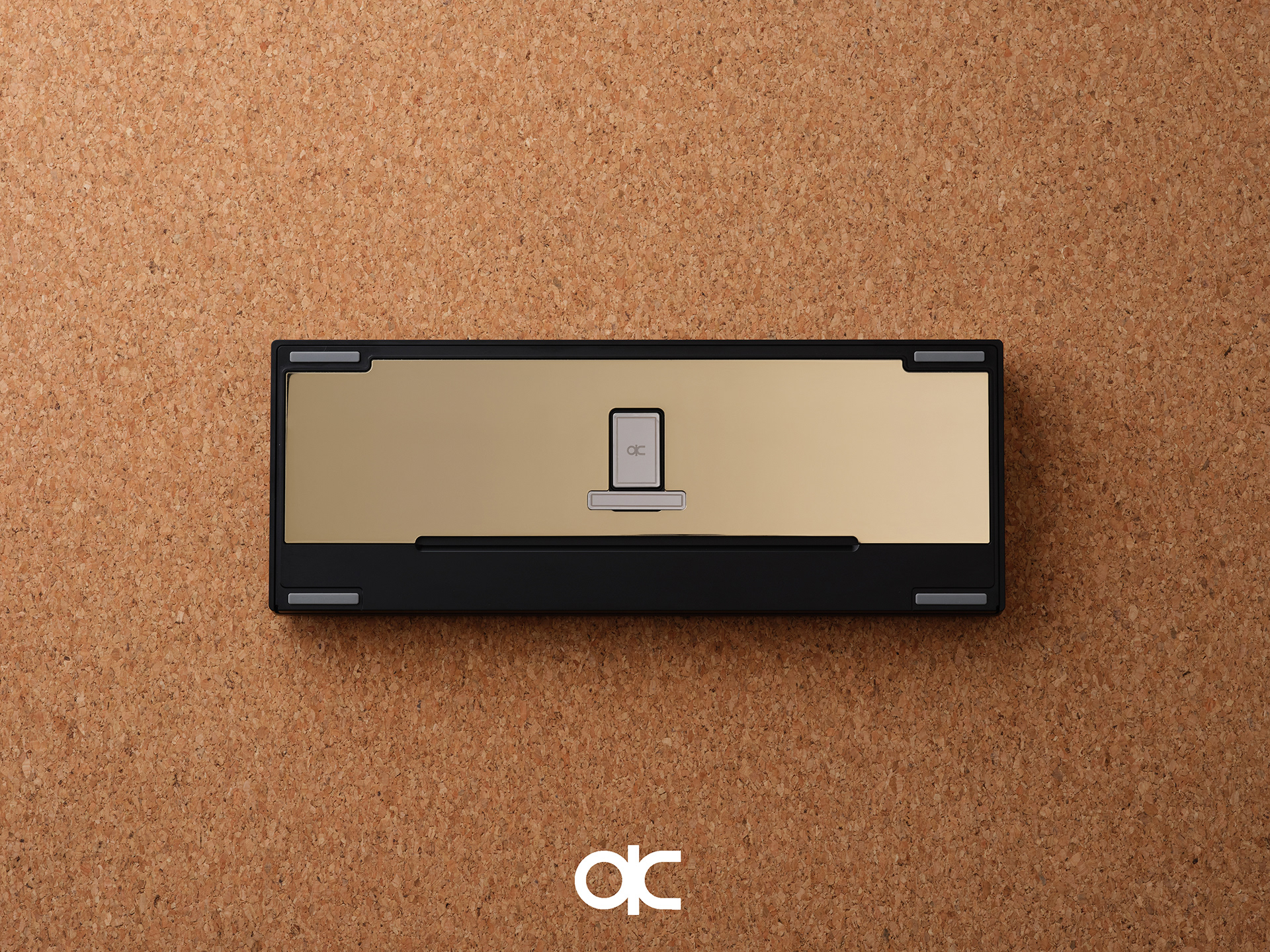

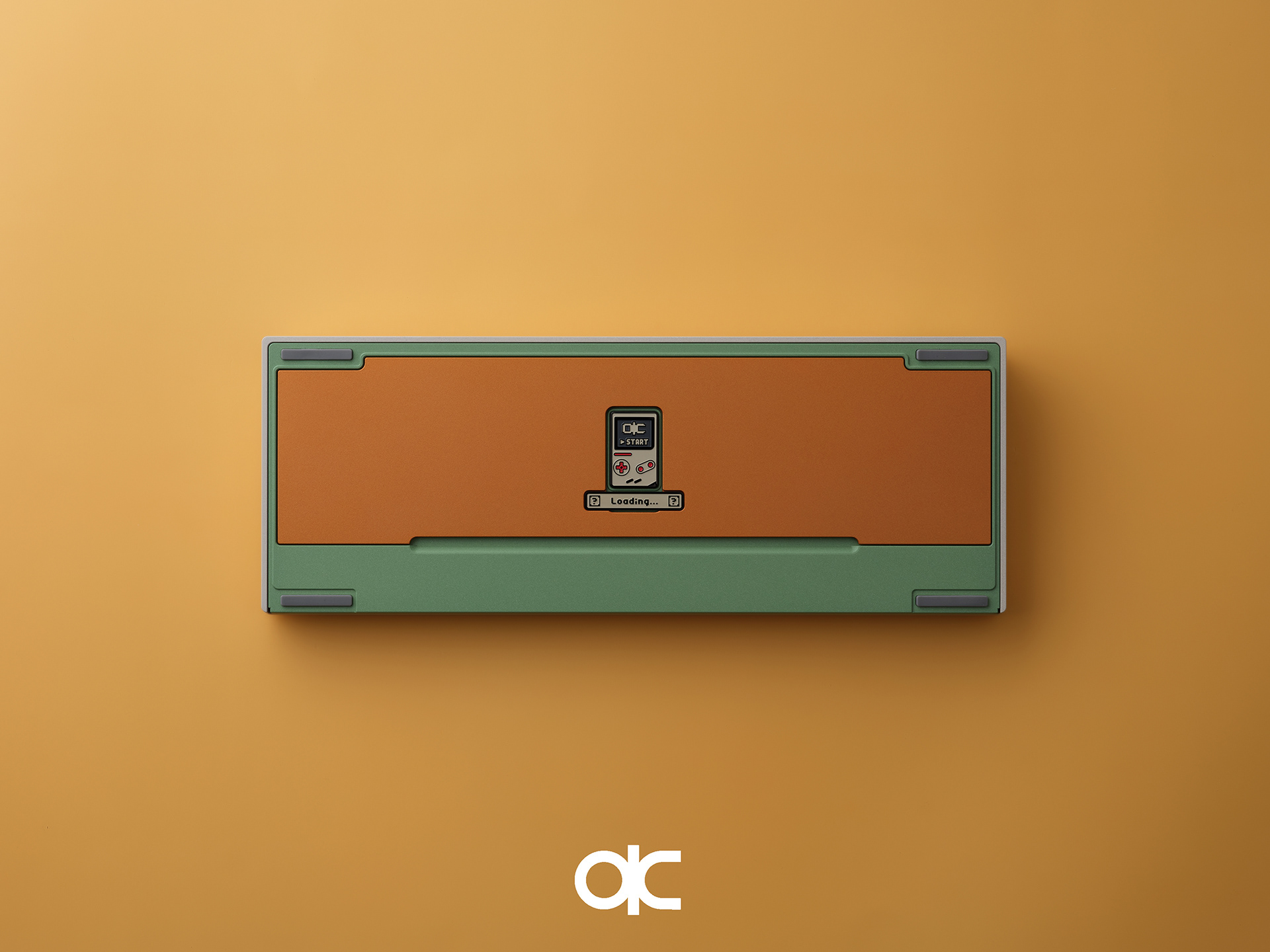

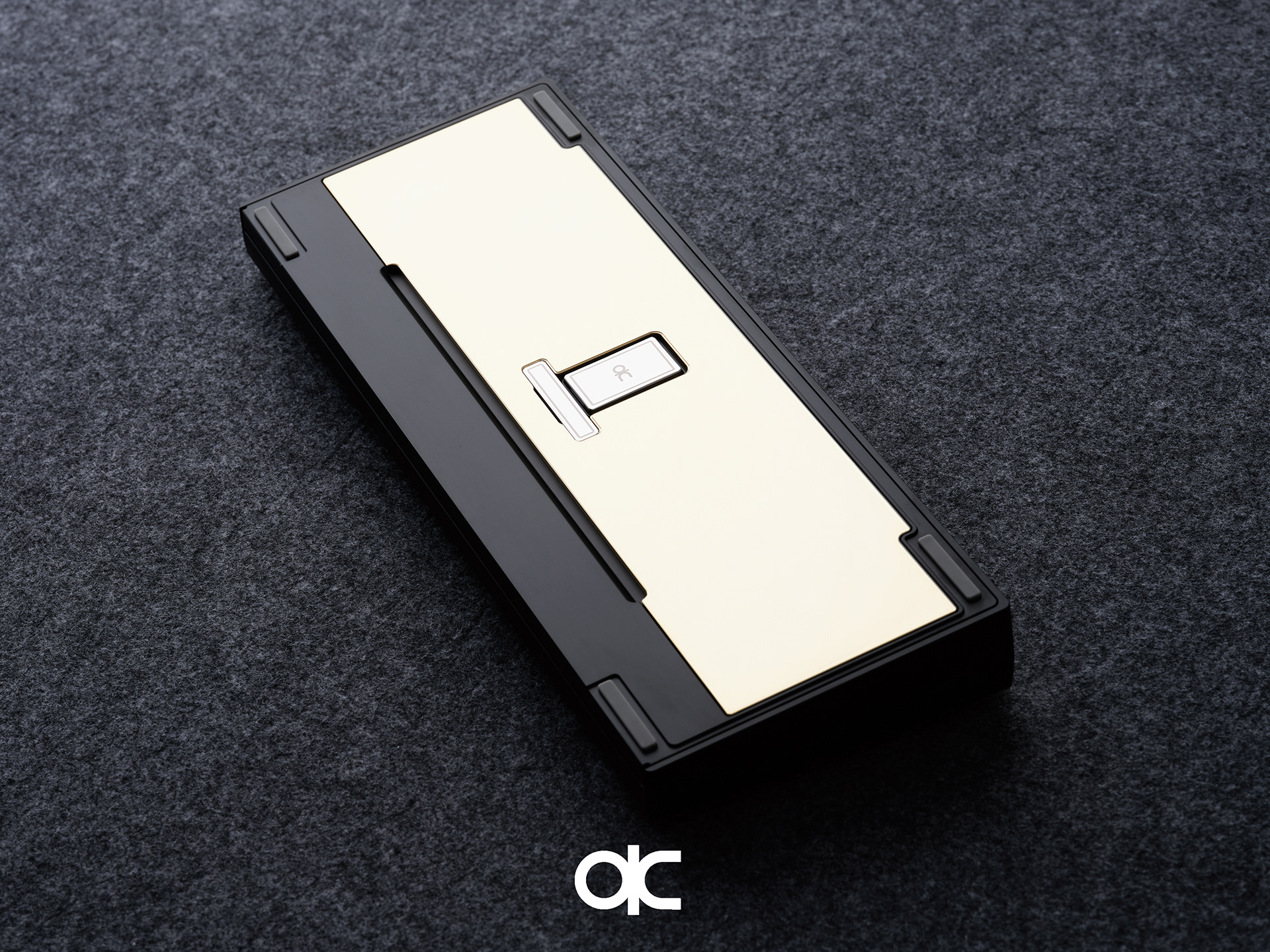

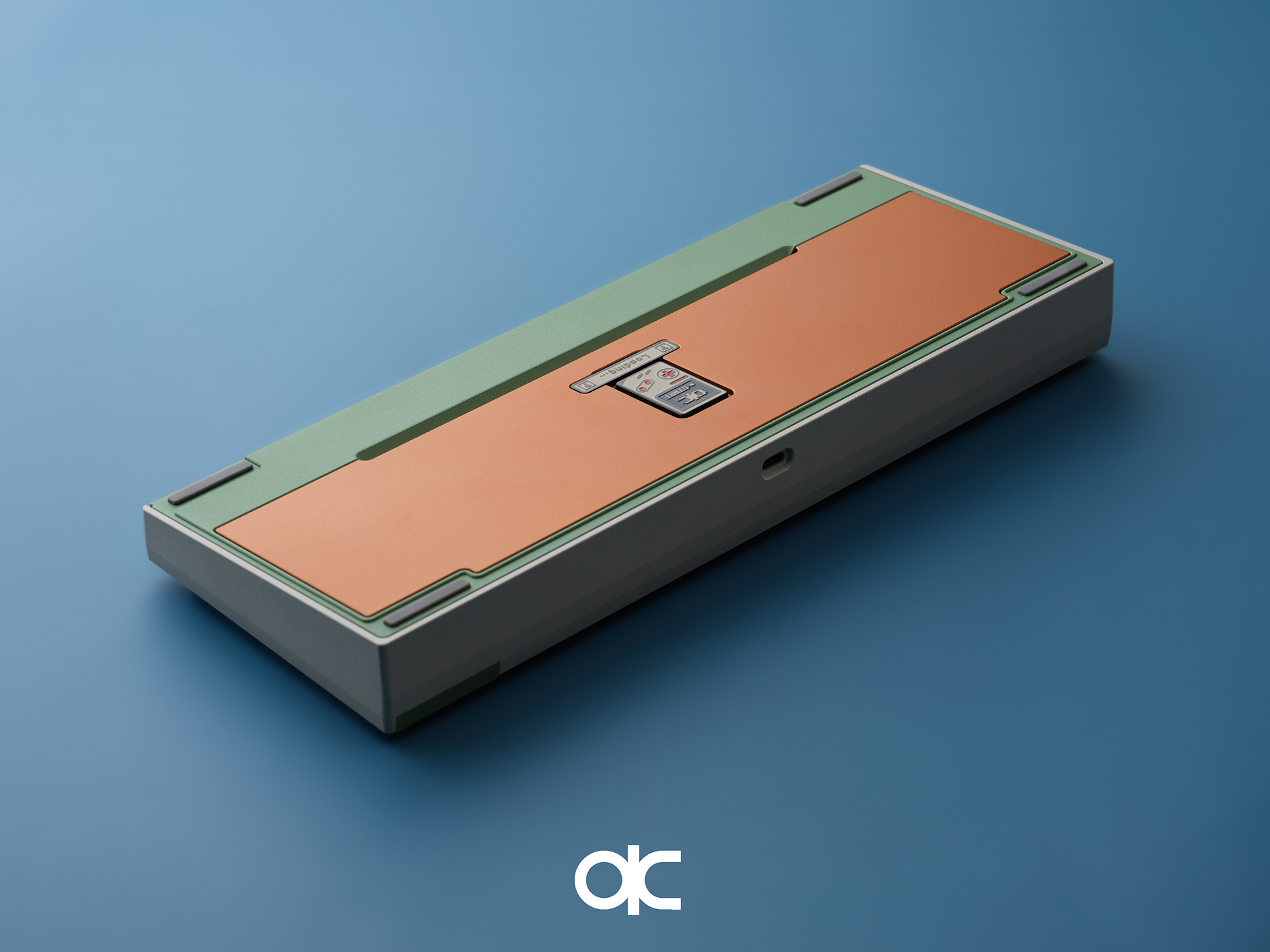

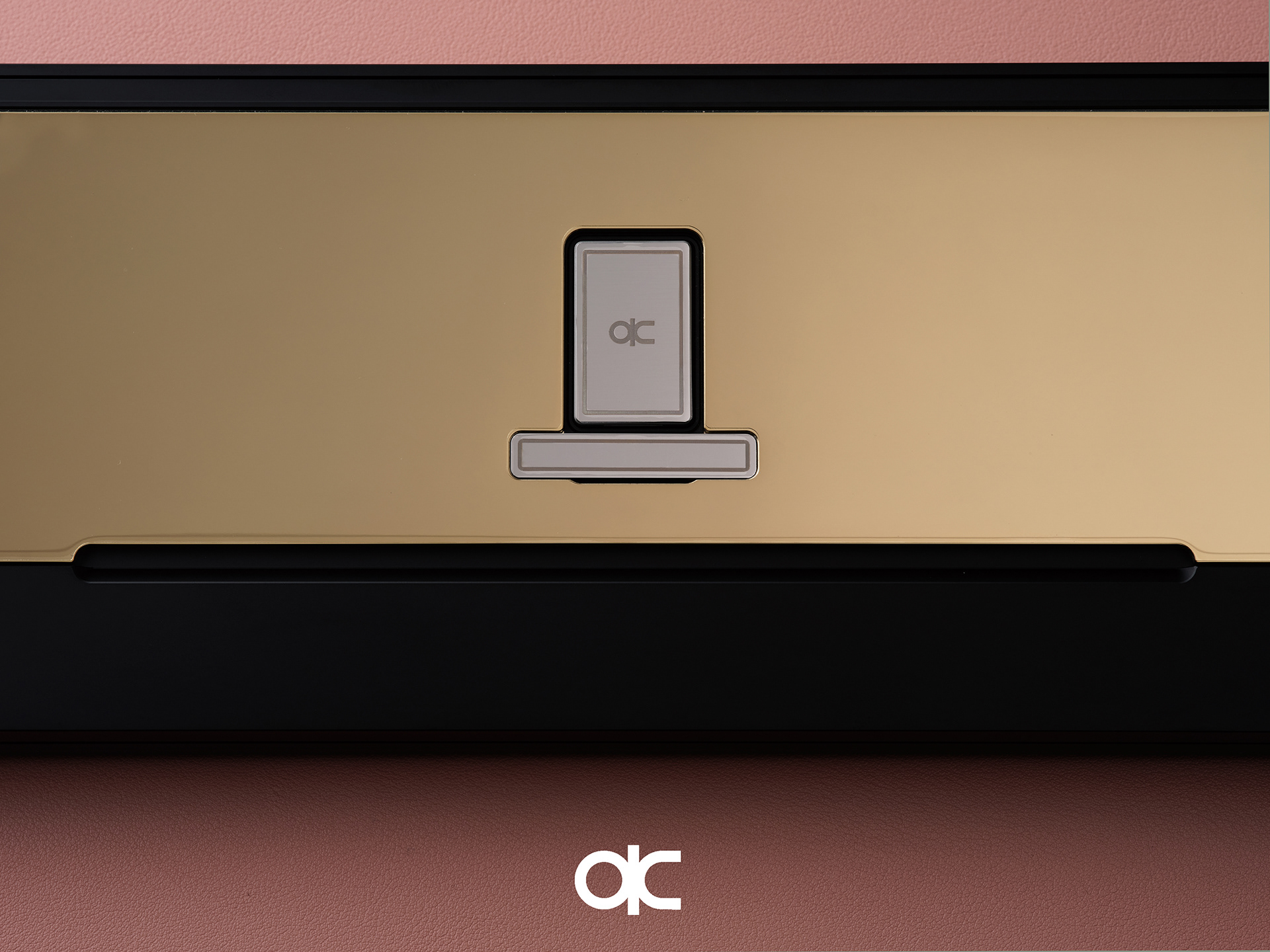

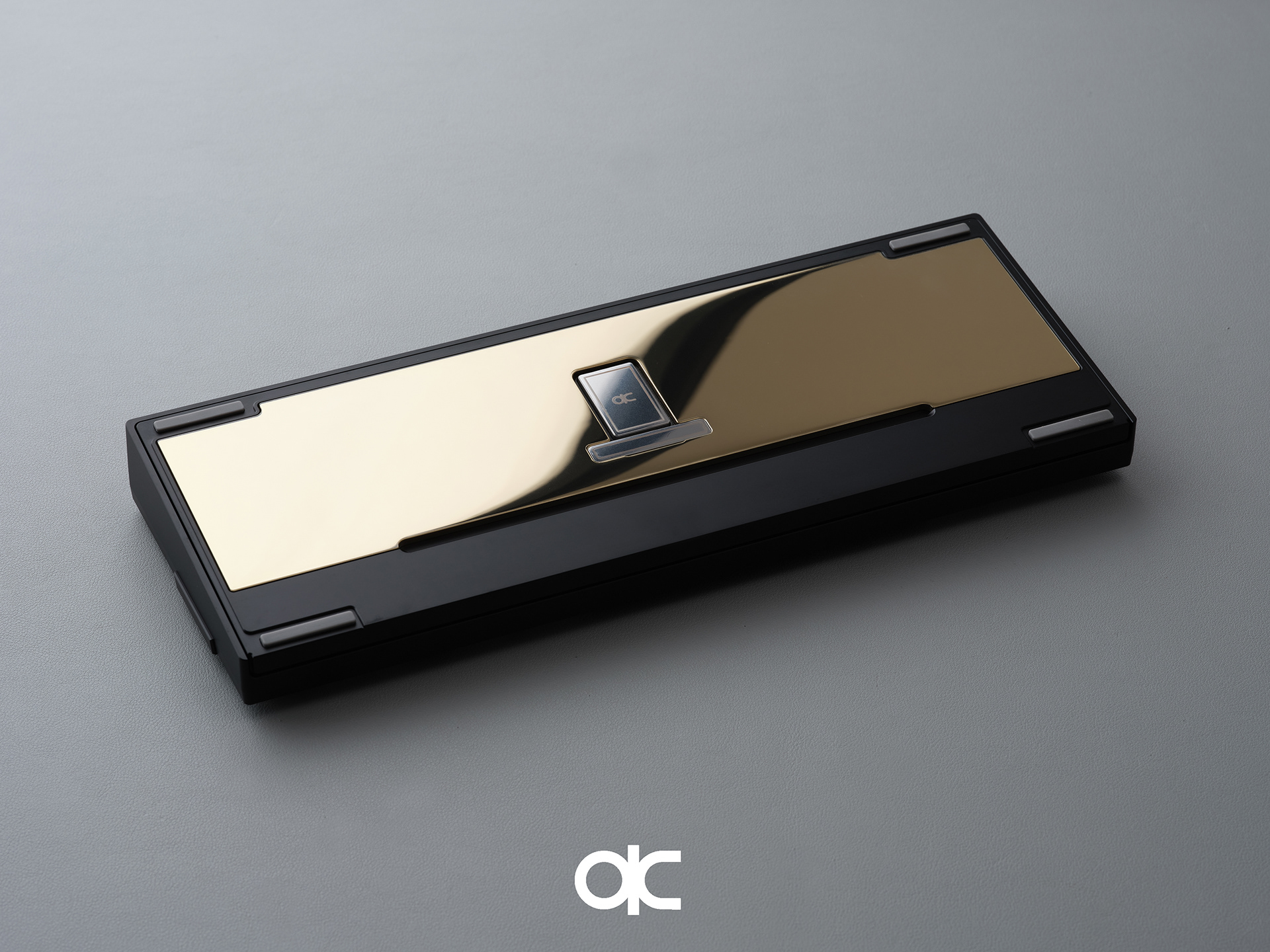

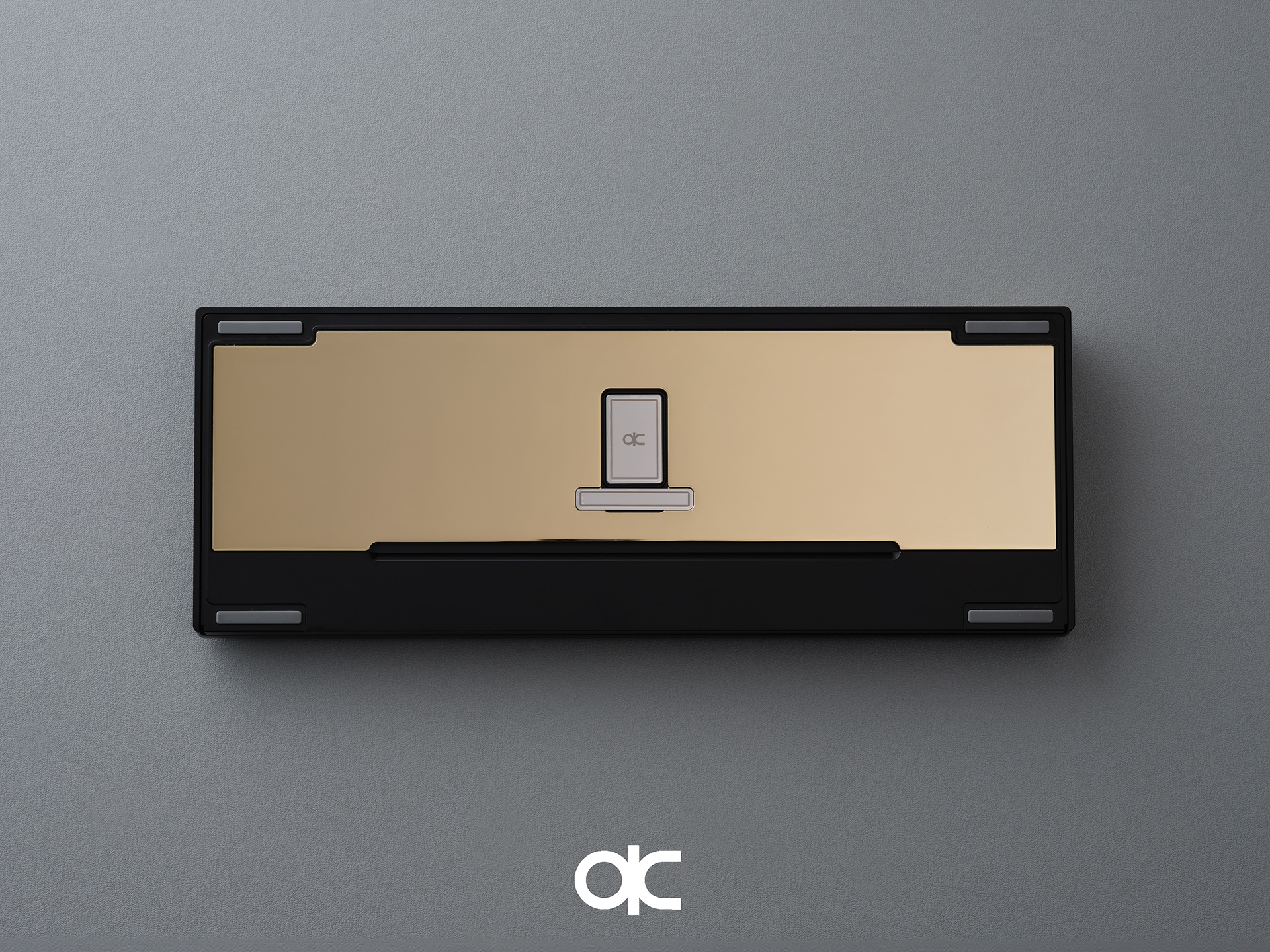

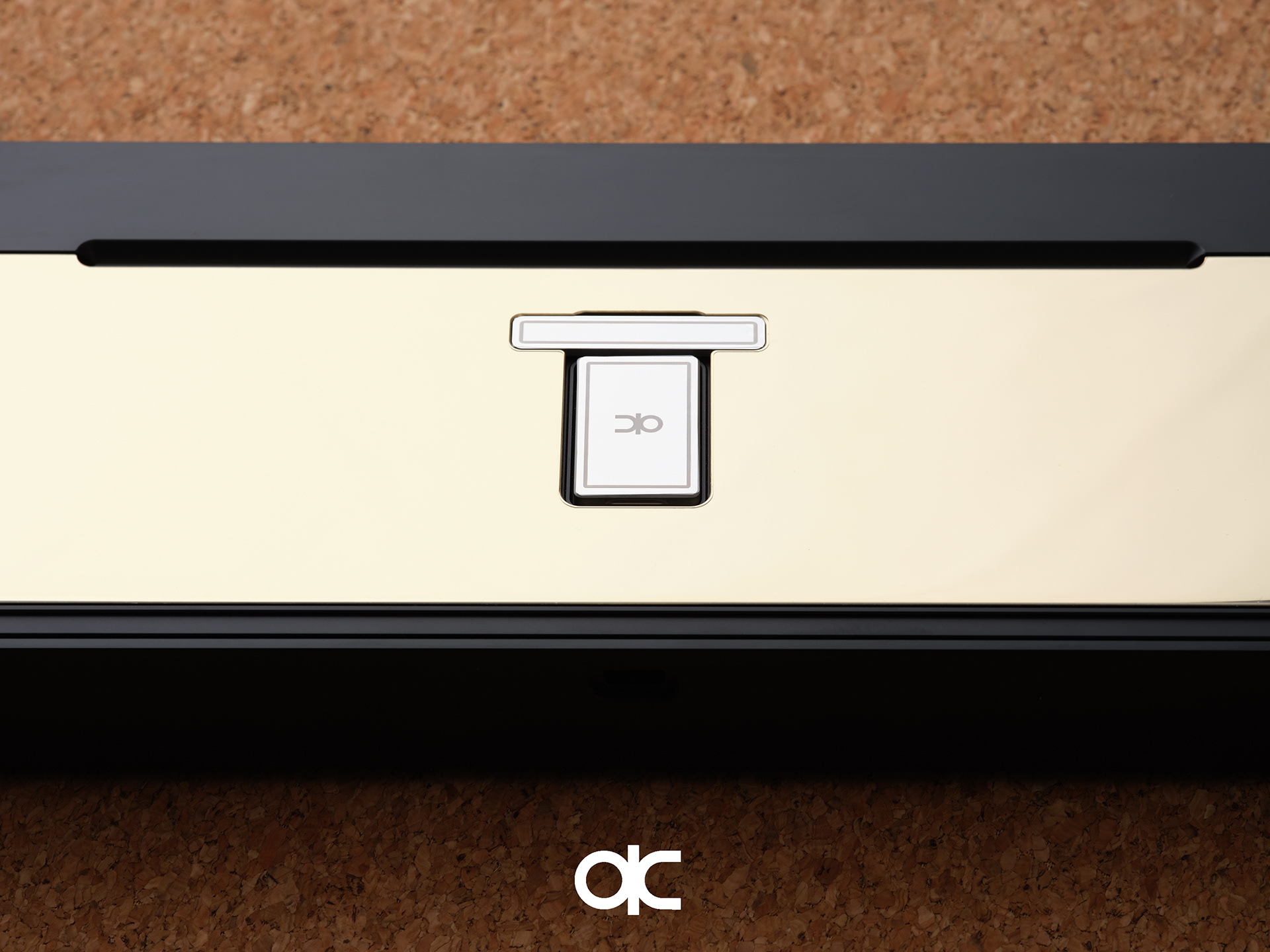

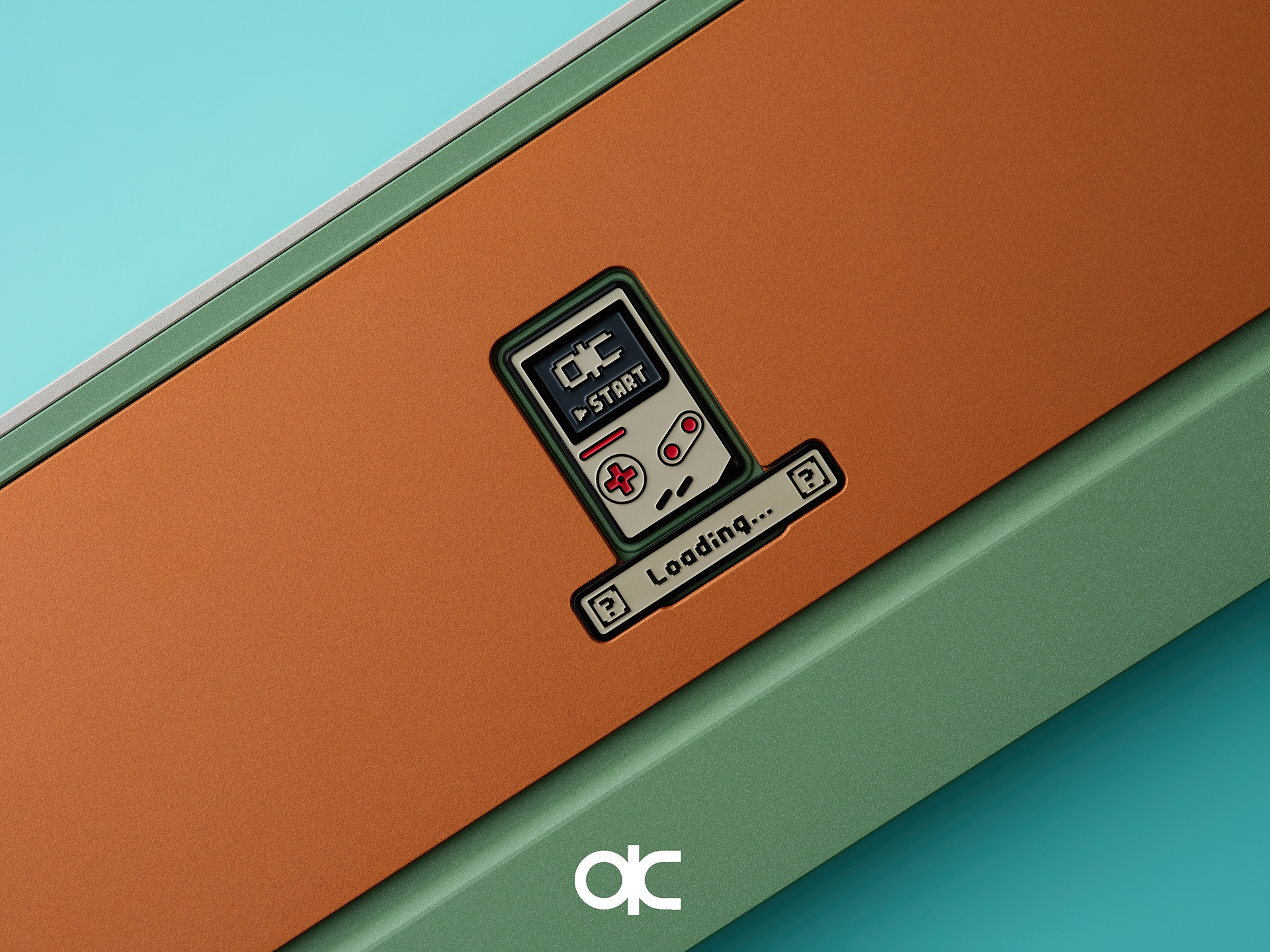

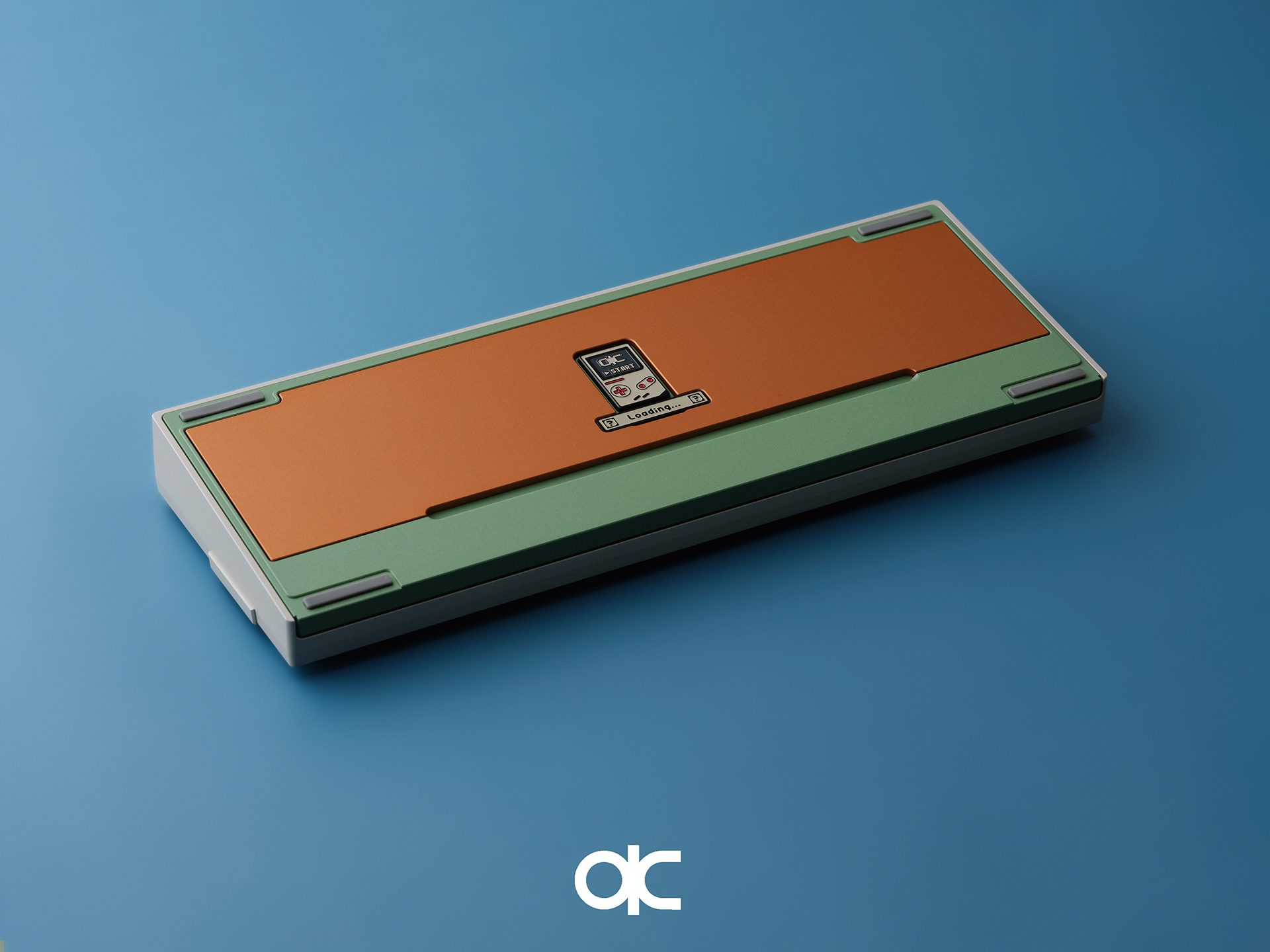

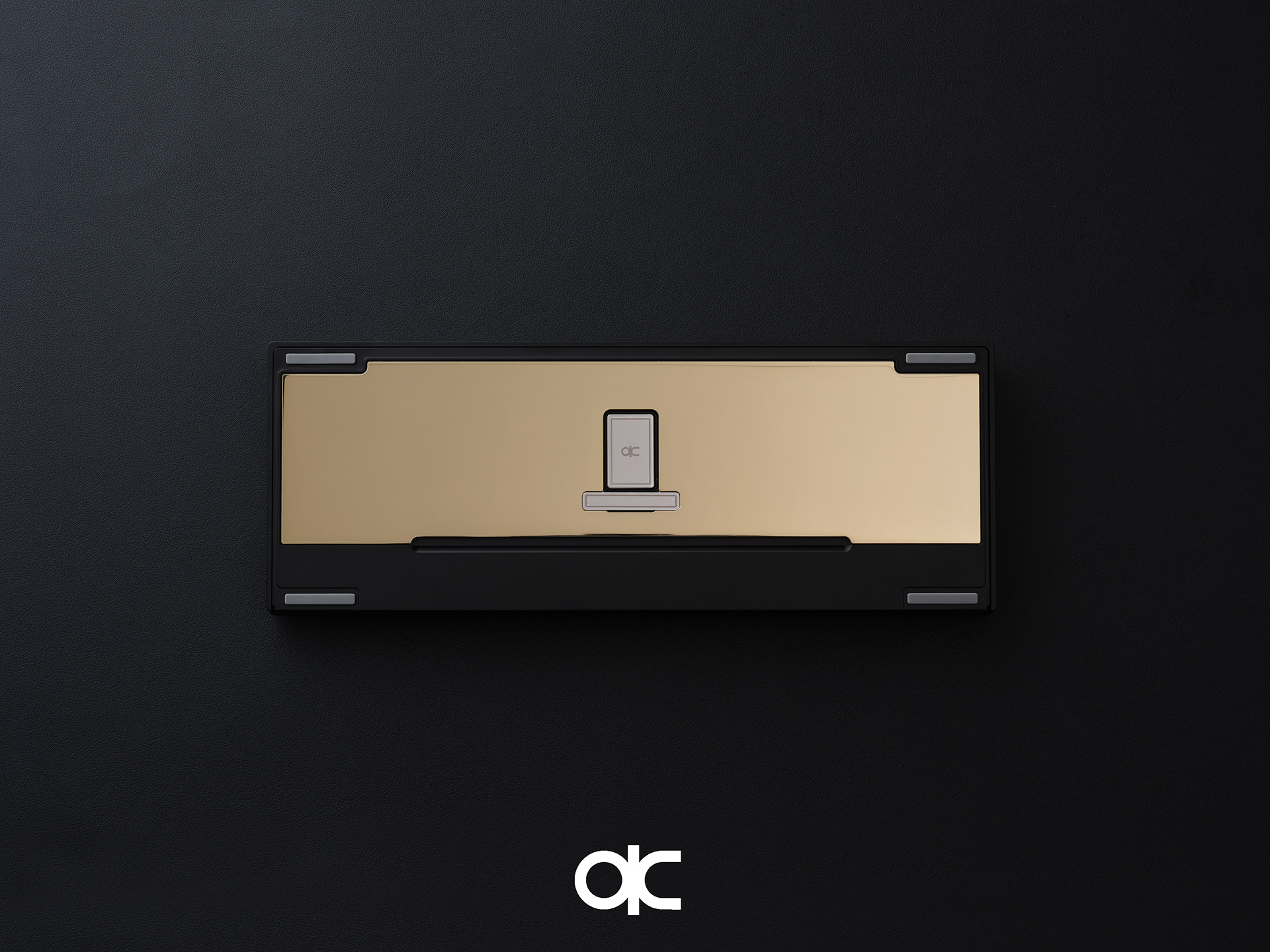

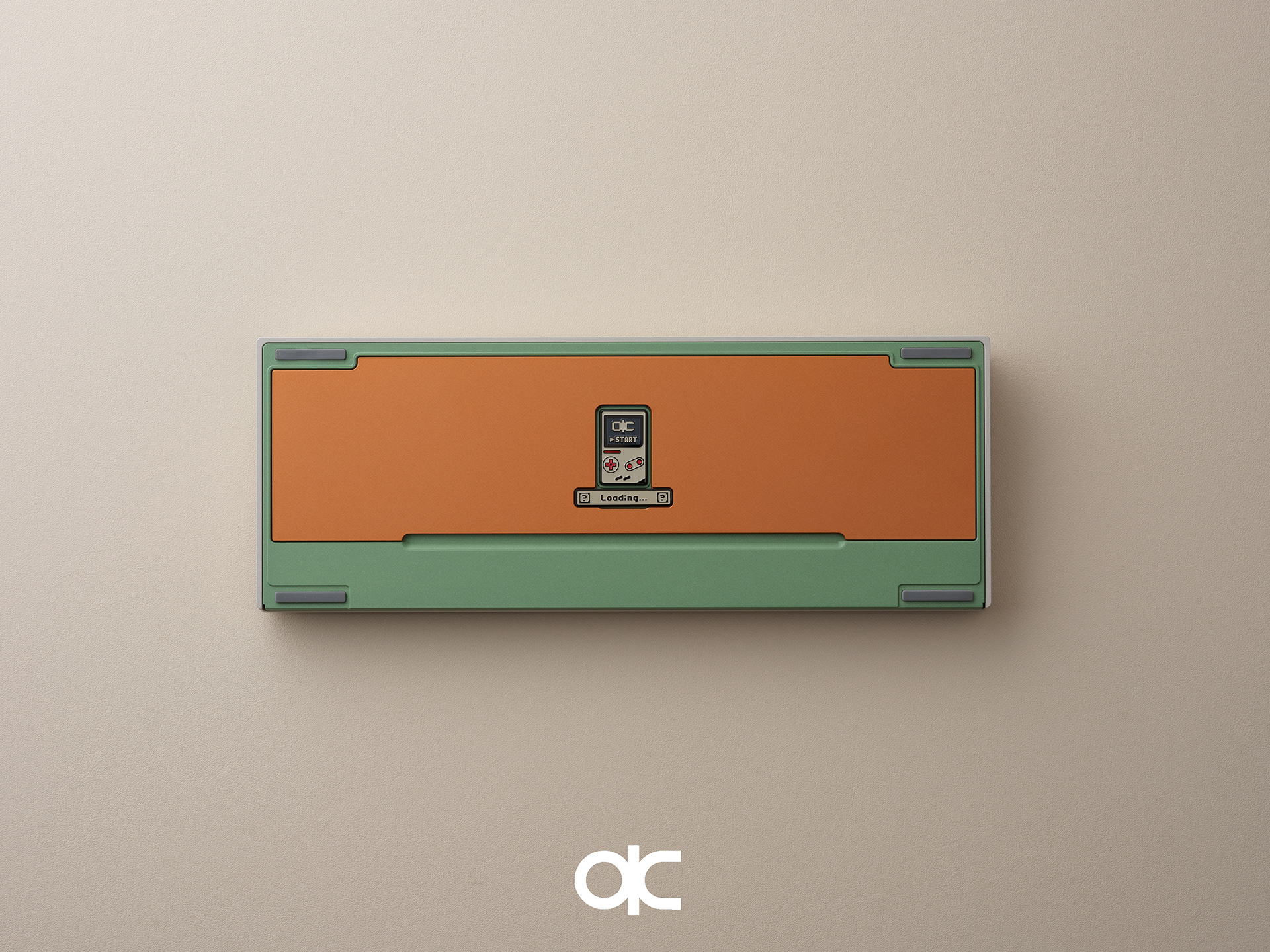

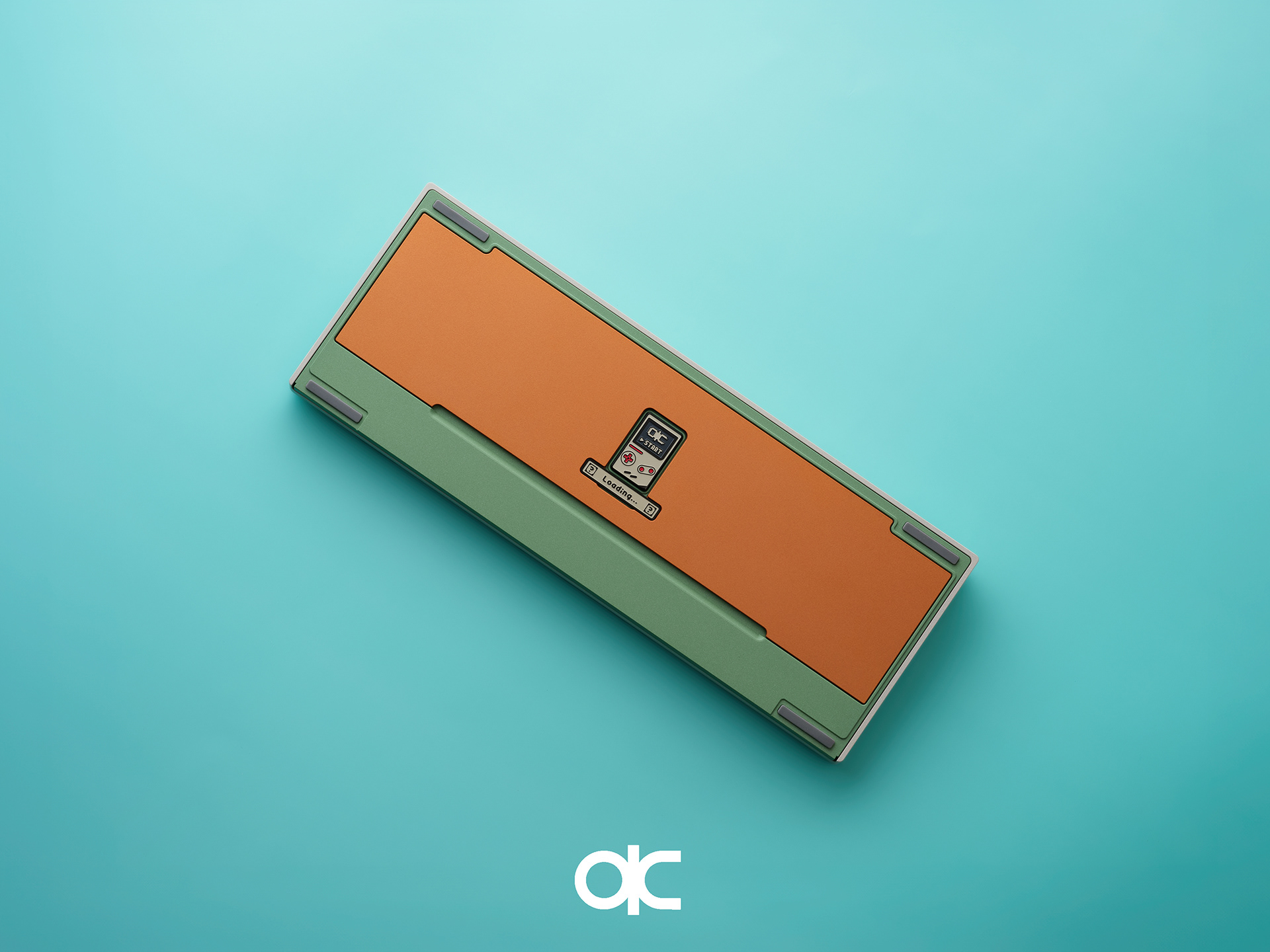

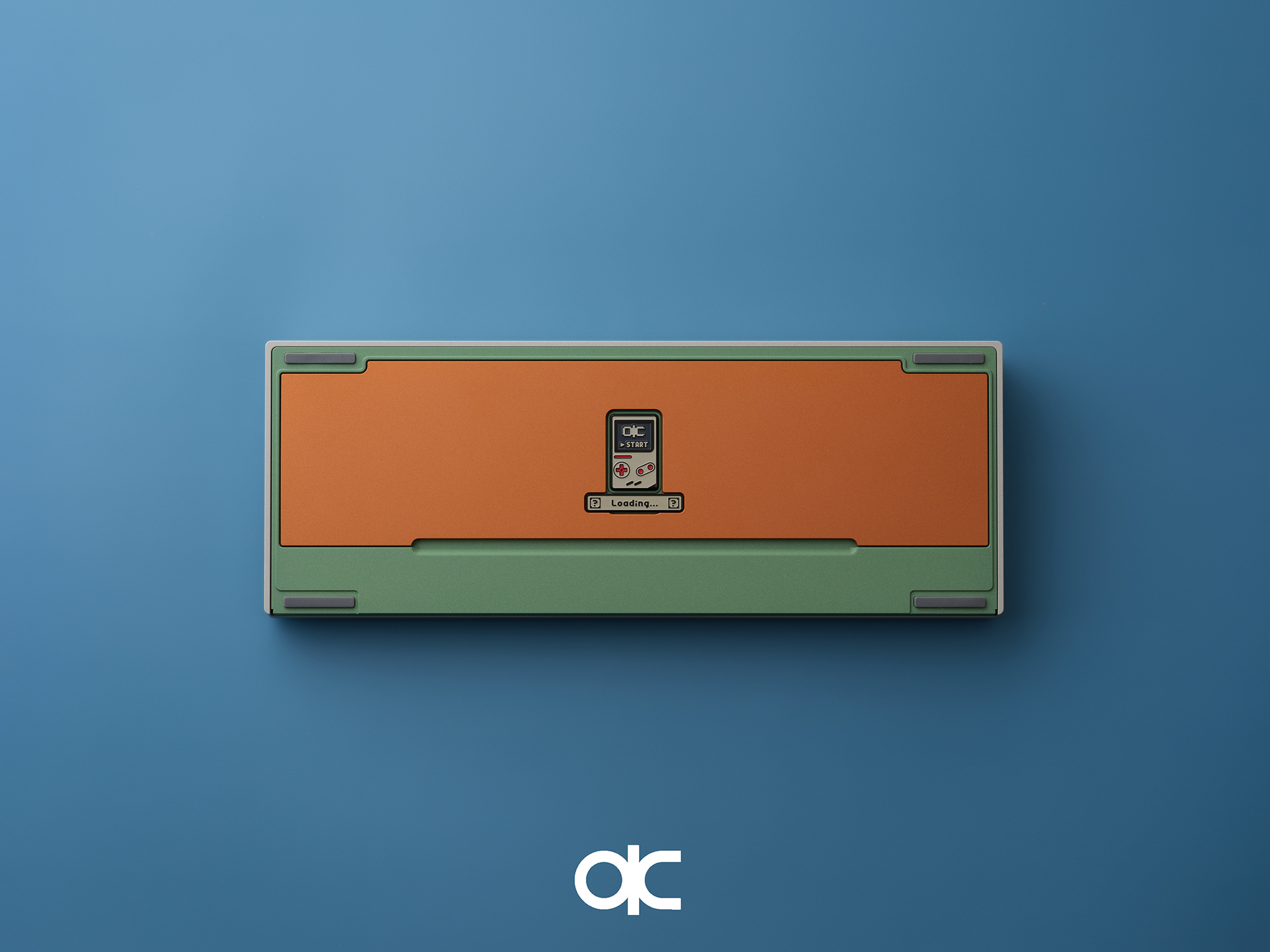

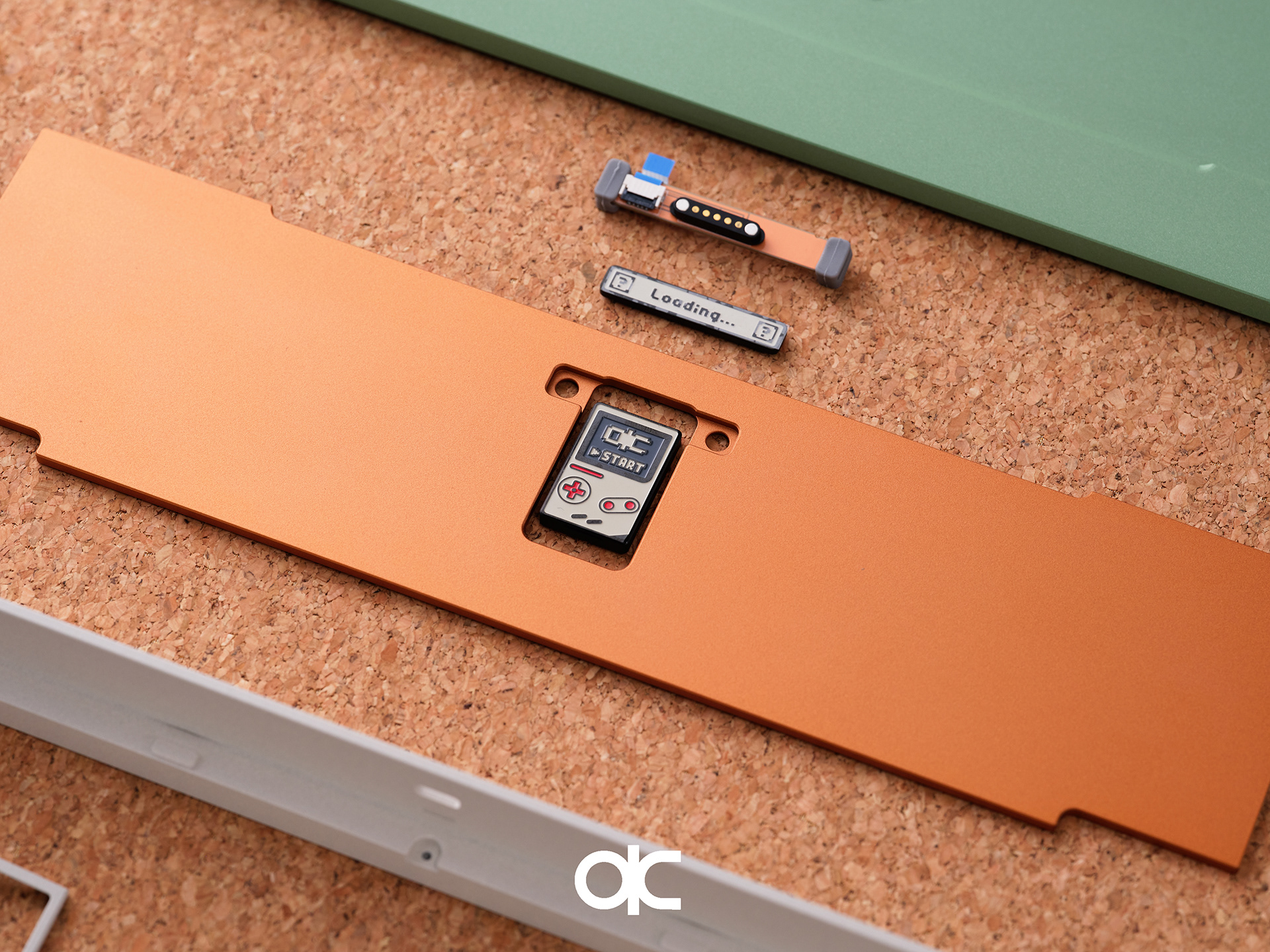

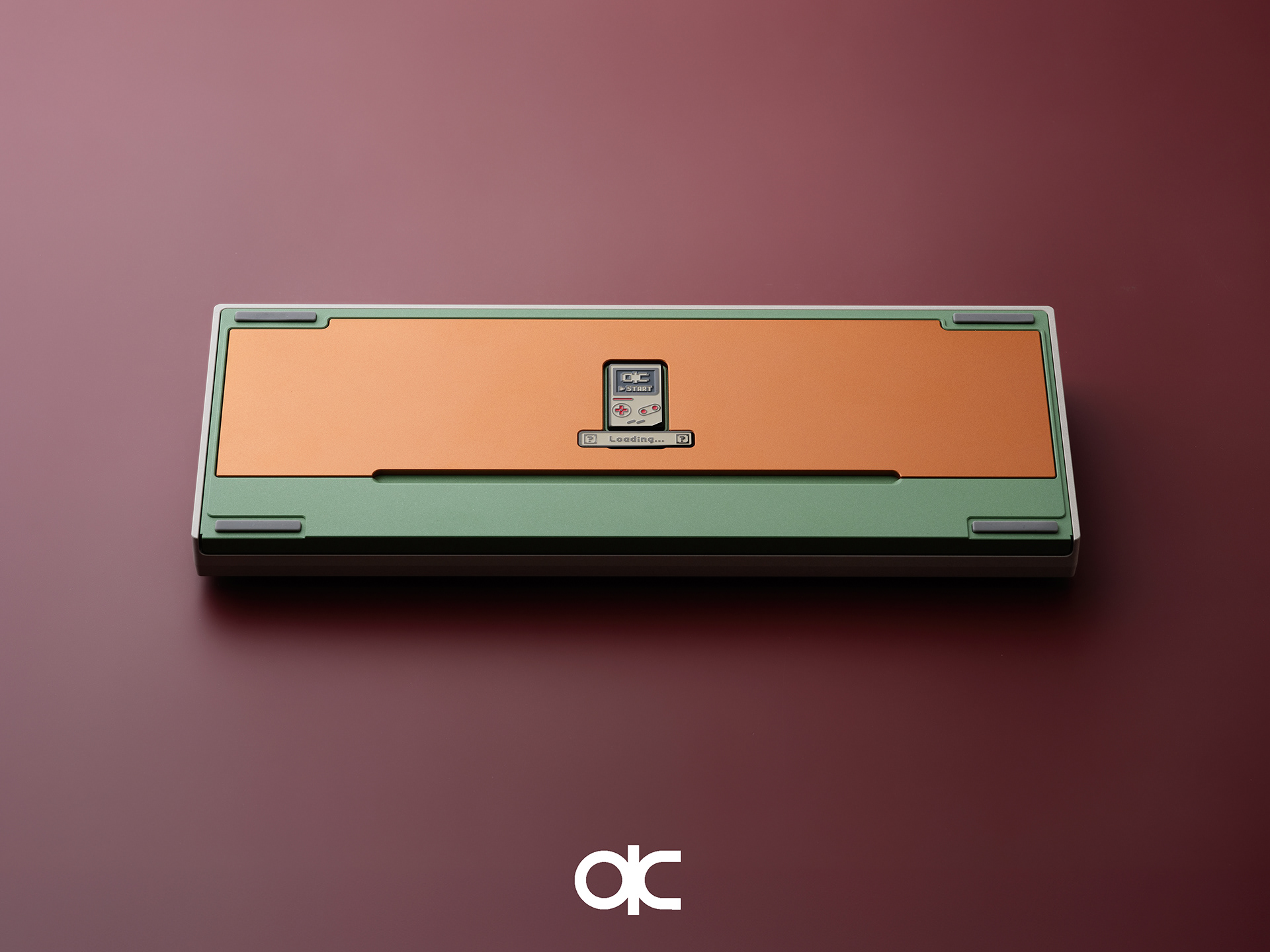

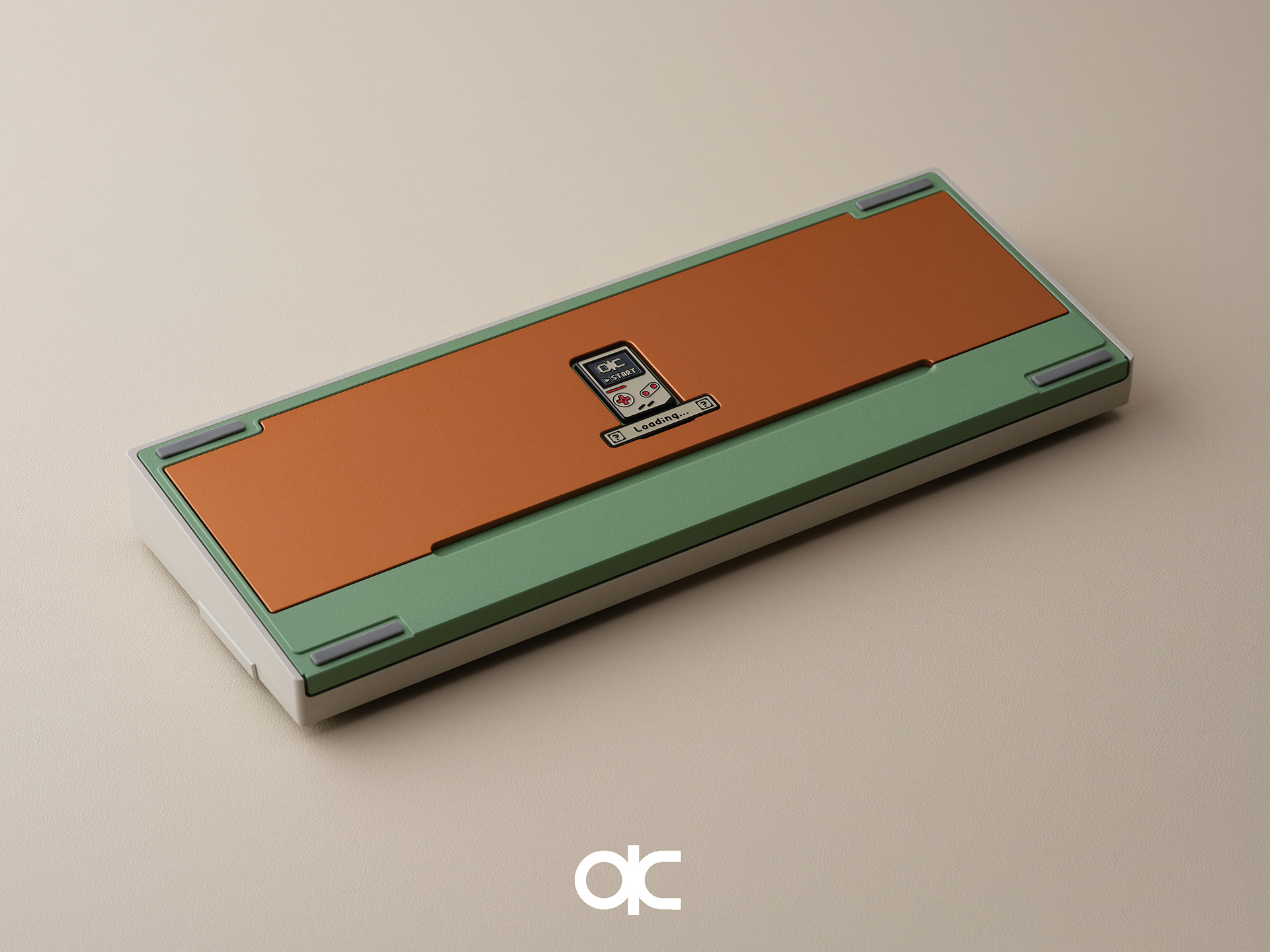

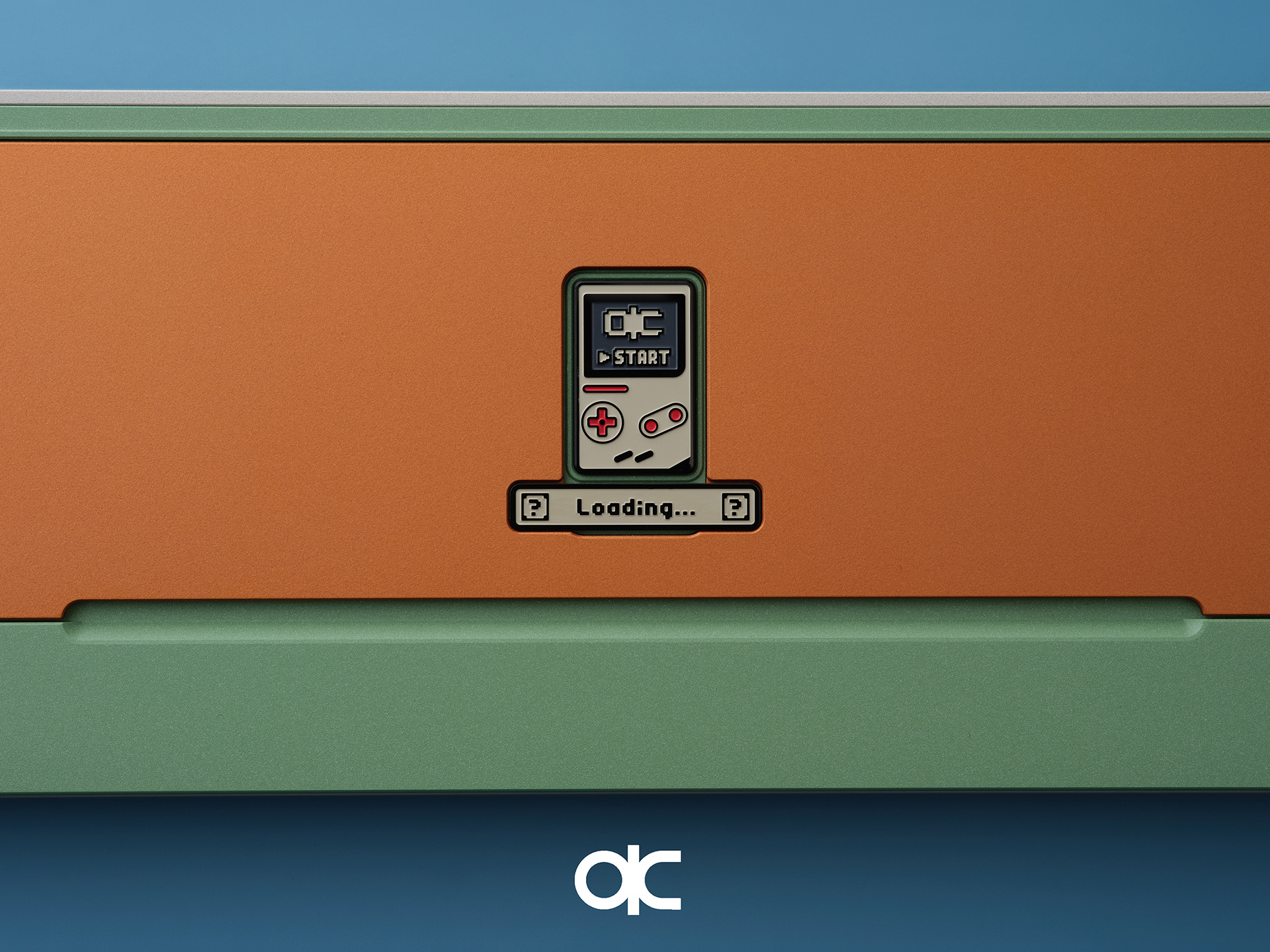

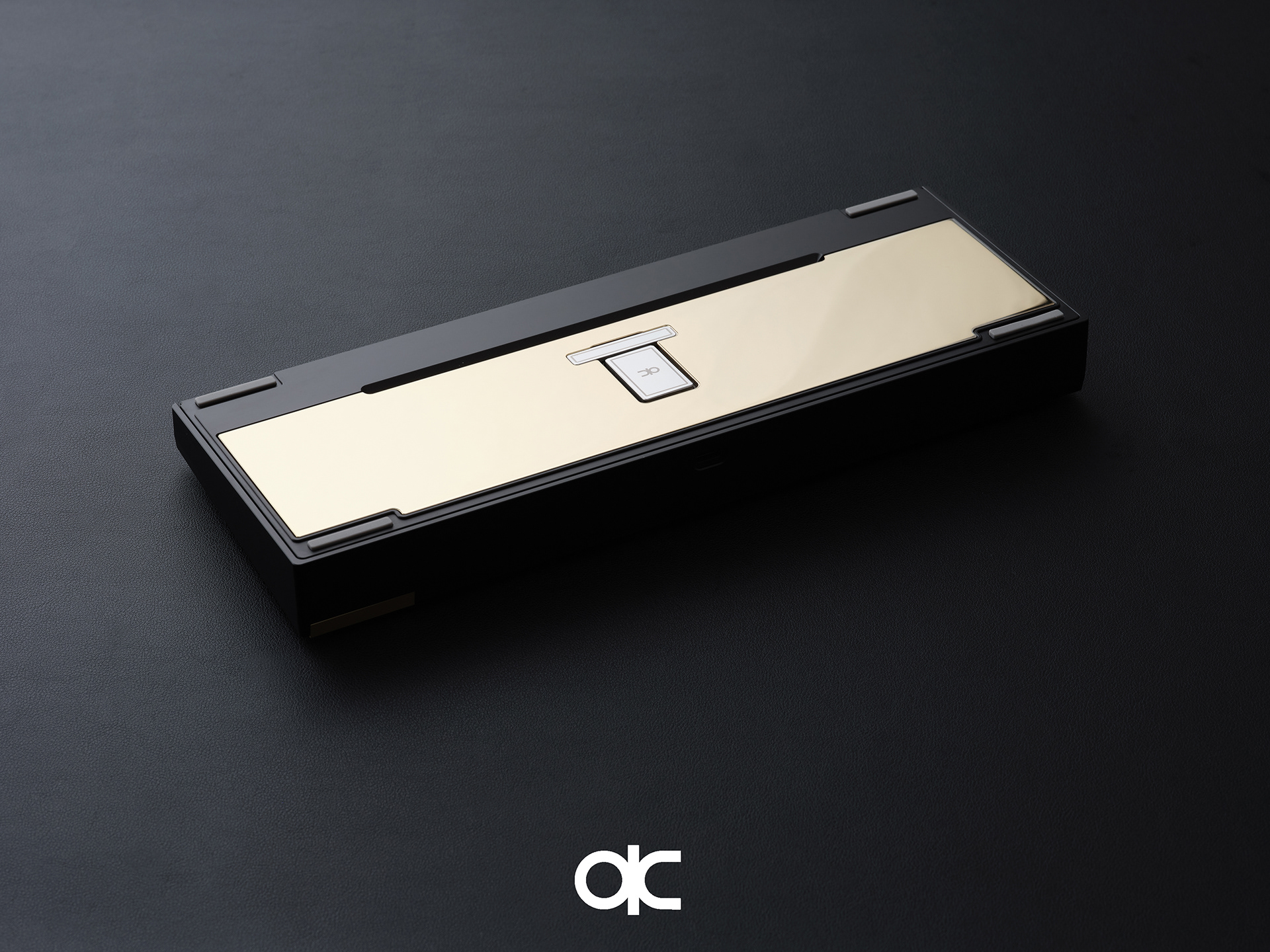

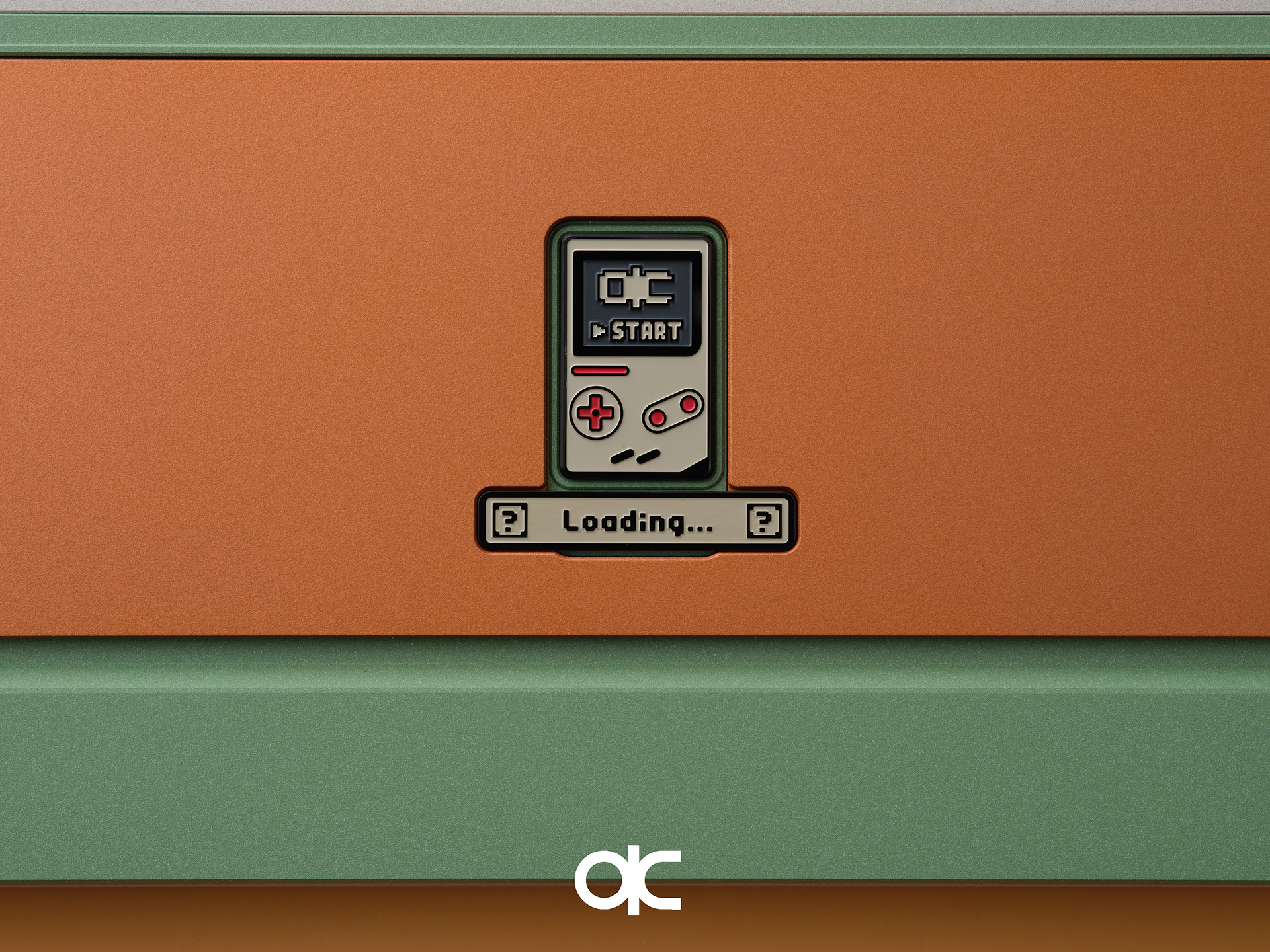

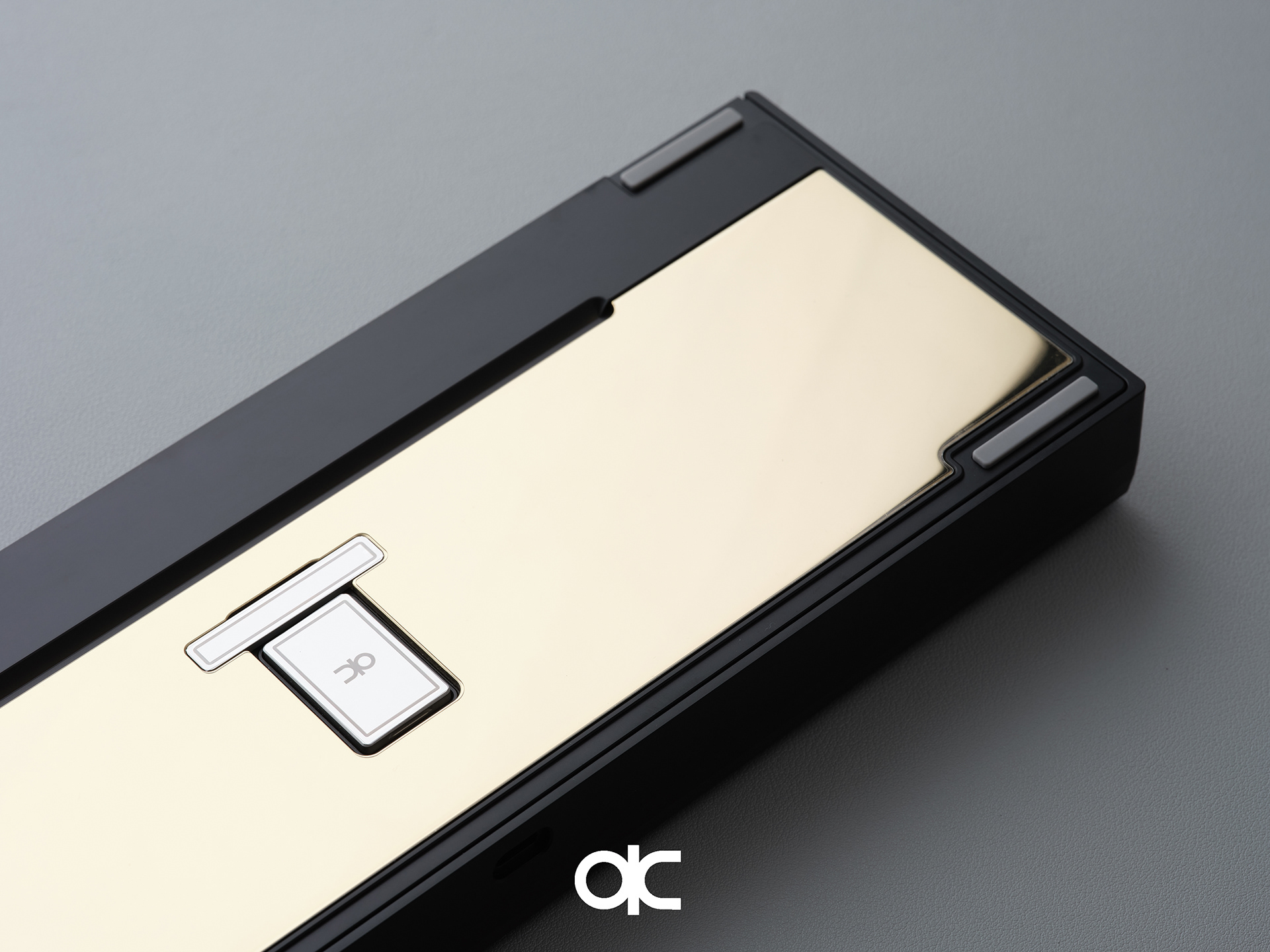

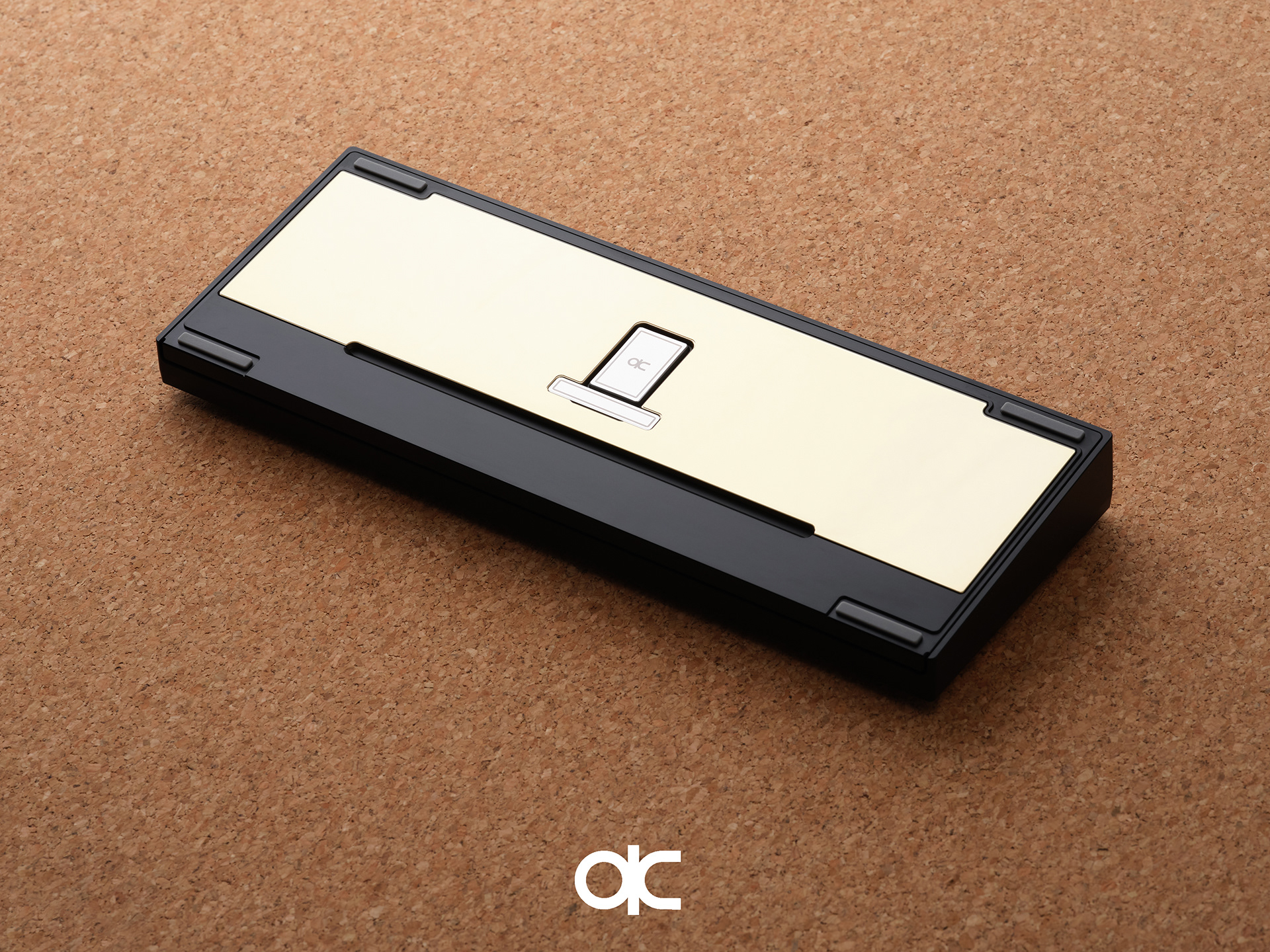

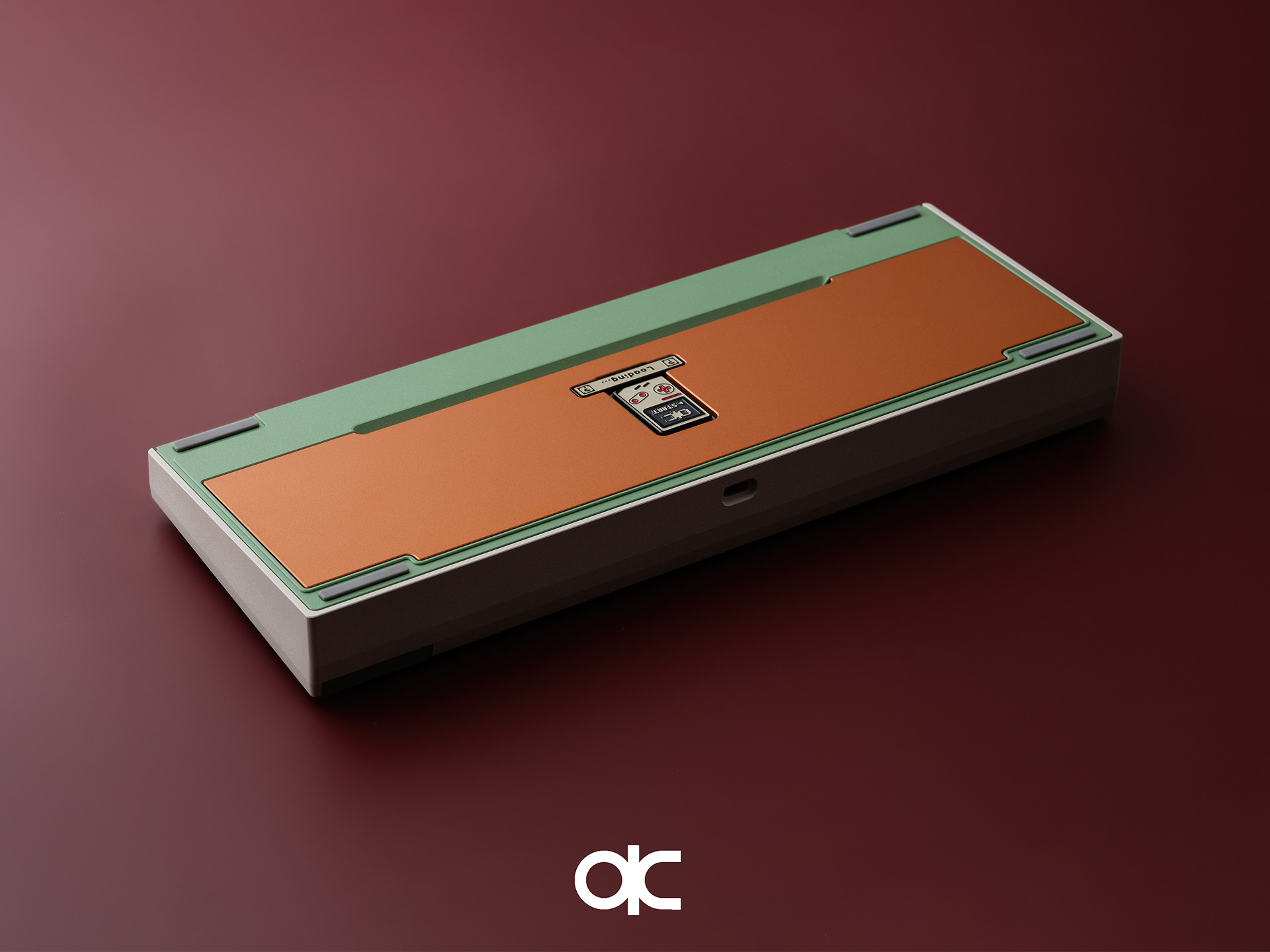

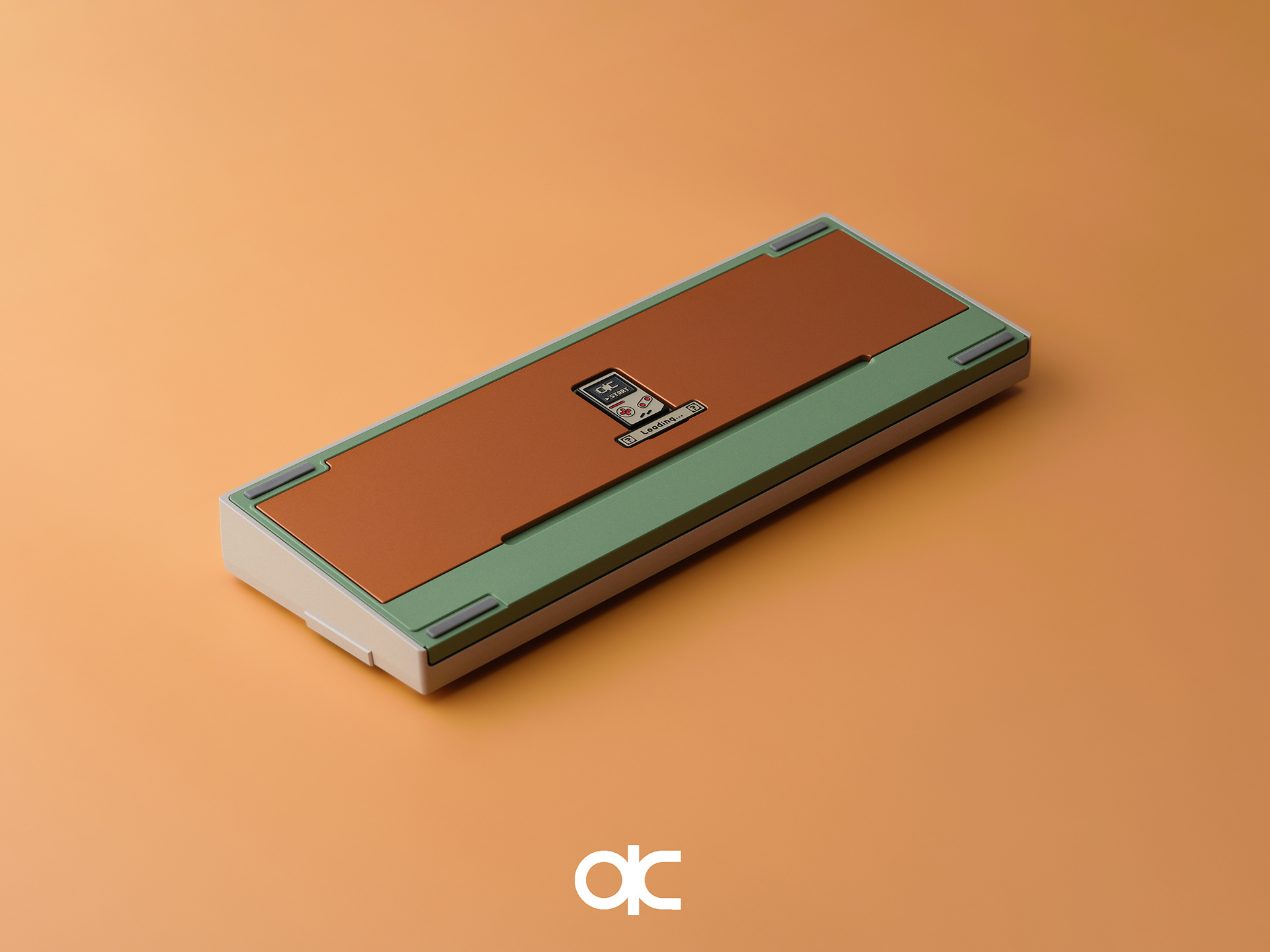

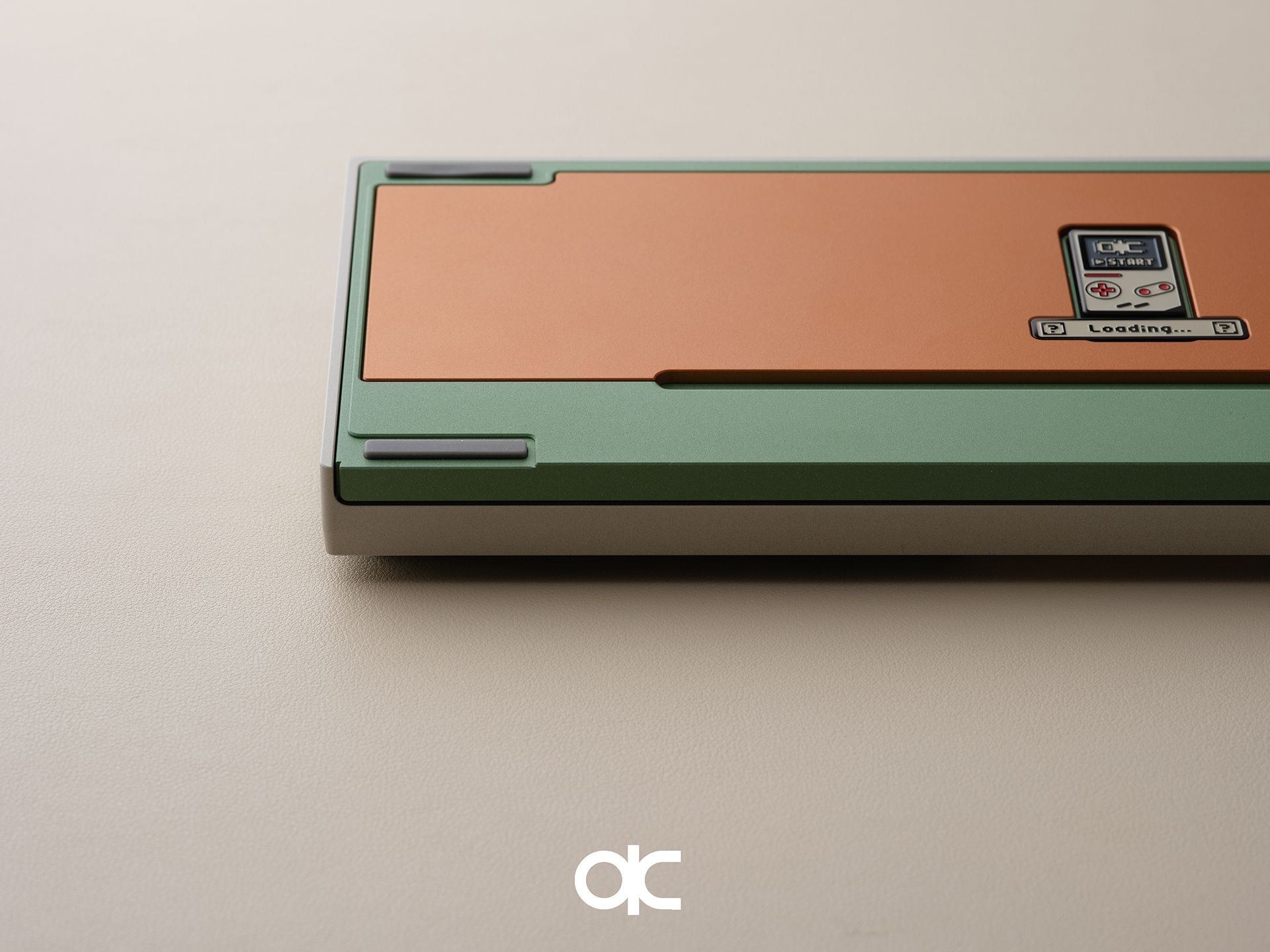

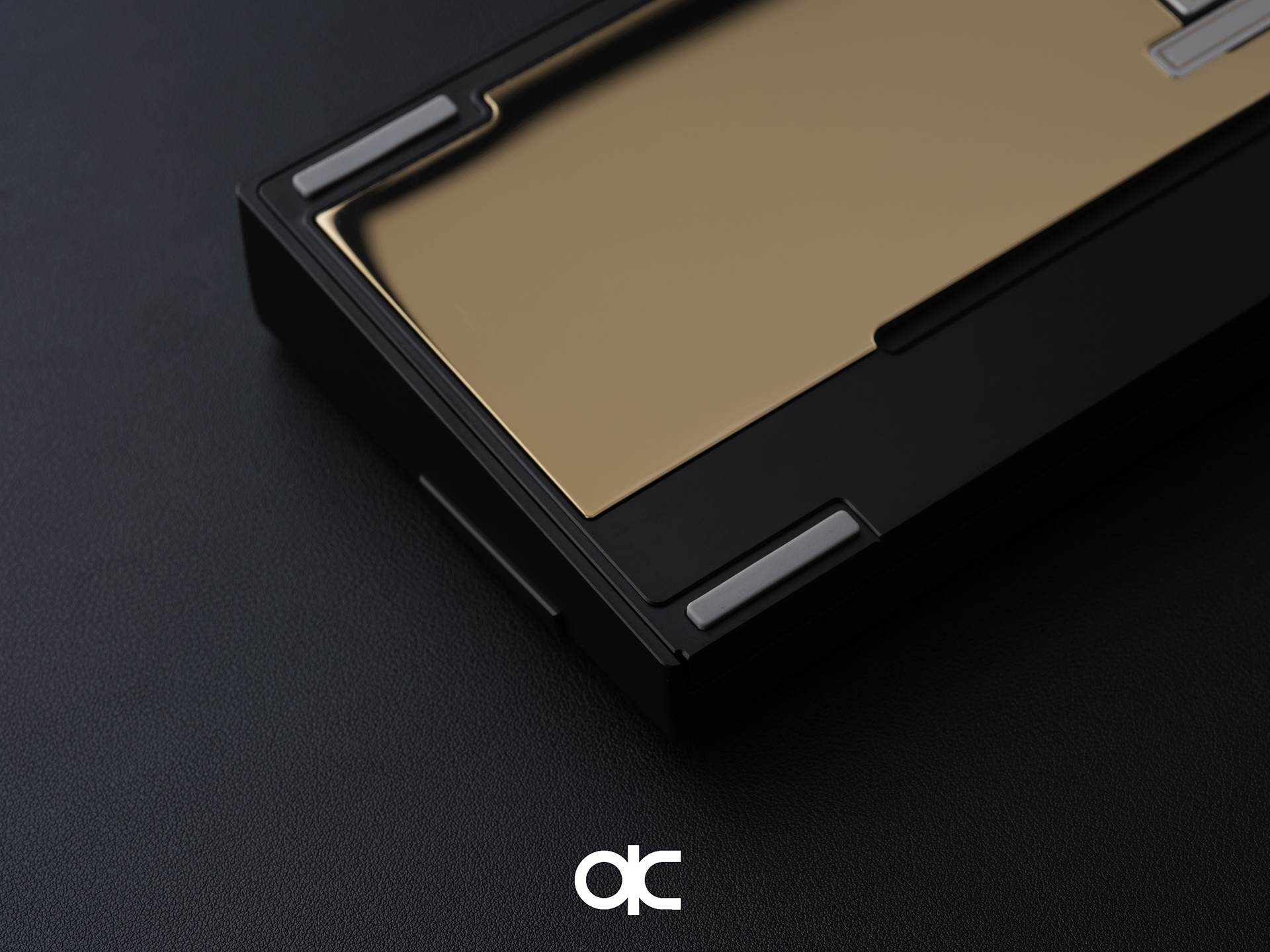

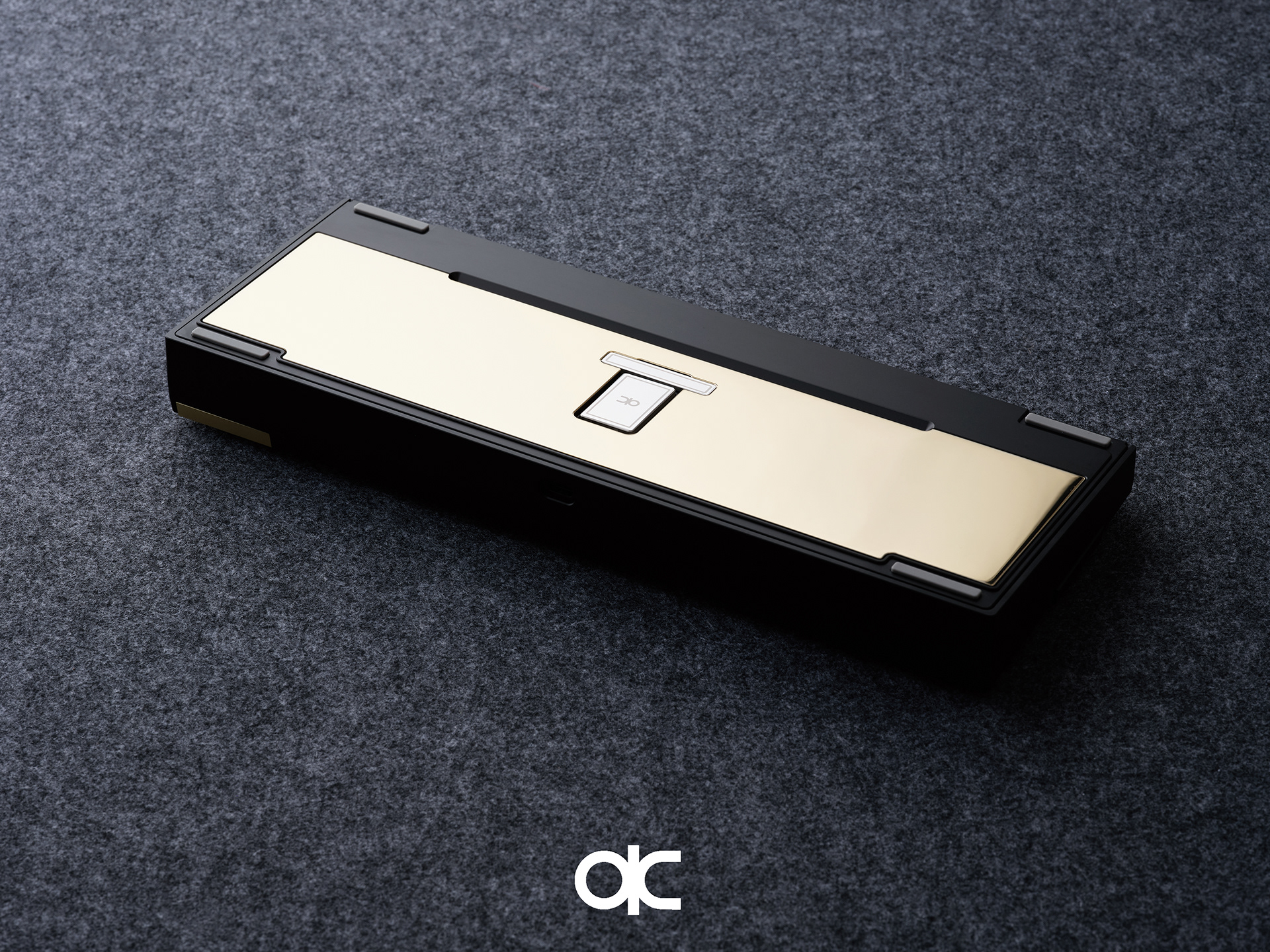

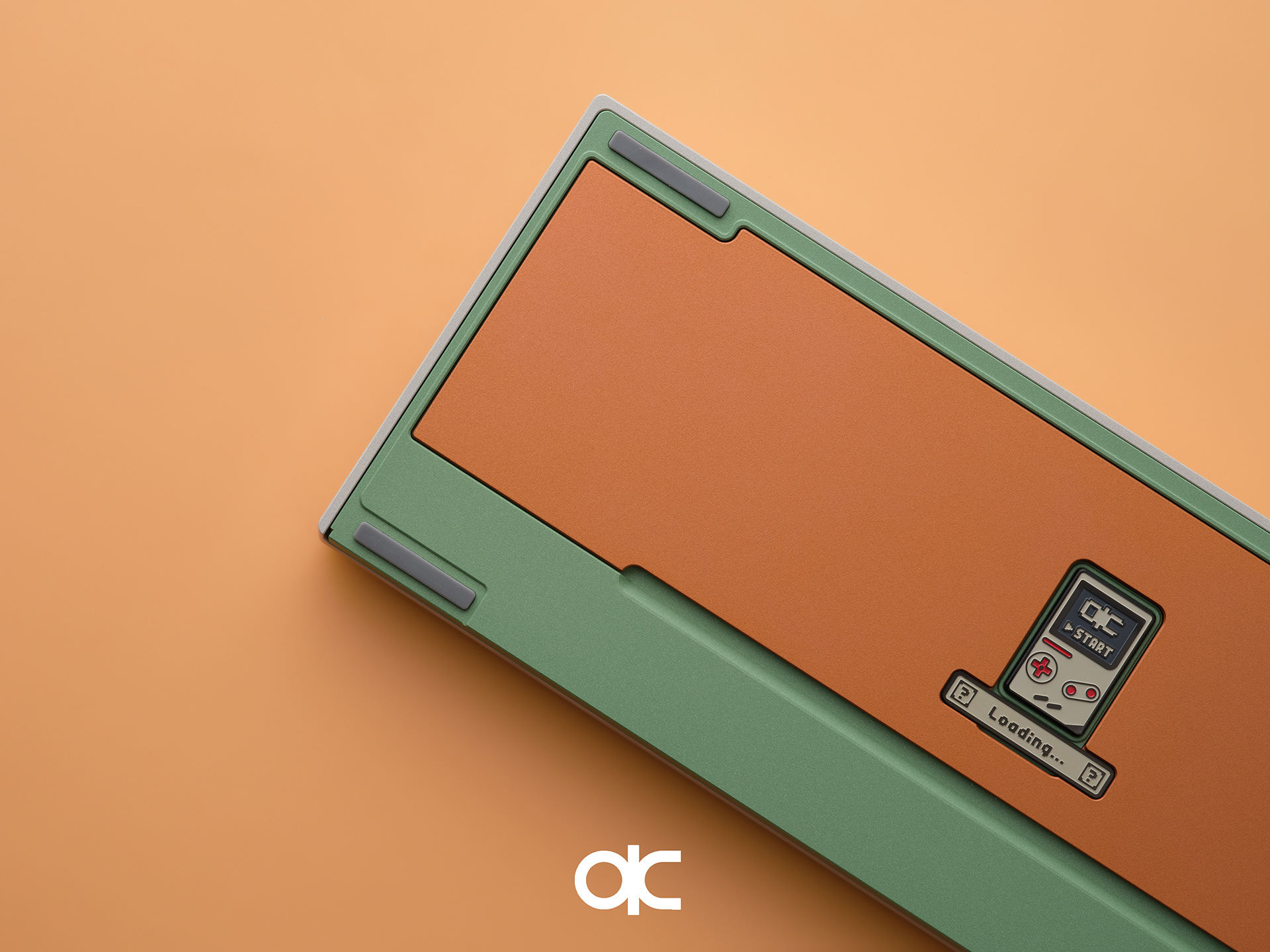

Similar to the QK75N, the QK65v2 features a large piece of weight on its back side, along with a themed badge and matching tag. All of these components can be customized to create a unique keyboard for users. The USB dongle can be stored under the badge, allowing you to enjoy a wireless typing experience anywhere without worrying about losing it.

Structure

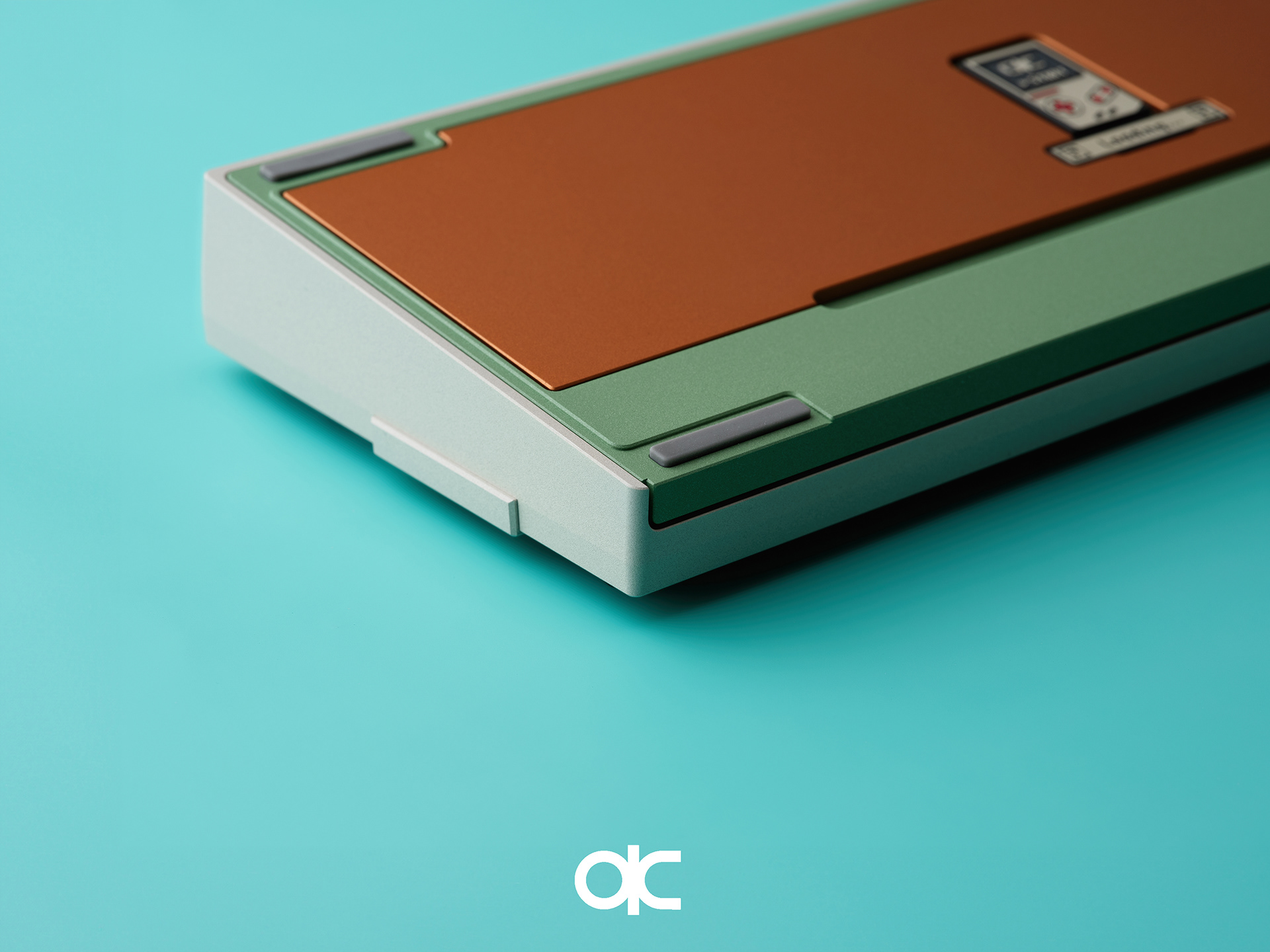

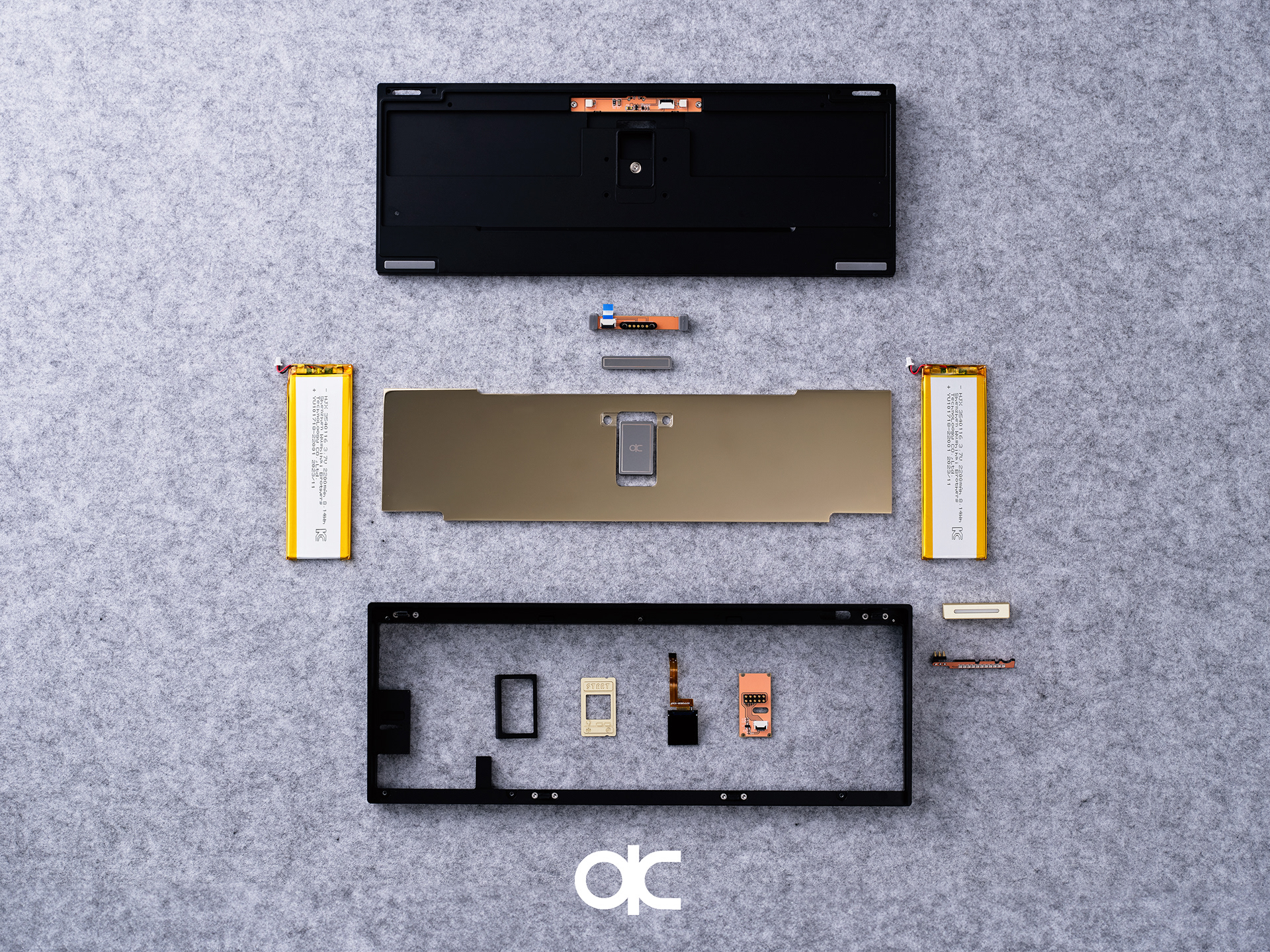

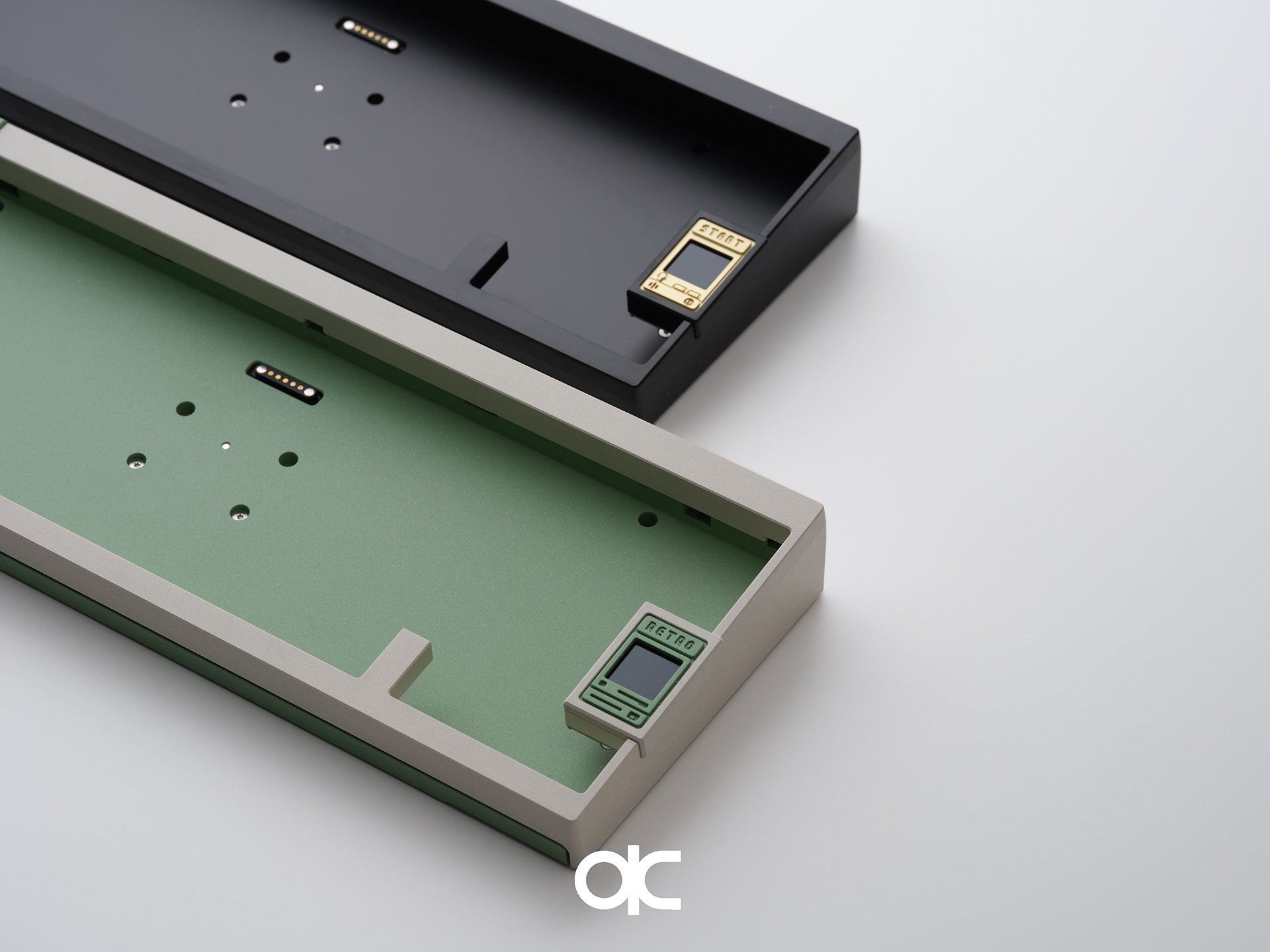

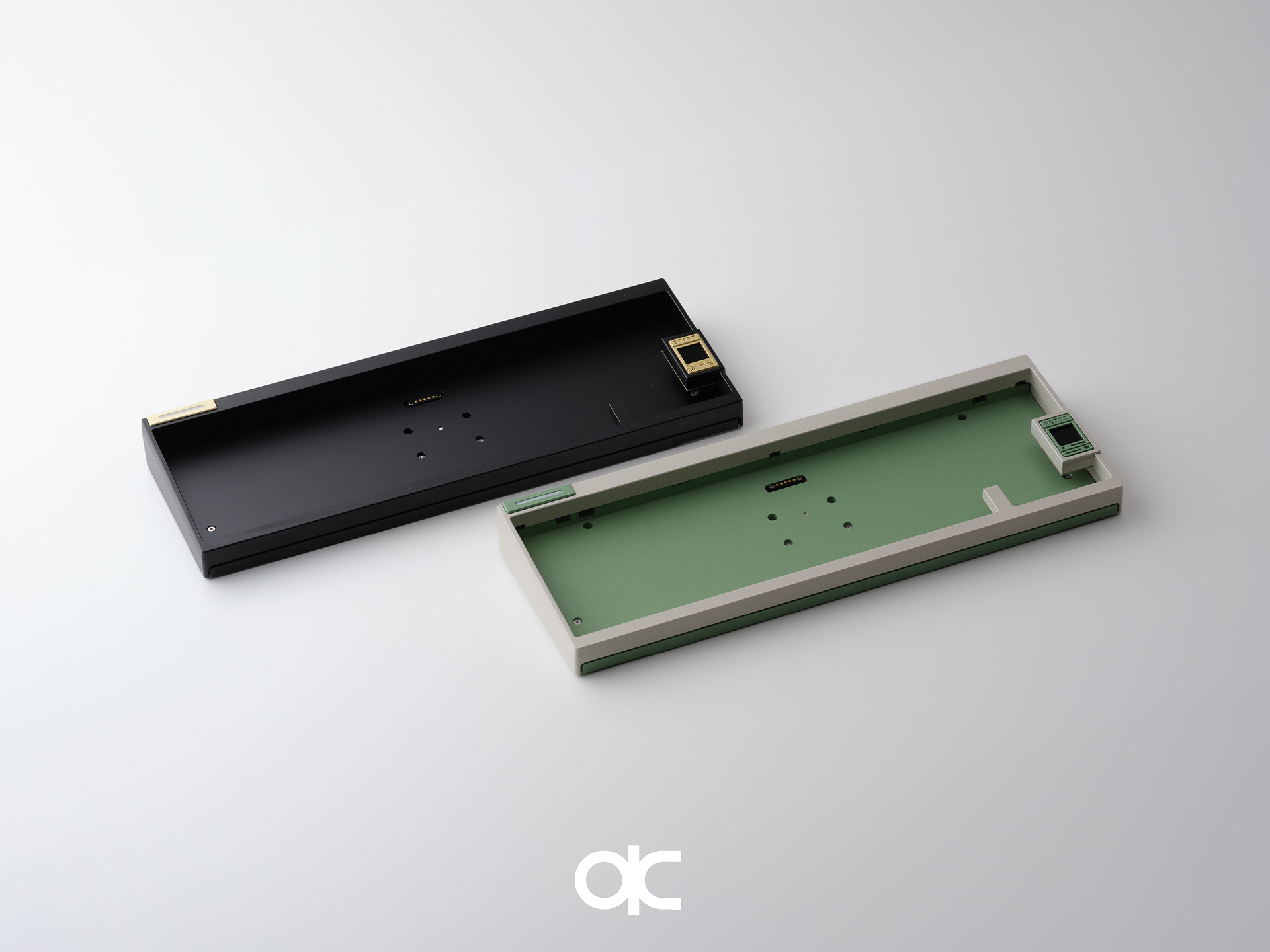

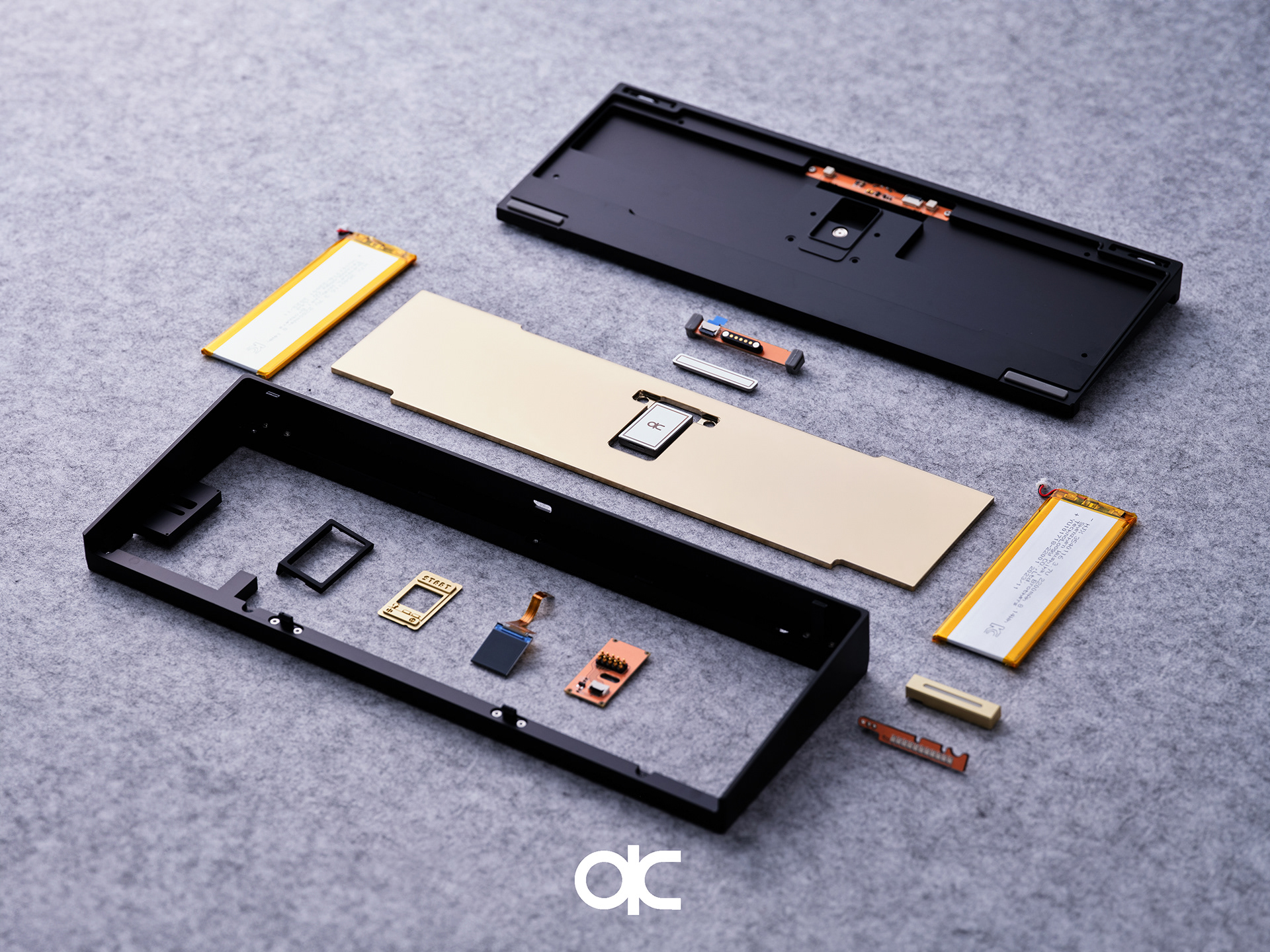

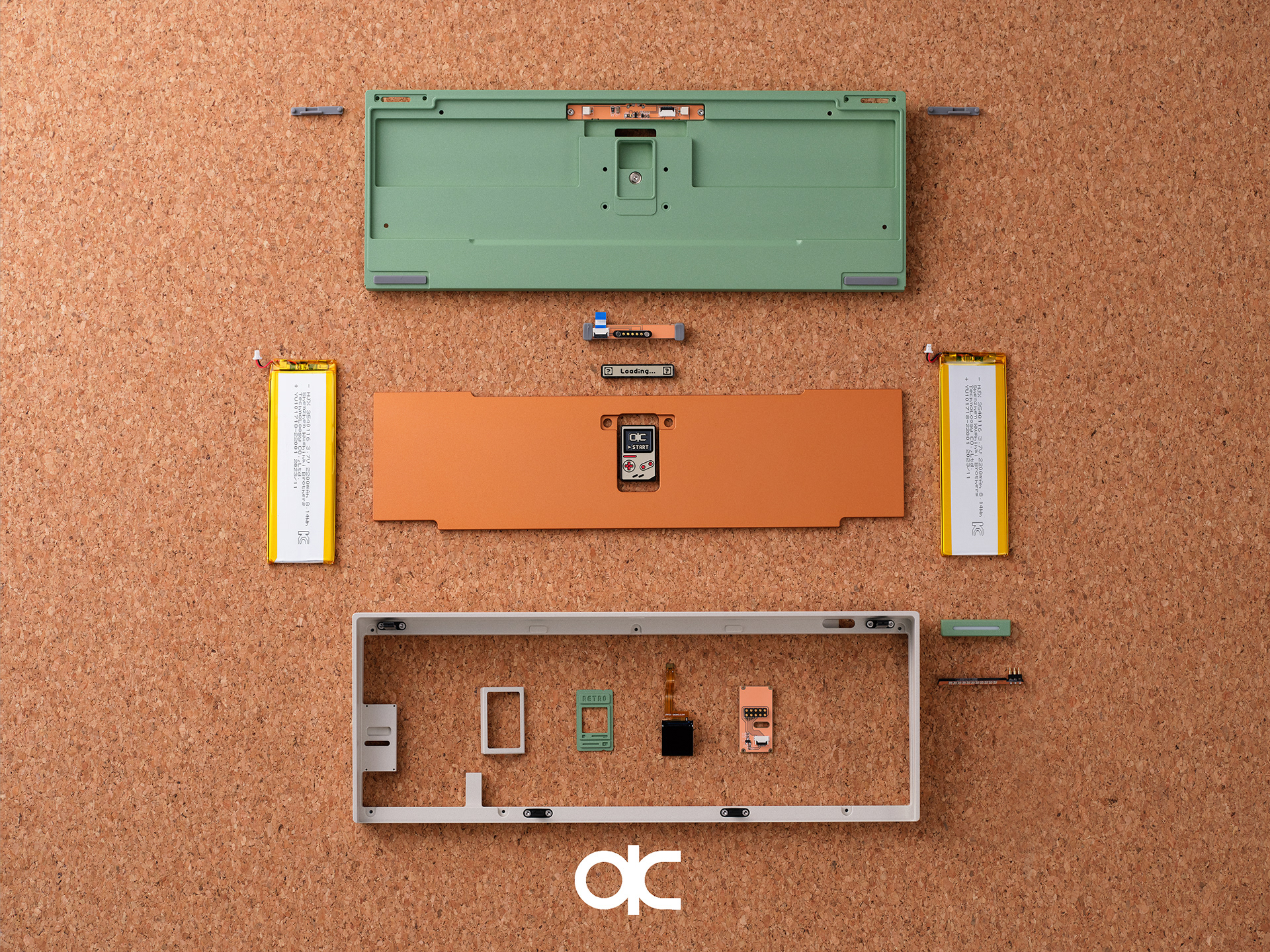

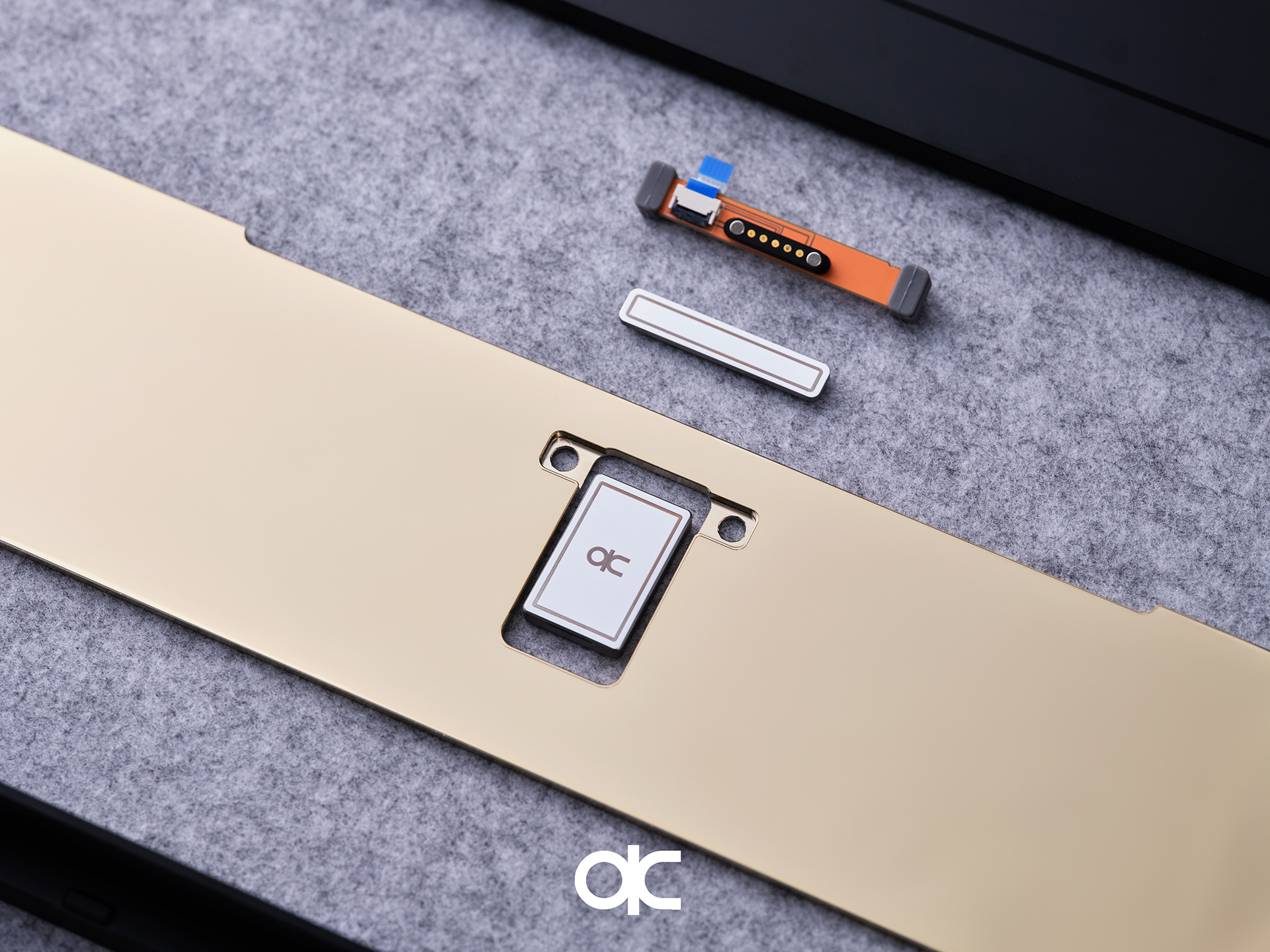

The use of magnetic connectors on our previous products has received very positive market feedback. On top of that, we incorporated a clip-in mechanism into the QK65v2 to further simplify the assembly process. The case can be disassembled in less than 10 seconds by simply removing the rubber feet and releasing the clips.

The QK65v2 is compatible with both PCB gasket mount and top mount. We have added plate cushions around the screw holes to eliminate any potential case ping when using the top mount. Additionally, the PCB daughterboard now has its own gasket to ensure mobility with the magnetic connectors.
