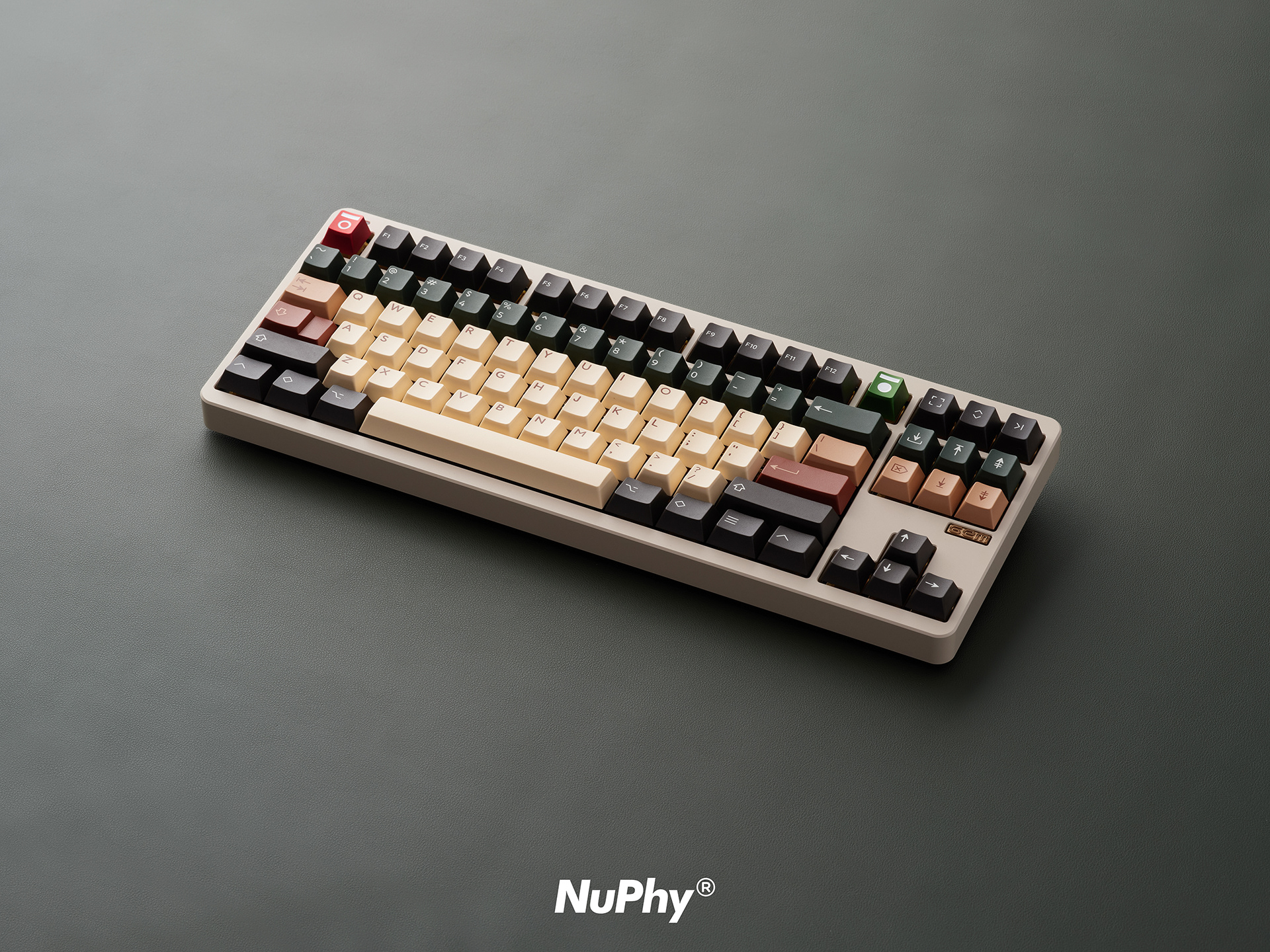

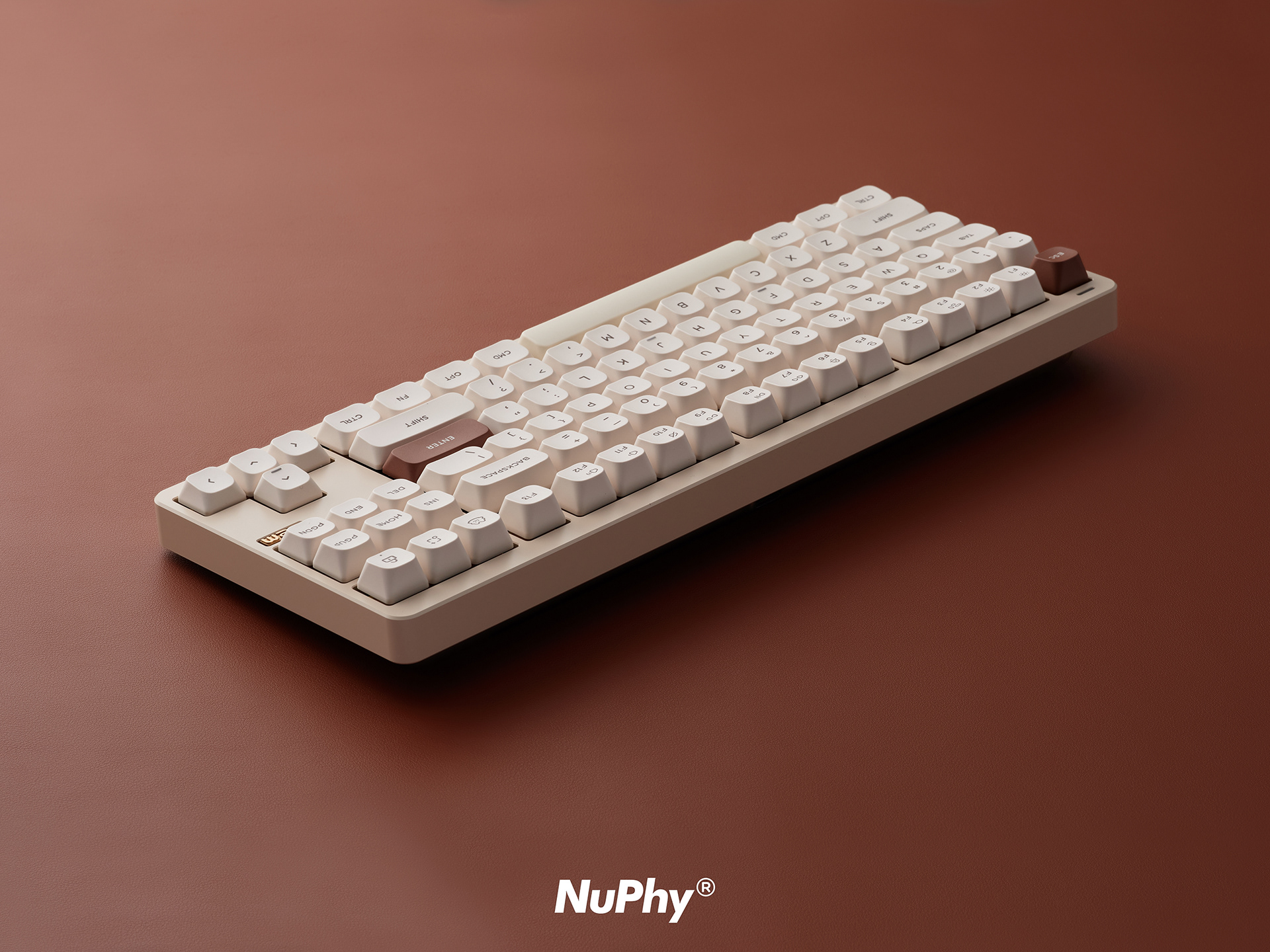

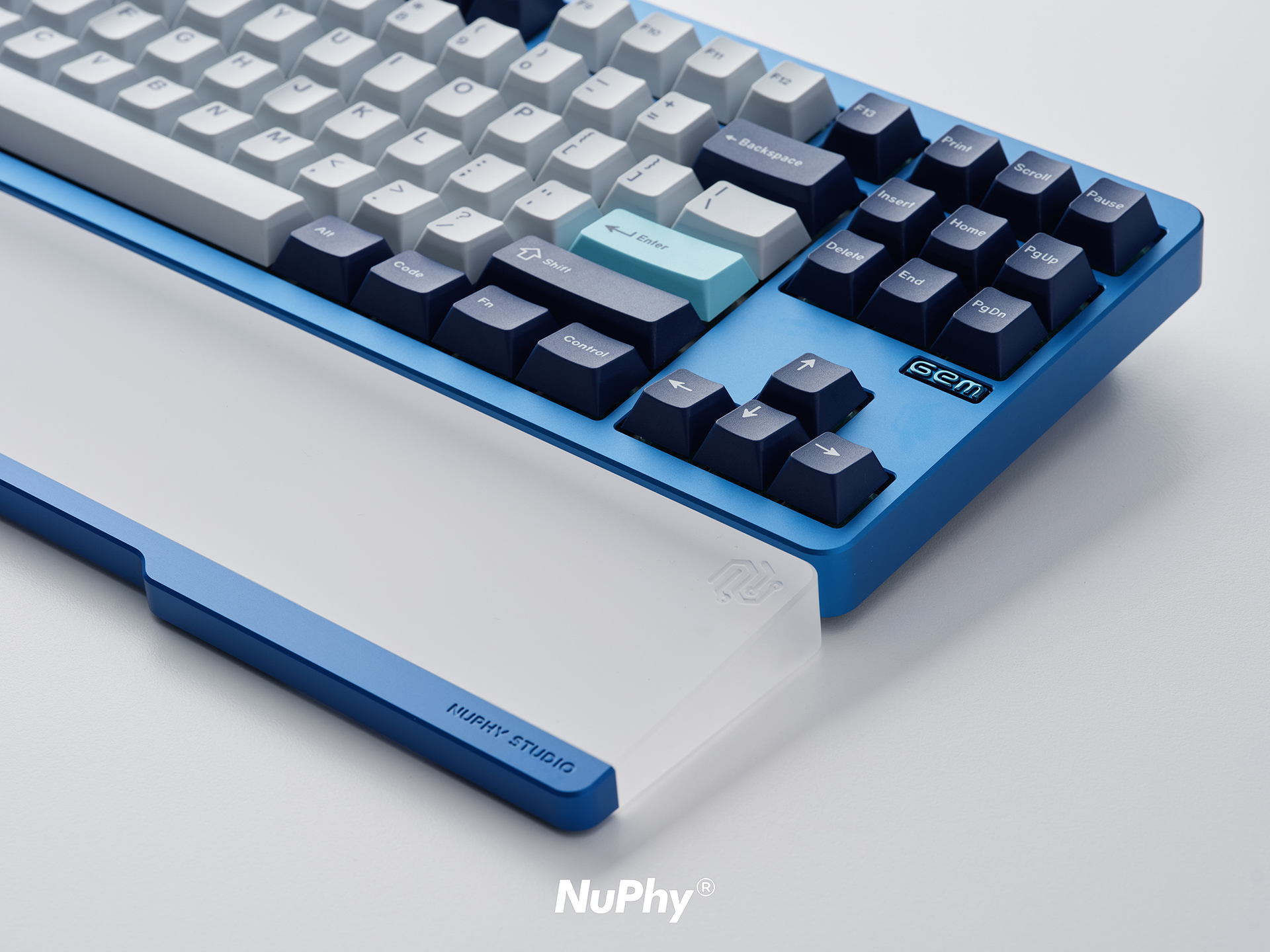

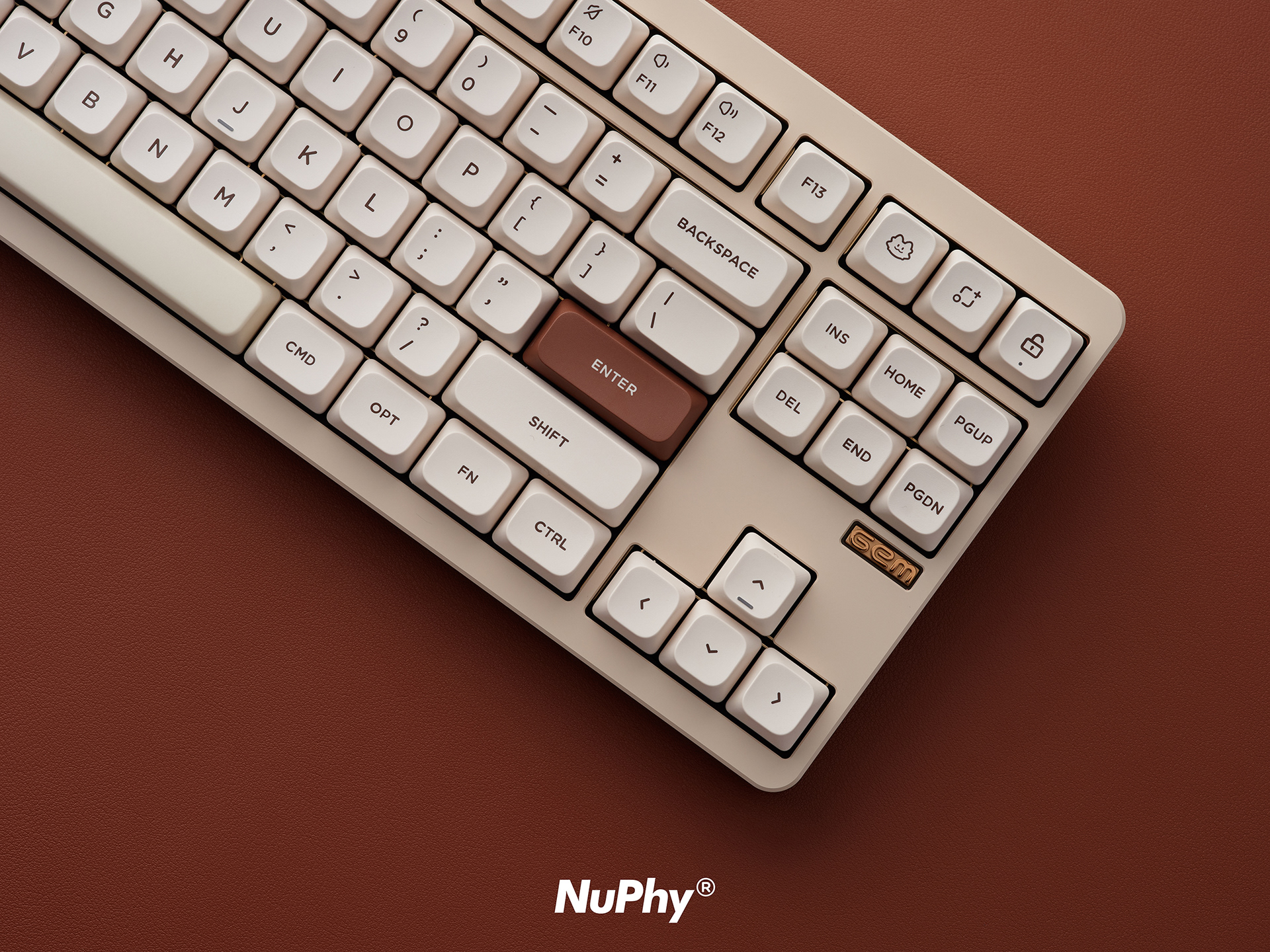

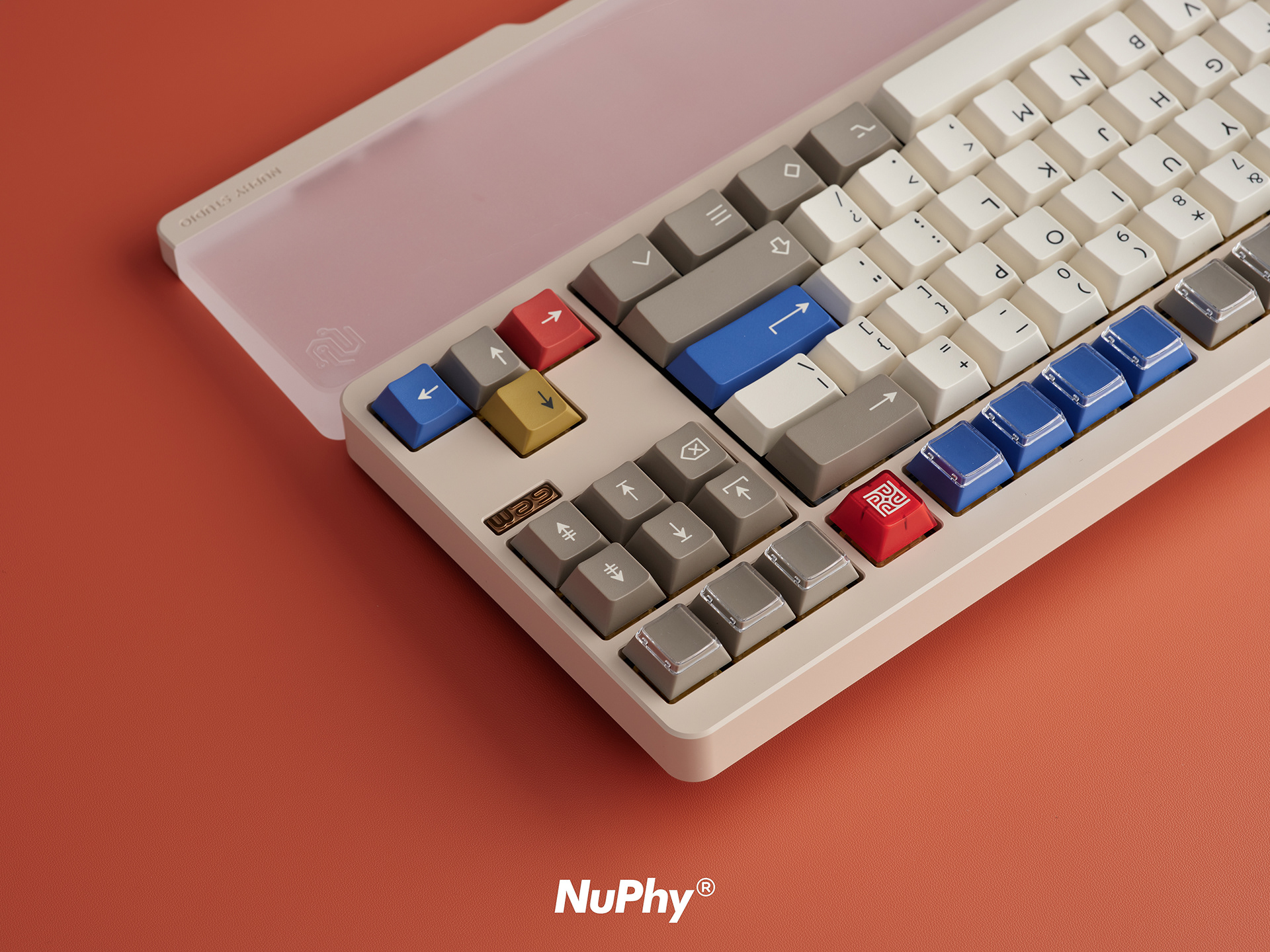

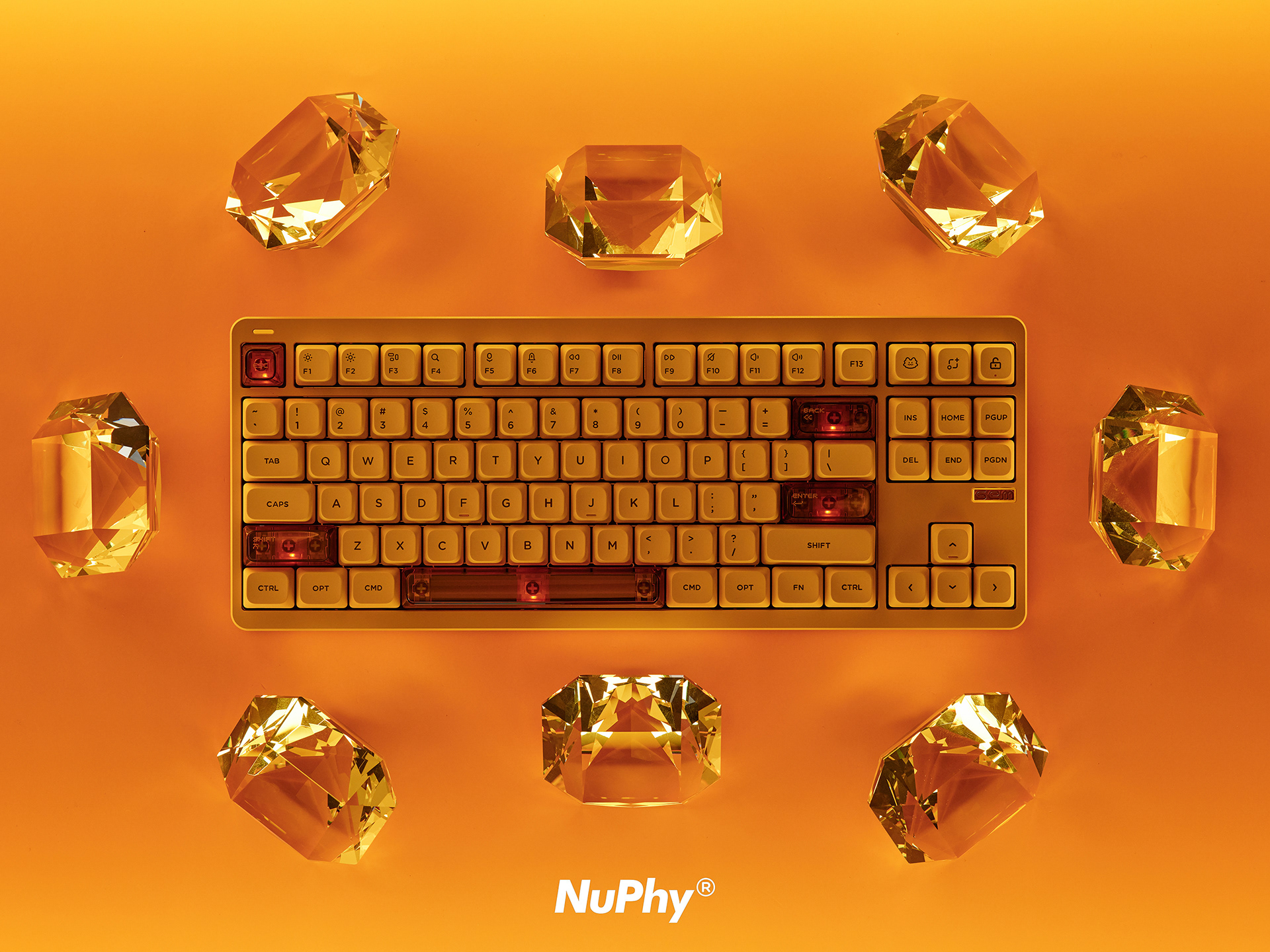

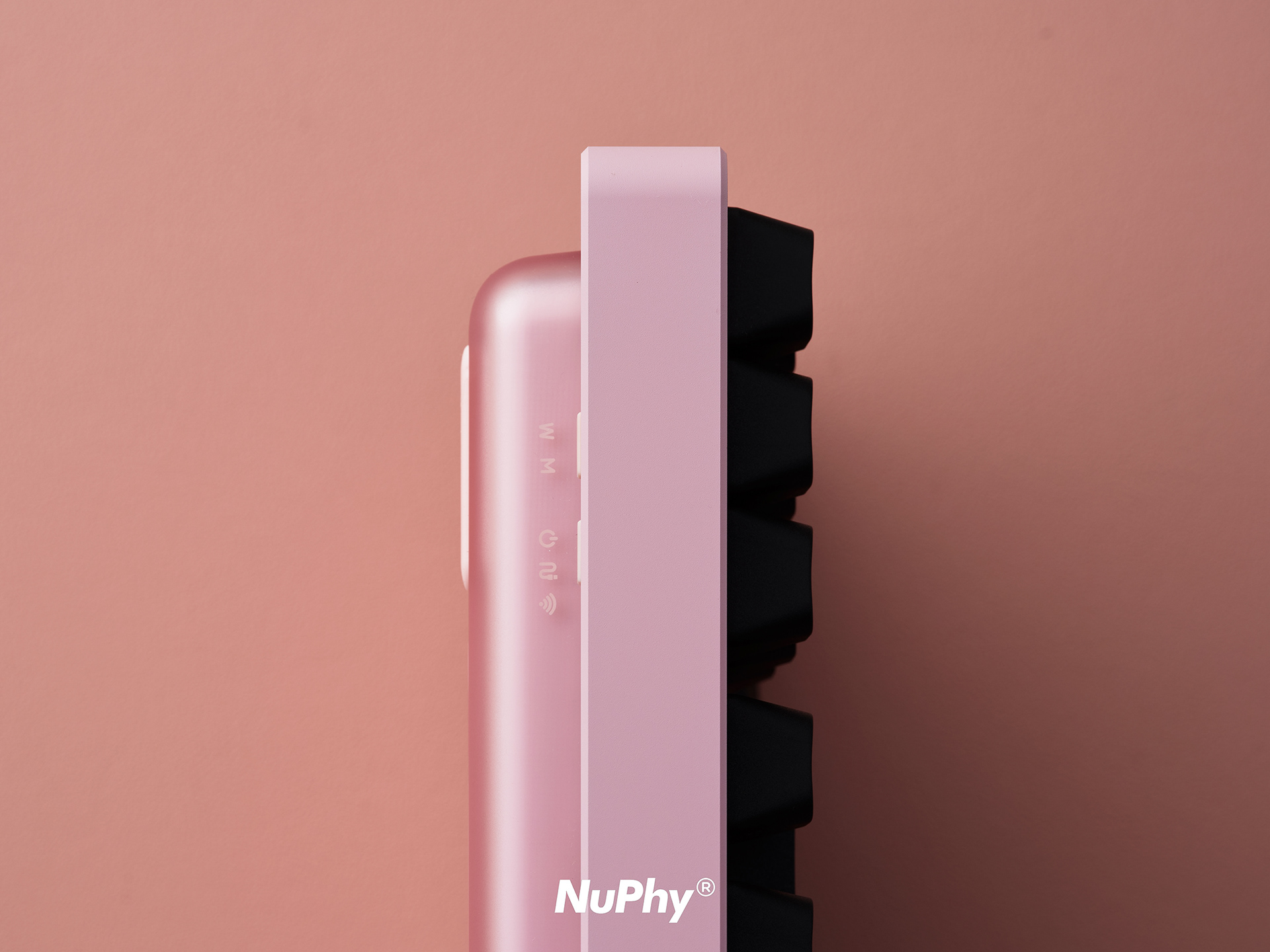

GEM80
Nuphy stuido
SPECIFICATION
Layout: ANSI 80%/TKL
Number of Keys: 88
Switch Type: Normal-profile
Stabilizer Type: Plate Mounted
Mount Type: Gasket & Top
Hot-swappable Support: Yes (3/5 pin MX-style)
N-key Rollover Support: Yes
N-key Rollover Support: Yes
Backlight: South-facing RGB-LED
Backlight Modes: 40+
Compatible System: macOS/Windows/Linux/Android/iOS
Operating Environment: -10 to 50℃
MCU: ARM STM32F072
RF: NRF52810 (tri-mode)

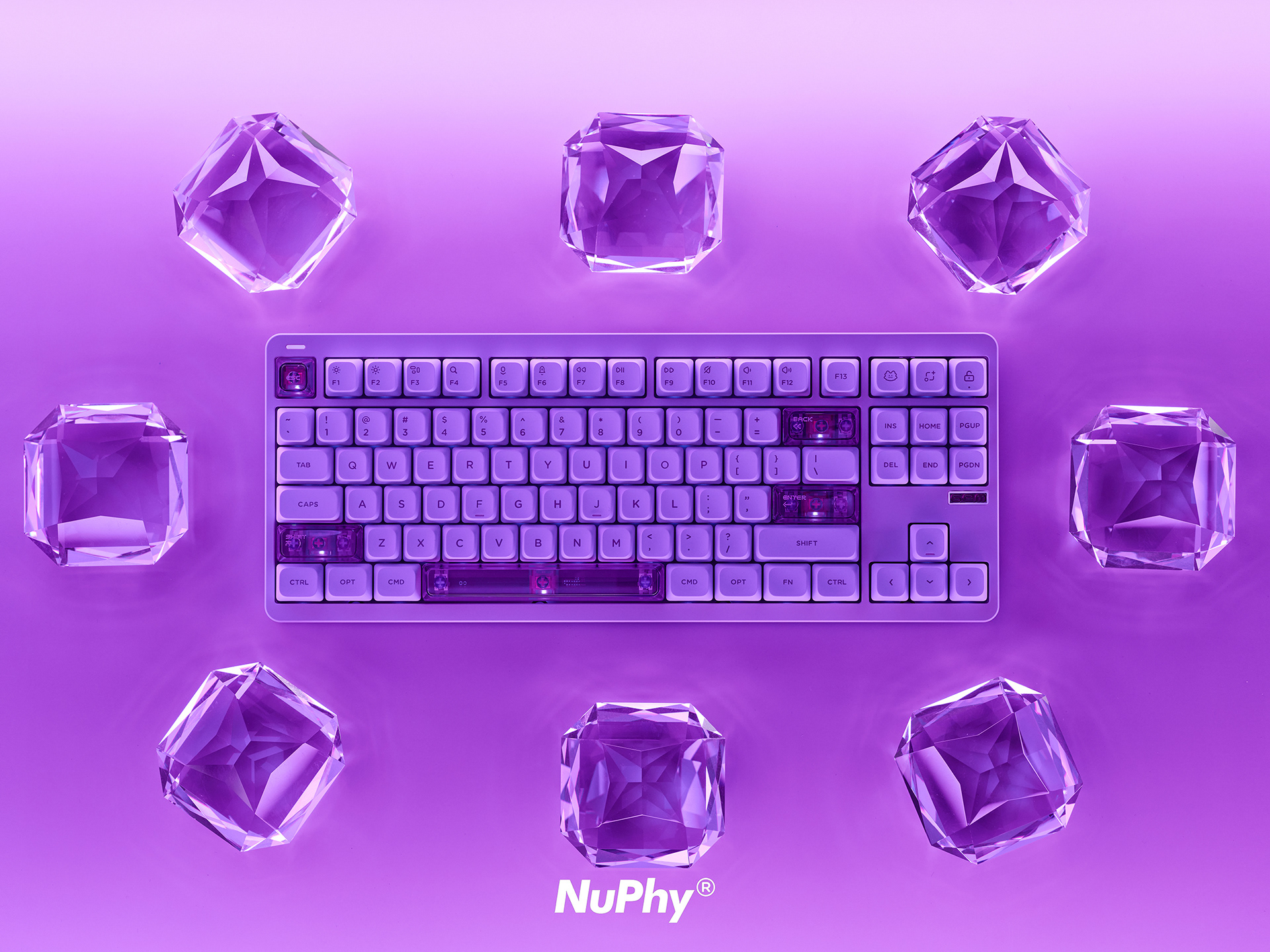

Mystic Indigo
MATERIALS
Top Case: Aluminum

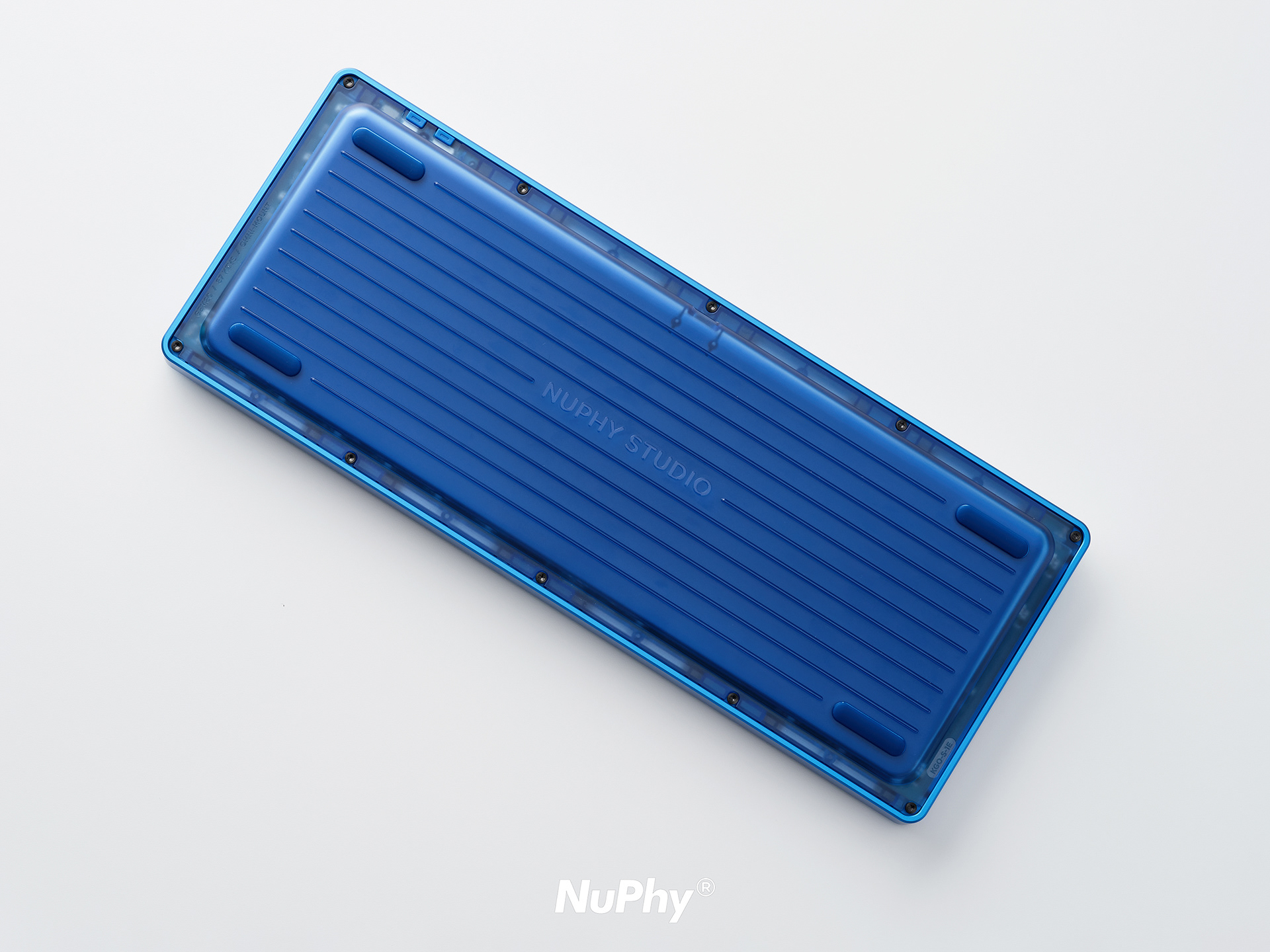

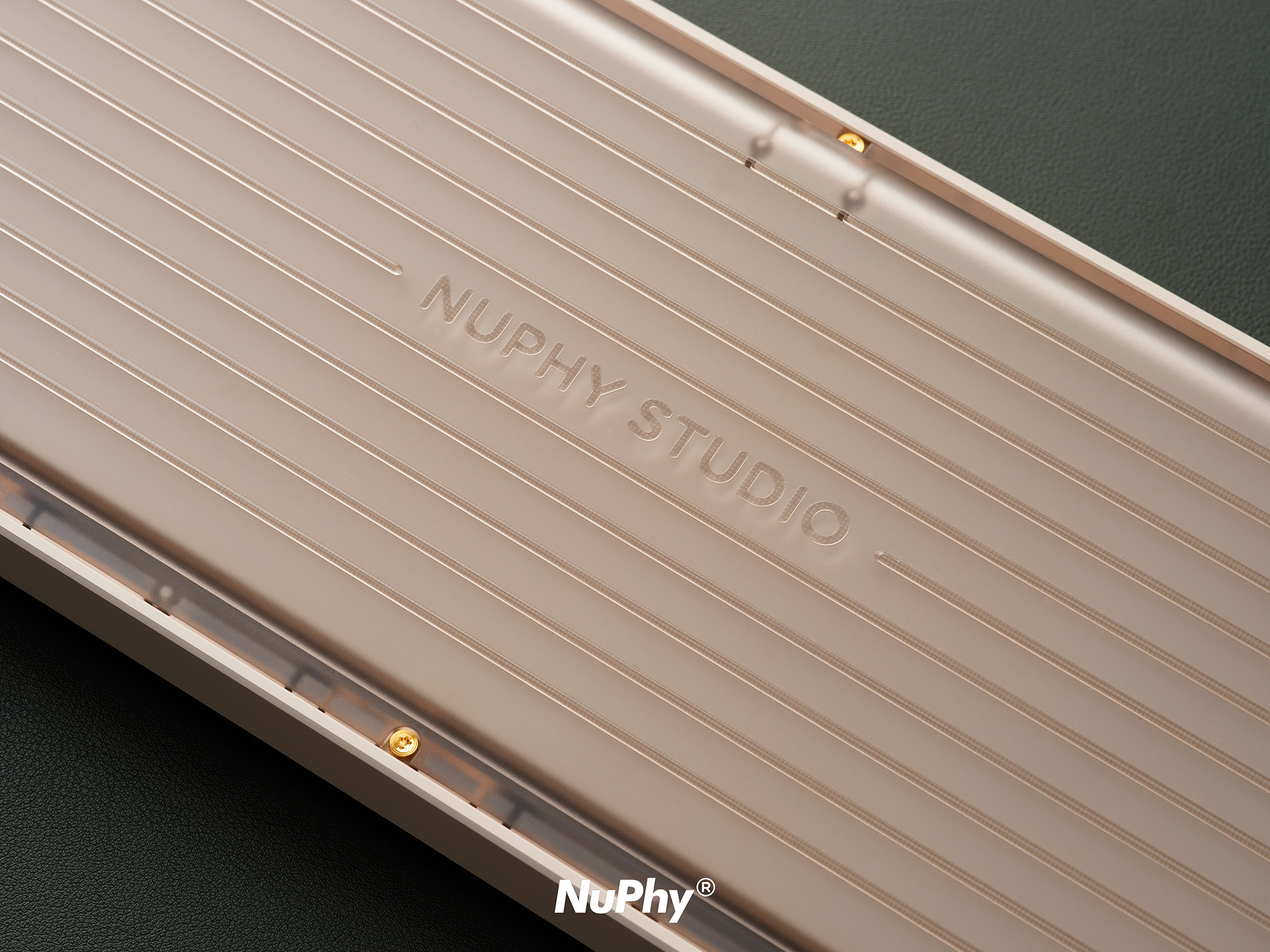

Bottom Case: PC
Plate Material: Fr4

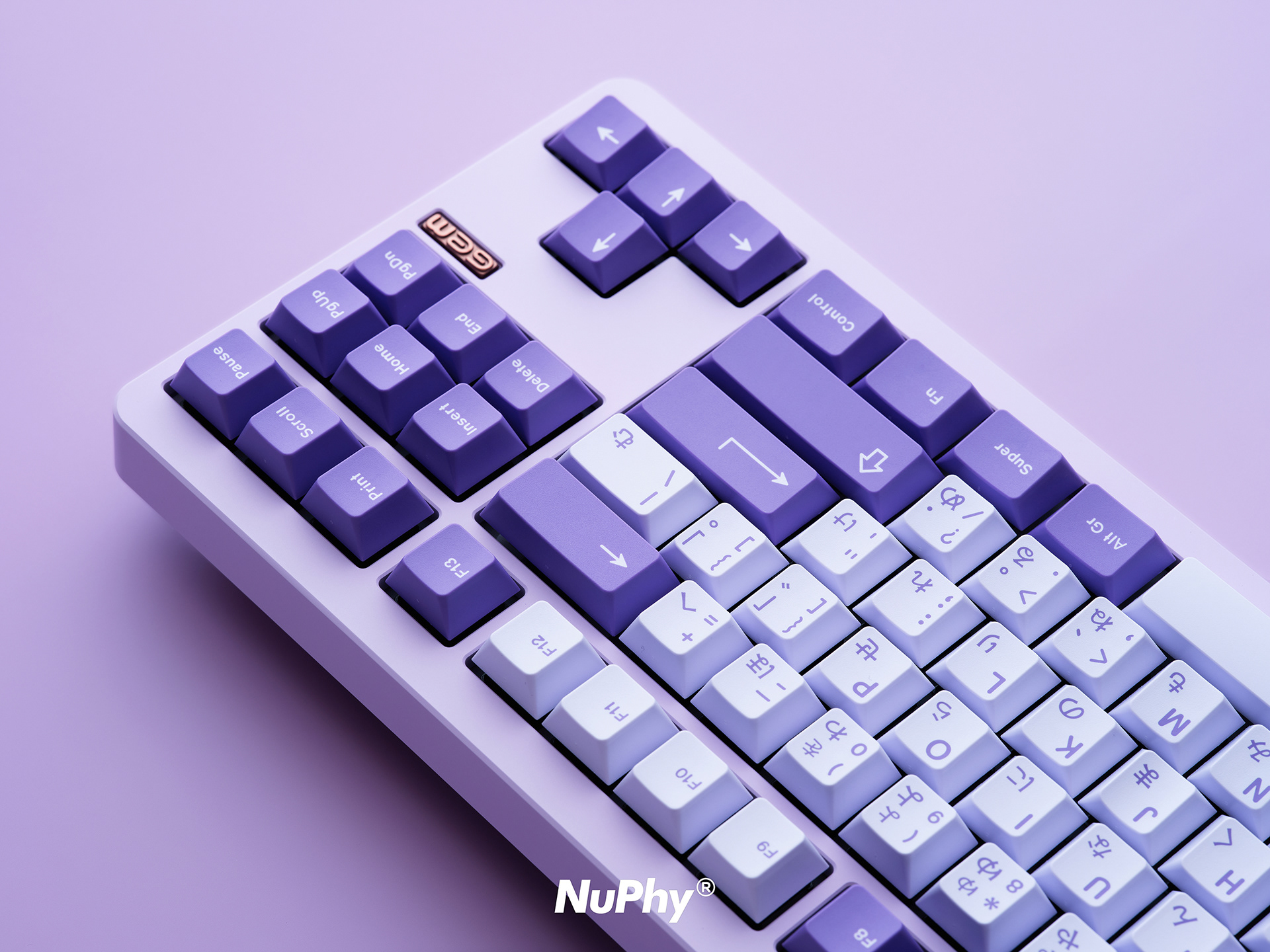

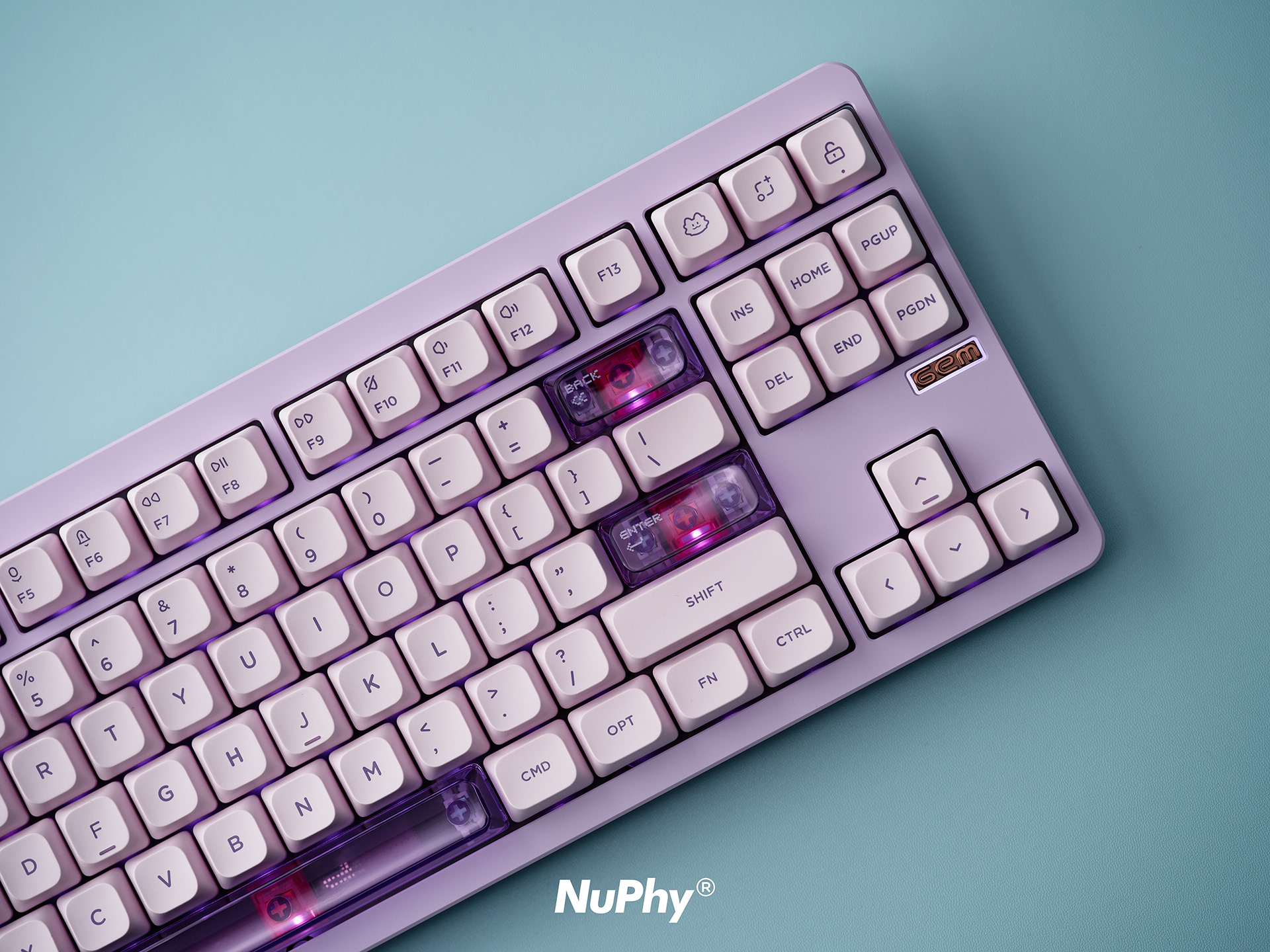

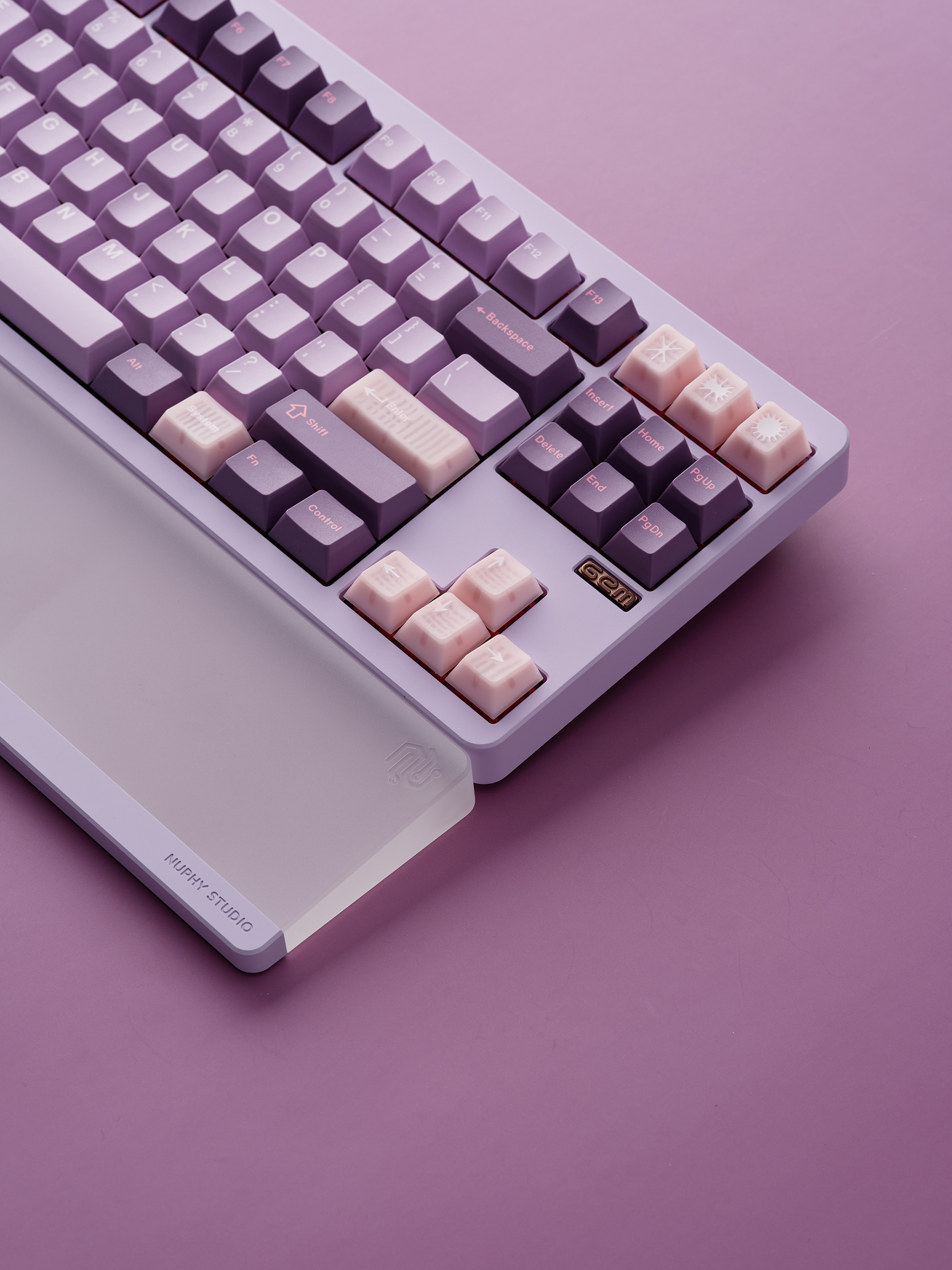

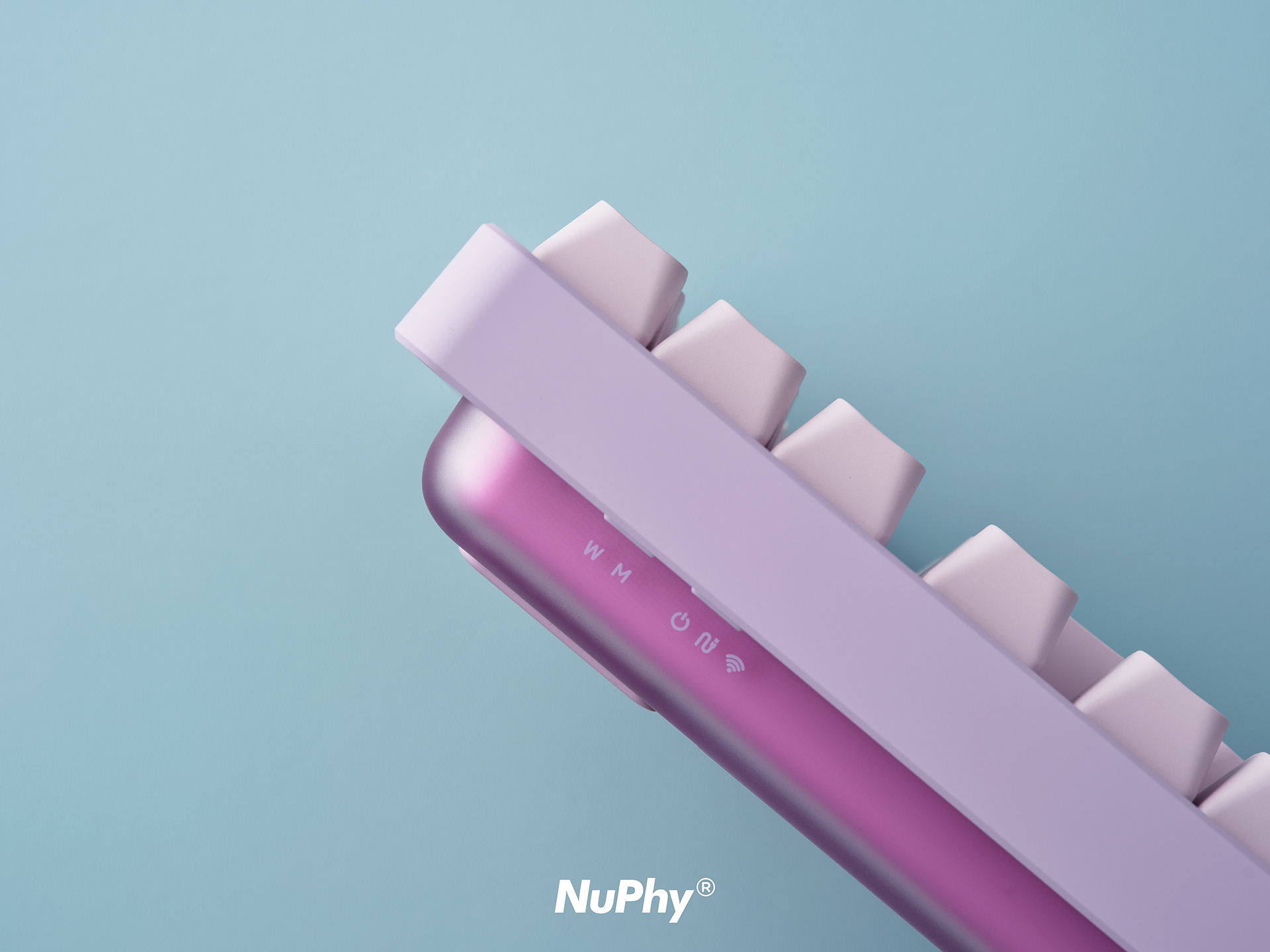

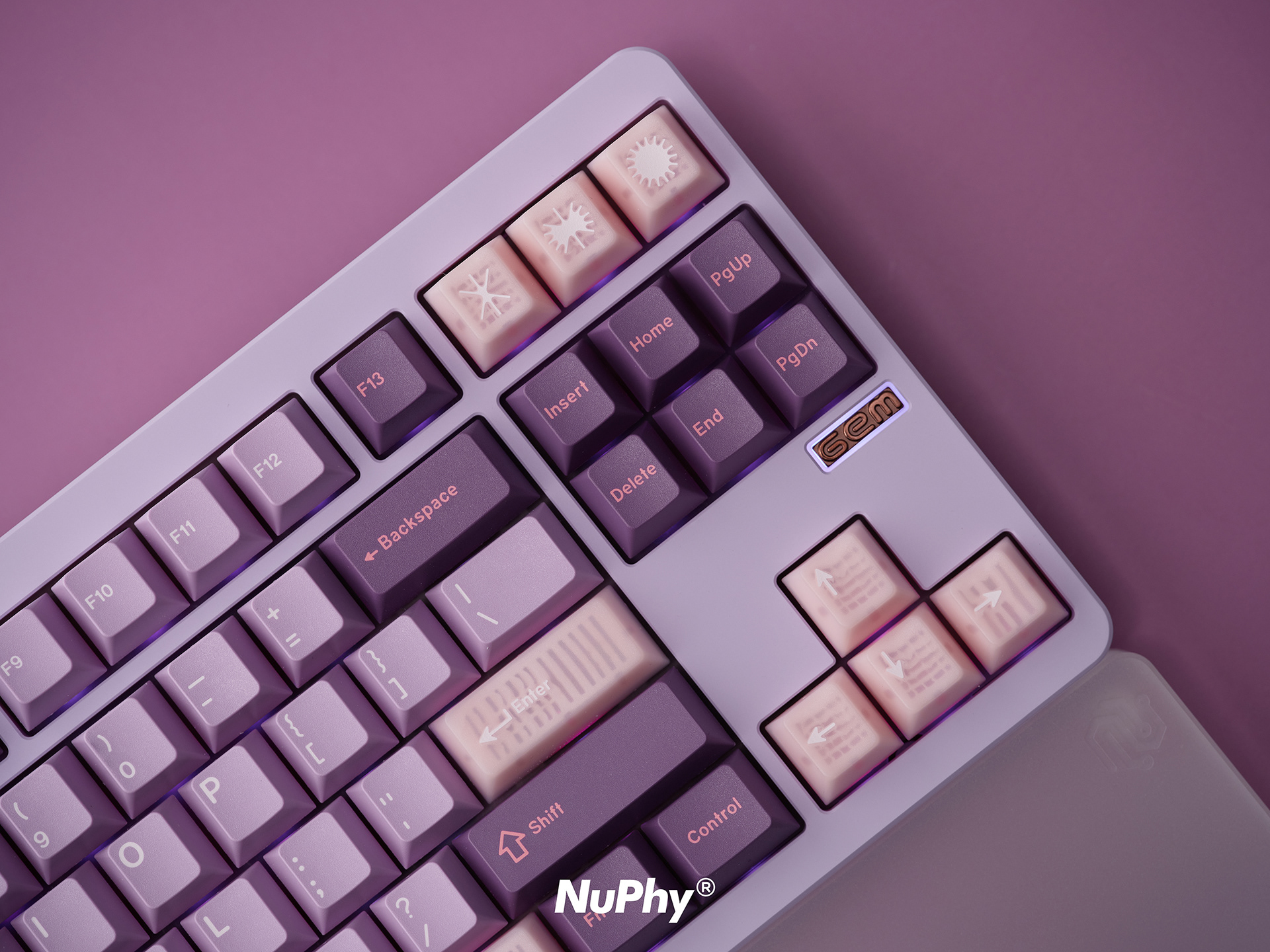

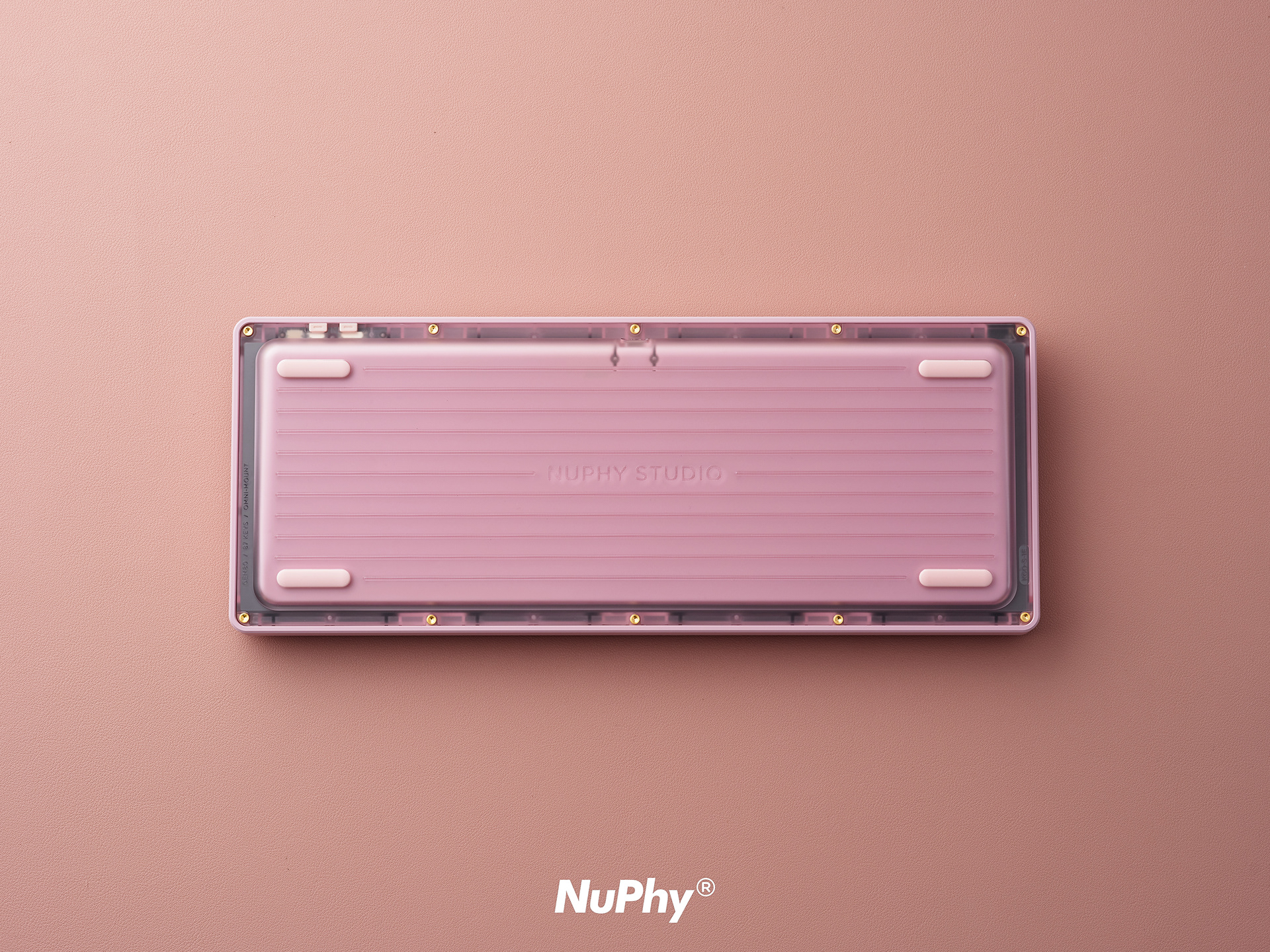

Airy Lilac
SIZE AND WEIGHT
Long 141.3 mm (5.56 inches)
Wide 358.1 mm (14.10 inches)
Back Height 36.7 mm (1.44 inches)
Front Height 21.5 mm (0.85 inch)
Weight 1120 grams (2.47 pound)

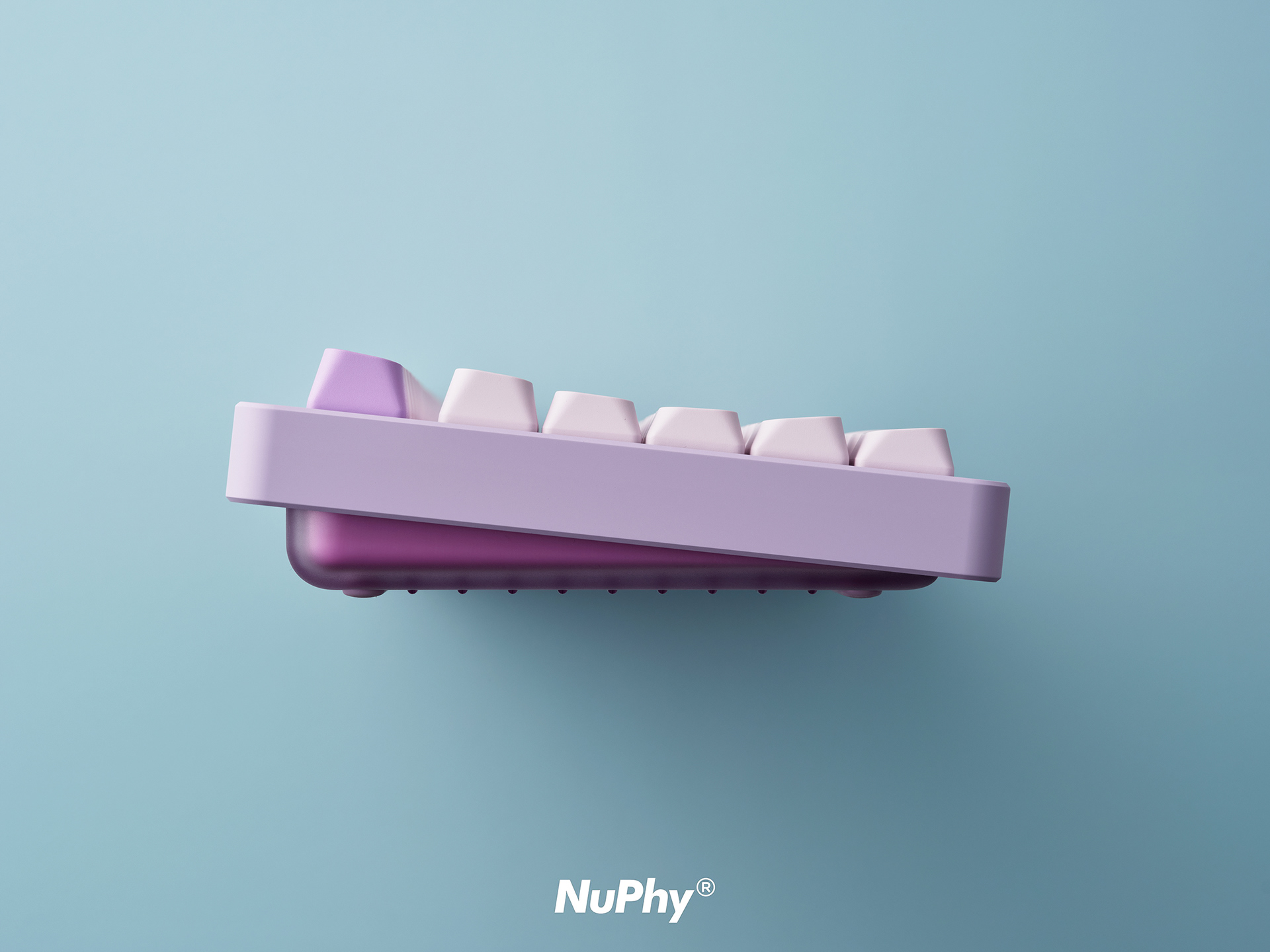

Type Angle 6º
Wide 358.1 mm (14.10 inches)
Back Height 36.7 mm (1.44 inches)
Front Height 21.5 mm (0.85 inch)
Weight 1120 grams (2.47 pound)
Type Angle 6º

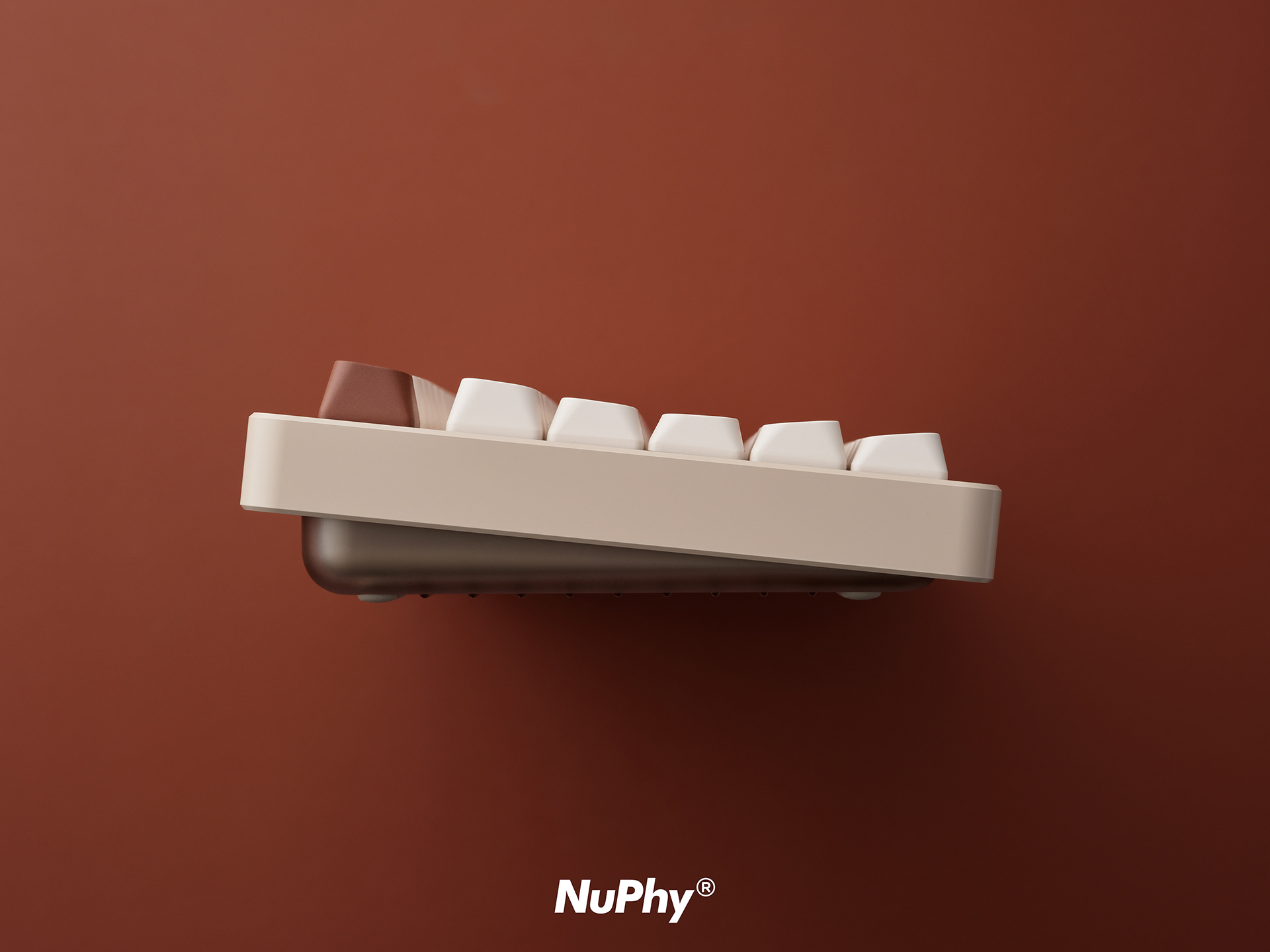

Cosmic Mocha
CONNECTION
Wired Polling Rate: 1000Hz
2.4GHz Polling Rate: 1000Hz (tri-mode)
Bluetooth 5.0 Polling Rate: 125Hz (tri-mode)

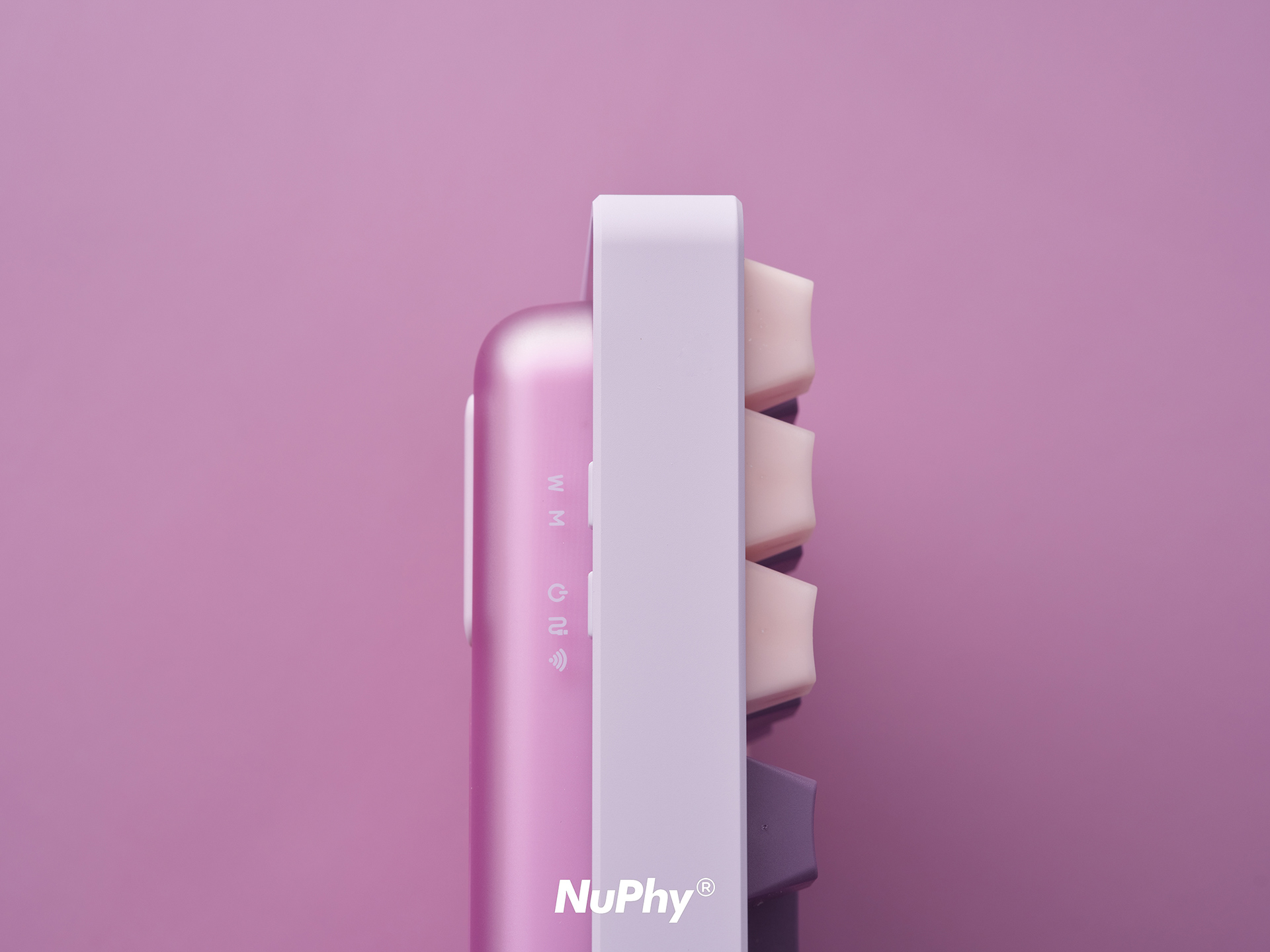

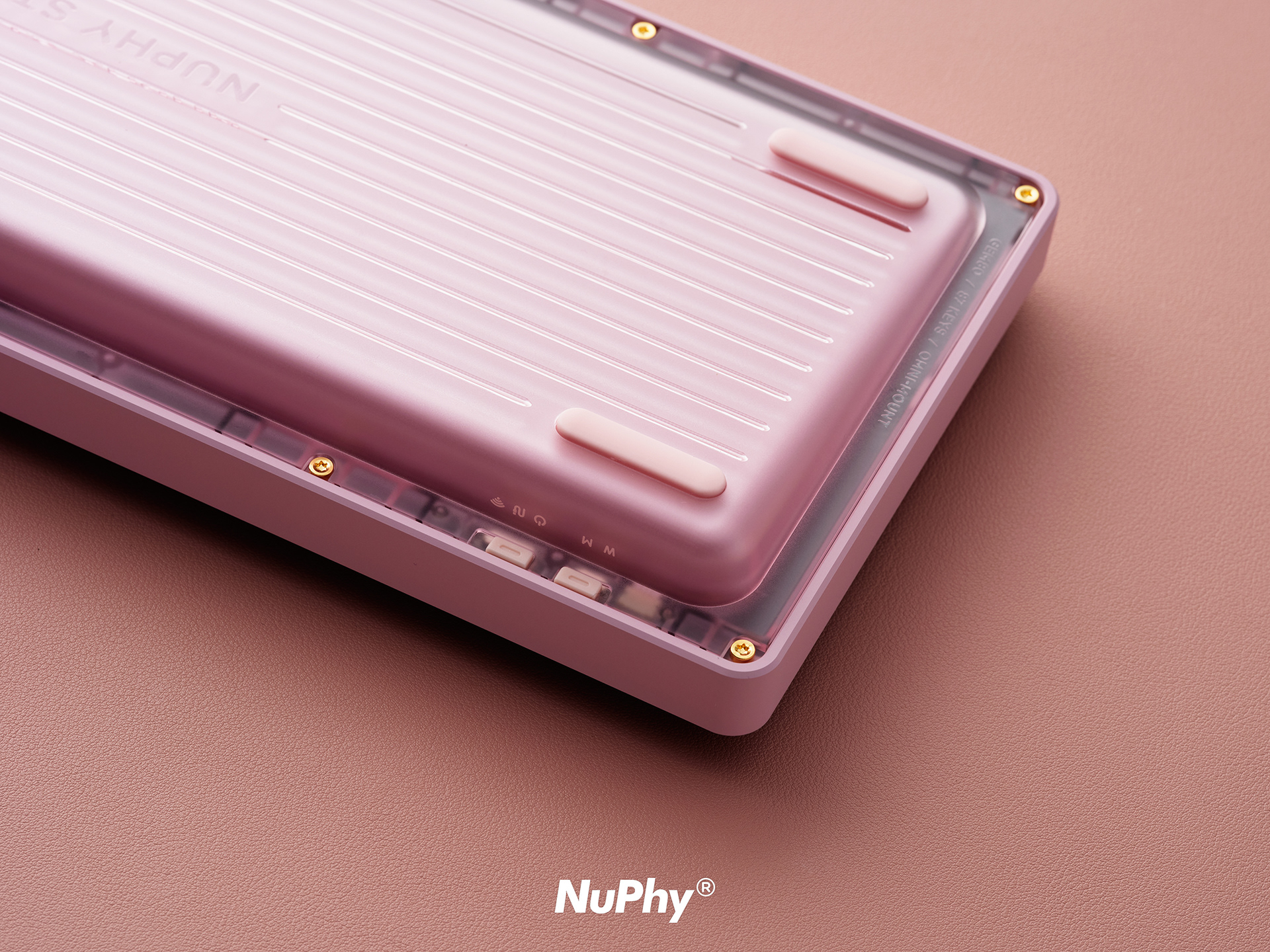

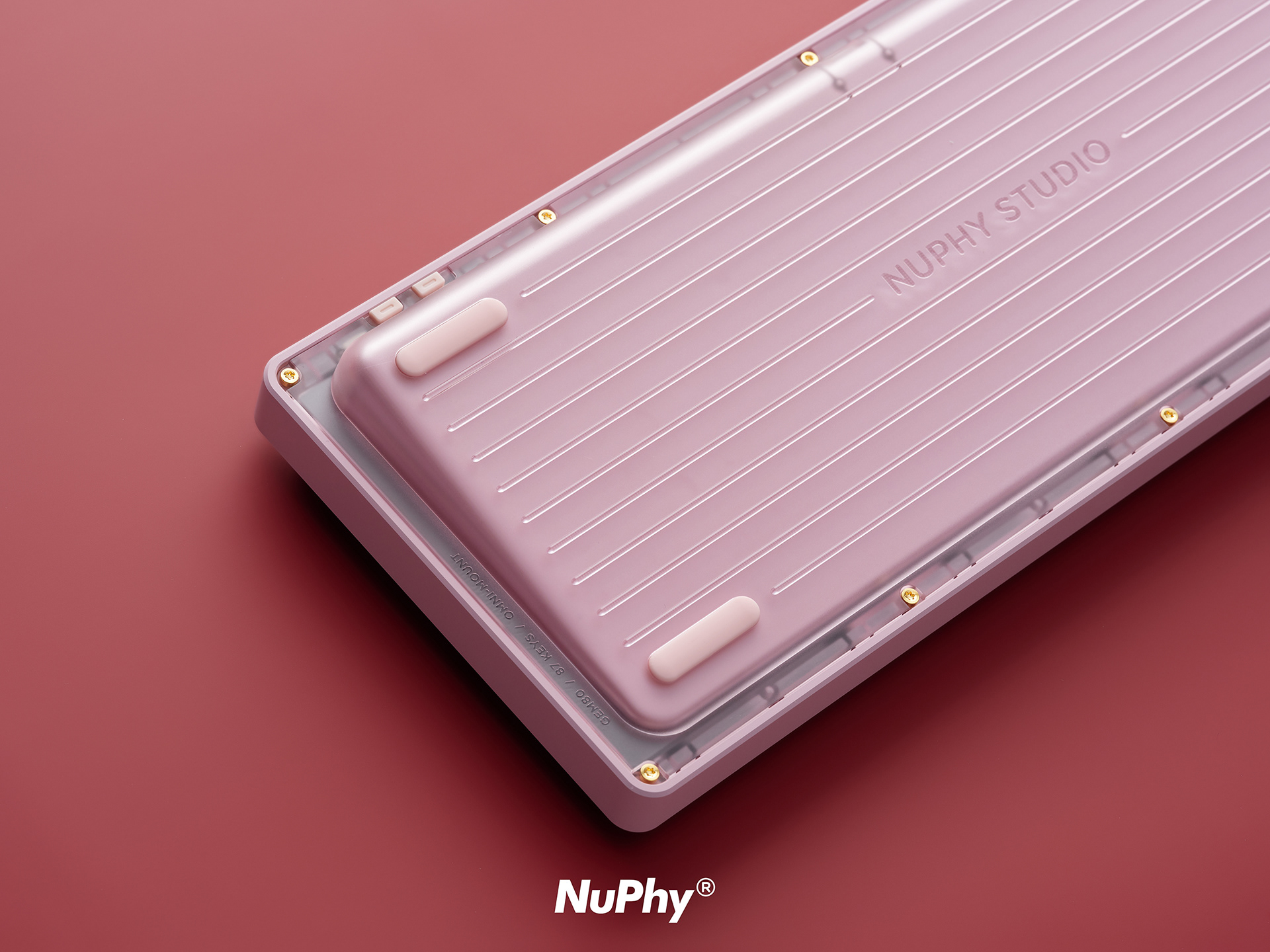

Inca Rose
POWER AND BATTERY (TRI-MODE)
Battery Capacity: 4000mAh
Working Time (all lights on): 24~45 hours (lab test result)
Working Time (homing bars only): 34~70 hours (lab test result)
Working Time (all lights off): Up to 330 hours (lab test result)
Working Time (all lights off): Up to 330 hours (lab test result)

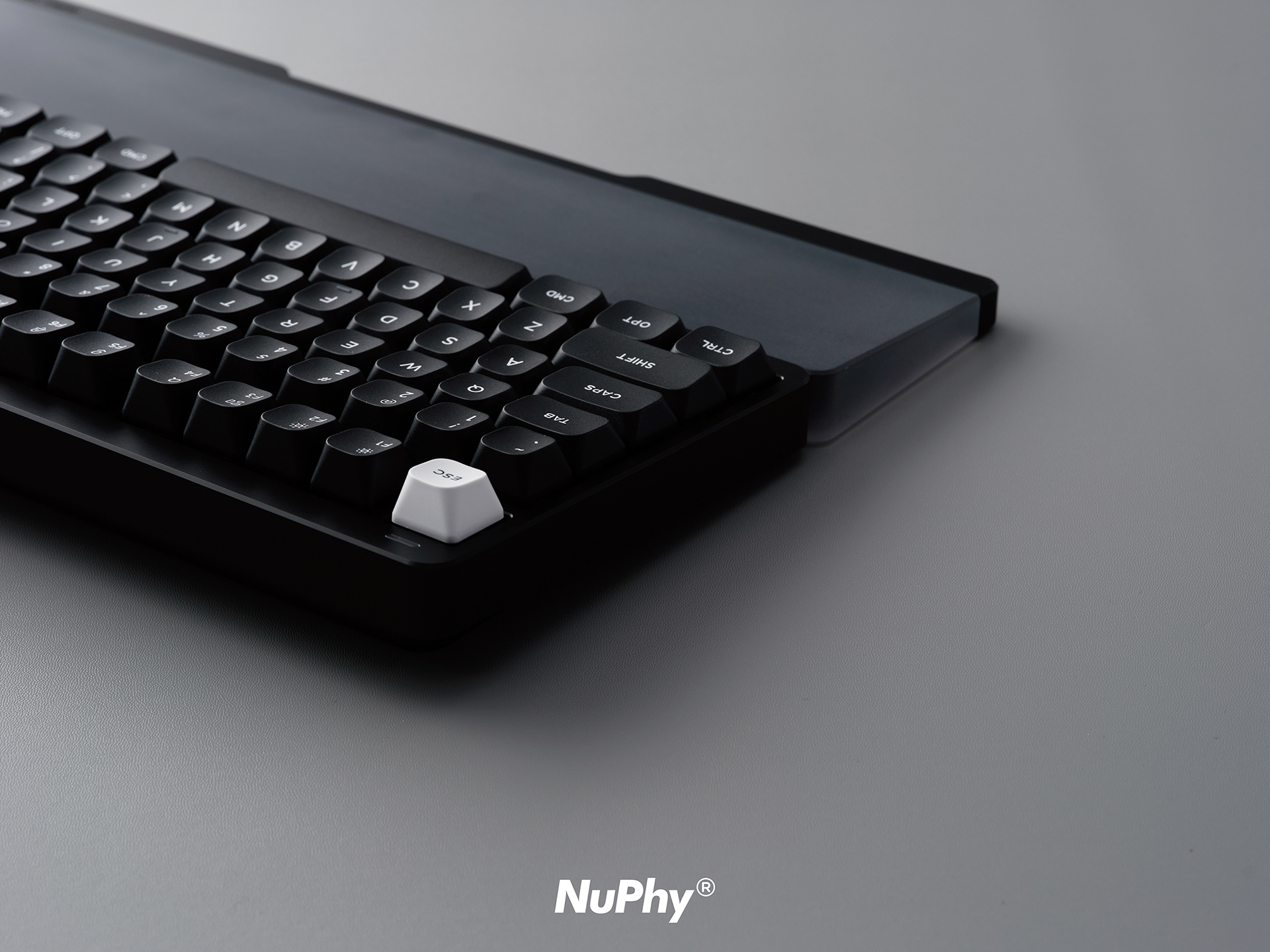

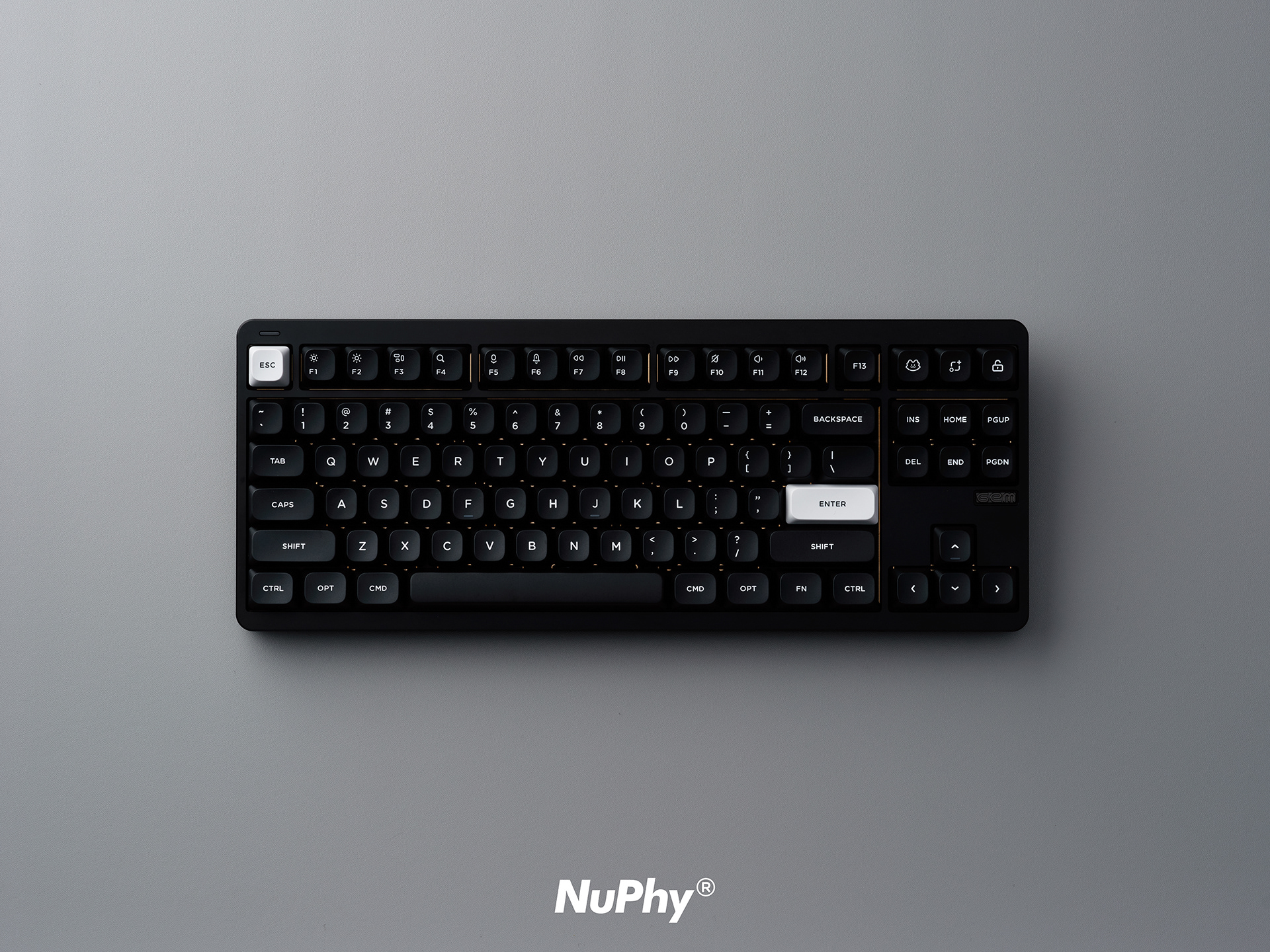

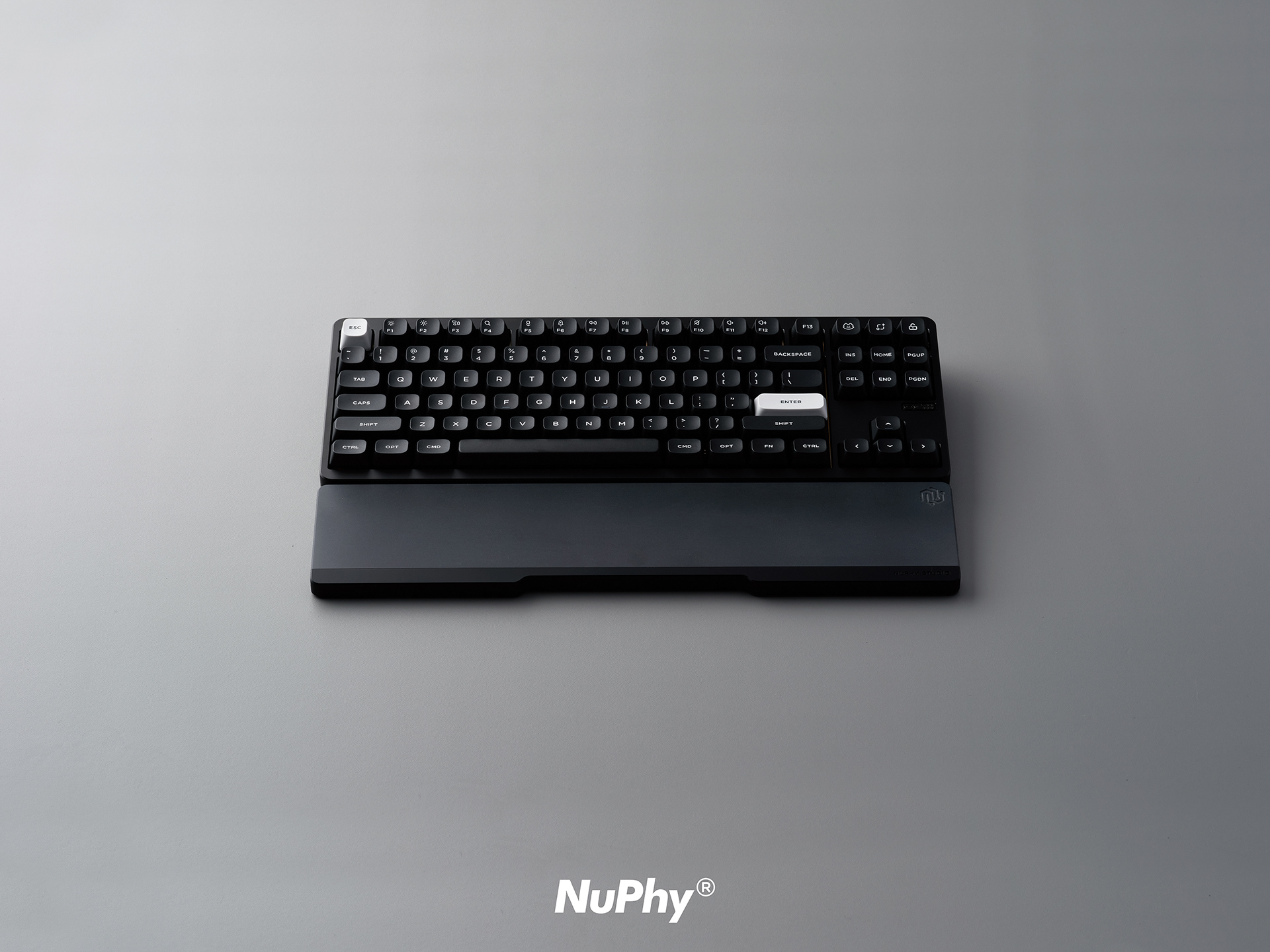

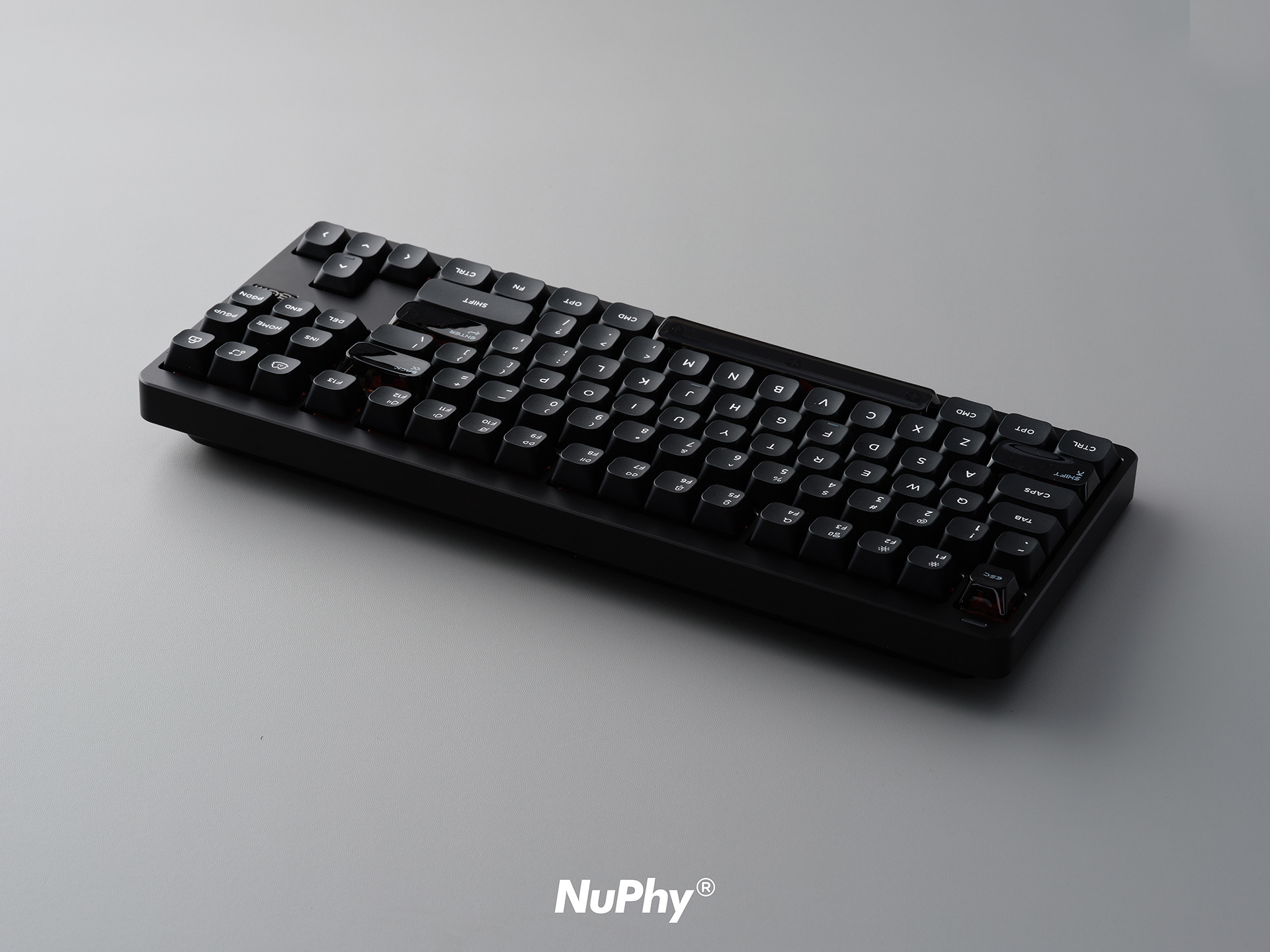

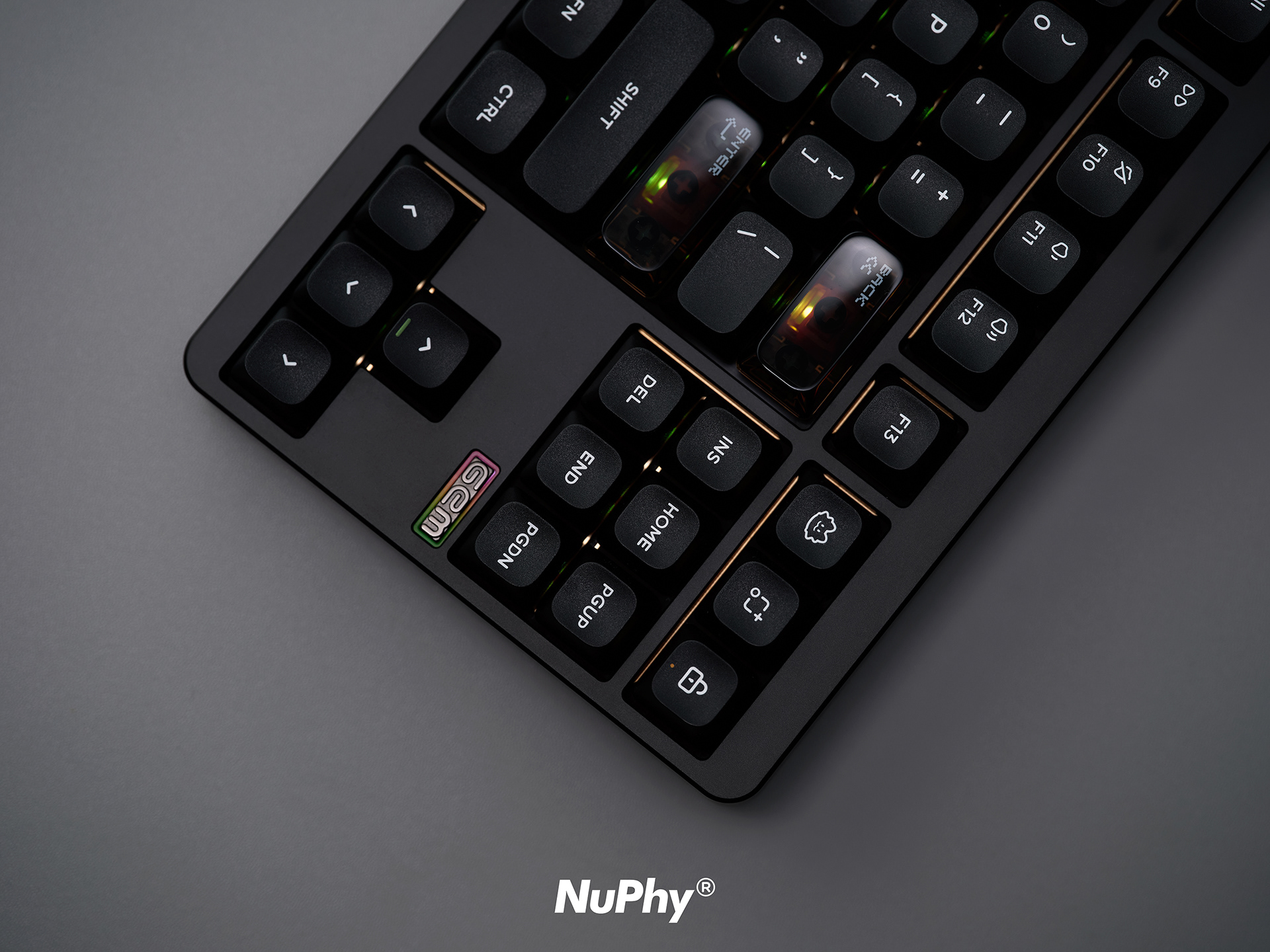

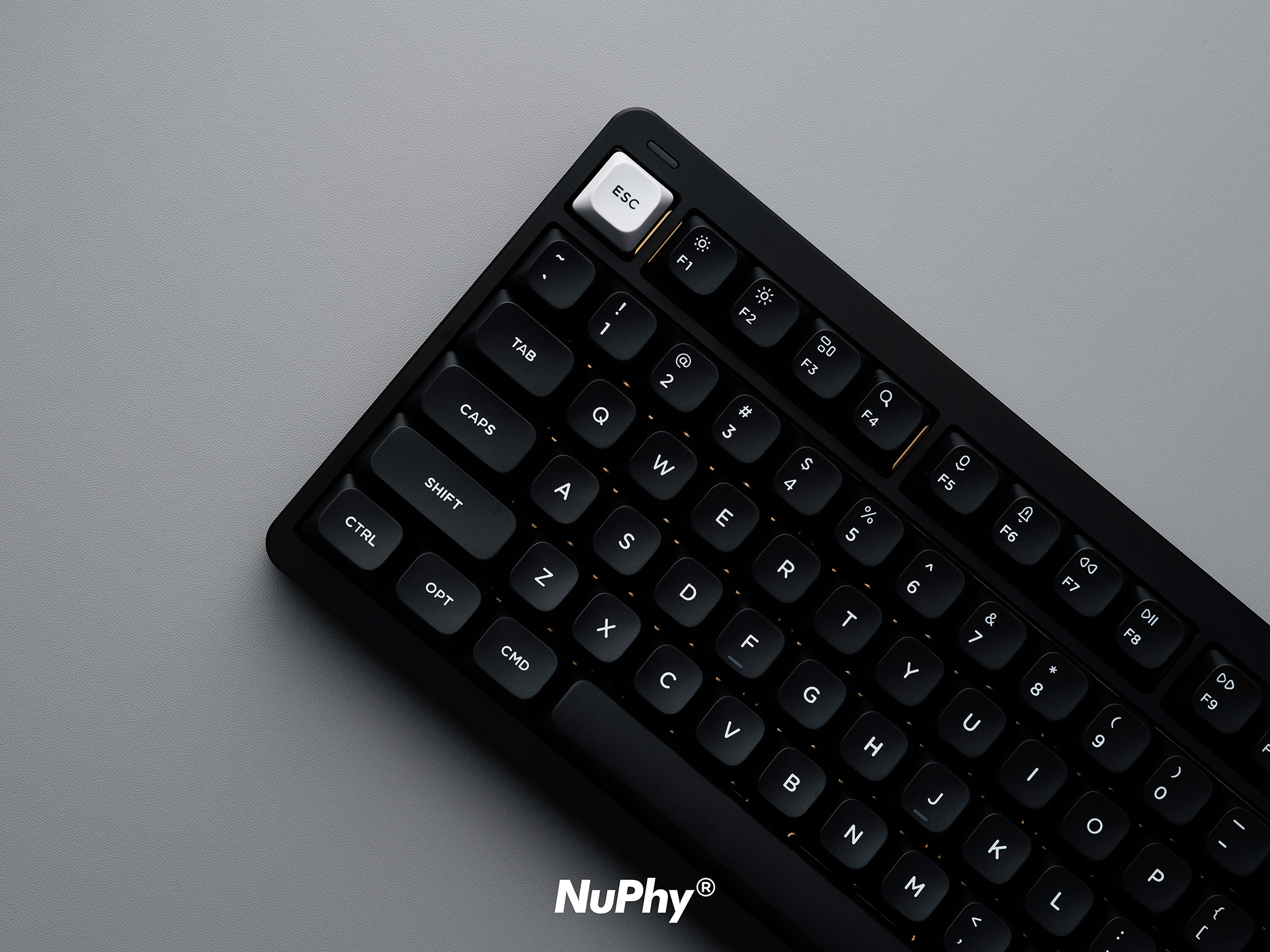

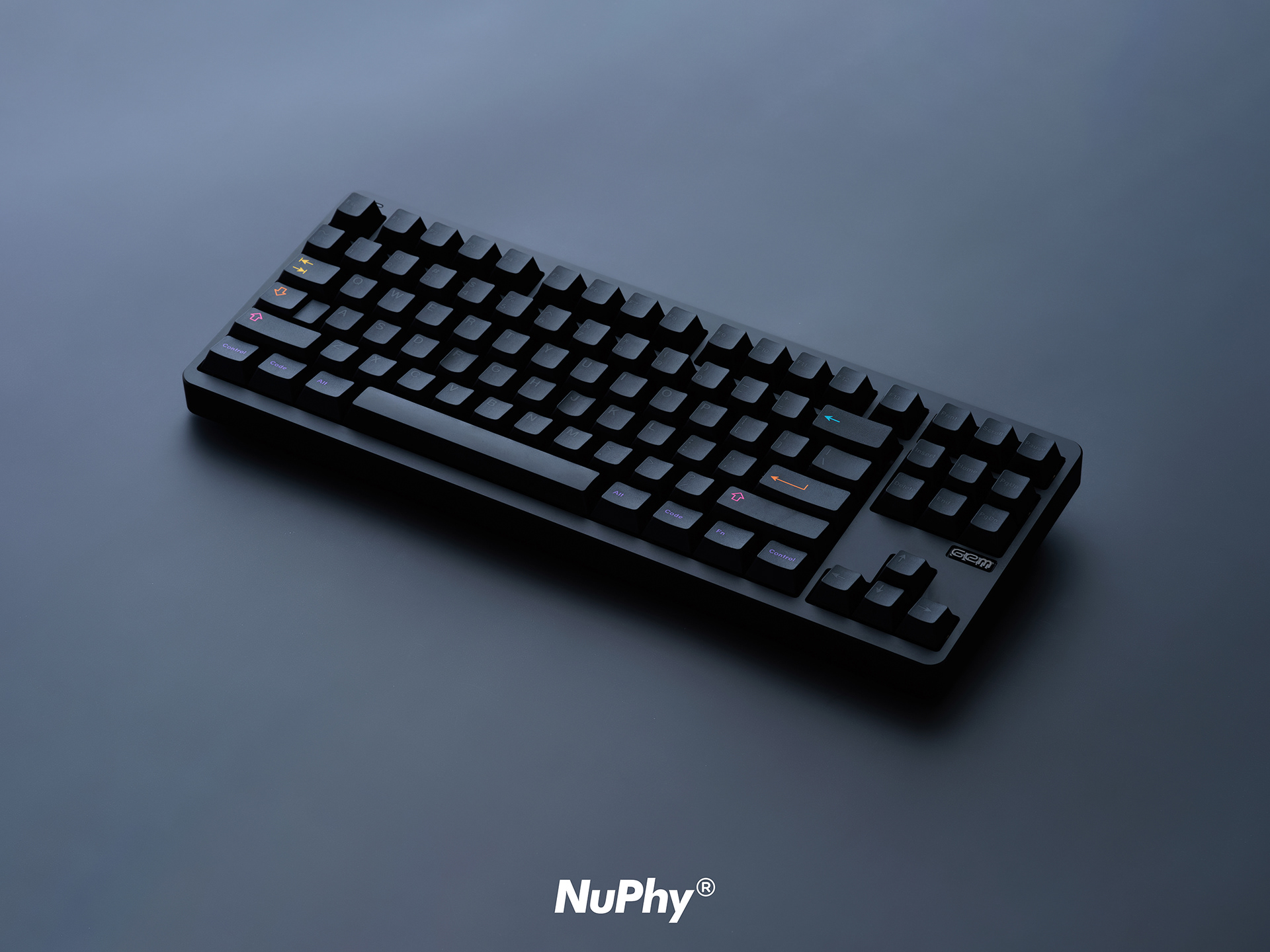

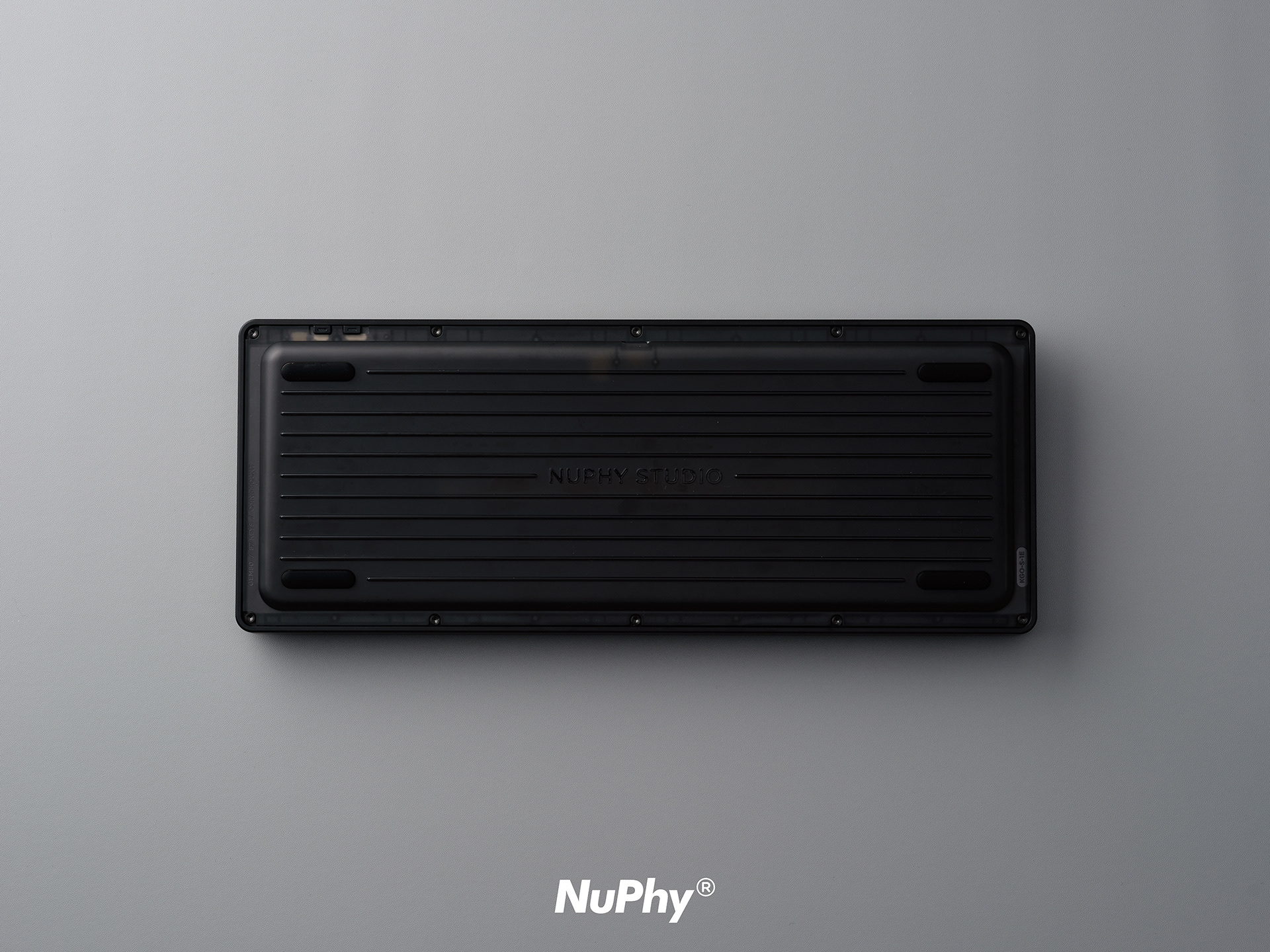

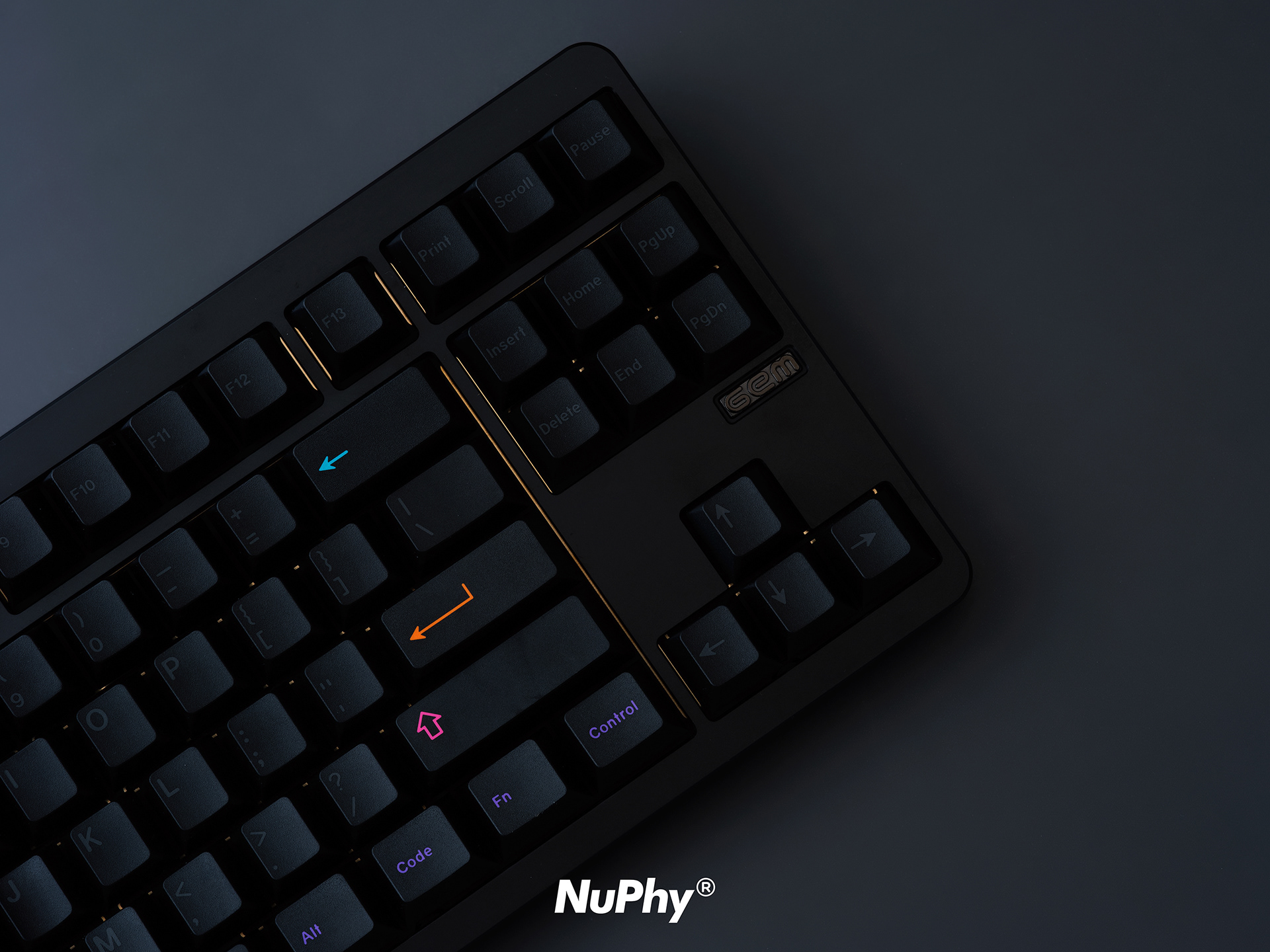

Obsidian Black

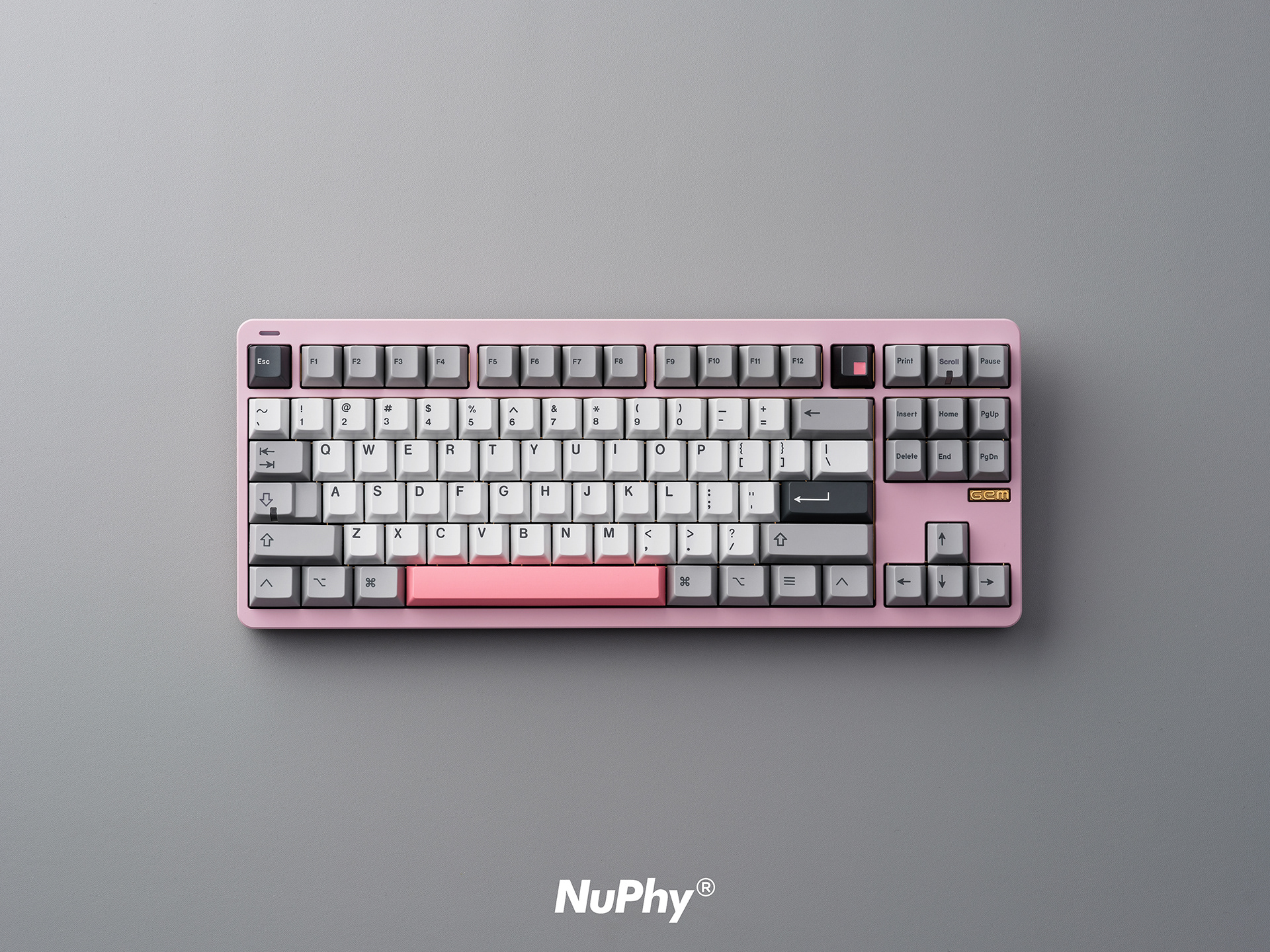

gmk modern dolch light
pbtfans resonance + ryokan
gmk pacific
gmk symbiote
HAMMERWORKS CRP R6 tulip
pbtfans retro 100
gmk frost witch
gmk metropolis
gmk villanelle
gmk mictlan noche
