Introduction

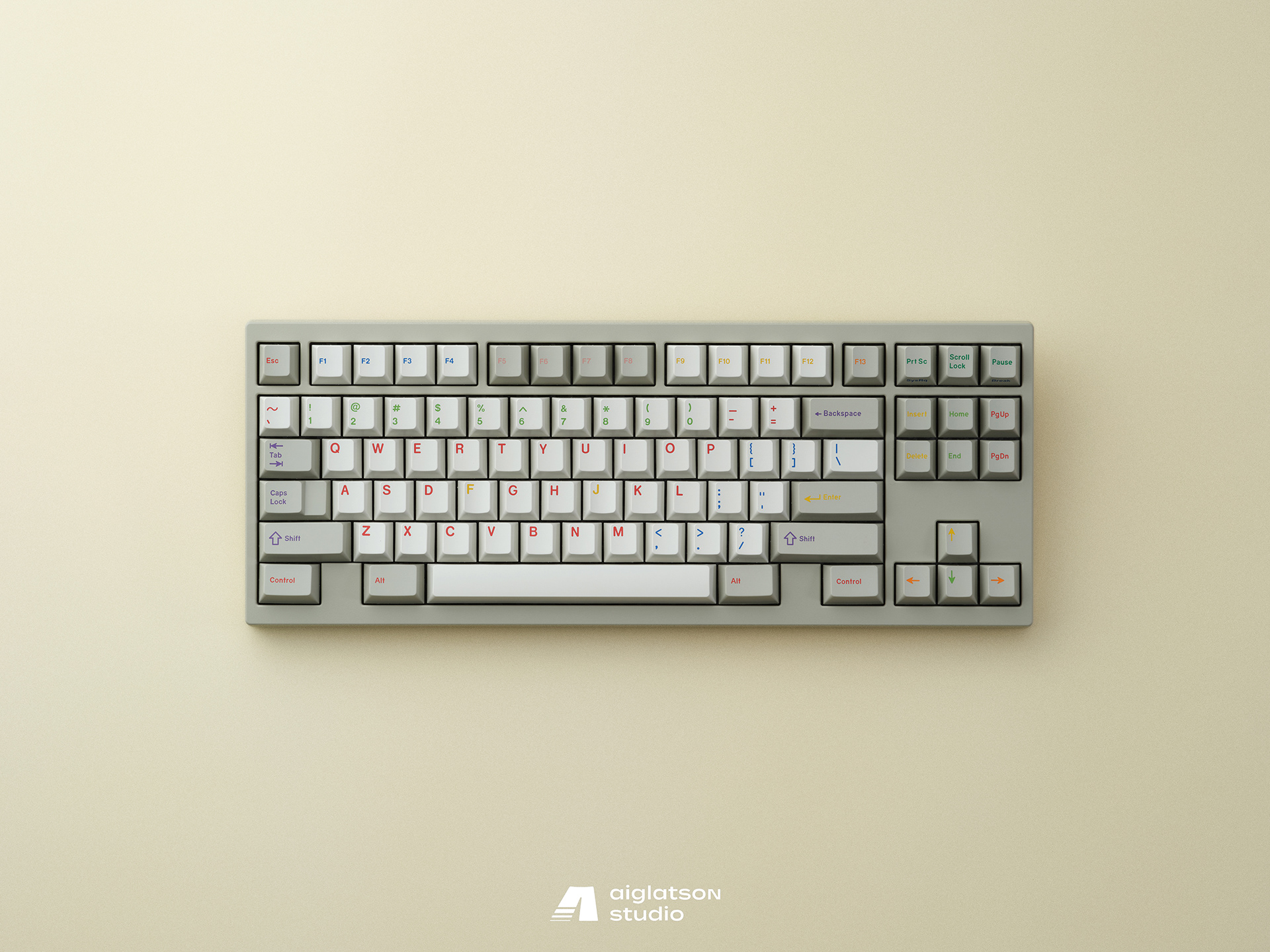

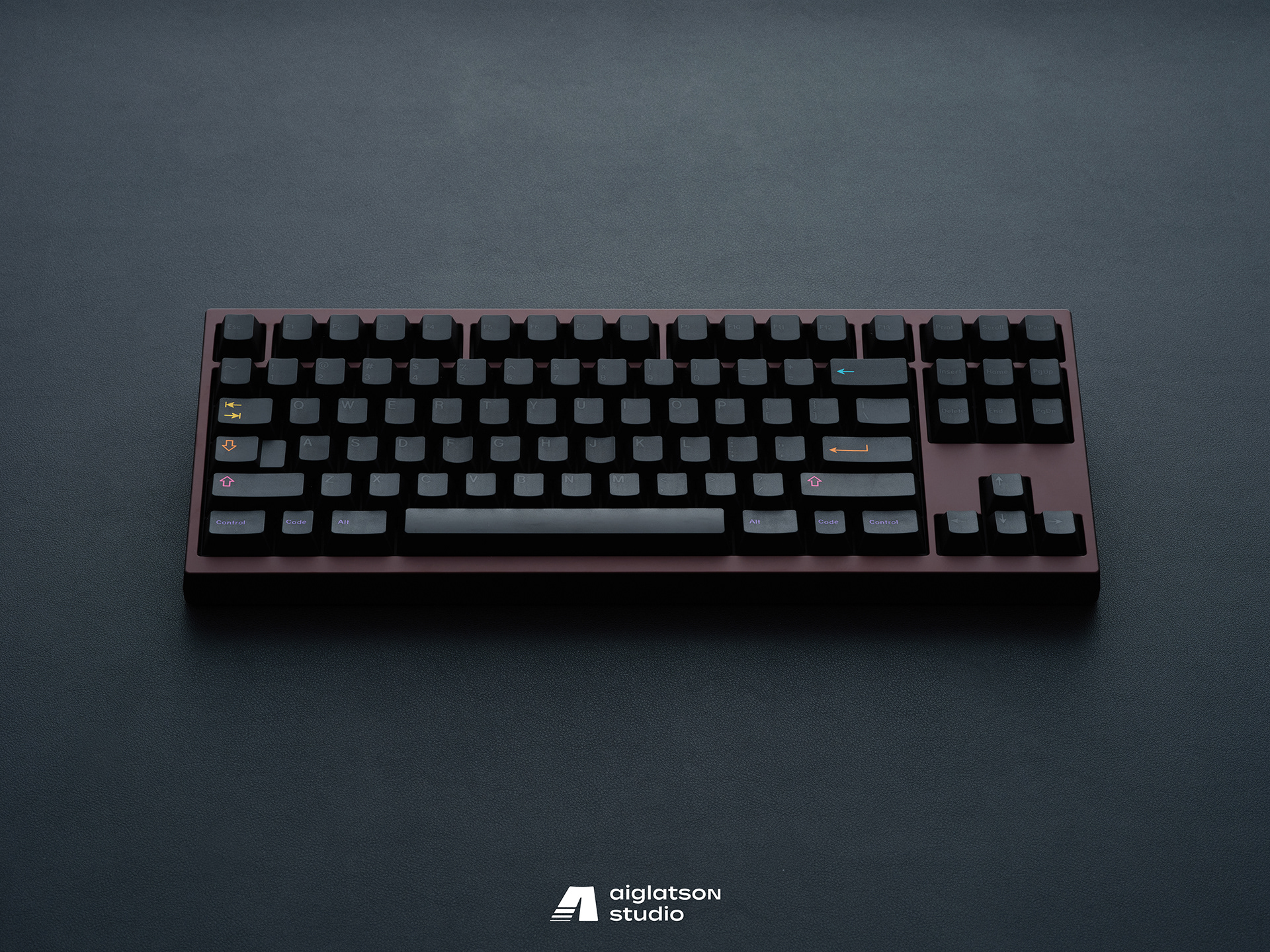

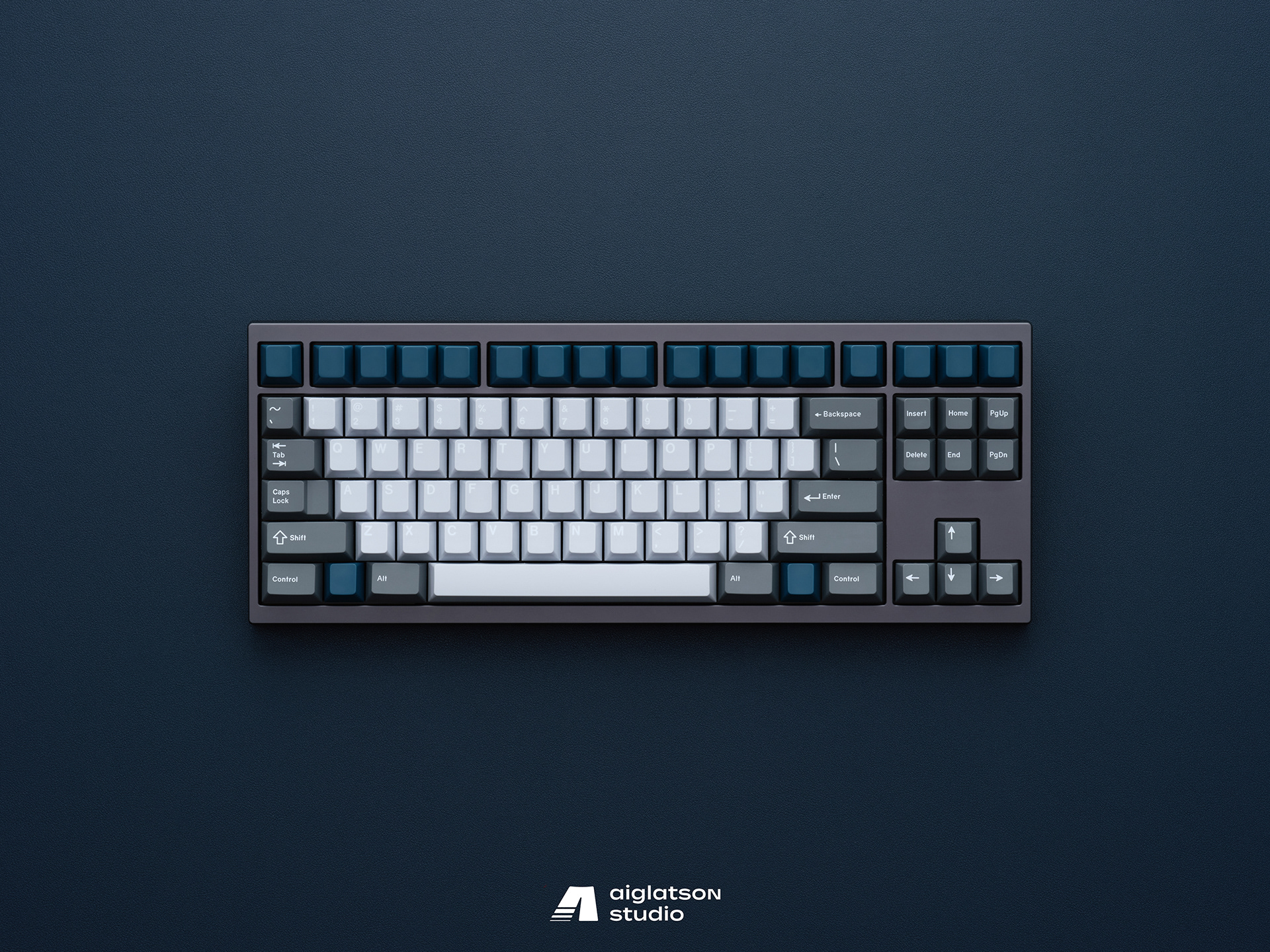

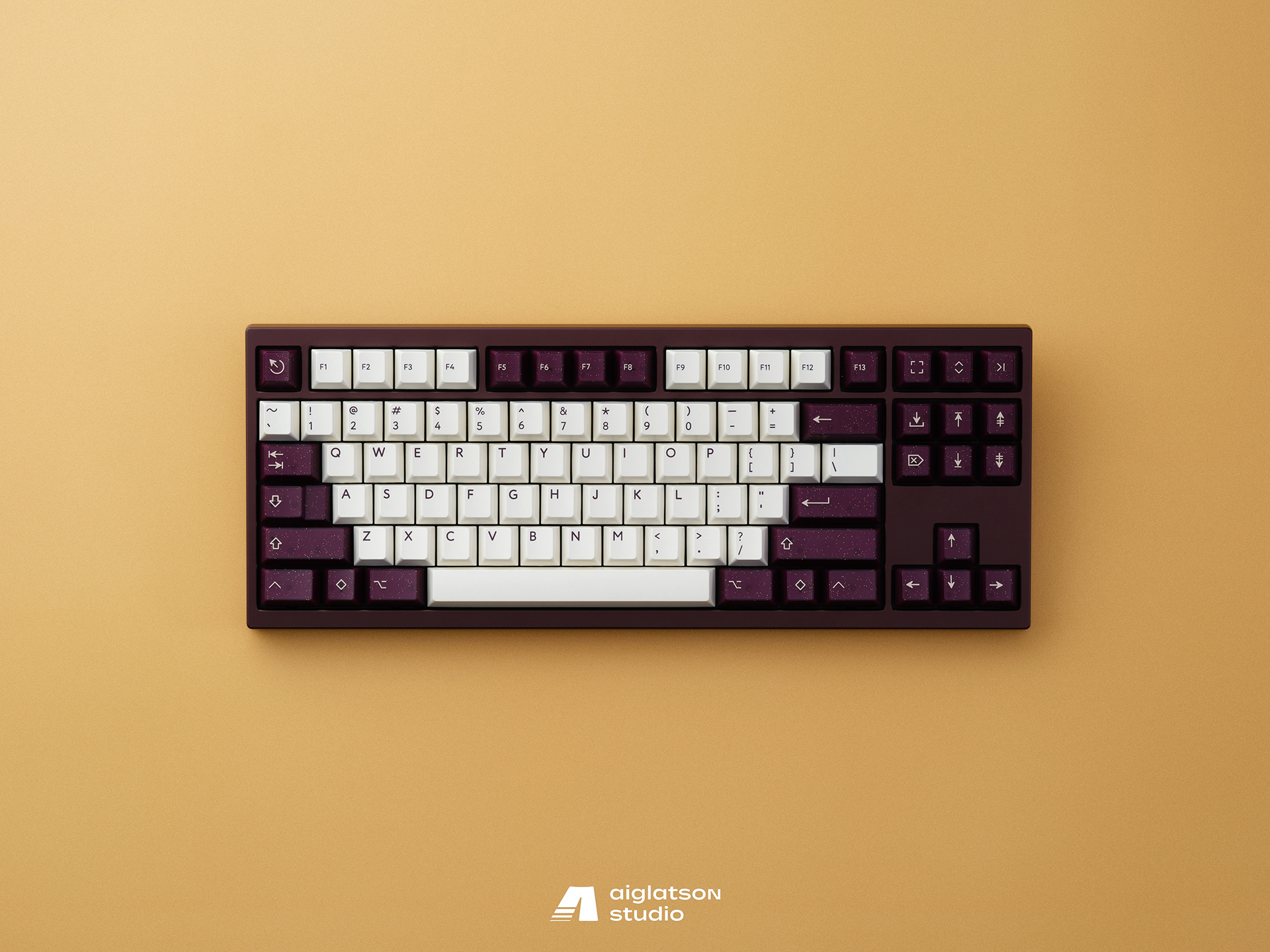

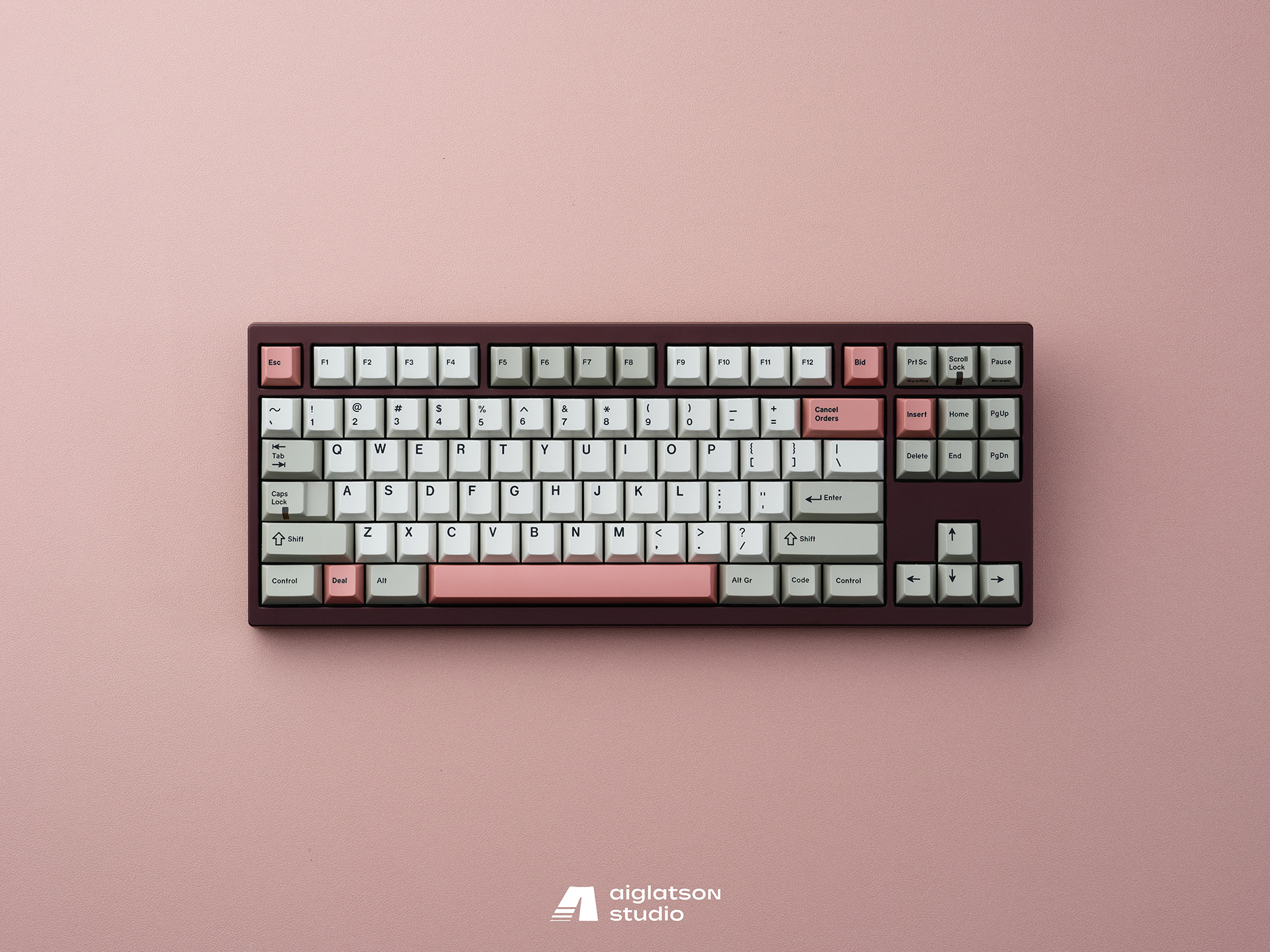

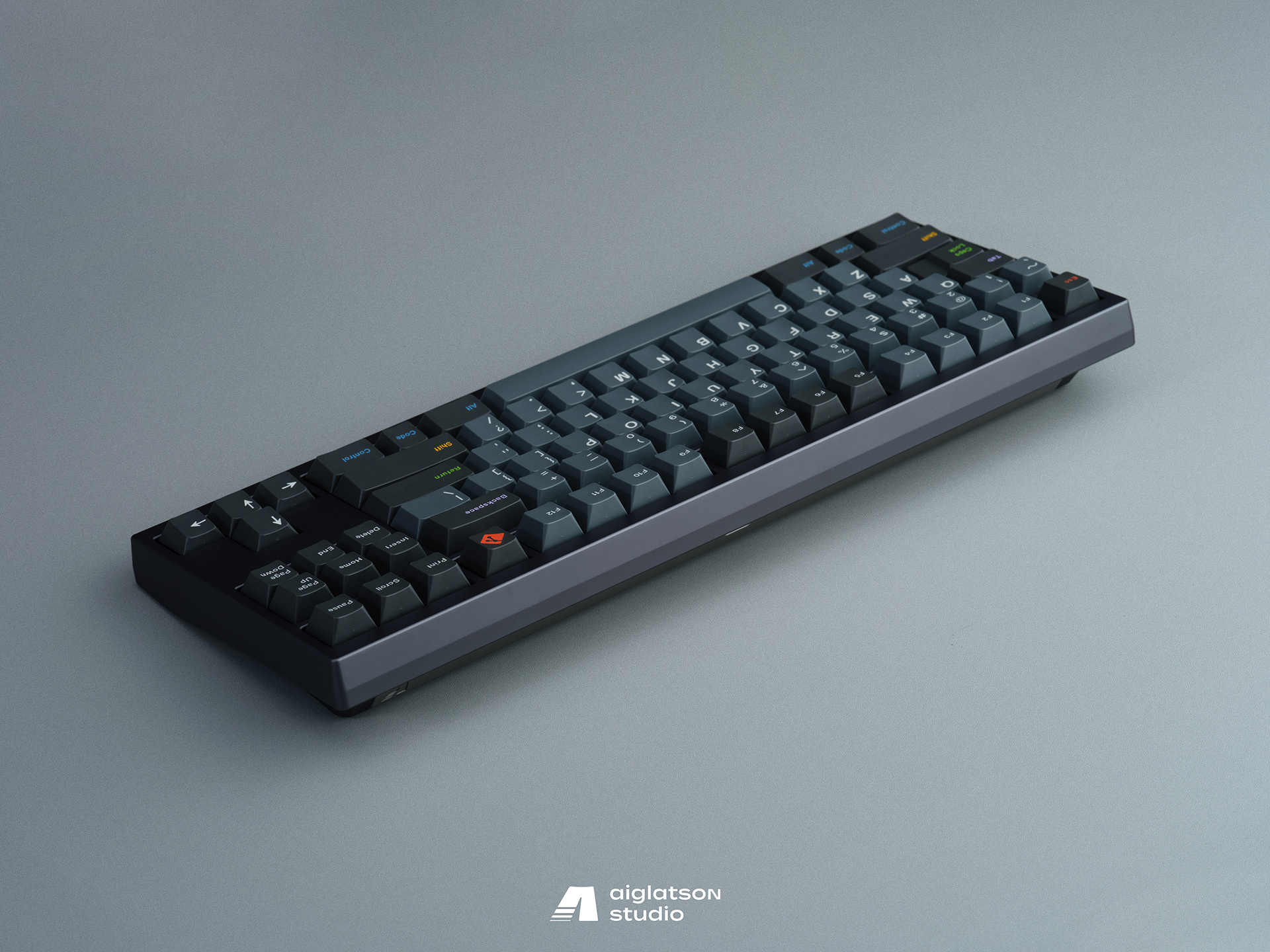

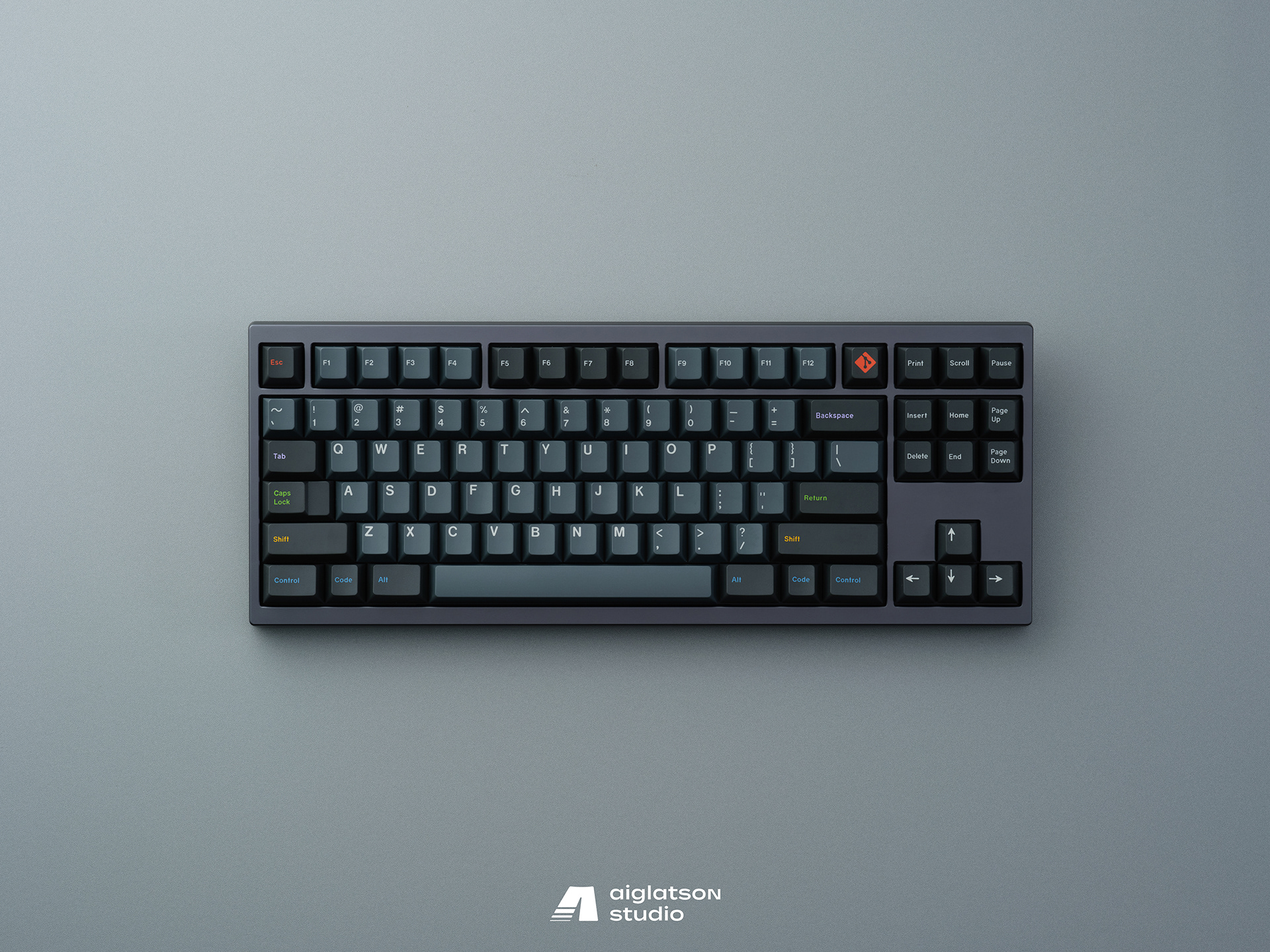

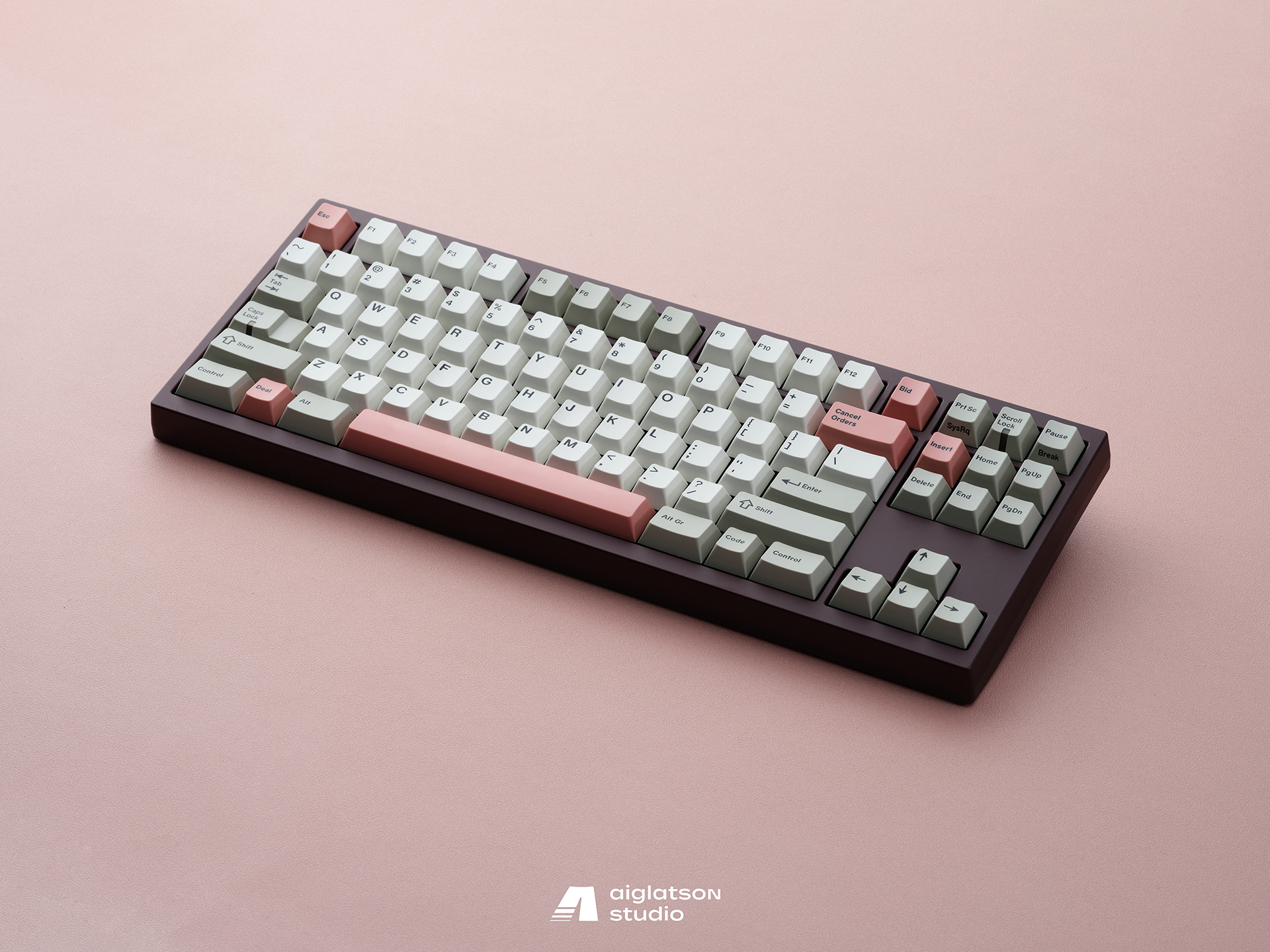

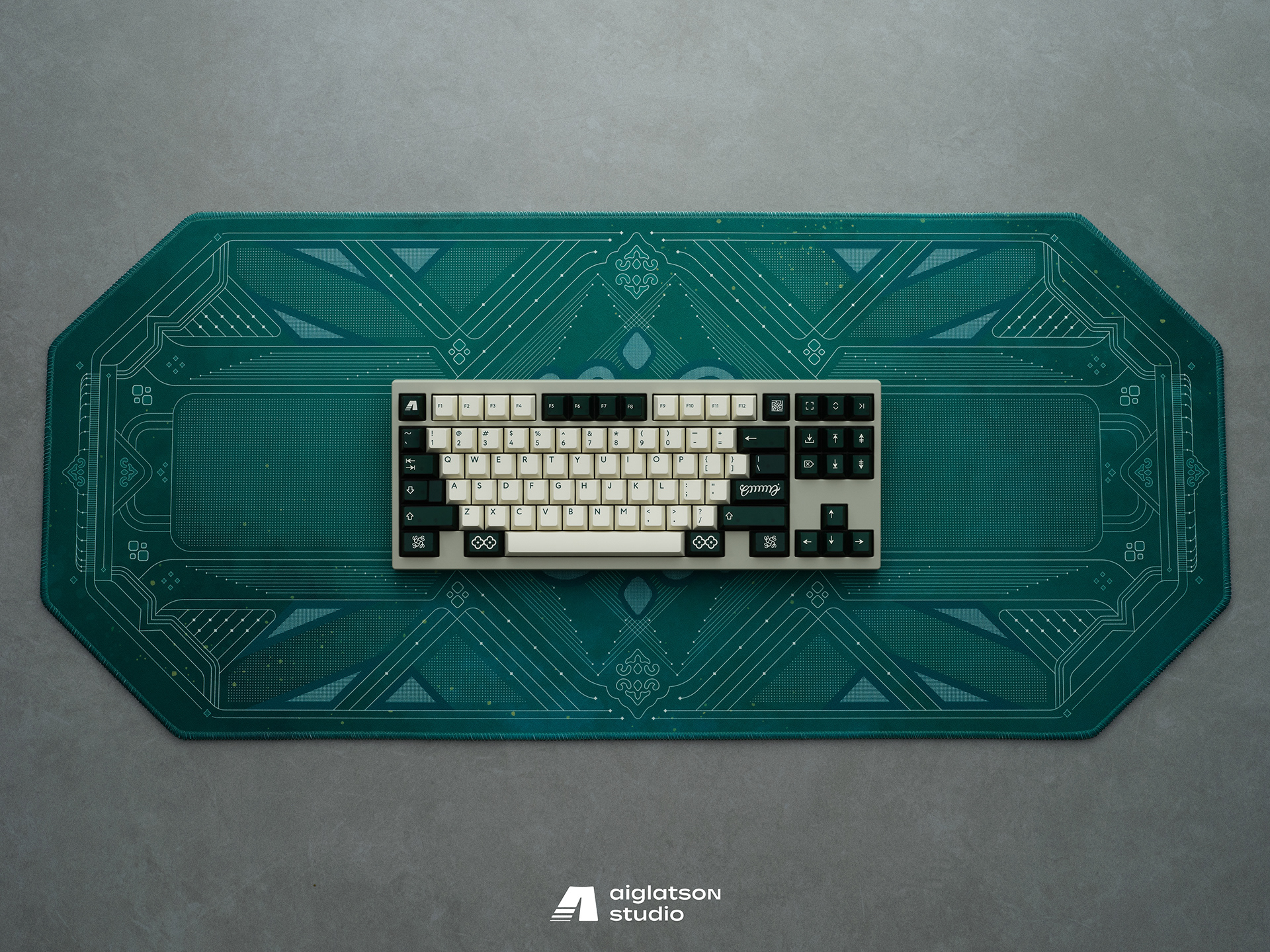

The Constance keyboard is a TKL-sized keyboard with a Split Plate Top-mount mounting. The design principle is that we want the Constance TKL to be a Daily Driver keyboard with a minimalist design but with attractive details that are not too flashy. And it also emphasizes the typing feeling and sound as much as the design.

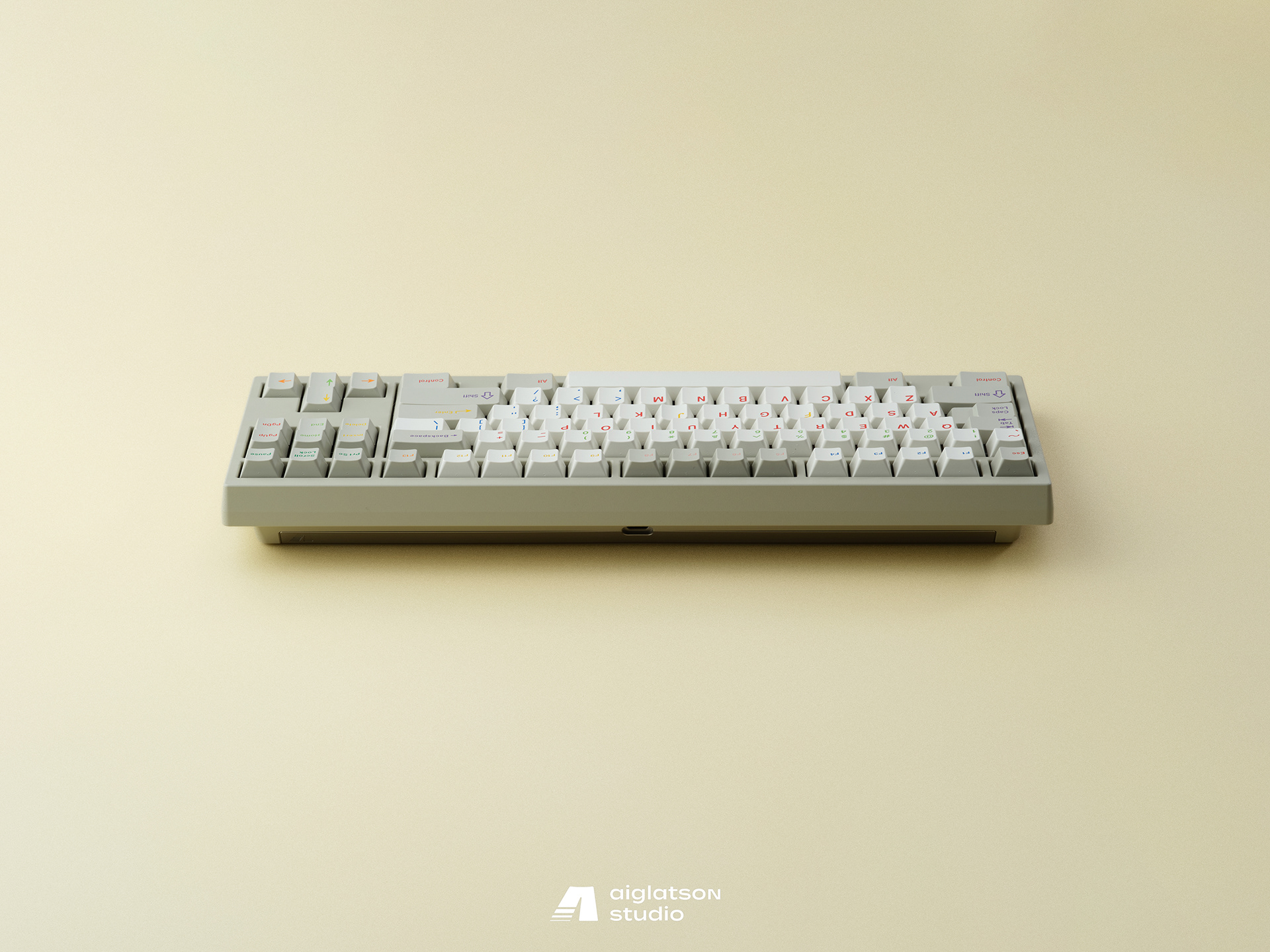

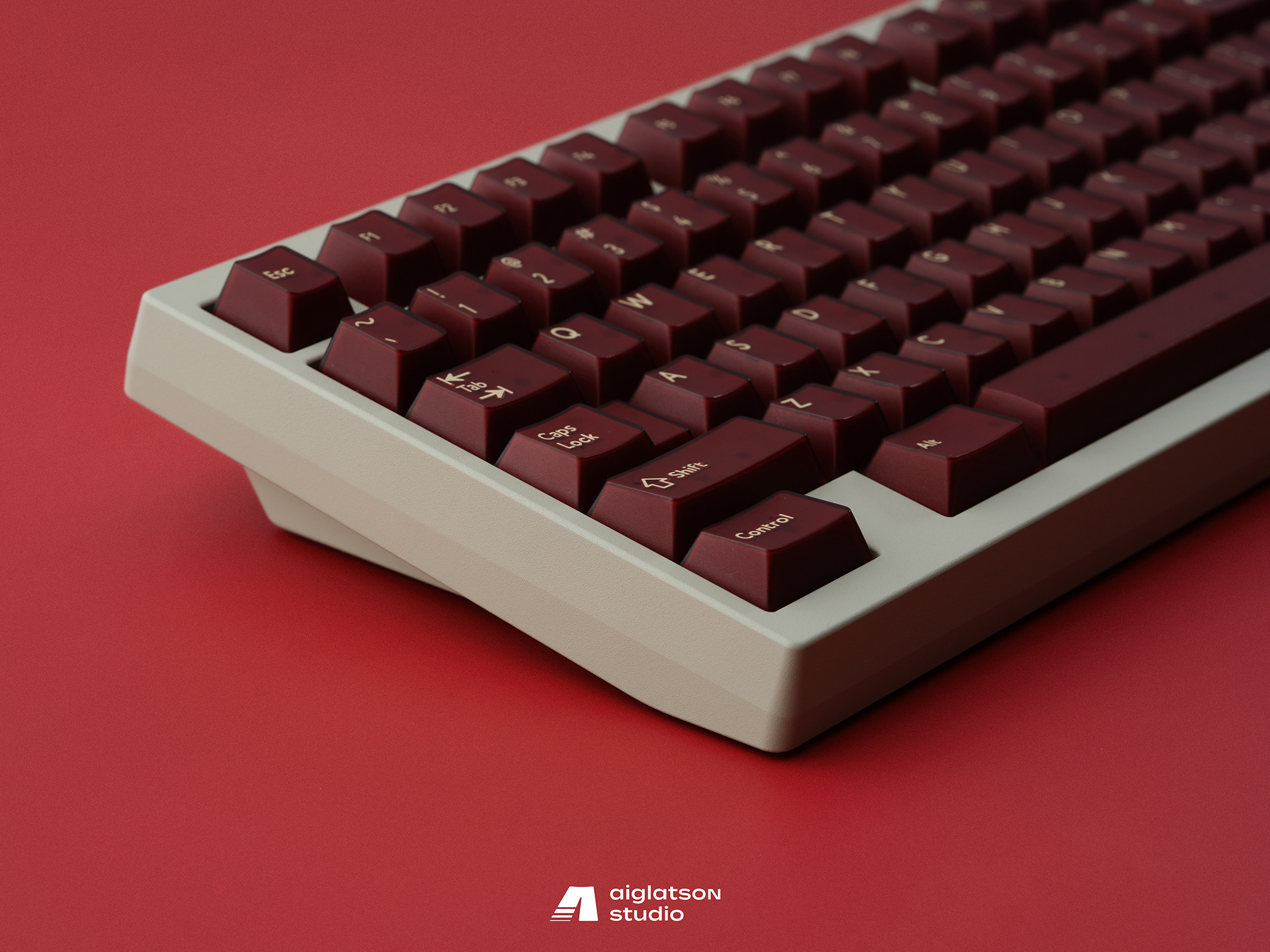

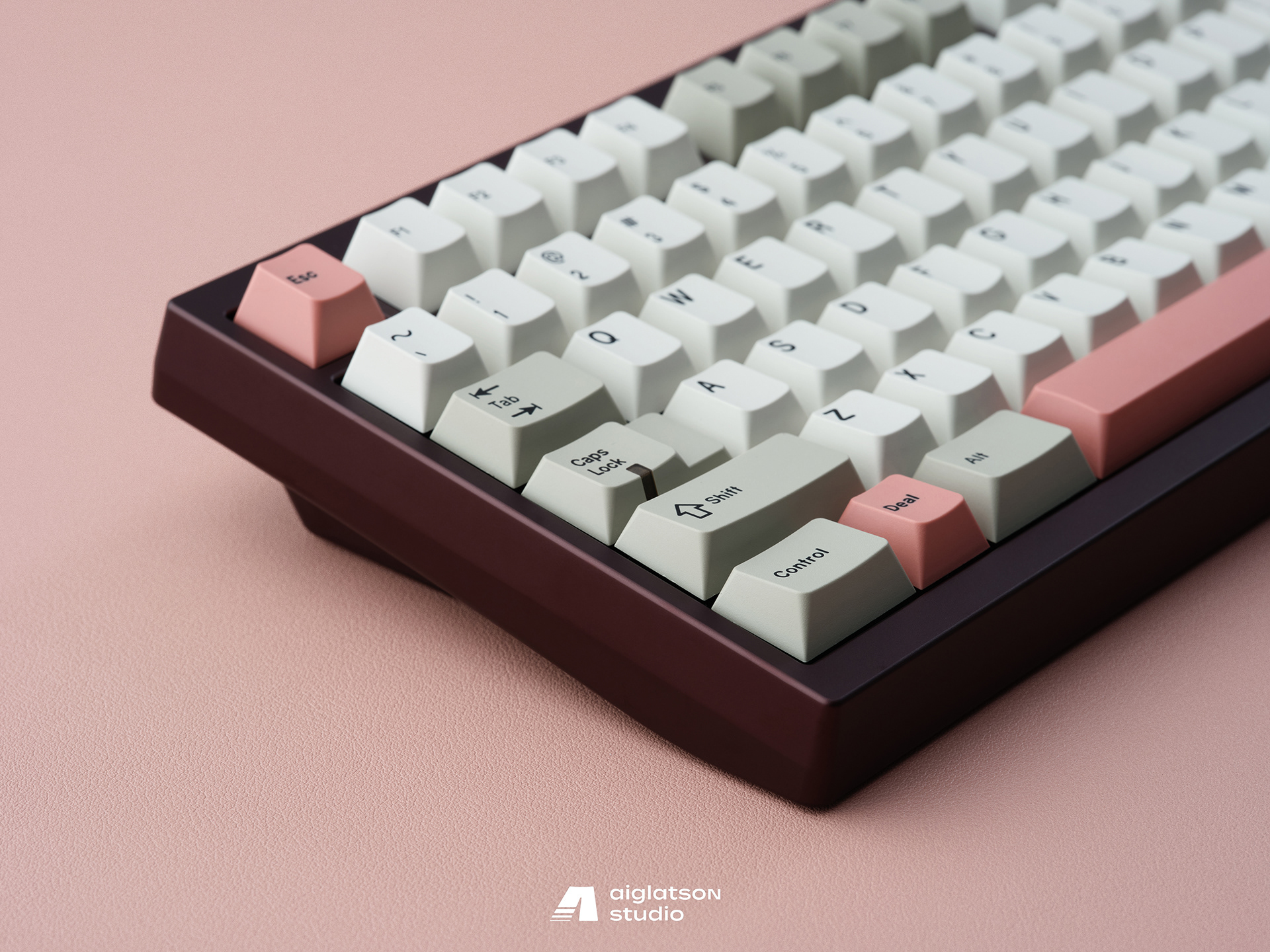

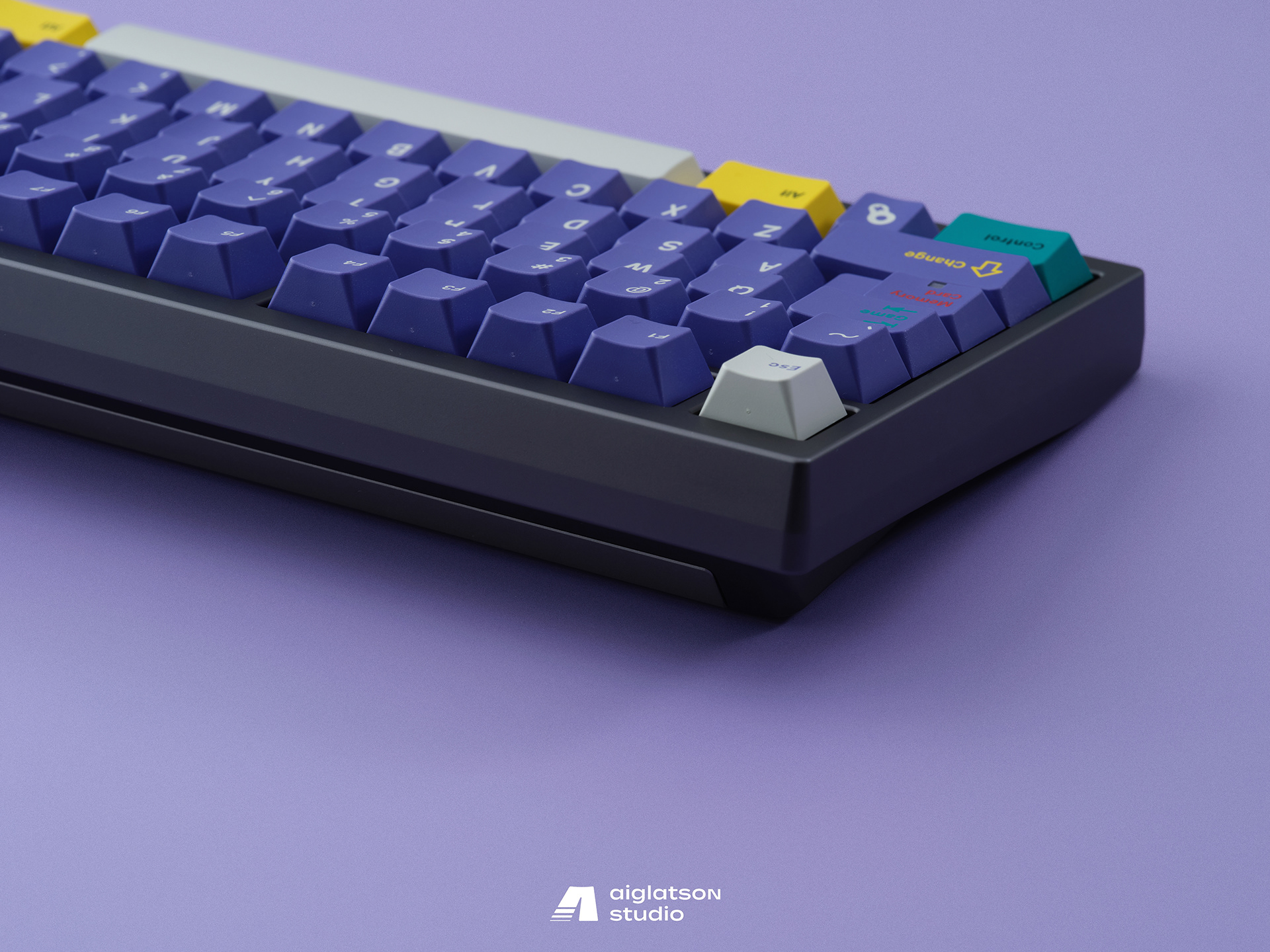

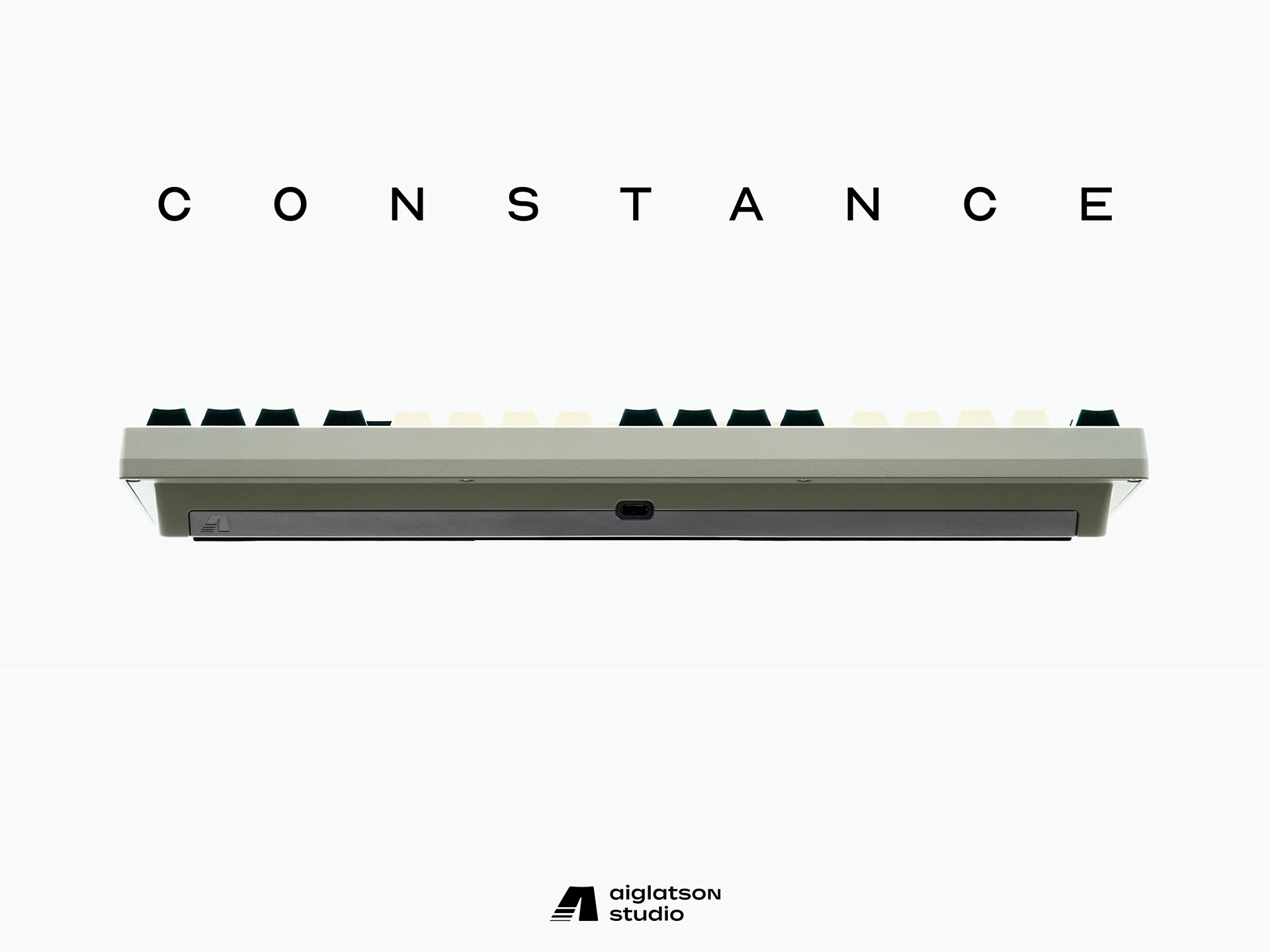

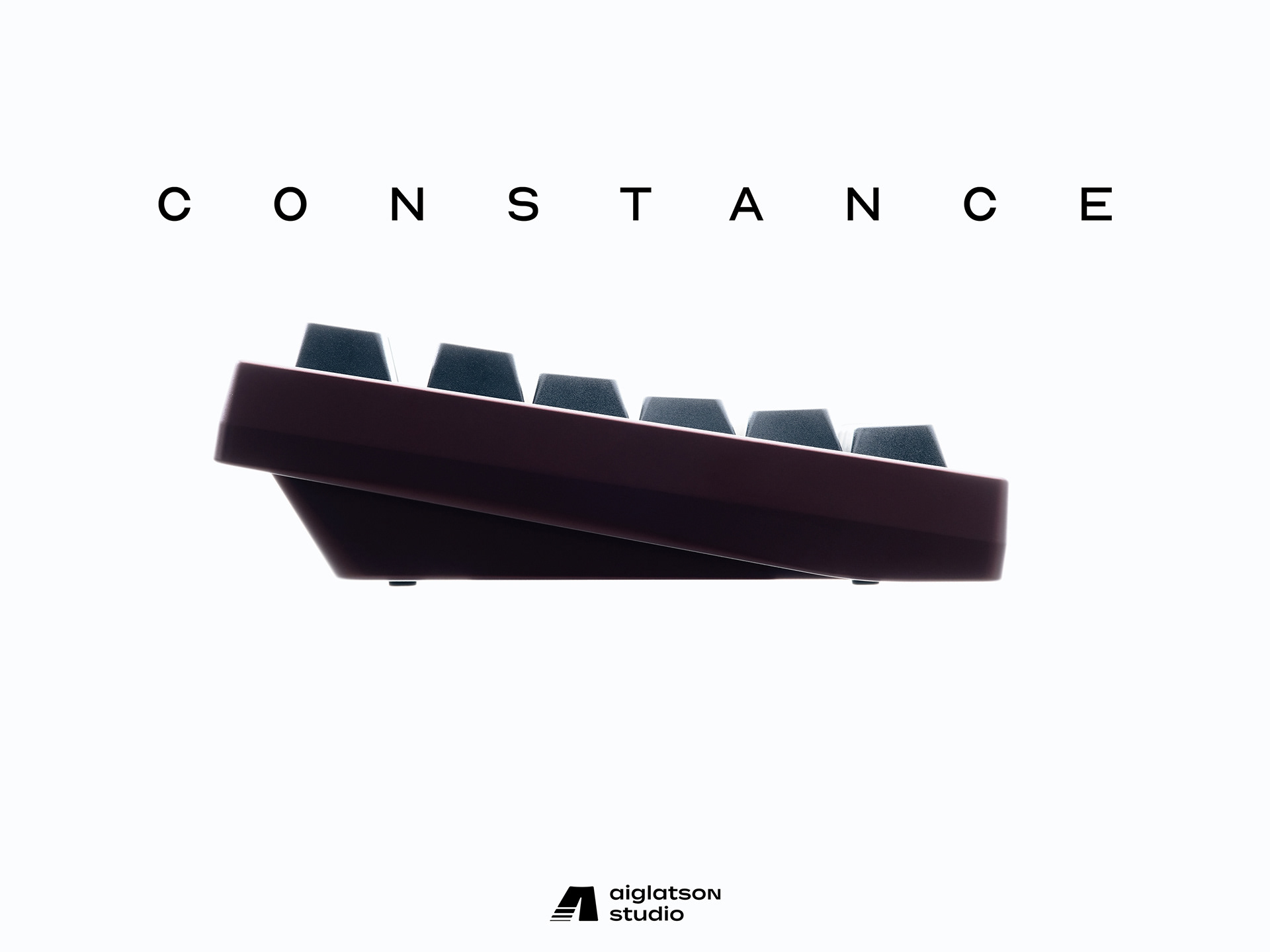

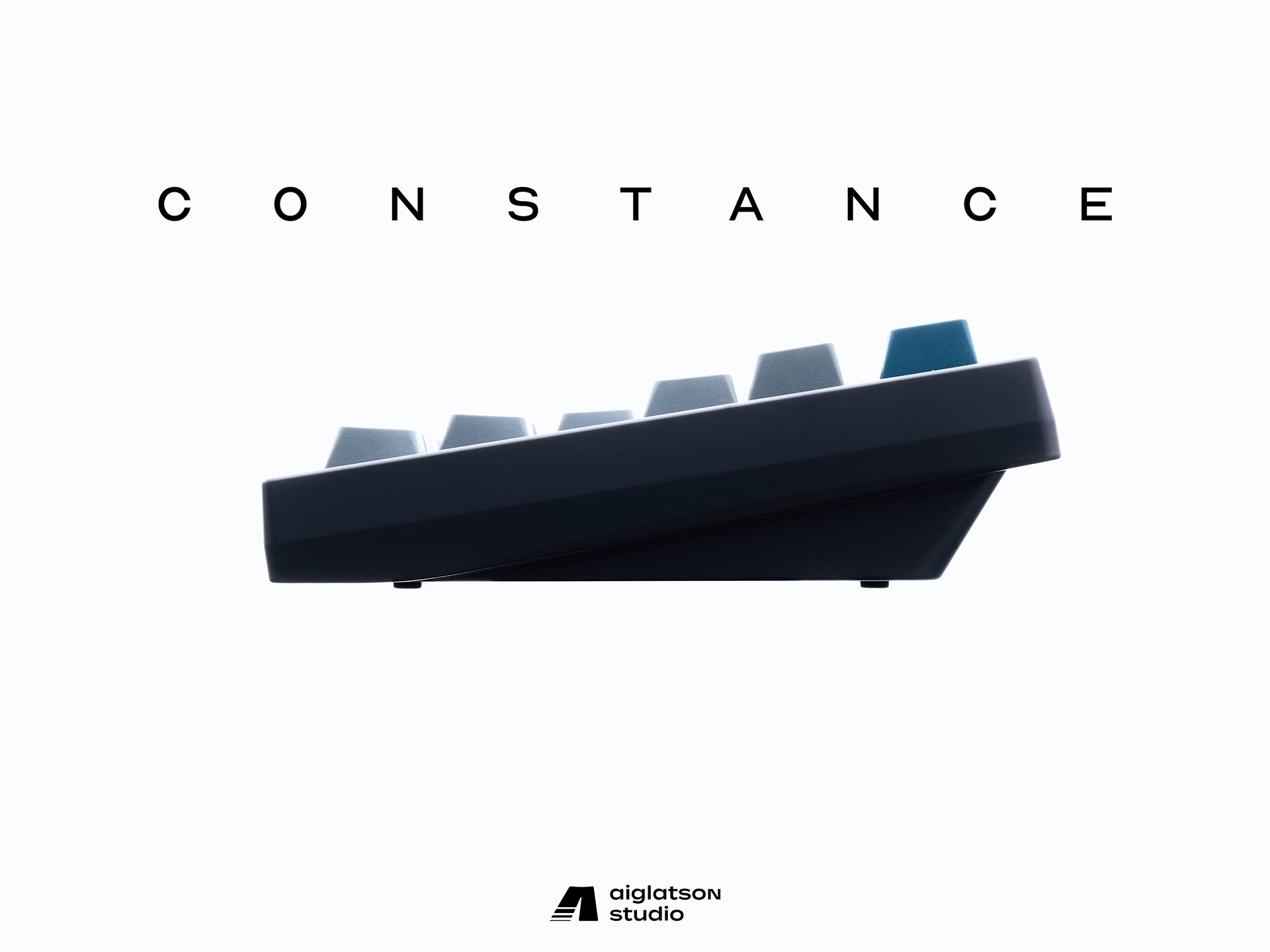

Side Profile

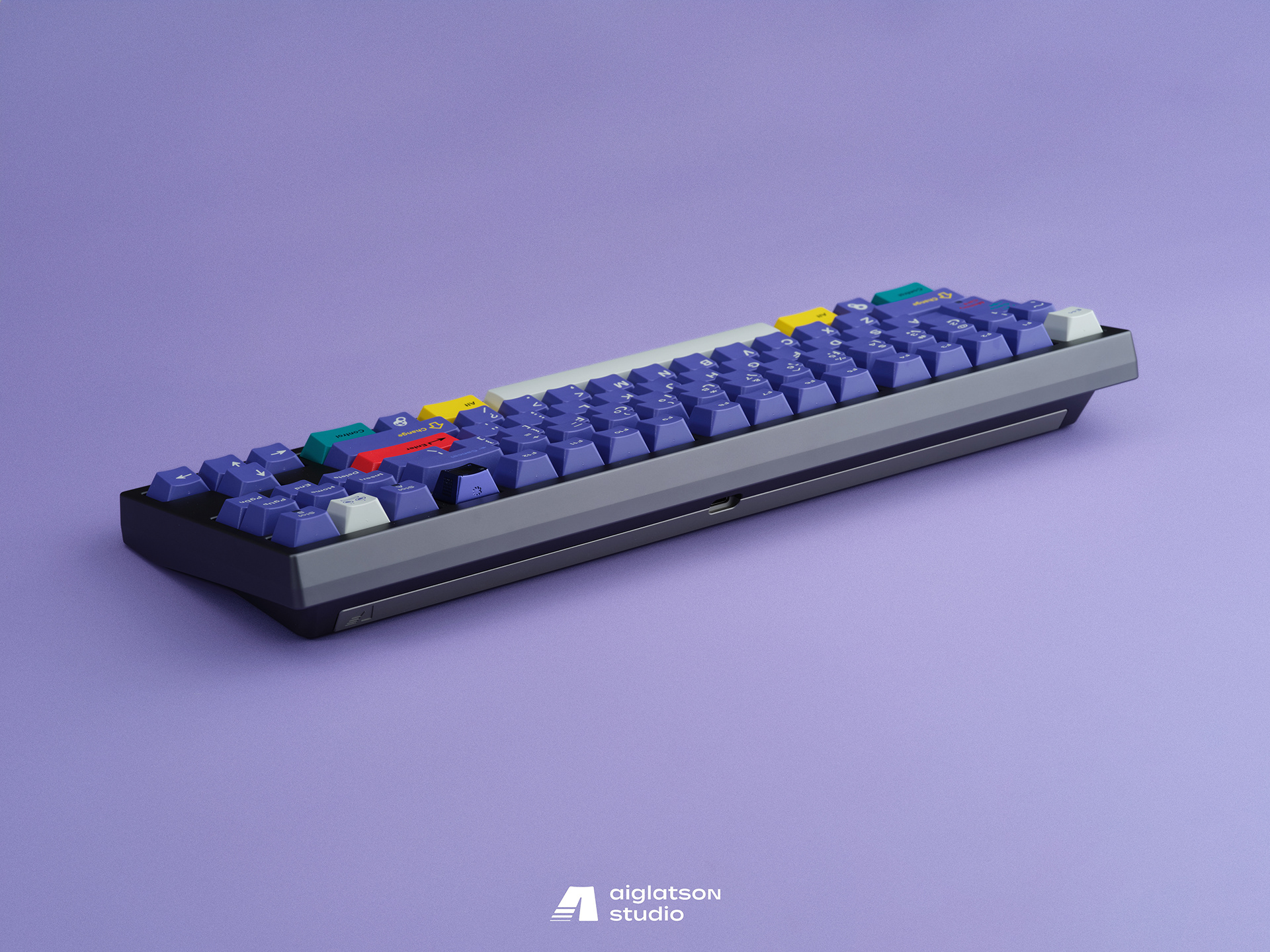

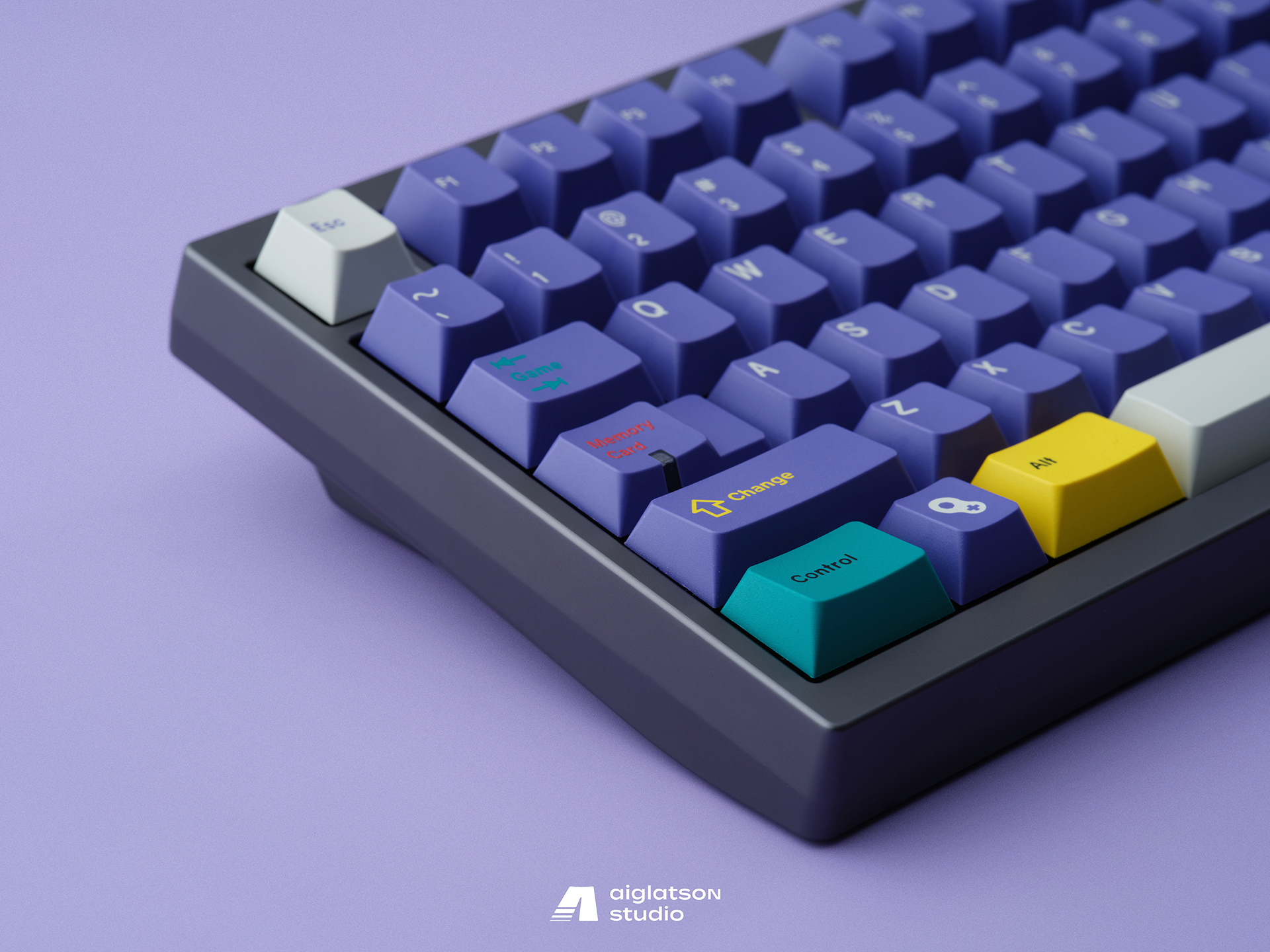

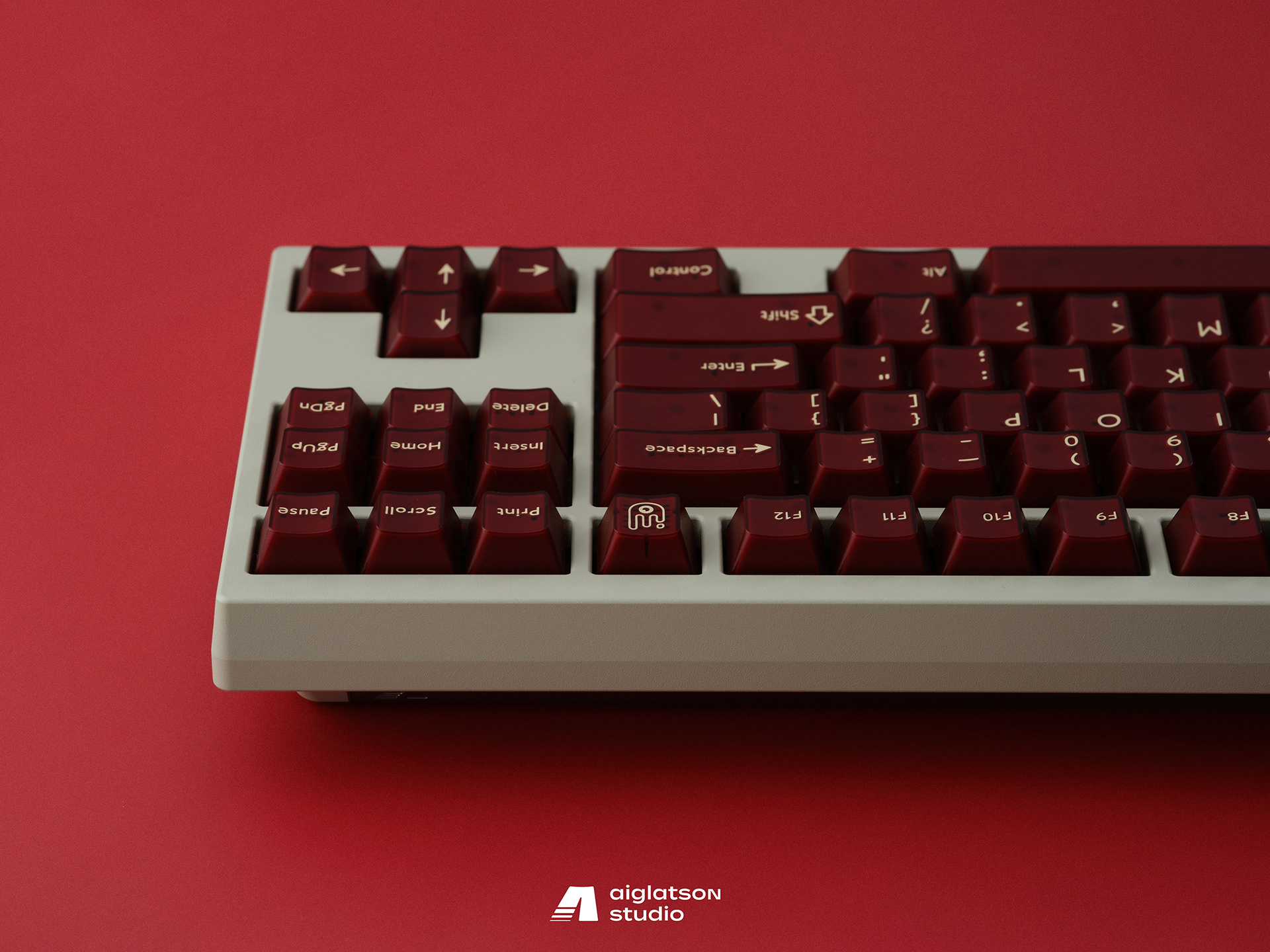

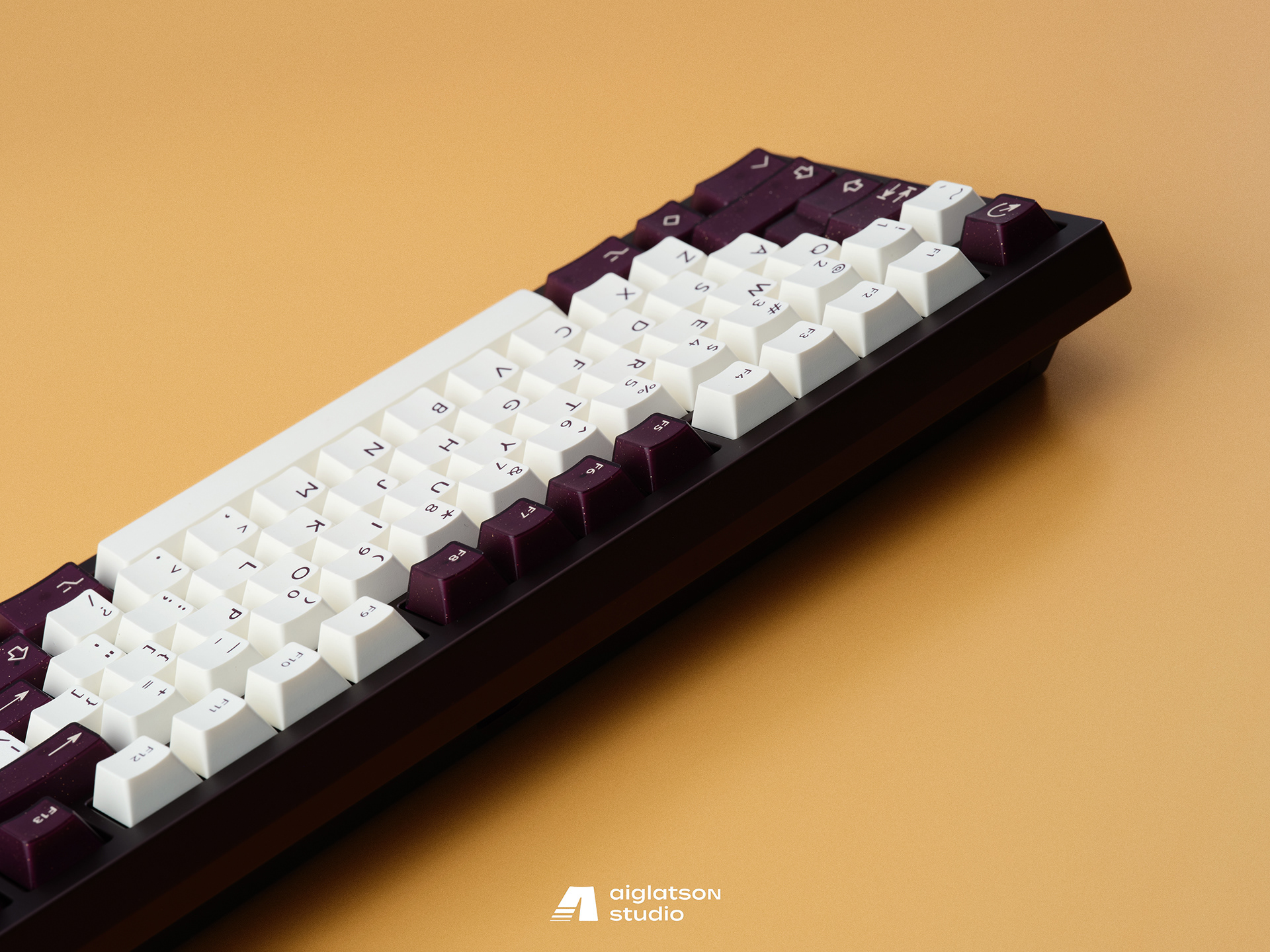

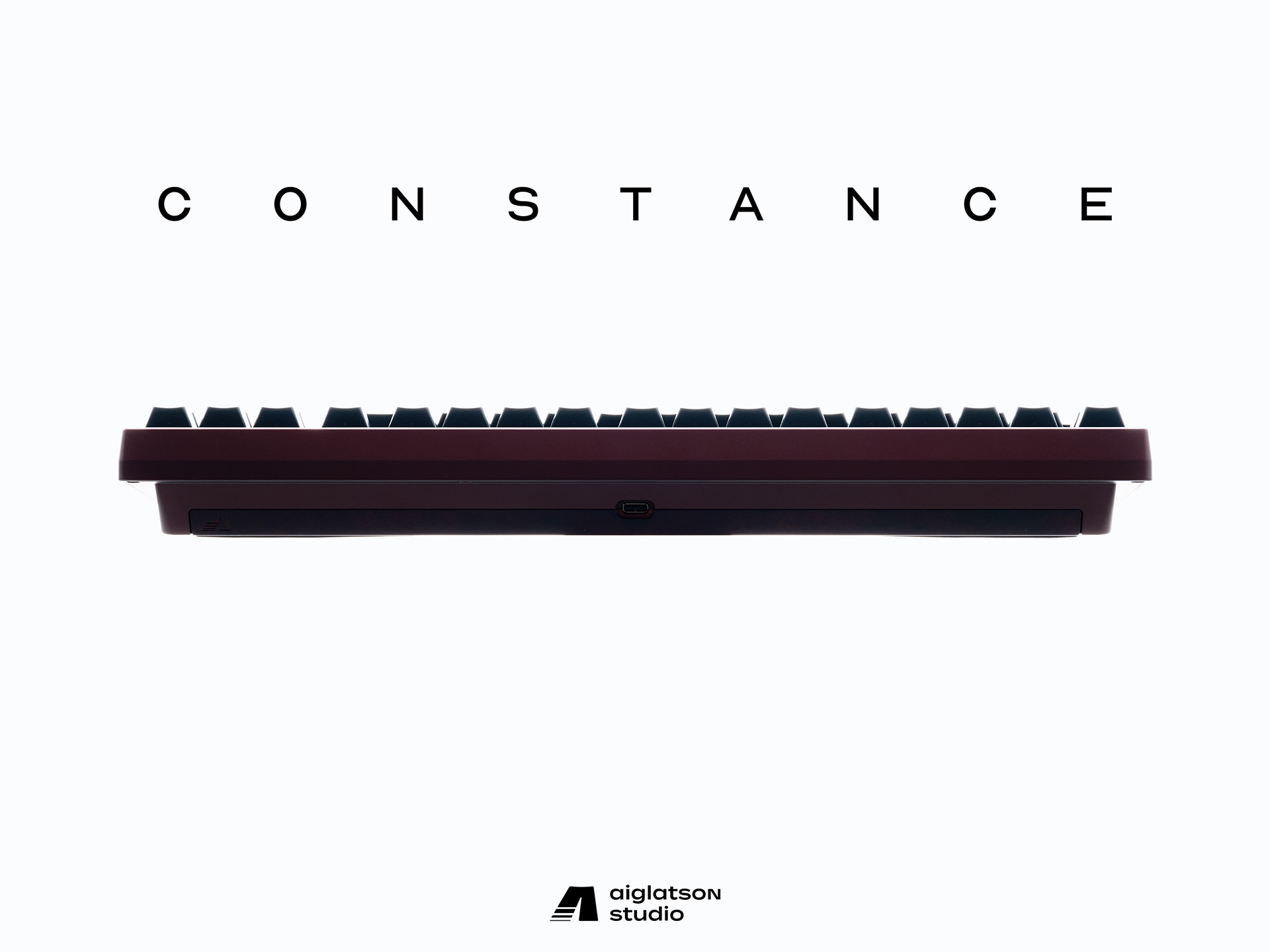

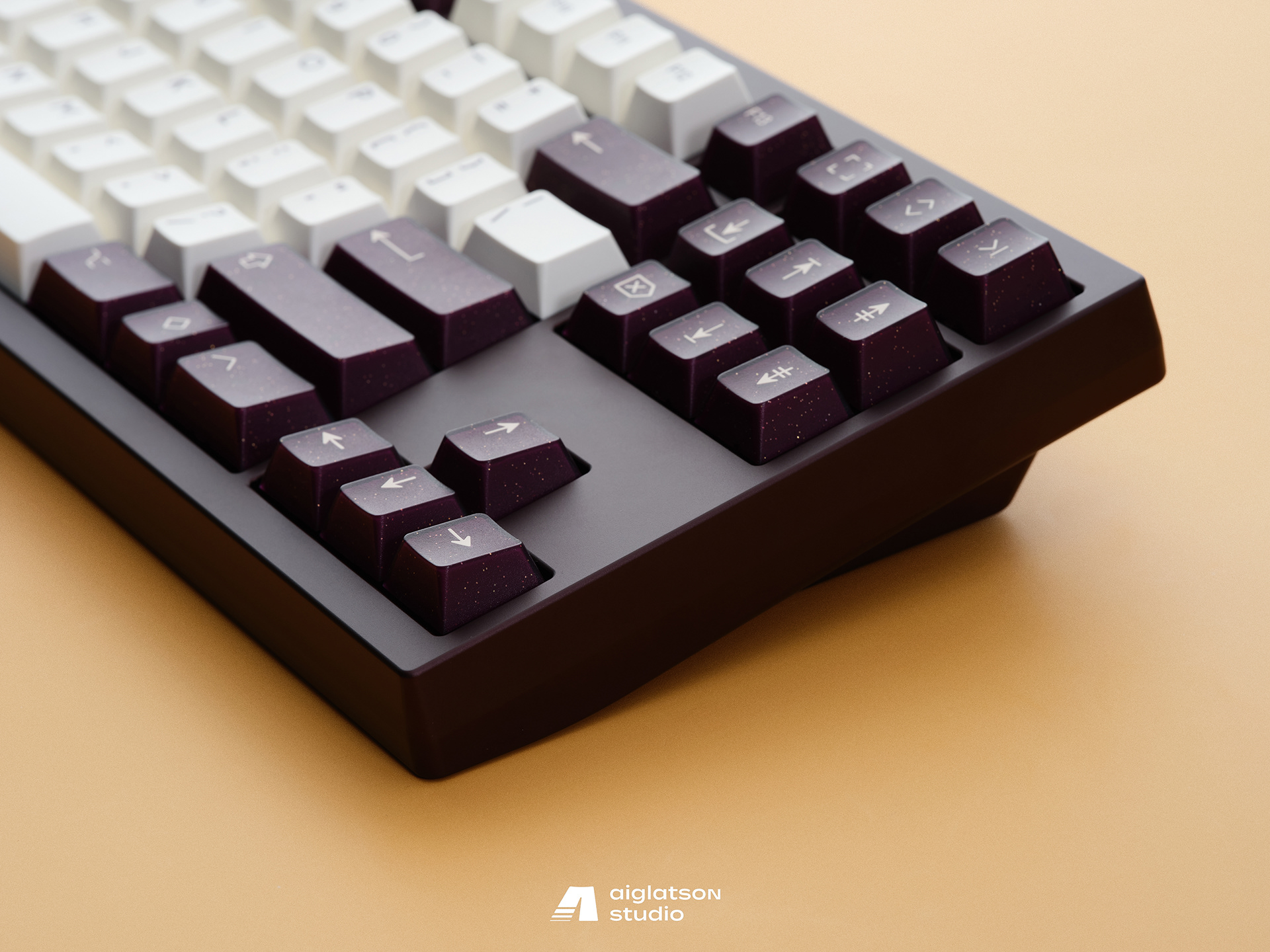

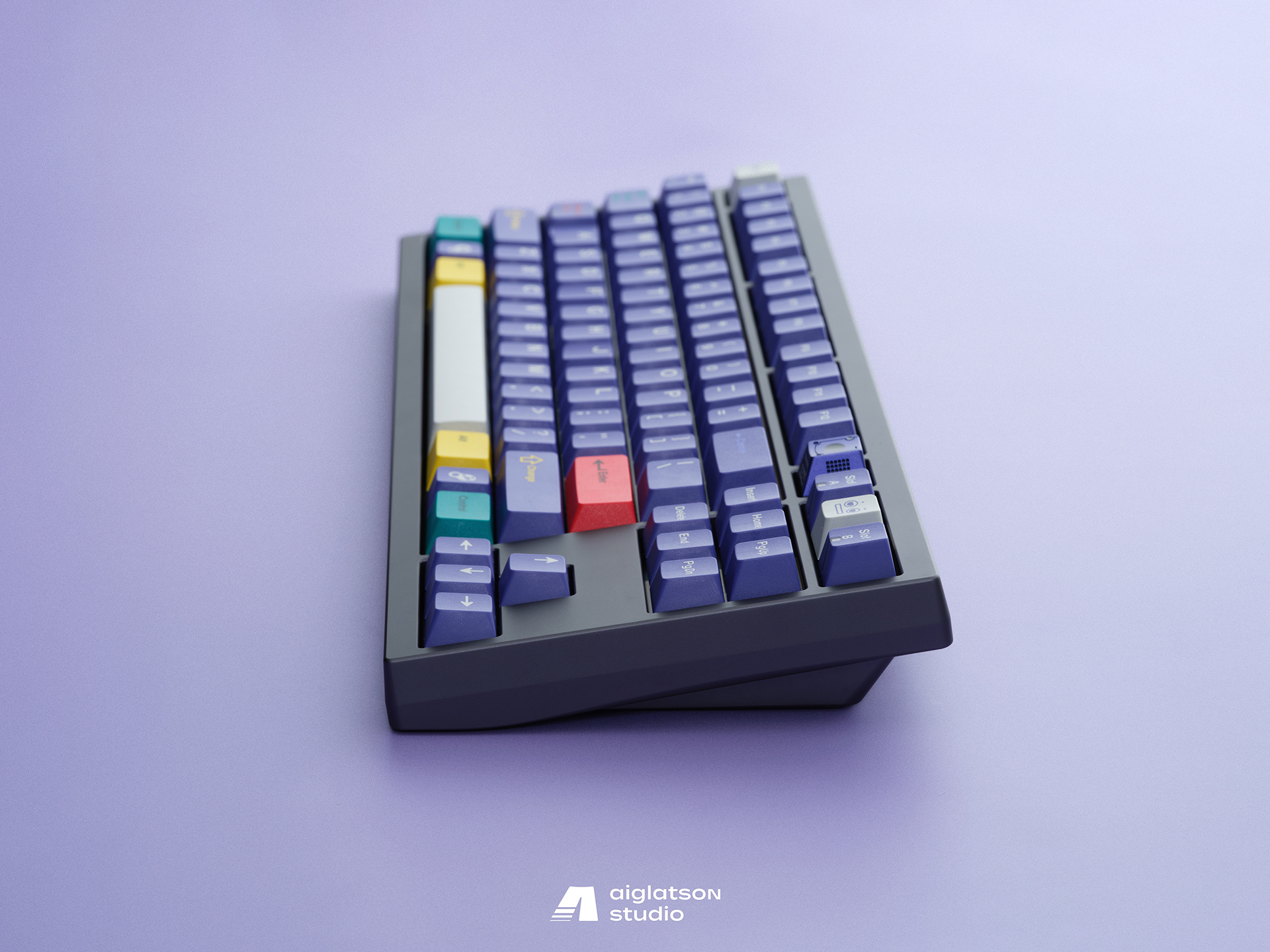

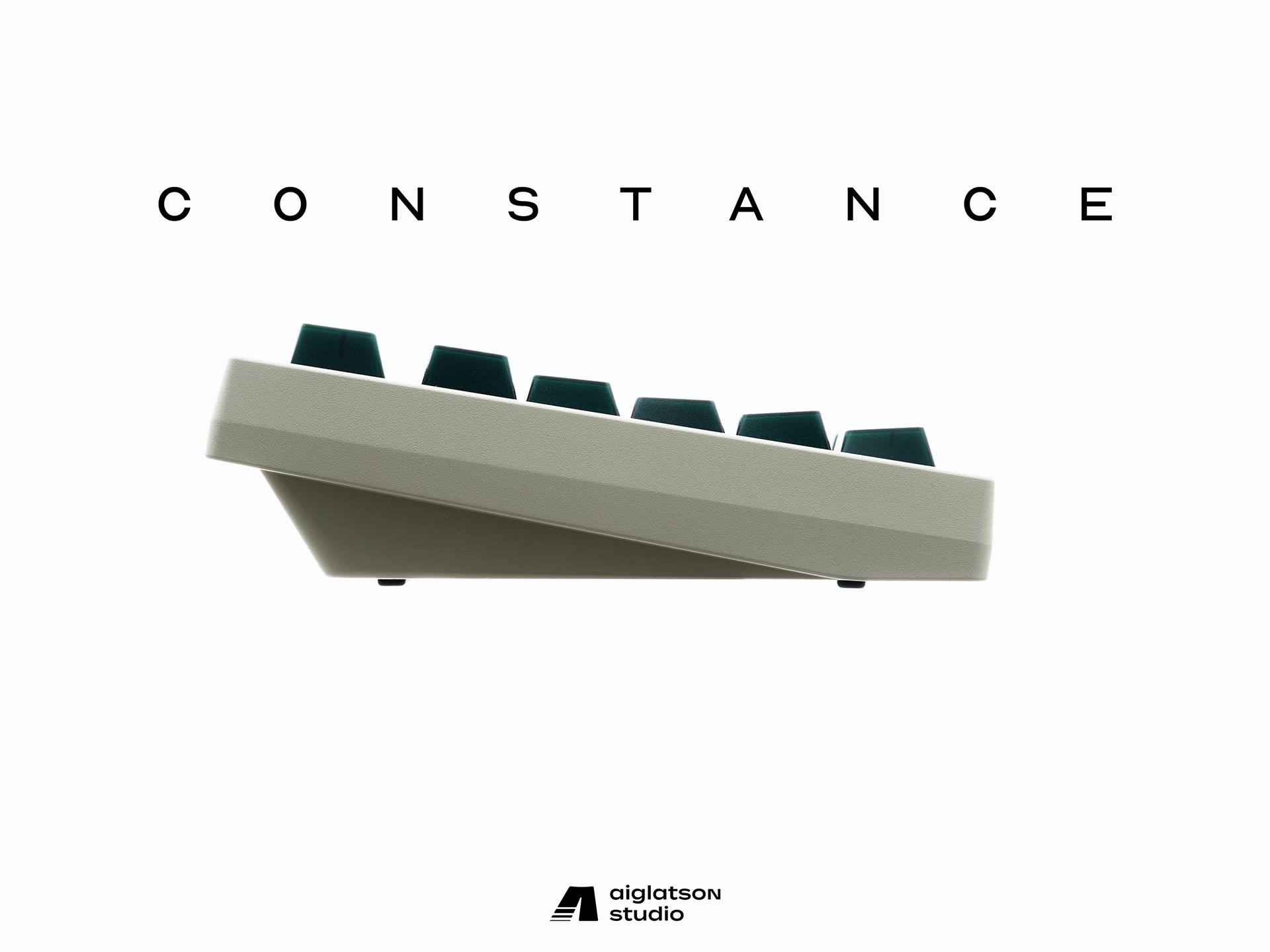

Initially, Constance came with a simple HG side, but we decided to add a subtle curvature to make the side profile more appealing and softer on the eye.
This was a last-minute decision, but we ended up liking it more.
It comes with a 9-degree typing and a EKH of 23.799 mm.

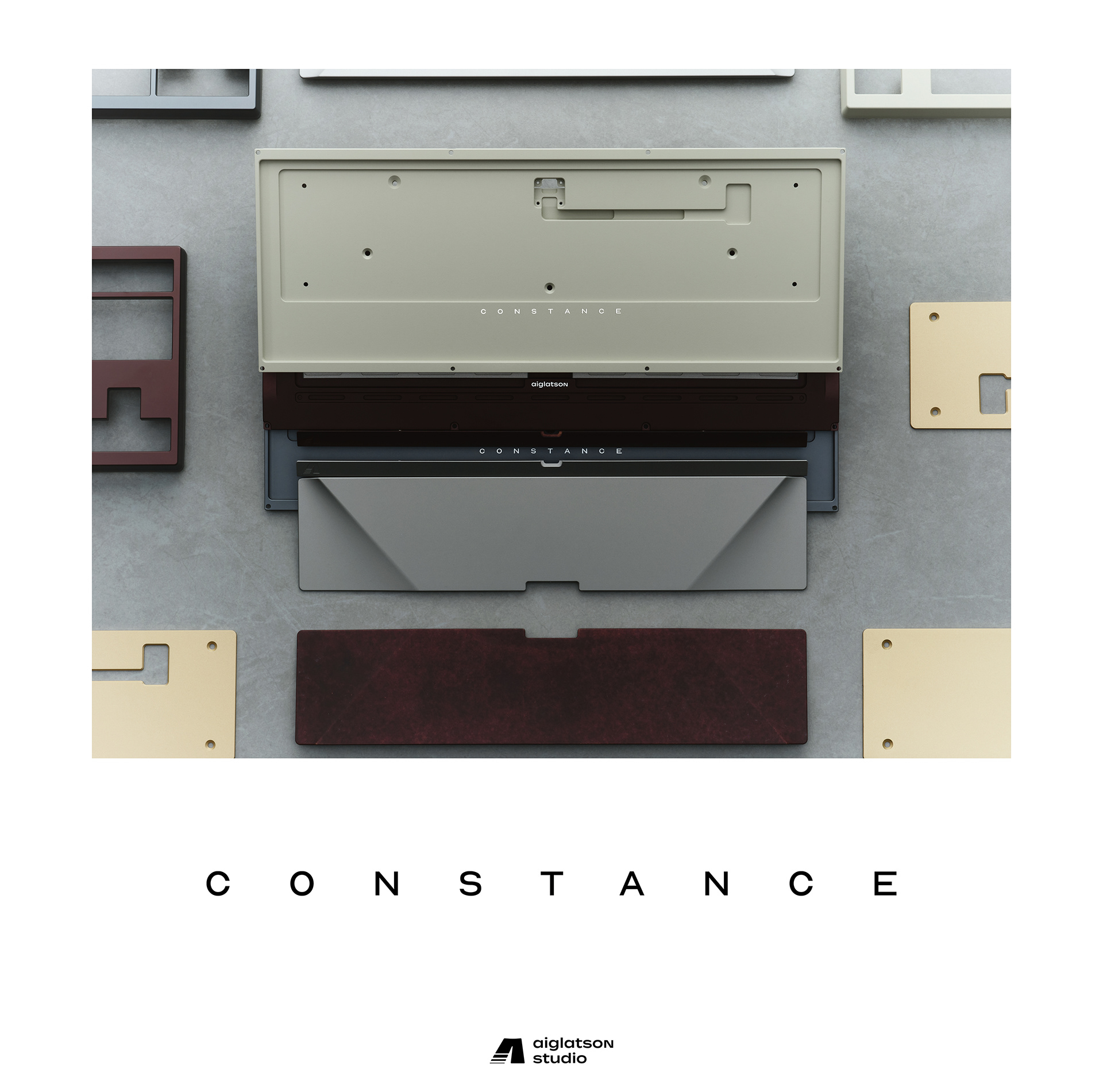

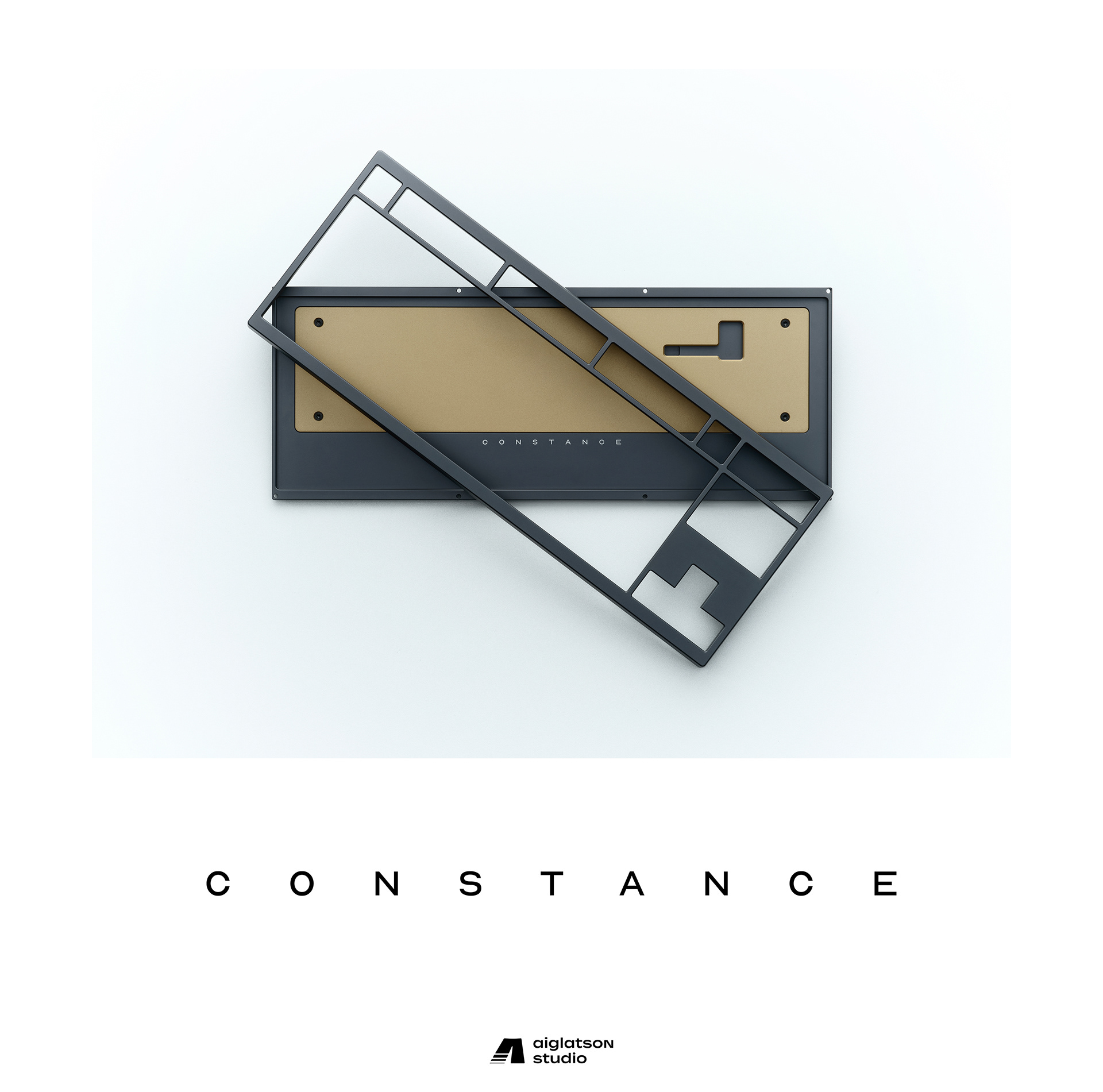

Mounting and Plate

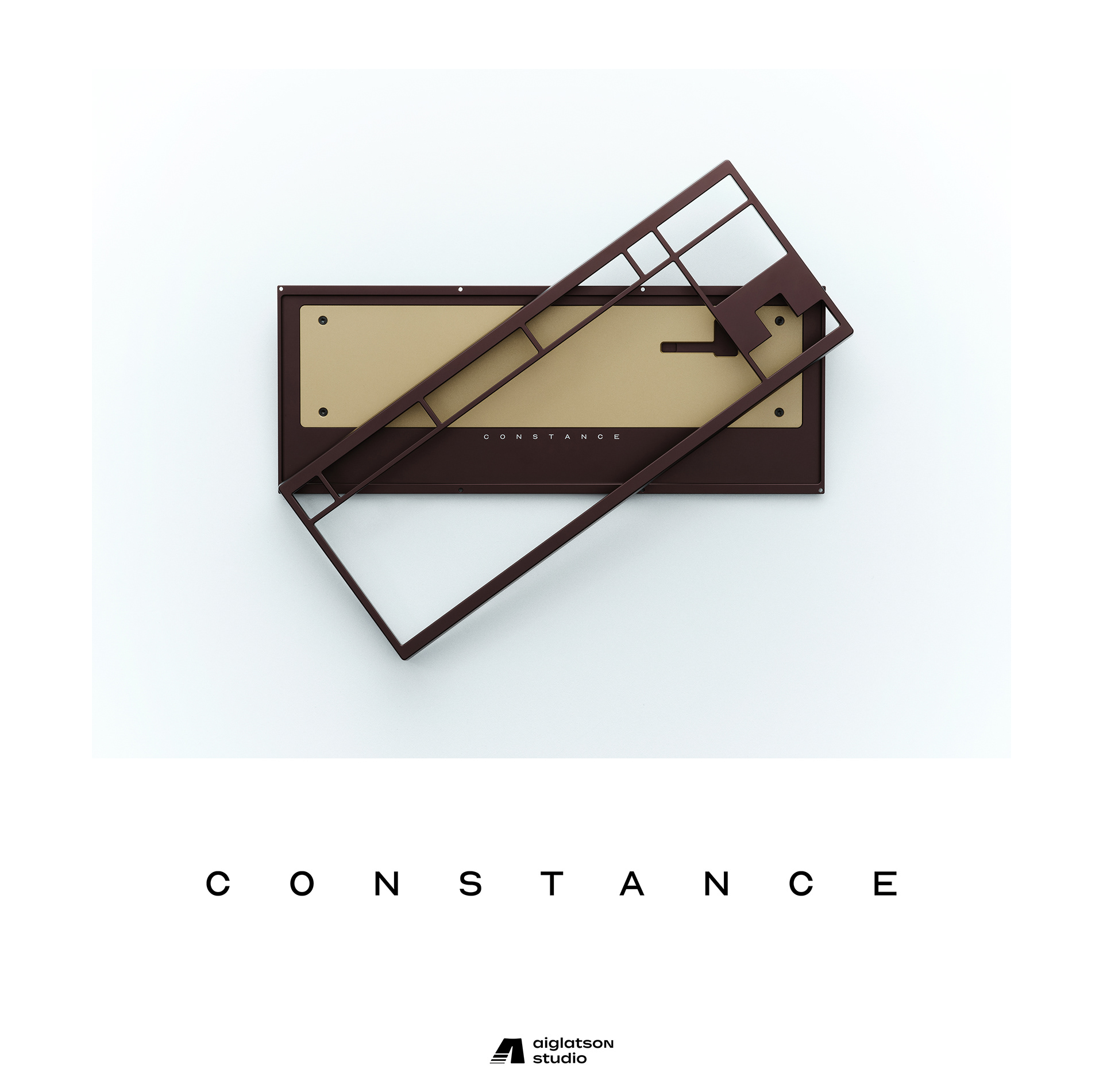

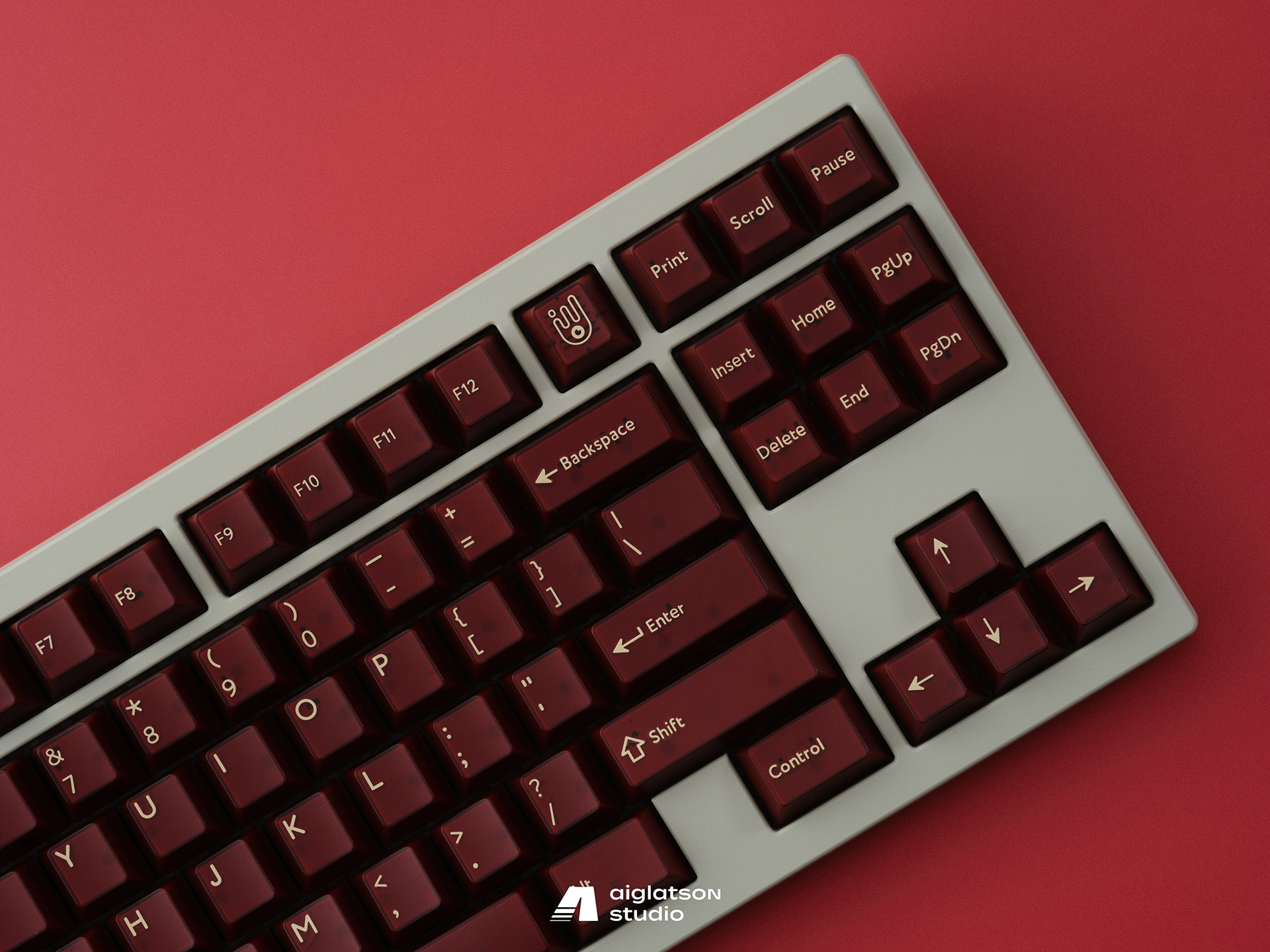

Constance TKL is a top mount keyboard that comes with split plates similar to the Glare TKL and Albatross TKL keyboards. It will separate 60% Cluster and Function Row from the Navigator Cluster. During the development, we have experimented with both Full Plate and Split Plate. We found that the separated plate gives a higher sound profile (High Pitch) and is significantly louder, which meets our needs. In addition, the layout is symmetrical, making the mounting points symmetrical for a stable and consistent typing feel. We have also added a cutout between the Function Row and Number Row (Aluminum Plate and Carbon Fiber Plate only) to increase the flex of the Alpha for the rigid plate.

Design Features

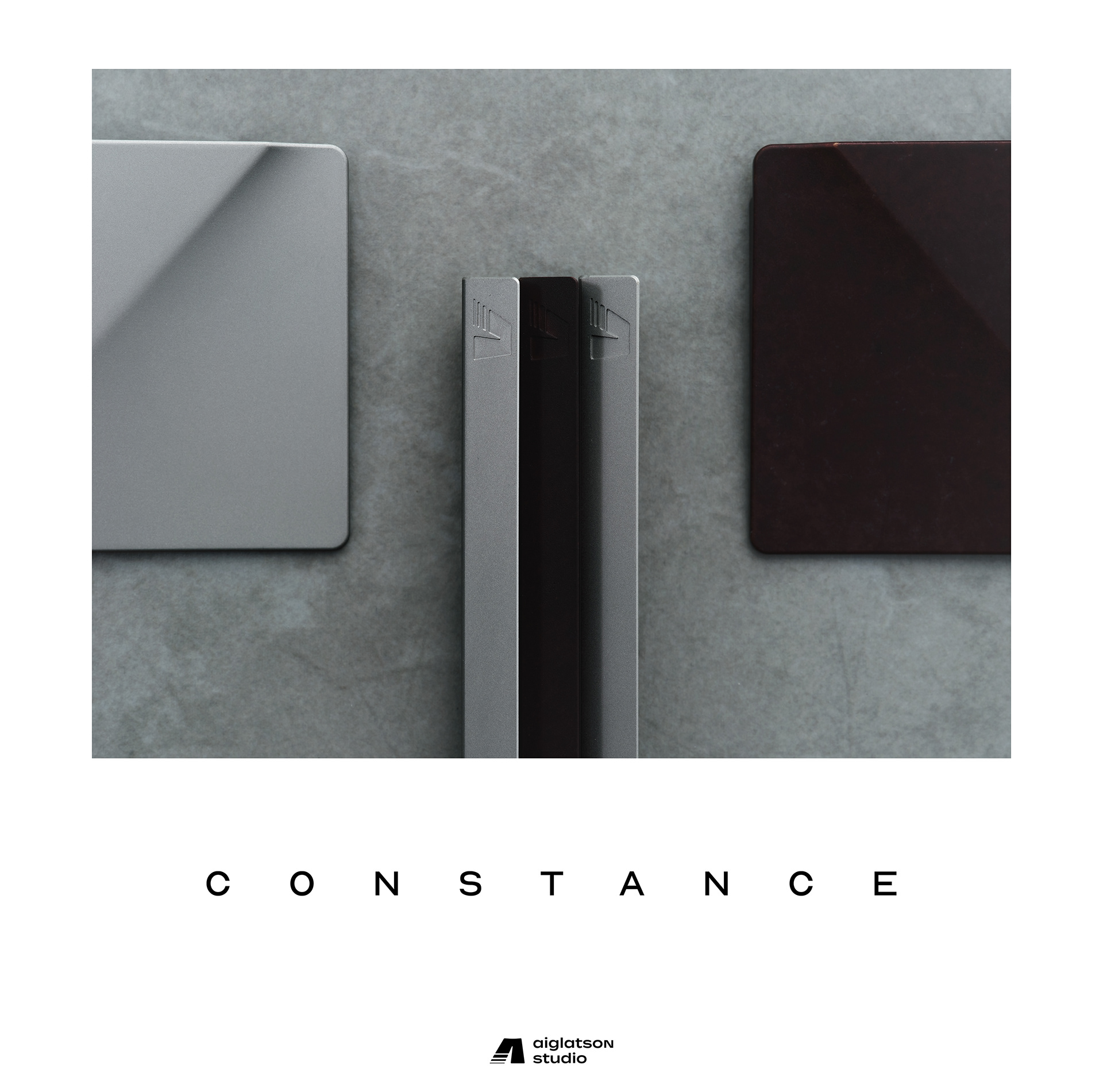

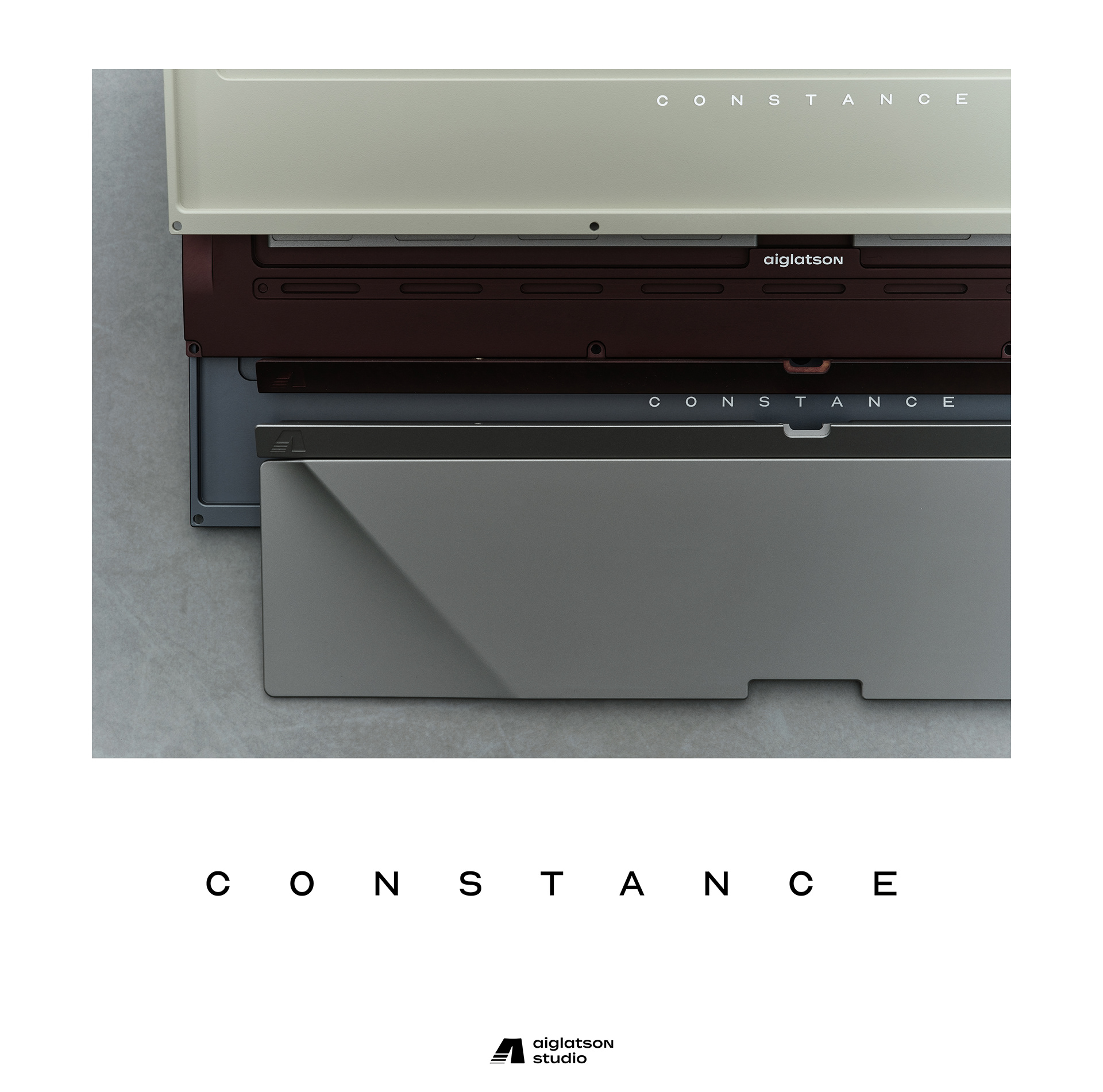

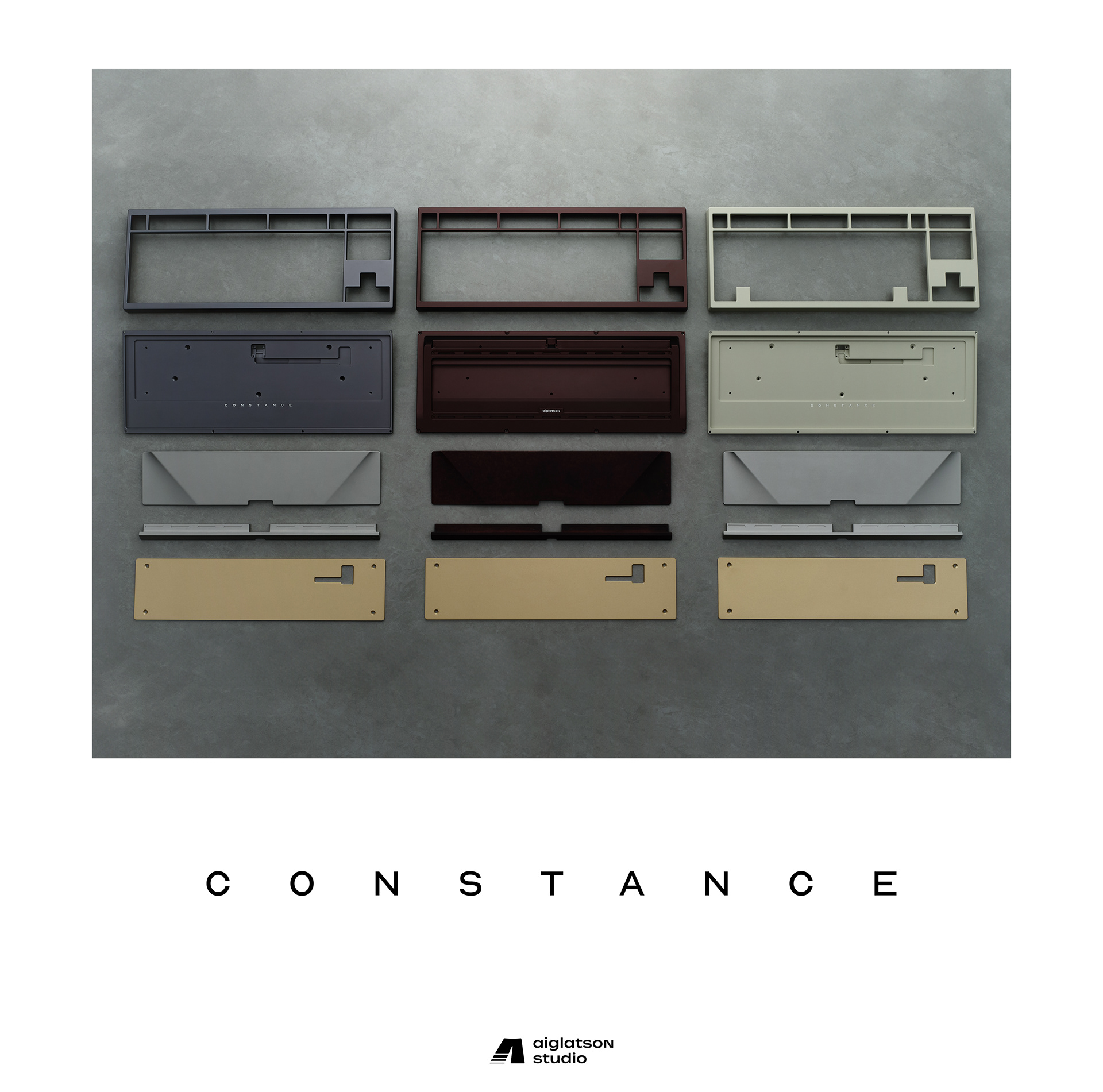

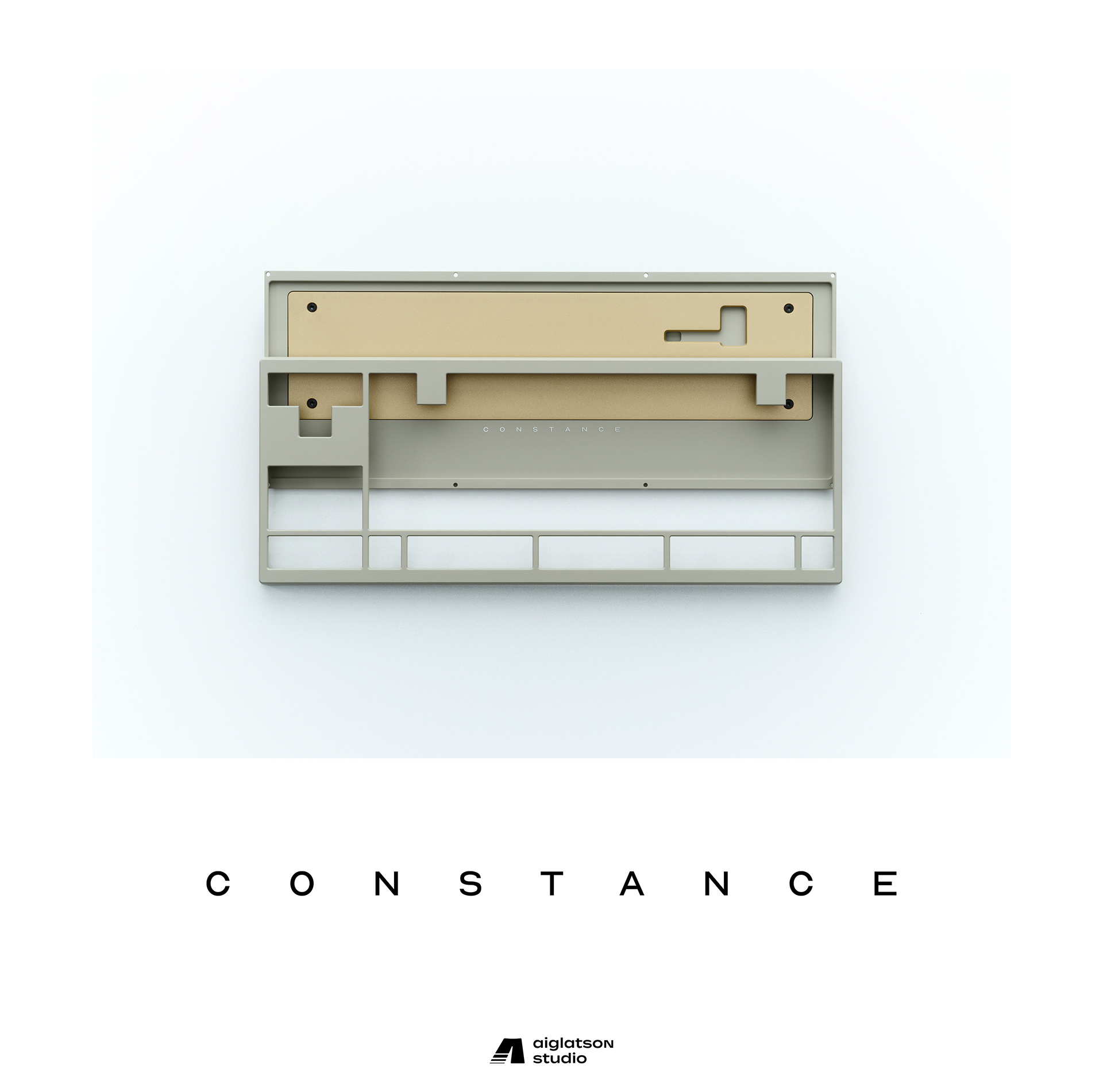

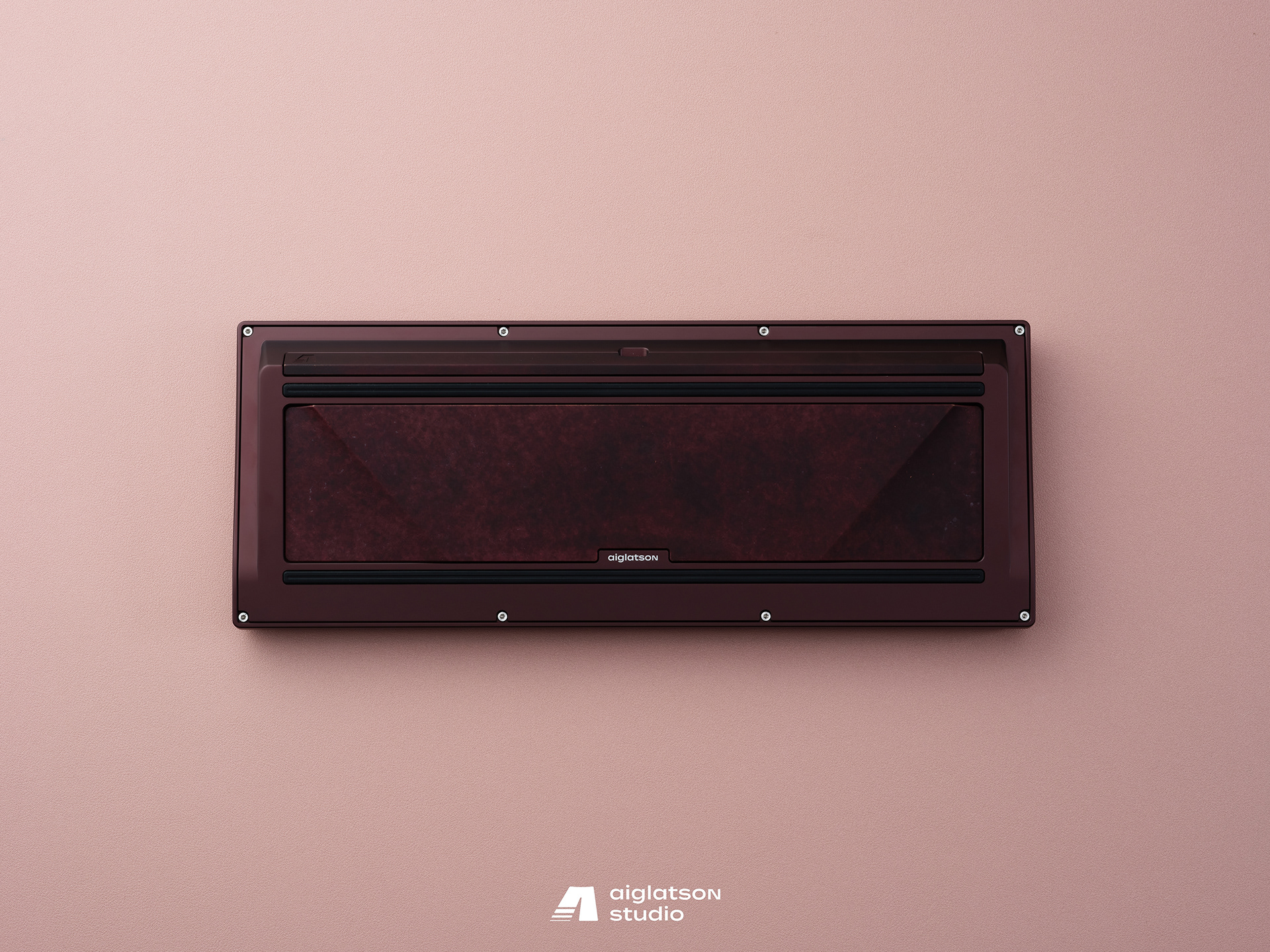

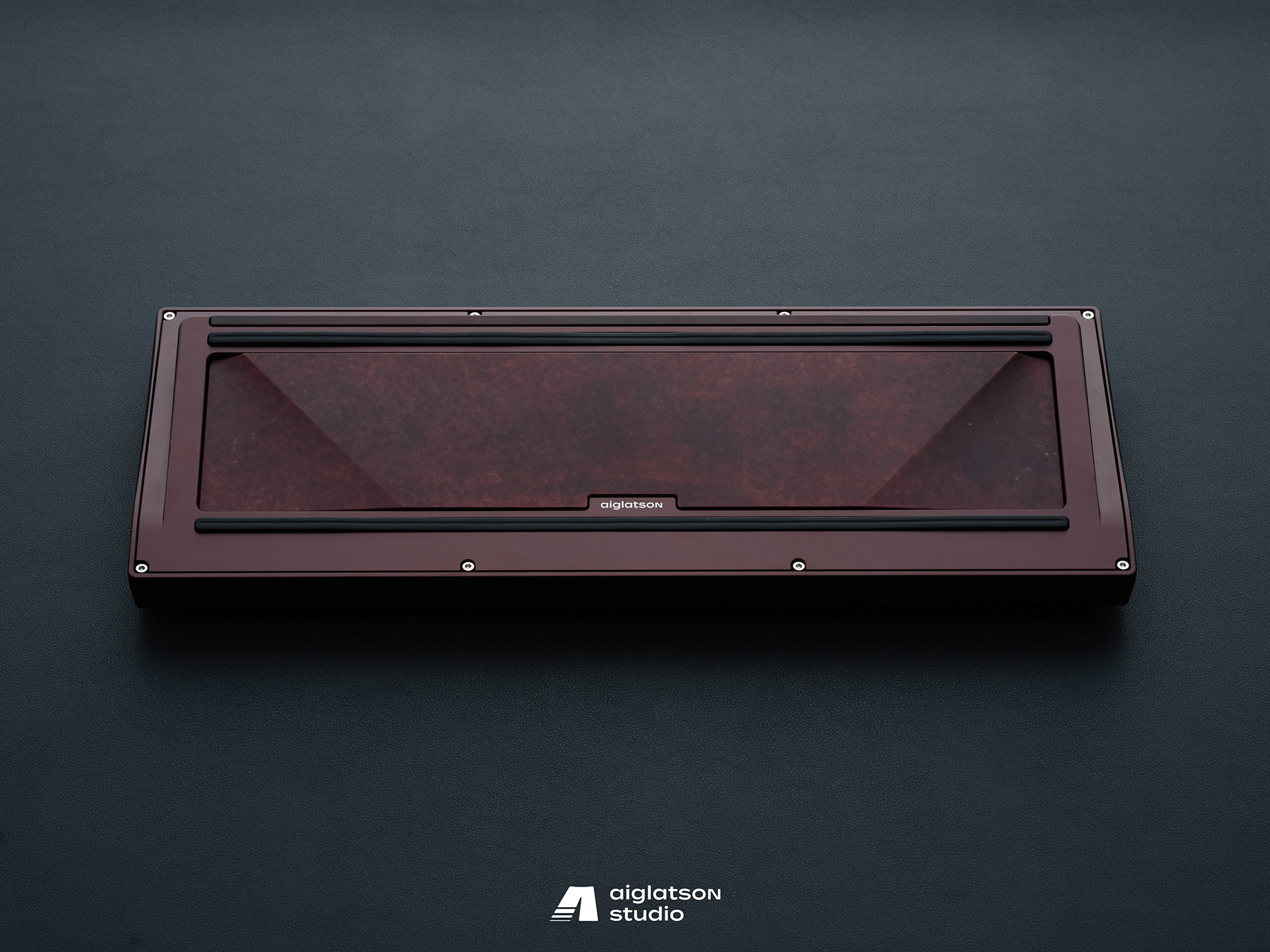

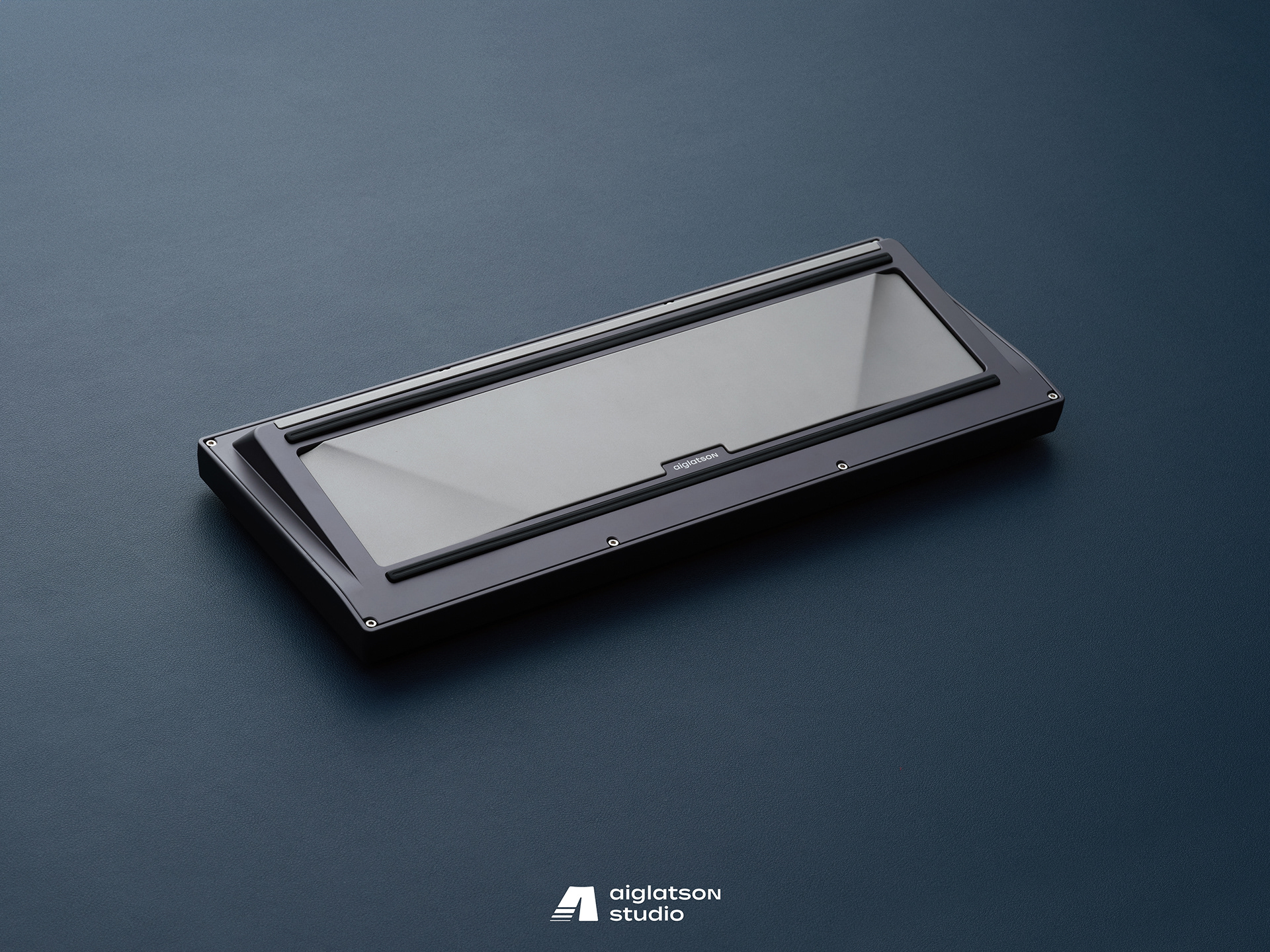

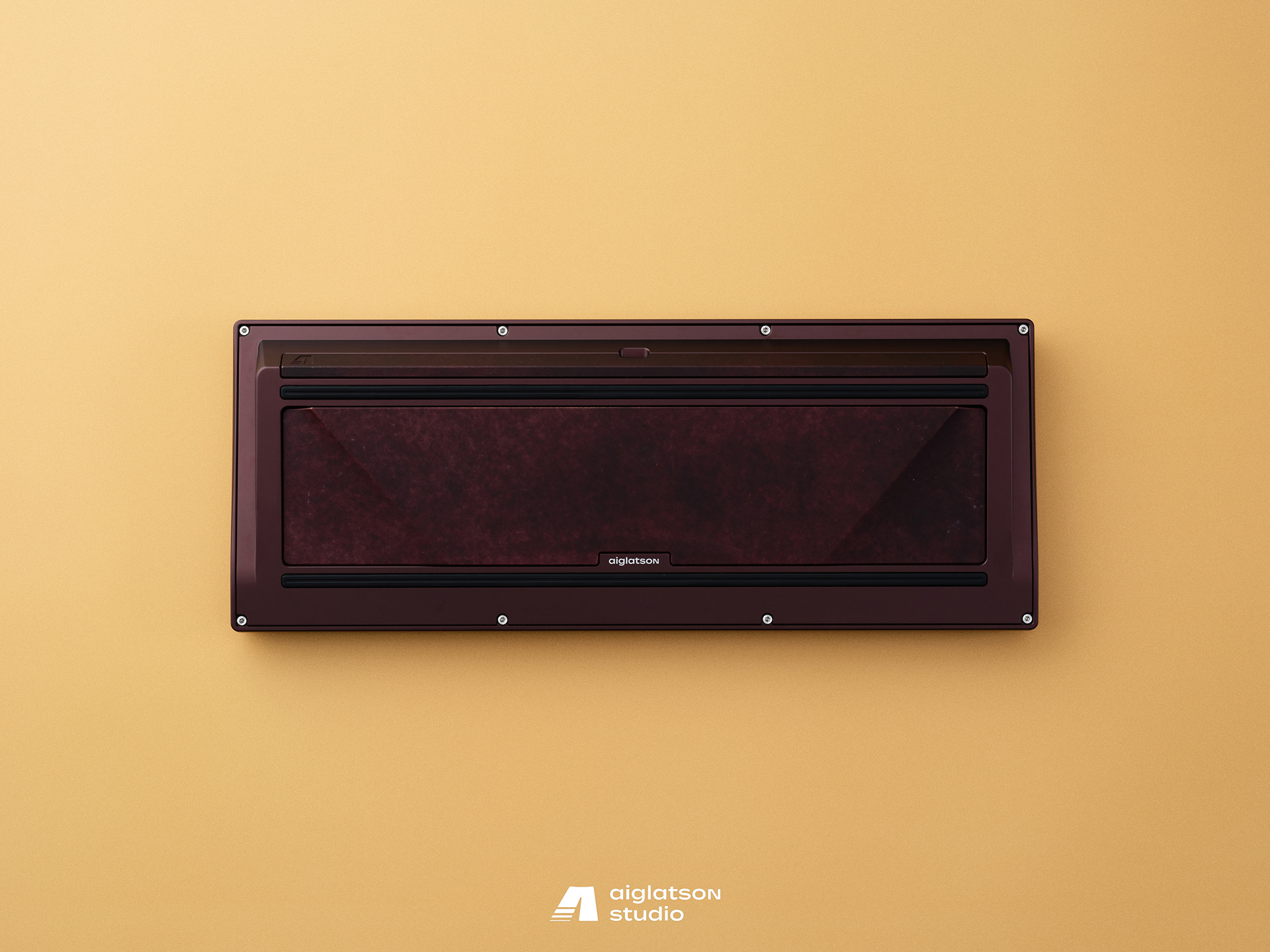

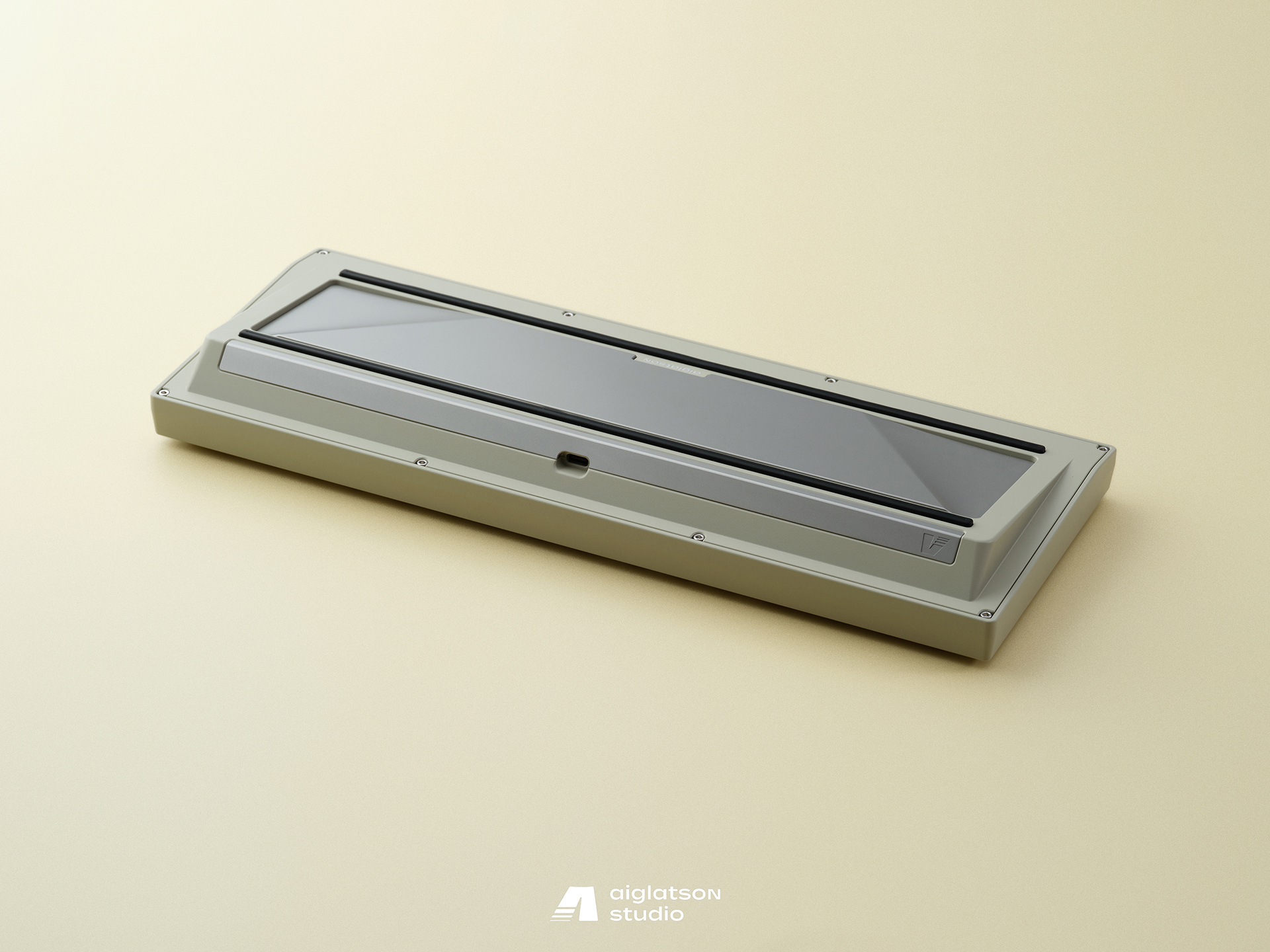

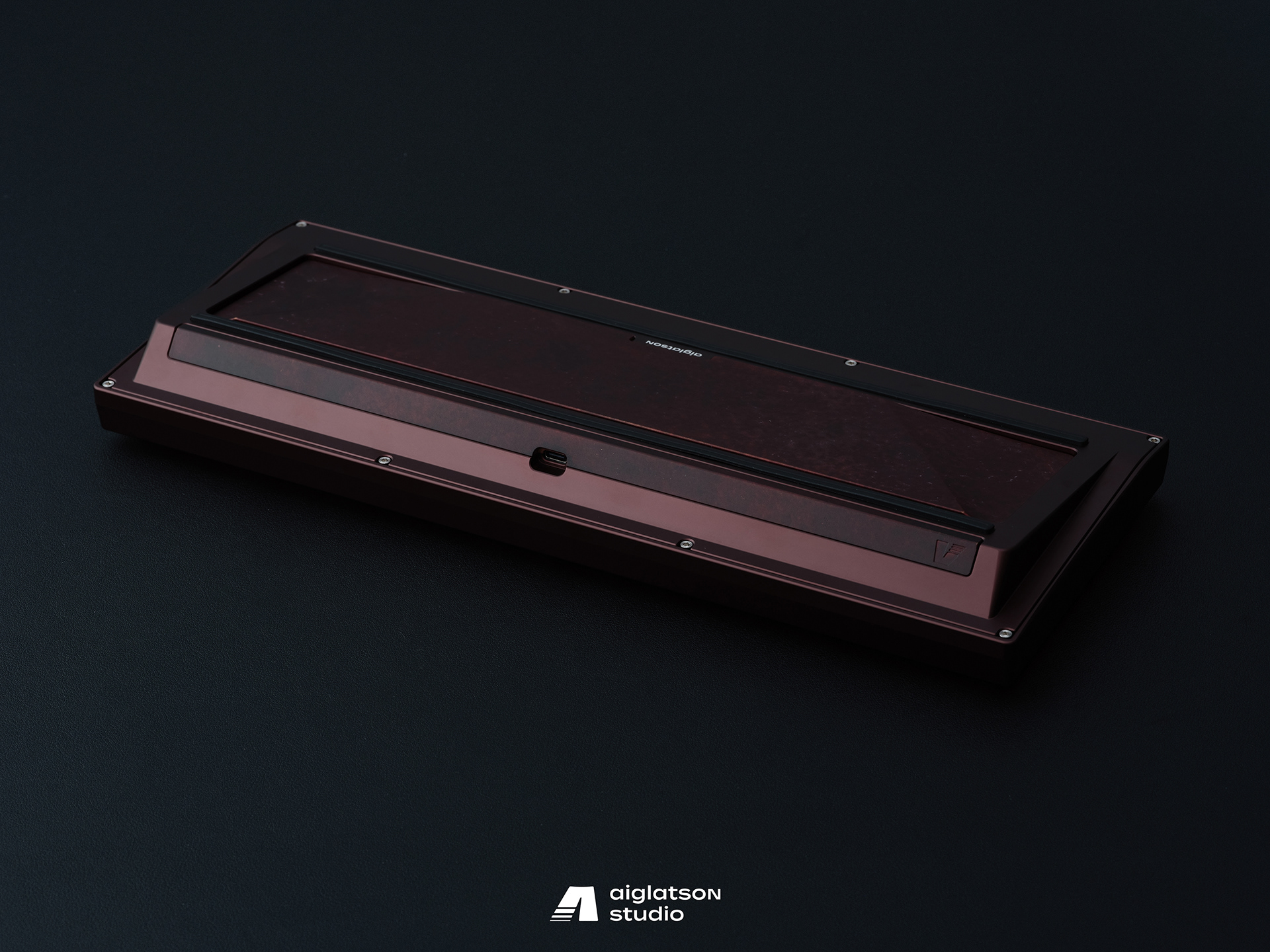

Constance TKL is a keyboard with a 9-degree typing angle, a 23.799 mm high EKH, and comes with 3 weights, an inner weight, an outer weight, and a Toblerone, resulting in a built-in weight of 3,480 grams for the brass weights and 3,420 grams for the stainless steel weights.

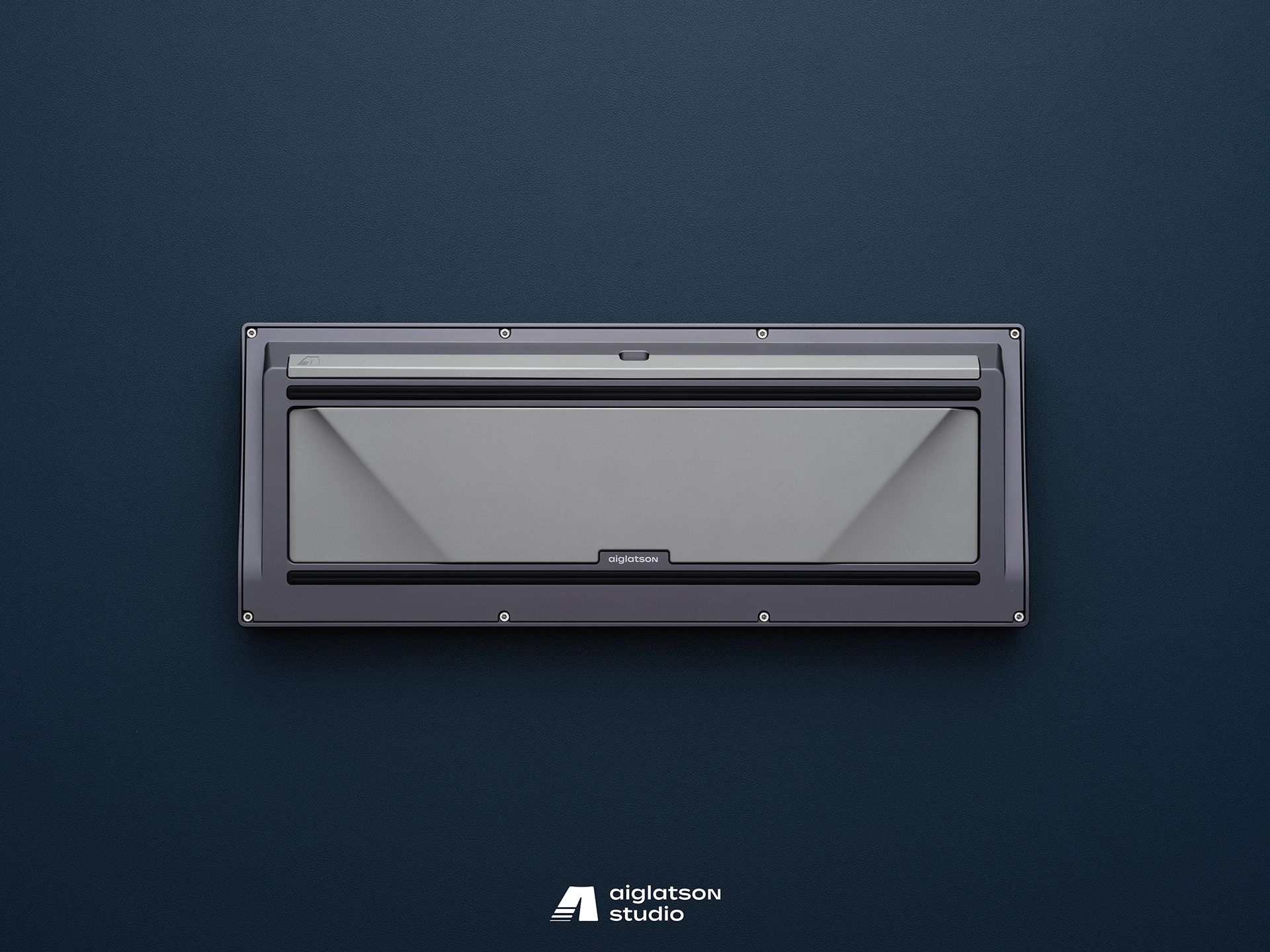

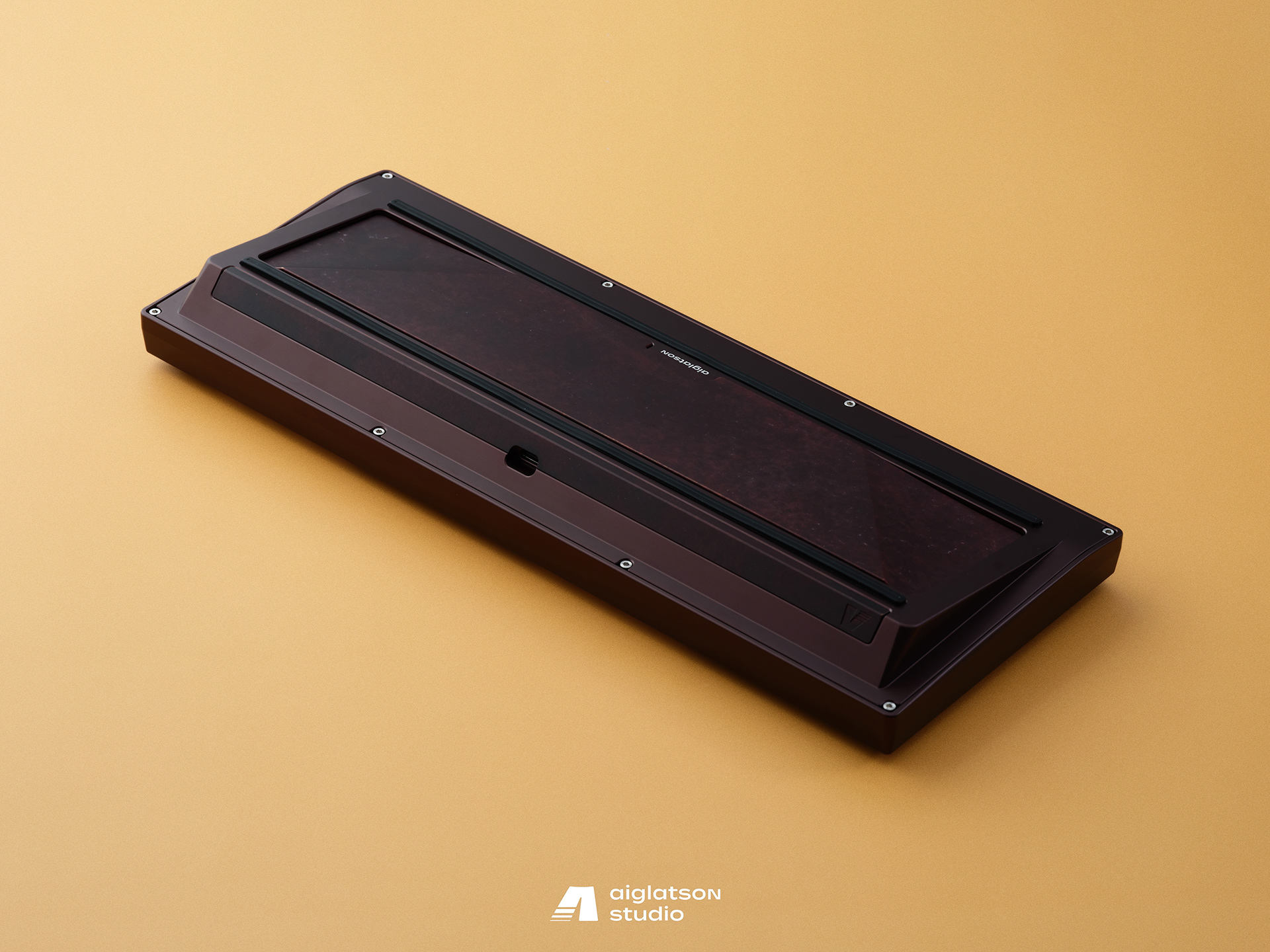

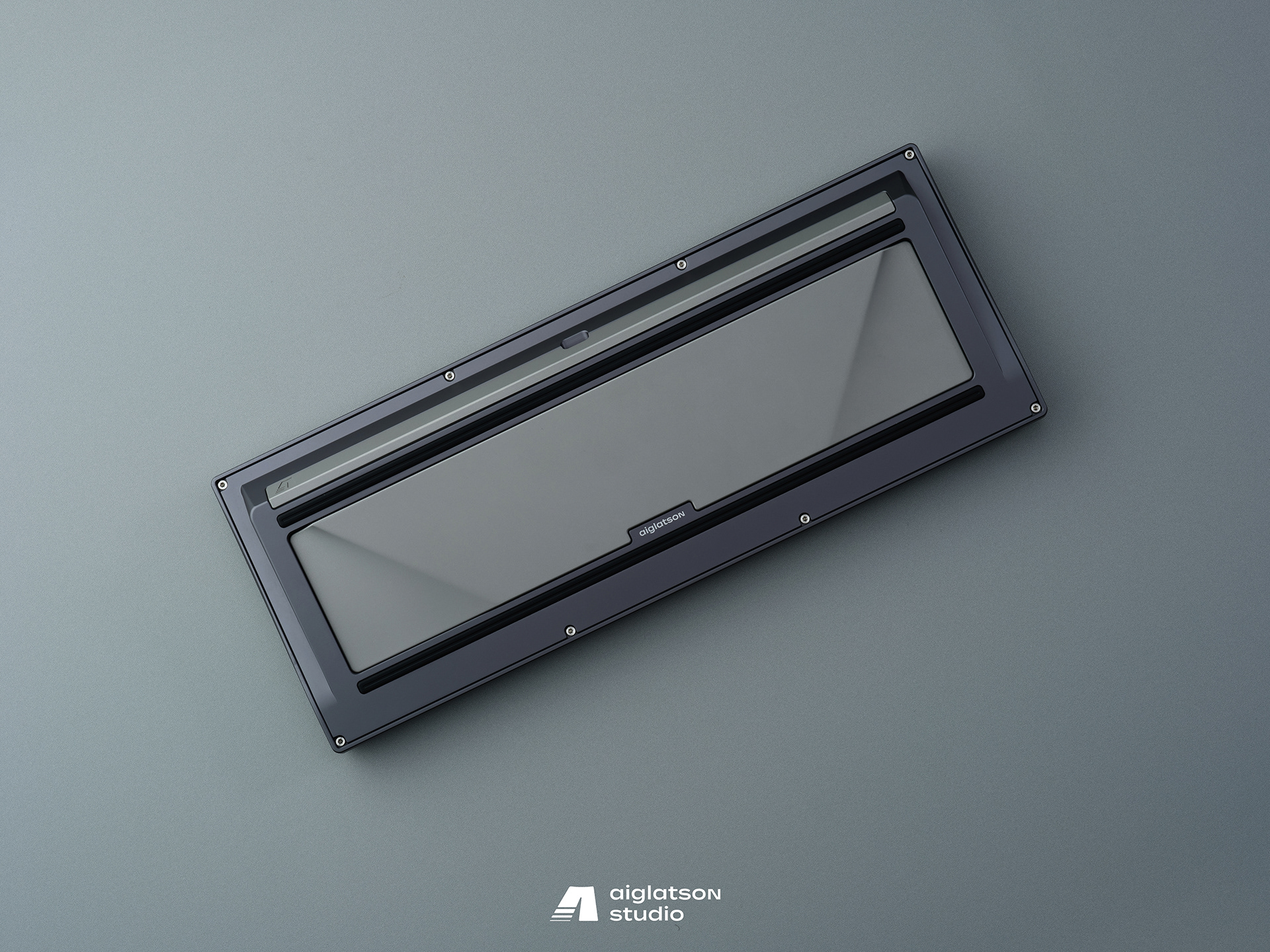

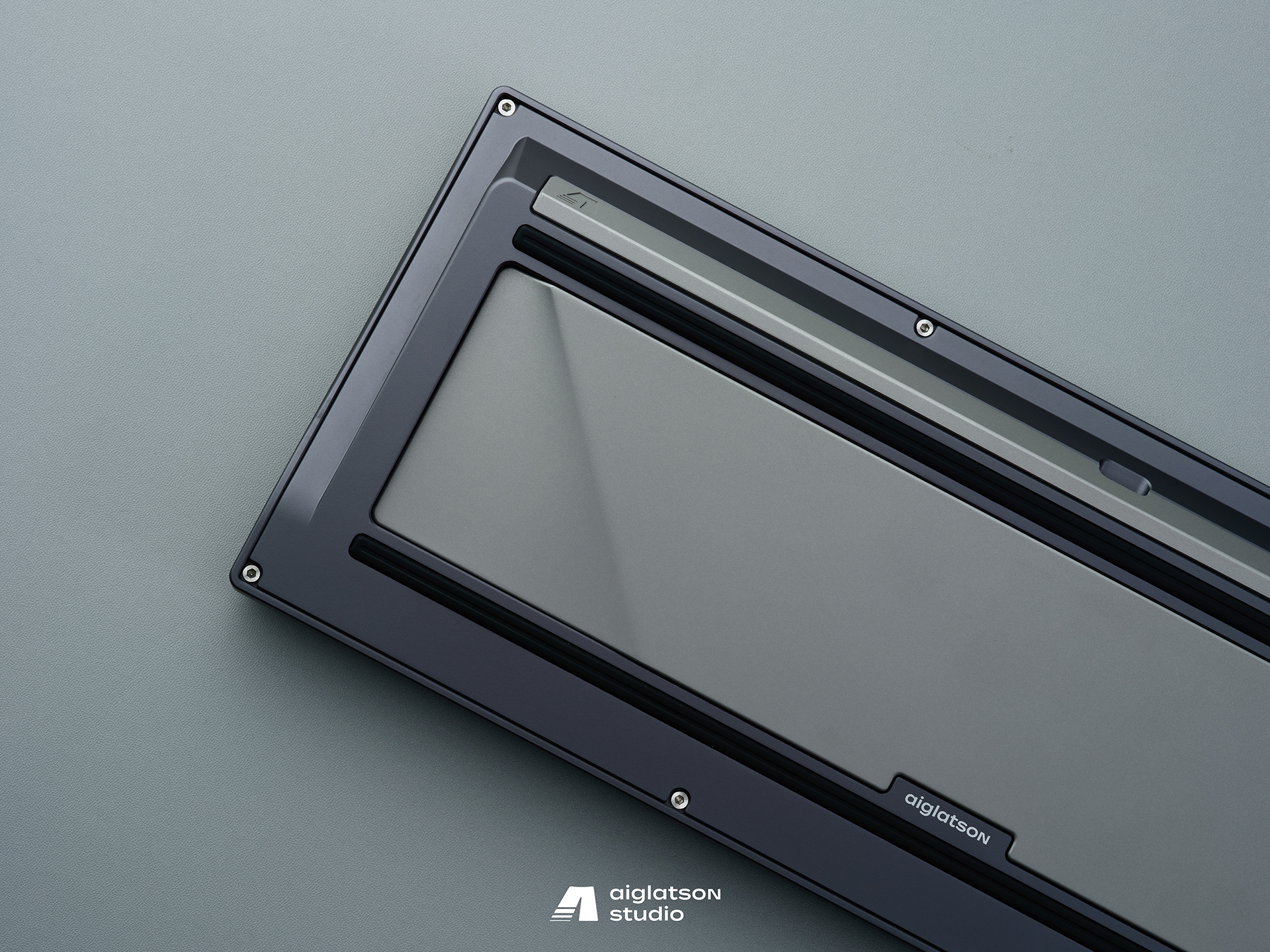

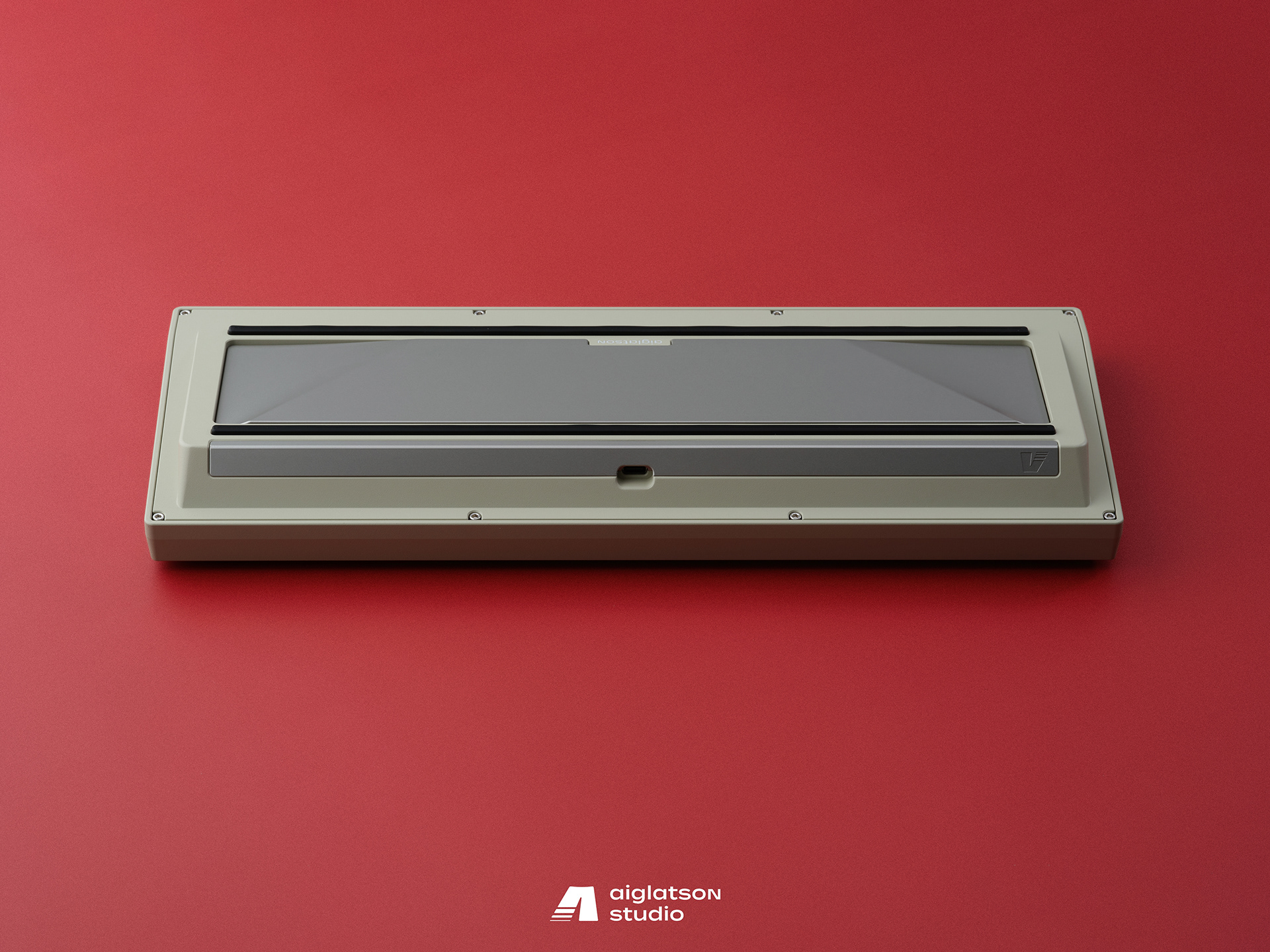

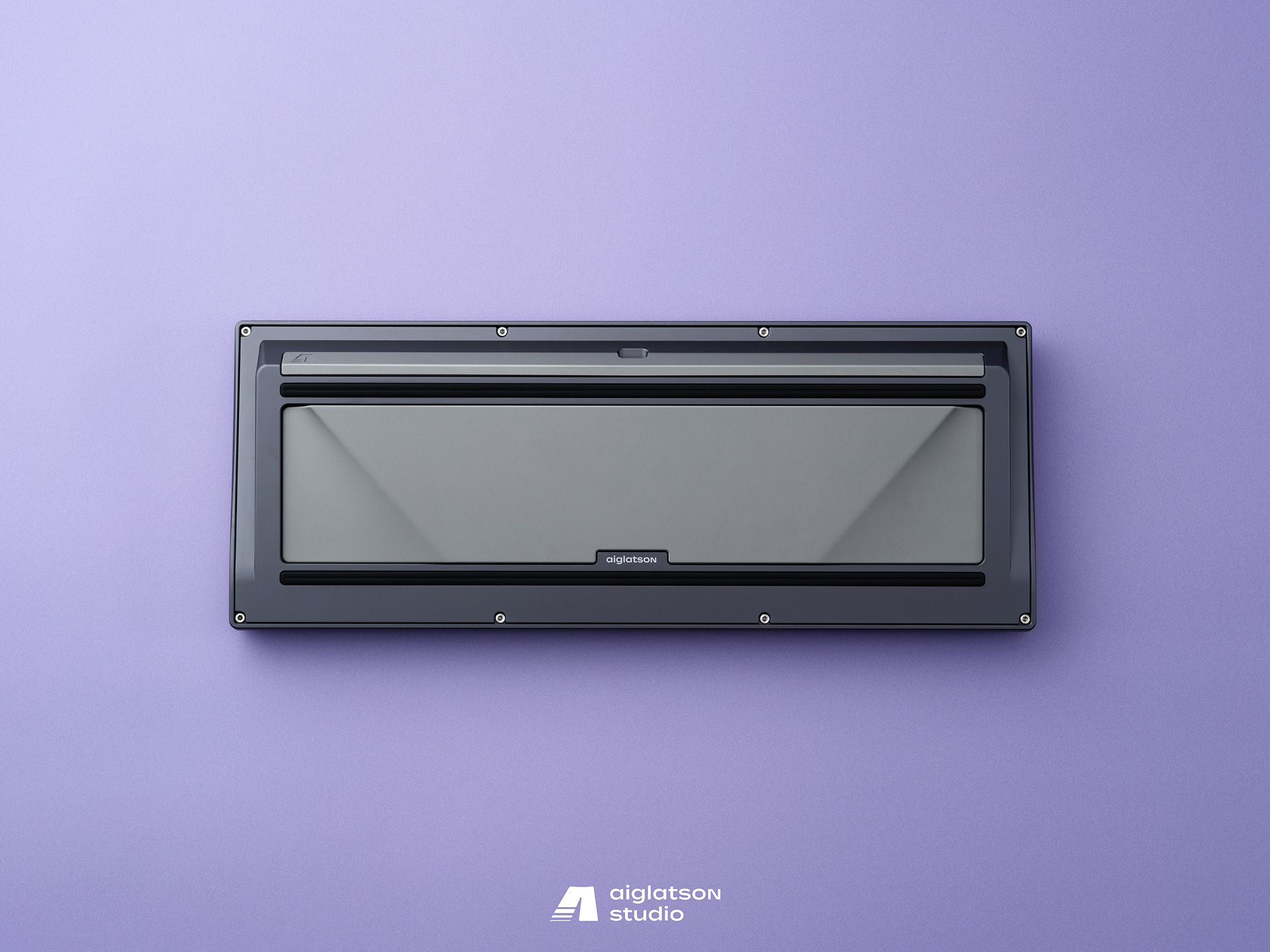

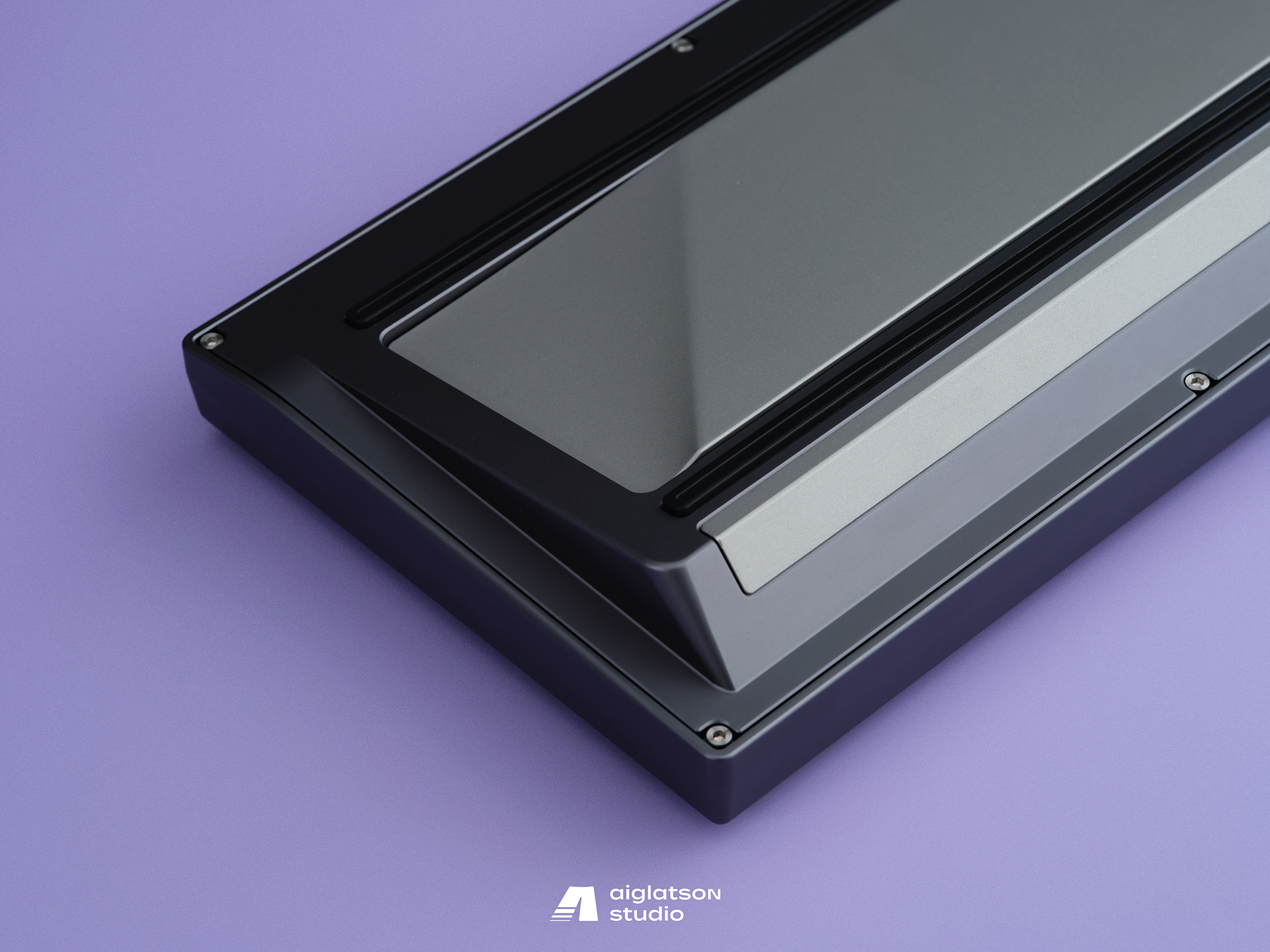

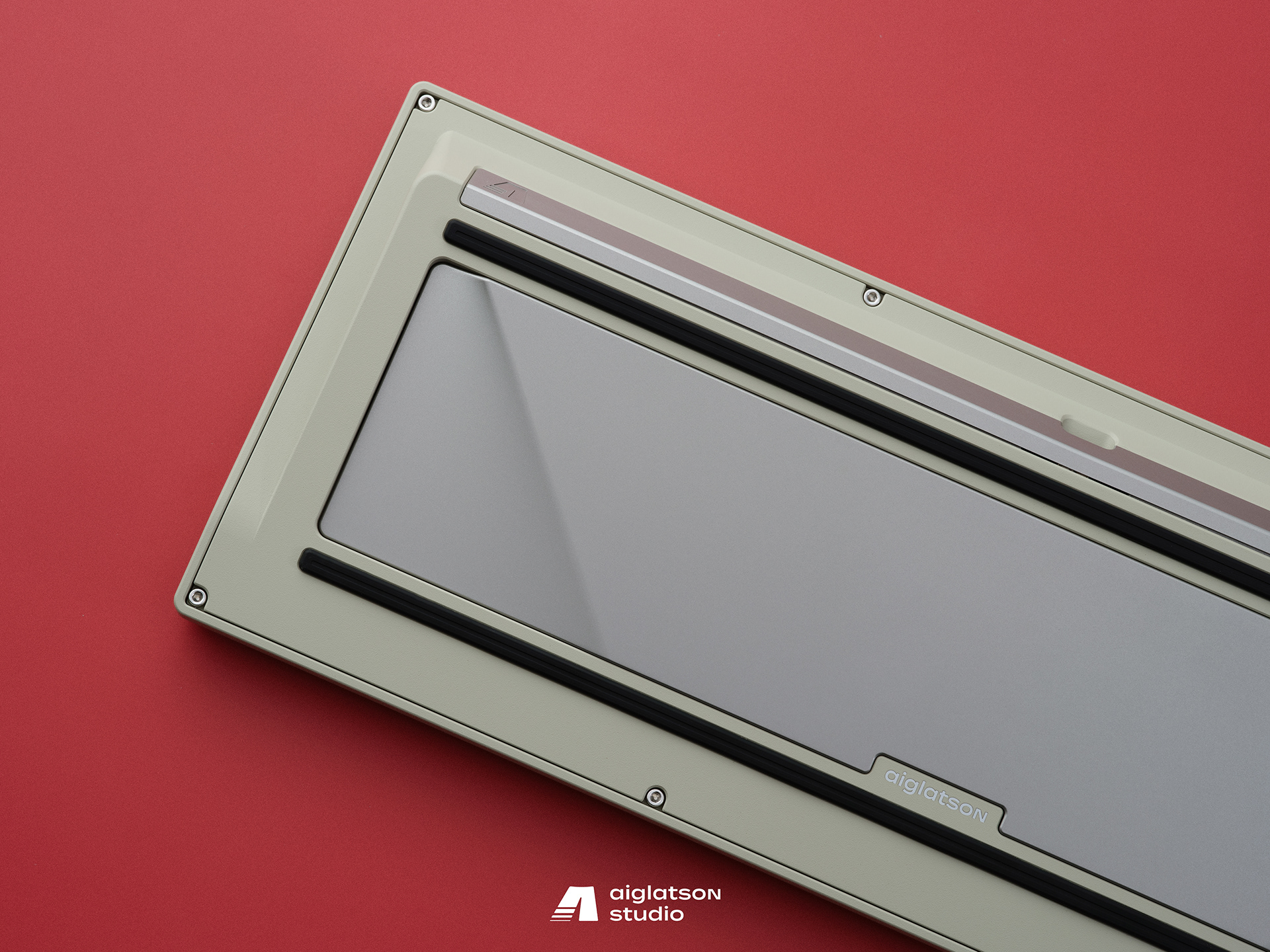

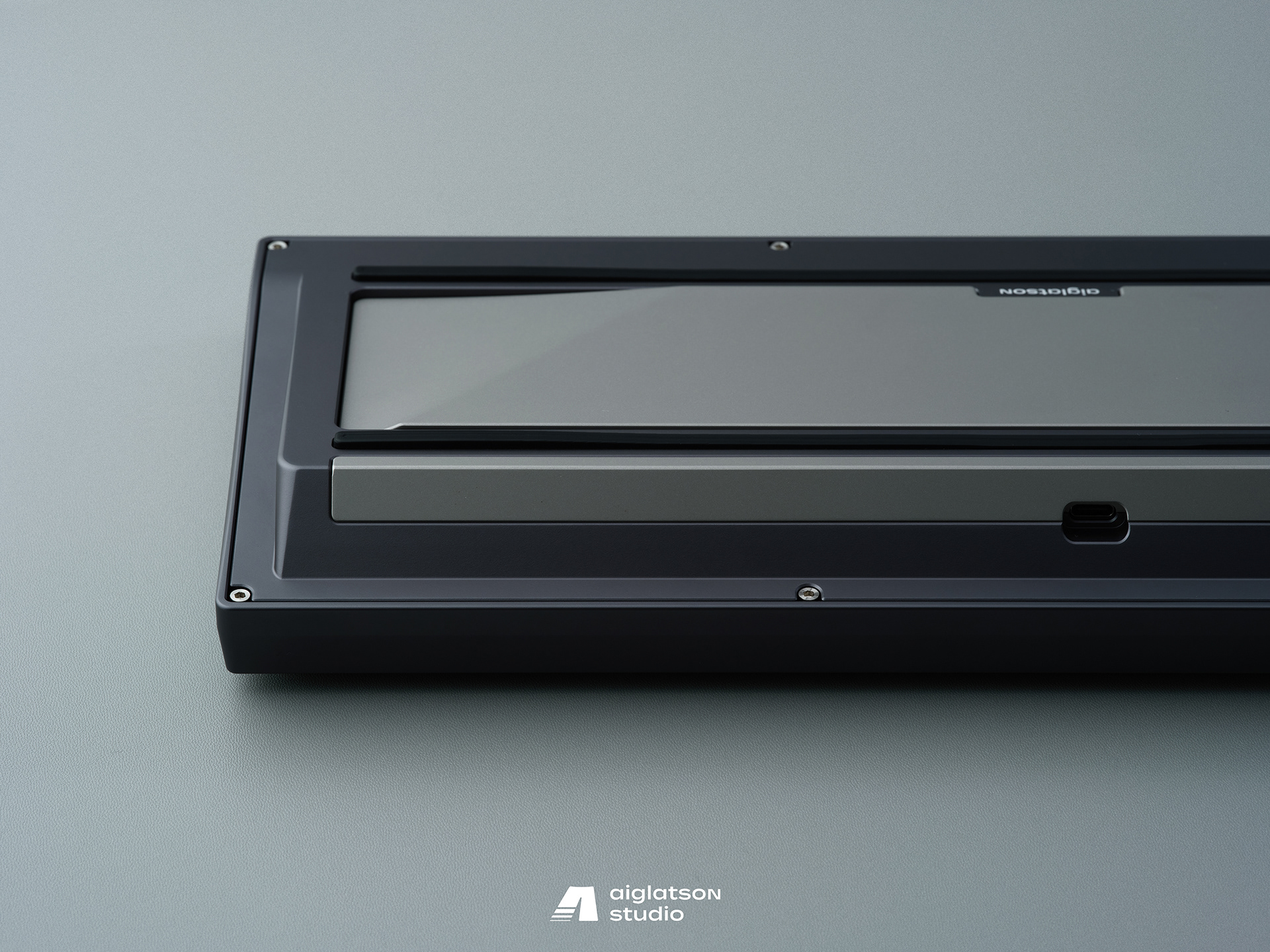

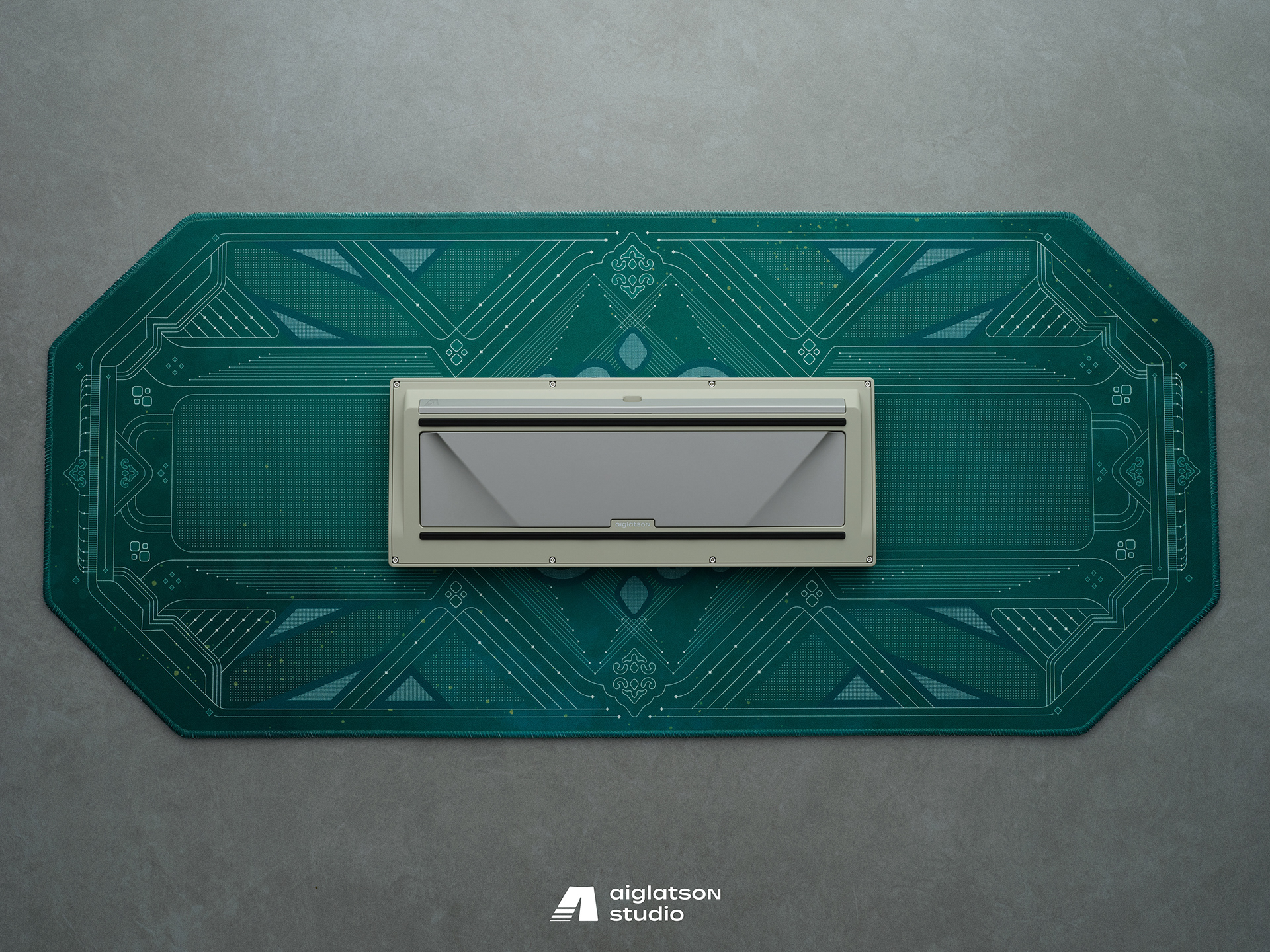

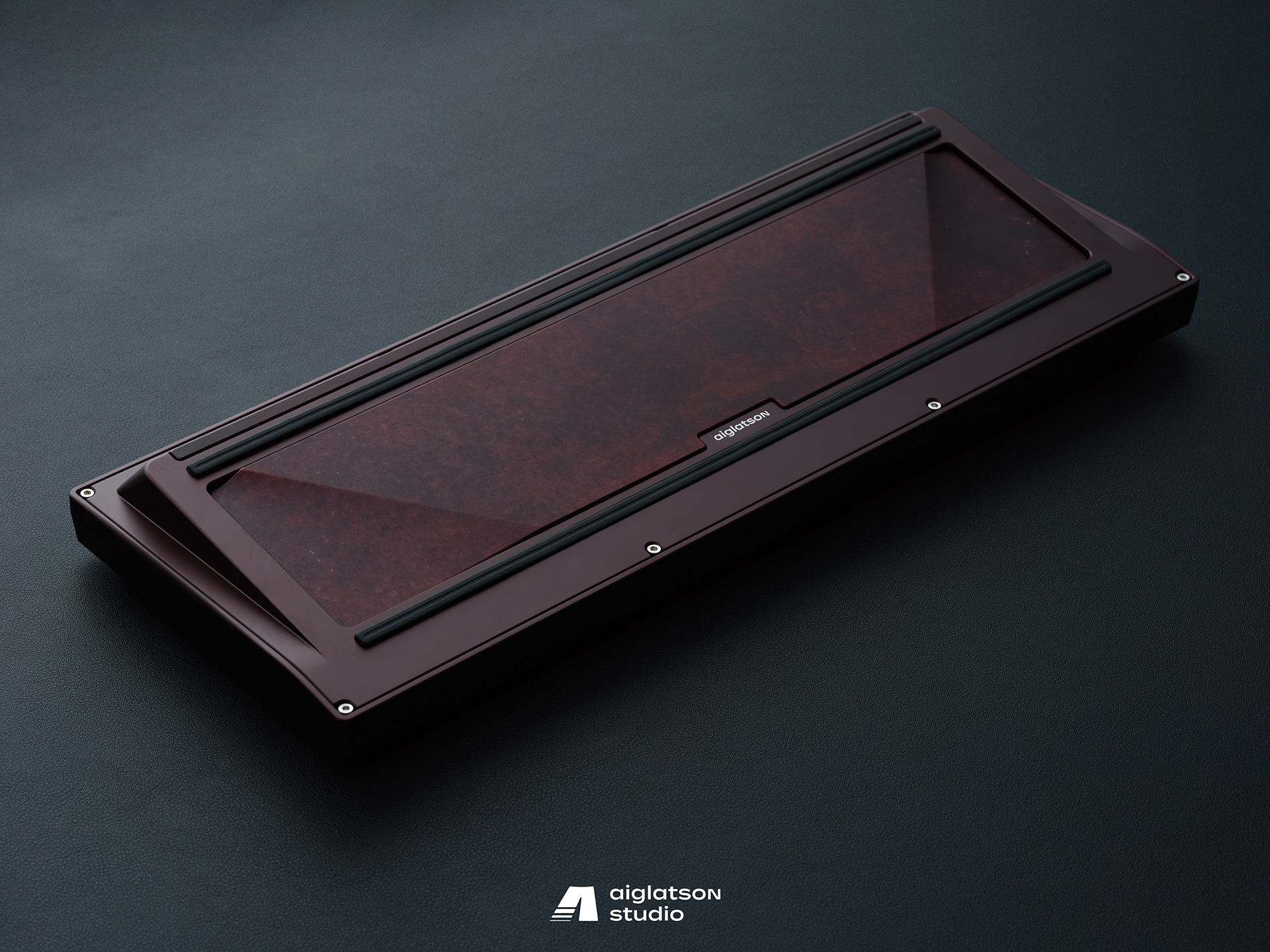

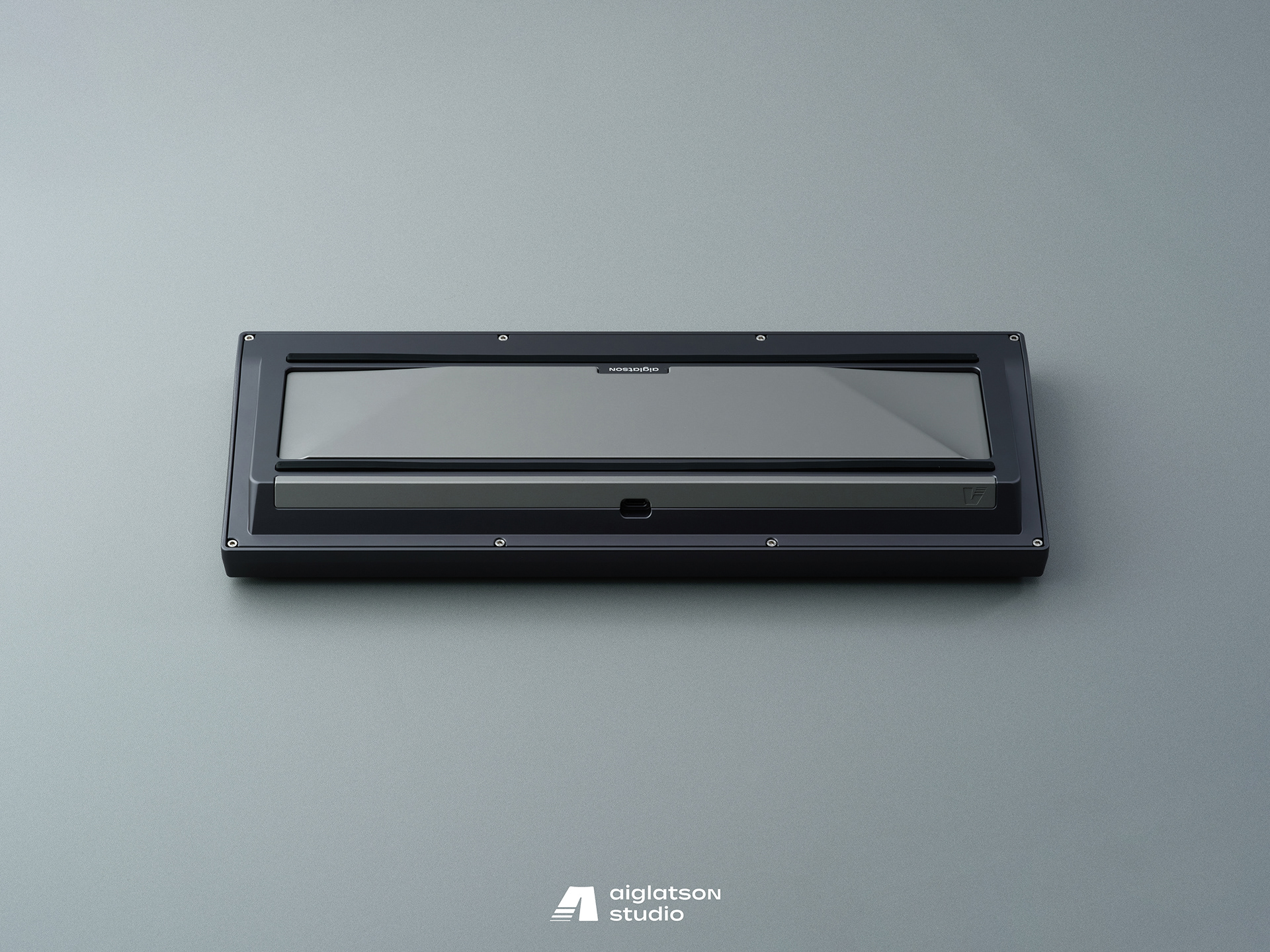

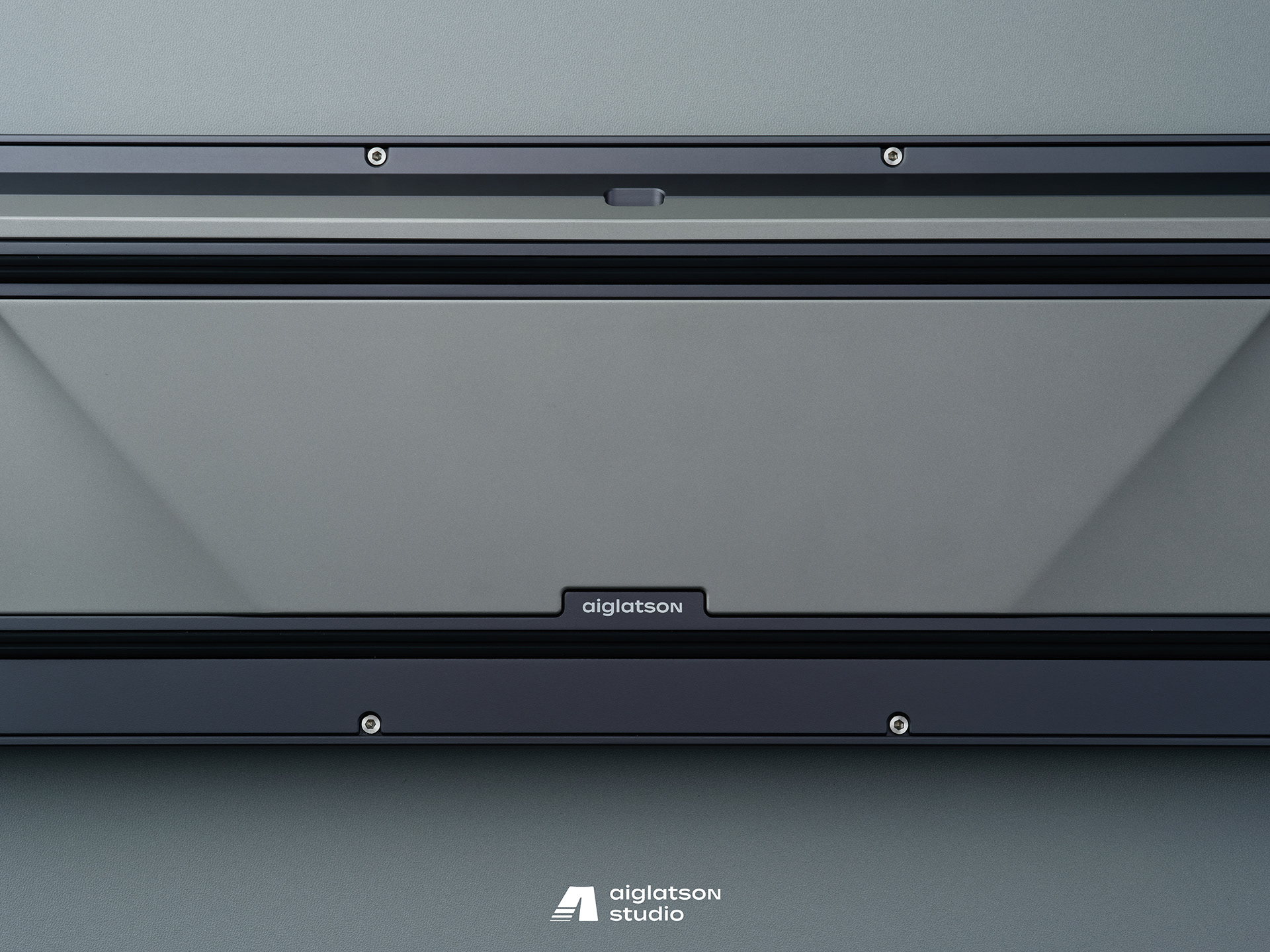

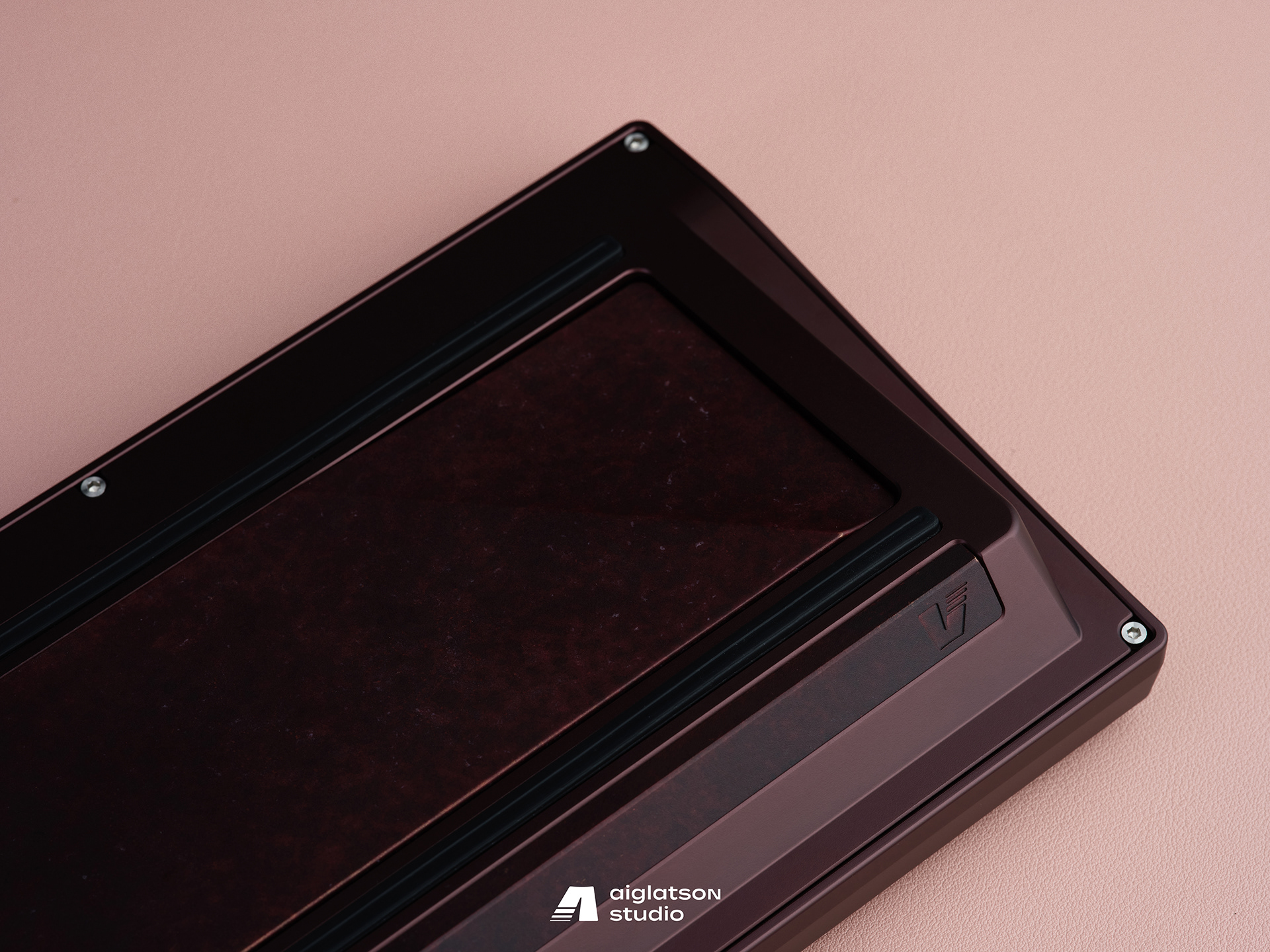

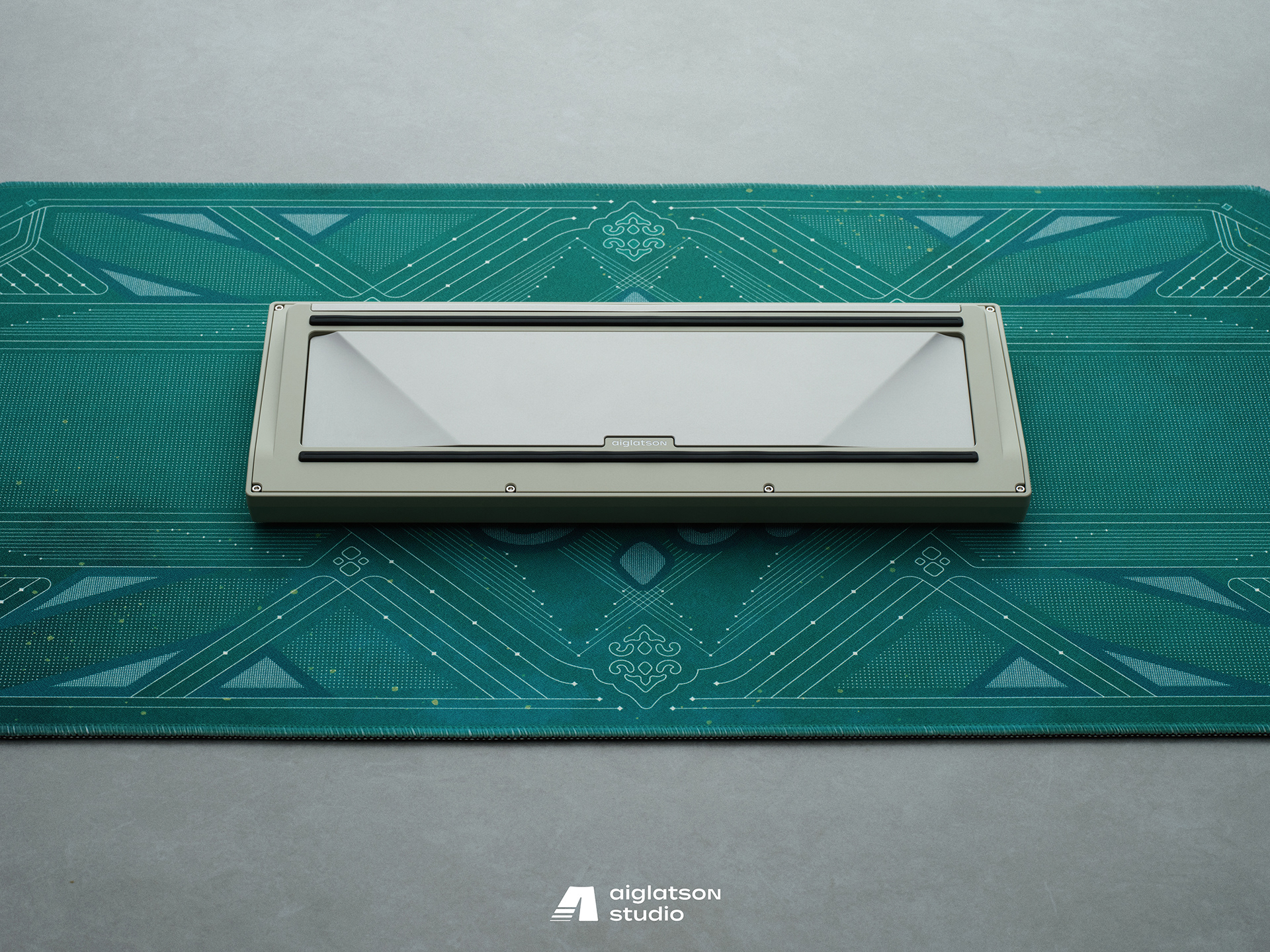

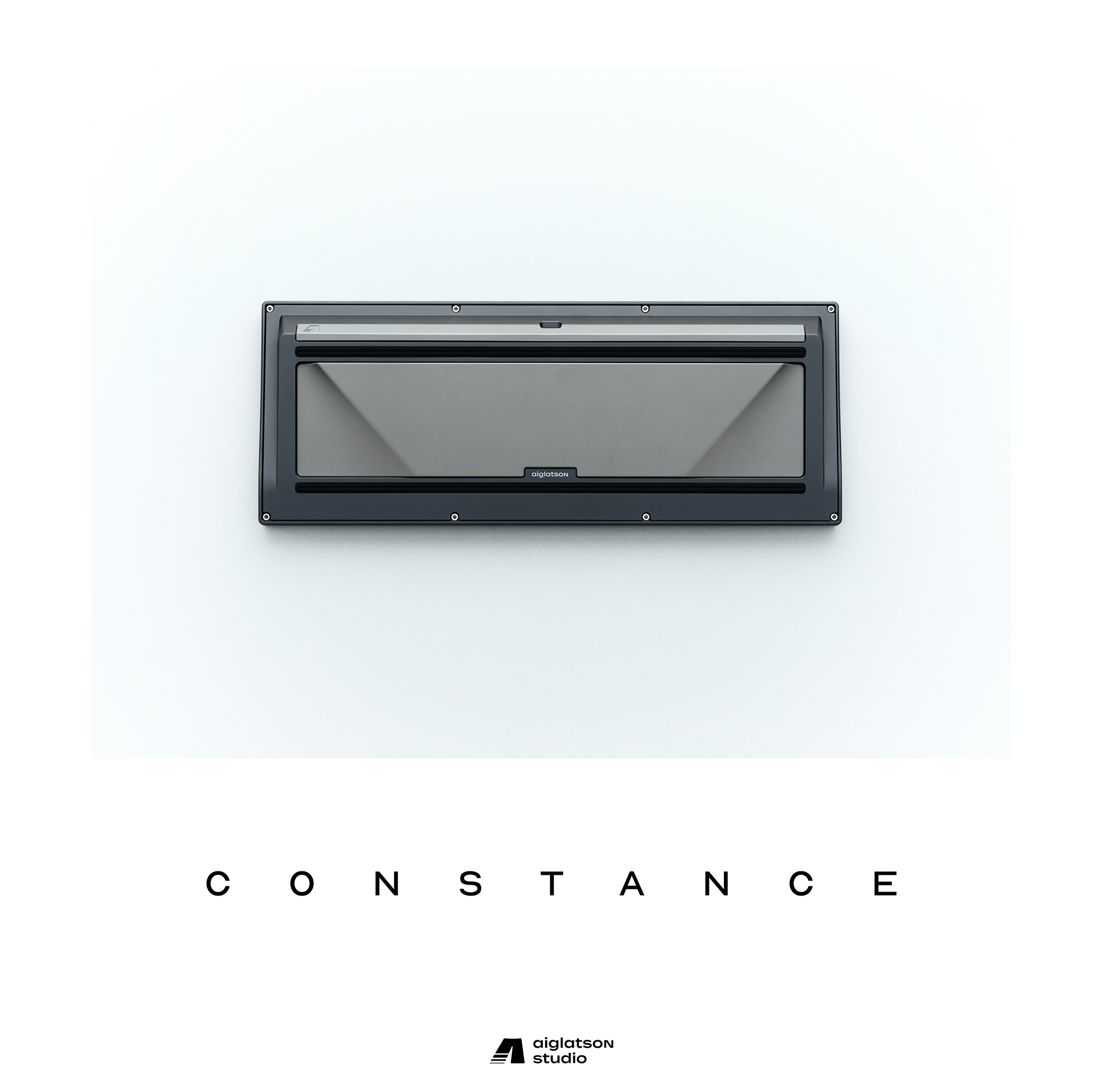

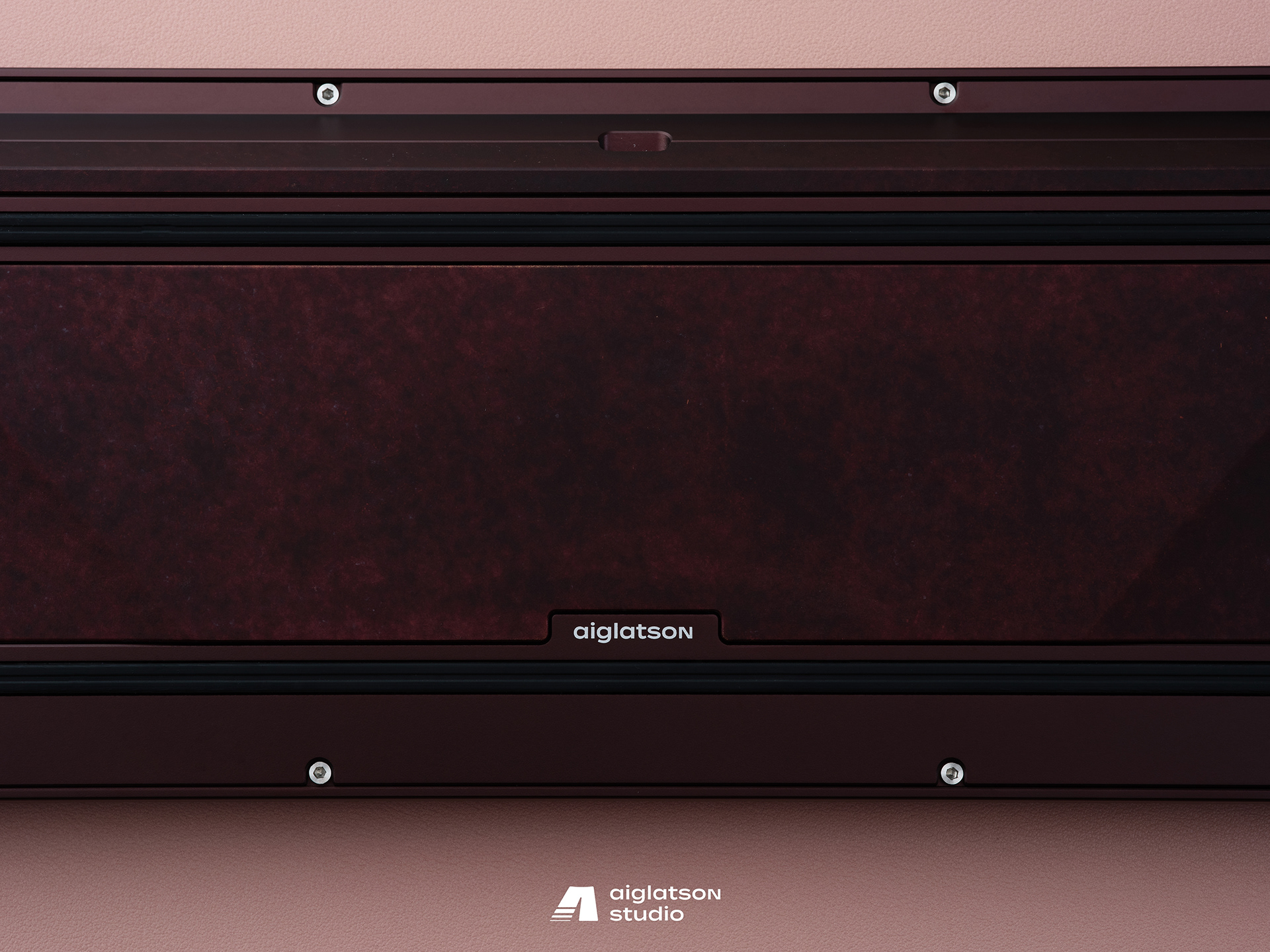

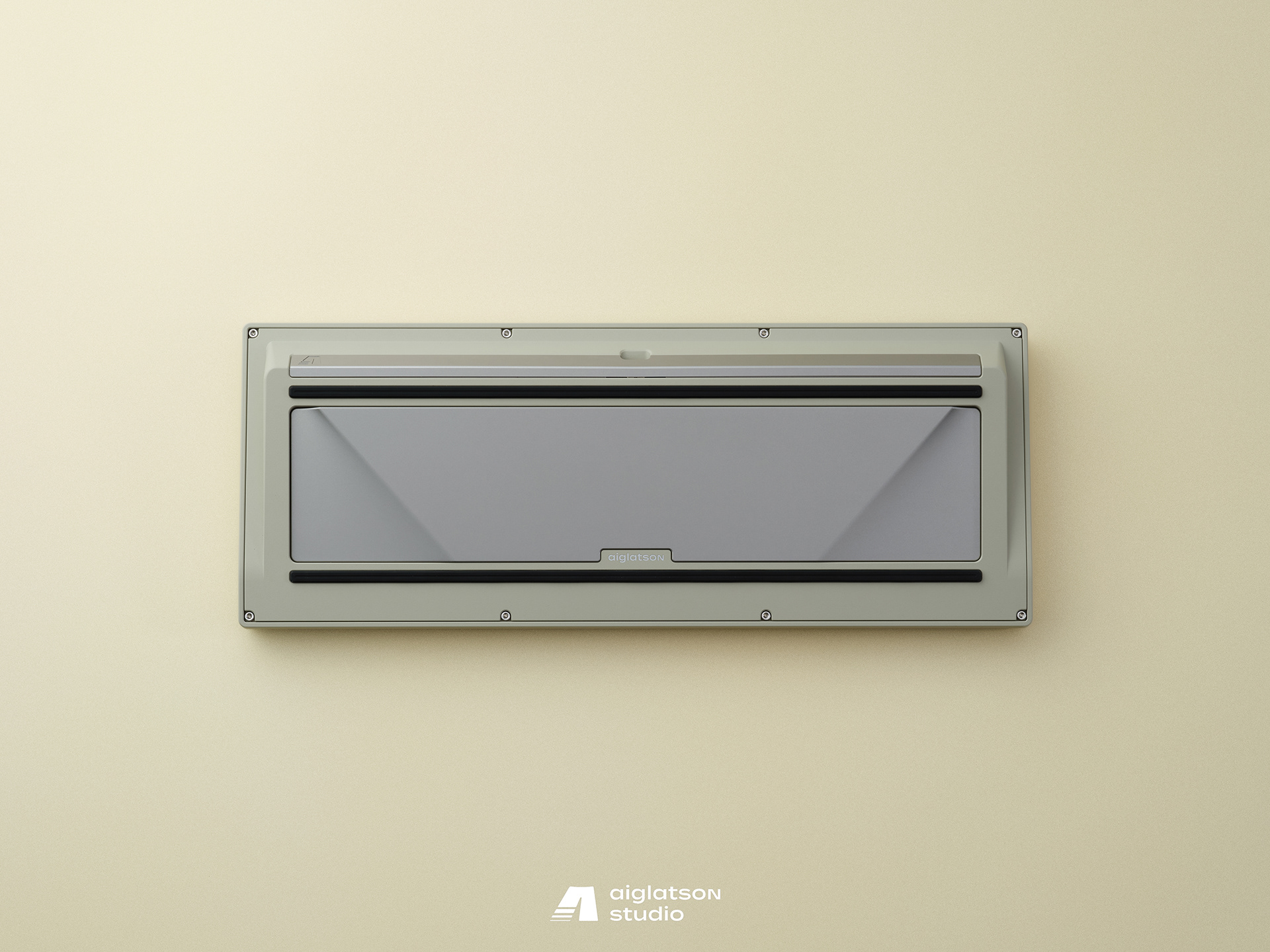

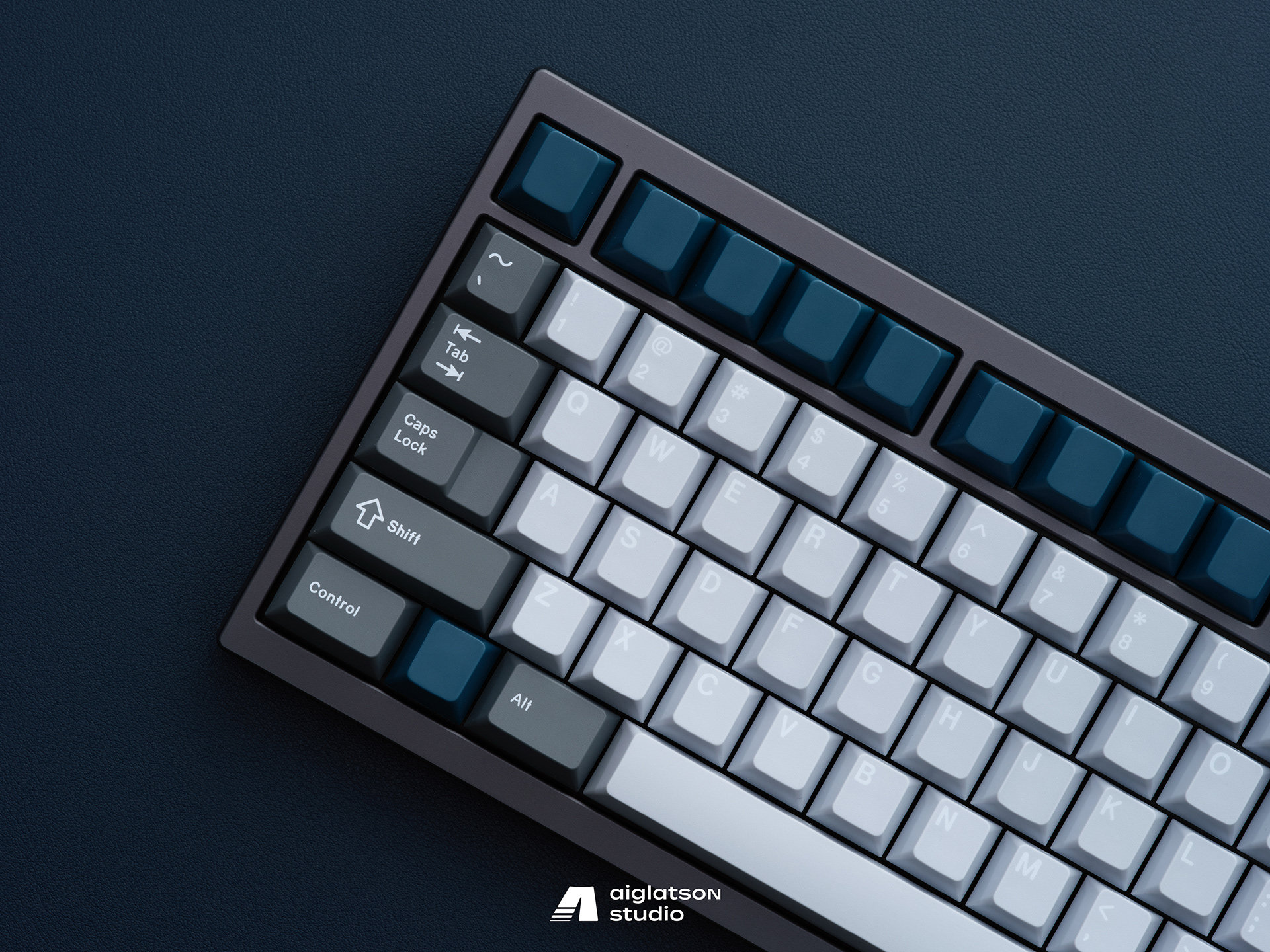

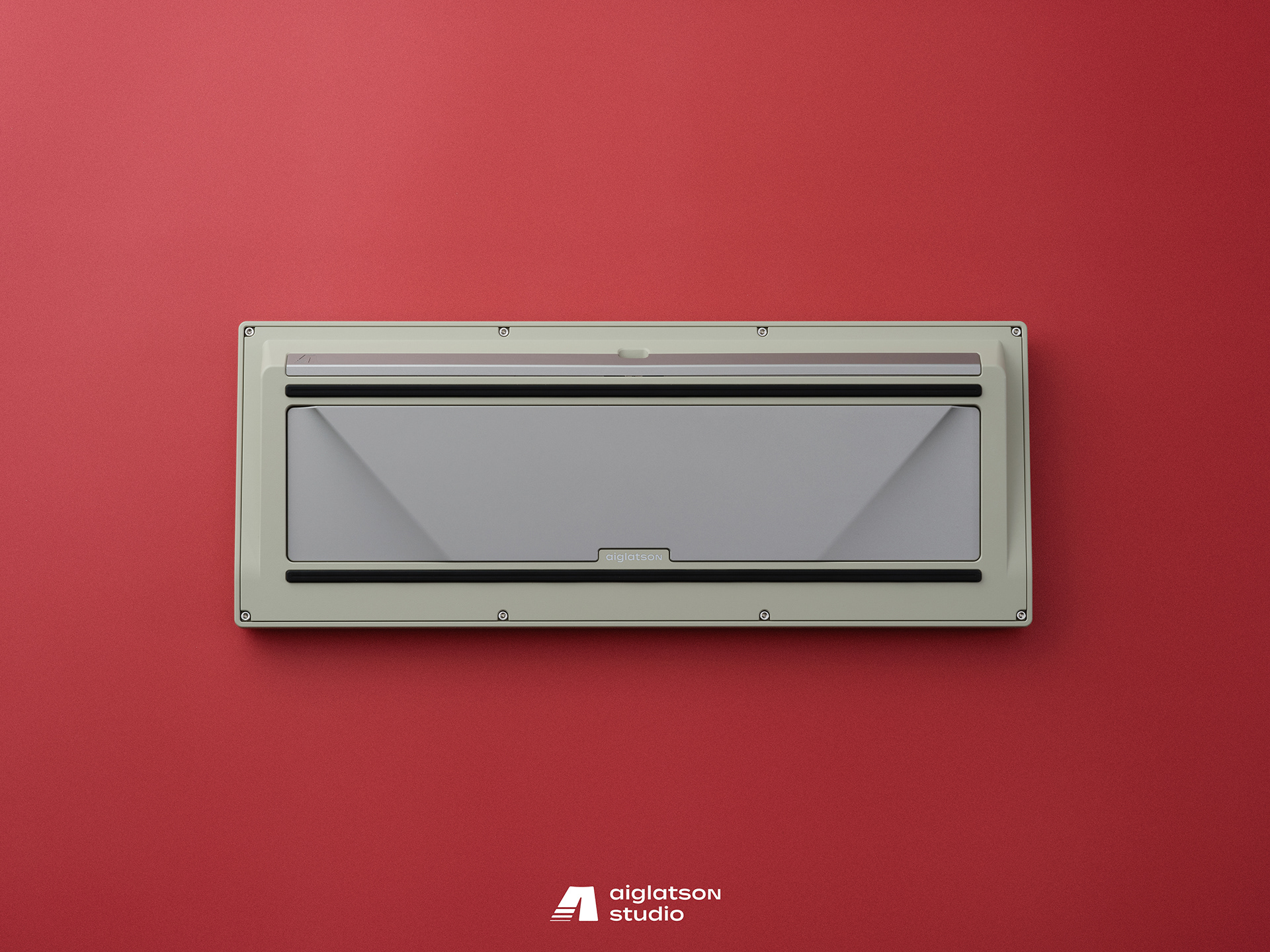

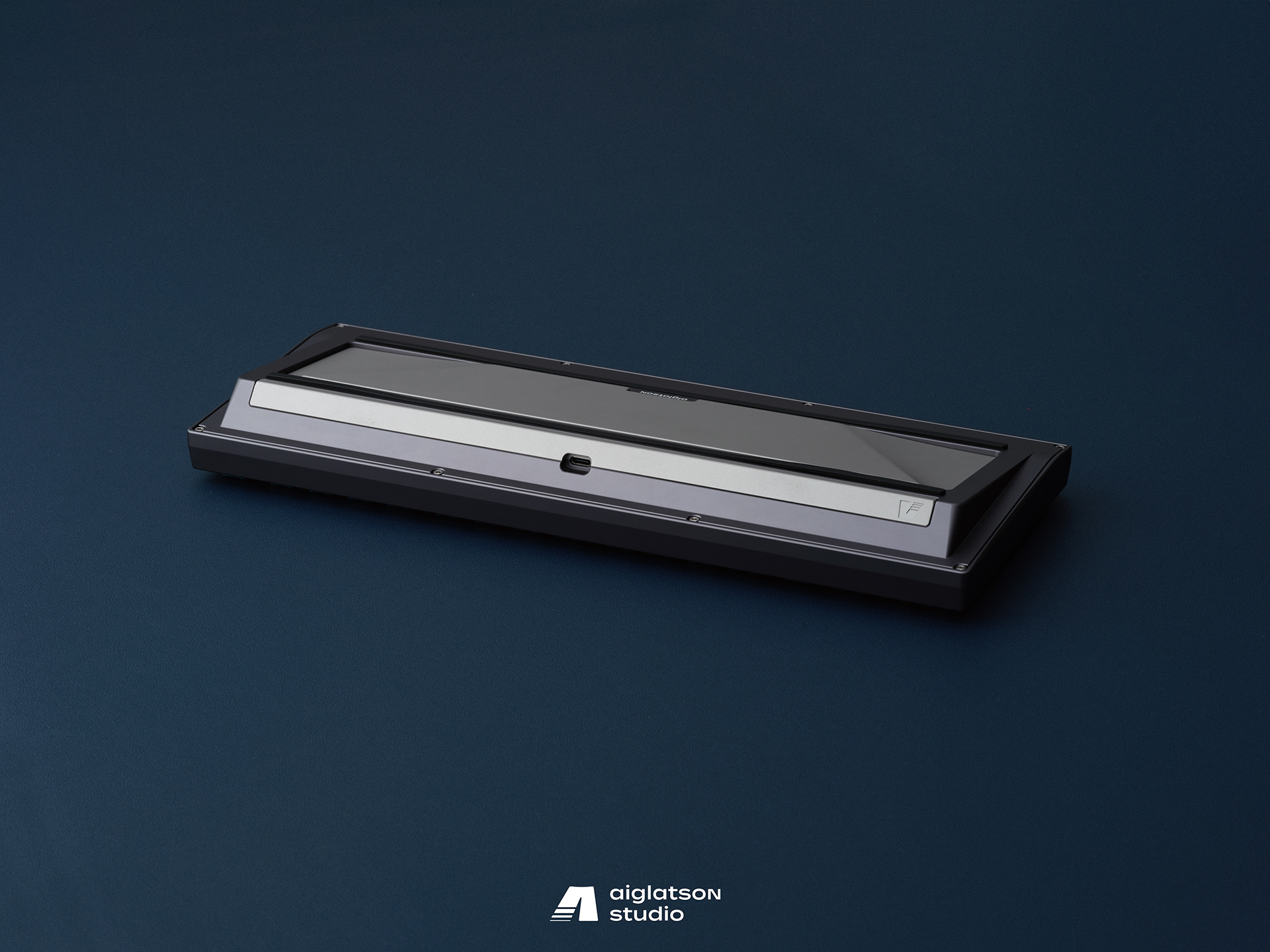

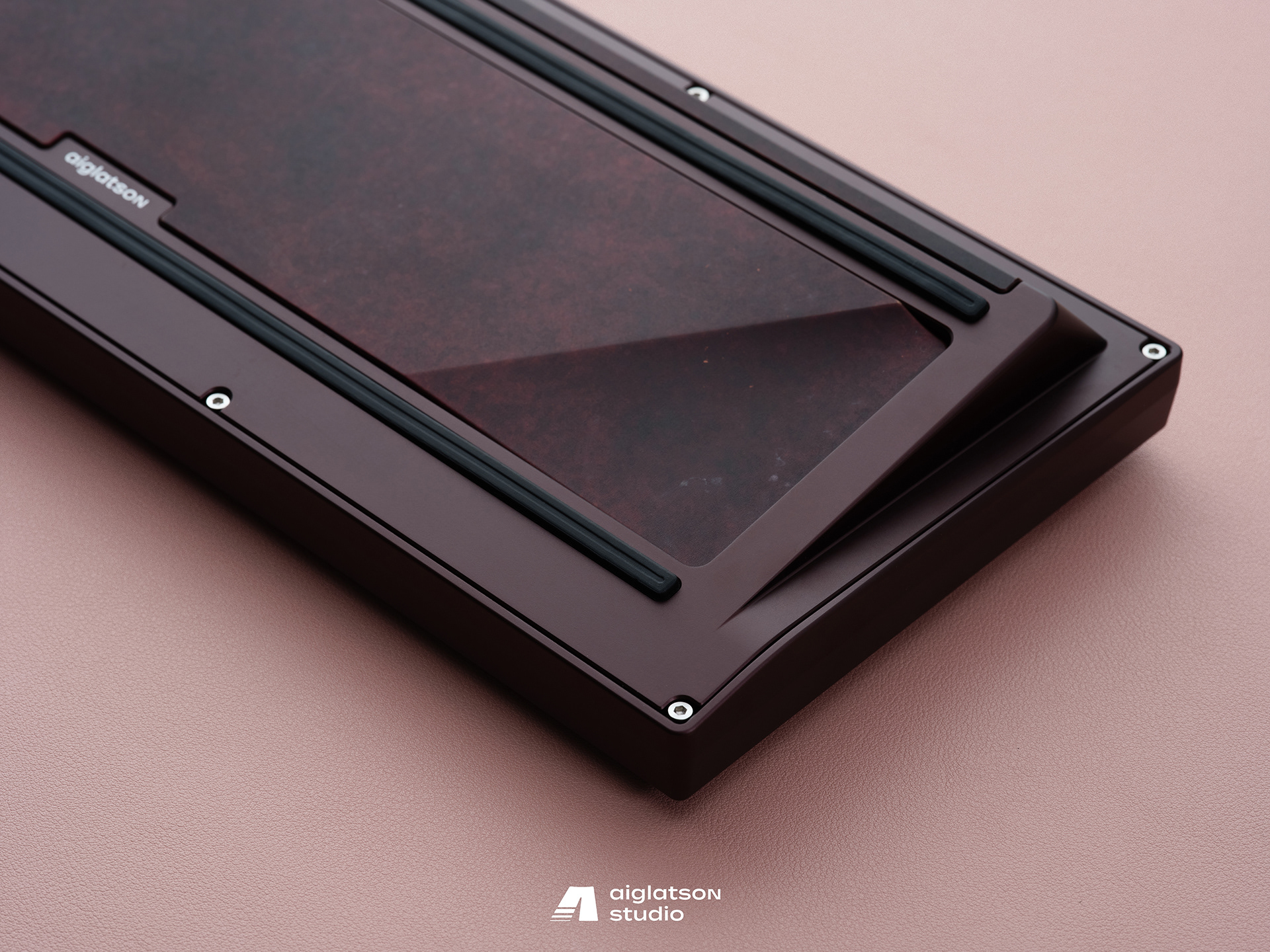

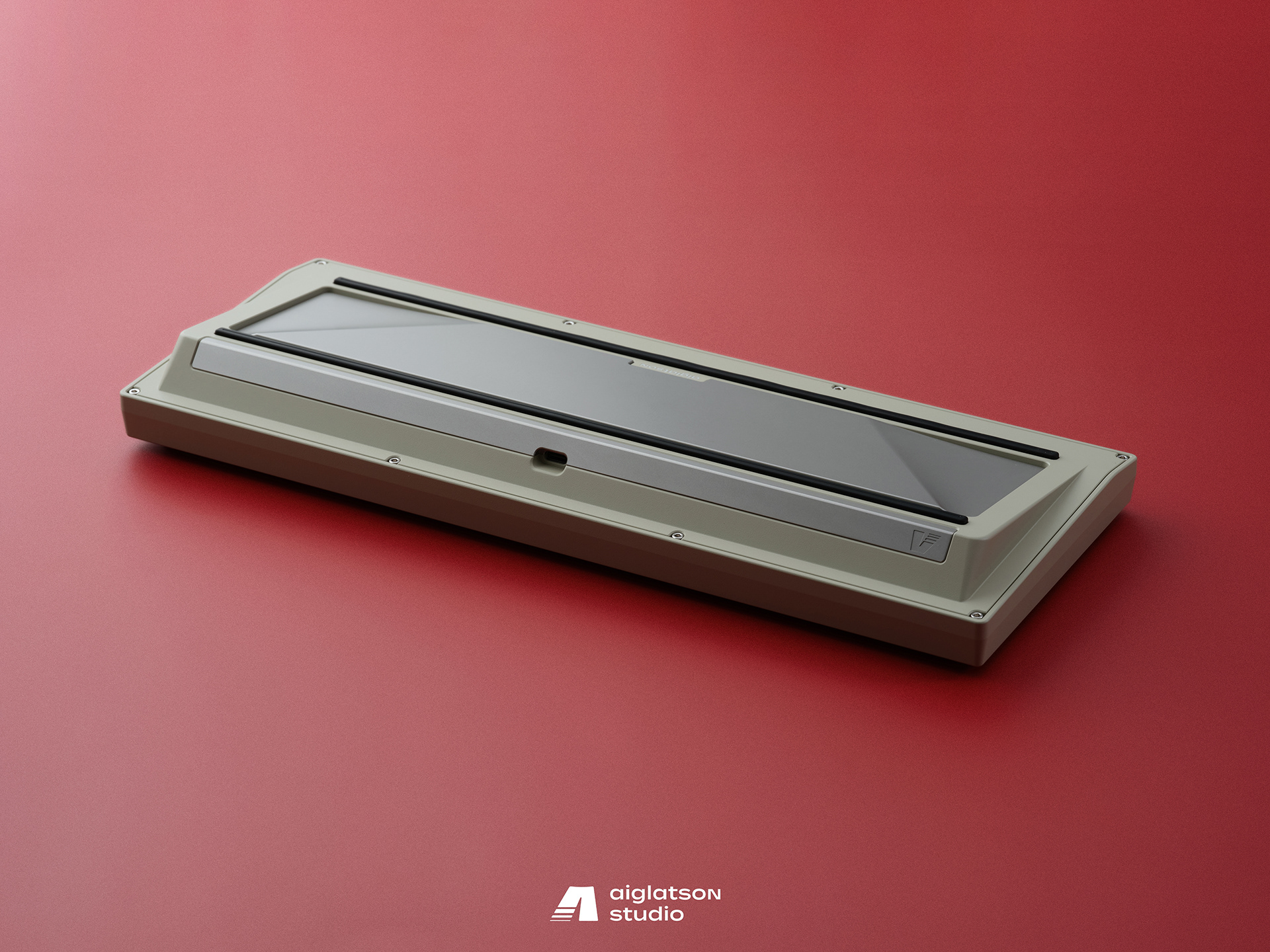

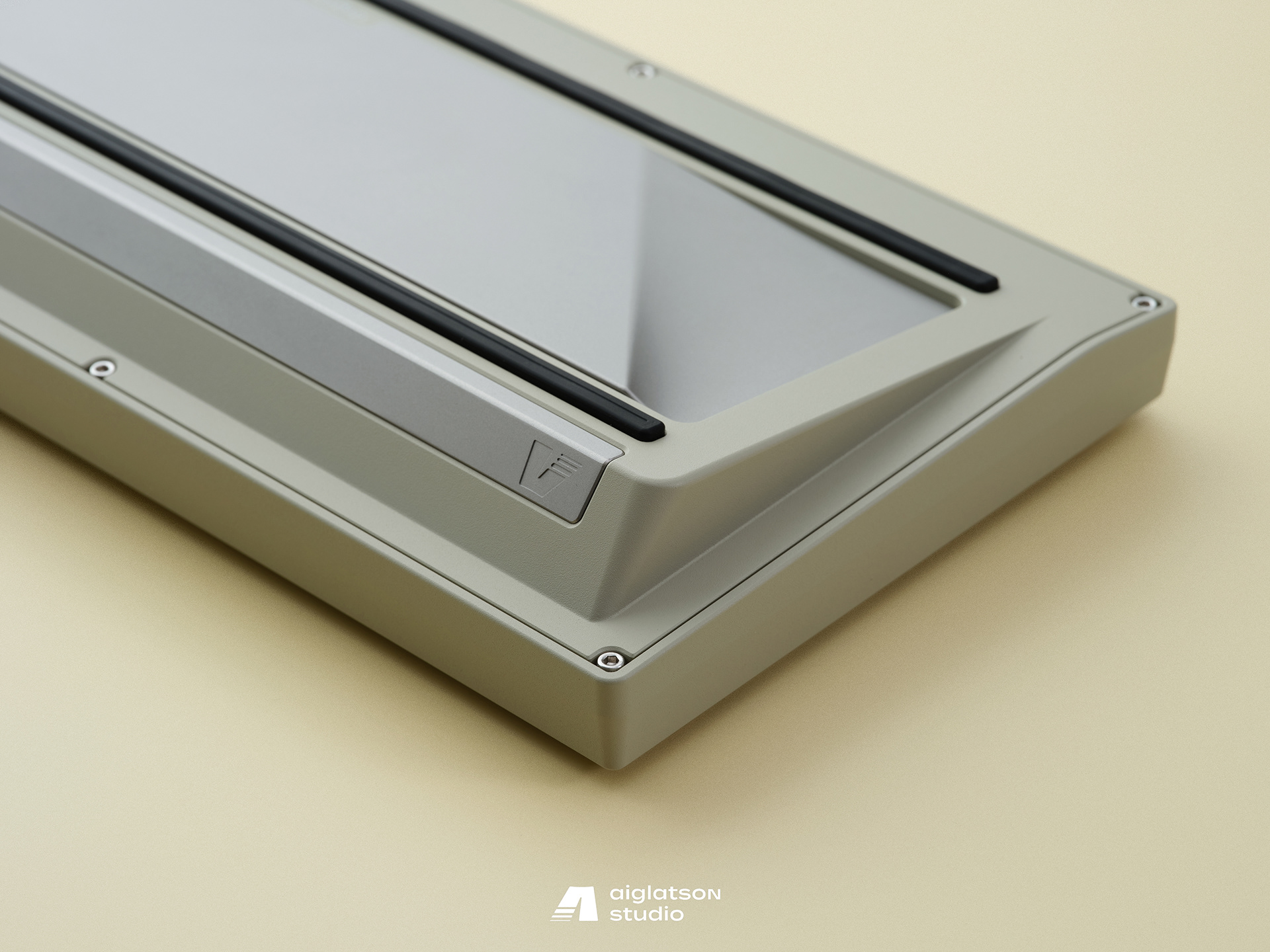

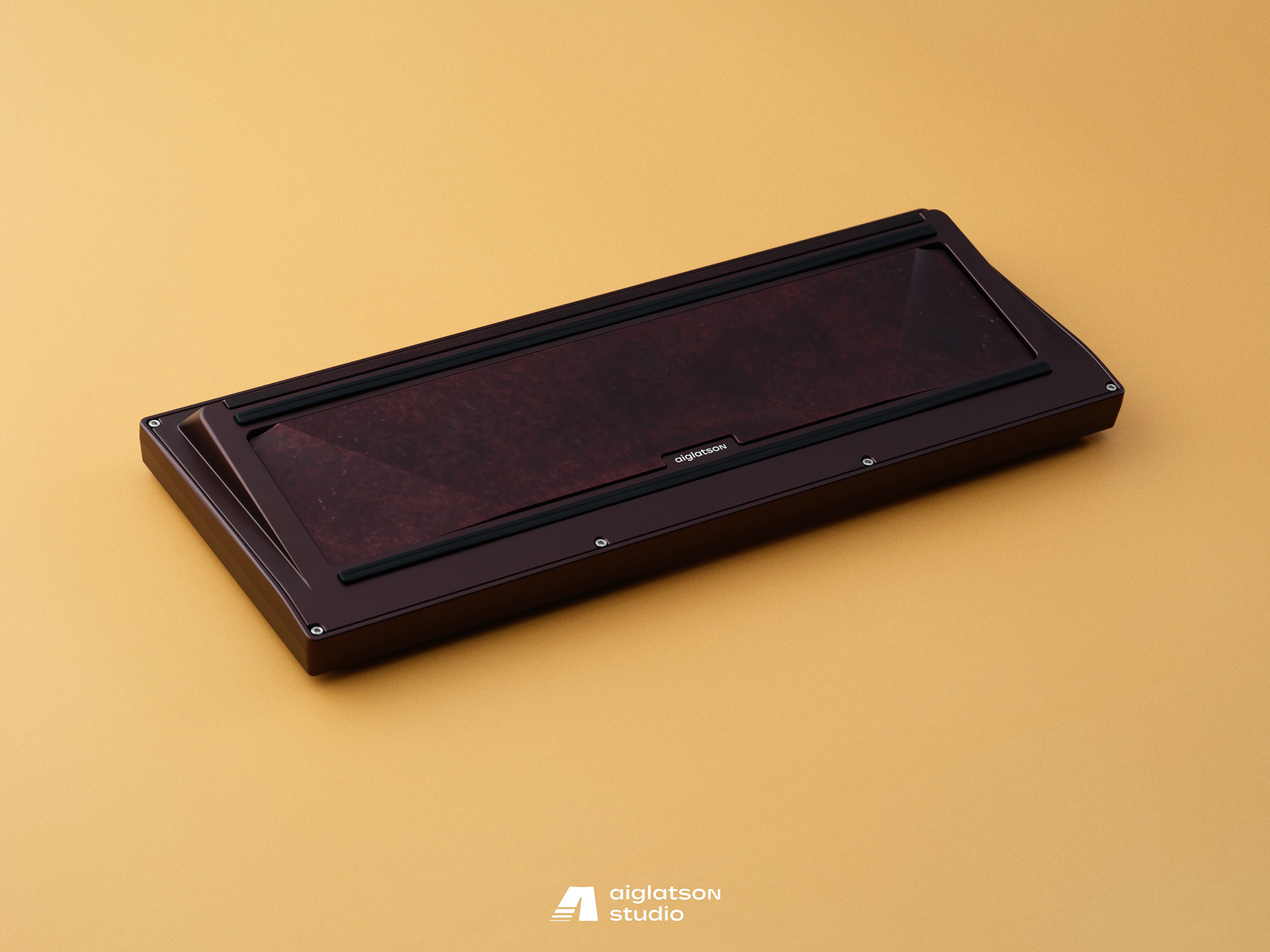

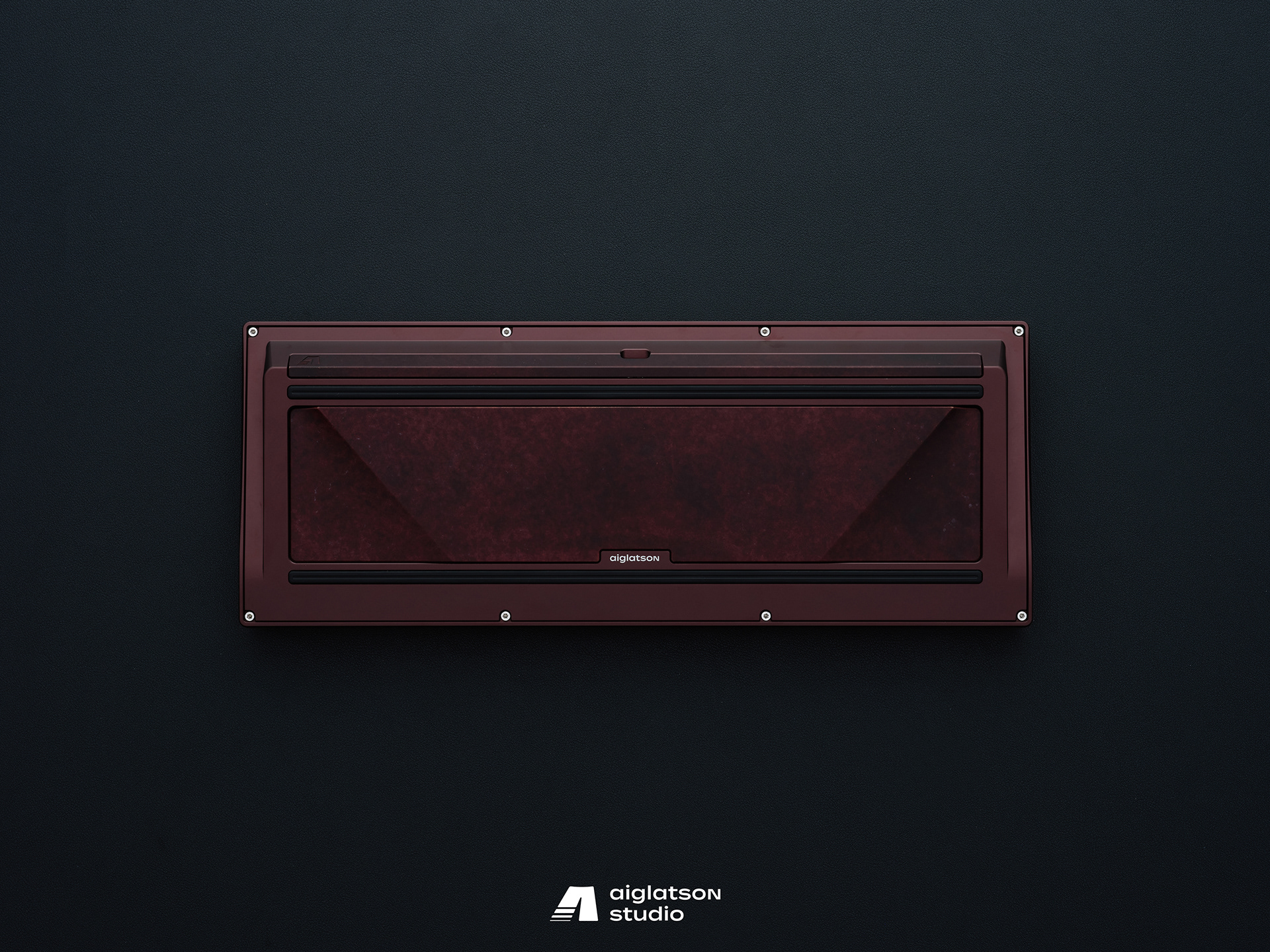

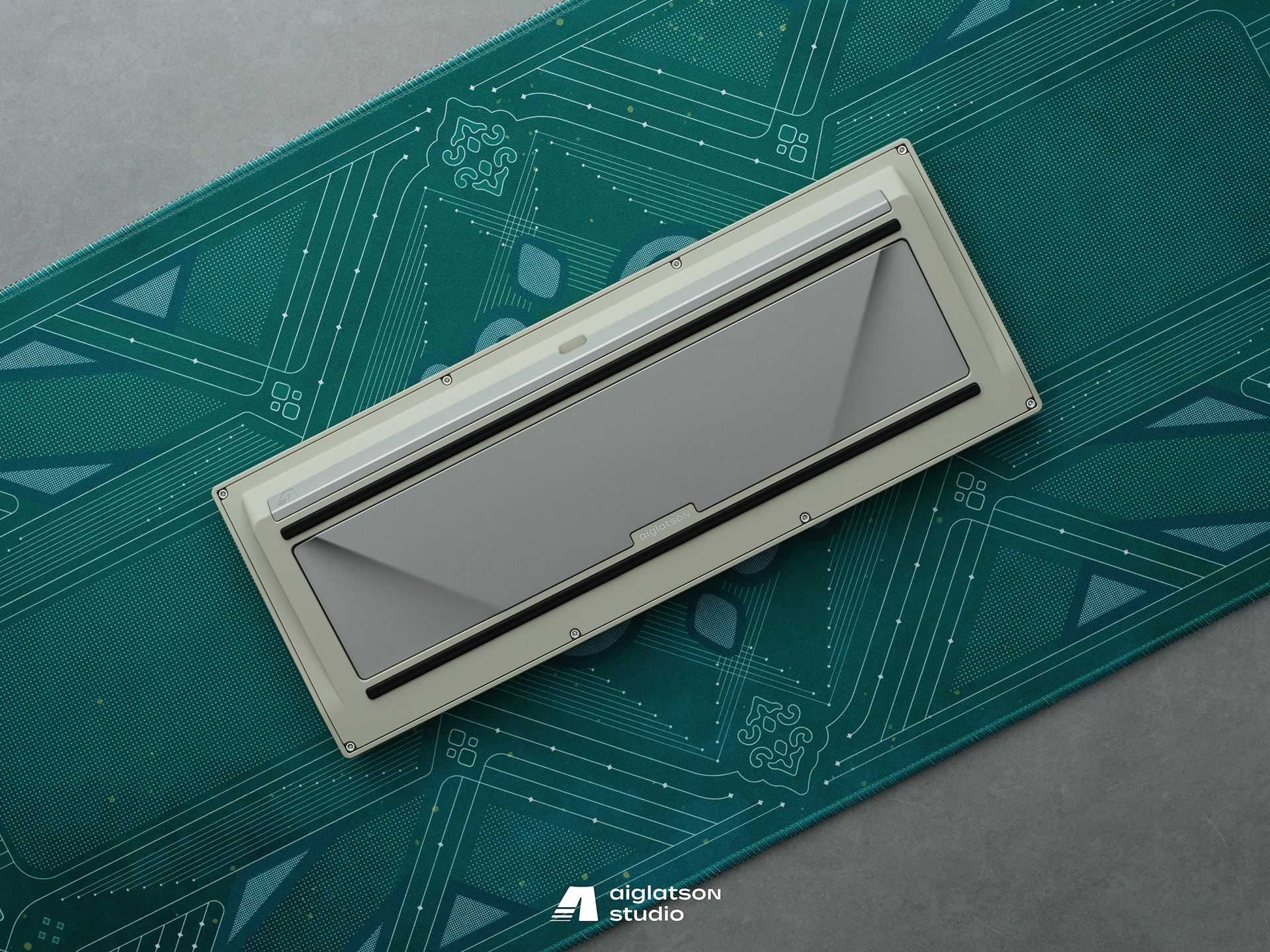

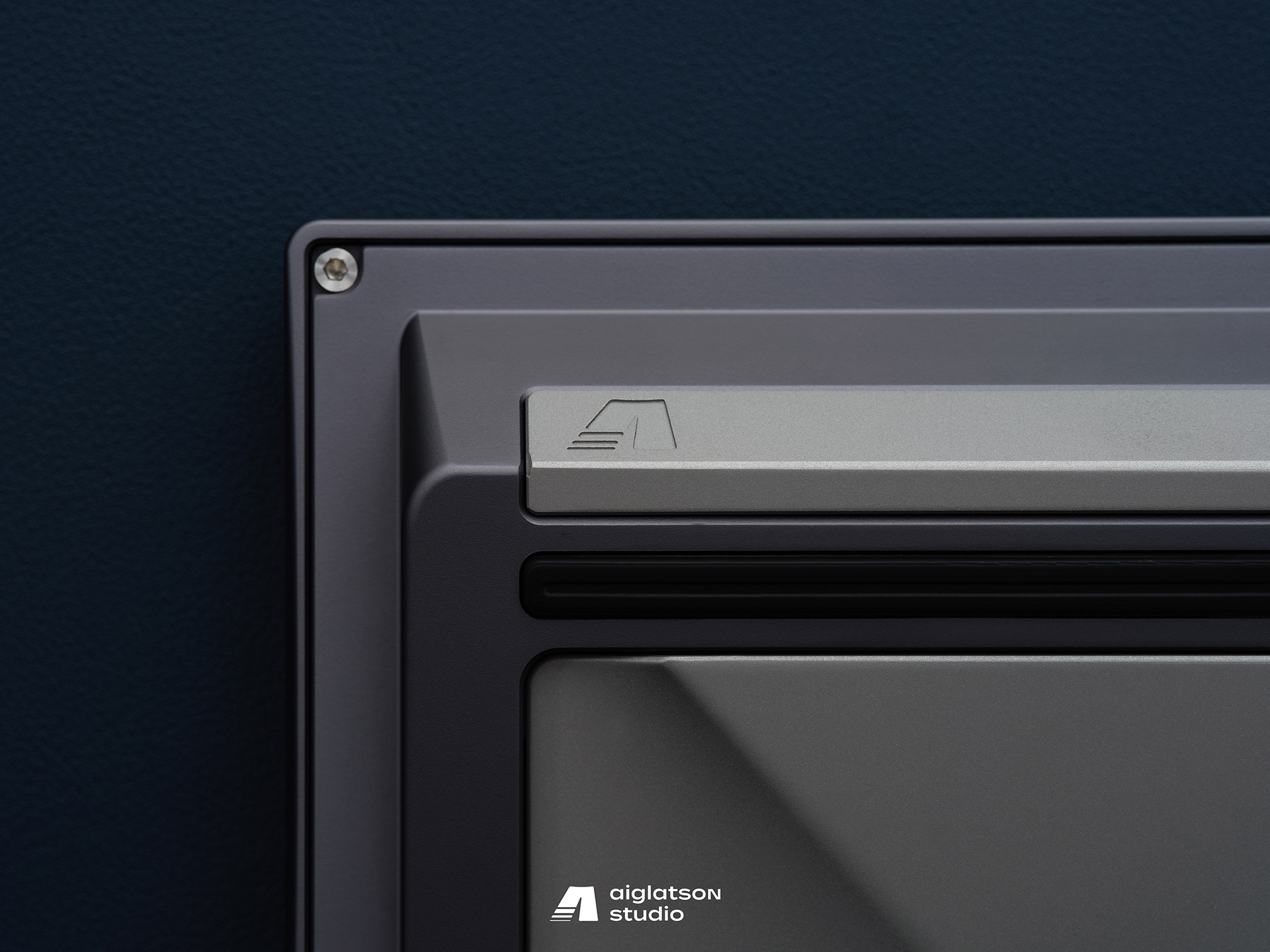

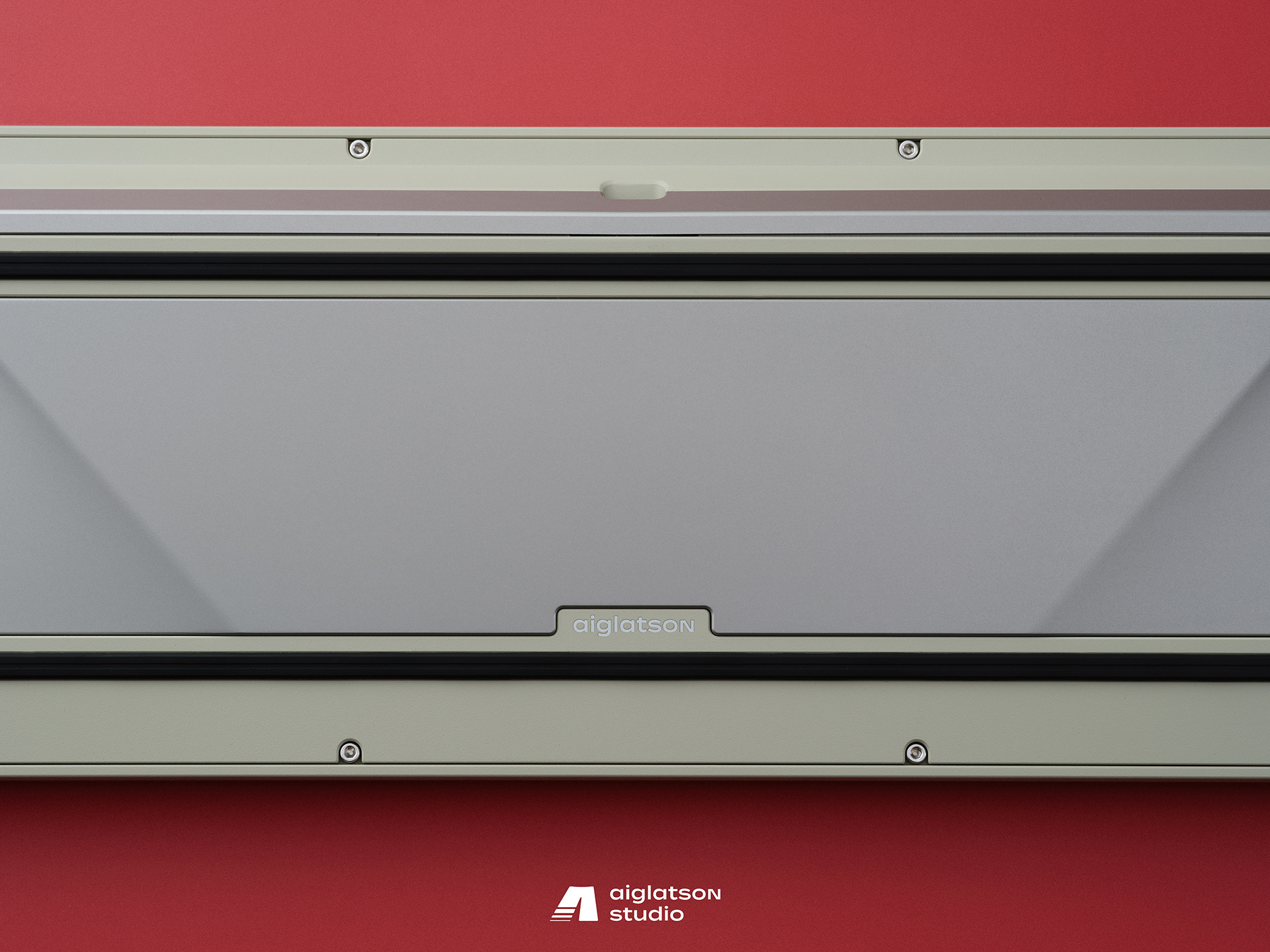

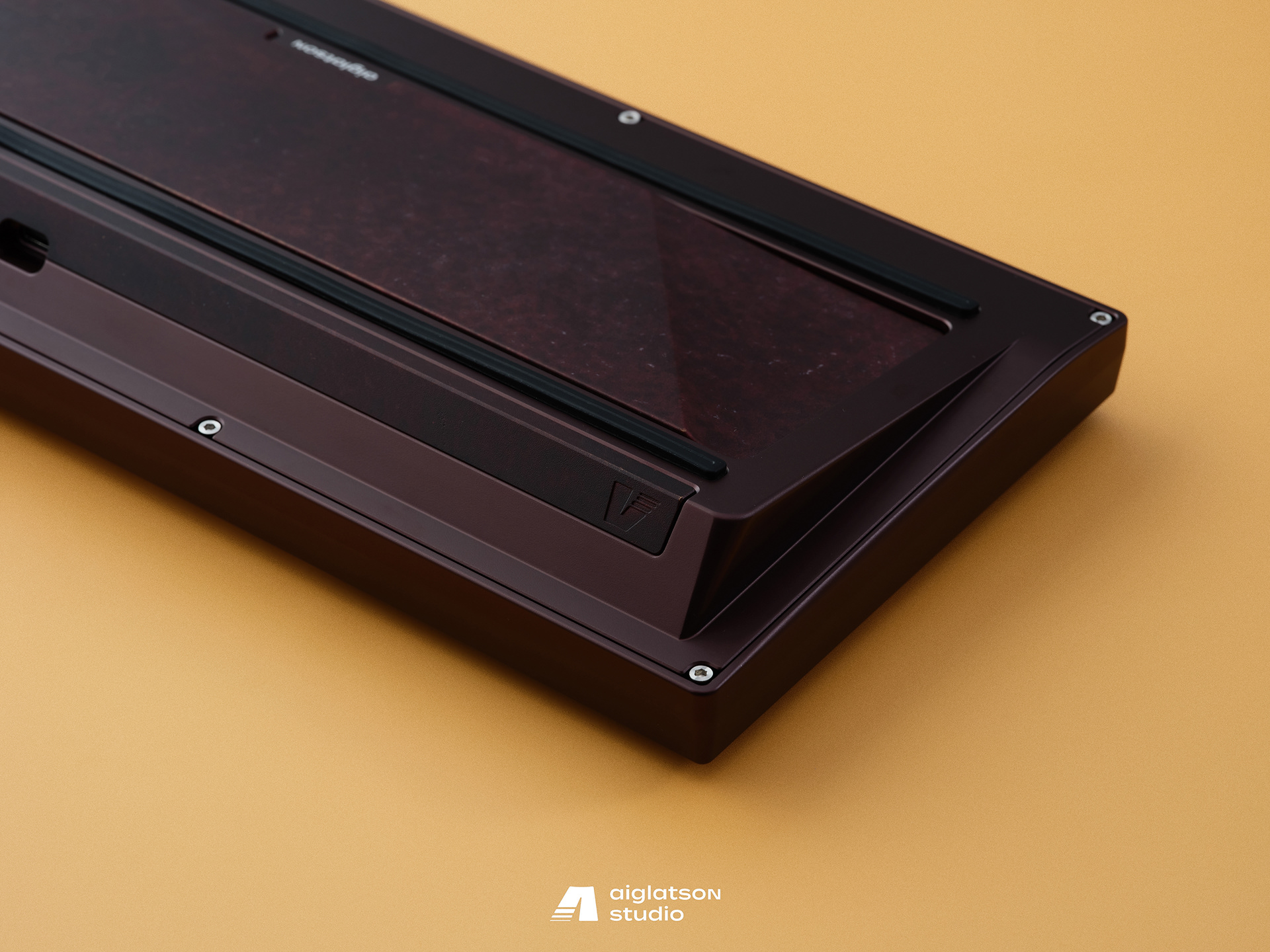

The Top Case is designed to be simple and clean, with soft-looking edges and corners. But the highlights of the board are the External Weight and Side Profile. The External Weight has a curved cut that plays with light to create dimension, and the Side Profile is the Classic HG Side, which has slightly curved cuts, making the overall design look unique, soft, and more comfortable to the eyes. Although overall this keyboard looks simple, every edge and corner has been carefully thought out for size and cutting angles, in order to make the Constance TKL design as detailed and perfect as possible.
